Figure 2 LCD Display
Y
Cautions
1) Please tear off its plastic film of battery before installing battery.
2) Please take out the battery at once if it runs out or doesn't use for a long time.
3) The battery should be installed with the"+,-"poles in right direction according
to battery housing label indication.
4) Please use the same specification CR2 brand battery. Explosion or leakage of
liquid due to the use of sub-CR2 batteries, we will not assume any responsibility.
5) Please don't put the battery together with metal items such as keys, coins in
one pocket or it may cause overheating by short circuit of the battery.
6) Don't keep the battery in extreme temperature environments.
7) Waste battery disposal please comply with local laws and regulations.

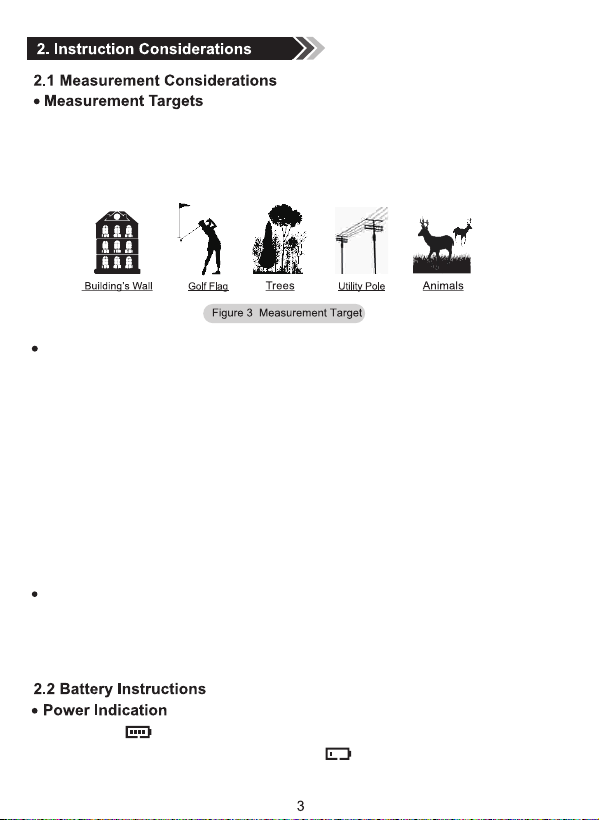

1) The measurement target is with moderate reflectivity,such as building walls.
2) The measured object is vertical with laser emission direction.
3) The weather condition is sunny but not direct sunlight.
Low battery, Please replace a new battery:
Full power:
The Range Ability of the Product Defined Under the Following Conditions:
The range finder is suitable for measuring high reflectivity objects (such as
highway's signpad), moderate reflectivity objects(such as building's wall) and low
reflectivity objects (such as tree, golf flag, utility pole, animal etc.) When the
reflectance is reduced to a certain extent, the range will be reduced accordingly.
4.1 H-100P
Note: If the measure fails, the measured value on the screen will display as:"--”
Figure 12
SD(slope distance)
SD/Angle/HD/VD
HD
(horizontal distance)
VD
(vertical distance)
The full LCD only shows when turn on. Some icons will not display while using.
LCD screen uses the most advanced technology, but this does not ensure
completely removal of dust. When using this product, the LCD screen will be in
high magnification and dust may appear in the form of defects, but does not affect
ranging function.
6.1 Transport/Storage/Maintenance/Disposal
Storage : Please keep the product out of reach of children. Don't put it on a high
and unsteady place to prevent falling on the ground. Do not place the product in
a high temperature environment or it may cause damage of the products.
Transport: Please add enough cushioning material in the box to avoid damaging
the machine while in transport. When the machine falls on the ground, and makes
a strange noise, please remove the battery immediately and stop using.
Maintenance: If the product is used in rapidly changing temperature, The lens
surface will covered by fog. So please don't use it before the fog evaporates.
Please clean with lens cloth but not your hands when it is dirty, or it may cause
damage to the glass coating.
Disposal: The product package and discarded products should be recycled or
disposed properly in accordance with local laws.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential install-
ation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Shielded
interface cable must be used with the equipment in order to comply with the limits
for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Specifications
and designs are subject to change without any notice or obligation on the part of
the manufacturer.
0624 V1.1
Power on: Press the power button for more than 2 seconds and all the signs will show
on the LCD screen. If only short press the power button, the LCD screen just displays
last used or default mode signs, but not all signs.
Power off: The product will shutdown automatically in 8 seconds if no any operations.

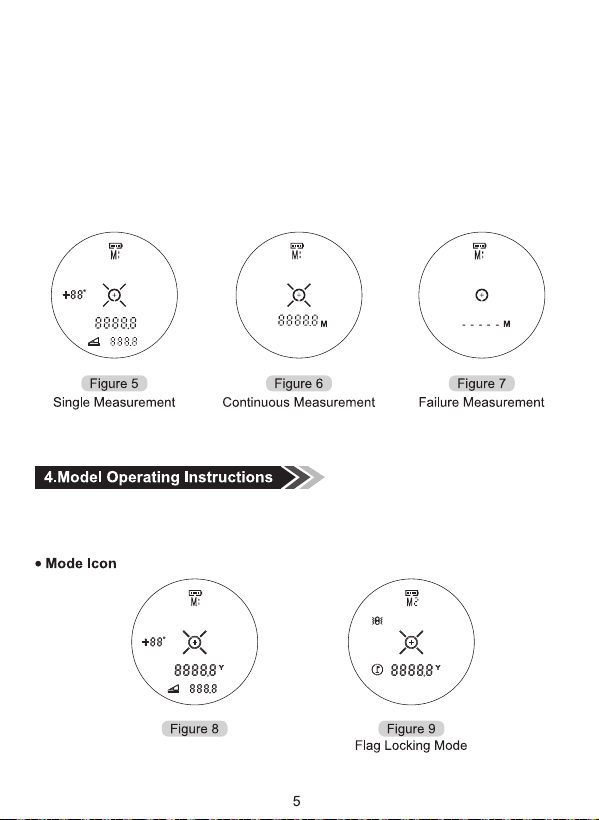

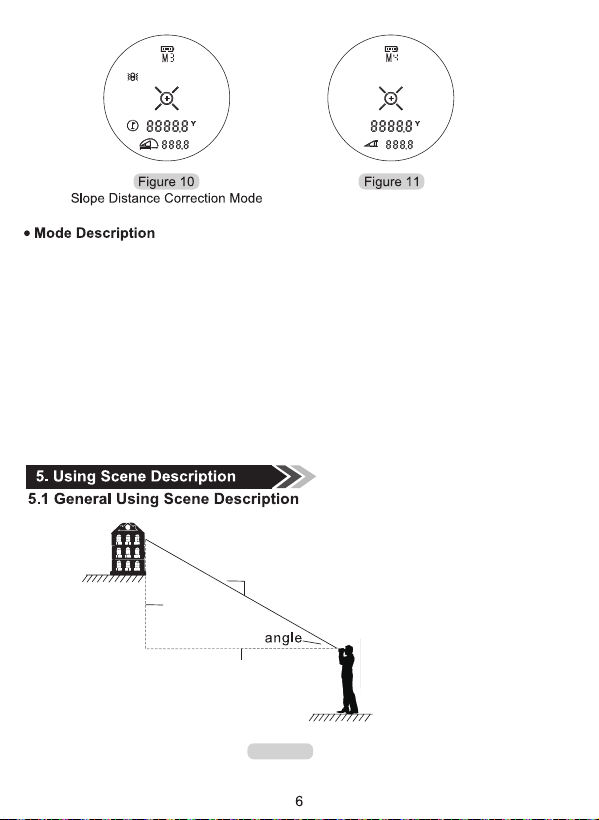

1) M1 Mode: Short press the power button to measure straight-line distance, horizontal
distance and angle.(as figure 8)
2)M2 Mode: Non-slope mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The straight-line distance will display on the
screen.(as figure 9)
3) M3 Mode: Training mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The distance with slope compensation will display
on the bottom of the screen.(as figure 10)
4) M4 mode: Short press the power button, you can measure straight-line distance and
vertical distance.(as figure11)
The model is a function-enhanced models for golf sports, with Range/Angle/
Flag locking/Slope distance correction/Vertical distance functions.
Referring to Figure 4, open the battery compartment cover by sliding it in the
direction of the arrow. Ensure each battery is inserted with the correct polarity
(+/-) as indicated inside the battery compartment. After loading the batteries,
close the battery door.
3.1 Power on/Power off

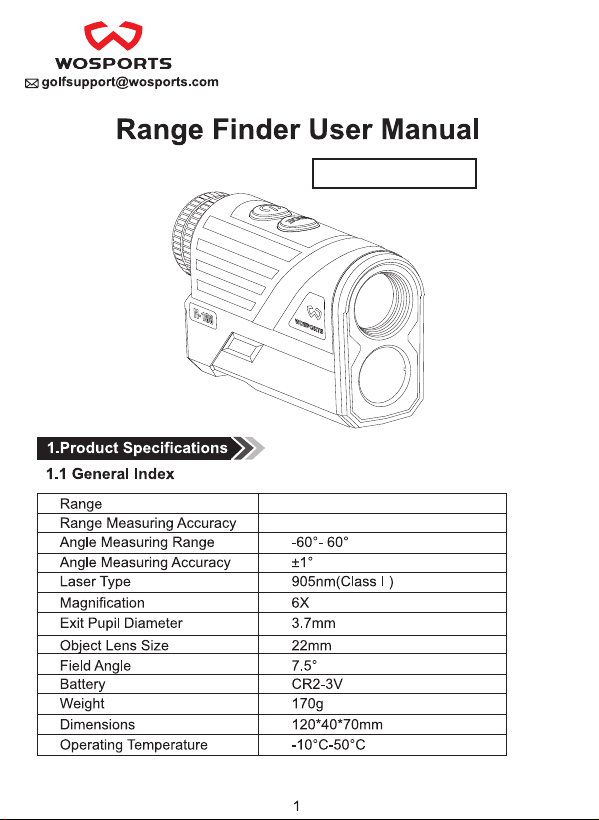

H-100P 1200 Yards
±1Y
5-1200(Y)

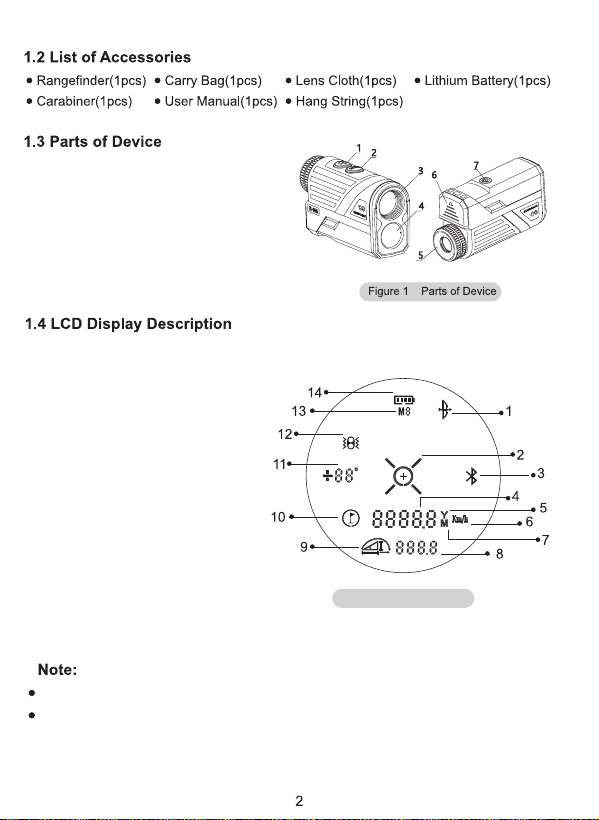

1.Power Button
2.Mode/Meter & Yard Select Button
3.Emitter/Objective Lens
4.Laser Receiving Aperture
5.Eyepiece Knob
6.Battery Lid
7.Tripod Nut
1.Bow Hunting
2.Target
3.Bluetooth
4.Range Data
5.Yard
6.Speed
7.Meter
8.Vertical/Horizontal Distance
9.Slope Distance Symbol
10.Flag Lock
11.Angle
12.Vibration
13.Model
14.Battery Indicator
Vertical Distance Mode
"M" or "Yard" Unit Setting: In the boot state, Long press of the mode button to
change the unit of length, M or Yard.
Mode Switching: In the boot state, press the mode button and keep less than
2 seconds, then measurement mode switch can be activated.
3.2 Unit/Mode Switching
1) Target Reflectivity: Generally speaking, the higher the reflectivity of the object,
the better the ranging ability. (It may be fail to measure the target that can hardly
create diffuse reflection, such as water surface.)
2) Target Shape: When a target is too small or uneven, ranging capability and
range corresponding speed will decrease.
3) Measuring Angle: The ranging ability would be better if the measured object is
vertical with laser emission's direction. It's possible that the measuring range cannot
meet the ranging ability specified in the manual under some extreme conditions.
4) Environment Factor: The environment factors including sunshine intensity, the
concentration of water vapor in the air and suspended particles. (such as rain fog,
snow, fog, haze, etc.)
Factors that Influence Ranging Capability
Single Measurement Mode
3.3 Single Measurement / Continuous Measurement / Failure
Measurement
Single Measurement: Short press the power button to start single measurement.
Continuous Measurement: In M1 Mode, press the power button and keep over 2
seconds, the measured distance value displayed alternately on the LCD screen, and
the target sign+ will show on the screen until release the power button.
Failure Measurement: Failure Measurement shows like figure 7. The product will
shut down automatically in 8 seconds if no any operations. Press the power button
again and it will start on.
Figure 2 LCD Display
Y
Cautions
1) Please tear off its plastic film of battery before installing battery.
2) Please take out the battery at once if it runs out or doesn't use for a long time.
3) The battery should be installed with the"+,-"poles in right direction according
to battery housing label indication.
4) Please use the same specification CR2 brand battery. Explosion or leakage of
liquid due to the use of sub-CR2 batteries, we will not assume any responsibility.
5) Please don't put the battery together with metal items such as keys, coins in
one pocket or it may cause overheating by short circuit of the battery.
6) Don't keep the battery in extreme temperature environments.
7) Waste battery disposal please comply with local laws and regulations.
1) The measurement target is with moderate reflectivity,such as building walls.
2) The measured object is vertical with laser emission direction.
3) The weather condition is sunny but not direct sunlight.
Low battery, Please replace a new battery:
Full power:
The Range Ability of the Product Defined Under the Following Conditions:
The range finder is suitable for measuring high reflectivity objects (such as
highway's signpad), moderate reflectivity objects(such as building's wall) and low
reflectivity objects (such as tree, golf flag, utility pole, animal etc.) When the
reflectance is reduced to a certain extent, the range will be reduced accordingly.
4.1 H-100P
Note: If the measure fails, the measured value on the screen will display as:"--”
Figure 12
SD(slope distance)
SD/Angle/HD/VD
HD
(horizontal distance)
VD
(vertical distance)
The full LCD only shows when turn on. Some icons will not display while using.
LCD screen uses the most advanced technology, but this does not ensure
completely removal of dust. When using this product, the LCD screen will be in
high magnification and dust may appear in the form of defects, but does not affect
ranging function.
6.1 Transport/Storage/Maintenance/Disposal
Storage : Please keep the product out of reach of children. Don't put it on a high
and unsteady place to prevent falling on the ground. Do not place the product in
a high temperature environment or it may cause damage of the products.
Transport: Please add enough cushioning material in the box to avoid damaging
the machine while in transport. When the machine falls on the ground, and makes
a strange noise, please remove the battery immediately and stop using.
Maintenance: If the product is used in rapidly changing temperature, The lens
surface will covered by fog. So please don't use it before the fog evaporates.
Please clean with lens cloth but not your hands when it is dirty, or it may cause
damage to the glass coating.
Disposal: The product package and discarded products should be recycled or
disposed properly in accordance with local laws.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential install-
ation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Shielded
interface cable must be used with the equipment in order to comply with the limits
for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Specifications
and designs are subject to change without any notice or obligation on the part of
the manufacturer.
0624 V1.1
Power on: Press the power button for more than 2 seconds and all the signs will show
on the LCD screen. If only short press the power button, the LCD screen just displays
last used or default mode signs, but not all signs.
Power off: The product will shutdown automatically in 8 seconds if no any operations.
1) M1 Mode: Short press the power button to measure straight-line distance, horizontal
distance and angle.(as figure 8)
2)M2 Mode: Non-slope mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The straight-line distance will display on the
screen.(as figure 9)
3) M3 Mode: Training mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The distance with slope compensation will display
on the bottom of the screen.(as figure 10)
4) M4 mode: Short press the power button, you can measure straight-line distance and
vertical distance.(as figure11)
The model is a function-enhanced models for golf sports, with Range/Angle/
Flag locking/Slope distance correction/Vertical distance functions.
Referring to Figure 4, open the battery compartment cover by sliding it in the
direction of the arrow. Ensure each battery is inserted with the correct polarity
(+/-) as indicated inside the battery compartment. After loading the batteries,
close the battery door.
3.1 Power on/Power off
H-100P 1200 Yards
±1Y
5-1200(Y)
1.Power Button
2.Mode/Meter & Yard Select Button
3.Emitter/Objective Lens
4.Laser Receiving Aperture
5.Eyepiece Knob
6.Battery Lid
7.Tripod Nut
1.Bow Hunting
2.Target
3.Bluetooth
4.Range Data
5.Yard
6.Speed
7.Meter
8.Vertical/Horizontal Distance
9.Slope Distance Symbol
10.Flag Lock
11.Angle
12.Vibration
13.Model
14.Battery Indicator
Vertical Distance Mode
"M" or "Yard" Unit Setting: In the boot state, Long press of the mode button to
change the unit of length, M or Yard.
Mode Switching: In the boot state, press the mode button and keep less than
2 seconds, then measurement mode switch can be activated.
3.2 Unit/Mode Switching
1) Target Reflectivity: Generally speaking, the higher the reflectivity of the object,
the better the ranging ability. (It may be fail to measure the target that can hardly
create diffuse reflection, such as water surface.)
2) Target Shape: When a target is too small or uneven, ranging capability and
range corresponding speed will decrease.
3) Measuring Angle: The ranging ability would be better if the measured object is
vertical with laser emission's direction. It's possible that the measuring range cannot
meet the ranging ability specified in the manual under some extreme conditions.
4) Environment Factor: The environment factors including sunshine intensity, the
concentration of water vapor in the air and suspended particles. (such as rain fog,
snow, fog, haze, etc.)
Factors that Influence Ranging Capability
Single Measurement Mode
3.3 Single Measurement / Continuous Measurement / Failure
Measurement
Single Measurement: Short press the power button to start single measurement.
Continuous Measurement: In M1 Mode, press the power button and keep over 2
seconds, the measured distance value displayed alternately on the LCD screen, and
the target sign+ will show on the screen until release the power button.
Failure Measurement: Failure Measurement shows like figure 7. The product will
shut down automatically in 8 seconds if no any operations. Press the power button
again and it will start on.
Figure 2 LCD Display
Y
Cautions
1) Please tear off its plastic film of battery before installing battery.
2) Please take out the battery at once if it runs out or doesn't use for a long time.
3) The battery should be installed with the"+,-"poles in right direction according
to battery housing label indication.
4) Please use the same specification CR2 brand battery. Explosion or leakage of
liquid due to the use of sub-CR2 batteries, we will not assume any responsibility.
5) Please don't put the battery together with metal items such as keys, coins in
one pocket or it may cause overheating by short circuit of the battery.
6) Don't keep the battery in extreme temperature environments.
7) Waste battery disposal please comply with local laws and regulations.
1) The measurement target is with moderate reflectivity,such as building walls.
2) The measured object is vertical with laser emission direction.
3) The weather condition is sunny but not direct sunlight.
Low battery, Please replace a new battery:
Full power:
The Range Ability of the Product Defined Under the Following Conditions:
The range finder is suitable for measuring high reflectivity objects (such as
highway's signpad), moderate reflectivity objects(such as building's wall) and low
reflectivity objects (such as tree, golf flag, utility pole, animal etc.) When the
reflectance is reduced to a certain extent, the range will be reduced accordingly.
4.1 H-100P
Note: If the measure fails, the measured value on the screen will display as:"--”
Figure 12
SD(slope distance)
SD/Angle/HD/VD
HD
(horizontal distance)
VD
(vertical distance)
The full LCD only shows when turn on. Some icons will not display while using.
LCD screen uses the most advanced technology, but this does not ensure
completely removal of dust. When using this product, the LCD screen will be in
high magnification and dust may appear in the form of defects, but does not affect
ranging function.
6.1 Transport/Storage/Maintenance/Disposal
Storage : Please keep the product out of reach of children. Don't put it on a high
and unsteady place to prevent falling on the ground. Do not place the product in
a high temperature environment or it may cause damage of the products.
Transport: Please add enough cushioning material in the box to avoid damaging
the machine while in transport. When the machine falls on the ground, and makes
a strange noise, please remove the battery immediately and stop using.
Maintenance: If the product is used in rapidly changing temperature, The lens
surface will covered by fog. So please don't use it before the fog evaporates.
Please clean with lens cloth but not your hands when it is dirty, or it may cause
damage to the glass coating.
Disposal: The product package and discarded products should be recycled or
disposed properly in accordance with local laws.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential install-
ation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Shielded
interface cable must be used with the equipment in order to comply with the limits
for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Specifications
and designs are subject to change without any notice or obligation on the part of
the manufacturer.
0624 V1.1
Power on: Press the power button for more than 2 seconds and all the signs will show
on the LCD screen. If only short press the power button, the LCD screen just displays
last used or default mode signs, but not all signs.
Power off: The product will shutdown automatically in 8 seconds if no any operations.
1) M1 Mode: Short press the power button to measure straight-line distance, horizontal
distance and angle.(as figure 8)
2)M2 Mode: Non-slope mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The straight-line distance will display on the
screen.(as figure 9)
3) M3 Mode: Training mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The distance with slope compensation will display
on the bottom of the screen.(as figure 10)
4) M4 mode: Short press the power button, you can measure straight-line distance and
vertical distance.(as figure11)
The model is a function-enhanced models for golf sports, with Range/Angle/
Flag locking/Slope distance correction/Vertical distance functions.
Referring to Figure 4, open the battery compartment cover by sliding it in the
direction of the arrow. Ensure each battery is inserted with the correct polarity
(+/-) as indicated inside the battery compartment. After loading the batteries,
close the battery door.
3.1 Power on/Power off
H-100P 1200 Yards
±1Y
5-1200(Y)
1.Power Button
2.Mode/Meter & Yard Select Button
3.Emitter/Objective Lens
4.Laser Receiving Aperture
5.Eyepiece Knob
6.Battery Lid
7.Tripod Nut
1.Bow Hunting
2.Target
3.Bluetooth
4.Range Data
5.Yard
6.Speed
7.Meter
8.Vertical/Horizontal Distance
9.Slope Distance Symbol
10.Flag Lock
11.Angle
12.Vibration
13.Model
14.Battery Indicator
Vertical Distance Mode
"M" or "Yard" Unit Setting: In the boot state, Long press of the mode button to
change the unit of length, M or Yard.
Mode Switching: In the boot state, press the mode button and keep less than
2 seconds, then measurement mode switch can be activated.
3.2 Unit/Mode Switching
1) Target Reflectivity: Generally speaking, the higher the reflectivity of the object,
the better the ranging ability. (It may be fail to measure the target that can hardly
create diffuse reflection, such as water surface.)
2) Target Shape: When a target is too small or uneven, ranging capability and
range corresponding speed will decrease.
3) Measuring Angle: The ranging ability would be better if the measured object is
vertical with laser emission's direction. It's possible that the measuring range cannot
meet the ranging ability specified in the manual under some extreme conditions.
4) Environment Factor: The environment factors including sunshine intensity, the
concentration of water vapor in the air and suspended particles. (such as rain fog,
snow, fog, haze, etc.)
Factors that Influence Ranging Capability
Single Measurement Mode
3.3 Single Measurement / Continuous Measurement / Failure
Measurement
Single Measurement: Short press the power button to start single measurement.
Continuous Measurement: In M1 Mode, press the power button and keep over 2
seconds, the measured distance value displayed alternately on the LCD screen, and
the target sign+ will show on the screen until release the power button.
Failure Measurement: Failure Measurement shows like figure 7. The product will
shut down automatically in 8 seconds if no any operations. Press the power button
again and it will start on.
Figure 2 LCD Display
Y
Cautions
1) Please tear off its plastic film of battery before installing battery.
2) Please take out the battery at once if it runs out or doesn't use for a long time.
3) The battery should be installed with the"+,-"poles in right direction according
to battery housing label indication.
4) Please use the same specification CR2 brand battery. Explosion or leakage of
liquid due to the use of sub-CR2 batteries, we will not assume any responsibility.
5) Please don't put the battery together with metal items such as keys, coins in
one pocket or it may cause overheating by short circuit of the battery.
6) Don't keep the battery in extreme temperature environments.
7) Waste battery disposal please comply with local laws and regulations.
1) The measurement target is with moderate reflectivity,such as building walls.
2) The measured object is vertical with laser emission direction.
3) The weather condition is sunny but not direct sunlight.
Low battery, Please replace a new battery:
Full power:
The Range Ability of the Product Defined Under the Following Conditions:
The range finder is suitable for measuring high reflectivity objects (such as
highway's signpad), moderate reflectivity objects(such as building's wall) and low
reflectivity objects (such as tree, golf flag, utility pole, animal etc.) When the
reflectance is reduced to a certain extent, the range will be reduced accordingly.
4.1 H-100P
Note: If the measure fails, the measured value on the screen will display as:"--”
Figure 12
SD(slope distance)
SD/Angle/HD/VD
HD
(horizontal distance)
VD
(vertical distance)
The full LCD only shows when turn on. Some icons will not display while using.
LCD screen uses the most advanced technology, but this does not ensure
completely removal of dust. When using this product, the LCD screen will be in
high magnification and dust may appear in the form of defects, but does not affect
ranging function.
6.1 Transport/Storage/Maintenance/Disposal
Storage : Please keep the product out of reach of children. Don't put it on a high
and unsteady place to prevent falling on the ground. Do not place the product in
a high temperature environment or it may cause damage of the products.
Transport: Please add enough cushioning material in the box to avoid damaging
the machine while in transport. When the machine falls on the ground, and makes
a strange noise, please remove the battery immediately and stop using.
Maintenance: If the product is used in rapidly changing temperature, The lens
surface will covered by fog. So please don't use it before the fog evaporates.
Please clean with lens cloth but not your hands when it is dirty, or it may cause
damage to the glass coating.
Disposal: The product package and discarded products should be recycled or
disposed properly in accordance with local laws.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential install-
ation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Shielded
interface cable must be used with the equipment in order to comply with the limits
for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Specifications
and designs are subject to change without any notice or obligation on the part of
the manufacturer.
0624 V1.1
Power on: Press the power button for more than 2 seconds and all the signs will show
on the LCD screen. If only short press the power button, the LCD screen just displays
last used or default mode signs, but not all signs.
Power off: The product will shutdown automatically in 8 seconds if no any operations.
1) M1 Mode: Short press the power button to measure straight-line distance, horizontal
distance and angle.(as figure 8)
2)M2 Mode: Non-slope mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The straight-line distance will display on the
screen.(as figure 9)
3) M3 Mode: Training mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The distance with slope compensation will display
on the bottom of the screen.(as figure 10)
4) M4 mode: Short press the power button, you can measure straight-line distance and
vertical distance.(as figure11)
The model is a function-enhanced models for golf sports, with Range/Angle/
Flag locking/Slope distance correction/Vertical distance functions.
Referring to Figure 4, open the battery compartment cover by sliding it in the
direction of the arrow. Ensure each battery is inserted with the correct polarity
(+/-) as indicated inside the battery compartment. After loading the batteries,
close the battery door.
3.1 Power on/Power off
H-100P 1200 Yards
±1Y
5-1200(Y)
1.Power Button
2.Mode/Meter & Yard Select Button
3.Emitter/Objective Lens
4.Laser Receiving Aperture
5.Eyepiece Knob
6.Battery Lid
7.Tripod Nut
1.Bow Hunting
2.Target
3.Bluetooth
4.Range Data
5.Yard
6.Speed
7.Meter
8.Vertical/Horizontal Distance
9.Slope Distance Symbol
10.Flag Lock
11.Angle
12.Vibration
13.Model
14.Battery Indicator
Vertical Distance Mode
"M" or "Yard" Unit Setting: In the boot state, Long press of the mode button to
change the unit of length, M or Yard.
Mode Switching: In the boot state, press the mode button and keep less than
2 seconds, then measurement mode switch can be activated.
3.2 Unit/Mode Switching
1) Target Reflectivity: Generally speaking, the higher the reflectivity of the object,
the better the ranging ability. (It may be fail to measure the target that can hardly
create diffuse reflection, such as water surface.)
2) Target Shape: When a target is too small or uneven, ranging capability and
range corresponding speed will decrease.
3) Measuring Angle: The ranging ability would be better if the measured object is
vertical with laser emission's direction. It's possible that the measuring range cannot
meet the ranging ability specified in the manual under some extreme conditions.
4) Environment Factor: The environment factors including sunshine intensity, the
concentration of water vapor in the air and suspended particles. (such as rain fog,
snow, fog, haze, etc.)
Factors that Influence Ranging Capability
Single Measurement Mode
3.3 Single Measurement / Continuous Measurement / Failure
Measurement
Single Measurement: Short press the power button to start single measurement.
Continuous Measurement: In M1 Mode, press the power button and keep over 2
seconds, the measured distance value displayed alternately on the LCD screen, and
the target sign+ will show on the screen until release the power button.
Failure Measurement: Failure Measurement shows like figure 7. The product will
shut down automatically in 8 seconds if no any operations. Press the power button
again and it will start on.
Figure 2 LCD Display
Y
Cautions
1) Please tear off its plastic film of battery before installing battery.
2) Please take out the battery at once if it runs out or doesn't use for a long time.
3) The battery should be installed with the"+,-"poles in right direction according
to battery housing label indication.
4) Please use the same specification CR2 brand battery. Explosion or leakage of
liquid due to the use of sub-CR2 batteries, we will not assume any responsibility.
5) Please don't put the battery together with metal items such as keys, coins in
one pocket or it may cause overheating by short circuit of the battery.
6) Don't keep the battery in extreme temperature environments.
7) Waste battery disposal please comply with local laws and regulations.
1) The measurement target is with moderate reflectivity,such as building walls.
2) The measured object is vertical with laser emission direction.
3) The weather condition is sunny but not direct sunlight.
Low battery, Please replace a new battery:
Full power:
The Range Ability of the Product Defined Under the Following Conditions:
The range finder is suitable for measuring high reflectivity objects (such as
highway's signpad), moderate reflectivity objects(such as building's wall) and low
reflectivity objects (such as tree, golf flag, utility pole, animal etc.) When the
reflectance is reduced to a certain extent, the range will be reduced accordingly.
4.1 H-100P
Note: If the measure fails, the measured value on the screen will display as:"--”
Figure 12
SD(slope distance)
SD/Angle/HD/VD
HD
(horizontal distance)
VD
(vertical distance)
The full LCD only shows when turn on. Some icons will not display while using.
LCD screen uses the most advanced technology, but this does not ensure
completely removal of dust. When using this product, the LCD screen will be in
high magnification and dust may appear in the form of defects, but does not affect
ranging function.
6.1 Transport/Storage/Maintenance/Disposal
Storage : Please keep the product out of reach of children. Don't put it on a high
and unsteady place to prevent falling on the ground. Do not place the product in
a high temperature environment or it may cause damage of the products.
Transport: Please add enough cushioning material in the box to avoid damaging
the machine while in transport. When the machine falls on the ground, and makes
a strange noise, please remove the battery immediately and stop using.
Maintenance: If the product is used in rapidly changing temperature, The lens
surface will covered by fog. So please don't use it before the fog evaporates.
Please clean with lens cloth but not your hands when it is dirty, or it may cause
damage to the glass coating.
Disposal: The product package and discarded products should be recycled or
disposed properly in accordance with local laws.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential install-
ation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Shielded
interface cable must be used with the equipment in order to comply with the limits
for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Specifications
and designs are subject to change without any notice or obligation on the part of
the manufacturer.
0624 V1.1
Power on: Press the power button for more than 2 seconds and all the signs will show
on the LCD screen. If only short press the power button, the LCD screen just displays
last used or default mode signs, but not all signs.
Power off: The product will shutdown automatically in 8 seconds if no any operations.
1) M1 Mode: Short press the power button to measure straight-line distance, horizontal
distance and angle.(as figure 8)
2)M2 Mode: Non-slope mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The straight-line distance will display on the
screen.(as figure 9)
3) M3 Mode: Training mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The distance with slope compensation will display
on the bottom of the screen.(as figure 10)
4) M4 mode: Short press the power button, you can measure straight-line distance and
vertical distance.(as figure11)
The model is a function-enhanced models for golf sports, with Range/Angle/
Flag locking/Slope distance correction/Vertical distance functions.
Referring to Figure 4, open the battery compartment cover by sliding it in the
direction of the arrow. Ensure each battery is inserted with the correct polarity
(+/-) as indicated inside the battery compartment. After loading the batteries,
close the battery door.
3.1 Power on/Power off
H-100P 1200 Yards
±1Y
5-1200(Y)
1.Power Button
2.Mode/Meter & Yard Select Button
3.Emitter/Objective Lens
4.Laser Receiving Aperture
5.Eyepiece Knob
6.Battery Lid
7.Tripod Nut
1.Bow Hunting
2.Target
3.Bluetooth
4.Range Data
5.Yard
6.Speed
7.Meter
8.Vertical/Horizontal Distance
9.Slope Distance Symbol
10.Flag Lock
11.Angle
12.Vibration
13.Model
14.Battery Indicator
Vertical Distance Mode
"M" or "Yard" Unit Setting: In the boot state, Long press of the mode button to
change the unit of length, M or Yard.
Mode Switching: In the boot state, press the mode button and keep less than
2 seconds, then measurement mode switch can be activated.
3.2 Unit/Mode Switching
1) Target Reflectivity: Generally speaking, the higher the reflectivity of the object,
the better the ranging ability. (It may be fail to measure the target that can hardly
create diffuse reflection, such as water surface.)
2) Target Shape: When a target is too small or uneven, ranging capability and
range corresponding speed will decrease.
3) Measuring Angle: The ranging ability would be better if the measured object is
vertical with laser emission's direction. It's possible that the measuring range cannot
meet the ranging ability specified in the manual under some extreme conditions.
4) Environment Factor: The environment factors including sunshine intensity, the
concentration of water vapor in the air and suspended particles. (such as rain fog,
snow, fog, haze, etc.)
Factors that Influence Ranging Capability
Single Measurement Mode
3.3 Single Measurement / Continuous Measurement / Failure
Measurement
Single Measurement: Short press the power button to start single measurement.
Continuous Measurement: In M1 Mode, press the power button and keep over 2
seconds, the measured distance value displayed alternately on the LCD screen, and
the target sign+ will show on the screen until release the power button.
Failure Measurement: Failure Measurement shows like figure 7. The product will
shut down automatically in 8 seconds if no any operations. Press the power button
again and it will start on.
Figure 2 LCD Display
Y
Cautions
1) Please tear off its plastic film of battery before installing battery.
2) Please take out the battery at once if it runs out or doesn't use for a long time.
3) The battery should be installed with the"+,-"poles in right direction according
to battery housing label indication.
4) Please use the same specification CR2 brand battery. Explosion or leakage of
liquid due to the use of sub-CR2 batteries, we will not assume any responsibility.
5) Please don't put the battery together with metal items such as keys, coins in
one pocket or it may cause overheating by short circuit of the battery.
6) Don't keep the battery in extreme temperature environments.
7) Waste battery disposal please comply with local laws and regulations.
1) The measurement target is with moderate reflectivity,such as building walls.
2) The measured object is vertical with laser emission direction.
3) The weather condition is sunny but not direct sunlight.
Low battery, Please replace a new battery:
Full power:
The Range Ability of the Product Defined Under the Following Conditions:
The range finder is suitable for measuring high reflectivity objects (such as
highway's signpad), moderate reflectivity objects(such as building's wall) and low
reflectivity objects (such as tree, golf flag, utility pole, animal etc.) When the
reflectance is reduced to a certain extent, the range will be reduced accordingly.
4.1 H-100P
Note: If the measure fails, the measured value on the screen will display as:"--”
Figure 12
SD(slope distance)
SD/Angle/HD/VD
HD
(horizontal distance)
VD
(vertical distance)
The full LCD only shows when turn on. Some icons will not display while using.
LCD screen uses the most advanced technology, but this does not ensure
completely removal of dust. When using this product, the LCD screen will be in
high magnification and dust may appear in the form of defects, but does not affect
ranging function.
6.1 Transport/Storage/Maintenance/Disposal
Storage : Please keep the product out of reach of children. Don't put it on a high
and unsteady place to prevent falling on the ground. Do not place the product in
a high temperature environment or it may cause damage of the products.
Transport: Please add enough cushioning material in the box to avoid damaging
the machine while in transport. When the machine falls on the ground, and makes
a strange noise, please remove the battery immediately and stop using.
Maintenance: If the product is used in rapidly changing temperature, The lens
surface will covered by fog. So please don't use it before the fog evaporates.
Please clean with lens cloth but not your hands when it is dirty, or it may cause
damage to the glass coating.
Disposal: The product package and discarded products should be recycled or
disposed properly in accordance with local laws.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential install-
ation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Shielded
interface cable must be used with the equipment in order to comply with the limits
for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Specifications
and designs are subject to change without any notice or obligation on the part of
the manufacturer.
0624 V1.1
Power on: Press the power button for more than 2 seconds and all the signs will show
on the LCD screen. If only short press the power button, the LCD screen just displays
last used or default mode signs, but not all signs.
Power off: The product will shutdown automatically in 8 seconds if no any operations.
1) M1 Mode: Short press the power button to measure straight-line distance, horizontal
distance and angle.(as figure 8)
2)M2 Mode: Non-slope mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The straight-line distance will display on the
screen.(as figure 9)
3) M3 Mode: Training mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The distance with slope compensation will display
on the bottom of the screen.(as figure 10)
4) M4 mode: Short press the power button, you can measure straight-line distance and
vertical distance.(as figure11)
The model is a function-enhanced models for golf sports, with Range/Angle/
Flag locking/Slope distance correction/Vertical distance functions.
Referring to Figure 4, open the battery compartment cover by sliding it in the
direction of the arrow. Ensure each battery is inserted with the correct polarity
(+/-) as indicated inside the battery compartment. After loading the batteries,
close the battery door.
3.1 Power on/Power off
H-100P 1200 Yards
±1Y
5-1200(Y)
1.Power Button
2.Mode/Meter & Yard Select Button
3.Emitter/Objective Lens
4.Laser Receiving Aperture
5.Eyepiece Knob
6.Battery Lid
7.Tripod Nut
1.Bow Hunting
2.Target
3.Bluetooth
4.Range Data
5.Yard
6.Speed
7.Meter
8.Vertical/Horizontal Distance
9.Slope Distance Symbol
10.Flag Lock
11.Angle
12.Vibration
13.Model
14.Battery Indicator
Vertical Distance Mode
"M" or "Yard" Unit Setting: In the boot state, Long press of the mode button to
change the unit of length, M or Yard.
Mode Switching: In the boot state, press the mode button and keep less than
2 seconds, then measurement mode switch can be activated.
3.2 Unit/Mode Switching
1) Target Reflectivity: Generally speaking, the higher the reflectivity of the object,
the better the ranging ability. (It may be fail to measure the target that can hardly
create diffuse reflection, such as water surface.)
2) Target Shape: When a target is too small or uneven, ranging capability and
range corresponding speed will decrease.
3) Measuring Angle: The ranging ability would be better if the measured object is
vertical with laser emission's direction. It's possible that the measuring range cannot
meet the ranging ability specified in the manual under some extreme conditions.
4) Environment Factor: The environment factors including sunshine intensity, the
concentration of water vapor in the air and suspended particles. (such as rain fog,
snow, fog, haze, etc.)
Factors that Influence Ranging Capability
Single Measurement Mode
3.3 Single Measurement / Continuous Measurement / Failure
Measurement
Single Measurement: Short press the power button to start single measurement.
Continuous Measurement: In M1 Mode, press the power button and keep over 2
seconds, the measured distance value displayed alternately on the LCD screen, and
the target sign+ will show on the screen until release the power button.
Failure Measurement: Failure Measurement shows like figure 7. The product will
shut down automatically in 8 seconds if no any operations. Press the power button
again and it will start on.
Figure 2 LCD Display
Y
Cautions
1) Please tear off its plastic film of battery before installing battery.
2) Please take out the battery at once if it runs out or doesn't use for a long time.
3) The battery should be installed with the"+,-"poles in right direction according
to battery housing label indication.
4) Please use the same specification CR2 brand battery. Explosion or leakage of
liquid due to the use of sub-CR2 batteries, we will not assume any responsibility.
5) Please don't put the battery together with metal items such as keys, coins in
one pocket or it may cause overheating by short circuit of the battery.
6) Don't keep the battery in extreme temperature environments.
7) Waste battery disposal please comply with local laws and regulations.
1) The measurement target is with moderate reflectivity,such as building walls.
2) The measured object is vertical with laser emission direction.
3) The weather condition is sunny but not direct sunlight.
Low battery, Please replace a new battery:
Full power:
The Range Ability of the Product Defined Under the Following Conditions:
The range finder is suitable for measuring high reflectivity objects (such as
highway's signpad), moderate reflectivity objects(such as building's wall) and low
reflectivity objects (such as tree, golf flag, utility pole, animal etc.) When the
reflectance is reduced to a certain extent, the range will be reduced accordingly.
4.1 H-100P
Note: If the measure fails, the measured value on the screen will display as:"--”
Figure 12
SD(slope distance)
SD/Angle/HD/VD
HD
(horizontal distance)
VD
(vertical distance)
The full LCD only shows when turn on. Some icons will not display while using.
LCD screen uses the most advanced technology, but this does not ensure
completely removal of dust. When using this product, the LCD screen will be in
high magnification and dust may appear in the form of defects, but does not affect
ranging function.
6.1 Transport/Storage/Maintenance/Disposal
Storage : Please keep the product out of reach of children. Don't put it on a high
and unsteady place to prevent falling on the ground. Do not place the product in
a high temperature environment or it may cause damage of the products.
Transport: Please add enough cushioning material in the box to avoid damaging
the machine while in transport. When the machine falls on the ground, and makes
a strange noise, please remove the battery immediately and stop using.
Maintenance: If the product is used in rapidly changing temperature, The lens
surface will covered by fog. So please don't use it before the fog evaporates.
Please clean with lens cloth but not your hands when it is dirty, or it may cause
damage to the glass coating.
Disposal: The product package and discarded products should be recycled or
disposed properly in accordance with local laws.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential install-
ation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Shielded
interface cable must be used with the equipment in order to comply with the limits
for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Specifications
and designs are subject to change without any notice or obligation on the part of
the manufacturer.
0624 V1.1
Power on: Press the power button for more than 2 seconds and all the signs will show
on the LCD screen. If only short press the power button, the LCD screen just displays
last used or default mode signs, but not all signs.
Power off: The product will shutdown automatically in 8 seconds if no any operations.
1) M1 Mode: Short press the power button to measure straight-line distance, horizontal
distance and angle.(as figure 8)
2)M2 Mode: Non-slope mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The straight-line distance will display on the
screen.(as figure 9)
3) M3 Mode: Training mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The distance with slope compensation will display
on the bottom of the screen.(as figure 10)
4) M4 mode: Short press the power button, you can measure straight-line distance and
vertical distance.(as figure11)
The model is a function-enhanced models for golf sports, with Range/Angle/
Flag locking/Slope distance correction/Vertical distance functions.
Referring to Figure 4, open the battery compartment cover by sliding it in the
direction of the arrow. Ensure each battery is inserted with the correct polarity
(+/-) as indicated inside the battery compartment. After loading the batteries,
close the battery door.
3.1 Power on/Power off
H-100P 1200 Yards
±1Y
5-1200(Y)
1.Power Button
2.Mode/Meter & Yard Select Button
3.Emitter/Objective Lens
4.Laser Receiving Aperture
5.Eyepiece Knob
6.Battery Lid
7.Tripod Nut
1.Bow Hunting
2.Target
3.Bluetooth
4.Range Data
5.Yard
6.Speed
7.Meter
8.Vertical/Horizontal Distance
9.Slope Distance Symbol
10.Flag Lock
11.Angle
12.Vibration
13.Model
14.Battery Indicator
Vertical Distance Mode
"M" or "Yard" Unit Setting: In the boot state, Long press of the mode button to
change the unit of length, M or Yard.
Mode Switching: In the boot state, press the mode button and keep less than
2 seconds, then measurement mode switch can be activated.
3.2 Unit/Mode Switching
1) Target Reflectivity: Generally speaking, the higher the reflectivity of the object,
the better the ranging ability. (It may be fail to measure the target that can hardly
create diffuse reflection, such as water surface.)
2) Target Shape: When a target is too small or uneven, ranging capability and
range corresponding speed will decrease.
3) Measuring Angle: The ranging ability would be better if the measured object is
vertical with laser emission's direction. It's possible that the measuring range cannot
meet the ranging ability specified in the manual under some extreme conditions.
4) Environment Factor: The environment factors including sunshine intensity, the
concentration of water vapor in the air and suspended particles. (such as rain fog,
snow, fog, haze, etc.)
Factors that Influence Ranging Capability
Single Measurement Mode
3.3 Single Measurement / Continuous Measurement / Failure
Measurement
Single Measurement: Short press the power button to start single measurement.
Continuous Measurement: In M1 Mode, press the power button and keep over 2
seconds, the measured distance value displayed alternately on the LCD screen, and
the target sign+ will show on the screen until release the power button.
Failure Measurement: Failure Measurement shows like figure 7. The product will
shut down automatically in 8 seconds if no any operations. Press the power button
again and it will start on.
Figure 2 LCD Display
Y
Cautions
1) Please tear off its plastic film of battery before installing battery.
2) Please take out the battery at once if it runs out or doesn't use for a long time.
3) The battery should be installed with the"+,-"poles in right direction according
to battery housing label indication.
4) Please use the same specification CR2 brand battery. Explosion or leakage of
liquid due to the use of sub-CR2 batteries, we will not assume any responsibility.
5) Please don't put the battery together with metal items such as keys, coins in
one pocket or it may cause overheating by short circuit of the battery.
6) Don't keep the battery in extreme temperature environments.
7) Waste battery disposal please comply with local laws and regulations.
1) The measurement target is with moderate reflectivity,such as building walls.
2) The measured object is vertical with laser emission direction.
3) The weather condition is sunny but not direct sunlight.
Low battery, Please replace a new battery:
Full power:
The Range Ability of the Product Defined Under the Following Conditions:
The range finder is suitable for measuring high reflectivity objects (such as
highway's signpad), moderate reflectivity objects(such as building's wall) and low
reflectivity objects (such as tree, golf flag, utility pole, animal etc.) When the
reflectance is reduced to a certain extent, the range will be reduced accordingly.
4.1 H-100P
Note: If the measure fails, the measured value on the screen will display as:"--”
Figure 12
SD(slope distance)
SD/Angle/HD/VD
HD
(horizontal distance)
VD
(vertical distance)
The full LCD only shows when turn on. Some icons will not display while using.
LCD screen uses the most advanced technology, but this does not ensure
completely removal of dust. When using this product, the LCD screen will be in
high magnification and dust may appear in the form of defects, but does not affect
ranging function.
6.1 Transport/Storage/Maintenance/Disposal
Storage : Please keep the product out of reach of children. Don't put it on a high
and unsteady place to prevent falling on the ground. Do not place the product in
a high temperature environment or it may cause damage of the products.
Transport: Please add enough cushioning material in the box to avoid damaging
the machine while in transport. When the machine falls on the ground, and makes
a strange noise, please remove the battery immediately and stop using.
Maintenance: If the product is used in rapidly changing temperature, The lens
surface will covered by fog. So please don't use it before the fog evaporates.
Please clean with lens cloth but not your hands when it is dirty, or it may cause
damage to the glass coating.
Disposal: The product package and discarded products should be recycled or
disposed properly in accordance with local laws.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential install-
ation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Shielded
interface cable must be used with the equipment in order to comply with the limits
for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Specifications
and designs are subject to change without any notice or obligation on the part of
the manufacturer.
0624 V1.1
Power on: Press the power button for more than 2 seconds and all the signs will show
on the LCD screen. If only short press the power button, the LCD screen just displays
last used or default mode signs, but not all signs.
Power off: The product will shutdown automatically in 8 seconds if no any operations.
1) M1 Mode: Short press the power button to measure straight-line distance, horizontal
distance and angle.(as figure 8)
2)M2 Mode: Non-slope mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The straight-line distance will display on the
screen.(as figure 9)
3) M3 Mode: Training mode, short press the power button to lock flag, the rangefinder
will vibrate when the target is locked. The distance with slope compensation will display
on the bottom of the screen.(as figure 10)
4) M4 mode: Short press the power button, you can measure straight-line distance and
vertical distance.(as figure11)
The model is a function-enhanced models for golf sports, with Range/Angle/
Flag locking/Slope distance correction/Vertical distance functions.
Referring to Figure 4, open the battery compartment cover by sliding it in the
direction of the arrow. Ensure each battery is inserted with the correct polarity
(+/-) as indicated inside the battery compartment. After loading the batteries,
close the battery door.
3.1 Power on/Power off
H-100P 1200 Yards
±1Y
5-1200(Y)
1.Power Button
2.Mode/Meter & Yard Select Button
3.Emitter/Objective Lens
4.Laser Receiving Aperture
5.Eyepiece Knob
6.Battery Lid
7.Tripod Nut
1.Bow Hunting
2.Target
3.Bluetooth
4.Range Data
5.Yard
6.Speed
7.Meter
8.Vertical/Horizontal Distance
9.Slope Distance Symbol
10.Flag Lock
11.Angle
12.Vibration
13.Model
14.Battery Indicator
Vertical Distance Mode
"M" or "Yard" Unit Setting: In the boot state, Long press of the mode button to
change the unit of length, M or Yard.
Mode Switching: In the boot state, press the mode button and keep less than
2 seconds, then measurement mode switch can be activated.
3.2 Unit/Mode Switching
1) Target Reflectivity: Generally speaking, the higher the reflectivity of the object,
the better the ranging ability. (It may be fail to measure the target that can hardly
create diffuse reflection, such as water surface.)
2) Target Shape: When a target is too small or uneven, ranging capability and
range corresponding speed will decrease.
3) Measuring Angle: The ranging ability would be better if the measured object is
vertical with laser emission's direction. It's possible that the measuring range cannot
meet the ranging ability specified in the manual under some extreme conditions.
4) Environment Factor: The environment factors including sunshine intensity, the
concentration of water vapor in the air and suspended particles. (such as rain fog,
snow, fog, haze, etc.)
Factors that Influence Ranging Capability
Single Measurement Mode
3.3 Single Measurement / Continuous Measurement / Failure
Measurement
Single Measurement: Short press the power button to start single measurement.
Continuous Measurement: In M1 Mode, press the power button and keep over 2
seconds, the measured distance value displayed alternately on the LCD screen, and
the target sign+ will show on the screen until release the power button.
Failure Measurement: Failure Measurement shows like figure 7. The product will
shut down automatically in 8 seconds if no any operations. Press the power button
again and it will start on.
