BV1210.01 LawnMaster BV1210 Electric Blower Vacuum Mulcher 12 Amp 2-Speed Adjustment with Metal Impeller 240 MPH 380 CFM 161 Mulch Ratio with Collection Bag

Operator's Manual

2-SPEED 12 AMP ELECTRIC BLOWER/VACUUM BV1210

Save this manual for future reference

Read all safety rules and instructions carefully before operating this tool.

Distributed By: Suzhou Cleva Electric Appliance Co., Ltd.

NO.8 Ting Rong Street 215122 Suzhou - China

2

TABLE OF CONTENTS

Section Page

OPERATION 17-19

MAINTENANCE 20

TROUBLESHOOTING 21

LAWNMASTER

®

3

Voltage 120 V ~ 60 Hz

Current 12 A

Collection Bag Capacity 14 gallon (54 liters)

SPECIFICATIONS

2-SPEED 12 AMP ELECTRIC BLOWER/VACUUM BV1210

4

IMPORTANT SAFETY INSTRUCTIONS

■ Do not operate power tools in explosive environments (such as in the presence of ammable

liquids, gases, or dust), or use to pick up ammable or combustible liquids,

■ Power tools create sparks which may ignite dust or fumes.

■ To reduce the risk of electric shock, this tool has a polarized plug (one blade is wider than the other)

and will require the use of a polarized extension cord. The plug will t into a polarized extension

cord only one way. If the plug does not t fully into the extension cord, reverse the plug. If the plug

still does not t, obtain a correct polarized extension cord. A polarized extension cord will require the

use of a polarized wall outlet. This plug will t into the polarized wall outlet only one way. If the plug

increase the risk of electric shock.

■ Do not handle plug or tool with wet hands.

■ Use outdoor extension cords marked W-A, W, SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A,

or SJTOW-A. These cords are rated for outdoor use and reduce the risk of electric shock.

■ Never allow children to operate the equipment. Never allow adults to operate the equipment without

proper instruction.

■ Wear eye protection with side shields which are marked to comply with ANSI Z87.1 as well as

hearing protection when operating this product.

■ Protect your lungs. Always wear a face or dust mask if the operation causes dust. Following this rule

will reduce the risk of serious personal injury.

get caught in moving parts of the machine or its motor.

■ Do not operate the equipment while barefoot or when wearing sandals or similar lightweight

footwear. Wear protective footwear that will protect your feet and improve your footing on slippery

surfaces.

Failure to follow all instructions listed below may result in electric shock, re and/or serious personal injury.

READ THESE INSTRUCTIONS BEFORE USING THIS BLOWER/VACUUM.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

5

IMPORTANT SAFETY INSTRUCTIONS

■ Avoid accidental starting. Be sure the power switch is not on before plugging in.

■ Do not leave the tool when plugged in. Unplug from the power outlet when not in use, before

servicing, and before storing the tool. Turn off all controls before unplugging. Such preventative

safety measures reduce the risk of starting the tool accidentally.

■ Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch

is dangerous and must be repaired.

■ Do not use with a damaged plug. If the tool is not working as it should or has been dropped,

damaged, left outdoors, or dropped into water, take it to a qualied service dealer for inspection and

possible repair.

■ Keep all bystanders, children, and pets at least 50 ft. away.

or string which can be thrown or become entangled in the machine.

■ Never use blower near res, replaces, hot ashes, barbecue pits, etc., which may cause re to

spread.

■ Do not pull, carry or use cord as handle, close a door on the cord, or pull cord around sharp edges

or corners. Do not run appliances over cord. Keep cord away from heated surfaces.

■ Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

■ Use only identical manufacturers replacement parts and accessories. Use of any other parts may

create a hazard or cause product damage.

■ In a double insulated appliance, two systems of insulation are provided instead of grounding. No

grounding means is provided on a double insulated appliance, nor should a means for grounding

one heavy enough to carry the current your product will draw. A wire gauge size (A.W.G.) of at least

14 is recommended for an extension cord 50 feet or less in length. If in doubt, use the next heavier

gauge. The smaller the gauge number, the heavier the cord. An undersized cord will cause a drop in

line voltage resulting in loss of power and overheating.

■ Do not point the blower nozzle in the direction of people or pets.

■ Never place the blower/vacuum on any surface, except a hard, clean surface when the motor is

running. Gravel, sand, and other debris can be picked up by the air inlet and thrown at the operator

or bystanders, causing possible serious injuries.

6

IMPORTANT SAFETY INSTRUCTIONS

■ If the power supply cord is damaged, stop using the unit. Take the unit to a qualied service dealer

for inspection and possible repair.

DOUBLE INSULATION

The blower is double insulated to provide a double thickness of insulation between you and the

The double insulated system is intended to protect the user from shock resulting from a break in the

tool’s internal insulation. Observe all normal safety precautions to avoid electrical shock.

USE ONLY IDENTICAL REPLACEMENT PARTS WHEN SERVICING THE BLOWER TO AVOID INJURY.

DOUBLE INSULATION DOES NOT TAKE THE PLACE OF NORMAL SAFETY PRECAUTIONS

WHEN OPERATING THIS BLOWER.

THIS BLOWER IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN DAMP

LOCATIONS.

7

IMPORTANT SAFETY INSTRUCTIONS

GFCI

Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be

used for the product. Receptacles are available having built-in GFCI protection and may be used for

this measure of safety.

GUIDELINES FOR USING EXTENSION CORDS

USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When

using an extension cord, be sure to use one heavy enough to carry the current your product will draw.

An undersized cord will cause overheating. The table below shows the correct size to use depending

on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the

gauge number, the heavier the cord.

8

IMPORTANT SAFETY INSTRUCTIONS

Check extension cords before each use. If damaged replace it immediately. Never use a product with

a damaged cord since touching the damaged area could cause electrical shock resulting in serious

9

SYMBOLS

5. While standing in the operating position, adjust the length to t the operator’s size. Pull the tab to

lengthen, pull the strap to shorten (Fig. 6 & 7).

ASSEMBLY

Fig. 6

OPERATION

2. Attach the outlet end of an extension cord to the plug on the rear of the blower/vacuum’s power cord.

NOTE:

Use only an approved outdoor extension cord as described previously in this manual.

place underneath the cord retainer (Fig. 8).

Do not allow familiarity with this type of product to make you careless. Remember that a careless

fraction of a second is sufcient to inict serious injury.

Do not use any attachments or accessories not recommended by the manufacturer of this product.

The use of attachments or accessories not recommended can result in serious personal injury.

4. To start the blower/vacuum, place the ON/OFF switch on I (Low Speed) or II (High Speed) position

(Fig. 9).

5. To stop the blower/vacuum, place the ON/OFF switch in 0 (OFF) position (Fig. 9).

OPERATING THE BLOWER/VACUUM

1. To keep from scattering debris, blow around the outer edges of a debris pile. Never blow directly

into the center of a pile.

2. To reduce sound levels, limit the number of pieces of equipment used at any one time.

3. Use rakes and brooms to loosen debris before blowing. In dusty conditions, slightly dampen

OPERATION

II: High Speed

OPERATION

7. After using blowers or other equipment, CLEAN UP! Dispose of debris properly.

8. This blower is equipped with Overheating Protection for consumer safety. If the tool overheats or the

current is high, the tool will automatically shut-off. Turn the tool off and unplug. It will take several

minutes for the tool to revert to its normal temperature, at which point it can be restarted.

EMPTYING OF COLLECTION BAG

1. Switch off the tool and disconnect the plug.

2. Wait until the impeller fan comes to a standstill before removing the collection bag from the tool.

3. Open the zipper of the collection bag and empty it completely (Fig.11).

MAINTENANCE

TROUBLESHOOTING

LAWNMASTER

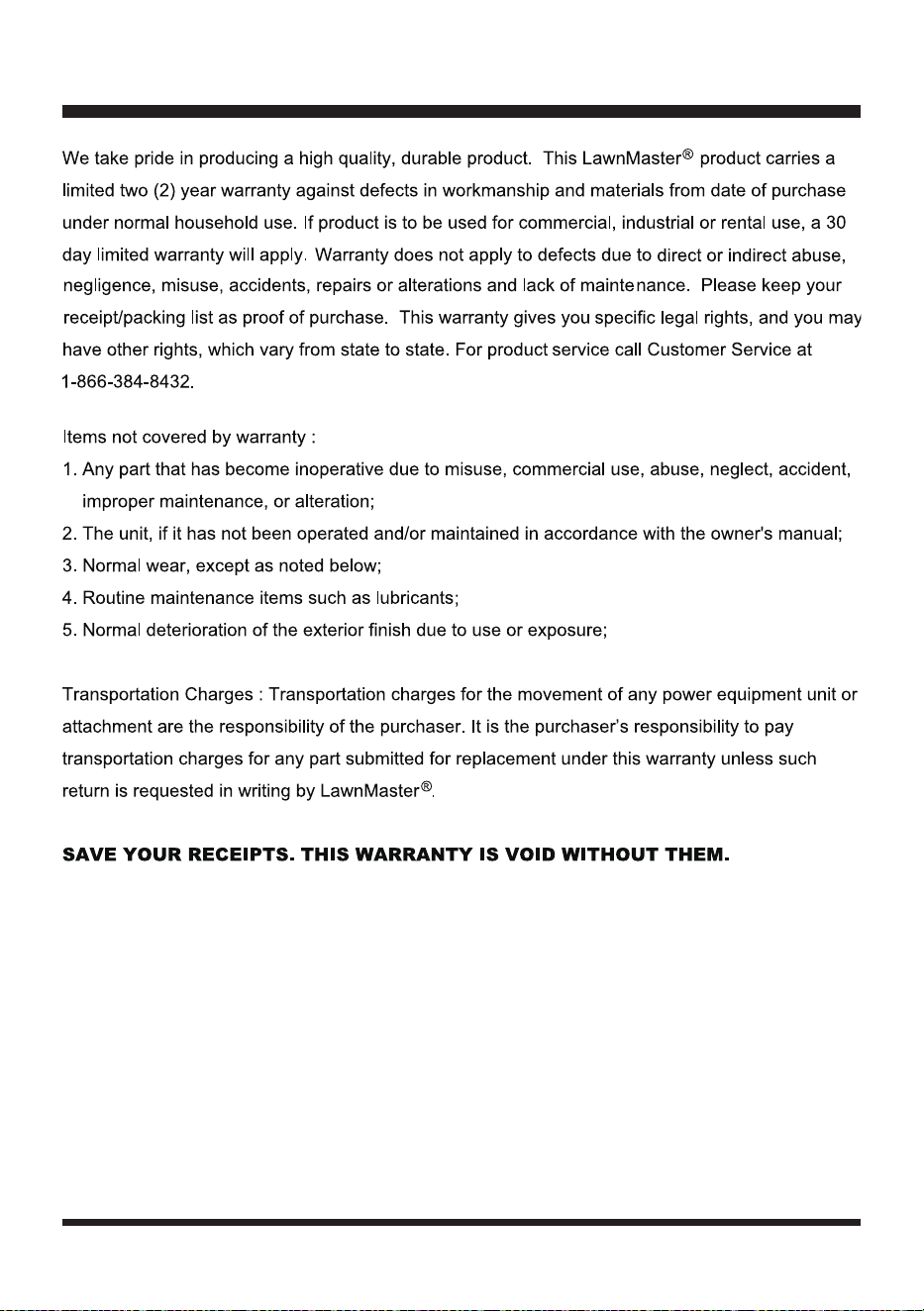

WARRANTY

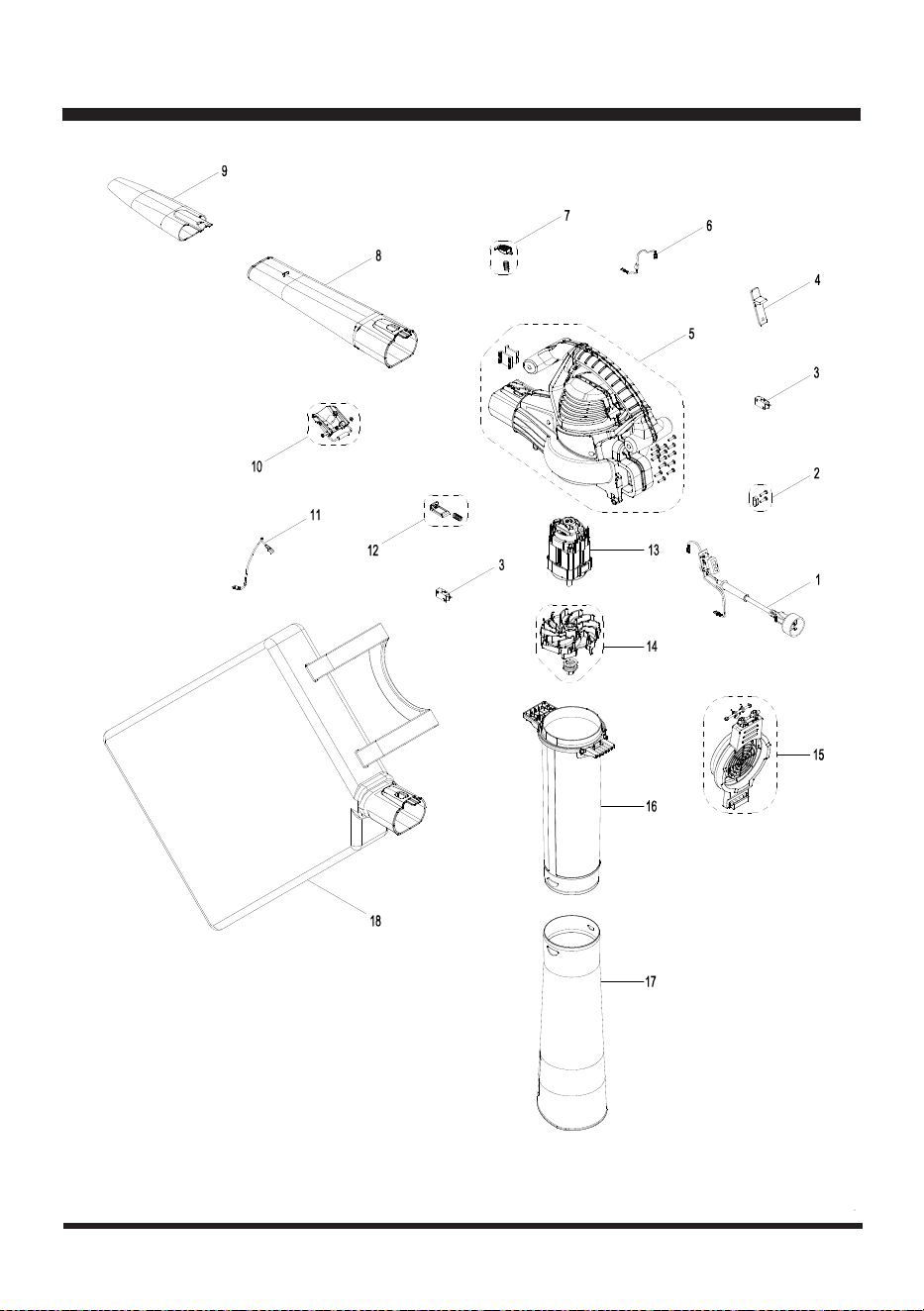

PARTS LIST

NOTES
