1. SAFETY INFORMATION
Note: You must read these warnings carefully
before installing or using the refrigerator.
If you need assistance, contact your customer
care center. The manufacturer will not accept
liability, should these instructions or any other
safety instructions incorporated in this book be
ignored.
WARNING
• It is essential the electric outlet is properly
earthed to ground. Consult a qualified
electrician if you are unsure.
• Do not use electrical appliances inside the
food storage compartments of the appliance,
unless they are of the type recommended by
the manufacturer.
• Unplug the refrigerator before cleaning or
moving it to avoid electric shock.
• Never unplug the refrigerator by pulling the
electrical cord as this may damage it. Grip the
plug firmly and pull straight out.
• If the power cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid
a hazard.
• Don’t use a steam cleaner. If live components
come into contact with condensing steam, they
may short-circuit or cause an electric shock.
• Do not store explosive substances such as
aerosol cans with a flammable propellant this
appliance. If pressurized aerosol containers
bear the word ‘flammable’ and/or a small
flame symbol, do not store them inside any
refrigerator or freezer. If you do so you may
cause an explosion.
• Do not damage the refrigerant circuit.
• This appliance contains insulation formed with
flammable blowing gases. Avoid safety hazards
by carefully disposing of this appliance.
• If you wish to discard this refrigerator, please
contact your local authorities and ask for the
correct method of disposal.
• When you dispose of your old refrigerators
and freezers, remove any doors. Children can
suffocate if they get trapped inside.
• When positioning the appliance, ensure the
supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the
appliance.
• Children should be supervised to ensure that
they do not play with the appliance.
• This appliance is not intended for use by
persons (including children) with reduced
physical,sensory or mental capabilities, or lack
of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
WARNING
R600a refrigerant warning
This appliance contains flammable
R600a refrigerant. Avoid safety
hazards by carefully installing,
handling, servicing and disposing of
this appliance.
• Ensure that the tubing of the refrigerant circuit
is not damaged during transportation and
installation.
• Leaking refrigerant may cause eye injuries or
ignite.
• The room for installing appliance must be at
least 1m
3
per 8g of refrigerant. The amount of
refrigerant in the appliance can be found on
the rating plate inside the appliance.
• If you are unsure of the refrigerant check the
rating plate inside the refrigerator compartment.
• It is hazardous for anyone other than an
Authorized Service Person to service this
appliance. In Queensland Australia the
Authorization Service Person MUST hold a
Gas Work Authorization for hydrocarbon
refrigerants to carry out servicing or repairs
which involve the removal of covers.
• Keep ventilation openings in the appliance
enclosure or in the built-in structure, clear of
obstruction.
• Do not use mechanical devices or other means
to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING
Stable Footing
When your refrigerator is in place,
you need to stabilize it. Lift the front
of the refrigerator to take the weight
off each stability foot and make small
quarter turns to each foot until it is in
firm contact with the floor. If you intend
to move the refrigerator, remember
to wind up each foot so that you can
move it freely. Repeat the process of the
foot adjustment once you have settled
on the new location of the refrigerator.
Side View
Stabilising foot
wound down
4 www.electrolux.com
GENERAL WARNINGS
Read the following carefully to avoid damage
or injury. It is important to use your refrigerator
safely. Check these safety points before using
your refrigerator.
• The appliance must be plugged into its own
dedicated electrical outlet.
• The plug must be accessible when the
refrigerator is in position.
• It is essential the power point is properly
pored to ground. Consult a qualified
electrician if you are unsure.
• Don’t use extension cords or adapter plugs
with this refrigerator.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
• Unplug the appliance before cleaning and
before changing the light bulb(when fitted) to
avoid electric shock.
• Never unplug the refrigerator by pulling the
electrical cord as this may damage it. Grip
the plug firmly and pull straight out.
• Choose a location for your refrigerator that
isn’t too cold. The ambient room temperature
should be above 10°C.
• Stand your refrigerator in a dry place avoid
areas of high moisture or humidity.
• Don’t put the refrigerator in frosty or
unprotected areas like a garage or on the
verandah.
• Don’t plug your refrigerator into a timer fitted
to the powerpoint.
• Do not put the refrigerator in direct sunlight,
near stoves, fires or heaters.
• Do not put the refrigerator on an uneven
surface.
• Do not store flammable materials on or
under the appliance, e.g. aerosols.
• Never store fizzy drinks in the freezer
compartment.
• Never try to repair the refrigerator yourself,
only use a qualified or authorized service
person for repairs.
• Never use electric heaters or dryers to
defrost the freezer because you can receive
an electric shock.
• When transporting and installing the
refrigerator, care should be taken to ensure
that no parts of the refrigerating circuit are
damaged.
• If the appliance is equipped with an Ice
maker or a water dispenser, fill them with
potable water only.
• If the appliance requires a water connection,
connect it to potable water supply only.
• When installed correctly, your refrigerator
should:
– Have adequate space at the back and
sides for air circulation.
– Be vertically aligned to the surrounding
cupboards.
– Have doors that will self-close from
a partially open position.
NOTE: You must read these warnings carefully
before installing or using the refrigerator. If you
need assistance, contact your Customer Care
Department. The manufacturer will not accept
liability, should these instructions or any other
safety instructions incorporated in this book be
ignored.
Environmental information.
This appliance is intended to be used
in household and similar applications
such as,
• The kitchen areas in shops, office
and other working environments;
• Farm house and by clients in hotels,
motels and other residential type
environments;
• Bed and breakfast type
environments;
• Catering and similar non-retail
applications;
5EN
QUATTRO FRENCH DOOR REFRIGERATOR FEATURES
EHE6191

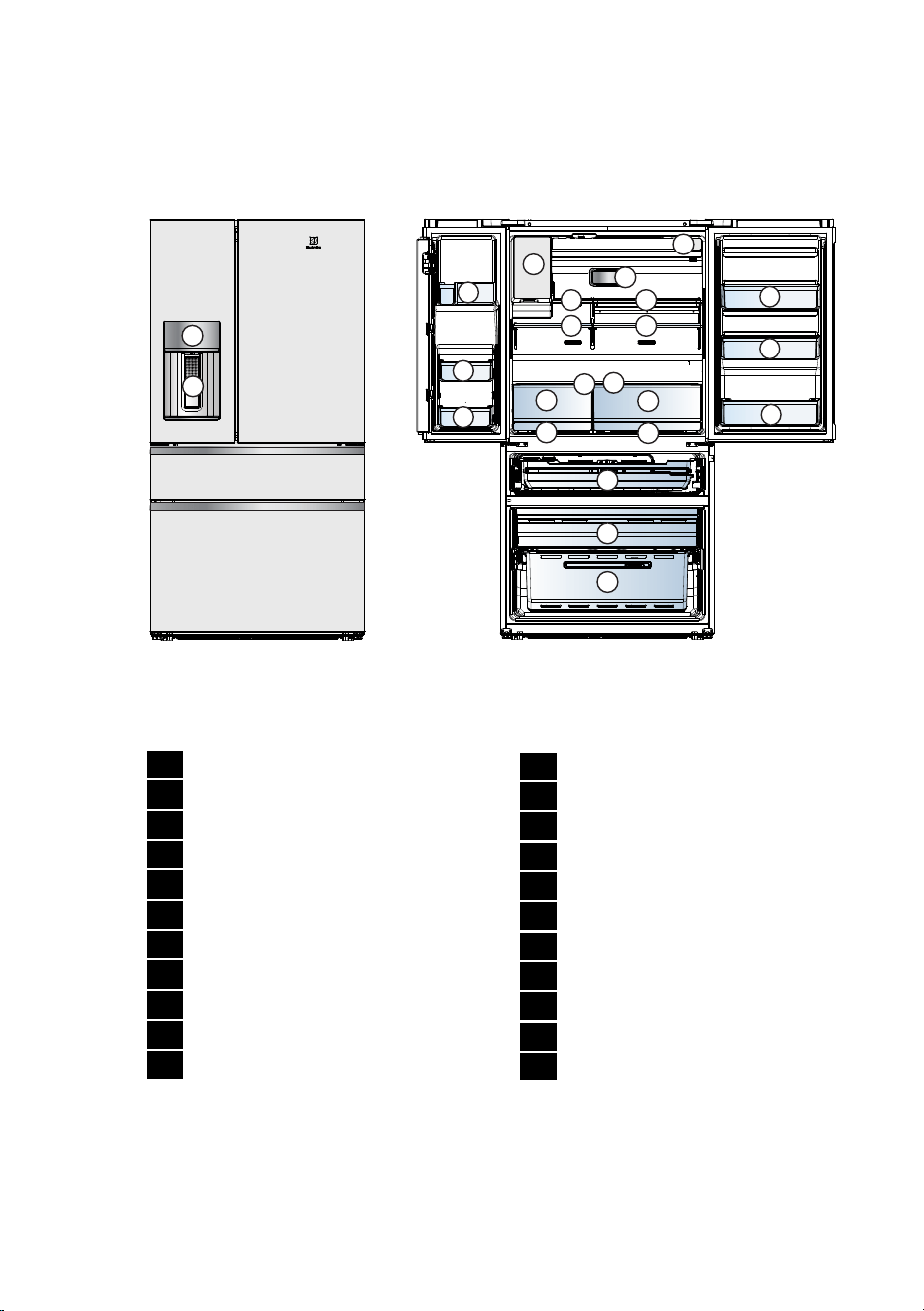

2. DESCRIPTION OF THE APPLIANCE
The details of the refrigerator feature:
13
14
15
18
19
16
17
20
21
22
3
4
4
1
2
5
5
6
9
10
7
8
11
12
1
Refrigerator/Freezer control panel
2
Water and Ice Dispenser Trigger
3
Upper fixed door bin
4
Left fixed door bin
5
Full width bin
6
Bottle storage bin
7
Ice Maker
8
Deodorizer
9
Water filter
10
Flip up glass shelf
11
Slide/fold glass shelf
12
Left glass shelf
13
Right glass shelf
14
Crisper shelf cover
15
Auto Humidity control
16
Left crisper drawer
17
Right crisper drawer
18
Left Snack Zone
19
Right Snack Zone
20
Convertible drawer
21
Upper freezer drawer
22
Lower freezer basket
Features may vary depending on model. Not all models will have features listed.
6 www.electrolux.com
Front face of bench
aligned to front corner
edge of cabinet
260 mm
355 mm
Note: Doors are designed to sit proud of cabinetry
(not flush). The clearances shown above are the
recommended minimum clearances.
INSTALLING YOUR REFRIGERATOR
Allow the following clearances for ease of
installation, proper air circulation, and plumbing
and electrical connections:
91 3
17 8 2
746
Note: If your refrigerator is placed with the
door hinge side against a wall, you may have
to allow additional space so the door can be
opened wider.
1. Roll the refrigerator into place.
The rollers are designed for forward or
backward movement only. They are not
castors. Moving the refrigerator sideways
may damage your floor and the rollers.
Before moving your refrigerator ensure height
adjusting nut and the stability foot are fully
wound up off the floor.
3. INSTALLING YOUR NEW APPLIANCE
UNPACKING
Environment
Most of the packing materials are
recyclable. Please dispose of
those materials through your local
recycling depot or by placing them in
appropriate collection containers.
Important – check for any damages or marks.
If you find the refrigerator is damaged or
marked, you must report it within 7 days should
you wish to claim for damage/ marks under the
manufacturers warranty. This does not affect
your statutory rights.
Clean your refrigerator thoroughly following
the instructions in the “Cleaning” section and
wipe off any dust that has accumulated during
shipping.
LOCATING THE REFRIGERATOR
CAUTION
Automatic aerosol systems (such as
insect control) should not be located
adjacent to the product as the spray
may cause long term damage to the
external plastics of the appliance.
Do not put the refrigerator in a location that
is too cold or is unprotected, for example
in a garage or on a veranda. The ambient
temperature should be above 10°C.
Put the refrigerator in a dry place avoiding
areas of high moisture or humidity.
Ensure the refrigerator is located on an even
surface.
Adequate ventilation around your
refrigerator
The diagram below shows the recommened
airspace to allow for ventilation of your
refrigerator.
25 mm
10
mm
10
mm
35
mm
25
mm
When positioned in a corner area, spacing of
right side at least 260 mm and left side at least
355 mm on the hinge side will allow the doors
to open enough to enable the removal of bins
and shelves.
7EN
the front stability foot. Wind the large height
adjusting nut back up to ensure all the
weight is now on the front stability foot.
stability foot
wound down
Front view
8. Repeat step 7 for the stability foot on the
handle side. Whenever you need to move the
appliance, be sure to wind the feet back up
so that the appliance can roll freely and be
sure to reset it when reinstalling.
9. Plug your refrigerator straight into its own
power point and never use a double
adapter. If you need to roll the refrigerator
to get to the plug, remember to raise the
stability foot first.
10. Before you put any food in your refrigerator,
it’s recommended you leave it on for 2 or 3
hours to check it is running properly.
DOOR OPENING
Your refrigerator should be positioned to allow
easy access to a counter when removing food.
For best use of refrigerator drawers and freezer
baskets, the refrigerator should be in a position
where both door can be fully opened.
Cabinet Levelling & Refrigerator Door
Alignment (if necessary)
All four corners of the cabinet must rest firmly
on the floor
• The front should be slightly elevated to
ensure that doors close and seal properly.
• Doors should align with each other and be
level.
Most of these conditions can be met by raising
or lowering the adjustable front rollers.
To level the cabinet using the front rollers:
1. Slightly open freezer drawer if the toe grill
is installed. Lift the toe grille and gently pull
forward.
2. Make initial cabinet adjustments by using the
front roller height adjusting screws. Use a 3/8
inch socket wrench to turn the adjustment
screws (1 per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counter
clockwise.
2. Wind the large height adjusting nut under
door hinge down until the refrigerator is tilted
back by 10mm (see diagram).
Height
adjusting
nut
Fixed rear rollers
10-33mm
For adjustment
where floor is not level
3. Wind the large height adjusting nut on the
handle side down until the refrigerator is
level and stable. If you have difficulty
winding the nut or height adjusting foot
down, have someone tilt the refrigerator
back so you have better access.
stability foot
wound up
4. Check the alignment of the refrigerator to the
surrounding cupboards to see if it is level.
You can adjust the level as detailed in step 2
and 3.
aligned to
cupboards
i.e.,
even gap
top of refrigerator
is level i.e.,
horizontal
adjust front feet
for unevenness
of floor i.e.,
wind this foot
down or up
5. If you find your refrigerator rocks from corner
to corner, it means your floor is uneven. Find
a piece of plastic or hardboard etc. and
pack it firmly under the roller.
6. You may now need to fine-tune the
installation by repeating steps 3, 4 and 5.
7. When you have the appliance in its final
position, it needs to be stabilised. Wind the
stability foot under the door hinge down to
the floor until it just makes contact with the
floor. Lift the front of the appliance to take
the weight off the stability foot, then turn it
half a turn further to ensure firm contact with
the floor. Wind the large height adjusting nut
back up to ensure all the weight is now on
8 www.electrolux.com
FLIPPER MULLION
Adjust Flipper Mullion for proper connection
with the mullion guide by ensuring the flipper
mullion is folded and perpendicular to the fresh
food door. If the mullion guide is not in the
correct position, it could prevent the door from
closing completely.
WRONG
3. Ensure both doors are bind-free with their
seals touching the cabinet on all four sides
and that cabinet is stable.
4. After unit is leveled, lower anti-tip leg using a
3/8 inch socket wrench until it firmly contacts
the floor.
Door
Door

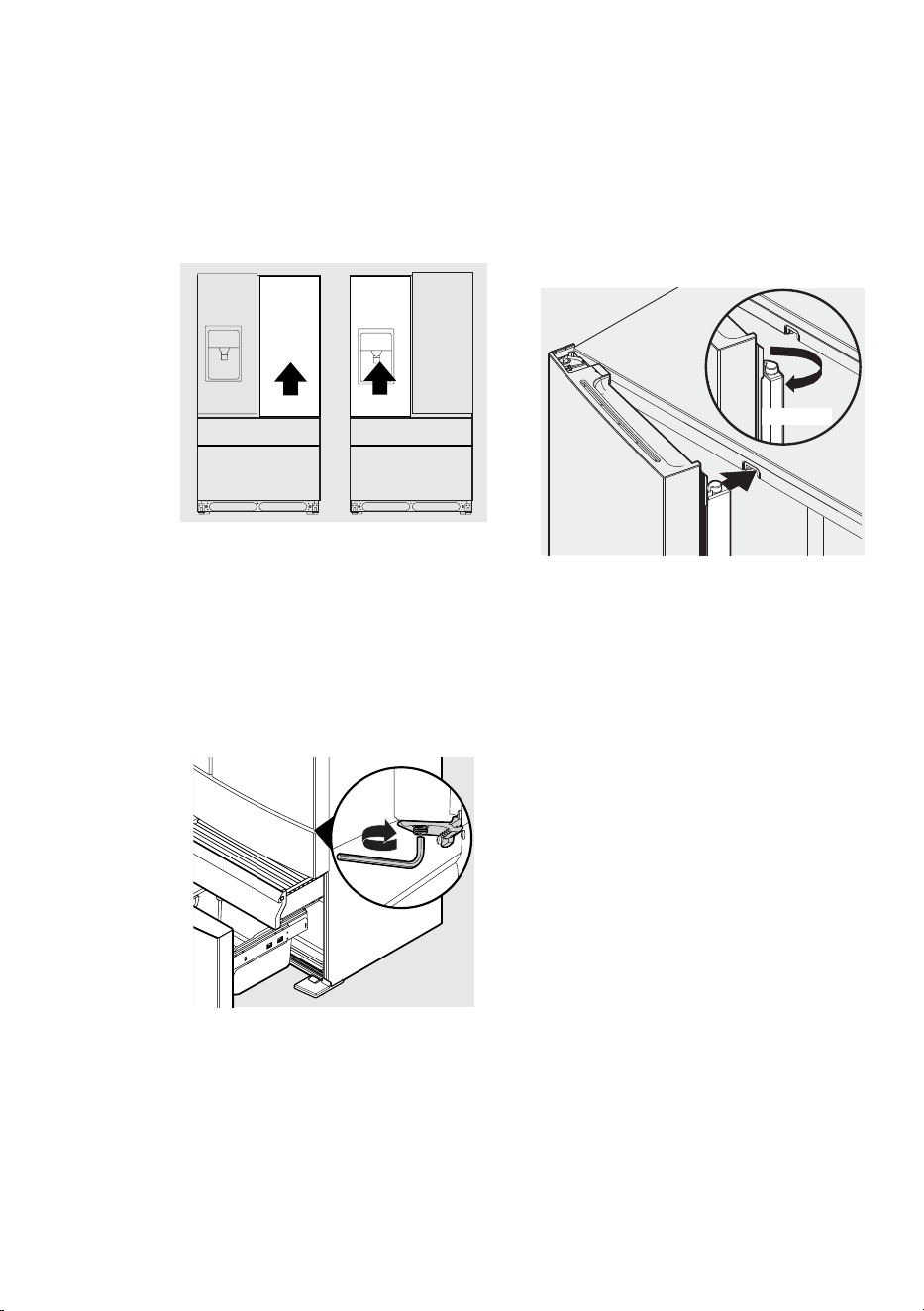

To make final door height adjustments:
1. Open freezer drawer to make lower hinge
visible.
2. Insert 6mm Allen wrench into the shaft of the
lower hinge.
3. Adjust the height by turning clockwise or
counterclockwise. Turning wise will lower the
door. Turning counterclockwise will raise the
door. Default setting is to the lowest height
when you receive your appliance.
Raise
9EN
4. TEMPERATURE CONTROL

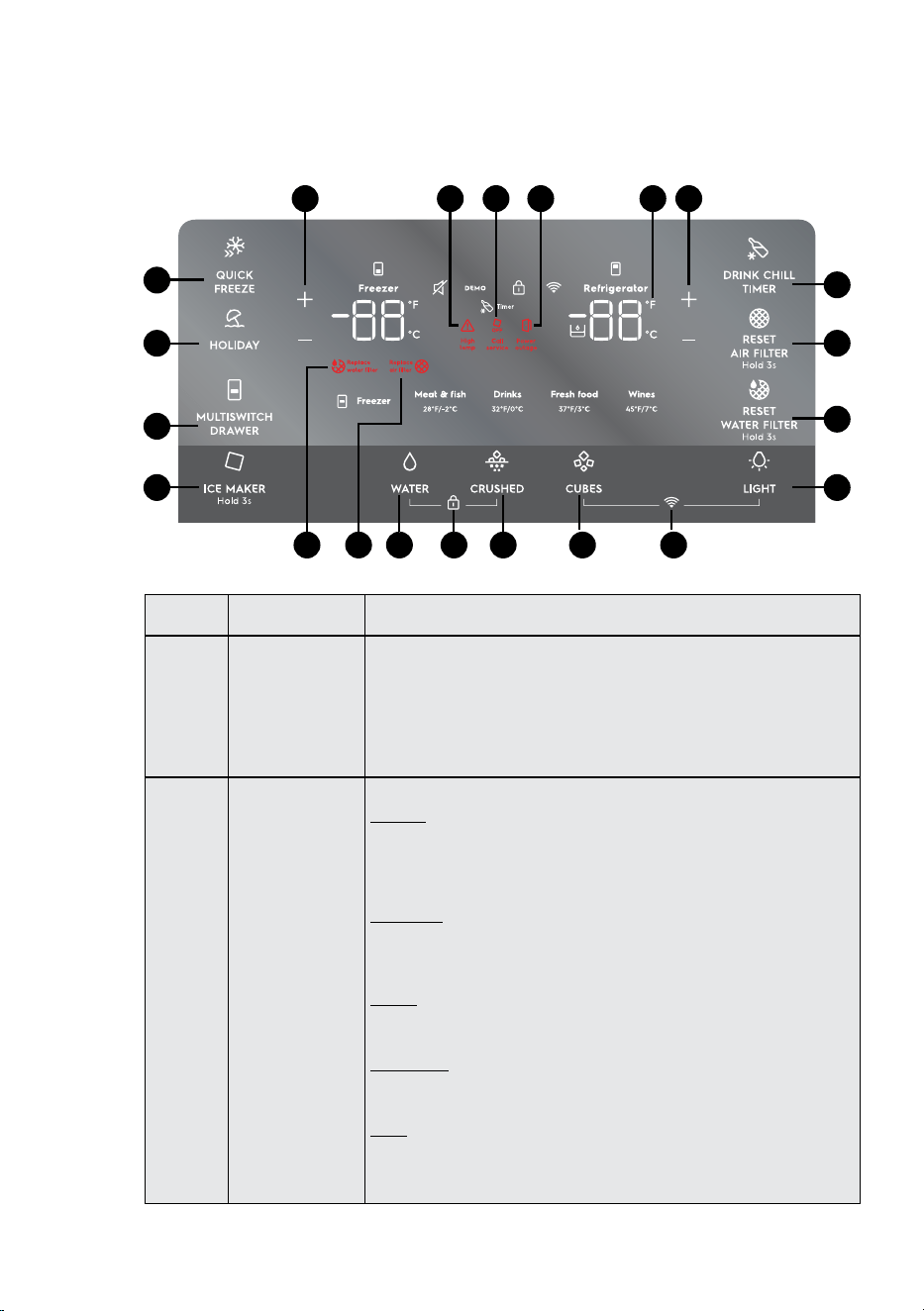

EXTERNAL USER INTERFACE
BUTTON/
ICON
DESCRIPTION OPERATION / PRIMARY FUNCTION
1 ICE MAKER Press and hold ICE MAKER button for 3 seconds to turn ice maker
on/off.
When the indicator is lit, the ice maker is on. When the indicator is
not lit, the ice maker does not make ice. While off, ice dispensing
continues if there is ice in the bucket. When ice maker is off and ice
is dispensing, indicator blinks.
2 MULTISWITCH
DRAWER
Use the button to change settings of the MULTISWITCH DRAWER.
Freezer
When in the Freezer setting, change the drawer temperature using
the control panel on the front door. Changing the temperature
on the display adjusts both the drawer and freezer compartment
temperatures.
Meat/Fish
Use this setting for short-term storage of meat and fish. Press Meat/
fish to set the drawer temperature to 28°F (-2°C). A tone sounds to
confirm the choice.
Drinks
Use this setting for cooling drinks. Press Drinks to set the drawer to
32°F (0°C). A tone sounds to confirm the choice.
Fresh food
Use this setting for storing foods or snacks. Press Fresh food to set
the drawer to 37°F (3°C). A tone sounds to confirm the choice.
Wine
Use this setting for wine storage. Press Wine to set the drawer to
45°F (7°C). A tone sounds to confirm the choice.
1
10
11
12
13
14
15161718192021
2
3
4
5 6 7
8
9
10 www.electrolux.com
BUTTON/
ICON
DESCRIPTION OPERATION / PRIMARY FUNCTION
3 HOLIDAY Holiday Mode operates the product at the maximum energy
efficiency when the user is away for an extended period.
Conserves energy by increasing the time between automatic
defrost.
Only during the first 30 minutes after enabled, the user can open
the doors without turning OFF the vacation function.
4 QUICK FREEZE Prior to grocery shopping activate QUICK FREEZE to lower the
temperature and freeze food faster. QUICK FREEZE stays active for
up to 24 hours before automatic deactivation. You can turn it off
manually by pressing QUICK FREEZE. This restores the freezer to
the previous temperature setting.
5 Freezer
temperature
adjustment
buttons
Press either the + or - to adjust the temperature.
The temperatures range from –23°C to -13°C.
6 High temp The alarm will show if the temperature of the Freezer compartment
goes above 12°C for too long (45min).
The alarm will be turned off if there is an interaction of the user on
the UI or the door opens.
7 Ice Maker Off This indicator is lit when the Ice Maker is off.
8 Door Open If the door is left open for 5 minutes or more, the Door Open
indicator illuminates and the audible alert is on. Press the Door
Open button or close the door to turn off the alert. If the door is left
open for 5 minutes, the interior light turns off.
9 °F/°C To toggle between Fahrenheit (°F) and Celsius (°C), simultaneously
press and hold + and - for 5 seconds on refrigerator side of the
display.
10 Refrigerator
temperature
adjustment
buttons
Press either the + or - to adjust the temperature. The temperatures
range from +1°C to +7°C.
11 DRINK CHILL
TIMER
Press DRINK CHILL TIMER to quickly chill a drink inside the freezer
compartment. A time value appears on the freezer temperature
display (in minutes). Set the timer using the + / - buttons. The range
is from 20 to 45 minutes in 5 minute intervals. A tone sounds when
you input the time.
Drinks may freeze if the temperature is too low or timer setting is
too long.
WARNING
When using the cold drink timer, remove drinks from the
freezer compartment when the alarm sounds. Carbonated
drinks may explode if left in the freezer for too long.
12 RESET AIR FILTER Filter condition status is always displayed when the door is open.
Press and hold RESET AIR FILTER button for 3 seconds to reset
after changing the filter.
13 RESET WATER
FILTER
Press and hold RESET WATER FILTER button for 3 seconds to reset
after filter change.
11EN
BUTTON/
ICON
DESCRIPTION OPERATION / PRIMARY FUNCTION
14 LIGHT Press to switch the dispenser light on and off.
15 CONNECT Press and hold the “CUBES” and “LIGHT” buttons to enable/disable
wireless connection.
When LED is on the product is connected.
When LED is flashing the product is connecting.
When the LED is off, Wi-Fi connectivity is disabled.
Press and hold for 10 seconds to reset wireless connection
16 CUBE Press the CUBES key to select cubed ice. The indicator is lit above
the active feature.
17 CRUSH Press the CRUSHED key to select crushed ice. The indicator is lit
above the active feature.
18 LOCK The Lock prevents the display from unintended use. Press and hold
“WATER and CRUSHED” button for 3 seconds to enable/disable.
While Lock is enabled, you cannot change settings on the display.
Dispensing ice and water is disabled. When you interact with the
display, the indicator flashes, and an audible warning tone sounds.
19 WATER Press the WATER key to select water. The indicator is lit above the
active feature.
20 Replace air filters It illuminates every 6 months or when filter needs replacing.
Replace the filter. Press and hold RESET AIR FILTER button for 3
seconds to deactivate the warning on the display. Refer to Filter
Replacement.
21 Replace water
filter
It illuminates every 6 months or after dispensing 120 gallons of
water. Replace the filter. Press and hold RESET WATER FILTER
button for 3 seconds to deactivate the warning. Refer to Filter
Replacement.
12 www.electrolux.com
WI-FI CONNECTIVITY SETUP
This chapter describes how to connect the
smart appliance (fridge) to the Wi-Fi network
and to link it to mobile devices.
By this functionality you can receive
notifications, control and monitor your fridge
from your mobile devices.
To connect the appliance to enjoy the full
range of features and services you need:
• Wireless network at home with internet
connection enabled.
• Mobile device connected to wireless
network.
Frequency: 2.412 - 2.472 GHz
Protocol: IEEE 802.11b/g/n
Wi-Fi security protocol: WPA or WPA2 must be
enabled on the network
Follow these easy steps to connect you fridge.
1. Download and install the Electrolux App.
Minimum requirements: iOS 17.0/Android
11 and above. You will need to install the
Electrolux app, create an Electrolux account
and accept the Terms and Conditions and
Electrolux’s Privacy Policy in the app to use
the connected features of the fridge. Internet
and Wi-Fi connections are required to use
the full features of the app and the fridge.
Minimum requirements, apps and services
2. Create an Electrolux account You can only
create one Electrolux account per product.
This account can be shared across multiple
devices.
3. Setting Up Your Fridge Make sure your fridge
is plugged in and working properly. Tap the
“+” button at the top of the home screen and
follow the on-screen instructions.
*Setup may take a few minutes depending
on your network speed
4. Turning on your fridge Wi-Fi Initially your
fridge creates its own Wi-Fi network to
assist in setting up. After setup this network
disappears and your fridge will connect to
your home Wi-Fi network.
Press and hold the "Cubes" and "Light"
button on the fridge for 3 seconds until the
Wi-Fi icon starts flashing
The fridge is now creating a temporary
network for the next step
5. Your refrigerator is now ready to connect to
your home Wi-Fi network.
Please follow the instructions in the Electrolux
app to complete the setup.
6. Connect your fridge to your home Wi-Fi
You’ll need to select your Wi-Fi network
name and input your password.
*For iOS devices, you will then be prompted
go to ‘SETTINGS’ on your phone and
select your Home Wi-Fi, then return to the
Electrolux app.
Connection success!
Please proceed to the next screen to register
the appliance.
7. Product registration
Simply add your fridge’s name and the
purchase date.
Congratulations!
Now you’re all set up, you can start
exploring the Electrolux App
Useful Alerts on your App
Fridge Door Open
The door has been open for more than
five minutes. Please close it to save
energy and avoid the loss of cold air.
Drinks Chill
The drinks in your freezer are now
chilled. Please remove them from the
freezer to avoid freezing.
Water Filter
Ensure you always have fresh filtered
water, as you get a reminder when it’s
time to change the filter cartridge.
Other Cool Features of your Fridge
Easy Glide Crispers
Automatic humidity control ensures your fruit
and vegetables are preserved in the optimal
environment. Designed with your comfort in
mind, the easy glide crispers open effortlessly
and provide easy access even when they’re full.
SmartSplit Door Design
With optimally split doors you have more
usable space in your refrigerator door and can
effortlessly reach for larger items, saving you
the need to open both doors every time.
13EN
Flip Up Shelves
With the ability to flip up some of the
refrigerator shelving your taller Instagram
worthy creations stay in one piece, ready for
their big reveal
IMPORTANT
The factory default settings for the
refrigerator is “3°C” and “-18°C” for
the freezer. If you want to change the
temperature, remember to make only small
adjustments and wait 24 hours to see if
it’s correct
SETTING COOLING TEMPERATURES
NOTE: The recommended settings for a
product installed in a kitchen is 3˚C for the fresh
food compartment and -18˚C for the freezer.
IMPORTANT
If your product has food freezing in the
fresh food compartment, increase the
temperature setting 1 or 2 degrees. If
you place food within 1 inch in front of
the air ports, there may be the chance
of freezing food.
Air Port
NOTE: Control features and alarms may vary
by model.
Alerts and Alarms
Water Filter
When illuminated, the water filter needs to
be replaced. Change the water filter every 6
months or when 120 gallons of water has been
dispensed. To reset, press and hold button for
3 seconds. Tone will sound once it has been
reset.
Air Filter Installation
Prior to installation, the air filter pack can be
located in the left crisper inside the refrigerator.
Please follow instructions below on how to
install the air filter.
Carbon activated air filter
8. Remove plastic wrap.
9. Install filter according to your refrigerator’s
use&care guide on page 20 of this manual.
10. Reset filter reminder light on your refrigerator.
11. Replace filter every 6 months.
When illuminated, air filter needs to be
replaced. Change the air filter every 6 months.
To reset, press and hold button for 3 seconds. A
"beep" sound will confirm the reset is successful.
Door Open
If a door has been left open for 5 minutes or
more, an alarm will sound and the door open
indicator will illuminate on the display. The
alarm can be turned off by closing the door or
pressing any key. Control panel will return to
normal operations after the door is closed.
Error tone
An alarm will sound if the user tries to make a
selection that is not available.
How to change the °F/°C Mode
Press and hold for 5 seconds Temperature
refrigerator “+” and “-” Buttons The display will
change to “°F/°C” then revert to either °F/°C
mode
14 www.electrolux.com
Refrigerators work by transferring heat from the
food inside to the outside air. This operation
makes the back and sides of the refrigerator
feel warm or even hot particularly at start-up
and on warm days – this is normal.
Avoid placing food against the air vents in the
refrigerator as it affects efficient circulation. If
the door is opened frequently, a light frosting
will occasionally occur on the freezer’s interior.
This is normal and will clear after a few days.
If the freezer door is accidentally kept open, a
heavy frost will coat the inside walls and should
be removed.
Your new refrigerator uses a high-speed
compressor, along with other energy-efficient
components, which may make unusual sounds
and be more noticeable at night and quieter
times. These sounds simply indicate your
refrigerator is working how it should. They
include:

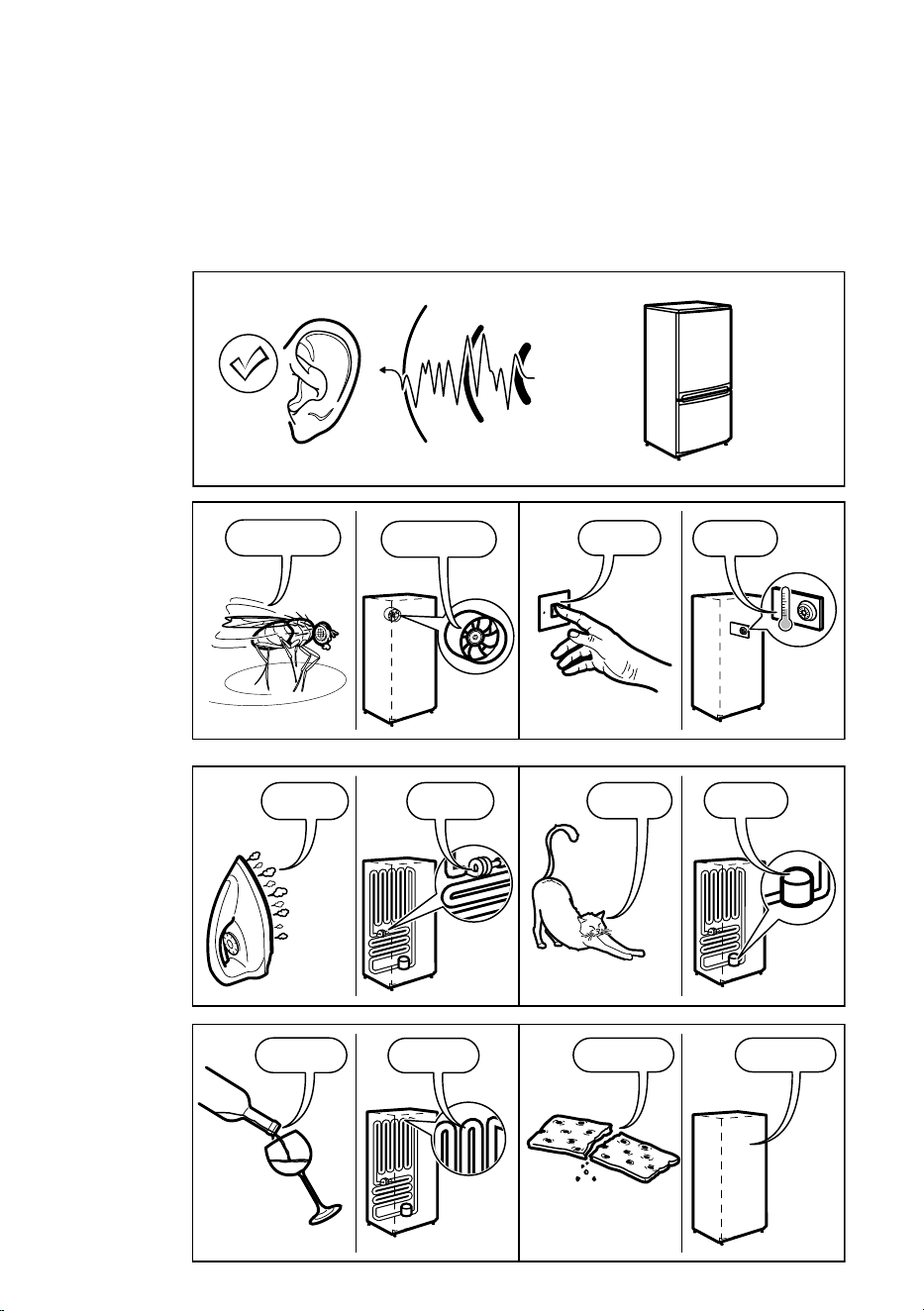

• Compressor running noises;
• Air movement noise from the small fan
motor;
• A gurgling sound, similar to water boiling;
• A popping noise, heard during automatic
defrosting; and
• A clicking noise, prior to compressor
start-up. Further details can be found in
the Troubleshooting Guide
CAUTION
LED lighting
Your appliance is fitted with long life
LED lighting. In the unlikely event the
LED lights should fail, then the LED
lights should be serviced by the service
agent, to avoid a safety hazard. Refer
to the warranty page for contact
details.
SHELVES
CAUTION
To avoid personal injury or property
damage, handle tempered glass
shelves carefully. Shelves may break
suddenly if nicked, scratched, or
exposed to sudden temperature
change. Allow the glass shelves to
stabilize to room temperature before
cleaning. Do not wash in dishwasher.

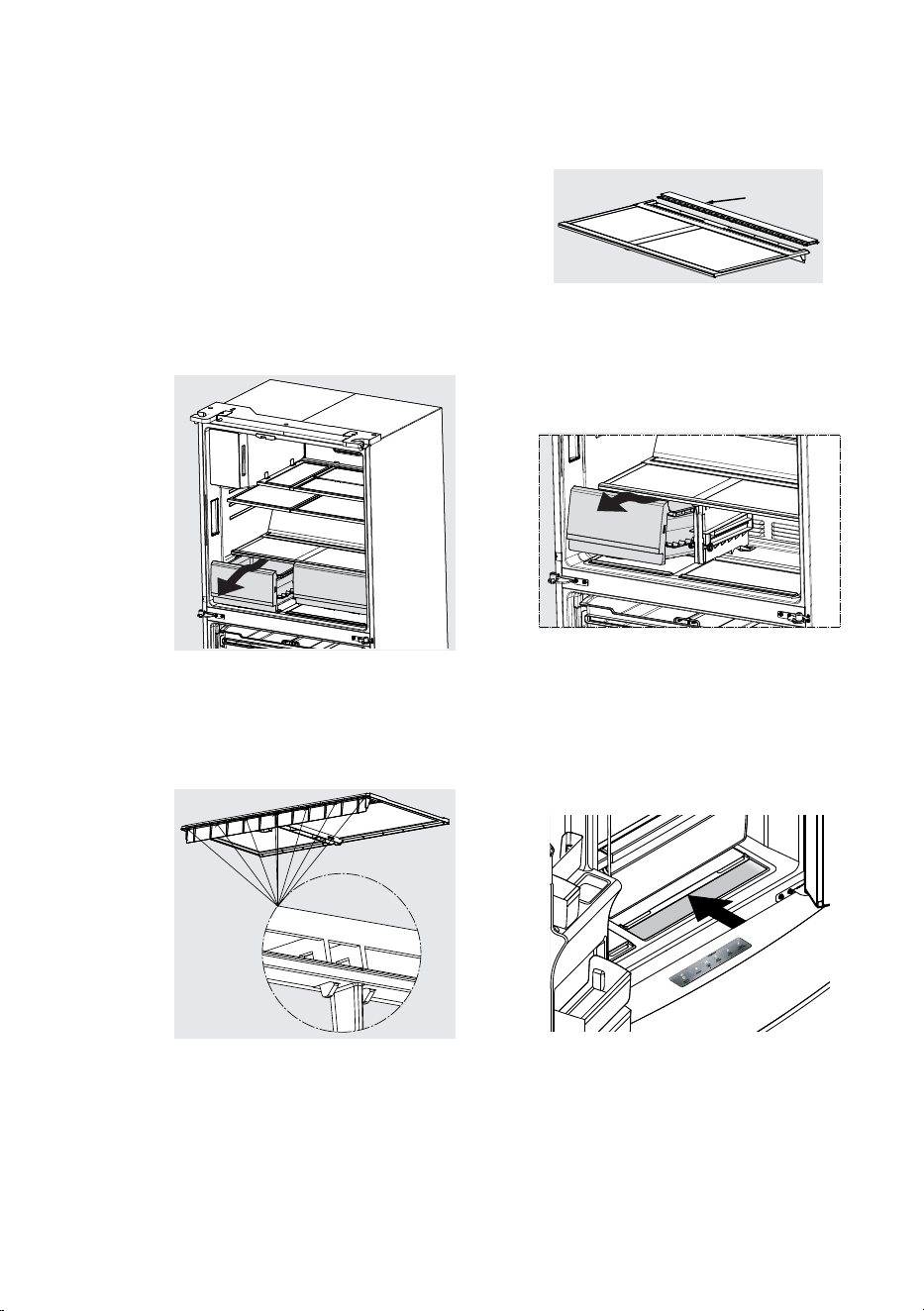

You can easily adjust shelf positions in the
fresh food compartments to suit your needs.
The shelves have mounting brackets that
attach to slotted supports at the rear of each
compartment.
5. USING YOUR REFRIGERATOR
To change a shelf position:
1. Remove all food from shelf.
2. Lift the front edge up and pull the shelf out.
3. Replace by inserting the mounting bracket
hooks into the desired support slots.
4. Lower the shelf and lock into position.

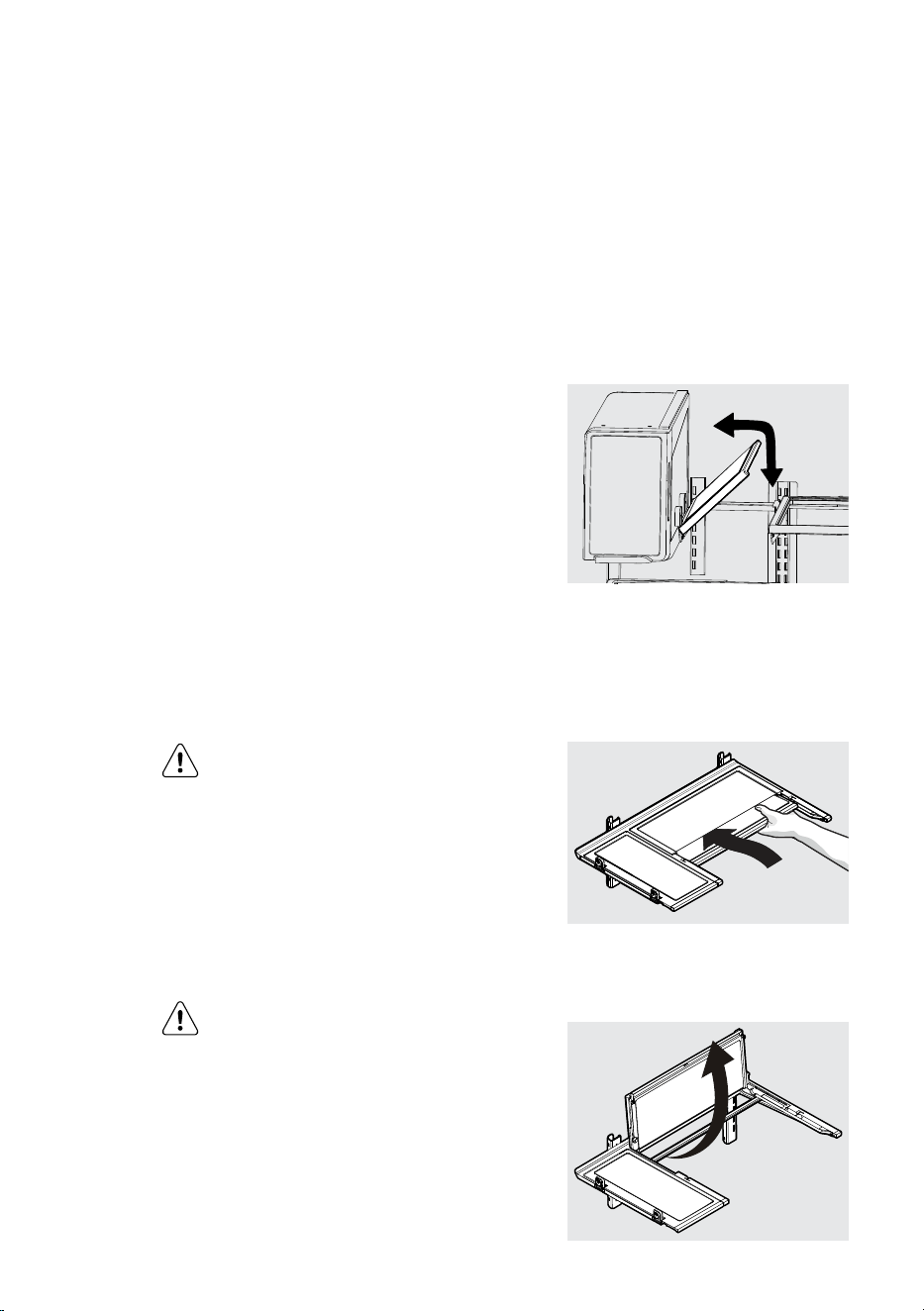

To adjust the flip shelf:
1. Remove food from shelf.
2. Lift the right side edge of shelf upwards and
push to the left towards ice maker.
Flip Shelf
To adjust the slide-under/flip shelf:
1. Pull front half shelf forward until its back
drops down, then gently push front half shelf
back and under back half shelf.
Slide-Under/Flip Shelf
2. With front half fully below back half, lift front
of shelf to flip it upwards toward the back of
the cabinet.
Slide-Under/Flip Shelf
15EN
DRAWERS
Your refrigerator includes a variety of storage
drawers.
Crisper cover with automatic humidity control
(AHC)
Crisper drawers are designed for storing
fruits, vegetables, and other fresh produce.
Crispers have an auto humidity control (with
replaceable membrane) on the back of each
crisper under the humidity control cover.

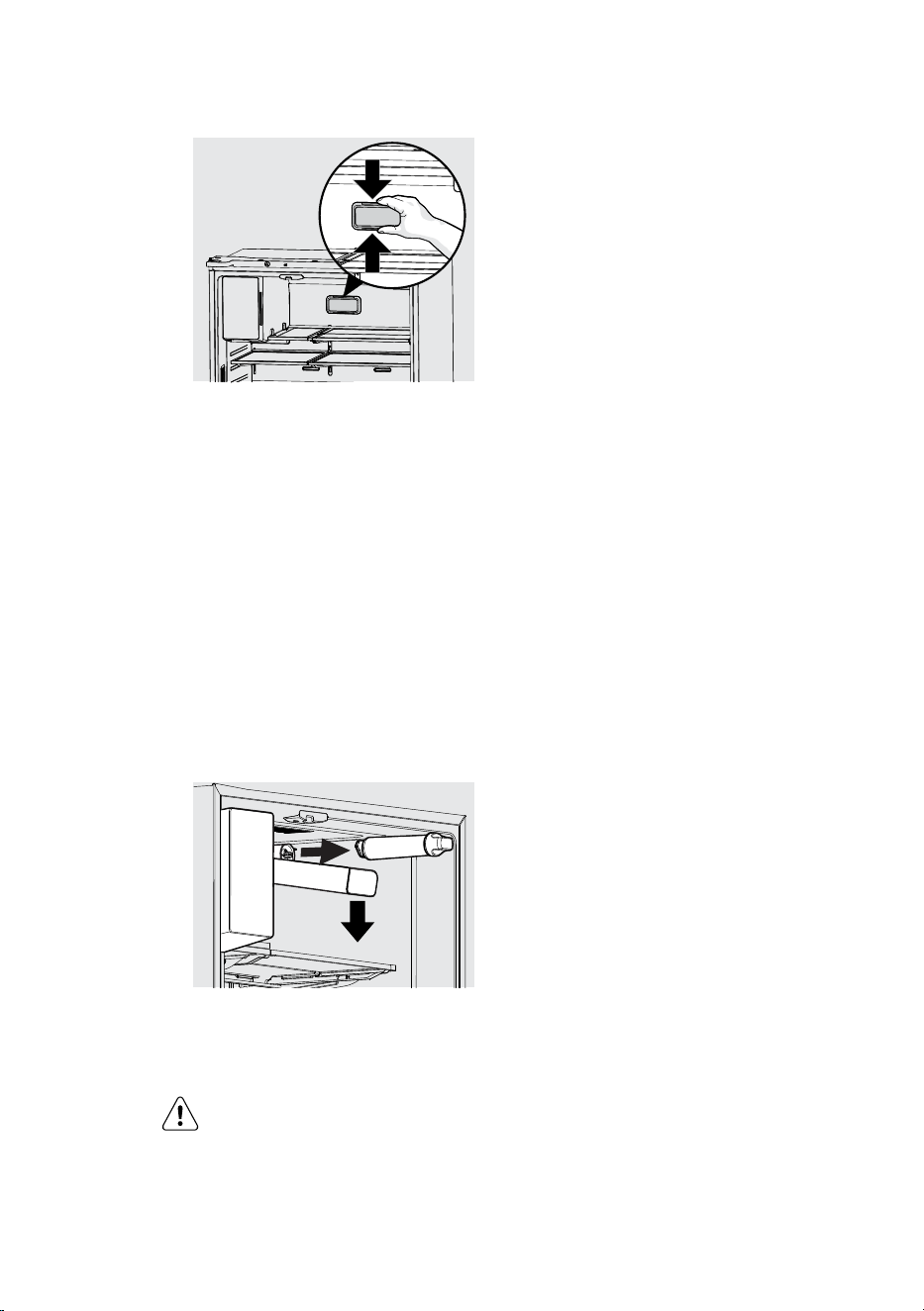

To remove the auto humidity control
membrane:
1. Remove the cover crisper from the cabinet.
2. Push all snap lock AHC at the back side of
cover.
3. Pull AHC up the cover.
4. Pull towards the back of cover and remove.
5. Replace humidity membrane.
AUTO
HUMIDITY
CONTROL
6. Replace cover by reversing the steps above.
7. Repeat for both crispers.
To remove the Crisper drawer for cleaning:
1. Pull the drawer out until it stops.
2. Lift the front slightly and remove the drawer.
Removing drawer for cleaning
Recessed SnackZone
This drawer is ideal for storage of deli meats
and cheese.
Slide back the cover to allow access to the
drawers.
Opening the SnackZone
16 www.electrolux.com
DOORS
Storage bins
The doors to your fresh food compartment use
a system of modular storage bins. All of these
bins are removable for easy cleaning. Bins can
be adjusted to your needs.
Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enable quick selection of frequently used items.

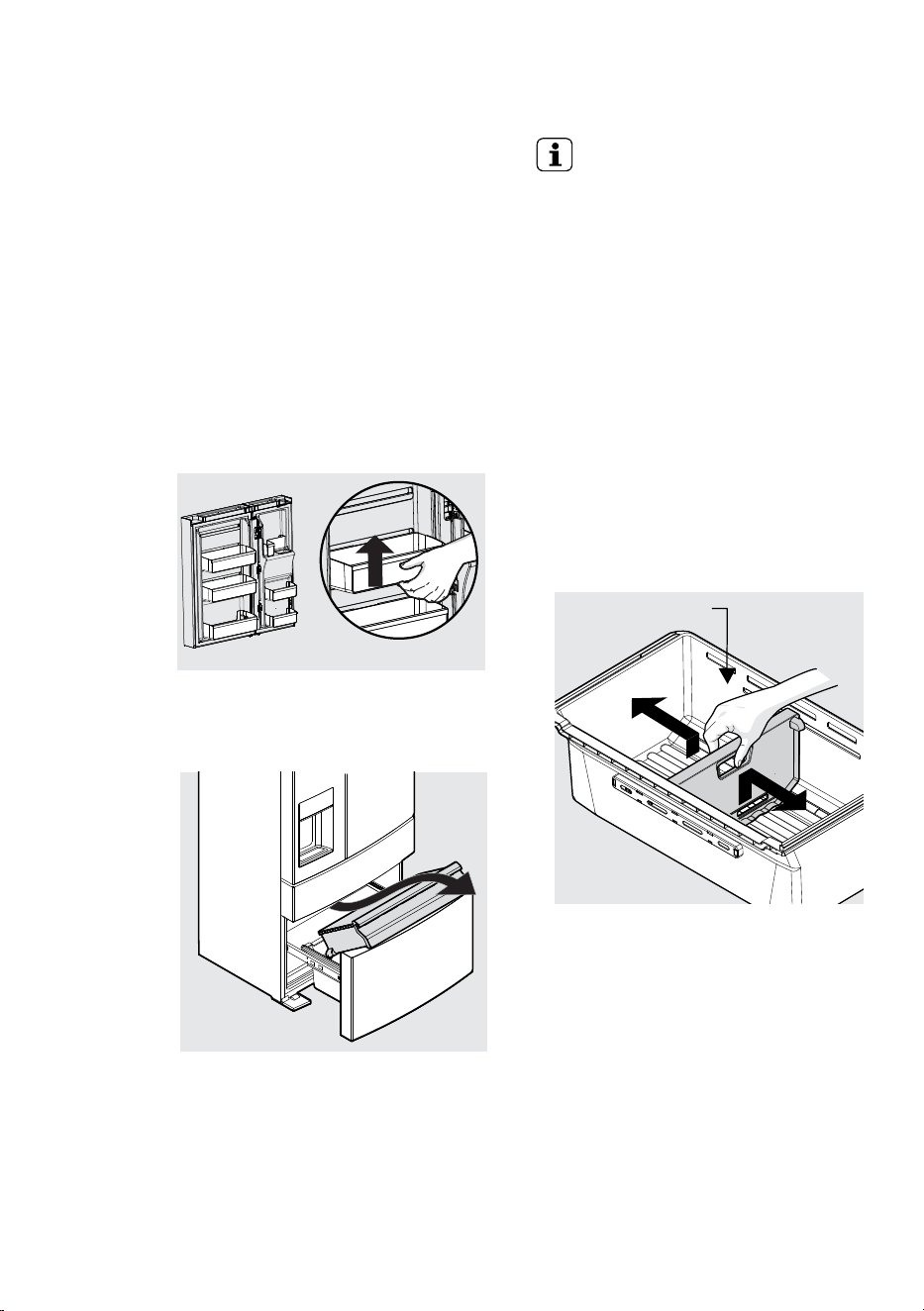

To move door bin from rail to rail:
1. Lift bin up disengaging the hook.
2. Move bin to desired rail location.
3. Push bin hook into rail engaging the hook.
Adjustable Door Bins
FREEZER FEATURES
Freezer Basket
To remove upper freezer basket:
1. Open freezer compartment completely.
2. Lift up and out to remove upper freezer
basket.
Reverse the steps to reinstall basket.
IMPORTANT
There are wheels on the bottom of
the drawer. Make sure all wheels are
aligned on their respective tracks for
proper function. If drawer is not aligned
properly, it will cause problems with the
door operation.
Note: If basket is not resting on stabilizer
bar retainer clips, the drawer will not close
properly.
To remove lower freezer basket:
1. Open freezer compartment completely.
2. Lift the basket up and remove.
Reverse the steps to reinstall drawer.
Dividers
Grab hand hold on lower divider and pull up
slightly to slide to next position. (The divider
cannot be removed.)
Lower Basket Divider
Lower Basket
Divider
17EN
6. CONNECTING THE WATER SUPPLY
WARNING
To avoid electric shock, which can
cause death or severe personal
injury, disconnect the refrigerator from
electrical power before connecting a
water supply line to the refrigerator.
WARNING
To Avoid Property Damage:
• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning
water softener can damage the
ice maker. If your home has a
water softening system, ensure the
softener is maintained and working
properly.
IMPORTANT
Ensure that your water supply line
connections comply with all local
plumbing codes.
The appliance complies with the
relevant back-flow prevention
requirements specified in AS/NZS 2845.1
Before Installing the Water Supply Line, You Will
Need:
• Basic Tools: adjustable wrench, flat-blade
screwdriver, and Phillips
TM
screwdriver
• The water dispenser and automatic ice
maker require a drinkable water supply with
a pressure range of between 206kPa and
689kPa (30PSI and 100PSI). If the water
supply is above 100psi a pressure limiting
valve should be installed.
• A water supply to suit a ½” tap fitting is
required adjacent to the refrigerator. It is
recommended that a licensed plumber install
a new water supply outlet nearer to the
appliance should the tubing supplied not be
long enough. It is not recommended that the
tubing be extended as this could adversely
affect the flow of water to the ice maker or
water dispenser. If there is a risk of flow rate
higher than the maximum flow rate
2.46 L/min, a flow controller should be
installed.
WARNING
Connect to potable water supply
only.If using tank or bore water it is
recommended to also use an external
filter (not supplied).
The new hose-sets supplied with the
appliances must be used and old hose-
sets should not be reused.
Never connect the appliance to a hot
water supply. Do not use with water
that is micro-biologically unsafe or
with water of unknown quality without
adequate disinfection.
Contents of installation kit
Figure 1
A
C
B
A - Adapter ½ to ¼ inch to connect the water
supply outlet to the water supply line.
B - Water supply line ¼ inch with 3 meters in
length.
C - ¼ inch connector to connect the water
supply line to the refrigerator tube.

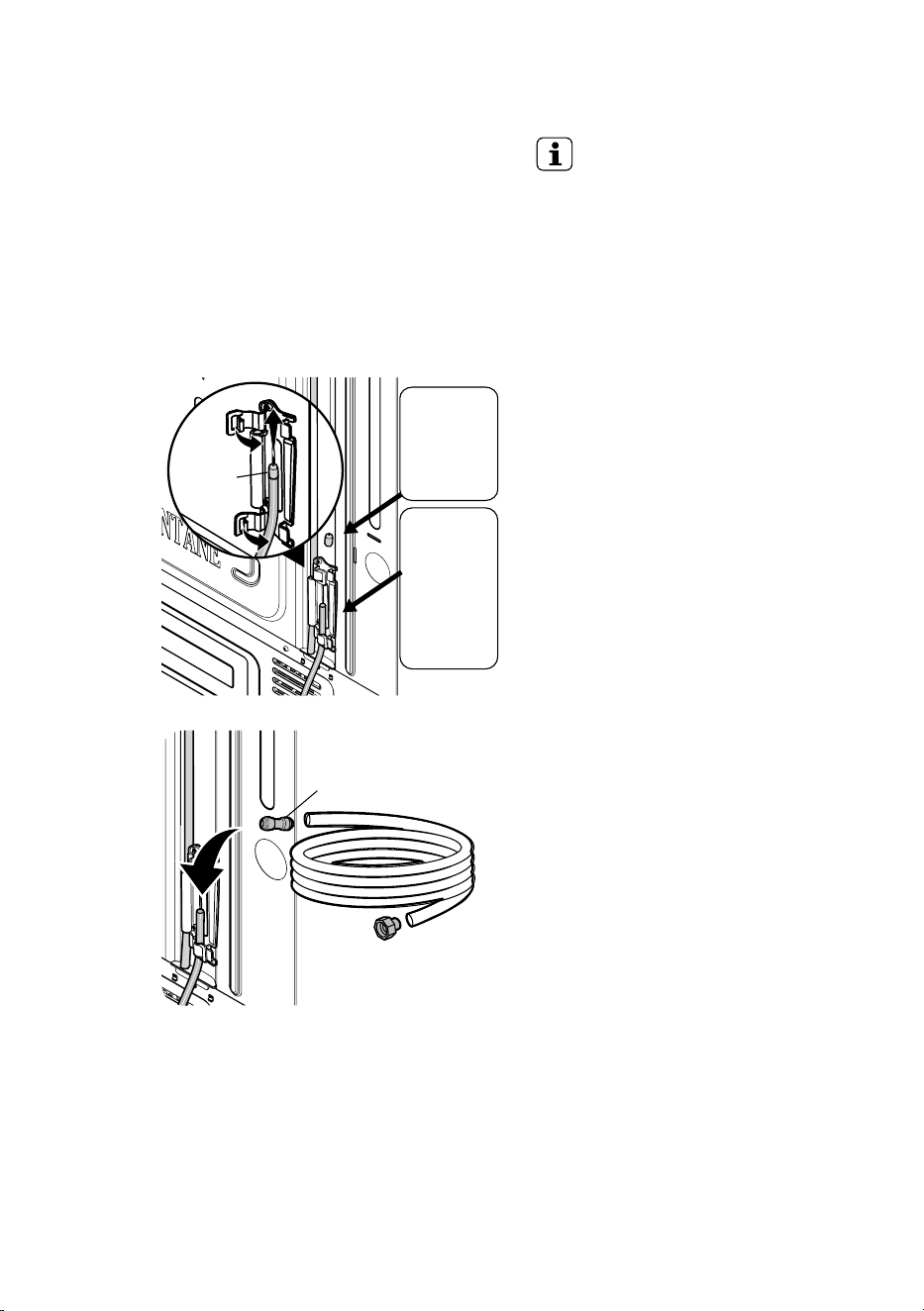

1. Disconnect the refrigerator from the power
source.
2. Attach the adapter (item A above) to the
water line, connect the water supply line
(item B) to the adapter (item A) while holding
the other end of the water supply line in a
bucket or sink Turn on the water supply to
eliminate air and clean the water supply line.
Turn off the water supply.
3. Remove the plastic protector from the
refrigerator tube and connect the water
supply line (item B) to the refrigerator tube
using the connector (item C) as shown in fig.
Make sure the tubes are inserted completely
into the connections. Lock the tubes in the
clamp to keep the correct position
4. Wrap excess water supply line behind
refrigerator so that it does not vibrate with
refrigerator operation. Do not twist the pipe.
5. Turn on the water supply, check that there
are no leaks in the connections.
18 www.electrolux.com
6. Reconnect the refrigerator to the power
source.
7. The Ice Maker is factory-switched, within 24
hours your refrigerator will have produced
ice, discard the first production.
Note: Expect the first ice harvest within first 24
hours of unit operation. To prevent any issues
concerning ice production, please ensure that
all water lines are primed. See “Priming the
water supply system “in the “AUTOMATIC ICE &
WATER DISPENSER” section.
Plastic
cap
Remove
the cap
from the
inlet tube
¼
inch
water
valve
plastic
tube
Figure 2
Figure 3
A
C
Connector to
connect the water
supply line to the
refrigerator tube
Adapter to connect the
water supply
IMPORTANT
Your refrigerator’s water supply system
includes several tubing lines, a water
filter, and a water valve. To ensure that
your water dispenser works properly,
this system must be completely filled
with water when your refrigerator is
first connected to the household water
supply line.
Water Filter
The water filter should not be used on water
that is micro biologically unsafe or with water
of unknown quality. The service life of the filter
may be reduced in water supplies that contain
an excess of particles or other impurities.
Reduced flow rate is an indication that a new
filter is required. Failure to replace the filter
when required can affect the function of the
ice maker. Service calls caused by a failure to
replace the filter are not covered by warranty.
Replacement water filters are available from
Electrolux Home Products Spare Parts Centres
and can be posted to you for your convenience
(refer to spare parts contact numbers on the
warranty page).
19EN
Ice maker operation & care
After the refrigerator is installed properly and
has cooled for several hours, the ice maker can
produce ice within 24 hours. The ice maker will
fill the ice bin from the rear. You must dispense
some ice to force the ice forward in the bin. This
will allow the bin to fill completely.
Ice Maker and Storage Bin Capacity
This ice maker should produce 1.2 to 1.5 kg of
ice per 24 hours. The ice bin will hold about
1.8 kg of ice.
Turning the ice maker on and off
IMPORTANT
Your ice maker is turned on at the
factory so it can work as soon as
you install your refrigerator. If you
cannot connect a water supply, set
the ice maker’s On/Off feature to Off;
otherwise, the ice maker’s fill valve may
make a loud chattering noise when it
attempts to operate without water.

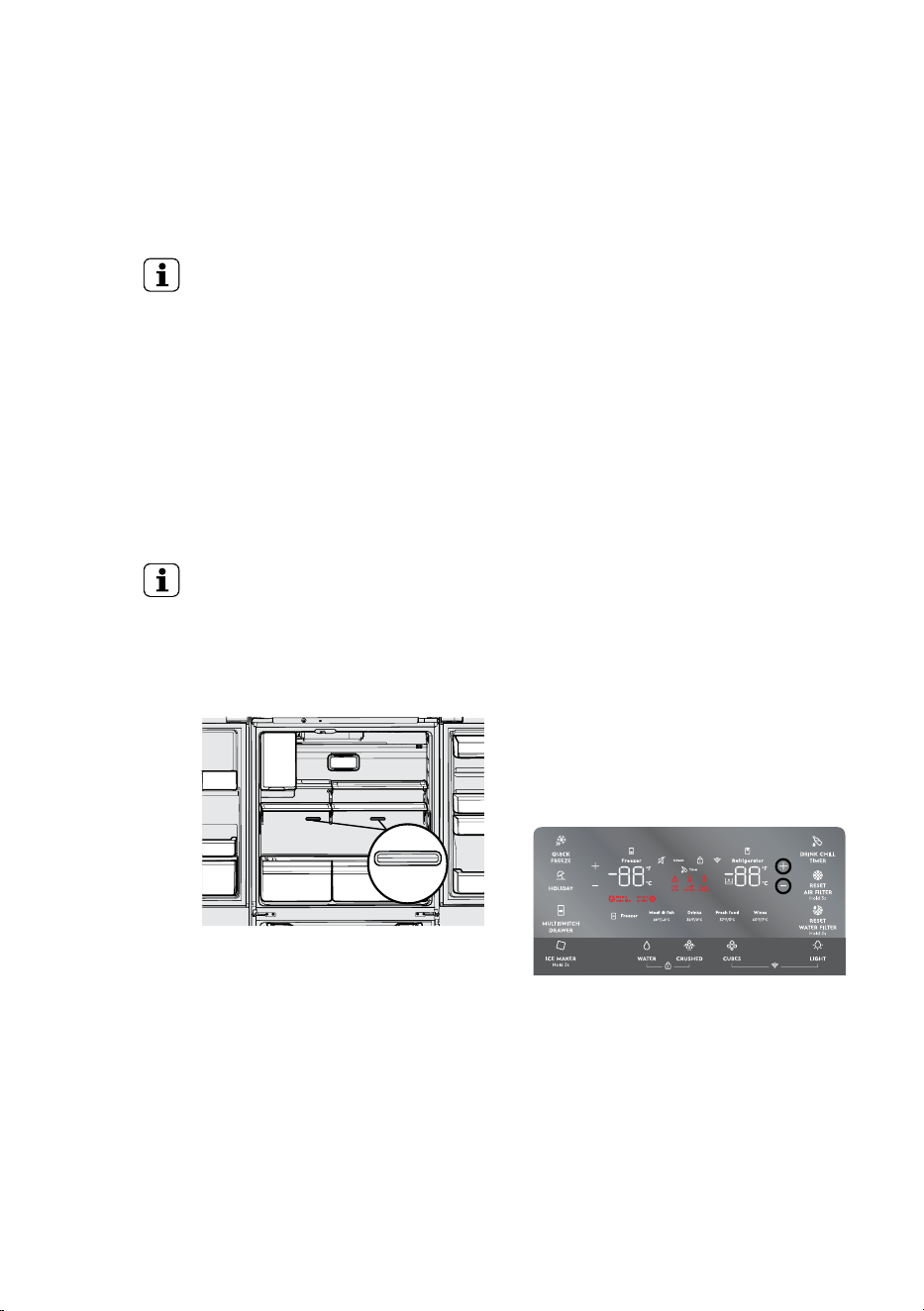

Ice production is controlled by the ice maker’s
On/Off feature on the control panel. Pressing
the On/Off feature turns the ice maker on & off.
Note: The ice maker also has a built-in
plastic signal arm that automatically stops ice
production when the ice bin is full. This signal
arm should not be used to manually stop the
ice maker.
IMPORTANT
Turning off the ice maker simply d
disables ice making. You will still be
able to dispense existing ice, and you
will still be able to dispense water.
On occasion, unusually small ice cubes maybe
noticed in the bucket or in dispensed ice. This
could occur in normal operation of the ice
maker. If you start seeing these more frequently,
it may be an indication of low water pressure,
or that the water filter needs to be replaced.
As the water filter nears the end of its useful life
and becomes clogged with particles, less water
is delivered to the ice maker during each cycle.
Remember, if it has been six months or longer
since you last changed your water filter, replace
the water filter with a new one. Poor quality
household water may require the filter to be
changed more frequently.
7. AUTOMATIC ICE & WATER DISPENSER
USING THE ICE MAKER AFTER INSTALLATION
Before making ice for the first time, be sure
to prime the water supply system. Air in new
plumbing lines can result in two or three empty
ice maker cycles. Furthermore, if the system
is not flushed, the first ice cubes may be
discolored or have an odd flavor.
PRIMING THE WATER SUPPLY SYSTEM
CAUTION
For proper dispenser operation,
recommended water supply pressure
should fall between 30 psi and 100
psi. Excessive pressure may cause the
system to malfunction.
1. Begin filling the system by pressing and
holding a drinking glass against the
dispenser.
2. Keep the glass in this position until water
comes out of the dispenser. It may take
about 1½ minutes.
3. Continue dispensing water for about four
minutes to flush the system and plumbing
connections of any impurities (stopping to
empty the glass as necessary).
Dispenser
Note: The water dispenser has a built-in device
that shuts off the water flow after two minutes
of continuous use. To reset this shut-off device,
simply release the dispenser paddle.
Only the first 26 ounces (750 ml) of dispensed
water is chilled.
WARNING
Flushing system about 2 minutes after
period of non-use exceeding 30 days
20 www.electrolux.com
Ice maker/dispenser tips
• If your refrigerator is not connected to a
water supply or the water supply is turned
off, turn off the ice maker as described in the
previous section.
– The following sounds are normal when
the ice maker is operating: Motor
running
– Ice dropping into ice bin
– Water valve opening or closing
– Running water
• If you need a large quantity of ice at one
time, it is best to get cubes directly from the
ice bin.
• Ice cubes stored too long may develop an
odd flavor. Empty the ice bin as explained
below.
• When dispensing cubed ice, it is normal to
have a small quantity of little pieces along
with the whole cubes.
• To avoid splashing, dispense ice into your
container before adding liquids.
• It is normal for ice to fill to the top of the ice
bin.
CAUTION
If the water supply to your refrigerator
is softened, be sure the softener is
properly maintained. Chemicals from
a water softener can damage the ice
maker.
Cleaning the ice maker
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or moving.
1. Turn off the ice maker.
2. Remove the ice bin by pulling straight out.
3. Empty and carefully clean the ice bin with
mild detergent. Do not use harsh or abrasive
cleaners. Do not place in dishwasher. Rinse
with clear water.
4. Allow the ice bin to dry completely before
placing it back into the freezer.
5. Place ice bin back into position. Turn the ice
maker on.
Remove and empty the ice bin if:
• An extended power failure (one hour or
longer) causes ice cubes in the ice bin to
melt and refreeze together after power is
restored, jamming the dispenser mechanism.
• You do not use the ice dispenser frequently.
Ice cubes will freeze together in the bin,
jamming the dispenser mechanism.

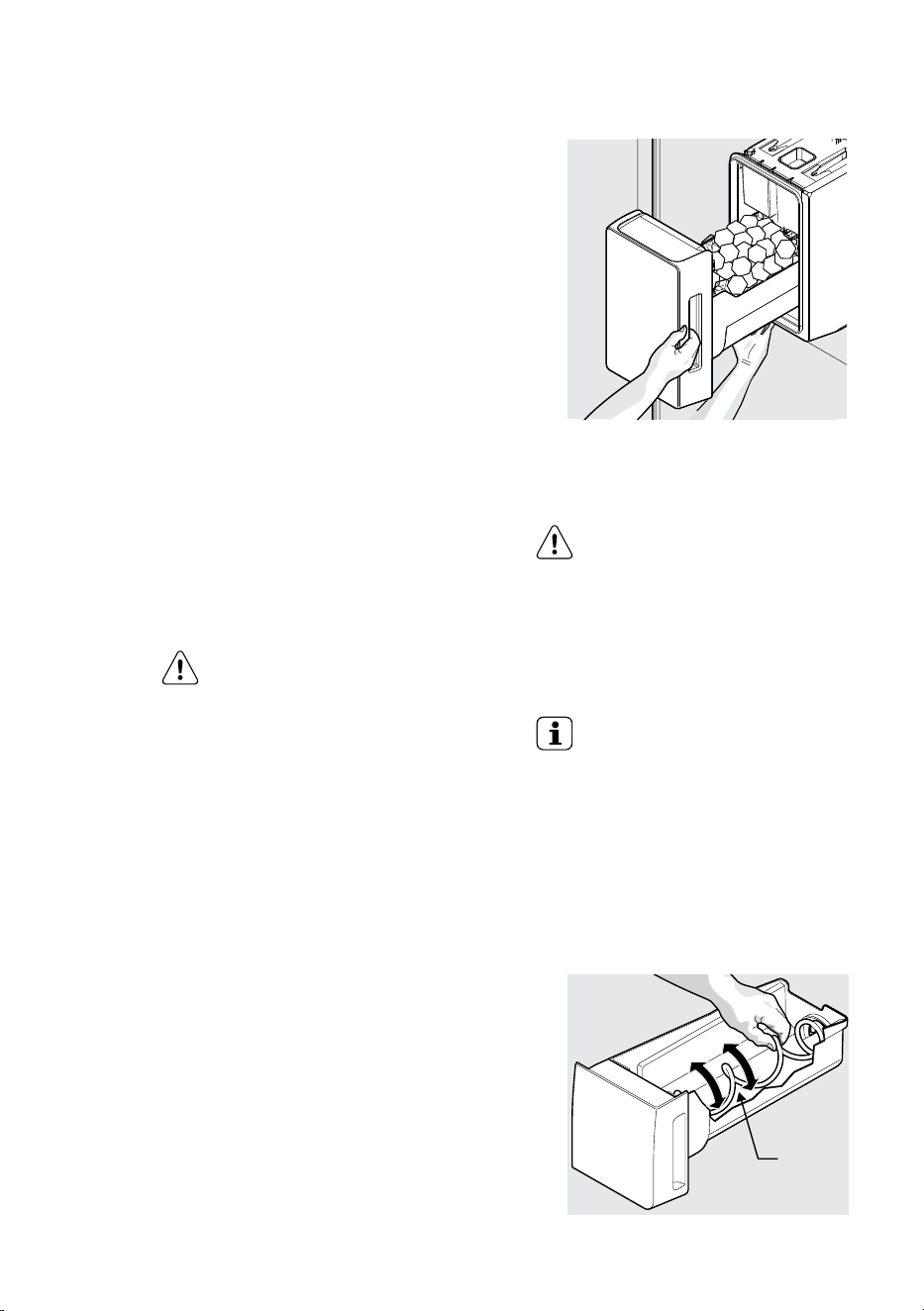

Removing Ice Bin
Remove the ice bin and shake to loosen the
cubes or clean as explained above.
CAUTION
NEVER use an ice pick or similar
sharp instrument to break up the ice.
This could damage the ice bin and
dispenser mechanism.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure
it is completely dry.
IMPORTANT
When removing or replacing the ice
bin, avoid rotating the auger in the ice
bin. If the auger is accidentally rotated,
you must realign the auger by turning
it in 45 degree turns (see below) until
the ice bin fits into place with the drive
mechanism. If the auger is not properly
aligned when replacing the ice bin,
the refrigerator will not dispense ice.
The fresh food door also may not close
properly causing warm air to leak into
the fresh food compartment.
Auger
Adjusting the ice bin Auger
21EN
8. GENERAL INFORMATION
CLEANING YOUR REFRIGERATOR
WARNING
BEFORE CLEANING: Turn the
refrigerator off at the power point and
unplug the cord to prevent any chance
of electrocuting yourself.
Doors and exterior (white and silver):
You should only clean the doors with lukewarm
soapy water and a soft cloth.
Stainless Steel:
Your stainless steel refrigerator is manufactured
from mark-resistant stainless steel. This stainless
steel has a special advanced protective
coating that eases the removal of marks such
as fingerprints and water spots. To keep its
appearance, clean it regularly with lukewarm
soapy water and a soft cloth.
CAUTION
Never use stainless steel cleaners,
abrasive pads or other cleaners that
will scratch the surface. Damage to
the appliance after d delivery is not
covered by your warranty.
Interior
Clean the inside of your refrigerator regularly
with a soft cloth, unscented mild soap and
lukewarm water. Thoroughly dry all surfaces
and removable parts and avoid getting water
on the controls. Replace removable parts, plug
power cord in and switch the power on before
returning the food.
Ice and water
Clean the components of the ice maker/water
dispenser regularly with a soft cloth, unscented
mild soap and rinsing thoroughly with lukewarm
water. For further information on the care and
cleaning of your ice maker, ice dispenser of
water dispenser refer to the section “Ice and
Water Models”
Door seals
Always keep door seals clean by washing them
with a mild detergent and warm water, followed
by a thorough drying. Sticky food and drink
can cause seals to stick to the cabinet and tear
when you open the door.
CAUTION
Never use hot water, solvents,
commercial kitchen cleaners, aerosol
cleaners, metal polishes, caustic or
abrasive cleaners, or scourers to clean
your refrigerator. Many commercially
available cleaning products and
detergents contain solvents that will
damage your refrigerator. Use only a
soft cloth with an unscented mild soap
and lukewarm water.
To clean a crisper or freezer bin with
telescopic extension slides, simply wipe
with a damp cloth and warm soapy
water. Never immerse the cover in
water, as this could affect the operation
of the slide.
Switching off your refrigerator
If you switch off your refrigerator for an
extended period, follow these steps to reduce
the chances of mould.
1. Remove all food.
2. Remove the power plug from the power
point.
3. Thoroughly clean and dry the Interior.
4. Ensure that all the doors are wedged open
slightly for air circulation.
CHANGING THE FILTER
Air Filter (select models)
The air filter is located in the top center of the
fresh food compartment.
Replacing your Air Filter
To ensure optimal filtering of refrigerator odors,
you should change the air filter six months (The
filter status light on the Touch Panel prompts
you to replace the filter after six month)
1. Remove the air filter cover by squeezing the
sides of the cover together and removing
from liner
2. Remove the old filter and discard it.
3. Unpack the new filter and snap it into the
filter cover. The open face (carbon media) of
the filter should be installed facing outward
in the cover.
4. Replace the air filter cover by squeezing the
sides and snapping it back into place.
5. To reset, press and hold Reset Air Filter on
the appliance control display for 3 seconds.
Tone will sounds once it has been reset.
22 www.electrolux.com
Air Filter
Water Filter
Your refrigerator is equipped with a water
filtering system. The water filtering system filters
all dispensed drinking water, as well as the
water used to produce ice. The water filter is
located at the top right side of the fresh food
compartment.
In general, you should change the water filter
every six months to ensure the highest possible
water quality. Water filter status on the user
interface prompts you to replace the filter after
a standard amount of water (473 litres) has
flowed through the system.
If your refrigerator has not been used for a
period of time (during moving for example),
change the filter before reinstalling the
refrigerator
NOTE: When ordering your replacement filter,
please reorder the same filter type that is
currently in your refrigerator.
WARNING
Use the appliance with water filter
supplied by Electrolux Home Products
Pty Ltd or its authorized service agent
only.
For correct operation of this
appliance it is essential to observe the
manufacturer’s instructions.
Replacing the Water Filter
To Remove: Pull cover towards you and cover
will drop down and allow access to filter.
To Reinstall: Push cover up towards liner and
then push towards rear of cabinet. Filter cover
will snap back into place.
It is not necessary to turn the water supply off
to change the filter. Be ready to wipe up any
small amounts of water released during the
filter replacement.
1. Ensure that the ice maker is turned off
2. Remove the filter by turning anti-clockwise
180˚
3. Slide the old water filter cartridge straight out
of the housing and discard it.
4. Unwrap the new filter cartridge and using
the alignment guide, slide it gently into
filter housing until it stops against the filter
connection at the back of the housing.
5. Engage the filter by firmly rotating clockwise
until the filter snaps into position (once
engaged the filter cannot be rotated further).
6. Press a drinking glass against the water
dispenser while checking for any leaks at the
filter housing. Any spurts and sputters that
occur as the system purges air out of the
dispenser system are normal.
7. After filling one glass of water, continue
flushing the system for about four minutes.
8. Turn on the ice maker.
9. When the filter has been replaced press and
hold the ‘Reset Water Filter’ button for three
seconds to reset the filter replace timer.
10. Replace the filter, don't take off filter cover.
23EN
9. FOOD STORAGE GUIDE
IMPORTANT
*Please note, use this information as a guide only, actual storage times will vary depending
on how you use your refrigerator, climatic conditions and the freshness of the food.
CATEGORY PRODUCT
RECOMMENDED STORAGE TIMES FOR FRESH
FOODS *
STORAGE TIPS
REFRIGERATOR ULTRA CHILL FREEZER
MEAT Sausages and
Mince
1-2 Days 3-5 Days 2-3 Months Keep cold meat at the back
of the refrigerator where it is
coldest.
Plastic can cause meat to
sweat if stored in refrigerator
for more than a day.
Roast can take up to 48 hours
to defrost properly, transfer
frozen roast to the refrigerator
2 days before use.
Chops and
Steak
3-4 Days 5-7 Days 4-6 Months
Cold Meats 3-5 Days 5-7 Days 4-6 Months
Roasts 3-5 Days 1 week 12 Months
POULTRY Chicken 1-2 Days 5-7 Days 2 Months If poultry takes on a smell or
colour you are unsure about it
is best to throw it out.
Whole eggs are not suitable
for freezing, slightly beaten
eggs may be frozen for four
months.
Roast Chicken 3-5 Days 1 week 12 Months
Eggs 6 Weeks Not Suitable Not Suitable
SEAFOOD Whole fish and
fillets
2-3 Days 5-7 Days 2 Months Store in an airtight container
or foil.
Never freeze prawns in salty
water as this will dehydrate
the flesh.
Lobster and
Crab
1-2 Days 3-5 Days 2 Months
Prawns 1-2 Days 3-5 Days 2 Months
DAIRY Milk Until Expiry
Date
Not Suitable Not Suitable If dairy takes on a smell or
colour and you are unsure
about it, it is best to throw
it out.
Yoghurt 7- 10 Days Not Suitable Not Suitable
Hard Cheeses 2 Weeks – 2
Months
1-2 Months 2 Months
(Grated)
Depending on the variety hard
cheese can last from 2 weeks
to 2 months.
Soft Cheeses 1-2 Weeks 2-4 Weeks * Not Suitable * Texture may change
depending of the type of soft
cheese
Butter 8 Weeks 3-4 Months 12 Months
FRUIT &
VEGETA-
BLES
Every fruit and vegetable has a
different shelf life. Some stay fresh
for a couple of days e.g. beans,
others can last for a couple of
months e.g. onions.
Not Suitable 8-12 Months
When
freezing
chop and
blanch
in small
portions.
Keep vegetables in the crisper
and away from the air vents to
avoid freezing.
If you wash fruit and
vegetables before storing them
make sure they are dry or wrap
in absorbent paper before
storing in the refrigerator as
this can make them susceptible
to rotting.
Try to keep fruit and
vegetables separated as fruits
that give off high levels of
ethylene (the ripening agent)
can prematurely ripen and
spoil surrounding vegetables
24 www.electrolux.com
10. TROUBLESHOOTING
Appliance does not operate at desired temperature
In a modern frost free refrigerator / freezer, cold air is circulated around the various compartments
through air vents using a high efficiency fan.
Appliance noise
Your new refrigerator may make sounds that your old one didn’t make. Because the sounds are new
to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces,
like the floor, walls and cabinets, can make the sounds seem louder than they actually are. The
following describes the kinds of sounds and what may be making them.
Concern What to do
Refrigerator is too warm. • Ensure food is allowed to cool before placing inside the
refrigerator.
• Ensure the appliance is set up as per instructions.
• Ensure that contents are not obstructing the cooling vents.
• Ensure the door is not held open or is being opened too
frequently.
Freezer is too warm. • Adjust temperature to a colder setting.
• Ensure food is allowed to cool before placing inside the freezer.
• Ensure the appliance is set up as per instructions.
• Ensure that contents are not obstructing the cooling vents.
• Ensure the door is not held open or is being opened too
frequently.
Food is freezing in the
refrigerator.
• Adjust temperature to a warmer setting.
• Ensure that fruit and vegetables are stored in the crisper. Items
with a high water content should not be placed near the
cooling vents.
Unable to change
temperature settings.
• Refer to function guide in Controlling Your Refrigerator.
• Ensure that user interface is in “awake” mode before trying to
adjust temperature settings.
Concern What to do
Motor noise (compressor) Nothing. This is normal as your new refrigerator uses a variable
speed compressor and fan that at start up and on warm days runs
at a high speed to provide additional cooling.
When less cooling is required the compressor and fan will run at a
lower speed Note that the compressor noise may seem louder at
the start of the on cycle.
A clicking noise heard just
before the compressor
starts.
Nothing. This is normal as your new refrigerator has an automatic
switching action of the temperature control, turning the compressor
on and off.
Occasional gurgling, similar
to water boiling.
Nothing. As each refrigeration cycle ends, you may hear a gurgling
sound due to the refrigerant flowing in your refrigerator system.
Airflow noise Nothing, this is normal as your new refrigerator uses high efficiency
fans to circulate air. Fan speed and noise may increase during
periods of heavy usage or hot weather.
Rattling and other noises • Ensure that the cabinet is level and stable, refer to Installation
Instructions on page 5.
• Check the surrounds of the appliance to ensure there is nothing
touching or placed on top of the appliance.
• Ensure that contents of the appliance are not placed in such a
way that they are vibrating (such as bottles).
25EN
Crisper Operation
Refrigerator operation
Concern What to do
Excess moisture build up in
crisper. It is normal for there
to be some moisture and
humidity in the crisper bin.
• Ensure that the crisper is not over packed.
Crisper bin cannot be
removed.
If crisper bin interferes with the door bins, remove door bins before
removing crisper.
Position cabinet so that the door can be fully opened.
Freezing items in the
crisper.
Adjust temperature to a warmer setting.
Concern What to do
Appliance will not run. It is
normal for the freezer fan
not to operate during the
automatic defrost cycle,
or for a short time after the
appliance is switched on.
• Ensure that the cord is plugged into a live power outlet and
outlet is switched on.
• Ensure that the household circuit breaker has not tripped or that
the fuse has not blown.
• The appliance maybe in defrost mode, check again in half an
hour.
Compressor motor seems
to run too long.
At normal room
temperatures, expect your
motor to run about 40%
to 80% of the time. Under
warmer conditions, expect
it to run even more often.
The variable speed
compressor and fan that
at start up and on warm
days runs at a high speed
to provide additional
cooling. When less cooling
is required the compressor
and fan will run at a lower
speed.
• Ensure that the doors are not held open.
• Check that large amounts of warm food have not just been
placed inside the appliance.
• Note that the appliance will run more than normal just after you
install it or when adjusting to temperature setting changes.
The exterior of the
appliance is warm or hot
to touch.
This is normal because the
appliance transfers heat
from the inside out through
the outer panels and the
divider between the doors.
• Ensure the appliance has the external clearances recommended
in the section “Installing your new appliance”.
• The exterior of the cabinet will be much warmer on warmer
days it may even feel hot to touch, as the appliance is working
harder.
26 www.electrolux.com
Concern What to do
User interface will not
respond
To ensure settings are not
accidentally changed the
user interface will go into
sleep mode when not in
use.
Press any button to wake
user interface.
• Check that the user interface is in awake mode, refer to section
“CONTROL”.
• Check that the user interface is not locked, refer to section
“CONTROL”.
• If the user interface is frozen turn the appliance off for five
minutes for the memory to clear, then turn back on.
• Check that the user interface is not in Sabbath Mode, refer to
control instructions. (I&W models only).
Alarms sounding • Check that all doors are fully closed.
• Ensure that the over temperature alarm is not being activated
by hot food placed in the freezer.
• Check if the drinks timer has ended, refer control instructions.
• Check if the Filter Replacement alert is activated, refer control
instructions. (I&W models only)
Frost build up • Check that all doors are fully closed.
• Ensure that the doors are not opened too often.
• Ensure that the return air vents are not blocked with packaging.
• Ensure the seals are clean and not obstructed.
Odours • The interior may need cleaning, refer to cleaning guide.
• Ensure that food is stored correctly as some food, containers
and wrapping can produce odours.
• Check appliance for old or unusual food.
Lights not working
The LED lighting is designed
to dim automatically if the
door is left opened for more
than 5 minutes and turn
off completely if the door
is open for more than 7
minutes. Closing the door
will reset the timer.
The LED lighting is also
designed to turn on
gradually.
• Ensure that the cord is plugged into a live power outlet and
outlet is switched on.
• Ensure that the household circuit breaker has not tripped or that
the fuse has not blown.
• Check that the user interface is not in Sabbath Mode, refer to
control instructions.
• Close and re-open the door. When door has been open for 5
minutes the lights fade to 50% then after 7 minutes they will turn
off.
27EN
Door operation
Concern What to do
Freezer door pops open. This is normal and should re-close. This happens when the
refrigerator door is closed too quickly.
If the freezer door stays open, it indicates that the appliance needs
to be tilted backwards a little further. Refer to section “Installing
your new appliance”.
Self close not working. Check if your appliance has self closing hinges as not all models
do.
It indicates that the appliance needs to be tilted backwards a little
further. Refer to section “Installing your new appliance”.
Door not sealing properly • Ensure there is nothing that is preventing the door from closing
such as appliance contents or items placed near the appliance.
• Ensure that the crisper/freezer bin is closed completely. Refit if
required as referred to in the section “STORAGE FEATURES”.
• Ensure the appliance is set up as per recommendations.
Door difficult to open and
close
If the door is difficult to open just after you have closed it this is
due to the pressure equalising, the door will open normally after a
few minutes.
If you still require service
If you have a problem, and the problem persists after you have made the checks mentioned, contact your nearest
Electrolux approved Service Centre or the dealer you bought the refrigerator from. Be ready to quote the model
number, the 9-digit PNC and 8-digit serial number, which is stated on the label inside the refrigerator compartment.
Automatic Ice maker system
Concern What to do
Ice maker does not
produce ice or not enough
ice.
The ice-maker is designed
to produce a tray of ice
approximately every 3
hours, depending on room
temperature and water
temperature.
• Ensure that the cord is plugged into a live power outlet and
outlet is switched on.
• Ensure that water is connected and turned on and there are no
kinks in the water line.
• Ensure that the Ice Maker is switched on at the user interface
refer to “CONTROL” for details.
• Check that the water filter is not blocked or out of date.
• Check the water supply flow rate.
• If the freezer compartment is too warm, refer to “freezer is
too warm” then wait 24 hours for the freezer to reach ideal
temperature.
• Turn the unit off at the mains and leave for 2 minutes then turn
the appliance back on (this will reset the ice-maker unit). Check
for ice production after 24 hours.
• Check that there is no obstruction under the ice maker and
ensure the ice bin is fitted correctly.
Ice has bad odour or taste. • Cover food to ensure ice does not absorb foreign odours.
• Check that the water filter is not out of date.
• Interior of appliance or ice bin may require cleaning, refer to
“Cleaning your refrigerator”.
• Discard stale ice monthly and allow ice maker to produce a
fresh supply
28 www.electrolux.com
10. NOISES
Appliance noise
Your new refrigerator may make sounds that your old one didn’t make. Because the sounds
are new to you, you might be concerned about them. Most of the new sounds are normal.
Hard surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they
actually are. The following describes the kinds of sounds and what may be making them.
BRRR
!
HISSS!
CLICK!
BLUBB!
CRACK!
SSSRR
R!
OK
CLICK!
CLICK!
SSSRRR!
SSSRRR!
BRRR!
BRRR!
HISSS!
HISSS!
BLUBB!
BLUBB!
CRACK!CRACK!
11. NOISES
Appliance noise
Your new refrigerator may make sounds that your old one didn’t make. Because the
sounds are new to you, you might be concerned about them. Most of the new sounds
are normal. Hard surfaces, like the floor, walls and cabinets, can make the sounds seem
louder than they actually are. The following describes the kinds of sounds and what
may be making them.
12. WARRANTY
This document sets out the terms and conditions of the product
warranties for Electrolux Appliances. It is an important document.
Please keep it with your proof of purchase documents in a safe place
for future reference should there be a manufacturing defect in your
Appliance. This warranty is in addition to other rights you may have
under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the
Competition and Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised serviced centres;
(d) ‘Electrolux’ is the brand controlled by Electrolux Home Products Pty
Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762
341 in respect of Appliances purchased in Australia and Electrolux
(NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
(e) ‘WarrantyPeriod’meanstheperiodspeciedinclause3ofthis
warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased
and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which the Appliances or services relate, including any non-
excludable statutory guarantees in Australia and New Zealand.
3. Warranty Period: Subject to these terms and conditions, this warranty
continues for in Australia for a period of 24 months and in New Zealand
for a period of 24 months, following the date of original purchase of the
Appliance.Speciccomponentsarewarrantedagainstmanufacturing
defects in Australia and New Zealand for the periods listed below;
• Compressor – Further 3 years
• External Condenser – Further 3 years
• Evaporator – Further 3 years
• Drier – Further 3 years
4. Repair or replace warranty: During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be defective.
Electrolux may, in its absolute discretion, choose whether the remedy
oeredforavalidwarrantyclaimisrepairorreplacement.Electroluxorits
ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
5. Travel and transportation costs: Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.
6. Proof of purchase is required before you can make a claim under this
warranty.
7. Exclusions: You may not make a claim under this warranty unless the
defect claimed is due to faulty or defective parts or workmanship. This
warranty does not cover:
(a) lightglobes,batteries,ltersorsimilarperishableparts;
(b) parts and Appliances not supplied by Electrolux;
(c) cosmeticdamagewhichdoesnotaecttheoperationofthe
Appliance;
(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by
anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with
the Appliance;
In addition, Electrolux is not liable under this warranty if:
(a) the Appliance has been, or Electrolux reasonably believes that the
Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;
(b) theApplianceismodiedwithoutauthorityfromElectroluxinwriting;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced.
8. How to claim under this warranty: To enquire about claiming under
this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the
terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
9. Australia: For Appliances and services provided by Electrolux in
Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and services provided by Electrolux
in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant to the provisions of the Consumer Guarantees Act, the Sale
of Go ods Act and the Fair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
11.Condentiality: You accept that if you make a warranty claim, Electrolux
and its agents including ASC may exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: ELECTROLUX REFRIGERATORS AND FREEZERS
EFridgeFreezer_Warr_Jul19
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
AUSTRALIA
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call
NEW ZEALAND
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in New Zealand
PLEASE CALL 0800 10 66 20
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
www.electrolux.com/shop
A30924501-A-442025
