ENGLISH 1
EQE6870
Refrigeration User Manual
EN
2 www.electrolux.com
WE’RE THINKING OF YOU
Thank you for choosing this Electrolux product. We have created it to give you
impeccable performance for many years, with innovative technologies that help make
life simpler features you might not find on ordinary appliances. Please spend a few
minutes reading to get the very be from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Regiter your product for better service:
www.electrolux.com/productregiyration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Subject to change without notice.
Contents
SAFETY INFORMATION ....................................................................................................................................... 3
FEATURES AT A GLANCE ..................................................................................................................................... 4
INSTALLING YOUR NEW APPLIANCE ........................................................................................................... 5
CONNECTING THE WATER SUPPLY ................................................................................................................7
CONTROL ................................................................................................................................................................... 9
SETTING COOLING TEMPERATURES ............................................................................................................14
AUTOMATIC ICE & WATER DISPENSER .......................................................................................................15
STORAGE FEATURESER .......................................................................................................................................17
GENERAL INFORMATION ................................................................................................................................. 20
FOOD STORAGE GUIDE ....................................................................................................................................22
TROUBLESHOOTING ..........................................................................................................................................23
ENGLISH 3
• When positioning the appliance,
ensure the supply cord is not trapped
or damaged.
• Do not locate multiple portable
socket-outlets or portable power
supplies at the rear of the appliance.
WARNING
R600a refrigerant warning
This appliance contains
flammable R600a refrigerant.
Avoid safety hazards by
carefully installing, handling,
servicing and disposing of this
appliance.
• Ensure that the tubing of the refrigerant
circuit is not damaged during
transportation and installation.
• Leaking refrigerant may cause eye
injuries or ignite.
• The room for installing appliance must
be at least 1m³ per 8g of refrigerant.
The amount of refrigerant in the
appliance ca n be found on the rating
plate inside the appliance.
• If you are unsure of the refrigerant
check the rating plate inside the
refrigerator compartment.
• It is hazardous for anyone other than
an Authorised Service Person to service
this appliance. In Queensland Australia
the Authorisation Service Person MUST
hold a Gas Work Authorisation for
hydrocarbon refrigerants to carry out
servicing or repairs which involve the
removal of covers.
• Keep ventilation openings in the
appliance enclosure or in the built-in
structure, clear of obstruction.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
1. AFETY INFORMATION
Note: You must read these warnings
carefully before installing or using the
refrigerator.
If you need assistance, contact your
customer care centre. The manufacturer
will not accept liability, should these in-
structions or any other safety instructions
incorporated in this book be ignored.
WARNING
• It is essential the electric outlet is
properly earthed to ground. Consult a
qualified electrician if you are unsure.
• Do not use electrical appliances inside
the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
• Unplug the refrigerator before cleaning
or moving it to avoid electric shock.
• Never unplug the refrigerator by pulling
the electrical cord as this may damage
it. Grip the plug firmly and pull straight
out.
• If the power cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
• Don’t use a steam cleaner. If live
components come into contact
with condensing steam, they may
short-circuit or cause an electric shock.
• Do not store explosive substances
such as aerosol cans with a flammable
propellant this appliance.If pressurised
aerosol containers bear the word
‘flammable’ and/or a small flame
symbol, do not store them inside any
refrigerator or freezer.If you do so you
may cause an explosion.
• Do not damage the refrigerant circuit.
• This appliance contains insulation
formed with flammable blowing gases.
Avoid safety hazards by carefully
disposing of this appliance.
• If you wish to discard this refrigerator,
please contact your local authorities
and ask for the correct method of
disposal.
• When you dispose of your old
refrigerators and freezers, remove any
doors. Children can suffocate if they
get trapped inside.
4 www.electrolux.com
2. FEATURE AT A LANE
29
30
32
31
1
2
3
4
5
6
7
8
9
11 12
13 14
15
16
17
23
24
25
10
23
28
28
18
19
20
21
22
27
27
24
26
1 Ice Maker 12 Crisper
2 Air distributor - Multiflow 13 Left Snack Zone compartment
3 Air filter 14 Right Snack Zone Compartment
4 Water filter 15 Upper fixed door bin
5 Flip up glass shelf 16 Left fixed door bin
6 Slide/fold glass shelf 17 Left door bin
7 Left Spillsafe™ glass shelf 18 FlexStor™ dairy bin
8 Wine rack 19 FlexStor™ 1/3 bin
9 Right Spillsafe™ glass shelf 20 FlexStor™ 2/3 bin
10 Crisper shelf cover 21 Expandable bin
11 Crisper 22 Bottle storage bin
23 FlexSpace™ shelf
24 Freezer shelf
25 FlexSpace™ drawer
26 Freezer drawer
27 FlexSpace™ door bin
28 Freezer door bin
29 Refrigerator/Freezer control panel
30 Water and Ice Dispenser Trigger
31 JADE UI control panel
(On the left door side)
32 TASTESEALFLEX control panel
(On the TASTESEALFLEX door side)
ENGLISH 5
3. INTALLIN YOUR NEW APPLIANE
When positioned in a corner area, spacing of
right side at least 260 mm and left side at
least 355 mm on the hinge side will allow the
doors to open enough to enable the removal of
bins and shelves.
Note: Doors are designed to sit proud of cabinetry (not
flush). The clearances shown above are the recom-
mended minimum clearances.
Installing your refrigerator
Allow the following clearances for ease of
installation, proper air circulation, and plumbing
and electrical connections:
Note: If your refrigerator is placed with the door hinge
side against a wall, you may have to allow additional
space so the door can be opened wider.
Door opening
Your refrigerator should be positioned to allow
easy access to a counter when removing food.
For best use of refrigerator drawers and freezer
baskets, the refrigerator should be in a position
where both can be fully opened.
CAUTION
LED lighting
Your appliance is fitted with long life LED light-
ing. In the unlikely event the LED lights should
fail, then the LED lights should be serviced by
the service agent, to avoid a safety hazard.
Refer to the warranty page for contact details.
D
W
Space required
Unpacking
ENVIRONMENT
Most of the packing materials are recyclable.
Please d ispose of those materials through your
local recycling depot or by placing them in
appropriate collection containers.
Important – check for any damages or marks.
If you find the refrigerator is damaged or
marked, you must report it within 7 days should
you wish to claim for damage/marks under the
manufacturers warranty. This does not affect
your statutory rights.
Clean your refrigerator thoroughly following
the instructions in the “Cleaning” section and
wipe off any dust that has accumulated during
shipping.
Locating the refrigerator
CAUTION
Automatic aerosol systems (such as insect
control) should not be located adjacent to
the product as the spray may cause long
term damage to the external plastics of the
appliance.
Do not put the refrigerator in a location that is
too cold or is unprotected, for example in
a garage or on a veranda. The ambient
temperature should be above 10°C.
Put the refrigerator in a dry place avoiding
areas of high moisture or humidity.
Ensure the refrigerator is located on an even
surface.
Adequate ventilation around your
refrigerator
The diagram below shows the recommened
airspace to allow for ventilation of your
refrigerator.
25
mm
25
mm
25
mm
35
mm
25
mm
Front face of bench
aligned to front corner
edge of cabinet
6 www.electrolux.com
Cabinet Leveling & Refrigerator Door
Alignment (if necessary)
• All four corners of the cabinet must rest firmly
on the floor
• The front should be slightly elevated to
• ensure that doors close and seal properly.
• Doors should align with each other and be
level.
Most of these conditions can be met by raising
or lowering the adjustable front rollers.
To level the cabinet using the front rollers:
1. Lower anti-tip legs until they are both
touching the floor. Use a pair of pliers to
adjust.
To raise: turn leg clockwise.
To lower: turn leg counterclockwise.
2. Ensure both doors are bind-free with their
seals touching the cabinet on all four sides
and that cabinet is stable.
Anti-Tip
Legs
To make final door height adjustments:
1. Insert Electrolux 10mm wrench into the shaft
of the lower hinge.
2. To lower door: turn adjustment screw
clockwise.
To raise door: turn adjustment screw counter
clockwise.
Flipper Mullion
Adjust Flipper Mullion for proper connection
with the mullion guide by ensuring the flipper
mullion is folded and perpendicular to the fresh
food door. If the mullion guide is not in the
correct position, it could prevent the door from
closing completely.
Bottom Doors Vertical Alignment
In some cases the bottom doors might be
slightly vertically misaligned. To correct this
dierence it may be used the C-Shaped Shim
supplied with the unit.
The shim must be installed on the bottom hinge
of the lower door lifting it to get access of the
pin where the shim must be attached, as follows
on the images.
Door
Door
ENGLISH 7
To avoid electric shock, which can cause death
or severe personal injury, disconnect the refrig-
erator from electrical power before connecting
a water supply line to the refrigerator.
WARNING
To Avoid Property Damage:
• DO NOT install water supply tubing in areas
where temperatures fall below freezing.
• Chemicals from a malfunctioning water
softener can damage the ice maker. If your
home has a water softening system, ensure
the softener is maintained and working
properly.
IMPORTANT
Ensure that your water supply line connections
comply with all local plumbing codes.
The appliance complies with the relevant
backflow prevention requirements specified in
AS/NZS 2845.1
Before Installing the Water Supply Line, You
Will Need:
• Basic Tools: adjustable wrench, flat-blade
screwdriver, and Phillips
TM
screwdriver
• The water dispenser and automatic ice
maker require a drinkable water supply with
a pressure range of between 206kPa and
689kPa (30PSI and 100PSI ). If the water
supply is above 100psi a pressure limiting
valve should be installed.
• A water supply to suit a ½” tap fitting is
required adjacent to the refrigerator. It is
recommended that a licensed plumber install
a new water supply outlet nearer to the
appliance should the tubing supplied not be
long enough. It is not recommended that the
tubing be extended as this could adversely
affect the flow of water to the ice maker or
water dispenser. If there is a risk of flow rate
higher than the maximum flow rate 2.46 L/
min, a flow controller should be installed.
4. CONNECTING THE WATER SUPPLY
WARNING
Connect to potable water supply only.
If using tank or bore water it is recommended
to also use an external filter (not supplied).
The new hose-sets supplied with
the appliances must be used and old hose-
sets should not be reused.
WARNING
Never connect the appliance to a hot water
supply.
Do not use with water that is microbiologically
unsafe or with water of unknown quality without
adequate disinfection.
8 www.electrolux.com
To Connect Water Supply Line to Ice Maker
Inlet Valve
Installation kit supplied with Refrigerator:
A - Adapter ½ to ¼ inch to connect the water supply
outlet to the water supply line.
B - Water supply line ¼ inch with 3 meters in length.
C - ¼ inch connector to connect the water supply line
to the refrigerator tube.
1. Disconnect the refrigerator from the power
source.
2. Attach the adapter (item A above) to the
water line, connect the water supply line
(item B) to the adapter (item A) while holding
the other end of the water supply line in a
bucket or sink Turn on the water supply to
eliminate air and clean the water supply line.
Turn off the water supply.
3. Remove the plastic protector from the
refrigerator tube and connect the water
supply line (item B) to the refrigerator tube
using the connector (item C) as shown in fig.
Make sure the tubes are inserted completely
into the connections.
4. Wrap excess water supply line behind
refrigerator so that it does not vibrate with
refrigerator operation. Do not twist the pipe.
5. Turn on the water supply, check that there
are no leaks in the connections.
6. Reconnect the refrigerator to the power
source.
7. The Ice Maker is factory-switched, within 24
hours your refrigerator will have produced
ice, discard the first production.
Note: Expect the first ice harvest within first 24
hours of unit operation. To prevent any issues
concerning ice production, please ensure that
all water lines are primed . See “Priming the
water supply system “in the “AUTOMATIC ICE &
WATER DISPENSER” section.
IMPORTANT
Your refrigerator’s water supply system
includes several tubing lines, a water filter,
and a water valve. To ensure that your water
dispenser work properly, this system must be
completely filled with water when your
refrigerator is first connected to the household
water supply line.
Water Filter
The water filter should not be used on water
that is micro biologically unsafe or with water
of unknown quality. The service life of the filter
may be reduced in water supplies that contain
an excess of particles or other impurities.
Reduced flow rate is an indication that a new
filter is required. Failure to replace the filter
when required can affect the function of the
ice maker. Service calls caused by a failure to
replace the filter are not covered by warranty.
Replacement water filters are available from
Electrolux Home Products Spare Parts Centres
and can be posted to you for your convenience
(refer to spare parts contact numbers on the
warranty page).
Plastic
cap
Remove
the cap
from the
inlet tube
¼
inch
water
valve
plastic
tube
Figure
plastic
A
C
Connector to
connect the water
supply line to the
refrigerator tube
Adapter to connect the
water supply
Figure 3
ENGLISH 9
5. CONTROL
5.1 External User interface
BOTTON/ICON DESCRIPTION PRIMARY FUNCTION
1 Lock Icon Indicates if the user interface is locked.
2 WATER Selects operation water mode of appliance.
3 CUBES Selects operation cubes mode of appliance.
4 CRUSHED Selects operation crushed mode of appliance.
5 CONNECT
Press and hold for 3 second to enable / disable wireless connection.
When LED is lit the product is connected.
When LED is flashing the product is connecting.
When LED is off, Wi-Fi connectivity is off.
Press and hold for 10 seconds to reset wireless connection
1 2 3 4 5
10 www.electrolux.com
5.2 WI-FI CONNECTIVITY SETUP
This chapter describes how to connect the
smart appliance (fridge) to the Wi-Fi network
and to link it to mobile devices.
By this functionality you can receive
notifications, control and monitor your fridge
from your mobile devices.
To connect the appliance to enjoy the full
range of features and services you need:
• Wireless network at home with internet
connection enabled.
• Mobile device connected to wireless net-
work.
Frequency 2.412 - 2.472 GHz
Protocol IEEE 802.11b/g/n
Follow these easy steps to connect you fridge.
1. Download and install
the Electrolux Life app.
Minimum requirements: iPhone6/iOS 9.3/
Android 5.1 and above. You will need to install the
Electrolux Life app, create an Electrolux ac-
count and accept the Terms and Conditions and
Electrolux’s Privacy Policy in the app to use the
connected features of the fridge. Internet and Wi-Fi
connections are required to use the full features
of the app and the fridge. Minimum requirements,
apps and services are subject to change without
notice.
2. Create an Electrolux account. You can only
create one Electrolux account per product.
This account can be shared across multiple
devices.
3. Setting up your fridge. Make sure your fridge
is plugged in and operating normally. Tap on
“Appliances” at the bottom of the home
screen. Tap on “Add Appliance” and follow
the prompts on screen.
*Setup will take several minutes depending on your
network speed.
4. Turning on your fridge Wi-Fi
Initially your fridge creates its own Wi-Fi network
to assist in setting up. After setup this network dis-
appears and your fridge will connect to your home
Wi-Fi network.
Press and hold the ‘CONNECT” button on the
fridge for 3 seconds until the Wi-Fi icon starts
flashing
The fridge is now creating a temporary network for
the next step.
5. Connect your appliance: iOS
Tap the home button to exit the app.
Go to “Settings” on your phone and select “Wi-Fi”
Select your fridge’s Wi-Fi network. It is the one that
begins with “AJ-“ – (it may take a few moments to
appear)
Tap the home button to exit your phone settings
and then return to the Electrolux Life App.
Wait for confirmation of connection which may take
up to a minute before proceeding to the next step.
Connect your appliance: Android
ENGLISH 11
For Android devices, select your appliance’s
Wi-Fi network from the drop-down box.
6. Connect your fridge to your home Wi-Fi
You’ll need to select your Wi-Fi network name and
input your password.
*For iOS devices, you will then be prompted go to
‘SETTINGS’ on your phone and select your Home
Wi-Fi, then return to the Electrolux Life app.
Connection success!
Please proceed to the next screen to register
the appliance.
7. Product registration
Simply add your fridge’s name and the purchase
date.
Congratulations!
Now you’re all set up, you can start exploring
the Electrolux Life App.
FlexFresh Drawer
Whether you are preparing the
perfect frozen dessert or need
that extra drink space, we
make sure that your refrigerator
is the ultimate secret to the
perfect night of entertainment.
At the slide of a button, the
convertible drawer can adjust
from Freezer to +7°C*, with 5
predefined settings so that you
can enjoy food at its finest.
*within 2.5 hours
Useful Alerts on your App
Fridge Door Open
The door has been open for more than
five minutes. Please close it to save
energy and avoid the loss of cold air.
Drinks Chill
The drinks in your freezer are now
chilled. Please remove them from the
freezer to avoid freezing.
Water Filter
Ensure you always have fresh filtered
water, as you get a reminder when it’s
time to change the filter cartridge.
Eco Mode
Eco Mode is on. This mode helps save
energy.
Other Cool Features of your Fridge
Easy Glide Crispers
Automatic humidity control ensures your fruit
and vegetables are preserved in the optimal
environment. Designed with your comfort in
mind, the easy glide crispers open effortlessly
and provide easy access even when they’re full.
SmartSplit Door Design
With optimally split doors you have more
usable space in your refrigerator door and can
effortlessly reach for larger items, saving you
the need to open both doors every time.
Flip Up Shelves
With the ability to flip up some of the refrig-
erator shelving your taller Instagram worthy
creations stay in one piece, ready for their big
reveal.
12 www.electrolux.com
5.3 External JADE User interface
BUTTON
/ ICON
DESCRIPTION PRIMARY FUNCTION
1
TEMP
SETTINGS
Select compartment for temperature change
(FREEZER OR REFRIGERATOR). Presseither the
+ or - to adjust to desired temperature setting.
Freezer temp - Control temperatures range from
-6°F / -21°C to +6°F / -15°C.
Refrigerator temp - Control temperatures range
from +34°F / +1°C to +44°F / +7°C.
This unit is designed to operate at 37°F
Refrigerator/0°F
Freezer. Unit should stabilize temperatures within
24 hours of installation.
2 DRINKS CHILL
The Drinks Chill timer is used to quickly chill a
bottle inside the freezer compartment.
A time value will display on the freezer temp
display (in minutes) and can be changed by tap
the button. A tone will sound when the time has
been input. Range is from 20-45 minutes in 5
minute intervals.
3 ECO MODE
ECO Mode button is pressed, default Eco tem-
peratures will be activated.
Fridge: 4 °C
Freezer: -18 °C
Quick Chill/Quick Freeze/Drinks Chill will be
deactivated.
Selectiong any of these mode: Quick Chill,Quick
Freeze and Drinks Chill will bedeactivated the
Eco mode.
4
QUICK
FREEZE
Quick Freeze is a freezer function.
When activated, Freezer compartment indeca-
tor lights up, display shows -23 °C for 12 hours or
until press button to turn off.
5 QUICK CHILL
Quick Chill is a refridgerator function.
When activated, fridge compartment indecator
lights up, display shows 2 °C for 6 hours or until
press button to turn off.
6 ICE MAKER
For the Ice Maker inside the refrigerator, press
and hold for 3 seconds to turn ice maker on/off.
When indicator is lit, ice maker is on.
When indicator is not lit, ice maker is in the OFF
state and will stop making ice.
While off, ice dispensing can continue as long
as there is ice in the bucket.
7 WATER FILTER
Status is shown at right of button. After replacing
filter, press and hold for 3 seconds to reset.
Status will reset to GOOD.
8 AIR FILTER
Status is shown at right of button. After replacing
filter, press and hold for 3 seconds to reset.
Status will reset to GOOD.
DEMO
MIN
Off
On
Good
Good
Order
Order
Replace
Replace
4 5
6
7
8
2 3
1
ENGLISH 13
5.4 TASTESEALFLEX control panel
1
2
3
4
5
6
BUTTON
/ ICON
DESCRIPTION PRIMARY FUNCTION
1 Unlock
The interface will automatically lock
after 3 seconds without any interaction.
Press and hold 3 seconds to unlock the
interface. A tone will sound to confirm
your choice.
2
Wine &
Champagne
Choosing Wine & Champagne will set
TASTESEALFLEX temperature to 7°C.
A tone will sound to confirm your choice.
3 Deli Snacks
Choosing Deli Snacks will set
TASTESEALFLEX temperature to 3°C.
A tone will sound to confirm your choice.
4 Cold Drinks
Choosing Cold Drinks will set
TASTESEALFLEX temperature to 0°C.
A tone will sound to confirm your choice.
5
Meat &
Seafood
Choosing Meat & Seafood will set
TASTESEALFLEX temperature to -2°C.
A tone will sound to confirm your choice.
6 Freezer
Choosing Freezer will set
TASTESEALFLEX temperature to the
same temperature as the freezer
compartment. A tone will sound to
confirm your choice.
14 www.electrolux.com
6. SETTING COOLING TEMPERATURES
Note: The recommended settings for a product
installed in a kitchen is 3˚C for the fresh food
compartment and -18˚C for the freezer.
IMPORTANT
If your product has food freezing in the fresh
food compartment, increase the temperature
setting 1 or 2 degrees Celsius.
If you place food within 3 cm in front of the
air ports, there may be the chance of freezing
food.
Note: Control features and alarms may vary by model.
Alerts and Alarms
Water Filter
When illuminated, the water filter needs to
be replaced. Change the water filter every 6
months or when 750 litres of water has been
dispensed. To reset, press and hold button for
3 seconds. Tone will sound once it has been
reset.
Air Filter Installation
First operation the refrigerator need to instal-
lation the air filter which storage at crisper left
side and follow installation method as below.
Carbon activated air filter
1. Remove plastic wrap.
2. Install filter according to your refrigerator’s
use&care guide.
3. Reset filter reminder light on your refrigerator.
4. Replace filter every 6 months.
When illuminated, air filter needs to be re-
placed. Change the air filter every 6 months.
To reset, press and hold button for 3 seconds.
Tone will sounds once it has been reset.
Door Open
If a door has been left open for 5 minutes or
more, an alarm will sound and the d oor open
indicator will illuminate on the display. The
alarm can be turned off by closing the door
or pressing any key. Control panel will return to
normal operation after the door is closed.
Error Tone
An alarm will sound if the user tries to make a
selection that is not available.
Sabbath Mode
The Sabbath Mod e is a feature that d isables
portions of the refrigerator and its controls in
accordance with observance of the weekly
Sabbath and religious holidays within the
Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by
simultaneously pressing and holding both the
“-” (freezer side) and “+” (refrigerator side) for
five seconds. Other than the High Temp alarm,
no audible sounds will occur until the user exits
the Sabbath mode. The display shows “Sb”
while in Sabbath mode.
In the Sabbath Mod e, the High Temp alarm is
active for health reasons. For example,
If the door is left ajar the High Temp alarm is
activated. The refrigerator will function normally
once the door is closed, without any violation
of the Sabbath/Holidays. The High Temp
alarm is permitted when cabinet temperature is
outside the safe zone for 20 minutes. The alarm
silences itself after 10 minutes while the High
Temp icon stays lit until the Sabbath mode is
exited.
Note: While in Sabbath Mode, neither the
lights, dispenser, nor the control panel will work
until Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode after
power failure recovery. It must be deactivated
with the buttons on the control panel.
Although you have entered the Sabbath Mode,
the ice maker will complete the cycle it had
already initiated. The ice cube compartment
will remain cold and new ice cubes can be
made with standard trays.
ENGLISH 15
7. AUTOMATIC ICE & WATER DISPENSER
Using the ice maker after installation
Before making ice for the first time, be sure
to prime the water supply system. Air in new
plumbing lines can result in two or three empty
ice maker cycles. Furthermore, if the system is
not flushed, the first ice cubes may be
discolored or have an odd flavor.
Priming the water supply system
CAUTION
For proper dispenser operation, recommended
water supply pressure should fall between
206kPa and 689kPa (30PSI and 100PSI).
Excessive pressure may cause the system to
malfunction.
1. Begin filling the system by pressing and
holding a drinking glass against the
dispenser.
2. Keep the glass in this position until water
comes out of the d ispenser. It may take
about 1½ minutes.
3. Continue dispensing water for about 4
minutes to flush the system and plumbing
connections of any impurities (stopping
to empty the glass as necessary).
Dispenser
Note: The water dispenser has a built-in device
that shuts off the water flow after two minutes
of continuous use. To reset this shut-off device,
simply release the dispenser paddle.
Only the first 750 ml of dispensed water is
chilled.
WARNING
Flushing system about 2 minutes after period of
non-use exceeding 30 days
Ice maker operation & care
After the refrigerator is installed properly and
has cooled for several hours, the ice maker can
produce ice within 24 hours. The ice maker will
fill the ice bin from the rear. You must dispense
some ice to force the ice forward in the bin. This
will allow the bin to fill completely.
Ice Maker and Storage Bin Capacity
This ice maker should produce 1.2 to 1.5 kg of
ice per 24 hours. The ice bin will hold about
1.8 kg of ice.
Turning the ice maker on and off
IMPORTANT
Your ice maker is turned on at the factory so it
can work as soon as you install your refrigera-
tor. If you cannot connect a water supply, set
the ice maker’s On/Off feature to Off; otherwise,
the ice maker’s fill valve may make a loud
chattering noise when it attempts to operate
without water.
Ice production is controlled by the ice maker’s
On/Off feature on the control panel. Pressing
the On/Off feature turns the ice maker on & off.
Note: The ice maker also has a built-in plastic
signal arm that automatically stops ice pro-
duction when the ice bin is full. This signal arm
should not be used to manually stop the ice
maker.
IMPORTANT
Turning off the ice maker simply d isables ice
making. You will still be able to dispense exist-
ing ice, and you will still be able to dispense
water.
On occasion, unusually small ice cubes may be
noticed in the bucket or in dispensed ice.
This could occur in normal operation of the ice
maker. If you start seeing these more frequently,
it may be an indication of low water pressure,
or that the water filter needs to be replaced.
As the water filter nears the end of its useful life
and becomes clogged with particles, less water
is delivered to the ice maker during each cycle.
Remember, if it has been six months or longer
since you last changed your water filter, replace
the water filter with a new one. Poor quality
household water may require the filter to be
changed more frequently.
16 www.electrolux.com
Ice maker/dispenser tips
• If your refrigerator is not connected to a
water supply or the water supply is turned off,
turn off the ice maker as d escribed in
the previous section.
• The following sounds are normal when the
ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• If you need a large quantity of ice at one
time, it is best to get cubes directly from the
ice bin.
• Ice cubes stored too long may develop an
odd flavor. Empty the ice bin as explained
below.
• When dispensing cubed ice, it is normal to
have a small quantity of little pieces along
with the whole cubes.
• To avoid splashing, dispense ice into your
container before adding liquids.
• It is normal for ice to fill to the top of the ice
bin.
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly main-
tained. Chemicals from a water softener can
damage the ice maker.
Cleaning the ice maker
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or moving.
1. Turn off the icemaker.
2. Remove the ice bin by pulling straight out.
3. Empty and carefully clean the ice bin with
mild detergent. Do not use harsh or abrasive
cleaners. Do not place in dishwasher. Rinse
with clear water.
4. Allow the ice bin to dry completely before
placing it back into the freezer.
5. Place ice bin back into position. Turn the ice
maker on.
Remove and empty the ice bin if:
• An extended power failure (one hour or
longer) causes ice cubes in the ice bin to
melt and refreeze together after power is
restored, jamming the dispenser mechanism.
• You do not use the ice dispenser frequently.
Ice cubes will freeze together in the bin,
jamming the dispenser mechanism.
Removing Ice Bin
Remove the ice bin and shake to loosen the
cubes or clean as explained above.
CAUTION
NEVER use an ice pick or similar sharp instru-
ment to break up the ice. This could damage
the ice bin and dispenser mechanism.
To loosen stuck ice, use warm water. Before
replacing the ice bin, make sure it is completely
dry.
IMPORTANT
When removing or replacing the ice bin, avoid
rotating the auger in the ice bin. If the auger is
accidentally rotated, you must realign the au-
ger by turning it in 45 degree turns (see below)
until the ice bin fits into place with the drive
mechanism. If the auger is not properly aligned
when replacing the ice bin, the refrigerator will
not dispense ice. The fresh food door also
may not close properly causing warm air to
leak into the fresh food compartment.
Adjusting the Ice Bin Auger
ENGLISH 17
8. STORAGE FEATURESER
CAUTION
To avoid personal injury or property d amage,
handle tempered glass shelves careful-
ly. Shelves may break suddenly if nicked,
scratched, or exposed to sudde n temperature
change. Allow the glass shelves to stabilize
to room temperature before cleaning. Do not
wash in dishwasher.

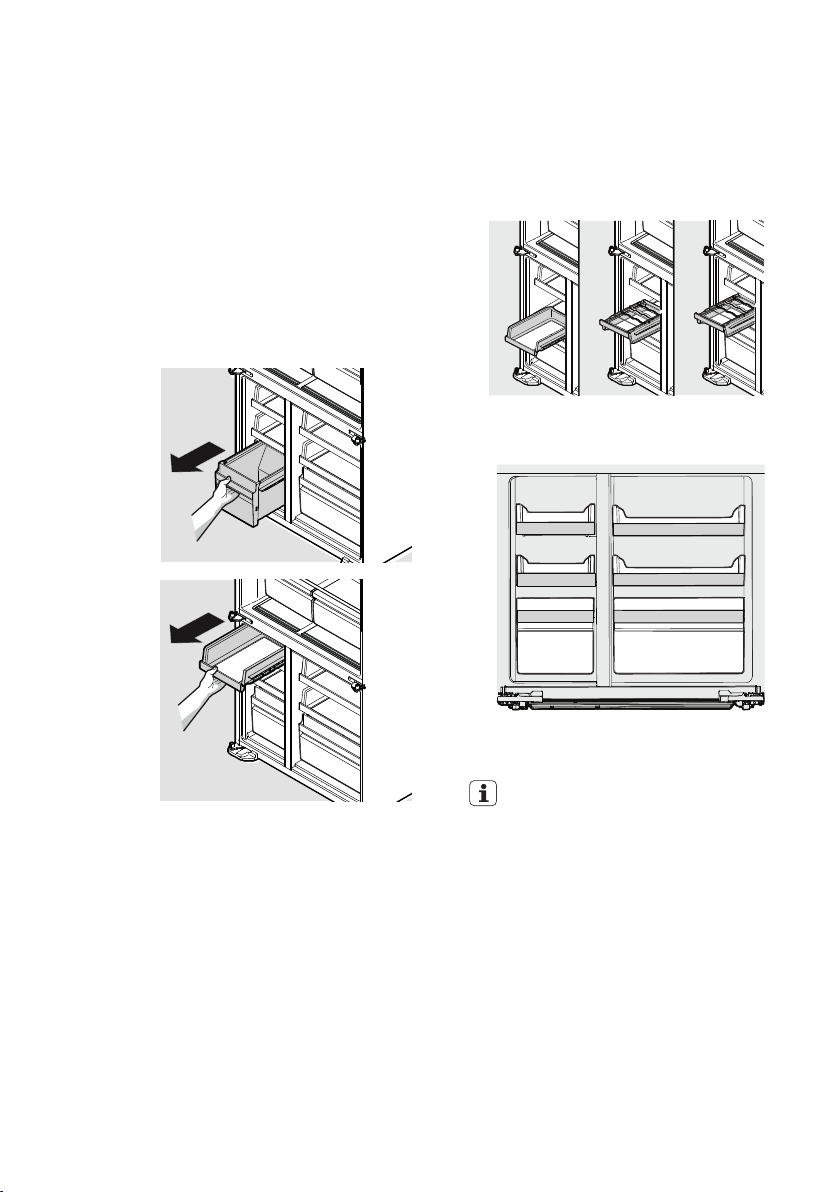

You can easily adjust shelf positions in the fresh
food compartments to suit your needs. The
shelves have mounting brackets that attach to
slotted supports at the rear of each compart-
ment.
To change a shelf position:
1. Remove all food from shelf.
2. Lift the front edge up and pull the shelf out.
3. Replace by inserting the mounting bracket
hooks into the desired support slots.
4. Lower the shelf and lock into position.
To adjust the flip shelf:
1. Remove food from shelf.
2. Lift the right side edge of shelf upwards and
push to the left towards ice maker
Flip Shelf
To adjust the slide-under/flip shelf:
1. Pull front half shelf forward until its back
drops down, then gently push front half shelf
back and under back half shelf.
Slide-Under/Flip Shelf
2. With front half fully below back half, lift front
of shelf to flip it upwards toward the back of
the cabinet.
Slide-Under/Flip Shelf
Drawers
Your refrigerator includes a variety of storage
drawers.
FreshSealTM Crisper (with automatic humidity
control)
Crisper drawers are designed for storing
fruits, vegetables, and other fresh prod uce.
Crispers have an auto humidity control (with
replaceable membrane) on the side of each
crisper under the humidity control cover.
To remove the auto humidity control mem-
brane:
1. Reach to back of humidity control cover.
2. Pull up on cover.
3. Pull cover towards back of cabinet and
remove.
4. Replace humidity membrane.
5. Replace cover by reversing the steps above.
Repeat for both crispers.
Opening the Crisper Drawer
18 www.electrolux.com
To remove the FreshSeal
TM
Crisper for
cleaning:
1. Pull the drawer out until it stops.
2. Lift the front slightly and remove the drawer.
Removing the FreshSeal
TM
Crisper
Recessed SnackZone
This drawer is ideal for storage of deli meats
and cheese.
Slid e back the cover to allow access to the
drawers.
Opening the SnackZone
Doors
Storage bins
The doors to your fresh food compartment use
a system of modular storage bins. All of these
bins are removable for easy cleaning. Bins can
be adjusted to your needs.
Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enable quick selection of frequently used items.
Adjustable door bins
Some models have adjustable door bins that
can be moved to suit individual needs.
To adjust the collapsible door bin:
1. Make sure bin is securely seated on rail in
door.
2. Grab one side of bin and place other hand
on adjustable side.
3. Pull on side of bin until the bin is adjusted to
desired width.
Note: It can be difficult to pull out the collaps-
ible bin. Some force may be required.
To move door bin along a rail:
1. Tilt bin up so the back of the bin is off the
door but the hook is still engaged.
2. Slide bin along rail to desired position.
3. Lower bin back into place.
To move door bin from rail to rail:
1. Lift bin up disengaging the hook.
2. Move bin to desired rail location.
3. Push bin hook into rail engaging the hook.
Adjustable Door Bins
ENGLISH 19
Freezer storage
To remove freezer and FlexSpace shelves and
drawers:
All freezer and FlexSpace shelves and drawers
are removable.
1. Open doors completely to gain access to
shelves/drawers.
2. Pull the shelf/drawer to the stopper. Lift up
and pull to remove it from the cabinet.
3. Reverse the steps to reinstall shelf/drawer.
Shelves in 3 Height Positions & Inverted
The middle drawers in the freezer and Flex-
Space™ can be mounted up to three height
positions and can also invert 90 degrees allow-
ing storage of bottles in the FlexSpace™.
Shelves in 3 Height Positions & Inverted
Possible Shelf Configuration Example
IMPORTANT
There are wheels on the back of all shelves.
Make sure all wheels are aligned on their re-
spective tracks for proper function. If shelf is not
aligned properly, it will cause problems with the
door operation.
20 www.electrolux.com
9. GENERAL INFORMATION
9.1 CLEANING YOUR REFRIGERATOR
WARNING
BEFORE CLEANING: Turn the refrigerator off at
the power point and unplug the cord to prevent
any chance of electrocuting yourself.
Doors and exterior (white and silver):
You should only clean the doors with lukewarm
soapy water and a soft cloth.
Stainless Steel:
Your stainless steel refrigerator is manufactured
from mark-resistant stainless steel. This stainless
steel has a special advanced protective
coating that eases the removal of marks such
as fingerprints and water spots. To keep its
appearance, clean it regularly with lukewarm
soapy water and a soft cloth.
CAUTION
Never use stainless steel cleaners, abrasive
pads or other cleaners that will scratch the sur-
face. Damage to the appliance after d elivery is
not covered by your warranty.
Interior
Clean the inside of your refrigerator regularly
with a soft cloth, unscented mild soap and
lukewarm water. Thoroughly dry all surfaces
and removable parts and avoid getting water
on the controls. Replace removable parts, plug
power cord in and switch the power on before
returning the food.
Door seals
Always keep door seals clean by washing
them with a mild detergent and warm water,
followed by a thorough drying. Sticky food and
drink can cause seals to stick to the cabinet
and tear when you open the door.
Never use hot water, solvents, commercial
kitchen cleaners, aerosol cleaners, metal pol-
ishes, caustic or abrasive cleaners, or scourers
to clean your refrigerator. Many commercially
available cleaning products and detergents
contain solvents that will damage your refrig-
erator. Use only a soft cloth with an unscent-
ed mild soap and lukewarm water.
CAUTION
To clean a crisper or freezer bin with telescopic
extension slides, simply wipe with a damp cloth
and warm soapy water. Never immerse the
cover in water, as this could affect the opera-
tion of the slide.
Switching off your refrigerator
If you switch off your refrigerator for an extend-
ed period, follow these steps to reduce the
chances of mould.
1. Remove all food.
2. Remove the power plug from the power
point.
3. Thoroughly clean and dry the Interior.
4. Ensure that all the doors are wedged open
slightly for air circulation.
9.2 CHANGING THE FILTER
Air Filter (select models)
The air filter is located in the top center of the
fresh food compartment.
Replacing your Air Filter
To ensure optimal filtering of refrigerator
odors, you should change the air filter six
months (The filter status light on the Touch
Panel prompts you to replace the filter after six
month)
1. Remove the air filter cover by squeezing the
sides of the cover together and removing
from liner
2. Remove the old filter and discard it.
3. Unpack the new filter and slid e it into the
housing. The open face must (carbon media)
of the filter should be installed facing the air
port (hole) in the multiflow.
4. Replace the air filter cover by squeezing the
sides and snapping it back into place.
5. Press and hold the “Reset Air Filter” button
on the control panel for three seconds. When
the LED turns off, the status has been reset.
ENGLISH 21
1. Ensure that the ice maker is turned off
2. Remove the filter by turning anti-clockwise
180˚
• Slide the old water filter cartridge straight out
of the housing and discard it.
3. Unwrap the new filter cartridge and using
the alignment guid e, slid e it gently into
filter housing until it stops against the filter
connection at the back of the housing.
4. Engage the filter by firmly rotating
clockwise until the filter snaps into position
(once engaged the filter cannot be rotated
further).
5. Press a drinking glass against the water
dispenser while checking for any leaks at the
filter housing. Any spurts and sputters that
occur as the system purges air out of the
dispenser system are normal.
6. After filling one glass of water, continue
flushing the system for about four minutes.
7. Turn on the ice maker.
8. When the filter has been replaced press and
hold the ‘Reset Water Filter’ button for three
seconds to reset the filter replace timer.
9. Replace filter cover by pushing up and
snapping into place.
Water Filter
Your refrigerator is equipped with a water
filtering system. The water filtering system filters
all dispensed drinking water, as well as the
water used to produce ice. The water filter is
located at the top right side of the fresh food
compartment.
In general, you should change the water filter
every six months to ensure the highest possible
water quality. Water filter status on the user
interface prompts you to replace the filter after
a standard amount of water (750 litres) has
flowed through the system.
If your refrigerator has not been used for a peri-
od of time (during moving for example), change
the filter before reinstalling the refrigerator
Note: When ordering your replacement filter,
please reorder the same filter type that is cur-
rently in your refrigerator.
WARNING
Use the appliance with water filter supplied by
Electrolux Home Products Pty Ltd or its autho-
rized service agent only.
For correct operation of this appliance it is
essential to observe the manufacturer’s instruc-
tions.
Replacing the Water Filter
To Remove: Pull cover towards you and cover
will drop down and allow access to filter.
To Reinstall: Push cover up towards liner and
then push towards rear of cabinet. Filter cover
will snap back into place.
It is not necessary to turn the water supply off
to change the filter. Be ready to wipe up any
small amounts of water released d uring the
filter replacement.
22 www.electrolux.com
10. FOOD STORAGE GUIDE
CATEGORY PRODUCT
RECOMMENDED STORAGE TIMES FOR FRESH
FOODS *
STORAGE TIPS
REFRIGERATOR ULTRA CHILL FREEZER
MEAT Sausages and
Mince
1-2 Days 3-5 Days 2-3 Months Keep cold meat at the back of the
refrigerator where it is coldest.
Plastic can cause meat to sweat if
stored in refrigerator for more than a
day.
Roast can take up to 48 hours to defrost
properly, transfer frozen roast to the
refrigerator 2 days before use.
Chops and Steak 3-4 Days 5-7 Days 4-6 Months
Cold Meats 3-5 Days 5-7 Days 4-6 Months
Roasts 3-5 Days 1 week 12 Months
POULTRY Chicken 1-2 Days 5-7 Days 2 Months If poultry takes on a smell or colour you
are unsure about it is best to throw it out.
Whole eggs are not suitable for freez-
ing, slightly beaten eggs may be frozen
for four months.
Roast Chicken 3-5 Days 1 week 12 Months
Eggs 6 Weeks Not Suitable Not Suitable
SEAFOOD Whole fish and
fillets
2-3 Days 5-7 Days 2 Months Store in an airtight container or foil.
Never freeze prawns in salty water as
this will dehydrate the flesh.
Lobster and Crab 1-2 Days 3-5 Days 2 Months
Prawns 1-2 Days 3-5 Days 2 Months
DAIRY Milk Until Expiry Date Not Suitable Not Suitable If dairy takes on a smell or colour and
you are unsure about it, it is best to
throw it out.
Yoghurt 7- 10 Days Not Suitable Not Suitable
Hard Cheeses 2 Weeks – 2
Months
1-2 Months 2 Months
(Grated)
Depending on the variety hard cheese
can last from 2 weeks to 2 months.
Soft Cheeses 1-2 Weeks 2-4 Weeks * Not Suitable * Texture may change depending of the
type of soft cheese
Butter 8 Weeks 3-4 Months 12 Months
FRUIT &
VEGETABLES
Every fruit and vegetable has a different
shelf life. Some stay fresh for a couple
of days e.g. beans, others can last for a
couple of months e.g. onions.
Not Suitable 8-12 Months
When
freezing chop
and blanch
in small
portions.
Keep vegetables in the crisper and
away from the air vents to avoid
freezing.
If you wash fruit and vegetables before
storing them make sure they are dry or
wrap in absorbent paper before storing
in the refrigerator as this can make them
susceptible to rotting.
Try to keep fruit and vegetables sepa-
rated as fruits that give off high levels
of ethylene (the ripening agent) can
prematurely ripen and spoil surrounding
vegetables
IMPORTANT
* Please note, use this information as a guide only,
actual storage times will vary depending on how
you use your refrigerator.
ENGLISH 23
11. TROUBLESHOOTING
Concern Potential Cause Common Solution
Automatic Ice Maker
Ice maker is not
making any ice.
• Ice maker is turned off.
• Refrigerator is not connected
to water line or water valve
is not open.
• The water supply line is
kinked.
• The water filter is not seated
properly.
• The water filter may be
clogged with foreign ma-
terial.
• Turn on ice maker. For the fresh food ice mak-
er, press ice maker on-off button once.
• Connect the unit to the household water sup-
ply and ensure the water valve is open.
• Ensure that the supply line does not kink
when the refrigerator is pushed into place
against the wall.
• Remove and re-install the water filter. Be sure
to seat it fully into the locked position.
• If water dispenses slowly or not at all, or if the
filter is six months old or older, it should be
replaced.
Ice maker is not mak-
ing enough ice.
• Ice maker is producing less
ice than you expect.
• The water filter may be
clogged with foreign ma-
terial.
• The water supply line is
kinked.
• Water pressure is extreme-
ly low. Cut-off and cut-on
pressures are too low
(well systems only).
• Reverse osmosis system is in
regenerative phase.
• The ice maker will produce approximately 1
kg of ice every 24 hours depending on usage
conditions.
• If water dispenses slower than normal, or if
the filter is six months old or older, it should
be replaced.
• Ensure that the supply line does not kink
when the refrigerator is pushed into place
against the wall.
• Have someone turn up the cut-off and cut-on
pressure on the water pump system (well
systems only).
• It is normal for a reverse osmosis system to
be below 137 kPa (20 psi) during the regener-
ative phase.
Ice cubes are freez-
ing together.
• Ice cubes are not being
used frequently enough or
interruption of power for
prolonged time.
• Ice cubes are hollow (shells
of ice with water inside). The
hollow cubes break open in
the bin and leak their water
onto existing ice, which
causes it to freeze together.
• Remove ice container and discard ice. The
ice maker will produce fresh supply. Ice
should be used at least twice weekly to keep
the cubes separated.
• This generally occurs when the ice maker
does not get enough water. This is usually the
result of a clogged water filter or restricted
water supply. Replace the water filter and if
the condition still occurs, check to see if the
water valve is not turned on all the way or if
there is a kinked water supply line.
Dispenser (Ice & Water)
Dispenser (Ice &
water) not dispens-
ing ice.
• There is no ice in the bin to
be dispensed.
• The refrigerator doors are
not completely closed.
• Dispenser paddle has been
pressed too long and the
dispenser motor has over-
heated.
• See the “Ice maker is not making any ice”
section.
• Be sure the refrigerator doors are completely
closed.
• The motor overload protector will reset in
about three minutes and then ice can be
dispensed.
24 www.electrolux.com
Concern Potential Cause Common Solution
Dispenser (Ice & Water)
Ice dispenser is
jammed.
• Ice has melted and frozen
around auger due to
infrequent use, temperature
fluctuations, and/or power
outages.
• Ice cubes are jammed be-
tween ice maker and back of
ice container.
• Remove ice container, thaw, and empty the con-
tents. Clean container, wipe dry, and replace in
proper position. When new ice is made, dispenser
should operate.
• Remove ice cubes that are jamming the dispenser.
Dispenser (Ice &
water) not dispensing
water.
• Dispenser (Ice & water) not
dispensing water.
• Remove and reinstall the water filter. Be sure to
rotate it to the right until it stops and the grip end
is vertical.
• Replace filter cartridge. Be sure to rotate it to the
right until it stops and the grip end is vertical.
• Open household water line valve. See CONCERN
column AUTOMATIC ICE MAKER.
Water not cold
enough.
• As warmer tap water goes
through the filter and enters
the water supply system,
the chilled water is pushed
through to the dispenser.
Once the chilled water is
used up, it will take several
hours to bring the freshly
replaced water to a cooler
temperature.
• Add ice to cup or container before dispensing
water.
Water has an odd
taste and/or odor.
• Water has not been dis-
pensed for an extended
period of time.
• Unit not properly connected
to cold water line.
• Draw and discard 10-12 glasses of water to freshen
the supply.
• Connect unit to cold water line that supplies water
to the kitchen faucet.
Opening/Closing Of Doors/Drawer
Door(s) will not close. • Door was closed too hard,
causing other door to open
slightly.
• Refrigerator is not level.
It rocks on the floor when
moved slightly.
• Refrigerator is touching a
wall or cabinet.
• Check gasket and cabinet
interface for any obstruc-
tions.
• Close both doors gently.
• Ensure floor is level and solid, and can adequately
support the refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
• Ensure floor is level and solid, and can adequately
support the refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
• Clean the refrigerator door gaskets and interface
with warm, soapy water to remove any grease,
dirt and grime from the surface. Wipe clean with
a dry cloth. Inspect the gasket to make sure it is
thoroughly clean.
Drawers are difficult
to move.
• Food is touching shelf on top
of drawer.
• Track that drawers slide on
is dirty.
• Remove top layer of items in drawer.
• Ensure drawer is properly installed on track.
• Clean drawer, rollers, and track.
• See Care & Cleaning.
ENGLISH 25
Concern Potential Cause Common Solution
Running of Refrigerator
Compressor does
not run.
• Refrigerator is in defrost
cycle.
• Plug at electrical outlet is
disconnected.
• House fuse blown or tripped
circuit breaker.
• Power outage.
• This is normal for a fully automatic defrost
refrigerator. The defrost cycle occurs periodi-
cally, lasting about 30 minutes.
• Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15 amp time-delay
fuse. Reset circuit breaker.
• Check house lights. Call local electric com-
pany.
Refrigerator seems to
run too much or too
long.
• Your variable speed com-
pressor is designed to run
100% of the time except
during the defrost cycle. At
times it will run faster, such
as after a defrost cycle.
• It is normal for the compressor to run continu-
ously except during defrost mode.
Digital Temperature Setting Display
Digital temperature
displays an error.
• Electronic control system
has detected a performance
problem.
• Call your Electrolux service representative,
who can interpret any messages or number
codes flashing on the digital displays.
Water/Moisture/Frost Inside Refrigerator
Moisture collects on
inside of refrigerator
walls.
• Weather is hot and humid.
• Flipper mullion
• The rate of frost buildup and internal sweat-
ing increases.
• Adjust flipper mullion. (See “To adjust the
flipper mullion” in the Installation section.)
Water collects on
bottom side of draw-
er cover.
• Vegetables contain and give
off moisture.
• It is not unusual to have moisture on the
bottom side of the cover.
Water collects in
bottom of drawer.
• Washed vegetables and fruit
drain while in the drawer
• Dry items before putting them in the drawer.
Water collecting in bottom of drawer is
normal
Water/Moisture/Frost Outside Refrigerator
Moisture collects on
outside of refrigerator
or between doors.
• Weather is humid. • This is normal in humid weather. When humid-
ity is lower, the moisture should disappear.
Food in Fresh Food Compartment
Food is freezing. • Temperature setting is too
low.
• Temperature sensor is cov-
ered by food (right side of
fresh food area).
• Food is covering the air
ports.
• Move the setting to a higher degree.
• Allow space for air flow to the sensor.
• Allow space between the air ports and the
food.
26 www.electrolux.com
NOISES
Appliance noise
Your new refrigerator may make sounds that your old one didn’t make. Because the sounds
are new to you, you might be concerned about them. Most of the new sounds are normal.
Hard surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they
actually are. The following describes the kinds of sounds and what may be making them.
BRRR
!
HISSS!
CLICK!
BLUBB!
CRACK!
SSSRR
R!
OK
CLICK!
CLICK!
SSSRRR!
SSSRRR!
BRRR!
BRRR!
HISSS!
HISSS!
BLUBB!
BLUBB!
CRACK!CRACK!
ENGLISH 27
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: ELECTROLUX REFRIGERATORS AND FREEZERS
This document sets out the terms and conditions of the product
warranties for Electrolux Appliances. It is an important document.
Please keep it with your proof of purchase documents in a safe place
for future reference should there be a manufacturing defect in your
Appliance. This warranty is in addition to other rights you may have
under the Australian Consumer Law.
1. In this warranty:
eht ot 2 eludehcS snaem ’waL remusnoC nailartsuA‘ ro ’LCA‘ )a(
Competition and Consumer Act 2010;
dna uoy yb desahcrup tcudorp xulortcelE yna snaem ’ecnailppA‘ )b(
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised serviced centres;
(d) ‘Electrolux’ is the brand controlled by Electrolux Home Products Pty
Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762
341 in respect of Appliances purchased in Australia and Electrolux
(NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
warranty;
desahcrup gnivah ton ecnailppA eht fo resahcrup eht snaem ’uoy‘ )f(
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
:noitacilppA .2 This warranty only applies to new Appliances, purchased
and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which the Appliances or services relate, including any non-
excludable statutory guarantees in Australia and New Zealand.
:doireP ytnarraW .3 Subject to these terms and conditions, this warranty
continues for in Australia for a period of 24 months and in New Zealand
for a period of 24 months, following the date of original purchase of the
defects in Australia and New Zealand for the periods listed below ;
• Comp essor – Further 3 years parts only,
• Exte nal Condenser – Further 3 years parts only
• Evaporator – Further 3 years parts onl
• Drier – Further 3 years parts onl
:ytnarraw ecalper ro riapeR .4 During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be defective.
Electrolux may, in its absolute discretion, choose whether the remedy
ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
:stsoc noitatropsnart dna levarT .5 Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.
esahcrup fo foorP .6 is required before you can make a claim under this
warranty.
:snoisulcxE .7 You may not make a claim under this warranty unless the
defect claimed is due to faulty or defective parts or workmanship. This
warranty does not cover:
(b) parts and Appliances not supplied by Electrolux;
Appliance;
(d) damage to the Appliance caused by:
edicca ro ecnegilgen)i)i(
;ecivres ro niatniam ylreporp ot eaf gnidulcni ,esuba ro esusim)ii)ii(
yb enod skrow riaper ro gnicivres ytluaf ro tnegilgen ,reporpmi )iii(
anyone other than an Electrolux authorised repairer or ASC;
t dna raew lamron)vi )vi(
;ylppus rewop tcecni ro egamad mrots lacirtcele ,segrus rewop)v)v(
;noitallatsni reporo etelpmocni)iv )iv(
;noitarepo etairporppani ro reporpmi ,tcei)iiv )iiv(
tsefni nimrev ro tcesni)iiiv )iiiv(
htiw deilppus snoitcurtsni lanoitidda yna htiw ylpmoc ot eruliaf )xi(
the Appliance;
In addition, Electrolux is not liable under this warranty if:
eht taht seveileb ylbanosaer xulortcelE ro ,neeb sah ecnailppA eht )a(
Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;
devomer neeb sah laes ytnarraw ro rebmun laires s’ecnailppA eht )c(
or defaced.
:ytnarraw siht rednu mialc ot woH .8 To enquire about claiming under
this warranty, please follow these steps:
eht dna launam resu ,snoitcurtsni gnitarepo eht kcehc ylluferac )a(
terms of this warranty;
;elbaliava ecnailppA eht fo rebmun laires dna ledom eht evah )b(
;elbaliava )eciovni na .g.e( esahcrup fo foorp eht evah )c(
.woleb nwohs srebmun eht enohpelet )d(
:ailartsuA .9 For Appliances and services provided by Electrolux in
Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have the same meaning as
referred to in the ACL.
:dnalaeZ weN .01 For Appliances and services provided by Electrolux
in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant to the provisions of the Consumer Guarantees Act, the Sale
of Go ods Act and the Fair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
You accept that if you make a warranty claim, Electrolux
and its agents including ASC may exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.
Warranty
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
FOR SERVICE
authorised service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call (Australia only)
AUSTRALIA
ELECTROLUX HOME PRODUCTS
163 O’Riordan Street, Mascot NSW 2020
electrolux.com.au
FOR SPARE PARTS
spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call (Australia only)
FOR SERVICE
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
(New Zealand only)
NEW ZEALAND
ELECTROLUX (NZ) Limited
3-5 Niall Burgess Road, Mount Wellington
electrolux.co.nz
FOR SPARE PARTS
spare parts centre in New Zealand
PLEASE CALL 0800 10 66 20
(New Zealand only)
EFridgeFreezer_Warr_Jun17
telephone: 1300 363 640
fax:
email:
web:
1800 350 067
customercare@electrolux.com.au
electrolux.com.au
Electrolux Home Products New Zealand
telephone: 0800 436 245
fax:
email:
web:
0800 225 088
customercare@electrolux.co.nz
electrolux.co.nz
Electrolux H ome Product Australia
To add a touch of professi
on
al inspiration to your home,
v
isit electrolux.com.au or electrolux.co.nz
electrolux.com.au
or electrolux.co.nz
