47670293001
Edition 1
November 2019

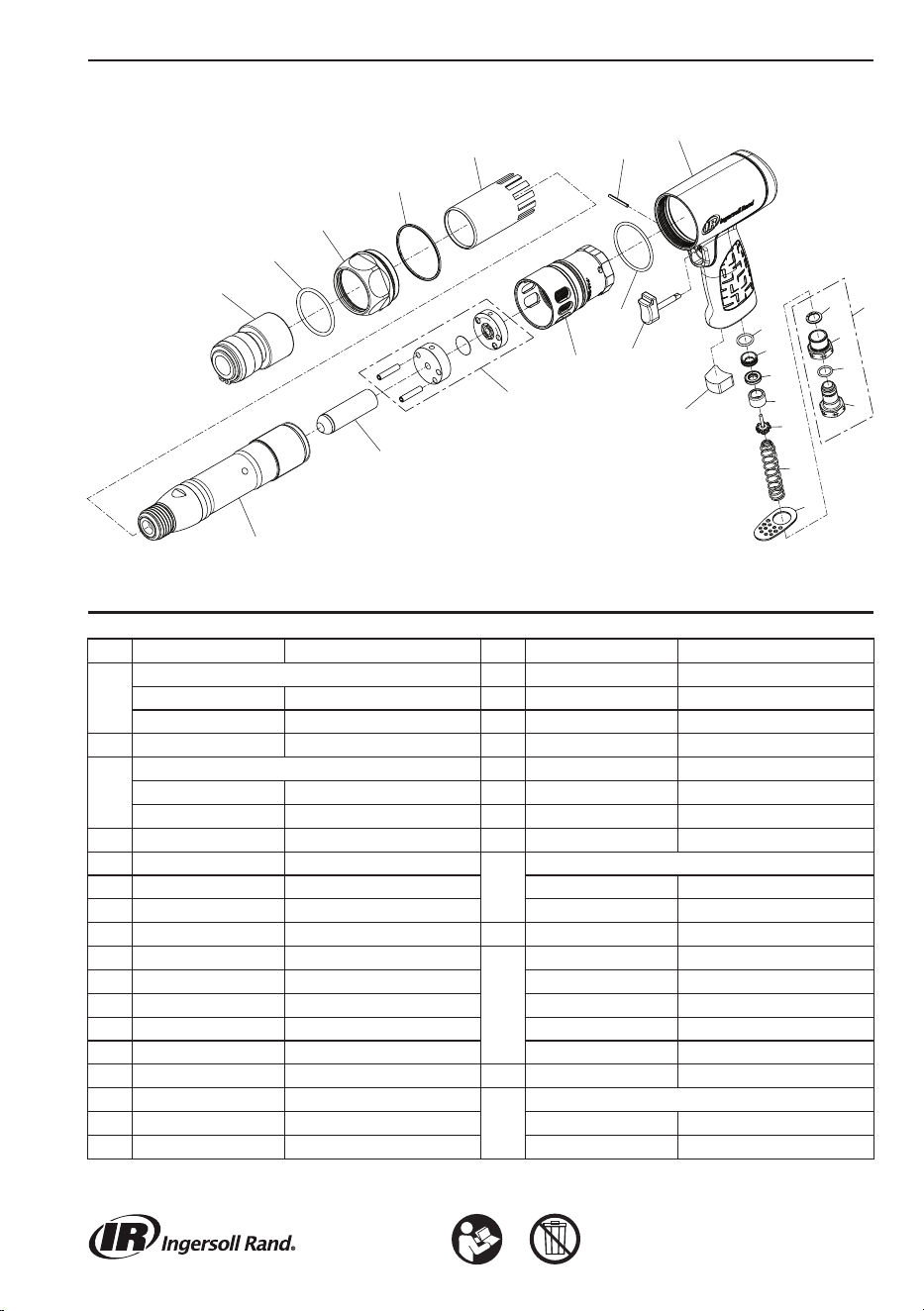

119MAX, 119MAXH Air Hammer - Exploded View
3
25
22
23
20
21
5
7
6
1
24
4
2
26
13
14
15
16
17
18
19
9
11
10
12
8
(Dwg. 47670293-1)
119MAX, 119MAXH Air Hammer - Parts List
Item Part Description
Part Number
(CCN)
Housing Assembly
for model 119MAX 119MAX-59A (119MAX-59A)
for model 119MAXH 119MAXH-59A (119MAXH-59A)
1 Housing --- ---
*
Specication Label
for model 119MAX 119MAX-300 (119MAX-300)
for model 119MAXH 119MAXH-300 (119MAXH-300)
*
Warning Label 122MAX-99 (46816641)
2 O-Ring 118MAX-65 (47127949)
3 Front Cap 119MAX-27 (119MAX-27)
4 Gasket 122MAX-36 (47126396)
5 Trigger 122MAX-93 (47125919)
6 Spring Pin 122MAX-121 (47125927)
7 Muer 122MAX-311 (47125935)
8 Air Inlet Assembly 529-565X (46816047)
9 Snap Ring --- ---
10 O-Ring --- ---
11 Air Inlet --- ---
12 Swivel Adapter --- ---
13 O-Ring 122MAX-168 (47126024)
14 Valve Seat 122MAX-303 (47126032)
Item Part Description
Part Number
(CCN)
15 Valve Seal 122MAX-210 (47126040)
16 Valve Bushing 122MAX-503 (47126057)
17 Throttle Valve 122MAX-302 (47126065)
18 Throttle Valve Spring 122MAX-51 (47126073)
19 Deector 123MAX-123 (123MAX-123)
20 Rear Cushion 123MAX-304 (123MAX-304)
21 O-Ring 122MAX-282 (47126099)
22 Main Piston 118MAX-20 (47127816)
23 Barrel
for model 119MAX 118MAX-6 (47127824)
for model 119MAXH 118MAXH-6 (48484869)
24 Dust Cover 118MAX-23 (47127832)
25 Valve Assembly 122MAX-4A (47126131)
Valve Unit (rear) --- ---
Valve Seal --- ---
Valve Unit (front) --- ---
Spring Pin (QTY. 2) --- ---
26 Quick Change Retainer 9510 (80167752)
*
Chisel Set
for model 119MAX 9500 (80117427)
for model 119MAXH 116H-K5 (46816773)
*
Indicates not illustrated.
47670293001
Edition 1
November 2019
ingersollrandproducts.com
© 2019 Ingersoll Rand

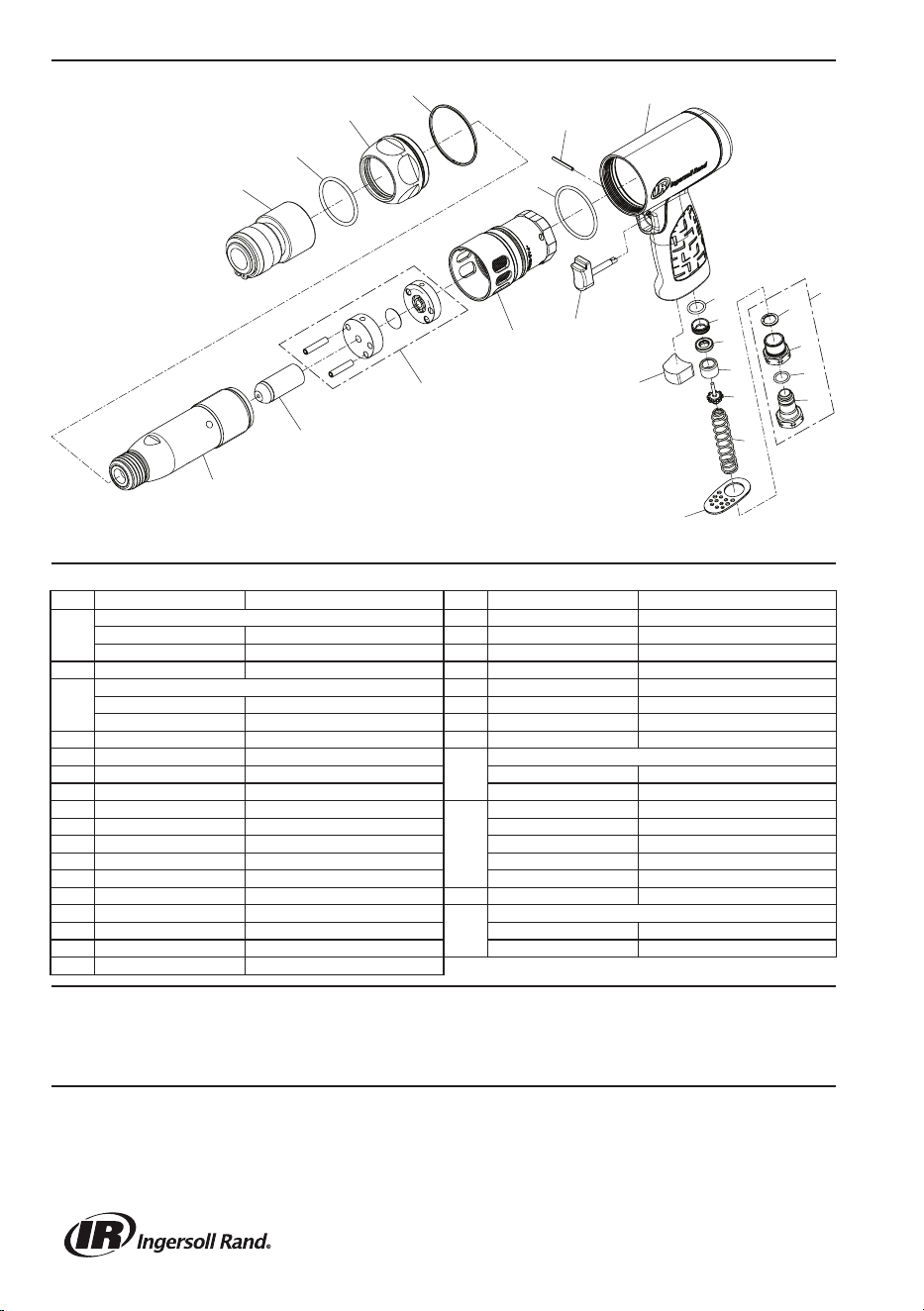

123MAX, 123MAXH Air Hammer - Exploded View
3
4
2
25
23
22
24
20
21
6
1
5
7
13
14
15
16
17
18
19
9
11
10
12
8
(Dwg. 47670293-2)
123MAX, 123MAXH Air Hammer - Parts List
Item Part Description Part Number (CCN)
Housing Assembly
for model 123MAX 123MAX-59A (123MAX-59A)
for model 123MAXH 123MAXH-59A (123MAXH-59A)
1 Housing --- ---
*
Specication Label
for model 123MAX 123MAX-300 (123MAX-300)
for model 123MAXH 123MAXH-300 (123MAXH-300)
*
Warning Label 122MAX-99 (46816641)
2 O-Ring 122MAX-65 (47126123)
3 Front Cap 123MAX-27 (123MAX-27)
4 Gasket 122MAX-36 (47126396)
5 Trigger 122MAX-93 (47125919)
6 Spring Pin 122MAX-121 (47125927)
7 Muer 122MAX-311 (47125935)
8 Air Inlet Assembly 529-565X (46816047)
9 Snap Ring --- ---
10 O-Ring --- ---
11 Air Inlet --- ---
12 Swivel Adapter --- ---
13 O-Ring 122MAX-168 (47126024)
14 Valve Seat 122MAX-303 (47126032)
Item Part Description Part Number (CCN)
15 Valve Seal 122MAX-210 (47126040)
16 Valve Bushing 122MAX-503 (47126057)
17 Throttle Valve 122MAX-302 (47126065)
18 Throttle Valve Spring 122MAX-51 (47126073)
19 Deector 123MAX-123 (123MAX-123)
20 Rear Cushion 123MAX-304 (123MAX-304)
21 O-Ring 122MAX-282 (47126099)
22 Main Piston 122MAX-20 (47126107)
23 Barrel
for model 123MAX 122MAX-6 (47126115)
for model 123MAXH 122MAXH-6 (48484869)
24 Valve Assembly 122MAX-4A (47126131)
Valve Unit (rear) --- ---
Valve Seal --- ---
Valve Unit (front) --- ---
Spring Pin (QTY. 2) --- ---
25 Quick Change Retainer 9510 (80167752)
*
Chisel Set
for model 123MAX 9500 (80117427)
for model 123MAXH 116H-K5 (46816773)
*
Indicates not illustrated.
Parts and Maintenance
When tool life has expired, it is recommended that the tool be disassembled, degreased and parts separated by material for proper recycling.
Tool repair and maintenance should only be carried out by an authorized service center.
Refer all communications to the nearest Ingersoll Rand oce or distributor.
Related Documentation
Manuals can be downloaded from ingersollrandproducts.com
For additional information, refer to:
Product Safety Information Manual 04581450
Product Information Manual 47670292001
Declaration of Conformity 47670295001
