Product Manual

This is the main product document for model S2ACDX.

The file format is pdf, 38 pages, you can download this manual here .

background
&
Assembly Instructions
OWNER’S MANUAL
V. S2ACD-20220111
S2ACD
background

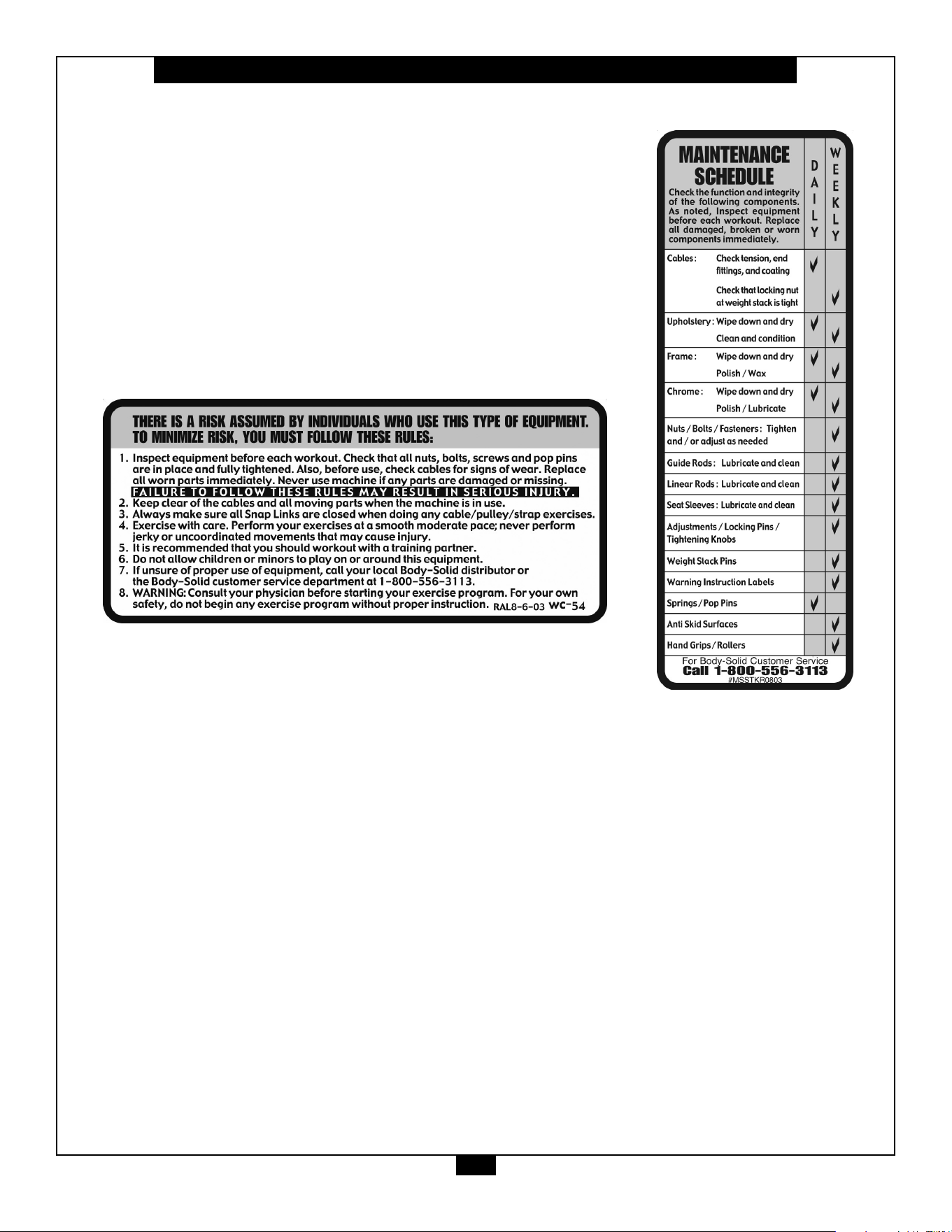

Warning, Safety & Maintenance
2
Be sure that all users carefully read and understand all
warning, safety and maintenance labels on the machine
before each use. Failure to do so may result in death or
serious injury.
It is imperative that you retain this Owner’s Manual and be
sure all warning labels are legible and intact. Replacement
Owner’s Manuals and warning labels are available from your
local Body-Solid dealer.
If you have any questions about the operation, set up or
maintenance of this machine please call our customer service
department at 1 (800) 556-3113.
Warning, Safety & Maintenance
Be sure that all users carefully read and understand all
warning, safety and maintenance labels on the machine
before each use. Failure to do so may result in serious injury.
It is imperative that you retain this Owner’s Manual and be
sure all warning labels are legible and intact. Replacement
Owner’s Manuals and labels are available from your local
Body-Solid dealer. If you have any questions about the
operation, set up or maintenance of this machine please call
our customer service department at 1 (800) 556-3113.
#DWRULE-4
Warning Label for Rules
#DWSM-5
Warning Label for Maintenance
Warning, Safety & Maintenance
Be sure that all users carefully read and understand all
warning, safety and maintenance labels on the machine
before each use. Failure to do so may result in serious injury.
It is imperative that you retain this Owner’s Manual and be
sure all warning labels are legible and intact. Replacement
Owner’s Manuals and labels are available from your local
Body-Solid dealer. If you have any questions about the
operation, set up or maintenance of this machine please call
our customer service department at 1 (800) 556-3113.
#DWRULE-4
Warning Label for Rules
#DWSM-5
Warning Label for Maintenance
Although Body-Solid provides the highest quality of materials and
workmanship in its products, the fact remains that component parts eventually wear
out over time and with use. This is particularly true with reference to pliable
moving parts such as cables. In spite of any expressed and/or implied warranties,
intervening factors such as improper use, unusually heavy use, improper installation,
improper alignment, poor maintenance, etc. serve to drastically reduce the usable
life and safety of cables.
Be advised that dangerous conditions can arise even during warranty
periods and that any expressed and/or implied warranties Do Not Negate the
owner’s responsibility to thoroughly, carefully and daily inspect all cables on this
machine.
Serious injury can occur if you are struck by falling weights or moving parts.
The risk that you assume by using this type of equipment can be reduced by
following a few simple steps:
Cable inspection should be performed daily. Inspect all cables, the
nylon coating on all cables and the area near the fittings at each end of each cable.
Replace any damaged or worn cables immediately. Do not allow the machine to
be used until damaged or worn cables are replaced.
Important: Cables are wear items. It is your responsibility to prevent
unexpected breakage. The actual wire strands, the fittings and the nylon coating
itself must all be scrutinized. Using or allowing a machine to be used with a suspect
cable can result in serious injury.
The nylon coating on a cable is essential for cable life and safety. Visually
inspect all cables and pulleys. Look at the cables as they travel around the cams
and pulleys. A cable that is wearing may exhibit a “ballooned” or broken coating in
the area that passes over the pulley. Damage to the coating is an early warning
signal. A cable should be replaced if the nylon coating is missing, is damaged in
anyway, has pulled or shrunk from the fittings at the end of the cables, or if it is
discolored. Discoloration of the cable coating is an early indication of internal
problems such as wear or fraying.
Annual cable replacement (semiannual in multi-user settings) is strongly
recommended as an additional precaution. The rate at which cables wear depends
on many factors including: number of users, number of repetitions, weight setting,
misuse, abuse, etc. Because of this, periodic cable replacement is not a sufficient
safeguard against unexpected breakage.
Nothing short of a thorough, careful, daily inspection constitutes an
adequate safety program.
Warning
Safety and Maintenance of Cables
background
Table of Contents
3
• SAFETY INSTRUCTIONS.............................. PAGE 4
• PREPARATION............................................... PAGE 5

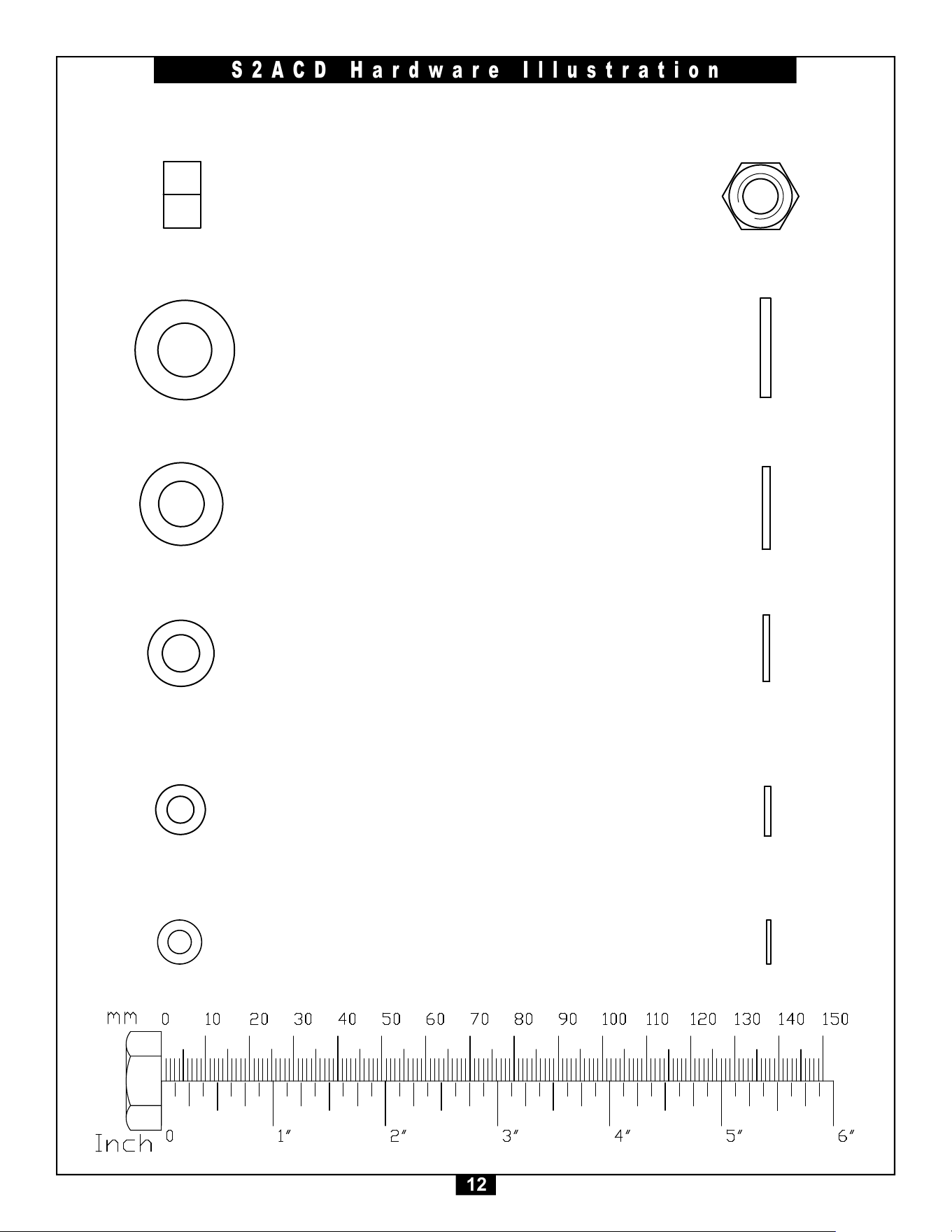

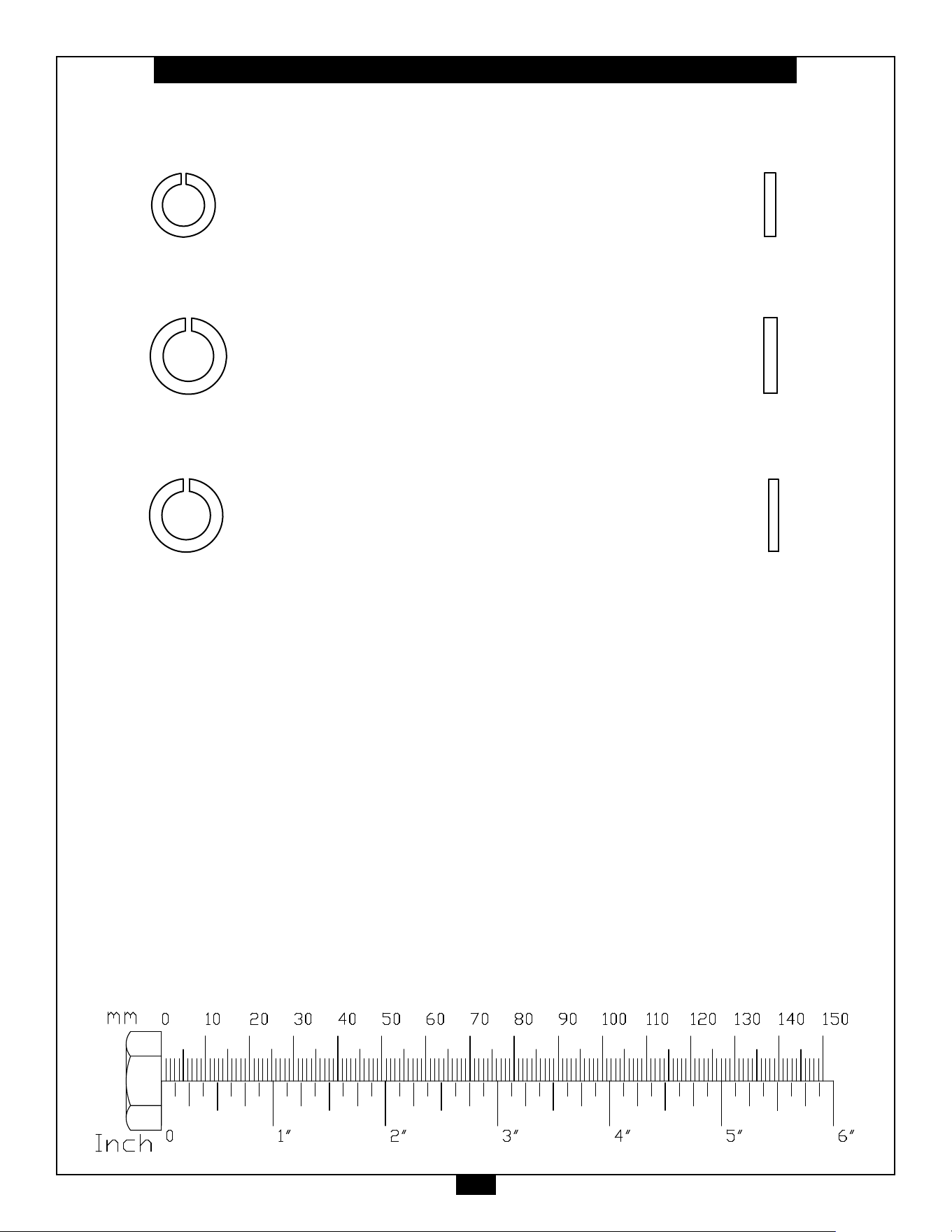

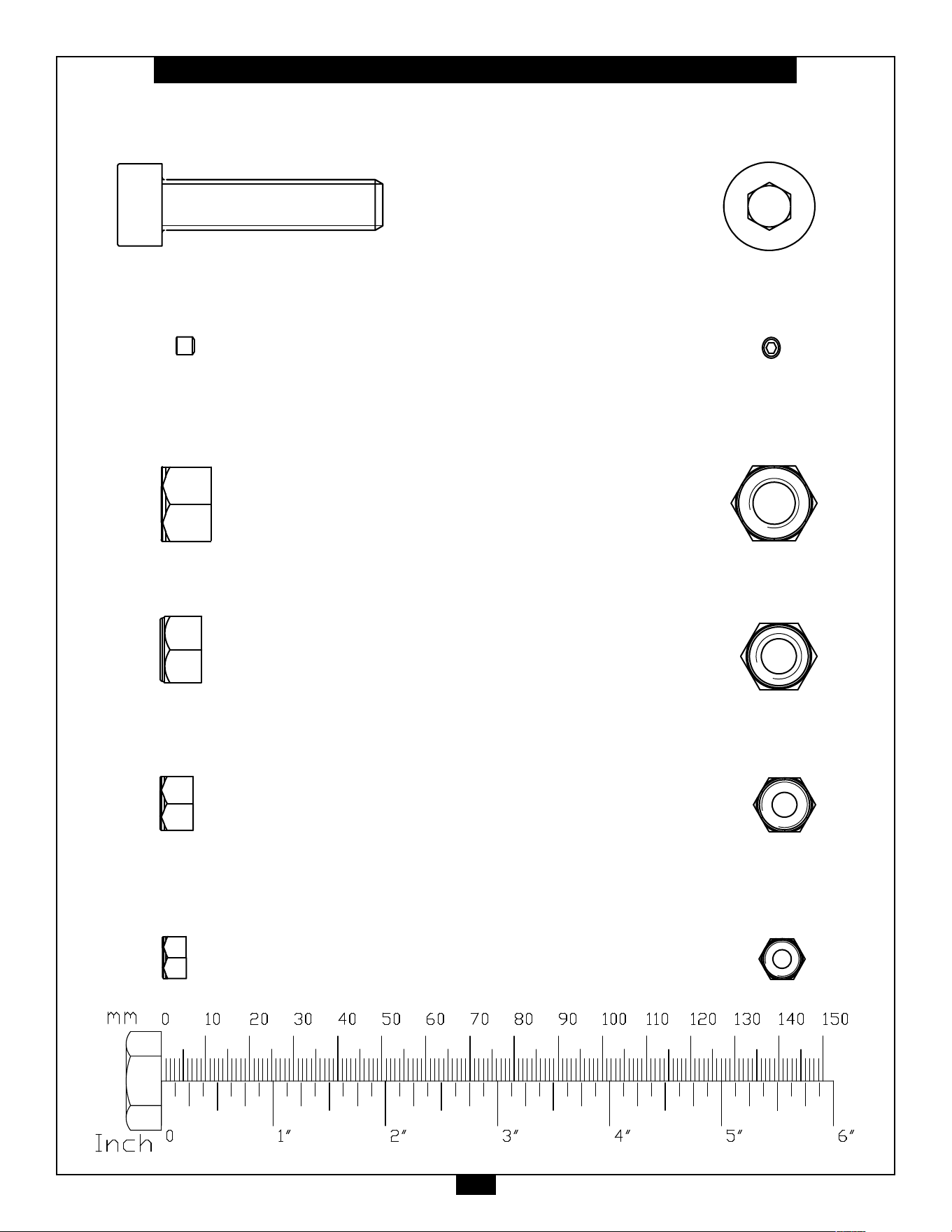

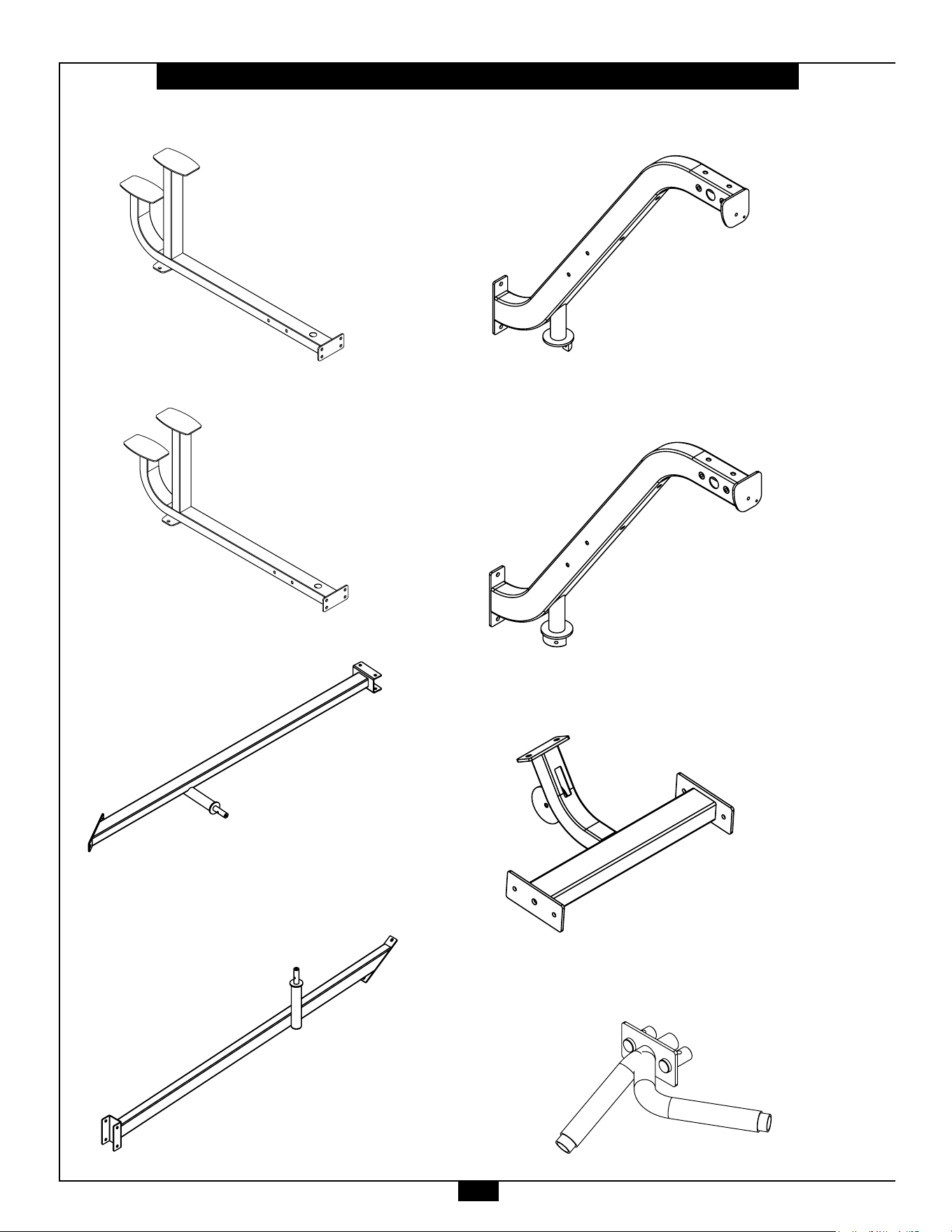

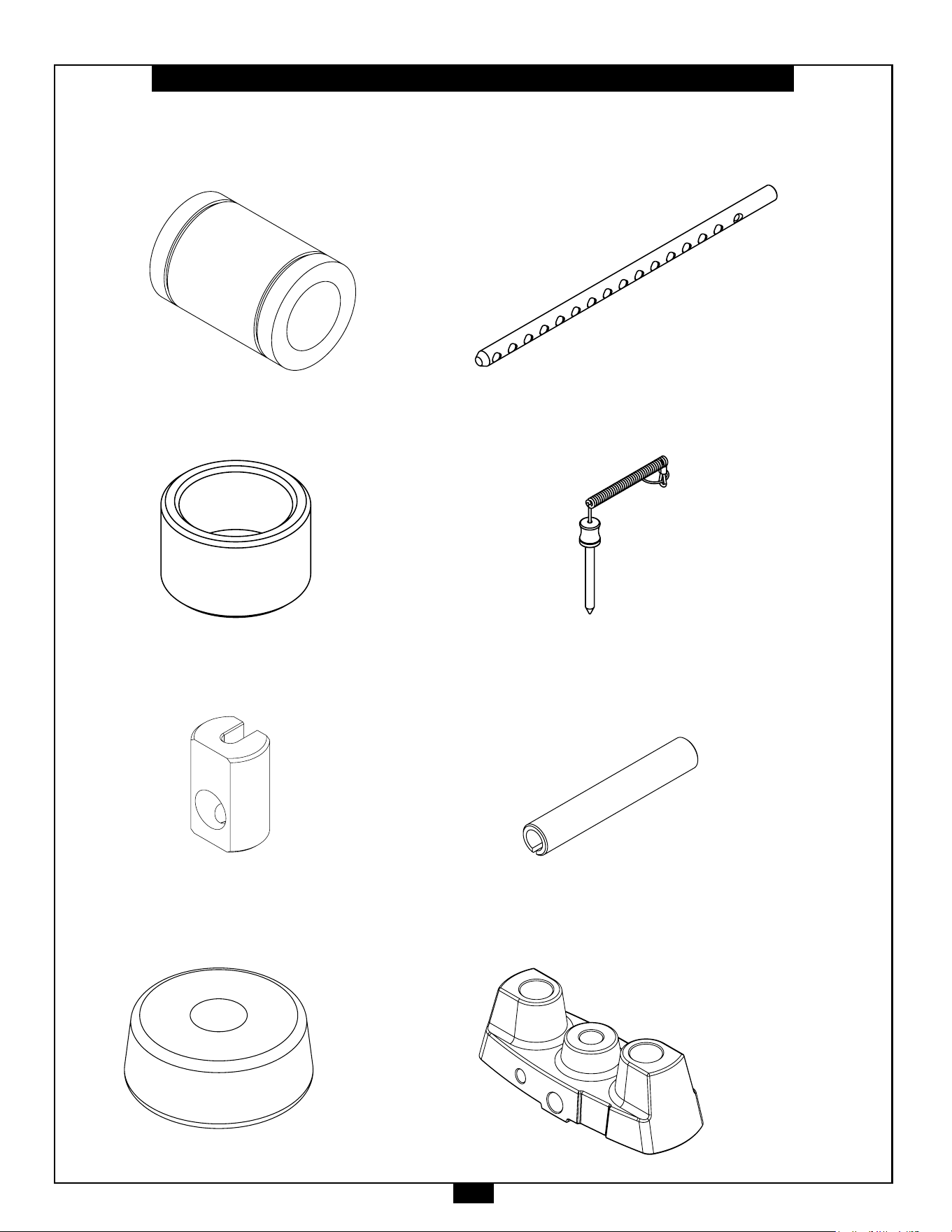

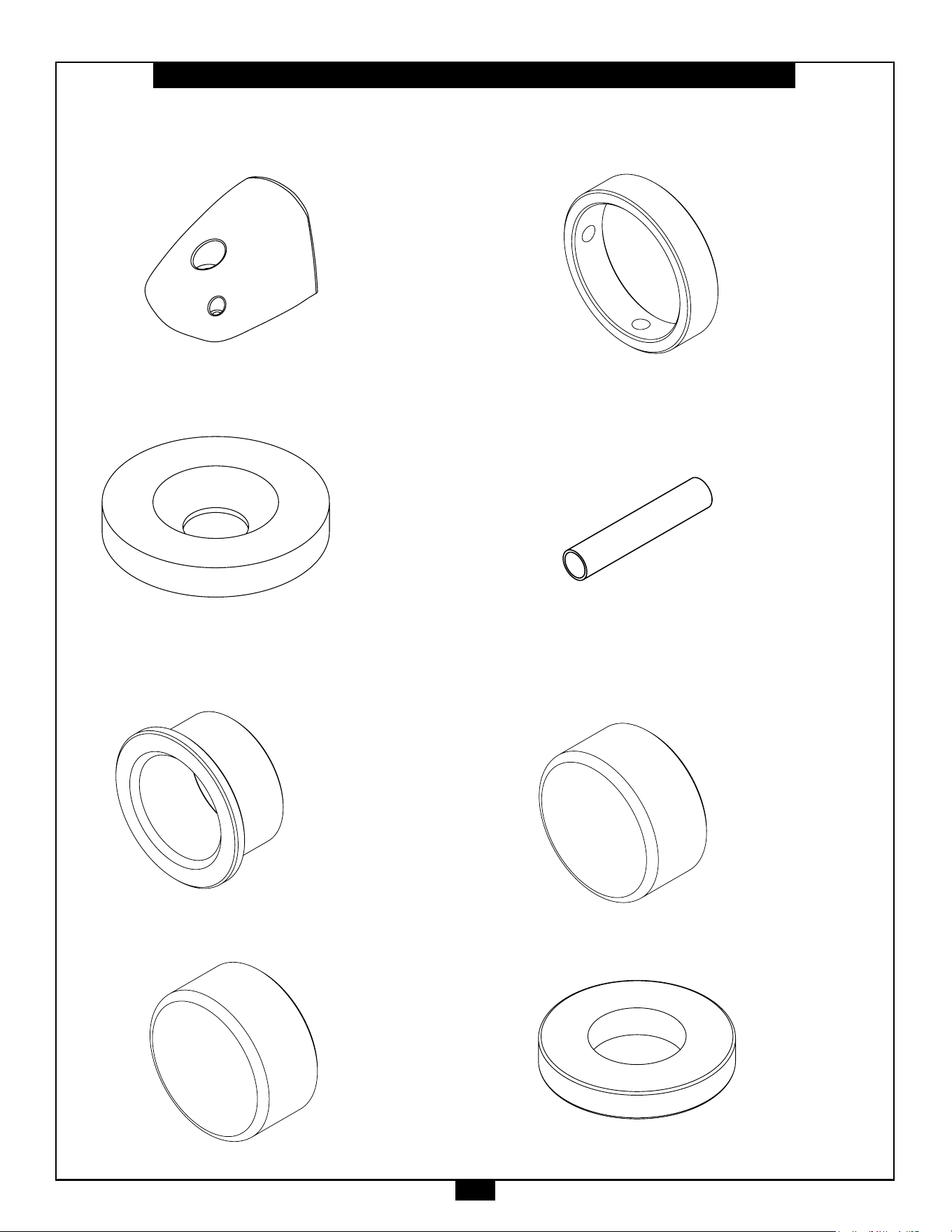

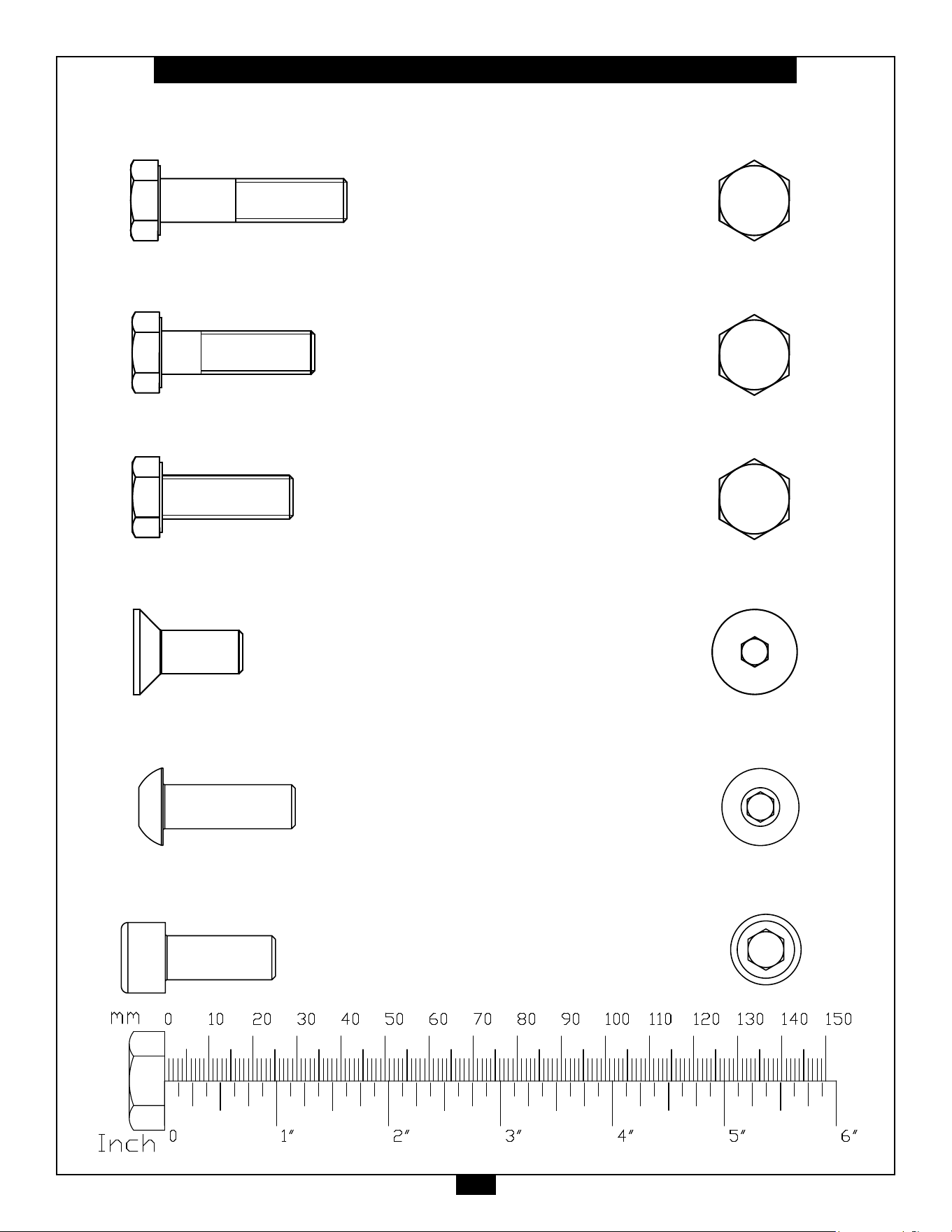

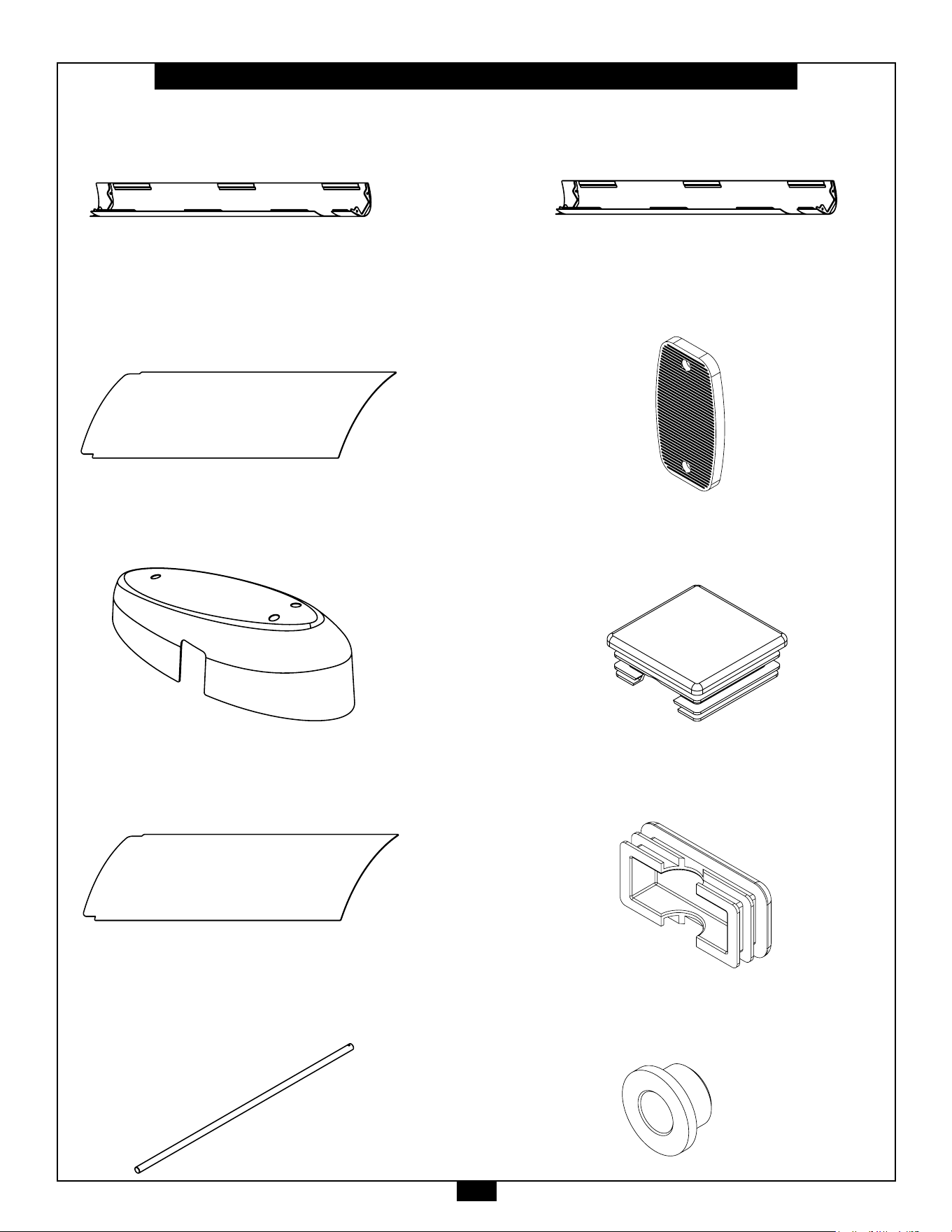

• HARDWARE LIST........................................... PAGE 6

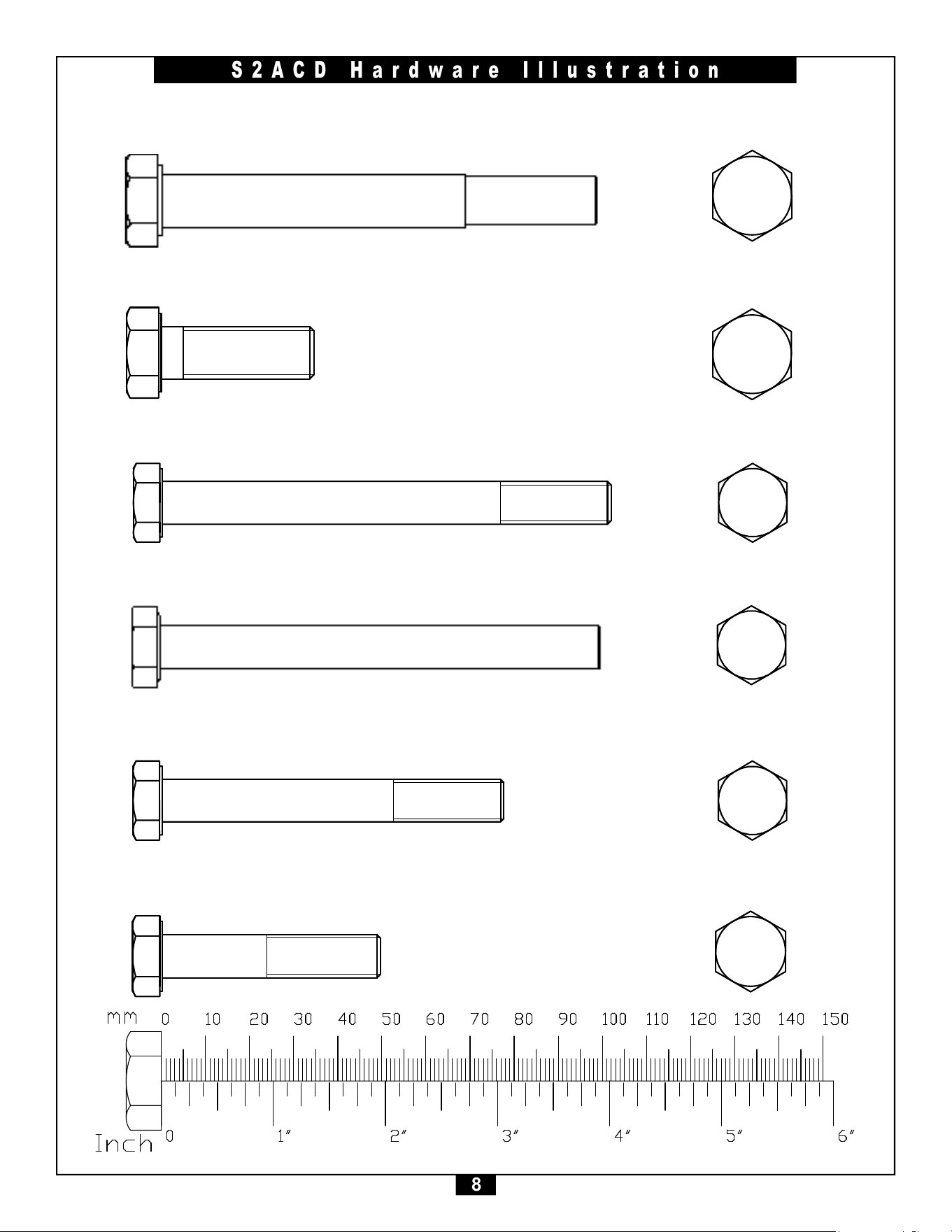

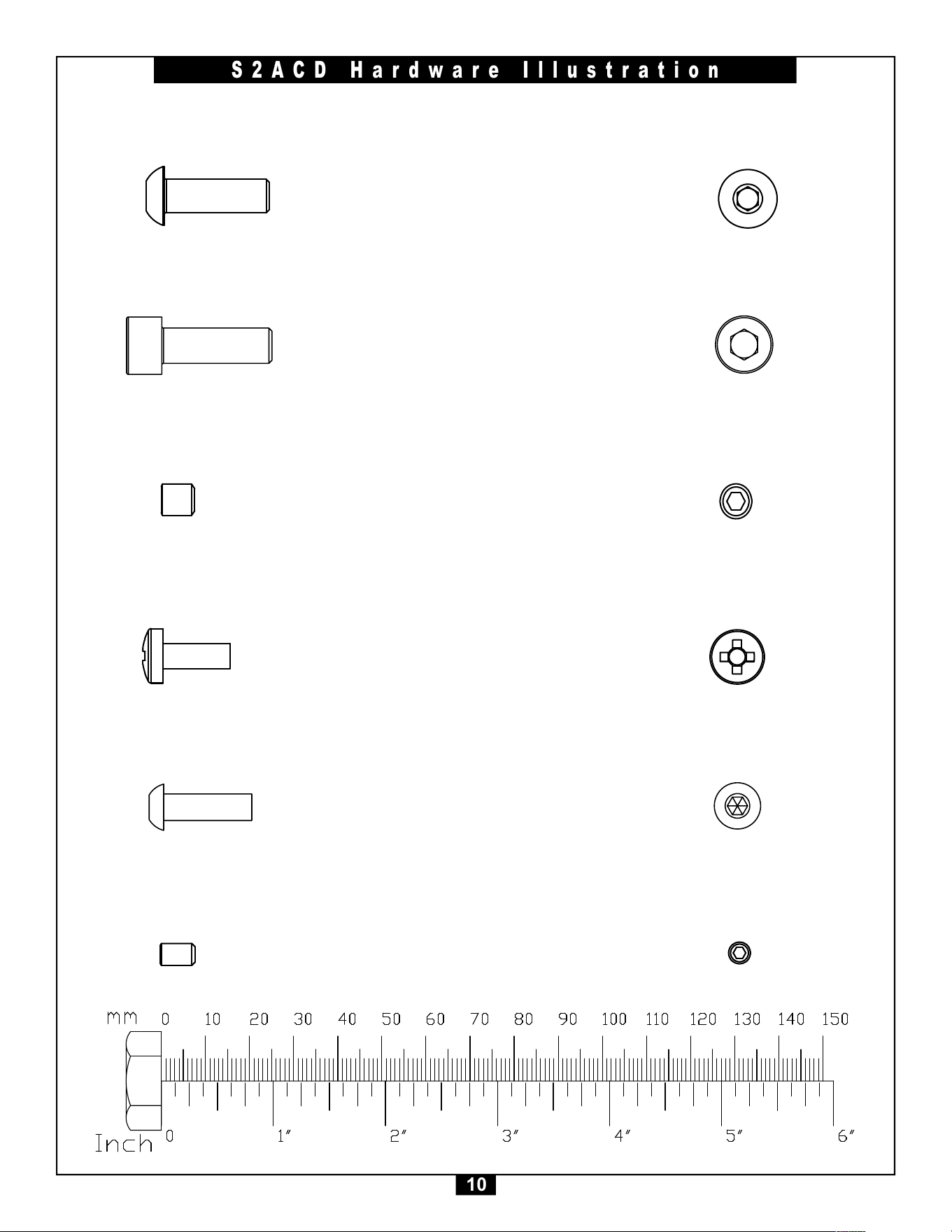

• HARDWARE ILLUSTRATION......................... PAGE 8

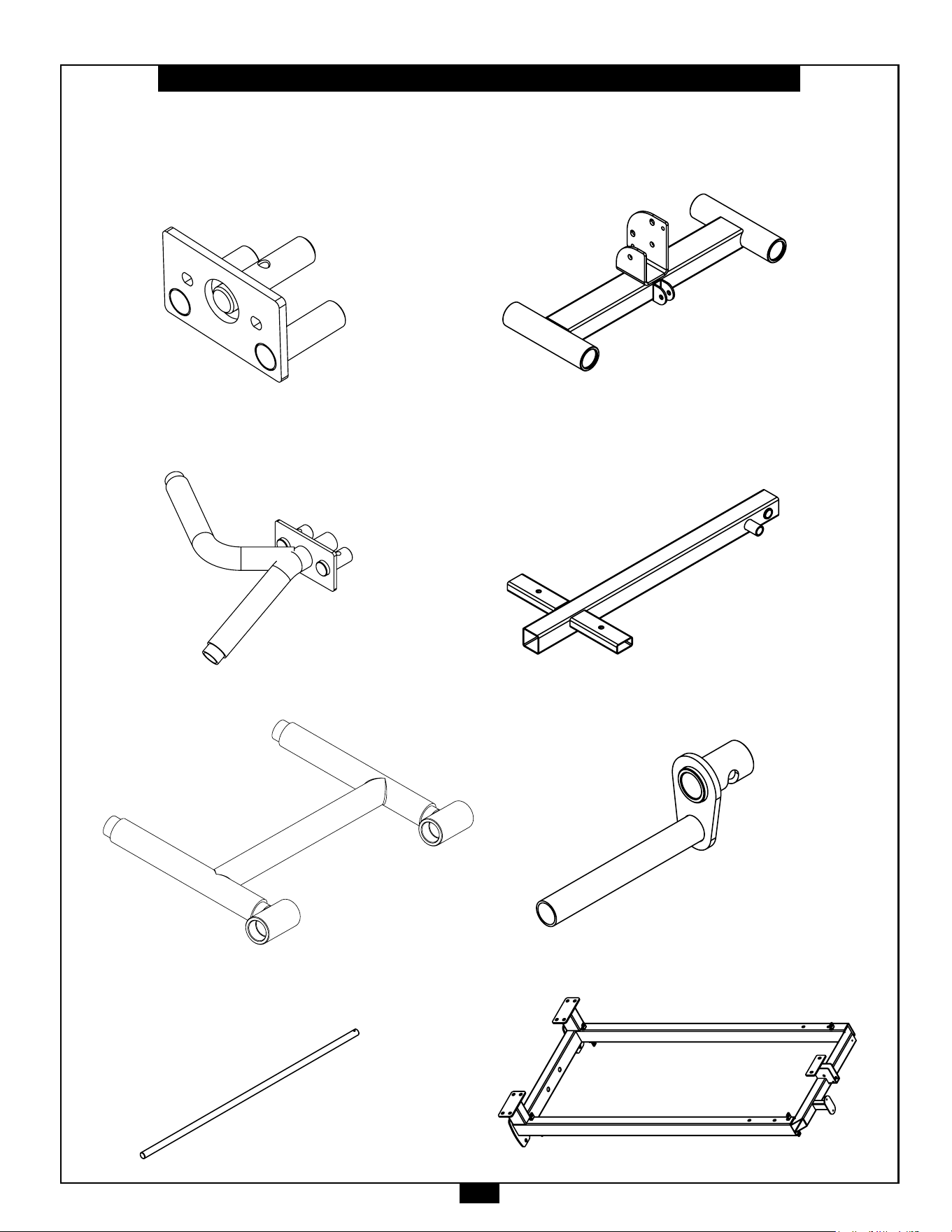

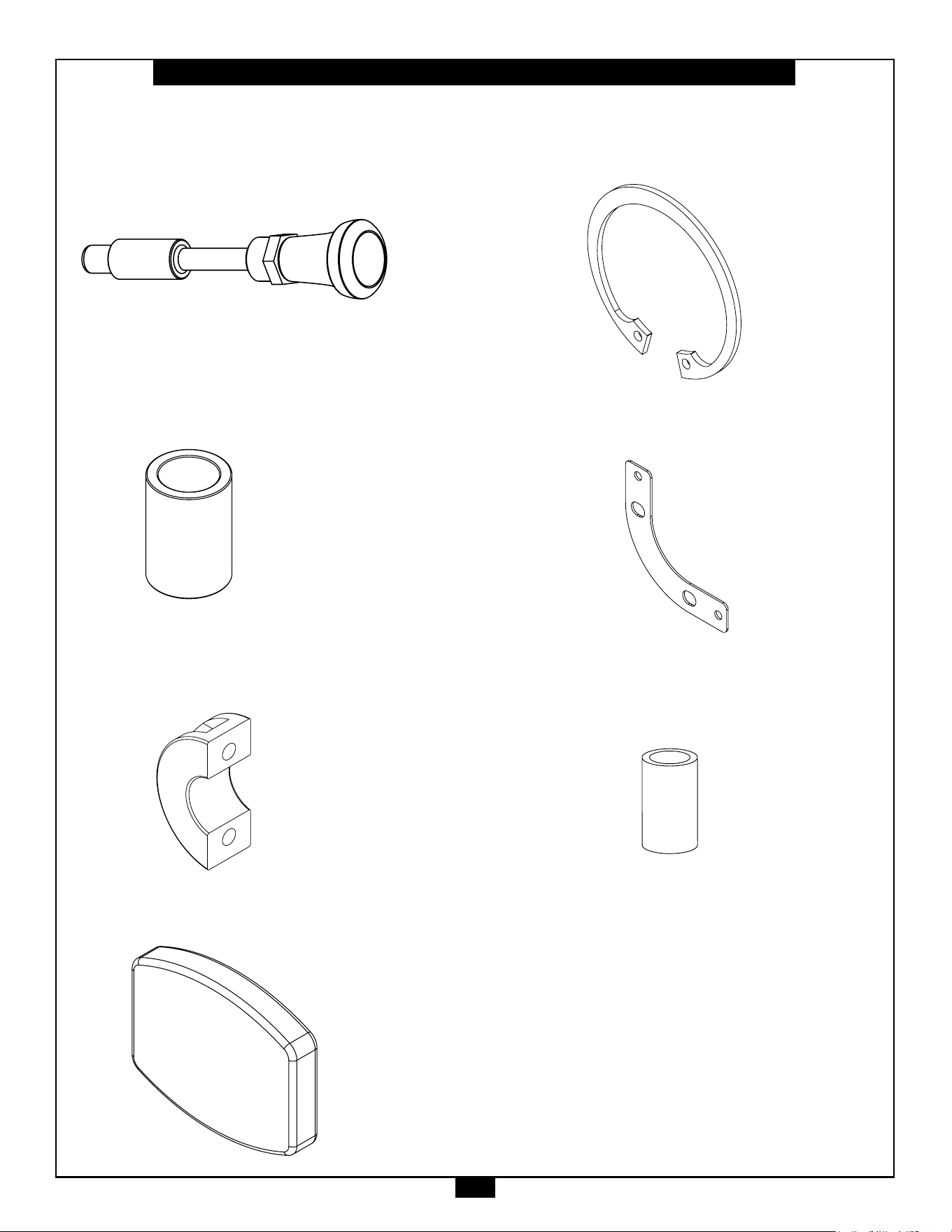

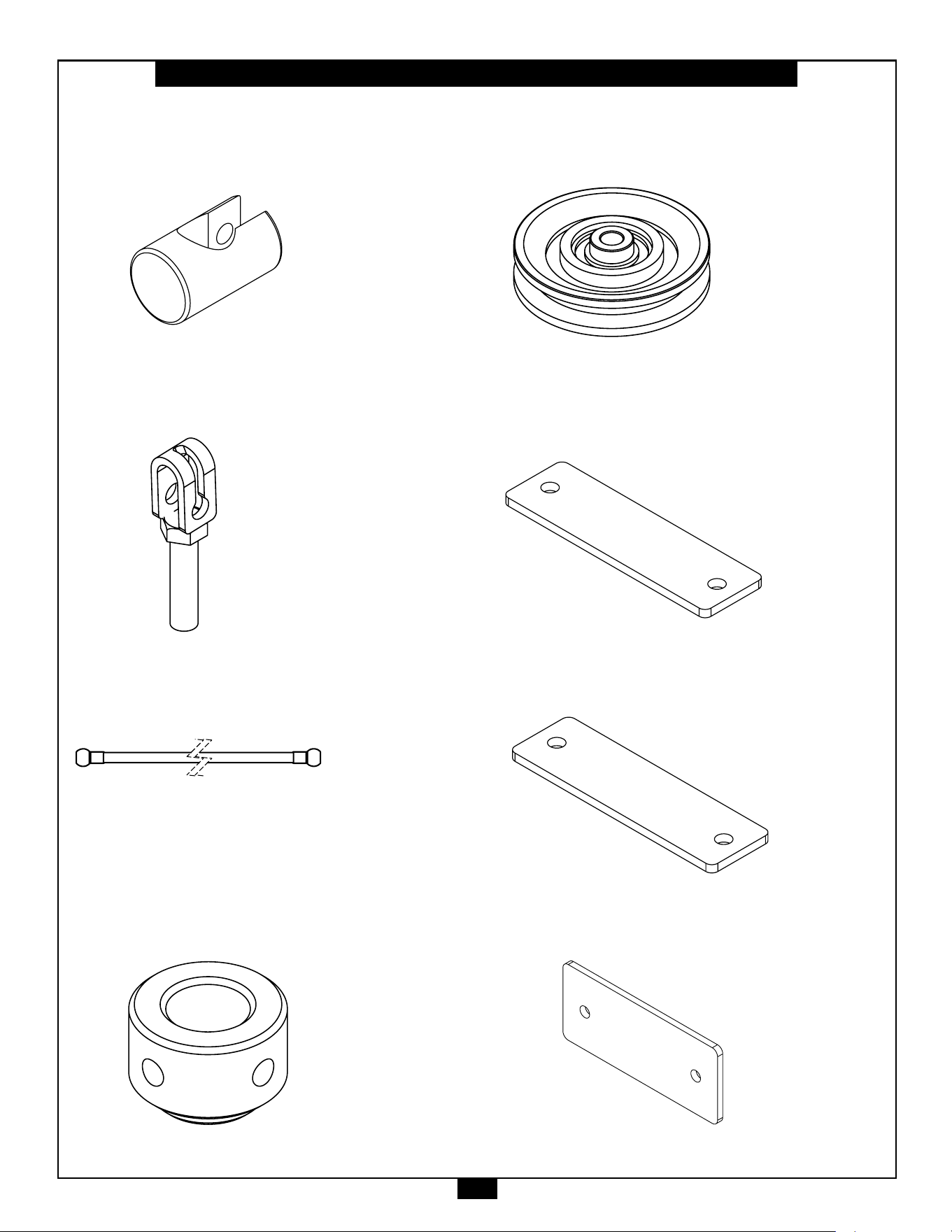

• PART / LIST ILLUSTRATION......................... PAGE 14

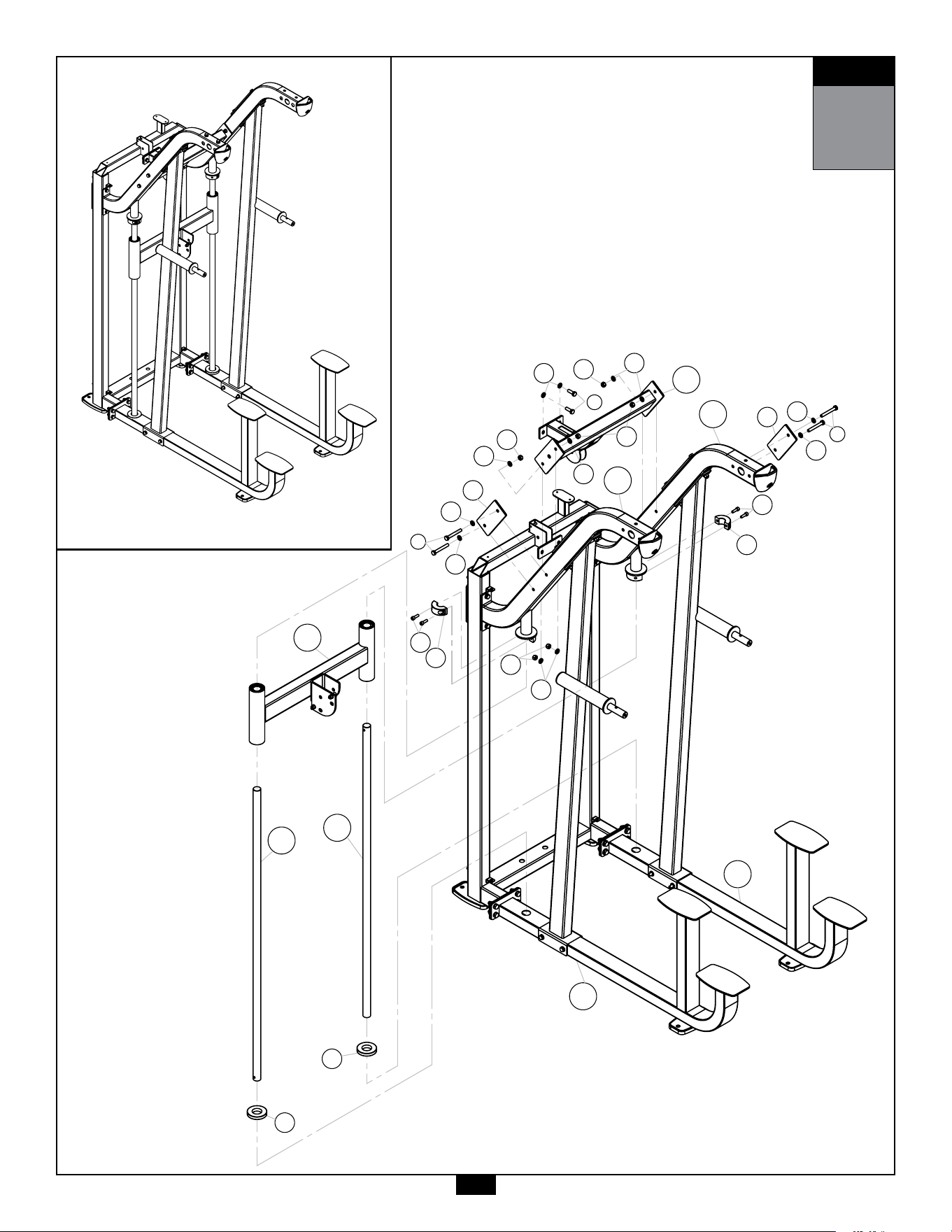

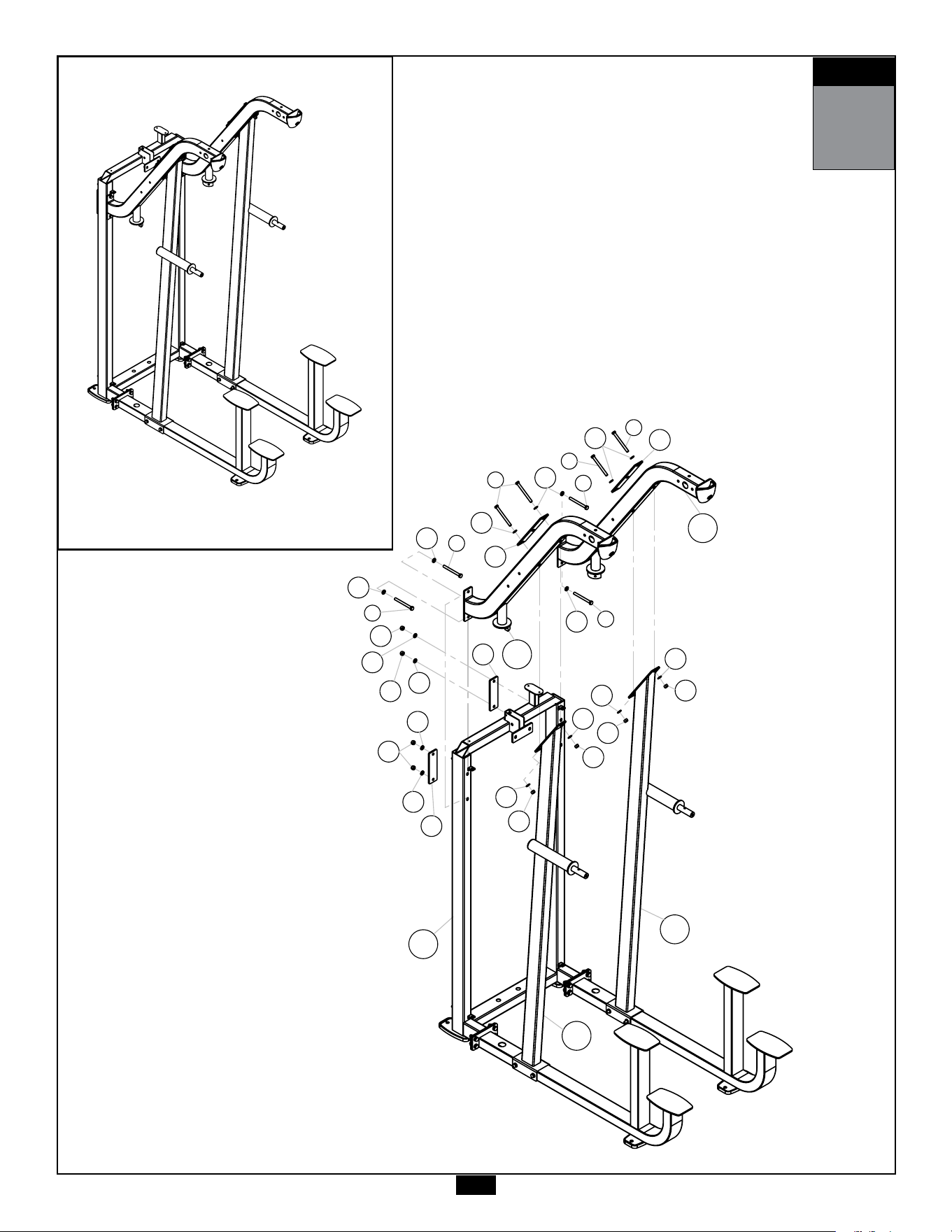

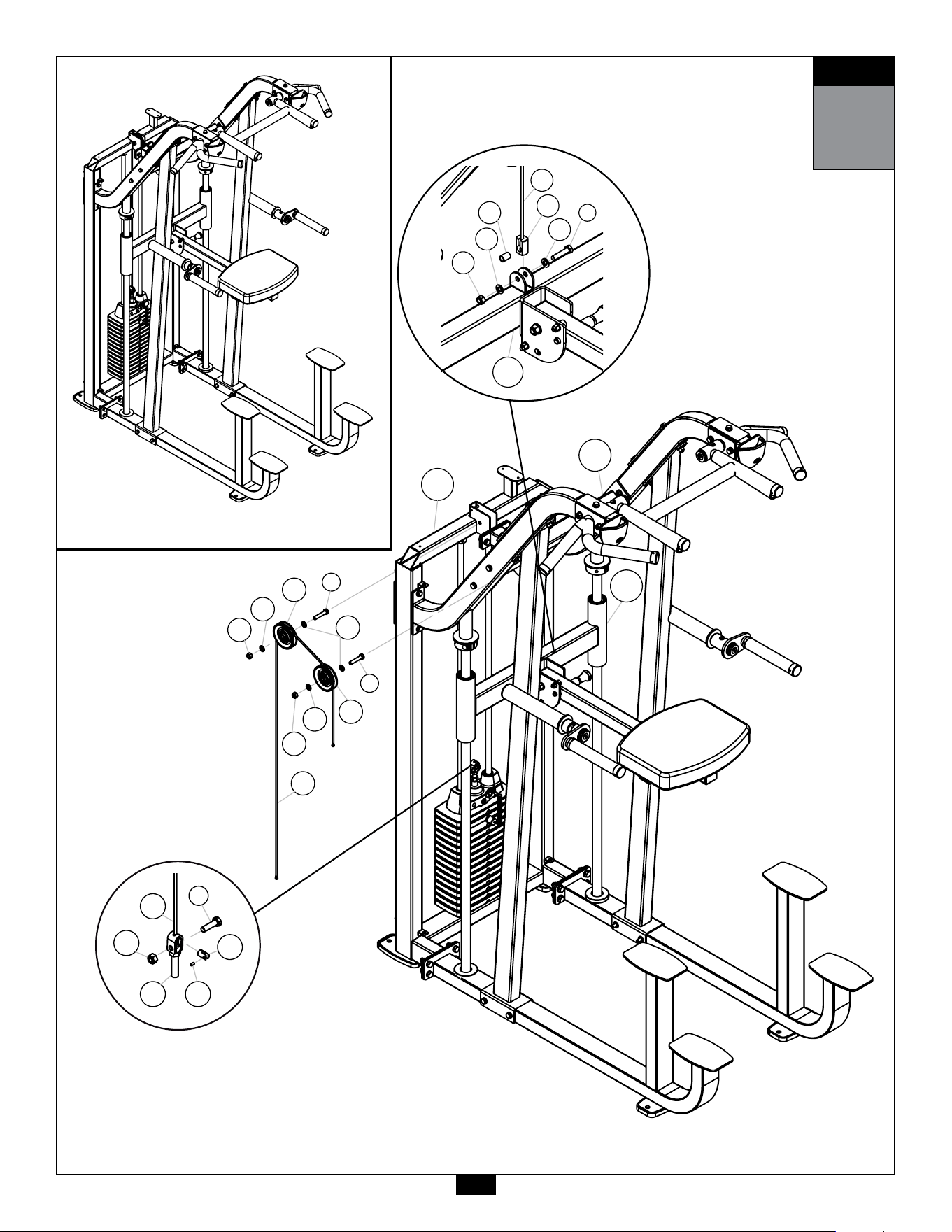

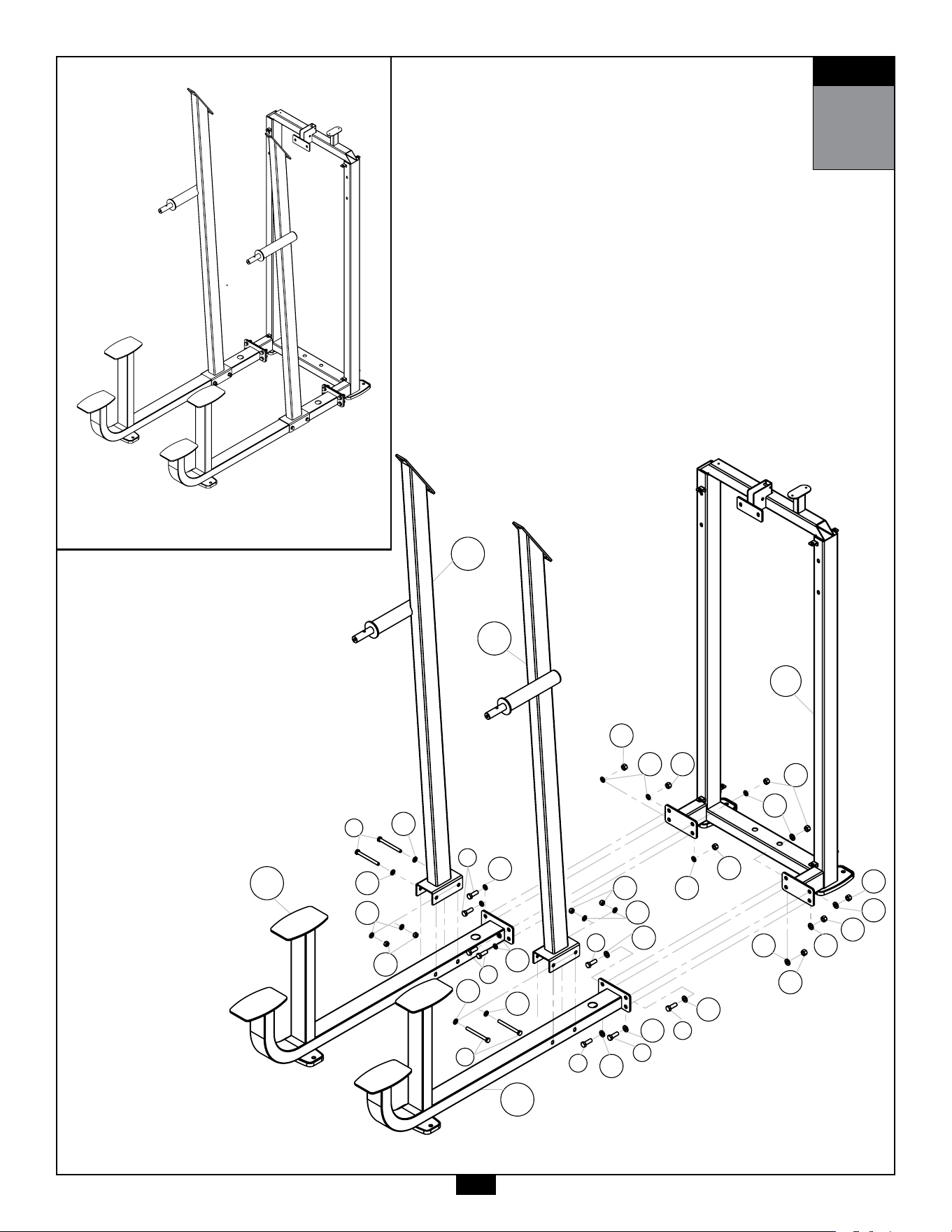

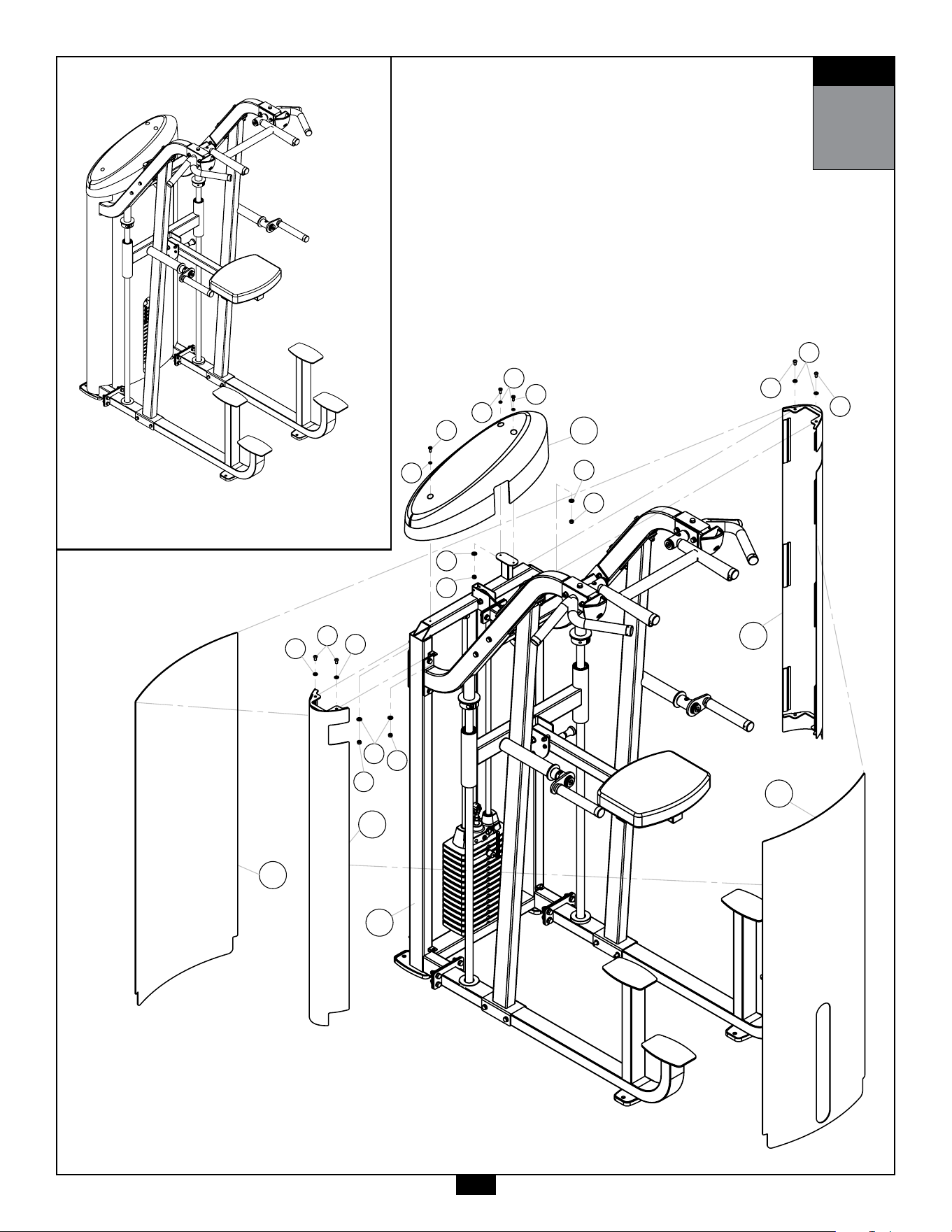

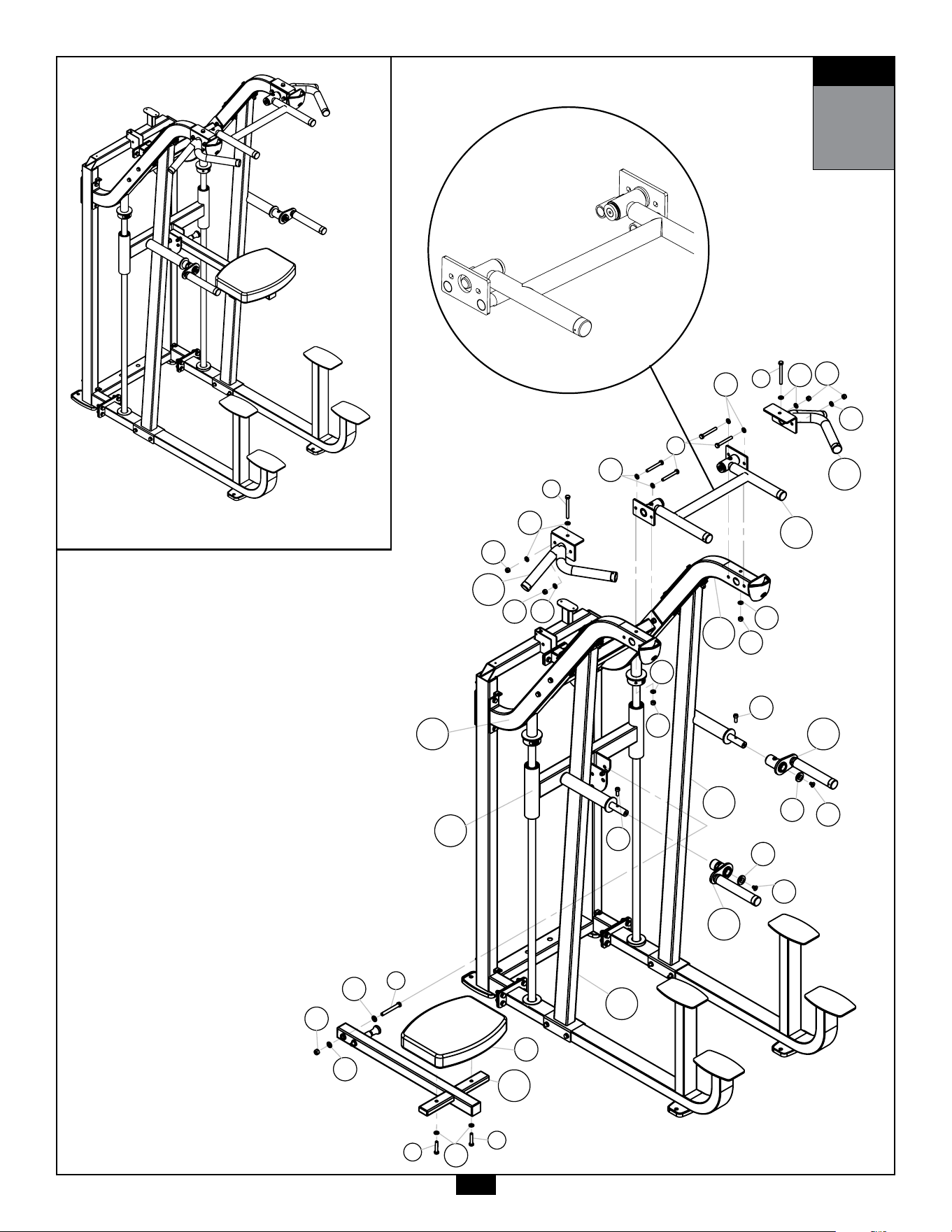

• ASSEMBLY INSTRUCTIONS........................ PAGE 22

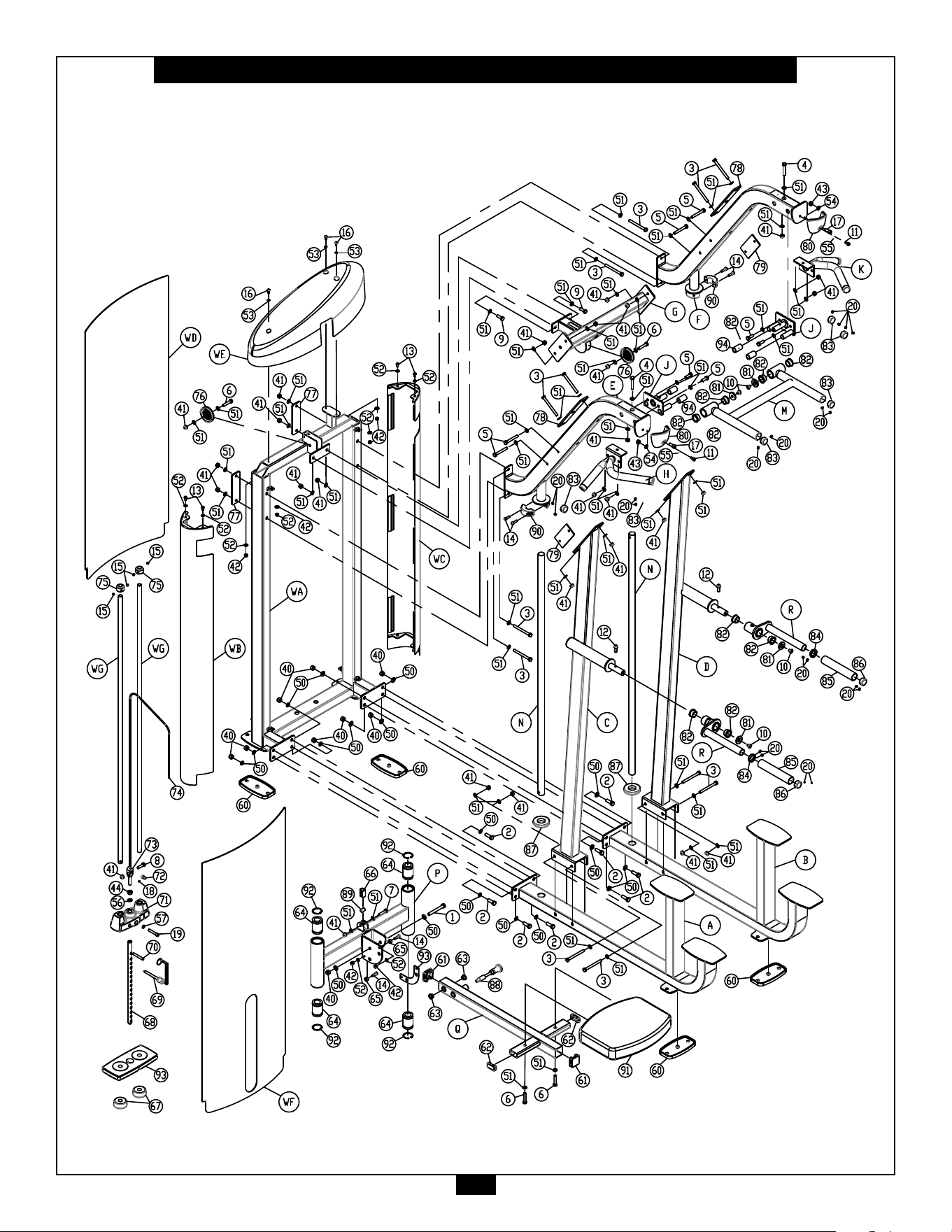

• EXPLODED VIEW......................................... PAGE 37
• CONTACT PAGE........................................... PAGE 38
background
Important Safety Instructions
4
Beforebeginninganytnessprogram,youshouldobtainacompletephysicalexaminationfromyourphysician.
Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise.
Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
Antes de comenzar cualquier programma de ejercicios, deberias tener un examen sico con su doctor.
When using exercise equipment, you
should always take basic precautions,
including the following:
m ReadallinstructionsbeforeusingtheS2ACD.
Theseinstructionsarewrittentoensureyoursafety
andtoprotecttheunit.
m Do not remove any safety labels from the
machine.
m Donotallowchildrenonorneartheequipment.
m Usetheequipmentonlyforitsintendedpurpose
asdescribedinthisguide.Donotuseaccessory
attachmentsthatarenotrecommendedbythe
manufacturer.Suchattachmentsmightcause
injuries.
m Wearproperexerciseclothingandshoesforyour
workout,nolooseclothing.
m Keephands,limbs,looseclothing,andlonghairwell
outofthewayofallmovingparts.
m Usecarewhengettingonoro󰀨theunit.
m Donotoverexertyourselforworktoexhaustion.
m Ifyoufeelanypainorabnormalsymptoms,stop
yourworkoutimmediatelyandconsultyour
physician.
m Neveroperateunitwhenithasbeendroppedor
damaged.Returntheequipmenttoaservice
centerforexaminationandrepair.
m Neverdroporinsertobjectsintoanyopeningin
theequipment.
m Alwayschecktheunitanditscablesbeforeeach
use.Makesurethatallfastenersandcablesare
secureandingoodworkingcondition.
m Donotusetheequipmentoutdoorsornearwater.
Personal Safety During Assembly
m Beforebeginningassembly,pleasetakethetime
toreadtheinstructionsthoroughly.
m Readeachstepintheassemblyinstructionsand
followthestepsinsequence.Donotskipahead.
Ifyouskipahead,youmaylearnlaterthatyou
havetodisassemblecomponentsandthatyou
mayhavedamagedtheequipment.
m Assembleandoperatethe S2ACDonasolid,level
surface.Locatetheunitafewfeetfromthewalls
orfurnituretoprovideeasyaccess.
TheS2ACD isdesignedforyourenjoyment.Byfollowing
theseprecautionsandusingcommonsense,youwill
havemanysafeandpleasurablehoursof
healthfulexercisewithyourBody-Solid Assisted Chin
Dip Machine.
Afterassembly,youshouldcheckallfunctionsto
ensurecorrectoperation.Ifyouexperienceproblems,
rstrechecktheassemblyinstructionstolocateany
possibleerrorsmadeduringassembly.Ifyouareunable
tocorrecttheproblem,callthedealerfromwhomyou
purchasedthemachineorcall1-800-556-3113forthe
dealernearestyou.
Obtaining Service
PleaseusethisOwner’sManualtomakesurethatall
partshavebeenincludedinyourshipment.When
orderingparts,youmustusethepartnumberand
descriptionfromthisOwner’sManual.Useonly
Body-Solidreplacementpartswhenservicingthis
machine.Failuretodosowillvoidyourwarrantyand
couldresultinpersonalinjury.
Forinformationaboutproductoperationorservice,
checkouttheo󰀩cialBody-Solidwebsiteat
www.bodysolid.comorcontactanauthorized
Body-SoliddealeroraBody-Solidfactory-authorized
servicecompanyorcontactBody-Solidcustomer
serviceatoneofthefollowing:
Toll Free: 1-800-556-3113
Phone: 1-708-427-3555
Fax: 1-708-427-3556
Hours: M-F 8:30-5:00 CST
E-Mail: [email protected]
Or write to: Body-Solid, Inc.
Service Department
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Retain this Owner’s Manual for future
reference. If you need to order replacement
parts please be prepared to provide the
following information when contacting us so
that we can assist you better.
1. Model Number
2. Place of Purchase
3. Serial Number (S/N)
4. Part # and Description
background

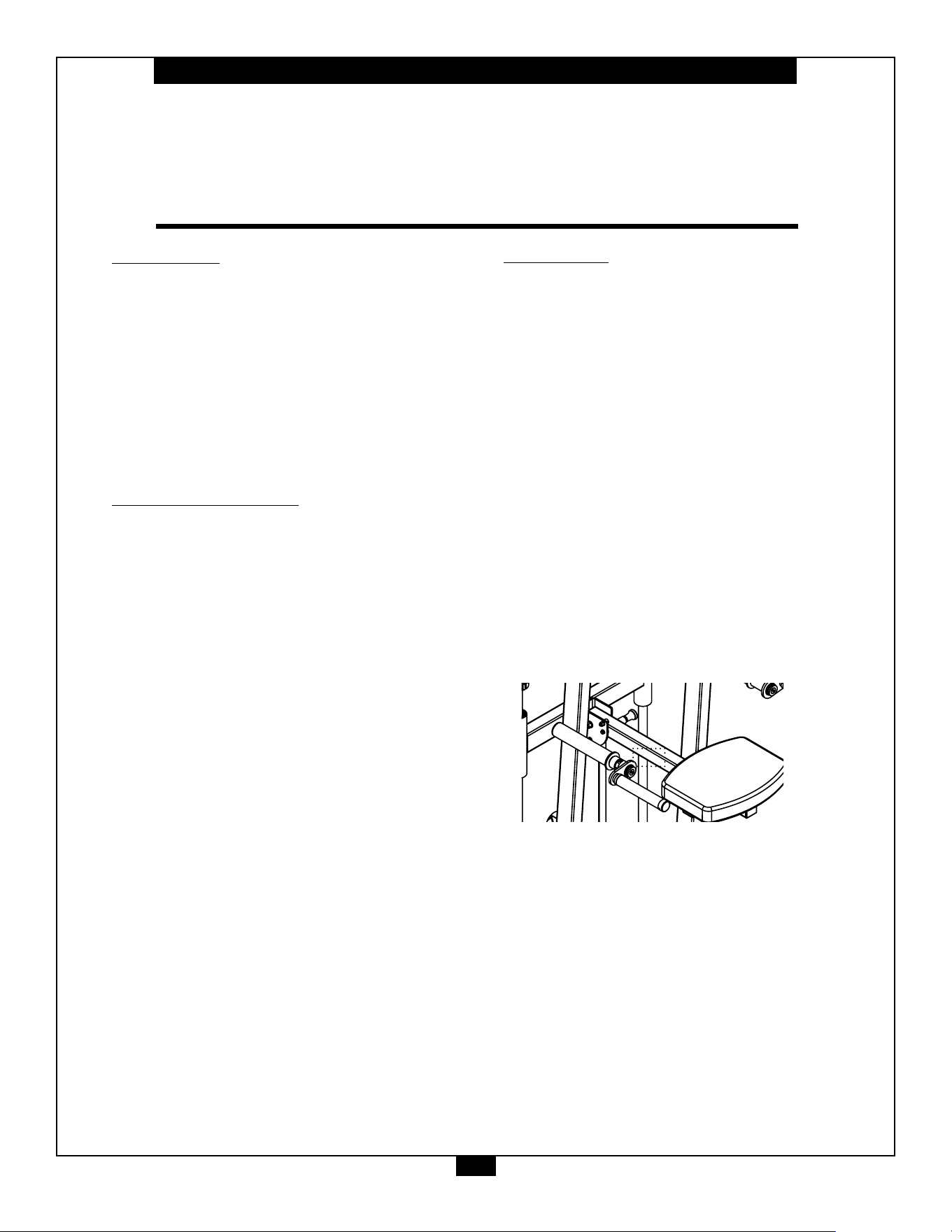

Preparation
5
Thankyouforpurchasingthe
S2ACD
.ThisbenchispartoftheBody-Solidlineofqualitystrengthtraining
machines,whichletsyoutargetspecicmusclegroupstoachievebettermuscletoneandoverallbody
conditioning. To maximize your use of the equipment please study this Owner’sManual thoroughly.
Body-Solidcontinuallyseekswaystoimprovetheperformance,specicationsandproductmanualsinordertoensurethatonly
superiorproductsarereleasedfromourfactories.Pleasetakethetimetocarefullyreadthroughthismanualthoroughly.Instructions
containedinthisdocumentarenotintendedtocoveralldetailsorvariationspossiblewithBody-Solidequipment,ortocoverevery
contingencythatmaybemetinconjunctionwithinstallation,operation,maintenanceortroubleshootingoftheequipment.Even
thoughwehavepreparedthismanualwithextremecare,neitherthepublishernortheauthorcanacceptresponsibilityforanyerrors
in,oromissionfrom,theinformationgiven.Shouldadditionalinformationberequired,orshouldsituationsarisethatarenotcovered
bythismanual,themattershouldbedirectedtoyourlocalBody-Solidrepresentative,ortheServiceDepartmentatBody-SolidInc.
inForestPark,Illinois.
Required Tools
Thebasictoolsthatyoumustobtainbeforeassembling
theS2ACDincludebutarenotlimitedto:
m MetricAllenKeySet
m StandardAllenKeySet
m StandardWrenchSet
m MetricWrenchSet
m AdjustableWrench
m Screwdriver(standardand/orphillips)
Installation Requirements
Followtheseinstallationrequirementswhenassembling
theS2ACD:
SetuptheS2ACDonasolid,atsurface.Asmooth,at
surfaceunderthemachinehelpskeepitlevel.A
levelmachinehasfewermalfunctions.
Provideamplespacearoundthemachine.Open
spacearoundthemachineallowsforeasieraccess.
Insertallboltsinthesamedirection.Foraesthetic
purposes,insertallboltsinthesamedirectionunless
specied(intextorillustrations)todootherwise.
Leaveroomforadjustments.Tightenfastenerssuchas
bolts,nuts,andscrewssotheunitisstable,butleave
roomforadjustments.Donotfullytightenfasteners
untilinstructedintheassemblystepstodoso.
Fill out and mail the warranty card.
Assembly Tips
Readall“Notes”oneachpagebeforebeginningeach
step.
WhileyoumaybeabletoassembletheS2ACDusing
theillustrationsonly,importantsafetynotesandother
tipsareincludedinthetext.
Somepiecesmayhaveextraholesthatyouwillnotuse.
Useonlythoseholesindicatedintheinstructionsand
illustrations.
NOTE: Withsomanyassembledparts,proper
alignmentandadjustmentiscritical.While
tighteningthenutsandbolts,besuretoleave
roomforadjustments.
NOTE: Thebottlesthataremarked“Poison”isyour
touchuppaint.Keepawayfromchildren.
CAUTION: Obtainassistance!Ifyoufeellikeyoucan’t
assembletheS2ACDbyyourselfthendo
notattempttodosoasthiscouldresultin
injury.Reviewtheinstallationrequirements
beforeproceedingwiththefollowingsteps.
YourS/N#can
befoundhere
↑
background
6
S2ACD Hardware List
Part# Size Description Quantity
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
M12X100mm
M12X35mm
M10X105mm
M10X100mm
M10X80mm
M10X50mm
M10X45mm
M10X35mm
M10X30mm
M10X25mm
M10X30mm
M10X25mm
M8X25mm
M8X25mm
M8X8mm
M6X16mm
M5X20mm
M4X8mm
3/8”X2.0”
10-32X1/8”
HEX HEAD BOLT
HEX HEAD BOLT
HEX HEAD BOLT
HEX HEAD BOLT
HEX HEAD BOLT
HEX HEAD BOLT
HEX HEAD BOLT
HEX HEAD BOLT
HEX HEAD BOLT
FLAT HEAD CAP SCREW
BUTTON HEAD CAP SCREW
SOCKET HEAD CAP SCREW
BUTTON HEAD CAP SCREW
SOCKET HEAD CAP SCREW
SET SCREW
PHILLIPS HEAD SCREW
BUTTON HEAD CAP SCREW
SET SCREW
SOCKET HEAD CAP SCREW
SET SCREW
1 PCS.
8 PCS.
12 PCS.
2 PCS.
8 PCS.
4 PCS.
1 PCS.
1 PCS.
2 PCS.
4 PCS.
2 PCS.
2 PCS.
4 PCS.
2 PCS.
4 PCS.
3 PCS.
2 PCS.
1 PCS.
1 PCS.
20 PCS.
background
Part# Size Description Quantity
7
S2ACD Hardware List
40
41
42
43
44
50
51
52
53
54
55
56
57
M12
M10
M8
M5
1/2”
M12
M10
M8
M6
M5
M10
1/2”
3/8”
NYLON LOCK NUT
NYLON LOCK NUT
NYLON LOCK NUT
NYLON LOCK NUT
HEX NUT
FLAT WASHER
FLAT WASHER
FLAT WASHER
FLAT WASHER
FLAT WASHER
LOCK WASHER
LOCK WASHER
LOCK WASHER
9 PCS.
28 PCS.
6 PCS.
2 PCS.
1 PCS.
18 PCS.
64 PCS.
10 PCS.
3 PCS.
2 PCS.
2 PCS.
1 PCS.
1 PCS.
background
45
8
S2ACD Hardware Illustration
Part#1 HEX HEAD BOLTM12X100mm QTY.1
Part#2 HEXHEADBOLTM12X35mm QTY.8
Part#3 HEXHEADBOLTM10X105mm QTY.12
Part#4 HEXHEADBOLTM10X100mm QTY.2
Part#5 HEXHEADBOLTM10X80mm QTY.8
Part#6 HEXHEADBOLTM10X50mm QTY.4
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1
Part #1 HEX HEAD BOLT M10X105mm PARTIAL QTY. 4
Part #2 HEX HEAD BOLT M10X35mm PARTIAL QTY. 1
Part #3 HEX HEAD BOLT M10X45mm PARTIAL QTY. 2
Part #4 HEX HEAD BOLT M10X50mm PARTIAL QTY. 8
Part #5 HEX HEAD BOLT M10X65mm PARTIAL QTY. 3
Part #6 HEX HEAD BOLT M10X75mm PARTIAL QTY. 5
Part #7 HEX HEAD BOLT M10X80mm PARTIAL QTY. 2
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1










Part #1 HEX HEAD BOLT M10X105mm PARTIAL QTY. 4
Part #2 HEX HEAD BOLT M10X35mm PARTIAL QTY. 1
Part #3 HEX HEAD BOLT M10X45mm PARTIAL QTY. 2
Part #4 HEX HEAD BOLT M10X50mm PARTIAL QTY. 8
Part #5 HEX HEAD BOLT M10X65mm PARTIAL QTY. 3
Part #6 HEX HEAD BOLT M10X75mm PARTIAL QTY. 5
Part #7 HEX HEAD BOLT M10X80mm PARTIAL QTY. 2
background
45
9
S2ACD Hardware Illustration
Part#7 HEXHEADBOLTM10X45mm QTY.1
Part#8 HEXHEADBOLTM10X35mm QTY.1
Part#9 HEXHEADBOLTM10X30mm QTY.2
Part#10 FLATHEADCAPSCREWM10X25mm QTY.4
Part#11 BUTTONHEADCAPSCREWM10X30mm QTY.2
Part#12 SOCKETHEADCAPSCREWM10X25mm QTY.2
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1










background
45
10
S2ACD Hardware Illustration
Part#13 BUTTON HEAD CAP SCREWM8X25mm QTY.4
Part#14 SOCKETHEADCAPSCREWM8X25mm QTY.6
Part#15 SETSCREWM8X8mm QTY.4
Part#16 PHILLIPSHEADSCREWM6X16mm QTY.3
Part#17 BUTTONHEADCAPSCREWM5X20mm QTY.2
Part#18 SETSCREWM4X8mm QTY.1
PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3
PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4
PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8
PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4
QTY.2
PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD
PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1
PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1
PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3
PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4
PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8
PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4
QTY.2
PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD
PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1
PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1
PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3
PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4
PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8
PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4
QTY.2
PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD
PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1
PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1
PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3
PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4
PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8
PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4
QTY.2
PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD
PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1
PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1
PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3
PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4
PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8
PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4
QTY.2
PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD
PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1
PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1
PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3
PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4
PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8
PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4
QTY.2
PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD
PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1
PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1
PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2
PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1
PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3
PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1
PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8
PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD
QTY.8
PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1
PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1










background
45
11
S2ACD Hardware Illustration
Part#19 SOCKETHEADCAPSCREW3/8”X2.0” QTY.1
Part#20 SETSCREW10-32X1/8” QTY.20
Part#40 NYLONLOCKNUTM12 QTY.9
Part#41 NYLON LOCK NUT M10 QTY.28
Part#42 NYLON LOCK NUT M8QTY.6
Part#43 NYLON LOCK NUT M5  QTY.2
PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3
PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4
PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8
PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4
QTY.2
PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD
PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1
PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1
PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3
PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4
PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8
PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4
QTY.2
PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD
PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1
PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1
PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3
PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4
PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8
PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4
QTY.2
PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD
PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1
PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1
PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3
PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4
PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8
PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4
QTY.2
PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD
PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1
PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1
PART #41 NYLON LOCK NUT M10 QTY.8
PART #42 NYLON LOCK NUT M12 QTY.8
PART #44 NYLON LOCK NUT M8 QTY.4
PART #45 HEX NUT 1/2"-13X11 QTY.1
PART #43 NYLON LOCK NUT M6 QTY.1
PART #40 FLANGE NUT M16 QTY.1
PART #41 NYLON LOCK NUT M10 QTY.8
PART #42 NYLON LOCK NUT M12 QTY.8
PART #44 NYLON LOCK NUT M8 QTY.4
PART #45 HEX NUT 1/2"-13X11 QTY.1
PART #43 NYLON LOCK NUT M6 QTY.1
PART #40 FLANGE NUT M16 QTY.1
PART #41 NYLON LOCK NUT M10 QTY.8
PART #42 NYLON LOCK NUT M12 QTY.8
PART #44 NYLON LOCK NUT M8 QTY.4
PART #45 HEX NUT 1/2"-13X11 QTY.1
PART #43 NYLON LOCK NUT M6 QTY.1
PART #40 FLANGE NUT M16 QTY.1
PART #41 NYLON LOCK NUT M10 QTY.8
PART #42 NYLON LOCK NUT M12 QTY.8
PART #44 NYLON LOCK NUT M8 QTY.4
PART #45 HEX NUT 1/2"-13X11 QTY.1
PART #43 NYLON LOCK NUT M6 QTY.1
PART #40 FLANGE NUT M16 QTY.1
PART #41 NYLON LOCK NUT M10 QTY.8
PART #42 NYLON LOCK NUT M12 QTY.8
PART #44 NYLON LOCK NUT M8 QTY.4
PART #45 HEX NUT 1/2"-13X11 QTY.1
PART #43 NYLON LOCK NUT M6 QTY.1
PART #40 FLANGE NUT M16 QTY.1
PART #41 NYLON LOCK NUT M10 QTY.8
PART #42 NYLON LOCK NUT M12 QTY.8
PART #44 NYLON LOCK NUT M8 QTY.4
PART #45 HEX NUT 1/2"-13X11 QTY.1
PART #43 NYLON LOCK NUT M6 QTY.1
PART #40 FLANGE NUT M16 QTY.1
PART #41 NYLON LOCK NUT M10 QTY.8
PART #42 NYLON LOCK NUT M12 QTY.8
PART #44 NYLON LOCK NUT M8 QTY.4
PART #45 HEX NUT 1/2"-13X11 QTY.1
PART #43 NYLON LOCK NUT M6 QTY.1
PART #40 FLANGE NUT M16 QTY.1
PART #41 NYLON LOCK NUT M10 QTY.8
PART #42 NYLON LOCK NUT M12 QTY.8
PART #44 NYLON LOCK NUT M8 QTY.4
PART #45 HEX NUT 1/2"-13X11 QTY.1
PART #43 NYLON LOCK NUT M6 QTY.1
PART #40 FLANGE NUT M16 QTY.1










background
45
12
S2ACD Hardware Illustration
Part#44 HEXNUT1/2” QTY.1
Part#50 FLATWASHERM12 QTY.18
Part#51 FLATWASHERM10 QTY.64
Part#52 FLATWASHERM8 QTY.10
Part#53 FLATWASHERM6 QTY.3
Part#54 FLATWASHERM5 QTY.2
PART #41 NYLON LOCK NUT M10 QTY.8
PART #42 NYLON LOCK NUT M12 QTY.8
PART #44 NYLON LOCK NUT M8 QTY.4
PART #45 HEX NUT 1/2"-13X11 QTY.1
PART #43 NYLON LOCK NUT M6 QTY.1
PART #40 FLANGE NUT M16 QTY.1
PART #41 NYLON LOCK NUT M10 QTY.8
PART #42 NYLON LOCK NUT M12 QTY.8
PART #44 NYLON LOCK NUT M8 QTY.4
PART #45 HEX NUT 1/2"-13X11 QTY.1
PART #43 NYLON LOCK NUT M6 QTY.1
PART #40 FLANGE NUT M16 QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1










background
45
13
S2ACD Hardware Illustration
Part#55 LOCKWASHERM10 QTY.2
Part#56 LOCKWASHER1/2” QTY.1
Part#57 LOCKWASHER3/8” QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1










background
14
S2ACD Parts List/Illustration
PART A - RIGHT BASE FRAME, 1PC.
PART B - LEFT BASE FRAME, 1PC.
PART C - RIGHT UPRIGHT, 1PC.
PART D - LEFT UPRIGHT, 1PC.
PART E - RIGHT TOP FRAME 1PC.
PART F - LEFT TOP FRAME, 1PC.
PART G - CROSS FRAME, 1PC.
PART H - RIGHT PULL UP HANDLE , 1PC.
14
S2ACD Parts List/Illustration
PART A - RIGHT BASE FRAME, 1PC.
PART B - LEFT BASE FRAME, 1PC.
PART C - RIGHT UPRIGHT, 1PC.
PART D - LEFT UPRIGHT, 1PC.
PART E - RIGHT TOP FRAME 1PC.
PART F - LEFT TOP FRAME, 1PC.
PART G - CROSS FRAME, 1PC.
PART H - RIGHT PULL UP HANDLE , 1PC.
background
15
S2ACD Parts List/Illustration
PART J - MOUNTING BRACET , 2PCS.
PART K - LEFT PULL UP HANDLE , 1PC.
PART M - CENTER PULL UP HANDLE, 1PC.
PART N - CHROME GUIDE ROD, 2PCS.
ø30x1375mm
PART P - CARRIAGE, 1PC.
PART Q - LIFT FRAME, 1PC.
PART R - DIP HANDLE, 2PCS.
PART WA - WEIGHT STACK FRAME, 1PC.
15
S2ACD Parts List/Illustration
PART J - MOUNTING BRACET , 2PCS.
PART K - LEFT PULL UP HANDLE , 1PC.
PART M - CENTER PULL UP HANDLE, 1PC.
PART N - CHROME GUIDE ROD, 2PCS.
ø30x1375mm
PART P - CARRIAGE, 1PC.
PART Q - LIFT FRAME, 1PC.
PART R - DIP HANDLE, 2PCS.
PART WA - WEIGHT STACK FRAME, 1PC.
background
16
S2ACD Parts List/Illustration
PART WD - BACK SHROUD, 1PC.
PART WE - TOP SHROUD, 1PC.
PART WF - FRONT SHROUD, 1PCS.
PART WG - CHROME GUIDE ROD, 2PCS.
ø19x1529mm
PART #60 - FOOT PAD, 4PCS.
PART #61 - PLASTIC END CAP, 2PCS.
50x50mm
PART #62 - PLASTIC END CAP, 2PCS.
50x25mm
PART #63 - BUSHING, 2PCS.
ø25xø12.2x13mm
PART WB - SHORT SIDE SHROUD, 1PC. PART WC - LONG SIDE SHROUD, 1PC.
16
S2ACD Parts List/Illustration
PART WD - BACK SHROUD, 1PC.
PART WE - TOP SHROUD, 1PC.
PART WF - FRONT SHROUD, 1PCS.
PART WG - CHROME GUIDE ROD, 2PCS.
ø19x1529mm
PART #60 - FOOT PAD, 4PCS.
PART #61 - PLASTIC END CAP, 2PCS.
50x50mm
PART #62 - PLASTIC END CAP, 2PCS.
50x25mm
PART #63 - BUSHING, 2PCS.
ø25xø12.2x13mm
PART WB - SHORT SIDE SHROUD, 1PC. PART WC - LONG SIDE SHROUD, 1PC.
background
17
S2ACD Parts List/Illustration
PART #64 - LINEAR BEARING, 4PCS.
ø47xø30x68mm
PART #65 - RUBBER SLEEVE, 2PCS.
PART #66 - CABLE CONNECTOR, 1PC.
PART #67 - RUBBER DONUT, 2PCS.
PART #68 - SELECTOR ROD, 1PC.
PART #69 - WEIGHT STACK PIN, 1PC.
PART #70 - SPRING PIN, 1PC.
PART #71 - TOP PLATE, 1PC.
17
S2ACD Parts List/Illustration
PART #64 - LINEAR BEARING, 4PCS.
ø47xø30x68mm
PART #65 - RUBBER SLEEVE, 2PCS.
PART #66 - CABLE CONNECTOR, 1PC.
PART #67 - RUBBER DONUT, 2PCS.
PART #68 - SELECTOR ROD, 1PC.
PART #69 - WEIGHT STACK PIN, 1PC.
PART #70 - SPRING PIN, 1PC.
PART #71 - TOP PLATE, 1PC.
background
18
S2ACD Parts List/Illustration
PART #72 - QUICK CABLE LOCK, 1PC.
PART #73 - SELECTOR ROD TOP BOLT, 1PC.
PART #74 - CABLE, 1PC.
PART #75 - SHAFT COLLAR, 2PCS.
PART #77 - STEEL PLATE, 2PCS.
170x50x6mm
PART #78 - STEEL PLATE, 2PCS.
280x50x6mm
PART #79 - STEEL PLATE, 2PCS.
165x75x6mm
3$5738//(<63&6
3$57&$%/(3&6
3$57&$33&6
3$57+$1'/((1'&$33&6
3$57+$1'/(5,1*3&6
6$&3DUWV/LVW,OOXVWUDWLRQ
PP

3$57%86+,1*3&6
18
S2ACD Parts List/Illustration
PART #72 - QUICK CABLE LOCK, 1PC.
PART #73 - SELECTOR ROD TOP BOLT, 1PC.
PART #74 - CABLE, 1PC.
PART #75 - SHAFT COLLAR, 2PCS.
PART #76 - 90MM PULLEY
PART #77 - STEEL PLATE, 2PCS.
170x50x6mm
PART #78 - STEEL PLATE, 2PCS.
280x50x6mm
PART #79 - STEEL PLATE, 2PCS.
165x75x6mm
3$5738//(<63&6
3$57&$%/(3&6
3$57&$33&6
3$57+$1'/((1'&$33&6
3$57+$1'/(5,1*3&6
6$&3DUWV/LVW,OOXVWUDWLRQ
PP

3$57%86+,1*3&6
background
19
S2ACD Parts List/Illustration
PART #80 - ROCK CLIMBING HOLD, 2PCS.
PART #81 - ø38mm END CAP, 4PC.
PART #82 - BUSHING, 8PCS.
ø32xø25.4x18mm
PART #83 - HANDLE END CAP, 6PCS.
ø39.5xø32.5x19mm
PART #84 - HANDLE RING, 2PCS.
ø44.5xø38.5x9.5mm
PART #85 - HANDLE SLEEVE, 2PCS.
PART #86 - HANDLE END CAP, 2PCS.
ø44.5xø38.5x19mm
PART #87 - RUBBER DONUT, 2PCS.
ø60xø30x4.5mm
19
S2ACD Parts List/Illustration
PART #80 - ROCK CLIMBING HOLD, 2PCS.
PART #81 - ø38mm END CAP, 4PC.
PART #82 - BUSHING, 8PCS.
ø32xø25.4x18mm
PART #83 - HANDLE END CAP, 6PCS.
ø39.5xø32.5x19mm
PART #84 - HANDLE RING, 2PCS.
ø44.5xø38.5x9.5mm
PART #85 - HANDLE SLEEVE, 2PCS.
PART #86 - HANDLE END CAP, 2PCS.
ø44.5xø38.5x19mm
PART #87 - RUBBER DONUT, 2PCS.
ø60xø30x4.5mm
background
20
S2ACD Parts List/Illustration
PART #88 - POP PIN, 1PC.
PART #89 - SLEEVE, 1PC.
PART #90 - GUIDE ROD RETAINER
HALF, 2PCS.
PART #91 - Knee Pad, 1PC.
PART #92 - RETAINER RING, 4PCS.
PART #93 - ADJUSTMENT PLATE, 1 PCS.
20
S2ACD Parts List/Illustration
PART #88 - POP PIN, 1PC.
PART #89 - SLEEVE, 1PC.
PART #90 - GUIDE ROD RETAINER HALF, 2PCS.
PART #91 - Knee Pad, 1PC.
PART #92 - RETAINER RING, 4PCS.
PART #93 - ADJUSTMENT PLATE, 1 PCS.
PART #94 - PLASTIC SLEEVE, 4 PCS.
background
45
21
Notes
background
22
STEP
1
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed.
Some components may be pre-assembled. Nylon lock nuts will not fully screw onto
bolts, they must be wrench tighten to fully go on.
1A. AttachBaseFrames(A & B)toWeightStackFrame(WA)using:
8 - (#2) M12X35mm Hex Head Bolt
16 - (#50) M12 Flat Washer
8 - (#40) M12 Nylon Lock Nut
1B. AttachRightUpright(C)toRightBaseFrame(A)using:
2 - (#3) M10x105mm Hex Head Bolt
4 - (#51) M10 Flat Washer
2 - (#41) M10 Nylon Lock Nut
1C. AttachLeftUpright(D)toLeftBaseFrame(B)using:
2 - (#3) M10x105mm Hex Head Bolt
4 - (#51) M10 Flat Washer
2 - (#41) M10 Nylon Lock Nut
background
STEP
1
AboveshowsStep1assembledandcompleted.
23
40
50 40
41
50
40
40
2
51
50
50
2
3
51
51
41
51
3
51
51
2
2
50
2
50 2
50
50
40
50
40
40
50
WA
B
A
D
C
50
50
background
24
STEP
2
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed.
Some components may be pre-assembled. Nylon lock nuts will not fully screw onto
bolts, they must be wrench tighten to fully go on.
2A. AttachRightTopFrame(E)toWeightStackFrame(WA)using:
2 - (#3) M10x105mm Hex Head Bolt
4 - (#51) M10 Flat Washer
2 - (#41) M10 Nylon Lock Nut
1 - (#77) 170x50x6mm Steel Plate
2B. AttachRightTopFrame(E)toRightUpright(C)using:
2 - (#3) M10x105mm Hex Head Bolt
4 - (#51) M10 Flat Washer
2 - (#41) M10 Nylon Lock Nut
1 - (#78) 280x50x6mm Steel Plate
2C. AttachLeftTopFrame(F)toWeightStackFrame(WA)using:
2 - (#2) M10x105mm Hex Head Bolt
4 - (#51) M10 Flat Washer
2 - (#41) M10 Nylon Lock Nut
1 - (#77) 170x50x6mm Steel Plate
2D. AttachLeftTopFrame(F)toLeftUpright(D)using:
2 - (#3) M10x105mm Hex Head Bolt
4 - (#51) M10 Flat Washer
2 - (#41) M10 Nylon Lock Nut
1 - (#78) 280x50x6mm Steel Plate
background
25
STEP
2
AboveshowsStep2assembledandcompleted.
51
41
51
41
3
51
41
51
41
77
51
41
41
51
41
51
51
3
3
51
51
3
78
3
3
51
3
51
51
WA
E
F
C
D
77
51
78
background
26
STEP
3
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed.
Some components may be pre-assembled. Nylon lock nuts will not fully screw onto
bolts, they must be wrench tighten to fully go on.
3A. AttachCrossFrame(G)toWeightStackFrame(WA)using:
2 - (#9) M10x30mm Hex Head Bolt
4 - (#51) M10 Flat Washer
2 - (#41) M10 Nylon Lock Nut
3B. AttachCrossFrame(G)toRight&LeftTopFrame(E & F)using:
4 - (#5) M10x80mm Hex Head Bolt
8 - (#51) M10 Flat Washer
4 - (#41) M10 Nylon Lock Nut
2 - (#79) Steel Plate
3C. InstallChromeGuideRods(N)intotheholesoftheBaseFrames
(A & B).
3D. InstallRubberDonuts(#87)andslidetothebottomoftheGuideRods
(N).
3E. TiltGuideRods(N) forwardandinstallCarriage(P) ontotheGuide
Rods(N).
3F. AttachGuideRods(N)toRight&LeftTopFrame(E & F)using:
4 - (#14) M8x25mm Socket Head Cap Screw
2 - (#90) Guide Rod Retainer Half
background
27
STEP
3
AboveshowsStep3assembledandcompleted.
51
9
51
51
41
41
51
51
14
90
41
51
87
87
90
14
51
5
51
51
E
F
G
P
N
N
A
B
79
79
5
41
background
28
STEP
4
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware rst in this step. Wrench tighten ALL hardware at the end of
and after STEP 4B. Some components may be pre-assembled. Nylon lock nuts will not
fully screw onto bolts, they must be wrench tighten to fully go on.
4A. AttachedCenterPullUpHandle(M)andLeftPullHandle(K)to
 LeftTopFrame(F)using:
2 - (#5) M10x80mm Hex Head Bolt
1 - (#4) M10x100mm Hex Head Bolt
6 - (#51) M10 Flat Washer
3 - (#41) M10 Nylon Lock Nut
Note #1: Make sure the direction of the Center Pull Up Handle (M) is installed
correctly. See Step 2 Drawing.
4B. AttachedCenterPullUpHandle(M)andRightPullHandle(H)to
 RightTopFrame(E)using:
2 - (#5) M10x80mm Hex Head Bolt
1 - (#4) M10x100mm Hex Head Bolt
6 - (#51) M10 Flat Washer
3 - (#41) M10 Nylon Lock Nut
4C. AttachDipHandles(R)toUprights(C & D)using:
2 - (#10) M10x25mm Flat Head Cap Screw
2 - (#81) ø38mm End Cap
2 - (#12) M10x25mm Socket Head Cap Screw
4D. AttachKneePad(#91)toLiftFrame(Q)using:
2 - (#6) M10x50mm Hex Head Bolt
2 - (#51) M10 Flat Washer
4E. AttachLiftFrame(Q)toCarriage(P)using:
1 - (#1) M12x100mm Hex Head Bolt
2 - (#50) M12 Flat Washer
1 - (#40) M12 Nylon Lock Nut
background
29
STEP
4
AboveshowsStep4assembledandcompleted.
1
50
40
50
12
12
81
10
81
R
10
R
D
C
Q
P
51
6
6
91
51
5
51
41
K
H
F
E
4
51
41
51
51
41
41
51
51
51
41
4
M
Note #1
background
30
STEP
5
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Wrench tighten ALL hardware at the end of Each Step. Some components may be pre-as-
sembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to
fully go on.
4A. InstallChromeGuideRods(WG)intotheholesintheWeightStack
Frame(WA).
Note: Install the rod ends with side holes into the bottom section
of the Weight Stack Frame
4B. InstallRubberDonuts(#67)andslidetothebottomoftheGuideRods
4C. TiltGuideRods(WG) awayfromtheWeightStackFrame(WA) and
install15pcsofweightplates(#93).Becarefultoholdguiderods
steadilywheninstallingweightplates.
Note: Please make sure the grooves of the weight plates are faced
down during installation.
4D. InstallTopPlate&SelectorRodAssembly(#19, 57, 68, 71)onto
theGuideRods(WG) .
4E. InstalltheSelectorRodTopBolt(#73),the1/2”LockNut(44)andthe
 1/2”SpringWasher(#56) ontotheTopPlateAssembly(#71).
4F. InstallShaftCollars(#75)ontotheGuideRodssotheyaredirectly
belowtheguiderodholesintheuppersectionoftheWeightStack
Frame.
4G. SlideShaftCollars(#75)upwardsotheylocktheguiderodsinto
positionbytighteningthefourM8x8mmSetScrews(#15)
4H. InstallWeightStackPin(#69)usingthekeyringendthroughthe
SelectorRodTopBolt(#73).
4H. InstallSpringPin(#70)intotheholeofthesecondWeightPlate(#93).
Note: 1. Carriage (P) needs 45lbs for counterbalance.
2. You may need to insert the Spring Pin with a Mallet.
background
31

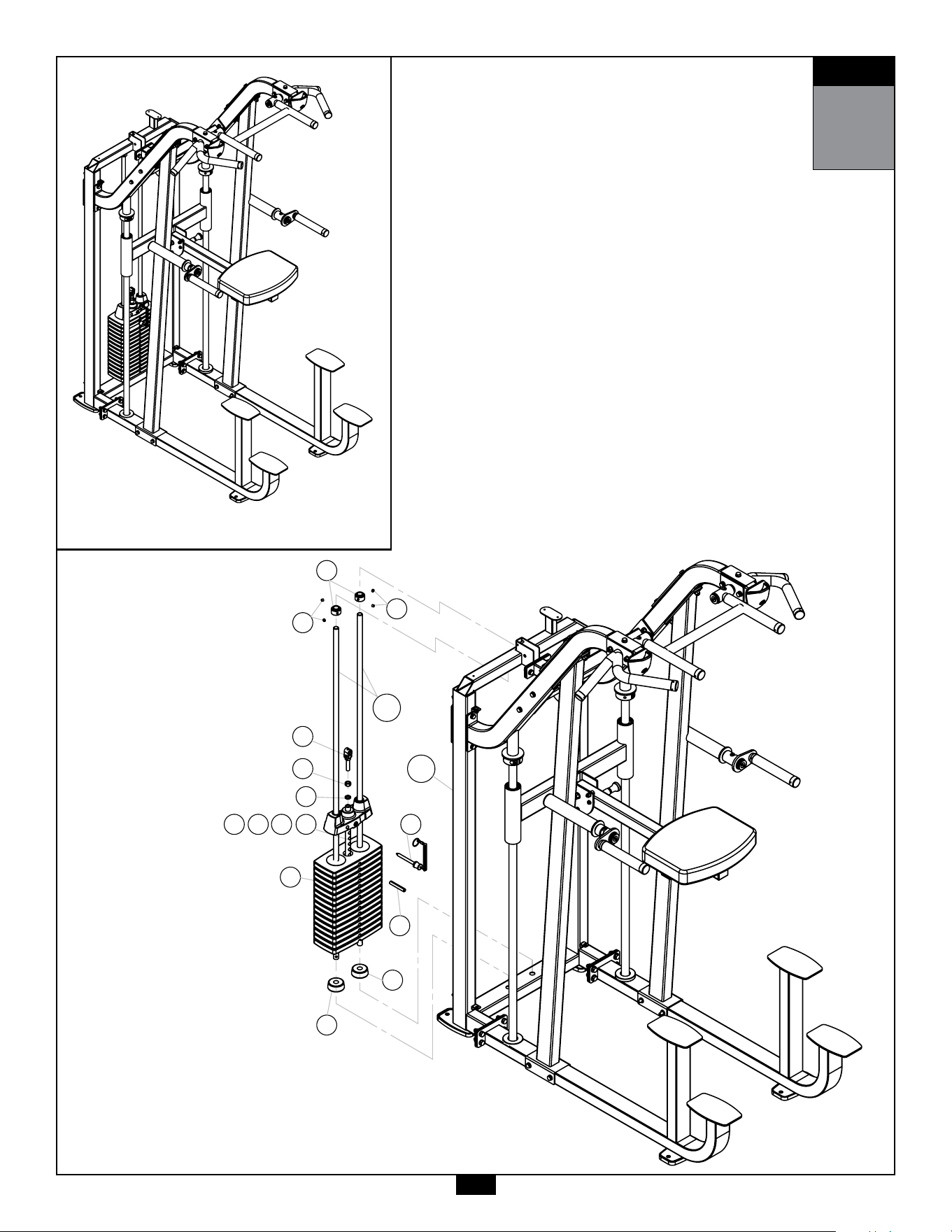

STEP
5
AboveshowsStep5assembledandcompleted.
73
15
75
15
44
56
68711957
67
67
93
70
69
WA
WG
background
32
STEP
6
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Wrench tighten ALL hardware at the end of Each Step. Some components may be pre-as-
sembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to
fully go on.
6A. InstallCable(#74)byrstassemblingtheballendintotheSelector
RodTopBolt(#73)andattachingtheQuickCableLock(#72)over
theballendofthecable.SecureitbytighteningtheSetScrew(#18)
6B. InstalltheM10X35mmHexHeadBolt(#8)throughtheslotholeofthe
SelectorRodTopBolt(#73)byfasteningtheM10NylonLock
Nut(#41).
6C. RouteCable(#74)whileinstallingtwoPulleys(#76)intoFrames(WA
& G)asshowninStep6Drawingusing
2 - (#4) M10X50mm Hex Head Bolt
4 - (#51) M10 Flat Washer
2 - (#41) M10 Nylon Lock Nut
6D. AttachtheendoftheCable(#74)toCableConnector(#66)
6E. AttachCableConnector(#66)toCarriage(P)using:
1 - (#7) M10X45mm Hex Head Bolt
2 - (#51) M10 Flat Washer
1 - (#41) M10 Nylon Lock Nut
1 - (#89) Sleeve (Shrink Wrapped with #66)
background
33
STEP
6
AboveshowsStep6assembledandcompleted.
41
51
6
51
6
76
WA
51
41
74
76
G
P
74
8
72
18
41
73
41
89
51
51
66
74
P
7
background
34
STEP
7
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Wrench tighten ALL hardware at the end of Each Step. Some components may be pre-as-
sembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to
fully go on.
7A. AttachShortMetalShrouds(WB)andLongMetalShrouds(WC) to
WeightStackFrame(WA)using:
4 - (#13) M8X25mm Button Head Cap Screw
8 - (#52) M8 Flat Washer
4 - (#42) M8 Nylon Lock Nut
7B. BendthePlasticShrouds(WD & WF)andinsertthemtotheside
slotsoftheMetalShrouds(WB & WC).
7C. AttachTopShroud(WE)toWeightStackFrame(WA)using:
3 - (#16) M6X16mm Phillips Head Screw
3 - (#53) M6 Flat Washer
background
35
STEP
7
AboveshowsStep7assembledandcompleted.
53
16
53
16
53
52
42
42
13
52
52
52
42
52
42
52
13
13
WF
WC
WE
WB
WA
WD
background
45
36
Notes
PCL Badge Location
background
37
S2ACD Exploded View
background
1900S.DesPlainesAve.
ForestPark,Il60130
Phone:(708)427-3555
Fax:(708)427-3556
Hours:M-F8:30-5:00CST
www.bodysolid.com
Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specications when we feel it will improve the product.
Body-Solid machines maintain several patented and patent pending features and designs. All rights reserved on all design patents and utility patents.
PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW
S/N# 010086-��-��-����-����

Specifications

Body-Solid S2ACDX Questions and Answers

Find answers or ask new question.
Questions and Answers

Related Products

No image
Body-Solid SBL460P4 Free Weight Leverage Gym
2025-06-29 2 docs
Product Body Solid BFVK10B image
Body-Solid BFVK10B Vertical Knee Raise
2026-05-22 3 docs
Product Body Solid PVKC83X image
Body-Solid PVKC83X Vertical Knee Raise
2026-05-22 3 docs
Product Body Solid BFVK10B image
Body-Solid BFVK10B Vertical Knee Raise
2026-05-22 3 docs
Product Body Solid PVKC83X image
Body-Solid PVKC83X Vertical Knee Raise
2026-05-22 3 docs
