◼ 3D Holographic Fan User Manual (C38)
Please read this manual carefully before using the device.
➢ Please make sure to secure it in a safe place to prevent it from falling off.
➢ Do not touch the fan blades during rotation.
➢ Do not disassemble the equipment without authorization to avoid causing equipment abnormalities.
➢ Avoid exposure to high temperatures or humid environments, and avoid outdoor use on rainy days.
➢ Pay attention to maintenance and regularly clean the equipment
◼ Parameters and Lists
Model
C38
\
\
\
Resolution
720*720
\
\
\
Area(cm)
38*38
\
\
\
LED (pieces)
720
\
\
\
Storage
4G
\
\
\
Power
12V/36W
\
\
\
Controller
APP、PC、Cloud
Multi-screen
wired
Audio
Music module (Wired) Bluetooth
Temperature
-15℃－50℃
Warranty
one year/>30000 hours
Featured
Features
Wired control
Upgrade
Multi tone
Multi speed
Wired control
Upgrade
Multi tone
Multi speed
Collision
Wired control
Upgrade
Multi tone
Multi speed
Collision
Wired control
Upgrade
Multi tone
Multi speed
Collision
R-time screen
Wired control
Upgrade
Multi tone
Collision
R-time screen
Part Lists
Fan*1，blade *4，Adaptor *1，Remote Controller *1，Wall-mounting Part *1，Setscrew *1，screwdriver
*1， Certification Card *1，User Manual *1, Warranty Card*1(Last page of the User Manual)
2
◼ Installation

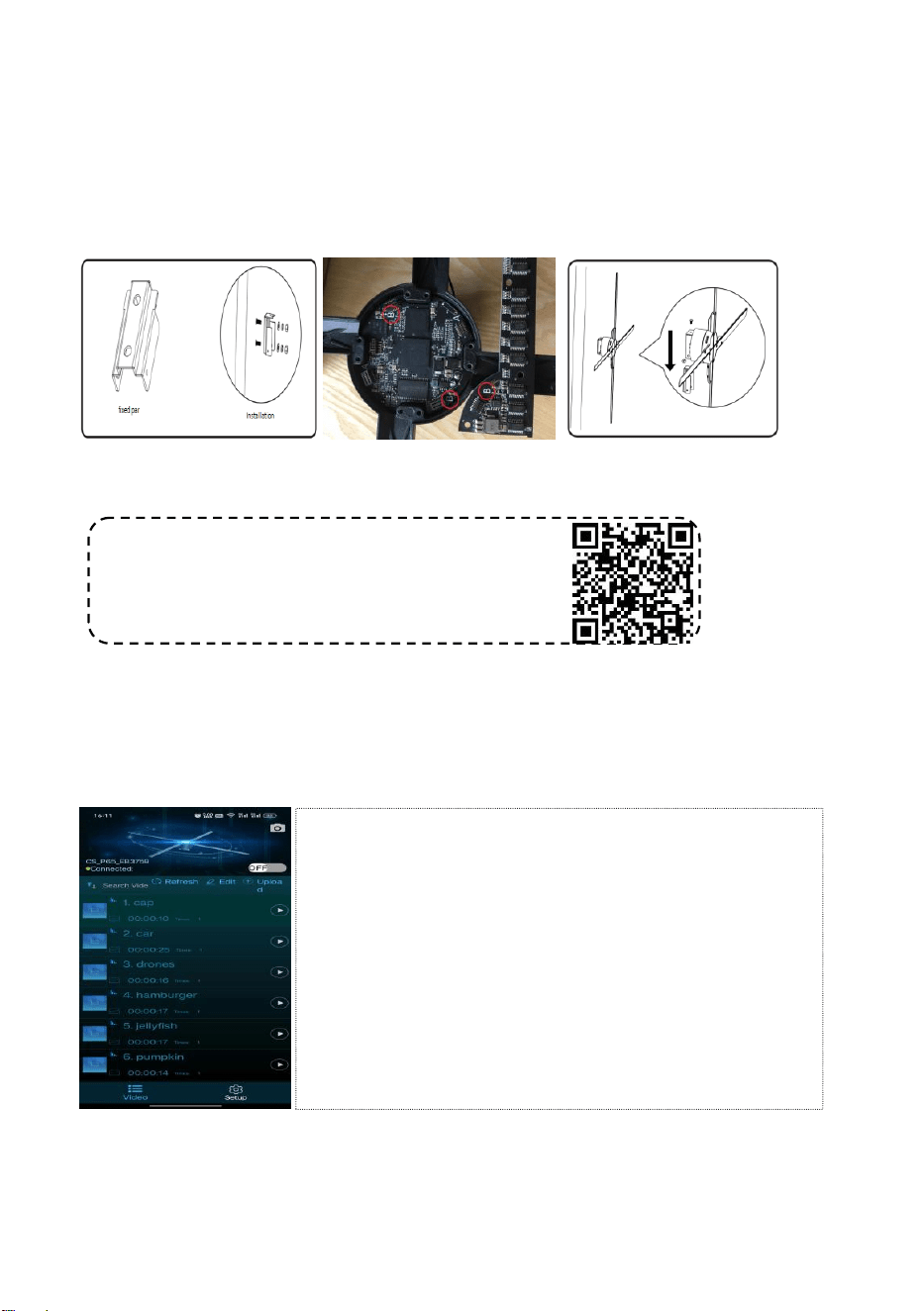

1. Tighten the Wall-mounting part onto the back of device with two small screws.
2. Take out the fan body and blades. Put blade A in position A and Screw, Put blade B in position B and Screw.
3. Hang the device to the fixed par. Tighten all screws to complete the installation.
◼ Control with mobile
Turn on the wireless function of the phone and connect to the device's WIFI. Open the app, select the standalone,
and the device will automatically connect. (The same device can only have one terminal connected at a time. The
WIFI of the device is like CS_ XXX_ XXXXXX, password CS123456. If the app cannot be connected, check if the app is
the latest version. At the same time, the required permissions need to be enabled such as location and storage.)
Download URL: http://down.holocloud.online
IPhone（App Store) search for :3D Magic
It can be downloaded APP by scanning the QR code
On/Off: Click to switch the device on or off.
Upload: Click to upload images or videos.
Edit: (1) Delete (2) Rename (3) Sort - Hold down a video and drag it to a
new position (4) Hide - Hidden videos will not be played (5) Modify the
times.
Switch: When the device is turned on, click on the video to play it.
Play/Pause: Click on the right of video to switch between play and pause.
Settings: Enter the settings interface.
3
◼ Control with computer (Only supports Windows)

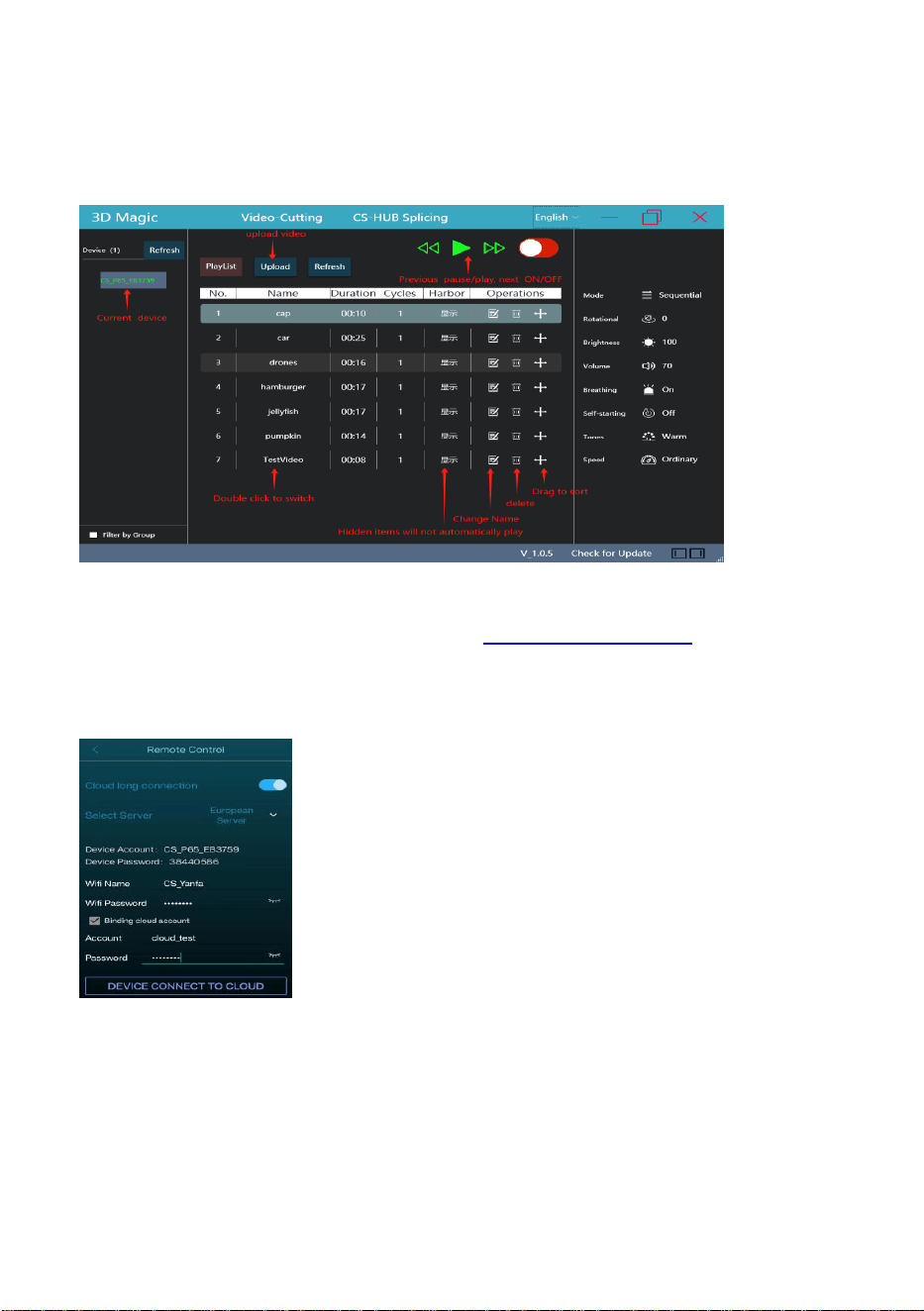

Open web page ”http://doc.holocloud.online/“ Download the software and install it. Open the software after
connecting the device WIFI to the computer.
◼ Control with cloud
(1) Before using services, register a cloud account. (address: https://www.holocloud.online/ ）
(2) The device needs to be configured through a mobile app to connect to cloud. After connecting the mobile to
the device, go to: Settings ->Remote Control
(3)Logging in cloud and waiting for device online, you can control it and upload videos through the cloud platform.
By any of the following methods, the device can exit cloud mode and its WIFI can be restored to visibility.
A）Press the "Exit Cloud/Routing" button on the remote control. B) Click the “Net” button on the back of the
device. C) Alternatively, you can click "disconnect" on the cloud page.
➢ Long Connection: It will not automatically exit cloud mode due to
network unavailability or other reasons
➢ Servers: You can choose between Chinese or European servers
➢ WIFI name: The WIFI name used to connect to the cloud
➢ WIFI password: The password of WIFI used to connect to the cloud
➢ Bind cloud account: The devices will connect to the cloud and
automatically bind to the cloud account
After completing the above information, click "Device Connect to Cloud".
4
◼ Audio output
(1) Play sound by connecting to Bluetooth
After connecting the fan, open the APP: “Setup”->“Toggle Bluetooth”. Fan will automatically scan the surrounding
Bluetooth. Select and click" Confirm” to connect. After successful connection, sound can be output through
Bluetooth.
(2) Play the sound through the music module.
A. Connect the computer and module, put music into the removable disk 01 folder directory of the module. The
name of 001_conquest.mp3, indicating that the first video corresponds to the audio 001_conquest

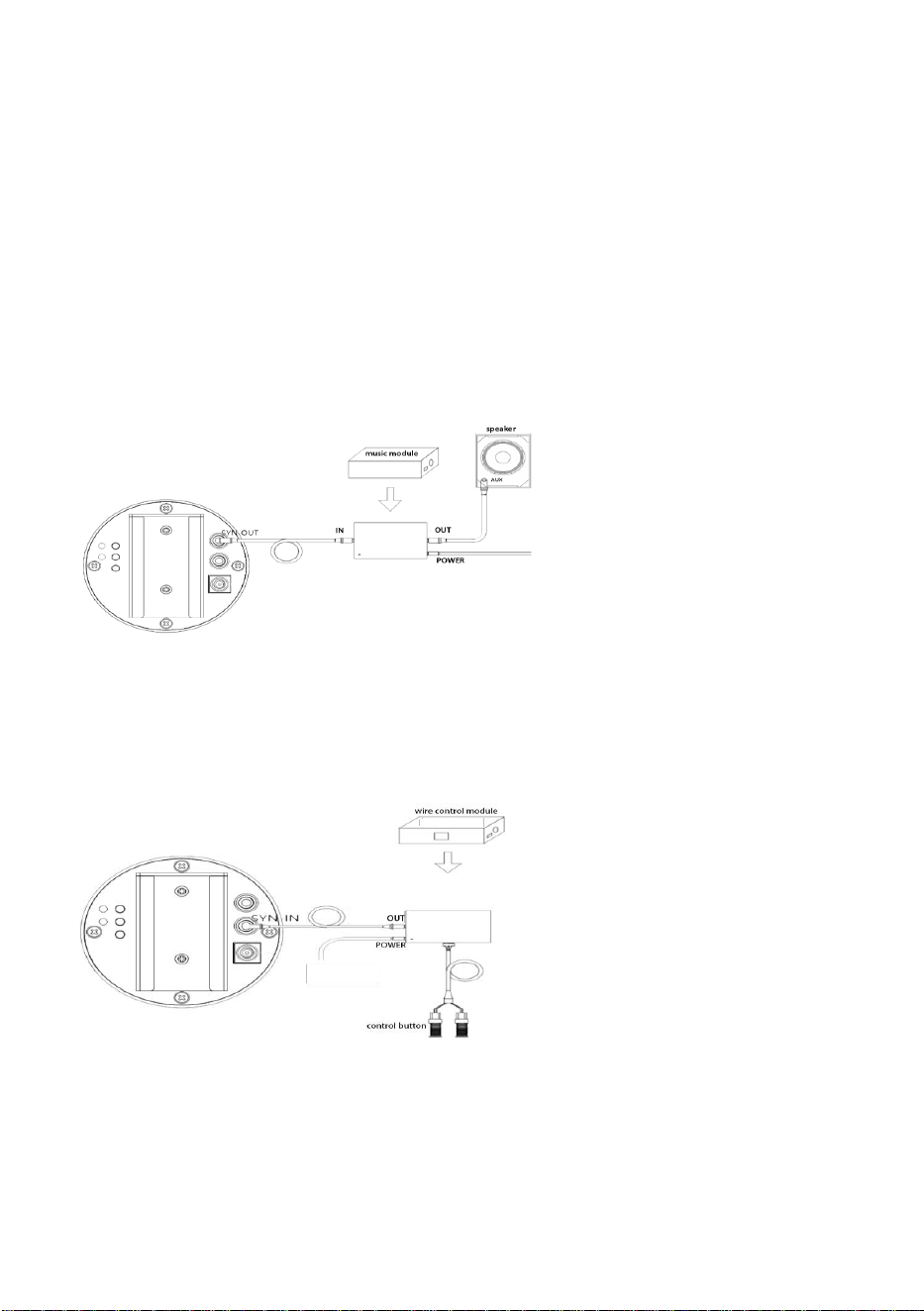

B. Connect music module, Fan and speaker as below, can play sound through music module.
◼ Controlled with wired module
Connect the wired control module and equipment as shown in the figure below (the wire control output is
connected to the SYN-IN of device), the device can be controlled to turn on/off or video switching through the
wire control module. (Specific functions are determined according to the remote control program)
5
◼ Multi-screen
Taking 2X2 (consisting of 4 devices in 2 rows and 2 columns) screen connection as an example. Fix the wall fittings
according to the spacing, and add shims to the first one (1-1) to raise it, without raising it in adjacent positions,
and so on.
(1) The SYN OUT of devices 1-1 is connected to the SYN IN of devices 1-2, the SYN OUT of devices 1-2 is
connected to the SYN IN of devices 2-2, the SYN OUT of devices 2-2 is connected to the SYN IN of devices 2-1, and
finally the SYN OUT of devices 2-1 is connected to the SYN IN of devices 1-1.
(2) Power on all fans, Long press the "MODE" button on the back of the host for 3 seconds, the fan indicator 1
will turn yellow-green, and then double-click the "MATCH" button. If the indicator 1 turns red, the networking
mode is set successfully; if the indicator 1 turns purple and flashes, means Failed to set the networking mode. At
this time, long press the "MATCH" button to return to the slave mode, check whether all the connections are
correctly connected, and then double-click the "MATCH" networking operation until the indicator light 1 turns red.
◼ Upload videos and control for Multi-screen
Press the remote control “Route mode” or double-click on the host "MODE", and all devices will enter routing
mode. You can control and upload videos after the computer or phone is connected to CS_ Box. When in routing
mode, the device WIFI is not visible. You can press remote control “Exit Cloud/Routing” or double-click "MATCH"
on the back of the host to exit routing mode.(Uploading videos requires physical location of the device. Extensions
Multi-screen requires software splicing and configuration before uploading.)
Select an appropriate spacing:
(1)P50S is 35.7cm (2) G65 is 46.4cm
(3)P80/G80 is 55.0cm ④P100 is 71.4cm
Select the appropriate gasket：
(1)G65/P50S is 2cm (2) P80/G80 is 3cm
(3) P100 is 4cm
Raise
d
Lower
6
◼ Indicator status
Device status
Indicator color
Standby
LED1 Red (host); LED1 Yellow-green (slave)
Running
LED1 Blue (host); LED1 Light blue (slave)
Connect to the cloud
LED2 Green
WIFI is off
LED2 Light blue
Matching remote control
LED1 Green flashing (host)
Networking failure
LED1 Purple flashing
Malfunctioning
LED1 White or LED2 green flashing
Restoring factory settings
LED1 All colors are flashing
◼ Troubleshooting
1. After connecting the power, the blade does not light up
Solution: Check the power supply and if the circuit is normal; Is the device's breathing light turned off.
2. Rotating display colored circles
Solution: Check if the installation of the fan blades compact . Stop running and check if the LED is damaged.
3. Unable to start rotation
Solution: Check if the device is powered on or the device is in a slave or emergency stop state.
4. Unable to search for device WIFI
Solution: Routing mode and cloud state WIFI are not visible. If WIFI is turned off, press and hold the remote
control WIFI-on or long press the Net button on the back of the device for 5 seconds to turn on WIFI.
7
◼ Warranty
Within one year from the date of sale, if any malfunction occurs and it is proven to have occurred under normal
use, we will provide repair services. Our company is not responsible for any special, incidental or indirect damages.
Machines that exceed the warranty period are provided with paid repair services. Free maintenance requires
purchase records and warranty cards. Please send it back through a reputable courier company.
Warranty Card
User
User Name
Contact
Purchase date
Mainte
nance
Repair date
Problem
engineer
