1.1 Product Reference
User Manual for: 12 Piece Oil Pressure Test Kit
Stock No: 35879
Part No: CTEOP
1.2 Revisions
Version 1: April 2024
First release
Version 2: February 2026
Second release
As our manuals are continually updated, always ensure
that the latest version is used.
Please visit drapertools.com/manuals for the latest
version of this manual and the associated parts list, if
applicable.
1.3 Understanding the Safety Content
of This Manual
WARNING!
– Situations or actions that may
result in personal injury or death.
CAUTION! – Situations or actions that may
result in damage to the product or surroundings.
Important: – Information or instructions of particular
importance.
1.4 Copyright © Notice
Copyright © Draper Tools Limited.
Permission is granted to reproduce this manual for
personal and educational use ONLY. Commercial
copying, redistribution, hiring or lending is strictly
prohibited.
No part of this manual may be stored in a retrieval system
or transmitted in any other form or means without written
permission from Draper Tools Limited.
In all cases, this copyright notice must remain intact.
1. Preface
– 3 –
EN
2. Contents
3. Product Introduction
3.2 Specication
Stock No. 35879
Part No. CTEOP
Gauge Diameter approx. 65mm
Gauge Pressure Range 0- 150PSI (0 – 10BAR)
Flexible Hose Length 1300mm
Flexible Hose Diameter 12mm
3.1 Intended Use
This oil pressure testing kit is designed to accurately tests
oil pump pressure, whilst also testing switch and warning
indicators. Fitted with a spring-loaded pressure relief
valve and integrated Schrader one-way valve system.
Supplied in a plastic storage case.
Any other application beyond the conditions established
for use will be considered misuse. Draper Tools accepts no
responsibility for improper use of this product.
Read this manual in full before assembling, operating or
maintaining this product, and retain it for later use.
1. Preface 2
1.1 Product Reference 2
1.2 Revisions 2
1.3 Understanding the Safety Content 2
1.4 Copyright © Notice 2
2. Contents 3
3. Product Introduction 3
3.1 Intended Use 3
3.2 Specication 3
3.3 Explanation of Symbols 4
4. Health and Safety Information 4
4.1 Residual Risk 4
5. Identication and Unpacking 5
5.1 Product Overview 5
5.2 Packaging 6
6. Operations 6
7. Maintenance 6
8. Spares, Returns and Disposal 7
9. Warranty 7
– 4 –
Important: Read all the Health and Safety instructions
before operating, maintaining or repairing this product.
Failure to follow these instructions may result in injury or
damage to the user, test kit or vehicle.
• Keep this product in good working order and
condition. DO NOT operate if any parts are
damaged or missing as this may cause failure
and/or personal injury.
• DO NOT modify any parts and only use accessories
and spare parts supplied by Draper Tools.
• ALWAYS ensure the engine is switched o and cold
before connecting the tester.
• DO NOT move or drive the car while the tester
is connected.
• Keep children and unauthorised persons away from
the work area.
• Keep the work area clean and tidy and ensure that
there is adequate lighting.
• DO NOT use the kit to perform a task for which it is
not designed.
• DO NOT allow untrained persons to use the kit.
• DO NOT use whilst under the inuence of drugs,
alcohol or intoxicating medication.
• After use, clean equipment and store in a cool,
dry, childproof area.
• ALWAYS wear eye protection and suitable hand
protection.
4.1 Residual Risk
The safety instructions in this manual cannot account
for all possible conditions and situations that may
occur. Exercise common sense and caution when
using this product and protect against any additional
conceivable risks.
3. Product Introduction
4. Health and Safety Information
3.3 Explanation of Symbols
Read the instruction manual
Warning!
Do not abandon in the environment
Pressure gauge range
Pressure gauge range
Flexible hose length
– 5 –
EN
Carefully remove the product from the packaging and
examine it for any signs of damage that may have
occurred during shipment.
Before assembling the product, lay the contents out and
check them against the parts shown below. If any part is
damaged or missing, do not attempt to use the product.
Please contact the Draper Helpline; contact details can
be found at the back of this manual.

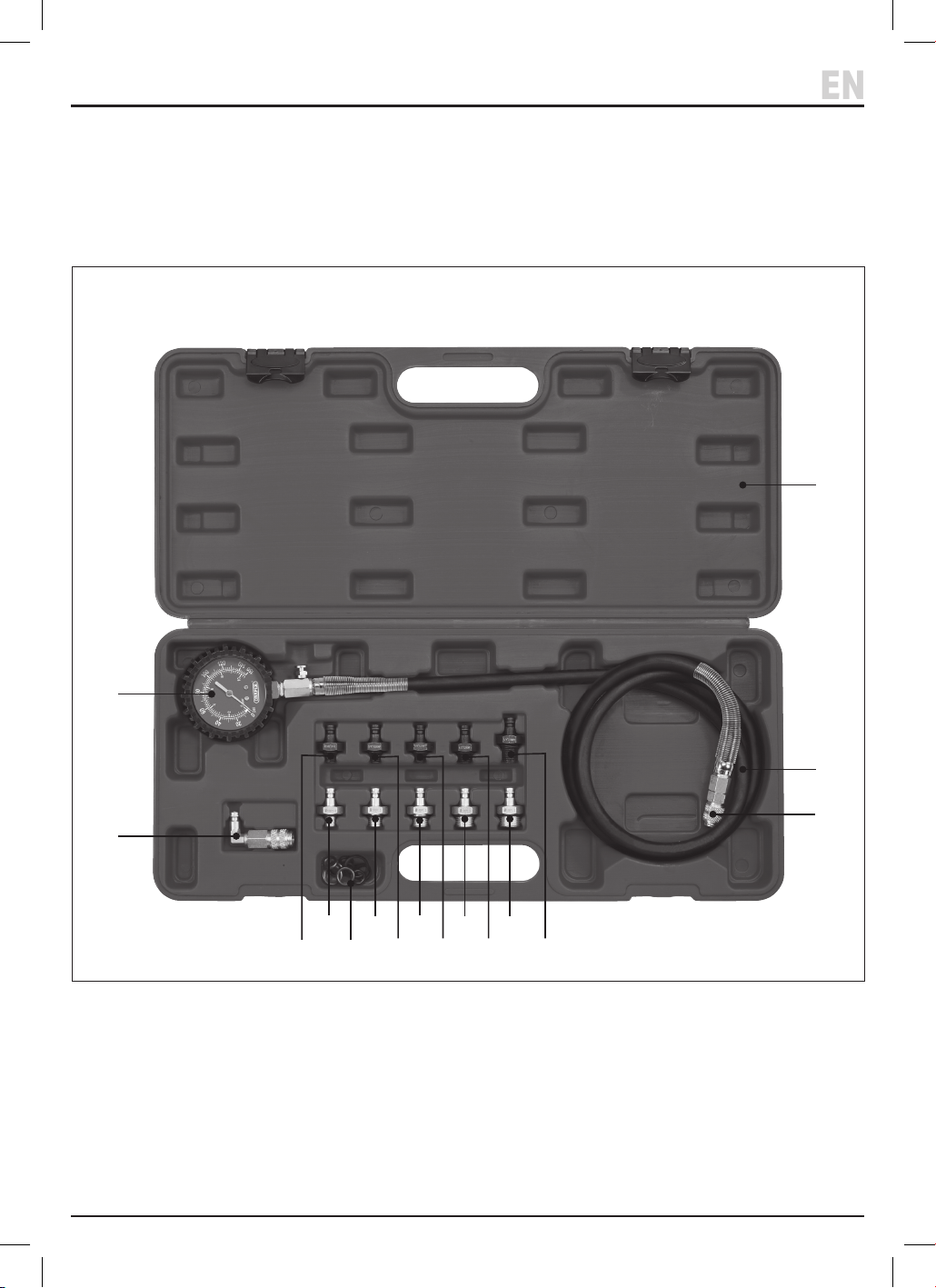

(1) Pressure Gauge
(2) Bleed valve
(3) Flexible hose
(4) Storage case
(5) 10 x spare ‘O’ rings
Threaded Adaptors
(6) Right angled hose
(7) 1/8 DIN2999
(8) 3/8 X 20UNF
(9) 1/8 X 27NPT
(10) 1/2 X 20UNF
(11) 1/4 X 18NTP
(12) M10 X 1.0
(13) M12 X 1.5
(14) M14 X 1.5
(15) M16 X 1.5
(16) M18 X 1.5
5.1 Product Overview
5. Identication and Unpacking
(1)
(6)
(5)
(14)
(13)
(12)
(15) (16)
(3)
(4)
(2)
(11)
(10)(9)(8)
(7)
5. Identication and Unpacking
– 6 –
EN
Please visit drapertools.com for our full range of accessories and consumables.
5.2 Packaging
Keep the product packaging for the duration of the
warranty period in case the product needs to be
returned for repair.
WARNING! Keep packaging materials out of
reach of children. Dispose of packaging
correctly and responsibly and in accordance
with local regulations.
6. Operations
7. Maintenance
Important: Before preparing or adjusting this product,
read and understand all the safety instructions listed in
this manual.
ALWAYS refer to the manufacturer’s service manuals
to ensure the correct testing procedures and
specications are followed.
1. Make sure the engine is switched o and cold before
carrying out the test.
2. Remove the oil pressure sender unit or component to
be tested and attach the appropriate adaptor.
3. Then attach the oil pressure tester and check that it is
securely connected.
4. Start the engine and allow to idle for a few minutes
until it reaches the correct operating temperature.
5. Observe the pressure gauge reading and check
against the specied value in the manufacturer’s
service manual. The needle should be steady if no
fault is evident.
6. Switch the engine o and allow to cool before
removing the tester. Replace the oil sender
connector securely.
• After use, clean and store in the storage case in a cool,
dry, childproof area.
– 7 –
EN
For spare parts, servicing, and repair and replacement
options, please contact the Draper Tools Product
Helpline for details of your nearest authorised agent.
Any servicing or repairs carried out by unauthorised
personnel or installation of spare parts not supplied by
Draper Tools will invalidate your warranty.
At the end of its working life, dispose of the product
responsibly and in line with local regulations. Recycle
where possible.
8. Spares, Returns and Disposal
9. Warranty
12 months -
visit drapertools.com/warranty for full details.
