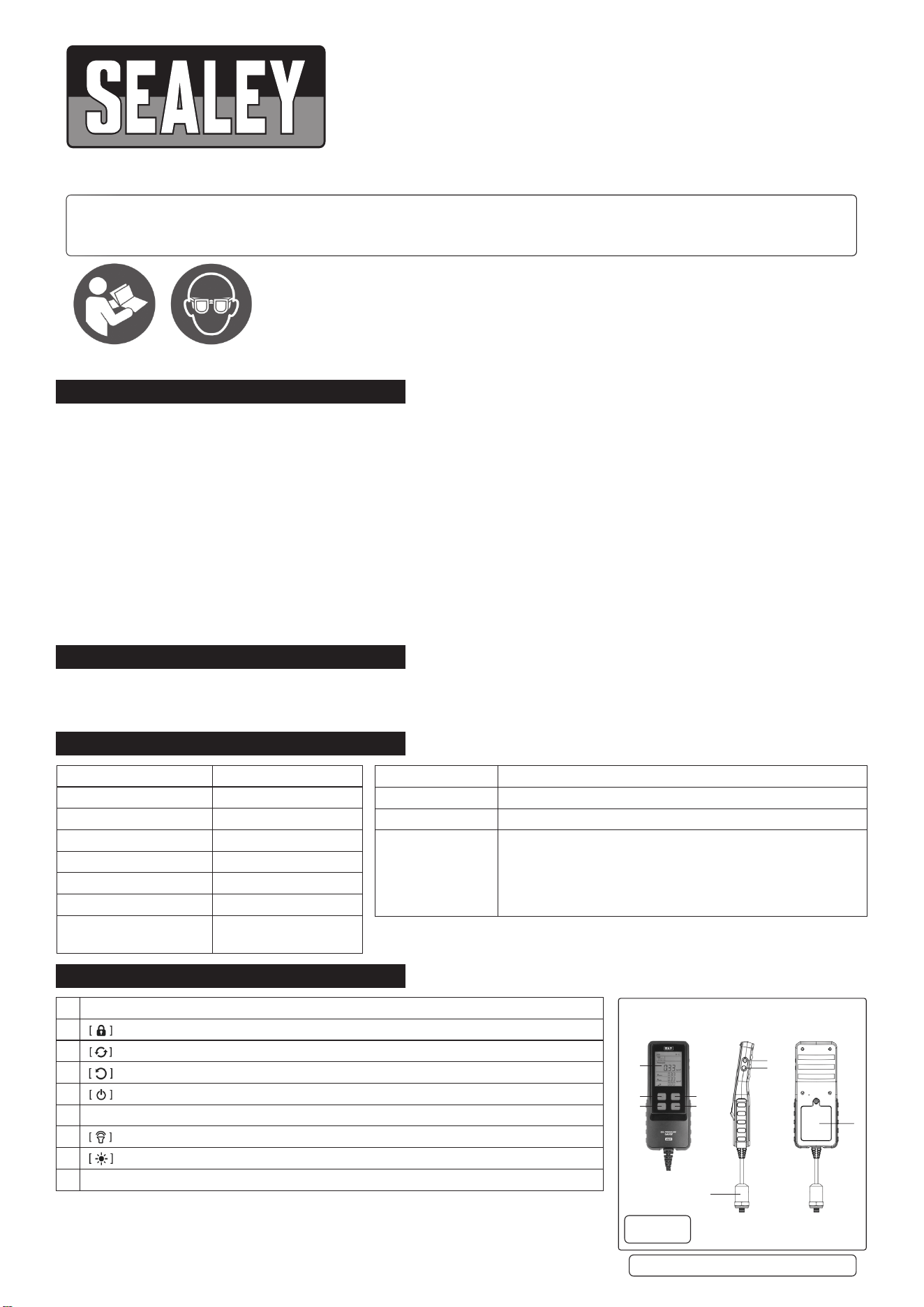

A Display
B press to lock/unlock the interface
C Pressure units convert
D Press to reset testing time; Long press to zero pressure
E Press to switch between Chinese/English mode; Long press to turn the device On/O
F Measuring Probe
G Press to turn On/O the key tone
H Press to turn On/O the backlight
I Battery Cover
1. SAFETY
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
8 DO NOT use tools if seals or threads are damaged. Any defective seal MUST be changed before use to avoid incorrect readings.
9 Maintain tools in good and clean condition for best and safest performance.
9 Ensure that a vehicle which has been jacked up is adequately supported with axle stands.
9 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9 Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9 Ensure that the correct connector is used for the engine being tested.
WARNING! Always release the pressure from the gauge before disconnecting the coupling.
9 Account for all tools, and parts being used and DO NOT leave them in or near the engine.
IMPORTANT: Always refer to the vehicle manufacturer’s service instructions, or a proprietary manual, to establish the current procedure
and data.
WARNING! The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and
situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but
must be applied by the operator.
2. INTRODUCTION
Real-time oil pressure readings. Easy-to-read digital display. 2.8-inch Backlit display. Pressure units – psi, bar, kg/cm². Auto-power-o.
The set includes 16 adaptors, a 90° quick-release connector, oil-resistant hose with a quick-release connector. Suitable for passenger
vehicles, light commercial and motorcycles. Supplied in storage case.
3. SPECIFICATION
4. FEATURES
DIGITAL OIL PRESSURE TEST KIT 18PC
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
VS217 Issue 2 11/03/25
Original Language Version
© Jack Sealey Limited
Refer to
instructions
MODEL NO: VS217
Wear eye
protection
Model No: VS217
Nett Weight: 1.5kg
Operating Temperature: -10 to 60°C
Operating Voltage: 6V
Pressure units: PSI, bar, kg/cm²
Accuracy: 0.5% FS
Range: 0 to 435psi (0 to 30 bar)
Resolution: 0.01bar, 0.01kg/cm²,
0.01psi.
Battery: AAA x4 (not supplied)
Overload Pressure: 580psi (40bar)
Hose Length: 2600mm
Contents:
Refer to attached
parts list.
M10x1.0, M10x1.25, M12x1.25, M12x1.5, M12x1.75,
M14x1.25, M14x1.5, M16x1.25, M16x1.5, M18x1.5, 3/8-24UNF,
1/2-20UNF, NPT-1/4-18, NPT-1/8-27, NPT-3/8-18, ZG1/8-28,
90° Quick-release connector, Oil-resistant hose with a quick-
release connector.
A
B
D
g.A
C
E
G
E
F
I

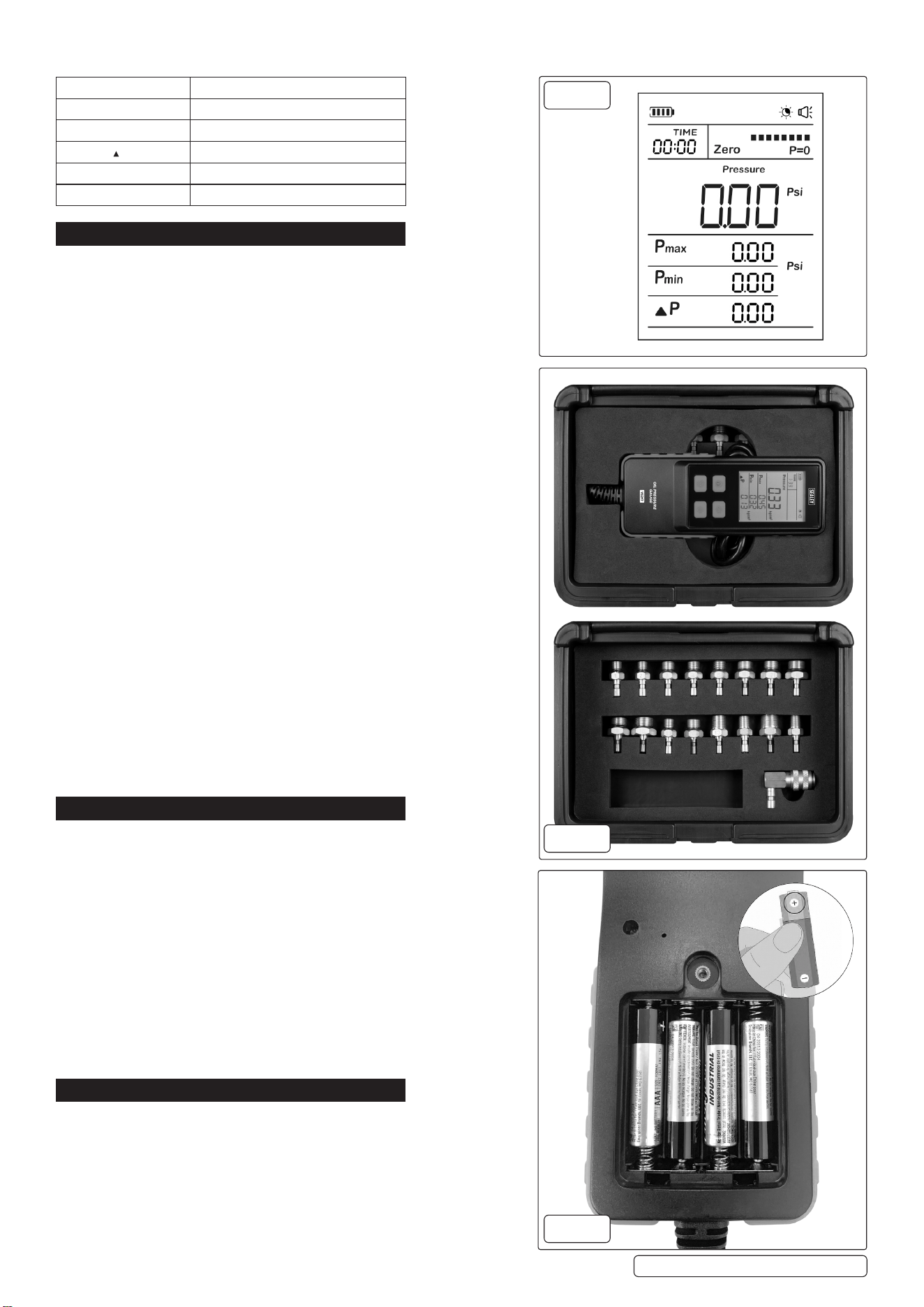

4.1. INTERFACE DISPLAY
5. OPERATION
5.1. BATTERY INSTALLATION (FIG.D)
5.1.1. Remove rear battery cover by unscrewing screw.
5.1.2. Insert the batteries (4x1.5V AAA batteries), paying attention to the
correct polarity.
5.1.3. Close the battery cover securely and replace screw.
5.2. OPERATIONS
5.2.1. Press the (E) button for more than 2 seconds to start the instrument. See
g.A.
5.2.2. Press the (D) button for pressure zero setting (real-time pressure display
as “0”). See g.A.
5.2.3. Select the connector suitable for the vehicle model and connect it with
the hardware cable. See g.C.
5.2.4. Connect to the engine.
5.2.5. Press the (D) button to clear the data and timing. See g.A.
5.2.6. Press the (C) button to select pressure units. See g.A.
5.3. START MEASURING
5.3.1. The required pressure readings will be displayed on the oil pressure
gauge.
5.3.2. Detailed instructions are as follows if you need to lock and clear data on
the interface:
5.4. DATA LOCK AND INTERFACE LOCK
5.4.1. Press the button (B), it will display data, interface, sound, backlight, and
lock at the same time, and the interface will appear “lock” icon. See g.A.
5.5. UNLOCK
5.5.1. Based on the last step, press the (B) button again, the device will display
data, interface, sound and backlight and it is unlocked. See g.A.
5.6. CLEAR THE DATA
5.6.1. Click press (D), the data will be clear completely. See g.A.
5.6.2. After the measurement is completed, long press (E) for 2 seconds to
shut down (it is required to be conducted under atmospheric pressure).
See g.A.
5.6.3. The device will automatically power o after 5 minutes of inactivity and
no pressure being applied.
6. MAINTENANCE
6.1. GENERAL
To maintain the performance and appearance of the product, it is
recommended that the following product care guidelines be read
carefully:
6.1.1. Regularly check the product parts that need to be tightened and
connected.
If found loose, tighten to ensure the safe operation of the equipment.
6.1.2. The external and internal parts of the equipment in contact with various
chemicals should be frequently treated with anti-corrosion treatment
such as rust removal.
6.1.3. Comply with the safe operating procedures and DO NOT overload the
equipment.
6.2. STORAGE
6.2.1. When not in use, please store the product in a dry childproof place. DO
NOT store the product in hot, humid, or non-ventilated places.
7. END OF LIFE
7.1. Through years of normal wear, the oil pressure gauge kit will eventually
become unserviceable. When this happens ensure that it is disposed of
in accordance with local authority regulations.
7.2. BATTERY DISPOSAL
7.3. Exposure to high temperatures can cause the batteries to explode; DO
NOT dispose of in a re. Some countries have regulations concerning
battery disposal. Follow all applicable regulations. Return used batteries
to a collection location for recycling.
VS217 Issue 2 11/03/25
Original Language Version
© Jack Sealey Limited
Pressure Current pressure
P max Current maximum pressure
P min Current minimum pressure
P Dierential
TIME Current measurement time
Bar, Kg/cm², Ps Pressure units
g.B
g.C
g.D
VS217 Issue 2 11/03/25
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email
or call our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
