Smeg SO4204M2PS Combi Microwave Oven Compact 45 cm User Manual

PRECAUTIONS - 5191477C145/B

We advise you to read this manual carefully, which contains all the instructions for

maintaining the appliance’s aesthetic and functional qualities. For further information on the

product: www.smeg.com

PRECAUTIONS

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY AND RETAIN FOR FUTURE USE

General safety instructions

Risk of personal injury

•ATTENTION: during use,

the appliance and its

accessible parts become

very hot. Children must be

kept away from the

appliance.

•ATTENTION: during use,

the appliance and its

accessible parts become

very hot. Never touch the

heating elements during

use.

• Protect your hands by

wearing oven gloves when

moving food inside the

oven.

• Never try to put out a fire or

flames with water: turn off

the appliance and smother

the flames with a fire

blanket or other appropriate

cover.

• This appliance may be used

by children aged at least 8

and by people of reduced

physical, sensory or mental

capacity, or lacking in

experience in the use of

electrical appliances,

provided that they are

supervised or instructed by

adults who are responsible

for their safety.

• Children must not play with

the appliance.

• Keep children under the age

of 8 at a safe distance

unless they are constantly

supervised.

• Keep children under the age

of 8 away from the

appliance when it is in use.

• Cleaning and maintenance

must not be carried out by

unsupervised children.

• The cooking process must

always be monitored. A

short cooking process must

be continuously surveyed.

• Never leave the appliance

unattended during cooking

operations where fats or

oils could be released, as

these could then heat up

and catch fire. Be very

careful.

• Do not pour water directly

onto very hot trays.

• Keep the oven door closed

during cooking.

•If you need to move food or

at the end of cooking, open

the door 5 cm for a few

seconds, let the steam

come out, then open it fully.

52 - PRECAUTIONS 91477C145/B

• Do not insert pointed metal

objects (cutlery or utensils)

into the slots in the

appliance.

• Switch off the appliance

immediately after use.

• DO NOT USE OR STORE

FLAMMABLE MATERIALS

NEAR THE APPLIANCE.

• DO NOT USE AEROSOLS

IN THE VICINITY OF THIS

APPLIANCE WHILST IT IS

IN USE.

• DO NOT MODIFY THIS

APPLIANCE.

• Installation and servicing

should be carried out by

qualified personnel in

accordance with current

standards.

• Do not try to repair the

appliance yourself or

without the assistance of a

qualified technician.

• Do not pull the cable to

unplug the appliance.

For microwave appliances

•ATTENTION: if the door or

the door seal is damaged,

the appliance must not be

used until it has been

repaired by a qualified

person.

• ATTENTION: it is hazardous

for anyone other than a

qualified person to carry out

any service or repair

operation which involves

the removal of a cover

which offers protection

against exposure to

microwave energy.

• ATTENTION: liquids and

other foods must not be

heated in sealed containers

since they are liable to

explode.

• When a combined function

is used, children should use

the appliance only when

supervised by an adult, as

very high temperatures are

generated.

• Check the appliance

visually during the cooking

of foods in plastic or paper

containers.

Improper use

Danger of explosion

•When using the microwave

to heat or reheat liquids, the

boiling process may be

delayed – boiling

temperature can be

reached without the

formation of the usual

"rolling boil".

PRECAUTIONS - 5391477C145/B

• Use the microwave only for

the preparation of food for

consumption. Other types

of applications are strictly

forbidden (e.g. drying

clothes, warming slippers,

sponges, wet cloths or the

like, dehydrating foods)

because they can lead to

the risk of injury or fire.

• Microwave heating of

beverages can cause

delayed eruptive boiling, so

care must be taken when

handling the container.

• Clean the appliance

regularly and remove any

food residue.

• Failure to clean the oven

cavity encourages

deterioration of the surface,

which could adversely

affect the life of the

appliance and possibly

pose a hazard.

• Do not use the microwave

to dry food.

• Do not use the microwave

to heat oils or fry.

• Do not use the appliance to

heat foods or beverages

containing alcohol.

• Do not heat eggs in their

shells or whole hard boiled

eggs; they may explode

even after the heating

process has completed.

• Do not heat food in its

packaging.

• Do not use the combination

functions to heat or boil

liquids.

• Baby food should not be

heated in sealed containers.

Remove the cover or the

teat (in the case of baby

bottles). Always check the

temperature of the

preparation after it has

been heated, it should not

be too high. For an even

temperature and to avoid

scalding stir or shake the

contents.

• Puncture the skin of food

that has a hard skin or peel

(e.g. potatoes, apples, etc.)

before cooking.

• Before operating the

appliance, ensure that the

microwave oven cavity

does not contain unsuitable

objects or utensils.

• When the appliance is not

in use, do not use the cavity

to store combustible

• This delayed boiling and

consequent superheating of

the liquid can generate an

explosion inside the

appliance, or sudden boiling

over of the superheated

liquid can occur when

removing the container

from the appliance.

• To avoid these dangers, it is

necessary to insert the

supplied boiling rod (or a

heat-resistant plastic

spoon) in the container

while heating.

Improper use

Danger of explosion

54 - PRECAUTIONS 91477C145/B

materials, kitchen utensils,

food or similar objects.

• Do not use the microwave

functions when the oven is

empty.

• Use kitchenware and

utensils that are suitable for

use in a microwave oven.

• Do not use aluminium

containers to cook food.

• Do not use metal containers

for cooking food or

beverages.

• Do not use dishes with

metallic decorations (gold-

plated or silver).

• Where provided, do not use

the tray and/or the deep

tray for MICROWAVE-

ONLY cooking.

• If smoke is present, switch

off or unplug the appliance

from the power socket and

keep the door closed to

smother any flames.

• This appliance complies

with the current standards

and directives regarding

safety and electromagnetic

compatibility. However, it is

recommended that people

who wear pacemakers

maintain a minimum

distance of 20-30 cm

between the pacemaker

and the microwave oven

when it is in operation.

Contact the pacemaker

manufacturer for further

information.

• The appliance operates in

the 2.4GHz ISM band.

• In compliance with the

provisions regarding

electromagnetic

compatibility, the appliance

belongs to group 2 and

class B (EN 55011).

• If the appliance is installed

in a cabinet, it must be

operated with any cabinet

door open.

• The appliance may be

positioned or installed at

less than 850 mm from the

floor (see chapter

“INSTALLATION”).

Risk of damaging the appliance

• Do not use abrasive or

Improper use

Risk of damage to the appliance.

• When using microwaves,

do not place the food (or its

container) on the bottom of

the oven. Use the

accessories supplied,

placed on the shelves

appropriate for the recipe

you wish to prepare.

•DO NOT USE

CONTAINERS/

ACCESSORIES (trays, glass

dishes, etc.) PLACED

DIRECTLY ON THE

BOTTOM OF THE OVEN

CAVITY.

PRECAUTIONS - 5591477C145/B

corrosive detergents (e.g.

scouring powders, stain

removers and metallic

sponges), rough or abrasive

materials or sharp metal

scrapers on glass parts as

this could cause scratch the

surface and break the

glass. Use wooden or

plastic utensils.

• Do not sit on the appliance.

• Do not use cleaning

products containing

chlorine, ammonia or

bleach on parts made of

steel or that have metallic

surface finishes (e.g.

anodizing, nickel- or

chromium-plating).

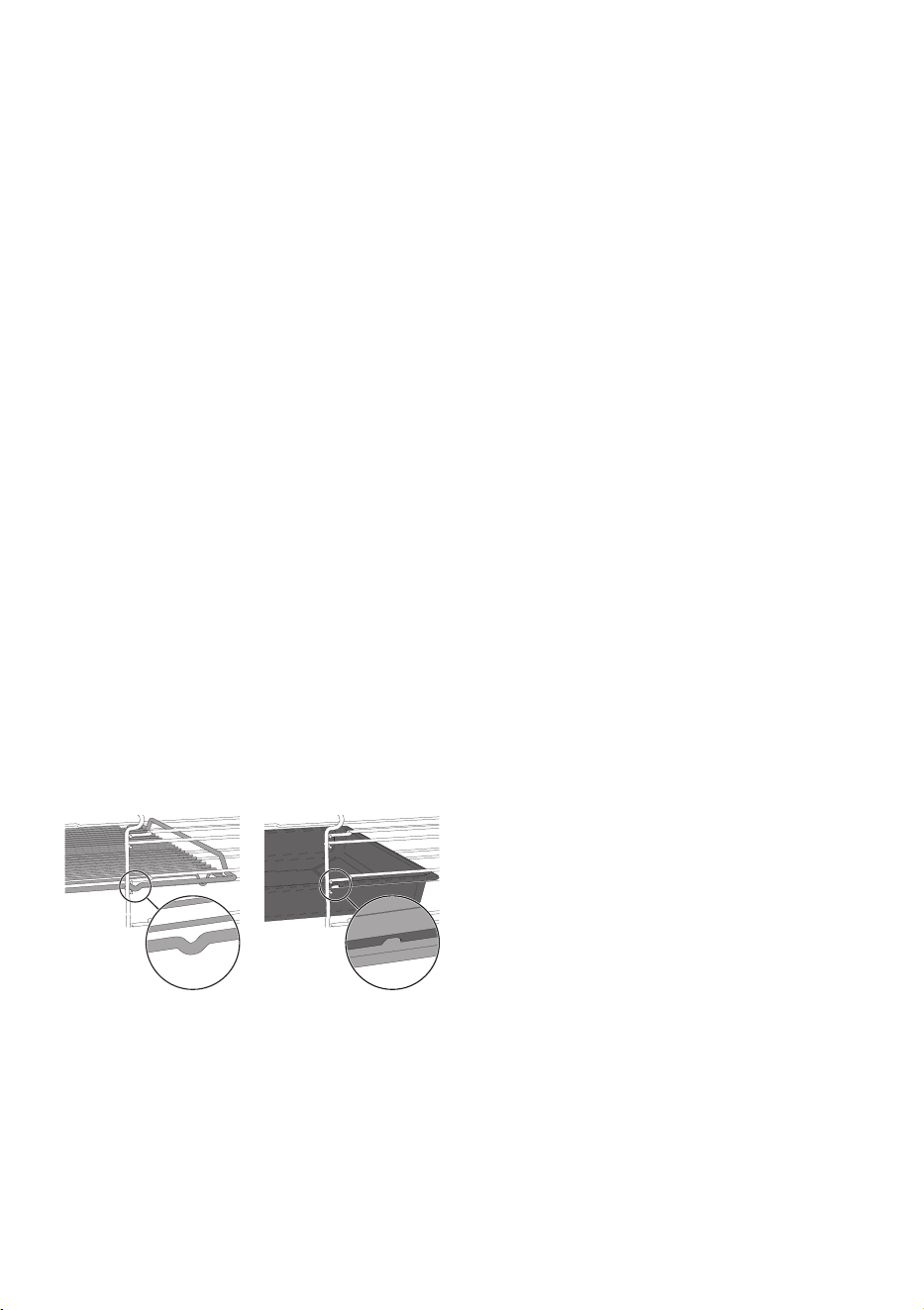

• Racks and trays should be

inserted as far as they will

go into the side guides. The

mechanical safety locks

that prevent them from

being removed must face

downwards and towards

the back of the oven cavity.

• Do not use steam jets to

clean the appliance.

• Do not spray any spray

product near the appliance.

• Do not obstruct ventilation

openings and heat

dispersal slots.

• Fire hazard: never leave

objects in the oven cavity.

• DO NOT FOR ANY

REASON USE THE

APPLIANCE AS A SPACE

HEATER.

• Do not use plastic

cookware or containers

when cooking food.

• Do not place sealed tins or

containers in the oven

cavity.

• Remove all trays and racks

which are not required

during cooking.

• Do not cover the bottom of

the oven cavity with

aluminium or tin foil sheets.

• Do not place pans or trays

directly on the bottom of the

oven cavity.

• If necessary, you can use

the tray rack (supplied or

sold separately, depending

on the model) by placing it

on the bottom as a support

for cooking.

• If you wish to use

greaseproof paper, place it

so that it will not interfere

with the hot air circulation

inside the oven cavity.

• Do not use the open door to

rest pans or trays on the

internal glass pane.

• Never use the oven door to

lever the appliance into

place when fitting.

• Avoid exerting too much

pressure on the door when

open.

• Do not use the handle to lift

or move this appliance.

56 - PRECAUTIONS 91477C145/B

Installation and maintenance

• THIS APPLIANCE MUST

NOT BE INSTALLED IN A

BOAT OR CARAVAN.

• The appliance must not be

installed on a pedestal.

• Position the appliance into

the cabinet cut-out with the

help of a second person.

• To prevent any possible

overheating, the appliance

should not be installed

behind a decoration door or

a panel.

• Installation and servicing

should be carried out by

qualified personnel in

accordance with current

standards.

• Have the electrical

connection performed by

authorised technical

personnel.

• The appliance must be

connected to earth in

compliance with electrical

system safety standards.

• Use cables withstanding a

temperature of at least

90 °C.

• The tightening torque of the

screws of the terminal

supply wires must be 1.5 -

2 Nm.

• If the power cable becomes

damaged, contact technical

support immediately to

arrange for it to be replaced

in order to avoid possible

hazards.

• WARNING: while

positioning the appliance,

make sure that the power

supply cable is not caught

or damaged.

• Always use any necessary/

required personal

protective equipment (PPE)

before performing any work

on the appliance

(installation, maintenance,

positioning or movement).

• Before performing any work

on the appliance, switch off

the power supply.

• Allow the appliance to be

disconnected after

installation, via an

accessible plug or a switch

in the case of a fixed

connection.

• Fit the power line with an

all-pole circuit breaker with

a contact separation

distance sufficient to

provide complete

disconnection in category III

overvoltage conditions,

pursuant to installation

regulations.

• This appliance can be used

up to a maximum altitude of

4,000 metres above sea

level.

For this appliance

• Do not rest any weight or

sit on the open door of the

appliance.

• Take care that no objects

are stuck in the doors.

• Do not install/use the

appliance outdoors.

PRECAUTIONS - 5791477C145/B

• Only use the temperature

probe provided or

recommended by the

manufacturer (on some

models only).

Temperature probe (if present)

• Do not touch the rod or the

tip of the temperature

probe after use.

• Wear oven gloves when

handling the temperature

probe.

• Take care not to scratch or

damage enamelled or

chrome-plated surfaces

with the tip or the plug of

the temperature probe.

• Do not insert the

temperature probe into

openings and slots on the

appliance.

• When the temperature

probe is not in use, make

sure that the protective

metal cap is properly

closed.

• Do not pull the cable to

remove the temperature

probe from the socket or

from the food.

• Make sure that the

temperature probe or its

cable do not get caught in

the door.

• Make sure that the

temperature probe or its

cable do not come into

contact with heating

elements inside the oven.

• No part of the temperature

probe should be allowed to

come into contact with the

walls of the oven cavity, the

heating elements, the racks

or the trays when they are

still hot.

• The probe should not be

kept inside the appliance.

• Do not use the temperature

probe during the pyrolytic

cycle.

Appliance purpose

This appliance is intended for

cooking food in the home

environment. Every other use

is considered improper. It

must also not be used:

• In kitchen areas provided

for employees in shops,

offices and other work

environments.

• in farms/farmhouses.

• By guests in hotels, motels

and other types of

residential environments.

• In bed and breakfasts.

This user manual

• This user manual is an integral part of

the appliance and must therefore be

kept in its entirety and within the user's

reach for the whole working life of the

appliance.

• Read this user manual carefully before

using the appliance.

• The explanations in this manual include

images, which describe all that regularly

appears on the display. However, it

should be kept in mind that the

appliance may be equipped with an

updated version of the system, and as

such, all that appears on the display

may differ from those in the manual.

This appliance may only

be installed and used

indoors.

58 - PRECAUTIONS 91477C145/B

Manufacturer’s liability

The manufacturer declines all liability for

damage to persons or property caused by:

• use of the appliance other than that

specified;

• failure to comply with the instructions in

the user manual;

• tampering with any part of the

appliance;

• use of non-original spare parts.

Identification plate

The identification plate bears the technical

data, serial number and brand name of the

appliance. Do not remove the identification

plate for any reason.

Disposal

This appliance conforms to the WEEE

European directive (2012/19/EU) and

must be disposed of separately from

other waste at the end of its service life.

The appliance does not contain substances

in quantities sufficient to be considered

hazardous to health and the environment,

in accordance with current European

directives.

To dispose of the appliance:

• Cut the power cable and remove it.

• Deliver the appliance to the appropriate

recycling centre for electrical and

electronic equipment waste, or return it

to the retailer when purchasing an

equivalent product, on a one for one

basis.

Our appliances are packaged in non-

polluting and recyclable materials.

• Deliver the packing materials to the

appropriate recycling centre.

To save e n erg y

• Only preheat the appliance if the recipe

requires you to do so. The preheating

stage can be disabled for all functions

(see chapter “Preheating”) apart from

the PIZZA (preheating cannot be

disabled) and ECO functions (no

preheating stage).

• When using the functions (including the

ECO function), avoid opening the door

during cooking.

• Unless otherwise indicated on the

package, defrost frozen foods before

placing them in the oven.

• When cooking several types of food it is

recommended to cook the foods one

after the other to make the best use of

the already hot oven.

• Use dark metal moulds: They help to

absorb the heat better.

• Remove all trays and racks which are

not required during cooking.

• Stop cooking a few minutes before the

time normally used. Cooking will

continue for the remaining minutes with

the heat which has accumulated inside

the oven.

• Reduce any opening of the door to a

minimum to avoid heat dispersal.

• Keep the inside of the oven clean at all

times.

Information on power

consumption in off/stand-by

mode

Technical data on the appliance's power

consumption in off/stand-by mode can be

found at www.smeg.com under the page

corresponding to the product in question.

Light sources

• This appliance contains light sources

which cannot be replaced by the user

and must only be replaced by the

technical assistance service.

• This appliance contains light sources of

efficiency class "E".

How to read the user manual

This user manual uses the following reading

Power voltage

Danger of electrocution

• Disconnect the mains power supply.

• Unplug the appliance.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or any part

of it unattended.

• Do not let children play with the plastic

bags.

DESCRIPTION - 5991477C145/B

conventions:

DESCRIPTION

General description

1 Control panel

2 Gasket

3 Temperature probe socket (selected

models only)

4 Light

5 Door

6 Fan

Frame shelf

Control panel

1 Display

The touch-screen display allows you to

interact with the appliance. Touch the icons

to access the various functions. All the

operating parameters will be shown on the

display.

2 ON/OFF button

The ON/OFF button turns the appliance on

or off.

Other parts

Shelves

The appliance features shelves to position

trays and racks at different heights. The

insertion heights are indicated from the

bottom upwards.

Cooling fan

The fan cools the appliance and comes into

operation during cooking.

The fan causes a steady outflow of air from

above the door which may continue for a

short period of time even after the

appliance has been turned off.

Oven cavity lighting

The appliance’s interior lighting comes on:

• when the door is opened;

• during one function, touch the light

symbol to manually activate or

deactivate the oven cavity light, apart

Warning/Caution

Information/Advice

60 - DESCRIPTION 91477C145/B

from the and functions.

Accessories

• Not all accessories are available on

some models.

• The accessories intended to come into

contact with food are made of materials

that comply with the provisions of

current legislation.

• Original supplied and optional

accessories can be requested to

Authorised Assistance Centres. Use only

original accessories supplied by the

manufacturer.

• It is recommended to mount the pull-out

slides on the first shelf of the frames. In

this way, it is possible to optimise the

space inside the oven cavity with an

intermediate level between the first and

the second shelf.

Boiling rod

To be placed in containers when heating

liquids, necessary to avoid delayed boiling.

Glass dish

Useful for any type of cooking and collecting

fat from foods placed on the rack above. To

be placed on top of the lowered pan stand,

it is particularly suitable for microwave

cooking.

Lowered pan stand

Used for supporting containers with food

during cooking.

Tray rack

To be placed over the top of the tray; for

cooking foods which may drip.

Protective cover (on some models only)

Used to cover and protect the temperature

probe socket when the temperature probe

is not in use.

Temperature probe (on some models

only)

With the temperature probe, you can cook

according to the temperature measured at

the centre the food.

In order to save energy, the light

turns off after about one minute

from the start of cooking or

whenever the door is opened (this

function can be disabled via the

secondary menu).

In this manual, suggestions for the

second or middle shelf refer to the

use of pull-out slides.

USE - 6191477C145/B

Optional accessories (can be

purchased separately)

Jug

Useful for containing liquids during filling

and emptying of the reservoir.

Deep tray

Useful for collecting fat from foods placed

on the rack above and for cooking pies,

pizzas, baked desserts, biscuits, etc.

PPR2 or STONE(refractory stone)

Ideal accessory for baking bread (pizza,

bread, focaccia...), but you can also use it for

more delicate preparations such as biscuits.

BBQ (teflon-coated barbecue grill pan)

Double-use accessory: the striped side is

recommended for grilling meat (fillets,

hamburgers...), while the smooth surface

can be used for cooking vegetables, fruit,

fish...

AIRFRY (oil-free frying grill)

Recommended accessory for air-frying

previously breaded, precooked and/or

frozen food (chips, potato or meat

croquettes, small mozzarella bites...).

Microwaves

The appliance is equipped with a

microwave generator called a magnetron.

The microwaves generated are evenly

emitted into the oven cavity in order to

reach the food and heat it.

Heating takes place through friction

between the molecules contained in the

food (mainly water molecules), with the

consequent generation of heat.

The heat generated directly inside the food

allows it to be defrosted, re-heated or

cooked in a shorter time compared to

traditional cooking.

The use of suitable containers for

microwave cooking leads to the

microwaves reaching the food in a uniform

manner.

USE

Preliminary operations

• Remove any protective film from the

outside or inside of the appliance,

including accessories.

• Remove any labels (apart from the

technical data plate) from the

accessories and shelves.

• Remove and wash all the appliance

accessories (see chapter "CLEANING

AND MAINTENANCE").

WARNING: The deep tray can be

used for combined microwave

cooking. Do not use it for microwave

cooking ONLY.

See General safety instructions.

62 - USE 91477C145/B

First heating

1. Set a cooking time of at least one hour

(see paragraph "Using the oven").

2. Heat the empty oven compartment at

the maximum temperature to burn off

any residues left by the manufacturing

process.

When heating the appliance

• air the room;

•don't stay.

Materials suitable for use with

microwaves

In general, in order for all of the food to be

reached, the materials used for microwave

cooking must be transparent to microwave

energy.

Below is a table of materials to use and

those not to use:

MATERIALS TO USE:

- Glass (always remove the lids)*

•Baking ware

• Glasses

•Jars

- Porcelain

- Earthenware

- Plastic (only where suitable for microwave

use)*

•Containers

• Plastic wrap (must not come into

contact with the food)

*only if heat-resistant.

MATERIALS NOT TO USE

- Metals (can lead to arcing or sparks)

• Aluminium foil

• Aluminium trays

•Plates

•Metal utensils

• Freezer bags tie wraps

- Wood

- Crystal glasses

- Paper (risk of fire)

- Polystyrene containers (danger of

contamination of foodstuffs)

Testing dishes

To check whether the cookware is suitable

for use with microwave cooking, carry out

this simple test:

1. Remove all accessories from the oven

cavity.

2. Place the cookware to be tested on the

rack inserted in the first shelf.

3. Select the microwave function at

maximum power level (e.g. 1000 W).

4. Set a cooking time of 30 seconds.

5. Start cooking.

At the end of the test the cookware must be

either cold or slightly warm. If the cookware

is hot then it should be considered as

unsuitable for microwave use.

Using the accessories

Racks and trays

Racks and trays have to be inserted into the

side guides until they come to a complete

stop.

• The mechanical safety locks that

prevent the rack from being removed

accidentally must face downwards and

towards the back of the oven cavity.

Dishes must be free of metal

decorations.

Do not use metal accessory trays in

the microwave or combined

microwave functions.

The microwave function can be

used without any food inside the

oven only for this test.

Unsuitable cookware

Risk of damage to the appliance

• Stop the test immediately if there is a

cracking sound or if sparks are emitted

from the cookware. If this happens, it

means that the cookware is not suitable

for microwave cooking.

Gently insert racks and trays into the

oven until they come to a stop.

Clean the trays before using them

for the first time to remove any

residues left by the manufacturing

process.

USE - 6391477C145/B

Tray rack

The tray rack has to be inserted into the

tray. In this way fat can be collected

separately from the food which is being

cooked.

Boiling rod

When using the microwave to heat or

reheat liquids, the boiling process may be

delayed. To avoid this, place the boiling rod

(or a heat-resistant plastic spoon) supplied

into the container while heating.

Glass racks and glass dish

The glass dish must be placed on the

lowered pan stand.

The tray rack has to be inserted into the

glass dish. In this way fat can be collected

separately from the food which is being

cooked.

Display

The parameters and values for the currently

selected function will be indicated on the

display. To use it, simply touch the "virtual"

keys and/or scroll through the values

indicated (the image shows the main menu

screen).

Information area

Information regarding the menus and

submenus of the functions in progress in the

main area are indicated in this area.

The following are also present in this area:

• HOME button: touch this button to

Improper use

Danger of explosion/burns

• To avoid the danger of explosion inside

the appliance or the sudden boiling over

of superheated liquids, always place a

boiling rod in the liquid that is being

heated.

High temperature

Risk of damage to the accessory

• Use the boiling rod only with Microwave

functions. The rod must not be used

with combination and traditional

functions.

64 - USE 91477C145/B

return to the main menu;

• The QUICK MODE button (models

with knobs only): touch this button to

enter Quick Mode.

• INFORMATION button: touch this

button to display the following screen:

•current time display.

Main area

The various functions of the appliance can

be set in this area. Touch the buttons and

values to set the required function.

In addition, depending on the screen, dots

may appear at the bottom of this area to

indicate that there are other function pages,

which can be reached by scrolling

horizontally.

first page,

second page,

etc...

Lower area

There are various shortcut function buttons

in this area, which vary according to the

functions set in the main area:

MULTISTEP

HISTORY

TIMER

LIGHT BULB

MY RECIPES

SETTINGS

According to the page that is displayed, the

following buttons may also be present:

BACK

CONFIRM

START

REPLAY

STOP

SAVE

DELETE

RAPID PRE-HEATING

PROBE (on some models only)

Connectivity (selected models only)

Connectivity requirements:

• Smartphone or PC tablet with IOS or

Android operating system. The

minimum versions of the operating

systems are available at the

following link:

www.smeg.com/smegconnect/

• Wi-Fi network (2.4 GHz band,

WPA2 protected) active and

available in the place where the

appliance is installed.

• Internet connection.

• Name and password of the home

Wi-Fi network or WPS (Wi-Fi

Protected Setup) mode available.

For further information, please refer to

the “Built-in oven connectivity” manual.

First use

To switch on the appliance:

1. Connect the appliance to the mains

power supply.

The manufacturer’s logo will display for a

The INFORMATION button is

replaced by the symbol to warn

that the door is open.

Press and hold the HOME

button or the ON-OFF button

for a few seconds to stop cooking

immediately at any time and return

to the main menu.

The following instructions are also

valid in the case of a prolonged

power failure.

USE - 6591477C145/B

few seconds.

The display then shows the current time

setting screen.

To be able to start any cooking function, the

current time must be set.

2. Scroll up and down through the hours

and minutes to set the current time.

3. Touch the CONFIRM button (at the

right in the lower area ) to set the

current time.

The first time you use the appliance, it may

be set to a language other than the one you

speak. It is recommended that you set the

required language at this point.

4. Touch the SETTINGS button on the

display (at the right in the lower area

5. Touch the display button .

6. In the Language option (on the left),

scroll through the available languages

(on the right) to select the required

language.

7. Touch the CONFIRM button.

Deactivating the display

To deactivate the display manually:

• Press and hold the ON-OFF

button for a few seconds until you

hear a sound.

Reactivating the display

To reactivate the display when it is off:

• Press and hold the ON-OFF

button for a few seconds until you

hear a series of sounds.

The display turns on after a few

seconds. The display shows the main

menu when it is switched on again.

Using the oven

Traditional cooking

After the appliance is switched on,

you will need to wait a few seconds

before you can use it.

To change the current time (e.g. due

to daylight saving time) touch the

time shown on the display (in the

information area on the right).

When the current time is visible,

after 2 minutes from the last

operation by the user it is displayed

with low brightness.

When the " Show the time"

mode is set to Off, if the time display

is shown, the display will switch off

automatically after 2 minutes.

In some cases, the ON-OFF

button does not deactivate the

display. For example, when:

• there is a cooking function in

progress (the button stops the

function);

• the door is open;

• a minute minder timer is active;

• the Showroom and/or

Demo modes are active.

See General safety instructions.

Each time the door is opened, the

function in progress will stop and

then automatically restart when the

door is closed again.

66 - USE 91477C145/B

1. Touch the time indicated on the display.

2. Touch the COOKING button on

the "main menu" (in the main area ).

3. Touch the TRADITIONAL COOKING

MENU button.

4. Select a combination function (for

example FAN-HEATED ) to enter

the relevant cooking screen.

5. Touch the START button (at the

lower right ) to start pre-heating.

Preheating stage

Cooking itself is preceded by a preheating

stage, which allows the appliance to heat to

the cooking temperature more quickly.

This stage is indicated by a progressive

increase in the temperature level reached.

After pre-heating, a buzzer will sound and a

message will appear on the display to

indicate that the dish can be put in the oven

cavity.

Cooking phase

1. Open the door

2. Place the dish with the food to be

cooked into the oven cavity.

3. Close the door.

4. Touch the CONFIRM button to start

cooking.

This stage is indicated by a progressive

increase in cooking.

Modifying the cooking temperature

1. Touch the TEMPERATURE button or

the relevant value.

2. Scroll through the values and select the

required cooking temperature.

3. Touch the CONFIRM button (at the

lower right ) to confirm the cooking

temperature that has been selected.

End of cooking

To end cooking at any time:

1. touch the STOP button .

2. Touch the CONFIRM button.

Timed cooking

1. After selecting a function, touch the

COOKING DURATION button or the

relative value.

Unless otherwise indicated in the

recipe, it is not recommended to

place food in the oven during the

preheating stage.

You can skip the pre-heating stage

touching the dedicated button .

The temperature can be modified at

any time during cooking.

Timed cooking is the function which

allows a cooking operation to be

started and then ended after a

specific length of time set by the

user.

USE - 6791477C145/B

2. Scroll through the values and select the

required duration.

3. Touch the CONFIRM button to

confirm the selected cooking duration.

The expected end of cooking time appears

under the duration.

4. Touch the START button to start

timed cooking.

End of cooking

At the end of cooking, "Function ended"

displays and a buzzer sounds briefly, which

can be deactivated by touching any point of

the display or by opening the door.

• Touch the HOME button to quit the

function.

Programmed cooking

1. After setting timed cooking, touch

PROGRAMMED COOKING button

or the relevant value.

2. Scroll through the values and select the

required end-of-cooking time.

3. Touch the CONFIRM button to

confirm the selected end of cooking

time.

End of cooking

At the end of cooking, "Function ended"

displays and a buzzer sounds briefly, which

can be deactivated by touching any point of

the display or by opening the door.

• Touch the HOME button to quit the

function.

List of traditional cooking functions

The hours and minutes can be

selected separately.

The duration of the timed cooking

function can be from a minimum of 1

minute to a maximum of 12 hours

and 59 minutes.

The minutes required for pre-

heating are already included in the

end-of-cooking time.

The countdown starts after the pre-

heating has ended or if you wish to

avoid pre-heating (touch the relative

button ).

Programmed cooking is the function

which allows a time-controlled

cooking operation to be stopped at

an established time depending on

the time set by the user, after which

the appliance will switch off

automatically.

For safety reasons, it is not possible

to set the end of cooking time by

itself without setting the cooking

duration.

The hours and minutes can be

selected separately.

Not all functions are available on

some models.

68 - USE 91477C145/B

STATIC

FAN-ASSISTED

THERMALLY-VENTILATED

TURBO

GRILL

FAN-ASSISTED GRILL

BASE

THERMALLY-VENTILATED BASE

PIZZA

ECO

Minute minder timer

1. Touch the TIMER button (in the

lower area ) to access the Timer

menu.

Up to 2 minute minder Timers can be set:

2. Touch the button of the TIMER -

that you intend to use.

Traditional cooking suitable for the

preparation of one dish at a time.

Ideal for cooking roasts, fatty meats,

bread, pies.

Intense and uniform cooking. Ideal

for biscuits, cakes and multilevel

cooking.

The heat is distributed quickly and

evenly. Suitable for all dishes, ideal

for cooking on several levels without

mixing odours and flavours.

Allows quick cooking on multiple

shelves without mixing the aromas.

Perfect for large volumes that call

for intense cooking.

It allows to obtain excellent grilling

and grating results. Used at the end

of cooking, it gives a uniform

browning to the dishes.

Allows optimal grilling of even the

thickest meats. Perfect for large cuts

of meat.

The heat only comes from the

bottom of the cavity. Perfect for

cakes, pies, tarts and pizzas.

Allows you to quickly finish cooking

food already cooked on the surface

but not internally. Perfect for any

quiches and any type of food.

Function designed for cooking pizza.

Perfect not just for pizzas, but also

for biscuits and cakes.

This function is particularly suitable

for cooking on a single shelf with

low energy consumption.

It is recommended for all types of

food, excluding those that can

create a lot of humidity (such as

vegetables).

To obtain maximum energy savings

and reduce cooking times, it is

recommended to place food in the

oven without preheating.

When using the ECO function, avoid

opening the door during cooking.

In the ECO function cooking times

(and any preheating) are longer and

may depend on the amount of food

in the cooking compartment.

The ECO function is a delicate

cooking function and is

recommended for food withstanding

temperatures lower than 210°C; in

case of cooking at higher

temperatures, select another

function.

This function only activates the

buzzer, without stopping the

function in progress.

The Timer can be set from a

minimum of 1 minute to a maximum

of 12 hours and 59 minutes.

USE - 6991477C145/B

3. Scroll through the values and select the

required duration.

4. Touch the CONFIRM button to

confirm the selected duration.

5. Repeat the procedure for the other

Timers that you intend to use.

6. When finished, touch the CONFIRM

button again to confirm the selected

timers.

In the following display, the lit TIMER

button indicates that one or more minute

minder timers have been activated.

7. Wait for the buzzer to indicate that the

time has finished.

Using the temperature probe (on

some models only)

The temperature probe enables you to cook

roasts, loin steaks and other cuts and sizes

of meat with great precision. The probe

ensures that the food is perfectly cooked by

monitoring the core temperature of the

food. The core temperature is measured by

a sensor inside the tip of the probe.

Positioning the probe

1. Place the food on a tray.

2. Insert the tip of the probe into the food

before you place it in the oven.

3. For best results, make sure that the

temperature probe is placed

transversely in the thickest part of the

food and for least 3/4 of its length. Make

sure that it does not touch the tray

underneath and that it does not

protrude from the food.

4. The 3 notches on the temperature probe

must be inserted into the food.

The DELETE button appears in

the lower area that can be used

to delete a timer if one has been

selected.

To cancel the operation, touch the

RETURN button.

The counter must be set to zero in

order to remove the minute minder

timer.

The display cannot be switched off

using the ON-OFF button

when a timer is active.

See General safety instructions.

In order for the probe to measure the

core temperature of the food

precisely, its tip must not be in

contact with bones or fat.

The recommended minimum

temperature for cooking with the

probe is 120°C, with the exception

of slow temperature cooking.

70 - USE 91477C145/B

Setting cooking parameters when using

the temperature probe

1. Select a cooking function.

2. Touch the TEMPERATURE button or

the relevant value.

3. Scroll through the values and select the

required cooking temperature.

4. Touch the CONFIRM button.

5. Touch the PROBE button in the

lower area .

6. Scroll through the target temperature

values and select the required

temperature.

7. Touch the CONFIRM button to

confirm the selected probe temperature.

A message appears on the display to

remind you to connect the probe to the

socket and to place it in the food.

8. Touch the CONFIRM button.

Cooking

This option automatically sets the ideal

temperature inside the oven cavity

according to the target temperature set by

the user.

1. After setting the desired target

temperature, press the button (at

the lower right ).

2. Select the temperature difference value.

slow

Sets the smallest difference between the

probe temperature and the temperature of

the oven cavity. This results in a longer

cooking time.

If the probe does not read the

temperature of the food correctly, 2

error messages will appear on the

display (to acknowledge), after

which, the appliance will

automatically carry out timed

cooking.

The temperature range that can be

selected is from a minimum of 20°C

to a maximum of 90°C.

If the temperature of the oven is set

too low, the appliance automatically

sets the minimum temperature

necessary in order to reach the

selected target temperature.

For best results, it is recommended

to set a cooking temperature higher

than the target temperature.

The appliance automatically sets

the cavity temperature to a

predefined temperature (called )

which is higher than the core

temperature detected by the probe.

When the probe detects one degree

more at the core, the appliance

automatically increases its internal

temperature by one degree.

The appliance offers the possibility

to choose between three different

cooking modes (slow, medium and

fast) and to set any desired core

temperature.

A concentrate of technology that

produces tender, juicy, healthy

products of the highest quality.

USE - 7191477C145/B

Medium

Sets a medium difference between the

probe temperature and oven cavity

temperature. This results in a medium

cooking time.

fast

Sets the largest difference between the

probe temperature and the temperature of

the oven cavity. This results in a shorter

cooking time.

3. Touch the CONFIRM button to

confirm the selected probe temperature.

With preheating:

1. Touch the START button to start

the pre-heating stage.

After pre-heating, a buzzer will sound and a

message will appear on the display to

indicate that the dish can be put in the oven

cavity.

2. Insert the tip of the temperature probe

into the food to be cooked.

3. Open the oven door.

4. Insert the tray on which the food has

been placed into the appropriate guides.

5. Insert the plug of the temperature probe

into the socket at the side, using the

probe to open the protective cover.

6. Close the door.

7. Touch the CONFIRM button to start

cooking using the temperature probe.

Without preheating:

1. Touch the PRE-HEATING button to

disable pre-heating.

2. Open the appliance door.

3. Insert the tray on which the food has

been placed into the appropriate guides.

4. Insert the plug of the temperature probe

into the socket at the side, using the

probe to open the protective cover.

5. Close the door.

6. Touch the START button to start

cooking using the temperature probe.

End of cooking parameters with the

temperature probe

Cooking ends when the instantaneous

temperature reaches the target

temperature set by the user.

The heating elements are switched off and

the appliance emits a series of beeps.

1. Open the door.

2. Remove the probe from the food and

unplug it from the socket.

3. Remove the food from the oven.

4. Make sure that the protective cover is

properly closed.

5. Close the door.

Microwave cooking

Press the button to eliminating

the cooking .

For best results, make sure that the

metal part of the temperature probe

is inserted almost completely into

the food at a right angle, but make

sure that it does not touch the tray

underneath.

Given that they penetrate directly

into the food, microwaves allow

cooking to take place in a very short

period of time and with a

considerable saving of energy. They

are suitable for cooking without fat

and also for defrosting and re-

heating food while maintaining its

original appearance and fragrance.

72 - USE 91477C145/B

1. Open the door.

2. Place the dish into the oven cavity.

3. Close the door

4. Touch the COOKING button on

the "main menu".

5. Touch the MICROWAVE COOKING

MENU button.

6. Select the MICROWAVE function

to enter the relevant cooking screen.

7. Touch the MICROWAVE POWER

button or the relative value.

8. Scroll through the values and select the

required power level of the microwave.

9. Touch the CONFIRM button (at the

lower right ) to confirm the power

level of the microwave that has been

selected.

10. Touch the COOKING DURATION

button or the relevant value.

11. Scroll through the values and select the

required duration.

12. Touch the CONFIRM button to

confirm the selected cooking duration.

When using the microwave, the

food (or its container) must not be

placed on the bottom of the oven

cavity. Use the supplied accessories

inserted in the shelves suitable for

the recipe you want to make.

DO NOT USE CONTAINERS/

ACCESSORIES (trays, glass dishes,

etc.) RESTING DIRECTLY ON THE

BOTTOM OF THE OVEN CAVITY.

When cooking using only the

microwave function, the appliance

does not perform preheating. The

food can be placed immediately

inside the appliance.

The power level of the microwave is

from 100 W to 600 W or MAX.

The minutes and seconds can be

selected separately.

The duration of the microwave

cooking can be from a minimum of 5

seconds to a maximum of 29

minutes and 55 seconds.

USE - 7391477C145/B

13. Touch the START button (at the

lower right ) to start the microwave

cooking.

End of cooking

At the end of cooking, "Function ended"

displays and a buzzer sounds briefly, which

can be deactivated by touching any point of

the display or by opening the door.

• Touch the HOME button to quit the

function.

Microwave power levels

Below is a list of the power levels that can

be selected:

Combination cooking with microwave

1. Touch the COOKING button on

the "main menu".

2. Touch the MICROWAVE COOKING

MENU button.

3. Select a combination function (for

example FAN-HEATED MICROWAVE

) to enter the relevant cooking

screen.

4. Touch the TEMPERATURE button or

the relevant value.

5. Scroll through the values and select the

required cooking temperature.

6. Touch the CONFIRM button (at the

lower right ) to confirm the cooking

temperature that has been selected.

7. Touch the MICROWAVE POWER

button or the relevant value.

8. Scroll through the values and select the

required power level of the microwave.

9. Touch the CONFIRM button to the

microwave power level.

10. Touch the COOKING DURATION

button or the relevant value.

Each time the door is opened, the

function in progress will stop. To

resume cooking, close the door and

confirm.

Power (W) Uses

100

Thawing food200

300

400

Delicate cooking

500

600 Re-heating and cooking food

max. Heating liquids

Combination cooking is a mix of

traditional cooking and microwave

operation. These functions are

marked by the microwave function

icon and the symbol of a traditional

function switching on.

The power level of the microwave is

from 100 W to 400 W.

74 - USE 91477C145/B

11. Scroll through the values and select the

required duration.

12. Touch the CONFIRM button to

confirm the selected cooking duration.

13. Touch the START button (at the

lower right ) to start the combined

microwave cooking.

Preheating stage

Cooking itself is preceded by a preheating

stage, which allows the appliance to heat to

the cooking temperature more quickly.

This stage is indicated by a progressive

increase in the temperature level reached.

After pre-heating, a buzzer will sound and a

message will appear on the display to

indicate that the dish can be put in the oven

cavity.

Cooking phase

1. Open the door

2. Place the dish with the food to be

cooked into the oven cavity.

3. Close the door.

4. Touch the CONFIRM button to start

cooking.

This stage is indicated by a progressive

increase in cooking.

End of cooking

At the end of cooking, "Function ended"

displays and a buzzer sounds briefly, which

can be deactivated by touching any point of

the display or by opening the door.

• Touch the HOME button to quit the

function.

List of combined microwave cooking

functions

FAN-ASSISTED MICROWAVE

MICROWAVE + FAN-HEATED

The hours and minutes can be

selected separately.

The duration of the combined

microwave cooking function can be

from a minimum of 1 minute to a

maximum of 5 hours and 59

minutes.

Unless otherwise indicated in the

recipe, it is not recommended to

place food in the oven during the

preheating stage.

You can skip the pre-heating stage

touching the dedicated button .

The operation of the fan, combined

with traditional cooking, ensures

consistent cooking even with

complex recipes. Using the

microwave on the other hand leads

to rapid internal cooking of the food.

For combination cooking of food in a

short time thanks to the microwave

action working together with hot air

circulation.

USE - 7591477C145/B

MICROWAVE + GRILL

MICROWAVE + FAN-HEATED BASE

Cooking advice

General advice

• Use a fan assisted function to achieve

consistent cooking at several levels.

• It is not possible to shorten cooking

times by increasing the temperature (the

food could be overcooked on the outside

and undercooked on the inside).

Advice for cooking meat

• Cooking times vary according to the

thickness and quality of the food and to

consumer taste.

• Use a meat thermometer when roasting

meat, or simply press on the roast with a

spoon. If it is hard, it is ready; If not, it

needs another few minutes cooking.

Advice for cooking with the Grill and the

Fan with grill

• Meat can be grilled even when it is put

into the cold oven or into the preheated

oven if you wish to change the effect of

the cooking.

• When using the fan-assisted with grill

function, we recommend that you

preheat the oven before grilling.

• We recommend placing the food at the

centre of the rack.

• With the Grill function, we recommend

that you set the temperature to the

maximum value to optimise cooking.

Advice for cooking desserts/pastries and

biscuits

• Use dark metal moulds: They help to

absorb the heat better.

• The temperature and the cooking time

depend on the quality and consistency

of the dough.

• To check whether the dessert is cooked

right through: At the end of the cooking

time, put a toothpick into the highest

point of the dessert. If the dough does

not stick to the toothpick, the dessert is

cooked.

• If the dessert collapses when it comes

out of the oven, on the next occasion

reduce the set temperature by about

10°C, selecting a longer cooking time if

necessary.

Advice for defrosting and proving

• Place frozen foods without their

packaging in a lidless container on the

first shelf of the oven.

• Avoid overlapping the food.

• To defrost meat, use the rack placed on

the second level and a tray on the first

level. In this way, the liquid from the

defrosting food drains away from the

food.

• The most delicate parts can be covered

with aluminium foil.

• For successful proving, a container of

water should be placed in the bottom of

the oven.

To save energy

• Stop cooking a few minutes before the

time normally used. Cooking will

continue for the remaining minutes with

the heat which has accumulated inside

the oven.

• Reduce any opening of the door to a

minimum to avoid heat dispersal.

• Keep the inside of the appliance clean at

all times.

Smart Cooking

This mode allows you to select a previously

stored program for cooking food. The

appliance automatically calculates the

optimum cooking parameters based on the

weight selected.

1. Touch the SMART COOKING

button on the "main menu" (in the main

area ).

2. Select the type of dish required from the

SMART COOKING menu (for example

"VEGETABLES ").

3. Select the sub-category of dish to cook

(for example "MIXED GRILLED

VEGETABLES ").

The use of the grill results in perfect

browning of the food’s surface.

Using the microwave on the other

hand leads to rapid internal cooking

of the food.

Intense heat is supplemented by the

microwave function, speeding up

cooking times and keeping food soft

and moist.

76 - USE 91477C145/B

4. Scroll through the values to set the

weight of the food to be cooked.

5. Touch the CONFIRM button to

confirm the settings.

6. Touch the START button to start

SMART COOKING.

Cooking will start with the settings specified

in the program.

Sametime

1. Touch the SMART COOKING

button on the "main menu".

2. Scroll through the functions until you

select SAMETIME .

3. Select the desired SAMETIME recipe and

follow the instructions on the display.

Quick recipes

1. Touch the SMART COOKING

button on the "main menu".

2. Scroll through the functions until you

select QUICK RECIPES .

3. Select the desired quick recipe and

follow the instructions on the display.

Multistep cooking

1. Touch the MULTISTEP button on

the "main menu" (at the left in the

lower area).

2. Touch the ADD STEP button.

3. Select the desired function for the first

step (traditional, microwave, steam...).

4. As described in the previous chapters,

touch the buttons of TEMPERATURE ,

COOKING DURATION ,

MICROWAVE POWER (depending

on the selected function) to select the

parameters you want to change.

5. Scroll through the values and select the

required settings.

6. Touch the CONFIRM button (at the

right in the lower area) to confirm

the selected values.

7. Touch again the ADD STEP

button.

It is now possible to save the

settings as a personal recipe (see

section “My recipes”).

The cooking temperature and

duration can be changed at any

time, even after cooking has started.

In this section you will find recipes

created by Smeg chefs for

SAMETIME cooking. This category

allows a complete preparation at

the same time. By choosing

available combinations and setting

the number of portions, the

appliance selects the most suitable

function, time and temperature. The

instructions on the display indicate

when to put the food in the oven

and on which shelf.

In this section you will find recipes

created by Smeg chefs for cooking

quick recipes. This category allows

you to prepare traditional recipes in

less time. By choosing the type and

weight of food, the appliance selects

the most suitable function, time and

temperature. The instructions on the

display indicate when to put the

food in the oven and on which shelf.

Multistep cooking means the

possibility to start cooking with a

certain function, to proceed with the

cooking and finish it with different

functions set by the user.

USE - 7791477C145/B

8. Select the required function for the

second step (traditional, microwave,

steam...).

9. Set the required parameters for the

second function.

10. Touch the CONFIRM button to

confirm the selected values.

11. Touch the START button (at the

right in the lower area) to start

Multistep cooking.

History

This menu is particularly useful for viewing

and reusing the last programmes or

personal recipes that were used.

1. Touch the HISTORY button on the

“main menu” (on the left in the

lower area).

2. Select the function you wish to reuse

and proceed with cooking as described

in the previous sections.

Deleting the history

If you wish to delete the history:

1. Touch the HISTORY button on the

"main menu".

2. Touch the BASKET button to delete

the history.

3. Touch the CONFIRM button to

confirm that you wish to delete the

history (or the CANCEL button to

cancel the operation).

Mini guide to accessories

Discover the recipes

To consult the recipes developed for various

categories of food and to get more

information on cooking suggestions, we

recommend visiting the dedicated page on

the www.smeg.com website, which can be

reached using the QR code on the leaflet

It is not possible to add a further

step if no cooking time or probe

temperature (if present) has been

set.

It is not possible to start a cooking

process if a duration or probe

temperature (if present) of all steps

has not been set.

It is not possible to set a total

duration of more than 13 hours.

Lowered pan

stand

We recommend the use of the grill as a support surface for baking moulds/casseroles.

In the absence of the baking tray grill, the grill can be used as a base for grilling with

the deep baking tray placed on a shelf below to collect the juices.

Glass dish

Use the glass dish by placing it on the grid .

It is suitable for microwave and combination microwave cooking.

Tray rack

We recommend using the baking tray grill as a base for food to grill. The pan below

collects the juices from the grills.

Deep tray

We recommend the use of the deep baking tray for cooking on one level only.

Place the deep baking tray on the centre shelf when using the fan-assisted functions.

When using the STATIC function, place the deep baking tray on the required

shelf.

Place the baking tray on the last shelf with the baking tray grill to cook in GRILL mode

WARNING: The deep tray can be used for combined microwave cooking. Do not use it

for microwave cooking only.

78 - USE 91477C145/B

supplied with the product.

My recipes

This menu allows you to enter a personal

program with the parameters you wish to

use. On first use, the appliance will only

offer you to add a new recipe. After storing

your personal recipes these will then be

available in the dedicated menu.

1. Touch the MY RECIPES button on

the "main menu" (at the left in the

lower area).

Adding a recipe

1. Touch the NEW RECIPE button.

2. Select the required function.

3. Touch the TEMPERATURE button or

the relevant value.

4. Scroll through the values and select the

required cooking temperature.

5. Touch the CONFIRM button to

confirm the cooking temperature that

has been selected.

6. Touch the COOKING DURATION

button or the relevant value.

7. Scroll through the values and select the

required duration.

8. Touch the CONFIRM button to

confirm the selected cooking duration.

Saving a recipe

9. Touch the SAVE button.

10. Scroll through the values to set the

RACK.

11. Scroll through the values to set the

weight of the food to be cooked.

12. Touch the CONFIRM button to

confirm the settings.

At this point, a name for the recipe must be

entered.

13. Use the alphanumeric keypad to enter

the name of the recipe to be saved.

It is possible to store a limited

number of personal recipes.

The minutes required for preheating

are already included in the end-of-

cooking time.

Now it is possible to add

programmed cooking.

Use the and buttons

to switch from the alphabetic

keypad to the numerical keypad and

vice versa.

The recipe name can contain a

maximum 12 characters, including

spaces.

The name must contain at least one

character in order to store the

recipe.

The character deletes the

previous letter.

USE - 7991477C145/B

14. Touch the CONFIRM button to store

the program.

Starting a personal recipe

1. Touch the MY RECIPES button on

the "main menu".

2. Select the recipe that was saved

previously.

3. Touch the START button to start

cooking.

Deleting a recipe

1. Touch the MY RECIPES button on

the "main menu".

2. Select the recipe that was saved

previously.

3. Touch the DELETE button to delete

the recipe.

4. Touch the CONFIRM button to

confirm that you wish to delete the

selected recipe (or the CANCEL

button to cancel the operation).

Other functions

The special functions menu includes several

functions such as defrosting, proving or

cleaning...

• Touch the OTHER FUNCTIONS

button on the “main menu”.

DEFROST BY WEIGHT

1. Open the door.

2. After weighing the food, place it in the

oven cavity.

3. Close the door.

4. Select DEFROST BY WEIGHT .

5. Select the type of food to defrost from

the categories MEAT - FISH - BREAD -

DESSERTS

6. Scroll through the values to set the

weight of the food to be defrosted.

7. Touch the CONFIRM button to

confirm the settings.

8. Touch the START button to start

the defrost by weight function.

When finished, a buzzer sounds briefly,

which can be deactivated by touching any

point of the display or by opening the door.

Certain functions are not available

on all models.

Automatic defrosting function.

Choose the dish, the oven calculates

the time necessary for proper

defrosting.

If the internal temperature is greater

than the one required, the function

will be stopped immediately and

"Internal temperature unsafe, please

wait until the oven is cool" will

display. Allow the appliance to cool

down before activating the function.

It is not possible to change the

default temperature for the Defrost

by weight function.

80 - USE 91477C145/B

Preset parameters:

DEFROST BY TIME

1. Open the door.

2. Place the dish into the oven cavity.

3. Close the door.

4. Select DEFROST BY TIME .

5. Touch the COOKING DURATION

button or the relevant value.

6. Scroll through the values and select the

required duration.

7. Touch the CONFIRM button to

confirm the settings.

8. Touch the START button to start

the Defrost by time function.

When finished, a buzzer sounds briefly,

which can be deactivated by touching any

point of the display or by opening the door.

9. Touch the HOME button to quit the

function.

PROVING

1. Open the door

2. Position the dough to prove on the

second level.

3. Close the door.

4. Select PROVING .

5. Touch the COOKING DURATION

button or the relevant value.

Type Weight (kg)

Time

(minutes)

Meats 0.5 18

Fish 0.3 25

Bread 0.1 5

Desserts 0.1 5

Defrosting times may vary on the

basis of the shape and size of the

food to be defrosted.

When defrosting heavy and/or

irregularly shaped food (e.g. chicken,

fish, etc.), it is advisable to turn it

inside the oven cavity at least once

by 180°.

Manual defrosting function. Select

the length of time required for

defrosting, when the set time has

elapsed, the function will stop.

If the internal temperature is greater

than the one required, the function

will be stopped immediately and

"Internal temperature unsafe, please

wait until the oven is cool" will

display. Allow the appliance to cool

down before activating the function.

The duration of the Defrost by time

function can be from a minimum of 1

minute to a maximum of 12 hours

and 59 minutes.

It is not possible to change the

default temperature (30°C) for the

Defrost by time function.

This function is particularly suitable

for proving dough.

If the internal temperature is greater

than the one required, the function

will be stopped immediately and

"Internal temperature unsafe, please

wait until the oven is cool" will

display. Allow the appliance to cool

down before activating the function.

For successful proving, a container

of water should be placed in the

bottom of the oven.

The duration of the Proving function

can be from a minimum of 1 minute

to a maximum of 12 hours and 59

minutes.

USE - 8191477C145/B

6. Scroll through the values and select the

required duration.

7. Touch the TEMPERATURE button or

the relevant value.

8. Scroll through the values and select the

required cooking temperature (from

25°C to 40°C).

9. Touch the CONFIRM button to

confirm the settings.

10. Touch the START button to start

the Proving cycle.

When finished, a buzzer sounds briefly,

which can be deactivated by touching any

point of the display or by opening the door.

PLATE WARMING

1. Position the tray on the first shelf and

place the plates to be warmed at the

centre of it.

2. Select PLATE WARMING .

3. Touch the START button to start

the Plate warming function.

The following can be set while the function

is in operation:

• the temperature (from 40°C to 80°C);

• the duration of the function ;

• a programmed function (only if a

duration different from the default one is

set).

When finished, a buzzer sounds briefly,

which can be deactivated by touching any

point of the display or by opening the door.

MICROWAVE REHEAT

1. Put the food to be heated in a container.

2. Open the door.

3. Place the container on the rack in the

first shelf from the bottom.

4. Close the door.

5. Select MICROWAVE REHEAT .

6. Touch the COOKING DURATION

button or the relevant value.

7. Scroll through the values and select the

required cooking duration.

8. Touch the START button to start

the Microwave reheat function.

End of microwave reheat

At the end, "Function ended" displays and a

buzzer sounds briefly, which can be

deactivated by touching any point of the

display or by opening the door.

9. Touch the HOME button to exit

from the function.

MELT

1. Place the chocolate to be melted in a

Pyrex or microwave-safe container.

2. Open the door.

Function that heats and keeps

plates warm. Position a baking tray

on the lowest shelf and put the

plates on it to warm.

Do not stack plates too high. Stack

plates a maximum of 5/6 high.

Unless otherwise set, the Plate

warming function has a maximum

duration of 12 hours and 59

minutes.

The function allows you to reheats

food that has already been cooked

and stored in the refrigerator, using

the microwaves.

The temperature of the microwave

reheat cannot be changed by the

user.

Ideal function for melting chocolate

bars using the microwave.

82 - USE 91477C145/B

3. Place the container on the rack in the

second shelf from the bottom.

4. Close the door.

5. Select MELT .

6. Touch the COOKING DURATION

button or its value (the default value is

ideal for a chocolate bar).

7. Scroll through the values and select the

required cooking duration.

8. Touch the START button to start

the Melt function.

When finished, a buzzer sounds briefly,

which can be deactivated by touching any

point of the display or by opening the door.

SOFT

1. Place the food to be defrosted in a Pyrex

or microwave-safe container.

2. Open the door.

3. Place the container on the rack in the

second shelf from the bottom.

4. Close the door.

5. Select SOFT .

6. Touch the COOKING DURATION

button or its value (the default value is

ideal for a piece of butter of about 250

grams or a frozen cake of about 700

grams).

7. Scroll through the values and select the

required cooking duration.

8. Touch the START button to start

the Soft function.

When finished, a buzzer sounds briefly,

which can be deactivated by touching any

point of the display or by opening the door.

POPCORN

1. Place the bag of popcorn on the glass

baking tray.

2. Open the door.

3. Place the glass tray by on the rack in the

second shelf from the bottom.

4. Close the door.

5. Select POPCORNS .

6. Touch the COOKING DURATION

button or the relevant value.

7. Scroll through the values and select the

required cooking duration.

8. Touch the START button to start

the Popcorn function.

When finished, a buzzer sounds briefly,

which can be deactivated by touching any

point of the display or by opening the door.

KEEP WARM

1. Select KEEP WARM .

2. Touch the TEMPERATURE button or

the relevant value.

3. Scroll through the values and select the

required cooking temperature (from

60°C to 100°C).

4. Touch the START button to start

the Keep warm function.

When finished, a buzzer sounds briefly,

which can be deactivated by touching any

point of the display or by opening the door.

STONE

1. Open the door.

2. Insert the PPR2 or STONE accessory in

the oven cavity (refer to the specific

manual of the accessory).

3. Close the door.

The microwave power level cannot

be changed by the user.

Ideal function for preparing cakes

and desserts using the microwave.

The microwave power level cannot

be changed by the user.

Ideal function for preparing

popcorns using the microwave.

The microwave power level cannot

be changed by the user.

This function allows you to keep

pre-cooked foods warm.

Useful for on stone cooking. For use

with the PPR2 or STONE accessory

sold separately.

Please refer to the instructions and

recommendations for use described

in the accessory documentation.

USE - 8391477C145/B

4. Select STONE .

5. Scroll through the values and select the

required cooking temperature (from

50°C to 250°C).

6. Touch the START button to start

the Stone function.

7. After preheating, open the door and

place the food to be cooked on the

accessory.

8. Close the door.

When finished, a buzzer sounds briefly,

which can be deactivated by touching any

point of the display or by opening the door.

BBQ (Barbecue)

1. Open the door.

2. Insert the BBQ accessory into the oven

cavity.

3. Close the door.

4. Select BBQ .

5. Scroll through the values and select the

required cooking temperature (from

50°C to 250°C).

6. Touch the START button to start

the BBQ function.

7. After preheating, open the door and

place the food to be cooked on the

accessory.

8. Close the door.

When finished, a buzzer sounds briefly,

which can be deactivated by touching any

point of the display or by opening the door.

AIRFRY

1. Select AIRFRY .

2. Turn the temperature knob to select the

required temperature (from 50°C to

250°C).

3. Touch the START button to start

the Airfry function.

4. When preheating is complete, open the

door and insert the AIRFRY accessory

with the food to be cooked into the oven

cavity.

5. Close the door.

When finished, a buzzer sounds briefly,

which can be deactivated by touching any

point of the display or by opening the door.

SABBATH

This function results in the appliance

operating in a particular way:

• Cooking can proceed indefinitely, it is

not possible to set any cooking duration.

• No preheating will be performed.

• The cooking temperature that can be

selected ranges from 60°C to 150°C.

• Oven light disabled, any operation such

as opening the door or manual

activation will not activate the light.

• The internal fan remains turned off.

• Buzzers disabled.

1. Open the door.

2. Place the dish into the oven cavity.

3. Close the door.

4. Select SABBATH .

5. Touch the TEMPERATURE button or

the relevant value.

As with normal cooking functions,

you can skip pre-heating and set a

timed and programmed cooking.

Useful for barbecue cooking. For use

with the BBQ accessory sold

separately.

Please refer to the instructions and

recommendations for use described

in the accessory documentation.

As with normal cooking functions,

you can skip pre-heating and set a

timed and programmed cooking.

Useful to obtain fried cooking

without oil. For use with the AIRFRY

accessory sold separately.

Please refer to the instructions and

recommendations for use described

in the accessory documentation.

As with normal cooking functions,

you can skip pre-heating and set a

timed and programmed cooking.

Function that allows you to cook

food whilst respecting the

provisions of the Jewish day of rest.

After activating the Sabbath mode

the settings cannot be altered. Any

action on the display buttons will

have no effect.

84 - USE 91477C145/B

6. Scroll through the values and select the

temperature (from 60°C to 150°C).

7. Touch the CONFIRM button to

confirm the selected temperature.

8. Touch the START button to start

the Sabbath function.

To stop the function:

• Touch the HOME button for

approximately 3 seconds.

In the event of a blackout

Following a power failure during a function,

the appliance automatically resumes the

function it was performing, maintaining all

the previous settings and discounting the

time already elapsed of the function only if:

• the duration of the power failure is less

than or equal to 60 seconds;

• the function does not include the use of

microwaves (depending on the model);

• the pyrolytic function is in progress

(depending on the model);

• the Sabbath function is in progress

(regardless of power failure time).

If the power failure occurs in a condition

other than those described above, the

appliance remains waiting for manual

consent to continue or not the function from

the user for a certain time.

If the function is reactivated, the cooking

settings remain as they were before the

blackout, taking into account the time

already elapsed.

If there is no intervention by the user, the

appliance cancels the function and the

display shows the current time again.

Blackout during a programmed function

If the power failure occurs while a

programmed cooking process is set:

• If the blackout is restored within the set

start time, the appliance remains in

standby mode updating the time until

start.

• If the blackout is restored after the set

start time, the device waits for the

function to start and, if after a certain

time there is no intervention by the user,

the appliance cancels the function and

the display shows again the current

time.

Settings

The product configuration can be set using

this menu.

• Touch the SETTINGS button on the

main menu (at the right in the lower

area ).

Connection setting (SmegConnect models

only)

• In the "settings menu " touch the

CONNECTION SETTINGS button.

Clock settings

• In the "settings menu " touch the

(SmegConnect models only) A

notification also appears in the app

when you reconnect.

The symbol indicates that a

power failure has occurred and the

ongoing function could not be

automatically restored. Press the

symbol for more information.

In the event of a temporary power

cut, all personal settings will remain

stored.

Menu where connectivity

parameters are displayed.

For CONNECTION settings

please refer to the "Built-in Oven

Connectivity" manual.

Menu where you can set the time

and type of display.

USE - 8591477C145/B

CLOCK SETTINGS button.

Digital clock

1. Select Digital clock.

2. Select On.

Touch the CONFIRM button to

activate the Digital clock mode.

Time display

1. Select Show the time.

2. Select On.

3. Touch the CONFIRM button to

activate the time display.

Clock format

1. Select Time format.

2. Select 12h or 24h.

3. Touch the CONFIRM button to

activate the required time format.

Oven settings

• In the "settings menu " touch the

OVEN SETTINGS button.

Keep warm

1. Select Keep warm.

2. Select On.

3. Touch the CONFIRM button to

activate the Keep warm mode.

Displays the current time in digital

format.

In the event of a temporary power

cut, the digital version will remain

selected.

Activates/deactivates the clock

display when the oven is switched

off.

The "Show the time" function is

factory set to Off.

If the "Show the time" function is set

to On, when the appliance is in

standby it displays the current time

at low brightness.

When the "Show the time" function

is set to On, the appliance consumes

more energy than in stand-by mode.

Only for SmegConnect models: if the

"Show the time" function is set to Off

the connectivity switches off

automatically when the clock goes

into stand-by.

Activates/deactivates the clock

display in the 12 or 24 hour format.

The Time format function is factory

set to 24h.

Dedicated menu for additional

product functions.

This mode allows the appliance to

keep cooked food warm (at low

temperatures) after cooking finishes

with a cooking cycle for which a

duration has been set (if this is not

manually interrupted), without

altering the taste and smell

obtained during cooking.

The keep warm function will be

activated 5 minutes after cooking

has finished; this is indicated by a

series of beeps (see cooking or

function ended).

The temperature of the keep warm

function is set to 80°C.

86 - USE 91477C145/B

Eco light

1. Select Eco light.

2. Select On.

3. Touch the CONFIRM button to

activate the Eco light mode.

Display settings

• In the "settings menu " touch the

DISPLAY SETTINGS button.

Language

1. Select Language.

2. Scroll through the available languages

to select the required language.

3. Touch the CONFIRM button to

confirm the language.

Controls lock

1. Select Controls lock.

2. Select Yes.

3. Touch the CONFIRM button to

activate the Controls lock mode.

To temporarily disable the lock during

cooking:

4. Touch one of the values that you wish to

modify.

A message appears on the display that

indicates how to temporarily disable the

Controls lock mode.

Touch the icon for 3 seconds.

Sound

1. Select Sound.

2. Select Off.

3. Touch the CONFIRM button to

disable the sound associated with the

touching of the symbols on the display.

For greater energy savings, the

lights inside the oven cavity are

automatically deactivated

approximately one minute after the

start of cooking or after the door is

opened.

To stop the appliance from

automatically deactivating the light

after approximately one minute, set

this mode to Off.

The manual on/off control is always

available. Press the symbol,

when available, to manually

activate the oven light or the

symbol to deactivate it.

The Eco light function is factory set

to On.

Menu where you can change the

language and modify the display

settings of certain parameters.

Allows you to select the language of

the display.

Allows the appliance to

automatically lock the controls after

one minute of normal operation

without any intervention from the

user.

During normal operation, it is

indicated by the indicator light

turning on in the information area

Whenever one of the display

symbols is pressed, the appliance

beeps. This setting disables these

sounds.

USE - 8791477C145/B

Temp e r atu re Format

1. Select Temperature format.

2. Select °C or °F.

3. Touch the CONFIRM button to

activate the required temperature

format.

Display brightness

1. Select Display brightness.

2. Select from the options High - Medium -

Low.

3. Touch the CONFIRM button to

confirm the selection.

Weight type

1. Select Weight type .

2. Select kg or oz.

3. Touch the CONFIRM button to

activate the desired weight unit.

Connection setting (SmegConnect models

only)

• In the “settings menu ” touch the

CONNECTION SETTINGS button (at

the left in the lower area ).

System info

• In the “settings menu ” touch the

SYSTEM INFO button (at the right in

the lower area ).

Showrooms

• Touch the SHOWROOMS button

on the “settings menu ” (at the

centre of the lower area ).

Show Room (for showrooms only)

1. Select Show Room.

2. Select On.

Touch the CONFIRM button

to activate the Show Room

mode

Allows you to set the temperature

scale to degrees Celsius (°C) or

degrees Fahrenheit (°F).

The Temperature format function is

factory set to °C.

This allows the display brightness

level to be selected.

The Display brightness function is

factory set to High.

Allows you to set the unit of

measurement to display the weight

value in kilograms (kg) or in ounces

(oz).

The Weight type function is factory

set to kg.

Menu where connectivity

parameters are displayed.

For CONNECTION settings

please refer to the "Built-in Oven

Connectivity" manual.

Menu displaying information about

serial number and software

versions.

Menu dedicated to showrooms.

This mode deactivates all the

appliance’s heating elements, while

keeping the control panel active.

During normal operation, it is

indicated by the indicator light

turning on in the information area

To use the appliance normally, set

this mode to Off.

88 - CLEANING AND MAINTENANCE 91477C145/B

Demo Mode (for showrooms only)

1. Select Demo Mode.

2. Select On.

3. Touch the CONFIRM button to

activate the demo mode.

Restore settings

• Touch the FACTORY RESET button

on the "settings menu " (at the

centre of the lower area ).

1. Touch the Yes button if you want to

restore the original factory operations.

2. Touch the No button to cancel the

operation.

CLEANING AND MAINTENANCE

Cleaning the appliance

Cleaning the surfaces

To keep the surfaces in good condition, they

should be cleaned regularly after use. Let

them cool first.

Ordinary daily cleaning

Always and only use specific products that

do not contain abrasives or chlorine-based

acids.

Pour the product onto a damp cloth and

wipe the surface, rinse thoroughly and dry

with a soft cloth or a microfibre cloth.

Food stains or residues

Do not use steel sponges and sharp

scrapers as they will damage the surface.

Use normal, non-abrasive products and a

wooden or plastic tool, if necessary. Rinse

thoroughly and dry with a soft cloth or a

microfibre cloth.

Do not allow residues of sugary foods (such

as jam) to set inside the oven. If left to set

for too long, they might damage the enamel

lining of the oven.

Cleaning the external glass

To clean the external glass, use a first dry

cloth and moisten it with the cleaning

product; then finish cleaning with a second

dry cloth, preferably microfibre, to remove

any residue and prevent streaks.

Cleaning the oven cavity

In order to keep your oven in the best

possible condition, clean it regularly after

letting it cool down.

Avoid letting food residue dry inside the

oven cavity, as this could damage the

enamel.

Take out all removable parts before

cleaning.

For easier cleaning, it is recommended to

remove:

• the door;

• The rack/tray support frames.

Drying

Cooking food generates moisture inside the

appliance. This is a normal phenomenon

and does not affect the appliance’s

operation in any way.

Each time you finish cooking:

1. Let the appliance cool down.

2. Remove any dirt from inside the

appliance.

The same as Show Room, when this

mode is activated, after a certain

period of inactivity, a demonstration

of the various screens that illustrate

the potential of the appliance is

shown on the display.

To use the appliance normally, set

this mode to Off.

This restores all settings to the

original factory settings.

The operation also deletes personal

recipes.

See General safety instructions.

If particularly stubborn dirt is

present, it is recommended to use a

degreasing product before carrying

out the above procedure.

In the event you are using specific

cleaning products, we recommend

running the oven at maximum

temperature for 15-20 minutes in

order to eliminate any residue.

CLEANING AND MAINTENANCE - 8991477C145/B

3. Dry the interior of the appliance with a

soft cloth.

4. Leave the door open until the inside of

the appliance has dried completely.

Removing rack/tray support frames

Removing the rack/tray support frames

enables the sides to be cleaned more easily.

A = front housing

B = rear pin

To remove the rack/tray support frames:

1. Unscrew the front fixing pin located on

the side wall near the opening of the

oven cavity (you can help yourself with a

tool, e.g. a coin).

2. Carefully pull the frame towards the

inside of the oven cavity to unhook it

from front housing A.

3. Remove the frame from the rear pin B

located at the bottom of the side wall.

4. Repeat the operation for the frame

placed on the other side wall.

To refit the rack/tray support frames:

1. Slide the rear part of the frame into the

housing under the pin B located at the

bottom of the side wall.

2. Replace the front part of the frame in

housing A on the side wall near the

opening of the oven cavity.

3. Screw in the front fixing pin (you can

help yourself with a tool, e.g. a coin).

4. Repeat the operation for the frame

placed on the other side wall.

In some models, the rear pin B

can be removed and re-

assembled in the same way as

the front housing A.

90 - CLEANING AND MAINTENANCE 91477C145/B

Vapor Clean (on some models

only)

Preliminary operations

Before starting the Vapor Clean cycle:

• Completely remove all accessories from

inside the oven.

• Remove the temperature probe, if

present.

• Remove the self-cleaning panels, if

present.

• Pour approx. 120 cc of water onto the

floor of the oven. Make sure it does not

overflow out of the cavity.

• Spray a water and washing up liquid

solution inside the oven using a spray

nozzle. Direct the spray towards the

side walls, upwards, downwards and

towards the deflector.

•Close the door.

• During the assisted cleaning cycle, wash

the self-cleaning panels (where fitted),

which were previously removed,

separately in warm water and a small

amount of detergent.

Vapor Clean cycle setting

1. Touch the OTHER FUNCTIONS

button on the "main menu" (in the main

area ).

2. Select VAPOR CLEAN .

Vapor Clean cleaning stage

3. Touch the START button to start

the Vapor Clean function.

This stage is indicated by a progressive

increase in cooking.

End of Vapor Clean

At the end of the Vapor Clean function,

"Function ended" is shown on the display

and a buzzer sounds briefly, which can be

deactivated by touching any point of the

display or by opening the door.

1. Touch the HOME button to exit

from the function.

2. Open the door and wipe away the less

stubborn dirt with a microfibre cloth.

3. Use a non-scratch sponge with brass

filaments on hard to remove deposits.

4. In case of grease residues use specific

oven cleaning products.

5. Remove any remaining water from the

oven cavity.

6. Where fitted, reposition the self-

cleaning panels and the rack/tray

support frames.

For greater hygiene and to avoid foods

taking on unpleasant odours:

• we recommend drying the inside of the

oven with a fan-assisted function at

160°C for around 10 minutes.

•Where the self-cleaning panels are

fitted, we recommend drying the oven

cavity with a simultaneous catalytic

cycle.

See General safety instructions.

The Vapor Clean function is an

assisted cleaning procedure that

facilitates the removal of dirt.

Thanks to this process, it is possible

to clean the inside of the oven very

easily. The dirt residues are softened

by the heat and water vapour for

easier removal afterwards.

We recommend spraying approx.

20 times at the most.

Do not spray the deflector if it has a

self-cleaning coating.

If the indoor temperature is higher

than expected, the function is not

activated.

Let the appliance cool down before

activating the function.

The duration and temperature of the

Vapor Clean function cannot be

changed by the user.

We recommend wearing rubber

gloves for these operations.

For easier manual cleaning of parts

that are difficult to reach, we

recommend removing the door.

INSTALLATION - 9191477C145/B

Extraordinary maintenance

Seal maintenance tips

The seal should be soft and elastic.

• To keep the seal clean, use a non-

abrasive sponge and wash with

lukewarm water.

INSTALLATION

Electrical connection

General information

Check the mains characteristics against the

data indicated on the plate.

The identification plate bearing the

technical data, serial number and brand

name is visibly positioned on the appliance.

Do not remove this plate for any reason.

The appliance must be connected to ground

using a wire that is at least 20 mm longer

than the other wires.

The appliance can work in the following

modes:

• 220-240 V~

3 x 1.5 mm² three-core cable.

Fixed connection

Fit the power line with an all-pole circuit

breaker with a contact separation distance

sufficient to provide complete disconnection

in category III overvoltage conditions,

pursuant to installation regulations.

For the Australian/New Zealand market:

The circuit breaker incorporated in the fixed

connection must comply with AS/NZS 3000.

Connection with plug and socket

Make sure that the plug and socket are of

the same type.

Avoid using adapters, gang sockets or

shunts as these could cause overheating

and a risk of burns.

Cable replacement

1. Unscrew the rear casing screws and

remove the casing to access the

terminal board.

2. Replace the cable.

3. Make sure that the cables (for the oven

or any hob) follow the best route in order

to avoid any contact with the appliance.

Positioning

Position of the power cable

Front panel seal

Glue the supplied seal to the rear part of the

front panel to avoid water or other liquids

See General safety instructions.

The values indicated above refer to

the cross section of the internal lead.

The aforementioned power cables

are sized taking into account the

coincidence factor (in compliance

with standard EN 60335-2-6).

Power voltage

Danger of electrocution

• Disconnect the mains power supply.

See General safety instructions.

92 - INSTALLATION 91477C145/B

from leaking in.

Fastening bushings

1. Remove the bushing covers on the front

of the appliance.

2. Mount the appliance into the recess.

3. Secure the appliance to the cabinet

using screws.

4. Cover the bushings with the previously

removed covers.

Appliance overall dimensions (mm)

INSTALLATION - 9391477C145/B

Mounting into a column (mm)

*Make sure that there is a clearance

of approximately 35-40 mm at the

top / back of the unit.

94 - INSTALLATION 91477C145/B

Mounting under worktops (mm)

Amin. 603mm

B 560 - 568 mm

C 445 - 447 mm

D 9 - 11 mm

Emin. 5mm

F 259 - 1105 mm

Gmin. 560mm

Hmin. 458mm

Power cable cut-out (min 6 cm

)

jb Junction box

If the appliance is to be built-in

under a worktop, a wooden bar has

to be installed order to use the seal

that is glued to the back of the front

panel to prevent water or other

liquids leaking in.

*Make sure that the piece of

furniture top/rear part has an

opening approx. 60 mm deep.

INSTALLATION - 9591477C145/B

A min. 603 mm

B 560 - 568 mm

C 445 - 447 mm

D 9 - 11 mm

Emin. 5 mm

F 259 - 1105 mm

G min. 560 mm

H min. 458 mm

Cutout for power cord (min. 6 cm

)

jb Electrical connection box

wb Wooden bar (recommended)

Smeg SO4204M2PS Combi Microwave Oven Compact 45 cm

Product's Documents

User manual EN

Specifications

Smeg SO4204M2PS Questions and Answers

Related Products

Smeg SO4301M1N Combi Microwave Oven Compact 45 cm

Smeg SO4104M2PB3 Combi Microwave Oven Compact 45 cm

Smeg SO4101M1B3 45 cm Combi Microwave Oven Compact

Smeg SF4400MCX1 Compact 45 cm Combi Microwave Oven

Smeg SO4301M1XK Combi Microwave Oven Compact 45 cm

Smeg SO4102M1B3 Combi Microwave Oven Compact 45 cm
