Douk Audio VU3PRO Amplifier/Speaker Selector VU Meter 2-IN-2-OUT Switcher Box

Product's Documents

Below are documents related to this product, you can read online or download:

This is the main product document for model VU3PRO. Additionally, the document applies to other Douk Audio models: XX-VU3-PRO-L-US

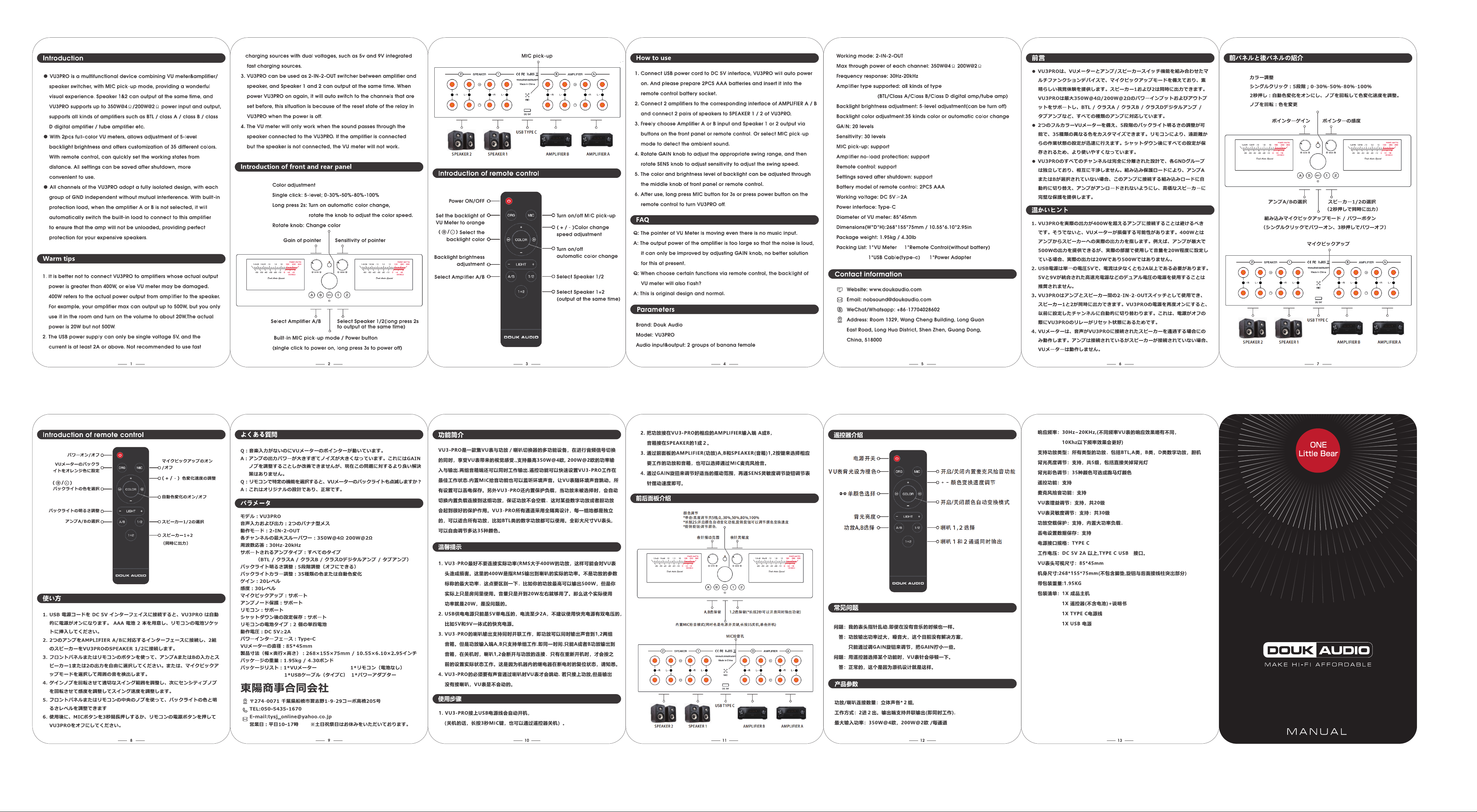

The file format is pdf, 1 pages, you can download this manual here .

File type: PDF

File name: 57547946_vu3pro.pdf

File Language: English

Pages: 1

Author: Douk Audio

Published: 2026-05-27

Updated: 2026-05-27

Source: Directly manufacturer

Model: VU3PRO

Diameter of VU meter: 85*45mm

Dimensions W*D*H: 268*155*75mm / 10.55*6.10*2.95in

Package dimensions W*D*H: 380*220*95mm / 14.96*8.66*3.74in

Net weight: 1.61kg / 3.55lb

Package weight: 2.00kg / 4.41lb

Audio input/output: 2 groups of banana female

Working mode: 2-IN-2-OUT

Max. through power of each channel supported in acutal: 350W@4Ω200W@2Ω

Frequency response: 30Hz-20kHz

Working voltage: DC 5V ≥2A

Power interface: Type-C

Backlight brightness: 5 levels Off-30%-50%-80%-100%

Remote control: Support

Indexed Terms: VU Meter
