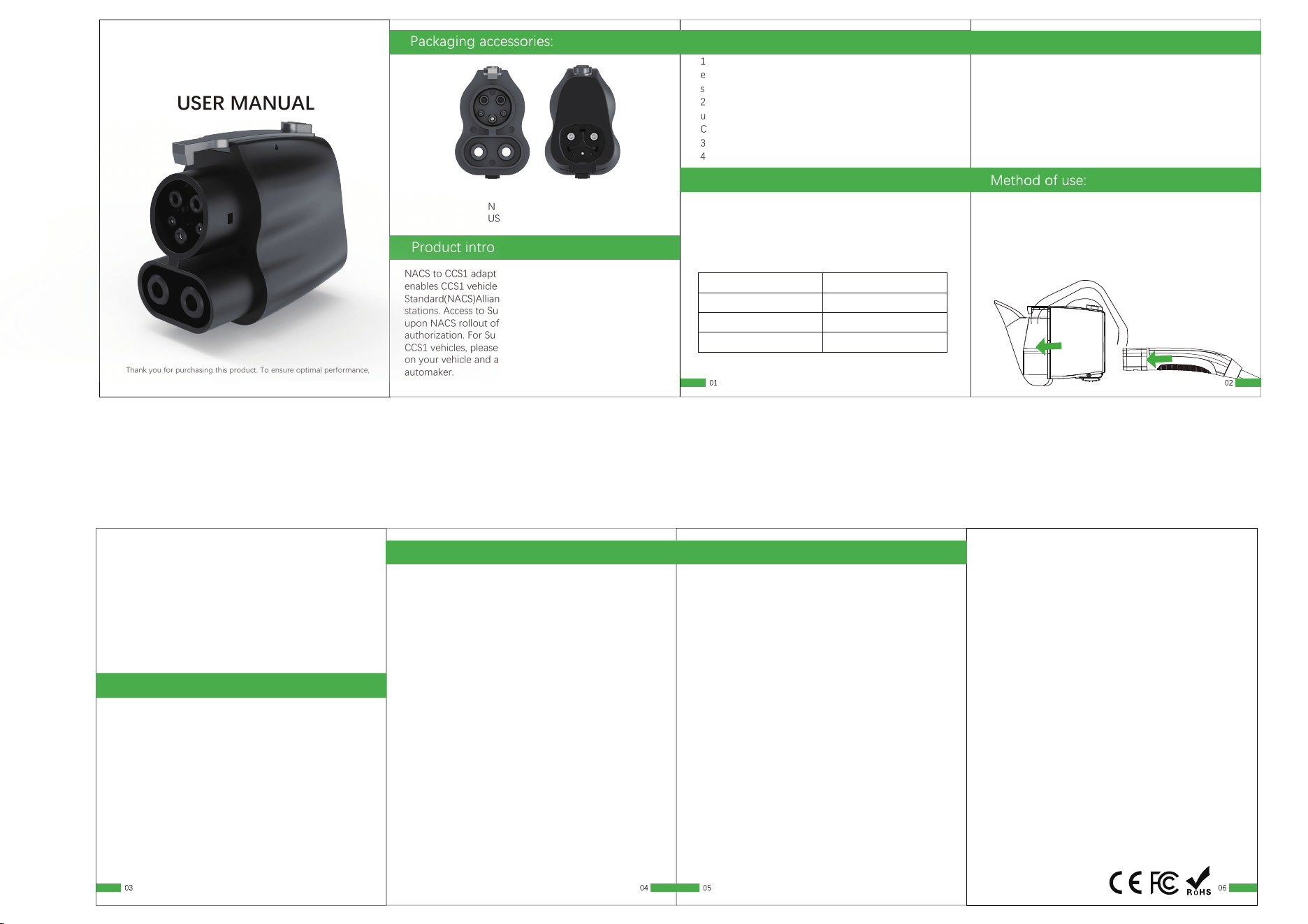

NACS TO CCS1 ADAPTER
USER MANUAL
Model: A-064
NACS-CCS1- Adapterx1
USER MANUALx1
Product introduction:
Product introduction:
Charging Time:
Resolving Faults:
PRESERVATION AND MAINTENANCE:
NACS to CCS1 adapter (NACS-CCS1- Adapter)
enables CCS1 vehicles within the North American , Charging
Standard(NACS)Alliance to access NACS Supercharger
stations. Access to Supercharger stations is , contingent
upon NACS rollout of access and your automaker's
authorization. For Supercharger ports compatible with
CCS1 vehicles, please reach out to NACS. For further details
on your vehicle and access availability, kindly contact your
automaker.
Product Features
1.Convert your NACS DC charger into a CCS1 charger,
enabling your CCS1 EV to charge at TSL charging DC
stations, with a maximum output power of up to 250kw.
2.For use with NACS Supercharger Only. Not suitable for
use with WalI Connectors, Destination Chargers, Mobile
Connectors, or any other EV chargers.
3.Easy installation without any modification.
4.High-quality materials, sturdy, and durable.
Only suitable for connecting NACS 500V-1000V charger
and CCS1 electric vehicles.
Note: NACS supercharger station is not available for all
non-NACS models so far. lf you want to know whether your
car supports the useof NACS supercharger station, please
consult your automaker for details.
Operating Voltage
Enclosure Rating
Operating Temperature
Storage Temperature
DC 500-1000V 250KW max
IP54
-22°F to +122°F
-35°F to+185°F
CAUTlON: Do not use or store the NACS-CCS1-Adapter
outside the temperature range listed above.
Charging time varies depending on the Supercharger station,
electricvehicle specifications, environmental conditions, and
battery temperature The Vortex Plug includes built-in
temperature monitoring. Chargingpower may decrease if the
terminal exceeds 122°F. Operation shutsoff if the charging
coupler reaches 140°F.lf you encounter operationshut off,
please email for assistance.
CAUTION: RISK OF ELECTRIC SHOCK AND FIRE.DO NOT
USE THIS PRODUCT IF THERE IS ANY DAMAGE TO THE EV
CABLE.THE VEHICLE CONNECTOR OR THE VEHICLE INLET.
CAUTION: RISK OF FIRE. THIS ADAPTER IS NOT INTENDED
FOR CHARGING EQUIPMENT OPERATING IN DYNAMIC
CURRENT CONTROL MODE.
1. Insert the tip of the NACS charging cable into the NACS
connector.
2. Plug the NACS-CCS1-Adapter into your vehicle, waiting
for the latchto secure it in place.
3.Follow the charging station's instructions to initiate the
chargincsession.Confirm the charging progress on your
vehicle's touch screen.
If your vehicle experiences charging issues with the NACS-
CCS1-Adaptercheck your vehicle's display for error
information. Always verify thecharging station status.
While the adapter is designed for use with aII NACS
charging stations, some in compatibilities may exist due to
ongoing improvements aimed at ensuring compatibility
with the widestrange of charging stations possible.
NOTE: When reporting a charging problem, please provide
the brand, model, and location of the charging station.
To ensure the safety and ease of use of your Tesla charging
adapterhere are some recommended storage and
maintenance methods.
1.Avoid heavy pressure: When not using the EV adapter,
please placeit in the storage bag and do not place other
items on the chargincadapter to avoid damage
2. Clean and dry: Please ensure that the charging adapter
is alwaysclean and dry to avoid corrosion or damage.
3. Avoid direct sunlight: Storing the charging adapter in a
cool and dryplace to avoid direct sunlight can help extend
its service life.
4.Suitable storage temperature: The place where the
charging adapteris stored should have appropriate
temperature control. Avoid extremeemperature differences
to avoid affecting its performance.
5. Reqular inspection: Regularly inspect the appearance of
the charging adapter, paying attention to any issues such
as wear, damage.
SAVE THESE IMPORTANT SAFETYINSTRUCTIONS
This document contains important instructions
and warnings that must be followed when using
the NACS-CCS1-Adapter.
WARNING: High Voltage.Handle with Care. Ensure proper
connection before use.Risk of electric shock and serious
injury.For use with Tesla superchargers only.Misuse may
result in damage and safety hazards.
WARNING: Do not use the NACS-CCS1-Adapter if it is
defective, appears cracked, frayed, broken or other wise
damaged, or fails to operate.
WARNING: Do not attempt to open, disassemble, repair
tamper with, or modify the NACS-CCS1-Adapter. The
adapteris not user serviceable. Contact seller for any repairs.
WARNING: Do not disconnect the NACS-CCS1-Adapter
while charging the vehicle.
WARNING: To prevent damage to the NACS-CCS1-Adapter
or any components, handle with care when using or
transporting it. Do not subject it to strong force or impact
or do not pulI twist, tangle, drag or step on it.
WARNING: Protect the NACS-CCS1-Adapter from moisture
water and foreign objects at all times. lf any exist or appeal
to have damaged or corroded the NACS-CCS1-Adapter, do
not use the NACS-CCS1-Adapter.
WARNING: Do not touch the NACS-CCS1-Adapter's end
terminals with sharp metallic obiects, such as wire, tools or
needles.
WARNING: Do not damage the NACS-CCS1-Adapter with
sharp objects.
WARNING: Do not insert foreign objects into any part of the
NACS-CCS1-Adapter.
WARNING: Ensure that the charge cable and the NACS-CCS1
-Adapter do not obstruct pedestrians or other vehicles or
objects.
WARNING: Use of the NACS-CCS1-Adapter may affect or
impair the operation of any medical or implantable electronic
devices, such as an implantable cardiac pacemaker or an
implantable cardioverter defibrillator. Check with the
electronic device manufacturer concerning the effects that
charging may have on such electronic device before using
the NACS-CCS1-Adapter.
WARNING: Do not use cleaning solvents to clean the NACS-
CCS1-Adapter. lf you have any questions or concerns about
your NACS-CCS1-Adapter, contact seller.
Thank you for purchasing this product. To ensure optimal performance,
please carefully review this manual before use.
