XS12s Parameters / Specifications
Specifications/Caractéristiques/Espicificaciones
Power Handling (RMS)....................................
Power Handling (Peak)..................................
Frequency Response................................
Efficiency........................................
.....................................
Voice Coil Diameter..................................
Impedance.....................................................
Nom. Diameter......................................
Outer Diameter...................................
Cutout Diameter.................................
Mounting Depth.............................
350W
1400W
25-250Hz
93dB (1W in car)
90dB (2.0V/1m)
2” (50mm)
4 Ohm
12” (305mm)
12.48” (317mm)
11.0” (2
79mm)
5.03” (128mm)
Thiele-Small Parameters/Parámetros/Paramètres
Fs...................................................................... 28Hz
Qts.....................................................................0.452
Qes....................................................................0.512
Qms.................................................................... 3.90
Vas...................................................................3.95ft
3
BL.....................................................................10.85
Revc...........................................................
3.2 Ohm
Xmax (linear)....................................+/-10mm/0.40in
• 2” High Temperature (Aluminum Former) Voice Coil w/ 10mm Xmax
• Heavy Duty Motor Structure (Bumped and Vented) w/ 40 oz Magnet
• Power Handling: 350 Watts RMS, 1400 Watts Peak
• Sensitivity (2.0V/1M): 90dB
• Treated Parabolic Paper Fiber Cone
• Nitrile Rubber Surround for Excellent Damping
• Nomex-Reinforced Spiders for Excellent Linearity
• Optimized Magnet System for Deep Bass Performance
• Optimized “Q” for Closed and Ported Enclosures
• Low-Resonance Steel Basket
Caractéristiques Principales
Key Features
Características Principales
• 2 "Alta Temperatura (ex aluminio) de la bobina de voz w / 10mm
Xmax
• Estructura de Altas Prestaciones Motor (Bumped y ventilación) w /
40 oz imán
• Manejo de potencia: 350 vatios RMS, 1400 vatios de potencia
máxima
• Sensibilidad (2.0V / 1M): 90dB
• Cono de fibra de papel tratado parabólico
• Caucho de nitrilo Surround para una amortiguación excelente
• Las arañas reforzado con fibra de Nomex para una excelente
linealidad
• Imán sistema optimizado para un rendimiento Deep Bass
• Optimizado "Q" de Recintos cerrados y portado
• Bajo Resonancia acero Basket
• 2 "Haute Température (Aluminium Ancien) Voice Coil w / 10mm
Xmax
• Structure de Heavy Duty Motor (Bumped et Ventilé) w / 40 Magnet
oz
• Puissance: 350 Watts RMS, 1400 Watts crête
• Sensibilité (2.0V / 1M): 90dB
• Traitée Parabolique Paper Fiber Cone
• Surround caoutchouc nitrile pour un excellent amortissement
• Spiders Nomex-renforcés pour une excellente linéarité
• Magnet System Optimisé pour Deep Bass Performance
• Optimisé "Q" pour boîtiers fermés et Ported
• Low-Resonance Panier en acier

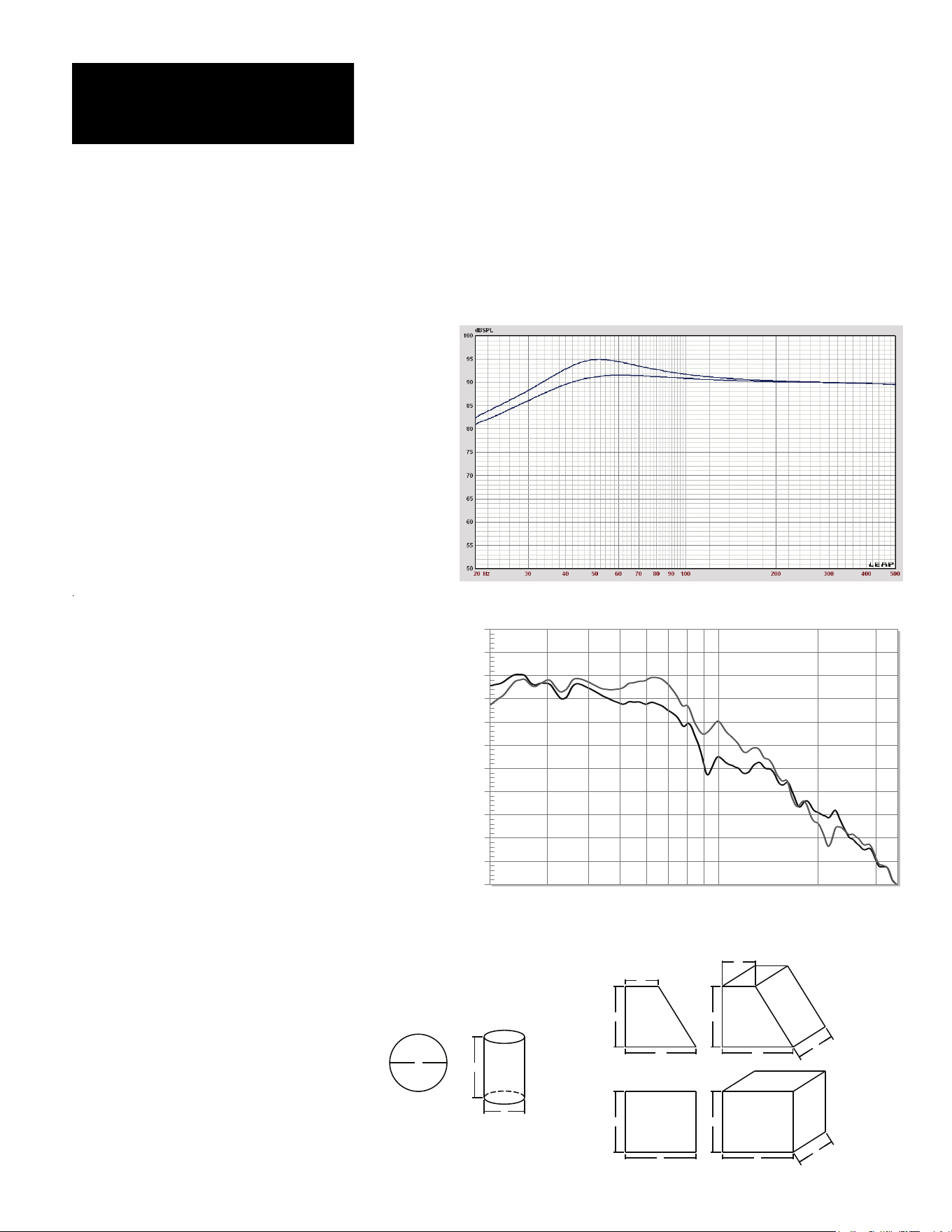

Recommended Enclosure Dimensions
Attention
• Use 3/4” MDF
• Use wood glue in joints
• Use screws every 4 inches
• Seal cracks inside box
• Dimensions are external
Attention
• Utilisez avec MDF de 3/4”
• Appliquez de la colle à bois
dans les onglets
• Placez les vis tous 4”
• Bouches les fissures à
l’intérior de la boîte
• Les dimensions indiquées
sont celles à l’extérieur
Atención
• Use una tabla de MDF
de 3/4”
• Use pegamento para
madera en las uniones
• Use tornillos cada 4”
• Selle las grietas adentro
de la caja
• Dimensiones externas
Common Math
Trapezoid Area = H x (D1+D2)/2
Trapezoid Volume = H x (D1+D2)/2 x W
Rectangle Area = H x D
Rectangular Box = H x W x D
Circle Area = 0.79 x D x D
Port Volume = 0.79 x D x D x H
Common Conversions
Cubic Feet = Cubic Inches / 1728
Cubic Feet = Liters / 28.3
Liters = Cubic Feet x 28.3
Inches = Meters x 2540
Square Inches = Square Feet / 144
H
D
H
D
W
H
W
D
H
D2
D1
H
D2
D1
W
1.5ft
3
Ported
1.25ft
3
Sealed
KLIPPEL
55
60
65
70
75
80
85
90
95
100
105
110
50 100 200
dB - [V] (rms)
Frequency [Hz]
Sealed Enclosure
Fill all sealed enclosures loosely (8 oz per cubic foot) with
polyester batting or similar material for best bass performance
Good
Enclosure Volume (Internal) = 0.75 ft
3
(Vb)
Example Dimensions: 14”H x 12.5”W x 12”D
F3 = 45Hz, Qtc = 1.25
Better
Enclosure Volume (Internal) = 1.00 ft
3
(Vb)
Example Dimensions: 14”H x 16”W x 12”D
F3 = 42Hz, Qtc = 1.1
Best
Enclosure Volume (Internal) = 1.25 ft
3
(Vb)
Example Dimensions: 14”H x 19.25”W x 12”D
F3 = 39Hz, Qtc = 1.0
Vented Enclosure
Line four walls of vented enclosures with 2” thick polyester
batting or similar material for best bass performance
Good
Enclosure Volume (Internal) = 1.0 ft
3
(Vb)
Example Dimensions: 14”H x 16.0”W x 12”D
Port: 3” Inside Diameter (ID) x 13” Long
FB = 35Hz, F3 = 39Hz
Better
Enclosure Volume (Internal) = 1.25 ft
3
(Vb) Example
Dimensions: 14”H x 19.25”W x 12”D Port: 3” Inside
Diameter (ID) x 12.5” Long
FB = 32Hz, F3 = 36Hz
Best
Enclosure Volume Internal = 1.50 ft
3
(Vb)
Example Dimensions: 14”H x 22.5”W x 12”D
Port: 3” Inside Diameter (ID) x 11.5” Long
FB = 30Hz, F3 = 33Hz
