User Manual
4″ Slim Downlight
SKU: DL_SL4-10W
Slim Downlight
Wire NutsInstallation Template
Light Fixture
Wire Clamp
Hole Saw
Ladder
Wire Strippers
1
Junction Box
x1
x1
x1
x3

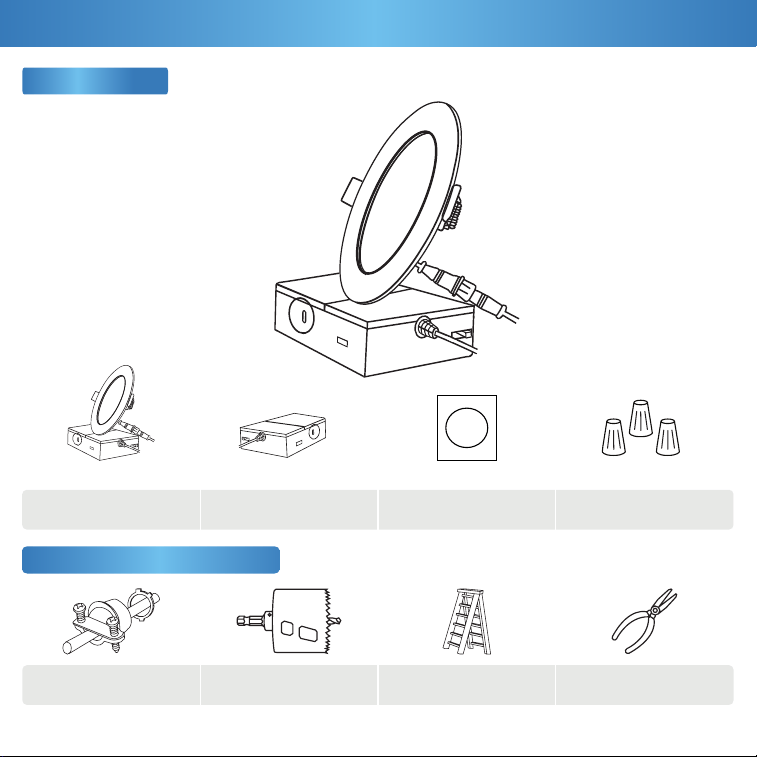

What’s in the Box
Get Your Gear (Not Included)
A B C D

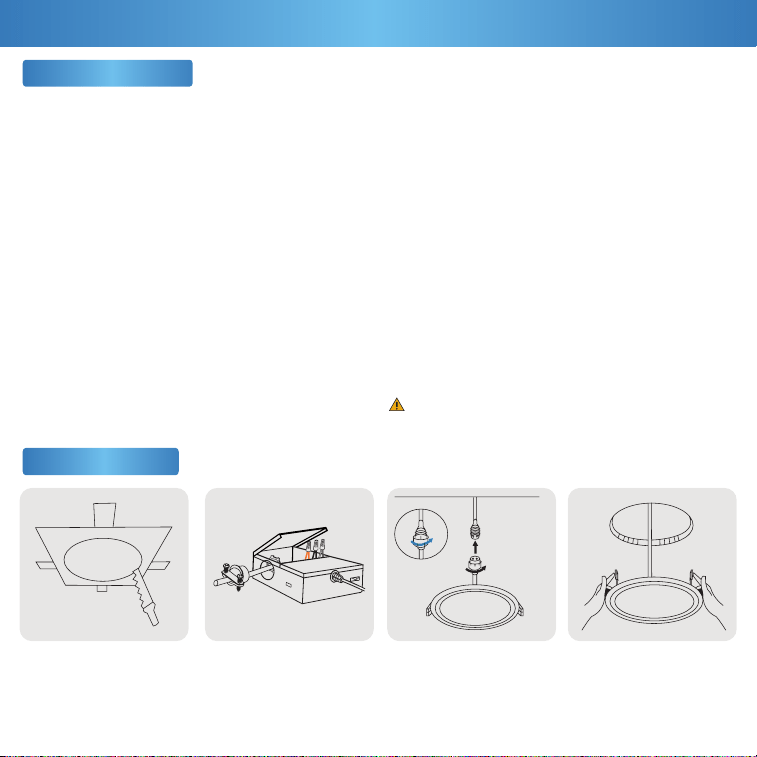

Use template to cut
hole.
Attach xture to
junction box.
Connect supply &
junction wires.
Insert xture into
ceiling.
Step 1 Step 2 Step 3 Step 4
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1.) This device may not c ause harmful interference.
2.) This device must accept any interference that may cause
undesired operation. Please review all instructions carefully
prior to installation.
1
2
• Turn o circuit breaker before installing this xture.
• This product should be installed by a person familiar with the
construction and operation of the product the hazards
involved. Safety eyeglasses and gloves are recommended.
• Abide by related regional and local laws or regulations.
• Proper grounding is required to ensure safety.
• Do not alter, relocate, or remove wiring during installation.
• Do not make or alter any open holes in wiring enclosure or
electrical components during installation.
• Check for shipping damage before installing. If the product is
damaged, do not use it.
• Keep xture away from corrosive substances.
• Suitable for damp locations at temperature ranging from -4°F
to 113°F. Not for use where directly exposed to water.
• Clean the xture regularly to ensure proper operation. Do not
clean with harsh solvents.
• Use safety precautions and abide by regional and local laws
or regulations.
• This product is not compatible with 3rd party sensors.
• This product is not compatible with photo controls.
• This product is not compatible with occupancy sensors.
• This product is not compatible with timing devices.
To reduce the risk of fire, electric shock, or physical injury:
Safety Information
Quickstart Guide
2
Before You Start
WARNING:
Cancer & Reproductive Harm- www.P65Warnings.ca.gov
4.33”

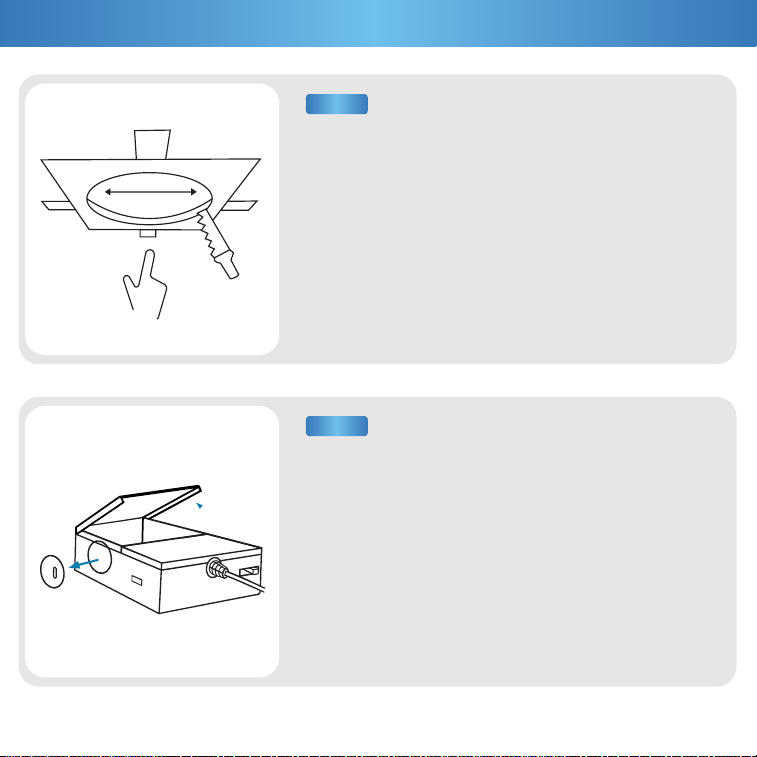

a. Turn off circuit breaker before installation.
b. Cut out 4.33” housing size on Installation Template (C),
then tape onto ceiling in desired location.
c. Cut ceiling hole using Installation Template (C) as
a guide.
a. Open Junction Box (B) and remove appropriate
knockout.
Knockout
3
Installation Guide
STEP 1
STEP 2
B
C
4
Installation Guide (Cont.)

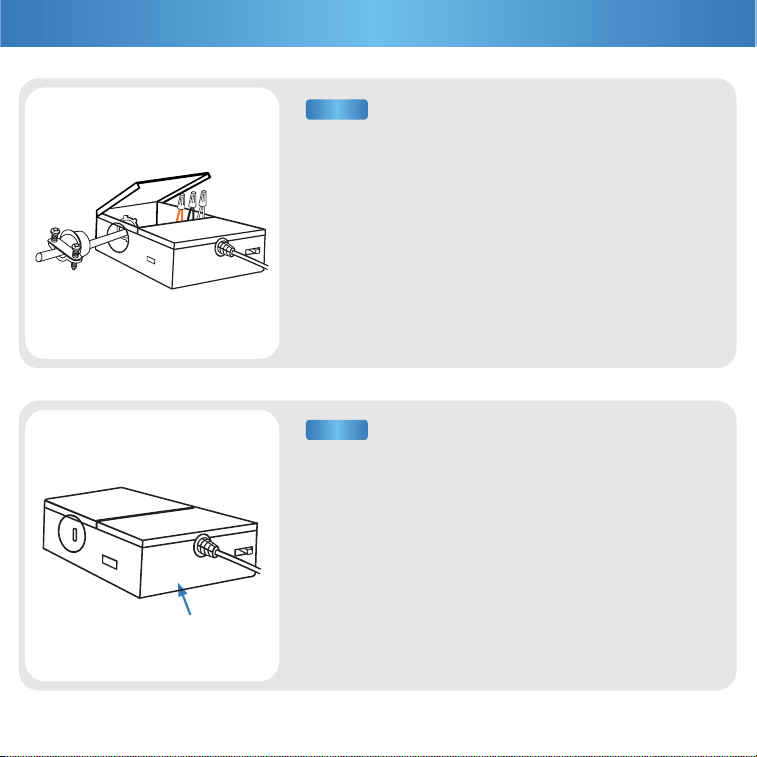

a. Thread cable connector through J-Box knockout,
secure wires with screws, then connect cable connector
on opposite side.
b. Connect supply wires with junction wires using wire
nuts (D):
Black to Black (Live) • White to White (Neutral) • Bare
Copper to Bare Copper (Ground)
c. Tuck connected wired inside junction box and close
the cover.
For selectable models:
Slide CCT switch to select desired color temperature.
Insert junction box through ceiling hole.
New Construction: Secure to studs, joists, or similar fixed
structural units.
Remodel: Do not require to secure to studs, joists, or similar
fixed units.
B
D
STEP 3
STEP 4
Installation Guide (Cont.)

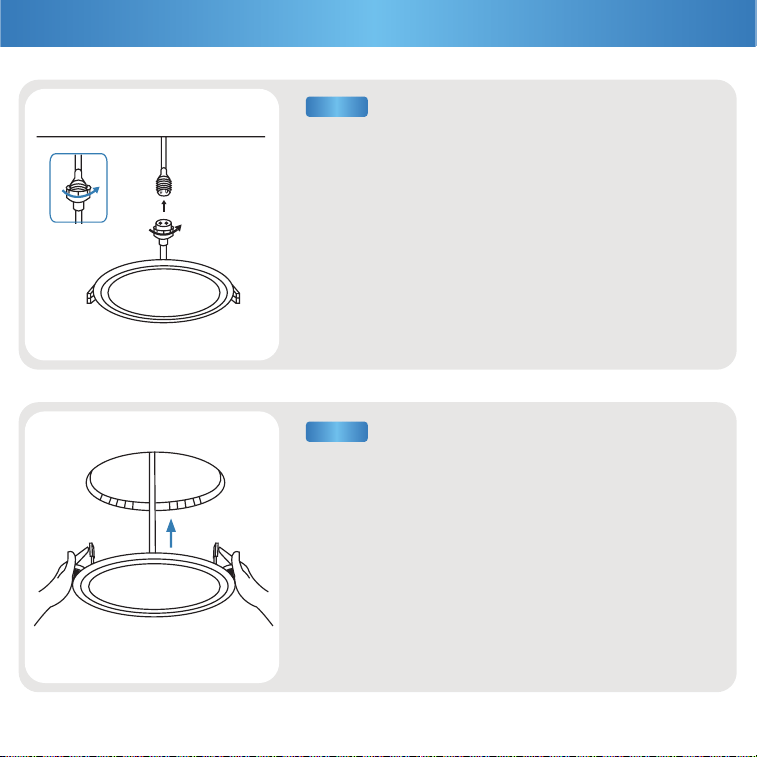

a. Attach fixture to junction box using connector (1).
b. Tighten connector by hand (2).
a. Push up spring clips and insert fixture into ceiling.
b. Turn on circuit breaker and test light.
1
2
5
STEP 5
STEP 6
Voltage
Wattage
Beam Angle
Weight
Housing Material
Dimmable
120 V
10 W
120°
0.52 lbs
Plastic + Metal J-Box
YES
50,000 Hours
700 lm
Damp Rated
80+
Indoor
7 Years
Average Lifetime
Lumens
Moisture Rating
CRI
Usage
Warranty
Brand
Model
LUTRON
P-PKG1WB-WH
PD-6WCL-WH
AYCL-153P-WH
DVCL-153P-WH
D26HD-2RW
HS220
HS220P3
LUTRON
LEVITON
KASA SMART
KASA SMART
MACL-153M-WH
Recommended Dimmers
Specifications
6
Product Details
LUTRON
LUTRON
LUTRON
Scan for the full
compatible dimmer list!
Feeling in the dark about an issue with your product? No worries!
Our troubleshooting section is here to shed some light and
provide you with easy-to-follow solutions for any problem. If you
Light unexpectedly fails.
Light not dimming to lowest setting.
Fixture buzzing with appliances or electronic devices.
Fixture buzzing when dimmed.
Look for nearby interferences that can cause buzzing.
Such as televisions, radios, computers, etc.
Light not dimming smoothly.
Light ickering with other lights on the same circuit.
Check that the lights on the same circuit are not
overloading the circuit.
Light ickering when turned on.
Light ickering when dimmed.
Verify dimmer switch compatibility.
Double check if xture is properly connected and
circuit breaker hasn’t been tripped.
Check light-dimmer compatibility. Consider purchasing
compatible switch if necessary.
Verify dimmer compatibility with xture.
Light isn’t turning on.
Light not compatible with dimmer switch.
Fixture buzzing with power outages. Verify light is connected to surge protector securely.
Verify dimmer switch compatibility.
Verify xture compatibility.
Light is ickering when turning on.
Check that xture wiring connections are secure.
For further assistance, contact our customer support.
Ensure minimum dimmer load requirement is met.
still need some assistance, please feel free to contact us
with any questions. Our team of lighting experts are happy to
help brighten your day.
Installation
7
Common Troubleshooting
Dimming
Flickering
Buzzing
UNIT:cd
AVERAGE BEAM ANGLE (50%): 120.2 DEG

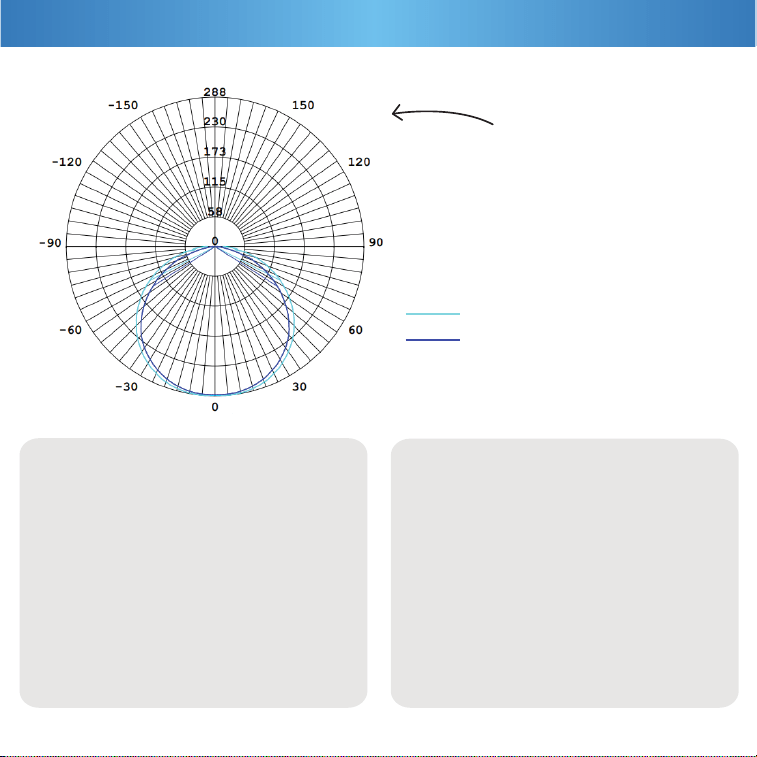

Luminous Intensity Distribution 1
