amplifier board
Model：ZK-1001U
Product parameters
Brand: Wuzhi Audio
Model: ZK-1001U
Name: Mono 100W BT amplifier module with bass and treble
Amplifier chip: TPA3116D2
BT version: 5.3
BT transmission distance: 15m
Audio input: BT+AUX+USB disk+USB sound card
Audio output: Mono 100W
Adaptive power supply: DC9-24V, ≥ 4A (cannot be connected to AC power), suitable for batteries such
as 7.4V12V21V, not suitable for 24V batteries, fully charged will cause overvoltage.
Adaptive speaker: 20-100W, 3-8Ω
Volume control: Total volume with button
Click: Play/Pause，Double Click: Next，Three Click: Enter or Exit TWS mode，Long press: Turn Off/On
Protection mechanism: Input anti-reverse connection，Over temperature, over-current, short circuit
Characteristic feature: Box matching function, the true wireless function enables the two sets of
speakers to be combined into left and right channel boxes, with a stronger sense of spatial positioning.
Product size: 99x75x22.8mm
Product weight: Net weight 82g， Weight with package 106g
Product size
Power input DC9-24V
(DC female socket
5.5 * 2.1), or wiring
terminal

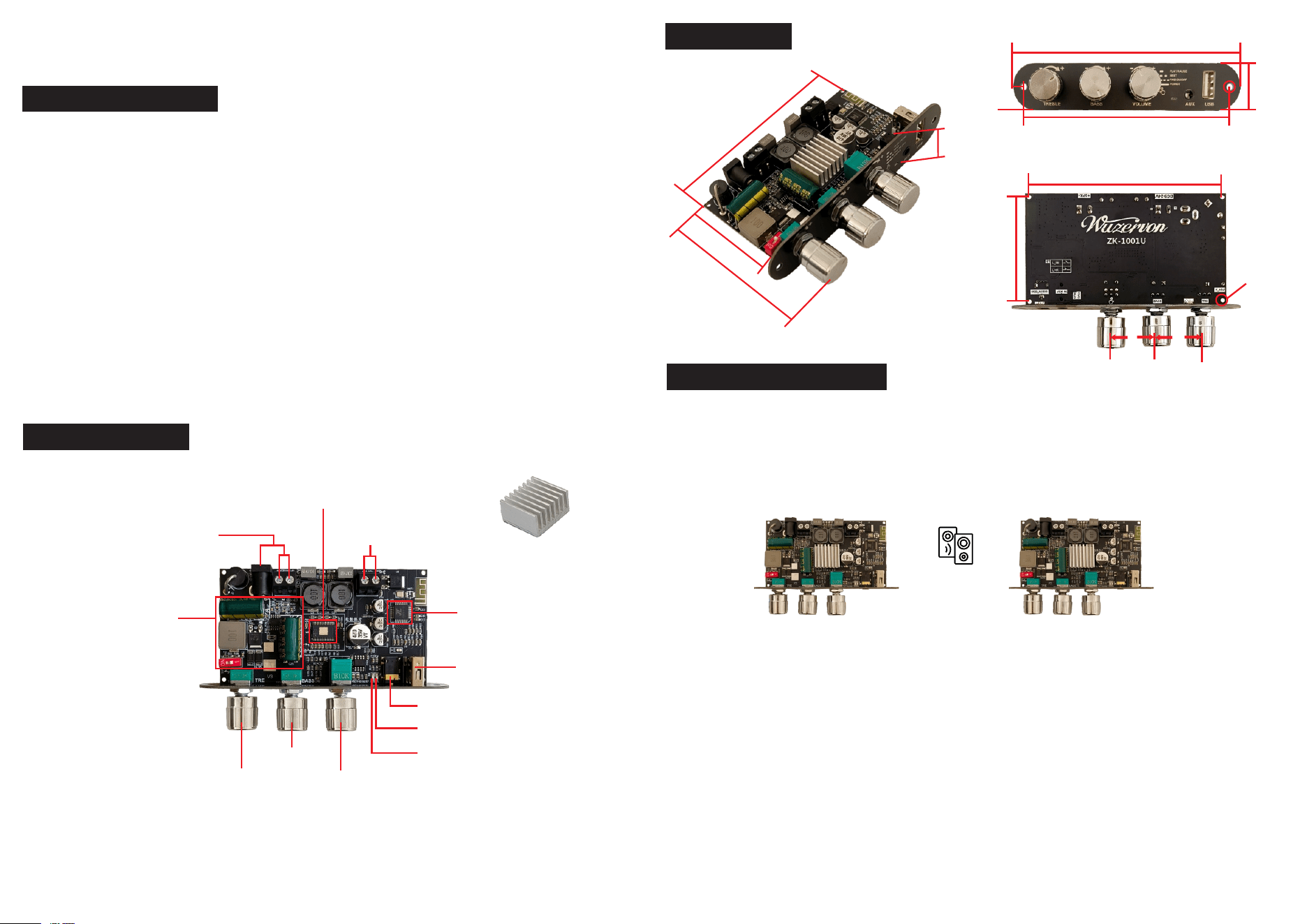

Product function
9
9
m
m
Box matching function
Boost circuit section
You can choose to boost the
voltage to 19V or 24V to meet
the needs of speakers with
different powers.
The default voltage is 24V
when it leaves the factory
Treble adjustment
Bass adjustment
Multi-Function buttons
TWS blue indicator light
The work indicator light is red
AUX input
USB drives support MP3/
WMA/WAV/FLAC/APE formats
BT 5.3 chip
Increase the size of the heat
sink (with adhesive backing)
Connect the speaker
Original imported TPA3116D2
(The heat sink is attached to the chip)
Low latency, supports AAC
decoding, supports TWS
Click: Play/Pause
Double click: Next track
Triple tap: Enter or exit TWS mode
Long press: Power on/off
5
5m
m
75
m
m
22.8mm
115.5mm
22.8mm
105mm
11.4mm
5.4mm
φ3.2mm
95.5mm
55mm
φ2.2mm
23mm
23mm
You need to buy two sets of power amplifier boards to form a matching box
This product is very suitable for DIY simple mono amplifiers, with built-in boost circuits, and is very
suitable for upgrading or producing battery powered outdoor speakers, telescopic speakers, and
mobile speakers.
After TWS interconnection, two independent speakers instantly become left and right channel stereo
speakers, achieving true wireless connection.
Box
matching
function
Left speaker Right speaker
Introduction to box matching function and operation
1.Turn on two power amplifiers of the same model.
2.Select a power amplifier at will, and press the total volume knob with key function inwards three times. At this time,
the blue TWS indicator flashes, and the other power amplifieris automatically paired with it as a stereo combination.
(if the pairing is not successful within 15 seconds, the pairing mode will be canceled automatically. You can try again
by pressing the key three times.)
3.If the pairing is successful, the selected one will be assigned to the left channel, and the blue indicator will always
be on. The other one is the right channel, and the blue indicator will flash slowly.
4.The next time you start the machine, you will automatically find the right box. If you want to cancel the box matching
mode, you only need to select a power amplifier and press the button three times.
