1000W/2000W/3000W
DC TO AC
POWER INVERTER
Version 1.6

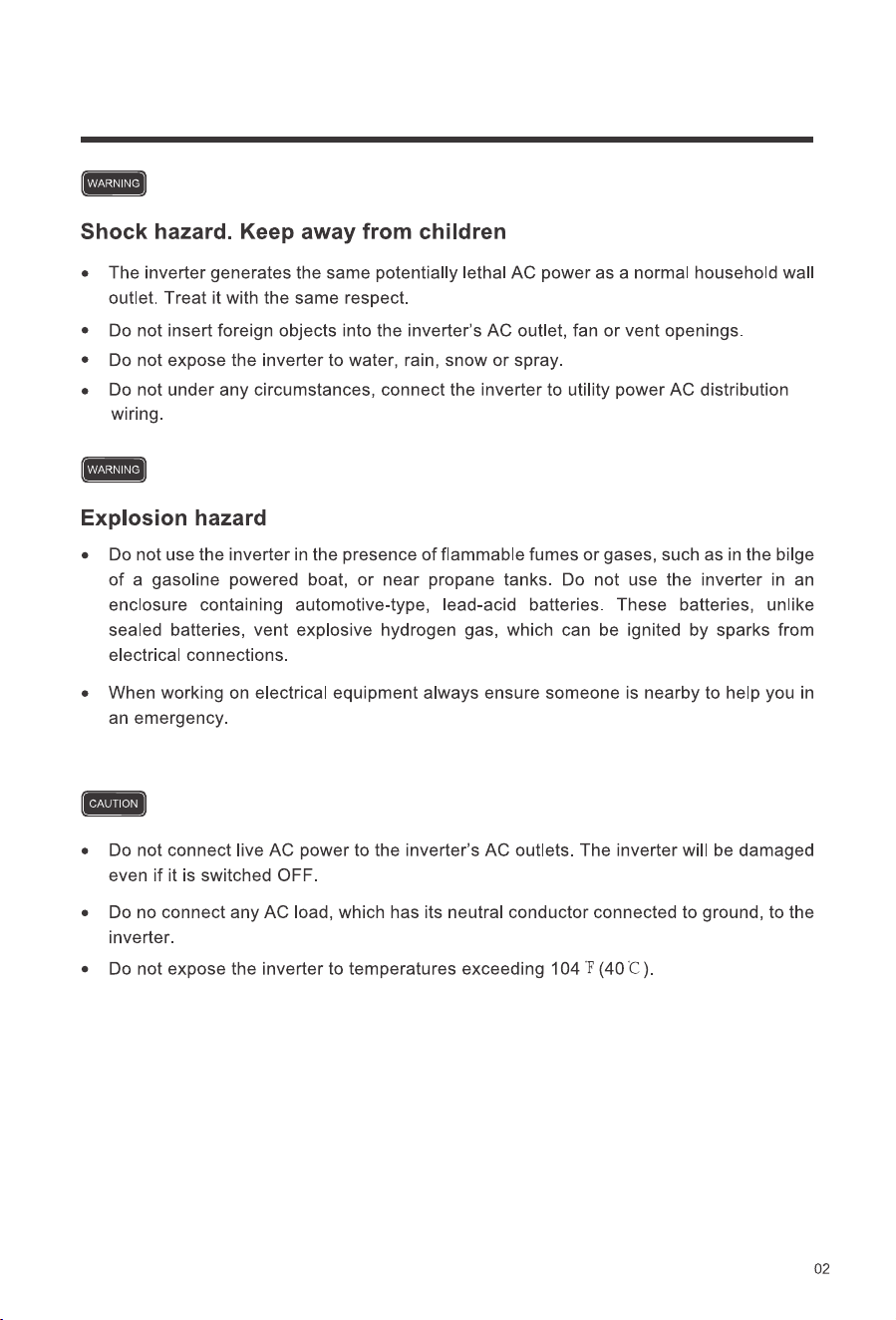

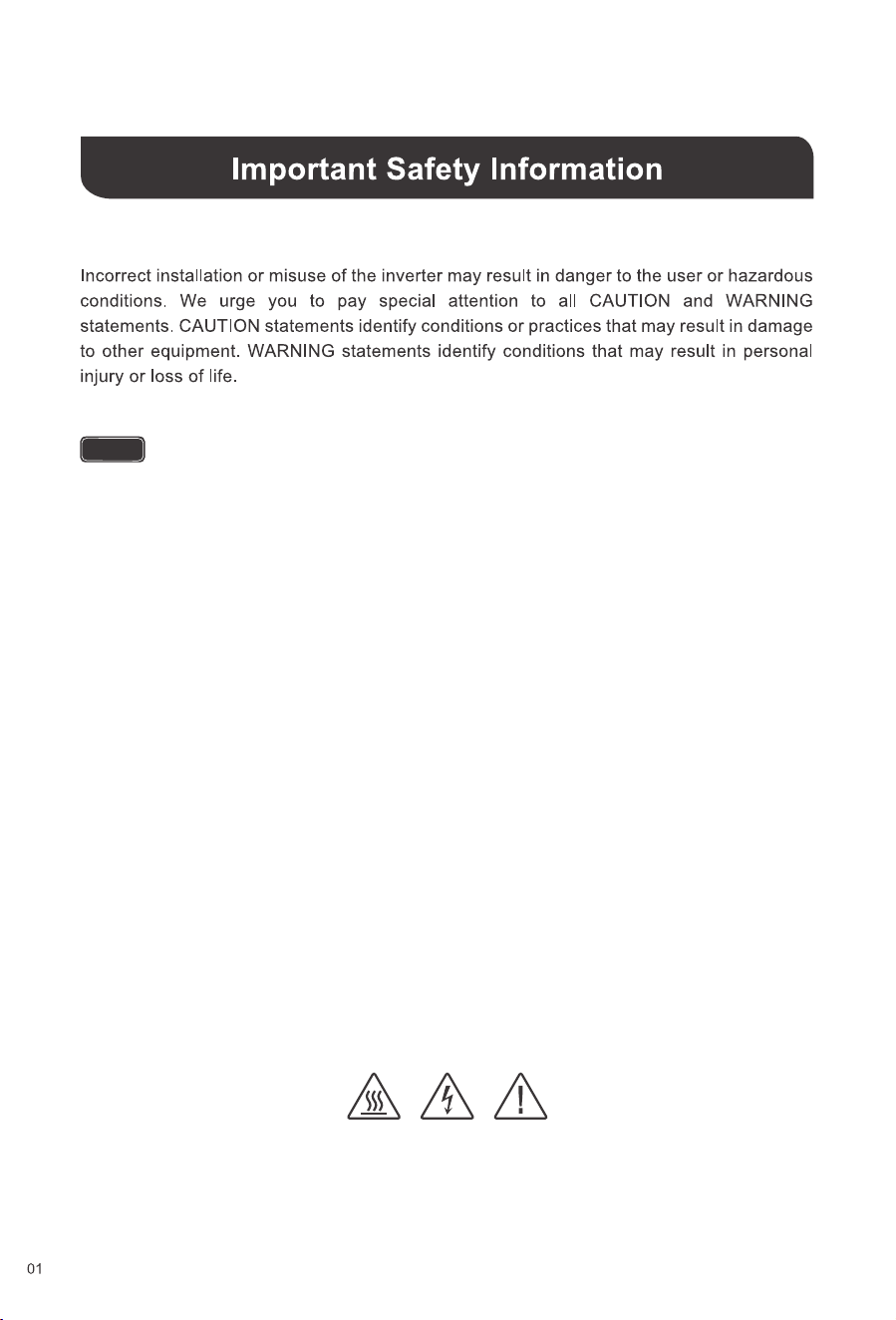

HAZARDOUS OF ELECTRIC SHOCK EXPLOSION OR ARC FLASH This equipment must
only be installed and serviced by qualified electrical personnel.
Servicing of batteries must only be performed by qualified personnel knowledgeable of
batteries and the required precautions. Keep unqualified personnel away from batteries.
Failure to follow these instructions will result in death or serious injury.
— Always use a properly rated voltage sensing device to confirm power is off.
— Replace all devices, doors, and covers before turning on power to this equipment.
— batteries can present a risk of electric shock, high short-circuit current and exposure
gases and chemicals.
— The following precautions must be observed when working with batteries.
— Remove watches, rings or other metal objects.
— Use tools with insulated handles.
— Do not lay tools or other metal parts on top of batteries.
— Disconnect the charging source prior to connecting or
— Note that the surface temperature of the product is too high to prevent burns.
disconnecting battery terminals.
DANGER
Elevation. The product is installed and used at an altitude of less than 2,000 m.
Avoid side and top foreign material from falling inside the device.

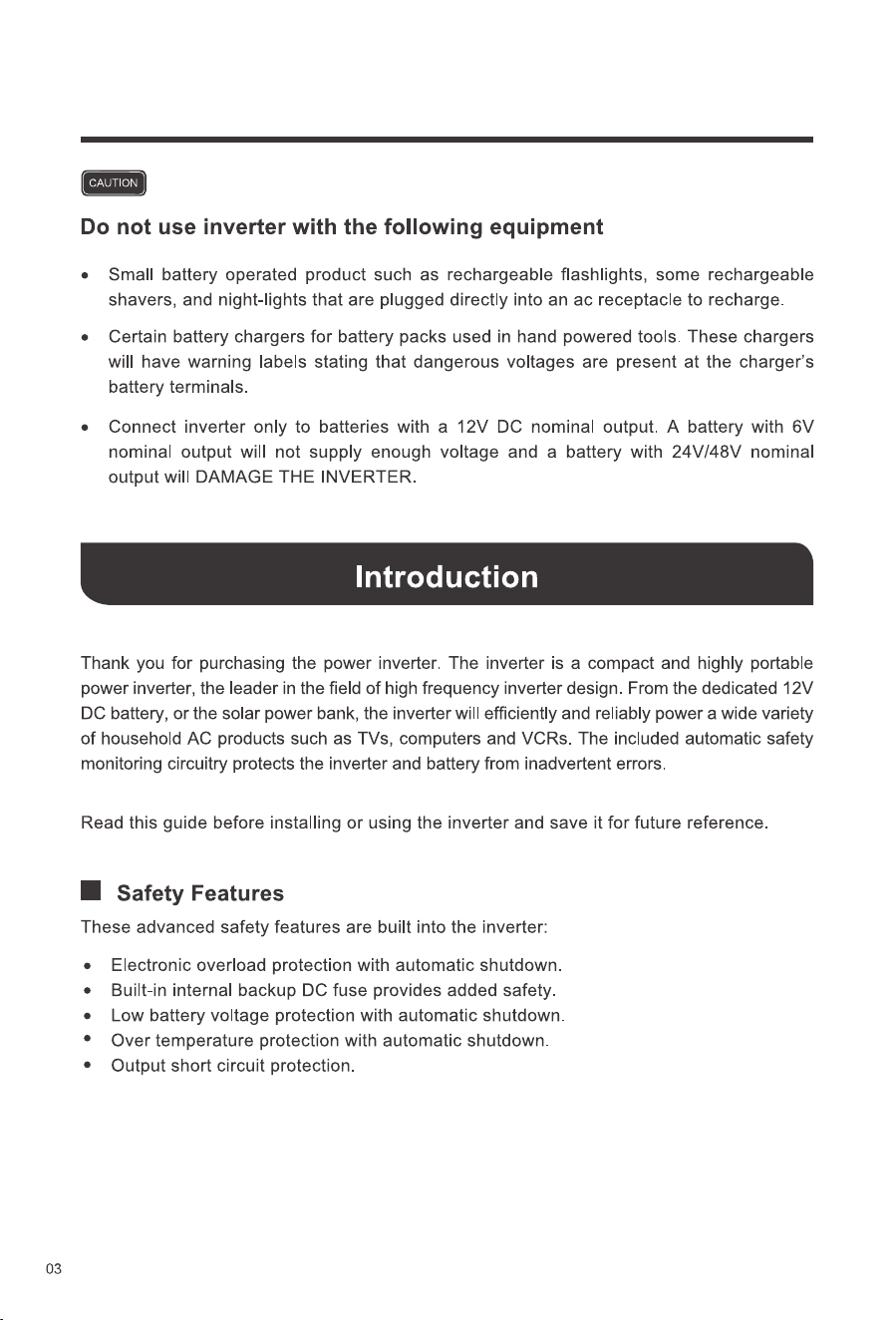

Use only sealed lead-acid, flooded, lithium battery, or gel batteries which must be deep
cycle.

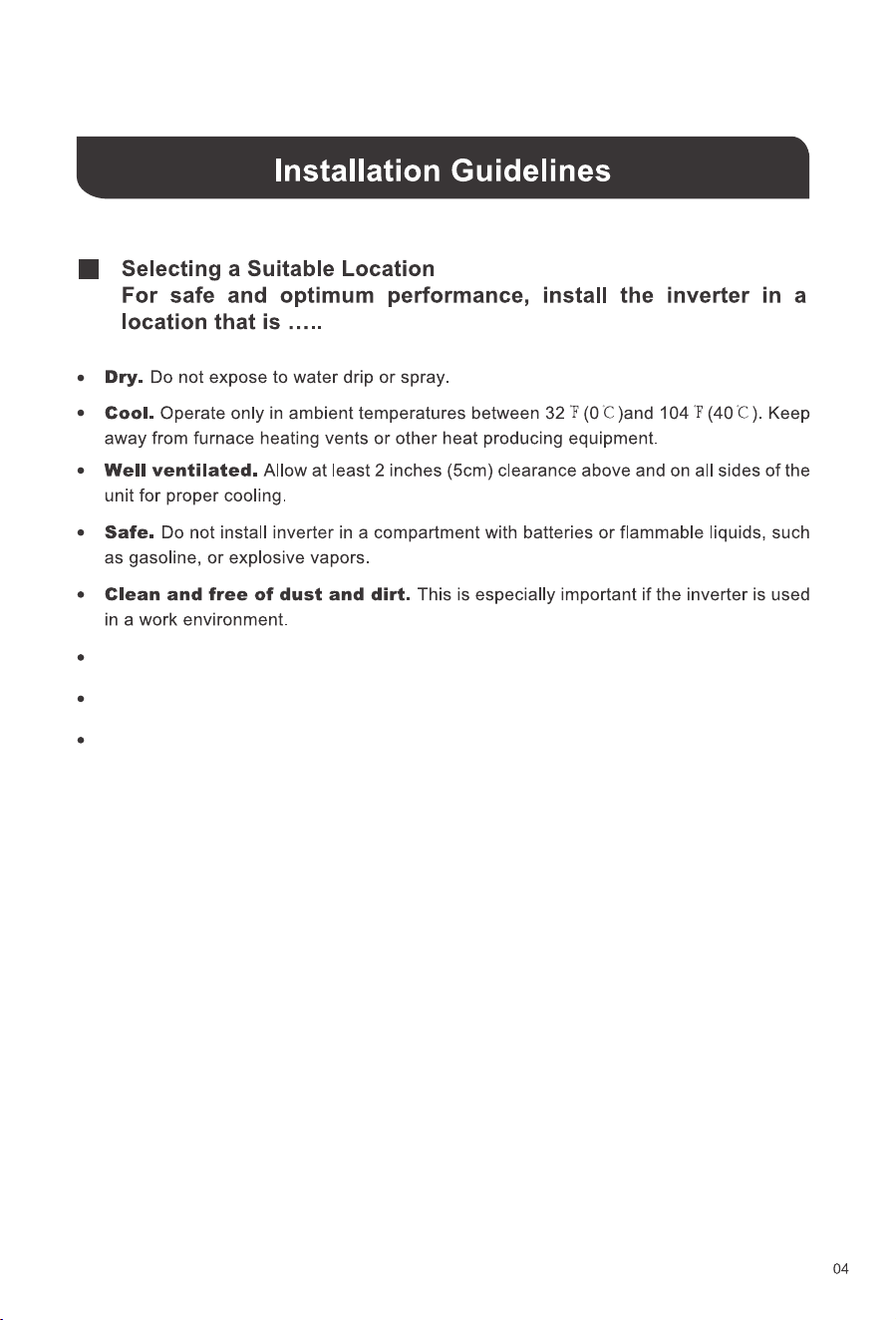

Products must be installed by qualified electricians.The product must be installed in a dry and
well-ventilated area, as close as possible to the battery. A space refrigeration device of at least
10 centimeters should be left.

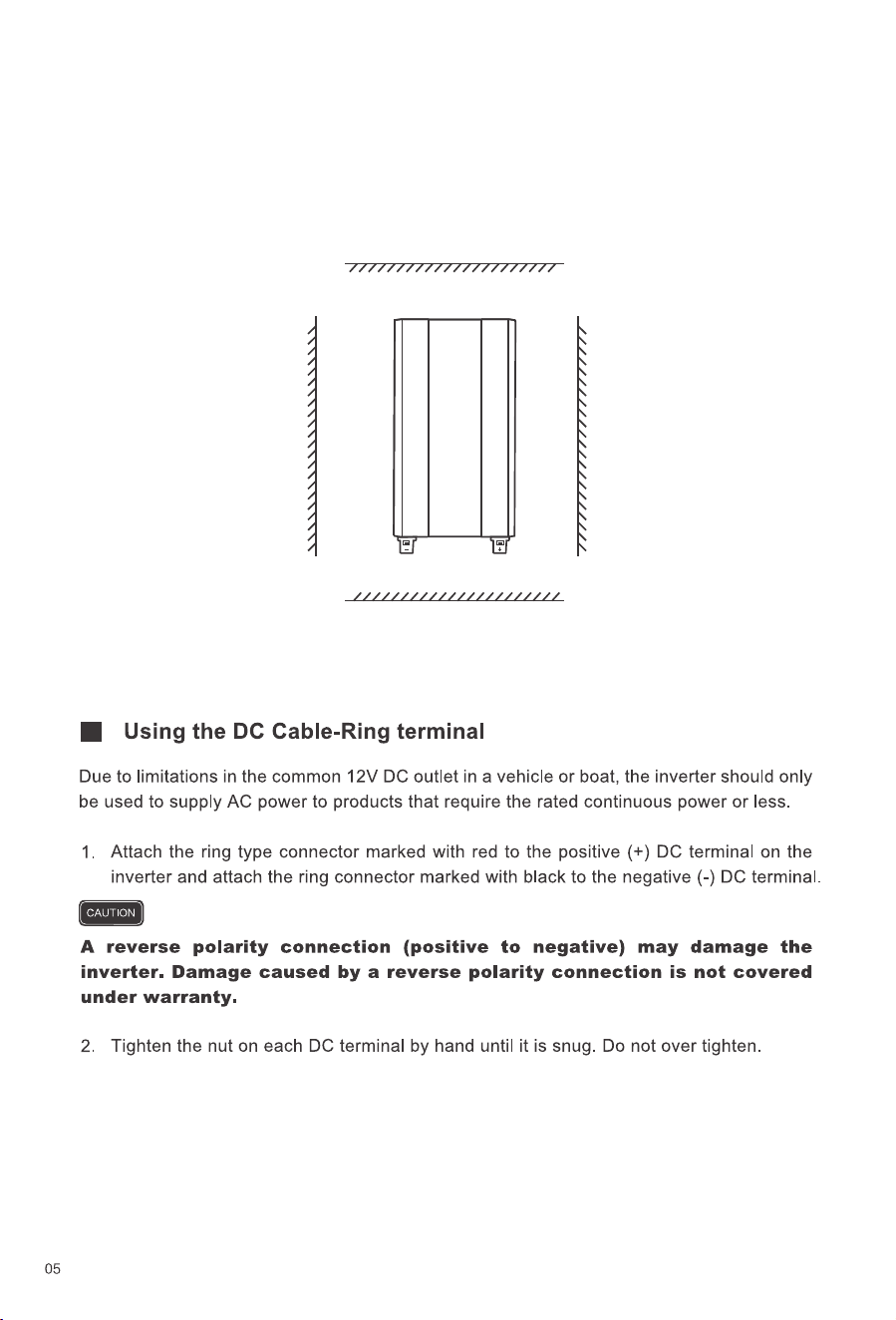

Please Note: While the inverter has fans for cooling, this installation location optimal for natural
convection cooling will improve the overall efficiency .
4inches/100mm
4inches/100mm
4inches
100mm
4inches
100mm

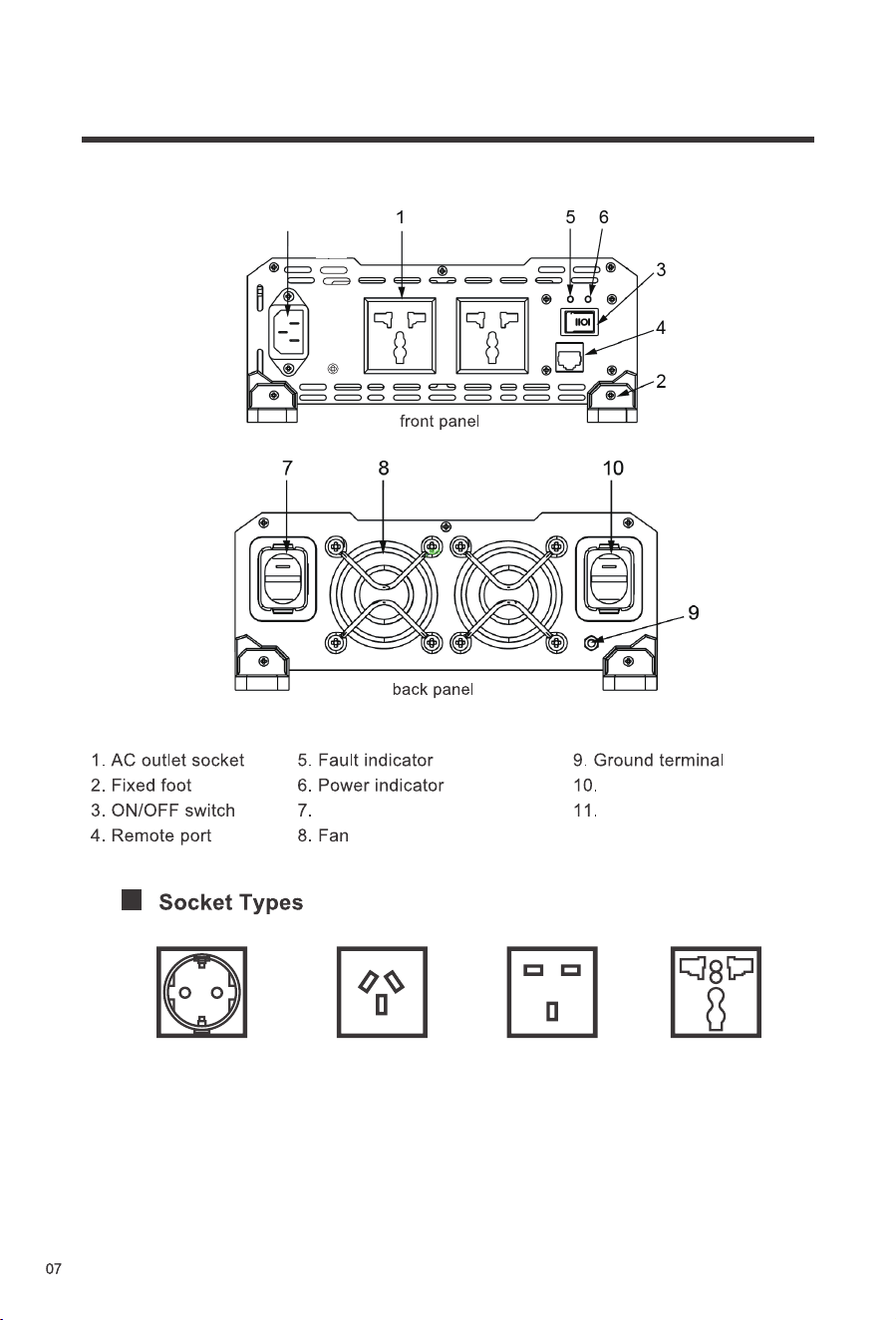

Black (negative) terminal M8
Continental
European (16A)
Australia/New
Zealand (15A)
United
Kingdom (13A)
Universal
Red (positive) terminal M8

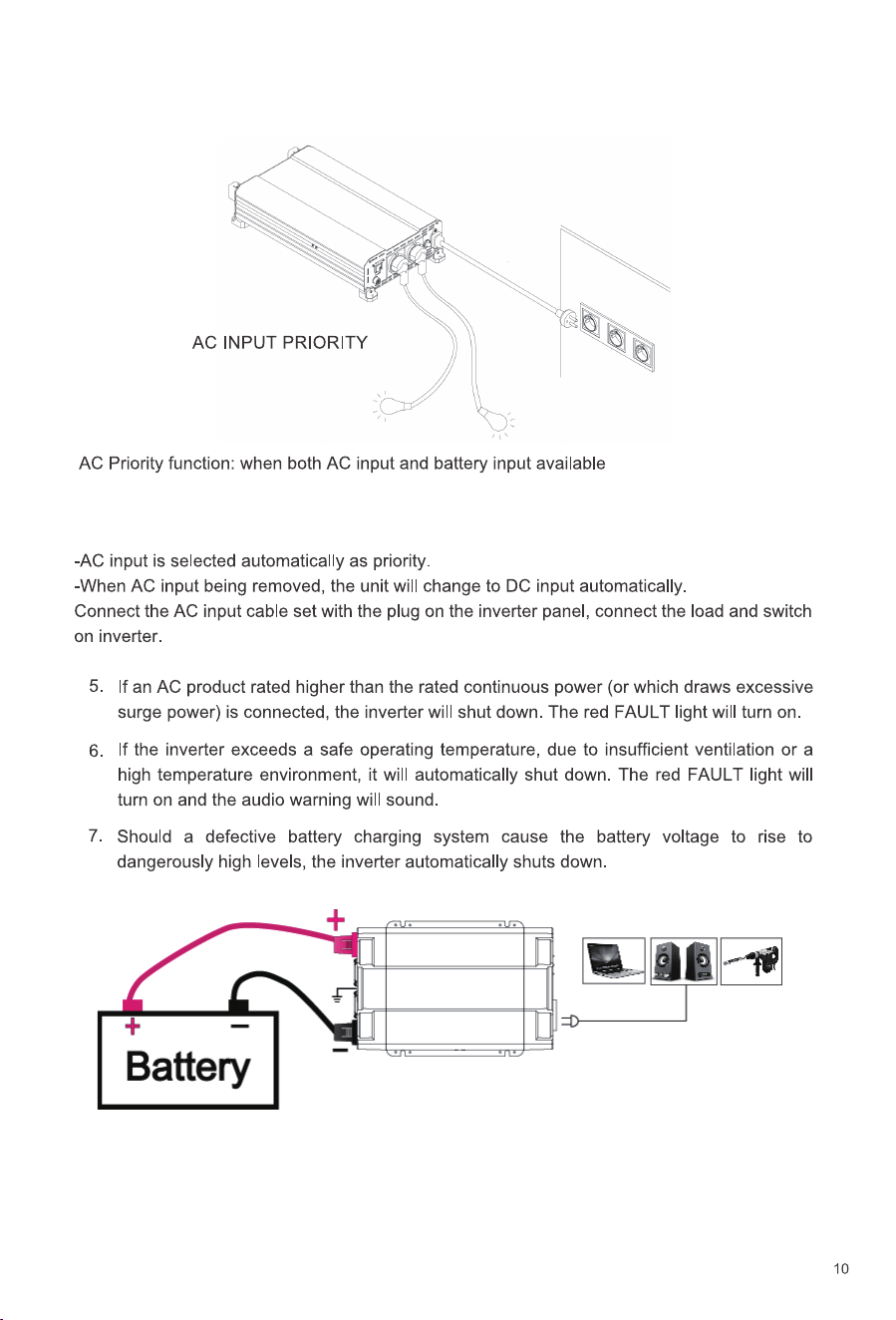

AC input (Pin socket 10A)
11

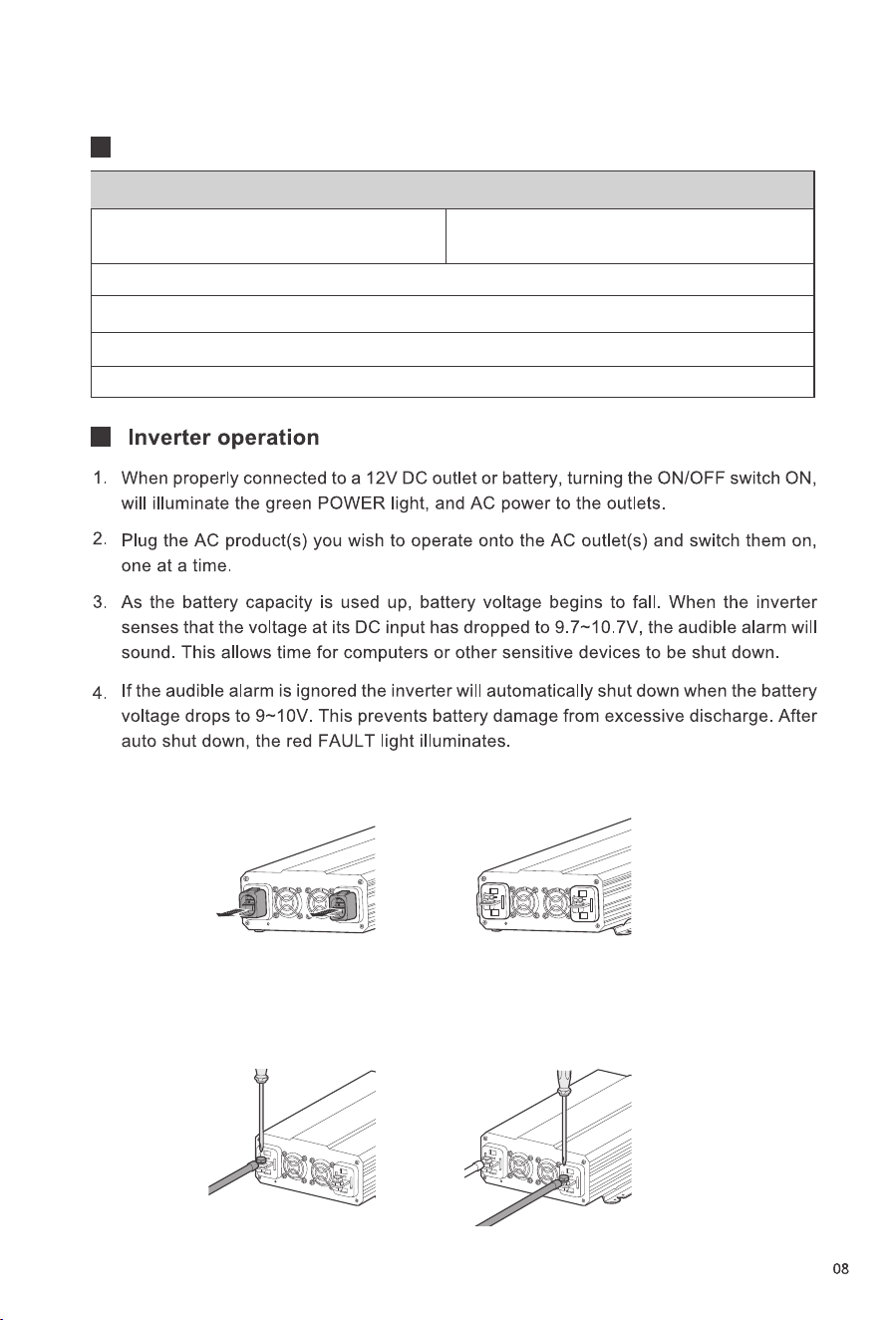

On the DC（M8） side, remove the protection cap.
5.

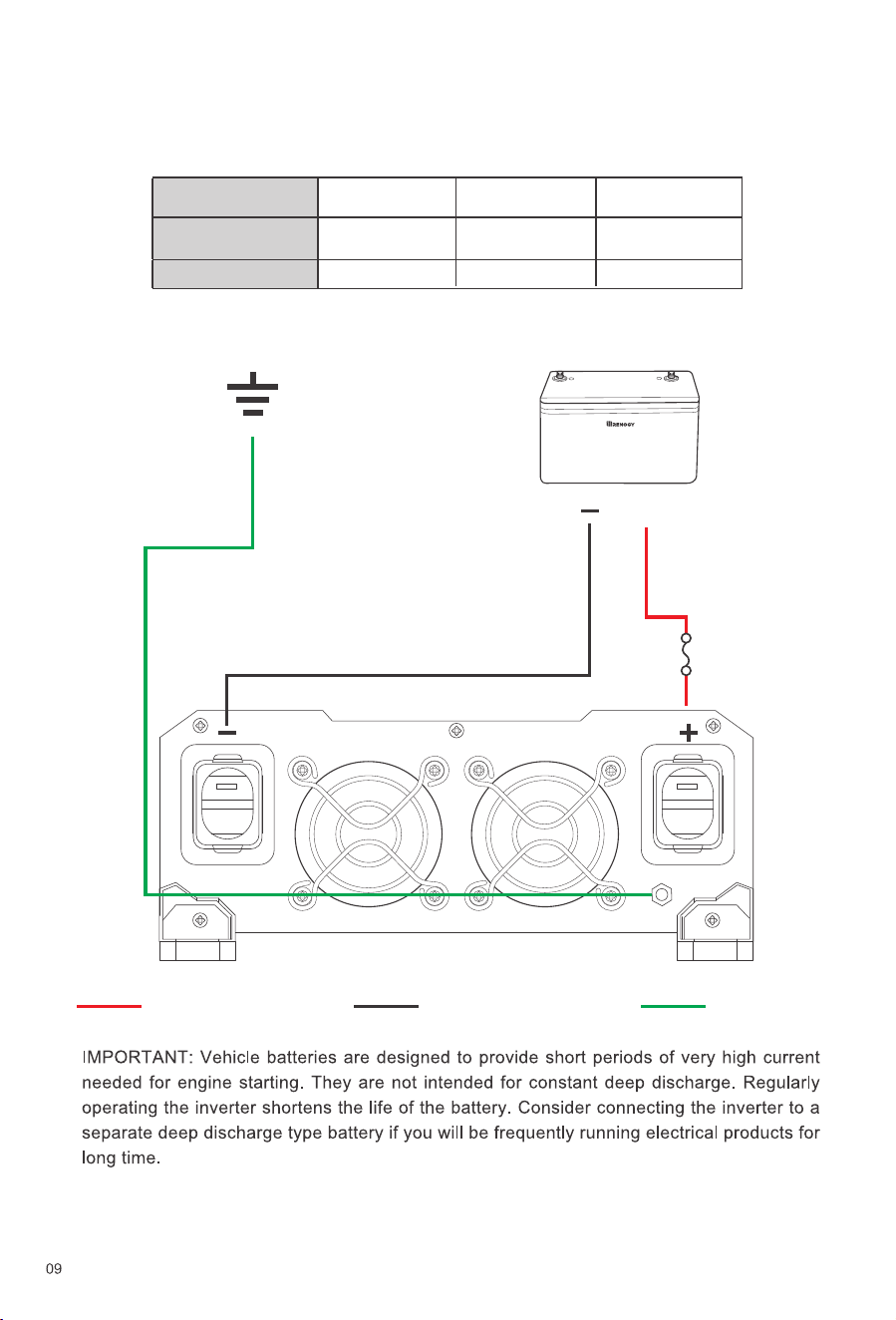

Unscrew Positive and Negative DC Input Terminals, connect a battery bank to the
terminals, and tight the terminal screws. Torque: 14(±0.5) N·m
For your safety, it is recommended to use a battery fuse.
6.
DC TO AC
POWER INVERTER X 1
Wired Remote Control x 1
1000W: 20mm²@ 600mm
2000W: 20mm²@ 600mm
3000W: 25mm²@ 600mm
User Manual x 1
Package Contents
Package Contents
Tip: The user uses the attached wire.
For your safety, it is recommended to use a battery fuse.
Model
R-INVT-PUH1-
101235
R-INVT-PUH1-
201235
R-INVT-PUH1-
301235
Continuous Output
Power
1000W 2000W 3000W
Battery Fuse
150A 250A 400A
+
-
+
Battery
Positive (DC) Negative (DC)
Battery Fuse
Ground
Ground

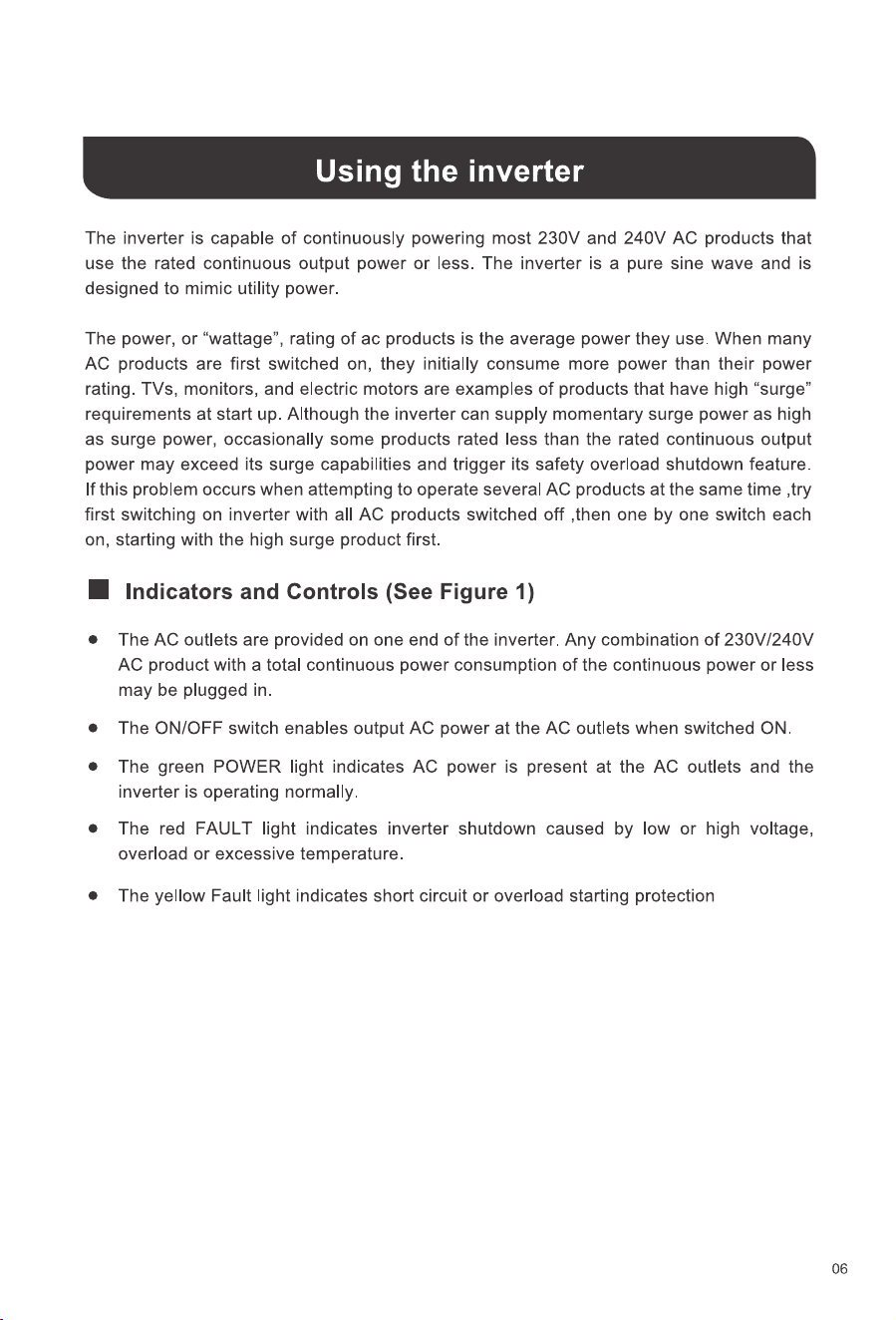

You can plug your AC loads directly into the receptacles on the inverter‘s AC side. (PE connec-
tors cannot be used for other purposes)
11
12
13
14

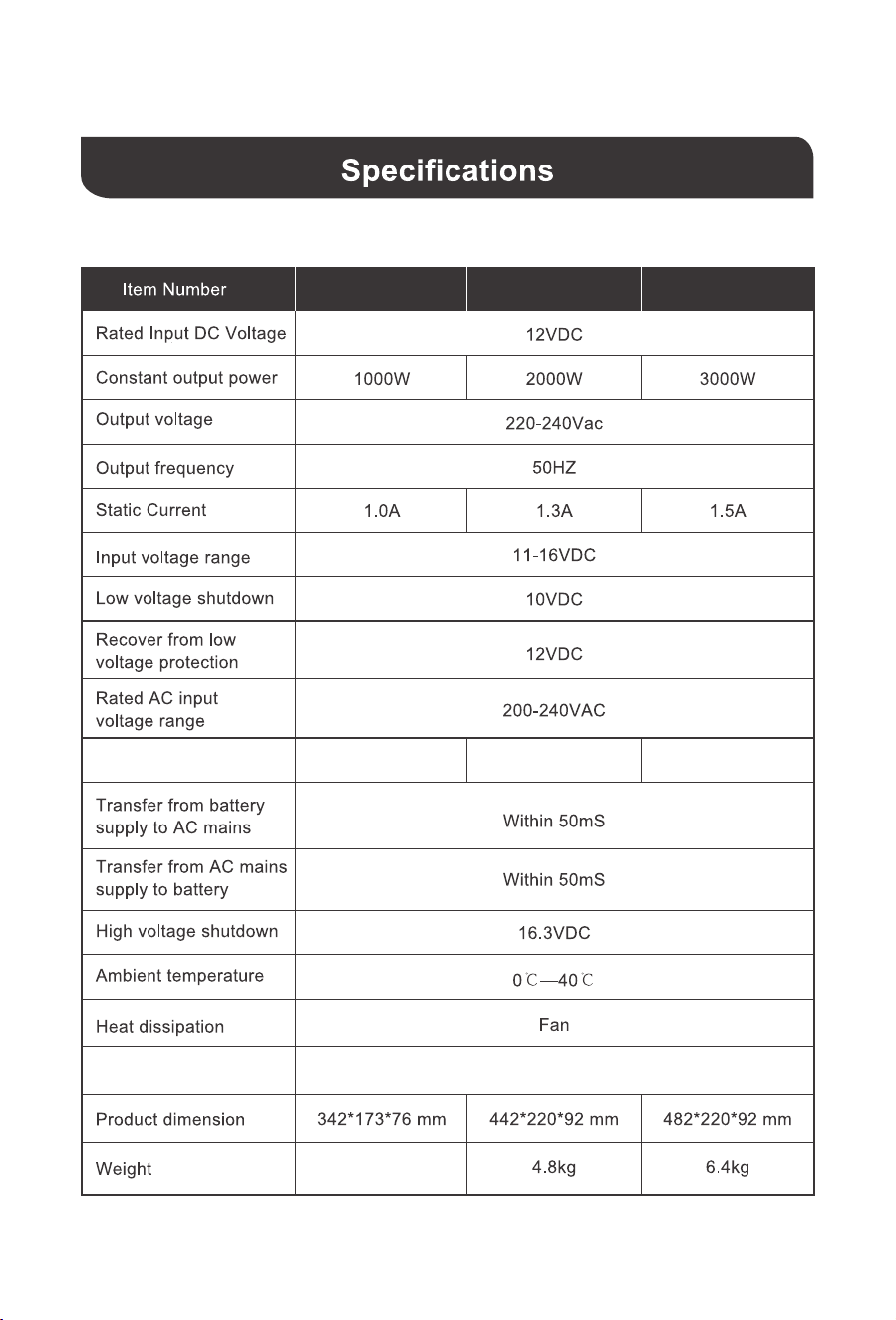

R-INVT-PUH1-101235 R-INVT-PUH1-201235 R-INVT-PUH1-301235
2.6kg
Ingress Protection IP20
Rated AC Input Current 100A 200A 300A
Renogy reserves the right to change
the contents of this manual without not ice.
