ENEN
User’s manual
ZONA PER
TARGHETTA
COLUMN
REFRIGERATOR
FREEZER
INSTALLATION
MANUAL
MODEL
URFC36 - 36" Column Refrigerator
UFFC36 - 36" Column Freezer
EN
1 646-444-8054 | [email protected] | US.ILVE.COM | ©ILVE USA 2026. ALL RIGHTS RESERVED.
Confidential
2
Table of Contents
Symbols and Their meanings
............................................................................................................................................
4
Installation place
...............................................................................................................................................................
7
Tool list
............................................................................................................................................................................
10
ALTERNATIVES FOR INSTALLATION
......................................................................................................................................
11
PREPARATION FOR INSTALLATION
.......................................................................................................................................
12
Cabin dimensions
............................................................................................................................................................
12
Location of the electrical wiring
......................................................................................................................................
13
Location of the water system
.........................................................................................................................................
14

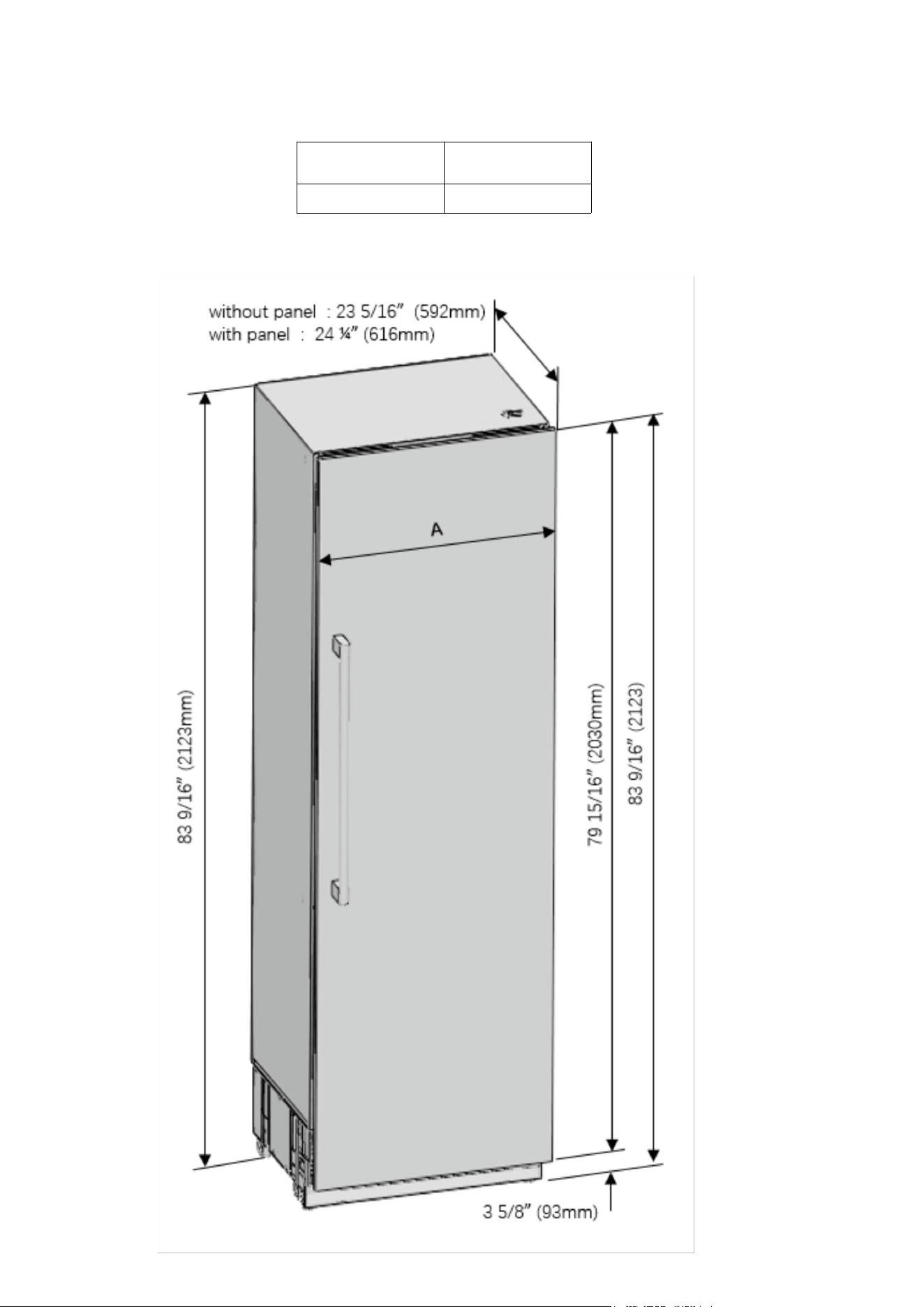

Product dimensions
........................................................................................................................................................
16

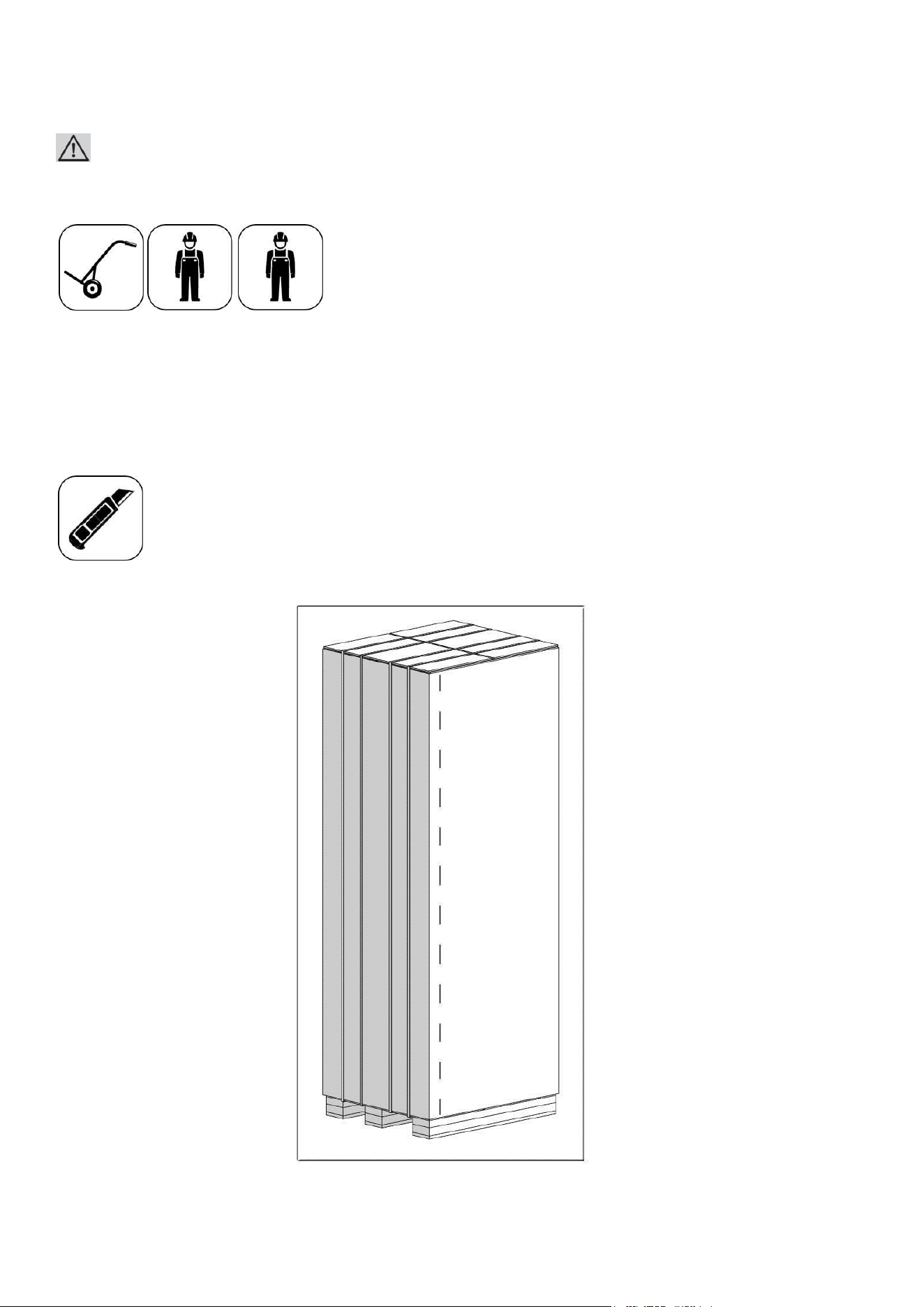

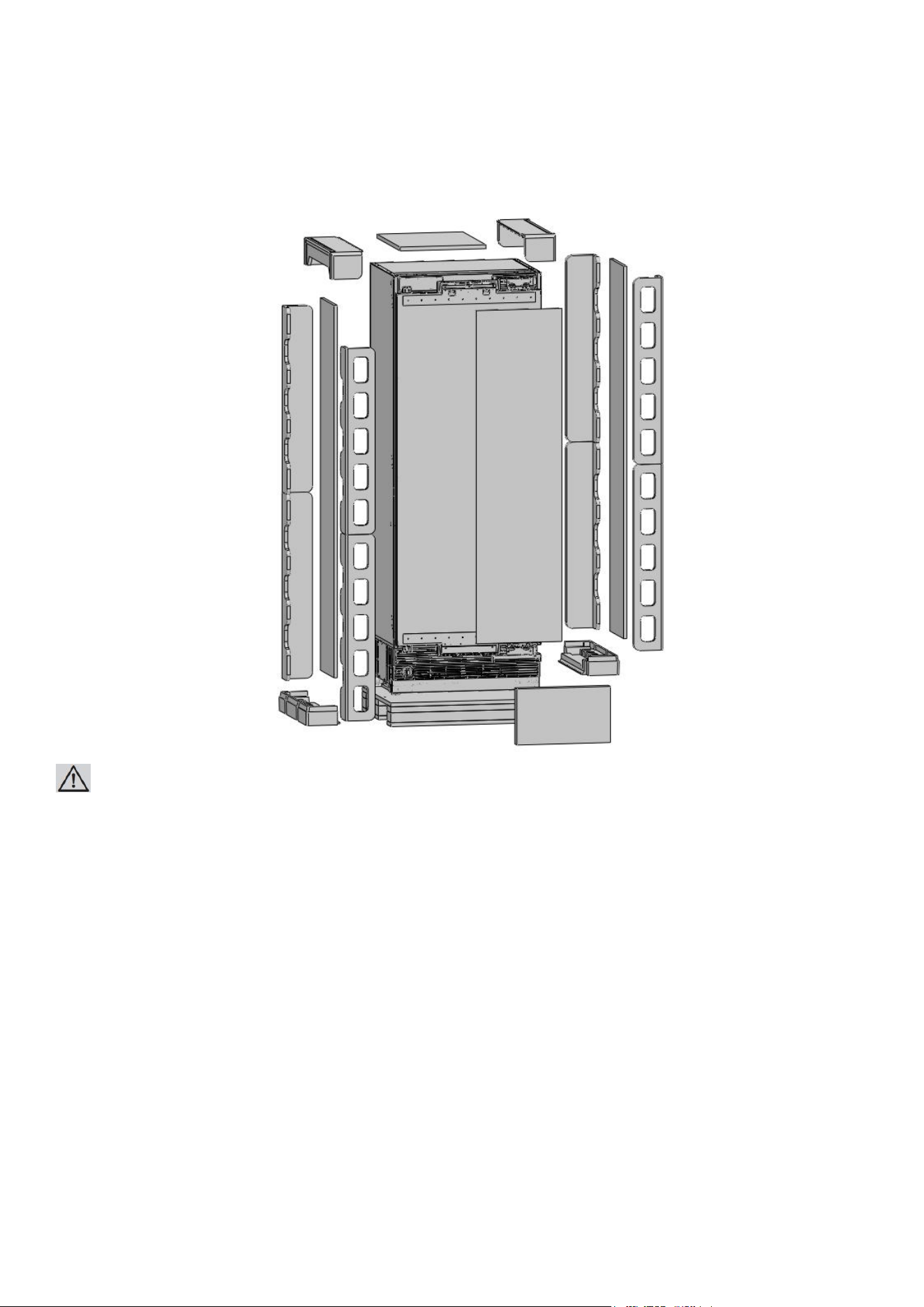

Unpacking
.......................................................................................................................................................................
21
Mounting parts preparation
...........................................................................................................................................
23

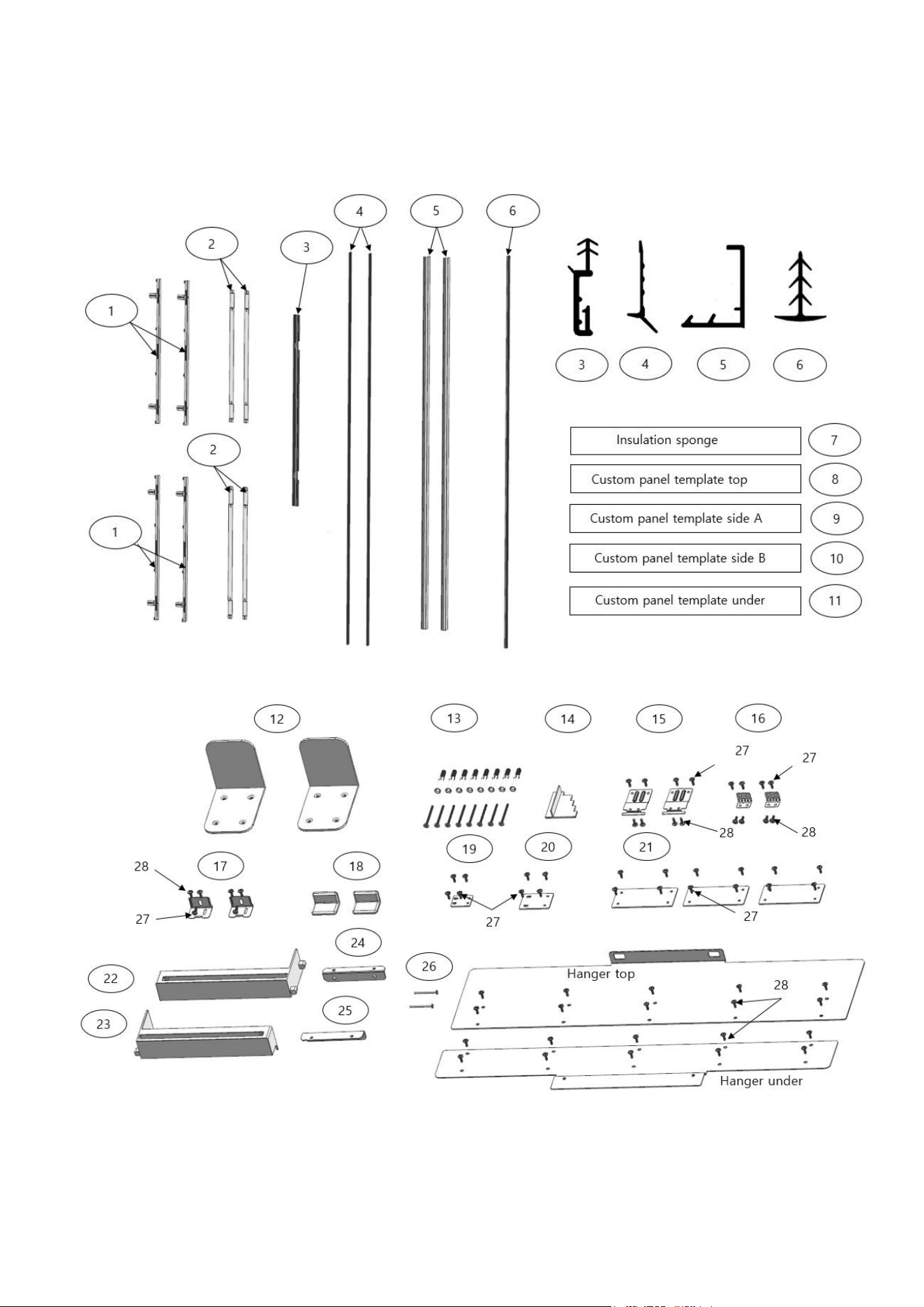

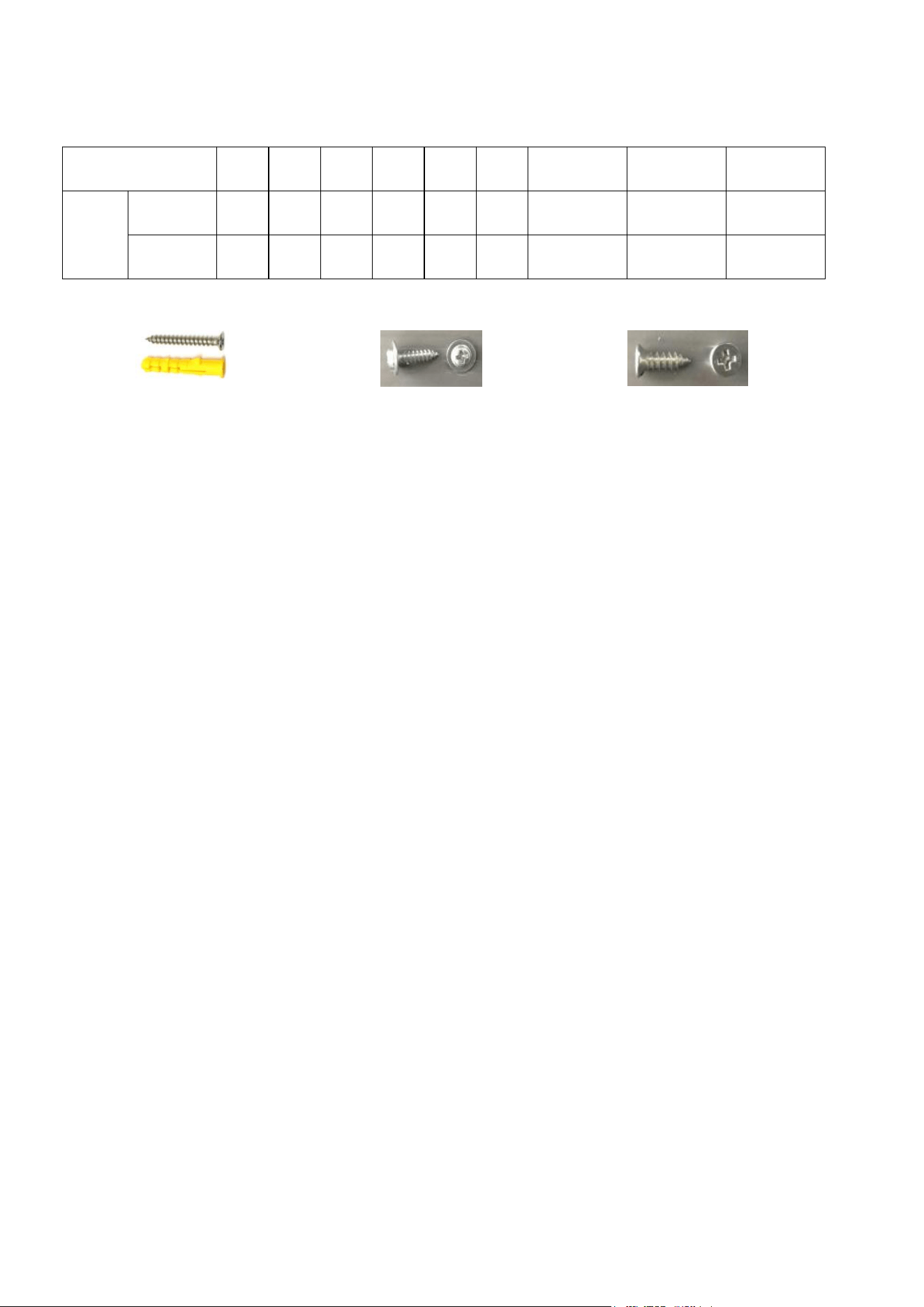

Mounting parts list
..........................................................................................................................................................
24

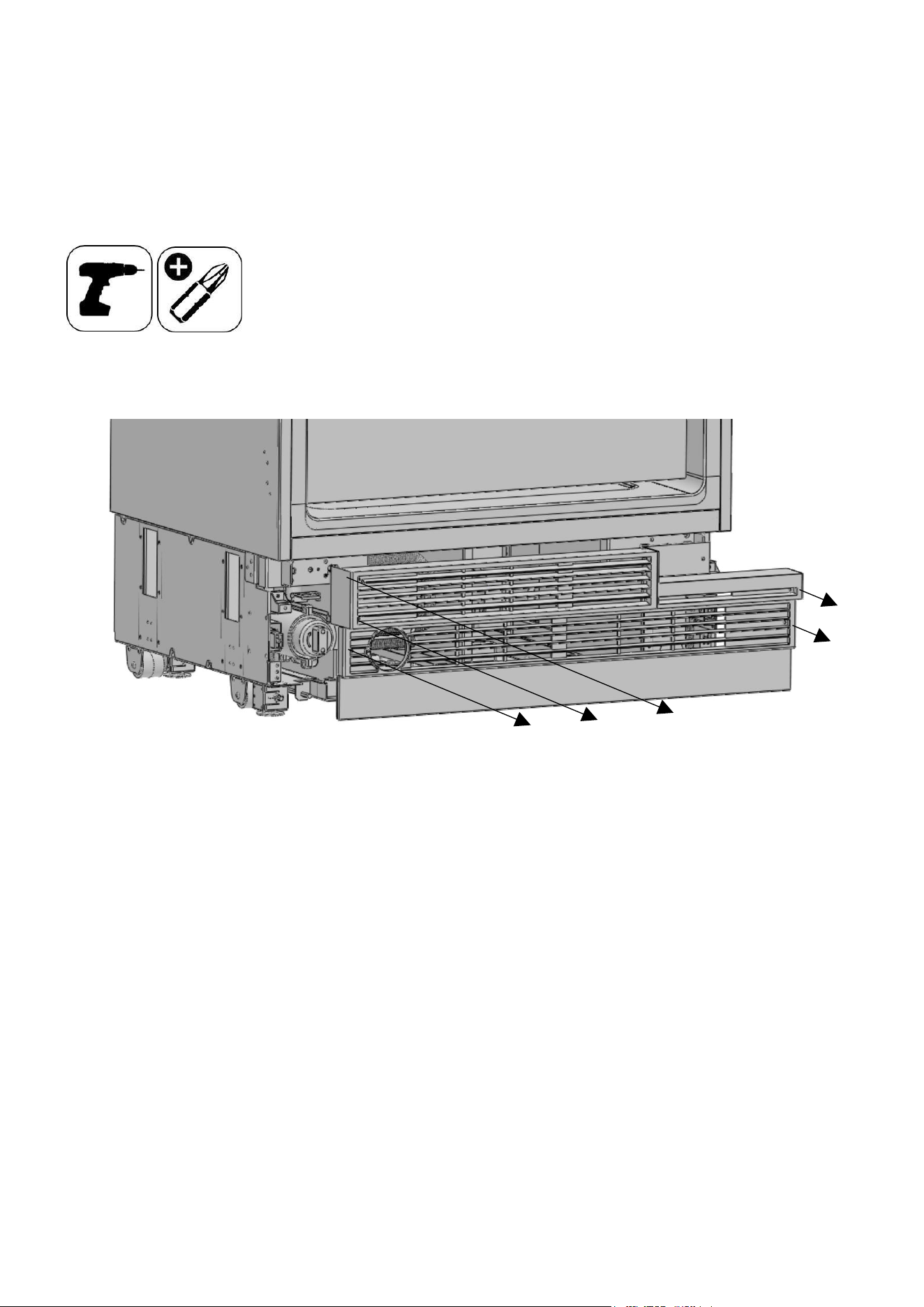

Removing the vent hole assembly
..................................................................................................................................
26
PRE-INSTALLATION
..............................................................................................................................................................
27

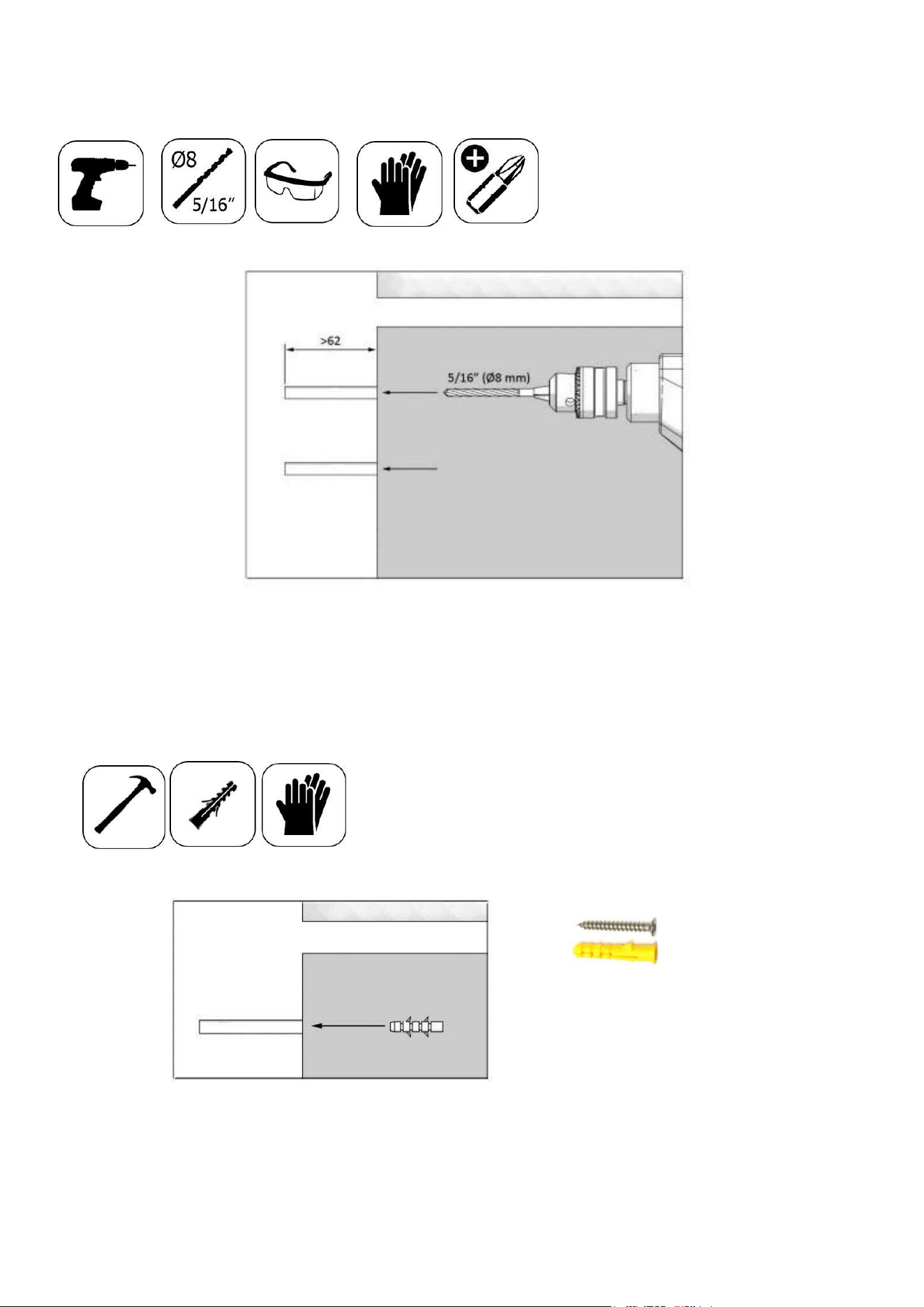

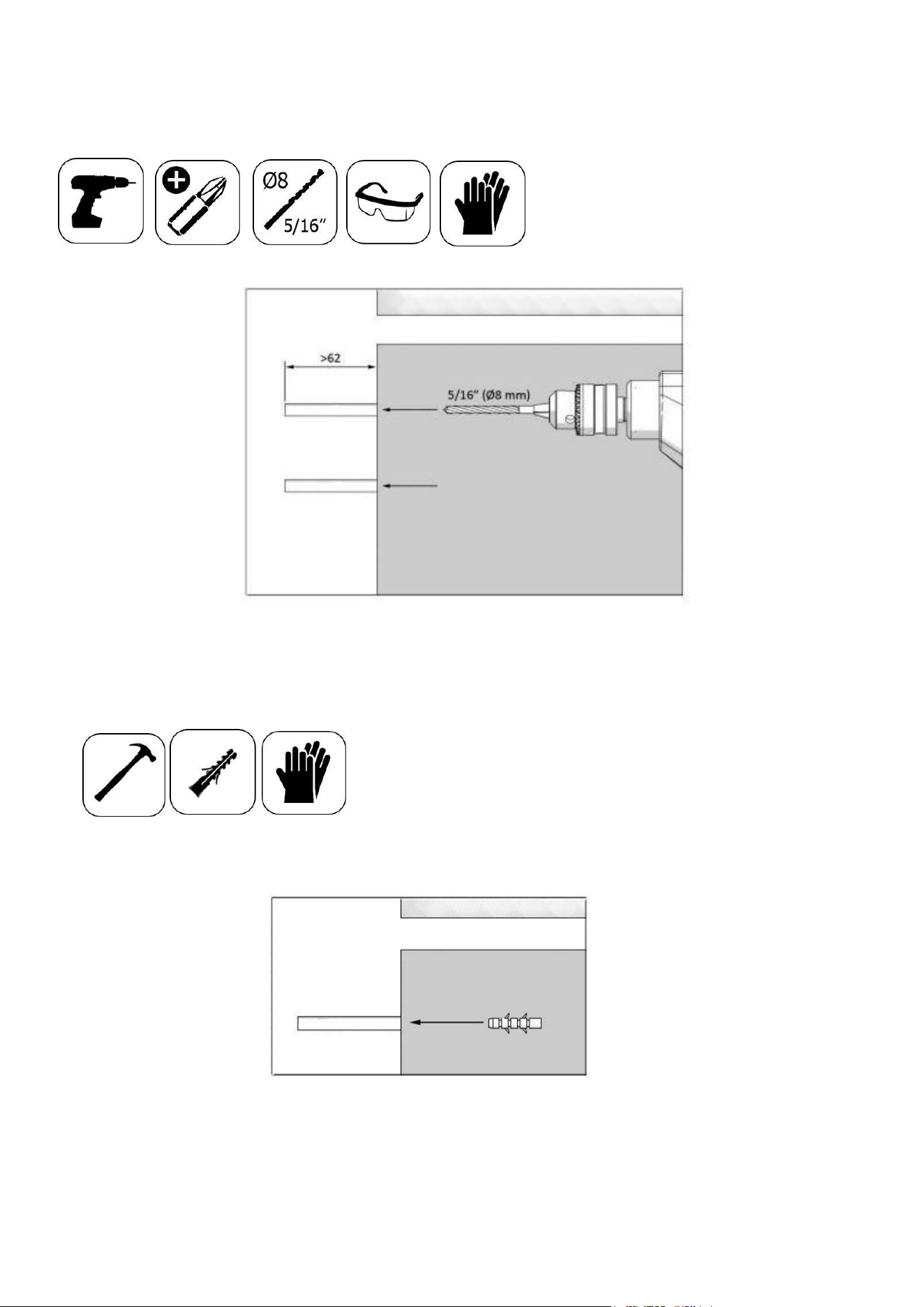

Mounting the anti-tip brackets
.......................................................................................................................................
27
Alternative anti-tip method
............................................................................................................................................
30

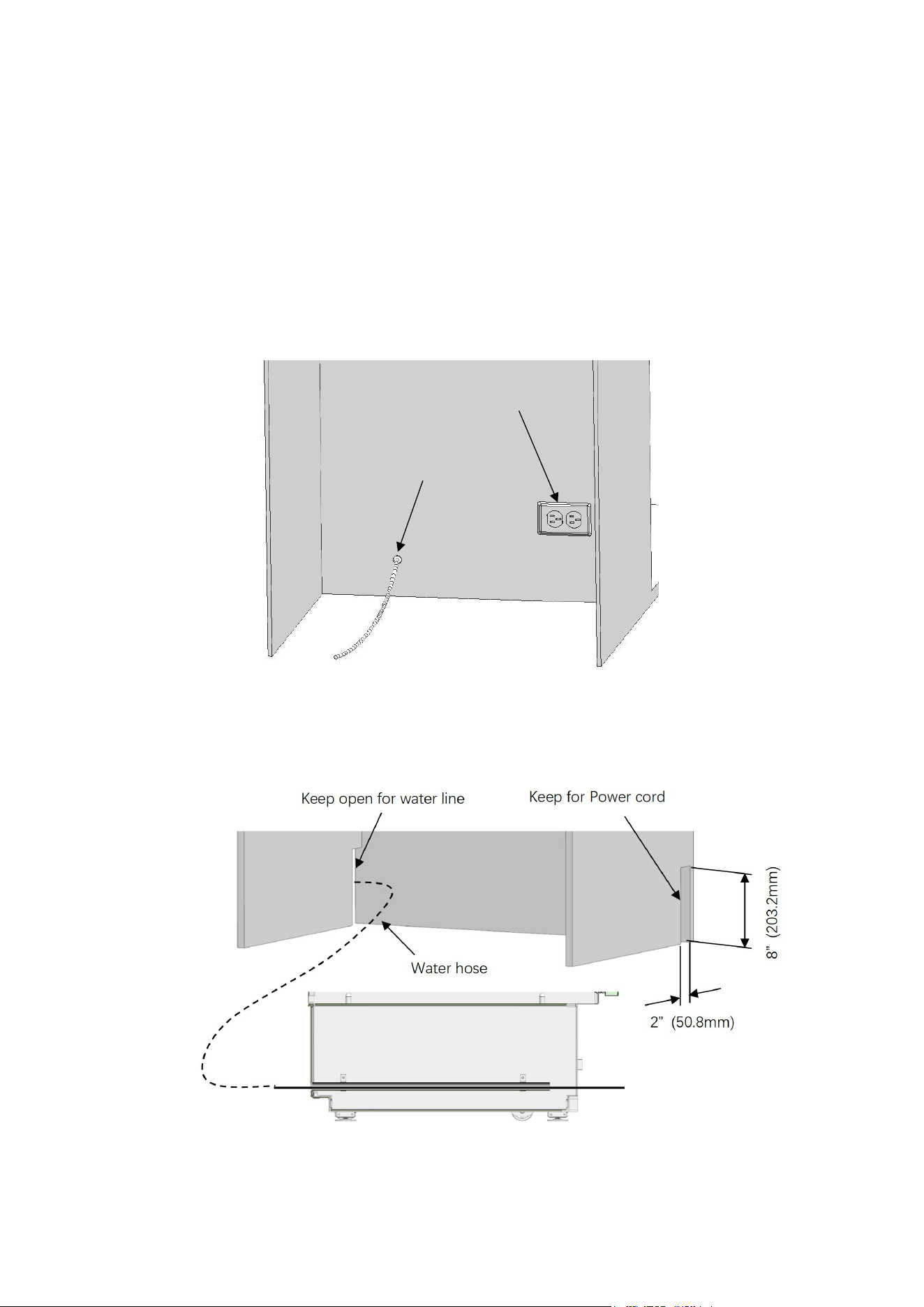

Preparing the water hose and the power socket
...........................................................................................................
31
INSTALLATION TO THE CABIN
.............................................................................................................................................
32
Taking the refrigerator from the wooden pallet
.............................................................................................................
32

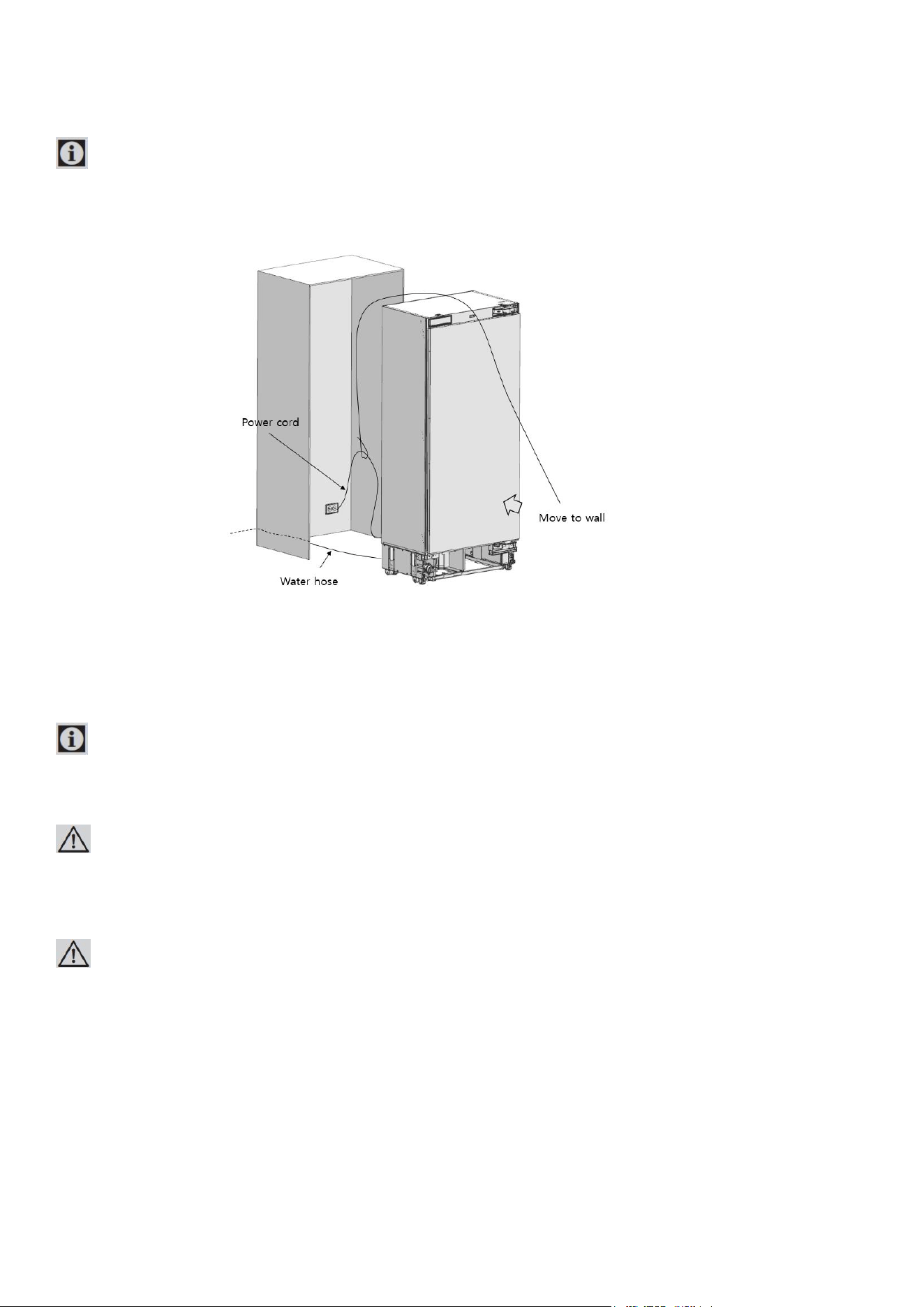

Placing the refrigerator into the cabin
............................................................................................................................
33
Adjusting the height of the refrigerator in the cabin
......................................................................................................
36
Adjusting the refrigerator according to the cabin flange
...............................................................................................
37
Screwing the upper brackets and lower brackets
...........................................................................................................
39
INSTALLING THE CABIN BOTTOM
.......................................................................................................................................
40
Water connection
...........................................................................................................................................................
40
Attaching the vent hole assembly
..................................................................................................................................
42
Attaching the decorative parts
.......................................................................................................................................
43
CUSTOM PANEL PREPARATION
..........................................................................................................................................
44

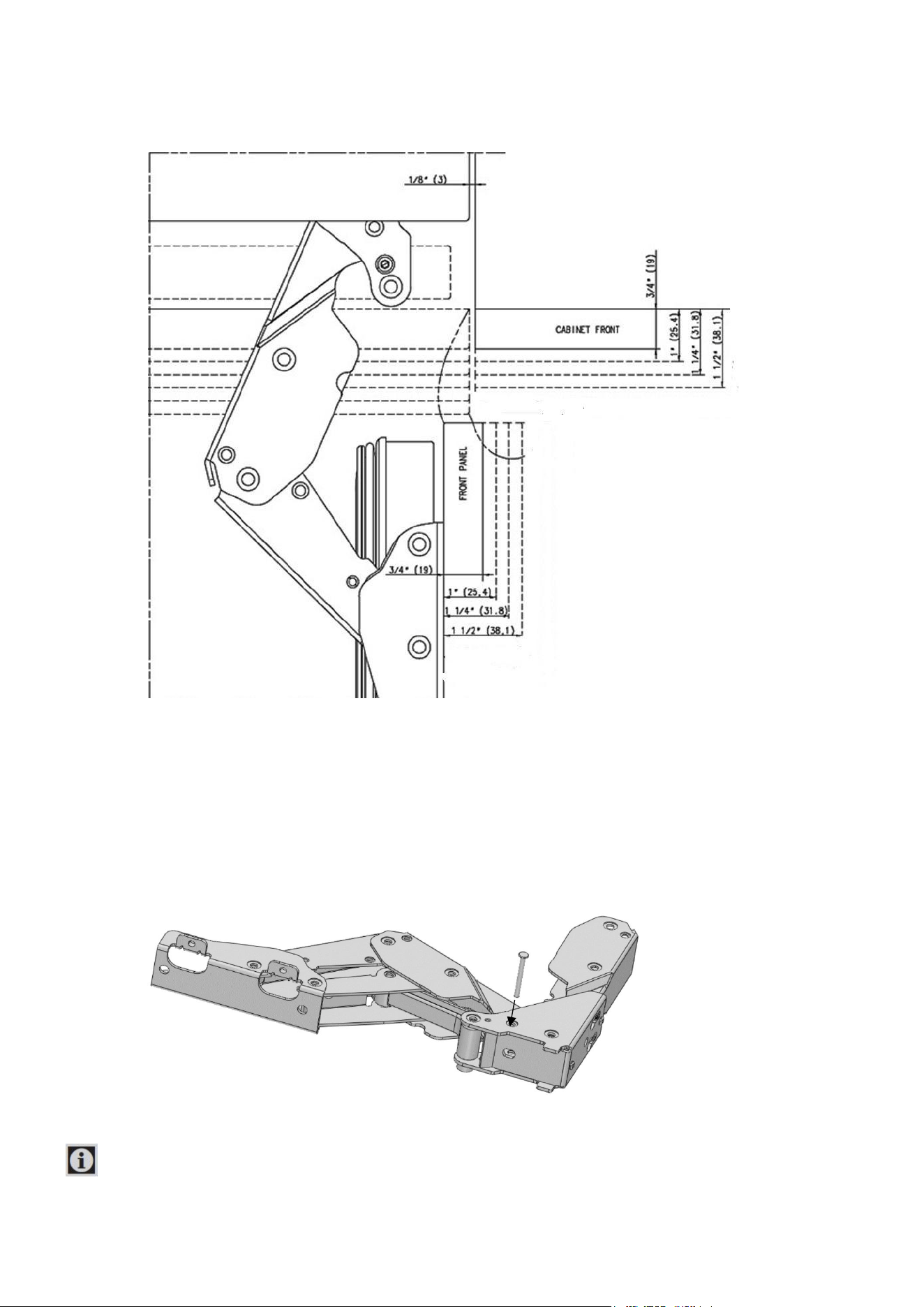

Choosing the door Thickness
..........................................................................................................................................
44
Removing the mechanism covers
...................................................................................................................................
46
Removing the panel-adjustment mechanisms on the refrigerator
................................................................................
48
Preparing custom panel
..................................................................................................................................................
49
Installing custom panel
...................................................................................................................................................
53
Confidential
3
HINGE ADJUSTMENT
...........................................................................................................................................................
60
Adjusting the hardness of the hinges
.............................................................................................................................
60
CHANGING THE DOOR OPENING DIRECTION
.....................................................................................................................
61
Removing the custom panel
...........................................................................................................................................
61

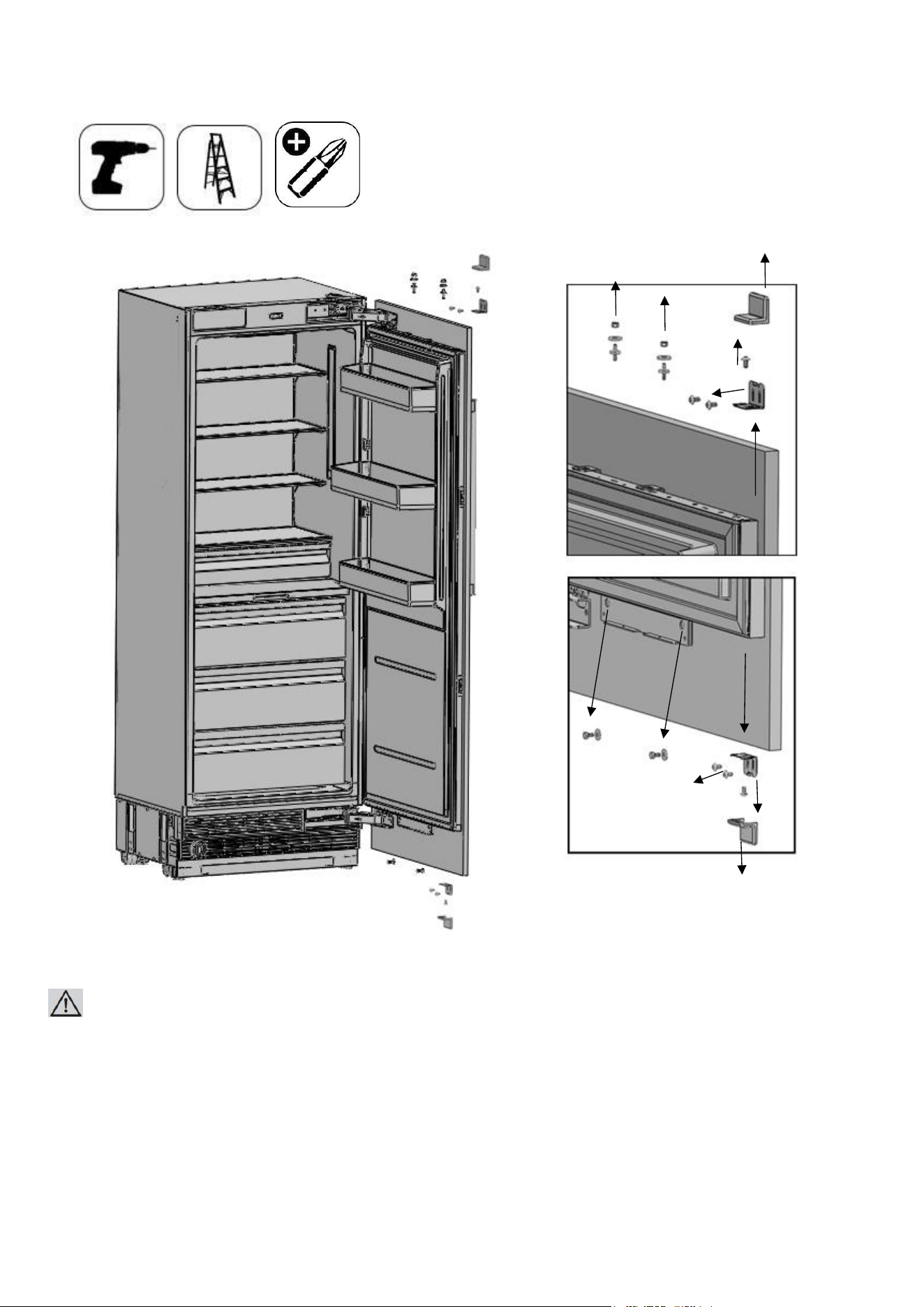

Removing and preparing the Inner door
........................................................................................................................
65
Replacing the hinges
.......................................................................................................................................................
67

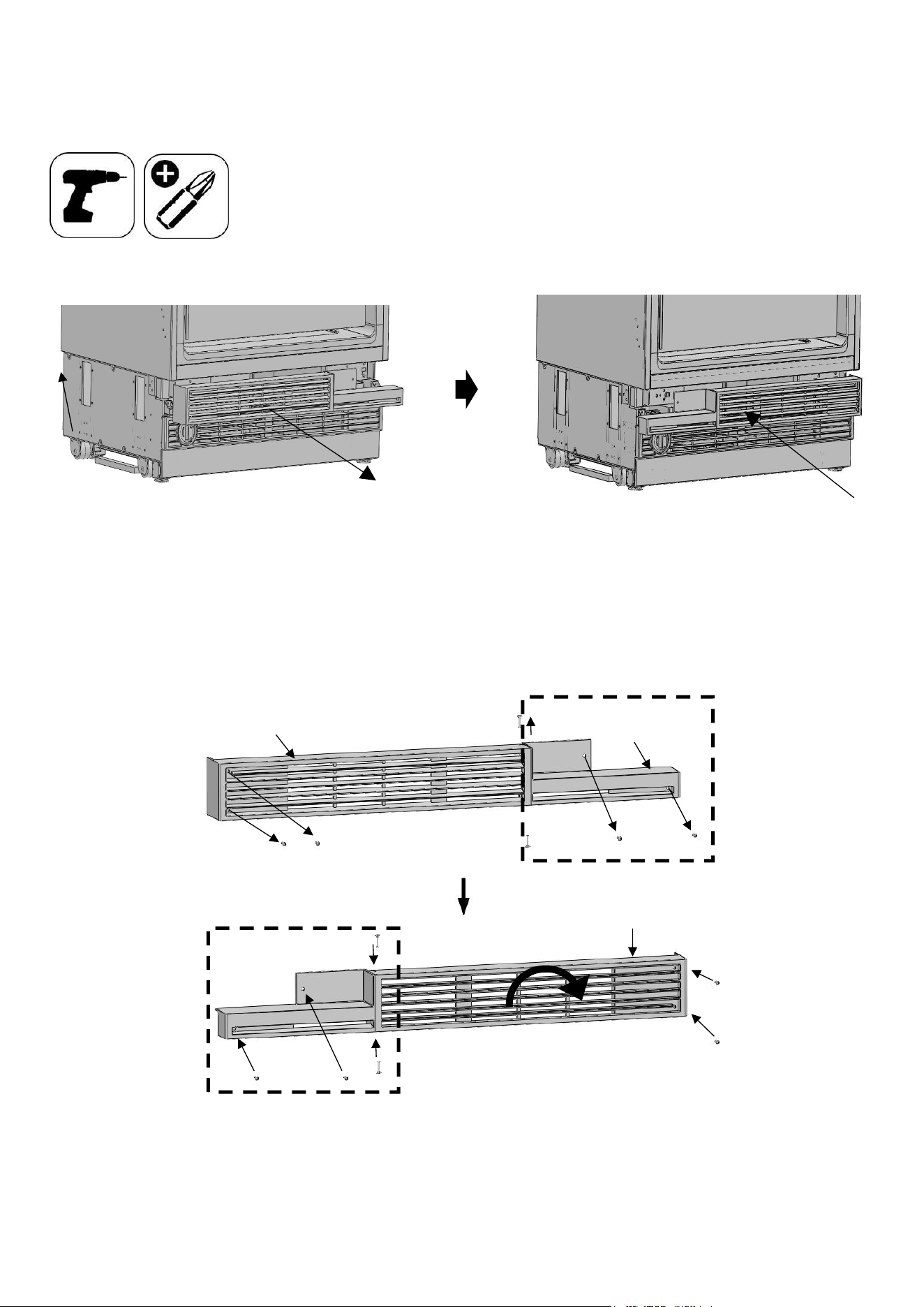

Air vent upper part direction change
.............................................................................................................................
69
Installing the door
...........................................................................................................................................................
72
INSTALLING THE DUAL CABIN
.............................................................................................................................................
73
Location of electrical wiring
............................................................................................................................................
74
Location of the water system
.........................................................................................................................................
75
Location of anti-tip brackets
...........................................................................................................................................
76
Mounting parts preparation for dual cabin
....................................................................................................................
78
Fixing the fasteners to the product
................................................................................................................................
79

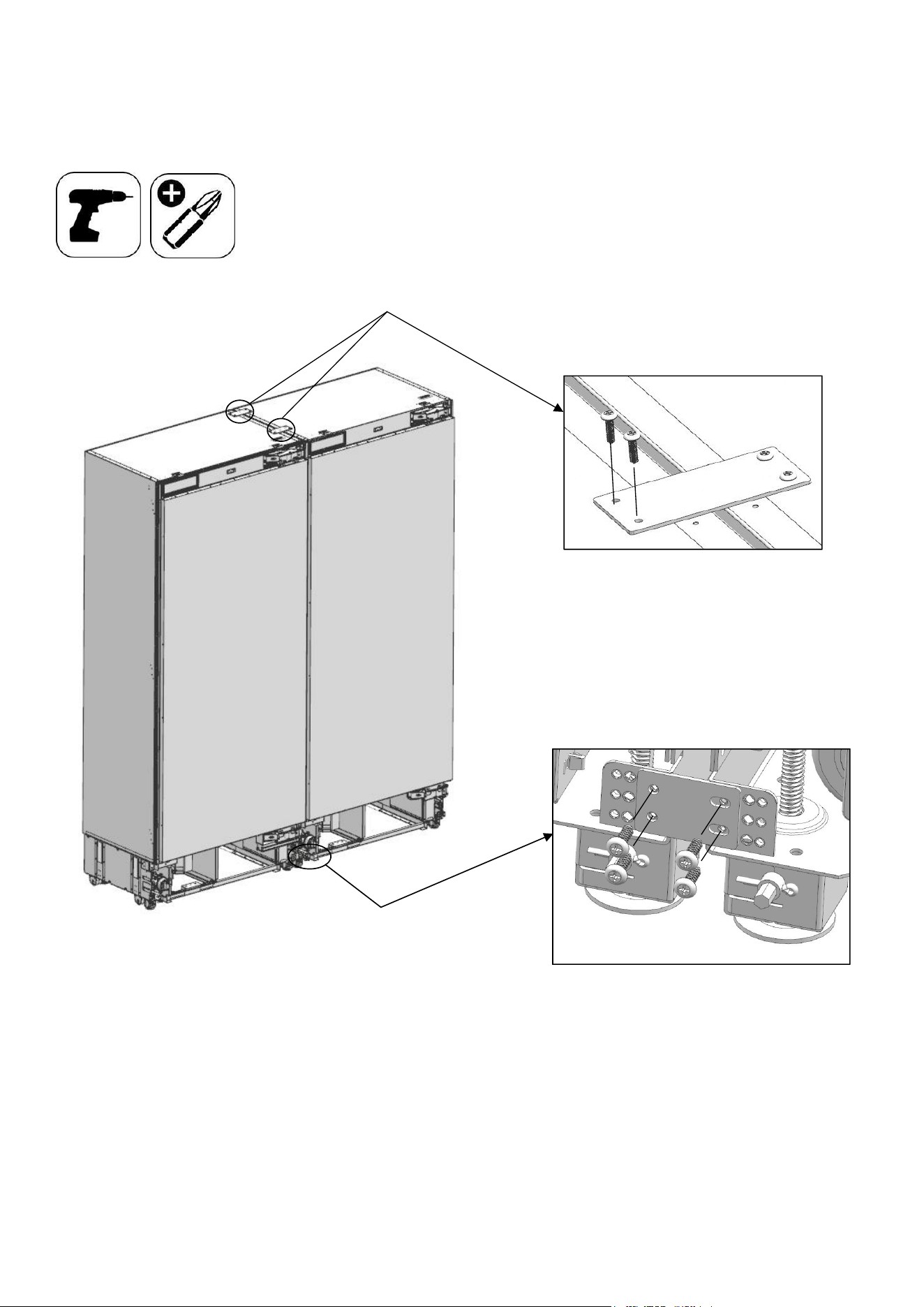

Joinning two product with screw
...............................................................................................................................
81
Adjusting the height of the refrigerator
.........................................................................................................................
85

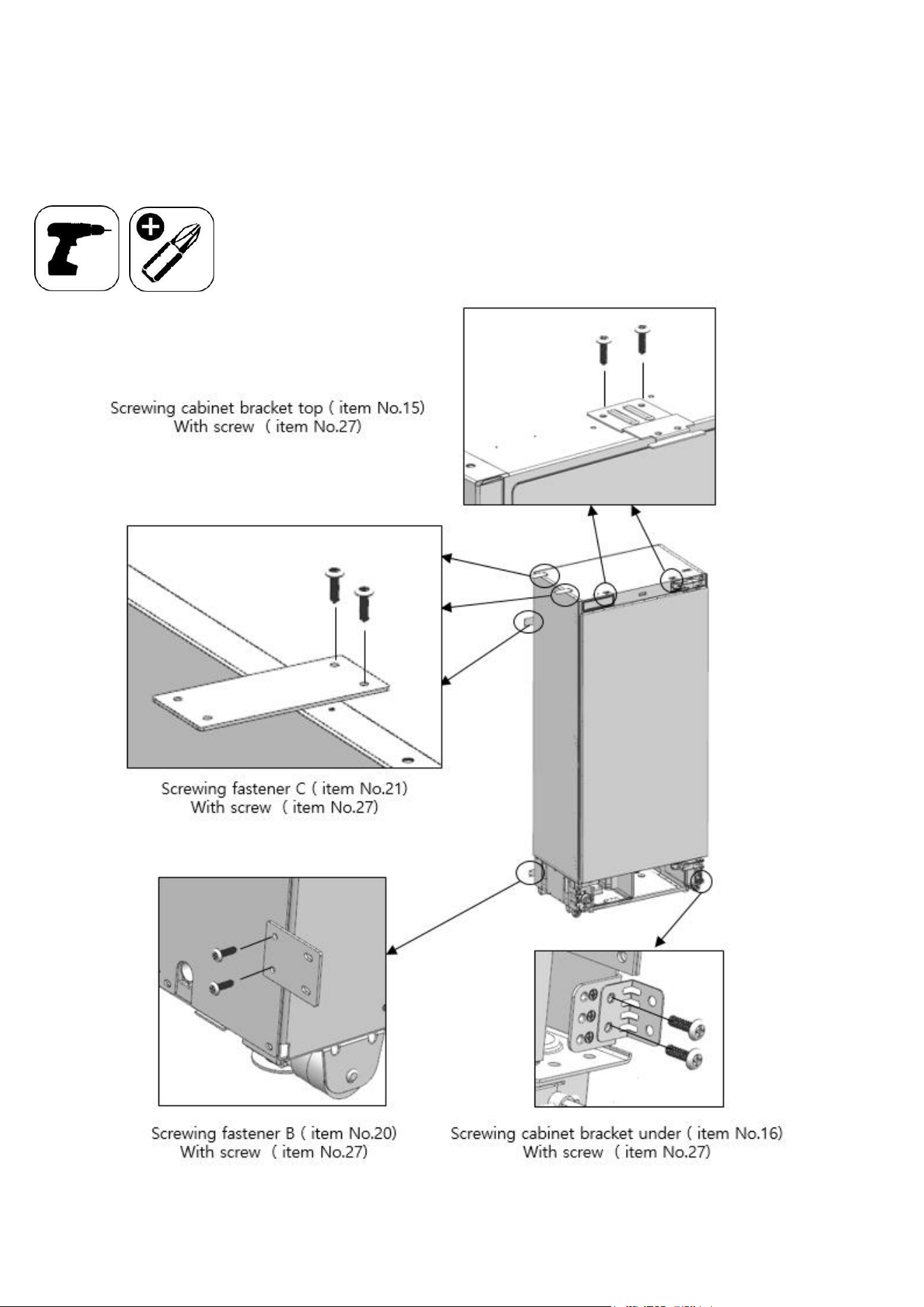

Fixing refrigerators to the cabin with screws
.................................................................................................................
86
Attaching the derorative parts
........................................................................................................................................
87
Confidential
4
Symbols and Their Meanings
Symbols used in the installation manual are as follows.
Important information or useful usage tips
WARNING: Conditions that may damage the product or its operating functions
ATTENTION: Conditions containing serious injury risk
Conditions containing electric shock risk
Packaging materials of the product have been manufactured from recyclable materials in
accordance with our National Environment Regulations.
Disposing the packaging materials
The package has been designed to protect the product during transport.
The packaging materials used for the product do not harm the nature during disposal and
they need to be recycled.
All plastic packaging materials, bags etc. must be disposed safely and kept out of the reach of children.
Please return the packaging to your dealer.
WARNING
This installation manual has been prepared to help installation teams. The User Manual provided with the product
must also be taken into consideration.
You may get seriously injured and your product may get damaged if you ignore the warnings given in this manual.
Please read the following carefully.
WARNING
R-600a Refrigerant
This product contains R-600a isobutane refrigerant, which is a very eco-friendly natural gas. However, it is
also flammable. Please follow the warnings given below:
If the product has been transported horizontally, you must wait for 4 hours minimum before plugging it in.
The following instructions must be followed during installation:
Dimensions of the installation area must be suitable.
Dimensions, features and position of the object used to support and fix the product
to this area must be suitable.
Confidential
5
Minimum clearances between product parts and surrounding structures must besuitable.
Minimum dimensions and proper organization of ventilation holes must be observed.
The product must be connected to the mains power,
and corresponding connections of other components must be suitable.
The product must be disconnectable from the power supply afterinstallation.
The socket or fuse must be accessible to de-energise theproduct.
Extension cables or ungrounded (two-terminal) adapters must not beused.
ATTENTION
Make sure that your product is suitable for your local mains.
ATTENTION
The product must be installed by a qualified technician according to the installation instructions.
WARNING
The product may tip over since it is quite heavy. For this reason, precautions must be taken against tipping over.
The doors of the product must be kept closed until it reaches the destination and it must be transported
in accordance with the installation instructions.
Confidential
6

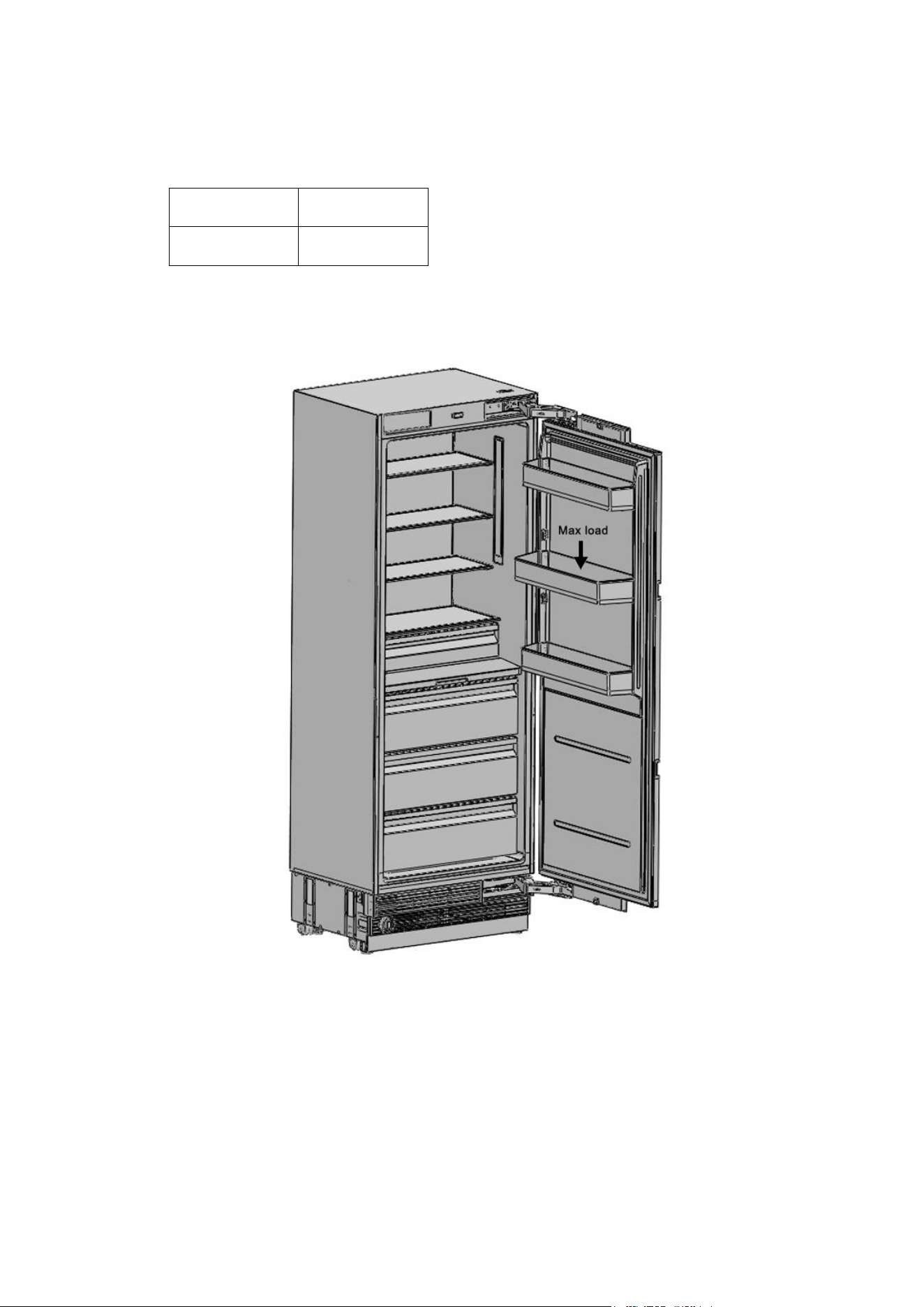

Load bearing capacity of the door bins
Category
URFC36SNWPRY
UFFC36SINPRY
Max load
33Ibs (15kg)
Confidential
7
Installation place
You must follow the instructions below:
The floor on which the product will be installed must be capable of bearing 1,200 pounds (544 kg)minimum.
Kitchen floor and the bottom of the product must be at the same level. Otherwise, problems may occur with
the air suction of the product.
There must be no objects preventing the installation of the product at the back and on the side walls of the
product's installation place.
The power socket must be at the correct place.
Dimensions of the furniture where the product will be installed must be in strict conformity with the
dimensions given in the manual.
Do not install the product with the fridge and the freezer are adherent next to each other. Otherwise,
condensation and damage may occur in the product. (Please see "Dual Cabin Installation" for detailed
information)
Flatness of the floor where the product will be installed must be checked with a Bubble Level Tool.
Installation area must not be subjected to direct sunlight and it must be away from heat sources, ovens,
radiators etc.
The ambient temperature must be between 55°F (13°C) and 110°F (43°C). Otherwise,
function errors may arise when the product is running.
If it is not possible to avoid installing the product near a heat source, the minimum clearances given
below must be maintained between the product and the said source:
- 11/4" (3 cm) from electric hobs orovens
- 12" (30 cm) from gas or fuel operated hobs or ovens
Please observe the following rules:
The power socket or fuse must be easily accessible in case of an emergency;
it must not be hidden behind the product.
Plug or cable must not touch the back surface of the product. Otherwise,
it may get damaged due to the vibration of the product.
Do not connect the plugs of other appliances behind this product.
If the humidity level is high where the product is used, corrosion may be seen
on the outer surface of the product.
Keep the installation room dry and well-cleaned to avoid corrosion.
Confidential
8
To avoid the risk of electric shock:
Connect the plug to a grounded 3-pin socket.
Do not remove the ground terminal of the plug.
Do not use adapters.
Do not use extension cables.
ATTENTION
Failure to follow these instructions may result in death, fire or electric shock. Connecting the grounding conductor of
the equipment to an improper place may lead to electric shock. Please have the grounding checked by a qualified
electrician or service technician if you have any doubt about the proper grounding of the product.
Installation, repair and other procedures performed by unqualified persons may cause danger. Before installing the
appliance, make sure that the voltage, load and circuit current parameters on the data plate are in compliance with
the power mains in your house.
The appliance is provided with a NEMA 5-15 P plug and a 3-pin power cable which is in the UL list and ready to be
connected to a 120 V, 60 Hz power supply. Fuse is 15 A. The appliance must be connected to a 3-pin socket. The plug
must be installed only by a licensed electrician.
If the electrical wiring or the electric power supply of the house needs alteration, the necessary procedures must be
performed by a qualified electrician.
ATTENTION
Do not install your refrigerator:
In open areas
In environments where water is dripping
In environments where temperature is lower than 55° F (0°C)
Furniture:
Make sure that the furniture where you will install the appliance has been safely mounted in your kitchen.
Your furniture must be connected to the floor and the wall properly and with suitable connections.
For the best installation, clearances between the furniture and the product must be in compliance
with the values specified in the installation instructions. Side walls must be free of clearances and their surfaces
must be flat. Minimum thickness of the side walls must be 5/8" (16mm).
Minimum thickness of the doors to be attached to the product must be ¾" (19 mm) .
ATTENTION
There is a stainless steel door and stainless kick plate option. Please consult the authored service.
Confidential
9
Ventilation:
Vent holes where the air enters and exits the unit must not be blocked or obstructed. In addition, you must
periodically clean the dust and dirt that accumulate on these holes in time.
Electrical Connection:
Never use an extension cable.
The power socket must definitely be grounded and checked by an authorizedperson.
Location of the electrical wiring must comply with the dimensions specified in the manual.
ATTENTION
RISK OF ELECTRIC SHOCK
Electrical grounding is necessary. This appliance is equipped with a three-pin plug
to protect you against possible electric shocks.
• Do not remove the round grounding terminal from theplug.
• Do not use two-pin grounding adapters.
• Do not use extension cables to energize theproduct.
ATTENTION
Do not connect the grounding cable to the gas pipe. Please have the grounding checked by a qualified electrician if
you are not sure about the grounding of the product. Do not install a fuse on the neutral line or grounding circuit.
WARNING
Please wait for 3-6 hour before energizing the product to protect it against possible damages. This way, the
refrigerant and the lubricants in the system get balanced.
Water Connection
Pressure of the mains water must be in compliance with the values specified in the manual.
Location of the water system must comply with the dimensions specified in the manual.
IMPORTANT INFORMATION
Bypass is recommended for the water filtering system if a reverse osmosis system is used.
Confidential
10

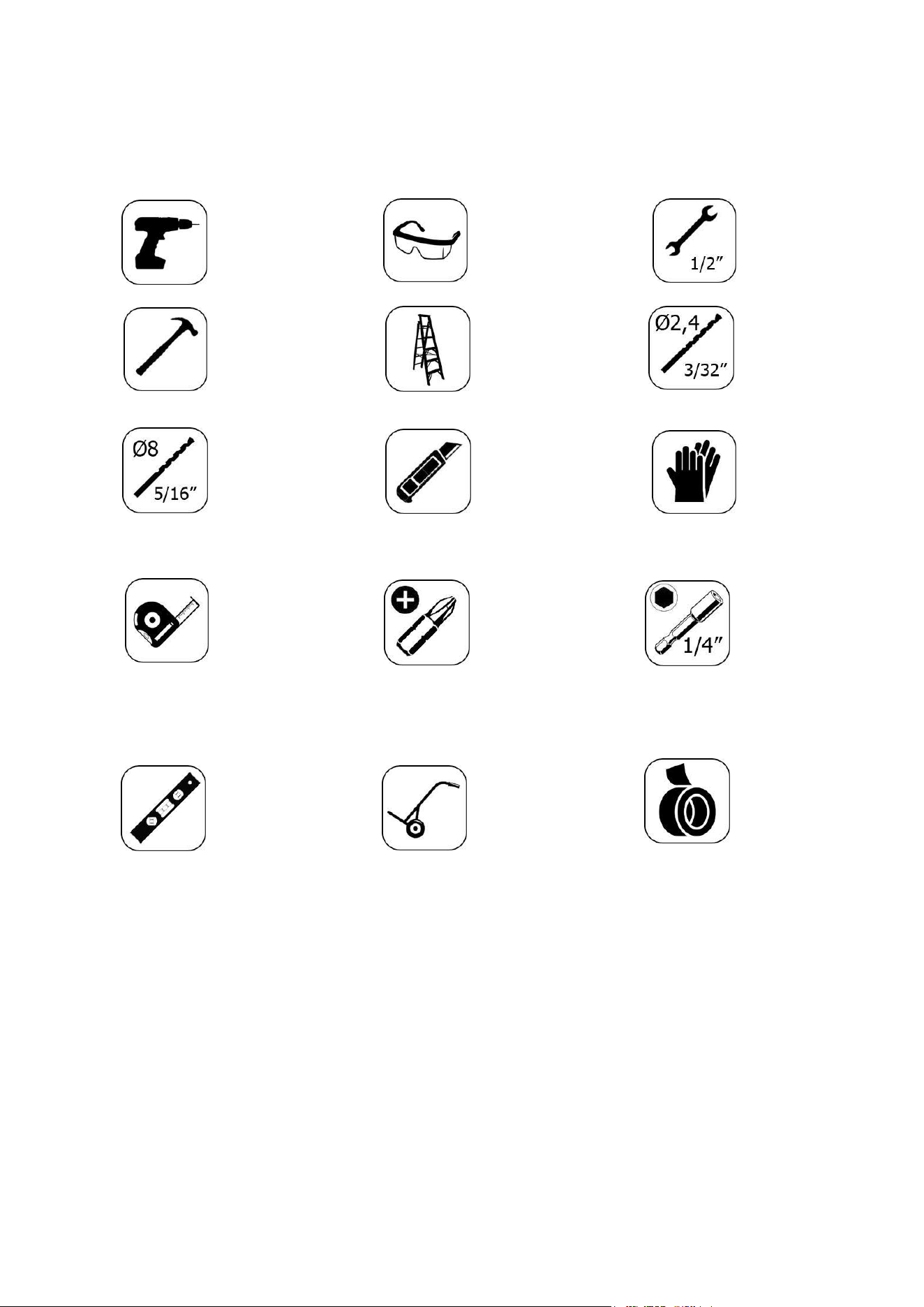

Tool list
Tools to be used when installing the product are as follows:
Cordless
Drill
Safety
Goggles
½"
Wrench
Hammer
Ladder Ø2.4
Drill bit
Ø8.0
Drill bit
Box
Cutter
Safety
Gloves
Tape
measure
Cross bit
¼"
Wrench Flat
Bubble
Level
Tool
Wheel barrow
Tape
Confidential
11

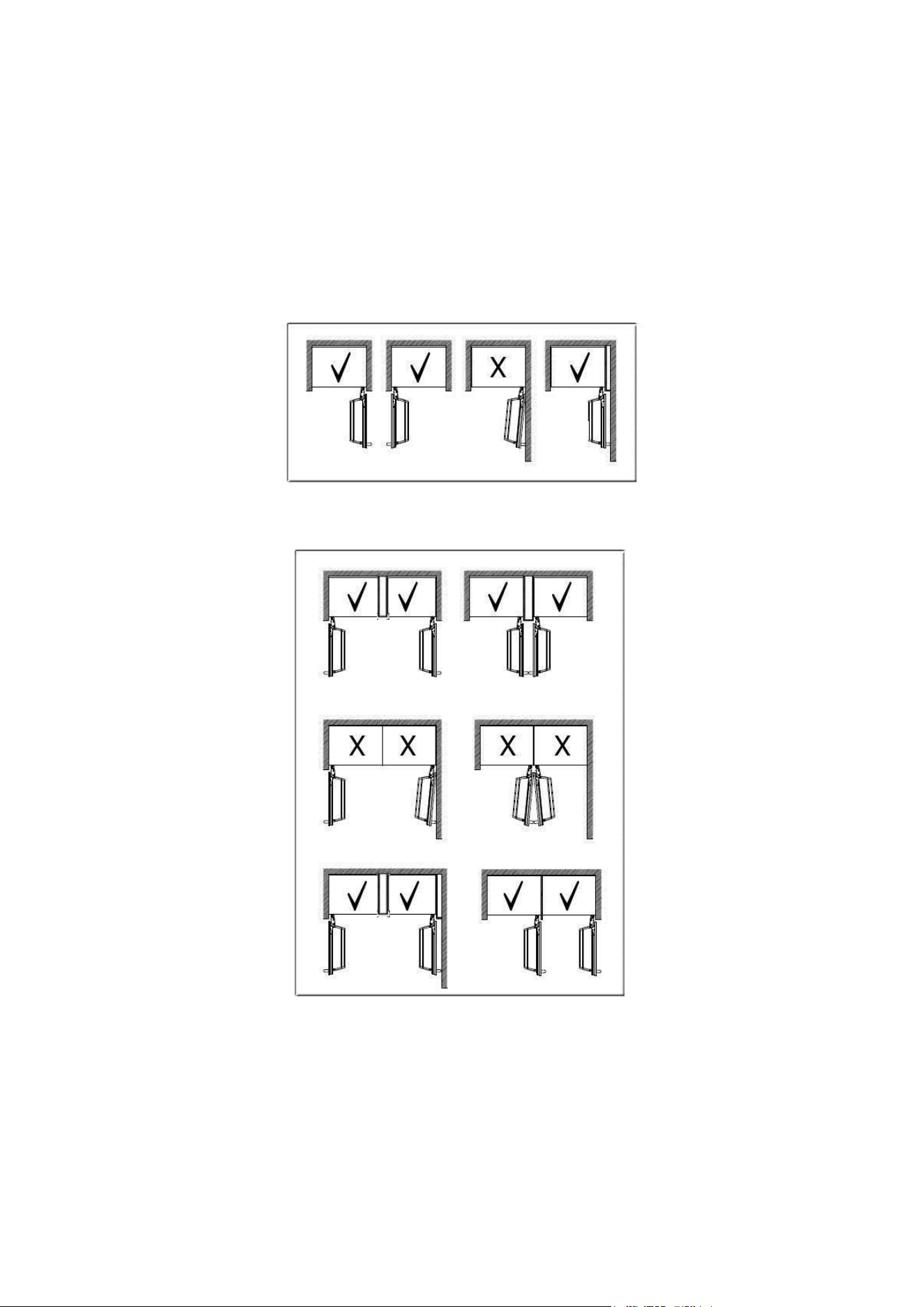

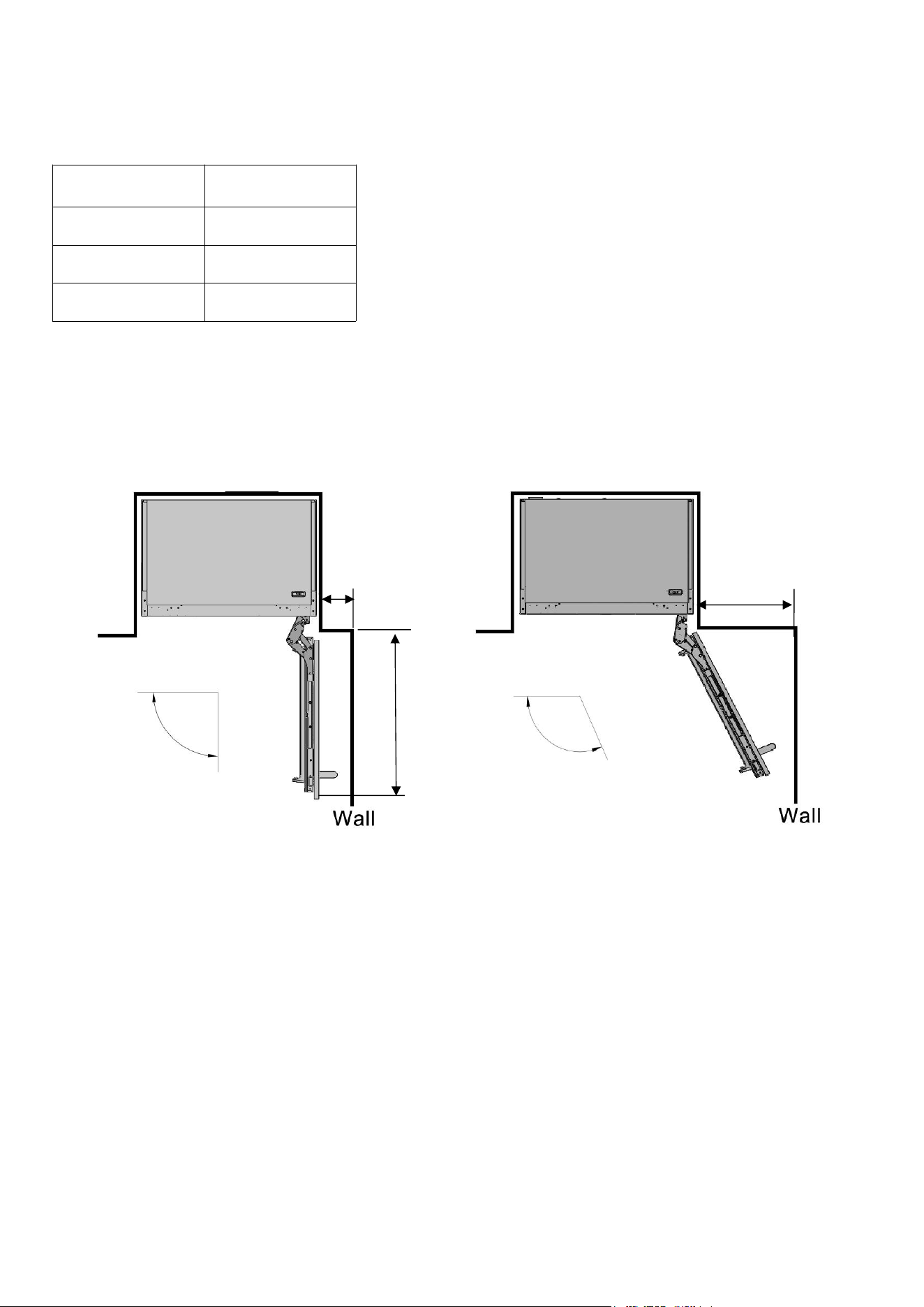

ALTERNATIVES FOR INSTALLATION
The product can be placed in various ways based on the kitchen design. It must be installed at a place where it is
ensured that the door can be opened and closed properly. If the doors cannot be opened 90 degrees at least, you
cannot completely open the drawers inside the product.
Single cabin placement methods
Dual cabin placement methods
Confidential
12
PREPARATION FOR INSTALLATION
The instructions below have been prepared according to Built-in type.
Built-in: The Appliance and Panels fully seat into the gap, and a material that can be their own box is jammed
between the two kitchen cabinets or decorative columns.
This is the most common installation scenario.

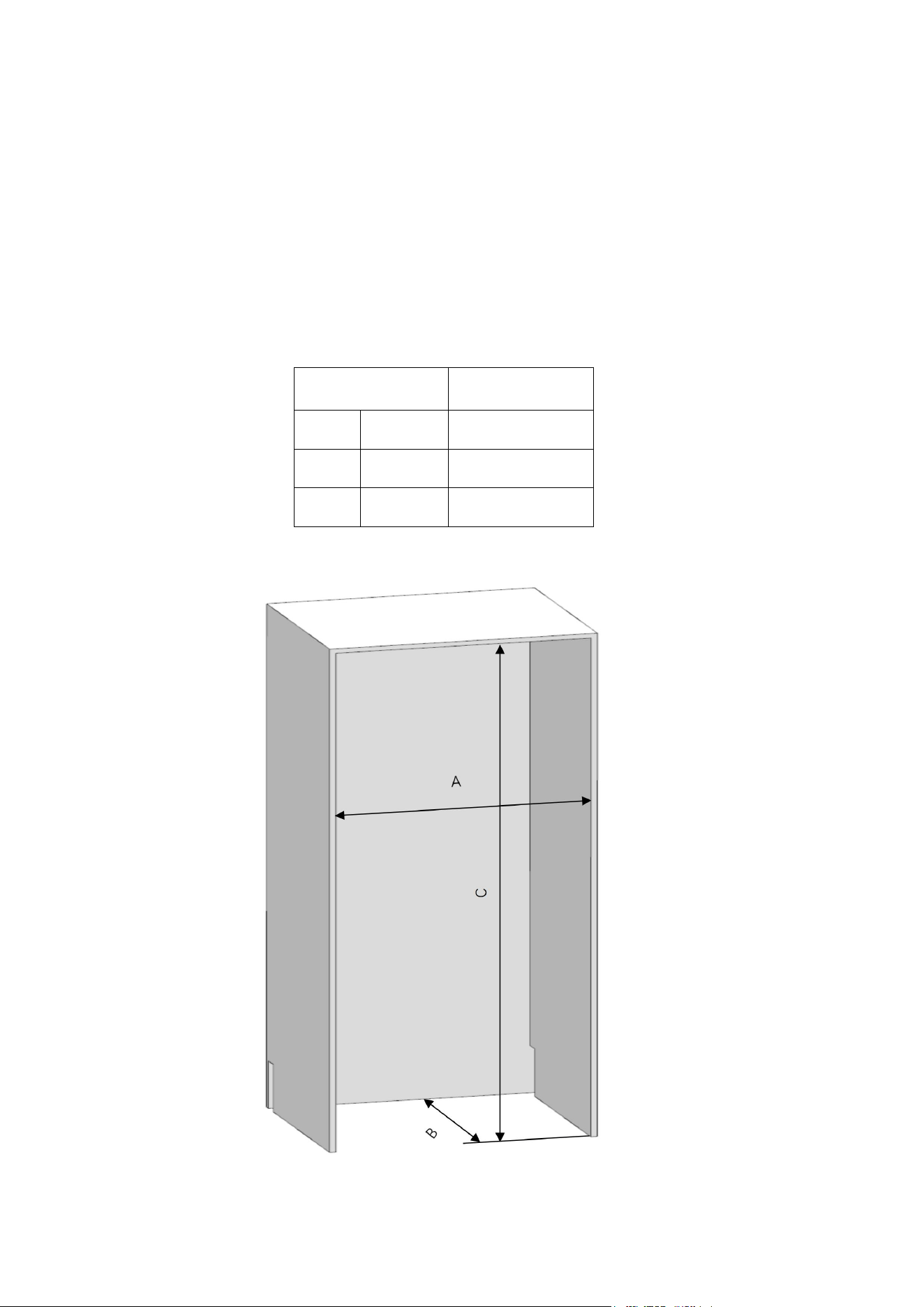

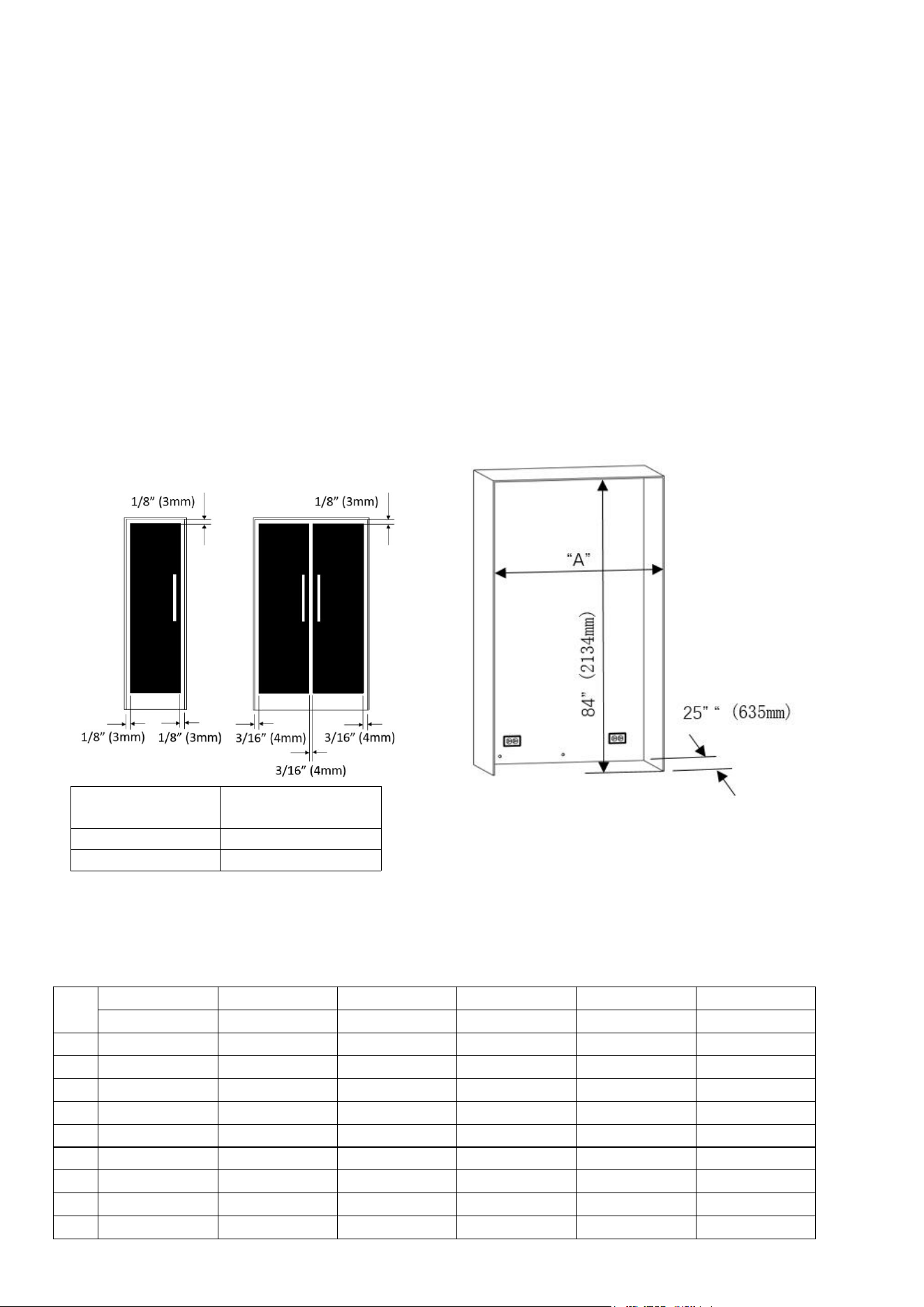

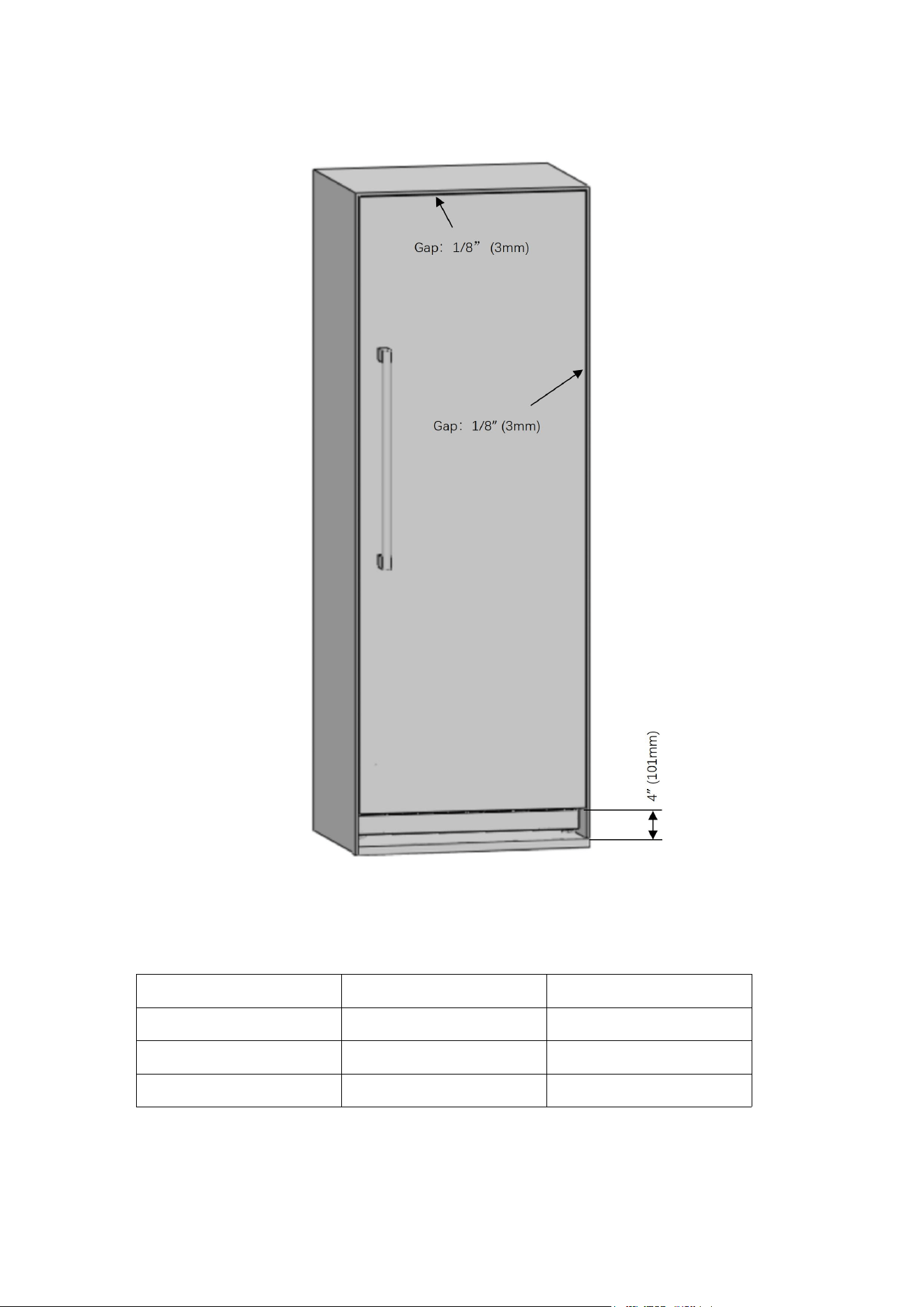

Cabin dimensions
Cabin dimensions below must be checked before startingthe installation.
Category
URFC36SNWPRY
UFFC36SINPRY
A
width
36" (914mm)
B
depth
25" (635mm)
C
height
84" (2134mm)
Confidential
13

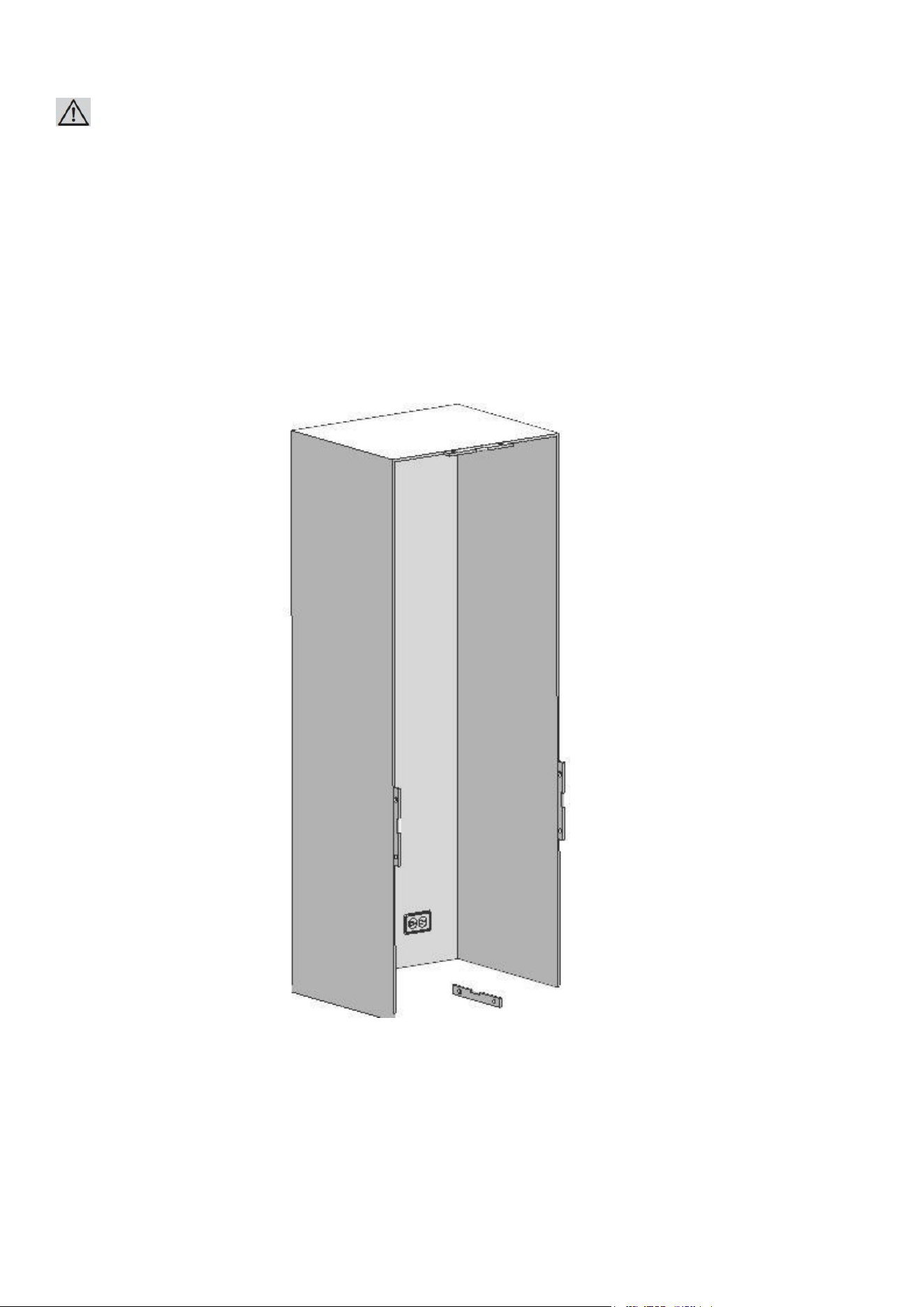

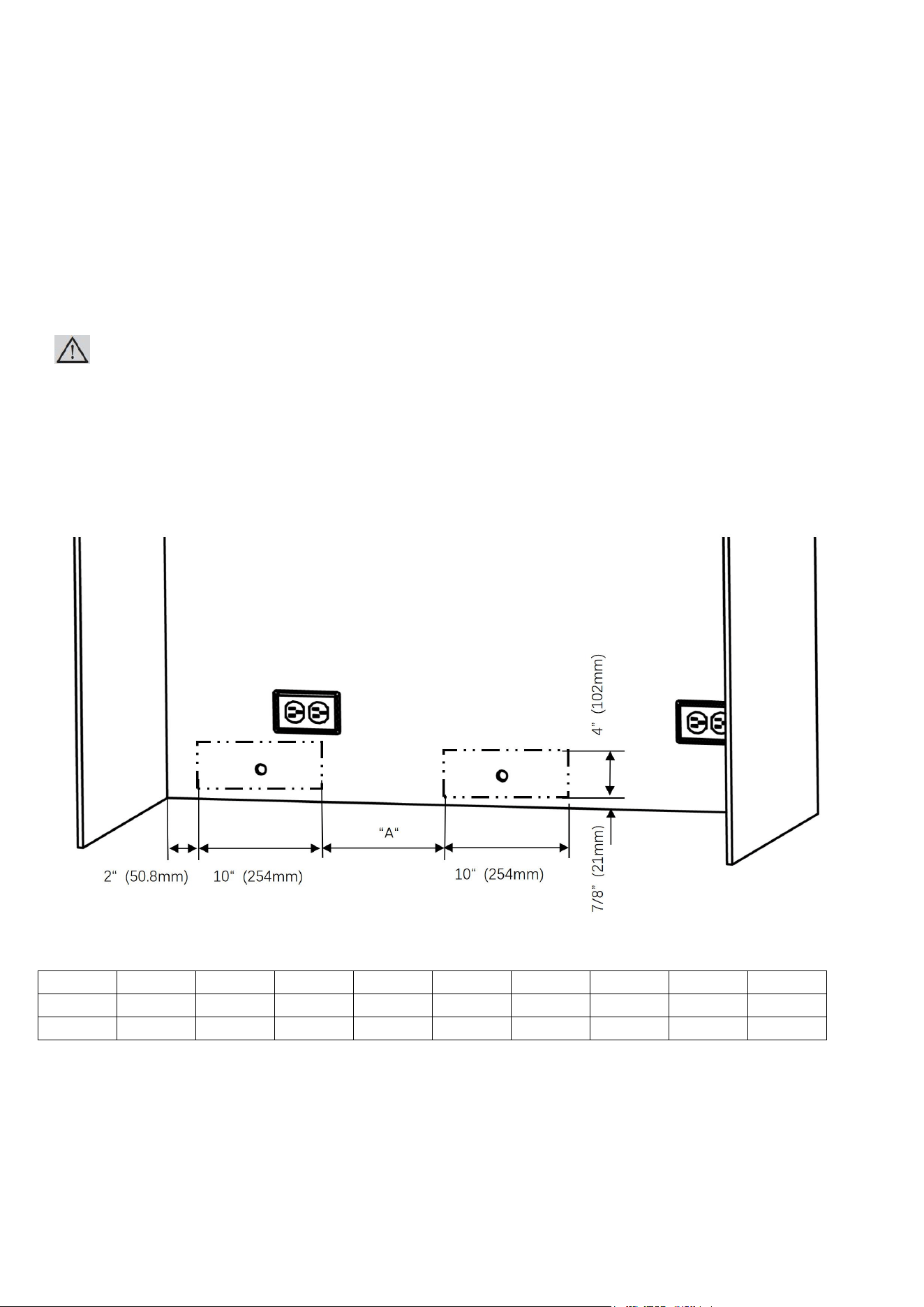

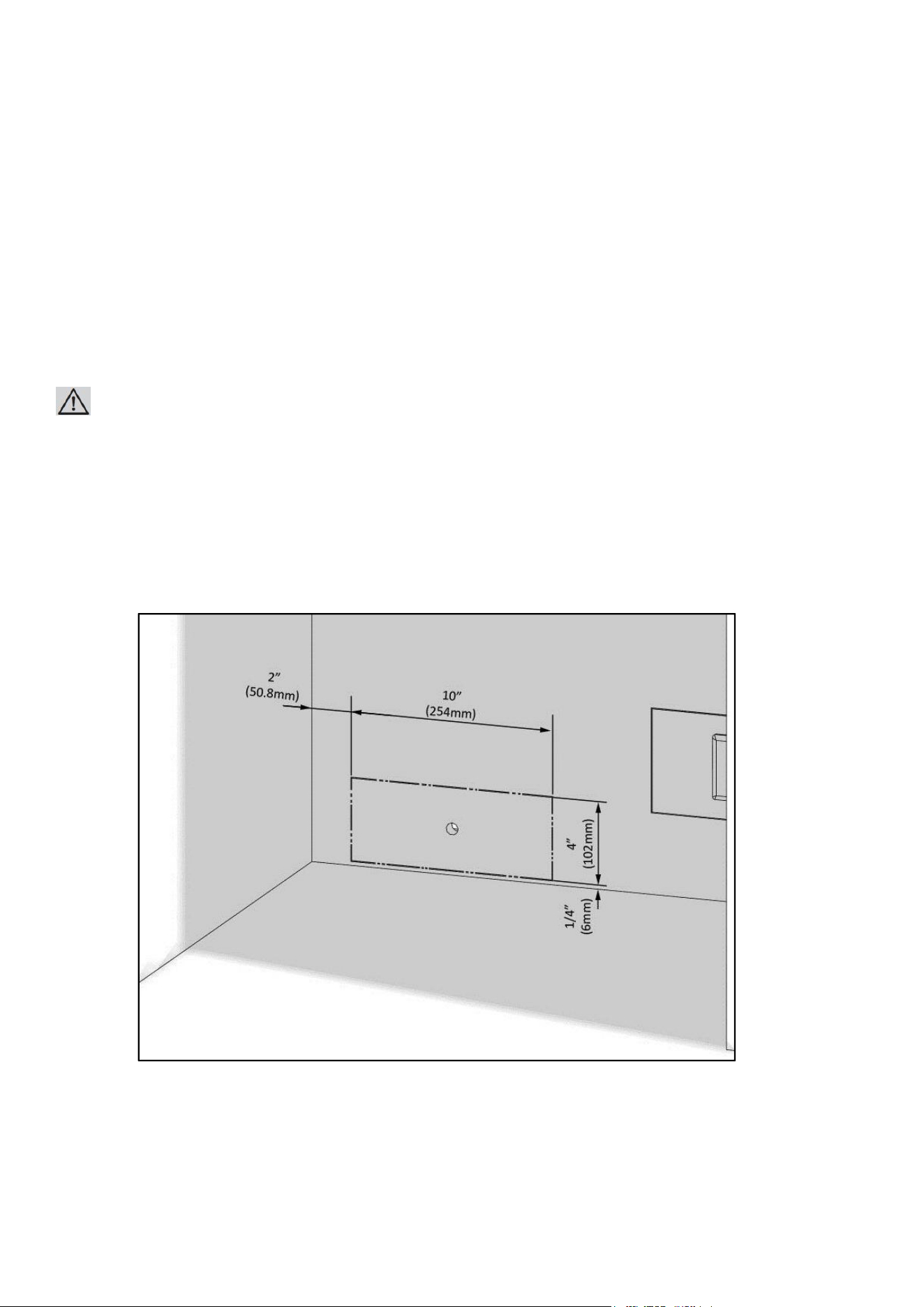

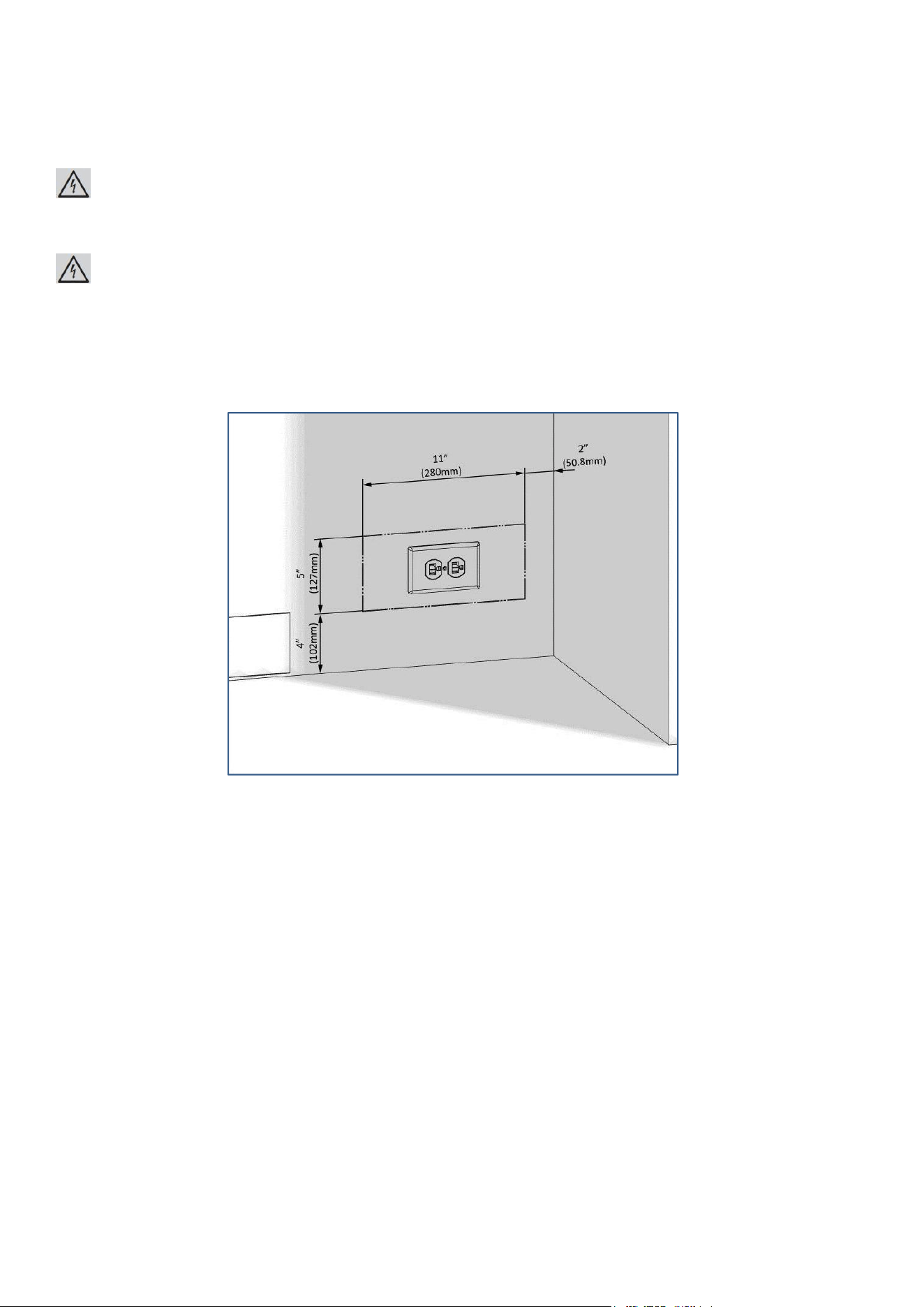

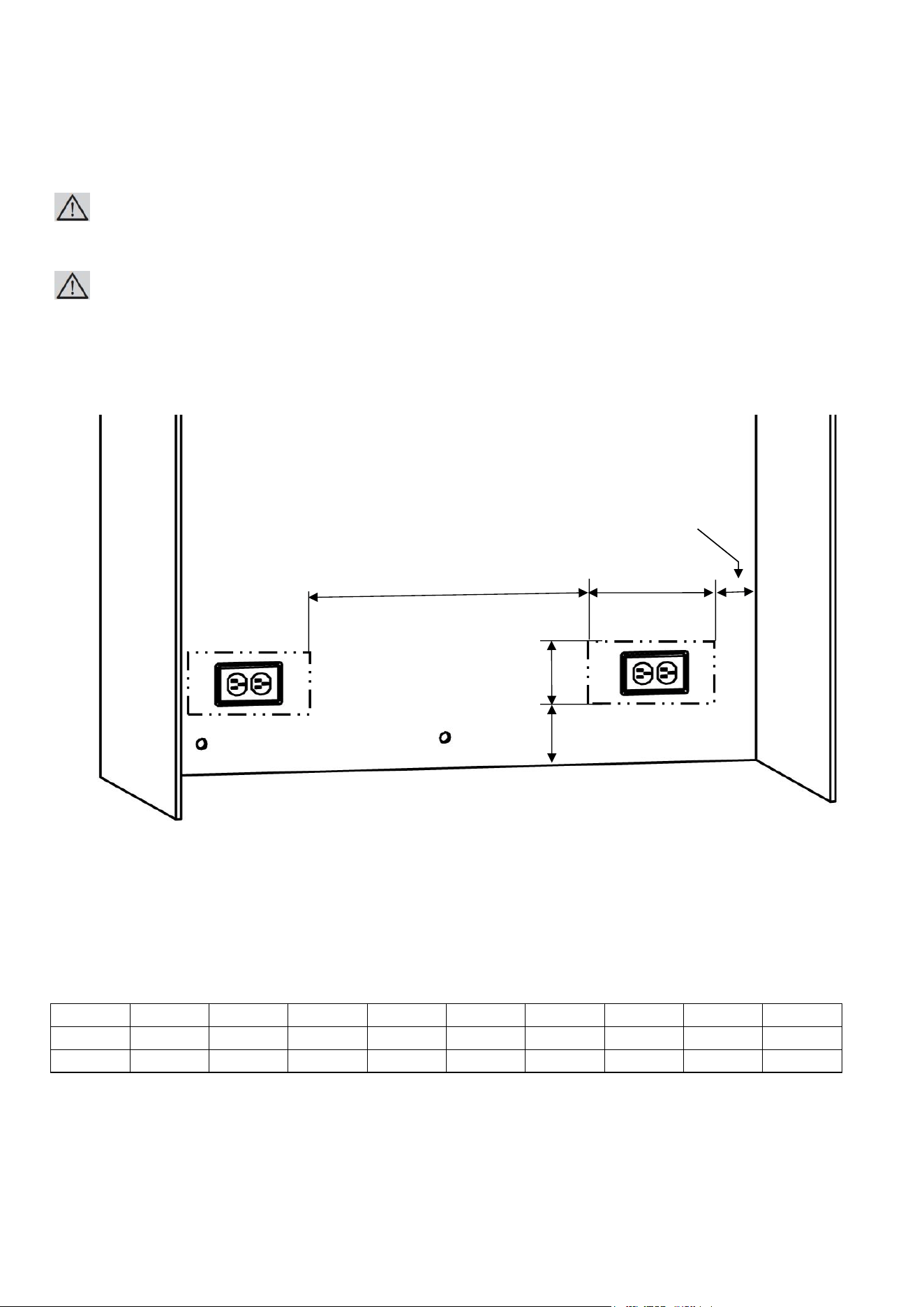

Location of the electrical wiring
Location of the electrical wiring must be within the range given below.
ATTENTION
Do not use extension cables or two-pin adaptors and do not remove the ground terminal of the grounding cable.
ATTENTION
A qualified electrician must ensure that the poles of the socket are connected correctly.
Verify that the grounding of the socket is correct.
Confidential
14
Location of the water system
The water connected to the water mains must be potable.
Location of the water system must be within the range given below.
Water system of the refrigerator must be connected to the water mains system in the house.
The user must be able to switch it on/off with the valve when necessary.
Objects that might pierce the water hoses or cause them to twist must not be present
where the water line is installed.
Pressure of the water system must be between 25-80 psi (1.7-5.5 Bar).
If the water pressure exceeds 80 psi, install a pressure limiting device or water impact protector to the inlet valve.
Never install the product or operate the appliance if it is possible for the water pressure to exceed 120 psi.
WARNING
Make sure that there is no water leakage when making the water connections. Otherwise,
there will be water on the floor and the furniture will get damaged.
You will need a hose with a minimum length of 60" (1.5 meters) and a diameter of ¼"
for water connections of the product during installation.
A connector that has a thread with an external diameter of ¼ must be used to connect the hose end to the
product.
Before completing the installation, make sure that water flows and there is no water leakage.
Confidential
15
WARNING
Flatness of the floor where the product will be installed must be checked with a Bubble Level Tool.
Uprightness of the furniture flanges must be checked with a Bubble Level tool.
If the flatness and uprightness of the product is not proper, problems may arise with the installation.
Confidential
16
Product dimensions
Category
URFC36SNWPRY
UFFC36SINPRY
A
36 3/4” (908mm)
Confidential
17

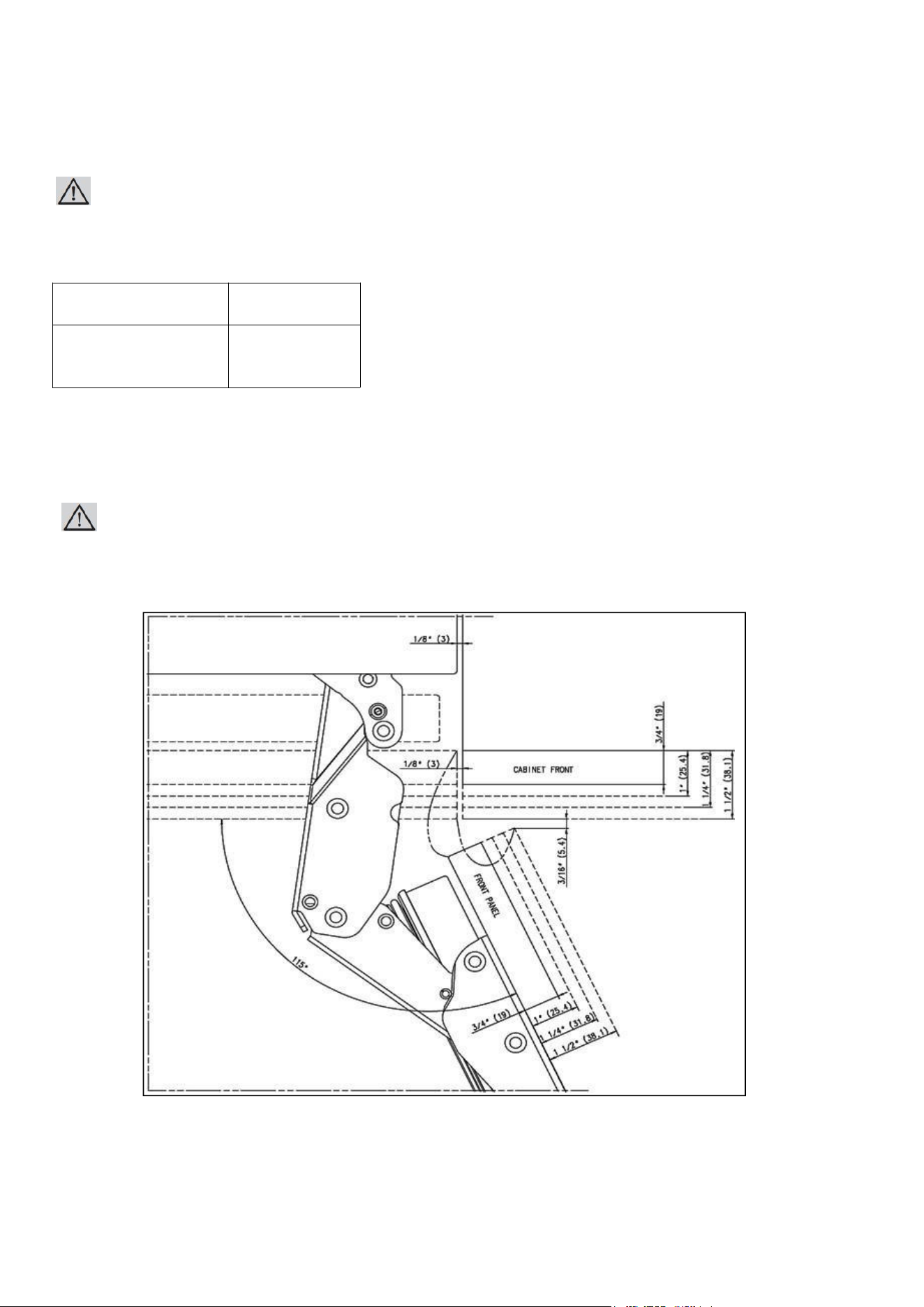

INSTALLATION DIMENSION
A : Depth of door (90°open）measured from front of door
B : Minimum door clearance to adjacent wall ( 90°- reduced internal access)
C : Minimum door clearance to adjacent wall ( 115°- full internal access)
Category
URFC36SNWPRY
UFFC36SINPRY
A
38” (965)
B
4 3/8” (110)
C
19” (483)
90°Door swing
B
C
A
115°Door swing
Confidential
18
Confidential
19

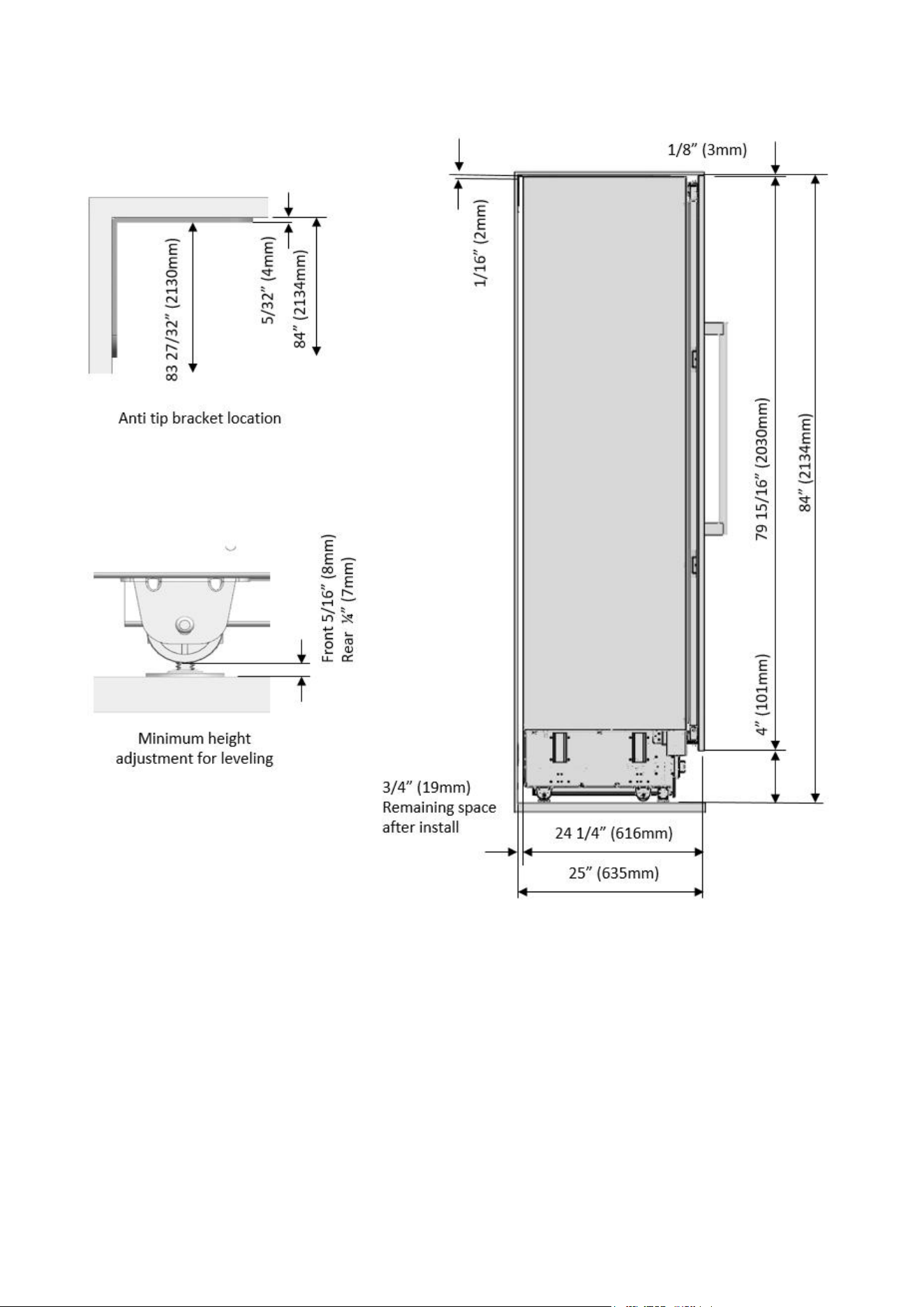

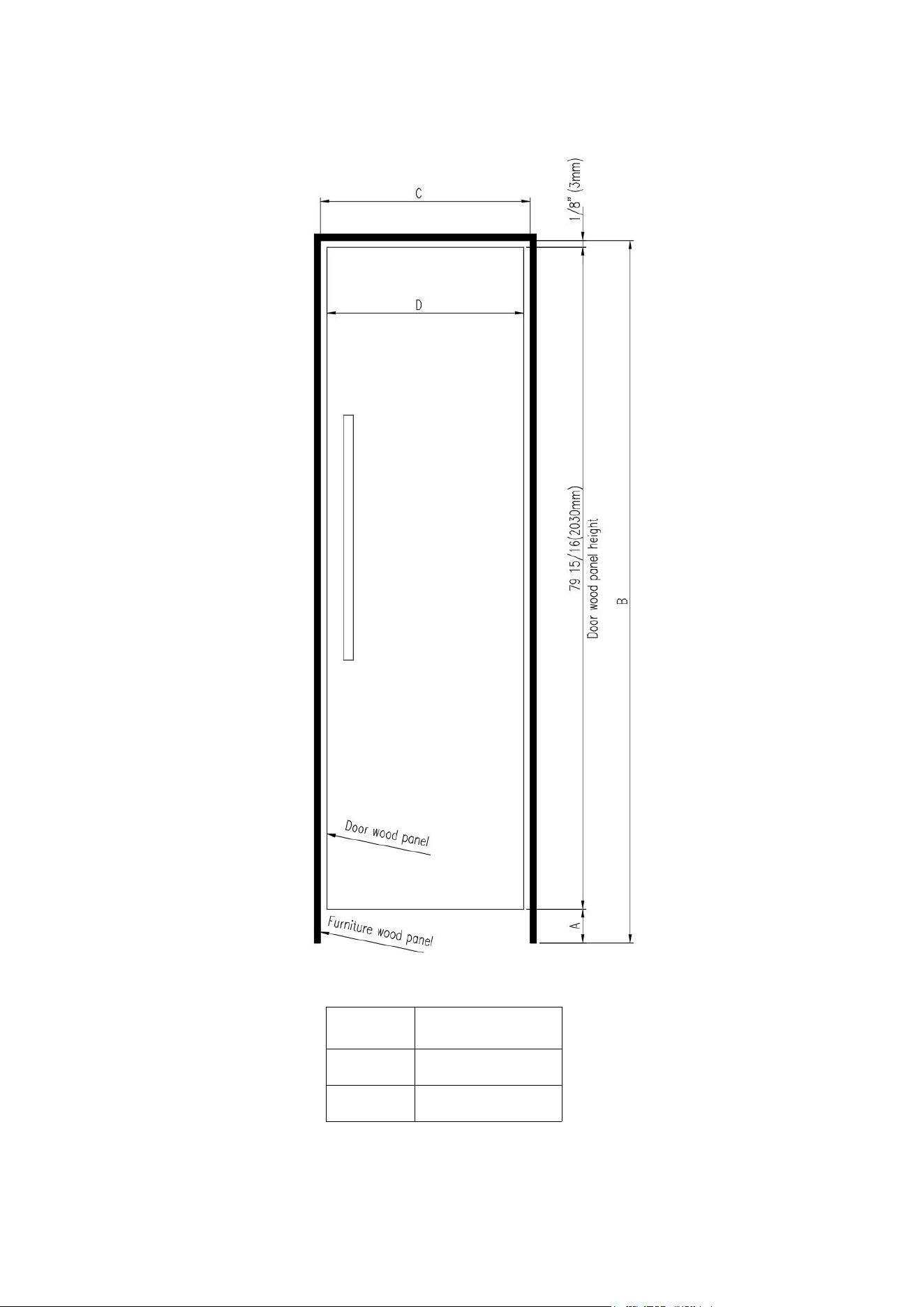

Height of the kitchen countertop based on the min/max. height of the cabin;
Category
A
B
standard
4” (101mm)
84” (2134mm)
minimum
3 3/4”(96mm)
83 13/16“ （2129mm）
maximum
5 3/8“（136mm）
85 3/8“（2169mm）
Confidential
20
Category
URFC36SNWPRY
UFFC36SINPRY
C
36” (914mm)
D
35 3/4” (908mm)
Confidential
21
Unpacking
WARNING
At least two persons must carry the refrigerator.
Use a box cutter to remove the tapes.
Cut the Packaging Board with a Box Cutter through the section illustrated
in dotted lines andremove it.
Confidential
22
Remove the Packaging Polystyrene material.
ATTENTION
Do not remove the tape of the upper door on the product until the refrigerator is placed into the cabin.
Risk of tipping over.
23
Mounting parts preparation
24

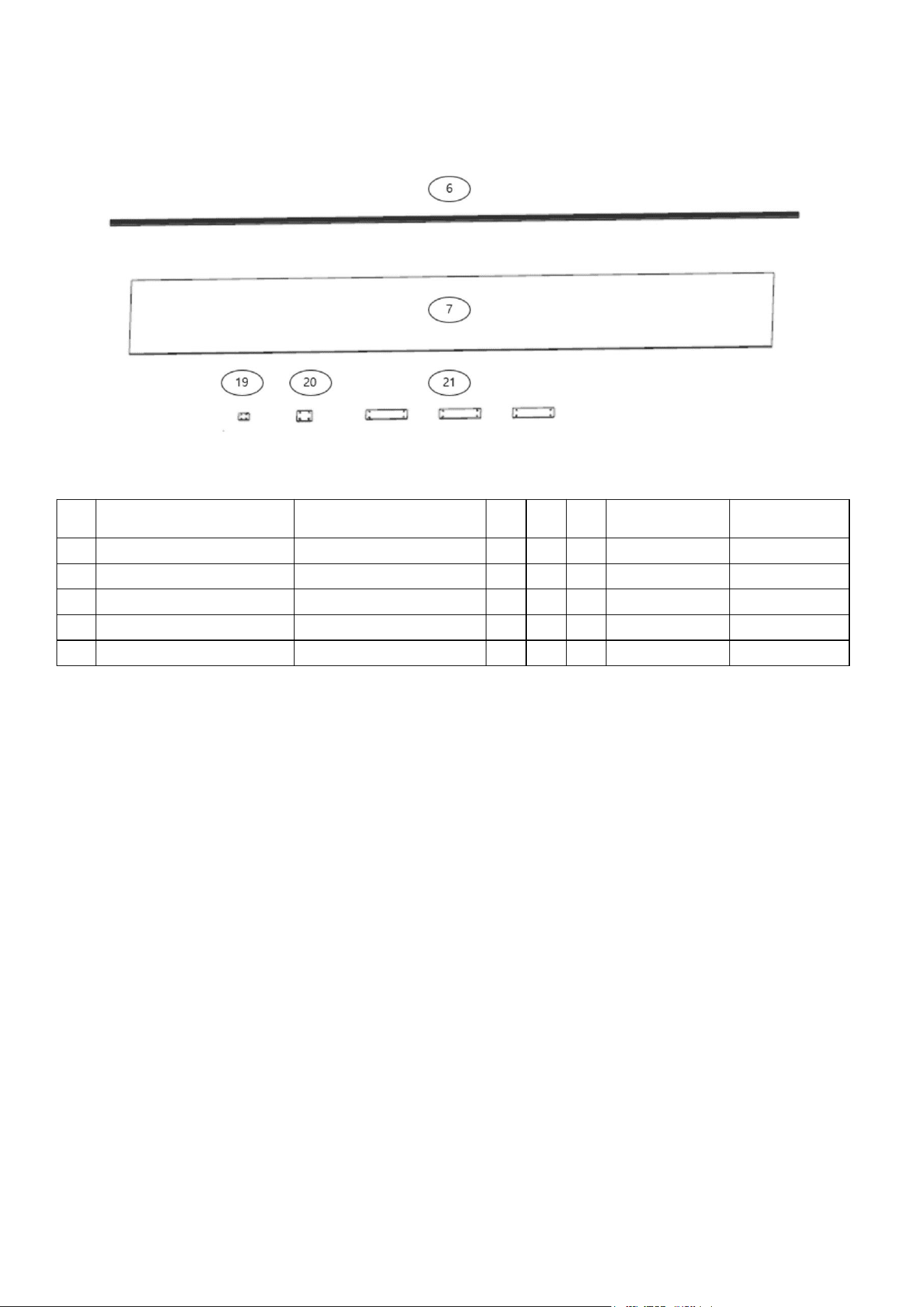

Mounting parts list
No
Part name
Spec
URFC36SNWPRY
UFFC36SINPRY
Remark
1
Door bracket side
T1.2,L=690.5, Cr+zn-coating
4
2
Custom panel bracket
side
T1.0*20*632,Cr+zn-coating
4
3
Cabin top trim
PVC extrusion L=457
-
Cabin top trim
PVC extrusion L=609
-
Cabin top trim
PVC extrusion L=762
-
Cabin top trim
PVC extrusion L=914
1
4
Cabin side trim
PVC extrusion L=1,874
2
5
Custom panel side trim
PVC extrusion L=1,781
2
6
Cabinet center trim
PVC extrusion L=1,874
1
Dual cabin
7
Insulation sponge
T3.0*400*1750
1
Dual cabin
8
Custom panel template
top
Paper, 908*303
1
9
Custom panel template
side A
Paper, 887*127
1
10
Custom panel template
side B
Paper, 970.5*127
1
11
Custom panel template
under
Paper, 908*283
1
12
Anti-tip bracket
T4.0, Cr+zn-coating
2
13
Anti tip bracket screws
and dowels
M8*L60
8
14
Position adjustment jig
hips
1
15
Cabinet bracket top
T1.0, Cr+zn-coating
2
16
Cabinet bracket under
T1.0, Sus
2
17
Door bracket
T1.0, Cr+zn-coating
2
18
Cover door bracket
hips
2
19
Fastener A
T2.0*43*29, Cr+zn-coating
1
Dual cabin
20
Fastener B
T2.0*56*41, Cr+zn-coating
1
Dual cabin
21
Fastener C
T2.0*56*41, Cr+zn-coating
3
Dual cabin
22
Air vent hinge part left
hips
1
For right hinge
23
Air vent hinge part right
hips
For left hinge
24
Door hinge bracket left
top
T2.0, Cr+painting
1
For right hinge
25
Door hinge bracket left
under
T2.0, Cr+painting
For left hinge
26
90° limit pin
Ø4
2
Door 90°opening
27
Cross washer head screw
M4x12, cross washer head
30
Fixing press part
28
Counter sunk head screw
M4X14, cross flat head
32
Fixing wood part
25
Screw quantity in detail
Item no.
15
16
17
19
20
21
Hanger
top
Hanger
low
Total
Screw
No 27
4
4
2
4
4
12
-
-
30
No 28
4
4
4
-
-
-
10
10
32
No 13
Anti tip bracket screws
dowels
No 28
Counter sunk head screw
Spec : M4x12
Fixing wood part such as
furniture
No 27
Cross washer head screw
Spec : M4x12
Fixing press part Such as
door and cabin.
26

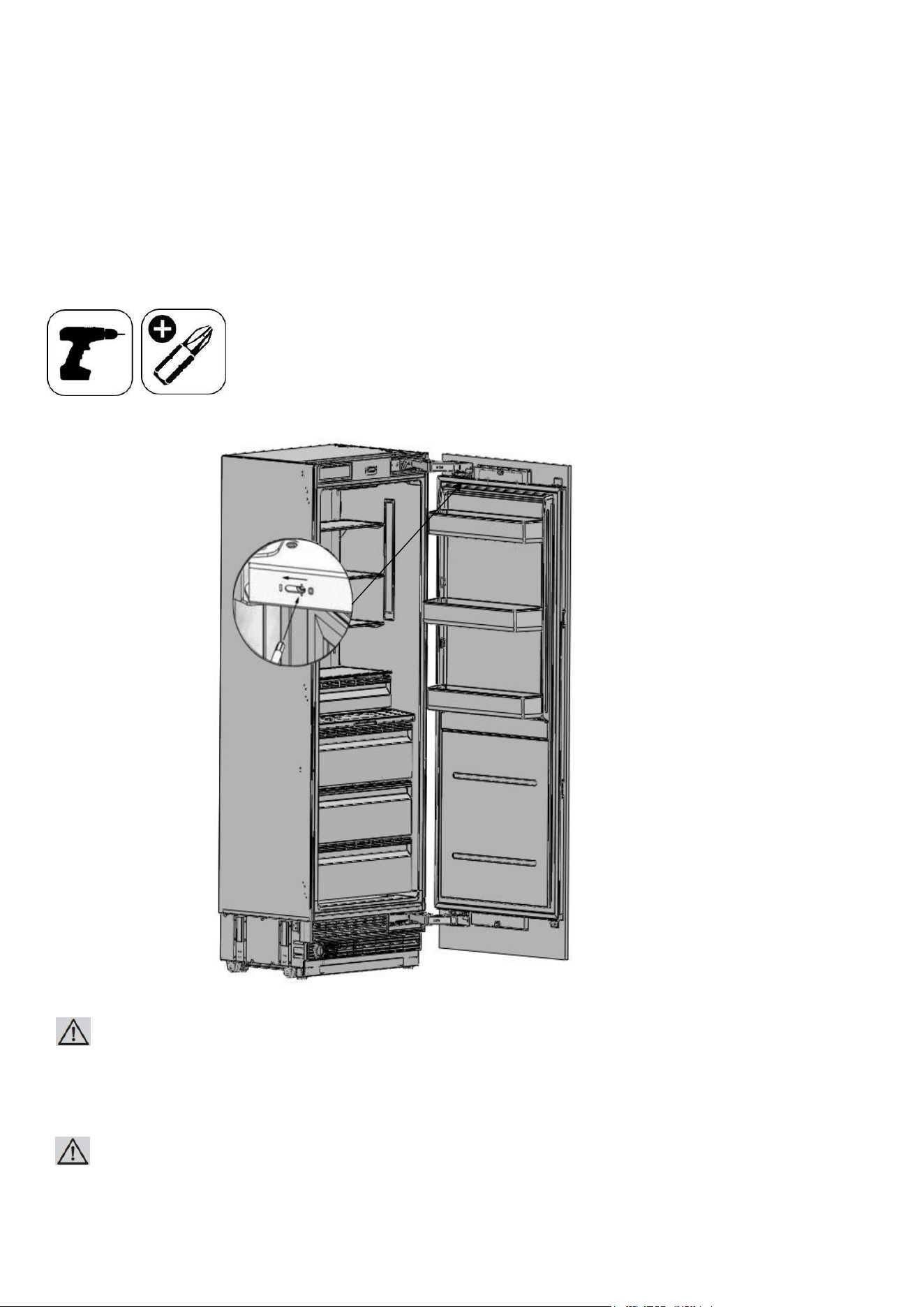

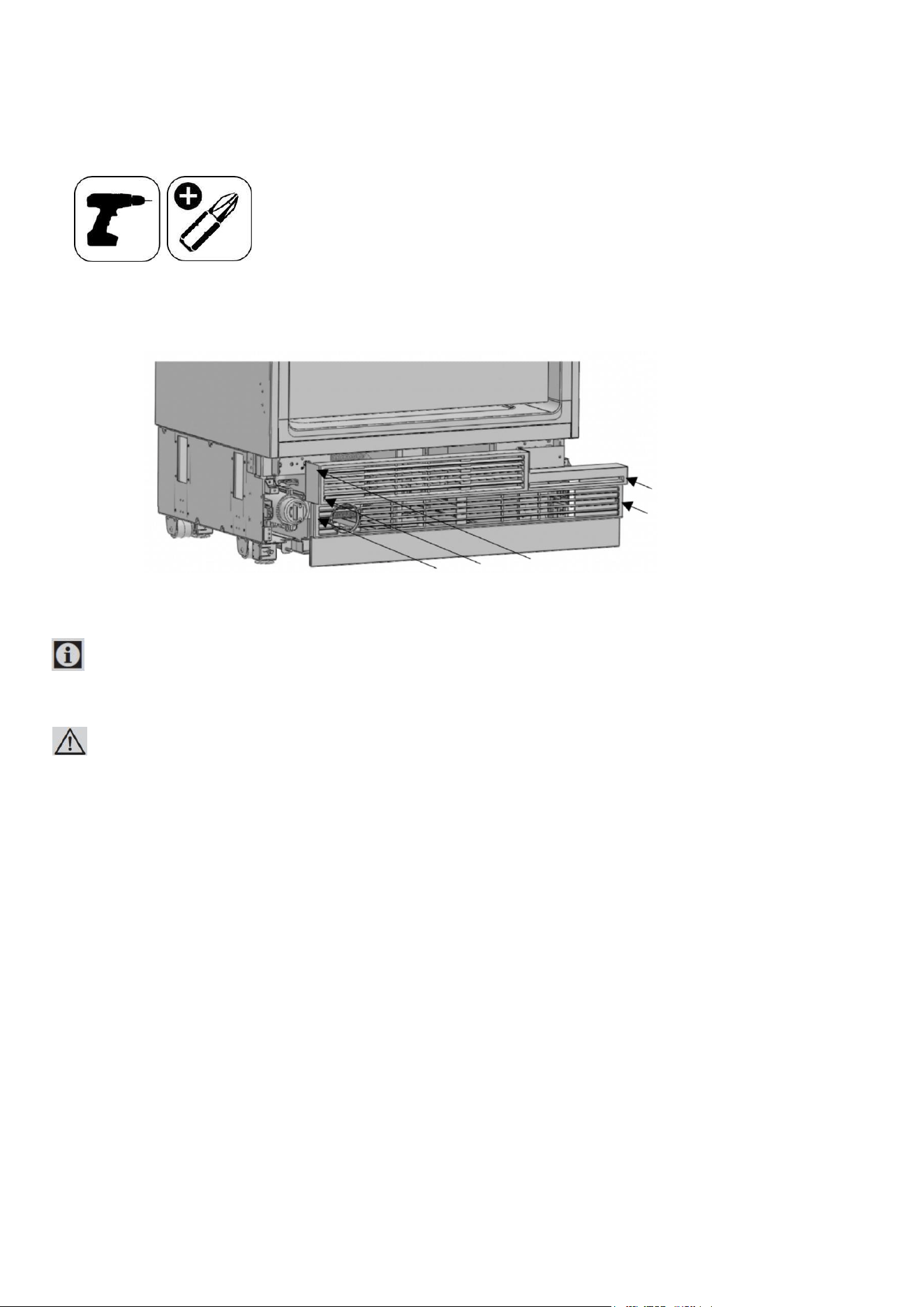

Removing the vent hole assembly
Remove 5 screws to take out the Vent Hole Assembly.
Confidential
27
PRE-INSTALLATION
Continue to install the product according to the instructions below. Additionally, consider national and local
instructions regarding installation.
Please observe the following:
For the USA, The National Electrical Code, ANSI/NFPA 70 – last version/State orMunicipality
directives and/or regional directives.
For Canada, The Canadian Electrical Code, C22.1 – last version/State or Municipality directives
and/or regional directives.
Mounting the anti-tip brackets
WARNING
You must definitely use Anti-Tip Brackets to prevent the appliance from tipping over.
WARNING
Make sure that there is no electrical or water connection where the screws will be tight and
connections will be established.
WARNING
Please remember to use the necessary protective equipment when drilling holes on the wall and
performing installation.

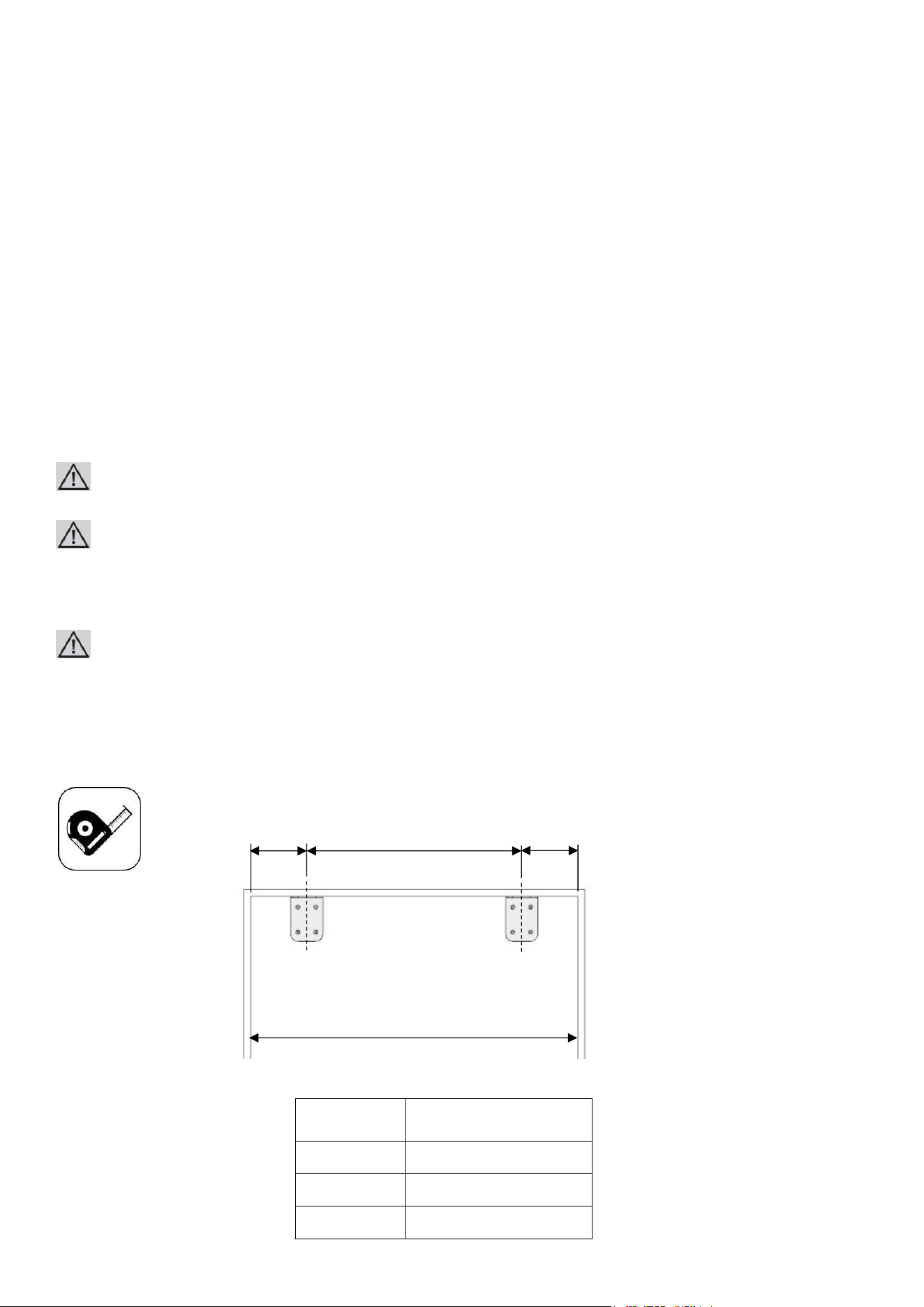

Mark the wall for anti-tip brackets (item No.12).
Category
URFC36SNWPRY
UFFC36SINPRY
A
36" (914mm)
B
23 5/8" (600mm)
C
6 3/16" (157mm)
B
C
C
Anti-tip brackets on the wall
A
Confidential
28
Use a drill to create holes for dowel at the marked points. (5/16” -Ø8)
Use the hammer to fit the dowel (item No.13)
Confidential
29
Fit the anti-tip bracket (item No.12) into their places, using 4 screws(item No.13) foreach.
You must use all of the 2 brackets to ensure safety of the product.
WARNING
If you are not sure whether the existing connection parts are fit to the wall as securely as they should be,
you can use alternative anti-tip methods.
If there is furniture at the back wall of the refrigerator, please make sure that the furniture is fixed to the wall.
For this, you need to be sure that the back wall of the furniture is fixed to the concrete back wall
with suitable connection parts.
Confidential
30

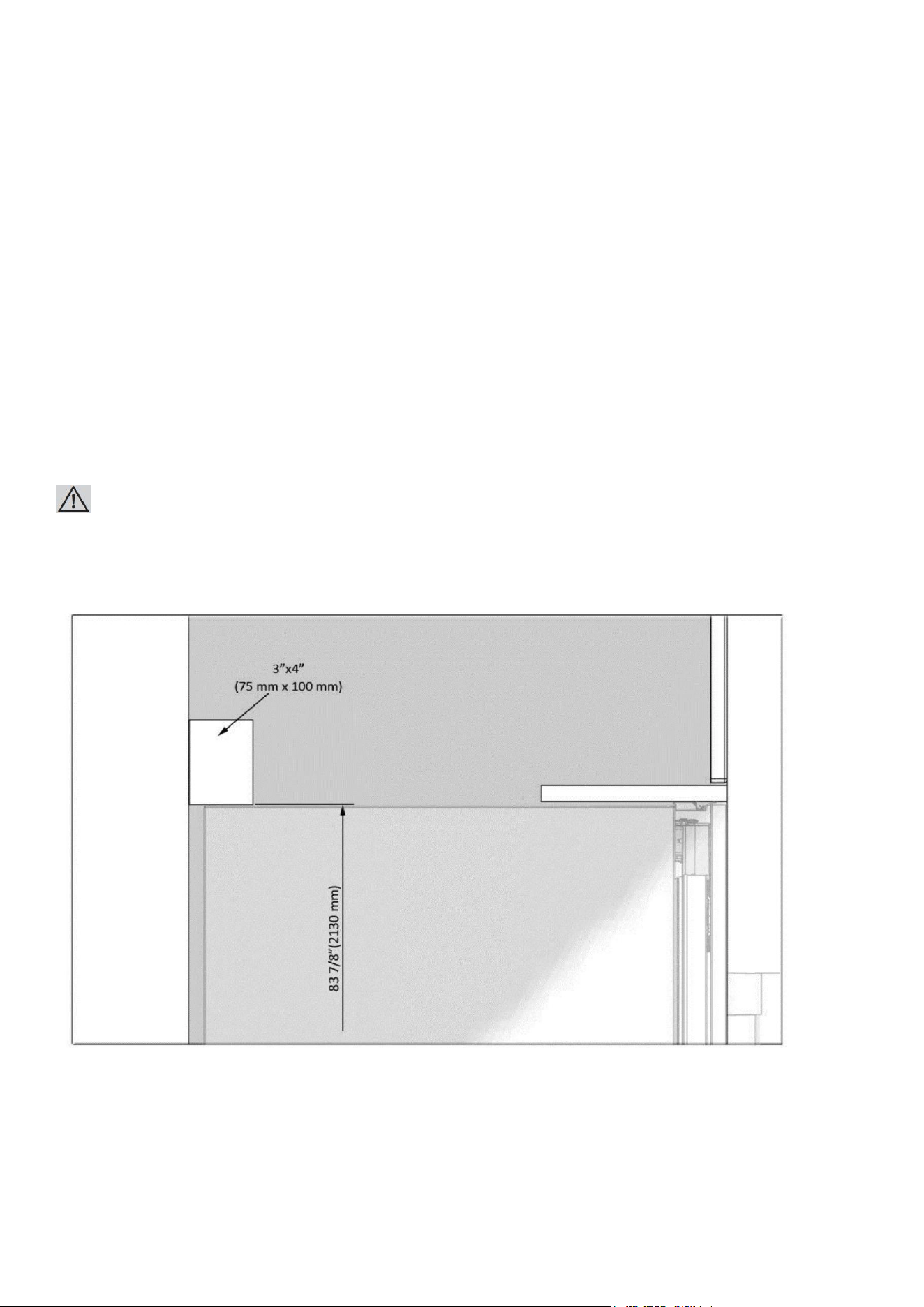

Alternative anti-tip method
If the anti-tip brackets cannot be connected securely, you must use the alternative method below.
In this method, you can use wooden girders to avoid the risk of tipping over.
It must be installed as illustrated in the figure below.
There must be no clearance between the product and the wooden girder.
Minimum section dimensions of the wooden girder must be 3"x4" (75 mm x 100 mm). Width of the girder must be
equal to the clearance where it will be installed.
An additional girder must be used if the niche depth is more than anticipated. The wooden girder must contact the
product with a maximum size of 2" (50.8 mm).
To determine the location for the wooden girder, mark it on the rear wall, select suitable screws and connect safely.
WARNING
Number and features of the screws to be used for the wooden girder must be determined
so that there is no safe connection.
Confidential
31
Preparing the water hose and the power socket
You will need a hose with a minimum length of 60" (1.5 meters) and a diameter of ¼" for water connections
of the product during installation.
A connector that has a thread with an external diameter of ¼ must be used to connect the hose end to the
product.
You can choose the method A or method B below to prevent the cable from gettting jammed.
Method A ：Locate the water hose and power supply on the back
Method B ：Locate the water hose and power supply on the side
water line location
Power socket location
Confidential
32
INSTALLATION TO THE CABIN

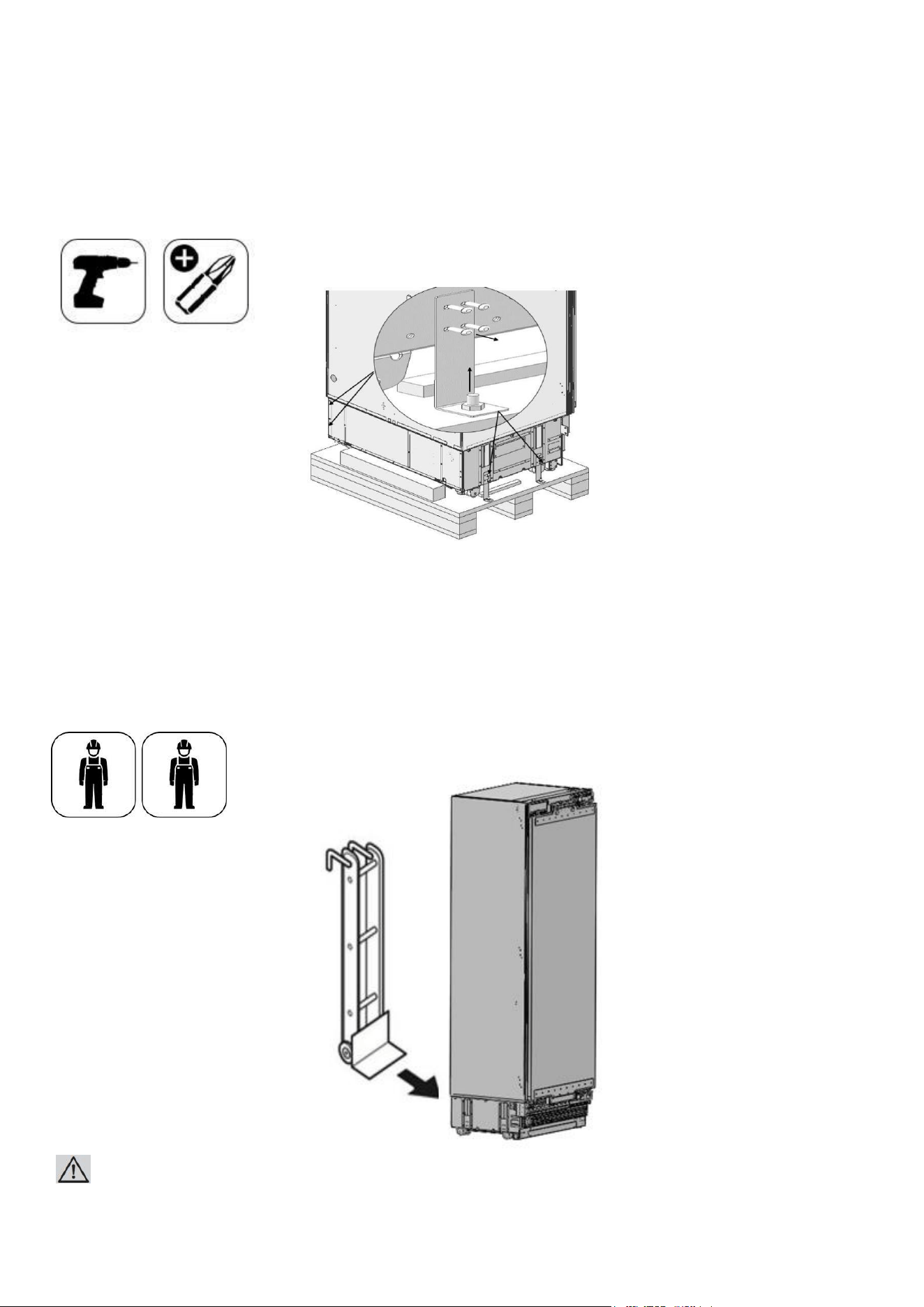

Taking the refrigerator from the wooden pallet
Remove the brackets that connect the refrigerator to the WoodenPallet.
Recline the refrigerator slowly and pull back with the help of the cart, and then land it.
ATTENTION
The risk of tipping over is high as of this point. You should not open the doors
until the product is placed into the cabin.
Confidential
33

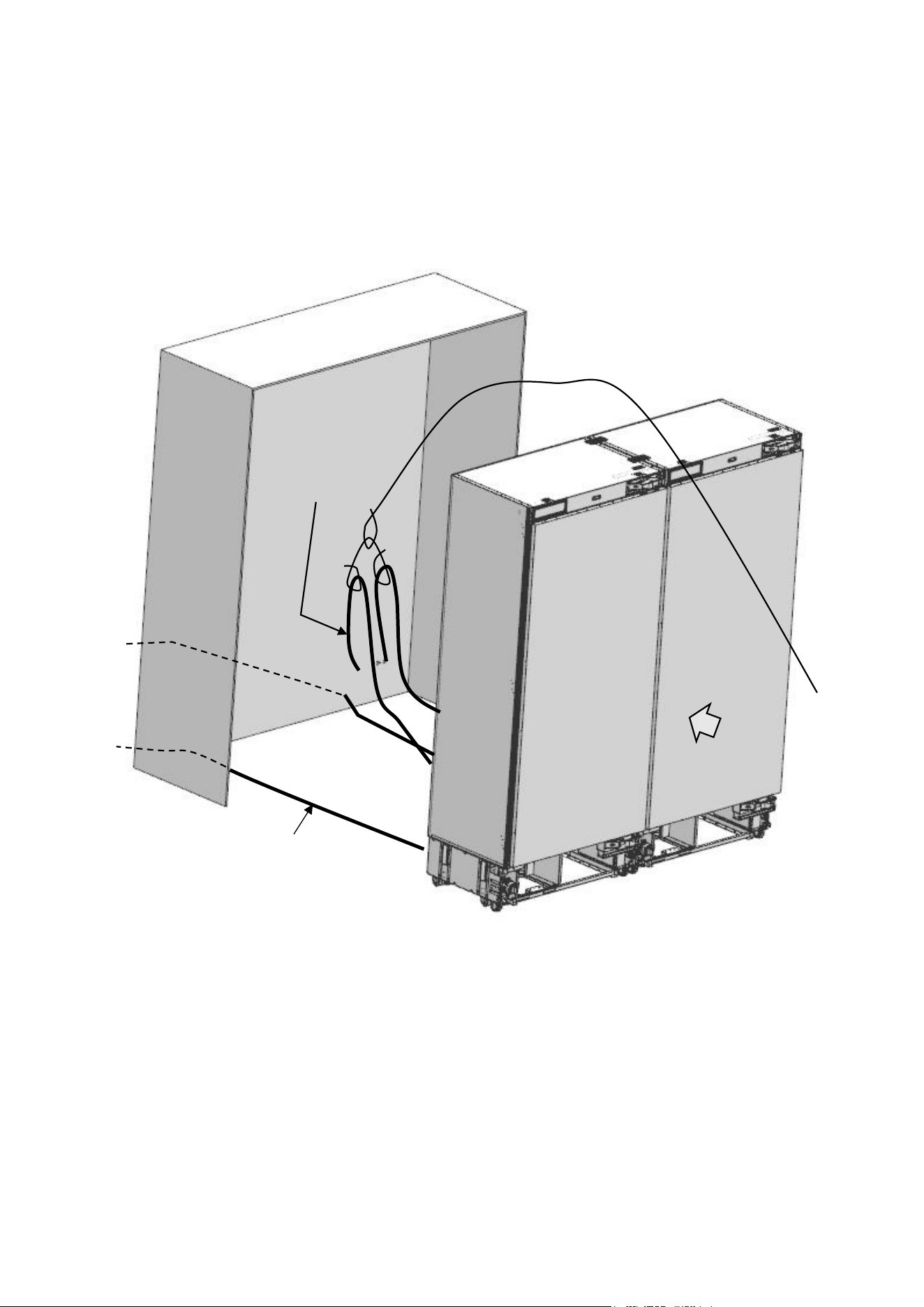

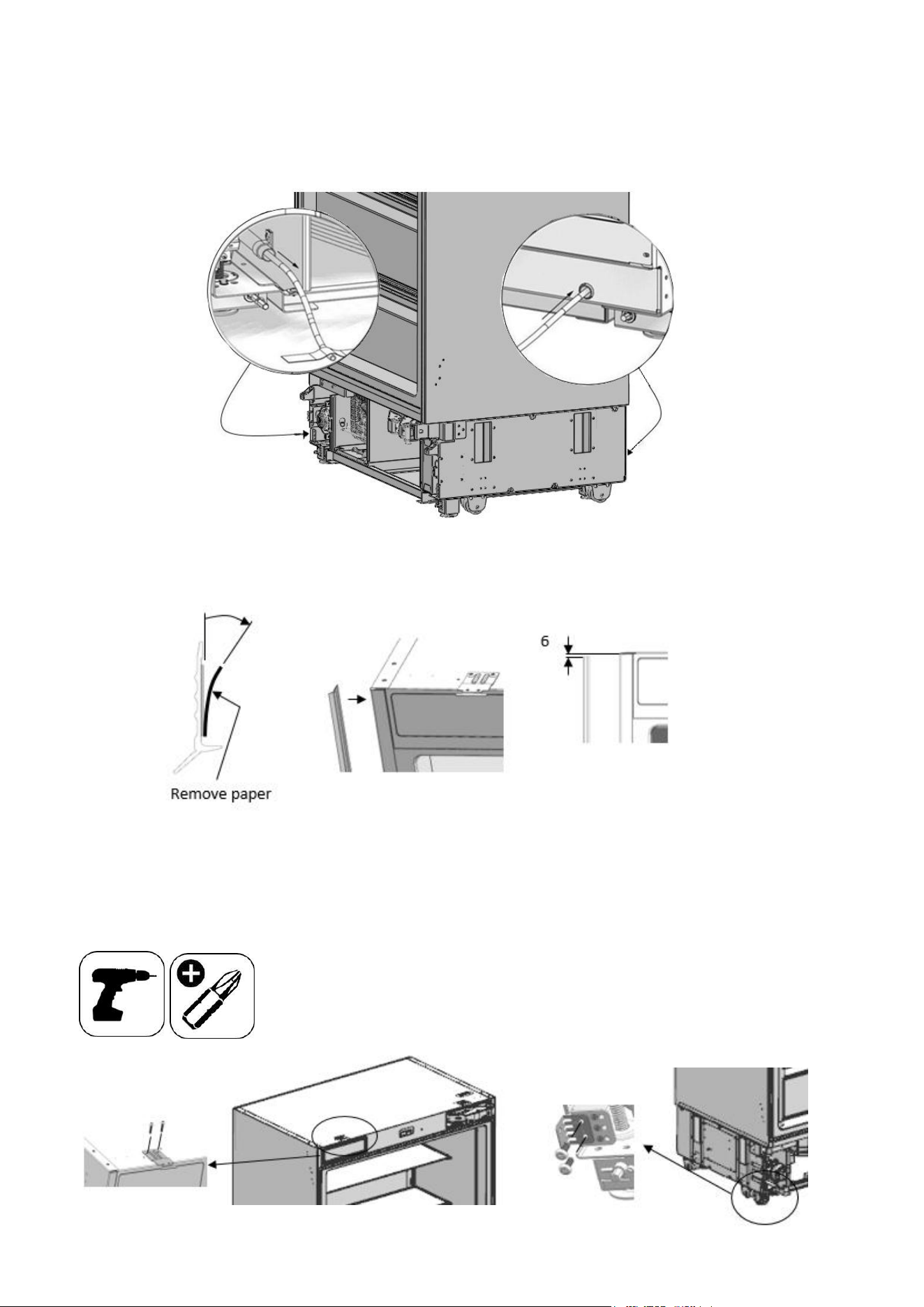

Placing the refrigerator into the cabin
Insert the mains water hose into the duct at the back and take it out from thefront.

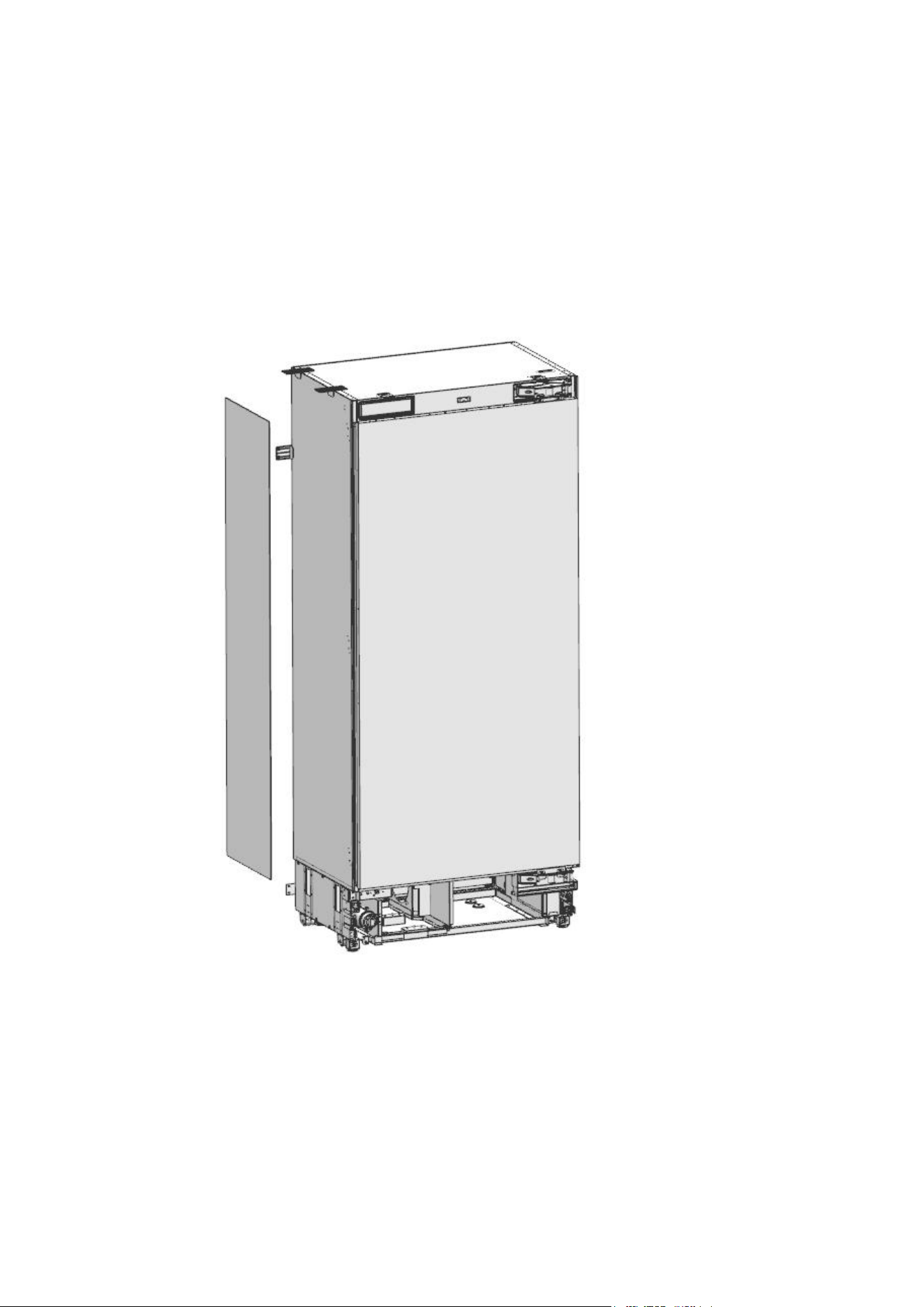

Attach (furniture side trim (ItemNo.4) .
Screwing the cabinet bracket on the cabinet.
Screw the cabinet bracket top (ItemNo.15) on the cabinet.
Screw the cabinet bracket under (ItemNo.16) on the cabinet.
Confidential
34
IMPORTANT INFORMATION
Apply the below method to prevent the cable from getting jammed.
Start the refrigerator and make sure it is energized.
(You can check if the lamps compartments are on or off to see if the product is operating).
IMPORTANT INFORMATION
You can use tape and similar protectors on parts you think this is necessary to protect the edges of the furniture
when placing the product.
WARNING
The plug of the product must be accessible after installation. If the plug is not accessible after installation,
the power must be cut off from the main switch.
WARNING
Make sure that the mains cable is not jammed when placing the product.
Push the product carefully towards the cabin to place it.
If there is strain during the placement of the product into the cabin:
The floor might be rough or uneven
Adjustable feet might be loose
(please see the relevant section to learn how to adjust the adjustable feet)
Confidential
35
IMPORTANT INFORMATION

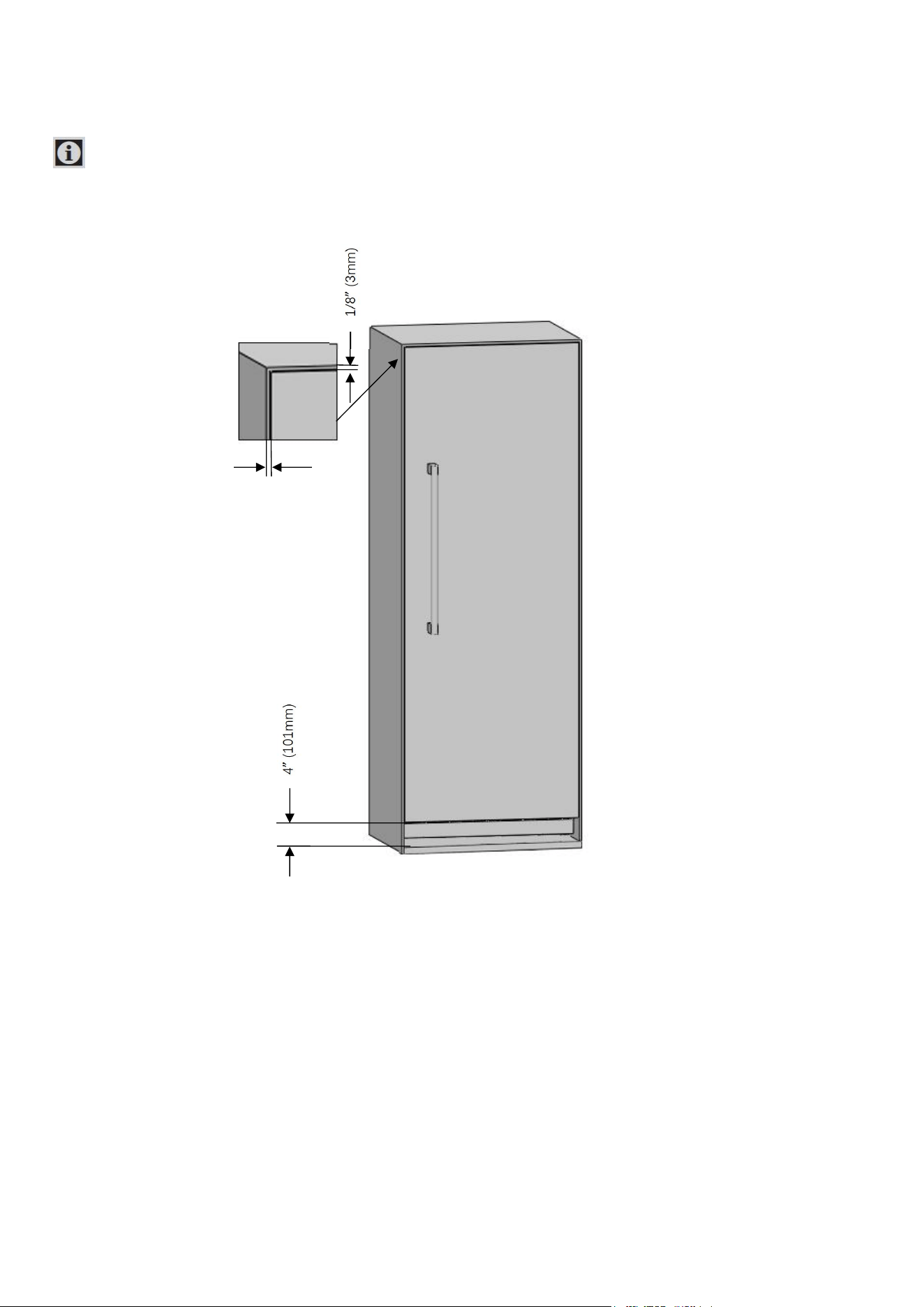

You must use the upper edges of the door when aligning the product with the furniture.
Adjustment of other edges are explained in the following pages.
1/8” (3mm)
Confidential
36

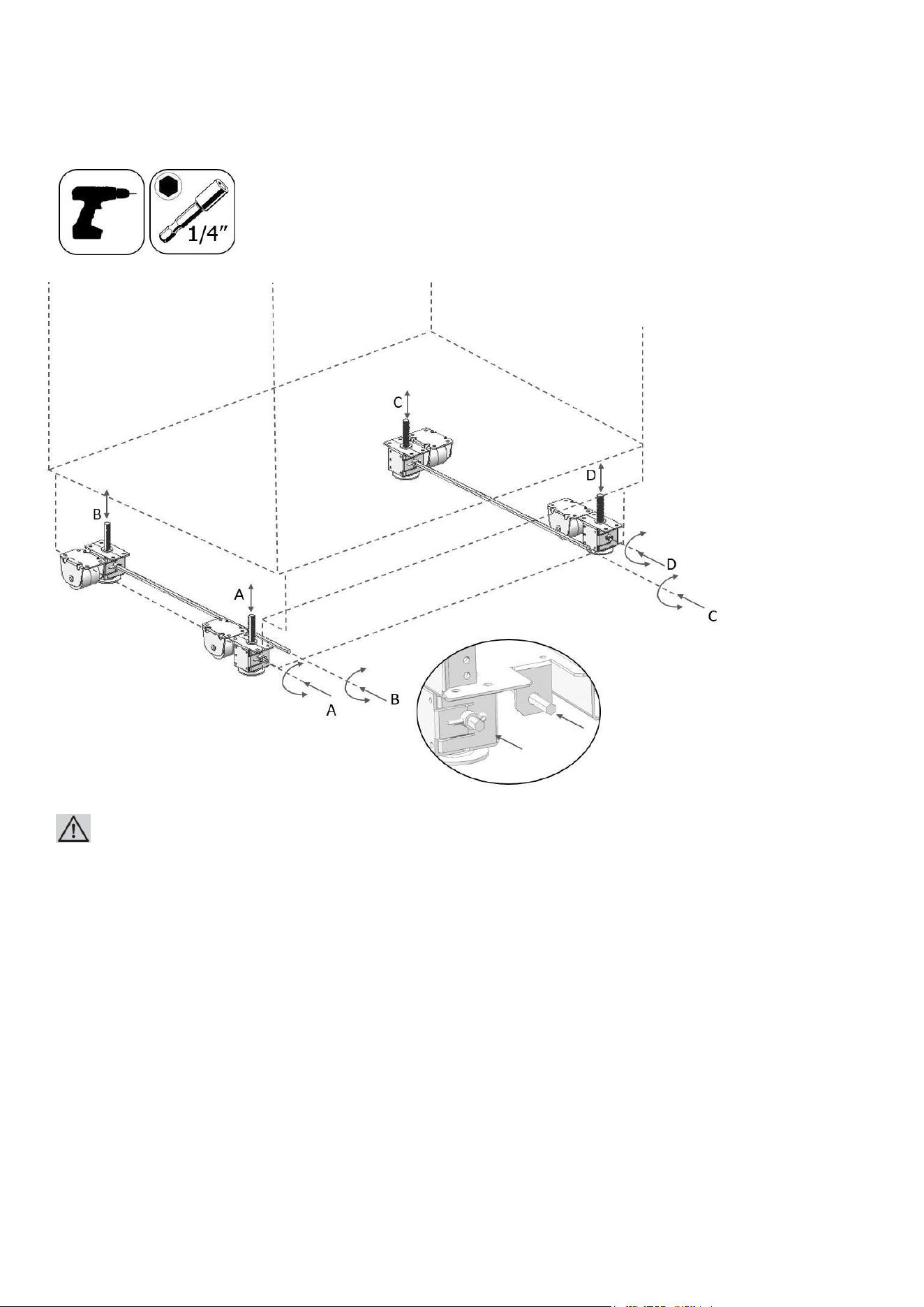

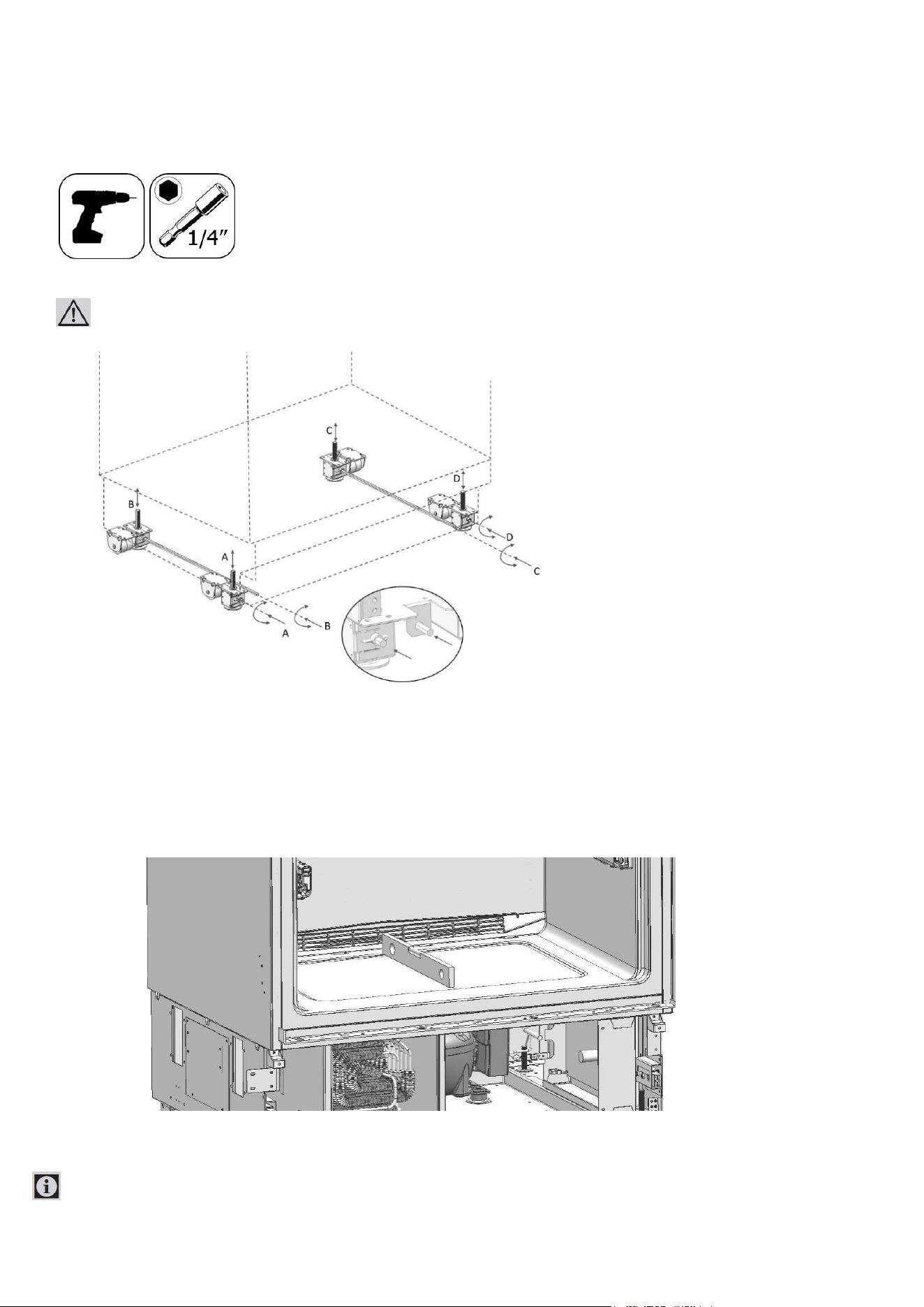

Adjusting the height of the refrigerator in the cabin
Adjust the refrigerator height using the adjustable feet.
WARNING
First of all, raise the front feet to reduce the risk of the cabin falling frontward.
A/D –Turn the key clockwise to lift the front
B/C –Turn the key clockwise to lift the rear
After adjusting the adjustable feet, check the flatness in both width and depth directions.
IMPORTANT INFORMATION
The maximum height that the adjustable feet can reach is 1 9/16" (40 mm) and the product height is 85 3/8"
(2,169 mm)
Confidential
37

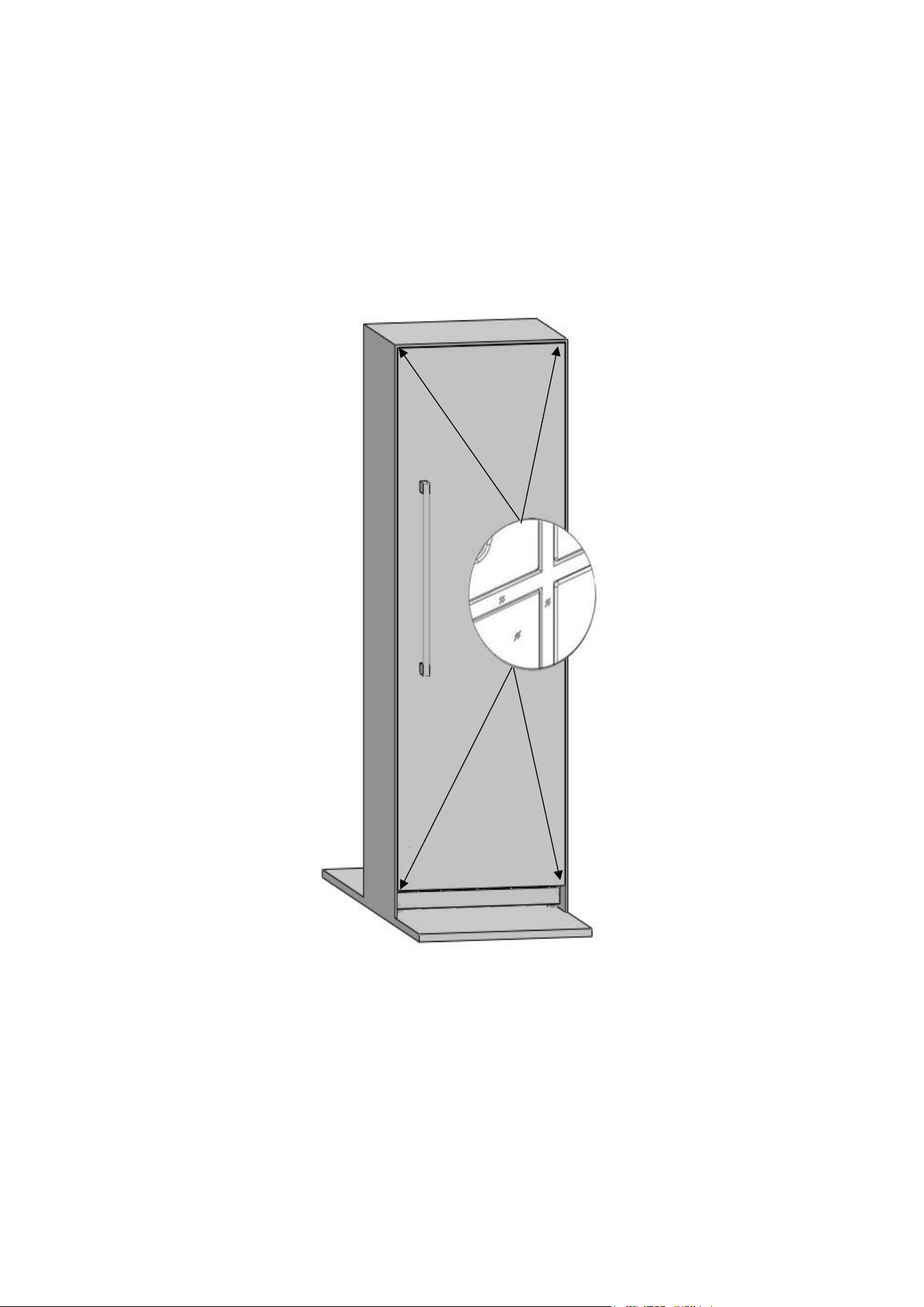

Adjusting the refrigerator according to the cabin flange
For product with custom panel, the position of the Refrigerator is adjusted
so that the custom panel and the furniture surface are flush.
You can also use gage if necessary.
Confidential
38

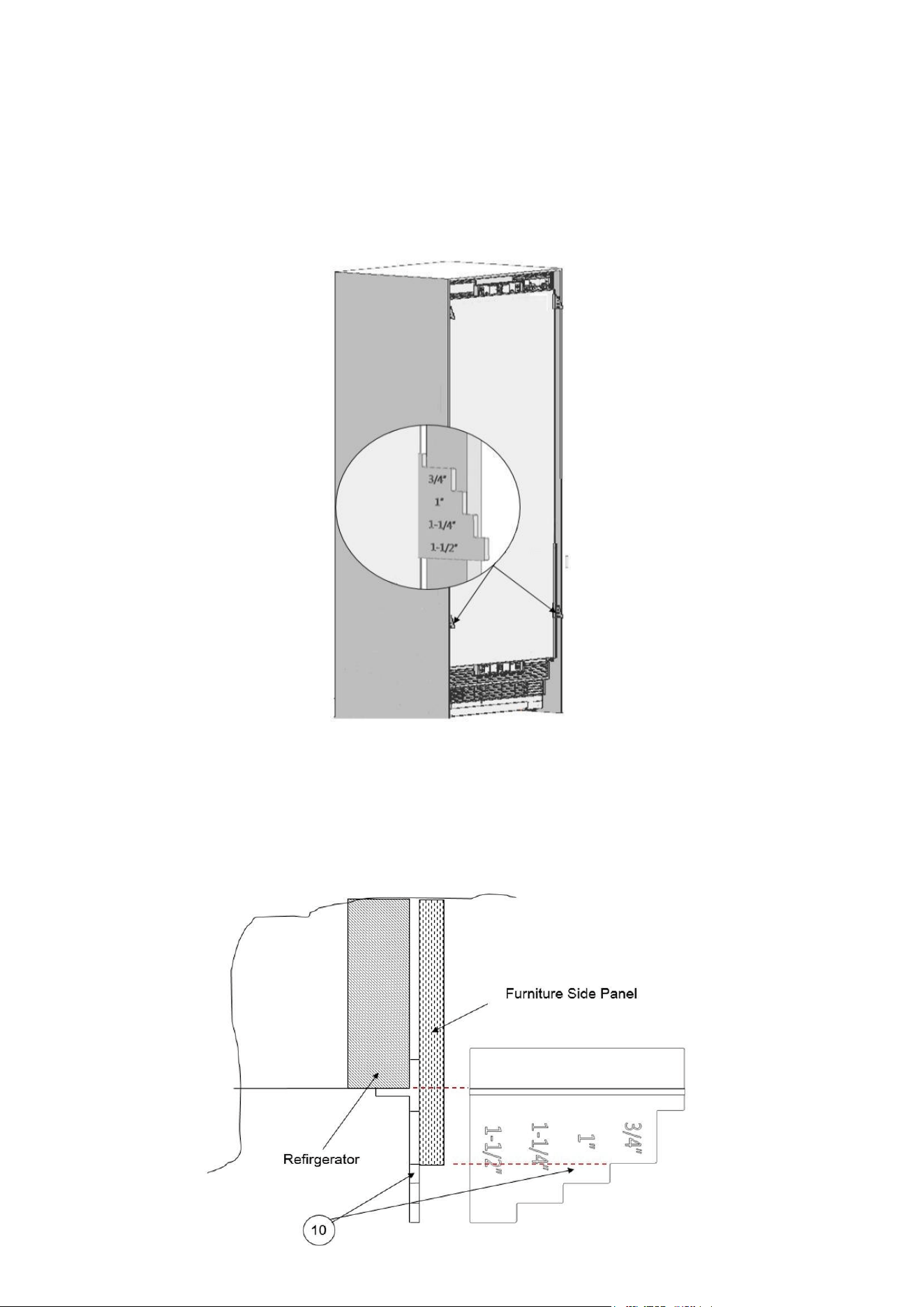

For products without custom panel, the product is placed using the position adjustment jig
(item No.14) as shown in the figure below.
position adjustment jig (item No.14) must be adjusted according to the thickness of the door.
It can adjust the level for 4 different custom panel thickness levels.
Confidential
39

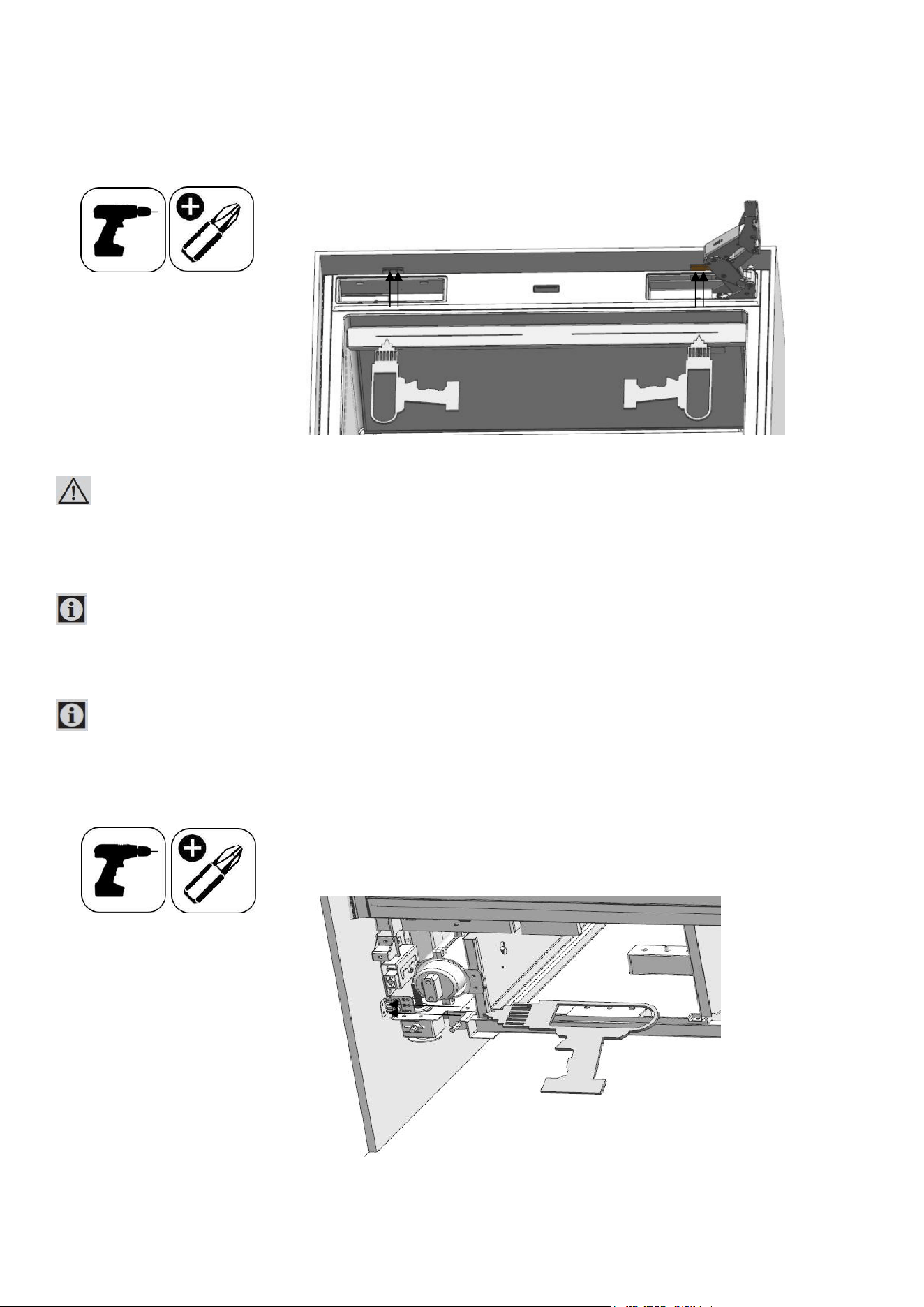

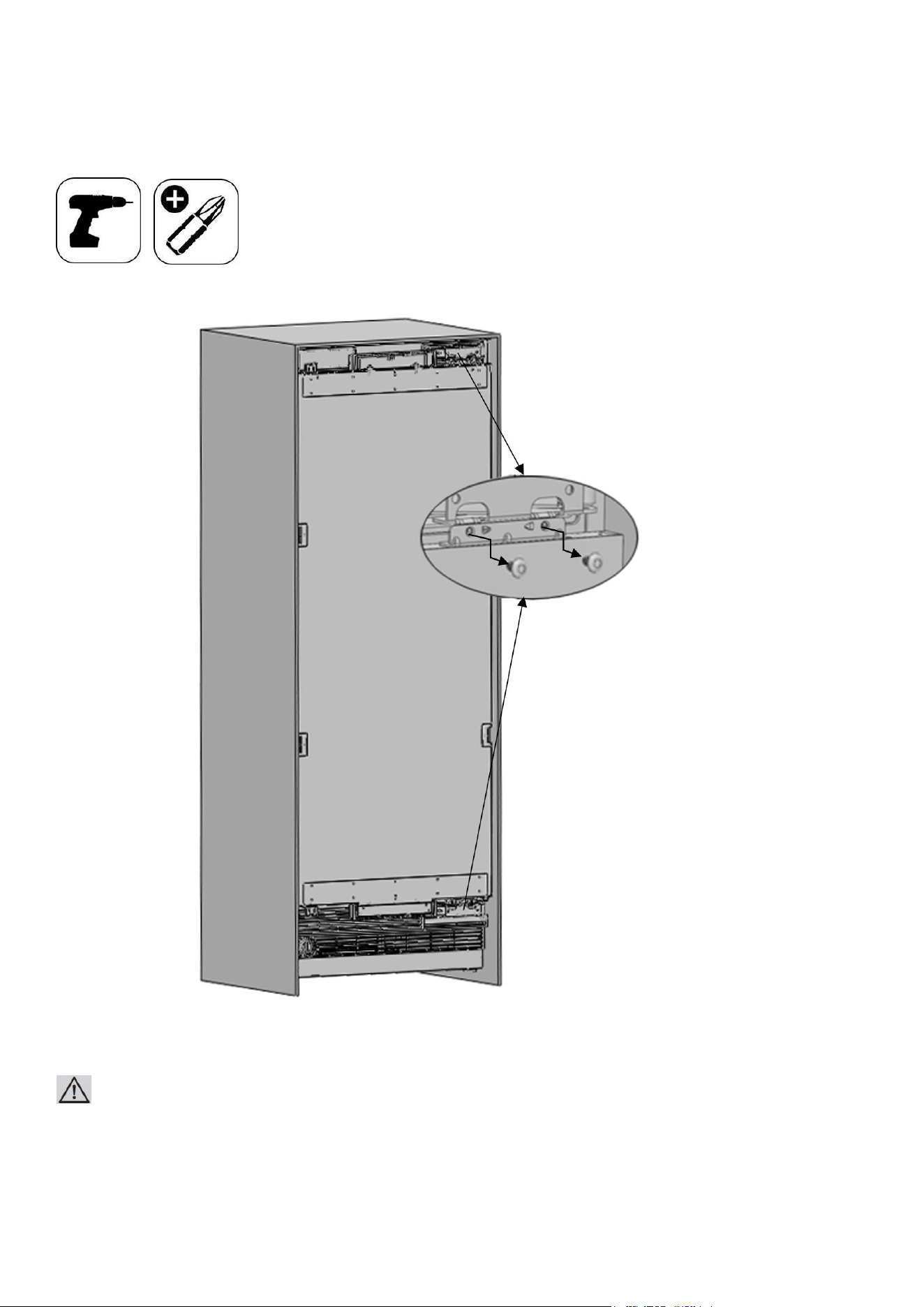

Screwing the upper brackets and lower brackets
Fix cabinet bracket top (Item No.15) to the top of the cabin.
Use the counter sunk head screws (Item No.28) to tighten.
WARNING
Before starting to screw Upper brackets lower brackets, please make sure that water is supplied to the product and
there is no water leakage.
IMPORTANT INFORMATION
If you have difficulty tightening the screws, opening a reference hole with the drill will make this procedure easier.
IMPORTANT INFORMATION
If you have difficulty tightening the screws, opening a reference hole with the drill will make this procedure easier
Fix cabinet bracket under (Item No.16) to the cabin lowerboth side with 4screws (Item No.28).
Confidential
40
INSTALLING THE CABIN BOTTOM
Water connection

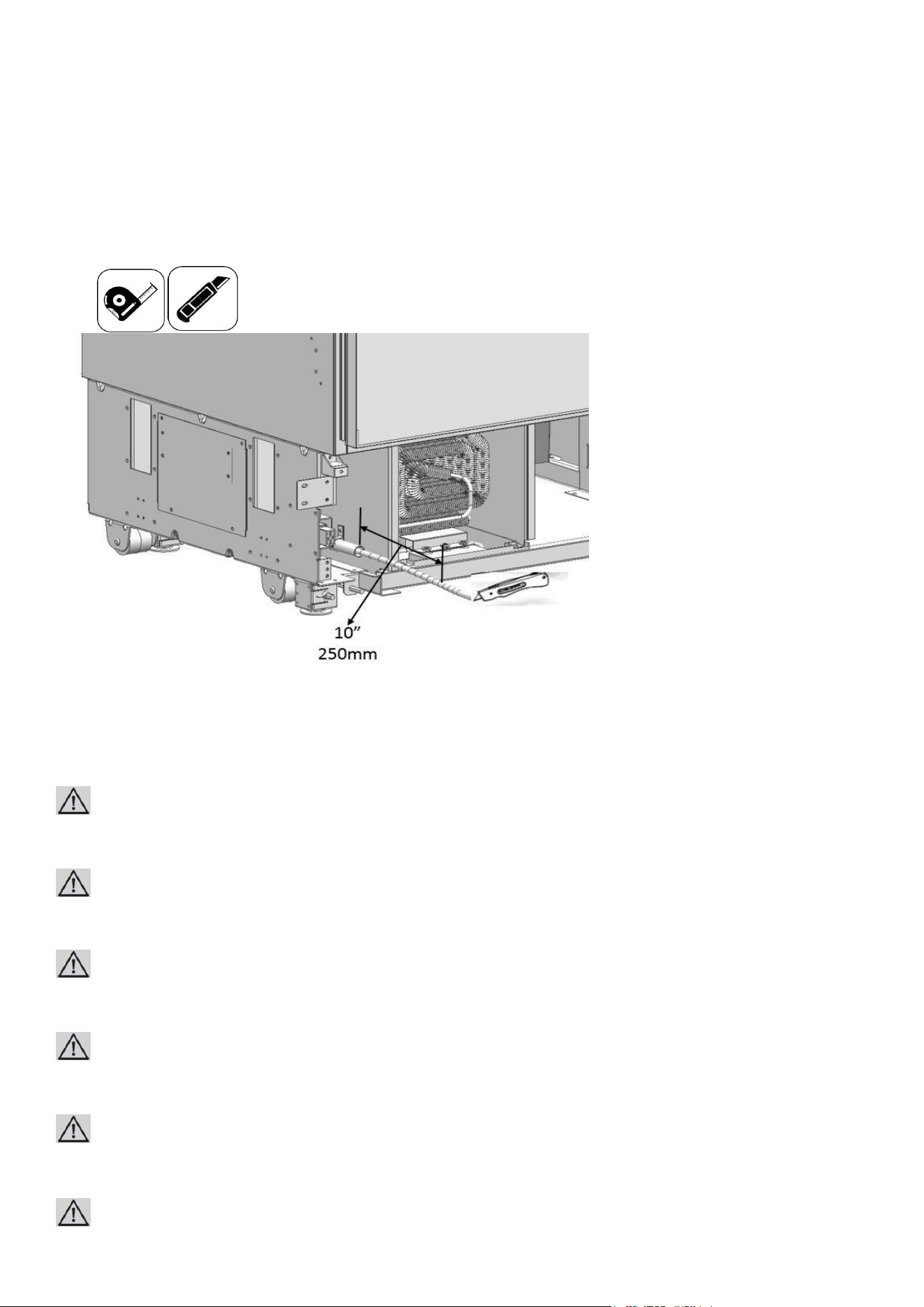

Use the box cutter to cut the water hose from the end of the pipe it comes out,
leaving a section of 10" length.

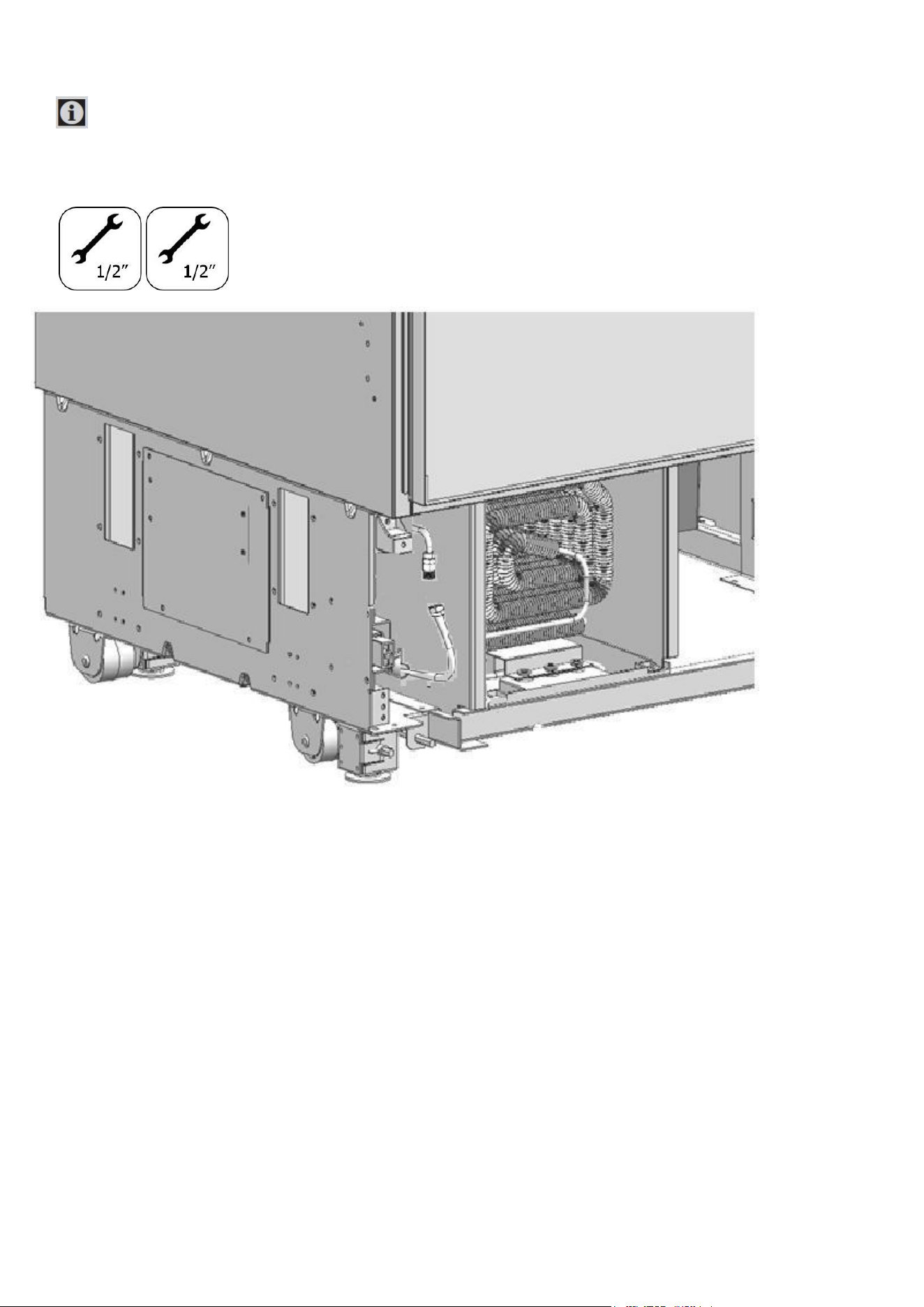

Use the 2 wrenches to firmly connect the hose coming from the mains and
the hose coming from the valve.
WARNING
The hose coming from the mains must be one piece. Do not use extension hoses.
WARNING
Make sure that the power is cut off when making the water connection of the product.
WARNING
The water valve must be off when connecting the water hose.
WARNING
It is recommended that the water on/off valve remains accessible after installing the product.
WARNING
This product is suitable for use with cold water mains only.
WARNING
Pressure of the water system must be between 25-80 psi (1.7-5.5 Bar).
Confidential
41
IMPORTANT INFORMATION
Once the connection is complete, you must turn on the mains valve and make sure
that there is no leakage at that point.
Confidential
42
Attaching the vent hole assembly
Use 5 screws to attach the vent hole assembly.
IMPORTANT INFORMATION
You can move the lower vent hole forward-backward to adjust it to the kick plate in the kitchen.
WARNING
Forward-backward travel distance of the lower kick plate must be 15/16" (23 mm).
As you can see in the figure, the decorative kick plate must not be in front of the upper vent hole level.
Confidential
43

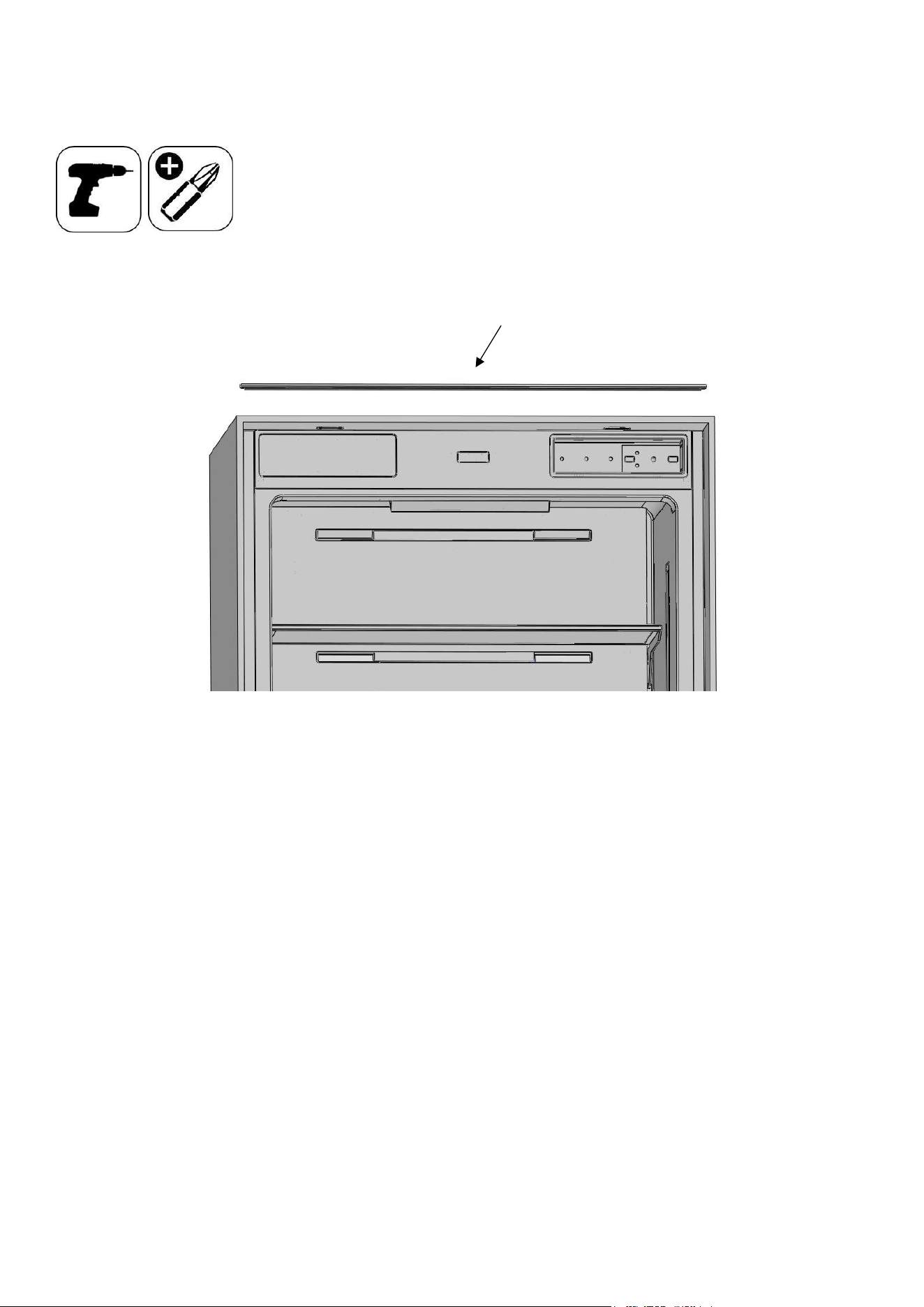

Attaching the decorative parts
Attach cabin top trim (ItemNo.3) onto the cabinet bracket top ( Item No.15).
Confidential
44
Custom panel preparation
This section contains information about preparing the custom panel and mounting them to the product.
WARNING
Do not exceed the max load that the custom panel can endure.
Before crafting the panel, check the strength of the panel’s material and the load of attachments to the panel.
Choosing the door thickness
The door of your refrigerator can open by 115° maximum.
If the door is going to open to this degree, you can choose the following thickness levels.
WARNING
If the door thickness is more than 1 ½” (38 mm), the door should not open more than 90°.
You must use 90°limit pin on the hinge.
Category
URFC36SNWPRY
UFFC36SINPRY
Custom panel
maximum weight
(included handle)
66Ibs. (30kg)
Confidential
45
You can limit the opening degree of your door to 90° If you want.
90° limit pin (item No.26) is located in the mouting part kit of the drawer box.
Pin must be fully seated in the bracket or the door will not close properly.
IMPORTANT INFORMATION
90°limit pin should be inserted to upper hinge and lower hinge
Confidential
46

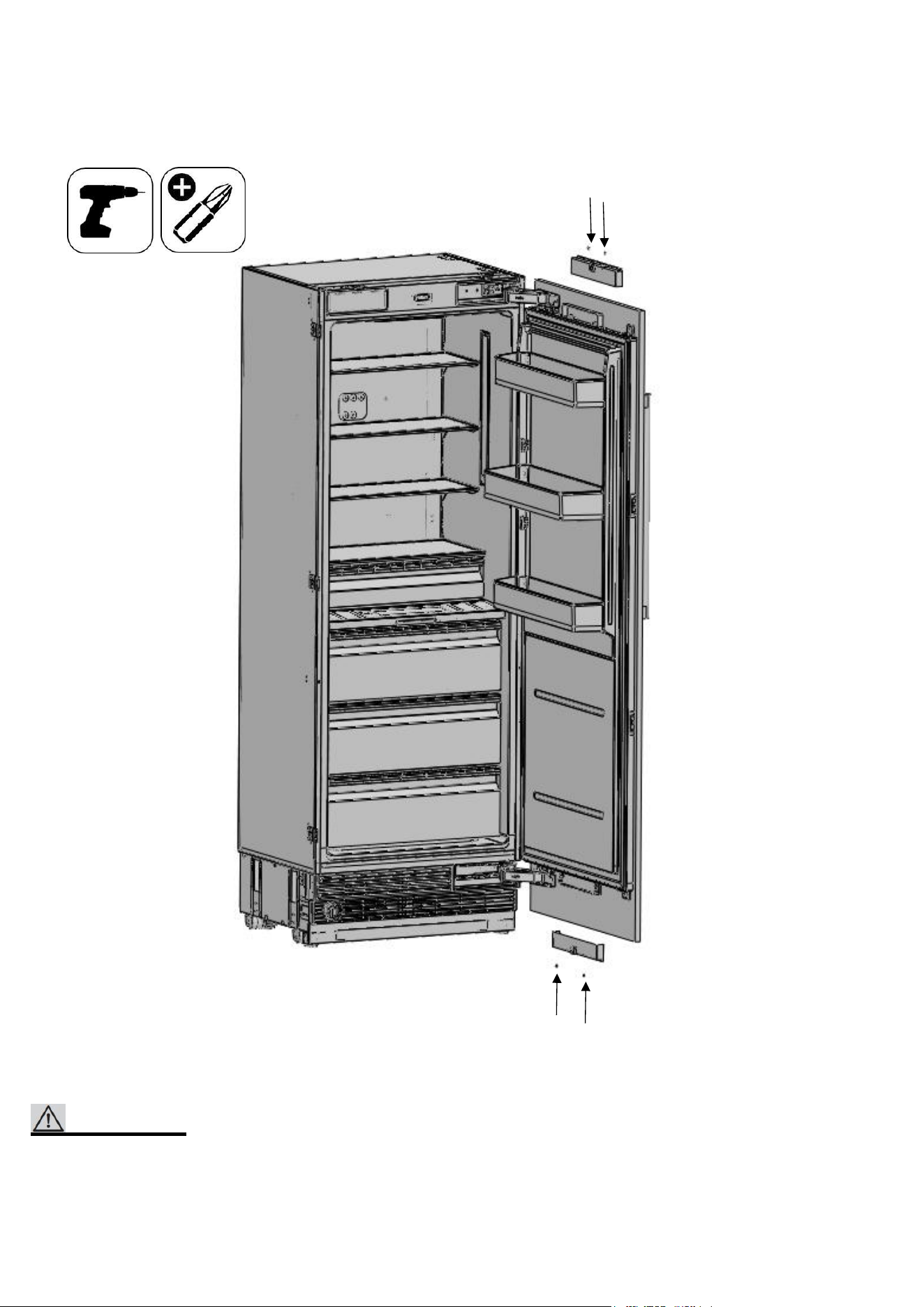

Removing the mechanism Covers
Remove screws to take out the top hanger bracket cover.
WARNING
There is a magnet on the top hanger bracket cover. This is a functional part for the operation of the product.
It should not be confused with the low hanger bracket cover.
URFC36SNWPRY
UFFC36SINPRY
Confidential
47
Remove screw to take out the low hanger bracket cover.
URFC36SNWPRY
UFFC36SINPRY
Confidential
48

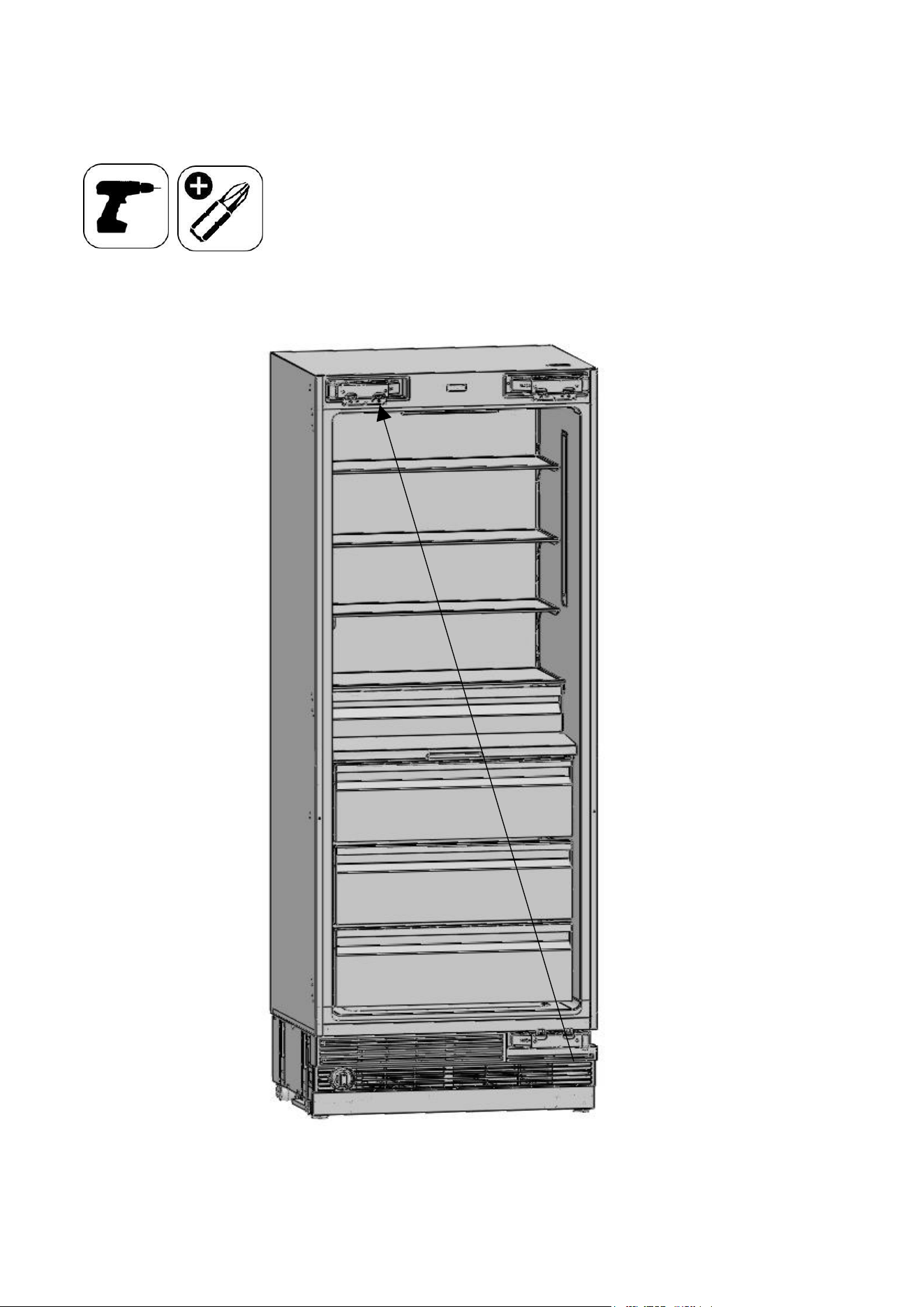

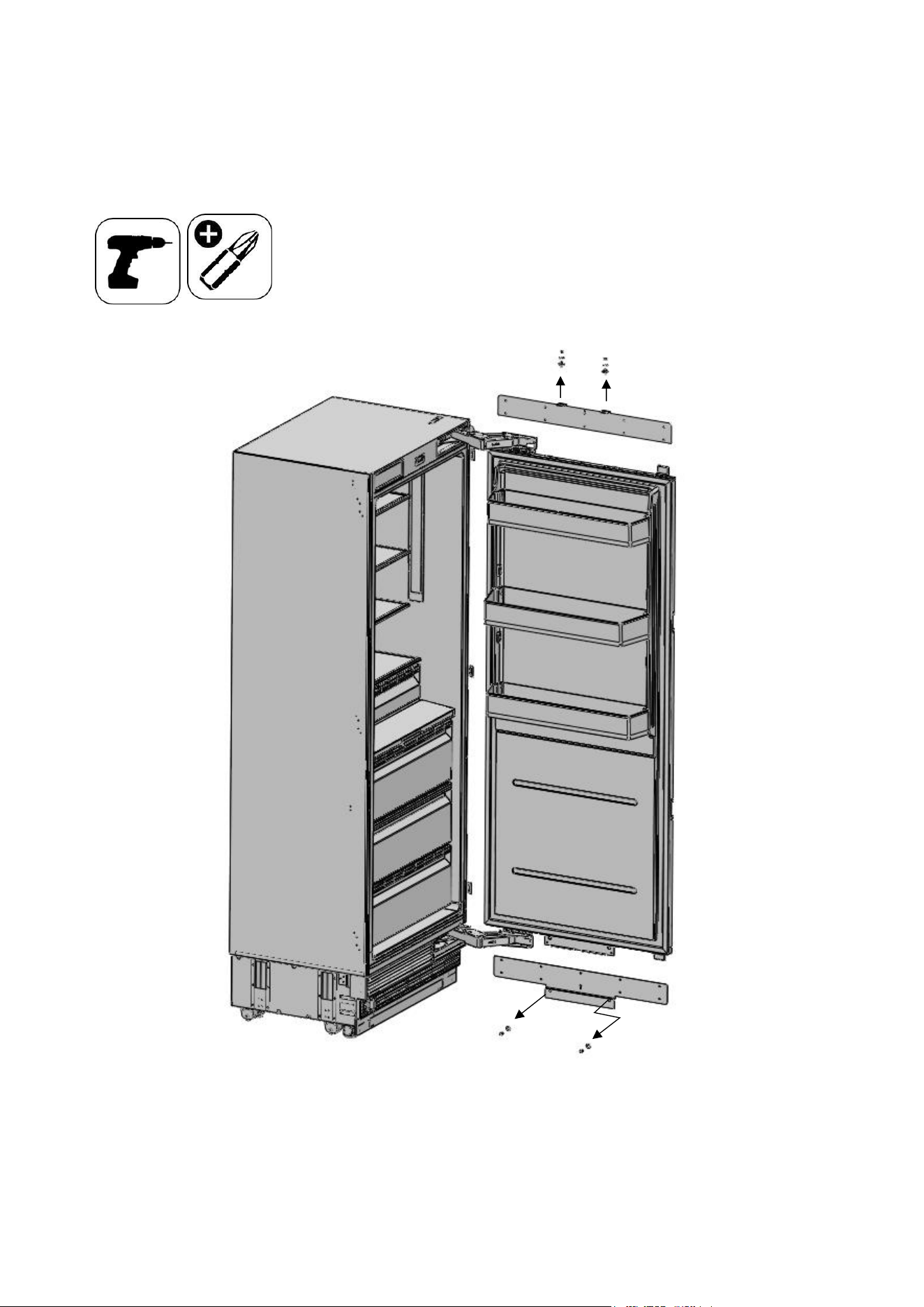

Removing the panel-adjustment mechanisms on the refrigerator
Remove the upper and lower adjusting mechanism assemblies from the door.
URFC36SNWPRY
UFFC36SINPRY
Confidential
49
Preparing custom panel
IMPORTANT INFORMATION
You must take the dimensions into account when fixing the cradle parts on the custom panel.
When marking, you can use the custom panel templates (item No.8 ~No.11) provided with the product.
WARNING
Handle connection holes must be adjusted according to the handles to be used in kitchen design.
WARNING
Tthickness of the door is recommend between 1/4” (16”) and ¾" (19mm).
URFC36SNWPRY
UFFC36SINPRY
Confidential
50

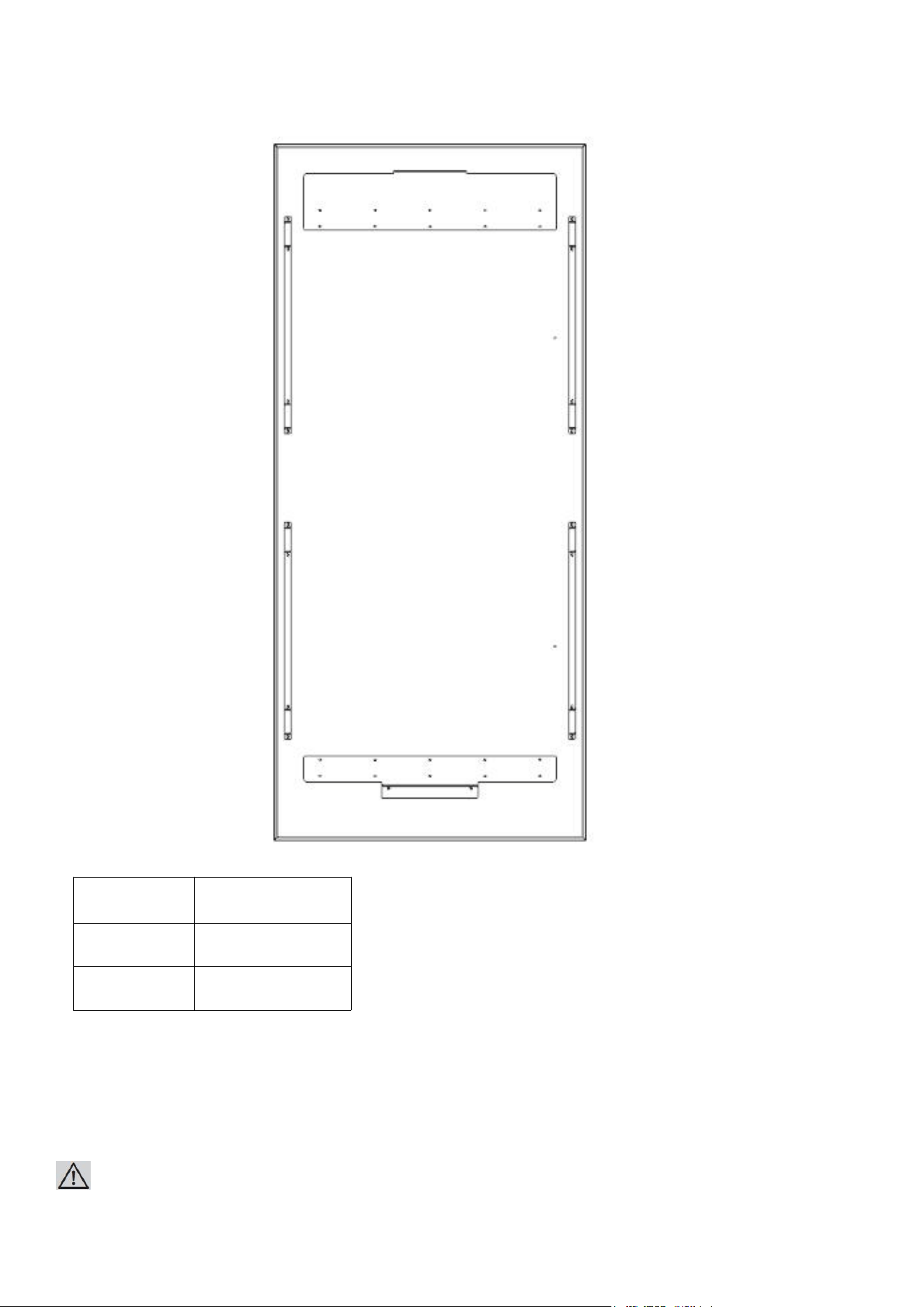

Cusom panel cutout dimension
WARNING
You must use count sunk head screws (item No.28). suitable for the door thickness.
Category
URFC36SNWPRY
UFFC36SINPRY
mm
908 * 2030
inch
35 3/4 * 29 15/16
Confidential
51

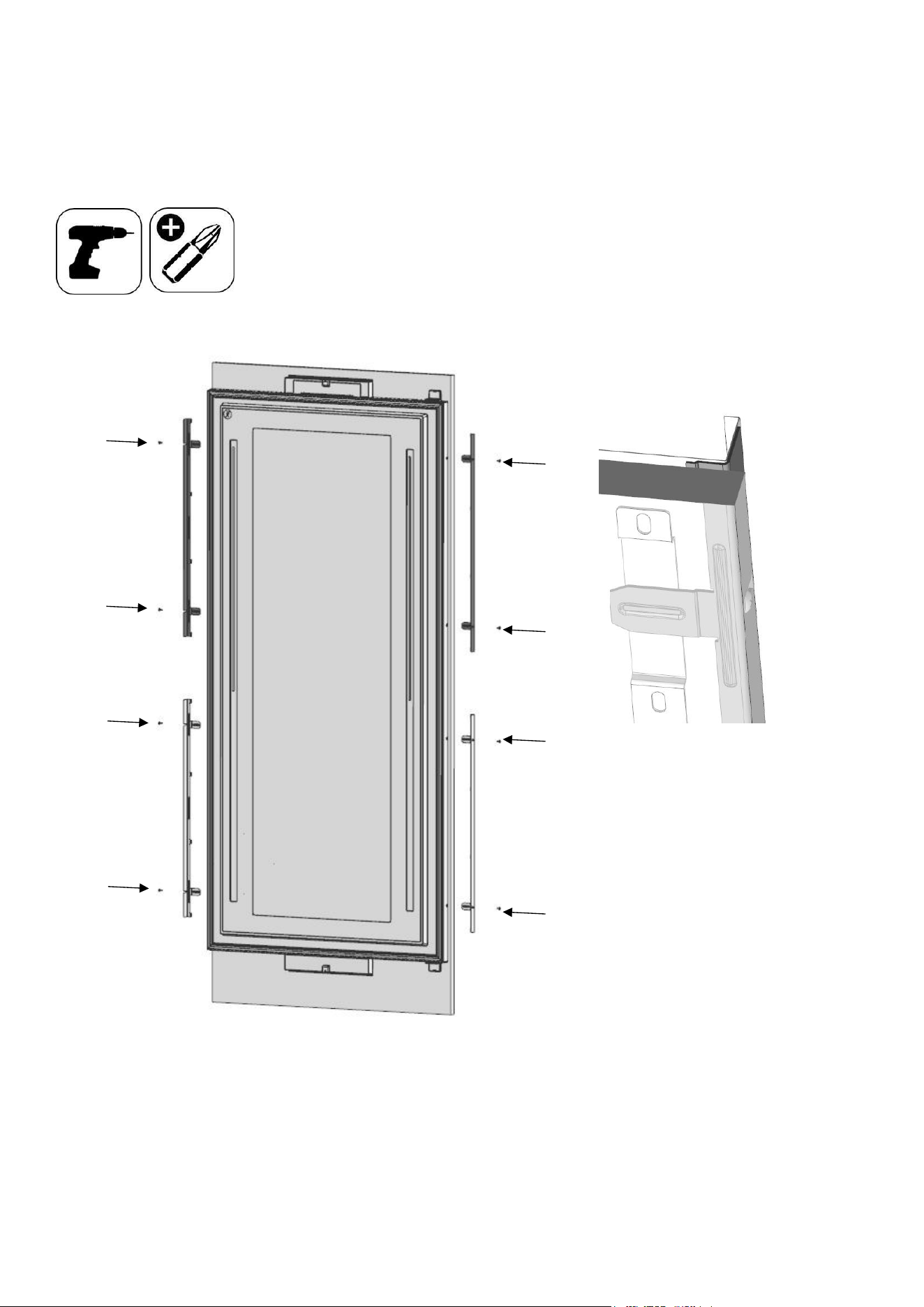

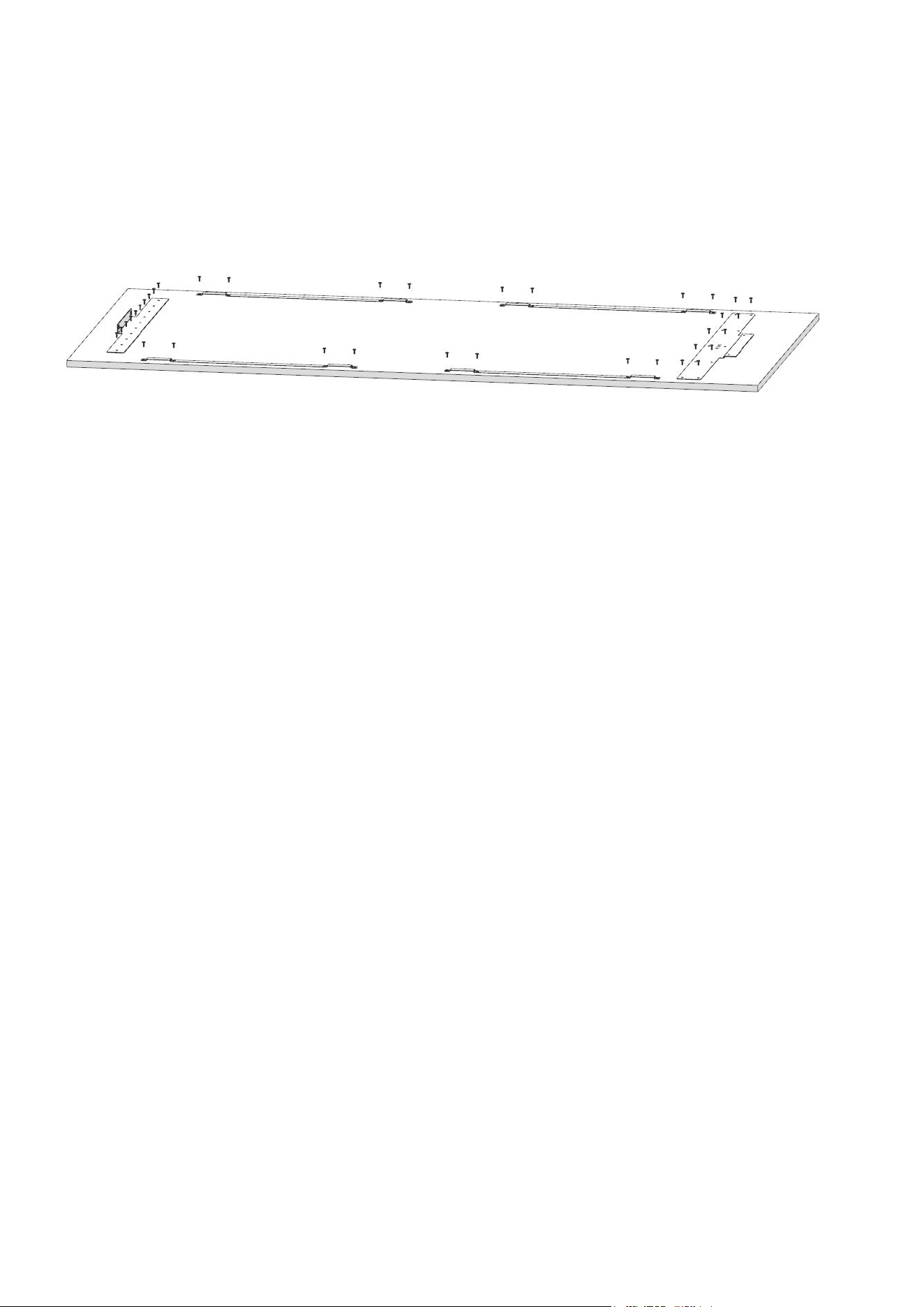

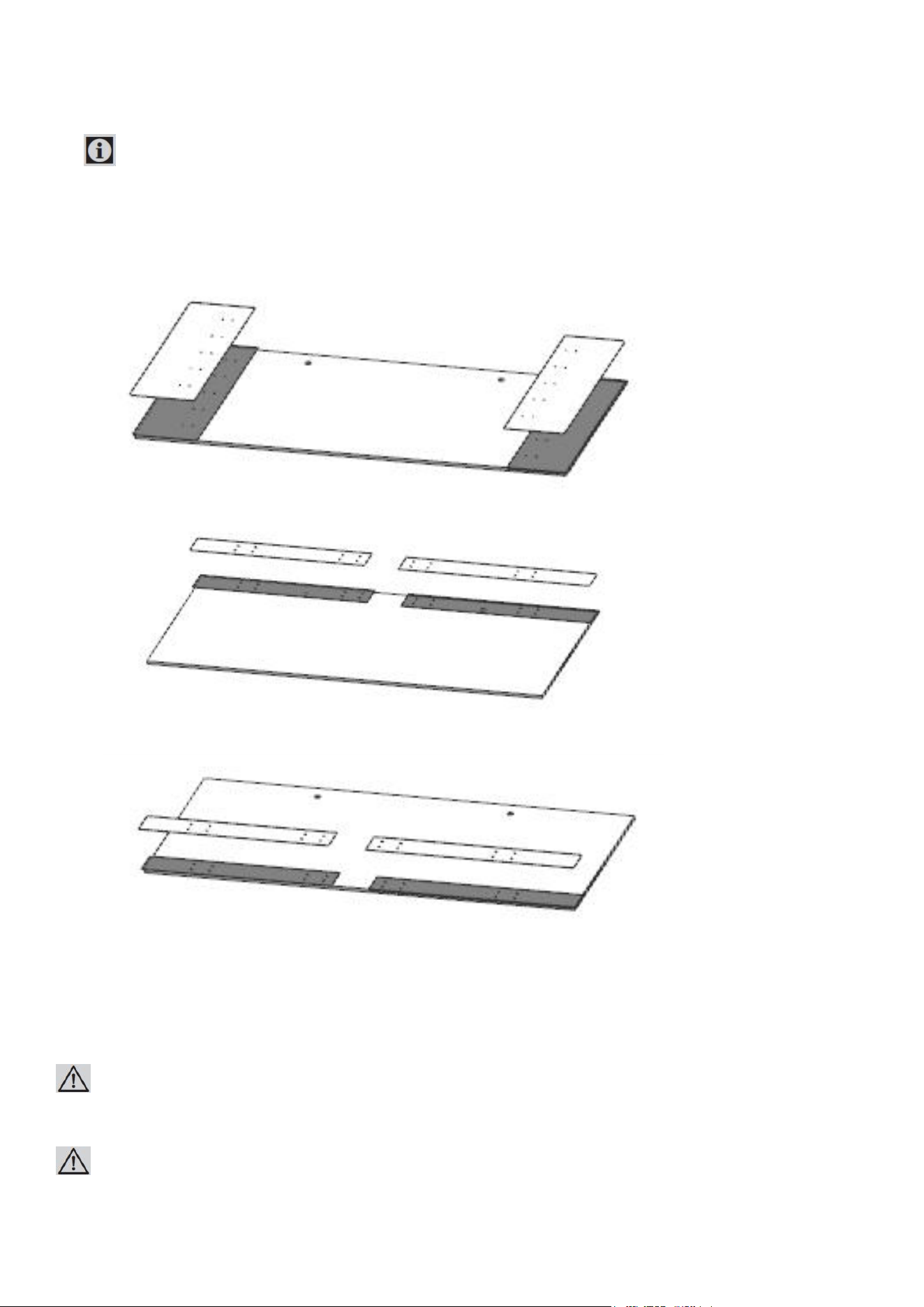

Install cradles using the count sunk head screws (item No.28).
You can also use the template provided with the product to align these parts.
It is recommended to keep this template for future reference.
URFC36SNWPRY
UFFC36SINPRY
Confidential
52
Attach the door handle.
Screws holding the door handle must not protrude.
WARNING
Handle connection holes must be adjusted according to the handles to be used in kitchen design.
Confidential
53
Installing the custom panel

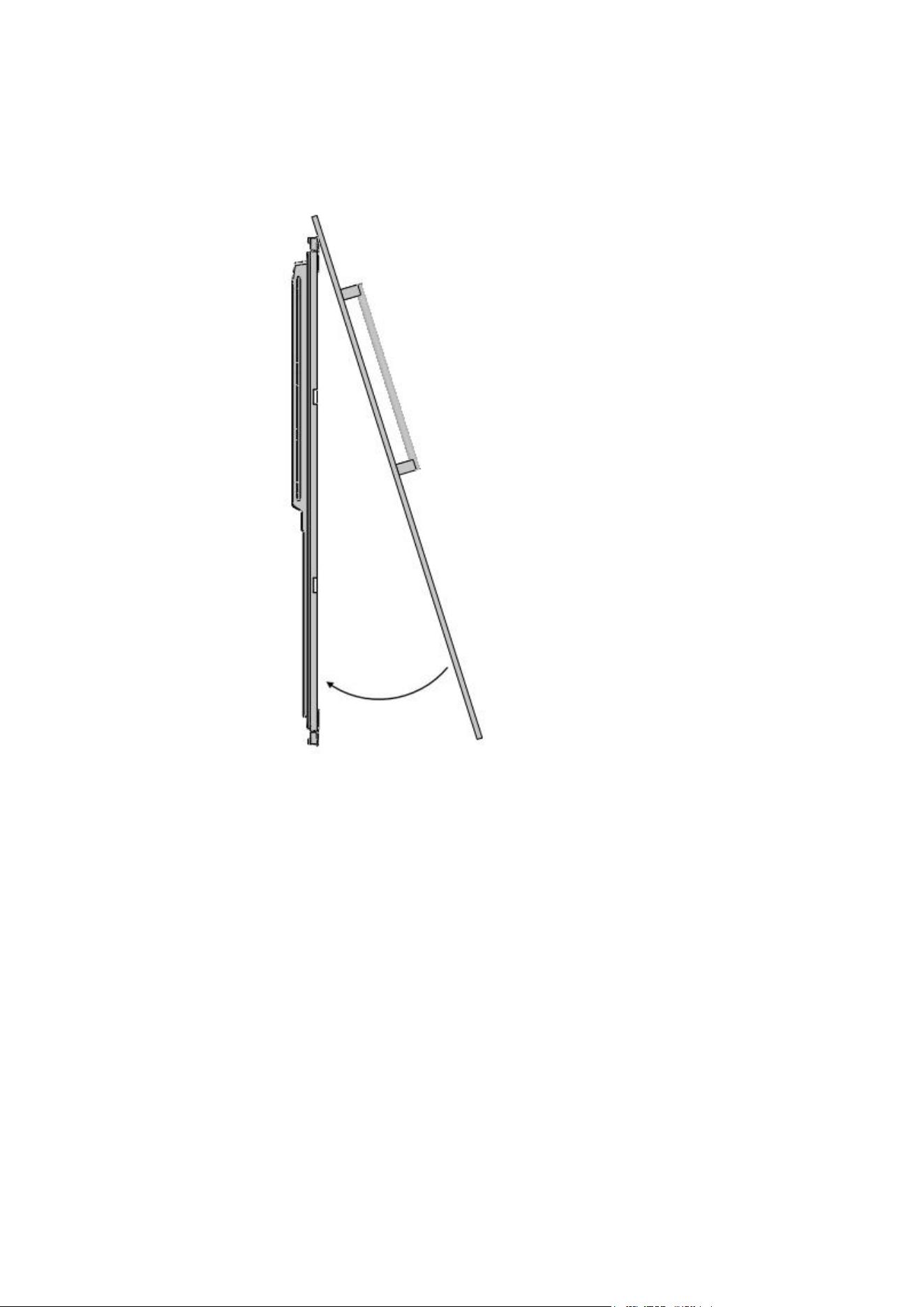

1. Attach the custom panel to the door
Confidential
54

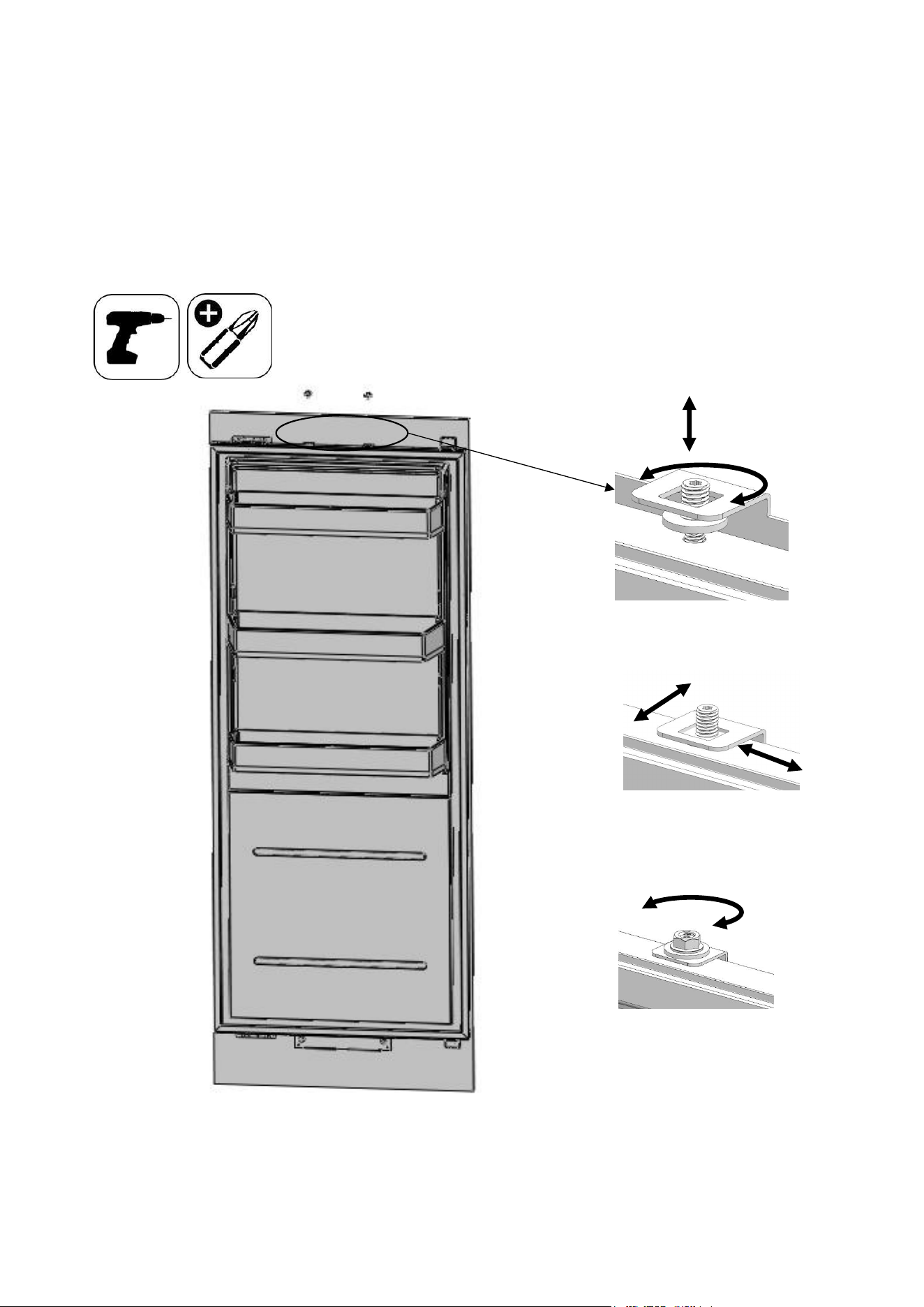

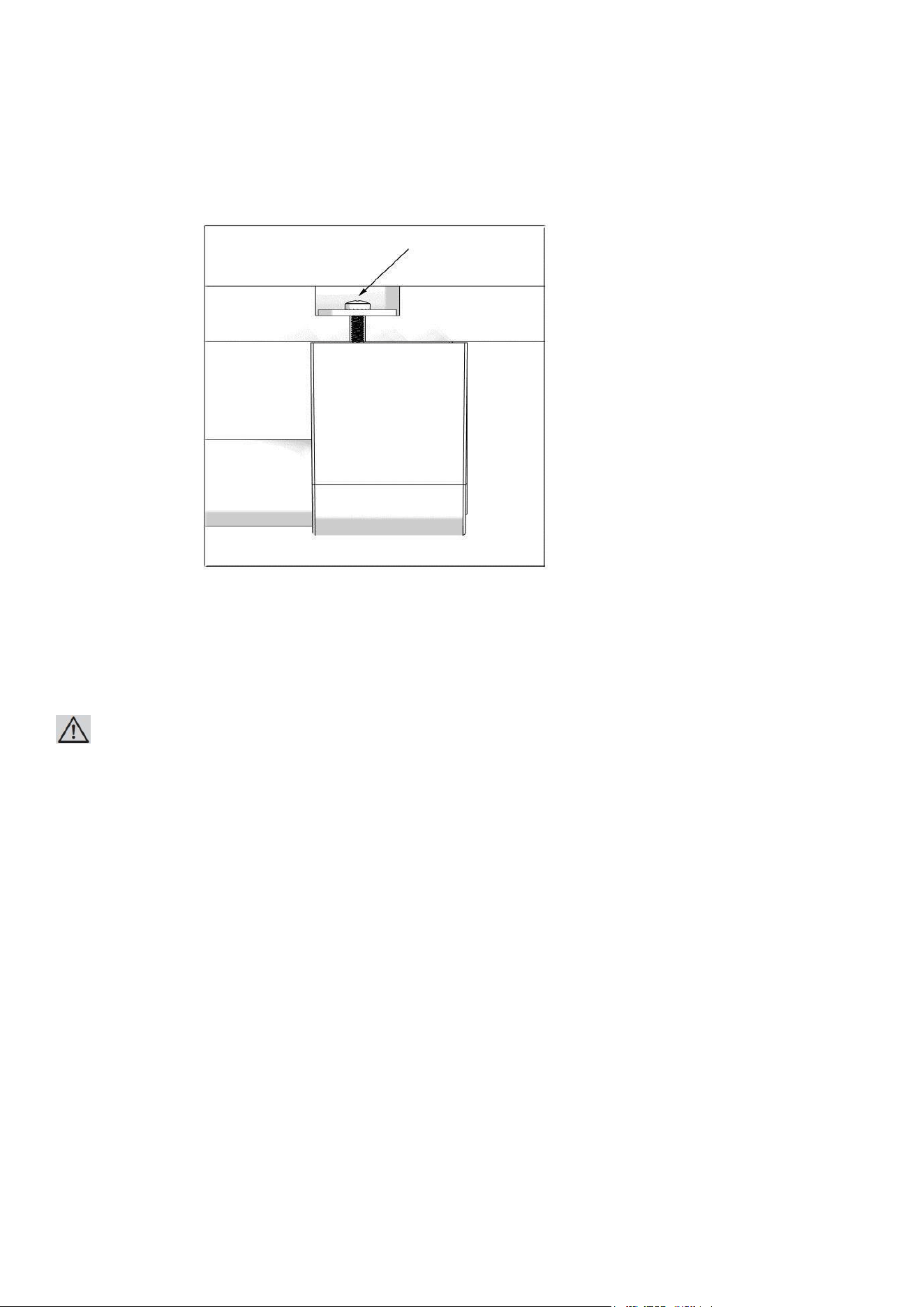

How to align the custom panel upper part with bolts.
Custom panel and the kitchen furniture must be flush.
To achieve this, you should adjust 3D direction using by two fixing bolt to perform fine adjustments.
First of all, review the position of custom panel against the kitchen furniture.
Gap between furniture and custom door must be 1/8" (3 mm),
assuming that the furniture dimensions are correct.
You can make door adjustments based on this distance.
Up & down
Front & back
Left & right
Fixing furniture door completely
Confidential
55

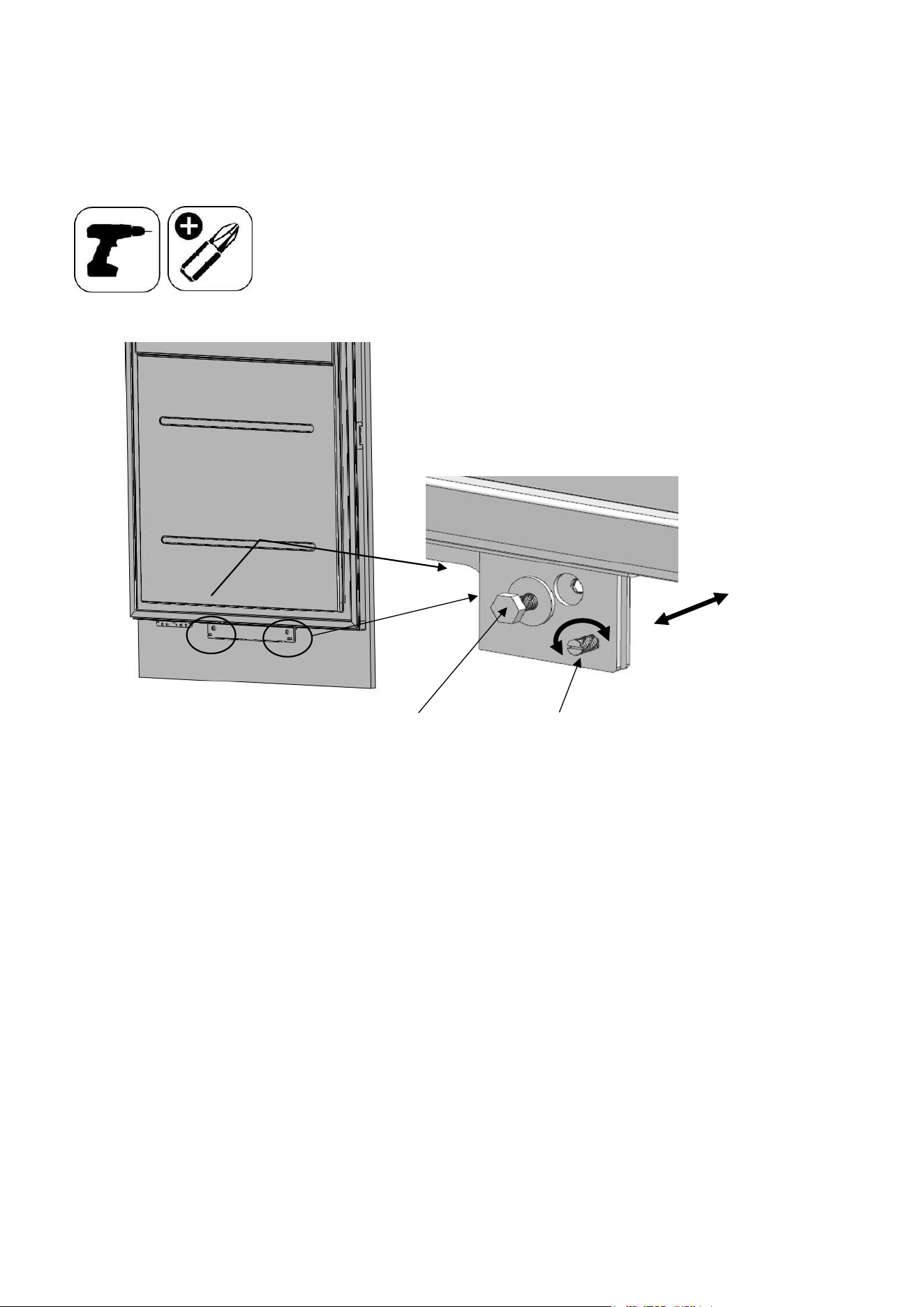

How to align the custom door lower part with bolts.
Up & down
Left & right
Fixing furniture door completely
Front & back
Confidential
56

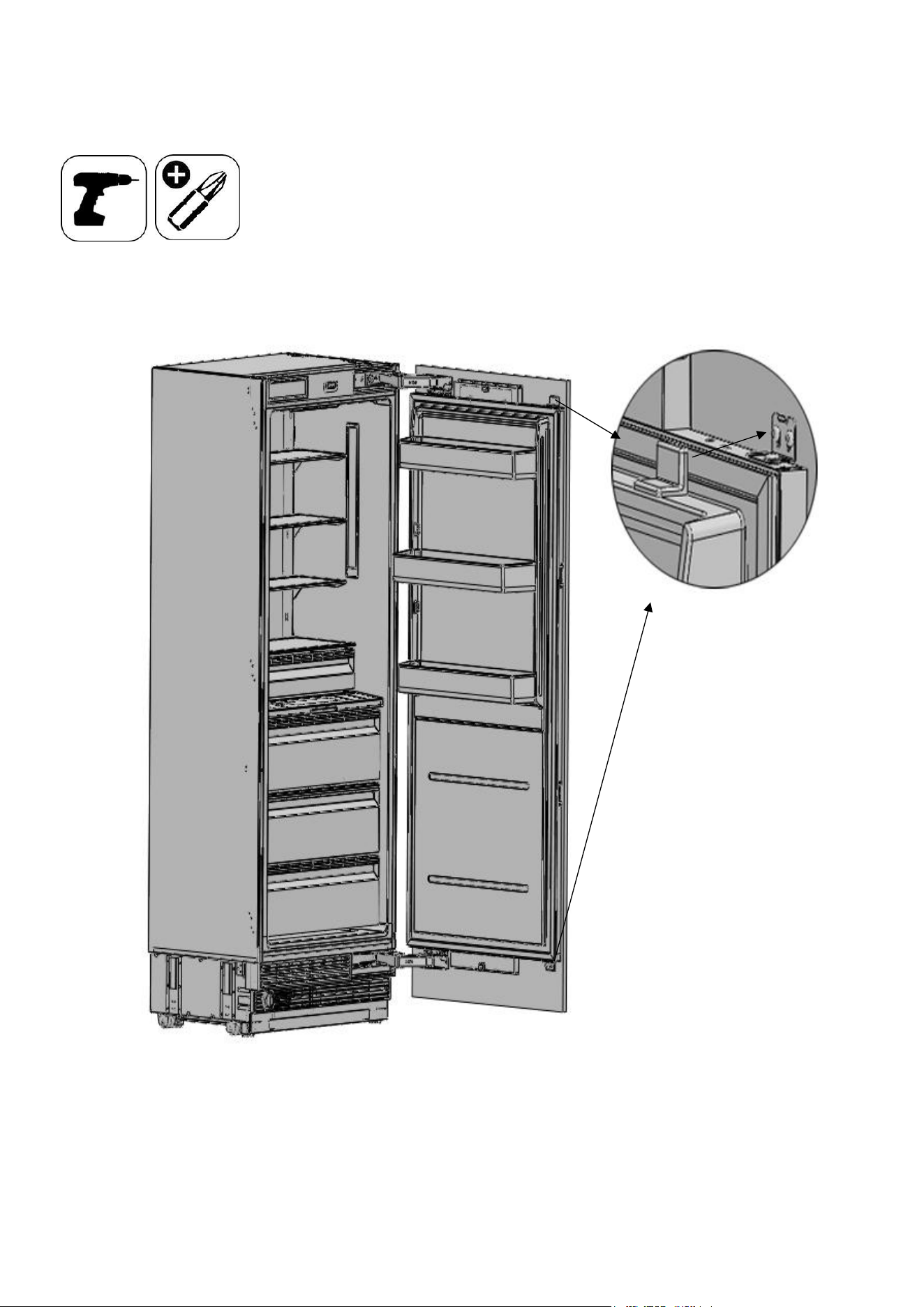

Use the door bracket (Item No.17) to join the custom panel.
Use 2screws (Item No28) to join the custom panel and 1screw (Item No.27) to fix door.
Confidential
57
Attach and screw the upper/lower decoration cover.
WARNING
You must keep these parts for future use. You will need them if you want to change the door directions.
URFC36SNWPRY
UFFC36SINPRY
Confidential
58

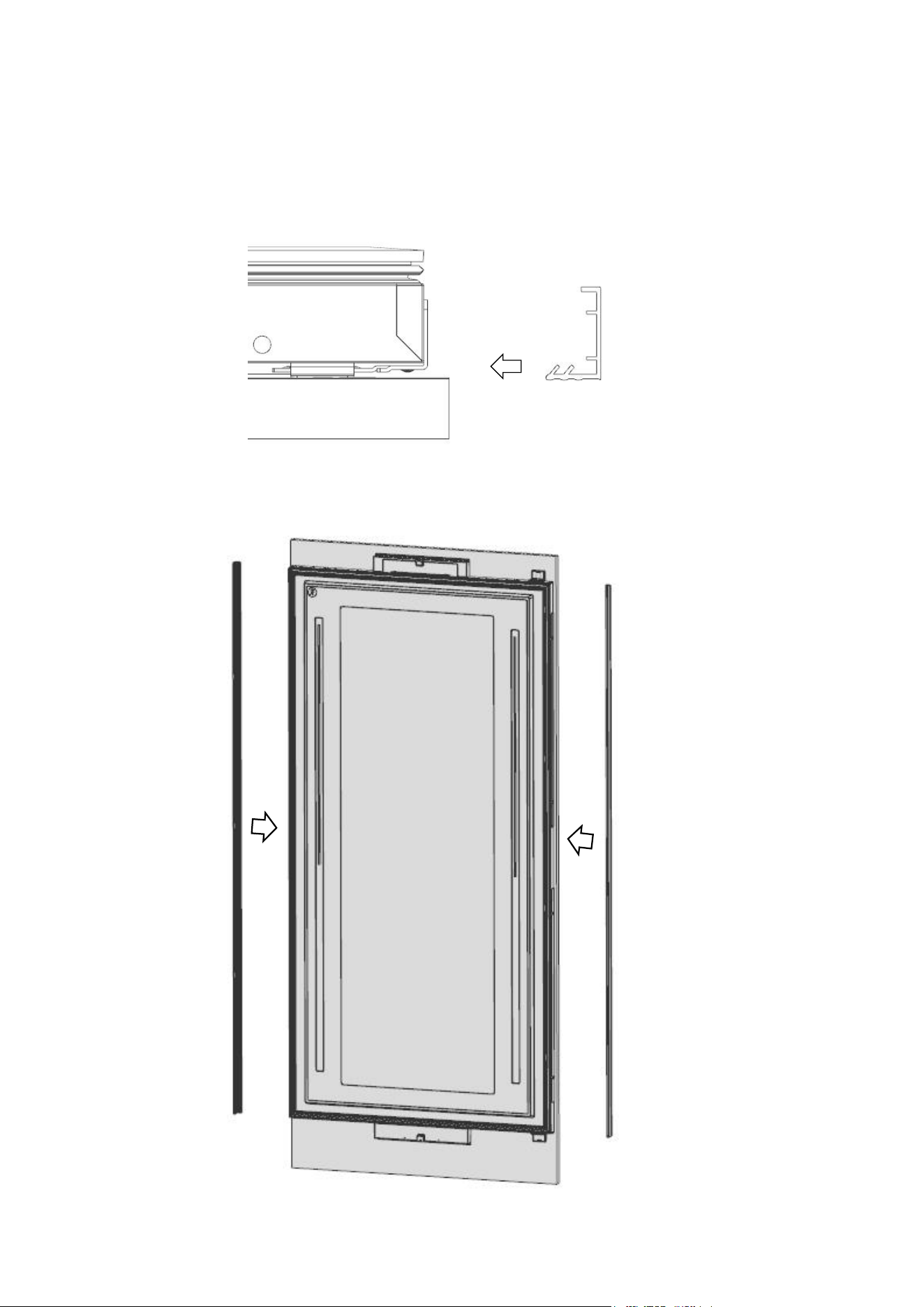

Insert door bracket side (Item No.1) between custom panel bracket side (Item No.2)
and custom panel After then fix using 8screws (Item No.27).
Confidential
59
Attach custom panel side trim (Item No5)
Confidential
60
HINGE ADJUSTMENT
Adjusting the hardness of the hinges
Use a drill to adjust the hardness of the upper and lower hinges of the Door.
Set the hingeadjustment screw from position"O" to position "I".
WARNING
The door must be fully open during this adjustment.
WARNING
This adjustment must definitely be performed after the door has been adjusted.
Confidential
61

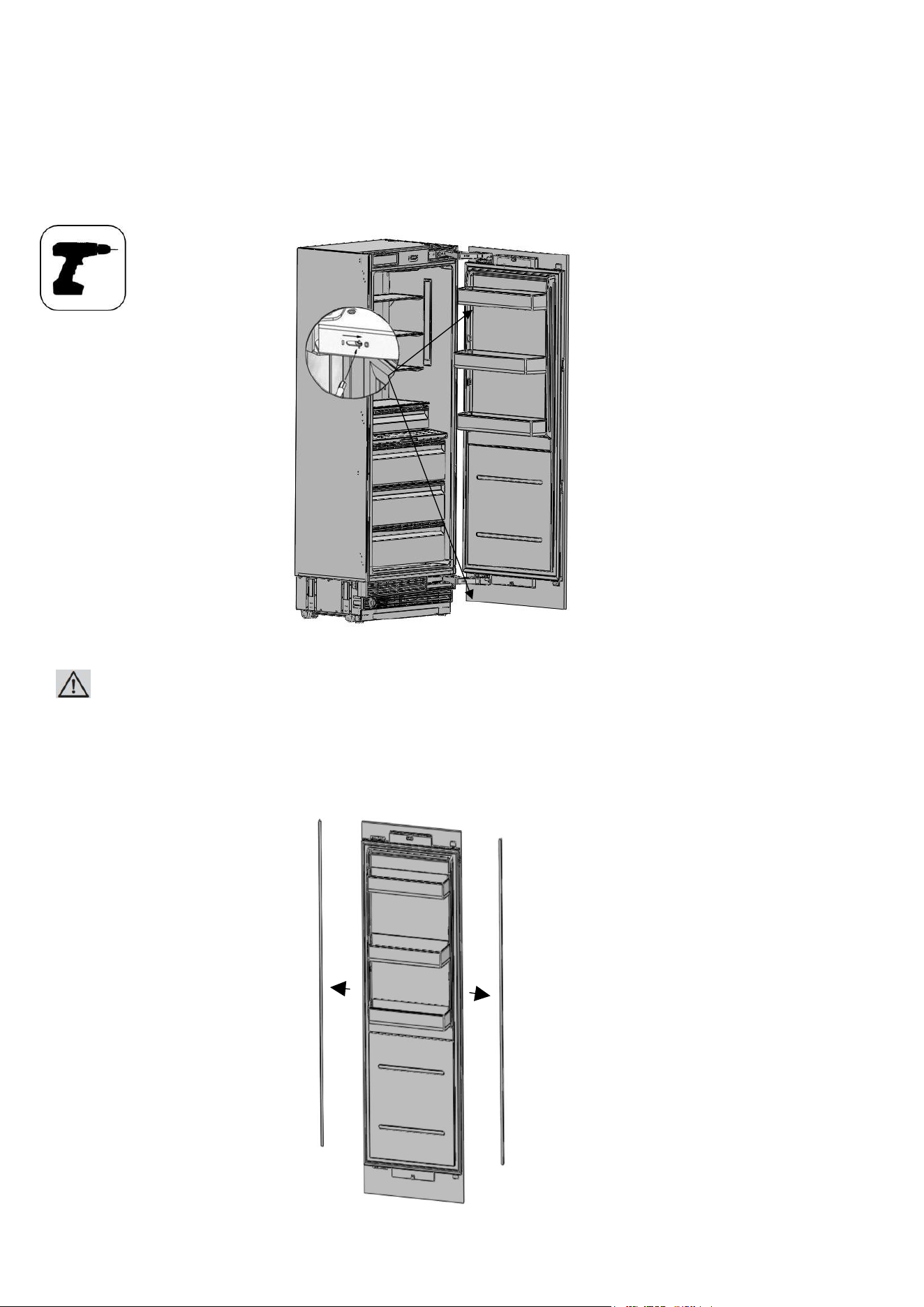

CHANGING THE DOOR OPENING DIRECTION
Removing the custom panel
Set the hardness level of the hinge to "0".
ATTENTION
Failure to set the hinge to "0" and continuing the installation like that may cause injury.
Remove the custom panel side trim(item No.5)
Confidential
62

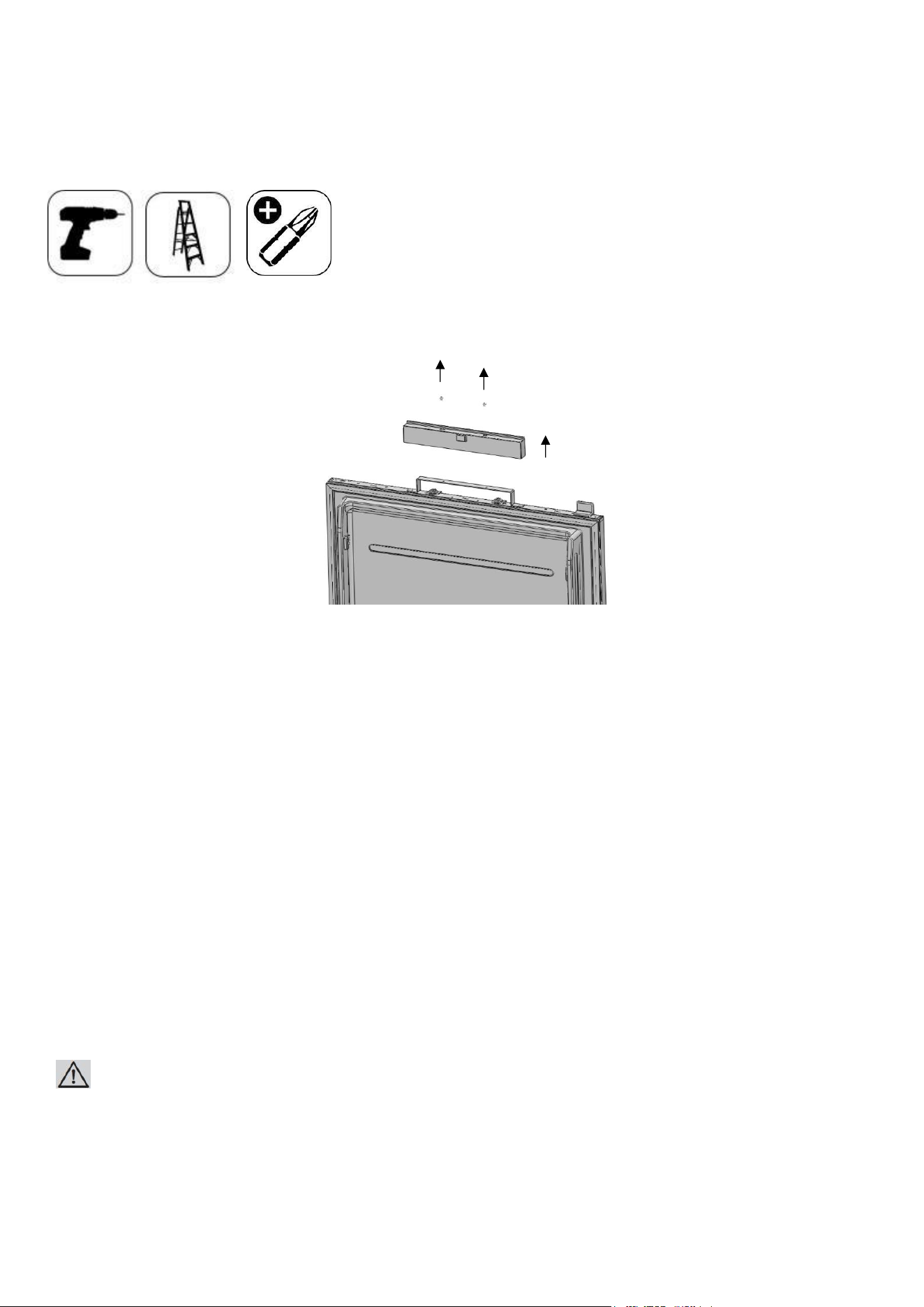

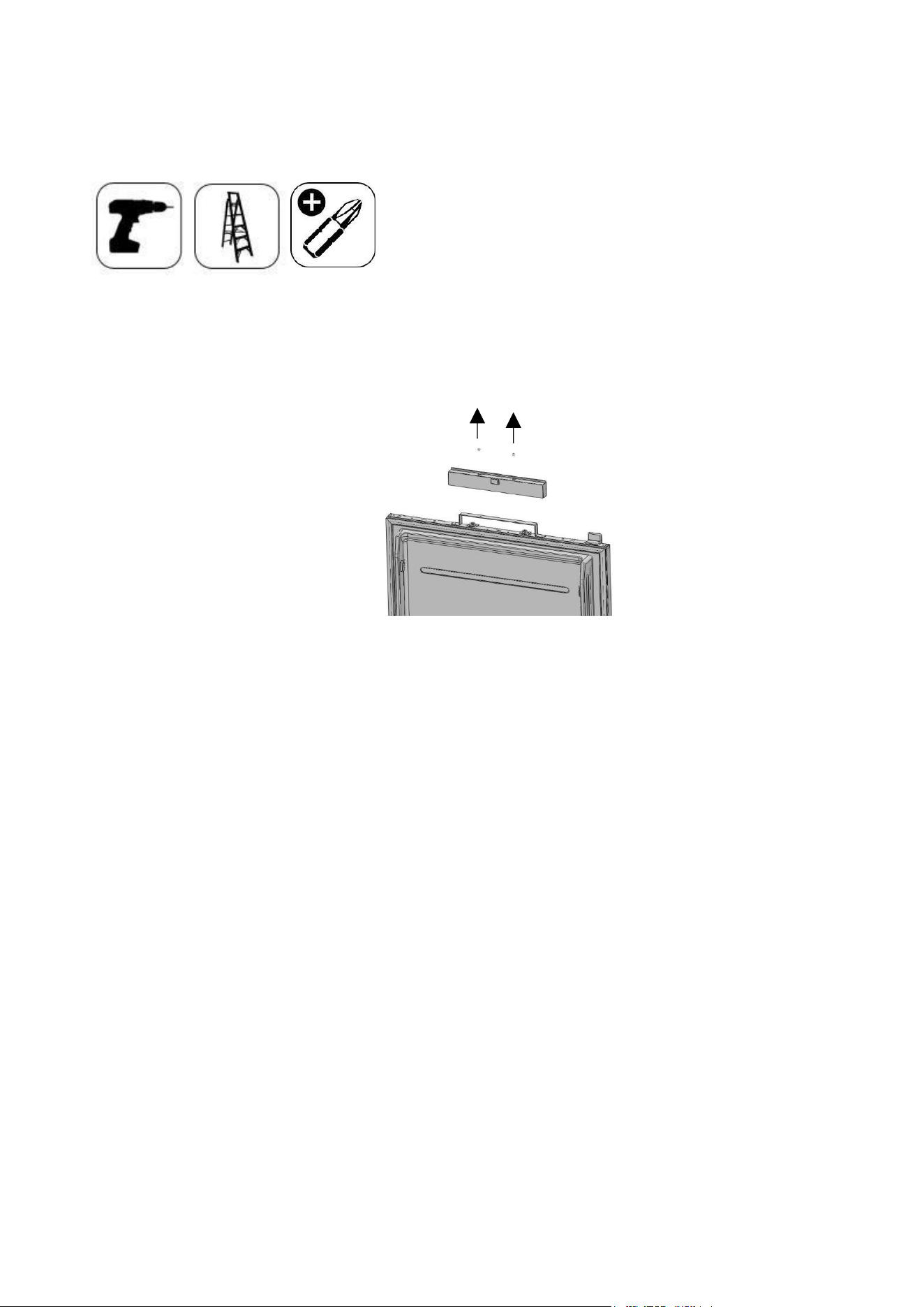

Loosen screws of the upper Cover of the door and remove it.
URFC36SNWPRY
UFFC36SINPRY
Confidential
63

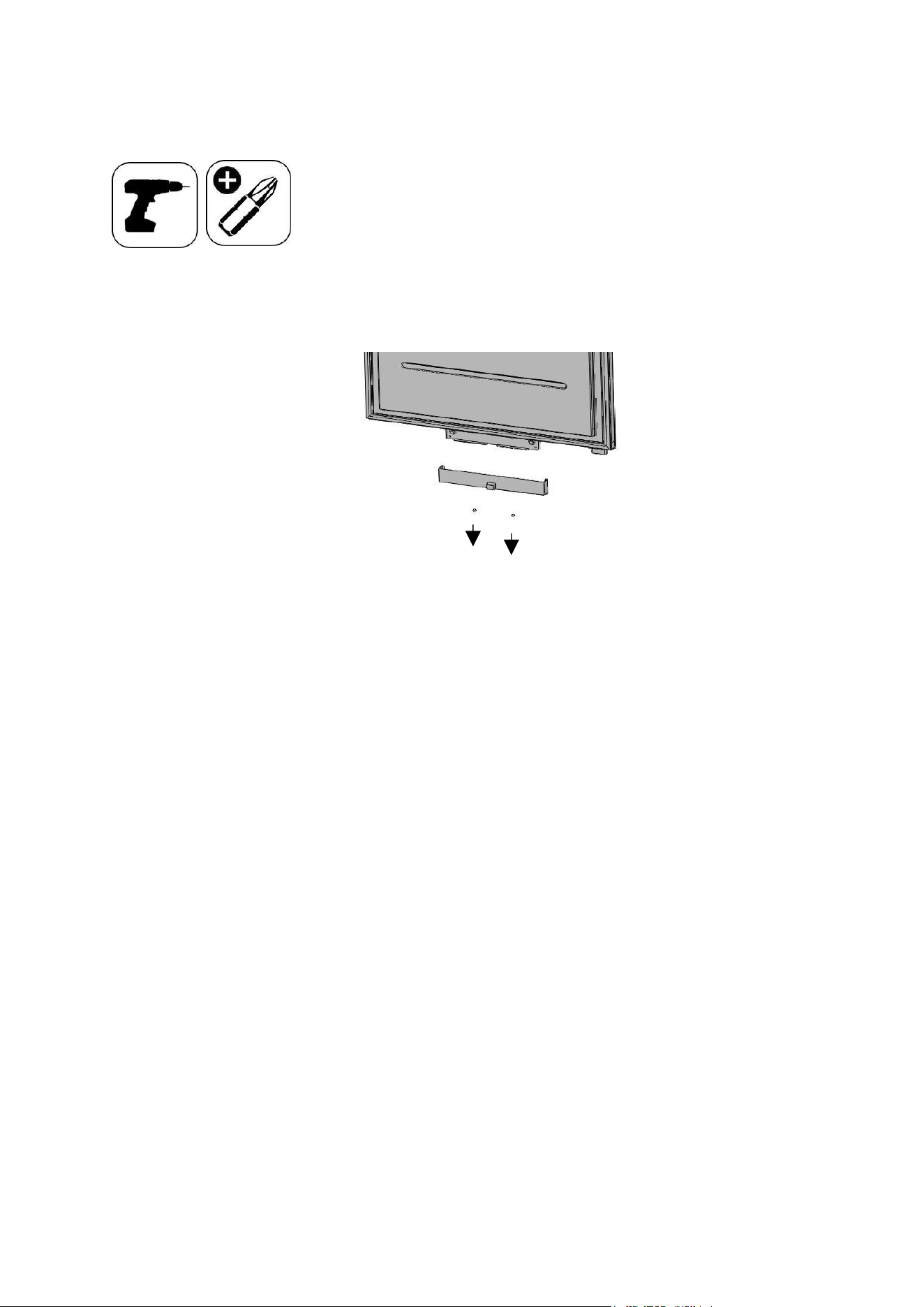

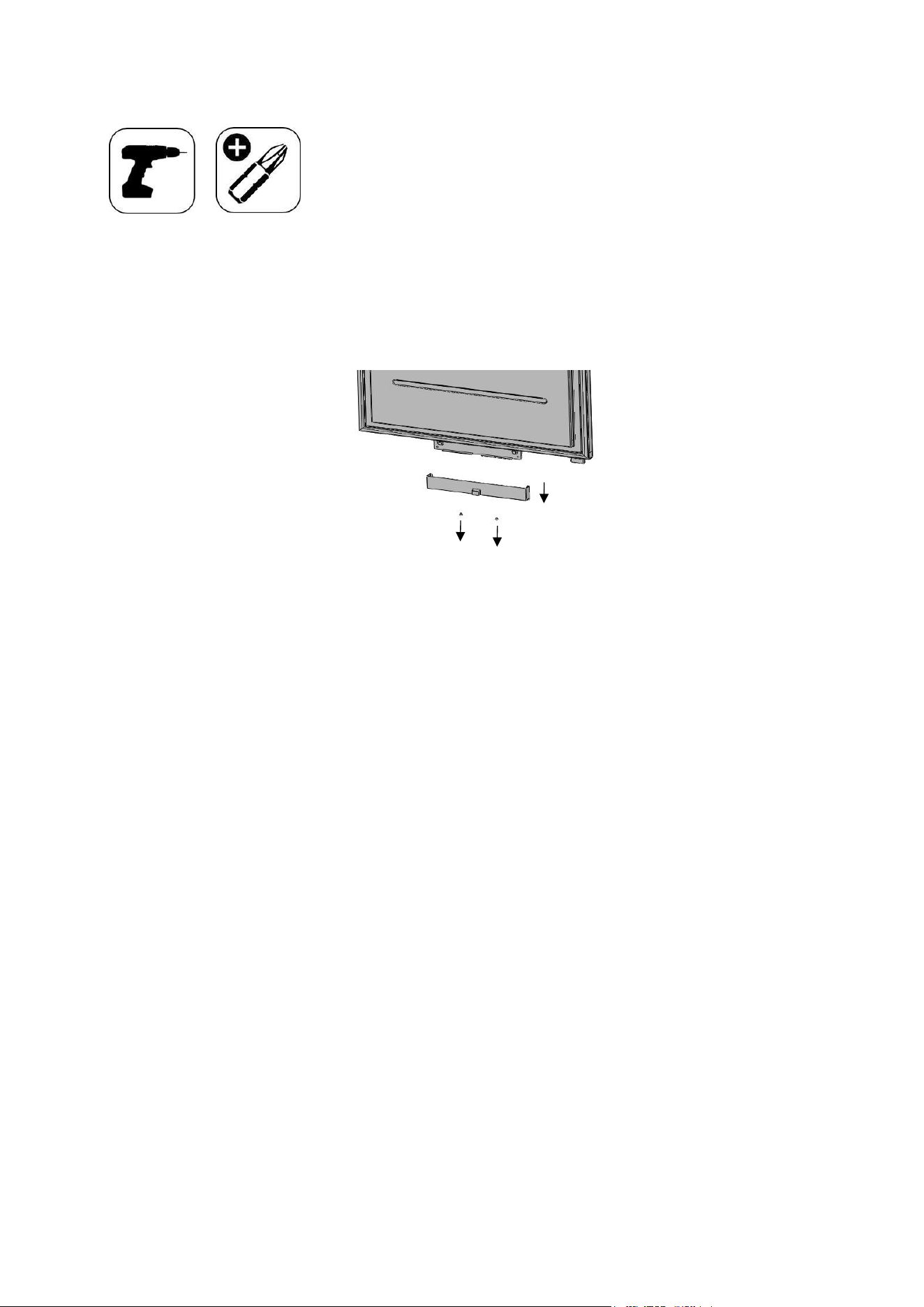

Loosen screws of the lower cover of the door and remove it.
URFC36SNWPRY
UFFC36SINPRY
Confidential
64
Remove the upper adjustment kits.
WARNING
The custom panel will be released when these screws are removed.
You must take measures to prevent custom panel from falling.
You can tape the custom panel to the Inner Door or ask for help from another person.
Take the custom panel and lay it down on a table upside down.
You must attach the custom panel by rotating it 180° based on its current position.
URFC36SNWPRY
UFFC36SINPRY
Confidential
65

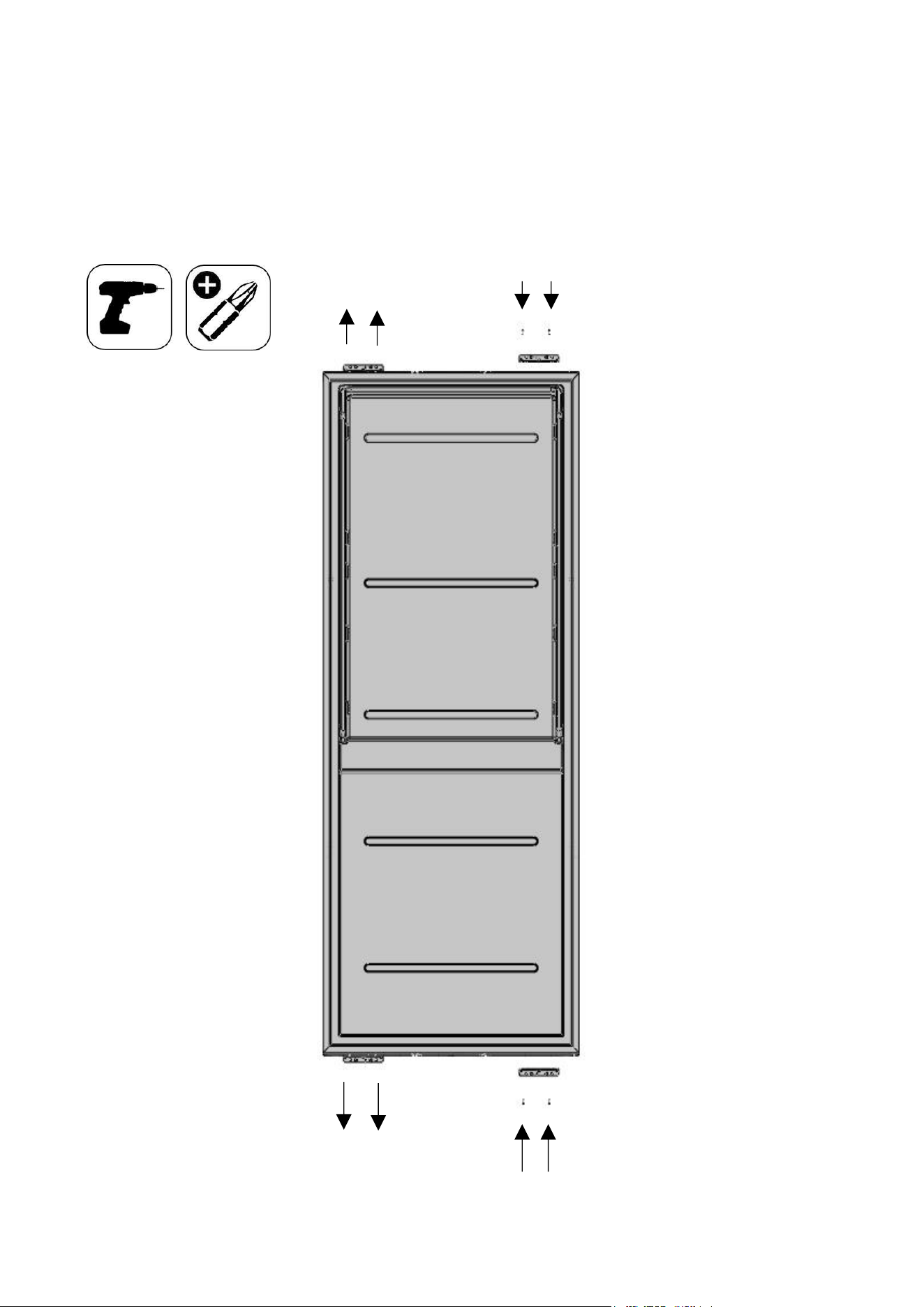

Removing and preparing the inner door

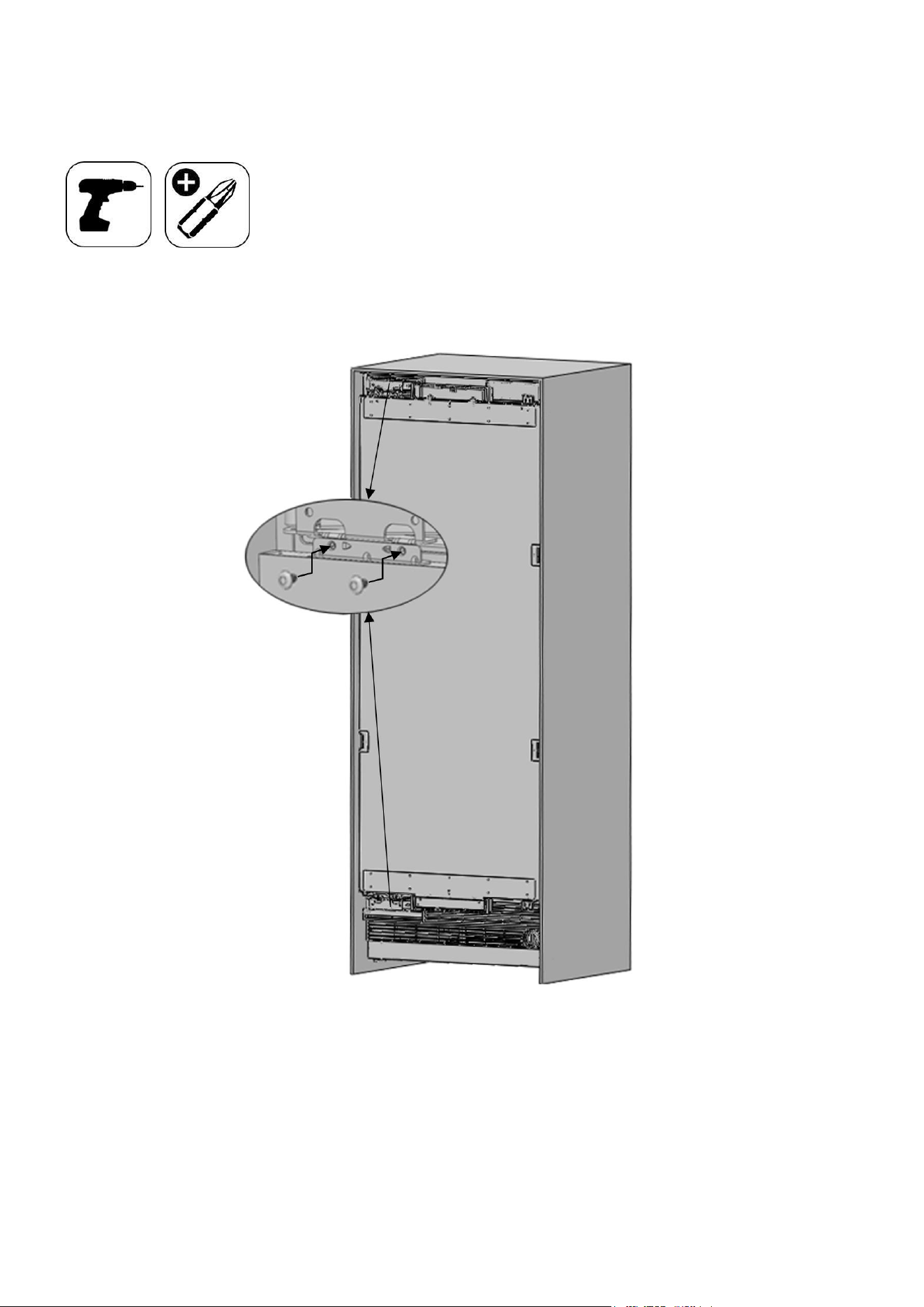

Remove the hinge connection screws of the Hinge Brackets.
ATTENTION
The clad door will be released when these screws are removed.
You must take measures to prevent the door from falling.
You can tape the Furniture Door to the Inner Door or ask for help from another person.
Confidential
66
Take out door and lay it down on a table.
Remove the hinge brackets on the fridge door.
Take out the new hinge brackets (Item No24,25).
from Accessories bag and screw it on the reverse side.
Confidential
67

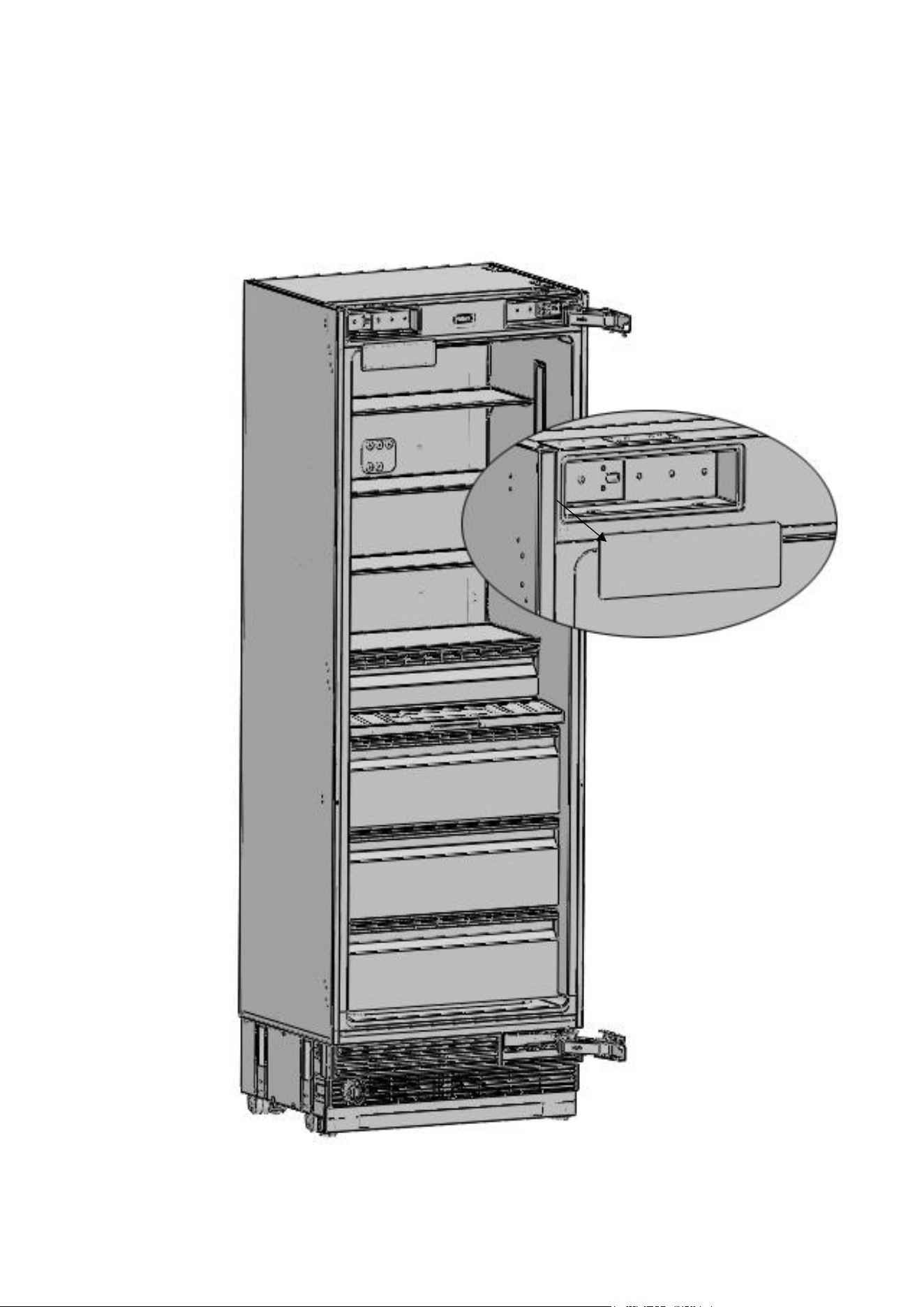

Replacing the hinges
Remove the Hinge Caps located at the other side where you will fix the hinge.
Confidential
68
Remove the lower right hinge by loosening its 2 screws and fix it to its slot at the upper left side.
Confidential
69

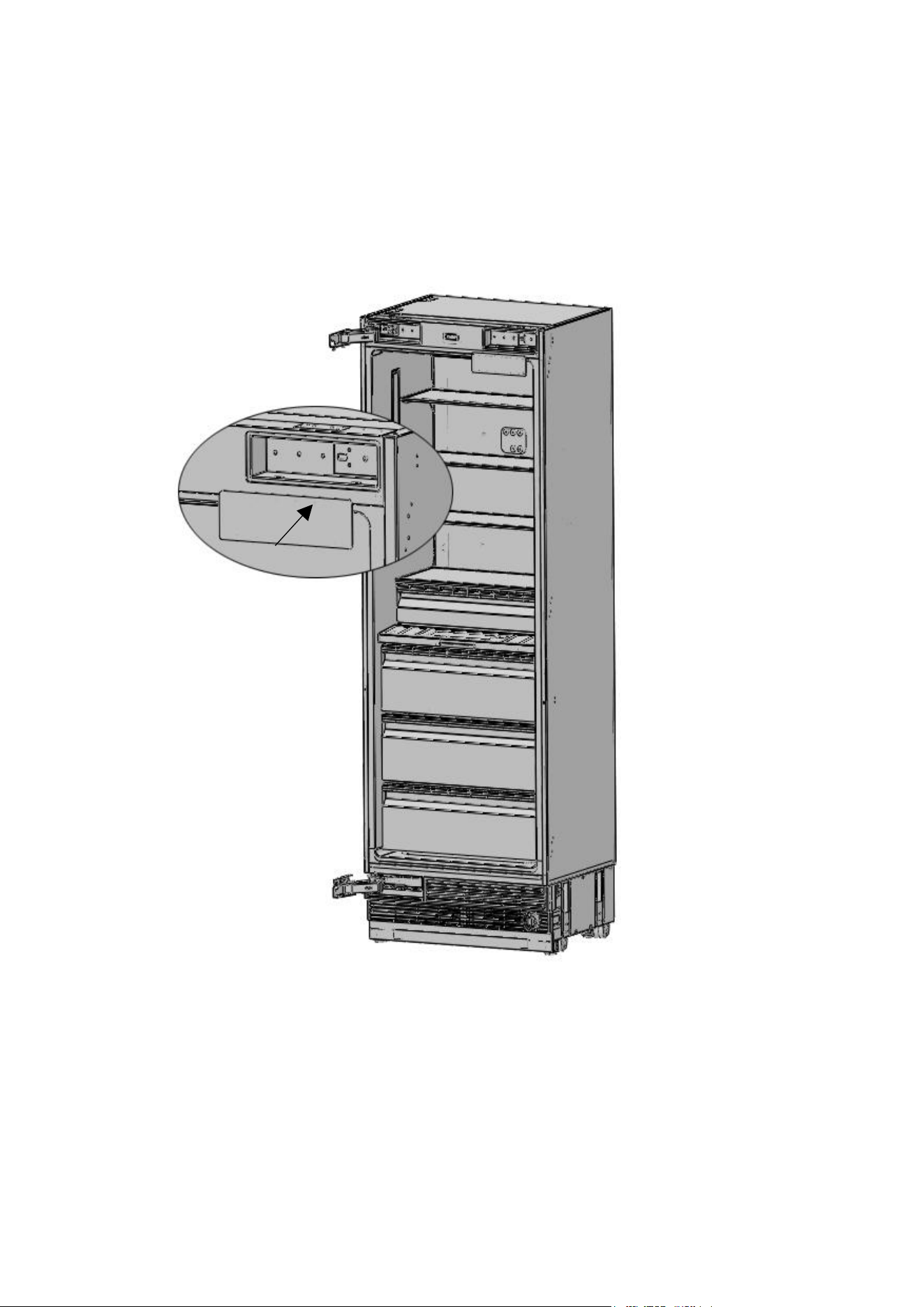

Air vent upper part direction change
Remove the air vent part and change direction as shown figure
How to change air vent upper part direction
Air vent cover
Air vent hinge part right
Rotate air vent cover by 180°
Air vent hinge part left
- Air vent upper part for the right hinge
- Air vent upper part for the left hinge
Confidential
70
Remove the upper right hinge by loosening its 2 screws and fix it to its slot at the lower left side.
Confidential
71
Attach the Hinge Slot Caps removed from the left side to the Hinge caps to the right side.
Confidential
72
Installing the door

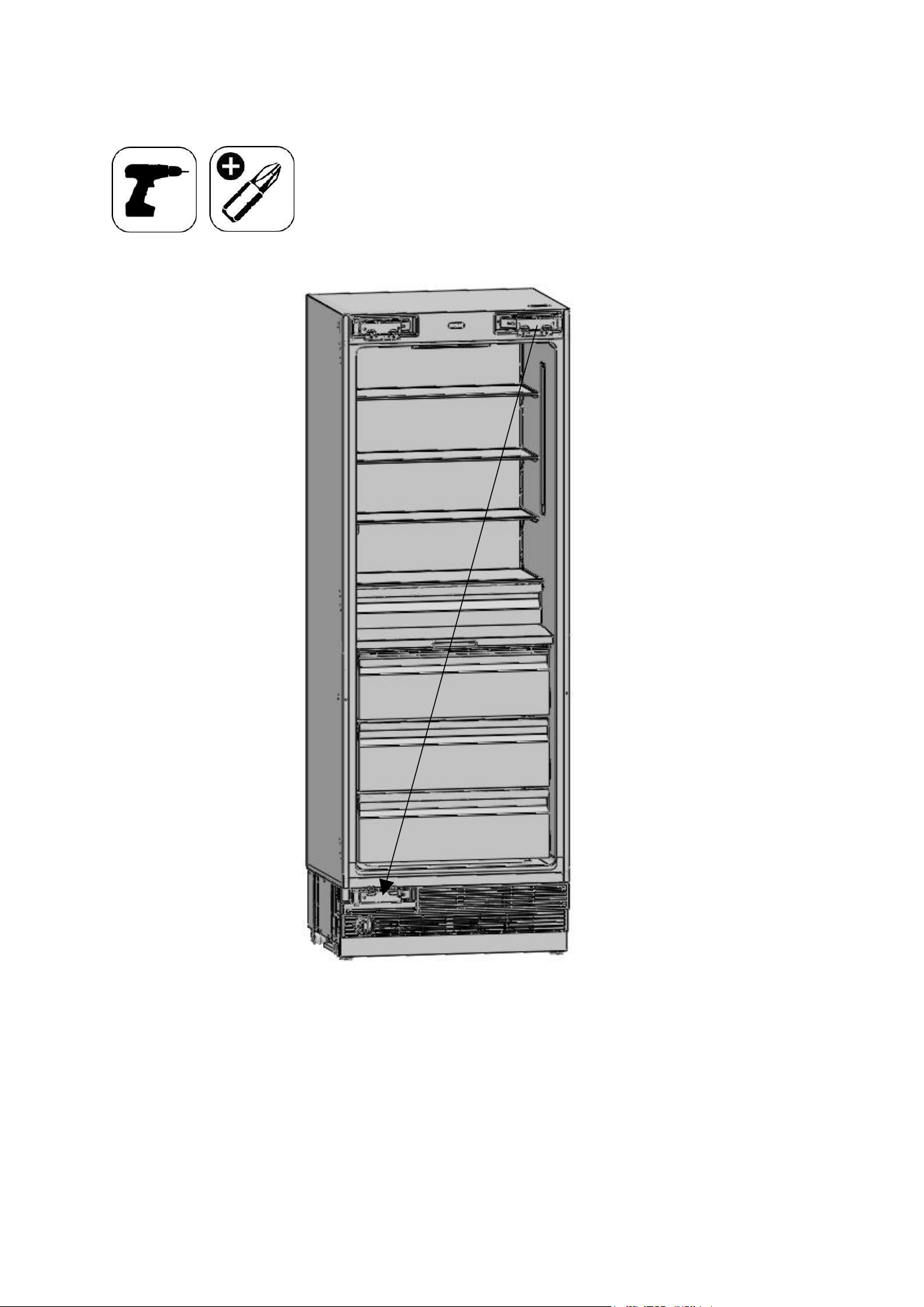

Place the door to the refrigerator and fix it with 4screws.
Confidential
73

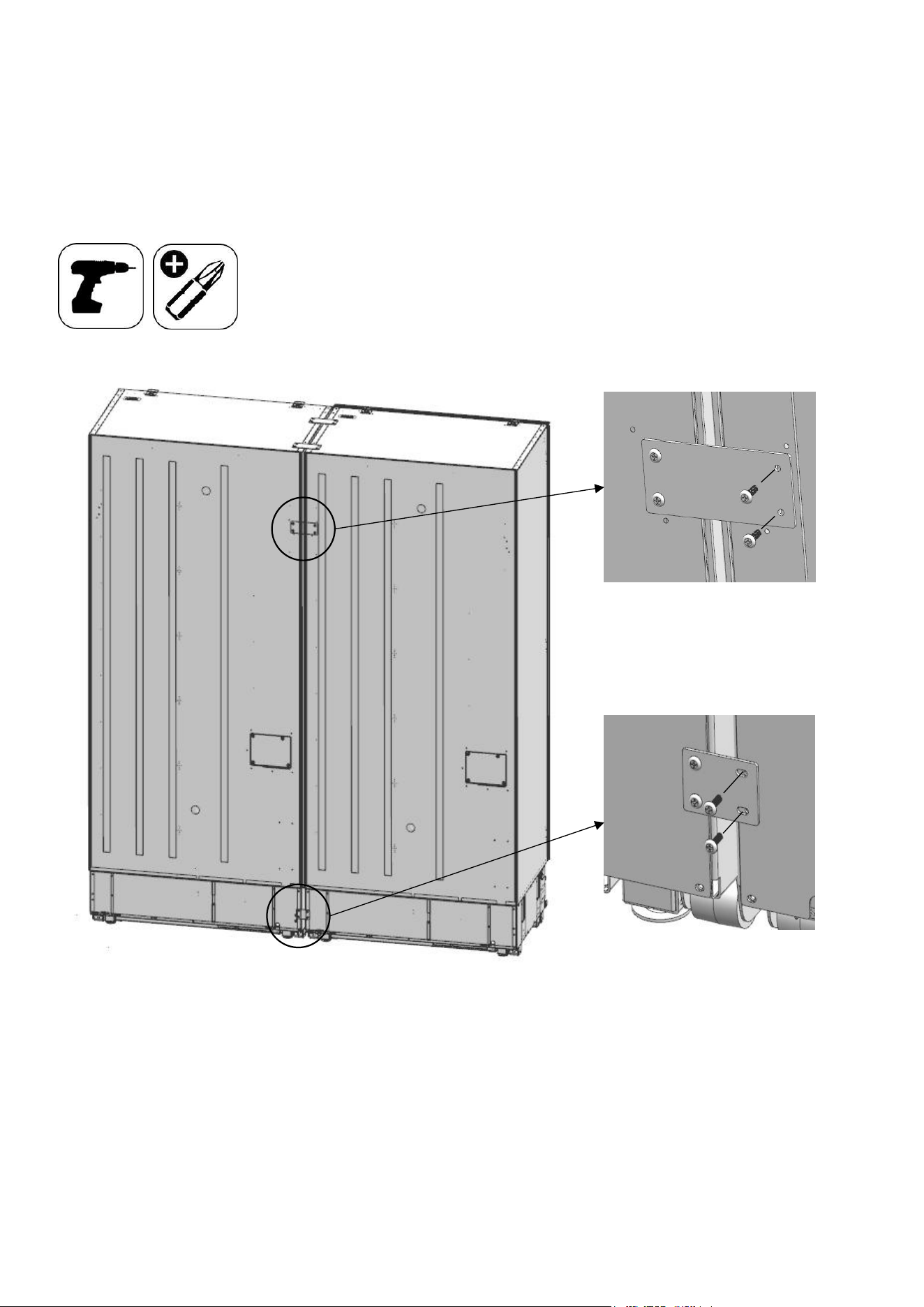

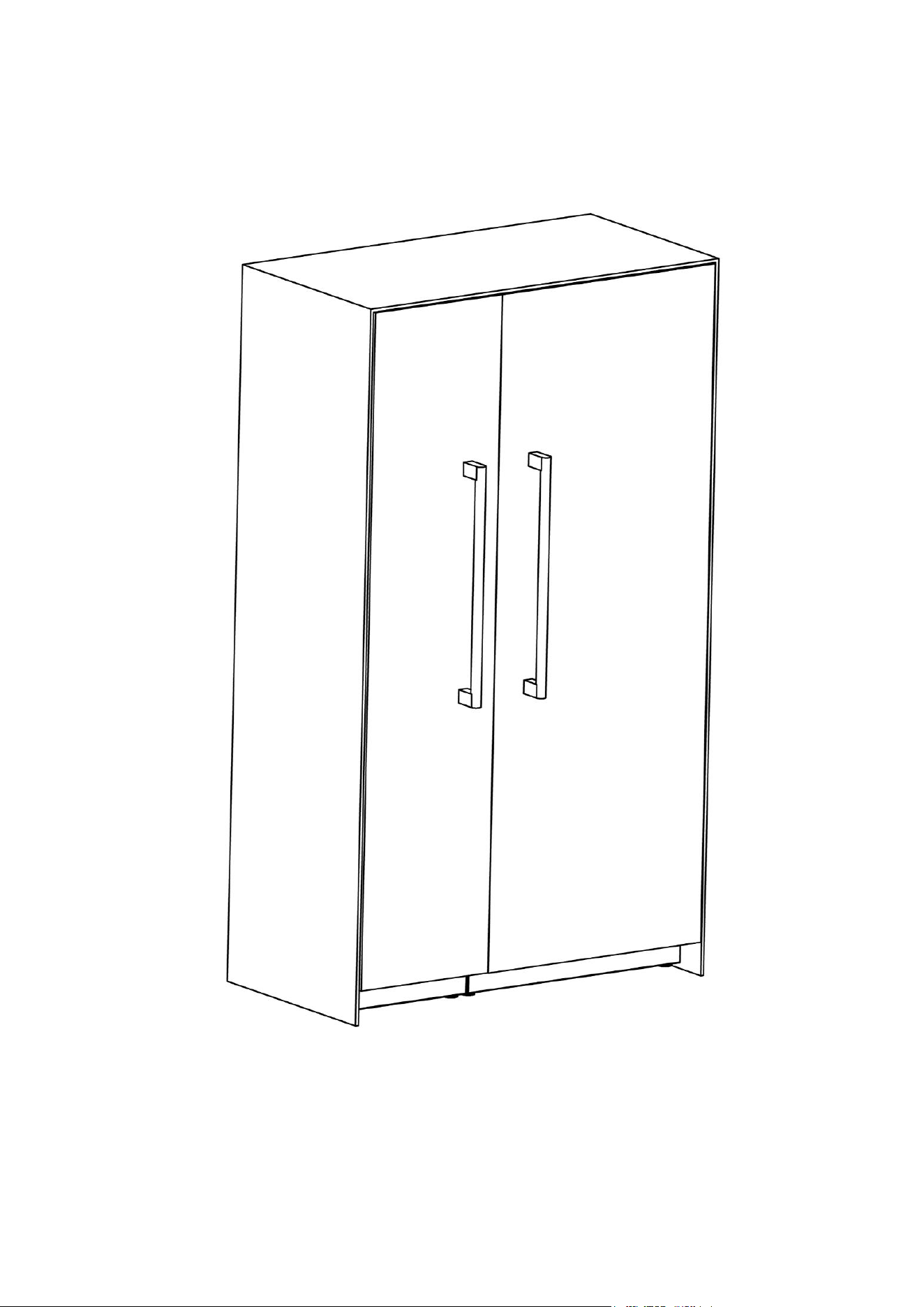

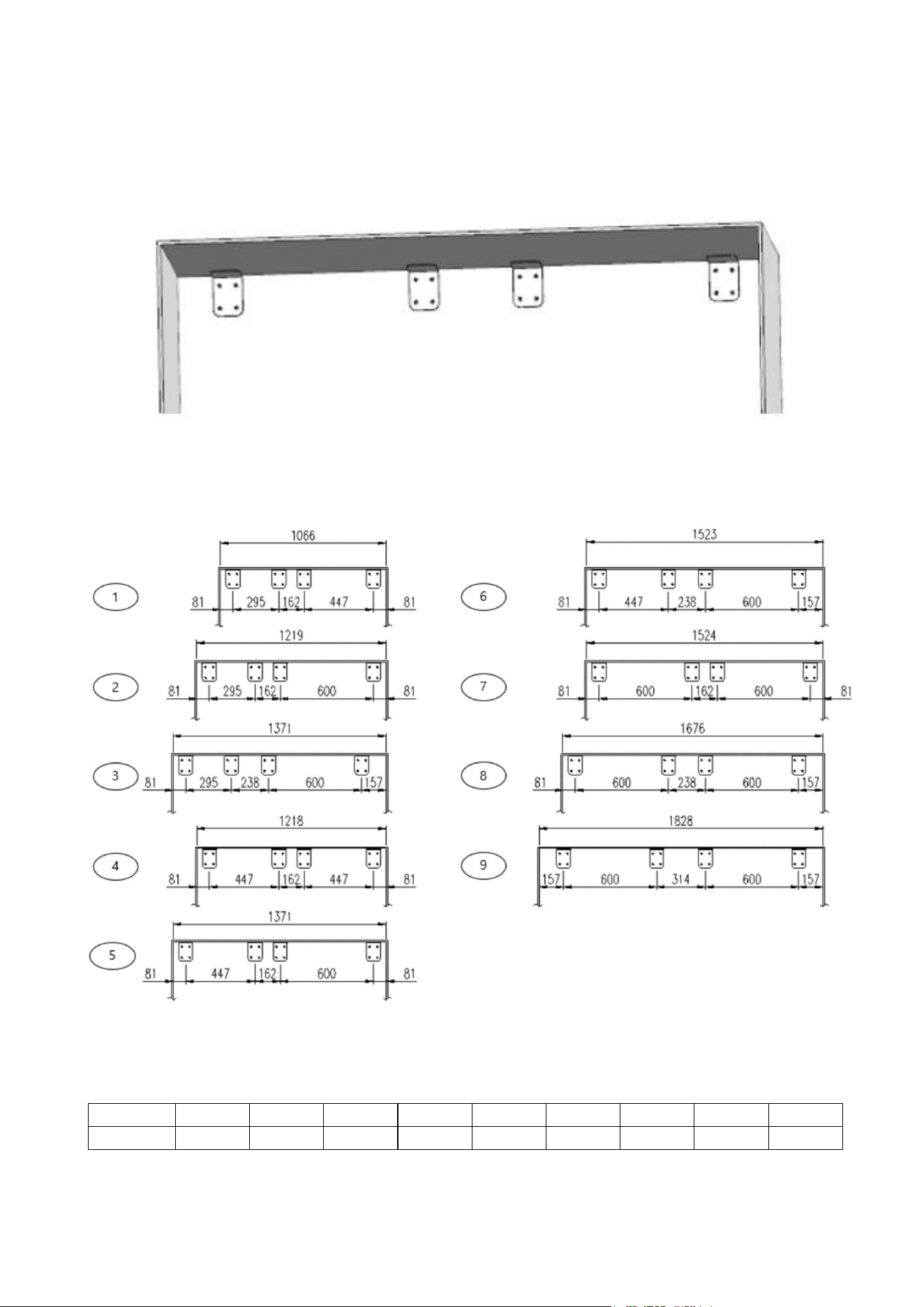

INSTALLING THE DUAL CABIN
If you are going to make a dual cabin installation, you must definitely demand "Dual Cabin Installation Kit"
from the authorised service.
The instructions below have been prepared according to Built-in type.
Built-in: The Appliance and Panels fully seat into the gap, and a material that can be their own box is jammed
between the two kitchen cabinets or decorative columns. This is the most common installation scenario.

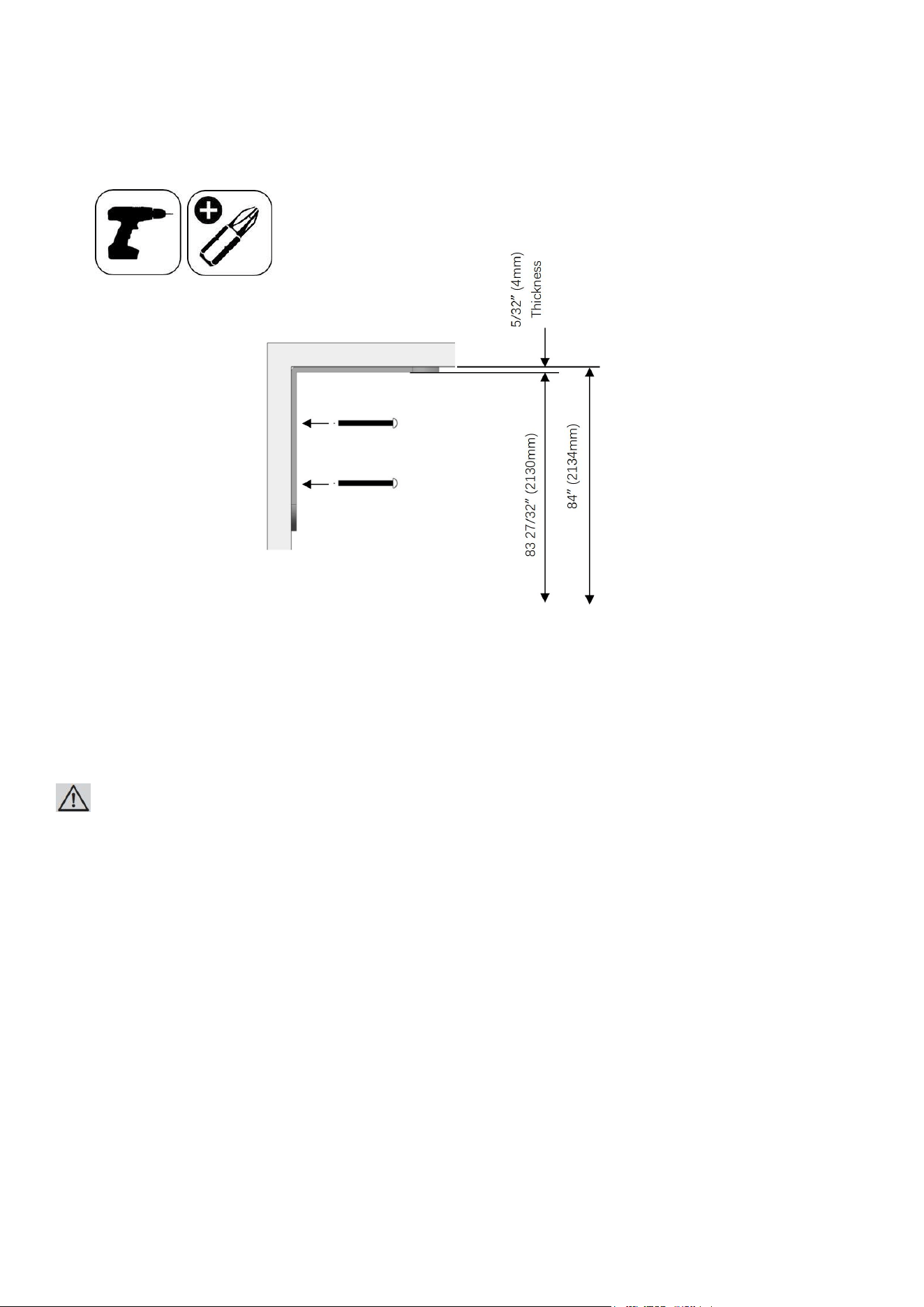

Cabin Dimensions
Cabin dimensions below must be checked before starting the installation.

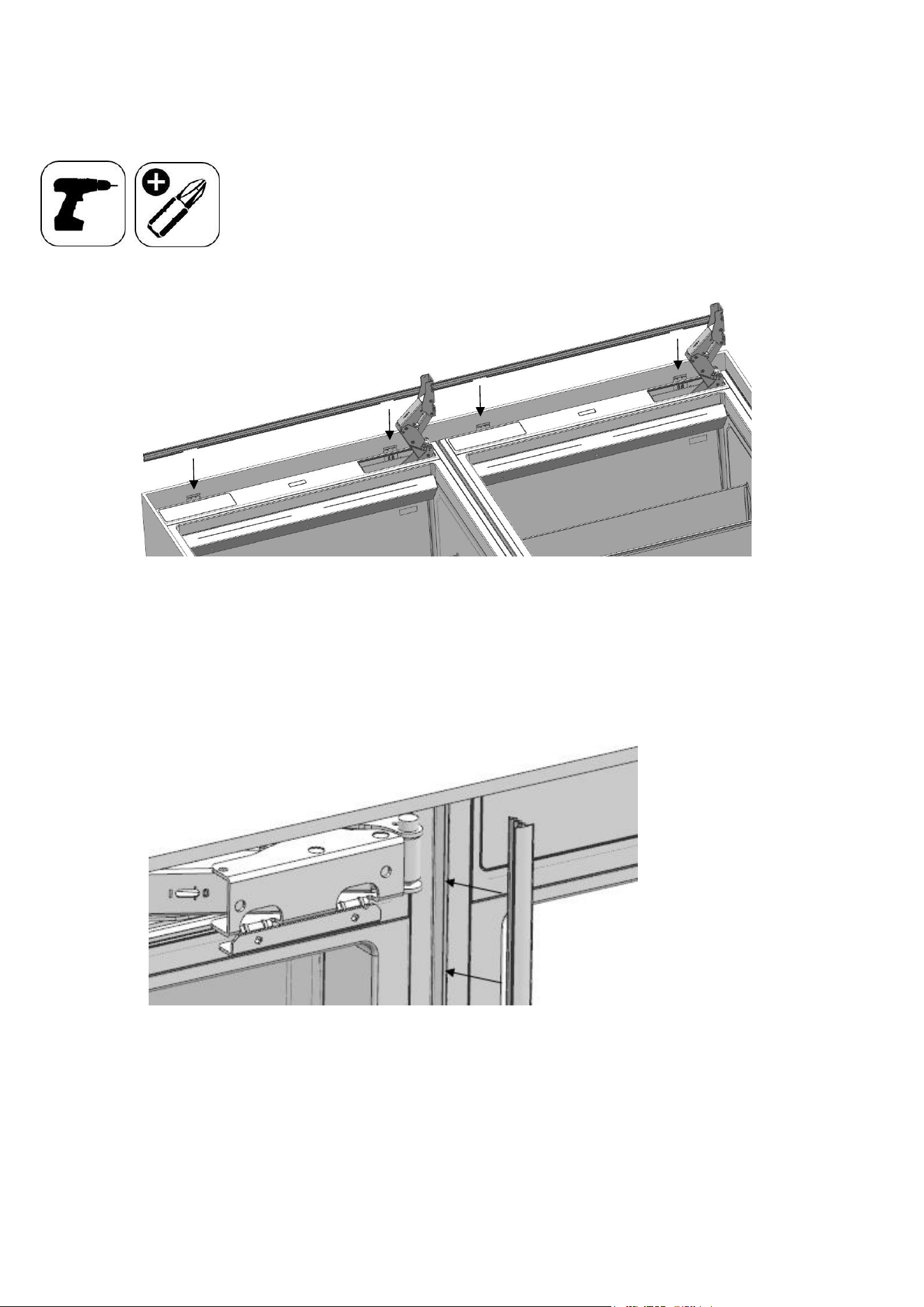

Aligning the panels
There are two panel-adjustment mechanisms at the top and two at the bottom of the door.
Adjust the panel so it aligns with the surrounding cabinetry.
The gap between the cabinet and the panel must be:
1/8” (3 mm) on top
1/8” (3 mm) on the side for single installation
3/16” (4 mm) on the side for pair installation
Cusom panel cutout dimension
Dual cabin “A” dimension
no-
dual (a+b)
width (a)
width (b)
gap©
total(a+b+c)
width
Product
Product
Product
Product
Cabin
Cabin
1
18”+24”
451mm
603 mm
12 mm
1066 mm
42.0”
2
18”+30”
451 mm
756 mm
12 mm
1219 mm
48.0”
3
18”+36”
451 mm
908 mm
12 mm
1371 mm
54.0”
4
24”+24”
603 mm
603 mm
12 mm
1218 mm
48.0”
5
24”+30”
603 mm
756 mm
12 mm
1371 mm
54.0”
6
24”+36”
603 mm
908 mm
12 mm
1523 mm
60.0”
7
30”+30”
756 mm
756 mm
12 mm
1524 mm
60.0”
8
30”+36”
756 mm
908 mm
12 mm
1676 mm
66.0”
9
36”+36”
908 mm
908 mm
12 mm
1828 mm
72.0”
Category
URFC36SNWPRY
UFFC36SINPRY
mm
908 * 2030
inch
35 3/4 * 29 15/16
Confidential
74
Location of the Electrical Wiring
Location of the electrical wiring must be within the range given below.
ATTENTION
Do not use extension cables or two-pin adaptors and do not remove the ground terminal of the grounding cable.
ATTENTION
A qualified electrician must ensure that the poles of the socket are connected correctly.
Verify that the grounding of the socket is correct.
“A” Dimension as below.
18”+24”
18”+30”
18”+36”
24”+24”
24”+30”
24”+36”
30”+30”
30”+36”
36”+36”
mm
272
425
577
272
425
577
425
577
577
inch
10 3/4
16 3/4
22 3/4
10 3/4
16 3/4
22 3/4
16 3/4
22 3/4
22 3/4
2 “ (50.8mm)
11 “ (280mm)
“A”
5” (127mm)
4” (102mm)
Confidential
75
Location of the water system
The water connected to the water mains must be potable.
Location of the water system must be within the range given below.
Water system of the refrigerator must be connected to the water mains system in the house.
The user must be able to switch it on/off with the valve when necessary.
Objects that might pierce the water hoses or cause them to twist must not be present
where the water line is installed.
Pressure of the water system must be between 25-80 psi (1.7-5.5 Bar).
If the water pressure exceeds 80 psi, install a pressure limiting device or water impact protector to the inlet valve.
Never install the product or operate the appliance if it is possible for the water pressure to exceed 120 psi.
WARNING
Make sure that there is no water leakage when making the water connections.
Otherwise, there will be water on the floor and the furniture will get damaged.
You will need a hose with a minimum length of 60" (1.5 meters) and a diameter of ¼"
for water connections of the product during installation.
A connector that has a thread with an external diameter of ¼ must be used to connect the hose end to the product.
Before completing the installation, make sure that water flows and there is no water leakage.
“A” Dimension as below.
18”+24”
18”+30”
18”+36”
24”+24”
24”+30”
24”+36”
30”+30”
30”+36”
36”+36”
mm
146
146
146
298
298
298
451
451
603
inch
5 3/4
5 3/4
5 3/4
11 3/4
11 3/4
11 3/4
17 3/4
17 3/4
23 3/4
Confidential
76
Location of anti-tip brackets (item No.12).
Dual cabin cases as below.
Category
1
2
3
4
5
6
7
8
9
dual
18”+24”
18”+30”
18”+36”
24”+24”
24”+30”
24”+36”
30”+30”
30”+36”
36”+36”
Confidential
77
Use a drill to create holes for dowels (item No.13) at the marked points. (5/16” -Ø8)
Use the hammer to fit the dowels (item No.13).
Fix anti-tip brackets with anti tip bracket screws (item No.13).
No 13
Anti tip bracket screws
dowels
Confidential
78
Mounting parts preparation for dual cabin
No
Part name
Spec
18''
24’’
30’’
URFC36SNWPRY
UFFC36SINPRY
Remark
6
Cabinet center trim
PVC extrusion L=1,874
1
1
1
1
Dual cabin
7
Insulation sponge
T3.0*400*1750
1
1
1
1
Dual cabin
19
Fastener A
T2.0*43*29, Cr+zn-coating
1
1
1
1
Dual cabin
20
Fastener B
T2.0*56*41, Cr+zn-coating
1
1
1
1
Dual cabin
21
Fastener C
T2.0*56*41, Cr+zn-coating
3
3
3
3
Dual cabin
Confidential
79
Fixing the fasteners to the product
Attach the 3kinds of fasteners to the cabinet as shown in the figure and screwing (item No.27) .
Confidential
80
Stick the Insulation Sponge (item No.7) to the side panel so that it remains in between two cabins.
Confidential
81
Joinning two product with screw
Bring the two refrigerators side by side.
After making sure that they are in alignment, screw fasteners to the other refrigerator.
Screwing fastener C ( item No.21)
With screw ( item No.27)
Screwing fastener B ( item No.20)
With screw ( item No.27)
Confidential
82
Screwing fastener C ( item No.21)
With screw ( item No.27)
Screwing fastener A ( item No.19)
With screw ( item No.27)
Confidential
83

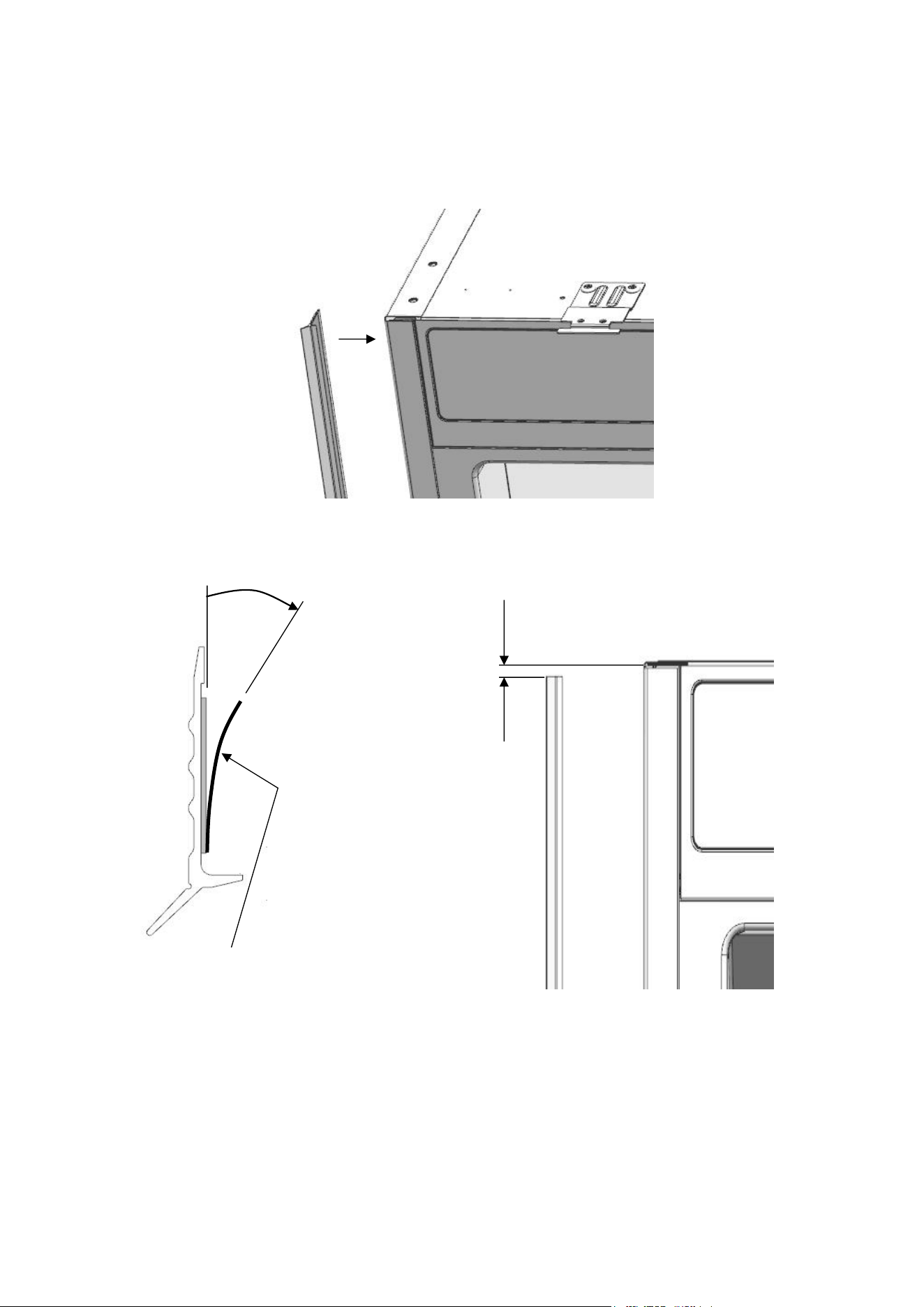

Attach the cabin side trim (item No.4) to the side of the cabinet.
Remove paper
6mm from cabinet top face
Confidential
84
Push the refrigerators into the cabin.
Make power and water connections of the refrigerator as explained before.
Move to wall
Water hose
Power cord
Confidential
85

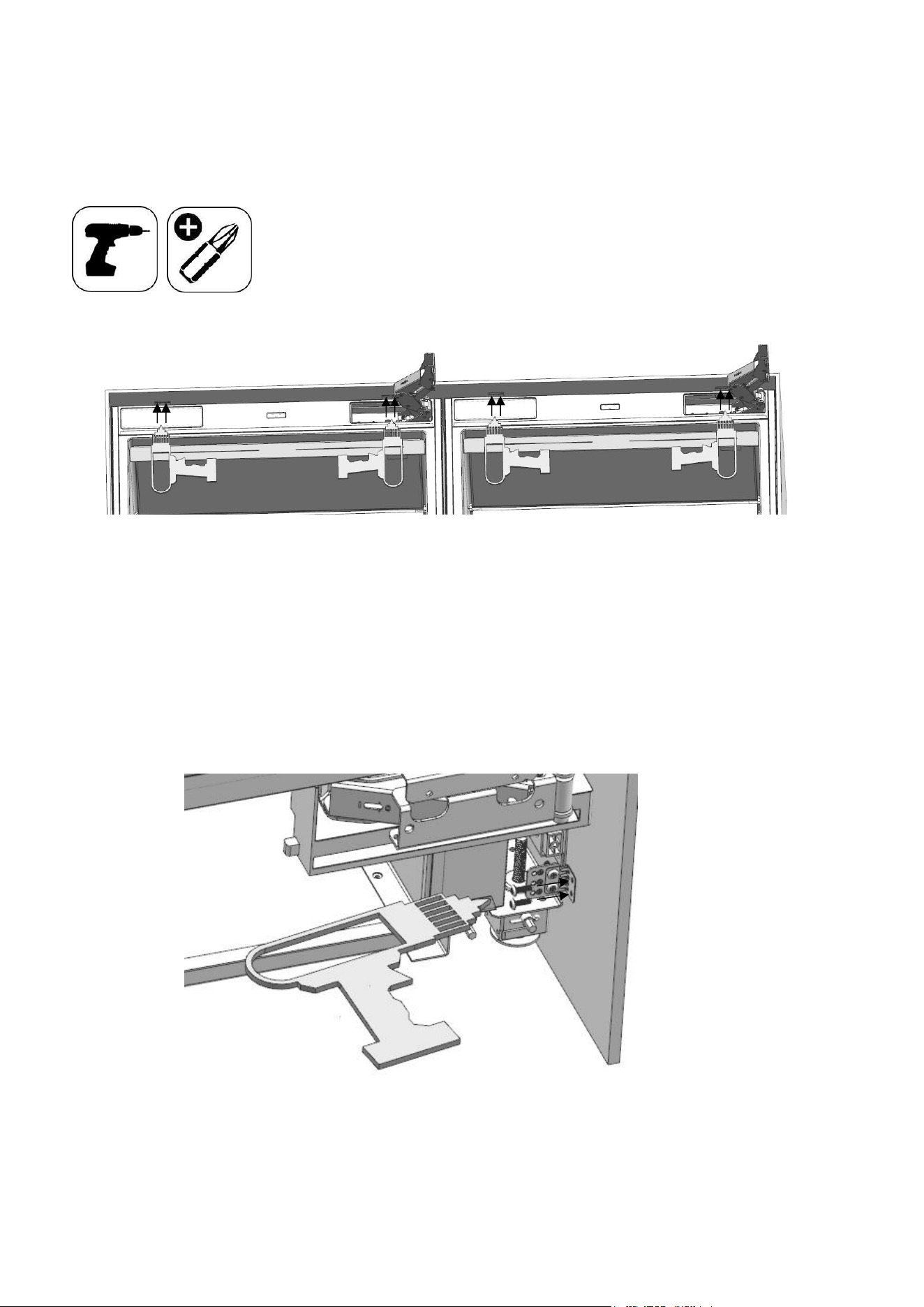

Adjusting the height of the refrigerator
Adjust the refrigerator height using the adjustable feet.
WARNING
First of all, raise the front feet to reduce the risk of the cabin falling frontward.
A/D –Turn the key clockwise to lift the front
B/C –Turn the key clockwise to lift the rear
Confidential
86
Fixing refrigerators to the cabin with screws
Screwing the cabinet bracket top (itemNo.15) on the cabin top wall
With screws (itemNo.28).
Screwing the cabinet bracket under (itemNo.16)
on the cabin bottom wall with screws (item No.28).
Confidential
87
Attaching the decorative parts
Close the upper part with the cabinet top trim ( itemNo.3).
Close the cabinet center part with cabinet center trim ( ItemNo.6)
between two refrigerators.
Confidential
88
You can see previous pages for other installation procedures.
Confidential
89
