BRENTHAVEN CEILING FAN
Español p. 19
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
Purchase Date _________________________
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, or missing parts?
Before returning, contact us at:
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday or at [email protected].
2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating Instructions .............................................................14
Care and Maintenance ............................................................15
Troubleshooting ..................................................................15
Limited Lifetime Warranty ..........................................................17
Replacement Parts List ............................................................18
3

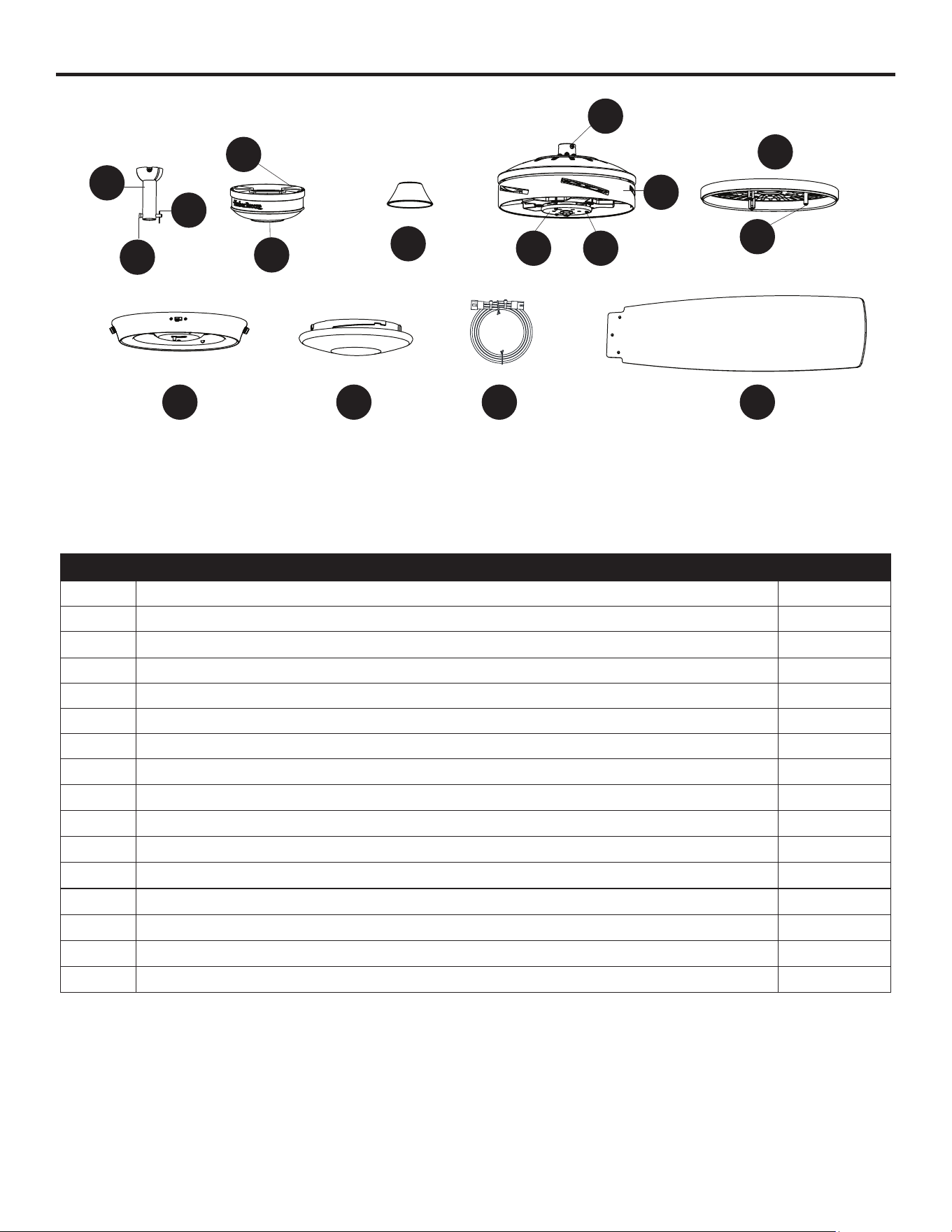

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to the Downrod [A]) 1
C Downrod Clip (preassembled to the Downrod [A]) 1
D Mounting Bracket (preassembled to Canopy [E]) 1
E Canopy 1
F Yoke Cover 1
G Set Screw (preassembled to the Motor Assembly [H]) 2
H Motor Assembly 1
I Fitter Plate (preassembled to the Motor Assembly [H]) 1
J Fitter Plate Screw (preassembled to Fitter Plate [I]) 3
K Light Pan 1
L Light Pan Screw (preassembled to Light Pan [K]) 3
M Light Kit 1
N Glass Bowl 1
O 36-Inch Lead Wire (optional) 1
P Blade 5
A
F
I
G
L
M
O P
J
N
K
H
B
C
E
D
4

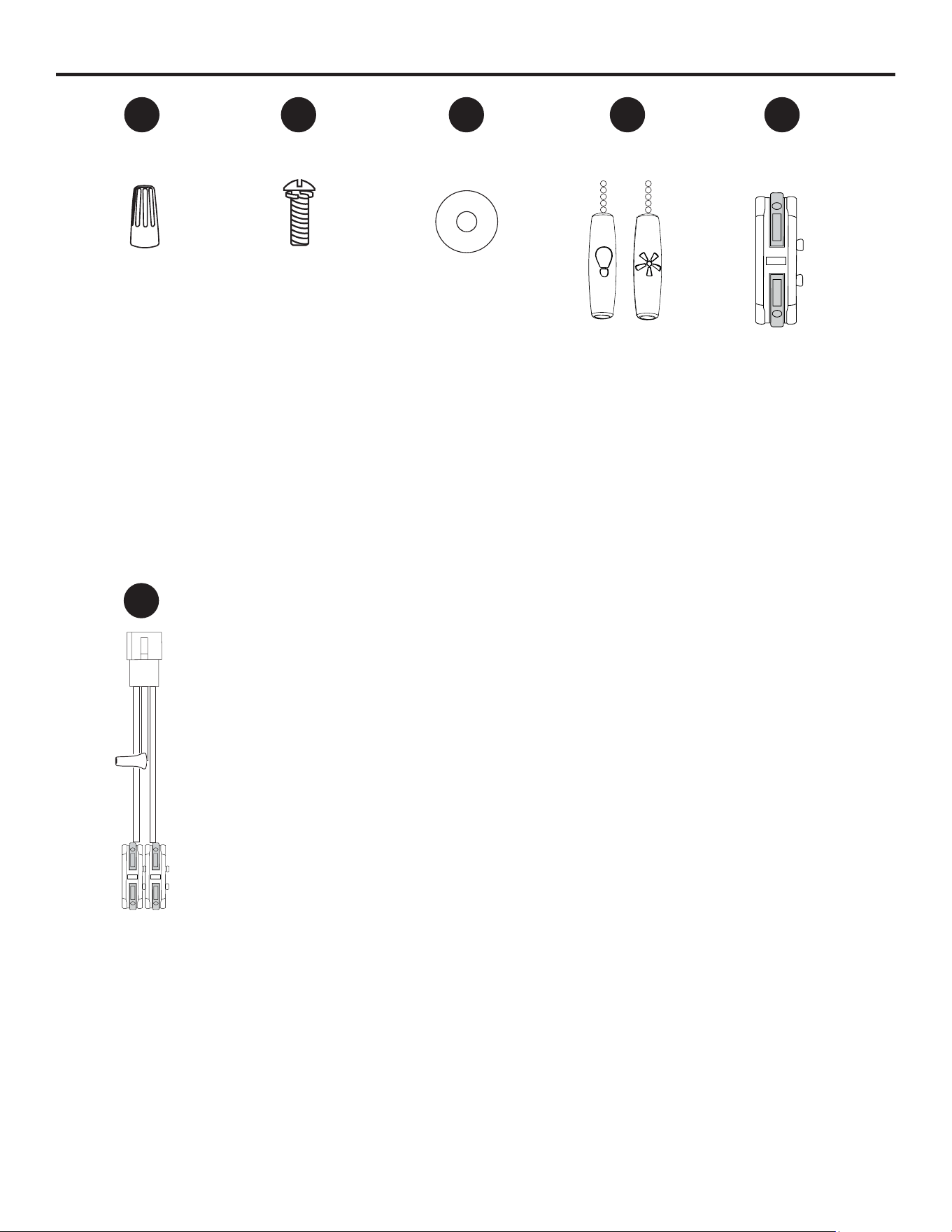

HARDWARE CONTENTS
Wire Connector
Qty. 1
+ 1 extra
Blade Screw
Qty. 15
+ 1 extra
Blade Washer
Qty. 15
+ 1 extra
Pull Chain
Extension
Qty. 2
Push-In
Connector
1 extra
Lead Wire
Qty. 1
FFAA BB CC DD
AI
5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 17.61 lb. (7.99 kg).
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use this fan with any solid-state
speed control device.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an outlet
box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electric shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.
6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This device complies with part 15 of FCC Rules. Operation is subject to the following
two conditions: 1) This device may cause harmful interference, and 2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
888-251-1003
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook
7
INITIAL INSTALLATION

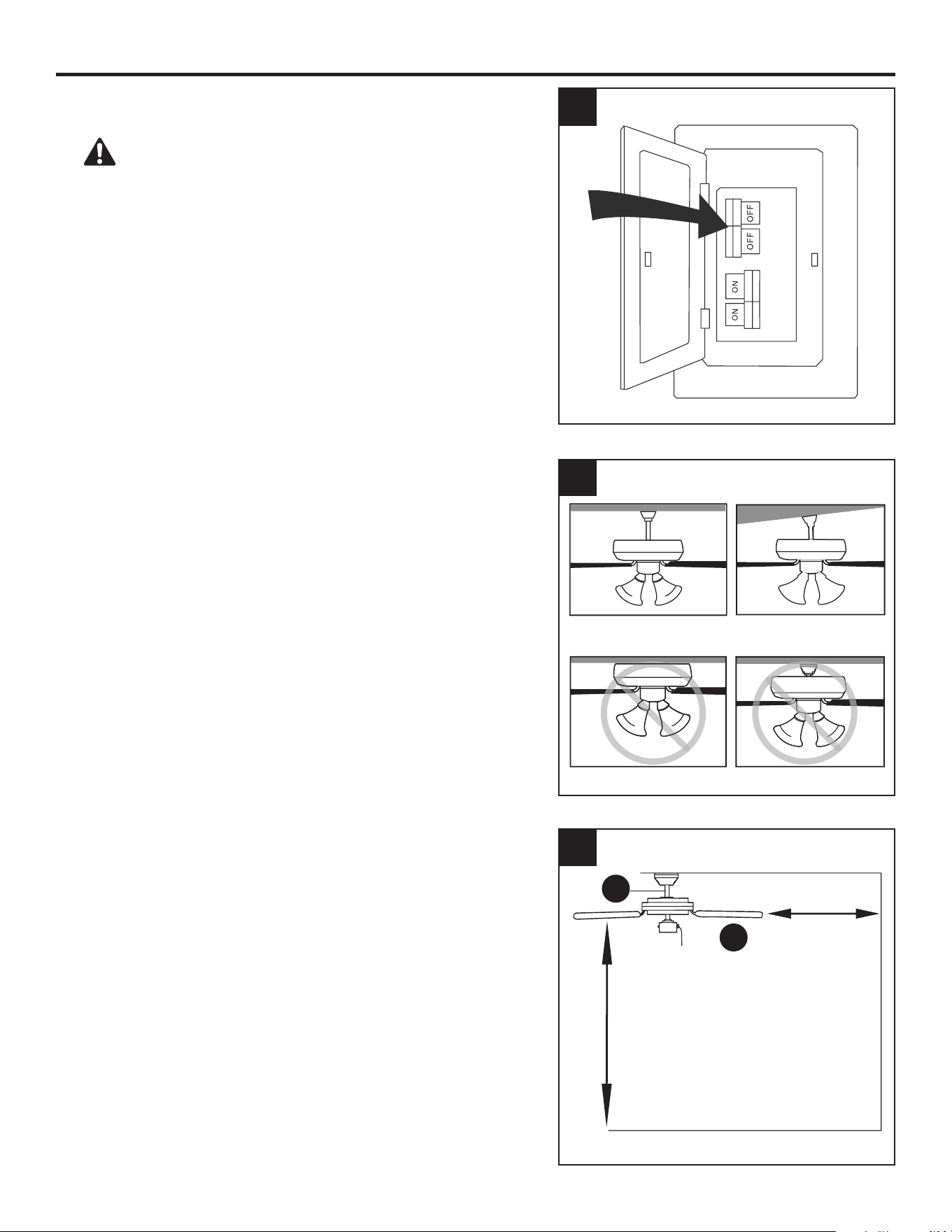

1. Turn o the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Determine the mounting method to use.
Standard Mounting is best suited for ceilings 8 ft. or
higher. For taller ceilings you may want to use a longer
downrod (not included).
Angle Mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance.
Important: If using the angle mount, check to ensure
the ceiling angle is not steeper than 16°.
Flushmount is not available for this item.
Closemount is not available for this item.
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (P) will be at least 30 in. from any
obstructions. Also check the downrod (A) length to
ensure the blades (P) will be at least 7 ft. above the oor.
7 feet
minimum
30 in.
minimum
1
3
P
A
2
8
INITIAL INSTALLATION

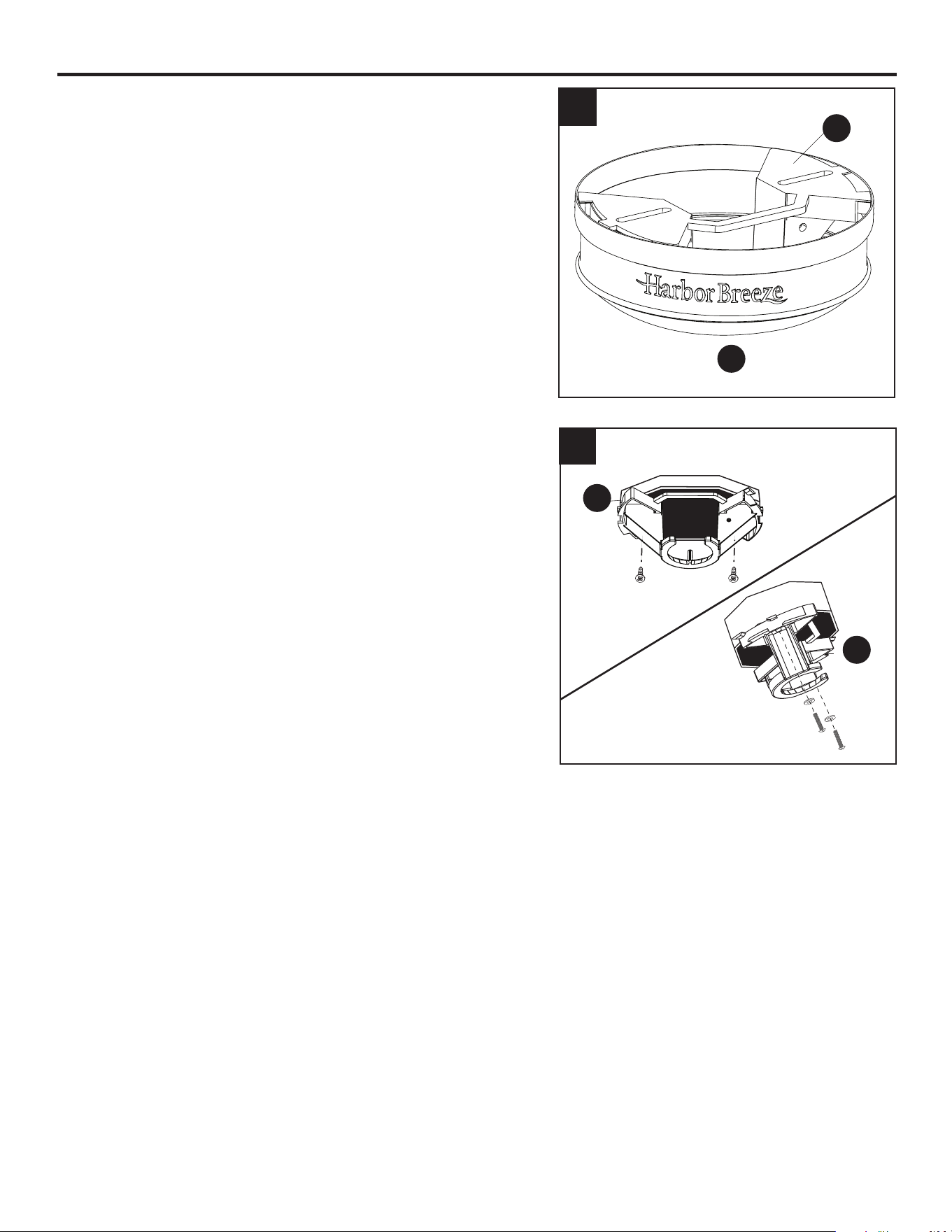

4. Firmly hold canopy (E) while twisting the mounting
bracket (D) counterclockwise to remove.
5. Attach mounting bracket (D) to outlet box (not
included) using screws and washers provided with
the outlet box.
CAUTION: It is very important to use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
4
D
Standard
Mounting
Angle
Mounting
5
E
D
D
9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

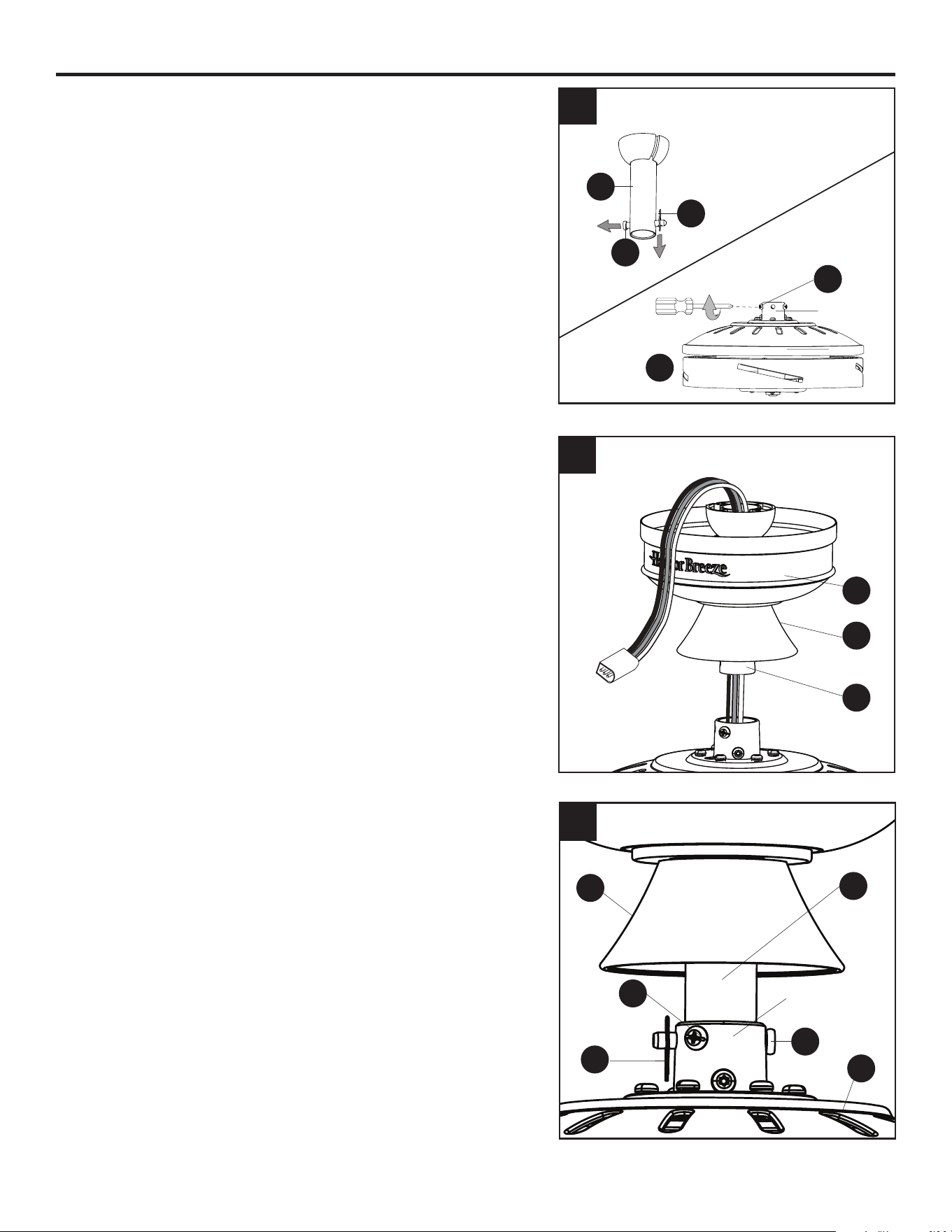

1. Remove the downrod clip (C) and downrod pin (B)
from the downrod (A). Then partially loosen the
set screws (G) in the yoke at the top of the motor
assembly (H).
2. Insert the downrod (A) -- or a longer downrod (not
included), if required -- through the canopy (E) and
yoke cover (F). Feed the wires from the fan through the
downrod (A).
3. Slide the downrod (A) into the yoke, align the holes,
then re-install the downrod pin (B) and downrod
clip (C). Secure with set screws (G) and slide the
yoke cover (F) down until it rests on top of the motor
assembly (H).
C
A
G
B
F
H
Yoke
2
3
A
F
E
Yoke
C
A
B
G
H
1
10
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
4. Depending on the length of downrod (A) you use,
you may need to use the 36-inch lead wire (O)
to accommodate a 36 or 48-inch downrod (sold
separately). When necessary, connect the 3-pin
connector extending from the center of the downrod
(A) to one end of the 36-inch lead wire (O). Note: The
downrod (A) included with this fan will not utilize the
36-inch lead wire (O).

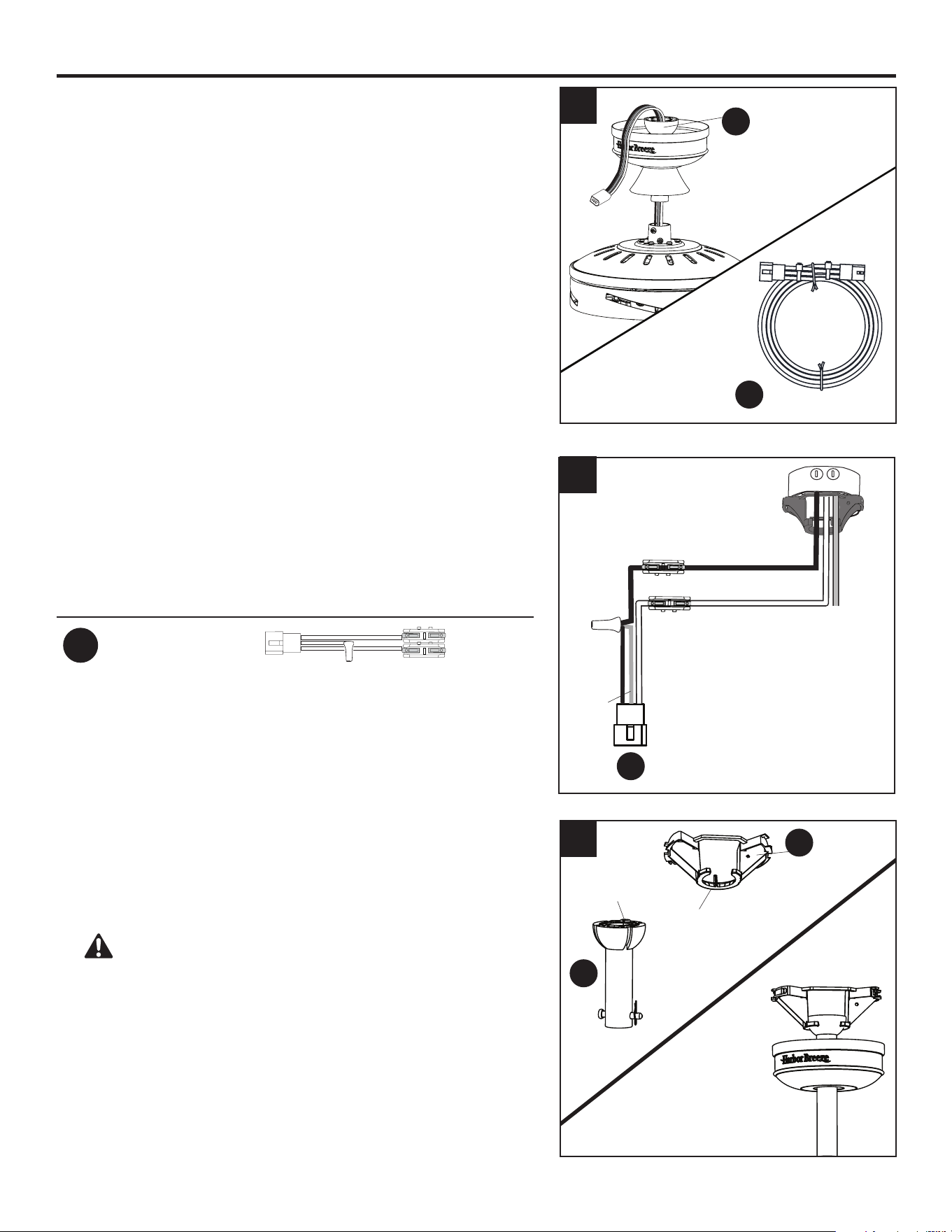

5. Make the following wire connections according to the
diagram and these steps:
• Lift the lever and then push the White (neutral)
supply wire into the empty hole of the push-in
connector preassembled to the white wire of lead
wire (AI) and then lower the lever to secure wire.
• Lift the lever and then push the Black (hot) supply
wire into the empty hole of the push-in connector
preassembled to the black wire of lead wire (AI) and
then lower the lever to secure wire.
Hardware Used
AI
Lead Wire x 1
Note: The lead wire (AI) and ground wire will be
connected later.
Important: If household supply wires are dierent
colors than referred to above, a professional electrician
should determine proper wiring.
6. Install the ball end of the downrod (A) into the opening
of the mounting bracket (D). Align a slot in the ball
with the tab in the mounting bracket (D).
Important: The downrod (A) should not rotate in the
mounting bracket (D) if installed properly.
DANGER: Failure to align a slot in the ball with
the tab may cause the fan to wobble or fall, which
could result in serious injury or death.
5
A
AI
D
O
A
Tab
Slot
6
4
Black (hot)
Bare (ground)
White (neutral)
White
Blue
Black
Black
11
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

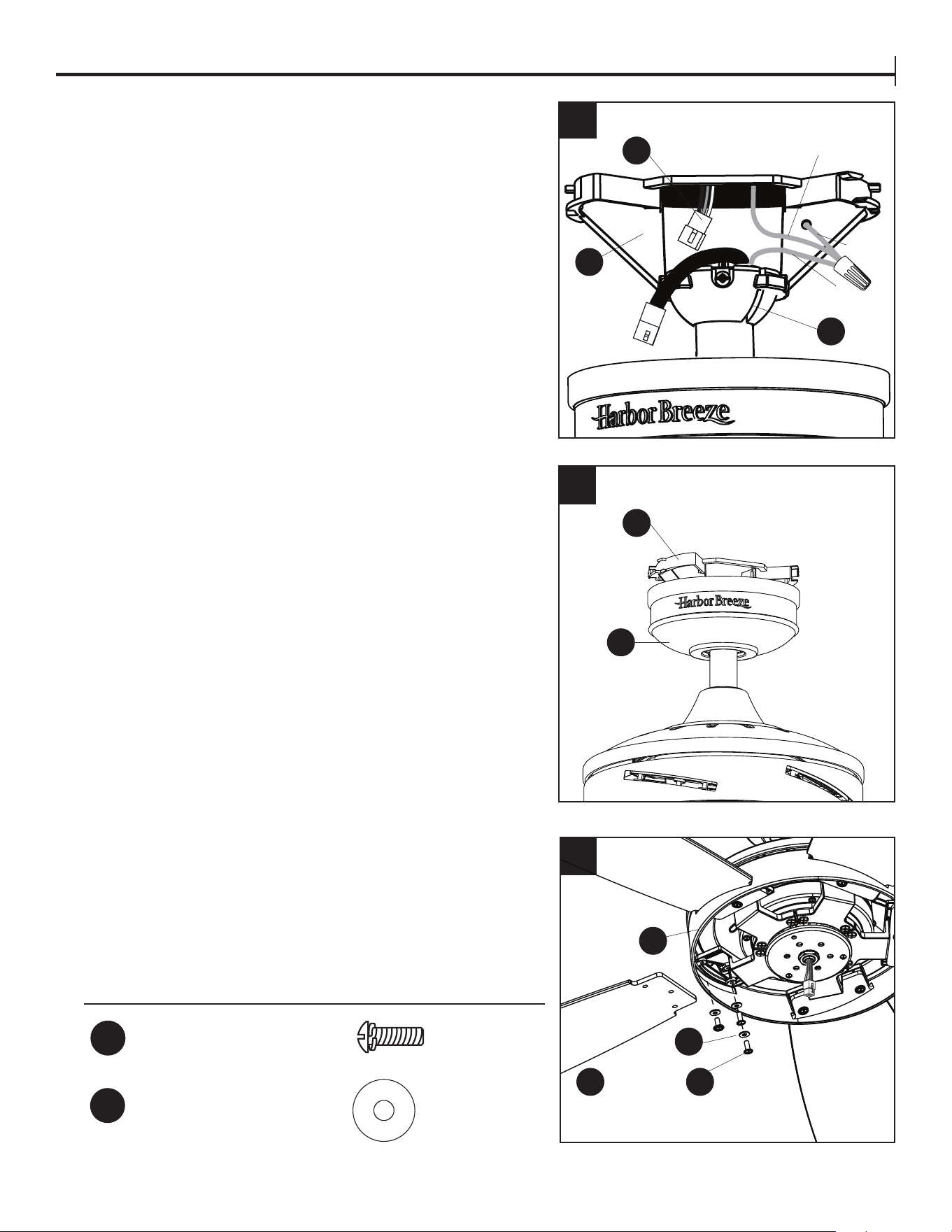

7. Connect the 3-pin connector extending from the
downrod (A) to the 3-pin connector on lead wire (AI).
Then, connect the green/bare (ground) supply wire to
the green wires from the downrod (A) and the mounting
bracket (D).
8. Lift the canopy (E) over the mounting bracket (D) and
rotate clockwise until secure.
9. Insert blade (P) through slot in the side of the motor
assembly (H). Align the holes of one blade (P) with
three blade screw holes in underside of the motor
assembly. Secure with the three blade screws (BB)and
blade washers (CC). Repeat this step for the remaining
blades (P).
Hardware Used
BB
Blade Screw x 15
Blade Washer x 15
7
9
AI
D
A
8
3-Pin
Connector
Bare/Green
(ground)
Green
Green
E
D
CC
H
P BB
CC
12
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
10. Remove one of the three tter plate screws (J)
preassembled to the tter plate (I) and loosen
the other two but do not remove. Feed the 9-pin
connector through center hole in light pan (K).
Align the three key slots in the light pan (K) with the
loosened tter plate screws (J). Place the light pan
(K) over the three screws and turn the light pan (K)
clockwise. Then tighten the three tter plate screws
(J). Re-install the previously removed tter plate
screw (J) and tighten rmly.

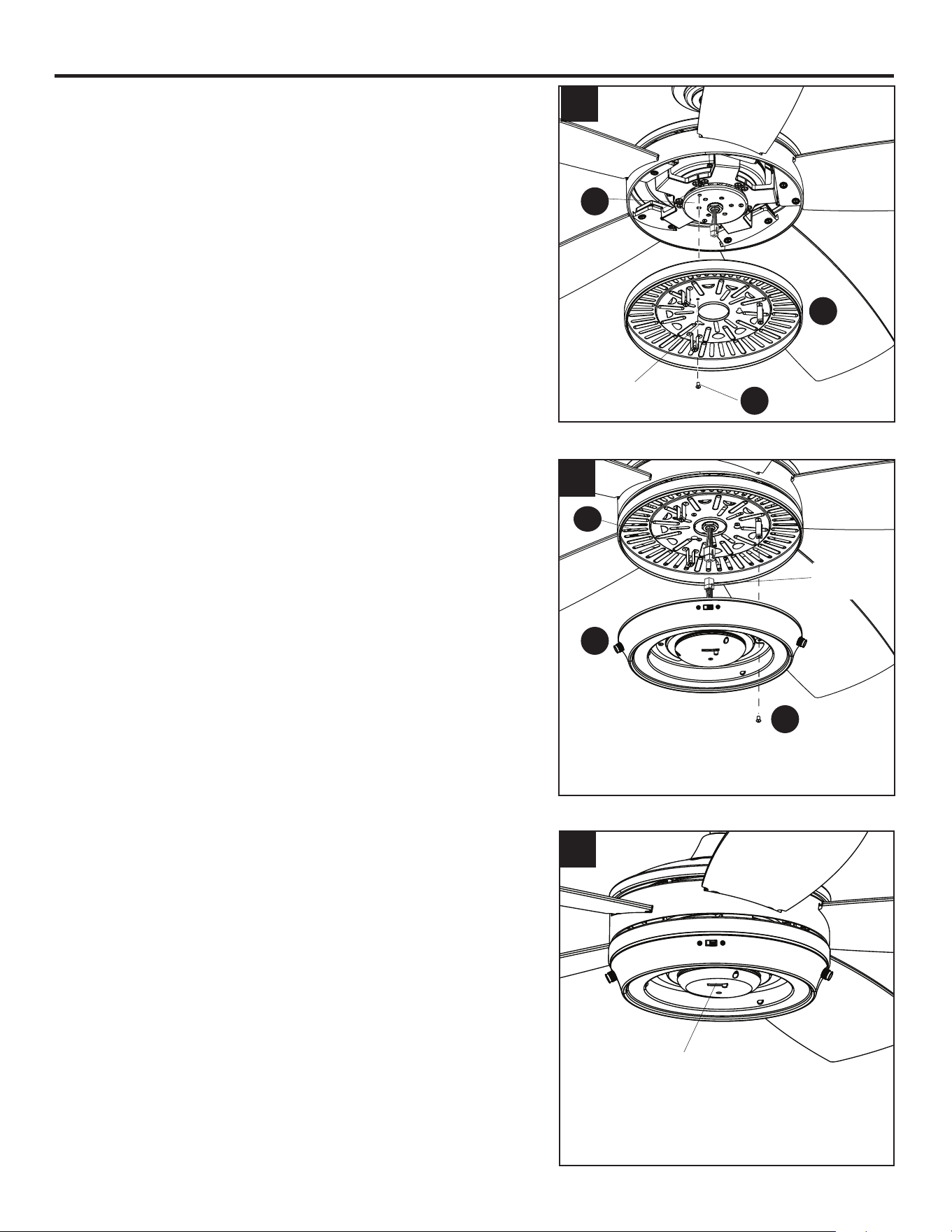

11. Remove one of the three light pan screws (L) from
the light pan (K) and loosen the other two but do
not remove. Connect the 9-pin connector from the
light pan (K) to the 9-pin connector from the light
kit (M). Lift the two keyhole slots in the light kit (M)
over the two loosened light pan screws (L) and turn
in a clockwise direction. Then, use the previously
removed light pan screw (L) to secure the light kit (M)
to the light pan (K). Tighten all screws.
12. The LED has ve color settings that range from
2700K (soft white) to 6500K (cool white). The factory
setting for the LED is 2700K. If desired, adjust the
LED color switch change the color temperature.
10
11
M
LED Color Switch
L
9-pin
Connector
K
J
K
I
Key slot
12
13
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

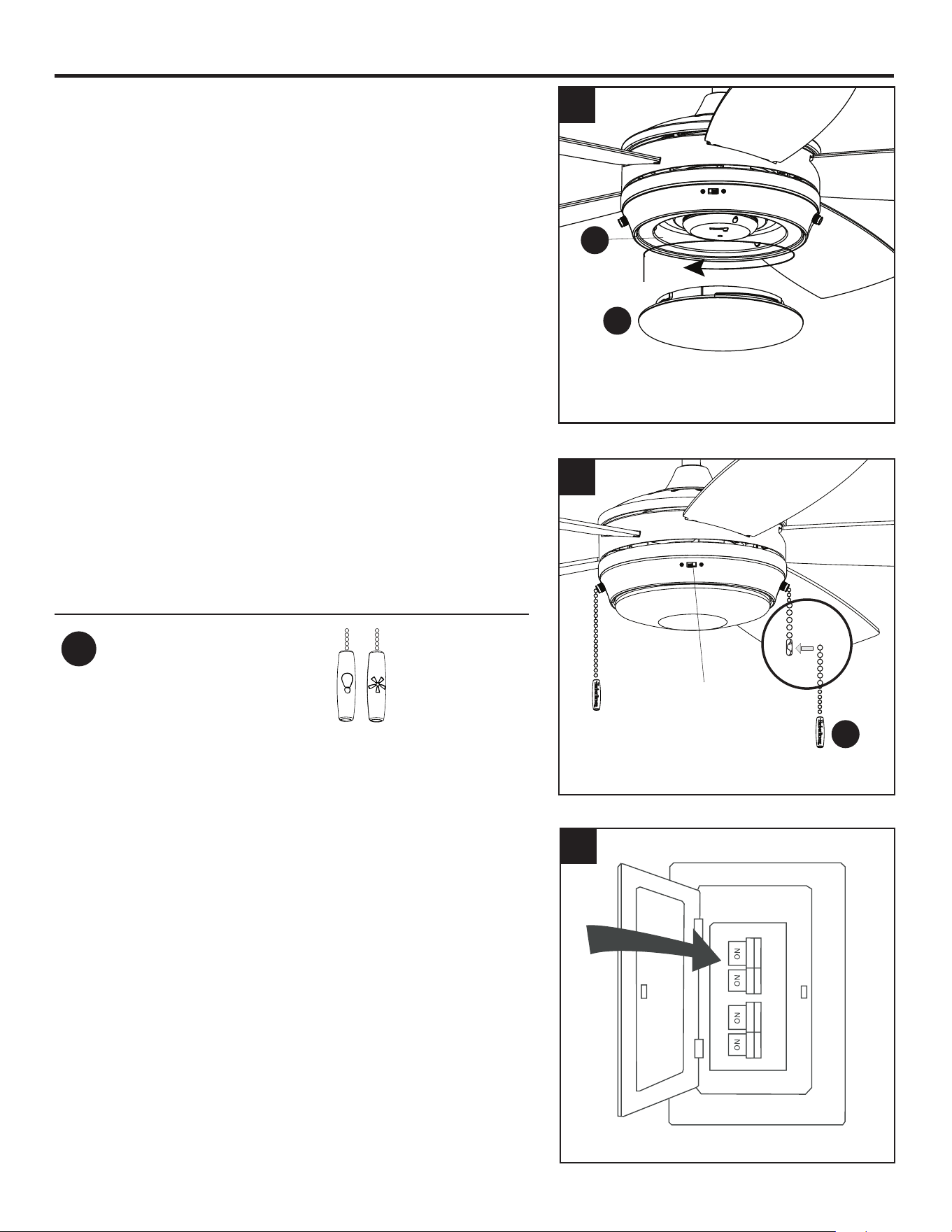

13. Attach the glass bowl to the light kit by twisting the
glass bowl rmly in a clockwise direction until it is
secure.
CAUTION: Avoid cross-threading the glass during
installation. Improper installation could cause the
glass bowl to be dicult to remove or fall, which could
cause serious injury.
14. Attach the pull chain extensions (DD) or custom pull
chain extensions (not included) to the fan and light
pull chains (if applicable). Note: When facing the
reverse switch, the light pull chain is on the left and
the fan pull chain is on the right.
Hardware Used
DD
Pull Chain
Extension
x 2
15. Turn on power supply to the fan.
Assembly is complete.
14
DD
Reverse Switch
15
13
M
N
14

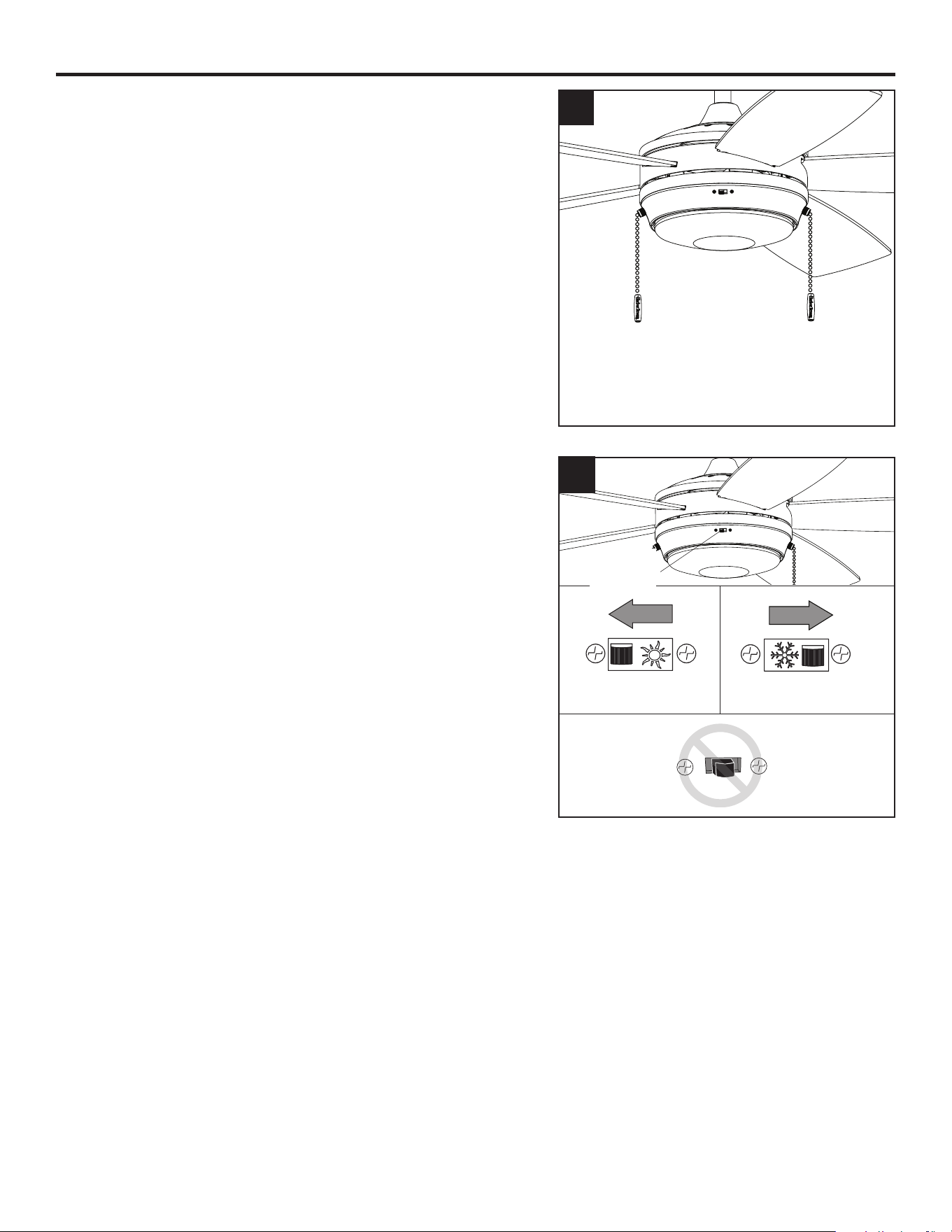

OPERATING INSTRUCTIONS
1. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF.
The light pull chain has two positions to control the light,
ON and OFF.
2. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort. Note: Wait for the fan to stop before moving
the reverse switch.
2a. In warmer weather, push the reverse switch left to
display a sun icon, which will result in downward airow
creating a wind chill eect.
2b. In cooler weather, push the reverse switch right
to display a snowake icon, which will result in upward
airow that can help move stagnant, hot air o the
ceiling area.
Important: The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2c).
Fig. 2a Fig. 2b
Fig. 2c
1
Fan Pull
Chain
Reverse
Switch
Light Pull
Chain
2
15
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching
the nish. Clean the blades with a lint-free cloth.
Total xture wattage is 16 watts; do not attempt to replace LED.
Important: Shut o the main power supply before you begin any maintenance tasks. Do not use
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The power is o, or the fuse is
blown.
2. There is a faulty wire connection.
3. The plugs are not connected
properly.
4. The reverse switch is not
completely engaged.
1. Turn the power on or check the
fuse.
2. Turn the power o. Loosen the
canopy and check all connections.
3. Check that the connectors from
the light kit tter and fan are
connected properly.
4. Push the reverse switch
completely to the left or right.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not compatible
with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured
to the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.
16
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade arms
are loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screw on the motor
housing yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the blade arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using
a blade balancing kit (sold separately).
3. Turn o the power. Loosen the canopy
and verify that the mounting bracket
is secure to the electrical outlet box.
The bracket must be ush without
movement against the outlet box.
4. Use a longer downrod (sold separately)
or move the fan to another location.
5. Lift up the yoke cover and tighten the
set screw to the yoke until secure.
The fan operates
correctly, but the
lights are not
working.
1. The light kit wire plugs are not
connected properly.
2. There is a faulty wire
connection.
1. Ensure that the 9-pin connectors from
the light kit are connected properly.
2. Turn the power o and check all
connections at the ceiling outlet box.
17
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects
in workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made
in whole or in part with glass) to be free from defects in workmanship and material for a period of
one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such
purchaser purchased the product through a store or contractor. Ceiling fan part defects must be
reported within the rst year from the date of purchase. Parts made in whole or in part with glass
and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage
to any part caused by ordinary wear and tear, accident, misuse, or improper installation, is
not covered by this warranty. The manufacturer assumes no responsibility whatsoever for fan
installation. Any service performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product
within the terms stated above. The manufacturer shall not be liable for any loss or damage of any
kind, including any incidental or consequential damages resulting directly or indirectly, from any
breach of warranty, express or implied, or any other failure of this product. Some states do not
allow the exclusion or limitation of incidental or consequential damages so this limitation may not
apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or
materials within the warranty period associated with the defective part, the manufacturer agrees
to replace the defective part without charge, or at its option, to replace the ceiling fan with a
comparable or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan
limited lifetime warranty. All other express and implied warranties, including, without limitation, the
implied warranty of tness for a particular purpose and the implied warranty of merchantability is
disclaimed. Some states do not allow the disclaimer of implied warranties, so this disclaimer may
not apply to you.
18
Printed in China

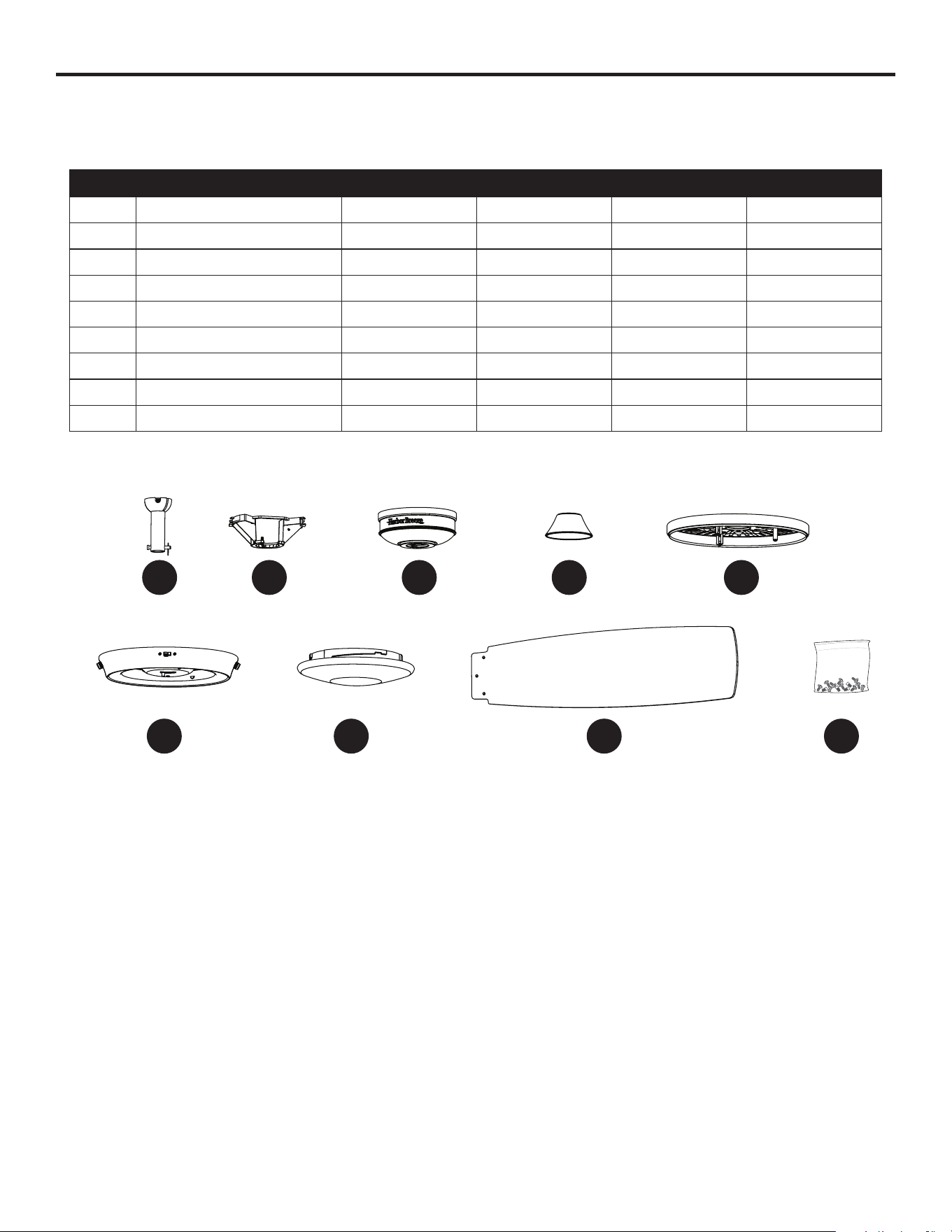

REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
PART DESCRIPTION #5971301 #5979026 #5979027 #5979028
A Downrod 4L000013820 4L000015030 4L000007500 4L000017430
D Mounting Bracket 4L000018270 4L000018270 4L000018270 4L000018270
E Canopy 4L000018310 4L000018350 4L000018320 4L000018340
F Yoke Cover 4A000009350 4A000008660 4A000005540 4A000021400
K Light Pan 4A000025390 4A000028580 4A000028560 4A000028570
M Light Kit 4L000018690 4L000018720 4L000018700 4L000018710
N Glass Bowl 4A168000001 4A168000001 4A168000001 4A168000001
P Blade (x5) 4A085600013 4A085600016 4A085600014 4A085600015
HW Hardware Kit 4L000018730 4L000018760 4L000018740 4L000018750
10132 PB • 042624
A D E F
M
K
N
HW
P
