Refrigerator
User manual
Free Standing Appliance
English2
Contents
Safety information 3
What you need to know about the safety instructions 3
Important safety symbols and precautions: 4
Important safety precautions 5
How to minimize the energy consumption 6
This appliance is intended to be used in household and similar applications such as 6
Severe warning signs for transportation and site 7
Critical installation warnings 7
Installation cautions 9
Critical usage warnings 9
Usage cautions 11
Cleaning cautions 13
Critical disposal warnings 14
Additional tips for proper usage 14
Instructions about the WEEE 15
Installation 16
Refrigerator at a glance 17
Step-by-step installation 21
Operations 40
Main panel 40
Setting the desired temperature or function 42
Turning on or off the AutoFill Pitcher 43
Turning on or off the ice maker 43
Resetting or dismissing the water lter replacement alarm 44
Changing the temperature scale 44
SmartThings 45
Special features 48
Maintenance 56
Handling and care 56
Cleaning 60
Replacement 61
Troubleshooting 64
General 64
Do you hear abnormal sounds from the refrigerator? 68
SmartThings 70
Open Source Announcement 71
Open Source Announcement 71
English 3
Safety information
Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure
that you know how to operate the features and functions that your new appliance offers
safely and efciently.
What you need to know about the safety
instructions
• Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur.
It is your responsibility to use common sense, caution, and care when installing,
maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics
of your refrigerator may differ slightly from those described in this manual and not all
warning signs may be applicable. If you have any questions or concerns, contact your
nearest service center or nd help and information online at www.samsung.com.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the
appliance or the rating label inside the fridge to see which refrigerant is used for your
appliance. When this product contains ammable gas (Refrigerant R-600a ), contact your
local authority in regard to safe disposal of this product.
• In order to avoid the creation of a ammable gas-air mixture if a leak in the
refrigerating circuit occurs, the size of the room in which the appliance may be sited
depends on the amount of refrigerant used.
• Never start up an appliance showing any signs of damage. If in doubt, consult your
dealer. The room must be 1 m
3
in size for every 8 g of R-600a refrigerant inside the
appliance.
The amount of refrigerant in your particular appliance is shown on the identication
plate inside the appliance.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When
refrigerant leaks from the pipe, avoid any naked ames and move anything ammable
away from the product and ventilate the room immediately.
- Failing to do so may result in re or explosion.
• It is hazardous for anyone other than an Authorized Service Person to service this
appliance.
• In Queensland – the authorized Service Person MUST hold a Gas Work Authorisation or
Licence for hydrocarbon refrigerants, to carry out Servicing or repairs which involve the
removal of covers. (For Australia only)
Safety information
English4
Important safety symbols and precautions:
Please follow all safety instructions in this manual. This manual uses the following safety
symbols.
WARNING
Hazards or unsafe practices that may result in severe personal injury, property damage,
and/or death.
CAUTION
Hazards or unsafe practices that may result in severe personal injury and/or property
damage.
NOTE
Useful information that helps users understand or benet from the refrigerator.
These warning signs are here to prevent injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe place for future reference.
English 5
Important safety precautions
Warning; Risk of re / ammable materials
WARNING
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
• Fill with potable water only.
• Connect to potable water supply only.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
• Do not use mechanical devices or any other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory, or mental capabilities, or those who lack experience and knowledge,
unless they have been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
• This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision. Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid a hazard.
• The socket must be easily accessible so that the appliance can be quickly disconnected
from the supply in an emergency.
- It must be outside the area of the rear of the appliance.
• Do not store explosive substances such as aerosol cans with a ammable propellant in
this appliance.
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and
LED lamps yourself.
- Contact a Samsung service center.
- Use only the LED Lamps provided by the manufacturer or its service agents.
• New hose-sets supplied with the appliance are to be used and old hose-sets should not
be reused.
Safety information
English6
• Have the refrigerator’s water supply connected only to a potable water supply. To
operate the ice maker properly, water pressure of 206-861 kPa (30-125 psi) is required.
• For the most efcient use of energy, please keep the all inner ttings such as baskets,
drawers, shelves on the position supplied by manufacturer.
• To get the best energy efciency of this product, please leave all shelves, drawers and
baskets on their original position.
How to minimize the energy consumption
• Install the appliance in a cool, dry room with adequate ventilation.
• Ensure that it is not exposed to direct sunlight and never put it near a direct source of
heat (radiator, for example).
- Not to block any vents or grilles is recommended for energy efciency.
- Allow warm food to cool down before placing it in the appliance.
- Put frozen food in the refrigerator to thaw. You can then use the low temperatures of
the frozen products to cool food in the refrigerator.
- Do not keep the door of the appliance open for too long when putting food in or
taking food out.
- The shorter time for which the door is open, the less ice will form in the freezer.
- Clean the rear of the refrigerator regularly. Dust increases energy consumption.
- Do not set temperature colder than necessary.
- Ensure sufcient air exhaust at the refrigerator base and at the back wall of the
refrigerator. Do not cover air vent openings.
- Allow clearance to the right, left, back and top when installing. This will help reduce
power consumption and keep your energy bills lower.
This appliance is intended to be used in household
and similar applications such as
- staff kitchen areas in shops, ofces and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
English 7
Severe warning signs for transportation and site
WARNING
• When transporting and installing the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
- Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak
is detected, avoid any naked ames or potential sources of ignition and air the room
in which the appliance is standing for several minutes.
- This appliance contains a small amount of isobutane refrigerant ( R-600a ), a natural
gas with high environmental compatibility that is, however, also combustible. When
transporting and installing the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
• When transporting and installing the refrigerator, do not touch the water hose on the
back side of the refrigerator.
- This may damage the refrigerator and as a result the water dispenser can not be
used.
Critical installation warnings
WARNING
• Do not install the refrigerator in a damp location or place where it may come in contact
with water.
- Deteriorated insulation on electrical parts may cause an electric shock or re.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves,
room heaters, or other appliances.
• Do not plug several appliances into the same multiple power strip. The refrigerator
should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the voltage listed on the refrigerator’s rating plate.
- This provides the best performance and also prevents overloading of house wiring
circuits, which could cause a re hazard from overheated wires.
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock of re.
• Do not use a power cord that has cracks or abrasion damage along its length or at
either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power
cord, insert the power cord between objects, or push the power cord into the space
behind the appliance.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
- This may result in an electric shock or re.
Safety information
English8
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug
rmly and pull straight out from the outlet.
- Damage to the cord may cause a short-circuit, re, and/or electric shock.
• Do not use aerosols near the refrigerator.
- Using aerosols near the refrigerator may cause an explosion or re.
• Do not install this appliance near a heater or inammable material.
• Do not install this appliance in a location where gas may leak.
- This may result in an electric shock or re.
• This refrigerator must be properly located and installed in accordance with the
instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord hanging down.
- If you connect the power plug upside down, the wire can get cut off and cause a re
or electric shock.
• Make sure that the power plug is not crushed or damaged by the back of the
refrigerator.
• Keep the packing materials out of reach of children.
- There is a risk of death from suffocation if a child puts the packing materials on his
or her head.
• Do not install this appliance in a humid, oily or dusty location, in a location exposed to
direct sunlight and water (rain drops).
- Deteriorated insulation of electrical parts may cause an electric shock or re.
• If any dust or water is in the refrigerator, pull out power plug and contact your Samsung
Electronics service center.
- Otherwise there is a risk of re.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in an electric shock, re, problems with the product, or injury.
• You need to remove all the protective plastic lm before you initially plug the product
in.
• Children should be supervised to ensure that they do not play with the snap rings used
for door adjustment or the water tube clips.
- There is risk of death by suffocation if a child swallows a snap ring or water tube
clip. Keep the snap rings and water tube clips out of children’s reach.
• The refrigerator must be safely grounded.
- Always make sure that you have grounded the refrigerator before attempting to
investigate or repair any part of the appliance. Power leakages can cause severe
electric shock.
• Never use gas pipes, telephone lines, or other potential lightning attractors as an
electrical ground.
- You must ground the refrigerator to prevent any power leakages or electric shocks
caused by current leakage from the refrigerator.
- This may result in an electric shock, re, explosion, or problems with the product.
• Plug the power plug into the wall socket rmly. Do not use a damaged power plug,
damaged power cord, or loose wall socket.
- This may result in an electric shock or re.
• The fuse on the refrigerator must be changed by a qualied technician or service
company.
- Failing to do so may result in an electric shock or personal injury.
English 9
Installation cautions
CAUTION
• Allow sufcient space around the refrigerator and install it on a at surface.
- If your refrigerator is not level, cooling efciency and durability can be declined.
• Allow the appliance to stand for 2-3 hours before loading foods after installation and
turning on.
• We strongly recommend you have a qualied technician or service company install the
refrigerator.
- Failing to do so may result in an electric shock, re, explosion, problems with the
product, or injury.
Critical usage warnings
WARNING
• Do not insert the power plug into a wall socket with wet hands.
- This may result in an electric shock.
• Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall and cause personal injury
and/or material damage.
• Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or
the back of the refrigerator.
- This may result in an electric shock or injury.
- Any sharp edges may cause a personal injury.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet
hands.
- This may cause frostbite.
• Do not put a container lled with water on the refrigerator.
- If spilled, there is a risk of re or electric shock.
• Do not keep volatile or ammable objects or substances (benzene, thinner, propane gas,
alcohol, ether, LP gas, and other such products) in the refrigerator.
- This refrigerator is for storing food only.
- This may result in re or explosion.
• Children should be supervised to ensure that they do not play with the appliance.
- Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet
are necessarily small. Be careful when you open the doors if children are in the area.
• Do not put your ngers or children's ngers between the doors.
- Keep ngers out of the left and right door gaps. Be careful when you open the doors
if your ngers are in between the doors.
• Do not let children hang on the door or door bins. A serious injury may occur.
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the bottom area under the appliance.
- Any sharp edges may cause personal injury.
Safety information
English10
• Do not store pharmaceutical products, scientic materials, or temperature sensitive
products in the refrigerator.
- Products that require strict temperature controls must not be stored in the
refrigerator.
• If you smell pharmaceutical or smoke, pull out power plug immediately and contact
your Samsung Electronics service center.
• If any dust or water is in Refrigerator, pull out power plug and contact your Samsung
Electronics service center.
- Otherwise there is a risk of re.
• Do not let children step on a drawer.
- The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended and
do not let children enter inside the refrigerator.
• Do not allow babies or children go inside the drawer.
- It can cause death from suffocation by entrapment or personal injury.
• Do not overll the refrigerator with food.
- When you open the door, an item may fall out and cause personal injury or material
damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in an electric shock, re, or
problems with the product.
• Never put ngers or other objects into the water dispenser hole, ice chute and ice
maker bucket.
- It may cause a personal injury or material damage.
• Do not use or place any substances sensitive to temperature such as ammable sprays,
ammable objects, dry ice, medicine, or chemicals near or inside of the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted
candle in the refrigerator for removing bad odours.
- This may result in an electric shock or re.
• Fill the water tank, ice tray and water cubes only with potable water (mineral water or
puried water).
- Do not ll the tank with tea, juice or sports drink, this may damage the refrigerator.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may
result in an electric shock, re, problems with the product, or injury. Do not put a
container lled with water on the appliance.
- If spilled, there is a risk of re or electric shock.
• Never stare directly at the UV LED lamp for long periods of time.
- This may result in eye strain due to the ultraviolet rays.
• Do not put shelf in upside down. Shelf stopper could not work.
- It may cause a personal injury because of glass shelf drop.
• Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are
necessarily small. Be careful when you open the doors if children are in the area.
• If a gas leak is detected, avoid any naked ames or potential sources of ignition, and air
the room in which the appliance is standing for several minutes.
- Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in explosion or re.
English 11
• Bottles should be stored tightly together so that they do not fall out.
• This product is intended only for the storage of food in a domestic environment.
• Never put ngers or other objects into the water dispenser hole, ice chute and ice
maker bucket.
- It may cause a personal injury or material damage.
• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
• If your refrigerator needs to be repaired or reinstalled, contact your nearest service
center.
- Failing to do so may result in an electric shock, re, problems with the product, or
injury.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately
and contact your Samsung Electronics service center.
- Failing to do so may result in an electric or re hazards.
• Pull the power plug out of the socket before changing the interior lamps of the
refrigerator.
- Otherwise, there is a risk of electric shock.
• If you experience difculty changing a non-LED light, contact a Samsung service center.
• Plug the power plug into the wall socket rmly.
• Do not use a damaged power plug, damaged power cord or loose wall socket.
- This may result in an electric shock or re.
Usage cautions
CAUTION
• Do not refreeze thawed food.
- Frozen and thawed food will develop harmful bacteria faster than fresh.
- The second thaw will break down even more cells, leaching out moisture and
changing the integrity of the product.
• Do not thaw meat at room temperature.
- Safety will depend on whether the raw product was handled properly.
• Do not place glass bottles or carbonated beverages into the freezer.
- The container may freeze and break, and this may result in injury.
• Use only the ice maker provided with the refrigerator.
• If you will be away from home for a long period of time (on vacation, for example) and
won’t be using the water or ice dispensers, close the water valve.
- Otherwise, water leakage may occur.
• If you won’t be using the refrigerator for a very long period of time, (3 weeks or more)
empty the refrigerator including the ice bucket, unplug it, close the water valve, wipe
excess moisture from the inside walls, and leave the doors open to prevent odors and
mold.
• To get the best performance from the product:
- Do not place food too close to the vents at the rear of the refrigerator as this can
obstruct free air circulation in the refrigerator compartment.
Safety information
English12
- Wrap food up properly or place it in airtight containers before putting it into the
refrigerator.
- Please observe maximum storage times and expiration dates of frozen goods.
- There is no need to disconnect the refrigerator from the power supply if you will be
away for less than three weeks. However, if you will be away for more than three
weeks, remove all the food and ice in the ice bucket, unplug the refrigerator, close
the water valve, wipe excess moisture from the inside walls, and leave the doors
open to prevent odors and mold.
• Service Warranty and Modication.
- Any changes or modications performed by a 3rd party on this nished appliance
are not covered under Samsung warranty service, nor is Samsung responsible for
safety issues that result from 3rd party modications.
• Do not block the air vents inside the refrigerator.
- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over
cooled. If a cooling period lasts too long, the water lter may break and cause water
leakage.
• Use only the ice-maker provided with the refrigerator.
• Wipe excess moisture from the inside and leave the doors open.
- Otherwise, odor and mold may develop.
• If the refrigerator is disconnected from the power supply, you should wait for at least
ve minutes before plugging it back in.
• When the refrigerator got wet by water, pull out the power plug and contact your
Samsung Electronics service center.
• Do not strike or apply excessive force to any glass surface.
- Broken glass may result in a personal injury and/or property damage.
• Fill the water tank and ice cube trays with potable water only (tap water, mineral water,
or puried water).
- Do not ll the tank with tea or a sports drink. This may damage the refrigerator.
• Be careful that your ngers are not caught in.
• If the refrigerator is ooded, make sure to contact your nearest service center.
- There is a risk of electric shock or re.
• Do not keep vegetable oil in your refrigerator’s door bins. The oil can solidify, making it
foul-tasting and difcult to use. In addition, the open container can leak and the leaked
oil can cause the door bin to crack. After opening an oil container, it is best to keep the
container in a cool and shaded place such as a cupboard or pantry.
- Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.
English 13
Cleaning cautions
CAUTION
• Do not spray water directly on the inside or outside the refrigerator.
- There is a risk of re or electric shock.
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad odors.
- This may result in an electric shock or re.
• Do not spray cleaning products directly on the display.
- Printed letters on the display may come off.
• If any foreign substance such as water has entered the appliance, unplug the power
plug and contact your nearest service center.
- Failing to do so may result in an electric shock or re.
• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades.
Do not use a wet or damp cloth when cleaning the plug.
- Otherwise, there is a risk of re or electric shock.
• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox, Chloride for cleaning.
- They may damage the surface of the appliance and may cause a re.
• Never put ngers or other objects into the dispenser hole.
- It may cause a personal injury or material damage.
• Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failing to do so may result in an electric shock or re.
• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the
refrigerator.
• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers,
ammable uids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or
cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic
parts, door and interior liners, and gaskets.
- These can scratch or damage the material.
• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves
and covers may break if exposed to sudden temperature changes or impacts such as
bumping or dropping.
Safety information
English14
Critical disposal warnings
WARNING
• Please dispose of the packaging material from this product in an environmentally
friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to
disposal.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the
appliance or the rating label inside the fridge to see which refrigerant is used for your
refrigerator. If this refrigerator contains ammable gas (Refrigerant R-600a ), contact
your local authority in regard to safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals and door latch so that
small children or animals cannot become trapped inside. Children should be supervised
to ensure that they do not play with the appliance. If trapped inside, a child may get
hurt or suffocate to death.
- If trapped inside, the child may become injury and suffocate to death.
• Cyclopentane is used in the insulation. The gases in the insulation material require
a special disposal procedure. Please contact your local authorities in regard to the
environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials
can be dangerous to children.
- If a child places a bag over his or her head, the child could suffocate.
Additional tips for proper usage
• In the event of a power failure, call the local ofce of your electric company and ask
how long the failure is going to last.
- Most power failures that are corrected in an hour or two will not affect your
refrigerator temperatures. However, you should minimize the number of door
openings while the power is off.
- Should the power failure last more than 24 hours, remove and discard all frozen
food.
• The refrigerator might not operate consistently (frozen contents can thaw or
temperatures can become too warm in the frozen food compartment) if sited for an
extended period of time in a location where ambient air temperatures are constantly
below the temperatures for which the appliance is designed.
• In case of particular foods, keeping it under refrigeration can have a bad effect on
preservation due to its properties.
• Your appliance is frost free, which means there is no need to manually defrost your
appliance. This will be carried out automatically.
• Temperature rise during defrosting complies with ISO requirements. If you want to
prevent an undue rise in the temperature of frozen food while the appliance defrosts,
wrap the frozen food in several layers of newspaper.
• Do not re-freeze frozen foods that have thawed completely.
English 15
• The temperature of two star section (sections) or compartment (compartments)
which have two star symbol ( ) is slightly higher than other freezer compartment
(compartments).
The two star section (sections) or compartment (compartments) is (are) based on the
instruction and/or the condition as delivered.
Instructions about the WEEE
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that
the product and its electronic accessories (e.g. charger, headset,
USB cable) should not be disposed of with other household waste
at the end of their working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle
them responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they
purchased this product, or their local government ofce, for details
of where and how they can take these items for environmentally
safe recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product and its
electronic accessories should not be mixed with other commercial
wastes for disposal.
For information on Samsung’s environmental commitments and product regulatory
obligations, e.g. REACH, WEEE or Batteries, visit our sustainability page available via www.
samsung.com
(For products sold in European countries and in the UK only)
English16
Installation
Follow these instructions carefully to ensure a proper installation of this refrigerator and to
prevent accidents before using it.
WARNING
• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualied technician.
• Dispose of the product packaging material in compliance with the local regulations.
• To prevent electric shock, unplug the power plug before servicing or replacing parts.
English 17

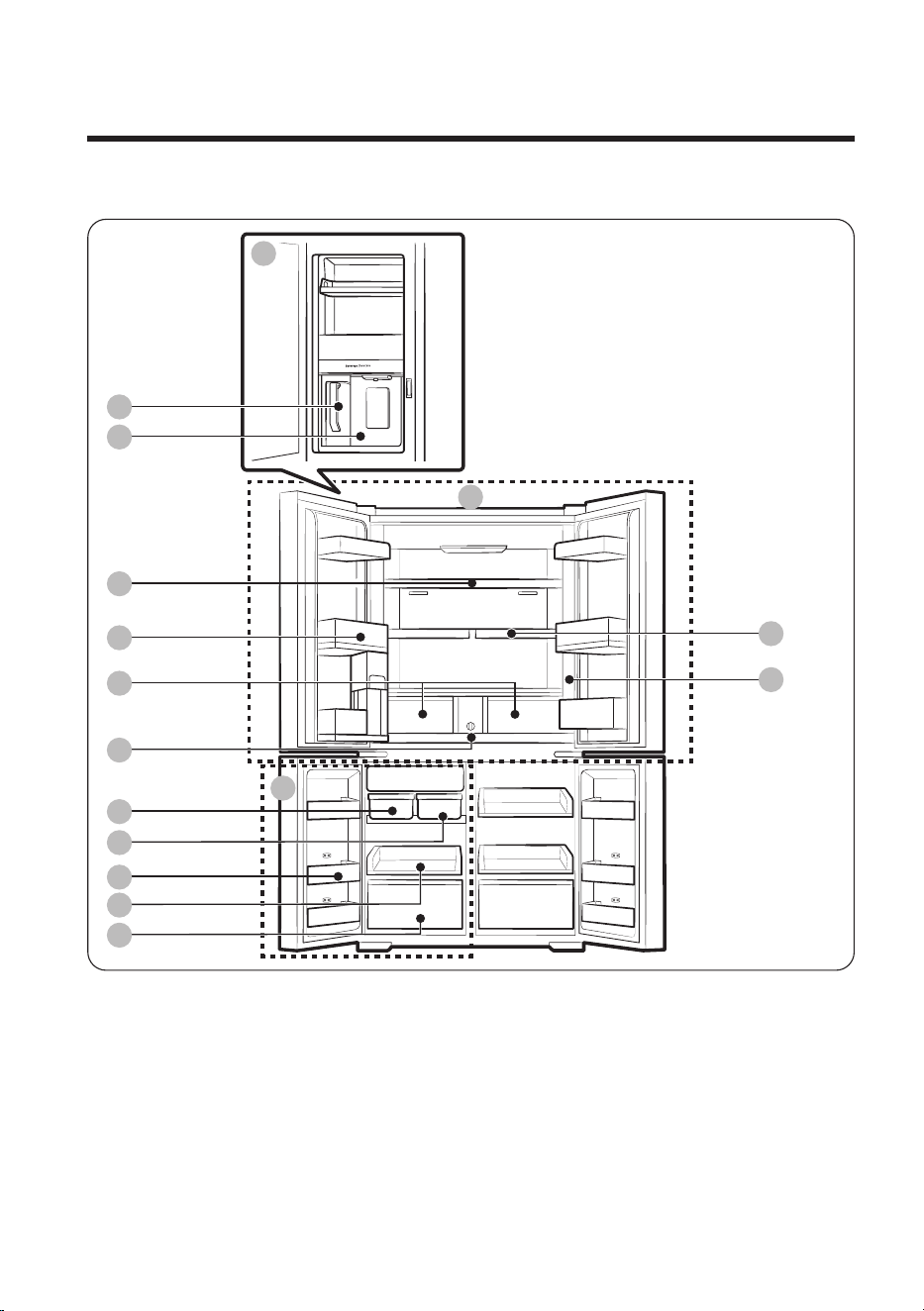

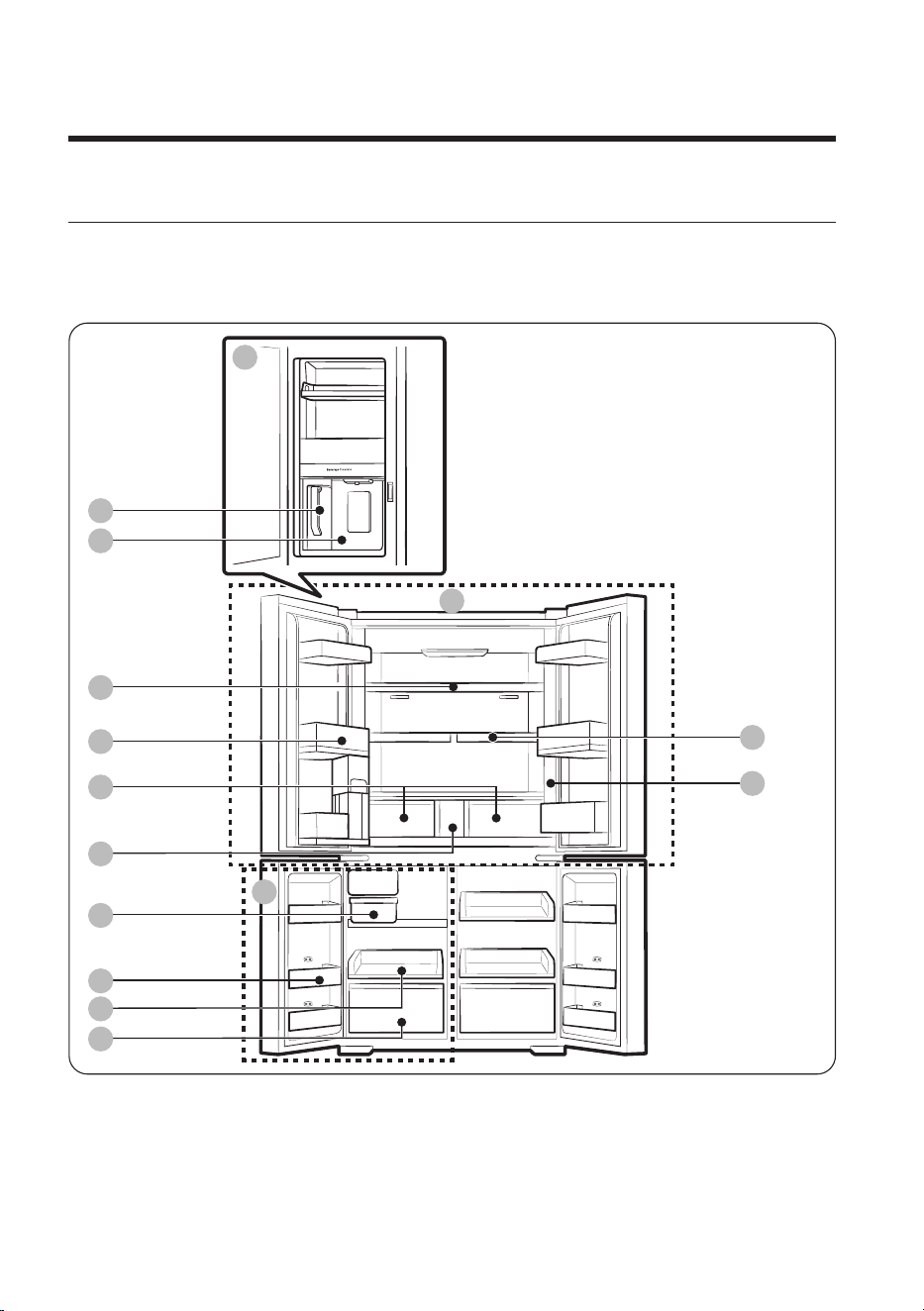

Refrigerator at a glance
The actual refrigerator and provided component parts of your refrigerator may differ from
the illustrations in this manual, depending on the model and the country.
Type A
01
02
03
11
06
09
07
13
12
05
14
04
A
B
C
Installation
English18
Type B
01
02
03
11
06
09
08
13
10
12
05
14
04
A
B
C
English 19
01 AutoFill Pitcher ** A. Fridge
B. Beverage Center **
C. Freezer
02 Water dispenser **
03 Fridge door bin
04 Fridge shelf
05 Quick Space shelf *
06 Crisper / Flex Crisper Drawers *
07 Water tank *
08 Water lter *
09 Auto ice maker - Cubed Ice
10 Auto ice maker - Ice Bites *
11 Freezer door bin
12 Freezer shelf
13 Freezer drawer
14 Main panel
* Applicable models only
** Dispenser models only
NOTE
• For energy efciency, keep all shelves, drawers, and baskets in their original positions.
• When closing the door, make sure the vertical hinged section is in the correct position
to avoid scratching the other door.
• If the vertical hinged section is reversed, put it back into the correct position, and then
close the door.
• Moisture may form at times on the vertical hinged section.
• If you close a door forcefully, the other door may open.
• If the internal or external LED lamp is out of order, contact a local Samsung service
center.
Installation
English20

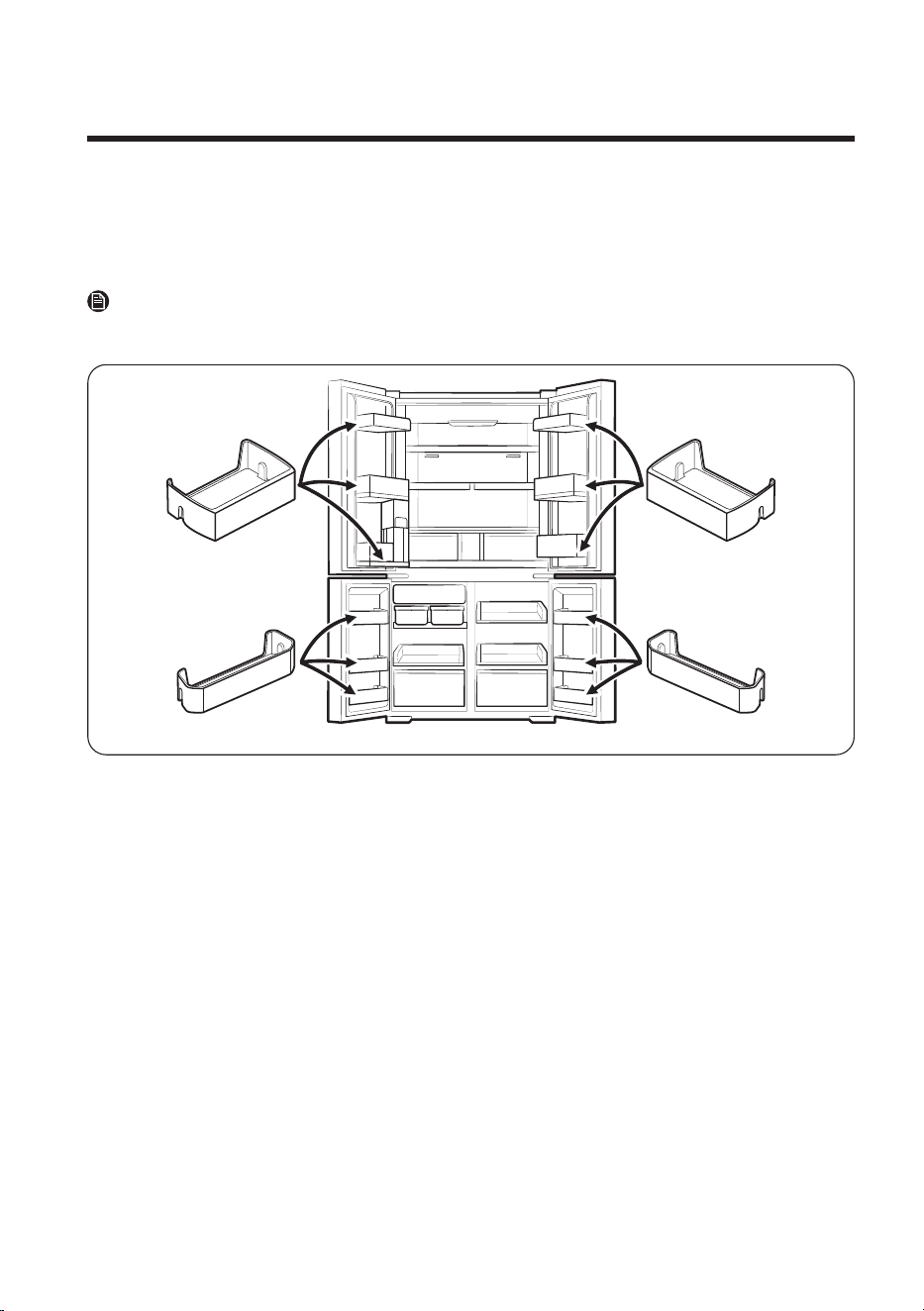

Door bins
Your refrigerator ships with door bins of different types and sizes. If the door bins for your
refrigerator were packaged separately, use the gure below to help you position the bins
properly.
NOTE
The actual refrigerator and provided component parts of your refrigerator may differ from
the illustrations in this manual, depending on the model and the country.
English 21
Step-by-step installation
STEP 1 Select a site
The site must:
• Have a solid level surface without carpeting or ooring that may obstruct ventilation
• Be out of direct sunlight
• Have adequate room for opening and closing the door
• Be away from any heat source
• Provide room for maintenance and servicing
• Have a temperature range between 10 °C and 43 °C

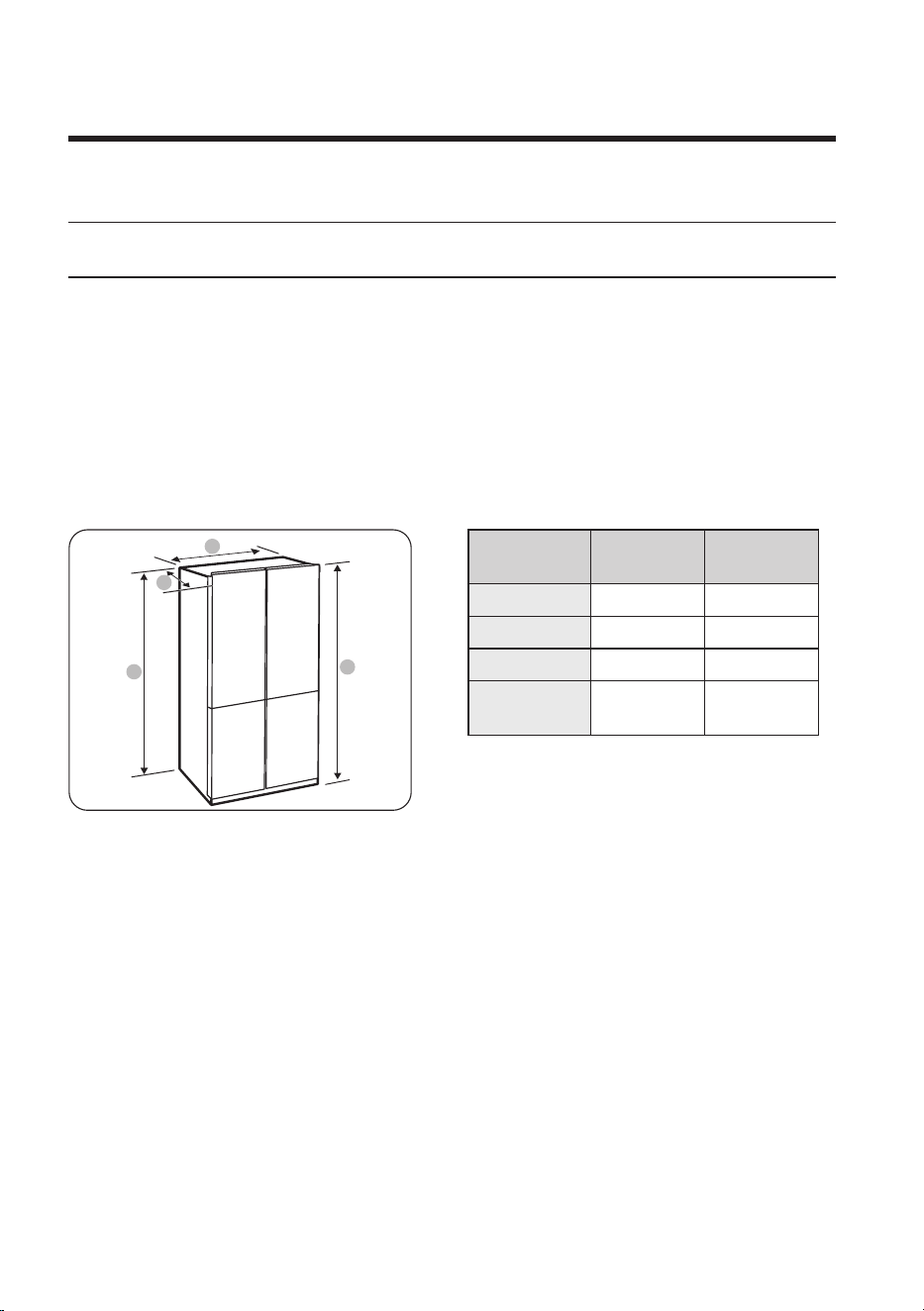

Clearance
See the following gures and tables for installation space requirements.
A
B
C
D
Model RF59C7*
RF59CB*
(BESPOKE)
Depth “A” 723 mm 730 mm
Width “B” 912 mm 912 mm
Height “C” 1748 mm 1748 mm
Overall
Height “D”
1779 mm 1779 mm
Installation
English22

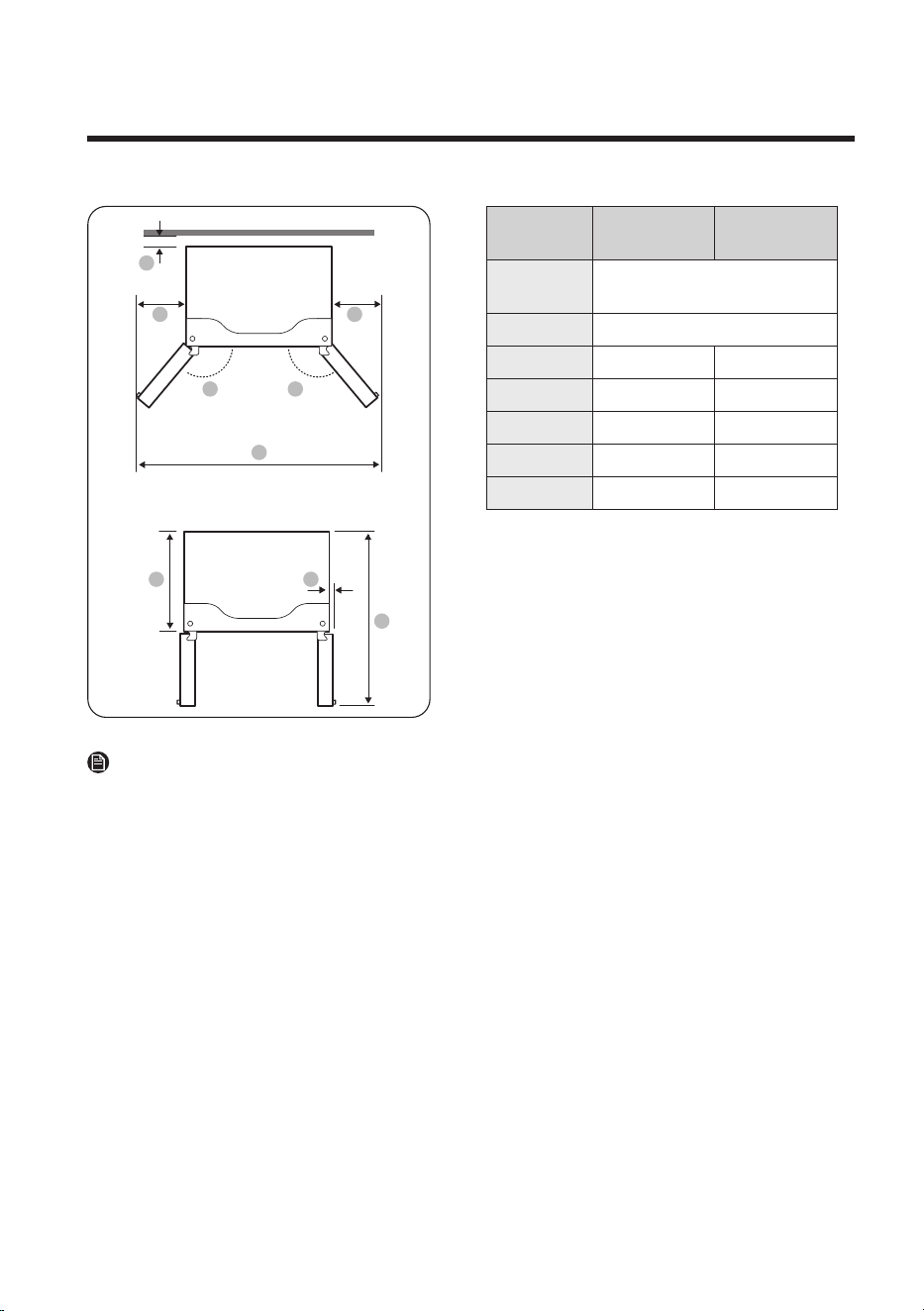

01
02 02
04 04
03
0605
07
Model RF59C7*
RF59CB*
(BESPOKE)
01
more than 50 mm
recommended
02 125°
03 1488 mm 1498 mm
04 290 mm 295 mm
05 610 mm 610 mm
06 54 mm 60 mm
07 1093 mm 1093 mm
NOTE
The measurements in the tables may differ slightly from the actual measurements,
depending on the measuring and rounding method.
English 23
STEP 2 Flooring
If the refrigerator cannot pass through the entrance due to its size, see STEP 3 Door
removal for entrance .
NOTE

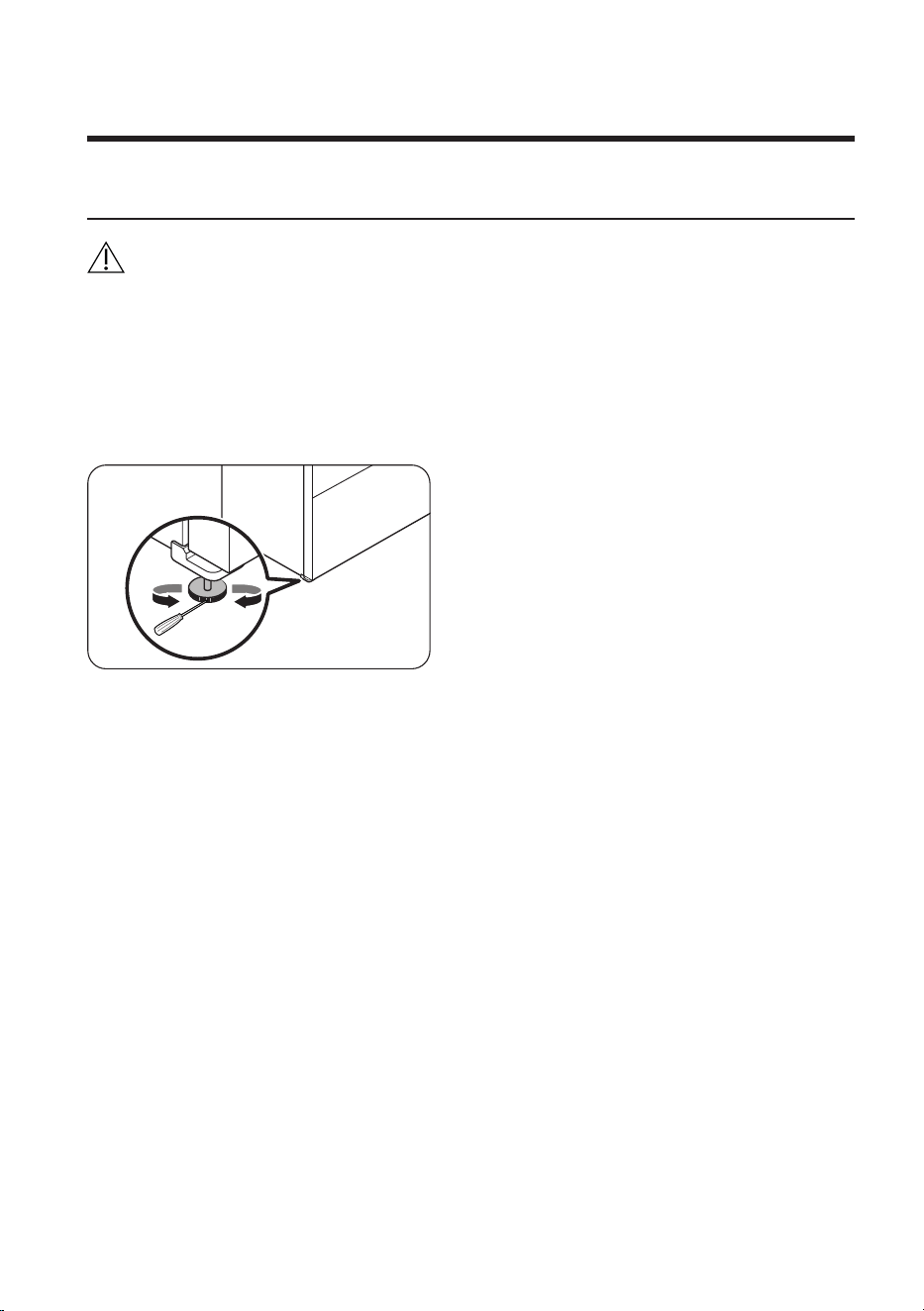

To prevent oor damage, make sure the
front leveling legs are in the upright
position.
• The surface you install the refrigerator
on must support a fully loaded
refrigerator.
• To protect the oor, put a large piece
of cardboard along the path to the
refrigerator's nal installation location.

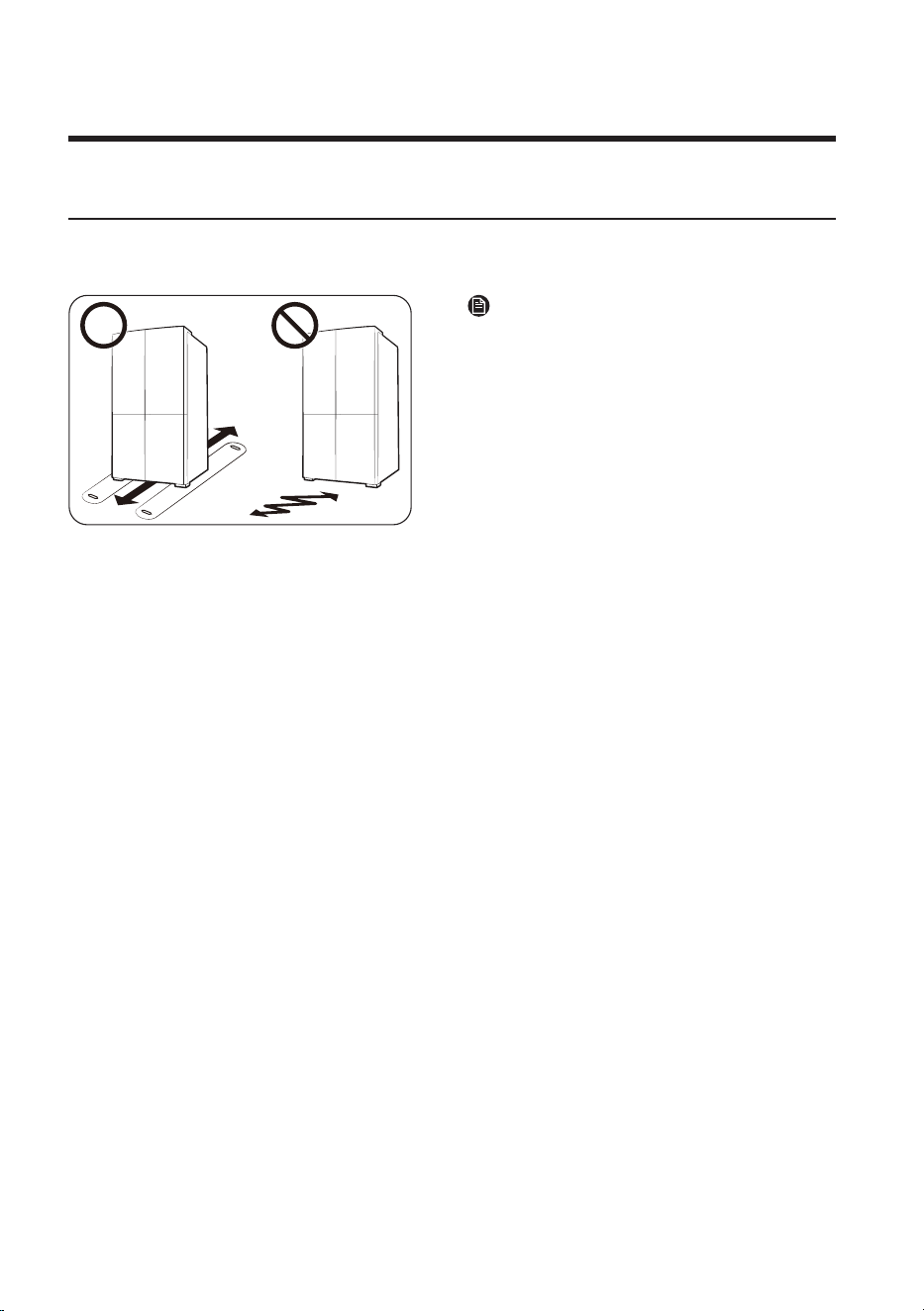

• Once the refrigerator is in its nal
position, do not move it unless
necessary to protect the oor. If you
have to move the refrigerator, place
thick paper or cloth such as old carpets
along the path of movement.
Installation
English24

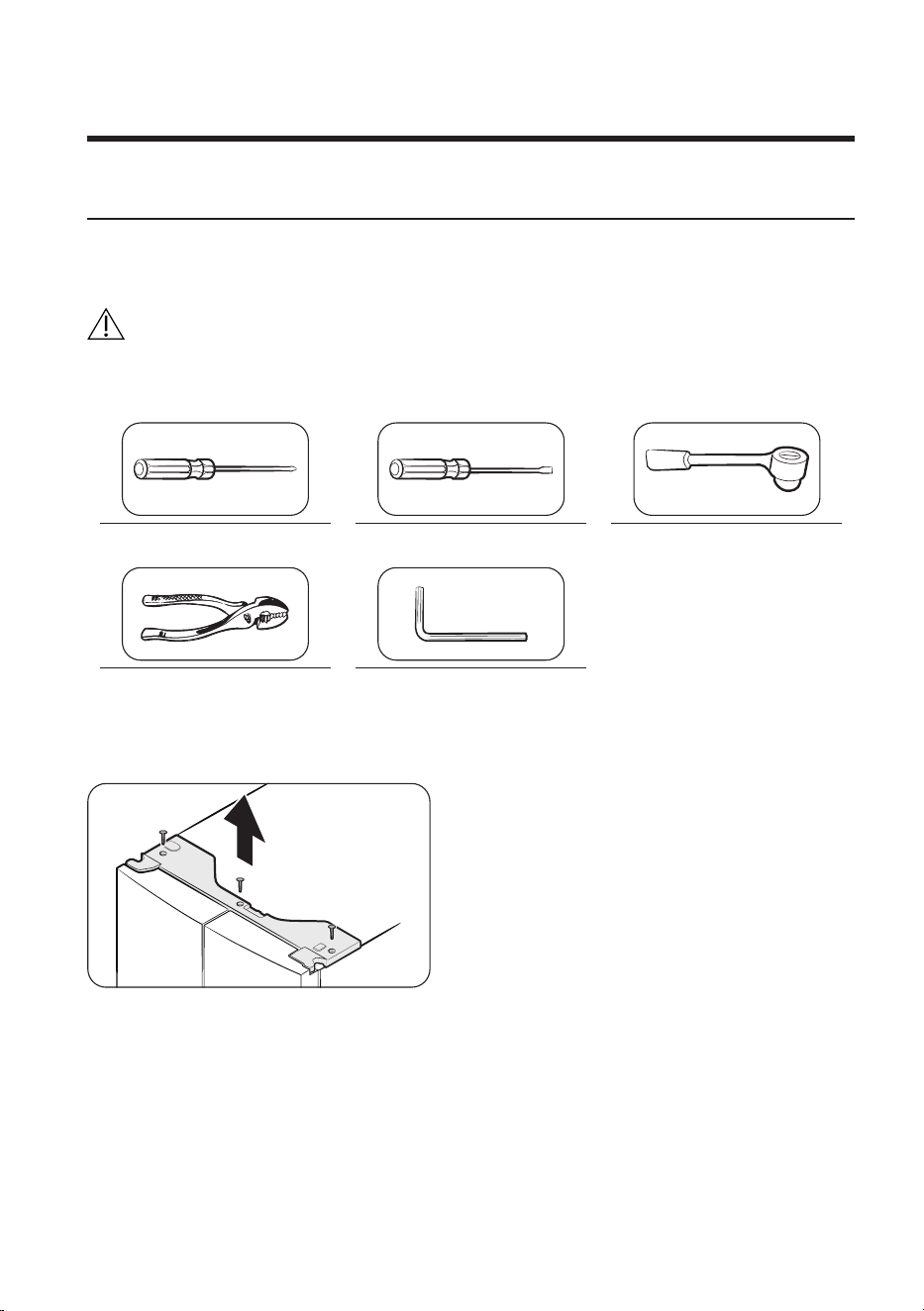

STEP 3 Door removal for entrance
If the refrigerator cannot pass through the entrance to your home or kitchen due to its
size, follow these instructions to remove and then re-install the refrigerator's doors. If you
do not need to remove the doors, go to page 32 to continue the installation procedure.
WARNING
Unplug the power cord of the refrigerator before removing the doors.
Tools required (not provided)
Phillips screwdriver Flat-head screwdriver Socket wrench
3
/ 8" (10 mm)
Pliers Allen wrench
1
/ 4" (5 mm)
Detach the fridge doors
1. With the doors closed, use a Phillips
screwdriver to remove the screws (x3)
from the top cover. Pull up and remove
the top cover with the connectors.
English 25
2. Disconnect the two wire connectors
on the left door. The position of the
connectors differs with the model.
CAUTION
• Do not remove both doors
simultaneously. Make sure to remove
one door at a time. Otherwise, any of
the doors may fall and cause physical
injury.
• Make sure the refrigerator is off before
disconnecting the connectors.

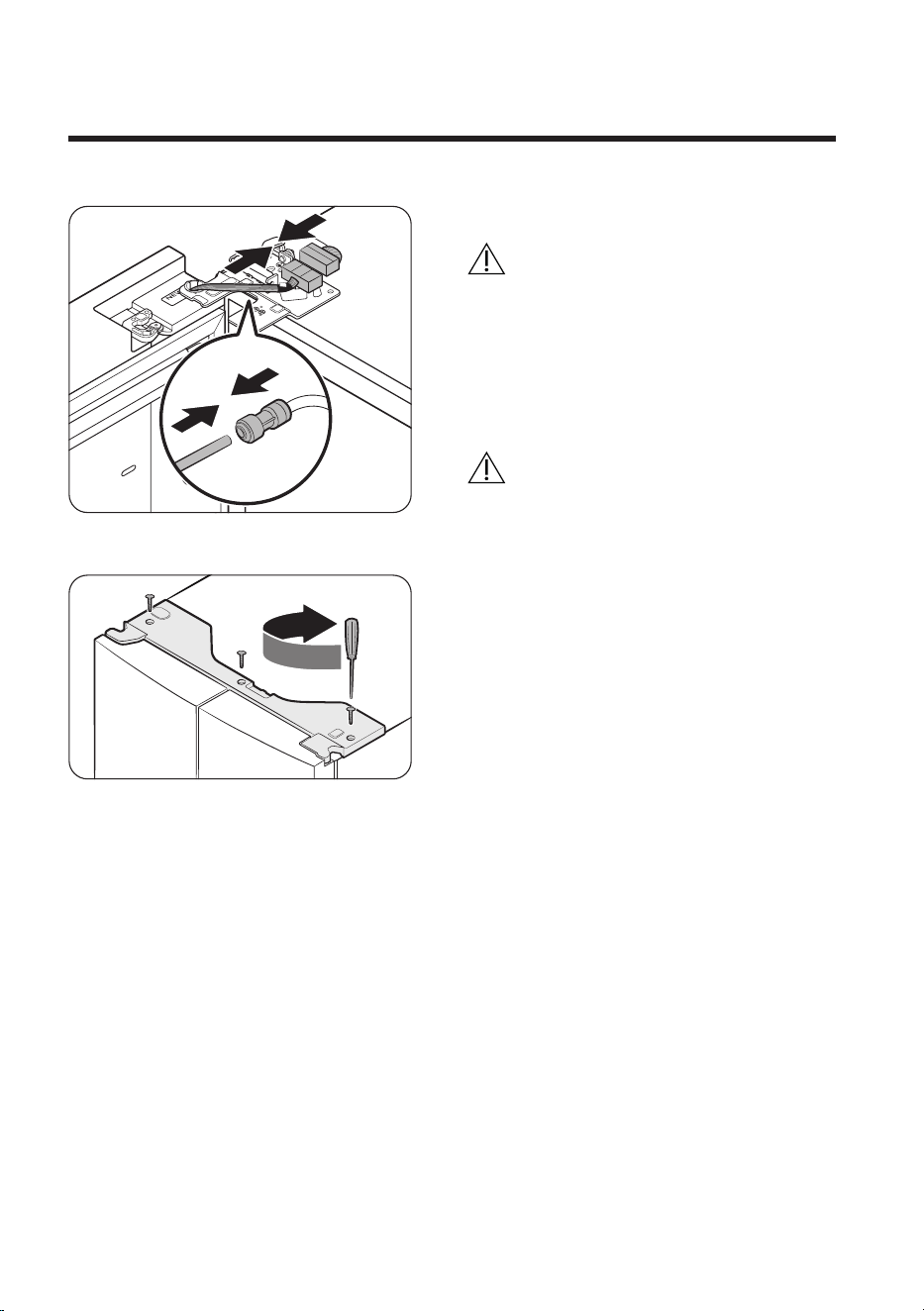

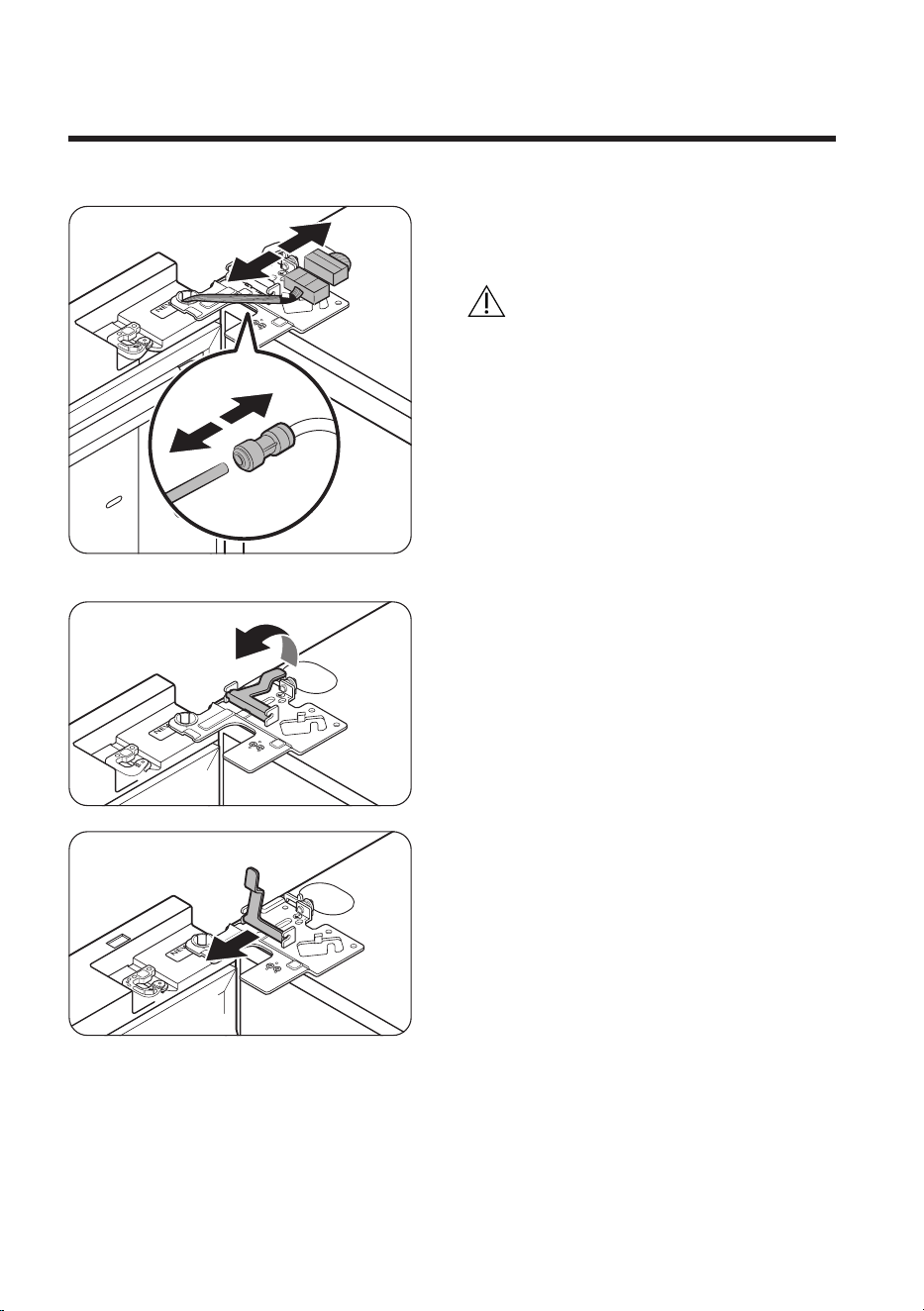

3. Disconnect the water tube from the
coupler on the left door as shown.
- This step does not apply to the
models without the AutoFill Pitcher
and the water dispenser.
4. Gently draw up the clamp in several
steps. To prevent nger injuries, do not
apply a sudden force to the clamp.
5. Pull up the clamp to remove.
Installation
English26

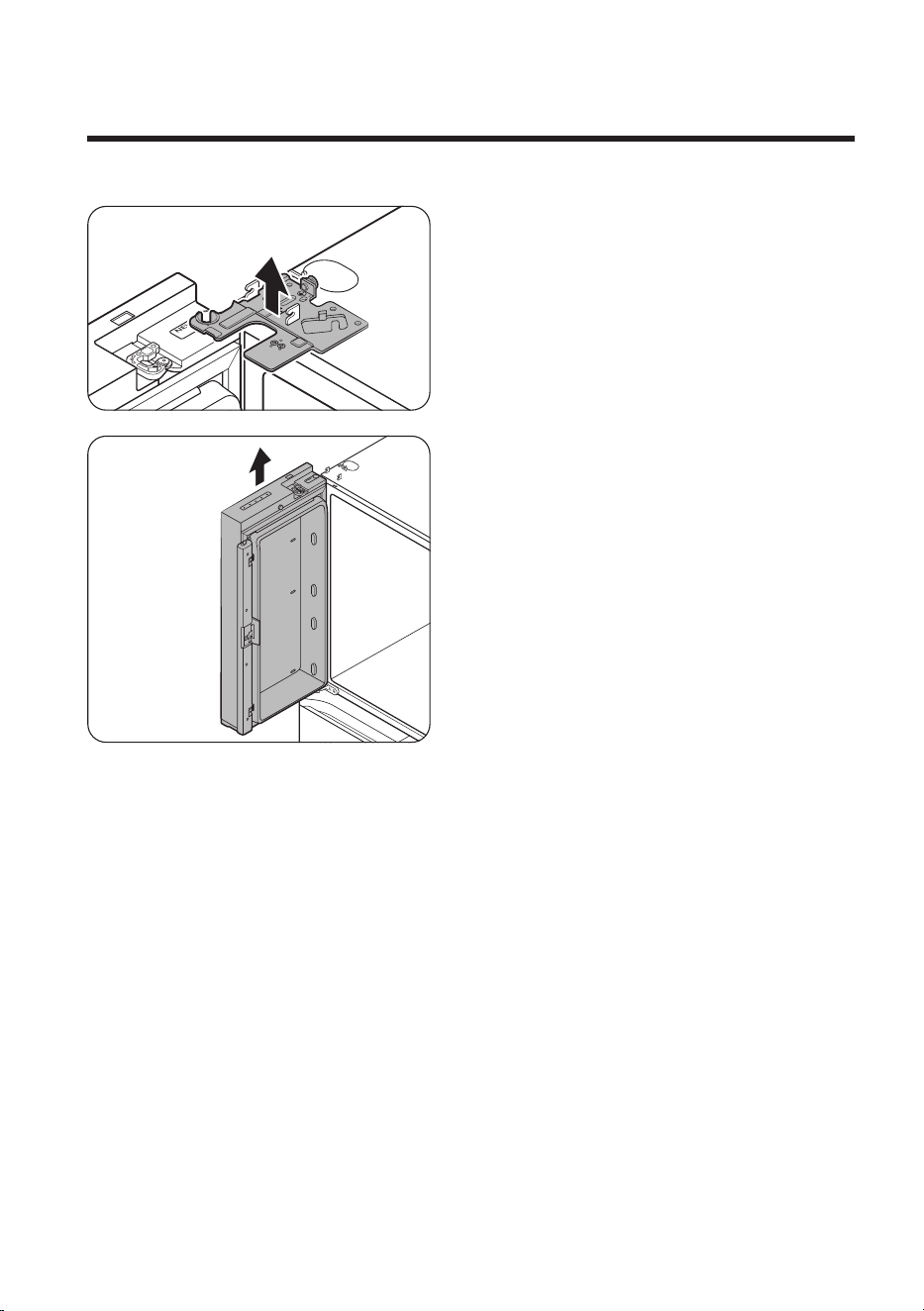

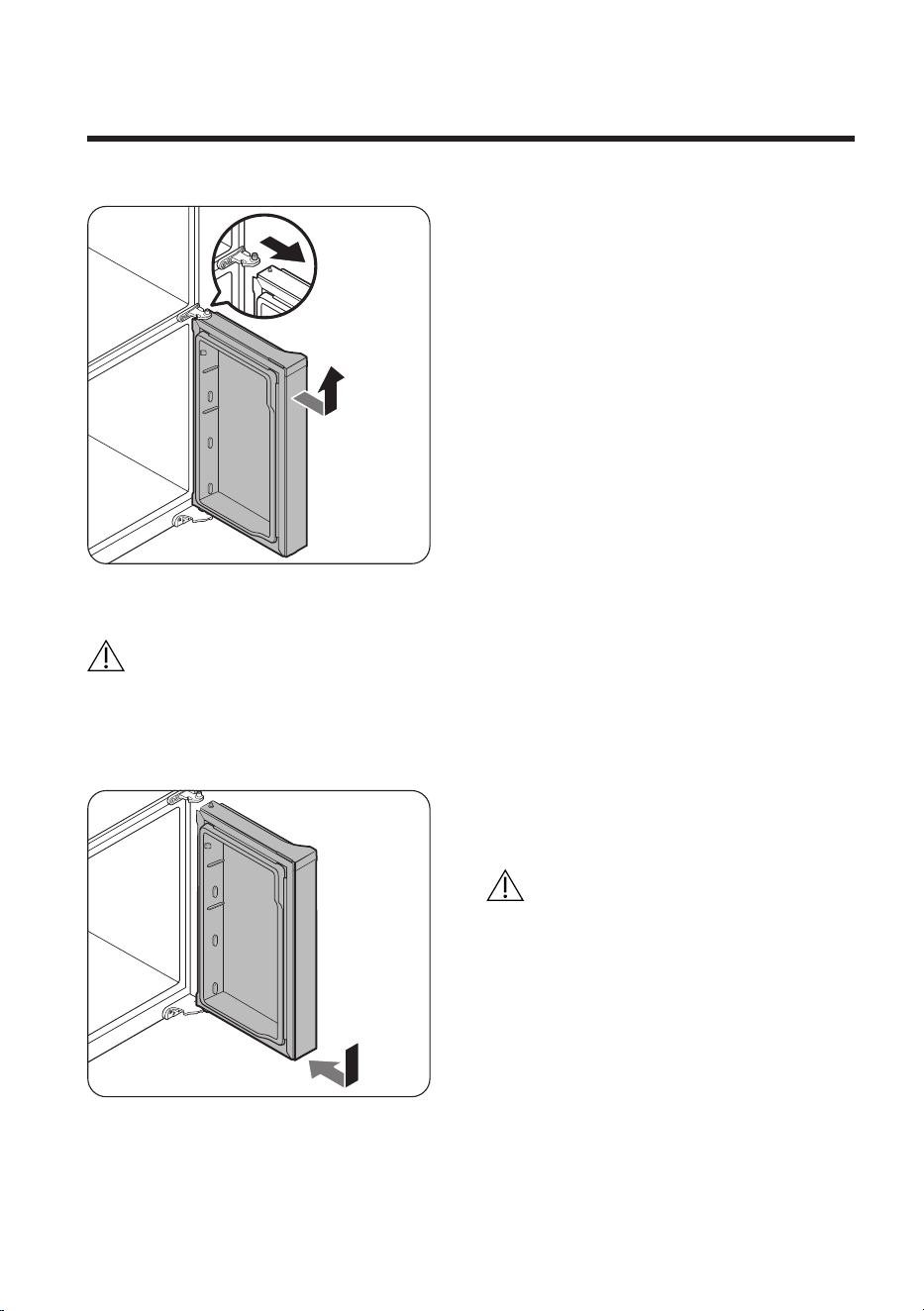

6. Open the door 90 degrees. While
holding the door, pull up and remove
the top hinge. Be careful not to damage
the connector wires when you remove
the hinge.
7. Gently pull up the door vertically to
remove. Do not apply excessive force
to the door. The door may fall, causing
physical injury.
8. Lay the door down on a at surface.
9. Repeat steps 1-8 for the other door,
except for step 3. There is no water tube
on the right side door.
- Step 2 does not apply to the models
without the Showcase door.
English 27

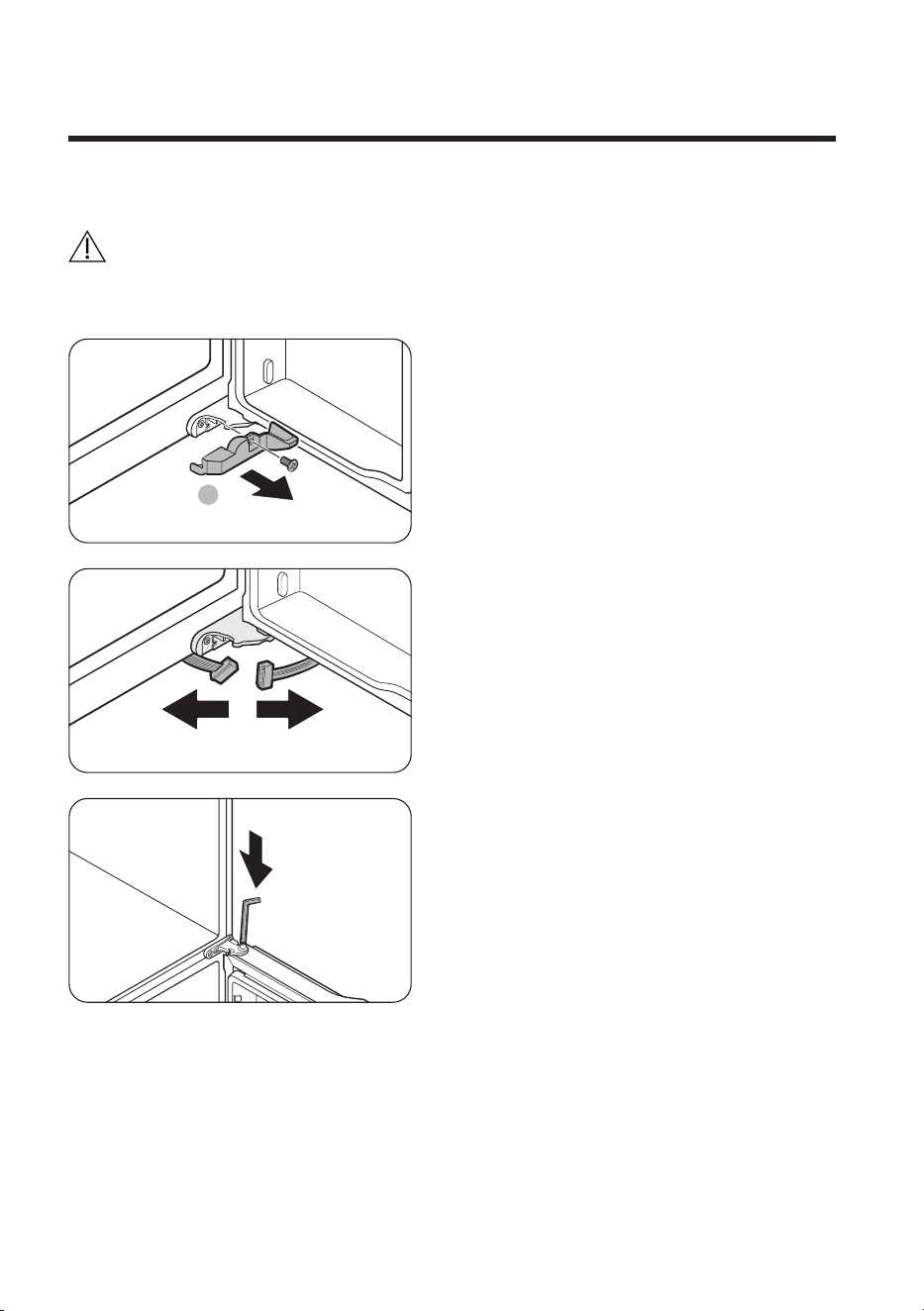

Detach the freezer doors
CAUTION
• Be sure to remove the fridge doors before removing the freezer doors.
• Use caution when disconnecting the bottom connectors.
A

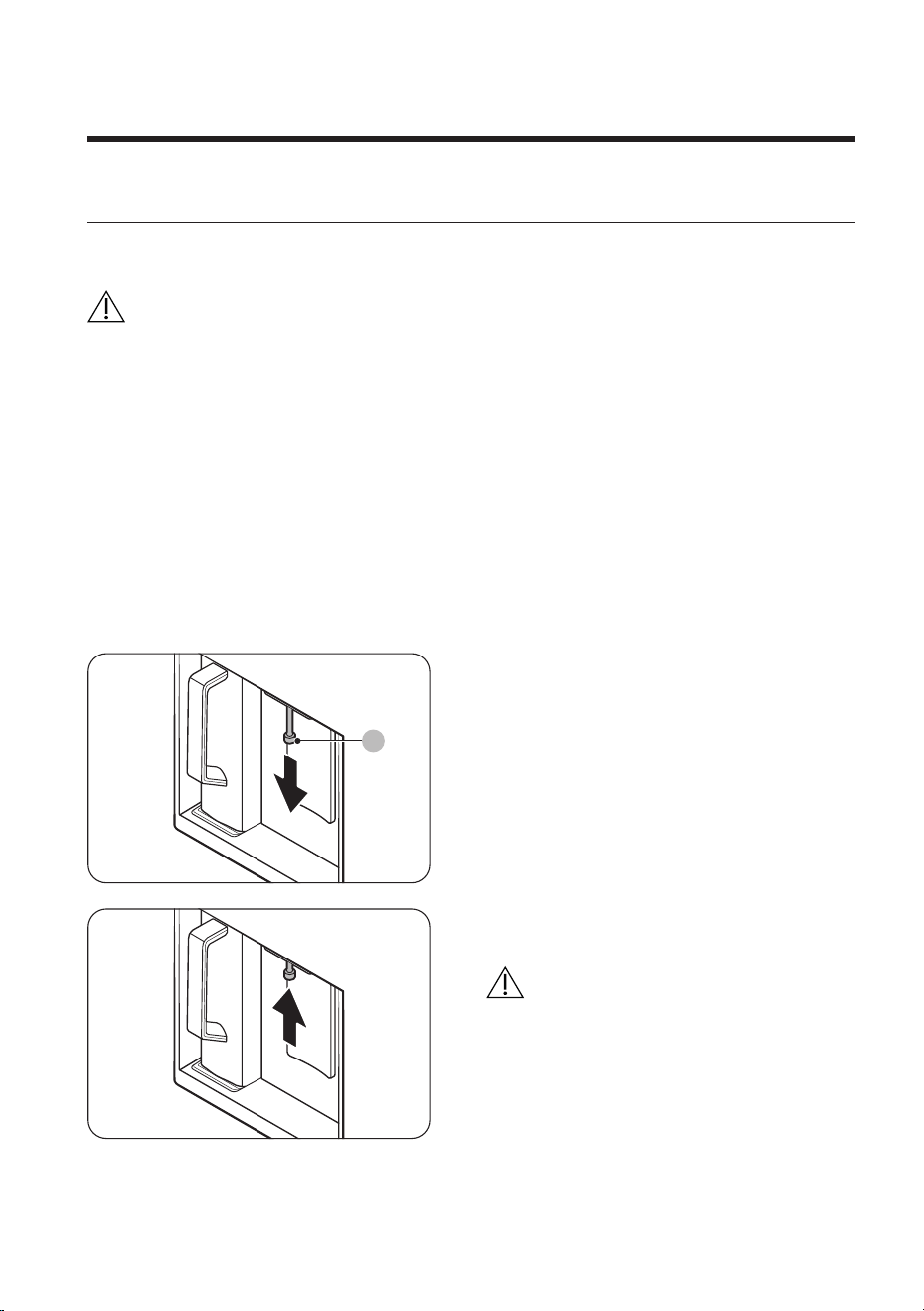

1. Open the freezer door.
2. Use a Phillips screwdriver to remove the
screw holding the cover (A).
3. Disconnect the wire connectors.
4. Locate the hinge shaft. While holding
the door with one hand, use a at-head
screwdriver or Allen wrench to press the
shaft down. Make sure to hold the door
to prevent the door from falling.
Installation
English28
5. To prevent contact with the middle
hinge, slightly tilt the door to the front,
and then lift it up to remove.
6. Repeat steps 1-5 for the other door,
except for steps 2 and 3.

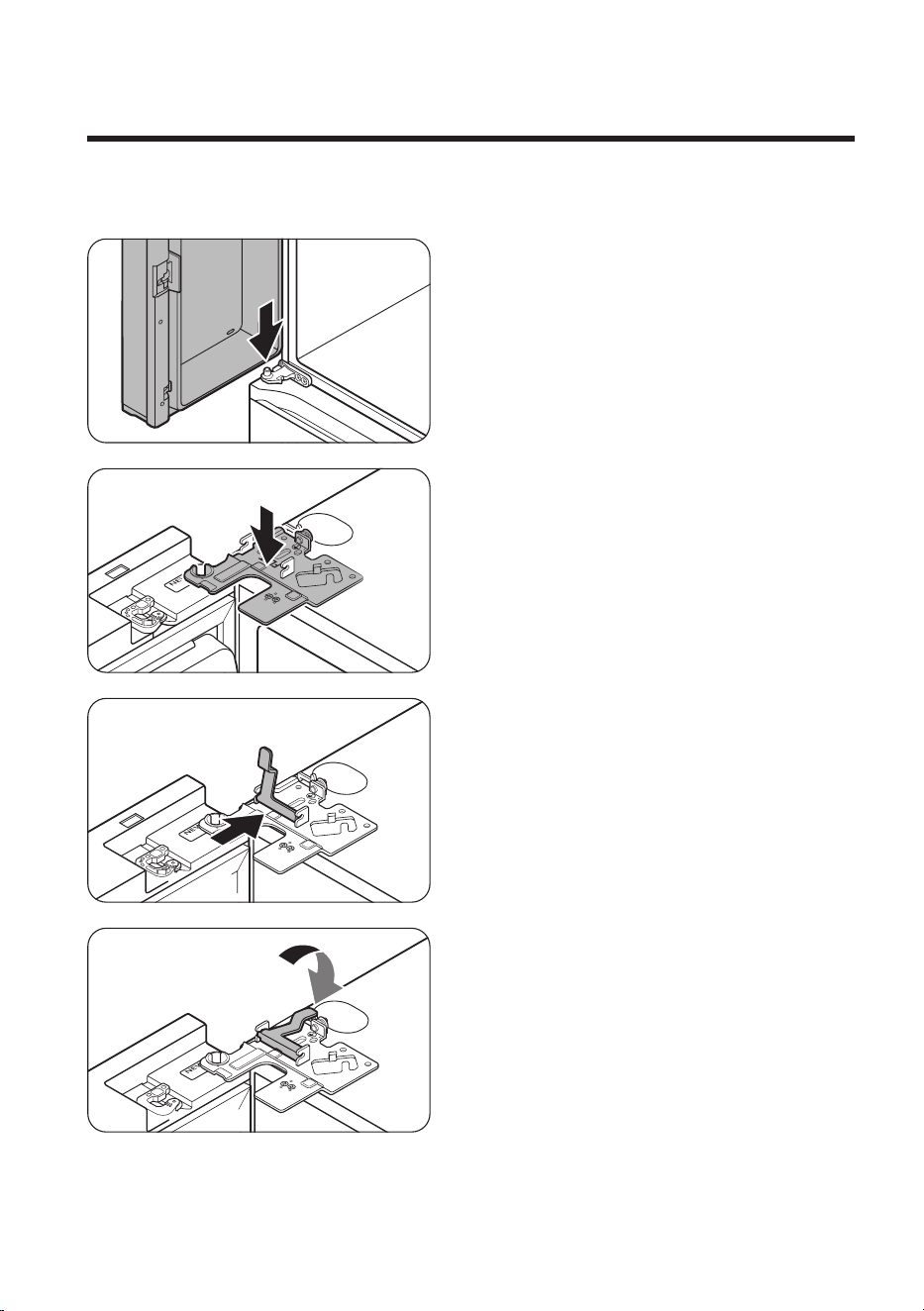

To reattach the freezer doors
CAUTION
• After re-attaching the doors, make sure all the electrical connectors are properly
connected.
• The freezer doors must be re-attached before the fridge doors.
• Be careful not to damage or step on the wires during this process.
1. Insert the freezer door into the bottom
hinge while pushing the freezer door in
the direction of the arrow.
CAUTION
• Be careful not to damage or step on the
wires during this process.
English 29

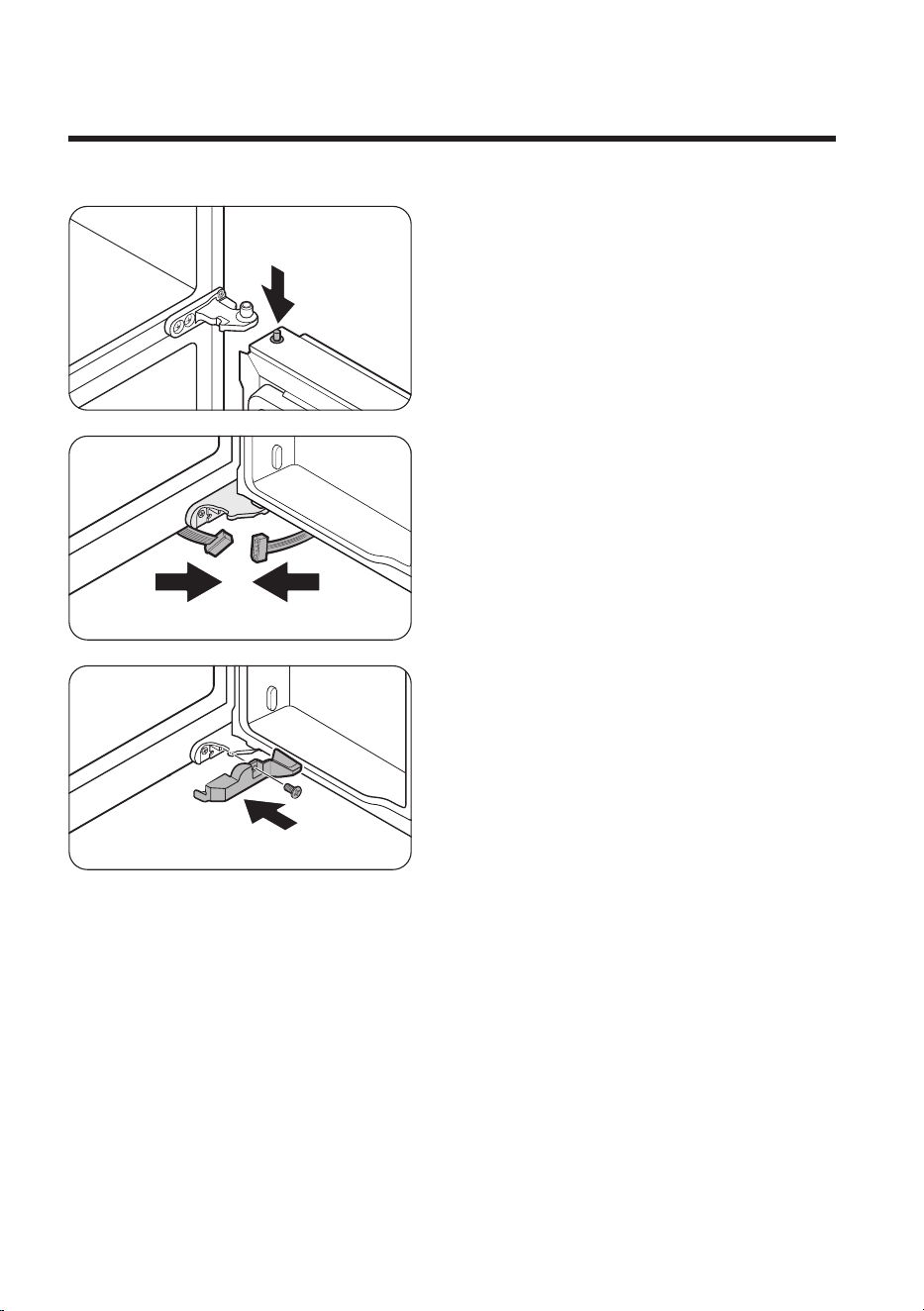

2. While pressing the hinge shaft down,
position the door so that the hinge shaft
is below the shaft hole in the middle
hinge. Release the hinge shaft so that it
enters the shaft hole.
3. With the door open, connect the bottom
connectors in the direction of the
arrows.
4. Attach the cover using a Phillips
screwdriver. Be careful not to damage or
step on the connectors.
5. Repeat steps 1-5 for the other door,
except for steps 3 and 4.
Installation
English30
To reattach the fridge doors
1. While holding the door open by more
than 90 degrees, insert the shaft on
the middle hinge into the hole on the
bottom of the door.
2. Put the top hinge into position on the
top of the refrigerator, and then insert
the hinge shaft into the top hole of the
door. Make sure the wires from the door
pass through the hole in the hinge shaft.
3. Insert the clamp in the direction of the
arrow.
4. Push back the clamp as shown.
English 31
5. Connect the wire connectors.
CAUTION
• Make sure the wire connectors are
connected properly. Otherwise, the
display will not operate.
6. Connect the water tube.
- This step does not apply to the
models without the AutoFill Pitcher
and the water dispenser.
CAUTION
• To prevent water leaks, make sure the
red clips tighten the coupler properly.
• Keep the clips out of children’s reach.
7. Repeat steps 1-5 for the other door.
- Step 5 does not apply to the models
without the Showcase door.
8. Attach the top cover with the front side
rst, and then press down on its back
to get it into position. Then, tighten the
screws (x3).
Installation
English32
STEP 4 Leveling the refrigerator
CAUTION
• When installed, the refrigerator must be leveled on a at, solid oor. Not leveling the
refrigerator can cause damage to the refrigerator or physical injury.
• Leveling must be performed with the refrigerator empty. Make sure no food items are
inside the refrigerator.
• For safety reasons, adjust the front a little higher than the rear.
Level the refrigerator using the special screws (levelers) on the front legs. Use a at-head
screwdriver to turn the levelers.
• To adjust the height of the left side:
Insert a at-head screwdriver into the
leveler of the left side front leg. Turn the
leveler clockwise to raise the left side or
turn it counterclockwise to lower.
• To adjust the height of the right side:
Insert a at-head screwdriver into the
leveler of the right side front leg. Turn
the leveler clockwise to raise the right
side or turn it counterclockwise to lower.
English 33

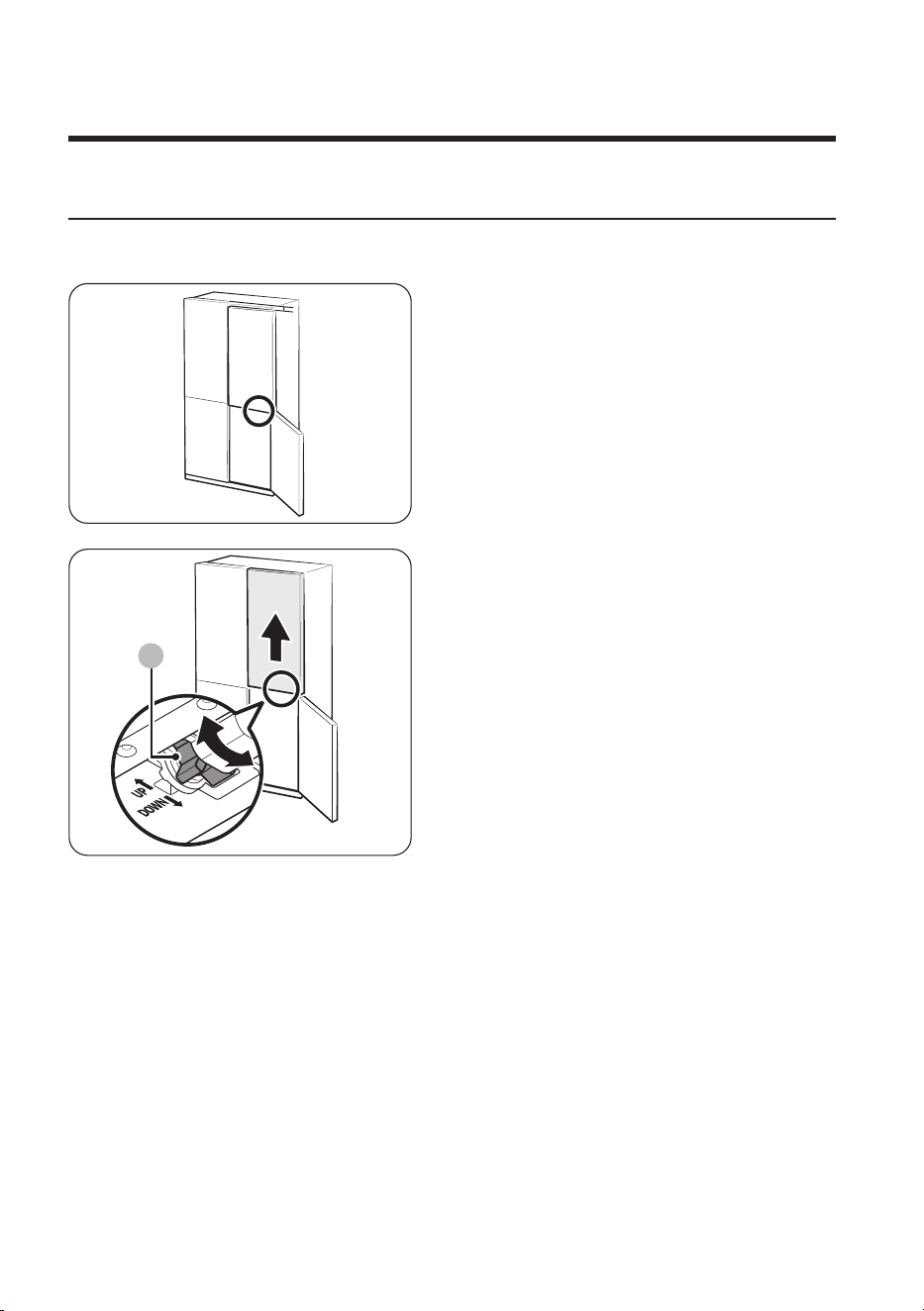

STEP 5 Adjust the door height
Adjusting the height with the height lever (applicable models only)
• Before aligning the door height, make
sure the refrigerator is level. Use the
leveling legs for this purpose.
• You can use the height lever at the
bottom of the right-side door of the
fridge. Open the right-side door of the
freezer with both fridge doors closed
and use the lever to adjust the door
height.
A
• Turn the height lever (A) until the two
doors are aligned at the top. Turn the
lever toward UP (as marked) to raise
the right-side door and turn it toward
DOWN (as marked) to lower the door.
• Lift the fridge door slightly to make
alignment easier. The maximum
adjustable height is 3 mm.
- The lever will not turn past the
maximum limit. It may make a noise
it if is turned too far.
- Excessive height may interfere with
the upper hinge cover of the fridge
door.
• If you align the door height with the
door bins empty and then store items in
the bins, the heights may differ again. If
this happens, follow the steps above to
realign the doors.
Installation
English34

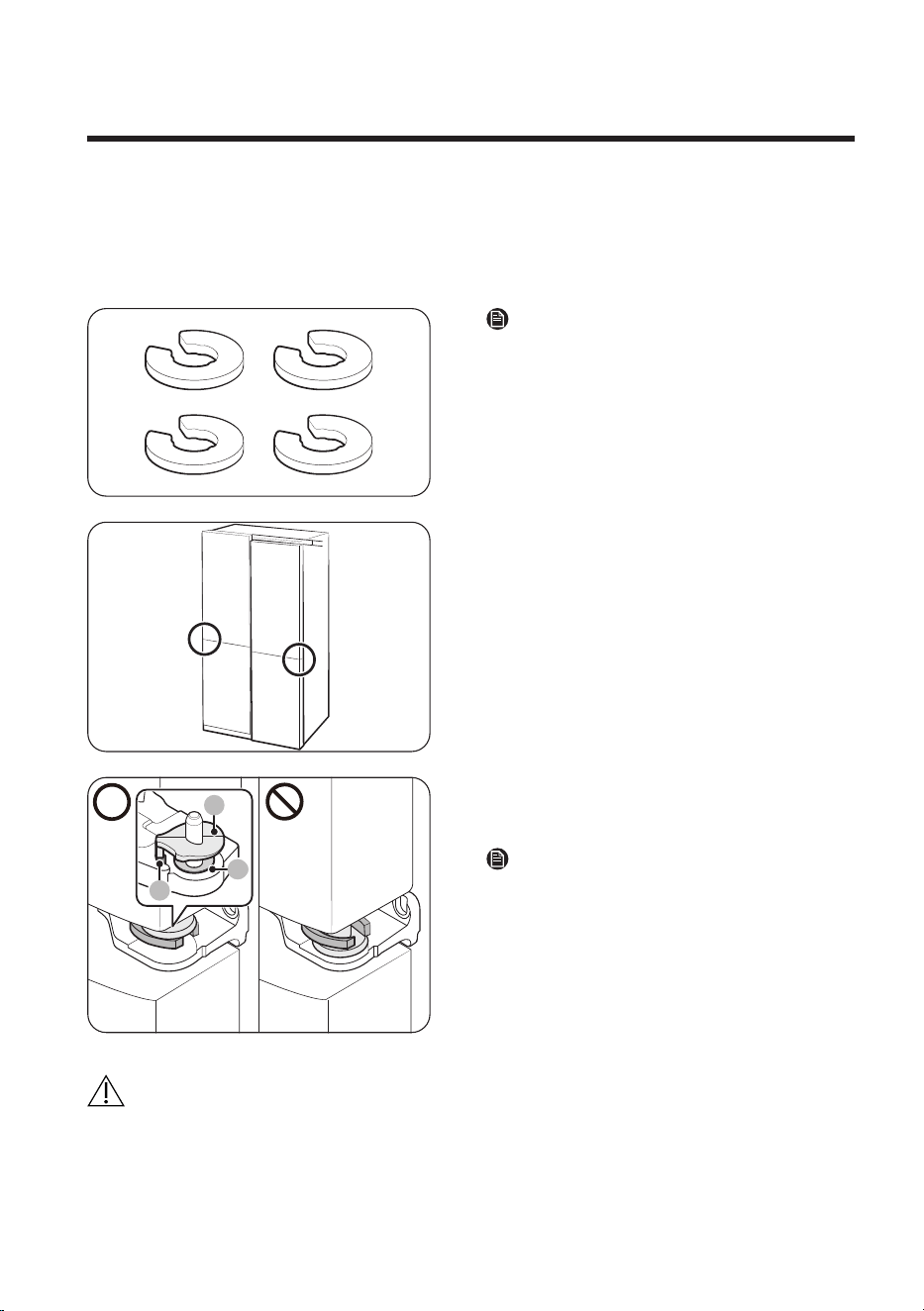

Adjusting the height with the snap rings
For the models with the height lever on the right-side door of the fridge, use the snaps
rings only if you cannot align the doors with the height lever.
You may nd the provided snap rings inside the fridge drawer.
NOTE
The height of a door can be adjusted using
the provided snap rings, which come in
4 different sizes (1 mm, 1.5 mm, 2 mm, and
2.5 mm).
1. Check the height difference between the
doors, and then lift up and hold the door
with the lower height.
A
B
C
2. Insert a suitable-sized snap ring (A)
between the door grommet (B) and the
hinge as shown.
NOTE
Ensure the snap ring (A) is inserted beneath
the door grommet (B).
Ensure the shaft of the door grommet (B) is
inserted into the hole (C) in the hinge.
CAUTION
• Insert only one snap ring. If you insert two or more snap rings, the rings may slip out or
make a rubbing noise.
• Keep the snap rings out of children’s reach and keep them for future use.
• Do not raise the door too much. The door can contact and damage the top cover.
English 35
• If the ring is placed above the grommet, it may cause noise when the refrigerator door
is opened or closed.

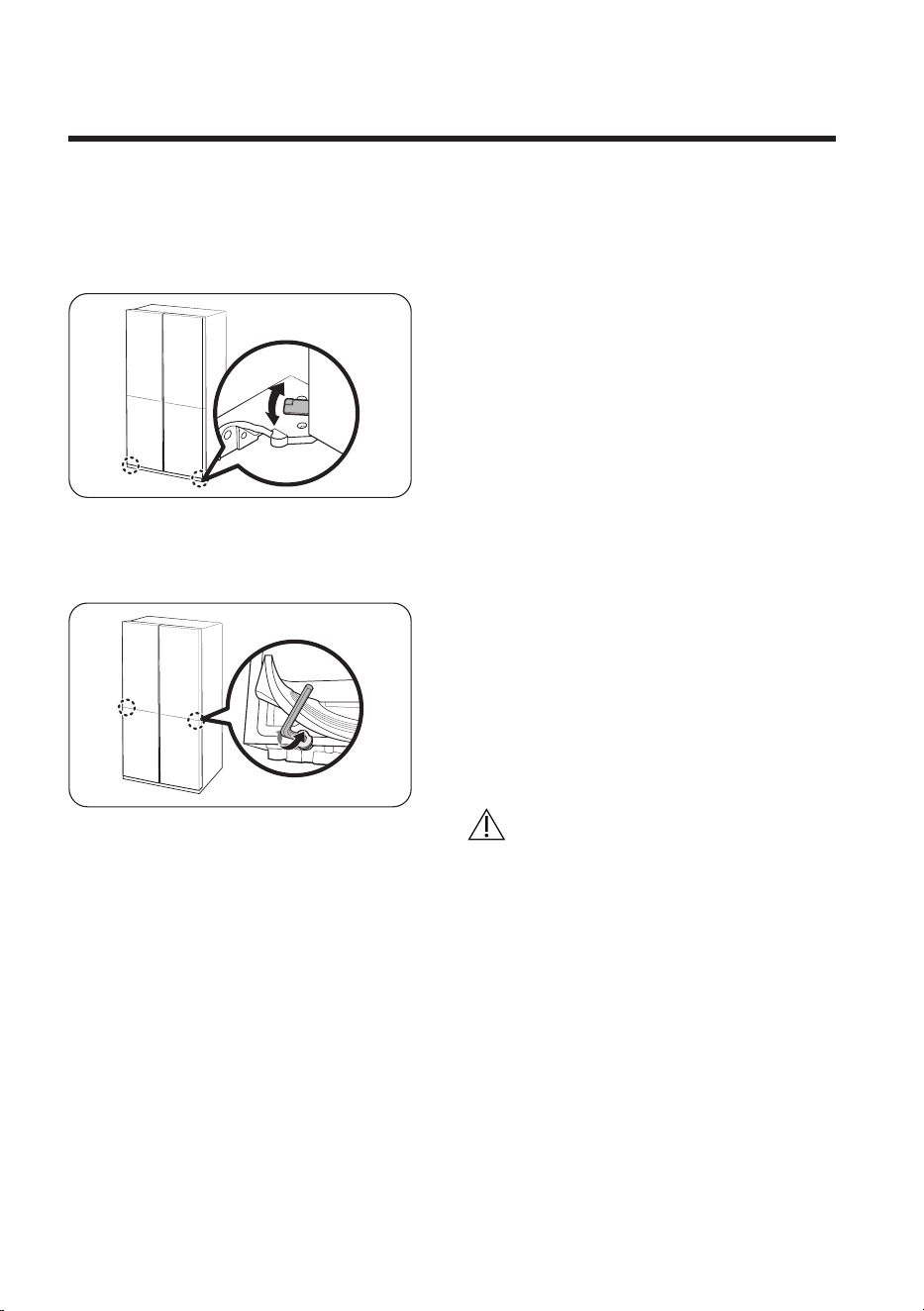

Adjusting the freezer door height (applicable models only)
• Before aligning the door height, make
sure the refrigerator is level. Use the
leveling legs for this purpose.
• You can adjust the height of both
freezer doors using the lever located at
the bottom hinge.
• Open the door, lift it a little, and then
turn the lever left or right to adjust the
height.
Adjusting the gap between the fridge doors and the main body of the refrigerator
(applicable models only)
• You can adjust the gap between both
fridge doors and the main body of the
refrigerator using the adjustment bolt
located at the bottom of the fridge
compartment.
• Lift the door gasket and located the
adjustment bolt underneath the gasket.
Use the 4 mm Allen wrench to adjust
the gap.
CAUTION
Make sure you rmly attach the gasket.
Otherwise, cold air from the refrigerator
may leak.
Installation
English36

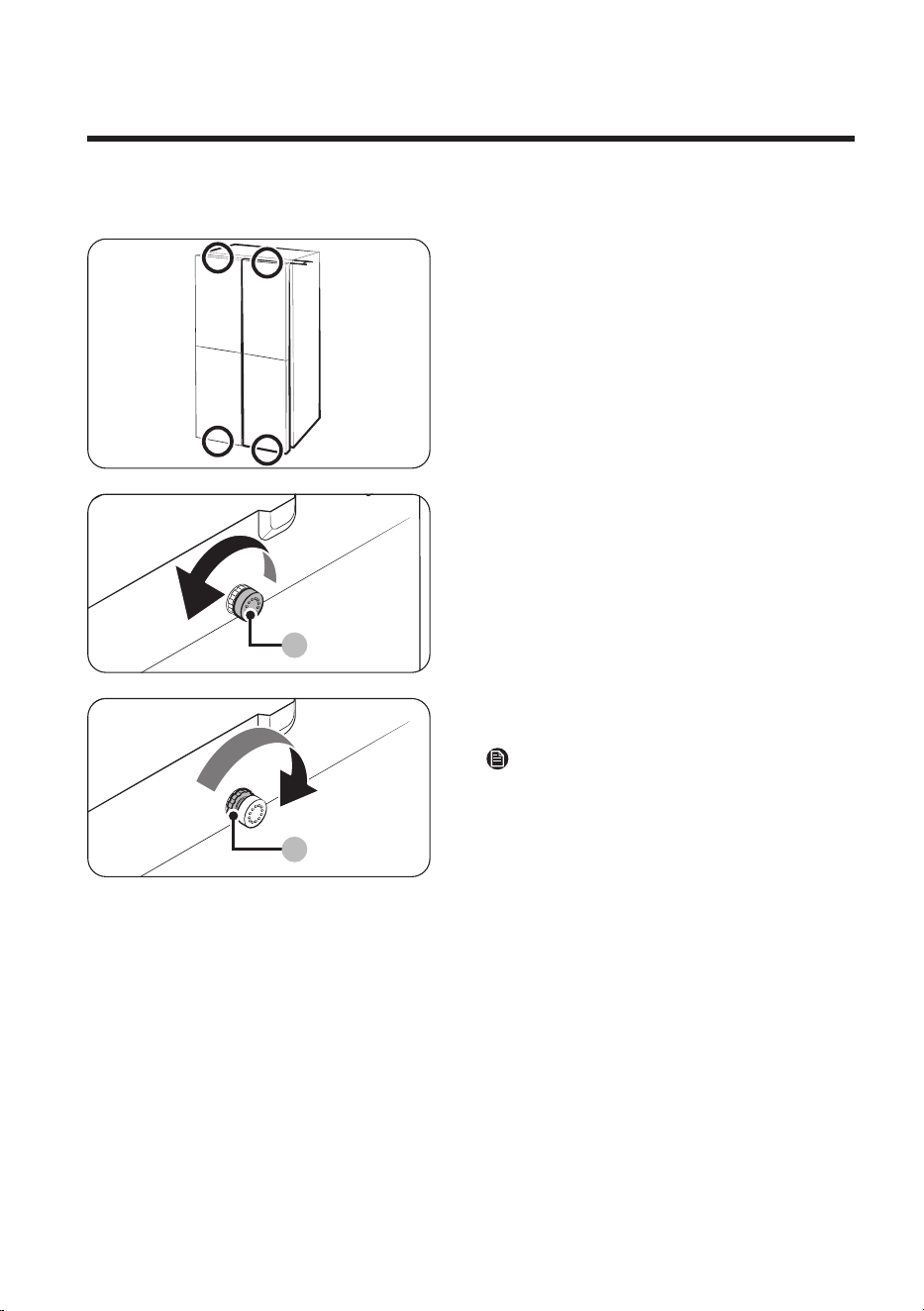

Adjusting the gap between the doors and the main body of the refrigerator
You can adjust the gap between all
four doors and the main body of the
refrigerator using the adjustment dial.
(Refer to the gure for the location of the
adjustment dial.)
A
1. Open the door that is closer to the main
body than the others. Then, turn the
adjustment dial (A) counterclockwise
until the gap becomes even with the
others.
B
2. After adjusting the gap, turn the locking
nut (B) to lock the adjustment dial.
NOTE
Each time you turn the adjustment dial,
the gap is adjusted by 1 mm. However, the
door may not close properly if you adjust
the door by more than 1.5 mm.
English 37
STEP 6 Connect to a water source (applicable models only)
CAUTION
• The new hose-sets supplied with the appliance are to be used and that old hose-sets
should not be reused.
• The water line must be connected by a qualied technician.
• The warranty for your refrigerator does not cover the water line installation. The
water line installation will be performed at your own costs unless the installation fee is
included in the retailer’s price.
• Samsung takes no responsibility for the water line installation. If water leaks occur,
contact the installer of the water line.
To connect the cold water pipe to the water ltering hose
CAUTION
• Make sure the water ltering hose is connected to a cold, potable water source pipe.
Connecting to the hot water pipe may cause the purier to malfunction.
1
A
B
A
A. Close Main Water pipe
B. No gap
1. Shut off the water supply by closing the
main water valve.
2. Locate the cold, potable water pipe (1).
3. Follow the Water Line Installation to
connect to the water pipe.
4. When connection is complete, open the
main water valve and dispense about
3 liters of water. This is to remove
impurities inside the pipe.
Installation
English38

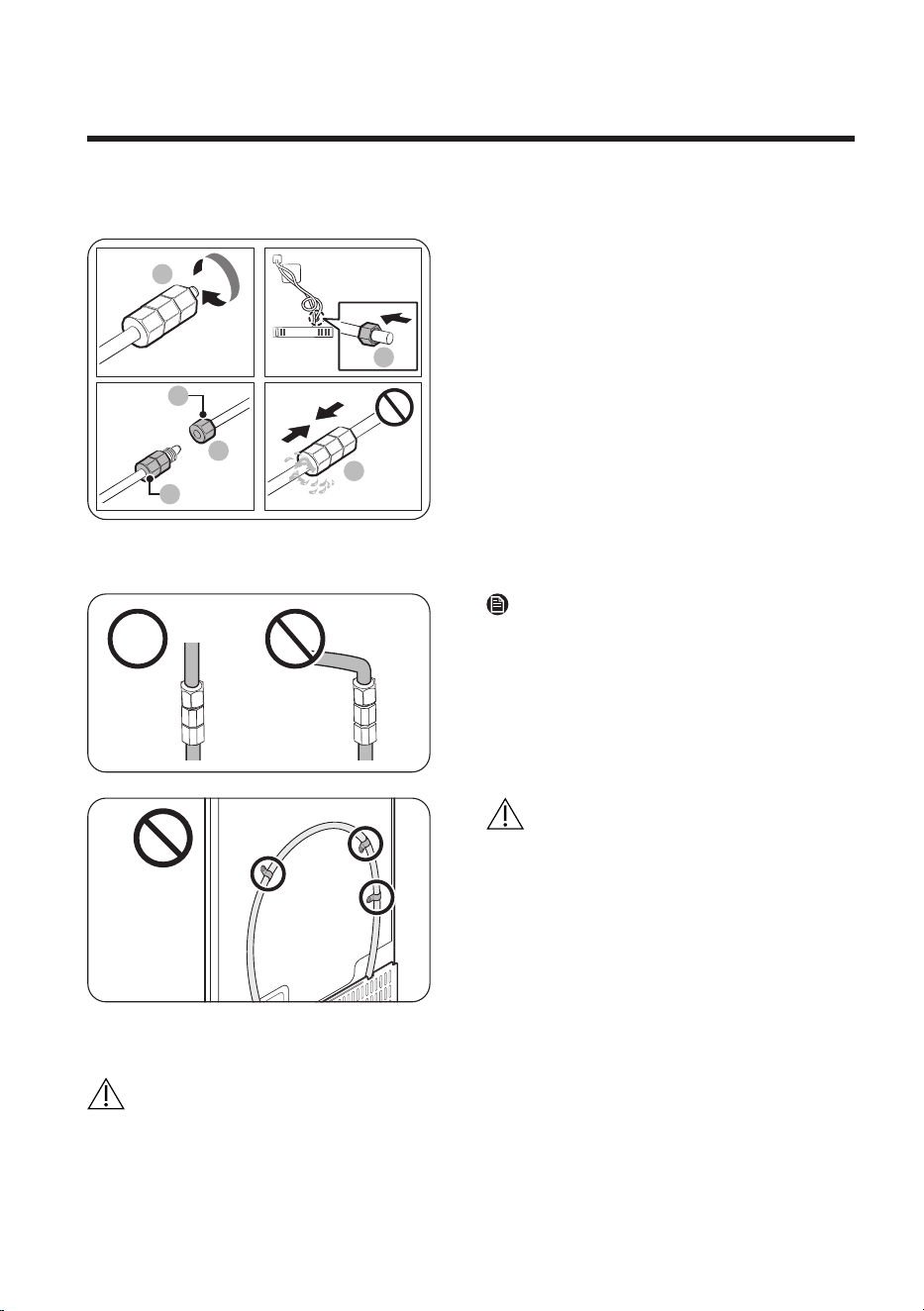

To connect the water ltering hose to the water line
Remove capRemove cap
a
a
A
B
03
a
A. Water Line from unit
B. Water Line from Kit
1. Loosen and remove the compression
nut (a) from the water line of the
refrigerator, and insert it to the water
ltering hose.
2. Tighten up the compression nut (a) to
connect the water ltering hose and the
water line.
3. Open the main water valve and check
for any leaks.
4. If there are no leaks, dispense about a
3 liters of water before actually using
the refrigerator to remove impurities
inside the water ltering system.
NOTE
If you have to relocate the refrigerator
after connecting the water line, make sure
the joined section of the water line must is
straight.
CAUTION
Do not mount the water lter on any part
of the refrigerator. This may damage the
refrigerator.

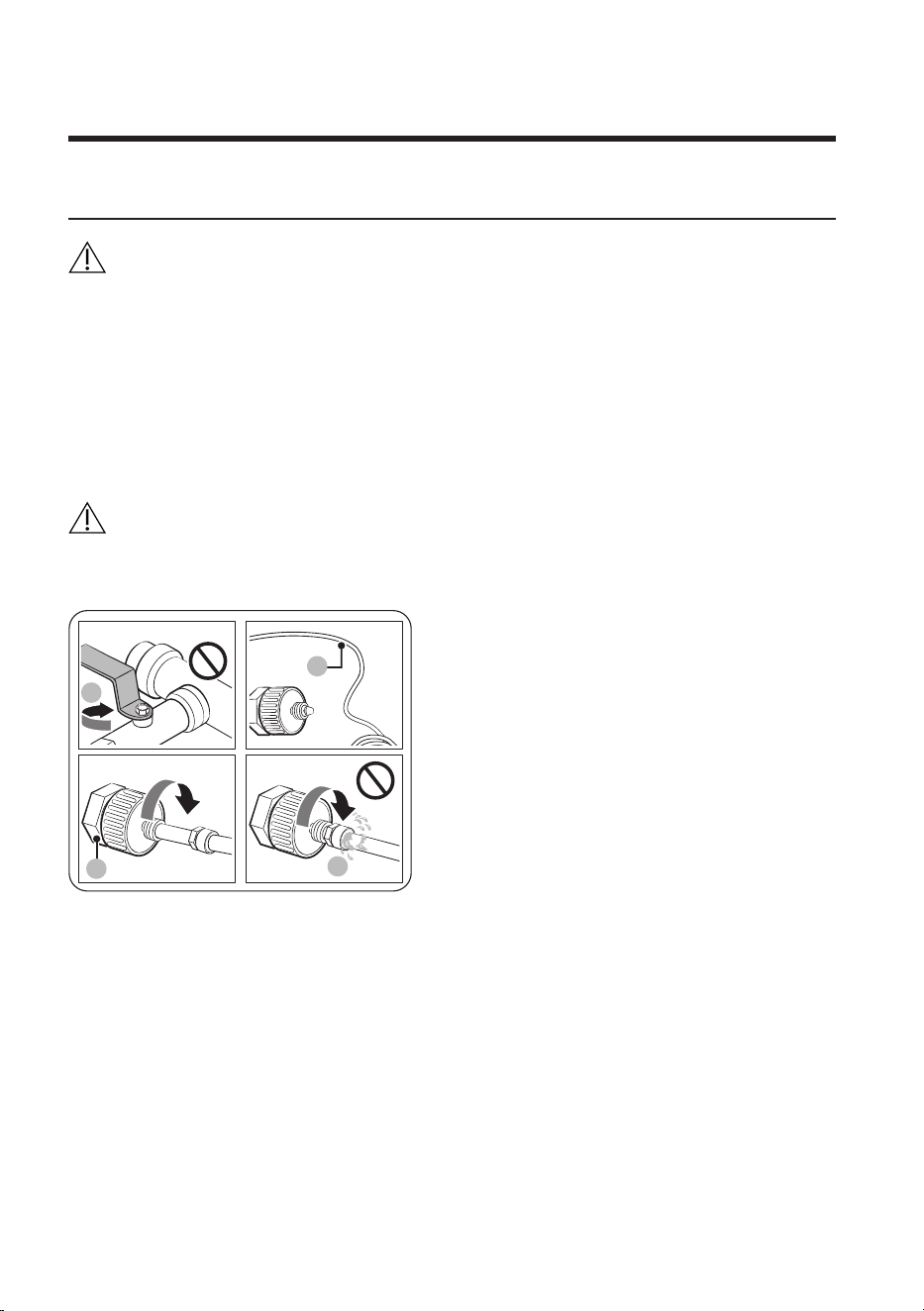

To repair the water line
CAUTION
The waterline must be repaired by a qualied professional. If you encounter a water leak,
contact a local Samsung service centre or the installer of the waterline.
English 39
STEP 7 Initial settings
By completing the following steps, the refrigerator should be fully functioning.
1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest setting, and wait for about an hour. Then, the freezer
will be slightly chilled, and the motor should be running smoothly.
4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready
for use.
STEP 8 Final check
When installation is complete, conrm that:
• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a at, level surface with a reasonable clearance from
walls and cabinets.
• The refrigerator is level and is sitting rmly on the oor.
• The door opens and closes freely, and the interior light turns on automatically when you
open the door.
English40
Operations

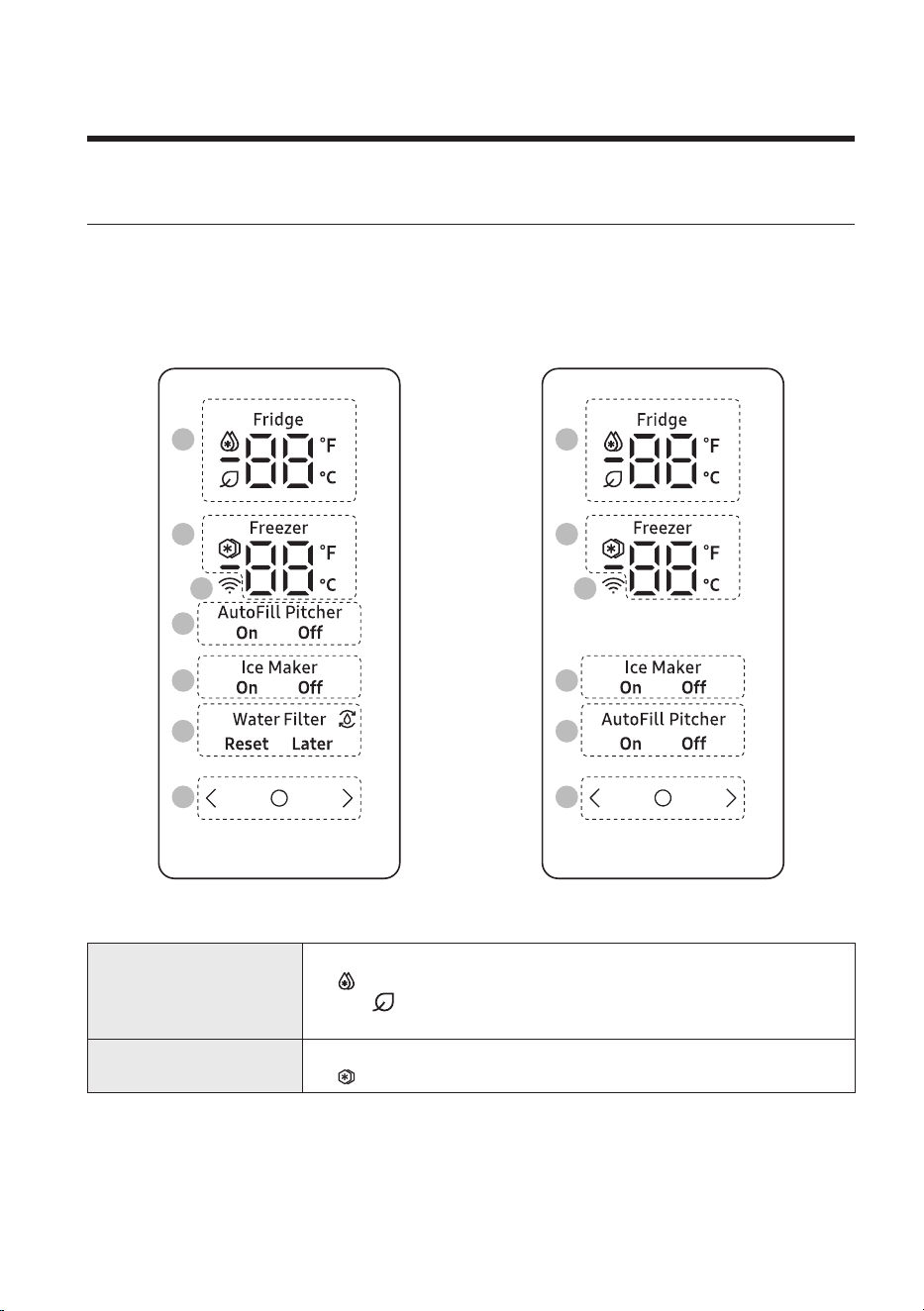

Main panel
The actual appearance of your main panel may differ from the gure and the main panel
design is subject to change without notice.
TYPE A TYPE B
01
02
07
05
04
06
03
01
02
07
05
04
03
01 Fridge indicator
• Displays the current or desired temperature of the fridge.
• indicates that the Power Cool function is on.
• The icon appears if you turn on the AI Energy Mode in
the SmartThings app. (applicable models only)
02 Freezer indicator
• Displays the current or desired temperature of the freezer.
• indicates that the Power Freeze function is on.
English 41
03 Network
connection
indicator
• This icon indicates that the refrigerator is connected
to a network. If the Wi-Fi icon ashes, we recommend
connecting your refrigerator with the SmartThings
app. You can control and monitor your refrigerator on
the SmartThings app. For more information, see the
SmartThings section.
04 AutoFill Pitcher
indicator
The AutoFill Pitcher has 2 indicators ( AutoFill Pitcher On / Off )
to indicate its operating status.
• When the AutoFill operates, the corresponding indicator
( AutoFill Pitcher On ) turns on.
• When the AutoFill is turned off, the corresponding indicator
( AutoFill Pitcher Off ) turns on.
• To enable AutoFill Pitcher , you must turn on the AutoFill
Pitcher.
05 Ice Maker indicator
The ice maker has 2 indicators ( Ice Maker On / Off ) to indicate
its operating status.
• When the ice maker operates, the corresponding indicator
( Ice Maker On ) turns on.
• When the ice maker is turned off, the corresponding
indicator ( Ice Maker Off ) turns on.
• To enable ice making, you must turn the ice maker on.
06 Water Filter
indicator *
• indicates that the water lter needs to be replaced.
• When see the icon, you can replace the water lter and
reset the water lter replace alarm, or dismiss the alarm
and change the lter later. (For more information, see the
"Resetting or dismissing the water lter replacement alarm "
section on page 44.
07 Buttons
• When the display is off, tap any button to wake up the
display.
• Tap to select the desired item on the main panel and to
conrm any setting changes.
• Tap or to change the settings of the selected item on
the main panel.
* applicable models only
NOTE
If the door is left open for 5 minutes, the internal light will blink for 5 minutes and turn
off to alert deaf and hard of hearing users that a door is open. Note that this function is
normal.
Operations
English42
Setting the desired temperature or function
Select the fridge or freezer and set the desired temperature or function of your choice.
1. Tap any button ( , , or ) to wake up the display.
- This step may not apply to some models.
2. Tap until the fridge or freezer indicator blinks.
- The selected compartment’s indicator blinks.
3. Tap or to select the desired temperature or function.
- Refer to the table for available selection for each compartment.
Fridge
• Available selection (Celsius): ( Power Cool ) 1 °C 2 °C 3 °C
4 °C 5 °C 6 °C 7 °C ( Vacation )
• Available selection (Fahrenheit): ( Power Cool ) 34 °F 35 °F
36 °F 37 °F 38 °F 39 °F 40 °F 41 °F 42 °F 43 °F
44 °F ( Vacation )
• Power Cool speeds up the cooling process at maximum fan speed.
The fridge keeps running at full speed for two and a half hours and
then returns to the previous temperature.
Freezer
• Available selection (Celsius): ( Power Freeze ) -23 °C -22 °C
-21 °C -20 °C -19 °C -18 °C -17 °C -16 °C -15 °C
• Available selection (Fahrenheit): ( Power Freeze ) -8 °F -7 °F
-6 °F -5 °F -4 °F -3 °F -2 °F -1 °F 0 °F 1 °F 2 °F
3 °F 4 °F 5 °F
• Power Freeze speeds up the freezing process at maximum fan speed.
• The freezer keeps running at full speed for 50 hours and then
returns to the previous temperature. To freeze large amounts of food,
activate Power Freeze for at least 20 hours before putting food in the
freezer.
NOTE
When you use this function, the energy consumption of the refrigerator
will increase. Remember to turn it off when you do not need it and
return the freezer to your original temperature setting.
4. Wait for 5 seconds or tap to conrm your selection.
- The selected compartment’s indicator stops blinking.
NOTE
• Using Power Cool or Power Freeze increases power consumption.
• When you change the temperature on the panel, the panel displays the actual
temperature inside the refrigerator until the temperature matches the temperature you
set. Then, the panel displays the new set temperature. Note that it will take time for the
refrigerator to reach the new temperature. This is normal. During this time, you do not
need to set the temperature again.
• To ensure optimal performance, we recommend setting the temperature to -18 °C for
the freezer, and 3 °C for the fridge.
English 43
• The temperature in the refrigerator may rise if you open the door frequently or put
a large amount of food into the refrigerator. If this happens, the temperature display
blinks until the refrigerator returns to the specied temperature settings. If the blinking
continues for an extended time, contact a local Samsung service center for technical
assistance.
- While the temperature display is blinking, an alarm may occur. To stop the alarm, tap
any button on the display.
- If you open the door while the temperature display is blinking, the internal light
blinks for about a minute.
Turning on or off the AutoFill Pitcher
You can turn on or off the AutoFill Pitcher in fridge.
1. Tap any button ( , , or ) to wake up the display.
- This step may not apply to some models.
2. Tap until the AutoFill Pitcher indicator blinks.
3. Tap or to turn on or off the AutoFill Pitcher.
- Tap to turn it on.
- Tap to turn it off.
4. Wait for 5 seconds or tap to conrm your selection.
- The AutoFill Pitcher indicator stops blinking.
Turning on or off the ice maker
You can turn on or off the auto ice maker in the freezer.
1. Tap any button ( , , or ) to wake up the display.
- This step may not apply to some models.
2. Tap until the Ice Maker indicator blinks.
3. Tap or to turn on or off the ice maker.
- Tap to turn it on.
- Tap to turn it off.
4. Wait for 5 seconds or tap to conrm your selection.
- The Ice Maker indicator stops blinking.
Operations
English44
Resetting or dismissing the water lter replacement alarm
The water lter replacement icon ( ) blinks to alert the user that it is time to replace
the water lter. You can replace the water lter immediately and reset the water lter
replacement alarm, or dismiss the alarm if you want to change the water lter later.
1. Tap any button ( , , or ) to wake up the display.
- This step may not apply to some models.
2. Tap until the Water Filter indicator blinks.
3. Tap or to select Reset or Later.
- If you have changed the water lter, tap to reset the water lter replacement
alarm.
- If you want to change the water lter later and dismiss the alarm, tap .
4. Wait for 5 seconds or tap to conrm your selection.
- The Water Filter indicator stops blinking.
Changing the temperature scale
You can switch the temperature scale between Fahrenheit and Celsius.
1. Tap any button ( , , or ) to wake up the display.
- This step may not apply to some models.
2. Tap until the °F and °C symbols on the fridge or freezer blink.
3. Tap or to select the desired temperature scale.
- Tap to select Fahrenheit.
- Tap to select Celsius.
4. Wait for 5 seconds or tap to conrm your selection.
- The °F and °C symbols stop blinking.
English 45
SmartThings
Installation
Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for “SmartThings”.
Download and install the SmartThings app provided by Samsung Electronics to your smart
device.
NOTE
• The supporting software version of the SmartThings app is subject to change according
to the OS supporting policy the manufacturer provides. In addition, as for the
SmartThings app or the functions that the app supports, the new application update
policy on the existing OS version can be suspended due to usability or security reasons.
• The SmartThings app is subject to change without notice to improve usability or
performance. As the mobile phone OS version is updated every year, the SmartThings is
also updated continually according to the latest OS. If you have enquiries regarding the
items mentioned above, please contact us on [email protected]
• Recommended encryption systems include WPA/TKIP and WPA2/AES . Any newer or
non-standard Wi-Fi authentication protocols are not supported.
• Wireless networks may be affected by the surrounding wireless communication
environment.
• If your Internet service provider has registered the MAC address of your PC or modem
for identication, your Samsung Smart Refrigerator may fail to connect to the Internet.
If this happens, contact your Internet service provider for technical assistance.
• The rewall settings of your network system may prevent your Samsung Smart
Refrigerator from accessing the Internet. Contact your Internet service provider for
technical assistance. If this symptom continues, contact a local Samsung service center
or retailer.
• To congure the wireless access point (AP) settings, see the user manual of the AP
(router).
• Samsung Smart Refrigerators support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and
Soft-AP protocols. ( IEEE 802.11 n is recommended.)
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart
Refrigerators.
Operations
English46
Samsung account
You are required to register your Samsung account to use the app. If you don’t have a
Samsung account, follow the app’s onscreen instructions to create a free Samsung account.
Getting started
Turn on the device you want to connect, open the SmartThings app on your phone, and
then follow the instructions below.
If a pop-up appears saying that a new device has been found, tap ADD NOW.
If a pop-up doesn't appear, tap the + button, and then select the device you want to
connect from the list of available devices.
If your device isn't in the list of available devices, tap Supported Devices, select the device
type (Refrigerator), and then select the specic device model.
Follow the instructions in the app to set up your device. Once setup is complete, your
refrigerator will appear as a "card" on your Devices screen.
Refrigerator app
Integrated control
You can monitor and control your refrigerator at home and on the go.
• Tap the refrigerator icon on the SmartThings Dashboard or tap the Devices icon at the
bottom of the Dashboard, and then tap the refrigerator "card" to open the Refrigerator
page.
• Check the operation status or notications related to your refrigerator, and then change
options or settings if necessary.
NOTE
Some options or settings of the refrigerator may not be available for remote control.
English 47
Category Item Description
Monitor &
Control
Fridge Temperature
You can set and monitor the desired
temperature of the fridge.
Freezer Temperature
You can set and monitor the desired
temperature of the freezer.
Power Cool
You can turn Power Cool on or off, and check
the current settings.
Power Freeze
You can turn Power Freeze on or off, and check
the current settings.
Ice Making
You can turn the ice making function on or off,
and check the current settings of the function.
AutoFill Pitcher
You can turn the AutoFill Pitcher function on
or off, and check the current settings of the
function.
Alarms
Abnormally high
temperature
This alarm is triggered when the fridge, or the
freezer has abnormally high temperatures.
Door opening
This alarm is triggered if the fridge door, or
the freezer drawer is open for a specic time.
AutoFill Pitcher
overowing
If the AutoFill Pitcher function senses an
overow, it triggers this alarm to let you know
the status of the overow.
AI Energy
Mode
(applicable
models only)
You can turn on or off the AI Energy Mode under the Energy menu in
the SmartThings app.
You can check the status of the AI Energy Mode on the SmartThings
app. On some models, the icon appears on the main panel to
indicate that AI Energy Mode is operating. (applicable models only)
Turning on the AI Energy Mode decreases energy consumption, but it
may also reduce the cooling performance.
Security updates information
Security updates are provided to strengthen the security of your device and protect your
personal information. For more information on security updates,
visit https://security.samsungda.com.
* The website supports only some languages.
Operations
English48

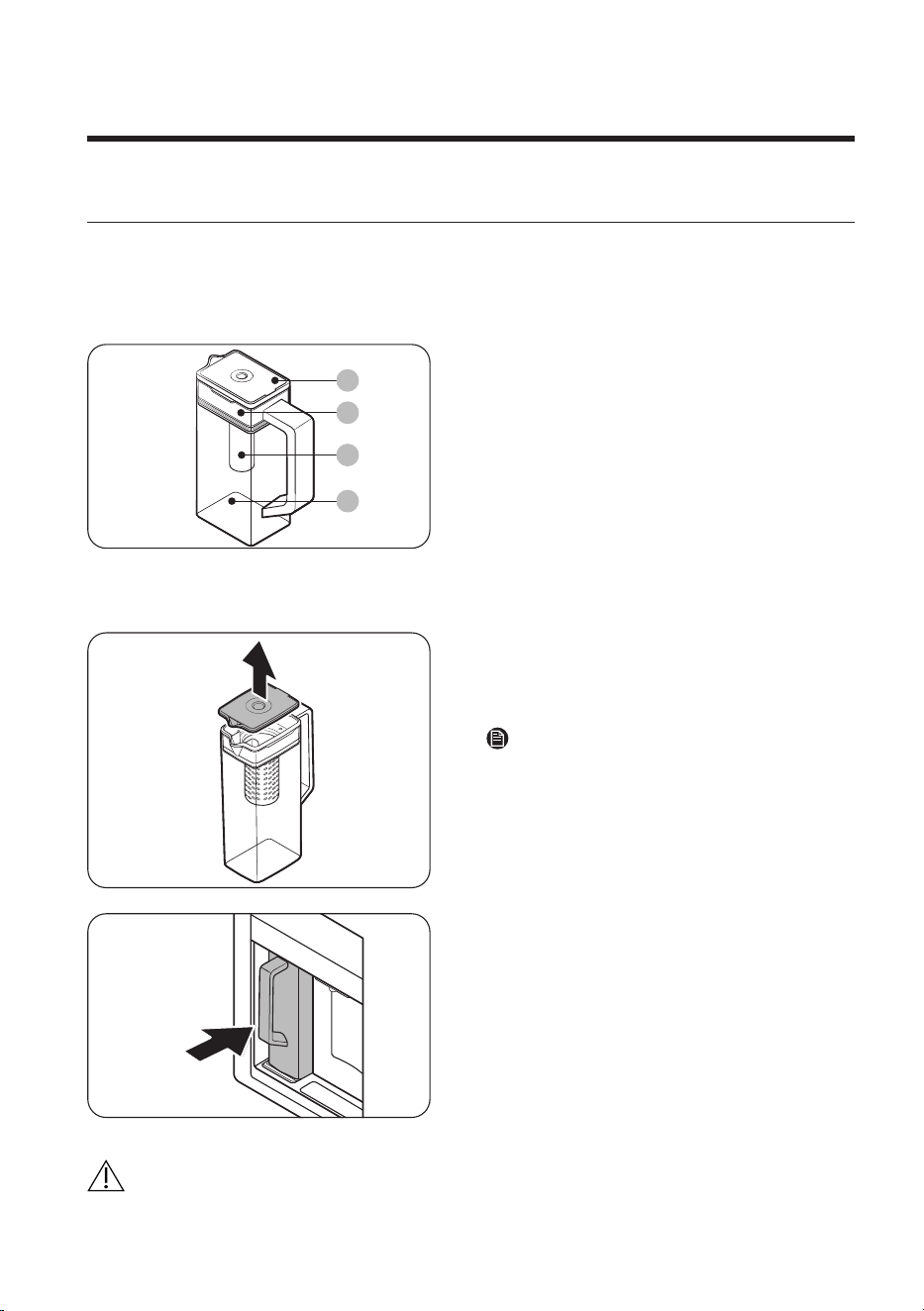

Special features
Water pitcher (AutoFill Pitcher) (applicable models only)
Cold, puried water is always ready in the AutoFill Pitcher . You can put tea or fruits in the
infuser to enjoy the various infused water you like.
01
02
03
04
01 Lid
02 Infuser holder
03 Infuser
04 Body
To ll the Water pitcher
1. Grasp a handle groove of the lid, and
then pull up to open the lid.
2. Put tea leaves or fruit to your taste into
the infuser.
NOTE
If you want to keep the infused water in
its initial concentration, turn the AutoFill
Pitcher function off.
3. Enable the AutoFill Pitcher function
on the main panel. Open the Beverage
Center door, and then mount the water
pitcher onto the holder. Push it straight
in as shown in the gure.
4. Close the door. The water pitcher will
start to ll with chilled water a short
time later.
CAUTION
Make sure the water pitcher ts in the water pitcher holder.
English 49

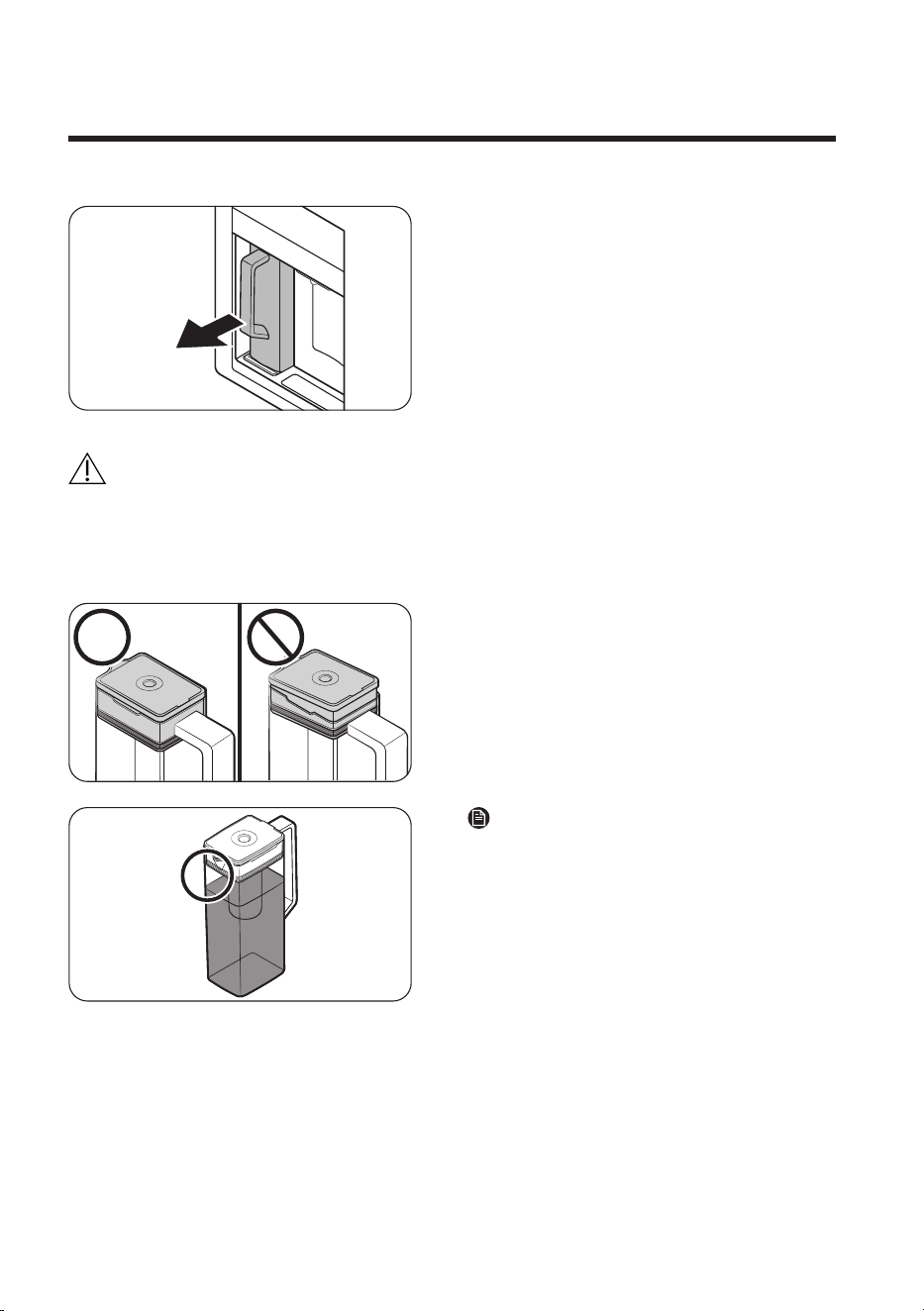

5. To drink tea, open the Beverage Center
door, and then detach the water pitcher.
Pull it straight out.
CAUTION
• We recommend consuming fruit infused water within 24 hours. After that, the infused
water can spoil over time.
• You must clean the water pitcher after you have consumed the infused water. Also clean
the water pitcher if you haven't used it for a long time.
• To prevent the water pitcher from
spilling over or leaking, make sure the
infuser holder is properly inserted.
NOTE
• If the front side (specically marked
area) of the water pitcher has too much
moisture, the water pitcher may not
fully ll. Remove the moisture, and then
try again.
• AutoFill Pitcher function will stop
supplying water to the water pitcher if
the water pitcher does not ll after a
certain amount of time. If this happens,
check if the water line is properly
connected. Remove and reinsert the
water pitcher, and then try again.
Operations
English50

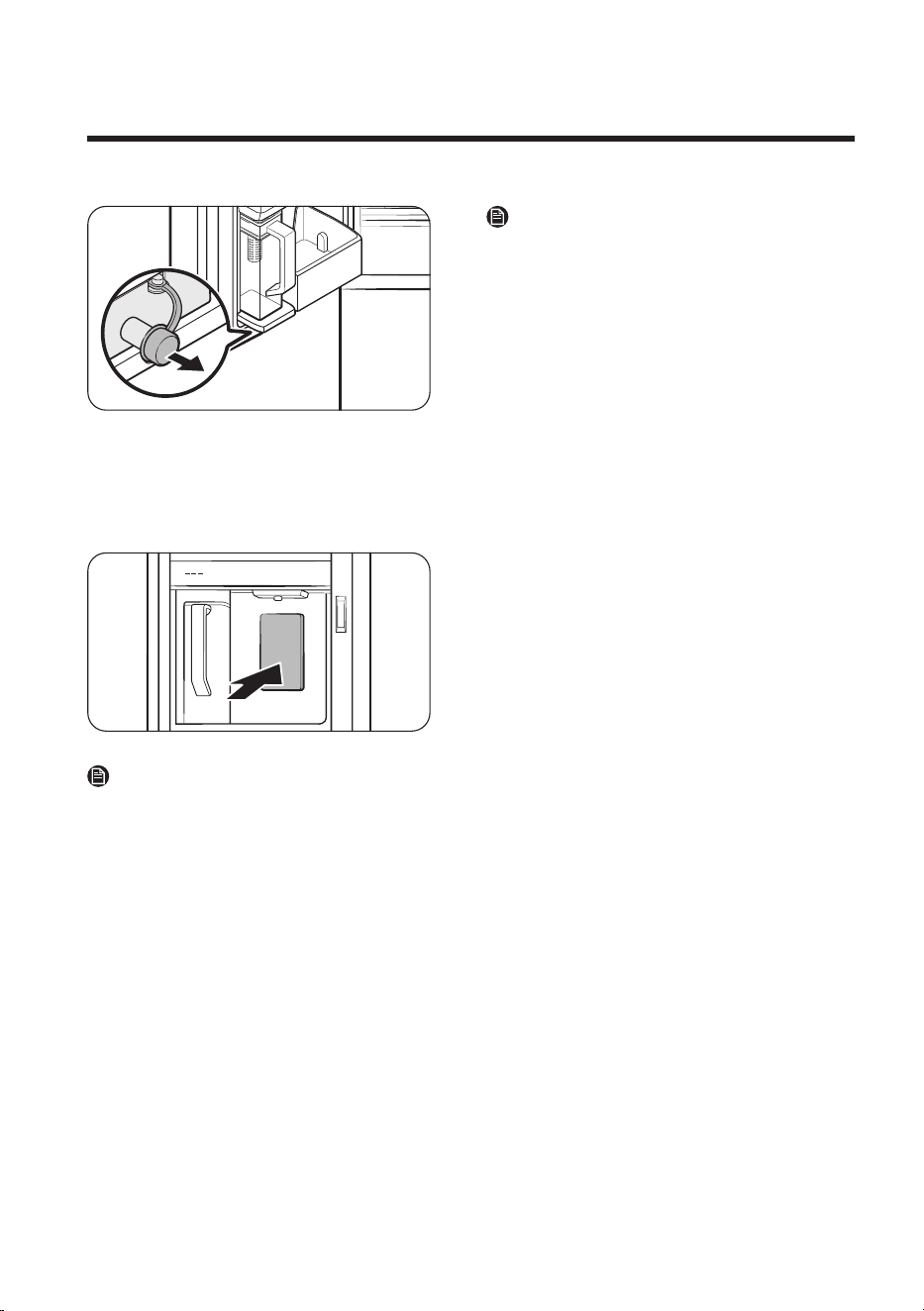

NOTE
• Wipe around the water pitcher holder if
the water pitcher overows or leaks.
• Water drops off if the rubber cap is
opened.
• An alert appears on the main panel if
there is a leak. In case of a leak, open
the rubber cap so that the leaked water
drains. If the alert does not disappear
after draining, there might be a system
failure. Contact your local Samsung
service center.
Water dispenser (applicable models only)
To dispense chilled water, open the
Beverage Center and press the dispenser
lever.
NOTE
• The dispenser will stop dispensing if you keep pushing the dispenser lever for about
1 minute. To dispense more water, release and push the lever again.
• Make sure the glass is in line with the dispenser to prevent the dispensed water from
spilling out.
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an
abnormal smell or taste. This is not a system failure. Discard the rst 1-2 glasses of
water.
Water clouding
Water supplied to the refrigerator ows through a core alkaline lter. During this ltering
process, the water pressure of the water increases and the water becomes saturated with
oxygen and nitrogen. This causes the water to look misty or cloudy temporarily when
dispensed. This is normal and the water will look clear after a few seconds.
English 51
Auto Ice maker (applicable models only)
The refrigerator has a built-in ice maker that automatically dispenses ice.
• The overall design and/or accessories may differ with the model.
WARNING
Choking hazard: Ice may cause choking in
small children.
CAUTION
After using the ice scoop, do not leave it in
the ice bucket.
Operations
English52

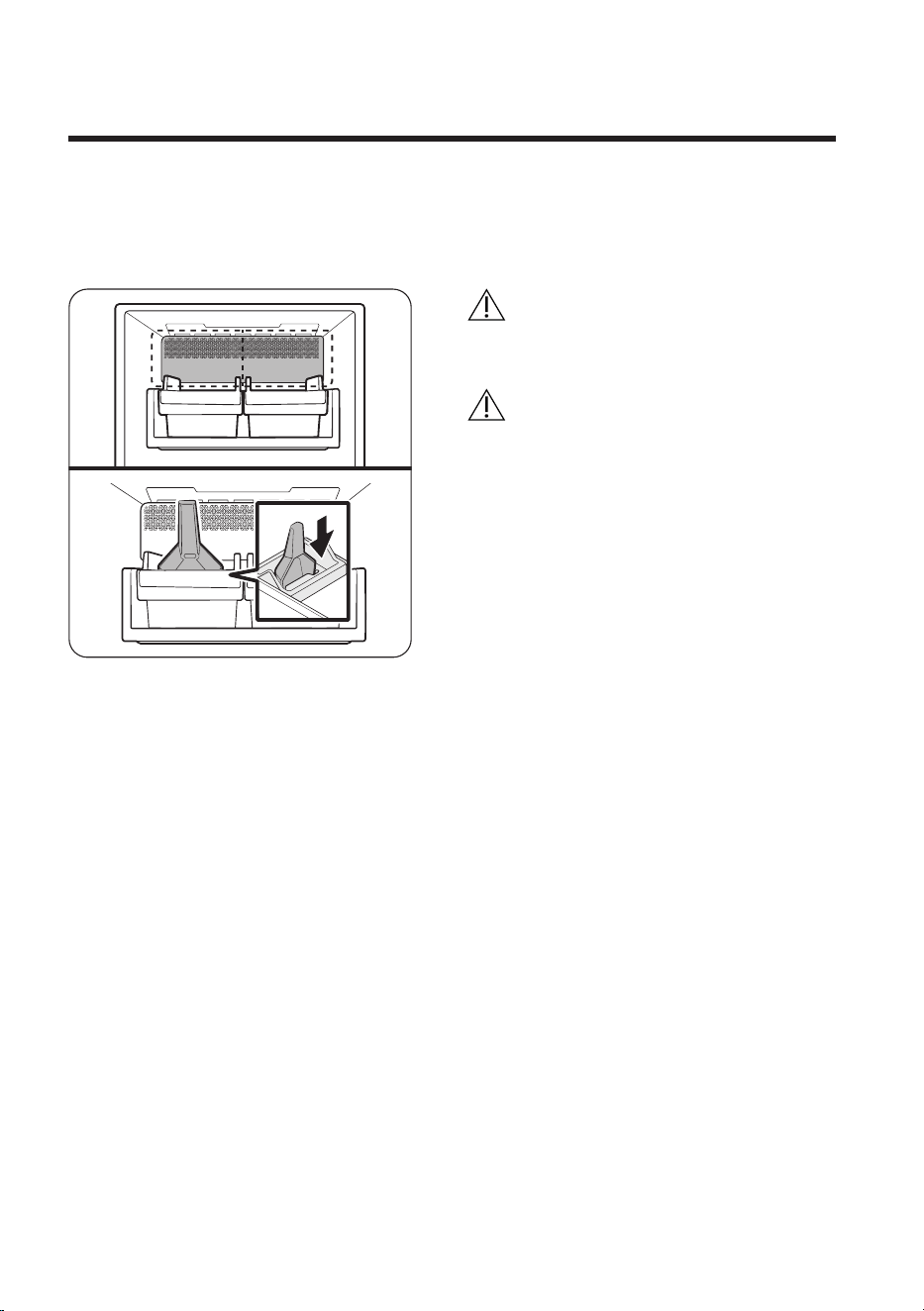

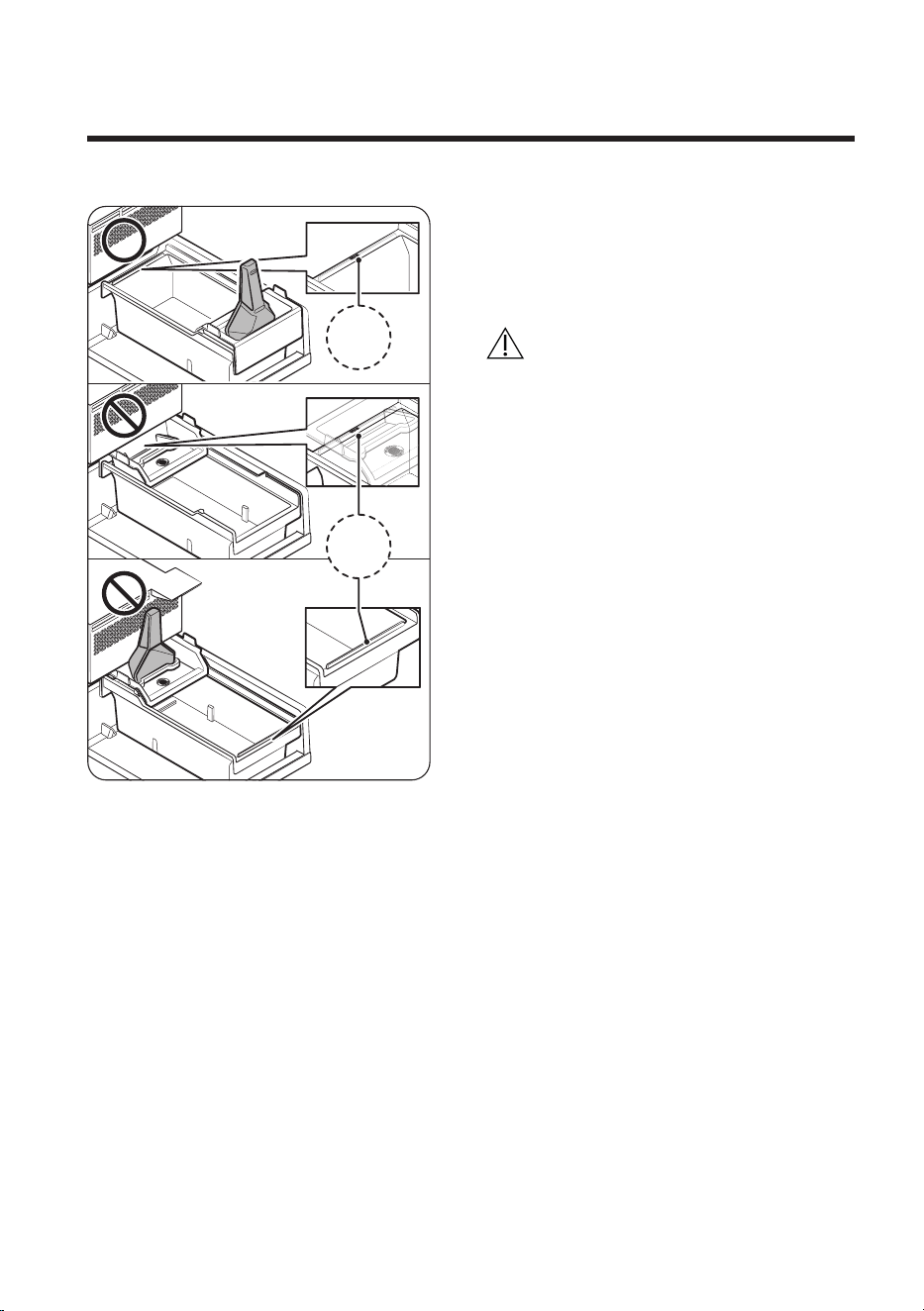

R
E
A
R
RE
A
R
REAR
REAR
R
REAR
REAR
REAR
R
REAR
REAR
REAR
REARREAR
REARREAR
REAR
REAR
R
REAR
REAR
REAR
R
REAR
REAR
REAR
REAR
RE
AR
REAR
REAR
REAR
• Place the ice bucket under the ice maker
with the side marked ‘ REAR’ facing the
back.
• Place the scoop holder at the front of
the ice bucket.
CAUTION
Ice may not be produced if the scoop
holder and ice bucket are not positioned
correctly.
Ice making
After you have installed your refrigerator and plugged it in, follow these instructions to
ensure proper ice making and to keep the ice bucket full of ice.
For rst-time use
• Let the ice maker make ice for 1-2 days.
• Discard the rst 1-2 buckets of ice to remove impurities in the water supply system.
English 53

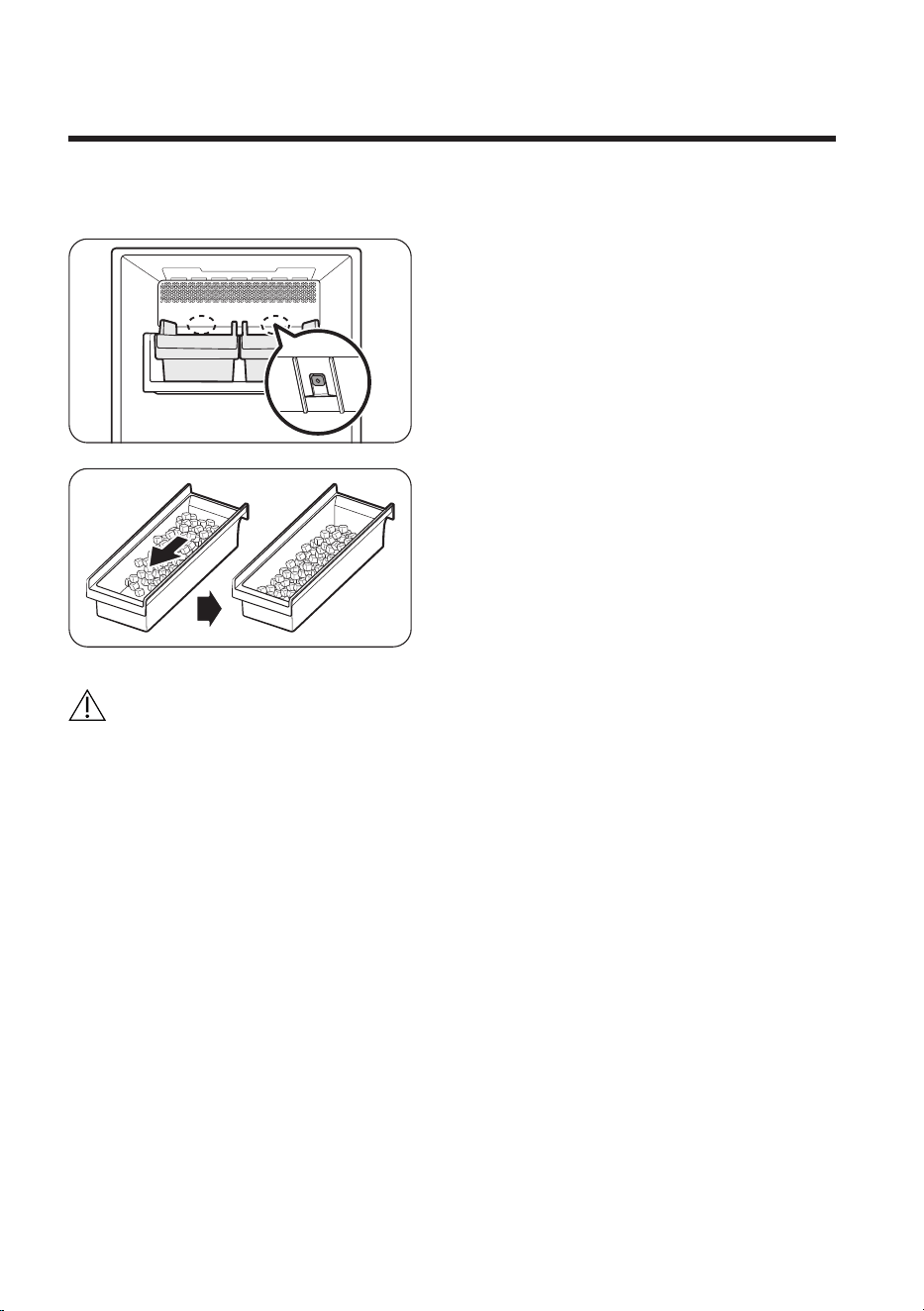

Diagnosis
• If ice does not dispense, rst check the
status of ice maker using the Test button
on the bottom of the ice maker.
• Press the Test button on the back of the
ice maker. You will hear a chime (ding-
dong) when you press the button. You
will hear another chime if the ice maker
is operating properly.
• Ice accumulating on one side of the tray
is normal. Arrange the ice evenly in the
tray to store more ice.
CAUTION
• Leaving the water line disconnected may cause the water valve to produce a buzzing
sound over time. If this is the case, make sure to turn the ice making function off.
• If the ice making chime rings repeatedly, contact the waterline installer or a local
Samsung service center.
• Do not put food in the ice bucket. The frozen food may damage the ice maker, especially
when you open or close the door.
• When the refrigerator recovers power after a power failure, the ice bucket may
contain a mix of melted and jammed ice cubes, which can prevent the ice maker from
working properly. To prevent this, make sure to empty the ice bucket before using the
refrigerator.
• Do not put ngers or any objects into the ice maker. This can cause physical injury or
property damage.
• Due to sublimation, ice stored in the freezer for a long time gets smaller and then forms
large ice chunks. Therefore, if it will be a long time before you use ice, turn the ice
maker off as follows.
• Use the new hose-sets supplied with the appliance only. Do not re-use an old hose set.
Operations
English54

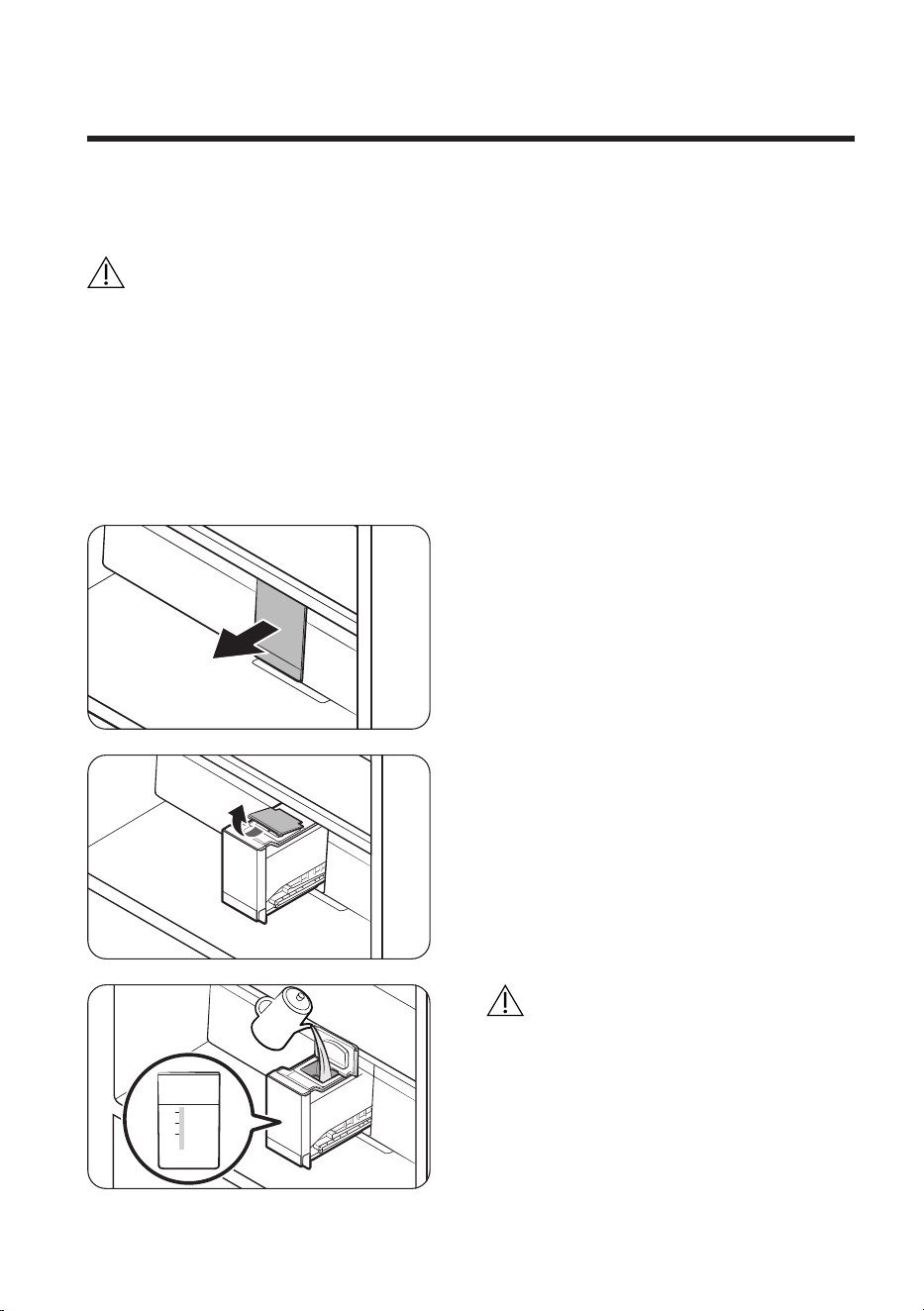

Water tank (applicable models only)
You can add drinking water to make ice.
CAUTION
• Fill the tank only with potable water such as mineral or puried water. Do not use other
liquid.
• Full water tank is heavy and therefore, use caution when moving a lled tank. Physical
injury may occur if the tank is dropped.
• After the initial installation, the water tank must be lled to supply water to the AutoFill
pitcher.
• Regularly check and ll the water tank as it is the water source for the AutoFill pitcher
and the ice maker.
To ll the water tank
For rst-time use, clean the inner side of
the water tank and dry well.
1. Open the refrigerator door and pull out
the water tank to take it out.
2. Open the front lid and add water
according to the marks in the water
tank.
CAUTION
Do not exceed the max line. Water
overows.
English 55

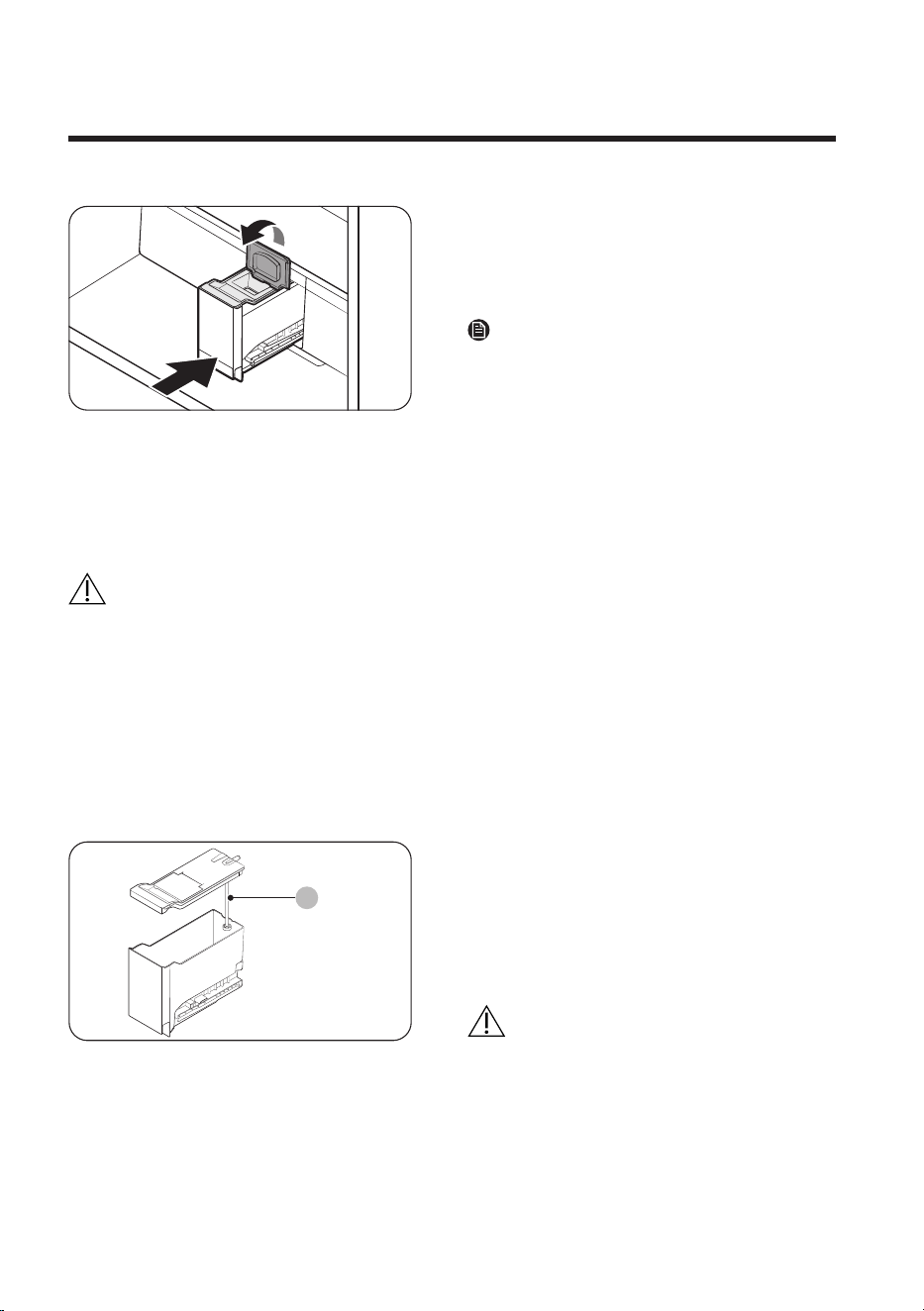

3. Close the front lid and push the water
tank all the way in.
Turn the Ice Maker On in the main panel.
Ice that is made will be stored in the
freezer’s ice bucket.
NOTE
• Even if the water tank is full, ice will not
be made if the Ice Maker is turned off.
• The pump that sends water to the Ice
Maker may make noise if the water tank
is empty. Turn off the Ice Maker to avoid
this.
• There may be noise for about 5 seconds
when sending water to the Ice Maker.
This is normal and is not a malfunction.
CAUTION
• Do not put water directly in the ice bucket to freeze it. There is a risk of damage.
• Empty the water tank when it is not in use.
• When the refrigerator recovers power after a power failure, the ice bucket may
contain a mix of melted and jammed ice cubes, which can prevent the ice maker from
working properly. To prevent this, make sure to empty the ice bucket before using the
refrigerator.
• Do not put ngers or any objects into the ice maker. This can cause physical injury or
property damage.
Cleaning and maintenance
A
• Clean the water tank every one or
two weeks. Be sure to detach every
component part including the cover and
the nozzle (A).
• Completely empty the water tank before
cleaning with clean water. And dry out
the tank for later use.
CAUTION
Do not leave the water tank with moisture
inside before relling with water.
Otherwise, the tank may have impurities
built up inside over time.
English56
Maintenance
Handling and care
Ice bucket (applicable models only)
If you do not dispense ice for an extended period, ice may form clumps inside the bucket.
If this happens, remove and empty the ice bucket.
CAUTION
• To prevent injury, make sure to clean up any ice or water that has fallen on the oor.
• To prevent accidents or injury, do not let children play with the water dispenser or the
ice maker.
• Use only the provided ice bucket. Third-party ice buckets may cause a system failure.
NOTE
• The water pressure required for ice making is between 206-861 kPa.
• Noise from the ice maker as it produces ice during the ice making process is normal.

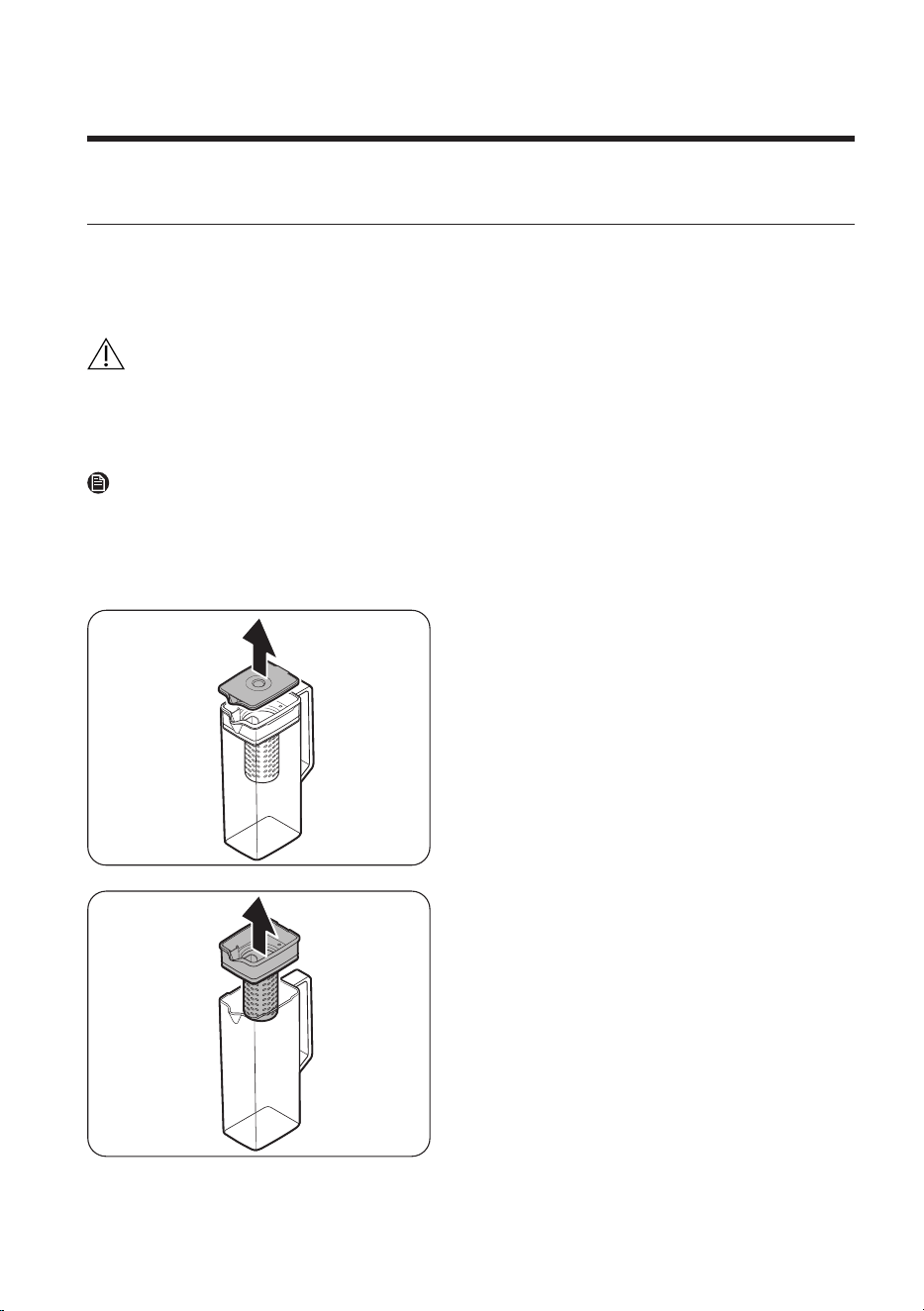

AutoFill Pitcher
1. Grasp a handle groove of the lid, and
then pull up to remove.
2. Grasp both sides of the infuser holder,
and then lift to remove.
English 57

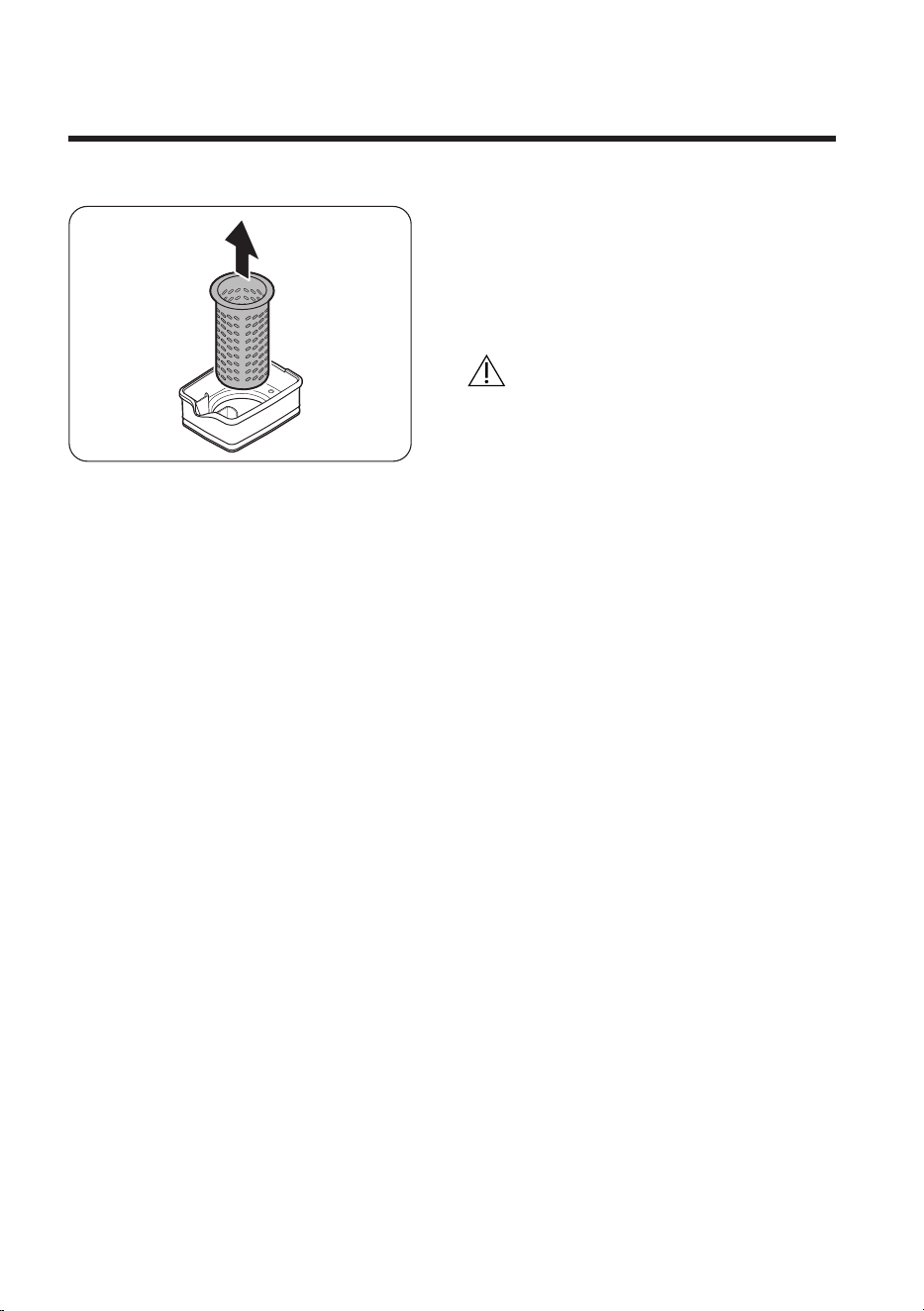

3. While slightly twisting the infuser, pull
it out of the sealed mouth.
4. Clean the infuser with neutral agents
and running water. Rinse and dry well.
5. Reassemble the AutoFill Pitcher in the
reverse order of disassembly.
CAUTION
The water pitcher and lid are not
microwave safe and can melt or deform
if exposed to heat (including hot water).
Please hand wash in cool or warm water as
needed.
Maintenance
English58

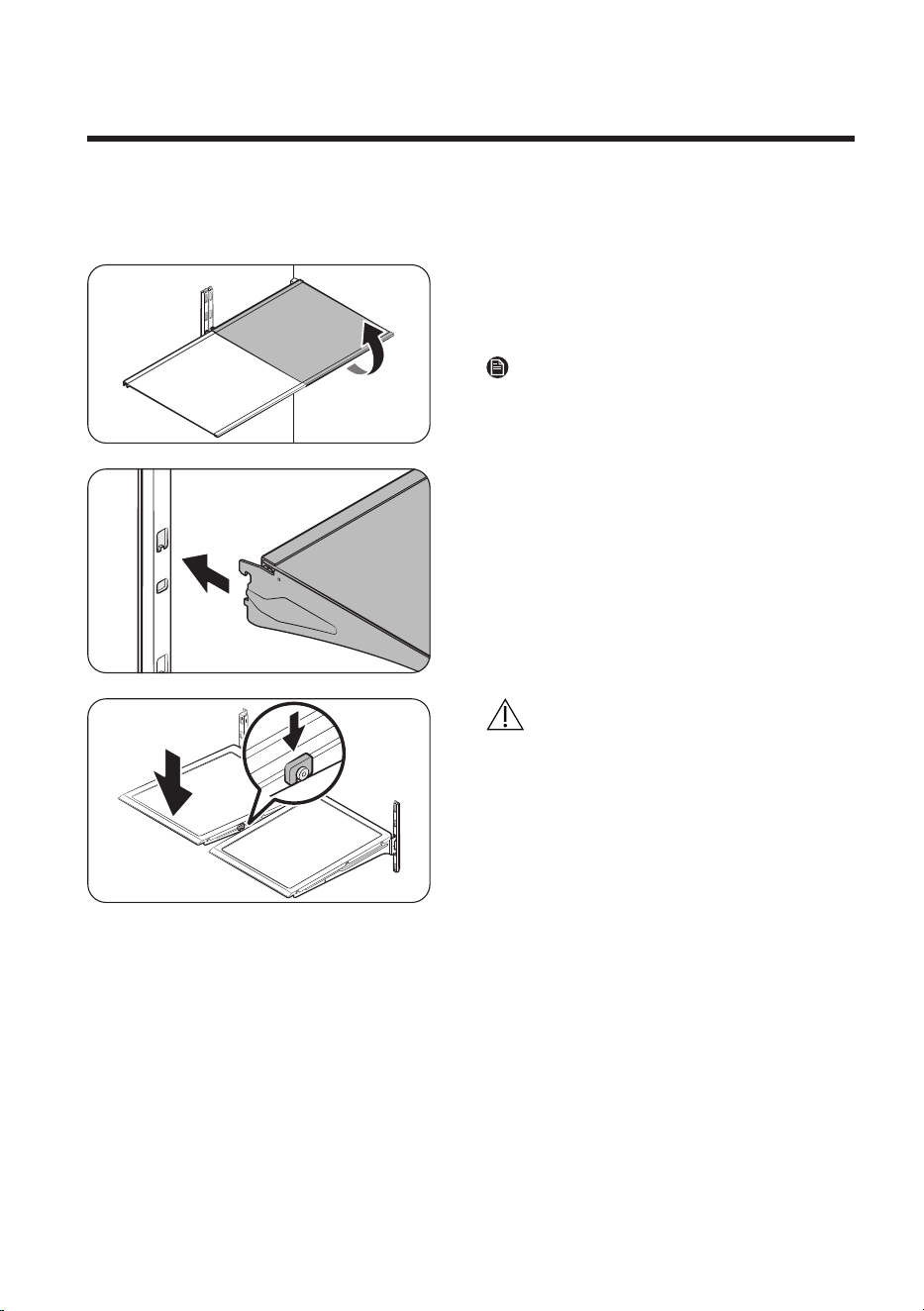

Fridge shelves
The appearance of the shelves differs by model.
• To remove a shelf, fully open the
corresponding door. Hold the front of
the shelf, and then gently lift up and pull
out.
NOTE
Do not lift up the shelf fully when
removing or reinserting the shelf. The rear
wall of the fridge room can be dented.
• To reinsert, hold the shelf at an angle
so the front is higher than the back, and
then insert the top hook into the top
shelf notch. Then, lower the shelf and
insert the bottom shelf hook into the
bottom shelf notch.
CAUTION
• The tempered glass shelves are heavy.
Use caution when removing them.
• The shelf must be inserted correctly. Do
not insert upside down.
• Glass containers may scratch the surface
of glass shelves.
English 59

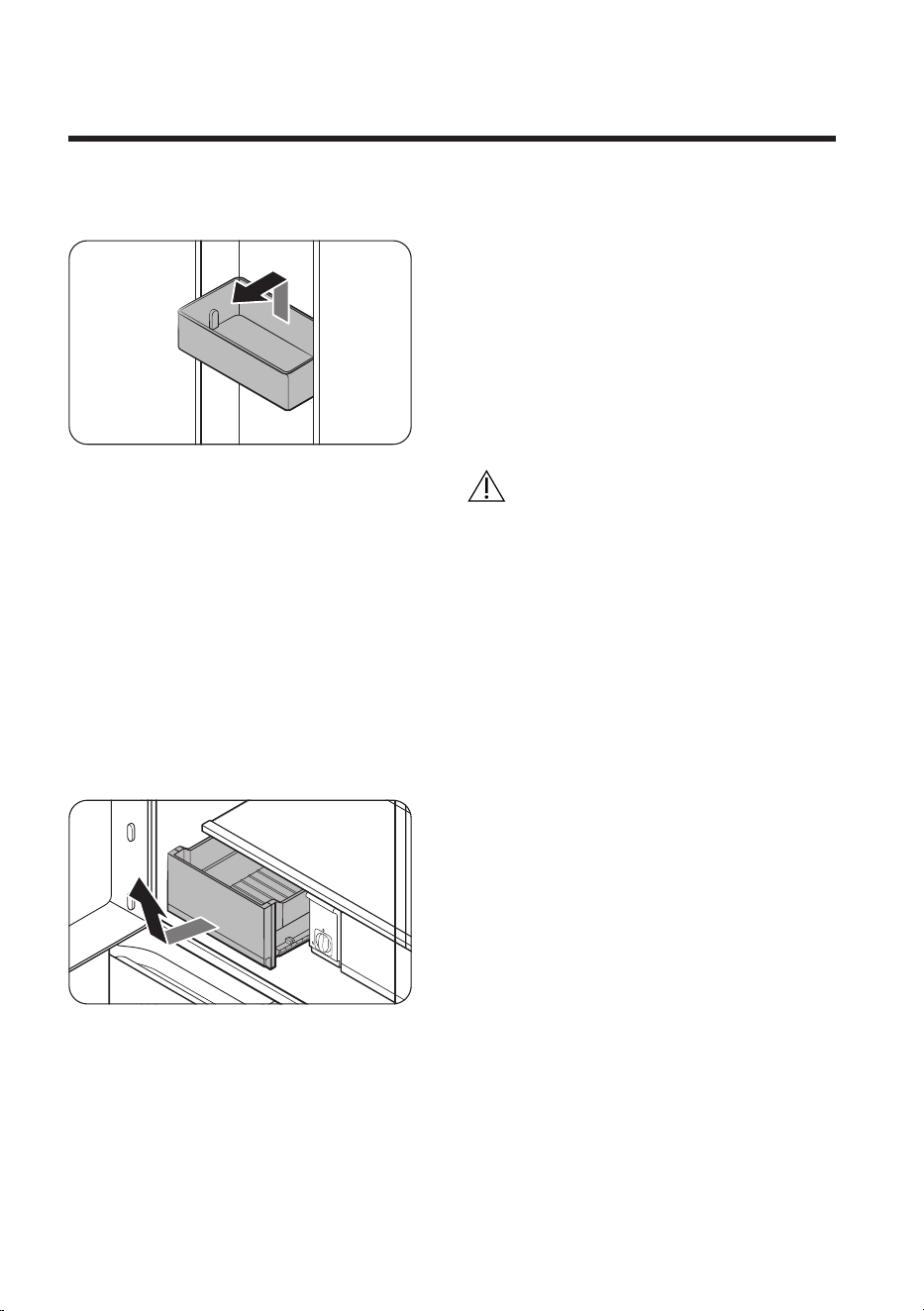

Door bins
• To remove the door bin, hold the front
sides of the bin, and then gently lift up
to remove.
• To reinsert, insert the door bin slightly
above its nal location making sure that
the back of the bin is against the door.
Hold the rear of the door bin with both
hands, and then press down so that it
ts snugly.
CAUTION
• Do not remove a bin that is lled with
food. Empty the bin beforehand.
• Use caution when opening the door if
the bottom bin contains larger bottles,
which may fall over.
• Do not allow children to play with the
bins. Sharp corners of the bin may cause
injury.
Fridge drawers
Crisper / Flex Crisper Drawers (applicable models only)
Gently lift up the front of the drawer and
slide out.
• We recommend that you remove the
door bins before removing the drawer.
This is to prevent damage to the door
bins.
• To reinsert, insert the drawer into the
frame rails and then slide inward.
Maintenance
English60
Cleaning
Interior and exterior
WARNING
• Do not use benzene, thinner, vinegar, liquid bleach, baking soda, citric, salt mixtures
or home/car detergent such as Clorox™ for cleaning purposes. They may damage the
surface of the refrigerator and cause a re.
• Do not spray water onto the refrigerator. This may cause electric shock.
Regularly use a dry cloth to remove all foreign substances such as dust or water from the
power plug terminals and contact points.
1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior
and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.
Dispenser cock (applicable models only)
A
1. Hold the end of the dispenser cock (A).
2. While turning the dispenser cock (A)
left, pull it down to remove it from the
dispenser.
3. Clean the dispenser cock thoroughly,
and then assemble it back.
CAUTION
• Fully insert the dispenser cock, so it is
back to its original position.
• Do not use a scrub with rough textures
for cleaning the dispenser cock.
English 61
Rubber seals
If the rubber seals of a door become dirty, the door may not close properly and reducing
refrigerator performance and efciency. Use a mild detergent and damp cloth to clean the
rubber seals. Then, dry well with a cloth.

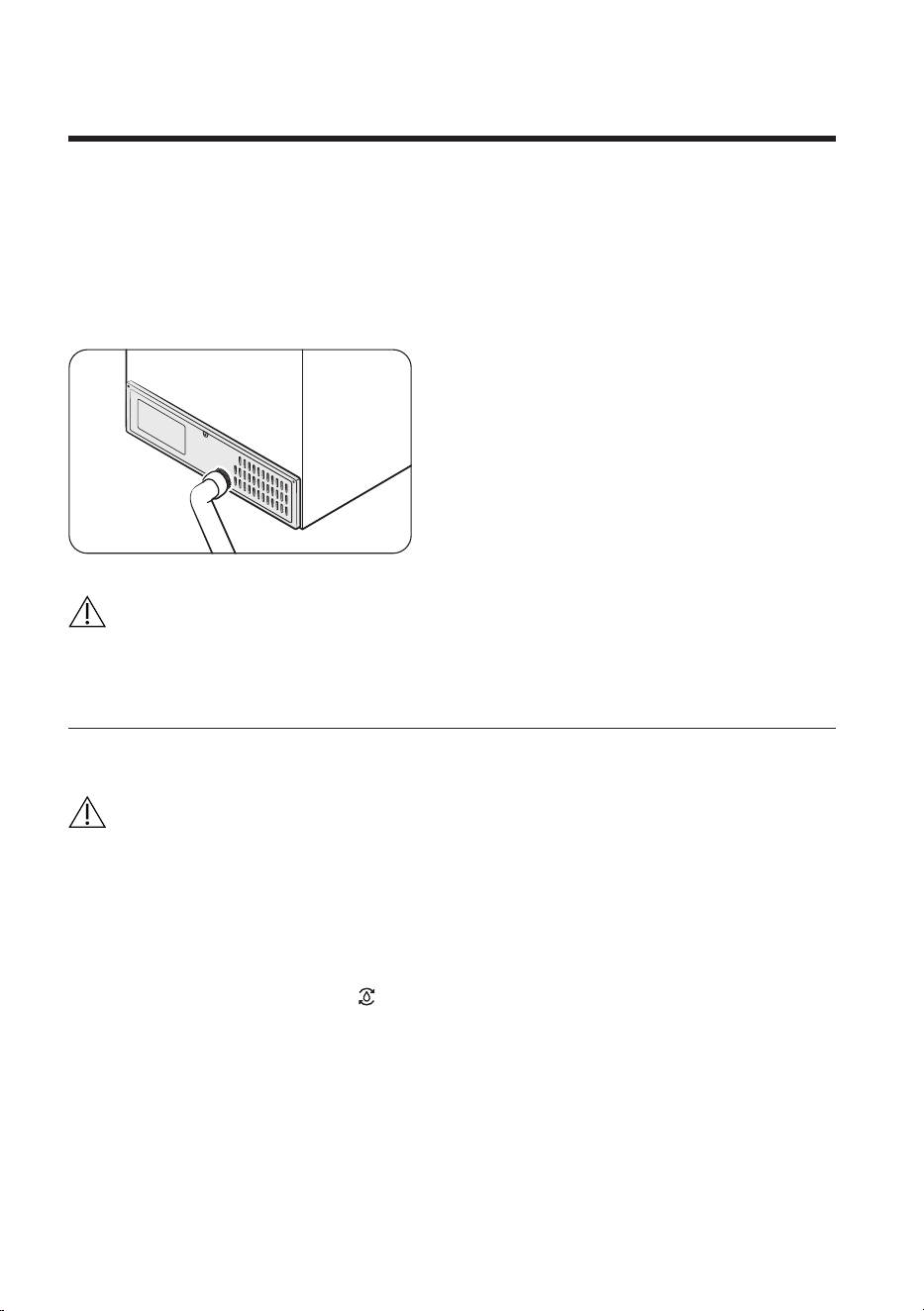

Rear panel
To keep cords and exposed parts of the
rear panel free of dirt, vacuum the panel
once or twice a year.
CAUTION
Do not remove the rear panel cover. Electric shock may occur.
Replacement
Water lter (applicable models only)
WARNING
• Use only Samsung brand replacement water lter.
- Genuine Samsung replacement lters are equipped with a QR code for verication.
- Always ensure the lter’s authenticity by scanning the QR code.
• Third Party or counterfeit lters may be subject to cracking/leaking that could lead to
property damage.
• Samsung is not responsible for any damage that may occur from use of third-party or
counterfeit water lters.
The water lter replacement icon ( ) blinks to let you know it is time to replace the water
lter. Before replacing the lter, make sure the water supply line is shut off.
Maintenance
English62

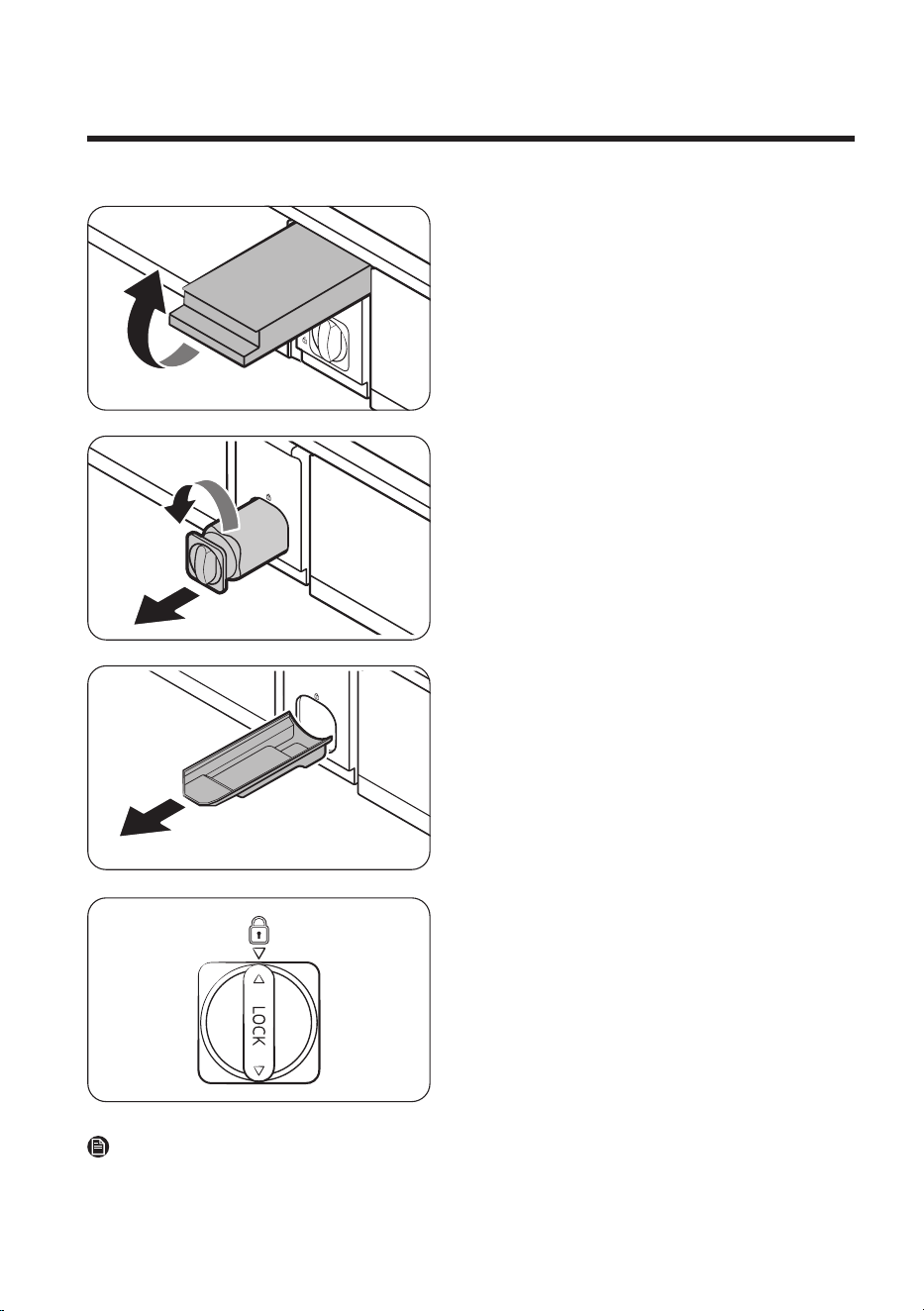

1. Shut off the water supply line.
2. Open the lter cartridge cover.
3. Turn the knob of the lter cartridge
counter clockwise 90 degrees (
1
/ 4 turn).
The lter cartridge unlocks.
4. Pull out to remove the cartridge.
- If the water lter is severely
contaminated, the cartridge may not
be easy to remove. If that is the case,
use force to remove the cartridge.
- To prevent water leaks from the lter
opening, pull the cartridge straight
out while removing it.
5. Insert a new lter cartridge. Use only
Samsung-provided or approved lters.
6. Turn the cartridge knob clockwise to
lock into place.
7. Close the lter cartridge cover.
8. Reset the water lter replacement
alarm. (For detailed instructions, see the
"Resetting or dismissing the water lter
replacement alarm" section on page 44.)
NOTE
• A newly installed lter may cause the water dispenser to spurt water briey. This is
because air has entered the waterline.
English 63
• The replacement process may cause the water dispenser to drip for a short period of
time. If it drips, simply wipe up any water on the oor with a dry towel.
Reverse osmosis water ltration system
The water pressure of the water supply system to a reverse osmosis water ltration
system must be between 206-861 kPa.
The water pressure of the reverse osmosis water ltration system to the refrigerator’s cold
water line must be at least 206 kPa. If the water pressure is below these specications:
• Check if the sediment lter in the reverse osmosis system is blocked. Replace the lter
if necessary.
• Rell the water tank in the reverse osmosis system with water.
• If your refrigerator has a water lter, it may further reduce the water pressure when
used in conjunction with a reverse osmosis system. Remove the water lter.
For more information or servicing, contact a licensed plumbing professional.
Ordering a new lter
To purchase a new water lter, contact a local Samsung service center.
LED Lamps
To replace the lamps of the refrigerator, contact a local Samsung service center.
WARNING
• The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can
cause electric shock.
English64
Troubleshooting
Before calling for service, review the checkpoints below. Any service calls regarding
normal situations (No Defect Cases) will be charged to users.
General

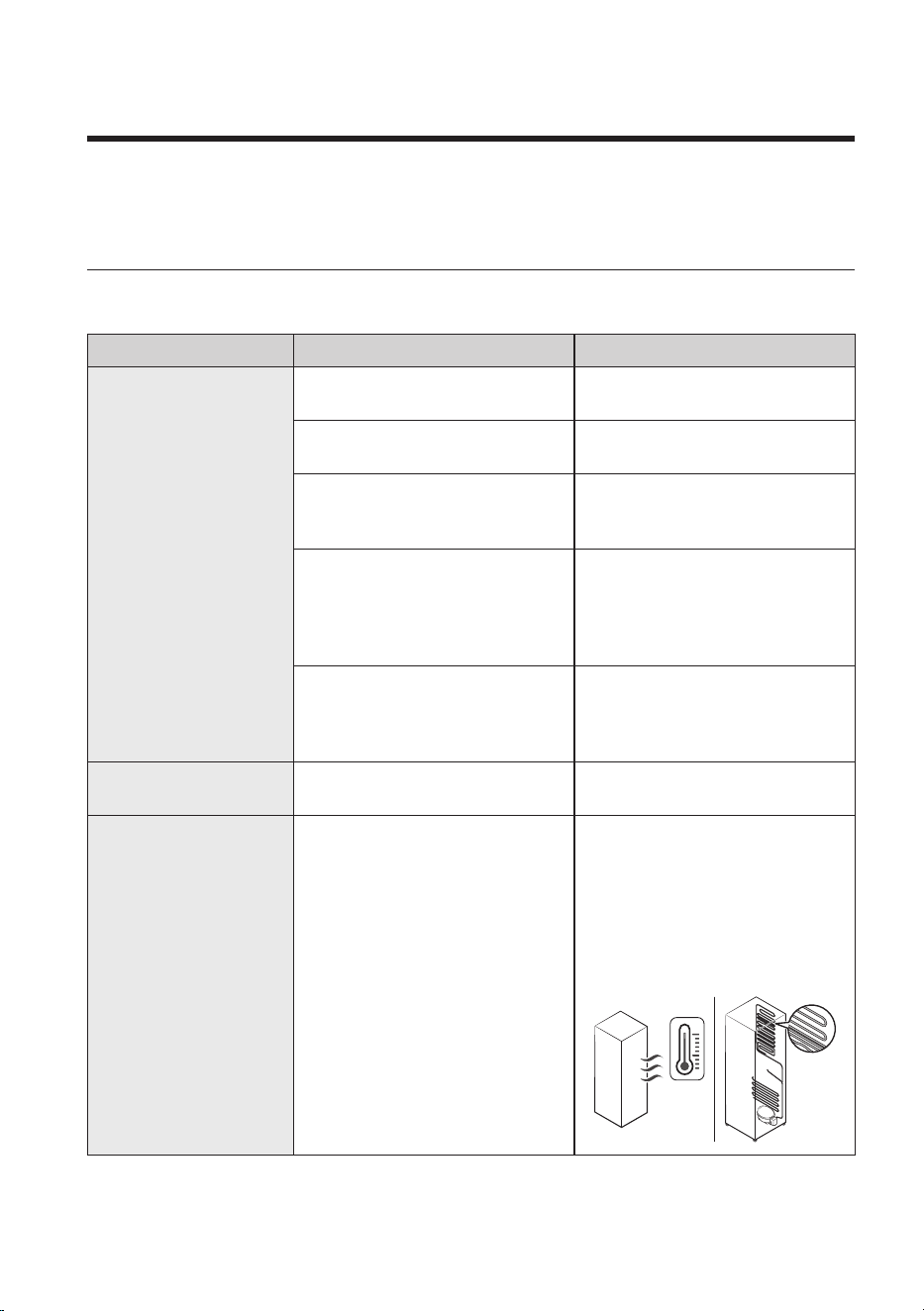

Temperature
Symptom Possible causes Solution
Fridge/freezer does
not operate.
Fridge/freezer
temperature is warm.
• Power cord is not plugged
in properly.
• Properly plug in the power
cord.
• Temperature control is not
set correctly.
• Set the temperature lower.
• Refrigerator is located near
a heat source or direct
sunlight.
• Keep the refrigerator away
from direct sunlight or a
heat source.
• Not enough clearance
between refrigerator and
nearby walls or cabinets.
• Make sure there is a gap of
at least 5 cm between the
refrigerator back and sides
and any nearby walls or
cabinets.
• The refrigerator is
overloaded. Food is
blocking the refrigerator
vents.
• Do not overload the
refrigerator. Do not allow
food to block vents.
Fridge/freezer is
over-cooling.
• Temperature control is not
set correctly.
• Set the temperature higher.
Interior wall is hot.
• Refrigerator has heat-proof
piping in the interior wall.
• To prevent condensation
from forming, the
refrigerator has heat-proof
piping in the front corners.
If the ambient temperature
rises, this equipment may
not work effectively. This is
not a system failure.
English 65
Odors
Symptom Possible causes Solution
Refrigerator has
odors.
• Spoiled food.
• Clean the refrigerator and
remove any spoiled food.
• Food with strong odors.
• Make sure strong smelling
food is wrapped airtight.
Frost
Symptom Possible causes Solution
Frost around the
vents.
• Food is blocking the vents.
• Make sure no food blocks
the refrigerator vents.
Frost on interior
walls.
• Door is not closed properly.
• Make sure food does not
block the door. Clean the
door gasket.
Condensation
Symptom Possible causes Solution
Condensation forms
on the interior walls.
• If door is left open,
moisture enters the
refrigerator.
• Remove the moisture and
do not leave a door open
for extended periods of
time.
• Food with high moisture
content.
• Make sure food is wrapped
airtight.
Troubleshooting
English66

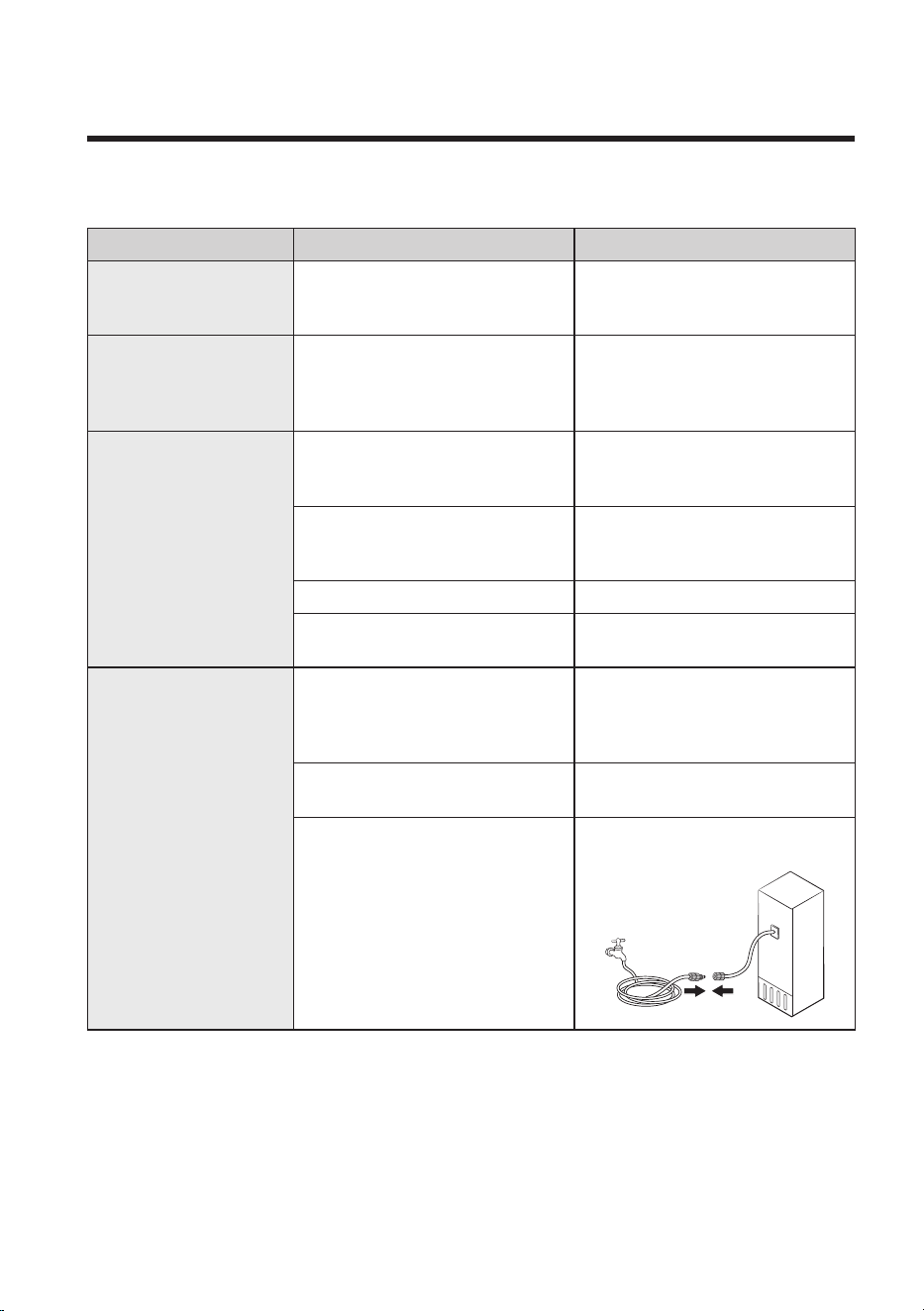

Water/ice (dispenser models only)
Symptom Possible causes Solution
Water ow is weaker
than normal.
• Water pressure is too low.
• Make sure the water
pressure is between 206-
861 kPa.
Ice maker makes a
buzzing sound.
• The ice maker function is
activated, but the water
supply to the refrigerator
has not been connected.
• Turn off the Ice Maker.
Ice maker does not
make ice.
• Ice maker has just been
installed.
• You must wait for 12 hours
for the refrigerator to make
ice.
• Freezer temperature is too
high.
• Set the freezer temperature
below -18 °C or -20 °C in
warm ambient air.
• Ice maker is off. • Turn on the ice maker.
• Ice scoop or holder remains
in the Ice bucket.
• Please keep the ice scoop in
the front holder.
Ice does not dispense.
• Ice may jam if the ice
dispenser is not used for a
long time (approx. 3 weeks).
• If you won't be using the
refrigerator for a long time,
empty the ice bucket and
turn off the ice maker.
• Ice bucket is not properly
inserted.
• Make sure the ice bucket is
properly inserted.
• Water line is not connected
properly or water supply is
not on.
• Check the water installation
conditions.
English 67

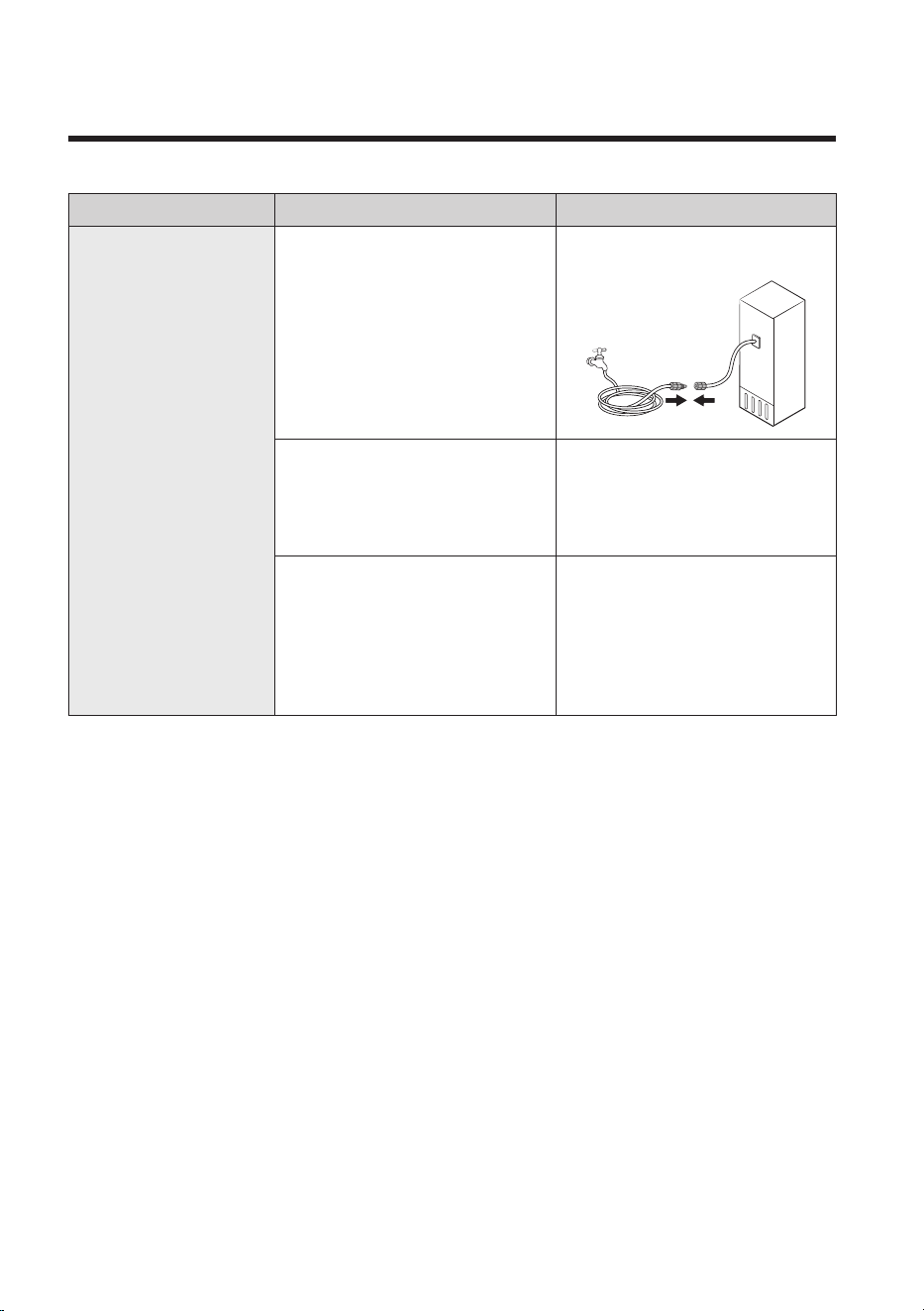

Symptom Possible causes Solution
Water does not
dispense.
• Water line is not connected
properly or water supply is
not on.
• Check the water installation
conditions.
• A third-party water lter
was installed.
• Use only Samsung-provided
or approved lters.
• Unapproved lters may
leak and damage the
refrigerator.
• The " Replace water lter"
message appears on the
main panel.
• Replace the water lter.
Then, reset the water lter
replacement alarm. (For
detailed instructions, see
the "Resetting or dismissing
the water lter replacement
alarm" section on page 44.)
Troubleshooting
English68

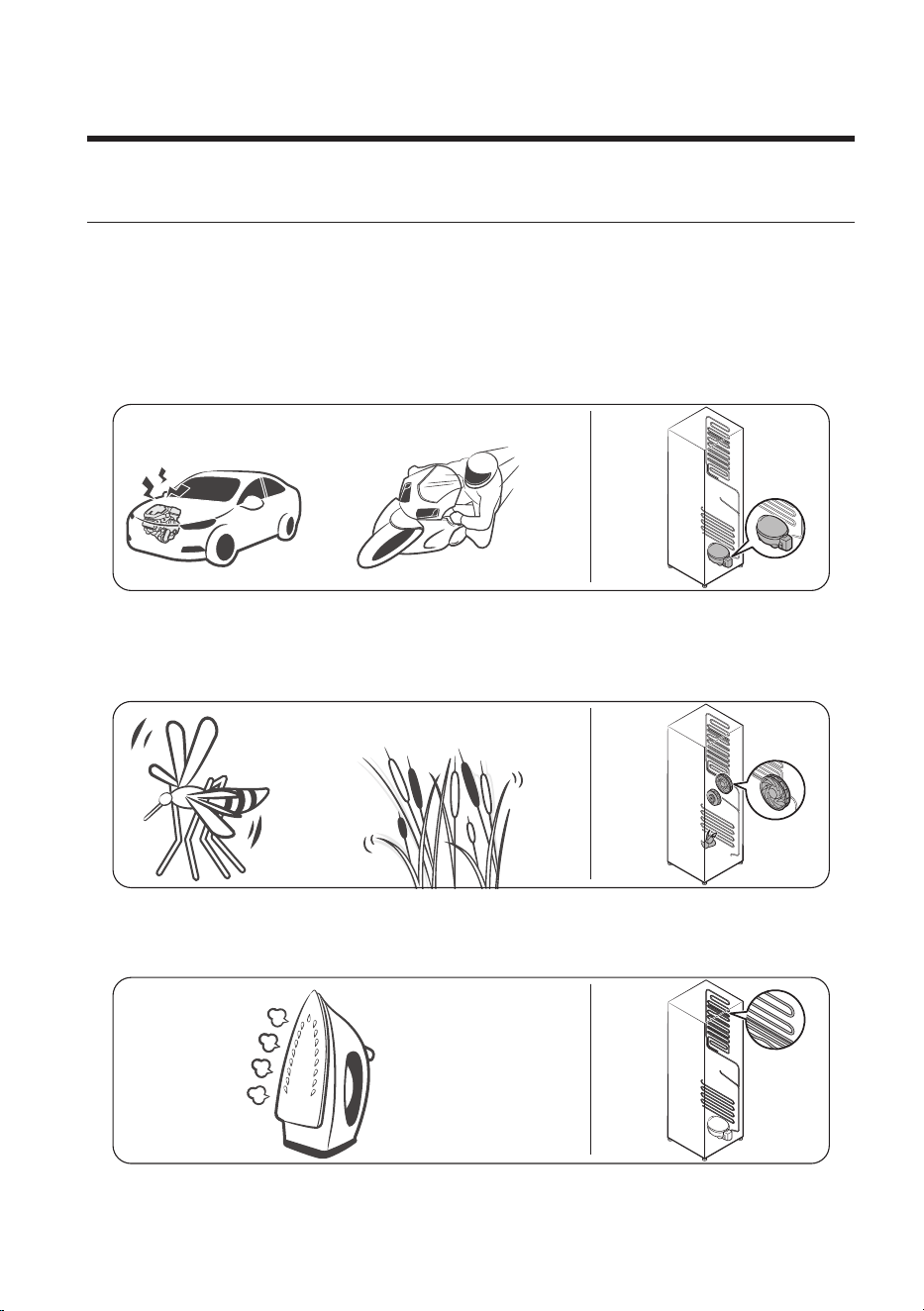

Do you hear abnormal sounds from the refrigerator?
Before calling for service, review the checkpoints below. Any service calls related to
normal sounds will be charged to the user.
These sounds are normal.
• When starting or ending an operation, the refrigerator may make sounds similar to a
car engine igniting. As the operation stabilizes, the sounds will decrease.
Clicking!
or Chirping!
Buzzing!
• While the fan is operating, these sounds may occur. When the refrigerator reaches the
set temperature, no fan sound will occur.
SSSRRR!
Whir!
• During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.
HiSS!
English 69

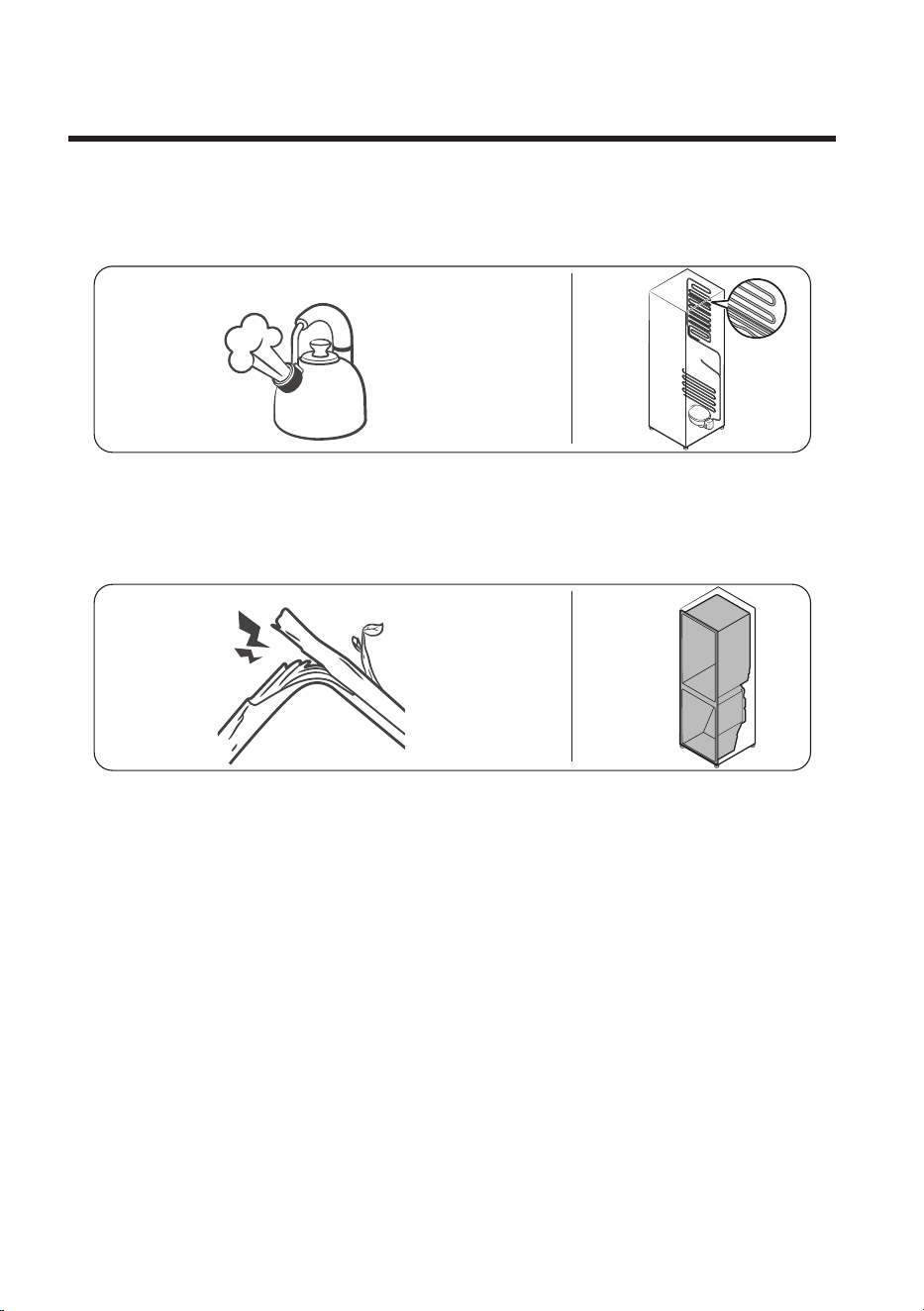

• As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing
bubbling sounds.
Bubbling!
• As the refrigerator temperature increases or decreases, plastic parts contract and
expand, creating knocking noises. These noises occur during the defrosting cycle or
when electronic parts are working.
Cracking!
• For ice maker models: When the water valve opens to ll the ice maker, buzzing sounds
may occur.
• Because of pressure equalizing when opening and closing the refrigerator door,
whooshing sounds may occur.
Troubleshooting
English70
SmartThings
Symptom Action
Could not nd
“SmartThings” in the
app market.
• The supporting software version of the SmartThings app is
subject to change according to the OS supporting policy the
manufacturer provides. In addition, as for the SmartThings
app or the functions that the app supports, the new
application update policy on the existing OS version can be
suspended due to usability or security reasons.
The SmartThings app
fails to operate.
• The SmartThings app is available for applicable models only.
• The old Samsung Smart Refrigerator app cannot connect with
Samsung Smart Home models.
The SmartThings
app is installed but is
not connected to my
refrigerator.
• You must log into your Samsung account to use the app.
• Make sure that your router is operating normally.
• If the Wi-Fi icon on the refrigerator’s display is off, this
indicates that no network connection has been established
yet. In this case, use the SmartThings app to connect and
register your refrigerator to the access point (AP) of your
house.
Could not log into the
app.
• You must log into your Samsung account to use the app.
• If you don’t have a Samsung account, follow the app’s
onscreen instructions to create one.
An error message
appears when I
try to register my
refrigerator.
• Easy Connection may fail due to the distance from your
access point (AP) or electrical interference from the
surrounding environment. Wait a moment and try again.
The SmartThings
app is successfully
connected to my
refrigerator but does
not run.
• Exit and restart the SmartThings app, or disconnect and
reconnect the router.
• Power off the refrigerator, and then power it on again after
1 minute.
The Wi-Fi icon is
blinking. ( )
• Connect your refrigerator with the SmartThings app before
use. When the connection is made successfully, the indicator
stops blinking.
- If you fail to make connection or don’t want to use
the app, press and hold the button for 10 seconds.
The indicator stops blinking with " O FF " shown on the
temperature display.
English 71
Open Source Announcement
Open Source Announcement
The software included in this product contains open source software.
The following URL http://opensource.samsung.com/opensource/SMART_TP1_0/seq/0 leads
to open source license information as related to this product.
AUSTRALIA
1300 362 603 (Other)
1300 425 299 (HHP)
www.samsung.com/support
NEW ZEALAND
0800 726 7864 (All Products)
0800 726 786 (All products)
both numbers are linked with same line
OID64485-03
