LANDON CEILING FAN
ITEM #5407125
Purchase Date
1
Español p. 18
MODEL #LAN52WW5LD
ATTACH YOUR RECEIPT HERE
4007498
APPROVED FOR USE IN
DAMP LOCATIONS
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
Safety Information ..........................................................................................................................2
Package Contents .........................................................................................................................5
Hardware Contents ........................................................................................................................6
Preparation ....................................................................................................................................6
Initial Installation .............................................................................................................................6
Wiring ............................................................................................................................................10
Final Installation ............................................................................................................................12
Operating Instructions .................................................................................................................14
Care and Maintenance .................................................................................................................16
Troubleshooting ...........................................................................................................................16
Limited Lifetime Warranty ............................................................................................................17
Replacement Parts List ...............................................................................................................17
TABLE OF CONTENTS
2
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could void
the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053 1-800-527-1292
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: Dimmable to 10% with select dimmers.
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs,
it must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 18.74 lbs.
SAFETY INFORMATION
3
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a
qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead
wires, consult an electrician for the proper size wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
SAFETY INFORMATION
4
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan
blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
CAUTION
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
IMPORTANT: You must use the parts provided
with this fan for proper installation and safety.

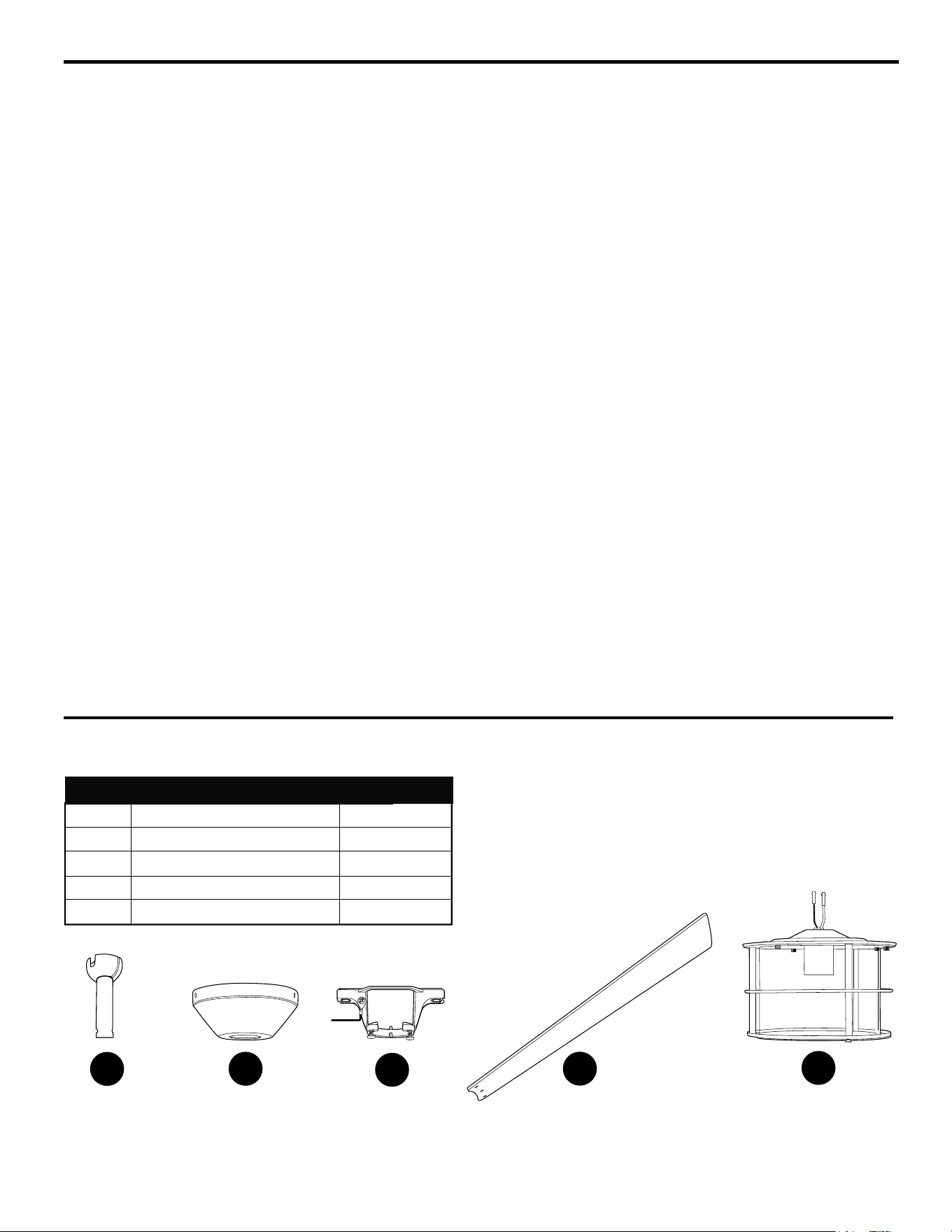

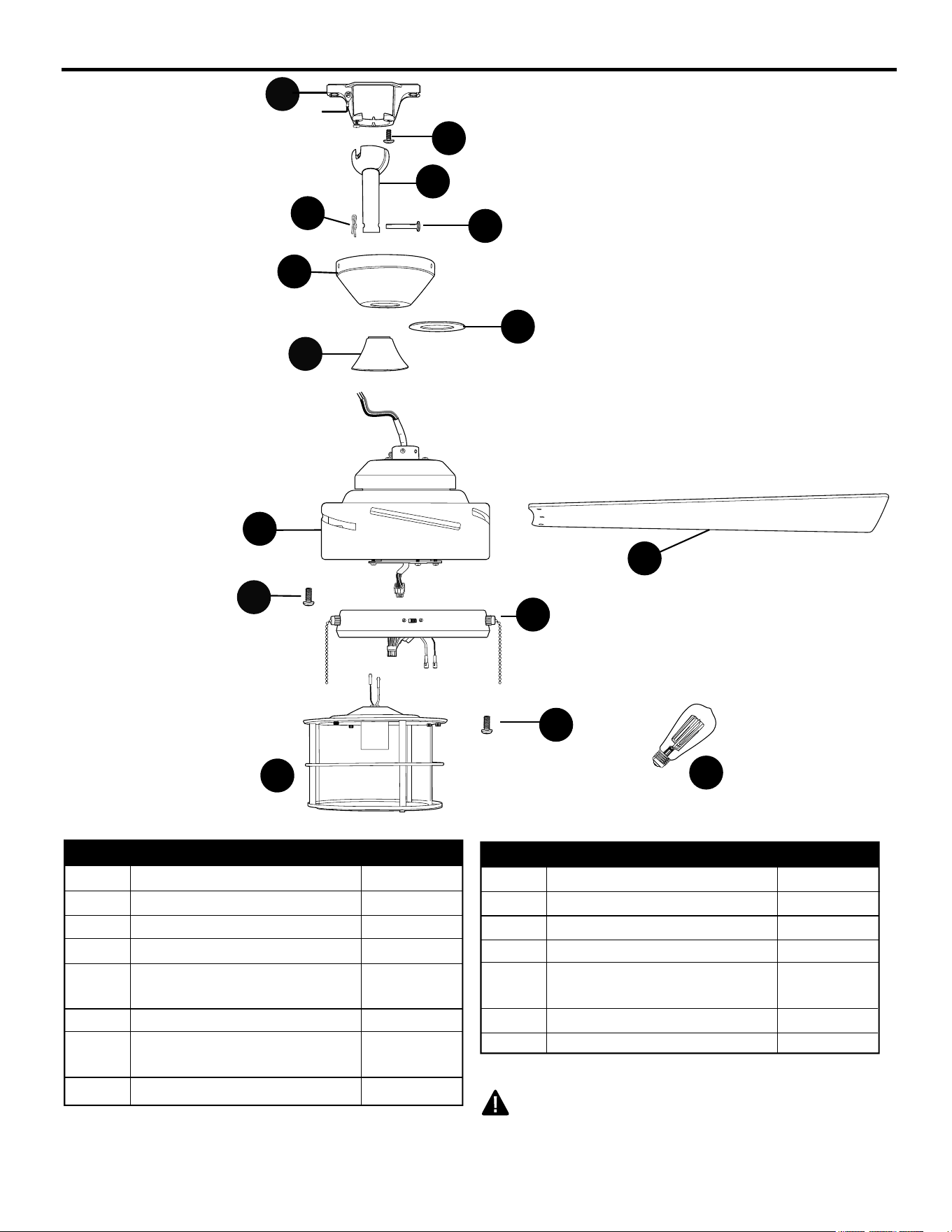

A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Motor Housing 1
E Motor Plate Screw 3
(preassembled)
F Switch Housing 1
G Switch Housing Screw 3
(preassembled)
H Blade 5
DESCRIPTIONPART
QUANTITY
PACKAGE CONTENTS
5
DESCRIPTIONPART
QUANTITY
I Light Kit Fitter 1
J Pin (preassembled) 1
K Clip (preassembled) 1
L Bulb 1
M Canopy Mounting Screw 2
(preassembled)
N Canopy Cover 1
O Yoke Cover 1
B
F
J
I
H
G
L
N
E
K
A
C
M
O
D
6
PREPARATION
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to install, operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters

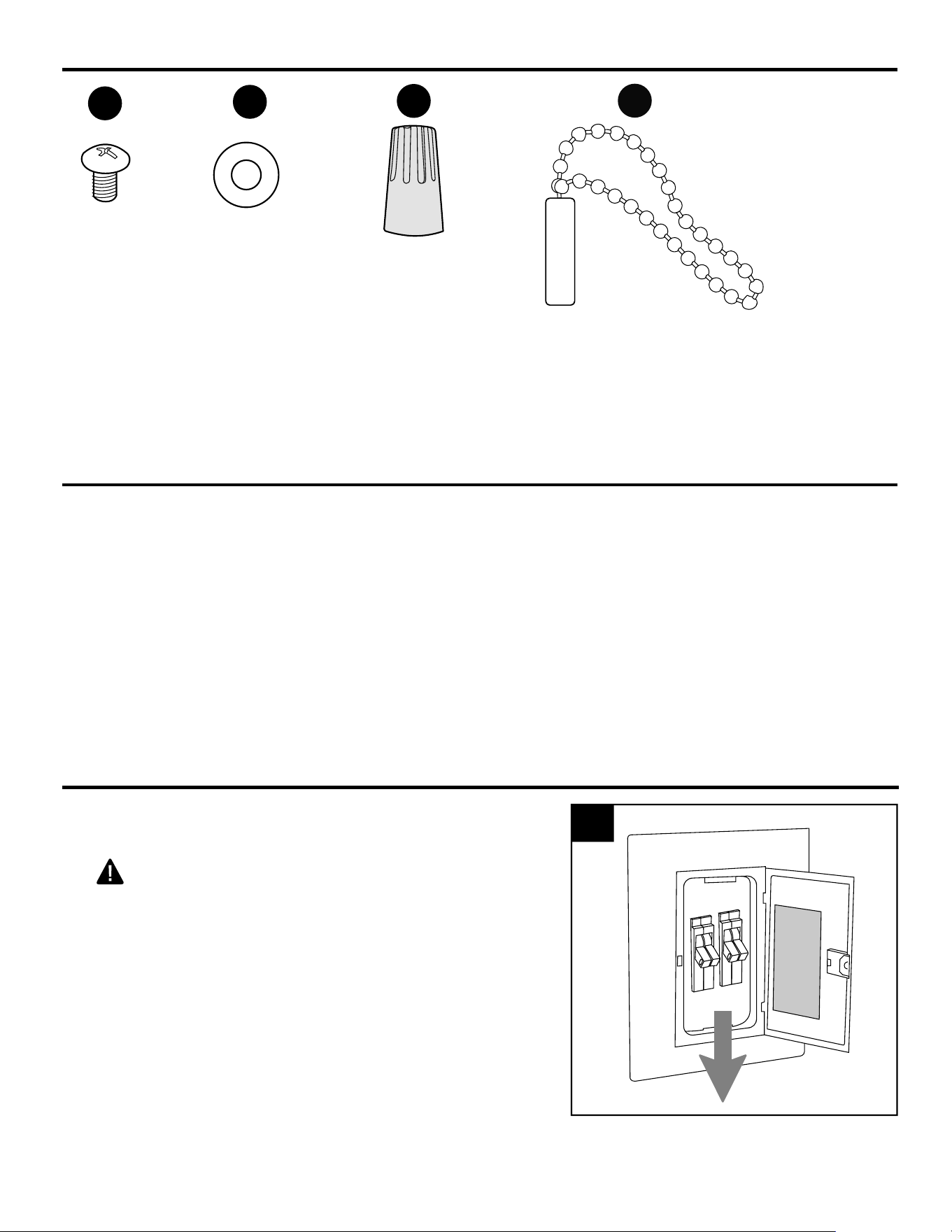

Turn off circuit breakers or fuse and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
AA
CC
Wire
Connector
Qty. 4
CC
Blade
Screw
Qty. 15
+ 1 extra
Fiber Blade
Washer
Qty. 15
+ 1 extra
BB
Pull Chain
Extension
Qty. 2
DD
7
INITIAL INSTALLATION
2.

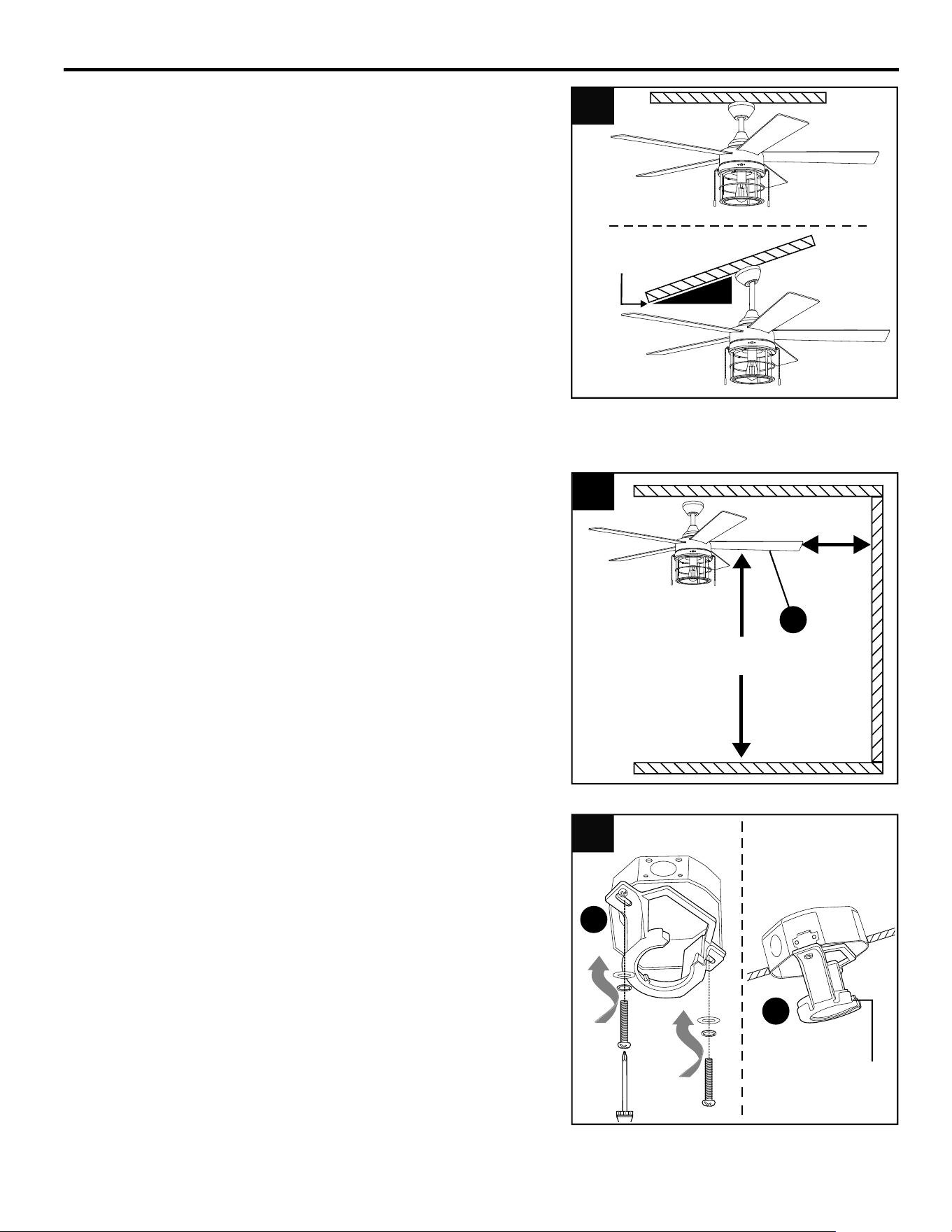

Determine mounting method to use.
A. Standard mount
B. Angle mount
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 17°.
NOTE: Closemount option is not available for this
fan.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. high or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best suited
for angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
Check to make sure blades (H) will be at least
30 inches from any obstruction. Check downrod
(A) length to ensure blades (H) will be at least 7 ft.
above the floor.
3.
7 ft.
min.
30 in.
min.
3
H
2
B
A
17° max.
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is installed
facing the higher point of the ceiling, and ensure
the ceiling angle is not steeper than 17°.
Open End
4
C
C
ANGLE MOUNTSTANDARD
MOUNT
4.
4
INITIAL INSTALLATION
8
6.

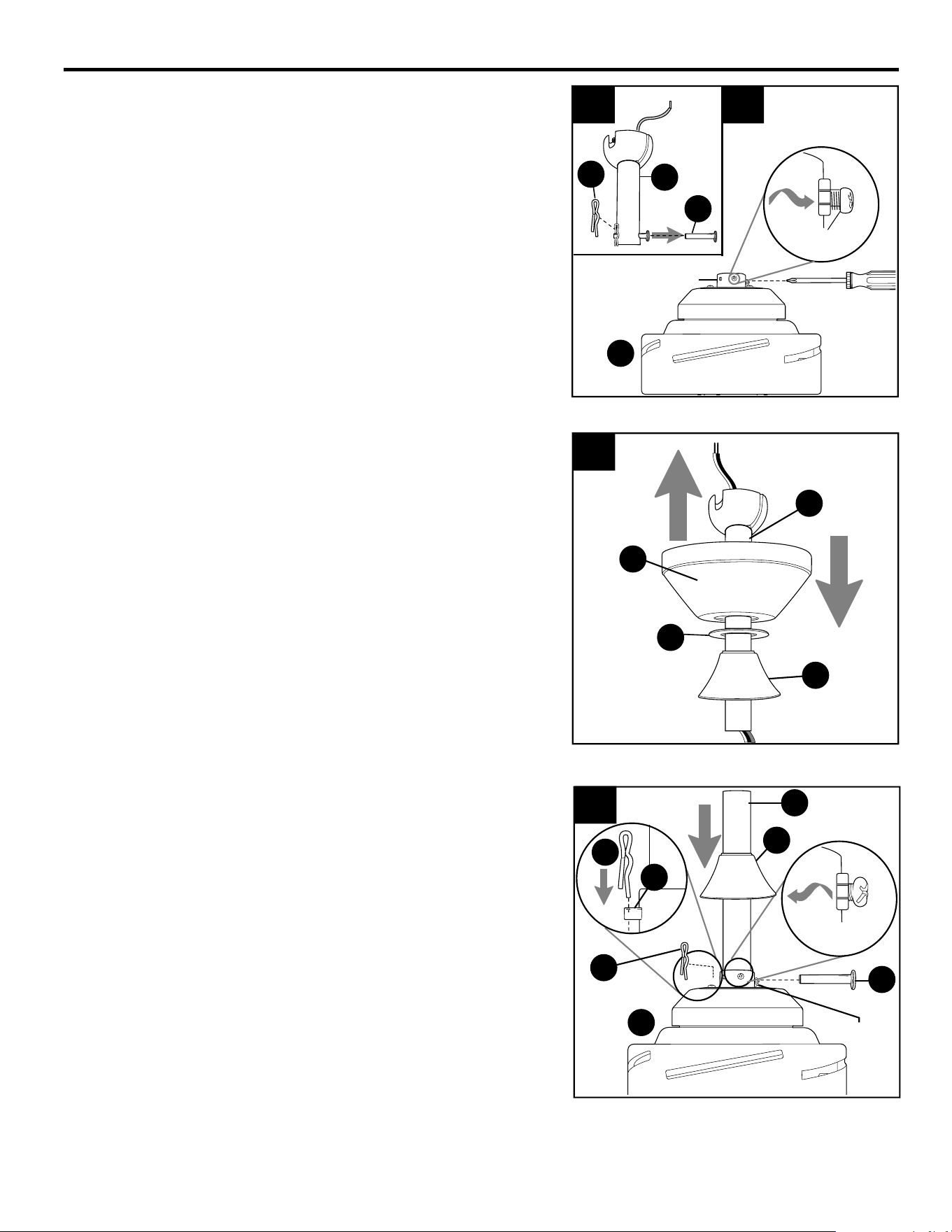

Insert downrod (A) through canopy (B), canopy
cover (N) and yoke cover (O). NOTE: Canopy
cover (N) must be turned with the smooth side
toward the motor housing (D).
Then, thread wires from motor housing (D)
through downrod (A).
6
B
O
A
N
7.
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (J) and clip (K). Tighten
set screws in motor housing yoke and then tighten
preassembled nut on one of the set screws. Then,
slide yoke cover (O) down until it rests on top of
motor housing (D).
7
D
O
J
K
Yoke
K
J
Set Screw
and Nut
Sideview
A
Remove pin (J) and clip (K) from downrod (A).
Partially loosen preassembled set screws and nut
in motor housing yoke at top of motor housing (D).
5A.
5A
K
J
5B
A
Set Screw
Sideview
D
Yoke
5B.
INITIAL INSTALLATION
9

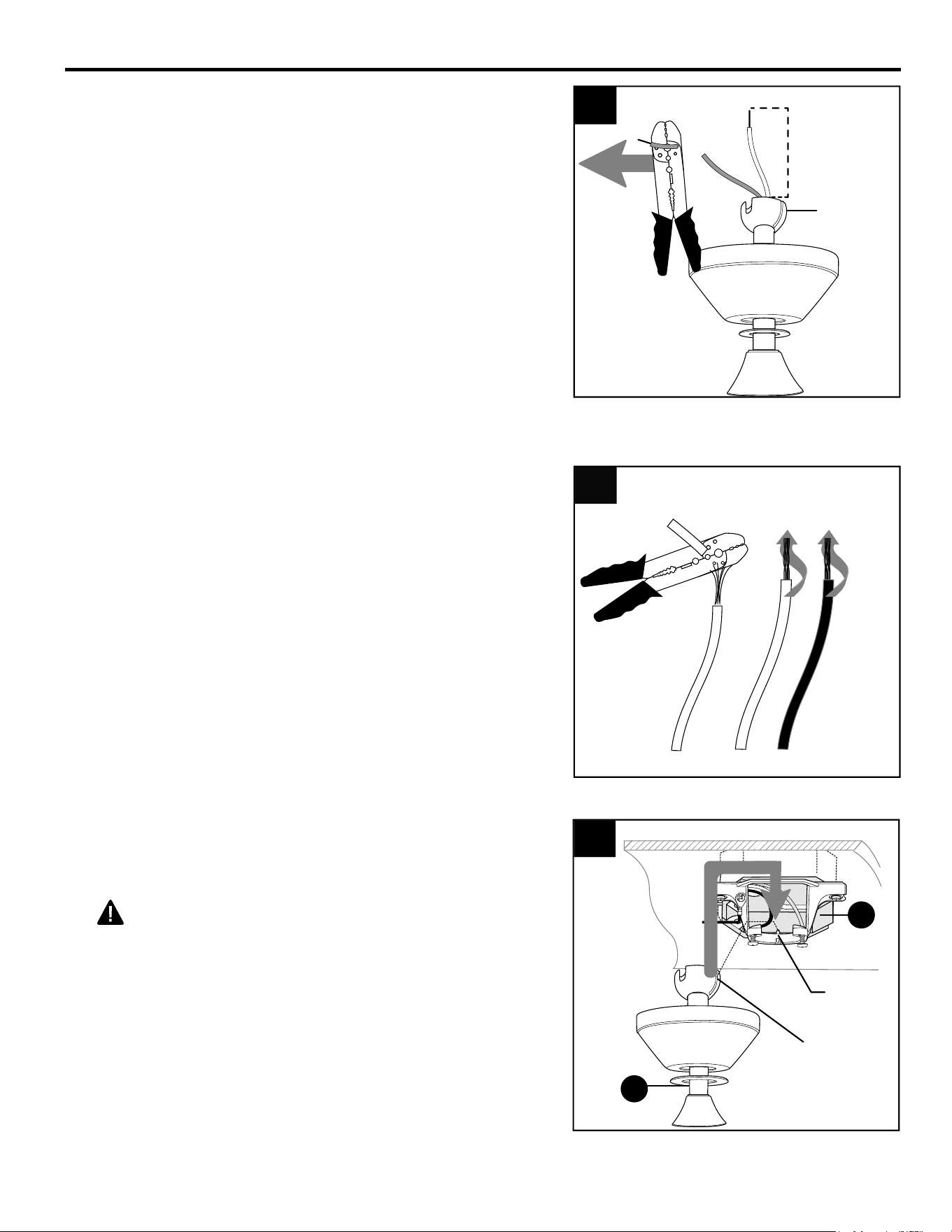

Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify
the wiring. If you decide to cut back the lead
wires, it is suggested you do so in the following
manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, then
cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 8 and 9 are not necessary and you may
proceed to Step 10 instead.
8.
Hanging
Ball
8
8 in.
If you decided to cut back the lead wires in Step 8,
strip 3/4 in. of insulation from end of each wire --
white, black, green and blue (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
9.
9
Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align one of the slots in
hanging ball with tab in mounting bracket (C).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury or
death.
10.
A
Tab
10
C
Slot

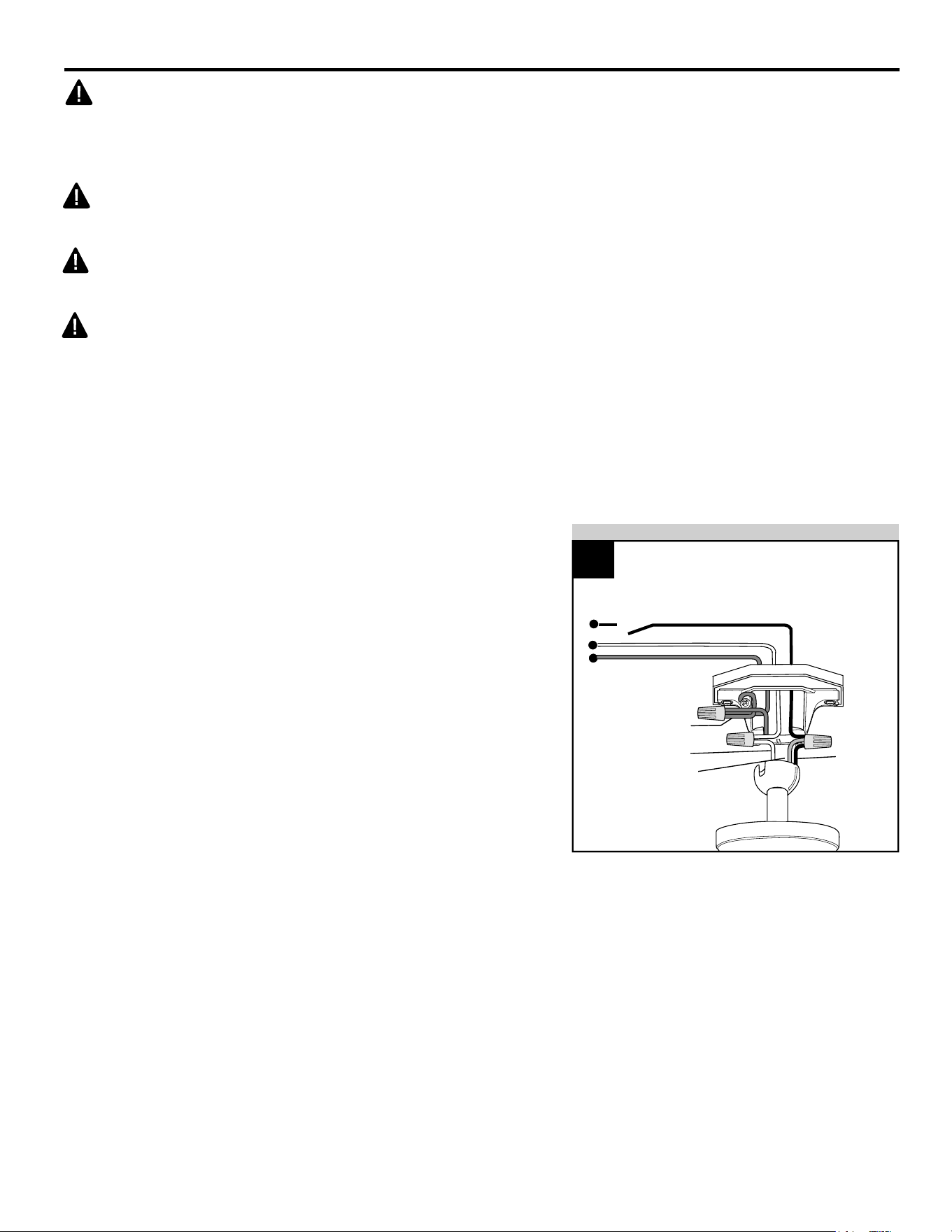

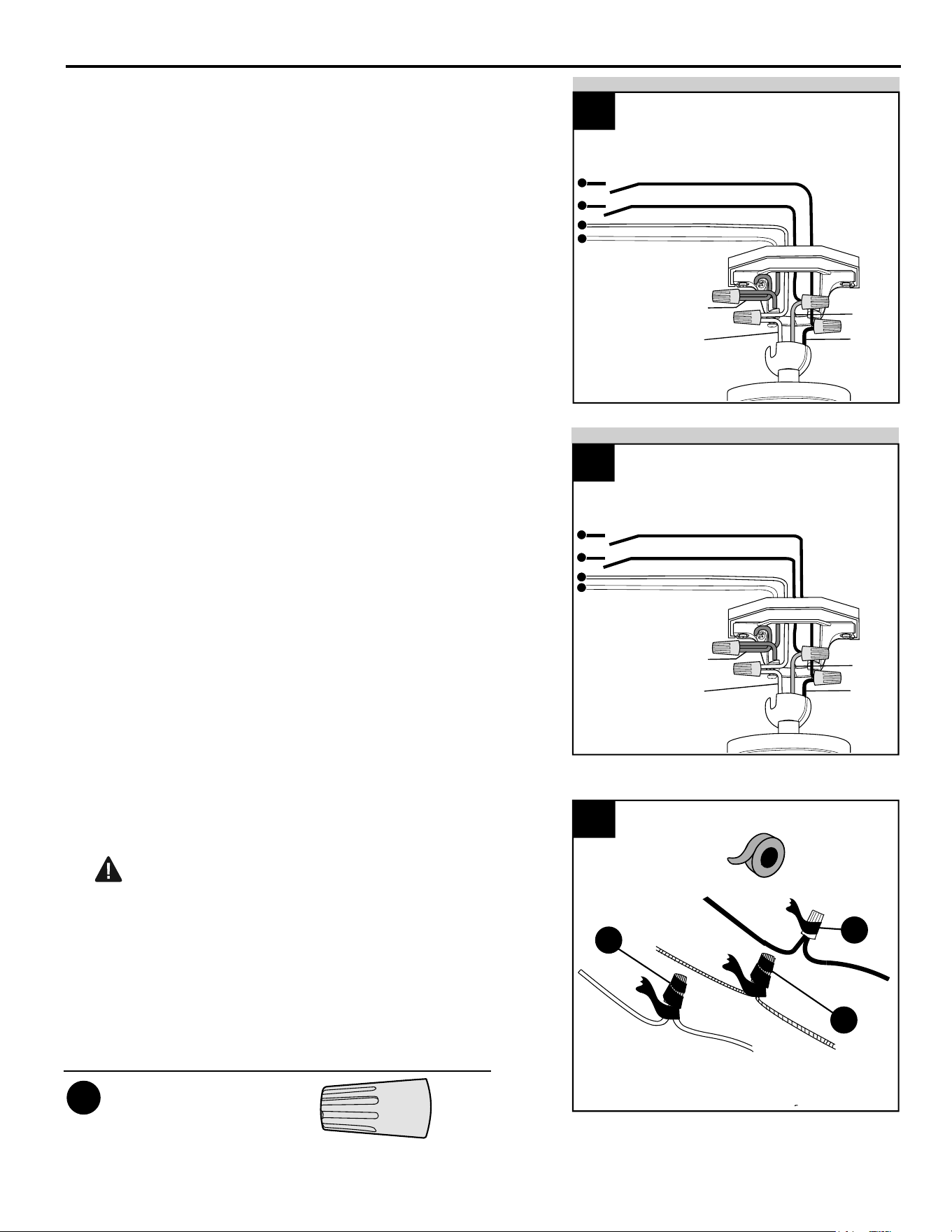

Choose wiring diagram (Fig. 1A, Fig. 1B or Fig.
1C) that fits your situation and make appropriate
wiring connections as follows: [IMPORTANT: Use
one of the wire connectors (CC) provided to make
each wire connection, making sure to screw wire
connector (CC) on in a clockwise direction.]
1A. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from
fan to BLACK wire from ceiling. Connect WHITE
wire from fan to WHITE wire from ceiling.
Connect GROUND (GREEN) wires from
downrod (A) and mounting bracket (C) to
BARE/GREEN wire from ceiling.
1.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1A
FAN AND LIGHT CONTROLLED BY PULL CHAINS
120V POWER
FROM CEILING
BLACK (POWER)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
GREEN
WHITE
BLACK
BLUE
10
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
WIRING
NOTE: This fan is remote control adaptable (remote control not included). Please refer to instructions
provided with the remote control before proceeding with these wiring instructions.
WIRING
11
1C. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: Connect BLACK wire from
fan to BLACK (or RED) wire from the
independent wall switch for the fan. Connect
BLUE wire from fan to the BLACK (or RED) wire
from the other independent wall switch for the
light. Connect WHITE wire from fan to WHITE
wire from ceiling. Connect GROUND (GREEN)
wires from downrod (A) and mounting bracket
(C) to BARE/GREEN wire from ceiling.
NOTE: BLACK wire is hot power for fan. BLUE
wire is hot power for light kit. WHITE wire is
common for fan and light kit. GREEN or BARE
wire is ground.
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place GREEN and WHITE wire connections on
the opposite side of the outlet box from the
BLACK and BLUE wire connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
2.
CC
Wire Connector x 4
Hardware Used
CC
CC
2
CC
1B. FAN CONTROLLED BY PULL CHAIN,
LIGHT BY WALL SWITCH: Connect BLACK
wire from fan to BLACK wire from ceiling.
Connect BLUE wire from fan to the BLACK (or
RED) wire from the independent wall switch for
the light. Connect WHITE wire from fan to
WHITE wire from ceiling. Connect GROUND
(GREEN) wires from downrod (A) and mounting
bracket (C) to BARE/GREEN wire from ceiling.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1C
120V POWER
FROM CEILING
BLACK (WALL SWITCH)
BLACK (WALL SWITCH FOR LIGHT)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
1B
WHITE
BLACK
BLUE
120V POWER
FROM CEILING
BLACK (POWER)
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
GREEN
WHITE
BLACK
BLUE
GREEN
12
FINAL INSTALLATION
1.
1
M
B
Knobs
N

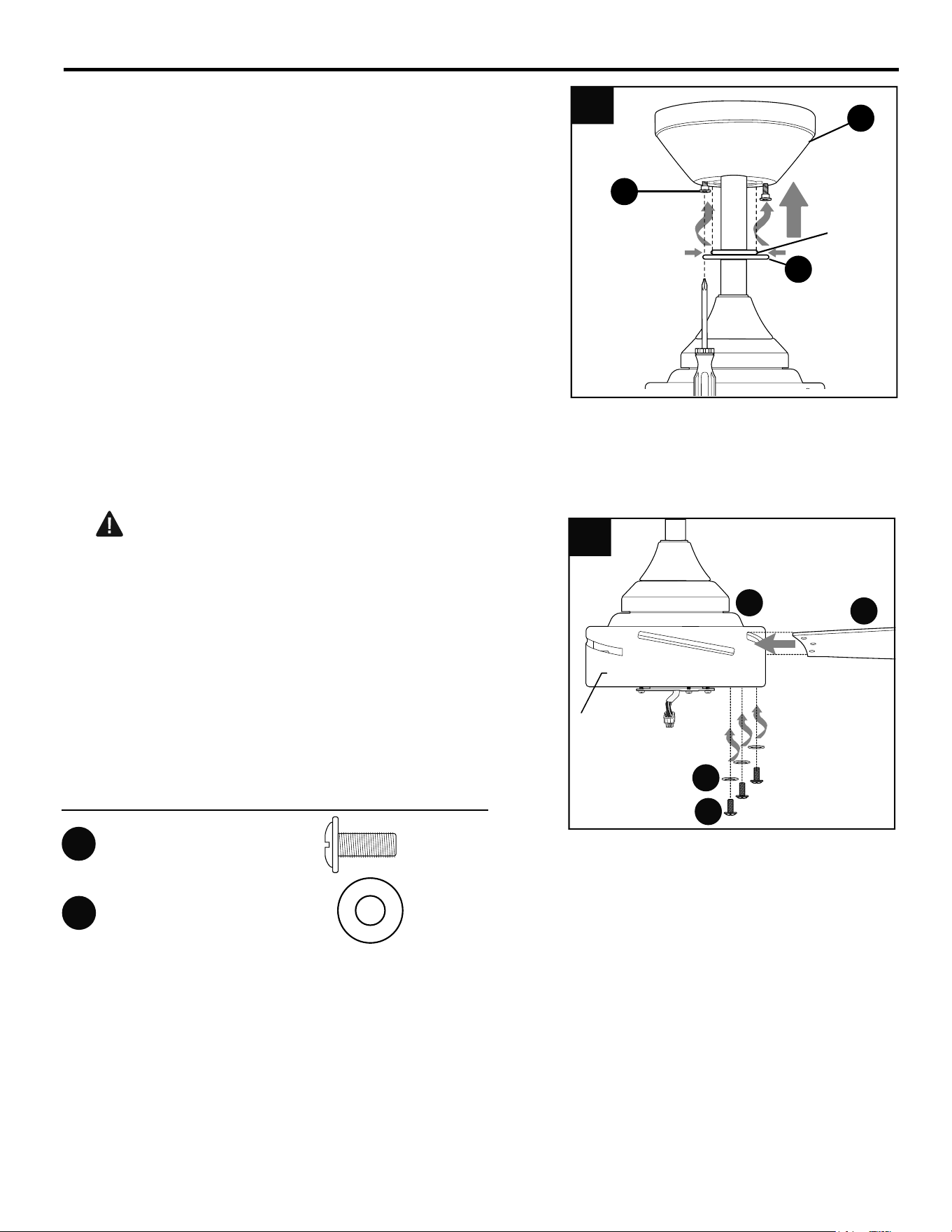

Locate two canopy mounting screws (M) on
underside of mounting bracket (C) and remove
canopy mounting screw (M) closest to the open
end of the mounting bracket (C). Partially loosen
the other canopy mounting screw (M). Lift canopy
(B) to mounting bracket (C). Place rounded part of
slotted hole in canopy (B) over loosened canopy
mounting screw (M) and push up. Twist canopy
(B) to lock. Re-insert canopy mounting screw (M)
that was removed, then tighten both canopy
mounting screws (M).
Locate knobs on center ring of canopy cover (N).
Slide canopy cover (N) up to canopy (B), aligning
knobs on canopy cover (N) with openings in
bottom of canopy (B). Press up firmly on the
canopy cover (N) until it fits into the bottom of the
canopy (B) and then turn canopy cover (N) about
½ in.
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (H). If screws are overtightened, blades (H)
may crack and break.
Insert the blade (H) through the slot on the band of
the motor housing (D). Align holes in blade (H) with
holes in plate on underside of motor. Attach the
blade (H) with blade screws (AA) and fiber blade
washers (BB). Then, tighten each blade screw (AA),
starting with the one in the middle. Repeat for
remaining blades (H).
2.
3
2
D
H
BB
AA
AA
Blade Screw x 15
Fiber Blade Washer x 15
BB
Hardware Used
Band
D
I
G
FINAL INSTALLATION
Install bulb (L).
IMPORTANT: When you need to replace bulb please
allow the bulb (L) and light kit fitter (I) to cool down
before touching.
5.
13
5
L
3.

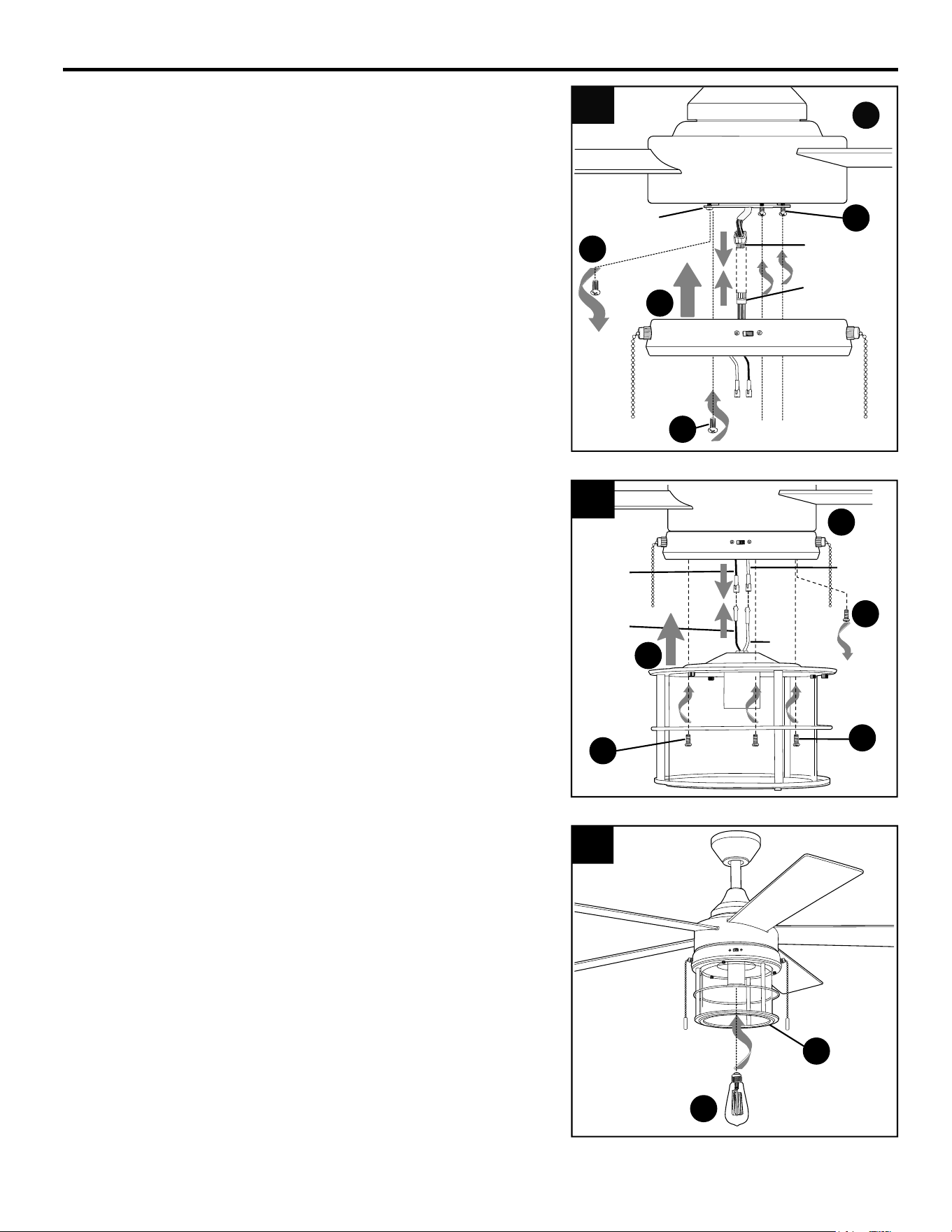

Remove one motor plate screw (E) from posts on
motor plate preassembled on the underside of the
motor housing (D) and partially loosen the other two
motor plate screws (E). Connect male plug from
motor housing (D) to female plug from switch
housing (F), matching up the colors on the plugs for
correct fit. Make sure plugs connect tightly.
Carefully arrange wires inside switch housing (F).
Align slotted holes in switch housing (F) with
loosened motor plate screws (E), allowing male and
female plug connections to come through hole in
switch housing (F). Twist switch housing (F) to lock.
Re-insert the motor plate screw (E) that was
removed and securely tighten all three motor plate
screws (E).
3
I
E
I
E
I
E
F
D
Motor
Plate
Male Plug
BLUE
WHITE
Female
Plug
4.
Remove one switch housing screw (G) from posts on
the underside of switch housing (F) and partially
loosen the other two switch housing screws (G).
Connect WHITE wire from switch housing to WHITE
wire from light kit fitter (I). Connect BLUE (or BLACK)
wire from switch housing (F) to BLUE wire from light
kit fitter (I). Make sure molex connections are secure.
Align slotted holes in light kit fitter (I) with loosened
switch housing screws (G). Twist light kit fitter (I) to
lock. Re-insert the switch housing screw (G) that was
removed and securely tighten all three switch housing
screws (G).
4
BLUE
WHITE
I
G
G
OPERATING INSTRUCTIONS
FINAL INSTALLATION
14
2.

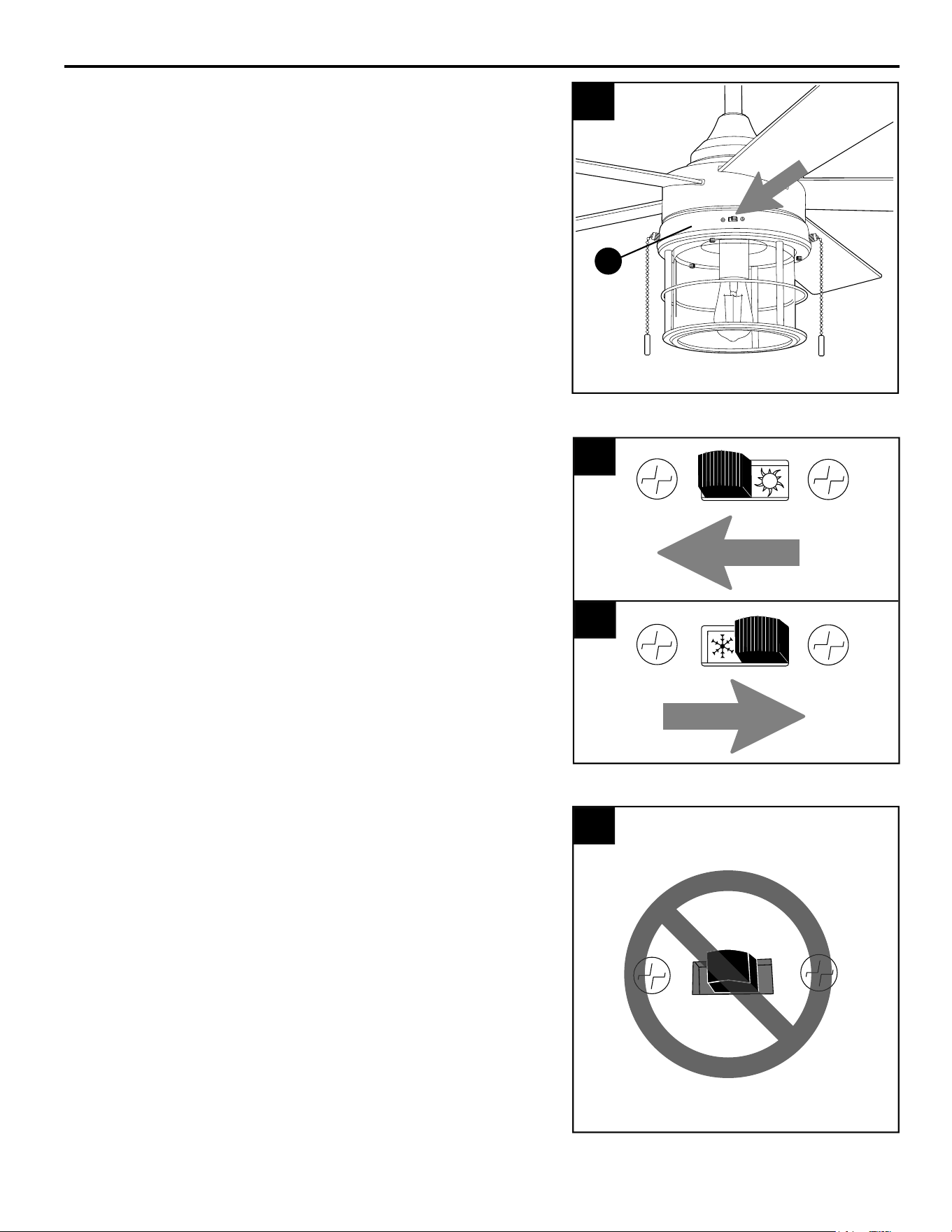

The light pull chain, located to the left of the
reverse switch, is used to turn the light ON
or OFF.
The fan pull chain, located on the switch
housing (F), has four positions to control fan
speed. One pull is HIGH, two is MEDIUM,
three is LOW and four turns the fan OFF.
1.
6.

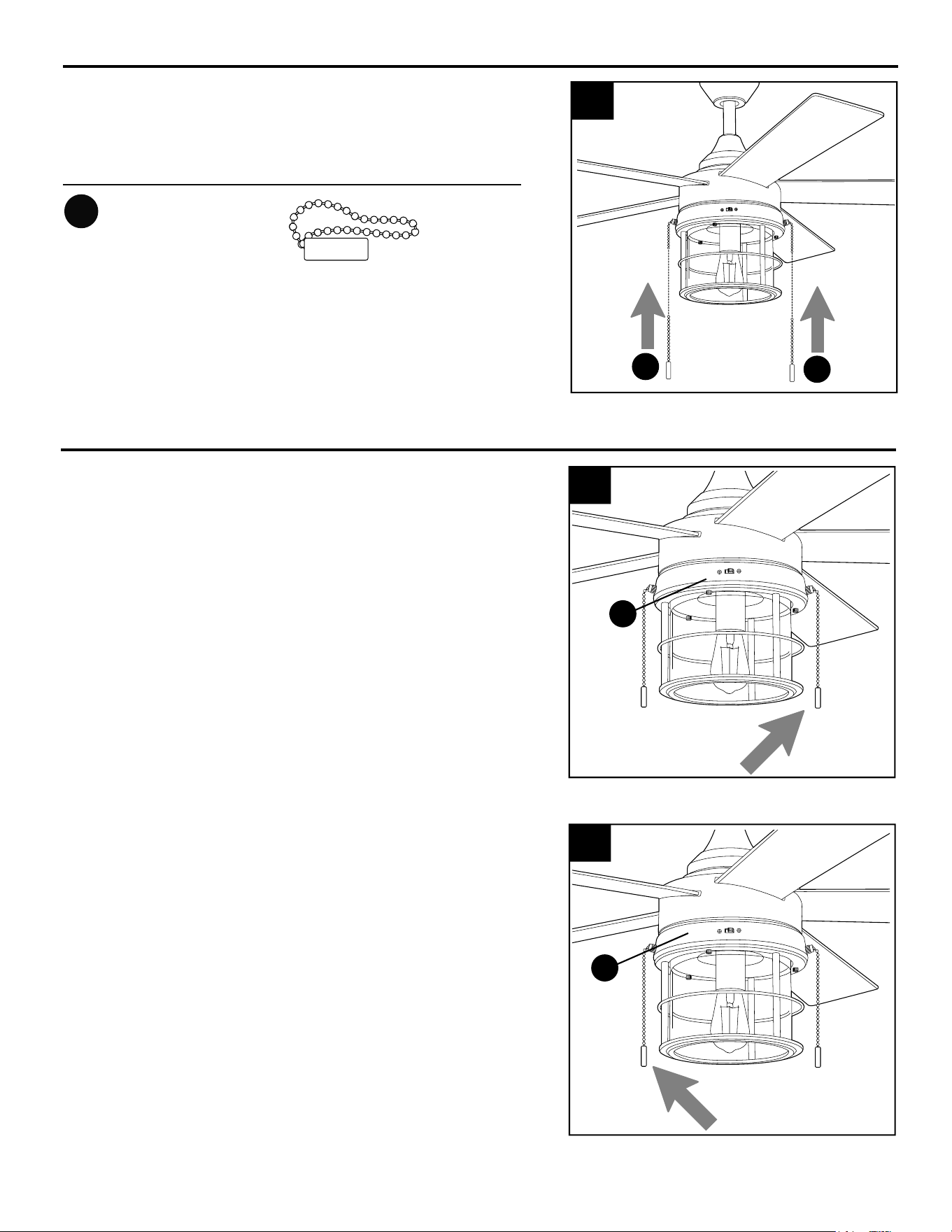

Attach pull chain extensions (DD) or custom pull
chain extensions (not included) to corresponding
fan and light pull chains.
Pull Chain x 2
Extension
Hardware Used
DD
6
DD
DD
1
F
F
2
OPERATING INSTRUCTIONS
15
3C. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT
for fan to function. If the reverse switch is set in
the middle position, fan will not operate.
3.
Use the fan reverse switch, located on the
switch housing (F), to optimize your fan for
seasonal performance. A ceiling fan will allow
you to raise your thermostat setting in summer
and lower your thermostat setting in winter
without feeling a difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
3A. In warmer weather, setting the reverse
switch in the LEFT position will result in
downward airflow creating a wind chill effect.
3B. In cooler weather, setting the reverse
switch in the RIGHT position will result in
upward airflow that can help move stagnant,
hot air off the ceiling area.
F
3
3A
3B
3C
16
Excessive wobbling.
1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing yoke
is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Switch one blade with a blade from the
opposite side.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move fan to
another location.
5. Tighten yoke set screw(s) securely.
6. Carefully loosen and lower canopy and
verify that set screw on hanging ball is
tightened securely.
CARE AND MAINTENANCE
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all screws
on the fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the finish.
Clean blades (H) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to
wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use one standard-base 6-watt LED bulb or CFL/incandescent equivalent.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either left or right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy and
check all connections.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a few
days, especially when running the fan
at Medium and High speeds.
TROUBLESHOOTING
Fan operates but
light fail.
1. Bulb not installed correctly.
2. Wires in canopy not wired
properly.
3. Wall switch to light is off.
4. Wires in light kit fitter not wired
correctly.
1. Re-install bulb.
2. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 10 - 11.
3. Make sure that wall switch to light is
on.
4. Check that molex connections in light
kit fitter are connected properly
according to instructions on page 13.
17
GGLI2409
REPLACEMENT PARTS LIST
A Downrod
B Canopy
C Mounting Bracket
H Blade
I Light Kit Fitter
5127873-A
5127873-B
5127873-C
5127873-H
5127873-I
PART DESCRIPTION PART #
A
B
H
I
Printed in China
LIMITED LIFETIME WARRANTY
C
Set forth below, the manufacture warrants the fan motor for this ceiling fan to be free from defects
in workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made
in whole or in part with glass) to be free from defects in workmanship and material for a period of
one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the
date of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces
are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within
the terms stated above. The manufacturer shall not be liable for any loss or damage of any kind,
including any incidental or consequential damages resulting directly or indirectly, from any breach
of warranty, express or implied, or any other failure of this product. Some states do not allow the
exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
For replacement parts, call our customer service department at 1-800-527-1292,
8:30 a.m. - 5 p.m., CST, Monday - Friday.
