OWNER’S GUIDE
BOTTOM MOUNT
REFRIGERATOR
serial number:
MODEL NUMBERS: UGP-340L W AC ,UGP-340L B AC, UGP-340L T AC,
UGP-340L LG AC, UGP-340L O AC, UGP-340L Y AC, UGP-340L MB AC
SA46158
Nov23V1
2
Congratulations! You have purchased one of the most ecient refrigeration products available on
the market today. We are proud of our quality products and we believe in the dependable service
we provide.
Before using the appliance, read through this manual carefully including all the information on
safety, installation, operation, and cleaning. These guidelines do not cover every possible condition
or situation that may occur. Be safe using common sense and caution when installing, operating
and cleaning this appliance. If you are unsure about any of these instructions or warnings, contact
your local product dealer or Unique Appliances for assistance.
Before you call for service, here are a few things you can do to help us serve you better.
Read this owner’s manual: It contains instructions to help you use and maintain your appliance
properly.
Visit out website: Our website www.UniqueAppliances.com will give you access to self service
tools, FAQs and much more.
If you receive a damaged appliance: Immediately contact the retailer that sold you the
appliance.
Save time and money: Check the troubleshooting section at the end of this manual before
calling. This section will help you solve common problems that may occur.
Important safety notes .................................... 3
Grounding instructions .................................... 5
Unpacking and cleaning .................................. 5
Installation ............................................................6
Product Features ................................................8
Operation ..............................................................9
Features ................................................................12
Food Storage ......................................................13
Cleaning and defrosting .................................15
Maintenance ........................................................16
Troubleshooting .................................................17
Recommendations .......................................... 20

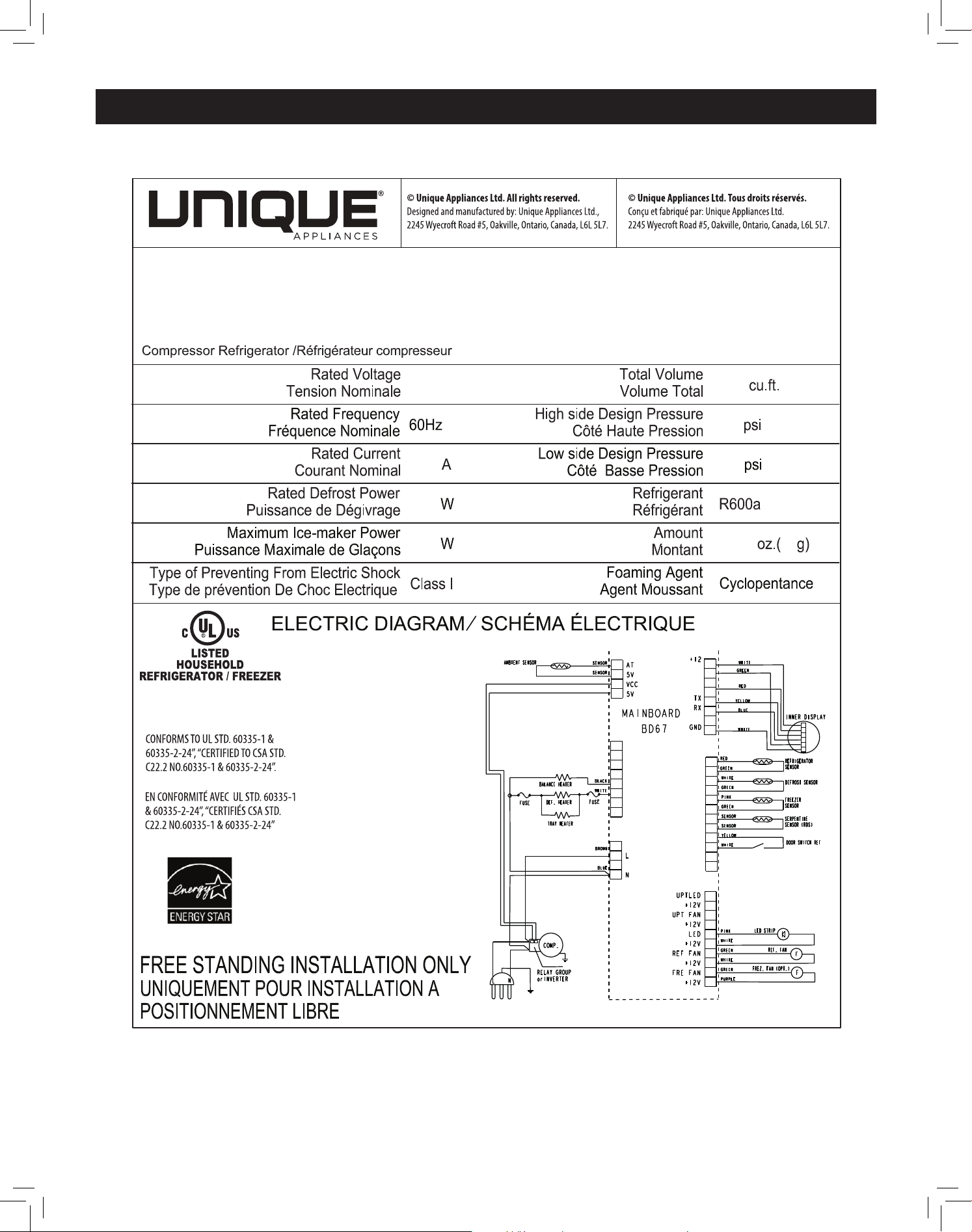

Wiring Diagram .................................................. 21
Warranty ..............................................................22
Product registration ........................................23
Contact us ........................................................... 23
TABLE OF CONTENTS
WELCOME
NEED HELP?
PROP 65 WARNING
CALIFORNIA PROPOSITION 65 WARNING
CAUTION
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
3
These warnings are provided in the interest of your safety. Please ensure that you understand
them all before installing or using this fridge. Your safety is of paramount importance. If you
are unsure about any of these meanings or warnings, contact your local product dealer or
Unique Appliances for assistance.
IMPORTANT: After transit where the fridge has been on its side or back, ensure that the fridge is in
a level, upright position for 12 hours to allow compressor fluids to redistribute evenly before use.
PRIOR TO INSTALLATION
At delivery, please check that the fridge is complete and has not been damaged during transport.
It is not advised to connect an appliance that has been damaged, especially damage to the elec-
trical supply cable or refrigerant circuit. In the event of damage please contact your local product
dealer or Unique Appliances for assistance.
DANGER
• Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.
• Ensure that servicing is done by factory authorized service personnel, to minimize product dam-
age or safety issues.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: When moving/positioning the appliance, ensure the supply cord is not trapped or
damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear
of the appliance.
• WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must
be positioned in accordance with the instructions.
CAUTION
• Risk of re or explosion - Flammable refrigerant used. This appliance uses isobutane (R600a)
refrigerant, a natural gas with a high level of environmental compatibility. As this refrigerant is
flammable, take care to ensure that none of the components of the refrigerant circuit are dam-
aged during transportation and installation.
If the refrigerant circuit is damaged:
• Avoid open flames and sources of ignition
• Thoroughly ventilate the room where the appliance is situated.
• While moving/positioning the appliance, do not damage the cooler gas circuit.
• Consult repair manual or owner’s guide before attempting to service this product. All safety
precautions must be followed. Service the fridge/freezer only if you are a trained or authorized
refrigeration technician.
• Dispose of properly in accordance with federal or local regulations.
• Follow handling instructions carefully.
IMPORTANT SAFETY NOTES
4
IMPORTANT SAFETY NOTES
IMPORTANT
• Run the fridge for at least 4 hours empty before adding food to allow the interior to cool down
properly.
• This fridge is designed for domestic use only! It is intended for the storage of edible/consumable
food and drinks. It is not intended for commercial or industrial use.
• Never use excessive force on the handle to open the door.
• If the room/ambient temperature approaches the fridge’s operating temperature, the fridge may
not function correctly. If the room/ambient temperature exceeds 100˚F (38˚C) the fridge may
not function correctly.
• This appliance is not intended for use at altitudes exceeding 2000 m/6561 ft.
CHILD SAFETY
Do not allow children to play in, on or around the fridge. It is not a toy. THERE IS A DANGER OF
SUFFOCATION IF A CHILD BECOMES TRAPPED INSIDE. When the appliance is not in use, secure
or remove the doors to prevent children from playing inside the cabinets.
DANGER
• Risk of child entrapment. Before throwing away an old appliance:
• Remove the door or lid.
• Leave shelves in place so that children may not easily climb inside.
• Children should not use, clean and/or maintain the appliance without supervision.
DANGER OF SUFFOCATION: Keep children away from all packaging material.
This appliance is not intended for use by persons (including children) whose physical, sensory
or mental capabilities may be different or reduced, or who lack experience or knowledge, unless
such persons receive supervision or training to operate the appliance by a person responsible
for their safety.
DISPOSING OF THE APPLIANCE
WARNING: The refrigeration system is under high pressure. Do not tamper with it. Contact qual-
ied service personal before disposal.
When disposing of your fridge, use an authorized disposal site. The refrigerant must be completely
drained and collected by an authorized technician for recycling prior to disposal. Check with your
local Environmental Agency for recommendations on recycling this appliance in your area. Before
disposal remove the electrical connection wiring and also ensure that the doors are removed to
prevent children from being trapped inside - DANGER OF SUFFOCATION!
This marking indicates that this product should not be disposed with other household wastes
throughout North America. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustain-
able reuse of material resources.
5
GROUNDING INSTRUCTIONS
UNPACKING AND CLEANING
This appliance must be grounded. Grounding reduces the risk of electrical shock by providing
an escape wire for the electrical current.
The appliance has a cord that has a grounding wire and a 3-prong plug. The power cord must be
plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be
replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage
and frequency the appliance is designed for.
• Before connecting your appliance, ensure that the information on the data plate (voltage and
connected load) matches that of the main electricity supply. If in doubt, consult a qualitifed elec-
trician.
• Insert the plug into a socket with an ecient ground connection. If the socket has no ground
contact or the plug does not match, we recommend you consult a qualified electrician for assis-
tance.
• The appliance must be connected with a properly installed fused socket. The power supply (AC)
and voltage at the operating point must match with the details on the name plate of the appli-
ance (the name plate is located on the inside of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Installation work and adjustments on the appliance must be carried out by qualified personnel
only. Work performed by persons with inadequate technical knowledge may adversely eect the
performance of the appliance, causing damage to the equipment, and void the warranty.
• It is dangerous to make alterations or attempt to modify this product in any way. Product alter-
ations will void the warranty.
WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a
qualified electrician or service agent if the grounding instructions are not completely understood,
or if doubt exists as to whether the appliance is properly grounded. Do not connect your appliance
to extension cords or together with another appliance in the same wall outlet. Do not splice the
power cord. Do not under any circumstances cut or remove the third ground prong from the pow-
er cord. Do not use extension cords or ungrounded (two prongs) adapters.
If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similar qualified person in order to avoid hazard.
IMPORTANT: After transit where the fridge has been on its side or back, ensure that the fridge is
in a level, upright position for 12 hours before connecting the appliance to a power source, this will
reduce the possibility of a malfunction in the cooling system from handling during transportation..
UNPACKING AND CLEANING
Remove all packaging and securing tapes from the appliance. To avoid injury and causing dam-
age to the appliance, be extremely cautious when using sharp or pointed tools to complete this
task. Keep children away from the packaging material - DANGER OF SUFFOCATION! Wash the
inside and outside of the appliance with luke warm water and a mild soap or detergent. Abrasive
or corrosive cleaning agents, steel wool, scouring sponges, or chemical cleaning agents should
not be used under any circumstances. A sponge, soft brush or towel is recommended. After clean-
ing, thoroughly rinse and dry. You may want to leave the doors open allowing the compartments
to ventilate for 20-30 minutes to get rid of residual odors. Check with your local Environmental
Agency for recommendations on recycling packaging materials in your area.
6
POSITIONING THE APPLIANCE
The area in which the fridge is to be installed must be relatively cool, dry, and suitably ventilated.
The area must be protected against any inclement weather (rain, snow) and excessive surface dust.
To ensure proper function, the appliance must be placed on a flat, firm, and stable surface resting
level on all four supports. The floor must be strong enough to support a fully loaded cabinet. Use
wood or metal shims to level the fridge if necessary. Do not place the appliance in direct sunlight
or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Ex-
treme cold ambient temperatures may also cause the appliance to perform improperly.
Do not place the fridge close to heat sources (heater, stove, boiler, chimney, etc.), and avoid pro-
longed exposure to direct sunlight. This appliance uses the exterior walls to transfer heat from the
inside of the cabinet. Ensure that there is adequate space between the fridge and neighboring
walls or large objects. IMPORTANT: The refrigerator should be placed against a wall with a free
distance not exceeding 75 mm. This will provide sucient airflow around the appliance result-
ing in more ecient operation and longer appliance lifetime. Always keep the air vent openings
of the compressor housing cover free from dust and obstructions. This appliance is intended for
free-standing installation only and is not intended to be built into a cabinet or counter.
INSTALLATION
• This appliance is heavy. Care should be taken when moving it.
• Be sure that the appliance does not stand on the electrical supply cable. Also, be sure the electri-
cal cable is not squeezed or bent when the appliance is being installed or moved.
• Do not install the appliance near water, for example in a wet basement or near a sink.
• Position the appliance where it will not be exposed to direct sunlight.
• The appliance must never be used outdoors or exposed to rain or snow.
• Position the appliance at least 20”/51 cm away from stoves, gas ovens and heater cores, and at
least 2”/5 cm away from electrical ovens.
• If your appliance is placed next to a deep freezer, there must be a least 1”/2.5 cm to prevent hu-
midity forming on the outer surface.
• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the
legs by turning them in either direction. This must be done before placing food in the appliance.
• Install the plastic distance guide (included) on the condenser at the back of
the appliance by turning it 90° (as shown in the figure) to prevent the con-
denser from touching the wall.
INSTALLATION INSTRUCTIONS
7
INSTALLATION INSTRUCTIONS
IMPORTANT
• This appliance is intended for household use only. It is not designed for outside installation,
including anywhere that is not temperature controlled (garages, porches, vehicles, etc.).
• Do not store any containers with flammable vapors or liquids in or around the appliance, such as
organic solvents, spray cans, gas cans, etc. Danger of explosion!
• Do not connect your appliance to the main electricity supply using an extension cord or plug
adapter.
• Do not use damaged, torn or old plugs.
• Do not pull, bend, or damage the cord.
• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
• Do not place glass bottles or cans in the ice-making compartment as they will burst when the
contents freeze.
• Do not place explosive or flammable mateiral in your fridge. Place drinks with high alcohol
content vertically in the fridge compartment and make sure their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns
and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after
they are removed from the ice-making compartment.
• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.
CLEANING
• Before cleaning your appliance always disconnect it from the electrical power supply.
• Allow inside of fridge/freezer to fully thaw, then wash the inside and outside of the appliance with
luke warm water and a mild soap or detergent. Abrasive or corrosive cleaning agents, steel wool,
scouring sponges, or chemical cleaning agents should not be used under any circumstances.
SERVICING
• This product should be serviced by an authorized technician and only genuine spare parts should
be used.
• Under no circumstances should you attempt to repair the appliance yourself unless advised by
Unique. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning
of the appliance. Unauthorized work may void the warranty.
8
PRODUCT FEATURES
PRODUCT FEATURES
A Refrigerator compartment
B Freezer compartment
1 Wine rack
2 Refrigerator shelves
3 Crisper cover
4 Crisper
5 Freezer upper shelf
6 Freezer middle drawer
7 Freezer bottom drawer
8 Levelling feet
9 Door shelf
10 Adjustable door shelf
11 Bottle shelf
12 Thermostat box / Interior display
13 Egg holder
14 Ice maker
A
1
2
3
4
5
6
7
8
B
9
10
11
13
14
12
A
12
9
10
11
B
13
14
1
2
3
4
5
6
7
8
9
OPERATION
Note:
When the appliance is plugged in for the first time, all symbols will be displayed for 2 seconds: the
freezer adjustment indicator will display -18˚C, and the fridge adjustment indicator will display 4˚C.
3 5 6 7 4
1 2
DISPLAY / CONTROL PANEL
1 Enables the setting of the freezer.
2 Enables the setting of the cooler.
3 Freezer set value screen.
4 Cooler (fridge) set value screen.
5 Economy mode symbol.
6 Super freeze symbol.
7 Alarm symbol.
SWITCHING THE DISPLAY BETWEEN FAHRENHEIT AND CELCIUS
Upon start up, the temperature is displayed in Fahrenheit (F˚).
To change the display to Celcius, first set the temperature to 39˚F (4˚C) and then press and hold
the cooler set button for 10 seconds. The display will then show the temperature in Celcius.
To revert the display to Fahrenheit, set the temperature to 4˚C (39˚F) and press and hold the cool-
er set button for 10 seconds.
FRIDGE
FAHRENHEIT (F˚) CELCIUS (C˚)
46 8
45 7
43 6
41 5
39 4
37 3
36 2
34 1
FREEZER
FAHRENHEIT (F˚) CELCIUS (C˚)
3 -16
1 -17
0 -18
-2 -19
-4 -20
-6 -21
-8 -22
-9 -23
-11 -24
10
OPERATION
SETTING THE FREEZER TEMPERATURE
The initial temperature value for the freezer setting indicator is -18°C/0˚F.
To adjust and set your preferred freezer temperature:
• Press the freezer set button once. When you first press the button, the previous value will blink
on the screen.
• Press the same button to cycle through increasingly lower temperatures:
-16 °C/3˚F -18 °C/0˚F -20°C/-4˚F -22°C/-8˚ -24°C/-11˚F
• Continue pressing the button to restart from -16°C/3˚F.
NOTE: Eco mode gets activated automatically when the temperature of the freezer compartment
is set to -18°C/0˚F.
SETTING THE FRIDGE TEMPERATURE
The initial temperature value for the cooler setting indicator is +4°C/39˚F.
To adjust and set your preferred fridge temperature:
• Press the fridge button once.
• Press the same button to cycle through increasingly lower temperatures
+8°C/46˚F +6°C/43˚F +5°C/41˚F +4°C/39˚F +2°C/36˚F
• Continue pressing the button to restart from +8°C/46˚F.
SUPER FREEZE MODE
Use the Super Freeze mode to:
• Freeze a large quantity of food that cannot fit on the fast freeze shelf.
• Freeze prepared foods.
• Freeze fresh food quickly to retain freshness.
HOW TO USE SUPER FREEZE MODE
• Press and hold the freezer temperature setting button for 3 seconds. Once the super freeze
mode has been set, the super freeze symbol on the indicator will be lit and the appliance will
beep to confirm the mode has been switched on.
During Super Freeze Mode:
• The temperature of the Cooler may be adjusted. In this case, Super Freeze mode will continue.
• Economy mode cannot be selected.
• To turn o Super Freeze mode, press and hold the freezer temperature setting button for 3
seconds.
Notes:
• The maximum amount of fresh food (in kilograms) that can be frozen within 24 hours is shown
on the appliance label.
• For optimal appliance performance in maximum freezer capacity, activate super freeze mode 3
hours before you put fresh food into the freezer.
• Super Freeze mode will automatically cancel after 24 hours, depending on the environmental
temperature or when the freezer sensor reaches a sufciently low temperature.
11
OPERATION
RECOMMENDED TEMPERATURE FOR THE FRIDGE AND FREEZER COMPARTMENTS
Freezer Compartment Fridge Compartment Remarks
-18˚C/0˚F 4˚C/39˚F
For regular use and best
performance.
-20˚C/-4˚F
-22˚C/-8˚F
-24˚C/-11˚F
4˚C/39˚F
Recommended when environmental
temperature exceeds 30°C/86˚F.
Super Freeze mode 4˚C/39˚F
Use when you wish to freeze food in a
short period of time.
-18˚C/0˚F
-20˚C/-4˚F
-22˚C/-8˚F
-24˚C/-11˚F
2˚C/36˚F
These temperature settings must be
used when the environmental
temperature is high or if you think the
refrigerator compartment is not cool
enough becuse the door is
being opened frequently.
DOOR OPEN ALARM FUNCTION
If fridge door is open for more than 2 minutes, a double “beep” will sound and the interior lights
will blink.
TEMPERATURE SETTINGS WARNINGS
Your appliance is designed to operate in the ambient temperature ranges stated in the standards,
according to the climate class stated in the information label. It is not recommended that your
fridge is operated in environments which are outside of the stated temperature ranges. This will
reduce the cooling eciency of the appliance.
Temperature adjustments should be made according to the frequency of door openings, the
quantity of food kept inside the appliance and the ambient temperature in the location of your
appliance.
• When the appliance is first switched on, allow it to run for 24 hours in order to reach operating
temperature. During this time, do not open the door and do not keep a large quantity of food
inside.
• A 5 minute delay function is applied to prevent damage to the compressor of your appliance
when connecting or disconnecting to the main power supply, or when an electrical interruption
occurs. Your appliance will begin to operate normally after 5 minutes.
IMPORTANT INSTALLATION INSTRUCTIONS
This appliance is designed to work in dicult climate conditions and is equipped with ‘Freezer
Shield’ technology which ensures that the frozen food in the freezer will not defrost even if the
ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated
room without having to worry about frozen food in the freezer being spoilt. When the ambient
temperature returns to normal, you may continue using the appliance as usual.
12
ICE TRAY
• Fill the ice tray with water and place in the freezer compartment.
• After the water has completely frozen, you can twist the tray as as shown below to remove the
ice cubes.
ICEMATIC ICE MAKER
The ice maker freezes and stores ice cubes. To use:
• Pull the lever towards you and remove the ice maker tray.
• Fill with water to the marked level.
• Hold the left end of the lever and set the ice-tray on the icebox.
• When ice cubes have formed, twist the lever to drop the ice cubes into
the icebox.
Do not fill the icebox with water in order to make ice. It will break.
NOTE: Too many ice cubes in the storage compartment can inhibit the
turning action of the ice tray. If you need to keep a quantity of ice
cubes on hand, empty the storage bin into an air-tight container to
keep ice cubes fresh.
FREEZER BOXES
The freezer boxes allow food to be accessed more easily.
REMOVING THE FREEZER BOXES
• Pull the box out as far as possible
• Pull the front of the box up and out
NOTE: Always keep hold of the handle of the box while removing it. After
cleaning, reverse these instructions to re-install the freezer boxes.
ADJUSTABLE DOOR SHELF
Six dierent height adjustments can be made to provide storage areas
that you need by adjustable door shelf.
To change the position of adjustable door shelf:
Hold the bottom of the shelf and pull the buttons on the side of the door
shelf direction of arrow. (Fig.1)
Position door shelf at the height you need by moving it up and down.
Once the shelf is in the desired position, release the buttons on the side
of the door shelf (Fig.2) Confirm the door shelf is firmly fixed in position
before loading the shelf.
NOTE: Avoid changing door shelf position when shelf is loaded. If you
must move a loaded shelf, be sure to support the bottom of the
shelf while fixing it in its new position, otherwise damage to the
shelf rails or the shelf could occur.
FEATURES
g. 1
g. 2
freezer boxes
Icematic ice maker
13
ADJUSTABLE GLASS SHELF
Adjustable glass shelf mechanism provides higher storage
spaces with a simple movement.
To cover the glass shelf, push it. (Fig.1)
You can load your food as you want in the resulting extra
space. To bring the shelf in its original position, pull it to-
ward you. (Fig.2)
REFRIGERATOR COMPARTMENT
For normal operating conditions, set the temperature of the cooler compartment to +4 or +6˚C
(39˚ or 43˚F).
• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed
containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating
liquid and, in time, your appliance will require more frequent defrosting.
• Cooked dishes must remain covered when they are kept in the fridge. Do not place warm foods
in fridge. Place them when they are cool, otherwise the temperature/humidity inside the fridge
will increase, reducing the fridge’s eciency.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop
and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just
above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (greens,
broccoli, carrot, etc.) being aected by ethylene releasing fruits (banana, peach, apricot, fig etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted
refrigeration cycle before refrigerator storage.
• Water leaking from meat may contaminate other products in the refrigerator. You should pack-
age meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.
• To keep the refrigerator compartment at the optimum temperature, do not allow food to come
into contact with the temperature sensor located in the refrigerator compartment.
• To ensure a safe food storage temperature, maintain an operating temperature inside the fridge
cabinet of 2˚C/36˚F to 4˚C/39˚F. Fridge temperatures warmer than 4˚C/39˚F can promote un-
safe bacterial growth in food.
• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot
foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoil-
ing of the food.
• The crispers/vegetable compartments are best for storing fruits/vegetables, while meat/fish, etc
should be stored within the fridge/chiller compartment.
• To prevent cross contamination, meat products and produce should not be stored together.
• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture
and odors.
• To ensure optimal performance, make sure there are no obstructions preventing the doors from
closing properly and forming a tight seal.
FOOD STORAGE
g. 1 g. 2
14
The table below is a quick guide to show you the most ecient way to store the major food
groups in your refrigerator compartment.
NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.
FOOD STORAGE
GUIDE TO STORING FOOD IN THE FRIDGE COMPARTMENT
Food Maximum Storage Time How and Where to Store
Vegetables and fruit 1 week Vegetable crisper
Meat and fish 2-3 days
Store in plastic foil, air-tight bags
or containers on glass shelves
Cheese and dairy products
Until the expiry date recom-
mended by the producer
On glass or door shelves
Eggs 1 month On designated egg shelf
Cooked food/leftovers 2 days
Store in plastic foil, air-tight bags
or containers on glass shelves
FREEZER COMPARTMENT
For normal operating conditions, set the temperature of the freezer compartment to -18˚C/0˚F or
-20˚C/-4˚F.
• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• Food in liquid form should be frozen in sealed plastic containers, while solid food should be fro-
zen in plastic pouches or bags. Wrap and seal fresh food properly; packaging should be air-tight
and shouldn’t leak. Special freezer bags, aluminum foil, polythene bags, and plastic containers
are ideal.
• Do not store fresh food next to frozen food as it can thaw the frozen food.
• Before freezing fresh food, divide it into portions that can be consumed in one sitting.
• Consume thawed frozen food within a short period of time after defrosting
• Always follow the manufacturer’s instructions on food packaging when storing frozen food. If
no information is provided food, should not be stored for more than 3 months from the date of
purchase.
HUMIDITY CONTROL SLIDER
If the crisper is full, the Humidity Control slider located
at the top edge of the crisper drawer should be opened.
This allows the air in the crisper and the humidity rate
to be controlled, increasing the length of food storage
within. The Humidity Control slider should be opened if
any condensation is seen on the glass shelf.
15
FOOD STORAGE
CLEANING AND DEFROSTING
• When purchasing frozen food, make sure that it has been stored under appropriate conditions
and that the packaging is not damaged.
• Frozen food should be transported in appropriate containers and placed in the freezer as soon as
possible.
• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It
may have been stored at an unsuitable temperature and the contents have deteriorated.
• The storage life of frozen food depends on the room temperature, the thermostat setting, how
often the door is opened, the type of food, and the length of time required to transport the prod-
uct from the shop to your home. Always follow the instructions printed on the packaging and
never exceed the maximum storage life indicated.
• If the freezer door has been left open for a long time or not closed properly, frost will form and
can prevent ecient air circulation. To resolve this, unplug the freezer and wait for it to defrost.
Clean the freezer once it has fully defrosted.
• The freezer volume stated on the label is the volume without baskets, covers, and so on.
• Do not refreeze thawed food. It may pose a danger to your health and cause problems such as
food poisoning.
NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it
will not open easily. This is normal; once the air pressure has equalized, the door will open
easily.
INTERNAL/EXTERNAL CLEANING
Wash the inside of the appliance with luke warm water and a mild soap. Never use abrasive or cor-
rosive cleaning agents, steel wool, scouring sponges, chemical cleaning agents, or highly perfumed
cleaning products to clean the interior or exterior as these will damage the surface and leave
behind a strong odor. A sponge, towel, or soft brush is recommended. Wash with a mixture of two
tablespoons (30ml) of baking soda to 1 quart (1.14L) warm water. After cleaning, wipe all surfaces
with a soft cloth and clean water to rinse, and allow the fridge/freezer to dry.
• Make sure that no water enters the lamp housing and/or other electrical components.
• Clean the accessories separately by hand with soap and water. Do not put accessories in a dish
washer.
• Clean the condenser with a brush at least twice a year. This will help to sustain performance and
save on energy costs. The power supply must be disconnected during cleaning.
DEFROSTING
• Your appliance performs automatic defrosting. The water that results
from this defrosting process flows through the water collection spout
and into the water tray behind the appliance where it evaporates.
• Make sure you have disconnected the plug of your appliance before
cleaning the water tray. Wipe out the tray with a soapy sponge regularly
to prevent odours from forming.
water tray
16
MAINTENANCE
REPLACING LED LIGHTING
To replace any of the LEDs, please contact the nearest Authorised Service Centre.
NOTE: The numbers and location of the LED strips may change according to the model.
REPOSITIONING THE DOOR
It is not possible to change the opening direction of your appliance door if door handles are in-
stalled on the front surface of the appliance door.
VACATION
• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and discon-
nect the appliance from its power source. Clean and dry the interior thoroughly. To prevent odor
and mold growth, leave the door open slightly, blocking it open if necessary.
MOVING
• Remove all items.
• Tape down shelves inside the appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays in the upright position during transportation. Protect the outside of
the appliance with a blanket.
• If the appliance is placed on its back or side during transportation, upon reaching the destination,
allow it to remain upright for 6 hours before plugging in to avoid damage to internal compo-
nents.
CUSTOMER RESPONSIBILITIES
The following items are the responsibility of the customer and are not covered by the warranty:
• Proper care and use of the appliance as described in this manual.
• Damage to the interior or exterior finish or components after delivery.
• Proper power supply, circuit breaker, wiring, and connections.
• Service required as a result of alteration, misuse, abuse, flooding, fire, lightning, or other acts of
God.
17
TROUBLESHOOTING
Error Codes
Error Type Meaning Reason Action Needed
E01
Sensor
Warning
Call Service for assistance as soon as
possible.
E02
E03
E06
E07
E09
Freezer
compartment
is not cold
enough
Likely to occur
after long term
power failure.
1. Set the freezer temperature to a colder
value or set Super Freeze. This should
remove the error code once the re-
quired temperature has been reached.
Keep doors closed to improve time tak-
en to reach the correct temperature.
2. Remove any products which have
thawed/defrosted during this error.
They can be used within a short period
of time.
3. Do not add any fresh produce to the
freezer compartment until the correct
temperature has been reached and the
error is no longer.
If this warning continues, an authorised
technician needs to be
contacted.
E10
Fridge
compartment
is not cold
enough
Likely to occur
after:
• Long term
power failure.
• Hot food has
been left in the
fridge.
1. Set the fridge temperature to a cold-
er value or set Super Cool. This should
remove the error code once the required
temperature has been reached.
Keep doors closed to improve time taken
to reach the correct temperature.
2. Please empty the location at the front
area of air duct channel holes and avoid
putting food close to the sensor.
If this warning continues an authorised
technician needs to be contacted.
18
Error Codes (continued)
Error Type Meaning Reason Action Needed
E11
Fridge
compartment
is too cold
Various
1. Check is Super Cool mode is activated
2. Reduce the fridge compartment
temperature
3. Check to see if vents are clear and not
clogged
If this warning continues an authorised
technician needs to be contacted.
TROUBLESHOOTING (continued)
PROBLEM SOLUTION
The appliance is
not working
Check if:
• There is power
• The appliance is correctly plugged in
• The plug fuse or the mains fuse has blown
• The socket is defective. To check this, plug another working appliance into
the same socket.
The appliance
performs poorly
Check if:
• The appliance is overloaded
• The appliance door is closed properly
• There is any dust on the condenser
• There is enough space near the rear and side walls.
If you are experiencing a problem with your appliance, please check the following before con-
tacting the after-sales service.
19
TROUBLESHOOTING (continued)
PROBLEM SOLUTION
The appliance is
making noise
These are normal noises
A “cracking” sound can occur:
• During automatic defrosting
• When the appliance is cooled or warmed (due to expansion of insulating
materials).
A short “cracking” sound occurs:
• When the thermostat switches the compressor on/o.
A motor noise occurs:
• When the compressor is operating normally.
• The compressor may cause more noise for a short time when it is first
activated.
A bubbling noise and splashing sound occurs:
• Due to the flow of the refrigerant in the tubes of the system.
The sound of owing water occurs:
• Due to water flowing to the evaporation container. This noise is normal during
defrosting.
The sound of blowing air occurs:
• During normal operation of the system due to the circulation of air.
• If the edges of the appliance are warm where they contact the door joints
(especially during warm seasons) the surfaces in contact with the door joint
maybecome warmer during the operation of the compressor; this is normal.
There is a build-
up of humidity
inside the
appliance
Check if:
• All food is packed properly. Containers must be dry before being placed in
the appliance.
• The appliance door is opened frequently. Humidity in the room enters the ap-
pliance when the doors are opened. Humidity increases more quickly when
the doors are opened frequently, especially if the humidity in the room is
high.
The door does
not open or
close properly
Check if:
• There is food or packaging preventing the door from closing
• The door joints are broken or torn
• Your appliance is on a level surface.
The edges of
the appliance
are warm where
they contact the
door joint
Especially during summer (warm seasons), the surfaces in contact with the door
joint may become warmer during the operation of the compressor, this is normal.
20
RECOMMENDATIONS
• If the appliance is switched o or unplugged, wait at least 5 minutes before plugging the appli-
ance in or restarting it in order to prevent damage to the compressor.
• If you will not use your appliance for a long time (e.g. in summer holidays) unplug it. Clean the
appliance according to the directions on page 15 and leave the door open to prevent humidity
and smell.
• If a problem persists after you have followed all the above instructions, please consult the nearest
authorised service centre.
• The appliance you have purchased is designed for domestic use only. It is not suitable for com-
mercial or common use. If the consumer uses the appliance in a way that does not comply with
this, we emphasise that the manufacturer and the dealer will not be responsible for any repair
and failure within the guarantee period.
ENERGY SAVING TIPS
1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat
source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Place thawing food in the refrigerator compartment if available. The low temperature of the
frozen food will help cool the refrigerator compartment while the food is thawing. This will save
energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.
4. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the hu-
midity inside the appliance will increase, therefore the appliance uses more energy. Keeping
drinks and other liquids covered helps preserve their smell and taste.
5. Avoid keeping the doors open for long periods and opening the doors too frequently as warm
air will enter the appliance and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the dierent temperature compartments (such as the crisper and chiller if
available) closed.
7. The door gasket must be clean and pliable. In case of wear, replace the gasket.
RECOMMENDATIONS
21
WIRING DIAGRAM
17
ambient sensor sensor
defrost
heater
fuse
black
white
white
brown
blue
pink
red
red
green
white
white
blue
yellow
green
green
pink
green
white
white
yellow
sensor
sensor
freezer sensor
fridge fan
fridge fan
freezer fan
LED
LED
fan
freezer fan
LED strip
white
white
green
green
purple
sensor
relay group
or inverter
MAIN BOARD
BD67
INNER
DISPLAY
AT
5V
5V
VCC
+12
TX
RX
GND
+12V
+12V
+12V
+12V
+12V
serpentine
sensor (RDS)
door switch ref
L
N
L N
computer
balance heater
tray heater
fuse
defrost sensor
fridge sensor
22
RATING PLATE
1.99
-
-
11.7
AC 115V-127V
168
-
1.764
50
SA46158
MADE IN TÜRKİYE
FABRIQUÉ EN TÜRKİYE
UGP-340L W AC ,UGP-340L B AC, UGP-340L T AC,
UGP-340L LG AC, UGP-340L O AC, UGP-340L Y AC, UGP-340L MB AC
23
Unique Appliances Ltd. (hereafter “Unique”) warrants that this UNIQUE fridge is free from manufacturer’s defects in
material and workmanship under normal usage and service under the following terms.
TERMS OF WARRANTY
Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.
PARTS WARRANTY
This appliance has been designed for domestic household use. If properly installed, adjusted and operated under
normal conditions in accordance with printed instructions, it will satisfactorily perform the functions that are generally expected of this
type of appliance. If the appliance fails to do so because of a defect in material or workmanship within one year or two years on the her-
metically sealed compressor from the original date of purchase: Unique will at our option, repair, exchange, or correct by other means
Unique consider appropriate, any part(s) Unique finds to be defective except for the surface finish.
OWNERSHIP
This Warranty is made only to the first purchaser (”original purchaser”) who acquires this fridge for his/her own use and will be honored
by Unique Appliances Ltd. and by the Seller. Purchaser must retain their receipt as proof of purchase date.
WARRANTY CONDITIONS
This warranty does not apply to any appliance that has been subjected to alterations, misuse, abuse (including damage by foreign
agents or chemicals), accident, improper installation or service, delivery damage, or other than normal household use and service.
This UNIQUE appliance must be serviced regularly as outlined in the Owner’s Manual. Neither Unique Appliances Ltd. nor the selling
dealerwill be liable for direct or indirect loss of foods caused by failure in operation. In case of damage, the owner must provide proof
of purchase, Model, and Serial Number to the selling dealer or Unique Appliances Ltd. This warranty is LIMITED STRICTLY to the terms
indicated herein, and no other expressed warranties or remedies thereunder shall be binding on Unique.
PURCHASER’S RESPONSIBILITIES
The purchaser will be responsible for the costs of any service calls requested to demonstrate or confirm the proper operation of the
appliance, the installation, or to correct malfunctions in the appearance created by the operation of the appliance in a manner not pre-
scribed by or cautioned against in the use and care instructions.
MODEL AND SERIAL NUMBER
The appliance model number and serial number can be found on a rating plate attached at the back of the fridge. The purchaser should
always refer to the model and serial number when talking to or contacting the dealer from whom the appliance was purchased.
EXCLUSIONS
Save as herein provided, by Unique, there are no other warranties, conditions, representations or guarantees, express or implied, made
or intended by Unique or its authorized distributors and all other warranties, conditions, representations or guarantees, including any
warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly
excluded. Save as herein provided, Unique shall not be responsible for any damages to persons or property, including the unit itself,
howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchas-
er does hereby agree to indemnify and hold harmless Unique from any claim for damages to persons or property caused by the unit.
Removal or disfigurement of the serial plate will void the warranty. The purchaser will be responsible for any expenses involved in mak-
ing the refrigerator readily accessible for servicing. The purchaser will be responsible for any extra charges where the installation is in a
remote location such as un-assumed roads, islands, areas known as cottage country, more than 75 km outside a metropolitan area, or
where a technician is not available. Freight damage is not covered by this warranty.
GENERAL PROVISIONS
No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating condi-
tions (ie. extremely high or low room temperature).
5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor
application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).
Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the
proof of purchase to our authorized service depot.
Nothing within this warranty shall imply that Unique will be responsible or liable for any spoilage or damage to food or other contents
of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper
FACTORY ASSISTANCE
If the purchaser is unable to locate an authorized dealer/service agent, or if the purchaser does not receive satisfaction from the dealer,
they may contact Unique Appliances Customer Service directly at Toll Free 1-877-427-2266 or 905-827- 6154
WARRANTY
24
For questions related to the operation, safety or the purchase of your fridge, please contact your
dealer for more information. For general information, contact our customer service department:
NOTES
APPLIANCE INFORMATION
(manual copy - keep with your records)
To make care and servicing of your fridge easy and ecient, please record the following informa-
tion for future reference:
Model:
Serial Number:
Purchased From:
Date Purchased:
APPLIANCE INFORMATION
CONTACT US
Toll-free
1-877-427-2266 or 1-905-827-6154
(available during regular business
hours, 8:30 am to 4:30 pm, EST.
Website
www.uniqueappliances.com
Email
info@UniqueAppliances.com
Please visit our website at https://uniqueappliances.com/product-registration/
to register your product.
PRODUCT REGISTRATION
© 2023 Unique Appliances Ltd., 2245 Wyecroft Road,
Oakville, Ontario, Canada, L6L 5L7
www.uniqueappliances.com
