Liebherr ICBNBI 7663 PRIME BIOFRESH NOFROST Combined User Manual

home.liebherr.com/

fridge-manuals

Operating and in‐

stallation instruc‐

tions

ORIGINAL OPERATOR'S MANUAL

Contents

1 General safety information................................... 3

1.1 Intended use................................................................. 3

1.2 User group..................................................................... 3

1.3 Warning notices – Risks for the user........................ 3

1.4 Faults, damage and repairs........................................ 4

1.5 Information concerning disposal.............................. 4

1.6 Conformity..................................................................... 4

1.7 Climate classes............................................................ 5

1.8 SVHC substances in accordance with the REACH

Regulation..................................................................... 5

1.9 EPREL database........................................................... 5

1.10 Open source licences.................................................. 5

1.11 Spare parts.................................................................... 5

1.12 Warning levels.............................................................. 5

2 Appliance at a glance............................................ 5

2.1 Scope of delivery.......................................................... 5

2.2 Overview of the appliance and equipment.............. 5

2.3 SmartDevice.................................................................. 6

3 Setting up and connecting.................................... 6

3.1 Installation requirements........................................... 6

3.2 Appliance dimensions................................................. 7

3.3 Recess dimensions...................................................... 7

3.4 Unit front weights........................................................ 7

3.5 Water connection......................................................... 8

3.6 Transporting the appliance........................................ 8

3.7 Unpacking the appliance............................................ 8

3.8 Removing the transport lock...................................... 8

3.9 Explanation of symbols used..................................... 8

3.10 Reversing the door....................................................... 9

3.11 Connecting the appliance to the water supply....... 11

3.12 Installing multiple appliances.................................... 12

3.13 Installation in the niche.............................................. 12

3.14 Installing the appliance in a 30” niche..................... 22

3.15 Limiting the door opening angle................................ 24

3.16 Unit fronts..................................................................... 24

3.17 After installation.......................................................... 26

3.18 Connecting the appliance to the power supply...... 26

3.19 Disposing of packaging............................................... 26

4 Functionality of the Touch&Swipe display......... 27

4.1 Navigation and symbol explanation......................... 27

4.2 Menus............................................................................. 27

4.3 Sleep mode................................................................... 28

5 Putting into operation........................................... 28

5.1 Switching on appliance (first use)............................ 28

5.2 Starting the IceMaker for the first time................... 28

6 Storage.................................................................. 28

6.1 Information regarding storage................................... 28

6.2 Fridge compartment.................................................... 29

6.3 BioFresh......................................................................... 29

6.4 Freezer compartment.................................................. 29

6.5 Storage times............................................................... 30

7 Saving energy........................................................ 31

8 Controls................................................................. 31

8.1 Controls and displays.................................................. 31

8.1.1 Status display............................................................31

8.1.2 Display symbols........................................................ 31

8.2 Appliance functions..................................................... 31

8.2.1 Notes on the appliance functions..........................31

Switching the appliance off and on......................31

Switching temperature zone off and on..............32

Temperature............................................................. 32

BioFresh B-Value .....................................................33

D-Value......................................................................33

SuperCool..................................................................33

VarioTemp..................................................................33

SuperFrost................................................................ 34

PartyMode ................................................................35

HolidayMode.............................................................35

SabbathMode........................................................... 36

EnergySaver ............................................................ 36

IceMaker / MaxIce .................................................. 37

IceMaker water supply........................................... 38

TubeClean ................................................................ 38

CleaningMode.......................................................... 39

Input lock.................................................................. 39

Reminder...................................................................40

Language.................................................................. 40

Temperature unit.....................................................40

Display brightness.................................................. 40

WiFi.............................................................................41

Device information.................................................. 42

Software....................................................................42

Start defrosting cycle............................................. 42

Door alarm................................................................ 42

Demo mode...............................................................43

Resetting to factory settings.................................43

8.3 Messages...................................................................... 44

8.3.1 Overview of warnings.............................................. 44

8.3.2 Ending warnings.......................................................44

8.3.3 Overview of reminders.............................................45

8.3.4 Ending reminders......................................................45

9 Features................................................................. 46

9.1 Door rack....................................................................... 46

9.2 Shelves.......................................................................... 47

9.3 VarioSafe ...................................................................... 49

2 * Depending on model and options

9.4 Adjustable bottle shelf................................................ 51

9.5 Drawers.......................................................................... 52

9.6 Compartment lid for Fruit & Vegetable Safe........... 53

9.7 Glass shelves................................................................ 54

9.8 IceMaker........................................................................ 54

9.9 VarioSpace.................................................................... 55

9.10 Butter dish.................................................................... 55

9.11 Egg rack......................................................................... 55

9.12 Bottle holder................................................................. 55

10 Maintenance.......................................................... 55

10.1 FreshAir carbon filter................................................... 55

10.2 Dismantling the door rack.......................................... 56

10.3 Assembling the door rack........................................... 56

10.4 Disassembling / assembling pull-out systems...... 57

10.5 Removing / inserting the variable bottle rack........ 57

10.6 Compartment lid for Fruit & Vegetable Safe........... 57

10.7 Defrosting the appliance............................................ 58

10.8 Cleaning the appliance............................................... 58

11 Customer help....................................................... 59

11.1 Technical specifications............................................. 59

11.2 Operating noise............................................................ 59

11.3 Technical fault.............................................................. 60

11.4 Customer Service......................................................... 61

11.5 Model plate................................................................... 61

12 Shutting down....................................................... 62

13 Disposal................................................................. 62

13.1 Preparing the appliance for disposal........................ 62

13.2 Disposing of the appliance in an environmentally

friendly manner............................................................ 62

The manufacturer is continually working on the further

development of all types and models. Please be aware that

we reserve the right to make changes to the shape, equip‐

ment and technology.

Symbol

Explanation

Read instructions

Please read the information in these instruc‐

tions carefully to understand all of the benefits

of your new appliance.

Additional information on the Internet

The digital manual with additional informa‐

tion and in other languages can be found

via the QR code on the front of the

manual or by entering the service number at

home.liebherr.com/fridge-manuals.

The service number can be found on the serial

tag:

Fig.Example illustration

Check appliance

Check all parts for transport damage. If you

have any complaints, please contact your

agent or customer service.

Differences

These instructions apply to a range of models,

so differences are possible. Sections that

apply to certain models only are marked with

an asterisk (*).

Symbol Explanation

Instructions and results

Instructions are marked with a .

Results are marked with a .

Videos

Videos about the appliances are available on

the YouTube channels of Liebherr-Hausgeräte.

Open source licences:

The appliance contains software components that use

open source licences. Information on the open source

licences used can be found here: home.liebherr.com/

open-source-licences

This user information applies to the following appliances:

ICBN..i

76..

Note

If your appliance has an N in its appliance designation, it is

a NoFrost appliance.

1 General safety information

Keep this user information in a safe place so that you can

refer to it at any time.

If you pass on the appliance, pass this user information on

to subsequent owners.

To use the appliance properly and safely, read this user

information carefully before installation and use. Always

follow the instructions, safety instructions and warnings

contained therein. They are important so that you can install

and operate the appliance safely and properly.

1.1 Intended use

This appliance is intended for household use and similar

applications such as:

•

in staff kitchen areas in shops, offices and other work

areas

•

in agriculture and by guests in hotels, motels and

other accommodation

•

bed and breakfasts

•

in catering and similar wholesale operations

Further uses:

•

All other types of application are impermissible.

1.2 User group

This appliance must not be used by persons (including

children) with reduced physical, sensory or mental capa‐

bilities, or by persons with a lack of experience and

knowledge, unless they are supervised by a person

responsible for their safety or have been given instruc‐

tions on how to use the appliance. Children must be

supervised to ensure that they do not play with the appli‐

ance.

Children aged between 3 and 8 are allowed to load and

unload the fridge-freezer.

1.3 Warning notices – Risks for the user

WARNING: Keep ventilation openings in the equipment

housing or in installations clear of obstructions.

WARNING: Do not use any mechanical devices or other

means to speed up the defrosting process other than

those recommended by the manufacturer.

General safety information

* Depending on model and options 3

WARNING: Do not damage the coolant circuit.

WARNING: Do not operate electrical appliances inside the

refrigerator/freezer compartment that are not of the type

recommended by the manufacturer.

WARNING: When installing the appliance, ensure that the

mains lead is not trapped or damaged.

WARNING: Do not place portable multiple sockets or

power supply units at the rear of the appliance.

Once the appliance has been installed, it must still be

possible to disconnect it from the mains.

Accessible mains plug (above, below or next to the appli‐

ance)

Tripping of the fuse in the building’s electrical installation

in accordance with the installation regulations.

WARNING: Fire hazard/flammable

substances.

The symbol is located on the compressor

and may also appear in other places on the

appliance. It marks the danger posed by

flammable substances. Do not remove the

sticker.

The more refrigerant there is in the appliance, the larger

than room must be in which it is located. In rooms that

are too small, a leak can product a flammable gas/air

mixture. For every 8g of refrigerant, the installation room

must be at least 1m

in size. Information on the refrig‐

erant contained is given on the type plate inside the

appliance.

Clean regularly surfaces that can come in contact with

food and accessible drainage systems.

Package raw meat or fish in clean, closed containers.

This will prevent meat or fish from touching or dripping

onto other food.

If the fridge-freezer is left empty for a long period, switch

it off, defrost it, clean it, dry it and leave the door open to

prevent mould from forming.

Avoid prolonged skin contact with cold surfaces or with

cold food. Use gloves for protection, for example.

Alcoholic beverages and other containers bearing alcohol

must be sealed tight for storage. Any leaking alcohol may

ignite due to electrical parts.

Only open the door for a short time. This prevents the

temperature inside the appliance from rising.

Do not reach between the door and the appliance when

opening and closing. Fingers may become trapped.

Do not place any items in the front section of the bottom

glass shelf to ensure that the appliance door closes

properly. (see6.2 Fridge compartment) (see 9.1 Door rack)

WARNING: This appliance must be secured in accordance

with the instruction manual to prevent any risks arising

from a lack of stability.

Follow the instructions regarding installation, fixing,

required dimensions and connections. (see3 Setting up

and connecting)

Appliances with fixed water connection:

WARNING: Connect only to the drinking water supply.

Observe the connection values for the water supply.

(see3 Setting up and connecting)

Only connect the appliance to the drinking water supply

using a new set of hoses. Do not reuse old hose sets,

dispose of them instead.

A new set of hoses is supplied with the appliance.

Rinse the water system if no water has been drawn for

more than 5 days.

1.4 Faults, damage and repairs

Mains connection with cooling appliance plug:

If the mains lead of this appliance is damaged, it must be

replaced with a special connection line available from the

manufacturer or its customer service department. The

customer may make the change.

Repairs and interventions on the appliance may only be

carried out by the customer service or by other qualified

personnel trained for this purpose.

In the event of malfunctions and appliance faults, pull

out the mains plug or switch off the fuse. Always hold

the plug when pulling out the mains plug. Never tug on

the cable.

1.5 Information concerning disposal

The crossed-out rubbish bin symbol is

a note that the appliance must not be

disposed of with unsorted household waste

and must be placed in a separate collec‐

tion. It contains recyclable materials and

may be reusable.

The symbol may be found on the

compressor. It pertains to the oil in the

compressor and indicates the following

danger: Can be fatal if swallowed or with

penetration of the respiratory tract. This

information is only significant for recycling.

No risk exists with normal use.

This or a similar sticker may be on the rear

of the appliance. It indicates that there are

vacuum insulation panels (VIP) or perlite

panels in the door and/or housing. This

information is only significant for recycling.

Do not remove the sticker.

The old appliance must be properly and therefore profes‐

sionally disposed of in accordance with the local appli‐

cable regulations and legislation. When transporting the

old appliance do not damage the refrigerant circuit, so

that the refrigerant inside (information on the type plate)

and the oil do not leak out uncontrolled.

Please note that it is the customer’s responsibility to

delete any personal data that may be held.

For Germany: The appliance can be disposed of free of

charge via the class 1 collection containers at the local

recycling/reusable material centres. When purchasing a

new refrigerator/freezer and a sales area >400m

, the

old appliance is also taken back free of charge via the

trade.

EU: Please check with your local authorities to find out

how to dispose of old appliances.

1.6 Conformity

The coolant circuit has been tested for leak-tightness. When

installed, the appliance complies with the relevant safety

regulations and directives.

For the EU

market:

The appliance complies with Directive

2014/53/EU.

For GB market: The appliance complies with the Radio

Equipment Regulations 2017 SI 2017 No.

1206.

The full text of the EU Declaration of Conformity is available

at the following web address: www.liebherr.com

The BioFresh compartment fulfils the requirements of a

chiller compartment in accordance with DIN EN 62552:2020.

General safety information

4 * Depending on model and options

1.7 Climate classes

Depending on its climate class, the appliance is designed

for operation within certain ambient temperature limits. The

climate class for your appliance is printed on the type plate.

Note

► In order to guarantee fault-free operation comply with

the specified ambient temperatures.

Climate class for ambient temperatures from

SN 10°C to 32°C

N 16°C to 32°C

ST 16°C to 38°C

T 16°C to 43°C

SN-ST 10°C to 38°C

SN-T 10°C to 43°C

1.8 SVHC substances in accordance

with the REACH Regulation

You can use the following link to check whether your

appliance contains SVHC substances in accordance with

the REACH Regulation:

https://go.liebherr.com/z3eewm

1.9 EPREL database

From 1 March 2021, the information on energy labelling

and eco-design requirements will be available in the

European product database (EPREL). The product data‐

base can be accessed via the following link https://

eprel.ec.europa.eu/. Here, you are asked to enter the

model identifier. You will find the model identifier on the

type plate.

1.10 Open source licences

The appliance contains software components that use

open source licences. Information on the open source

licences used can be found here:

home.liebherr.com/open-source-licences

1.11 Spare parts

The spare parts availability for functional parts and

stockable parts of the equipment is 15 years.

1.12 Warning levels



DANGER

Identifies an immediately

dangerous situation that will

result in death or serious bodily

injuries if it is not prevented.

WARNING

Identifies a dangerous situation

that could result in death or

serious bodily injury if it is not

prevented.

CAUTION

Identifies an immediately

dangerous situation that could

result in slight or moderate injuries

if it is not prevented.

ATTENTION Identifies a hazardous situation

that could result in property

damage if it is not prevented.

Note Identifies useful information and

tips.

2 Appliance at a glance

2.1 Scope of delivery

Check all parts for transport damage. Contact your

dealer or customer service in the event of complaints.

(see11.4 Customer Service)

Your new appliance comes with the following parts:

Built-in appliance

Features (depending on the model)

Installation materials (depending on the model)

“Quick Start Guide”

“Installation Guide”*

Service Brochure

2.2 Overview of the appliance and

equipment

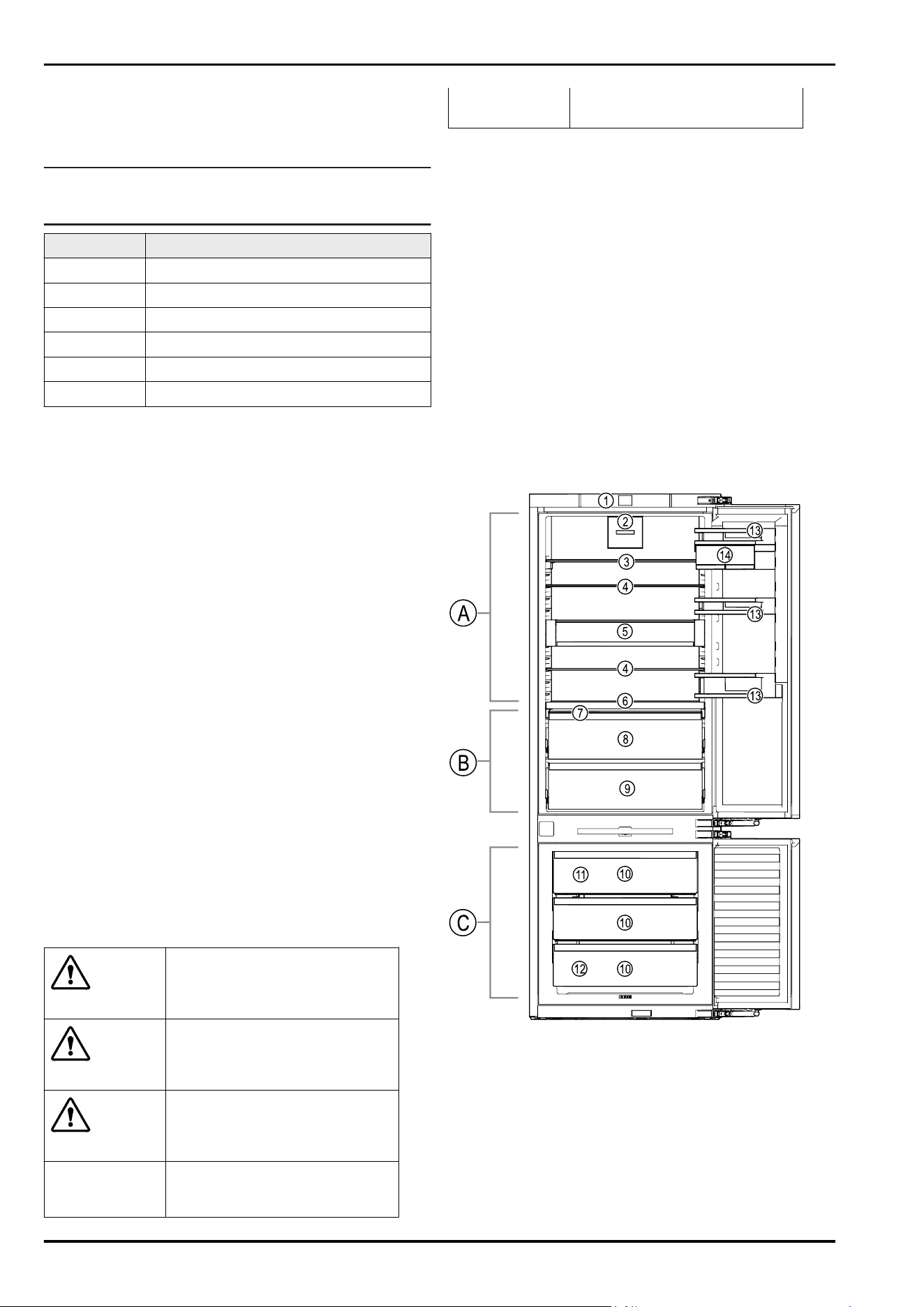

Fig. 1 Example illustration

Temperature range

(A)

Fridge section (C) Freezer section

(B) BioFresh

Equipment

(1)

Controls (8) Fruit & Vegetable Safe

(2) Fan with FreshAir acti‐

vated charcoal filter

(9) Meat & Dairy Safe

(3) Divisible shelf (10) Drawer

(4) Shelf (11) IceMaker

(5) VarioSafe (12) Type plate

(6) Variable bottle rack (13) Door rack

Appliance at a glance

* Depending on model and options 5

(7) Compartment lid for

Fruit & Vegetable Safe

(14) VarioBoxes

2.3 SmartDevice

SmartDevice is the networking solution for your fridge-

freezer.

If your appliance SmartDevice-enabled or compatible, you

can quickly and easily connect your appliance to your

WiFi. With the SmartDevice app, you can operate your appli‐

ance from a mobile device. Additional functions and setting

options are available in the SmartDevice SmartDevice app.

SmartDevice-

enabled appliance:

Your appliance is capable of being a

SmartDevice. To be able to connect

your device to WiFi, you need to

download the SmartDevice app.

More information

about SmartDe‐

vice:

smartdevice.liebherr.com

Downloading the

SmartDevice app:

After installing and configuring

the SmartDevice app, you can

connect your appliance to your Wi-Fi

(seeWiFi) using the SmartDevice app

and the appliance's Wi-Fi function.

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

3 Setting up and connecting

3.1 Installation requirements

The installation conditions are crucial to ensure that you

can operate your appliance safely, efficiently and without

problems.

Observe all safety instructions.

Consider the location and position in the room.

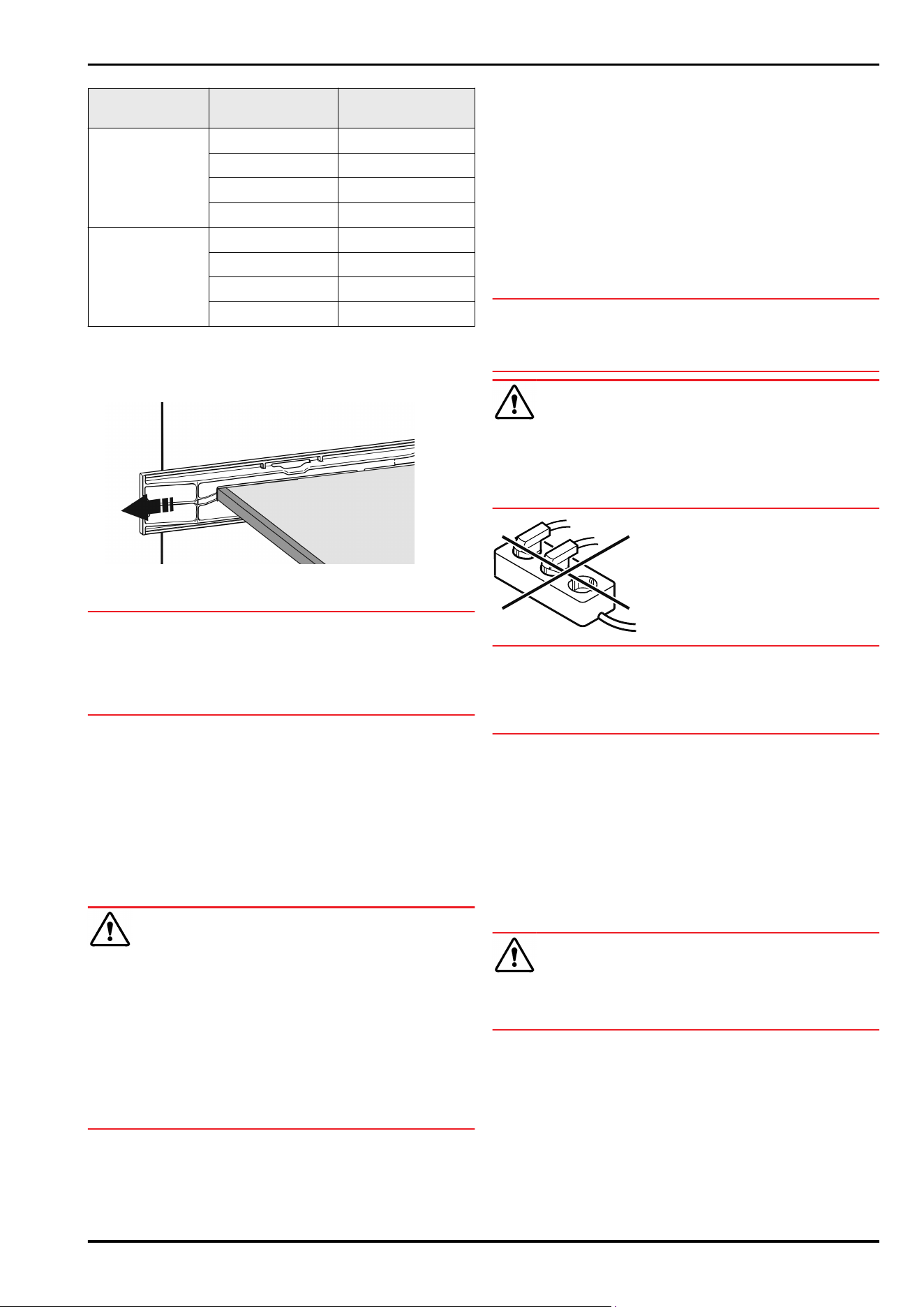

WARNING

Danger of fire due to incorrect positioning!

If the mains cable or plug touches the back of the appli‐

ance, the vibration can damage the mains cable or the plug

resulting in a short circuit.

► Make sure the mains cable is not trapped under the appli‐

ance when you position the appliance.

► Stand the appliance so that it is not touched by connec‐

tors or main cables.

► Do not connect any appliances to sockets in the area of

the back of the appliance.

► Do not place and operate multi-sockets/power distribu‐

tors and other electronic devices (such as halogen trans‐

formers) at the back of the appliances.

WARNING

Fire hazard due to dampness!

If live parts or the mains lead become damp this may cause

short circuits.

► The appliance is designed for use in enclosed areas. Do

not operate the appliance outdoors or in areas where it is

exposed to splash water or damp conditions.

WARNING

Risk of fire due to leaking refrigerant and oil!

The refrigerant inside the appliance is environmentally

friendly, but flammable. The oil it contains is also flam‐

mable. Escaping refrigerant and oil can ignite in high

concentrations and in contact with an external heat source.

► Do not damage the refrigerant circuit pipes or the

compressor.

3.1.1 Installation site

Only set up and use the appliance in enclosed spaces.

Only operate the appliance when it is installed.

If the appliance is installed in a very damp environment,

condensation may form on the appliance exterior.

Always make sure there is good ventilation and aeration

at the installation site.

The more refrigerant there is in the appliance, the larger

than room must be in which it is located. In rooms that

are too small, a leak can product a flammable gas/air

mixture. For every 8g of refrigerant, the installation room

must be at least 1m

in size. Information on the refrig‐

erant contained is given on the type plate inside the

appliance.

The floor on which the appliance stands must be hori‐

zontal and level.

3.1.2 Position in space

Do not install the appliance in direct sunlight or near

radiators or similar sources of heat.

You can install the appliance directly next to an oven.

If the appliance is installed directly next to an oven,

the energy consumption may increase slightly. This is

dependent on the service life and usage intensity of the

oven.

Only fit the appliance into solid units.

Use in hazardous areas is not permitted.

Setting up and connecting

6 * Depending on model and options

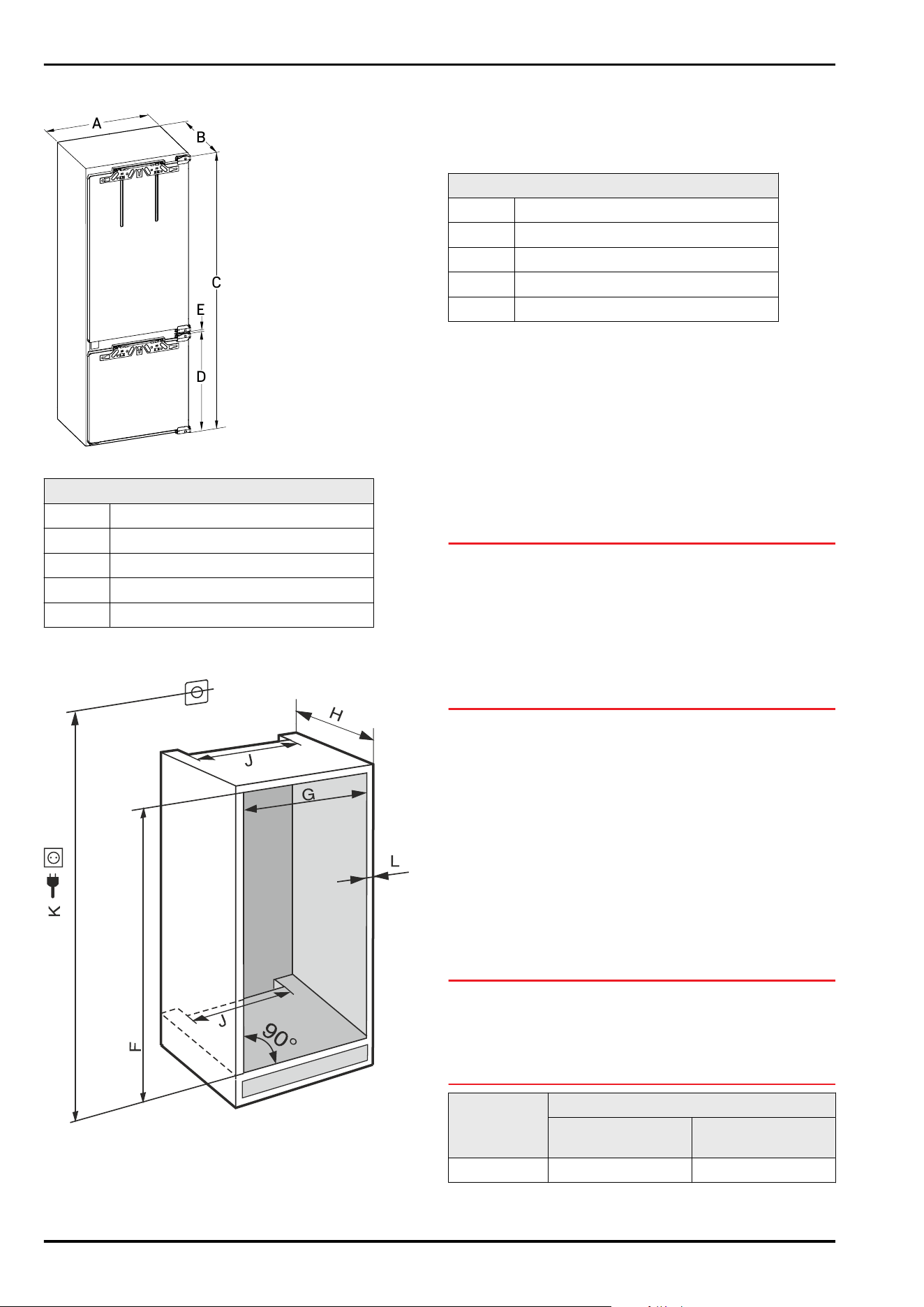

3.2 Appliance dimensions

Fig.2

IC(B)N..(i) 76..3

A (mm) 709

B (mm) 546

C (mm) 1938

D (mm) 695

E (mm) 15

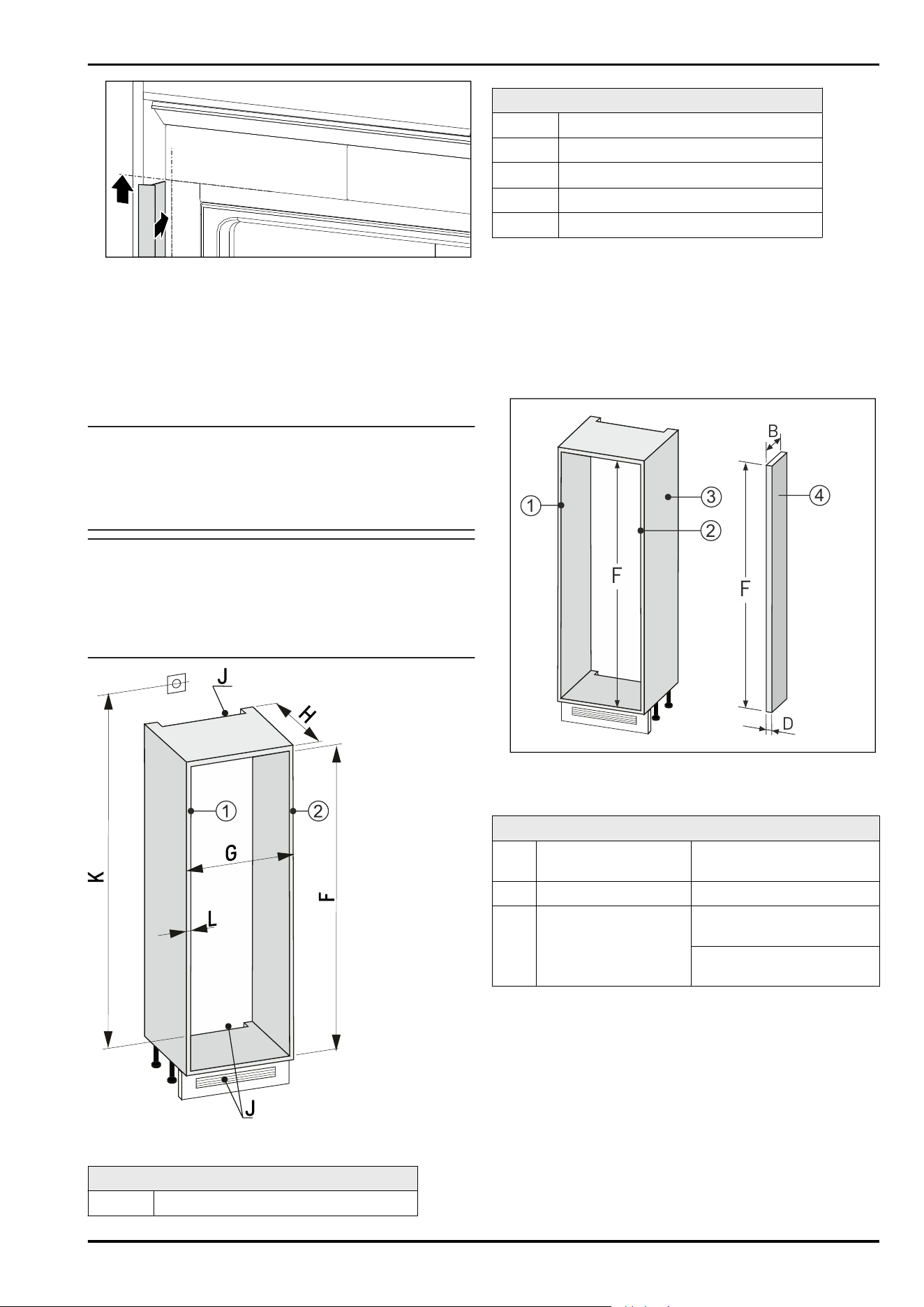

3.3 Recess dimensions

Fig.3(K): max. 2100mm

Observe the following information for appliances with a

fixed water connection:

Water connection (see 3.5 Water connection)

Connecting the appliance to the water supply

(see 3.11 Connecting the appliance to the water supply)

ICN(S)..76.. / IC(B)N(S)..(i) 76..

F (mm) 1940 to 1950

G (mm) 710 to 720

H (mm) min.560

J (mm) min.500

L (mm) max. 19

The specified energy consumption was determined with a

kitchen unit depth of 560mm.

► Check the wall thickness of adjacent cabinets: They must

have a minimum of 16mm.

► Only fit the appliance into stable, solid kitchen units.

Secure the unit against tipping.

► Align the cabinets with a spirit level and a try square. If

necessary, level them by putting something underneath

them.

► Make sure that the floor and the side panels of the

cabinet are at right angles to each other.

3.3.1 Ventilation requirements

NOTICE

Covered vents!

Damage. Appliance can overheat, which can reduce the

service life of various parts of the appliance and lead to

operational impairments.

► Always make sure there is good ventilation.

► Always keep vents or ventilation grids in the appliance

housing and in the kitchen furniture (fully integrated

appliance) unobstructed.

► Always keep the fan air vents unobstructed.

Always follow the required ventilation gaps:

The depth of the ventilation shaft at the back of the

cabinet must be at least 38mm.

At least 200cm

is required for the ventilation gap cross

sections in the plinth and the housing cabinet.

As a rule, the larger the ventilation cross-section, the

more efficiently the appliance will run.

Sufficient ventilation is required for the operation of the

appliance. The ventilation grids provided ensure an effec‐

tive ventilation cross-section on the appliance of 200cm

If you replace the ventilation grids with a cover plate the

ventilation cross-section must be as least as large as the

ventilation grid provided by the manufacturer.

3.4 Unit front weights

NOTICE

A heavy unit front may pose a risk of damage!

If the unit front is too heavy, the hinges may be damaged,

leading to malfunctions.

► Before fitting the unit front, check the maximum weight

limit and do not exceed it.

Niche height

(mm)

Maximum weight of unit front ( kg)

Fridge compartment

door

Freezer compart‐

ment door

1940 21 16

Combinations 700mm Width

Setting up and connecting

* Depending on model and options 7

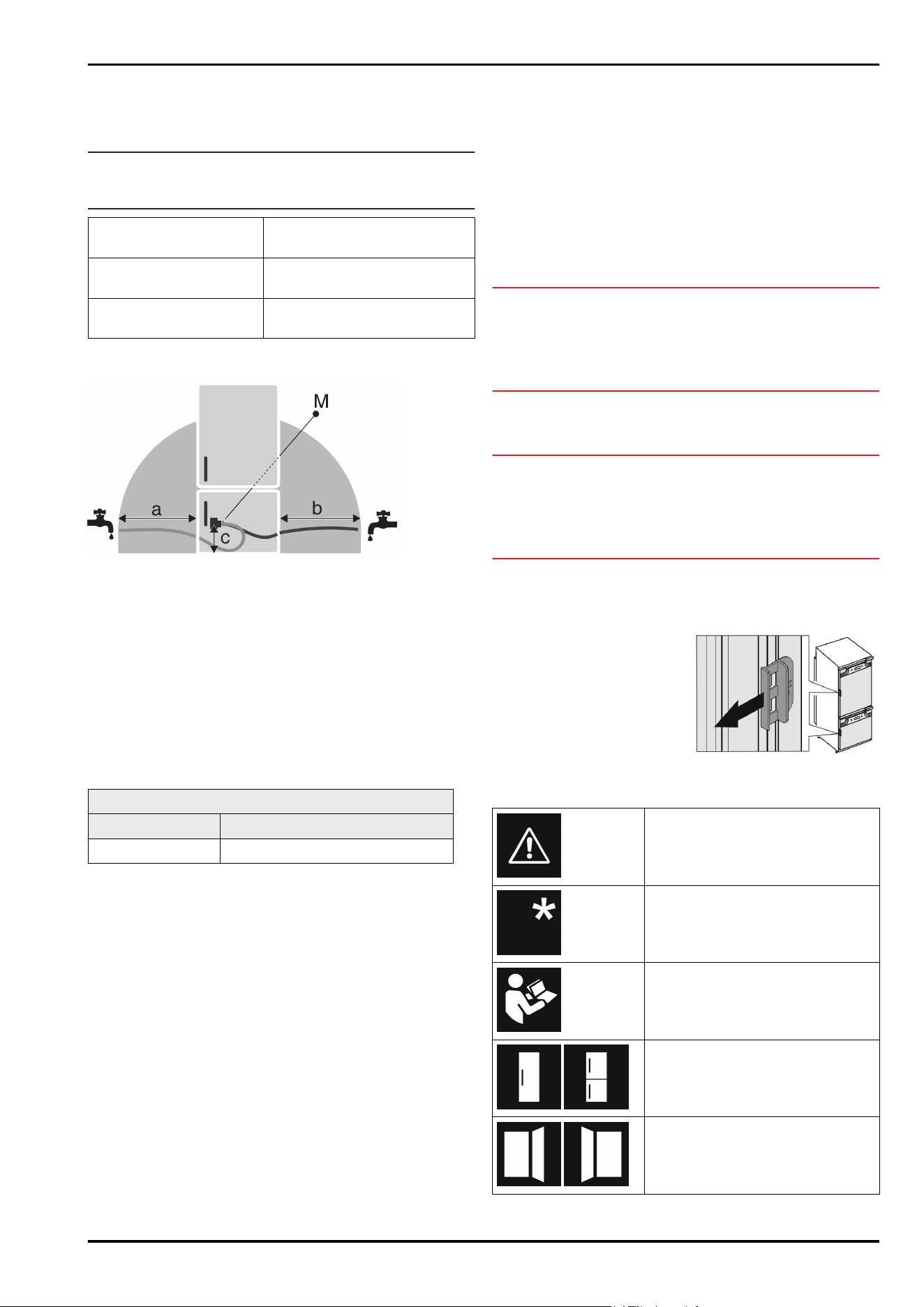

3.5 Water connection

If your appliance has a fixed water connection, a hose is

supplied with it.

Note

You can purchase a hose of a different length as an acces‐

sory.

Overview of dimensions

for the water connection:

(see 3.5 Water connection)

Requirements for the

water pressure:

(see 3.5 Water connection)

Make the water connec‐

tion:

(see 3.11Connecting the appli‐

ance to the water supply)

3.5.1 Dimensions for the water connection

Fig.4

(a)

Maximum available

hose length

valve to floor

(b) Maximum available

hose length

(M) Solenoid valve

3.5.2 Water pressure

The water connection line and solenoid valve of the appli‐

ance are suitable for a water pressure of up to 1 MPa

(10bar).

To ensure that the appliance functions correctly (flow rate,

ice cube size, noise level), maintain the following water

pressure:

Water pressure:

bar MPa

1.5 to 6.2 0.15 to 0.62

If the pressure is higher than 6.2bar:

► Fit a pressure reducer.

► Make the water connection. (see 3.11Connecting the

appliance to the water supply)

3.6 Transporting the appliance

3.6.1 Transporting the appliance for initial use

Ensure that the following requirements are met:

❑

The appliance is packaged.

❑

The appliance is upright.

► Transport the appliance with the help of two people.

► Unpacking the appliance. (see 3.7 Unpacking the appli‐

ance)

3.6.2 Transporting the appliance after initial

use

Observe the following instructions if you wish to transport

or move the appliance again after initial use.

Ensure that the following requirements are met:

❑

The appliance is emptied.

❑

The appliance is upright.

❑

Appliance with door(s): Door is secured against acci‐

dental opening.

❑

Appliance with telescopic unit: The telescopic unit is

secured against accidental opening.

❑

Appliance is removed.

► Transport the appliance with the help of two people.

3.7 Unpacking the appliance

NOTICE

Risk of damage if the unit is moved!

If you move the unit across the floor without any protection,

it may damage the floor.

► Make sure you cover the floor properly before removing

the packaging from the unit.

► Check the appliance and packaging: If you suspect that

the goods have been damaged in transit, please contact

the supplier before connecting them.

NOTICE

Damage to property caused by pointed or sharp objects!

Using pointed or sharp objects when removing packaging

material may damage the appliance.

► Do not use any pointed or sharp objects to remove the

packaging material.

► Remove the packaging materials.

3.8 Removing the transport lock

► Remove the transport lock

from the appliance door.

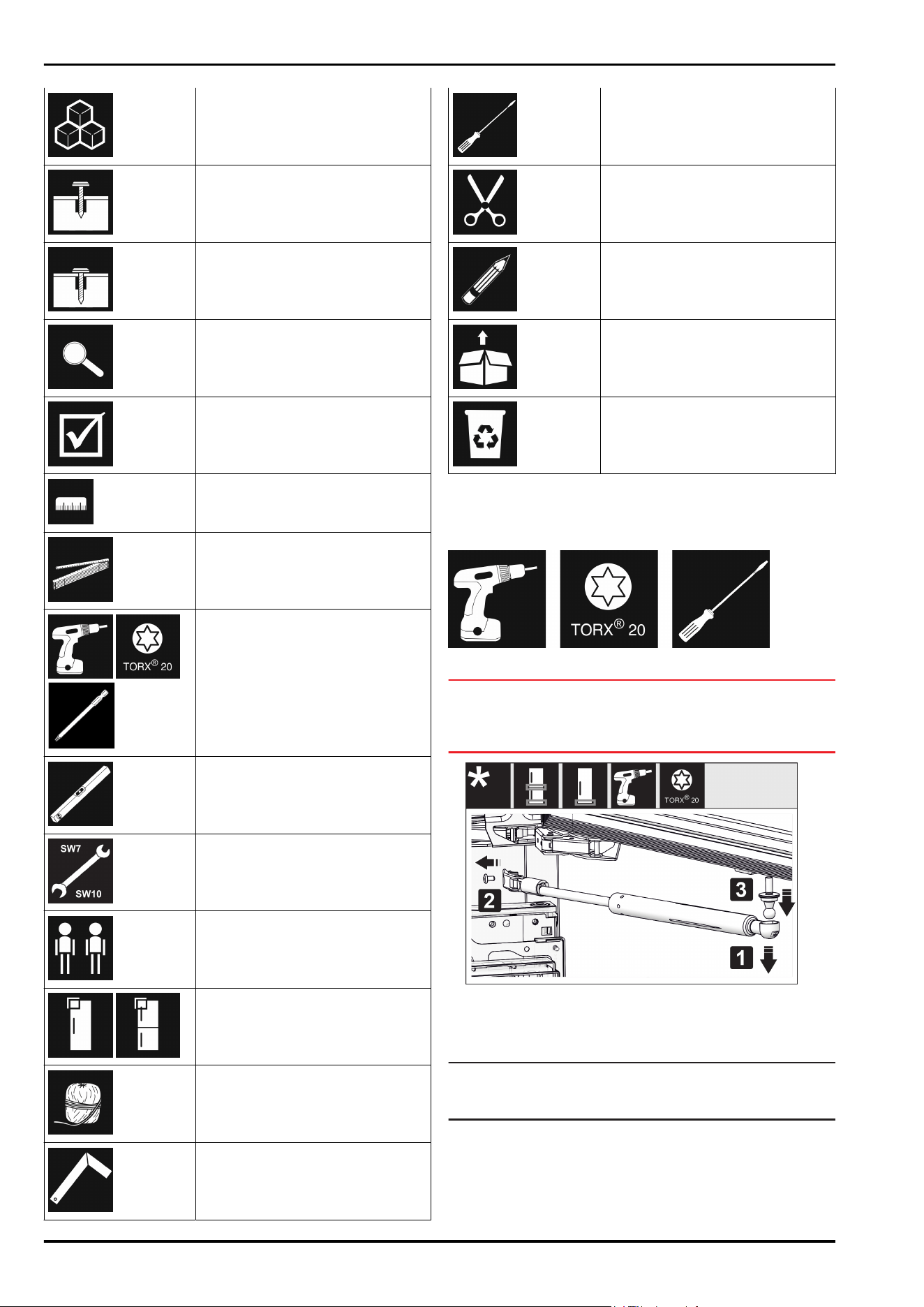

3.9 Explanation of symbols used

There is a danger of injury during

this step! Observe the safety

instructions!

The instruction is valid for several

models. Only perform this step if it

applies to your appliance.

For installation, please refer to the

detailed description in the text

section of the instructions.

Section is valid for either a single-

door appliance or a double-door

appliance.

Choose between the following

options: Appliance with door hinge

on the right or appliance with door

hinge on the left.

Setting up and connecting

8 * Depending on model and options

Installation step required for

IceMaker and/or InfinitySpring.

Only loosen or lightly tighten the

screws.

firmly tighten the screws.

Check whether the following step

is necessary for your model.

Check that the components used

are correctly installed/fitted.

Measure the specified dimension

and correct if necessary.

Tool for installation: Metre stick

Tool for installation: Cordless

screwdriver and use

A lengthwise bit insert is recom‐

mended for good access to the

screws.

Tool for installation: Spirit level

Tool for installation: Open-end

wrench with AF 7 and AF 10

Two people are required for this

step.

The step takes place at the marked

location on the appliance.

Aid for installation: String

Aid for installation: Protractor

Aid for installation: Screwdriver

Aid for installation: Scissors

Aid for installation: Marking pen,

wipeable

Included: Remove components

Dispose of components that are no

longer required in accordance with

local regulations.

3.10 Reversing the door

Tool

Fig.5

NOTICE

Live parts!

Damage to electrical components.

► Remove the mains plug before you reverse the door.

Fig.6

► Removing the soft stop damper: Remove the soft stop

damper from the ball stud (1). Unscrew the retainer (2).

Remove the ball stud with a screwdriver (3).

Note

If the closing damper is only slightly above the floor, you

can only remove the ball pins when the door is removed.

Setting up and connecting

* Depending on model and options 9

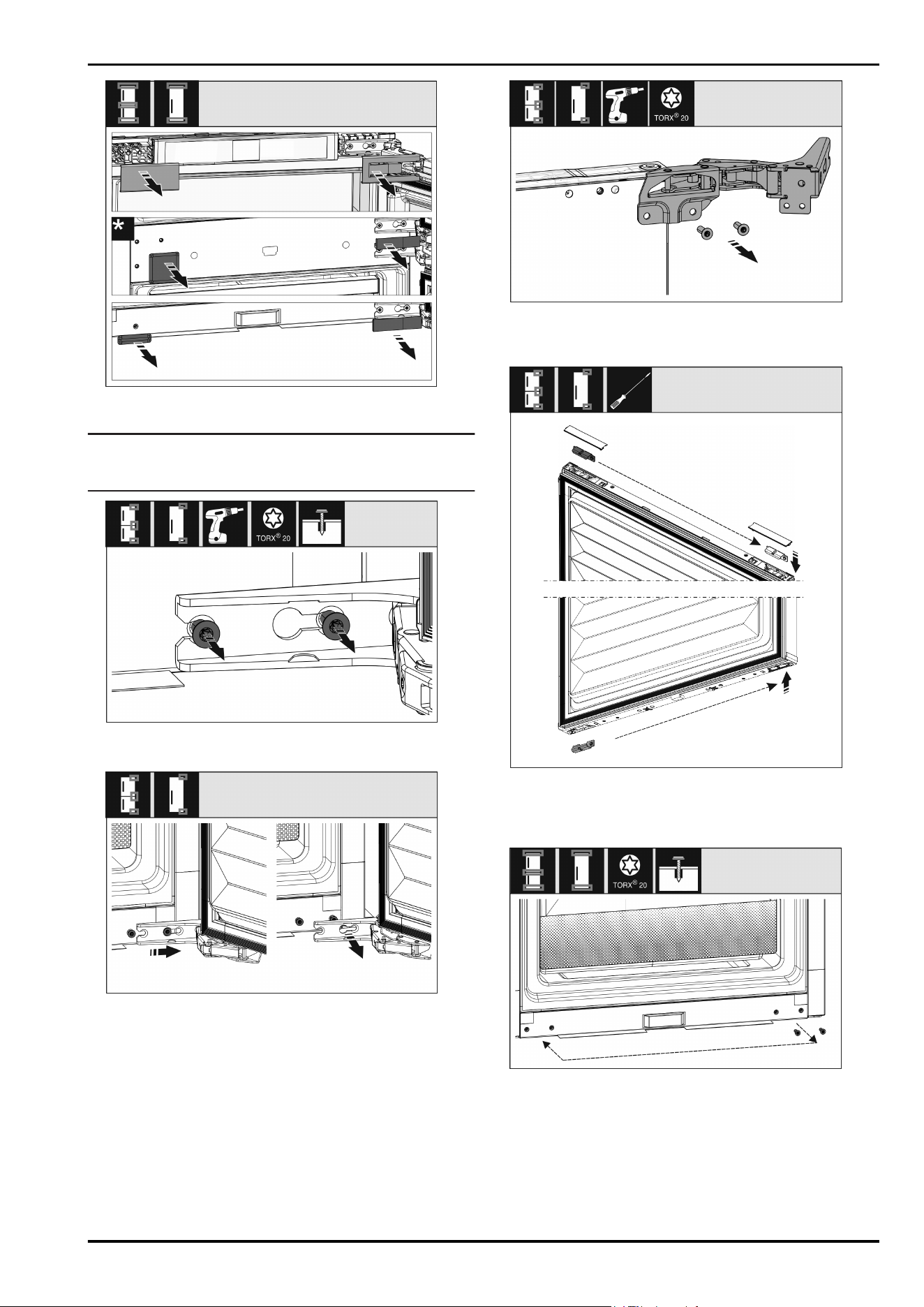

Fig.7

► Remove covers.

Note

When removing the covers, ensure that the surface does

not get scratched.

Fig.8

► Loosen the screws on all hinges but do not remove them.

Fig.9

► Removing the door: Push the door forward and then out,

unhang it and put it to one side.

Fig. 10

► Unscrew all hinges and set aside together with the

screws.

Fig.11

► Loosen and shift the bracket at the top and bottom of the

door. The bracket must be shifted so you can screw on

the hinges.

Fig.12

► Shift the screws to fasten the hinge. Do not screw tightly

after shifting – you need to hang the hinges later.

Setting up and connecting

10 * Depending on model and options

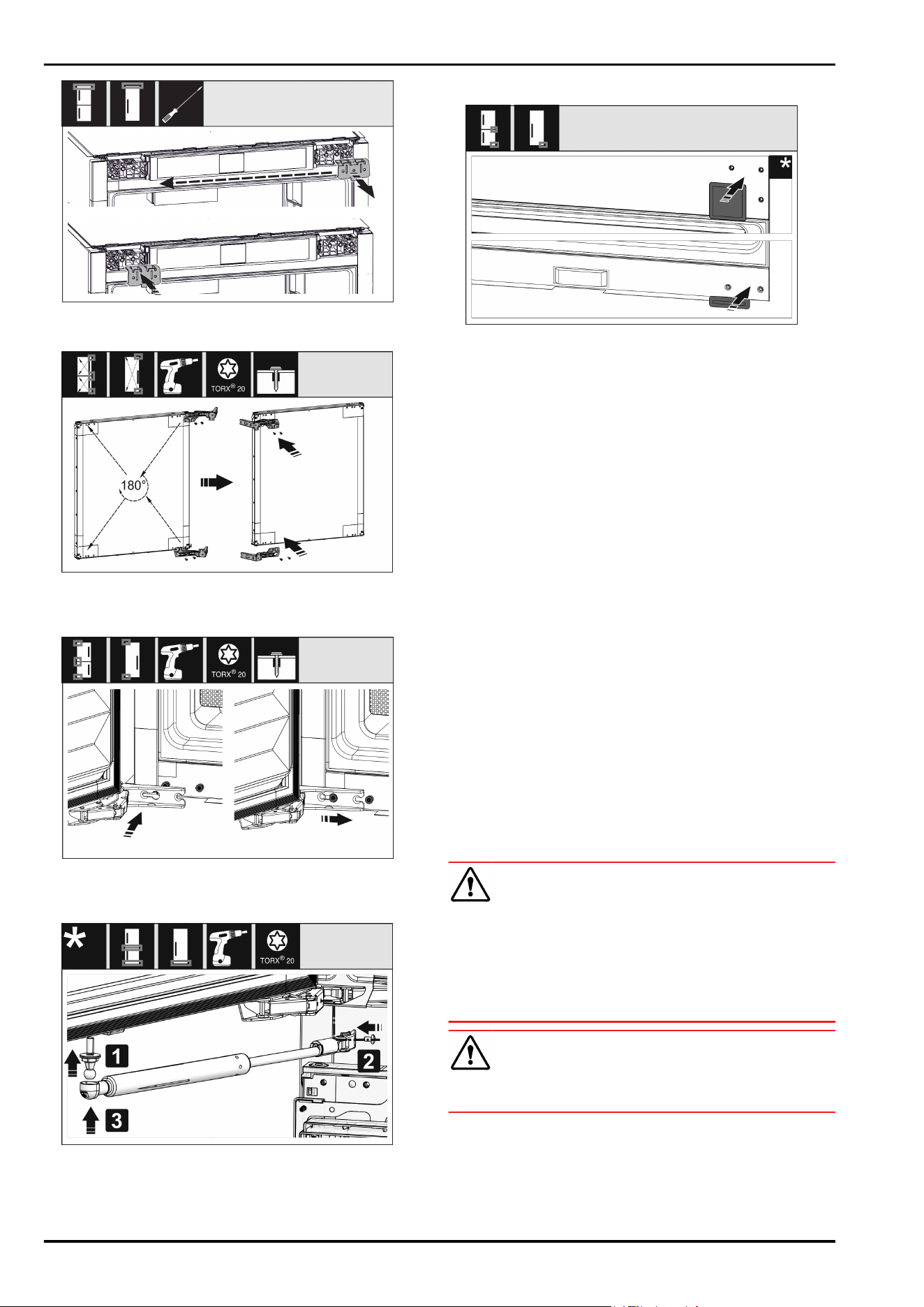

Fig.13

► Move the fixing bracket to the opposite side.

Fig. 14

► Turn all hinges 180° to the opposite side and screw

firmly.

Fig. 15

► Refitting the door: Hang the door with its hinges and

tighten the screws.

Fig. 16

► Refitting the closing dampers: Screw in the ball studs (1),

tighten the bracket (2) and hang the closing dampers in

the ball studs.

►

Check all screws and retighten if necessary.

Fig.17

► Reassemble the bottom and centre cover. Only replace

the remaining covers after installing the appliance back

into the cabinet.

3.11 Connecting the appliance to the

water supply

Make sure that the following requirements are fulfilled:

❑

The dimensions for the water supply connection are

known and complied with. (see 3.5.1 Dimensions for the

water connection)

❑

The correct water pressure is maintained.

(see 3.5.1 Dimensions for the water connection)

❑

Water is supplied to the appliance via a cold water

pipe which can withstand the operating pressure and is

connected to the drinking water supply.

❑

All equipment and devices used to supply water must

comply with the regulations in force in the respective

country.

❑

The rear of appliance is accessible so that you can

connect the appliance to the drinking water supply.

❑

The supplied hose is used. Old hoses have been disposed

of.

❑

The hose connector contains a filter with a seal.

❑

There is a tap between the hose line and the domestic

water connection so that you can turn off the water

supply if necessary.

❑

The tap is not directly behind the appliance and is easily

accessible. This way, you can push the appliance as far

as possible into the cabinet recess and can quickly turn

off the tap if necessary.

WARNING

Risk of electric shock from water!

► Before connecting to the water pipe: Disconnect the

appliance from the mains.

► Before connecting to water supply lines: Shut off the

water supply.

► Make sure that only qualified personnel connect the

device to the drinking water supply.

WARNING

Risk of poisoning due to contaminated water!

► Only connect to the drinking water supply.

Setting up and connecting

* Depending on model and options 11

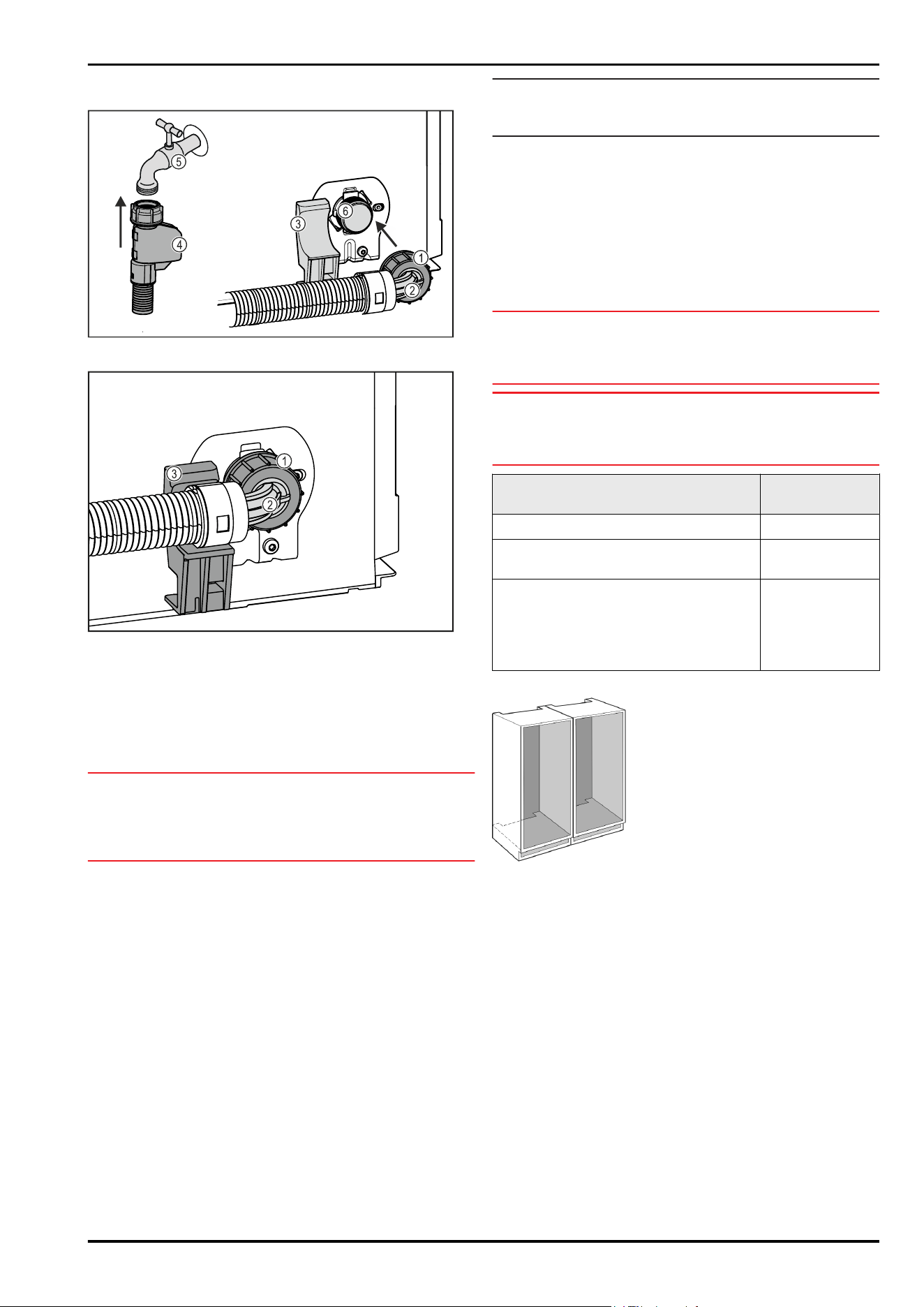

3.11.1 Connecting the hose

Fig. 18

(1)

Nut (4) Straight hose end

(2) Angled hose end (5) Tap

(3) Bracket (6) Solenoid valve: The sole‐

noid valve is at the

bottom on the back of

the appliance. It has an

R3/4 connecting thread.

NOTICE

Risk of damage from incorrect installation!

► Do not damage or kink the hose.

► Do not damage or kink the hose during installation in the

cabinet recess.

Connecting the hose to the appliance:

► Position and hold the angled hose end Fig. 18(2) horizon‐

tally on the bracket Fig. 18(3).

► Screw on the nut Fig. 18(1) on by hand until it is firmly in

place.

▷ The hose is connected to the appliance.

Connecting the hose to the tap:

► Connect the straight hose end Fig. 18(4) to the tap

Fig. 18(5).

▷ The hose is connected to the tap.

3.11.2 Checking the water system

Before you completely install the appliance in the cabinet

recess, Liebherr recommends checking the water system for

leaks.

► Slowly turn on the tap.

► Check the hose, water feed and connections for leaks.

▷ The water system has now been checked for leaks.

▷ The water system is not leaking: You can install the appli‐

ance completely in the cabinet recess.

Note

IceMaker: Before the first use, you must clean the IceMaker.

(see Quick Start Guide or operating instructions)

3.12 Installing multiple appliances

The appliances have been developed for different installa‐

tion methods. If you wish to install several appliances next

to each other or on top of each other, ensure that the

following requirements are met:

❑

Only install appliances next to or on top of each other if

they have been developed for this.

❑

Observe notices and the following table.

NOTICE

Risk of damage due to condensate!

► Do not place the appliance directly next to another

cooling/refrigeration unit.

NOTICE

Risk of damage due to condensation!

► Do not place the appliance directly on top of another

cooling/refrigeration unit.

Model Installation

method

All models Standalone

Models with a model designation

starting with S....

Side-by-Side

(SBS)

Models up to a maximum niche height

of 880mm and with a heated ceiling

can be installed “on top of each other”.

Top appliance: up to a maximum niche

height of 140mm

On top of each

other

Models and their installation method

Fig. 19

Install each appliance into a separate unit niche.

3.13 Installation in the niche

The appliance is installed in the niche per these main steps:

Provide tools.

Check the mounting parts in the accessory pack.

Prepare the niche.

Prepare the water connection.

Prepare the mains connection.

Prepare the appliance.

Align the appliance.

Secure the appliance.

Insert the levelling rail.

Fit the unit fronts.

Align the cabinet front.

Check the installation.

Attaching the covers.

Setting up and connecting

12 * Depending on model and options

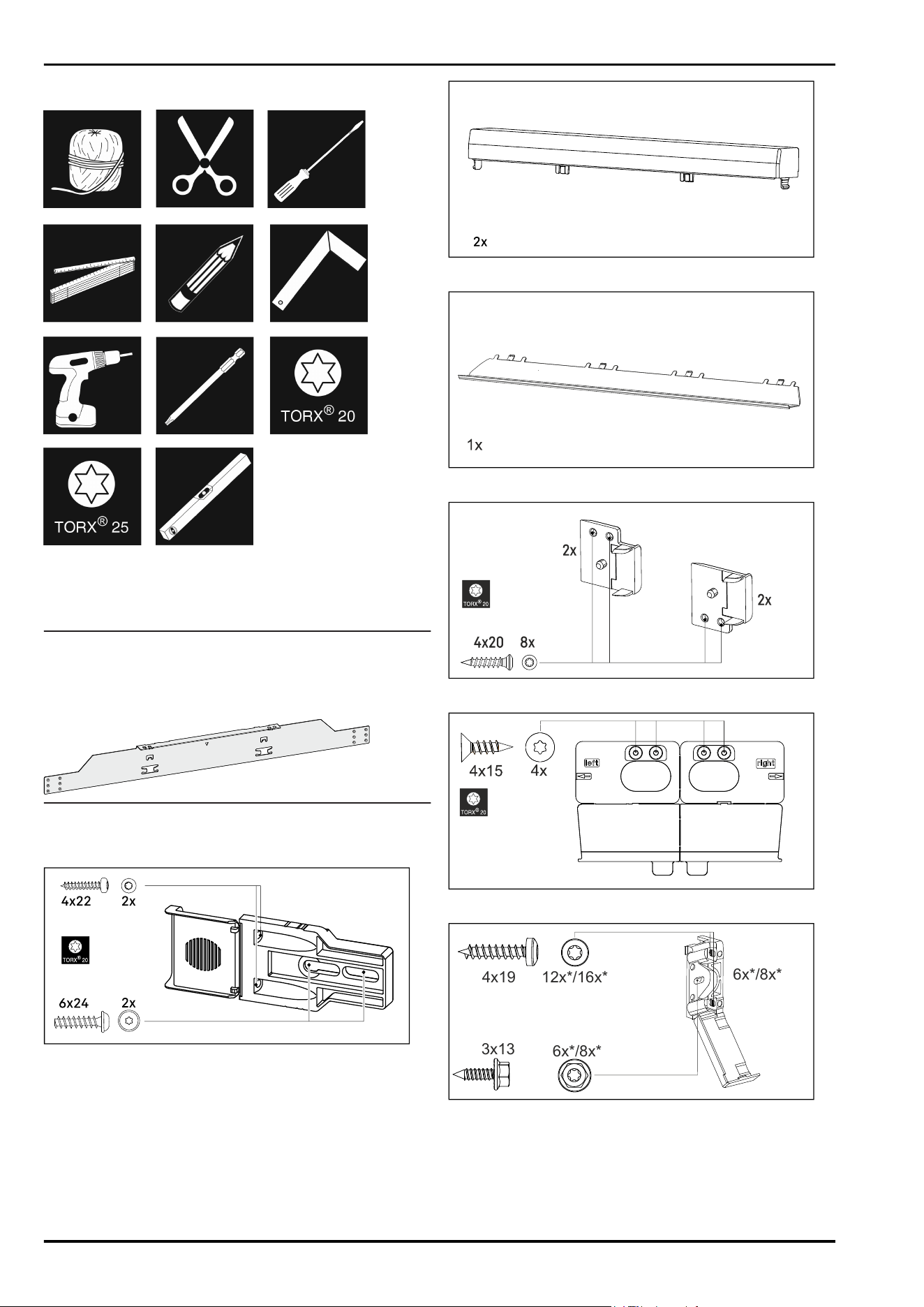

3.13.1 Provide tools

Fig.20

3.13.2 Provide fittings for a panelled door in

country-style kitchens*

Note

The mounting bracket for panelled doors in a country-style

kitchen is available as an accessory from the Liebherr-

Hausgeräte shop at: home.liebherr.com/shop/de/deu/

zubehor.html

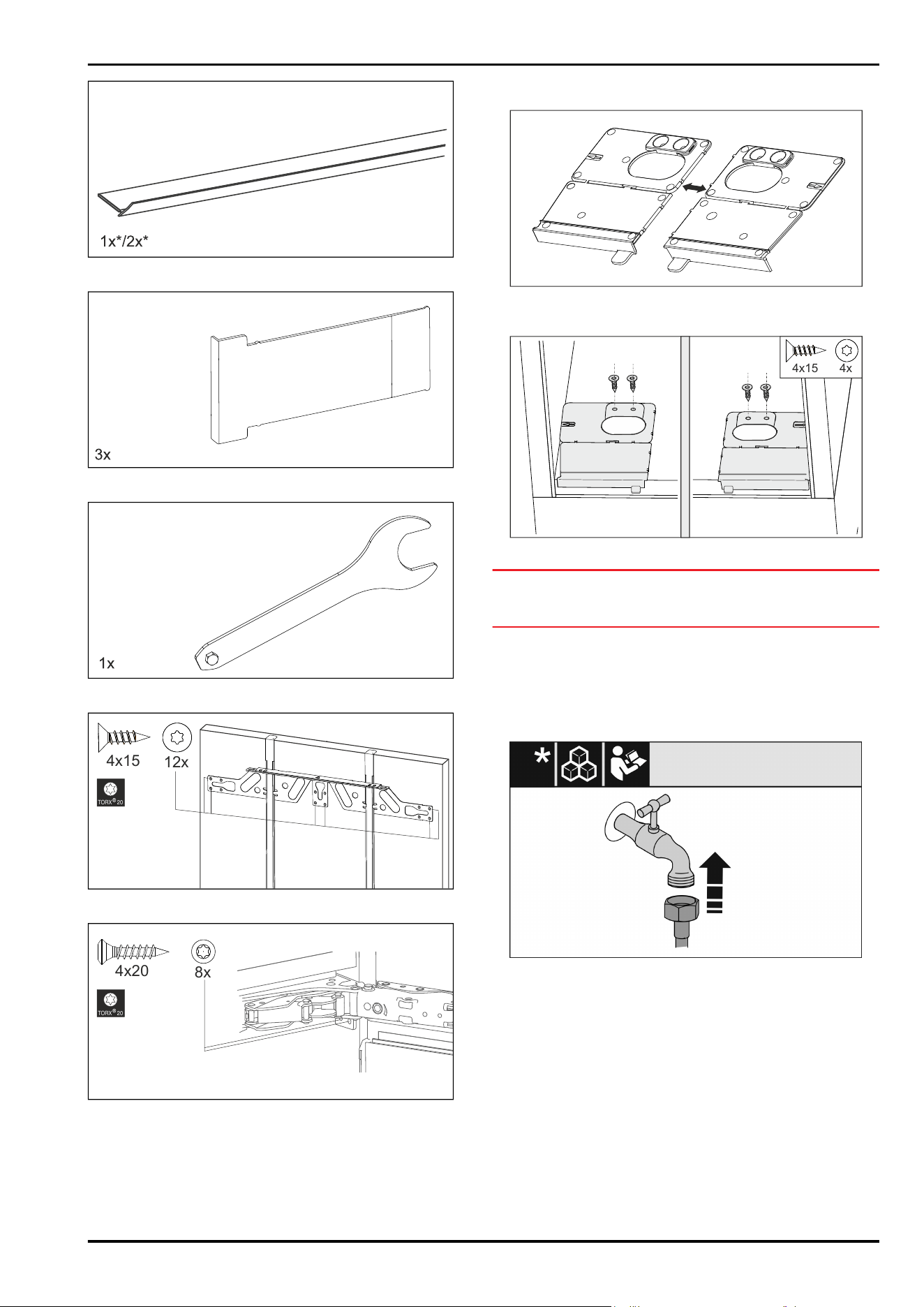

3.13.3 Check the mounting parts in the acces‐

sory pack

Fig.21

Fig.22*

Fig.23

Fig. 24*

Fig.25

4x19

3x13

12x*/16x*

6x*/8x*

Fig. 26*

Setting up and connecting

* Depending on model and options 13

Fig.27

Fig.28*

Fig.29

12x

4x15

TORX 20

Fig.30*

TORX 20

4x20

Fig.31*

3.13.4 Preparing the niche

Fig.32

► Separate the installation aid at the perforation.

4x15

Fig.33

NOTICE

Incorrect installation depth of the appliance.

► When you install the appliance: Use the installation aid.

► Screw the installation aid to the bottom of the niche on

the right and left.

▷ Mounting brackets sit flush against the cabinet side

panel.

3.13.5 Preparing the water connection

Fig.34

► Install the water connection in accordance with the

instructions in the operating instructions.

Setting up and connecting

14 * Depending on model and options

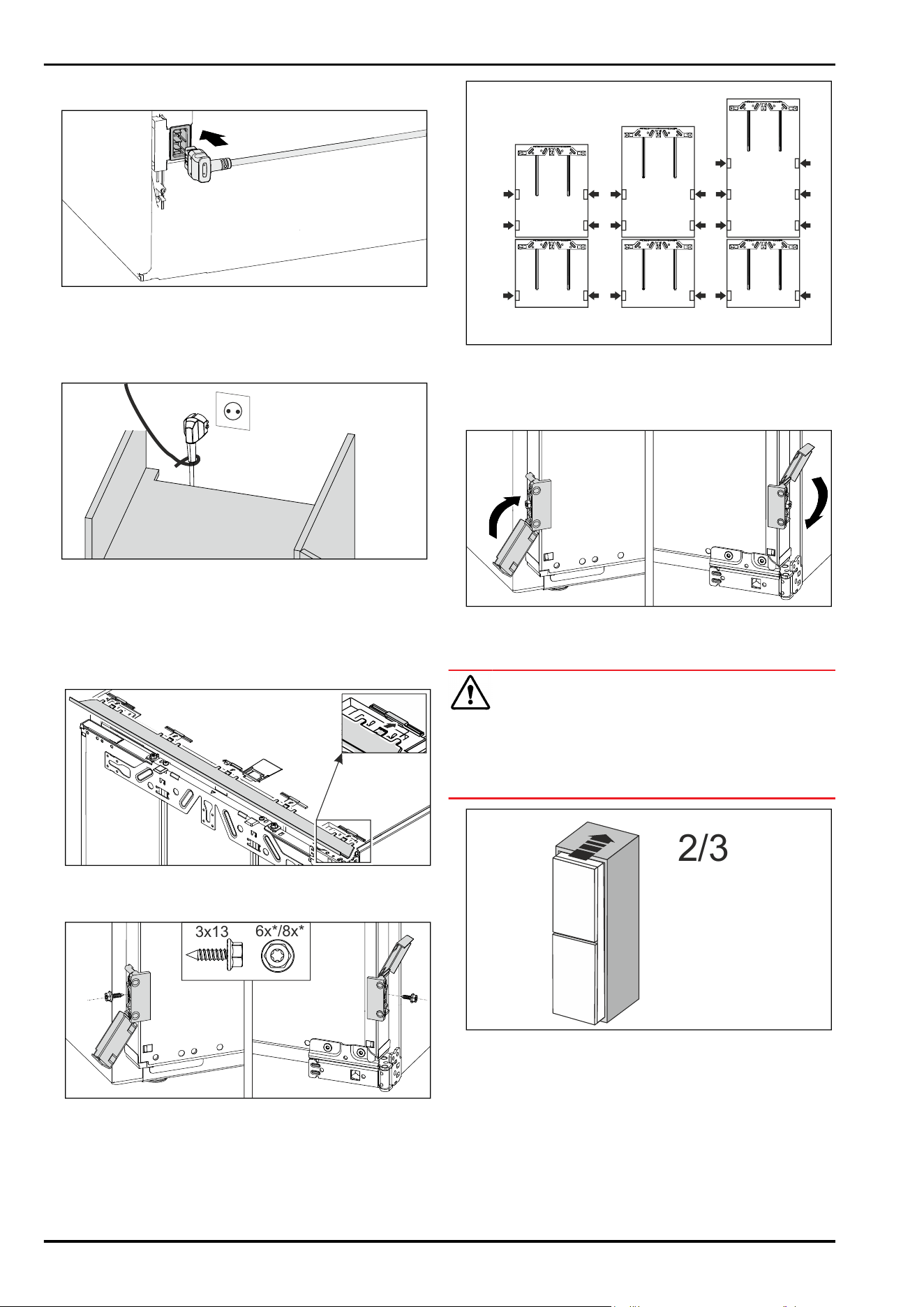

3.13.6 Preparing the mains connection

Fig.35

► Remove the mains cable from the package.

► Plug the mains cable’s IEC socket completely into the

appliance plug on the back of the appliance.

▷ The IEC socket is firmly seated in the appliance plug.

Fig.36

► Use a cord to route the mains connection cable to a

freely accessible socket.

▷ The mains connection cable can be plugged into the

socket after the appliance has been installed.

3.13.7 Preparing the appliance

Fig.37

► Insert the finishing trim on the top of the appliance.

▷ The trim panel can be moved to both sides.

3x13

6x*/8x*

Fig.38

If your kitchen fronts have cabinet door handles:

► Fit a pair of the side mounting brackets at the height of

the subsequent unit door handles.

Fig. 39

Fit an additional pair of fixing brackets for large doors.

► Fit the side mounting brackets underneath the mounting

crossbar.

Fig.40

► Fold the covers onto the mounting brackets after installa‐

tion.

WARNING

Risk of fire due to short circuit!

► When you push the appliance into the niche: do not kink,

jam or damage the mains cable.

► The appliance must not be operated with a defective

mains cable.

2/3

Fig. 41

► Push the appliance two thirds of the way into the niche.

Setting up and connecting

* Depending on model and options 15

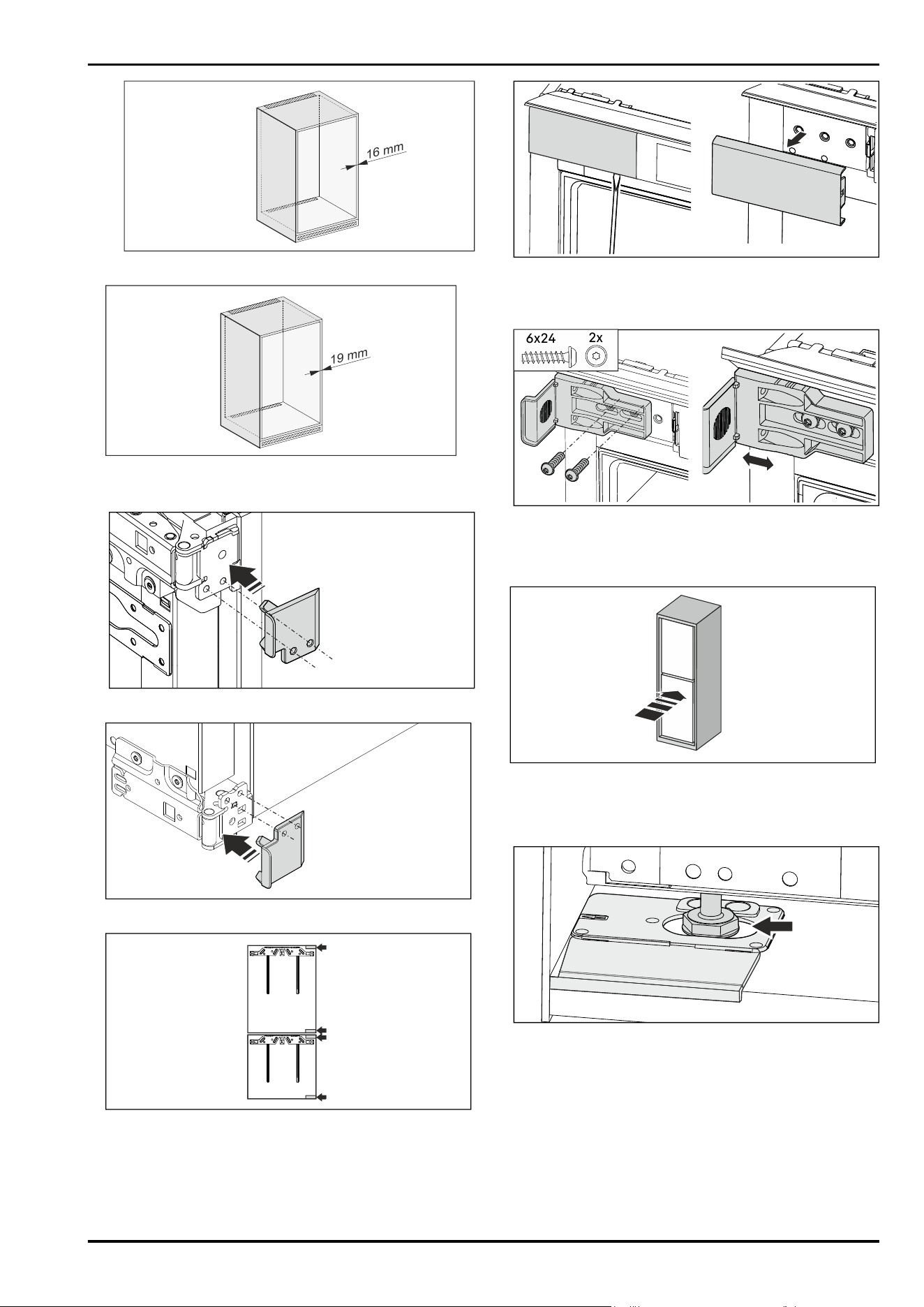

16 mm

Fig. 42

19 mm

Fig.43

► Check whether the cabinet side panel is 16mm or 19mm

thick.

Fig.44

Fig.45

Fig.46*

► 16mm cabinet wall: Place the spacer on all hinges.

-or-

► 19mm cabinet wall: do not use a spacer.

Fig. 47

► Open the door.

► Unlatch the cover at the top left.

► Remove the cover.

6 4x2

Fig.48

► Screw on the bracket loosely.

▷ The bracket can be moved.

► Close the door.

Fig. 49

► Push the appliance completely into the recess.

3.13.8 Aligning the appliance

Fig.50

► Position the adjustable feet on both sides in the recesses

of the installation aid.

► Open the door.

Setting up and connecting

16 * Depending on model and options

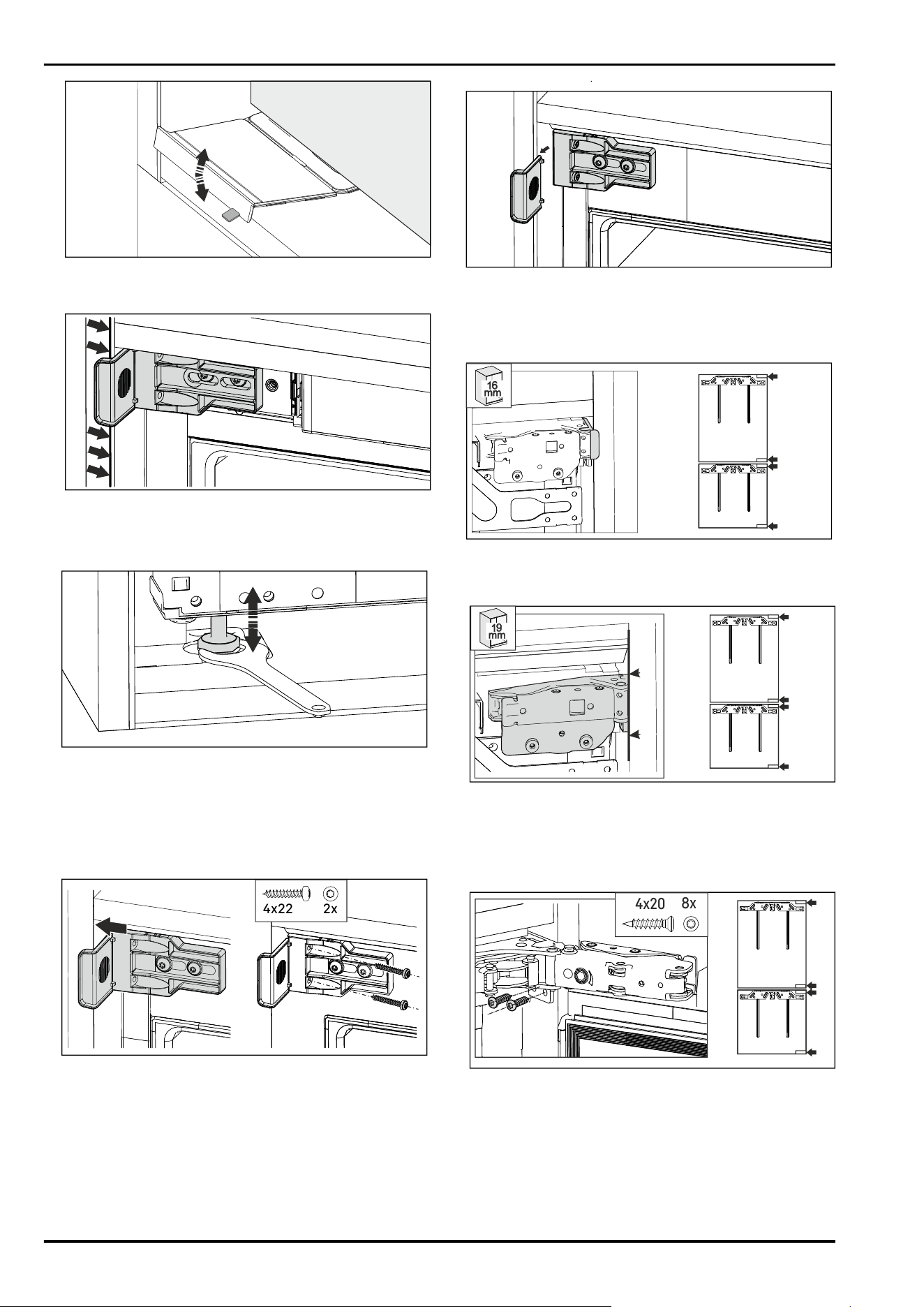

Fig.51

► Release the installation aid by moving it.

► If necessary, tear it off with pliers.

Fig.52

► Check that the appliance is level in the niche.

▷ The mounting bracket at the top left rests firmly against

the side wall of the niche.

Fig.53

Adjust the inclination of the appliance using the adjustable

feet.

► Screw the adjustable foot out:

▷ The appliance tilts backwards.

► Screw the adjustable foot in:

▷ The appliance tilts forwards.

4x22 2x

Fig.54

► Press the mounting bracket onto the side wall of the

niche.

► Screw the screws tight.

Fig.55

► Separate the stop from the bracket.

► Dispose of the stop.

► Close the door.

► Align the appliance with the adjustable feet. Fig.50()

Fig.56*

▷ 16mm thick cabinet side panel: the spacer parts lie

against the side panel of the niche on the hinge side. 

()

Fig.57*

▷ 19mm thick cabinet side panel: the front edge of the

hinges is flush with the front of the cabinet side panel.

Fig.57()

3.13.9 Securing the appliance

4x20

Fig.58*

► Open the door.

► Screw on the appliance on the hinge side.

Setting up and connecting

* Depending on model and options 17

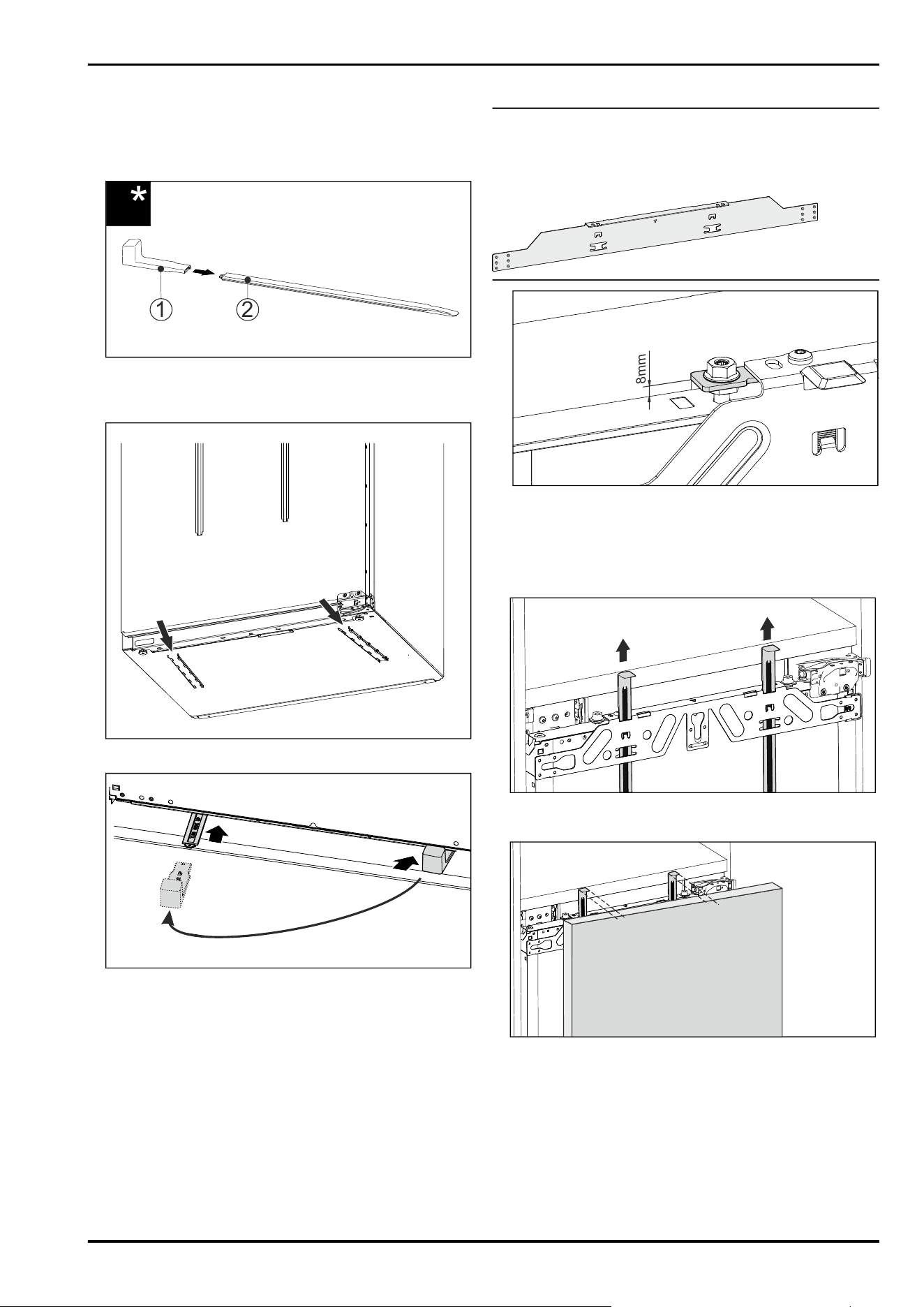

3.13.10 Insert the levelling rails

You must installed levelling rails under the appliance from

a niche height of 1400mm. The levelling rails reduce the

noise level. Two levelling rails and an installation handle are

enclosed from a niche height of 1400mm.

1 2

Fig. 59

► Attach the installation handle Fig. 59(1) to the levelling

rail Fig. 59(2).

Fig.60

Fig.61

► Push the levelling rail into the guide under the appliance

base until it reaches the stop.

► Remove the installation handle and attach it to the

second levelling rail.

► Push the second levelling rail into the guide under the

appliance base until it reaches the stop.

► Remove the installation handle.

▷ The appliance is now levelled.

3.13.11 Fitting the unit fronts

Note

The mounting bracket for panelled doors in a country-style

kitchen is available as an accessory from the Liebherr-

Hausgeräte shop at: home.liebherr.com/shop/de/deu/

zubehor.html

8mm

Fig. 62

► Close the door.

► Check the distance between the upper edge of the appli‐

ance door and the support of the mounting crossbar.

▷ The distance between the top edge of the appliance door

and the mounting crossbar is 8mm.

Fig.63

► Push up the installation aids.

Fig.64

▷ The lower stop edge of the installation aid is level with

the upper edge of the door to be installed.

Setting up and connecting

18 * Depending on model and options

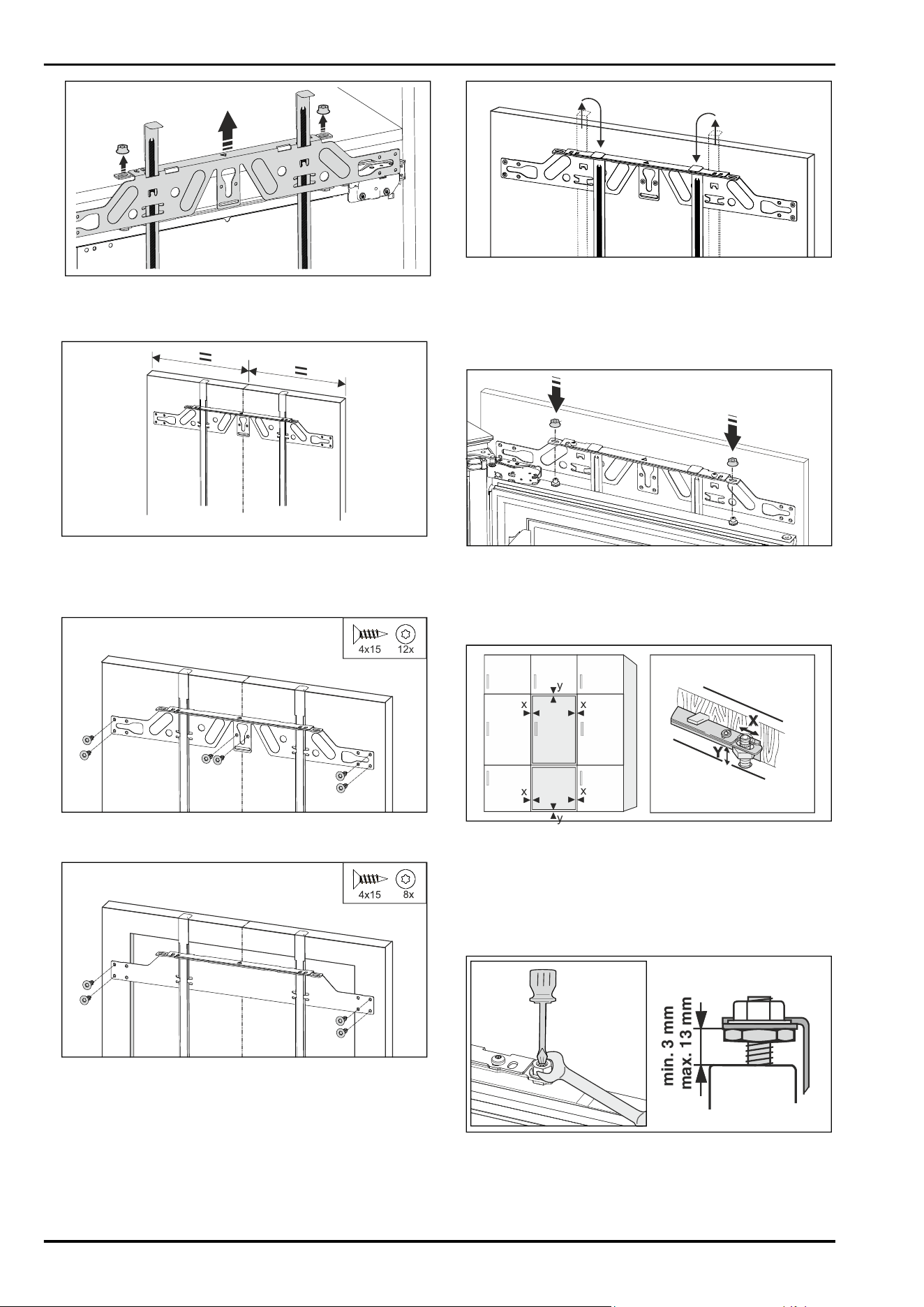

Fig.65

► Loosen the nuts.

► Remove the mounting crossbar.

Fig.66

► Hang the mounting crossbar on the inside of the unit

door.

▷ Mounting crossbar is centred.

4x15

12x

Fig. 67

► Fasten the mounting crossbar with 6 screws.

Fig.68

► Fasten the mounting crossbar for panelled doors with at

least 4 screws.

► Fit the screws as far outwards as possible on panelled

doors.

Fig. 69

► Pull out the installation aids.

► Insert the installation aids rotated into the adjacent

mounting opening of the mounting crossbar.

-or-

► Use installation aids for fitting the second unit door.*

Fig.70

► Hang unit doors.*

► Screw the nuts loosely onto the bolts.

3.13.12 Aligning the cabinet front

Fig.71*

Align the unit doors in the X and Y directions using the

screws:*

► Loosen the nuts.

► Align unit door in X direction.

► Turn the screws up or down.

► Align unit door in Y direction.

max. 13 mm

min. 3 mm

Fig.72

► Tighten the nuts.

► Check the height set.

▷ Height set is between 3mmand 13mm.

▷ Unit doors are aligned in the X and Y directions.*

Setting up and connecting

* Depending on model and options 19

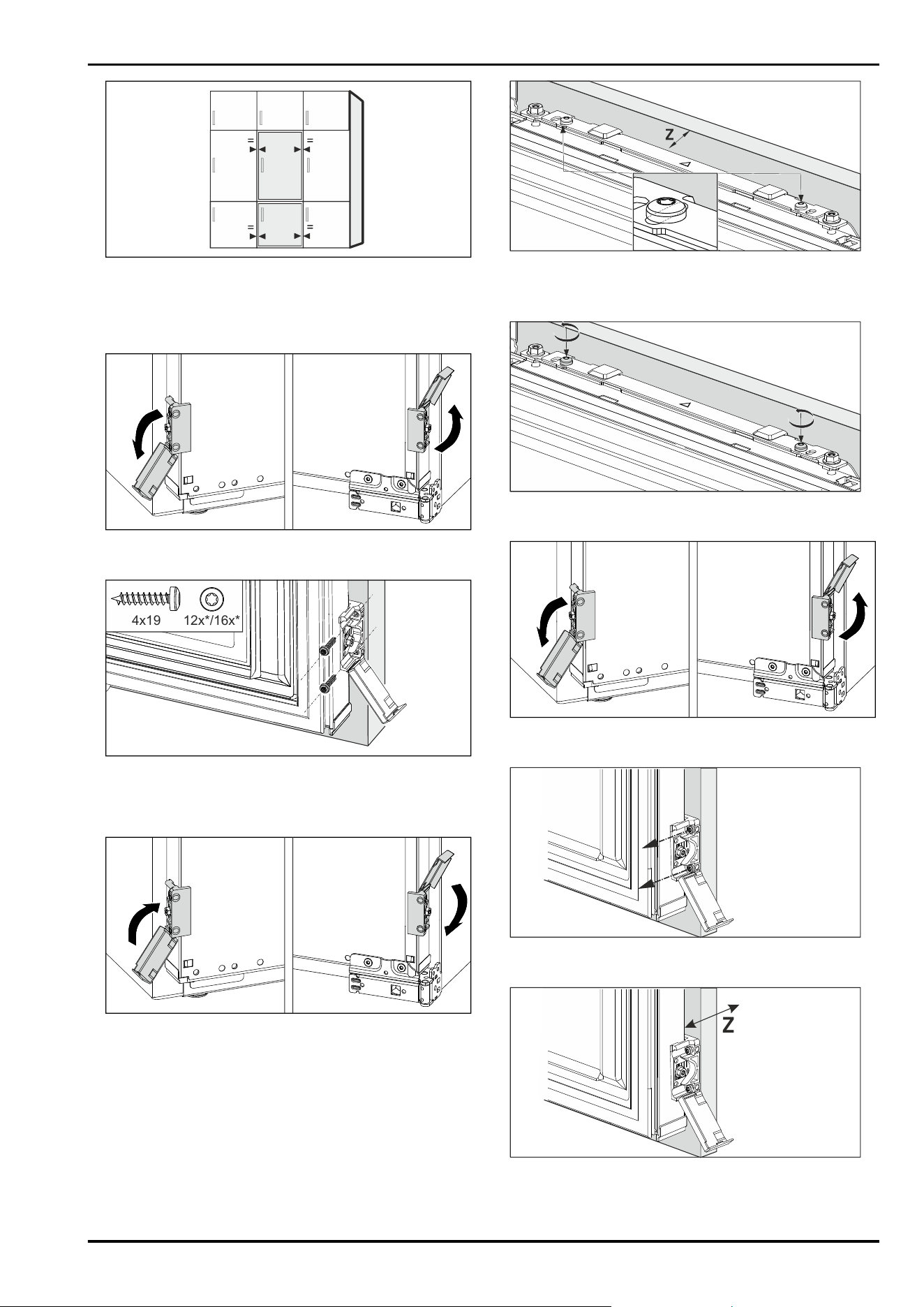

Fig.73*

► Check the distance of the door against the surrounding

unit doors.

▷ Distance between unit doors and appliance doors is the

same all round.*

Fig. 74

► Open the covers.

4x19

12x*/16x*

Fig.75

► Align the front edge of the fixing bracket parallel to the

edge of the cabinet door.

► Screw the bracket tight.

Fig. 76

► Fold up the covers.

Fig.77

Align the unit doors in the Z direction using the slotted

holes:*

Fig.78

► Unscrew the screws on the mounting bar.

Fig.79

► Open the covers on the mounting brackets.

Fig.80

► Loosen the screws on all mounting brackets.

Fig.81

► Move the door in the Z direction.

► Screw the screws tight.

Setting up and connecting

20 * Depending on model and options

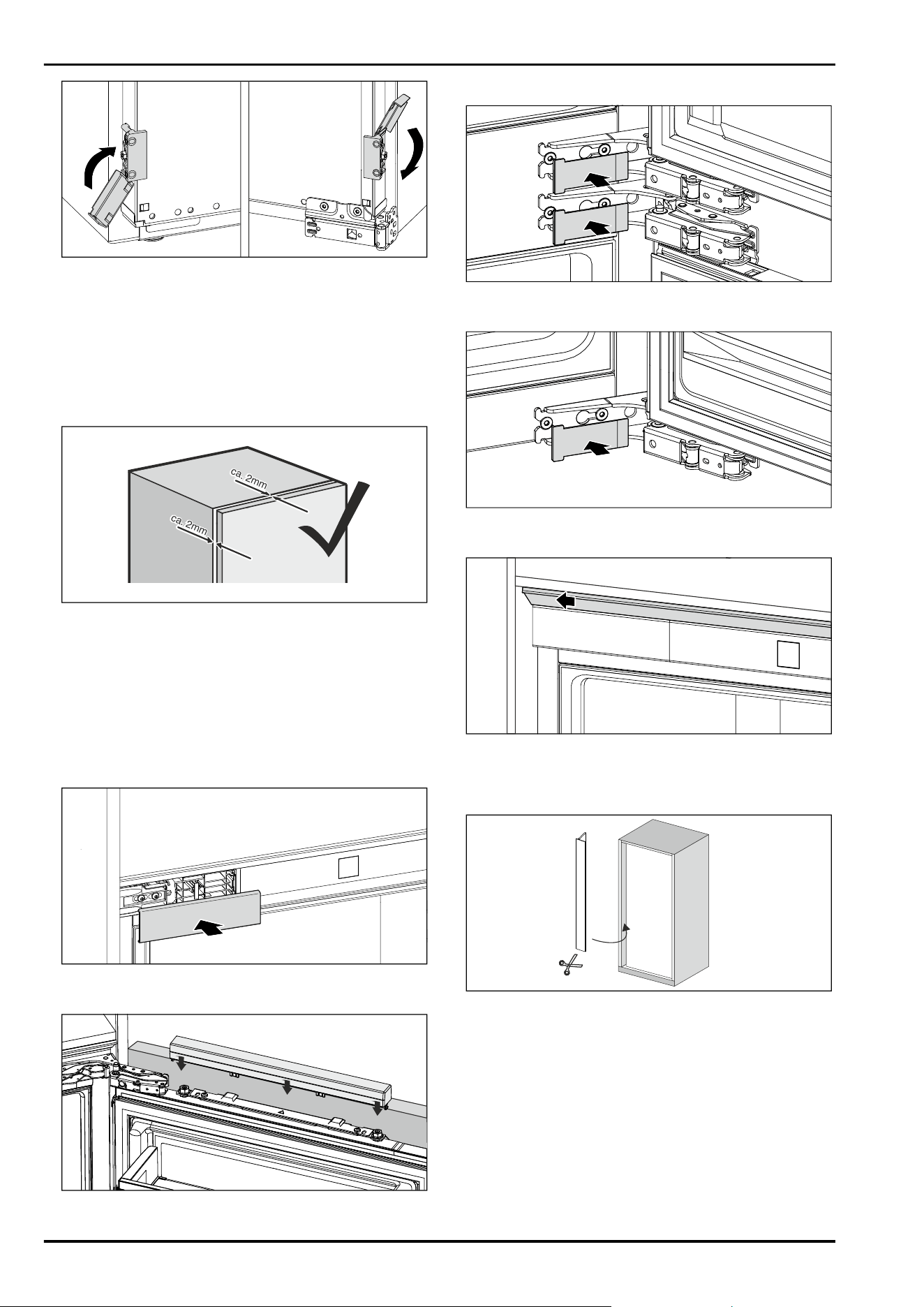

Fig.82

► Fold up the covers.

► Close the door.

▷ Unit doors are aligned in the Z direction.*

3.13.13 Check the installation

► Check the following points to ensure that the appli‐

ance is installed correctly. Otherwise, icing, condensation

formation and malfunctions may occur.

ca.ca. 2mm2mm

ca. 2mm

ca.ca. 2mm2mm

ca. 2mm

Fig.83

▷ The door closes properly.

▷ The unit door does not fit snugly against the cabinet

carcass.

▷ The distance between the unit door and the cabinet

carcass has been checked.

▷ All screws have been checked.

3.13.14 Attaching the covers

► Open the door.

Fig.84

► Attach the cover at the top left.

Fig.85

►

Put the upper covers on.*

Fig.86*

► Place the covers on the centre hinges.*

Fig. 87*

► Place the cover on the centre hinge.*

Fig.88

► Move the trim panel towards the handle side.

▷ The trim panel fits snugly against the side panel of the

cabinet.

Fig.89

Attach the magnetic piping:

► If necessary: Cut the piping to the required length with

sharp scissors.

Setting up and connecting

* Depending on model and options 21

Fig.90

► Place the piping below the top left cover and press down.

3.14 Installing the appliance in a 30”

niche

The appliance can be integrated into a 30” niche. To do this,

first adjust the niche to fit a standard niche using a wall

levelling compound.

Note

Door hinge

These instructions describe how to install an appliance with

the door hinge on the right.

Installation of an appliance with the door hinge on the left:

► Follow the steps and illustrations in reverse.

Note

Door hinge — Terminology

This guide uses the following terminology:

Door hinge side: The side of the appliance to which the door

is attached.

Door opening side: The side of the appliance from which the

door is opened.

Fig. 9130” niche

(1)

Door opening side (2) Door hinge side

Recess dimensions

F 1940mm to 1950mm

Recess dimensions

G max. 762mm (30”)

H min.560mm

min.200cm

K max.2245mm

L max.19mm

3.14.1 Fitting the wall levelling

The wall levelling reduces the niche to a standard size. You

will need to make the wall levelling yourself and provide the

necessary fixing materials.

Liebherr recommends the following materials:

Wall levelling: same material as the recess

Fixing materials: Chipboard screws 4x22

Fig.92

(1)

Door opening side (3) 30” niche

(2) Door hinge side (4) Wall levelling

Wall levelling dimensions

F Niche height/wall

levelling height

1940mm to 1950mm

B Wall levelling depth min.100mm

Wall levelling wall

thickness

16mm for a unit wall thick‐

ness of 16mm

12mm for a unit wall thick‐

ness of 19mm

► Measure the thickness of the wall unit Fig. 91(L).

► Construct the wall levelling Fig.92(4) in accordance with

the dimensions given above.

▷ The wall levelling fits into the 30” niche.

3.14.2 Fitting the wall levelling in the niche

Ensure that the following requirements are met:

The wall levelling is secured with at least 4 screws.

The distance from the front edge of the unit front is at

least 50mm.

Setting up and connecting

22 * Depending on model and options

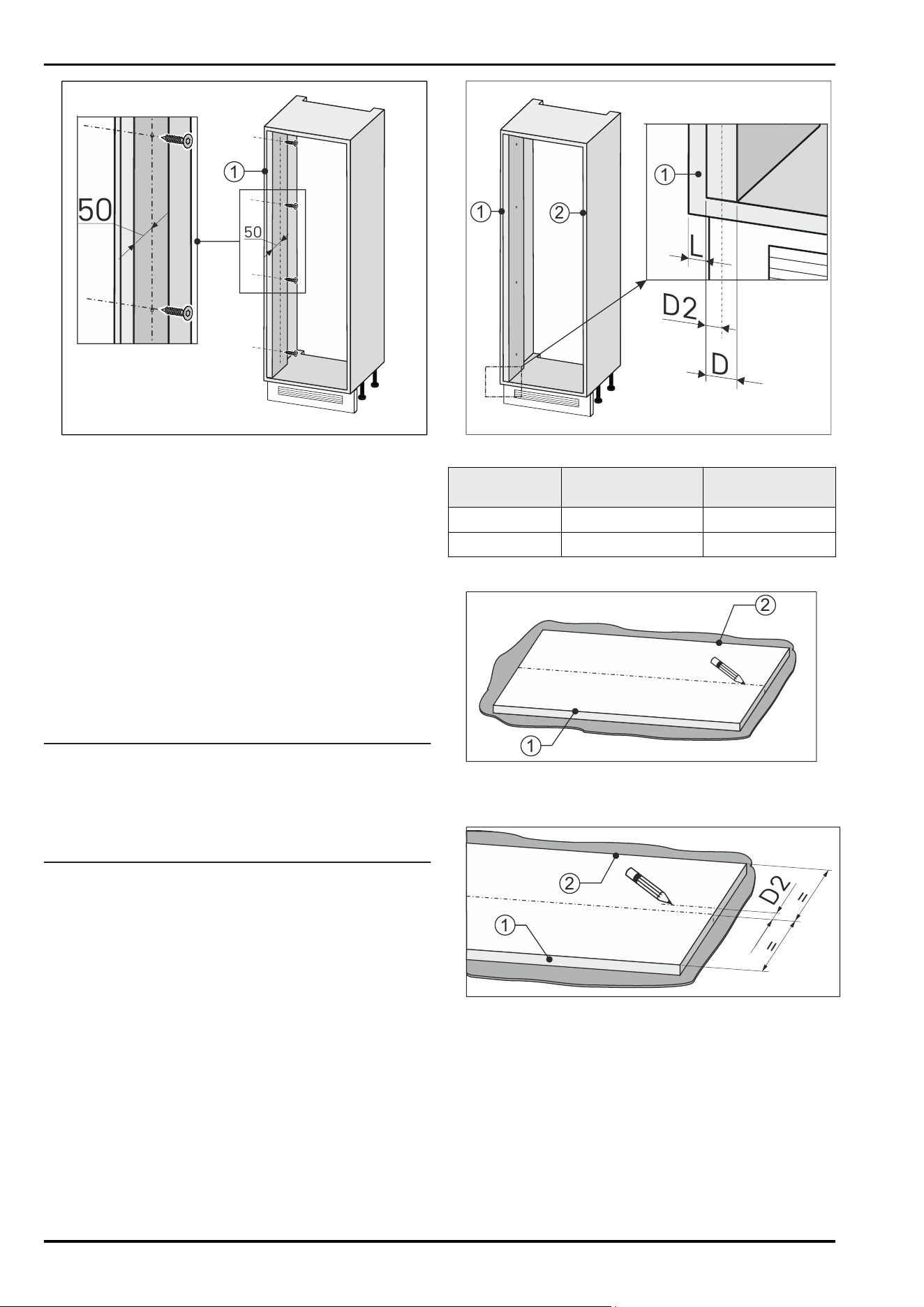

Fig. 93

► Align the wall levelling flush with the front edge of the

unit niche.

► Screw the wall levelling on the side where the door opens

Fig. 93(1) to the unit niche.

▷ 30” niche has been reduced to a standard niche.

3.14.3 Installing the appliance completely into

the niche

► Continue with installation in the modified 30”

niche as described in the standard instructions.

(see 3.13.4 Preparing the niche)

3.14.4 Fitting a unit front for a 30” niche

► Prepare the mounting crossbar as described in the

section on fitting the unit front in the standard niche.

(see 3.13.11 Fitting the unit fronts)

Note

The installation of the unit front for a 30” niche differs from

that for a standard niche. For a standard niche, fit the unit

front in the centre. For a 30” niche , fit the unit front so that

it is offset to the side towards the hinge side.

► Fit the unit front to the 30” niche following the instruc‐

tions.

Fig. 94

Unit wall thick‐

ness L(mm)

Wall levelling wall

thickness h D(mm)

Wall levelling half

width D2(mm)

16 16 8

19 12 6

► Note down the half width Fig. 94(D2) of the wall levelling.

Fig.95

► Place the unit front on a surface.

► Mark the centre of the inside of the unit front.

Fig.96

► Measure dimensions Fig.96(D2) from the centre of the

front of the unit towards the door hinge side Fig.96(2).

► Set a marker.

Setting up and connecting

* Depending on model and options 23

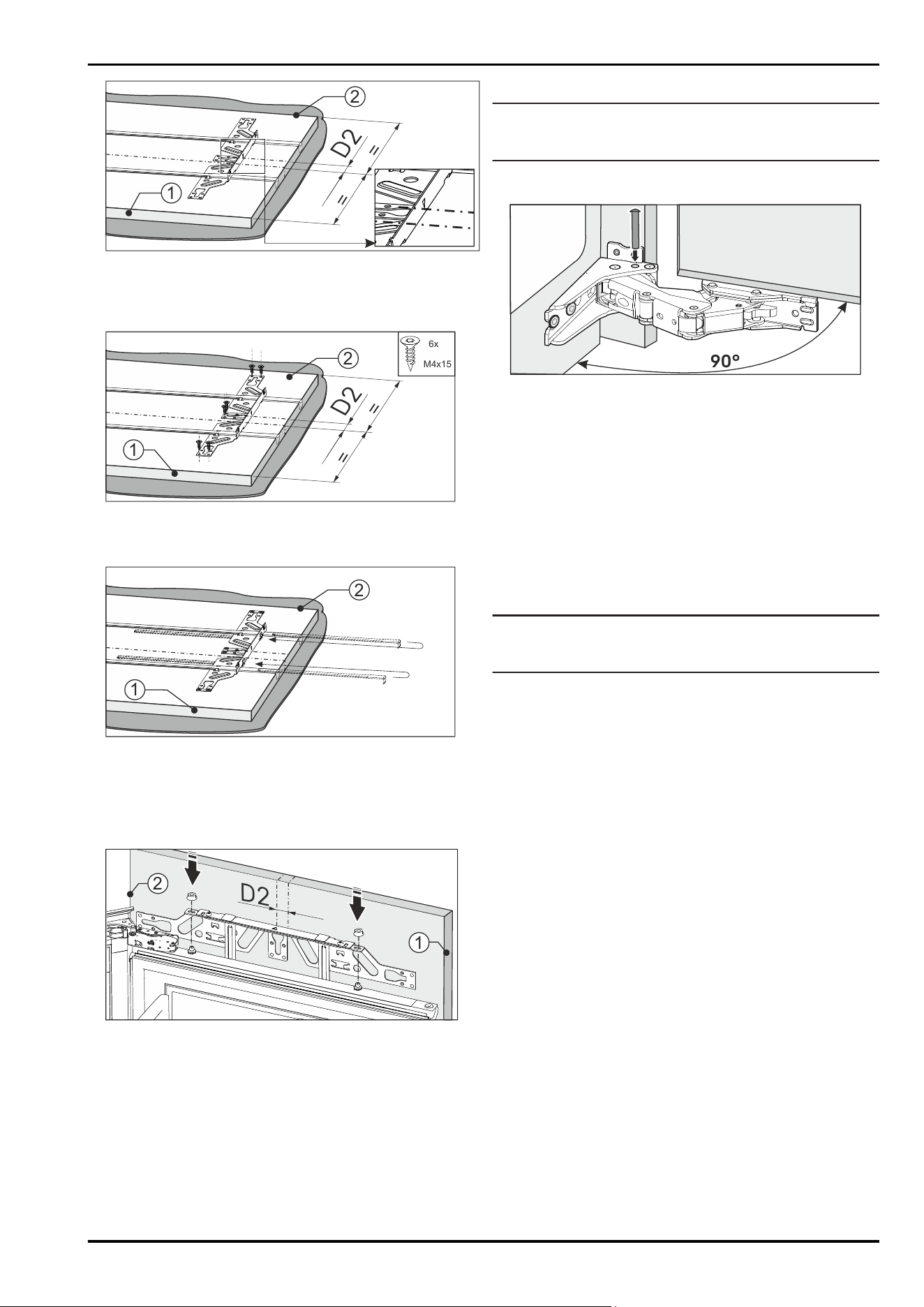

Fig.97

► Set the mounting crossbar on the inside of the unit door.

▷ The marking on the mounting crossbar aligns with the

marking Fig.97(D2).

M4x15

Fig.98

► Fasten the mounting crossbar with 6 screws.

▷ The unit front is ready for further assembly.

Fig.99

► Pull out the installation aids.

► Insert the installation aids rotated into the adjacent

mounting opening of the mounting crossbar.

-or-

► Use installation aids for fitting the second unit front.

Fig. 100

► Hang in unit front.

► Screw the nuts loosely onto the bolts.

► Continue with the installation as described in the section

on installation in the niche. (see 3.13.12Aligning the

cabinet front)

3.15 Limiting the door opening angle

The door opening angle can be limited to 90° using a pin.

This is useful if, for example, the appliance is positioned

against a wall.

The pin is available as an accessory.

Note

Sie erhalten Zubehör im Liebherr-Hausgeräte-Shop unter

go.liebherr.com/47wtc4.

3.15.1 Inserting the pin

90°

Fig. 101

► Open door 90°.

► Insert one pin into the opening of each lower hinge from

above.*

▷ There is a pin in each of the two lower hinges.*

▷ The door opens to a maximum of 90°.

3.16 Unit fronts

3.16.1 Dimensions

You require one unit door or two unit doors depending on

the appliance variant. The size of the applicable unit door(s)

depends on the total niche size and the unit body thickness.

Note

Observe the corresponding appliance and niche dimensions,

and installation sketches.

General specifications:

Please note our appliance-specific recommendations on

size and weight for fixed door installation.

The unit body thickness should be at least 16mm and no

more than 19mm.

Pay attention to the gap position in the event of double

unit door installation.

Setting up and connecting

24 * Depending on model and options

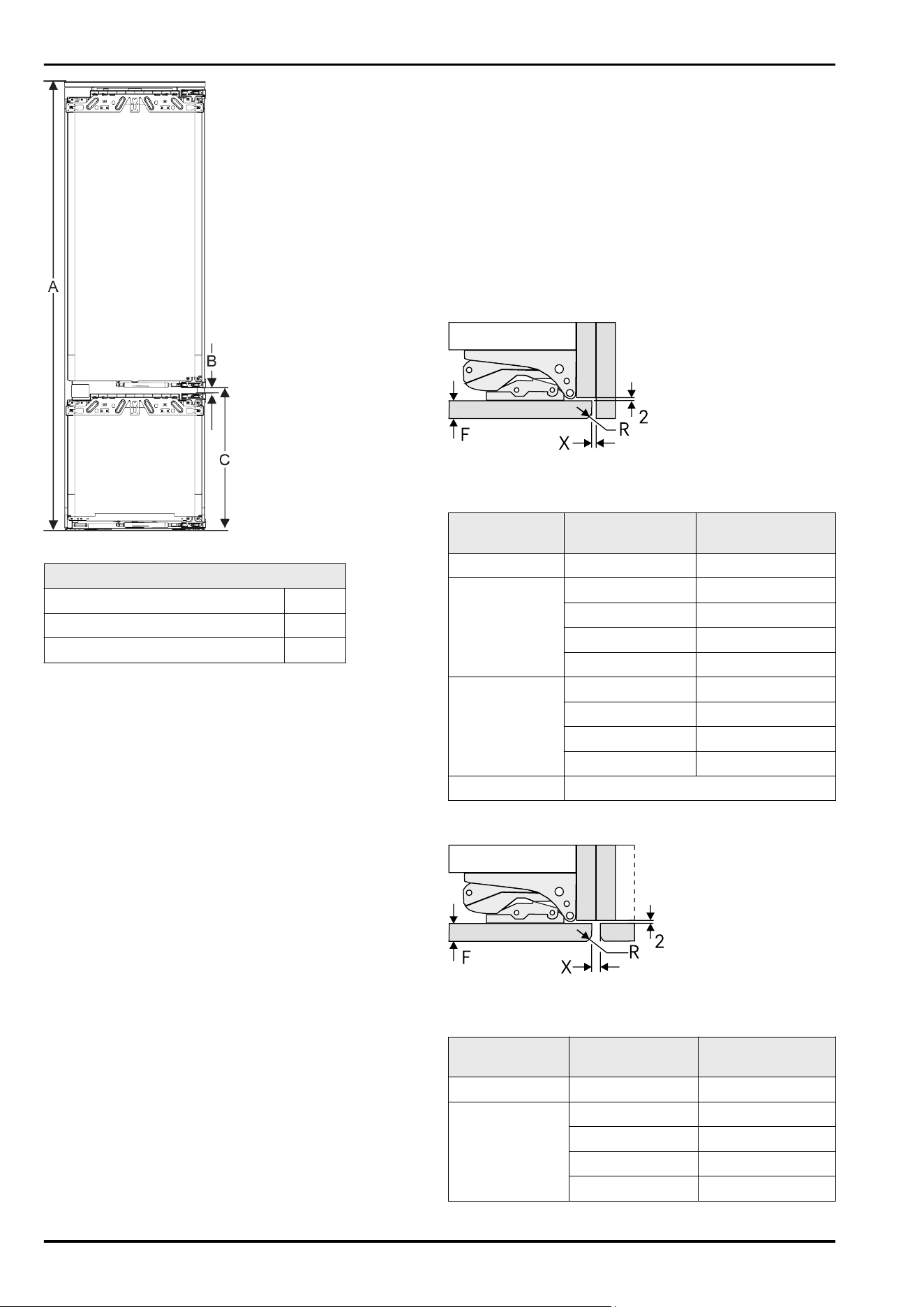

Fig. 102 Gap position for double-door unit front

Niche height 194 with 3 drawers

Appliance height (A) (mm) 1938

Gap (B) (mm) 15

Gap position (C) for fixed door (mm) 695 + 15

Additional unit door above, below or adjacent:

The vertical gap dimension between the unit doors must

be 4mm.

The horizontal gap dimension between the unit doors

must be 4mm. Check the collision properties here.

(see 3.16.3 Adjusting the joint gap without collisions)

Weight and hinges:

If the unit fronts are heavy, the stress on the hinge is

very high. The hinge may be damaged. Please note the

maximum weight specification for your appliance in the

chapter Furniture front weights .

If the unit front exceeds the maximum permissible

weight, an appliance with sliding door technology can

help, as the weight is divided over several concealed

hinges on the unit.

If you use long unit fronts that extend a long way over

the appliances, we recommend an additional hinge (e.g.

Kamat) that has exactly the same pivot point as the

fixed door hinge used on your appliance. Using a further

hinge (Kamat) divides the weight over several points.

We recommend using a milled compensation fitting for

high unit fronts, in order to counteract warping (convex/

concave).

3.16.2 Fitting the unit front(s)

Note the following when installing:

- The unit front must be installed symmetrically to the

fridge door.

- The adjacent unit front is on the exact same level.

- The adjacent unit front has the same edge radius as the

appliance front.

- The unit front is level and not strained.

- The unit front has a minimum depth setting of around

2mm to the body.

► Install the appliance in the niche.

► Fasten the unit front to the appliance door.

► Adjust the gap.

► Check the unit front for collisions. (see 3.16.3 Adjusting

the joint gap without collisions)

3.16.3 Adjusting the joint gap without colli‐

sions

3.16.3 Joint gap with adjoining furniture side

panel

Fig. 103 Joint gap with adjoining furniture side panel

(F)

Front thickness (X) Min. joint gap

(R) Unit front corner radius

Front thickness

F [mm]

Unit front corner

radius R [mm]

Min. joint gap X

(vertical) [mm]

16 to 20 0 to 3 3

22 0 4

1 4

2 3

3 3

24 0 8

1 7

2 6

3 6

26 Not recommended.

3.16.3 Joint gap with adjoining unit door

Fig. 104 Joint gap with adjoining unit door

(F)

Front thickness (X) Min. joint gap

(R) Unit front corner radius

Front thickness F

[mm]

Unit front corner

radius R [mm]

Min. joint gap X

(vertical) [mm]

16 to 20 0 to 3 2

22 0 4

1 3

2 3

3 2

Setting up and connecting

* Depending on model and options 25

Front thickness F

[mm]

Unit front corner

radius R [mm]

Min. joint gap X

(vertical) [mm]

24 0 6

1 5

2 5

3 4

26 0 8

1 7

2 7

3 6

3.17 After installation

► Remove all transport safety fittings from the interior.

Fig. 105

► Remove transport safety fittings from the shelves.

NOTICE

Damage to property caused by pointed or sharp objects!

Using pointed or sharp objects when removing packaging

material may damage the appliance.

► Do not use any pointed or sharp objects to remove the

packaging material.

► Remove protective films from the interior: Peel the film

off flat along the surface of the component to minimise

its adhesive force.

► Clean the appliance. (see 10.8Cleaning the appliance)

► Note down the type (model, number), appliance name,

appliance/serial number, date of purchase and retailer’s

address.

3.18 Connecting the appliance to the

power supply

WARNING

Danger of electric shock and injury due to damaged appli‐

ance or damaged mains cable!

Danger of cuts and fatal injuries. If the appliance or the

mains cable is damaged during transport, you may be elec‐

trocuted. You could also cut yourself on damaged parts of

the appliance housing.

► Check the appliance and the mains cable for damage

after transport.

► Never put the appliance into operation if the appliance or

the mains cable are damaged.

► Contact Customer Service.

You can connect your appliance to the mains using the

power cable supplied separately. The mains power cable

has an appliance coupler at one end and a mains plug at the

other end.

Make sure that the following requirements are fulfilled:

The appliance and power cable are undamaged.

The appliance is installed in accordance with the regula‐

tions. (see 3.13 Installation in the niche)

Requirements for the electrical connection are met.

Dimensions for connection in accordance with regula‐

tions are known and observed.

Mains voltage and frequency correspond to the specifica‐

tions on the type plate.

The socket is earthed according to the regulations and

fused.

The fuse tripping current is between 10A and 16A.

The socket is easily accessible and is not behind the

appliance. (see 3.3 Recess dimensions)

NOTICE

Danger of damage to incorrect operation!

Damage to the electrical components of the appliance.

► Only use the supplied mains cable.

WARNING

Danger of fire due to incorrect connection!

Burns.

Damage to the appliance.

► Do not use an extension cable.

► Do not use distributor blocks.

NOTICE

Danger of damage to incorrect connection!

Damage to the appliance.

► Do not connect the appliance to a stand-alone inverter,

e.g. solar power systems and petrol generators.

► Connect the mains cable plug to the power supply.

Ensure that the plug is tightly in the socket.

▷ The Liebherr logo appears in the display.

▷ The display switches to the standby symbol.

▷ If no action occurs within 60 seconds: The standby

symbol fades or disappears.

▷ The appliance is connected. For information regarding

first use, see the following section or the operating

instructions.

3.19 Disposing of packaging

WARNING

Danger of suffocation due to packing material and plastic

film!

► Do not allow children to play with packing material.

The packaging is made of recyclable materials:

corrugated board/cardboard

expanded polystyrene parts

polythene bags and sheets

polypropylene straps

nailed wooden frame with polyethylene panel*

► Take the packaging material to an official collecting

point.

Setting up and connecting

26 * Depending on model and options

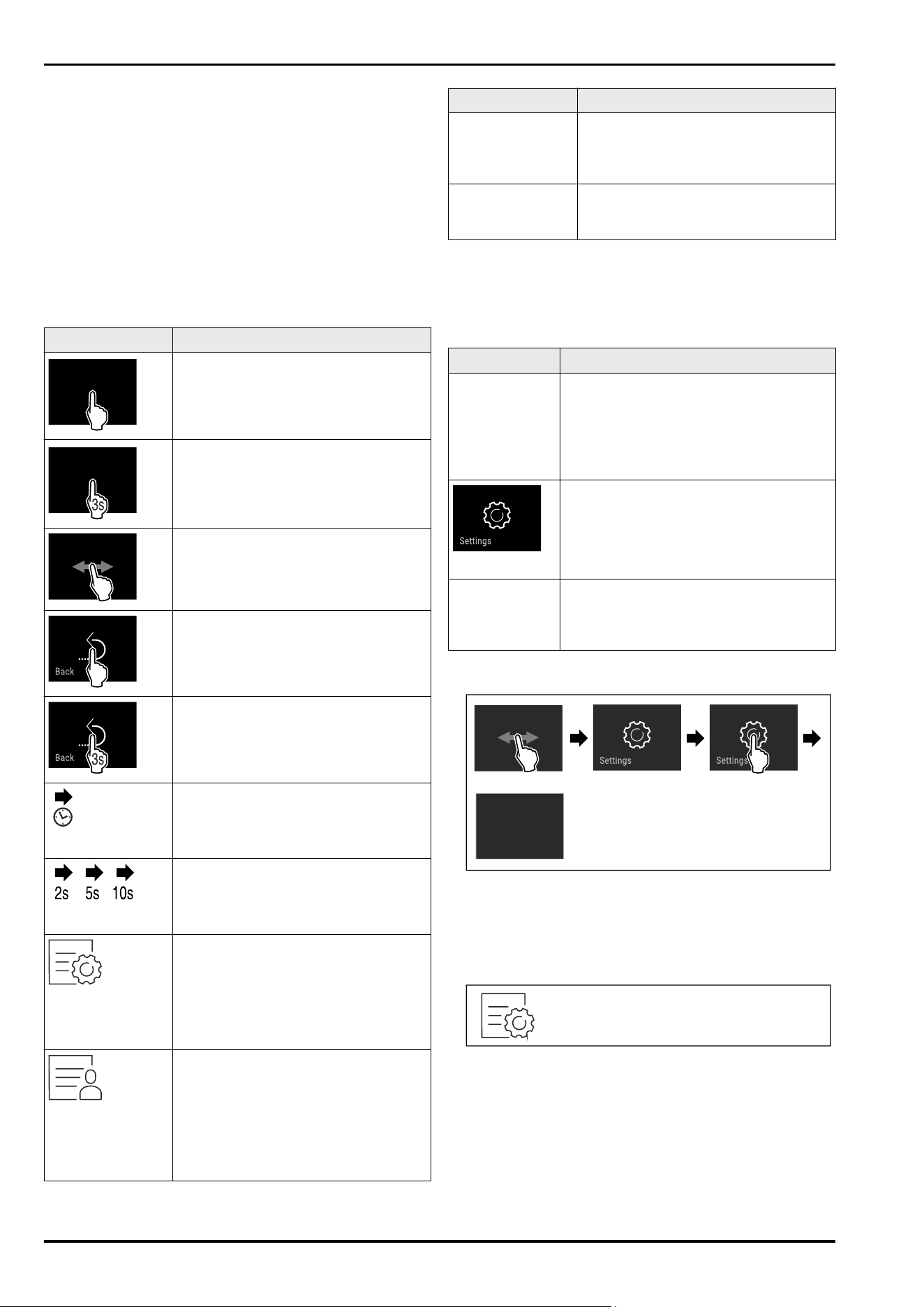

4 Functionality of the

Touch&Swipe display

You operate your appliance using the Touch & Swipe display.

You select appliance functions in the Touch&Swipe display

(hereafter referred to as display) by tapping them. If you

do not perform any action on the display for 10seconds,

the display either jumps back to the higher-level menu or

directly to the status display.

4.1 Navigation and symbol explanation

In the illustrations, different symbols are used to navigate

the display. The following table describes these symbols.

Symbol

Description

Briefly touch the display:

Activates/deactivates function.

Confirms selection.

Opens submenu.

Touch the display for a specified time

(e.g. 3seconds):

Activates/deactivates function or

value.

Swipe left or right:

Navigate in the menu.

Briefly touch the Back symbol:

Jumps back one menu level.

Press and hold the Back symbol for

3seconds:

Jumps back to the status display.

Arrow with clock:

It takes more than 10 seconds for the

following message to appear in the

display.

Arrow with a time indication:

It takes the specified amount of time

until the following message appears in

the display.

“Open Settings menu” symbol:

Navigates to the Settings menu and

opens the settings menu.

If necessary: Navigate to the desired

function in the Settings menu.

(see4.2.1 Opening the Settings menu)

“Open Advanced menu” symbol:

Navigates to the Advanced menu and

opens the advanced menu.

If necessary: Navigate to the desired

function in the Advanced menu.

(see4.2.2 Opening the expanded

menu)

Symbol Description

No action for

10seconds

If you do not perform any action on

the display for 10seconds, the display

either jumps back to the higher-level

menu or directly to the status display.

Close the door

and open it again.

If you close the door and immedi‐

ately open it again, the display jumps

directly back to the status display.

Note: Illustrations of the display are shown in the English

version.

4.2 Menus

The appliance functions are distributed over various menus:

Description

Main menu When you switch the appliance on, you

are automatically in the main menu.

From here you can navigate to the most

important appliance functions, to the

Settings menu and to the Advanced

menu.

Settings menu

The Settings menu contains additional

appliance functions for setting up your

appliance.

Advanced menu The advanced menu contains special

appliance functions for setting up your

appliance. Access to the Advanced menu

is protected by the numerical code 151.

4.2.1 Opening the Settings menu

Fig. 106 Example illustration

► Carry out action steps according to the illustration.

▷ Settings menu is open.

► If necessary: Navigate to the desired function.

4.2.2 Opening the expanded menu

Fig. 107

Functionality of the Touch&Swipe display

* Depending on model and options 27

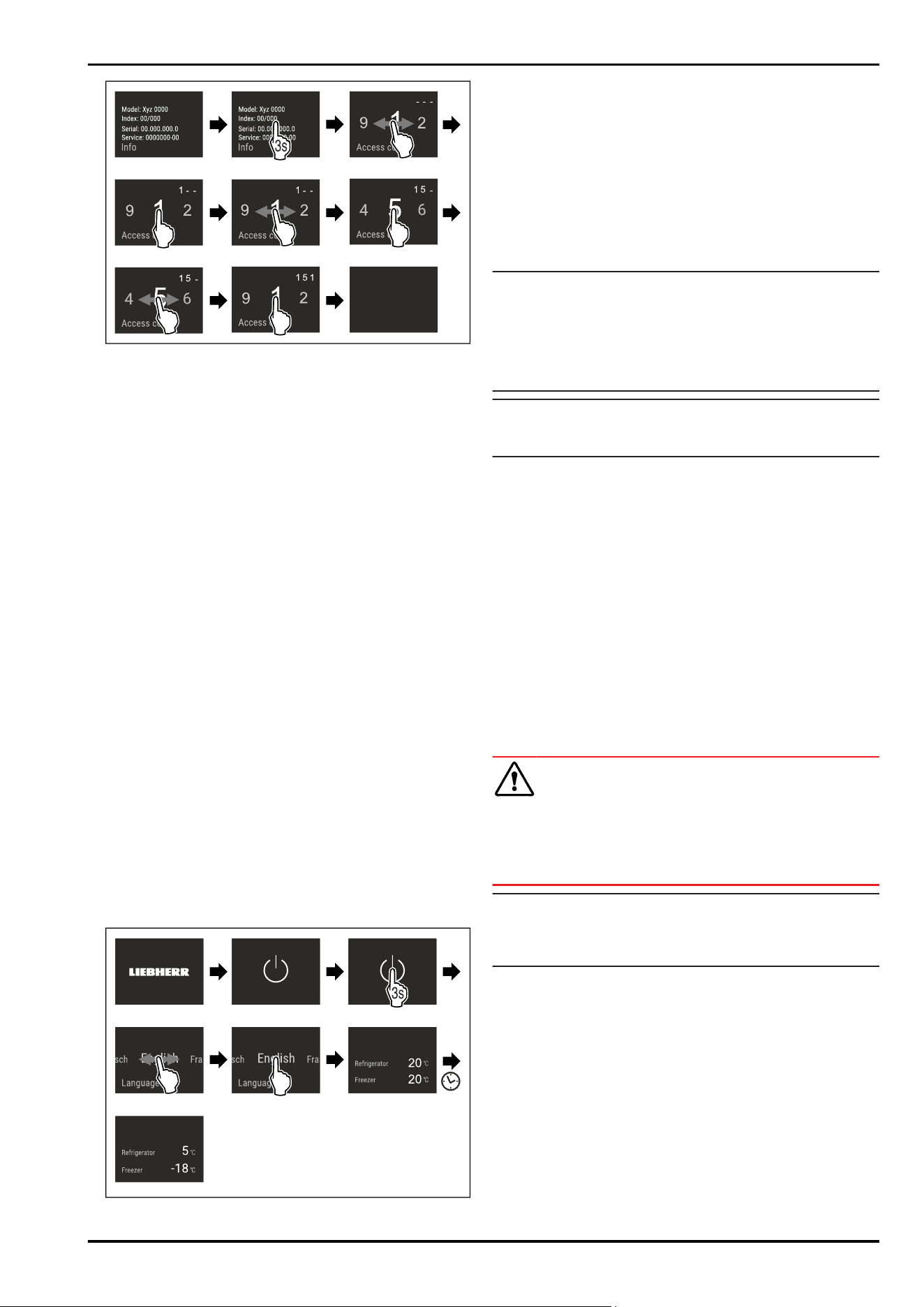

Fig. 108 Example illustration, access with numerical code

151

► Carry out action steps according to the illustration.

▷ The expanded menu is open.

► If necessary: Navigate to the desired function.

4.3 Sleep mode

If you do not touch the display for 1 minute, the display

switches to sleep mode. In sleep mode, the display bright‐

ness is dimmed.

4.3.1 Ending sleep mode

► Touch the display briefly with your finger.

▷ Sleep mode is ended.

5 Putting into operation

5.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

❑

The appliance is properly installed and connected

according to the installation instructions.

❑

All adhesive strips, adhesive and protective films and

transport locks are removed from inside and on the appli‐

ance.

❑

All marketing leaflets are removed from the drawers.

❑

You are familiar with the functionality of the

Touch & Swipe display. (see4 Functionality of the

Touch&Swipe display)

Switch on the appliance using the Touch&Swipe display:

► If the display is in sleep mode: Briefly touch the display.

► Carry out action steps according to the illustration.

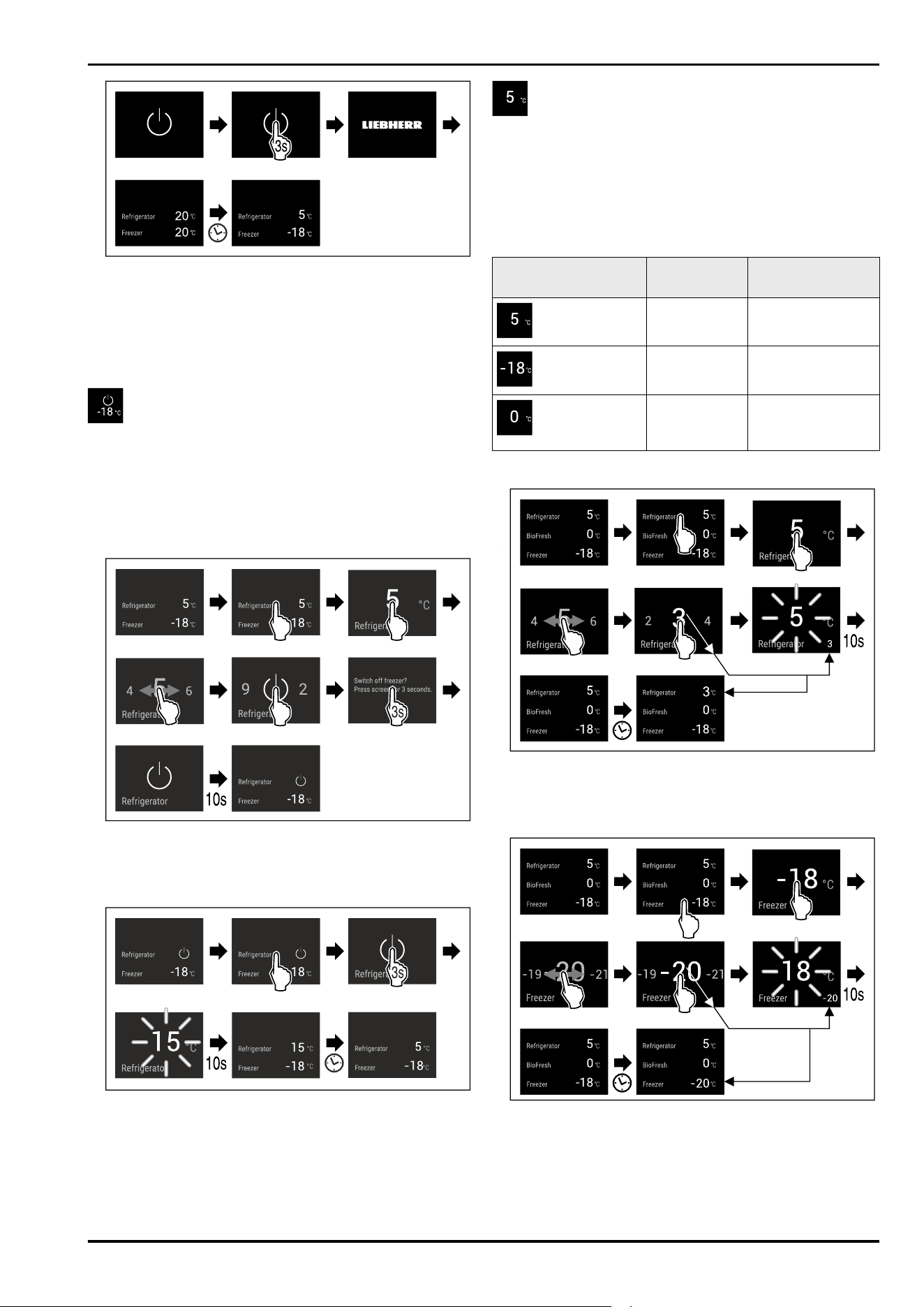

Fig. 109 Example illustration

▷

Status display appears.

▷ The appliance cools to the temperature set at the factory.

▷ The appliance starts in demo mode (status display with

DEMO appears): If the appliance starts in demo mode,

you can deactivate demo mode within the next 5 minutes.

(seeDemo mode)

More information:

Start the IceMaker for the first time. (see 5.2Starting the

IceMaker for the first time)

Start the SmartDevice for the first time. (see 2.3 Smart‐

Device) and (seeWiFi)

Note

The manufacturer recommends:

► Stock with food: Wait for around 6 hours until the set

temperature is reached.

► Store frozen foods at -18°C or colder.

► Observe the notes on storing food. (see6.1 Information

regarding storage)

Note

Sie erhalten Zubehör im Liebherr-Hausgeräte-Shop unter

go.liebherr.com/47wtc4.

5.2 Starting the IceMaker for the first

time

If your appliance is equipped with IceMaker, you must clean

the IceMaker before using it for the first time.

Make sure that the following requirements are fulfilled:

❑

The water supply has been connected. See Installation

Guide or mounting instructions.

❑

The appliance is properly installed and connected.

► Clean the IceMaker. (see 10.8.4 Cleaning the IceMaker)

6 Storage

6.1 Information regarding storage

WARNING

Fire hazard from electrical appliances!

If you use electrical appliances in the food area of your

appliance, they can cause a fire.

► Do not use electrical appliances in the food area of the

appliance unless recommended by the manufacturer.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always keep air slots clear.

Observe the following specifications for storage:

Keep the air vents on the fan free.

In the freezer compartment: Package food properly.

Package or cover foods that readily take on or give off

odours or taste in closed containers.

Keep liquids in closed containers.

Leave space between goods to ensure good air circula‐

tion.

Store food according to the instructions on the pack‐

aging.

Always observe the best-before date indicated on the

packaging.

Putting into operation

28 * Depending on model and options

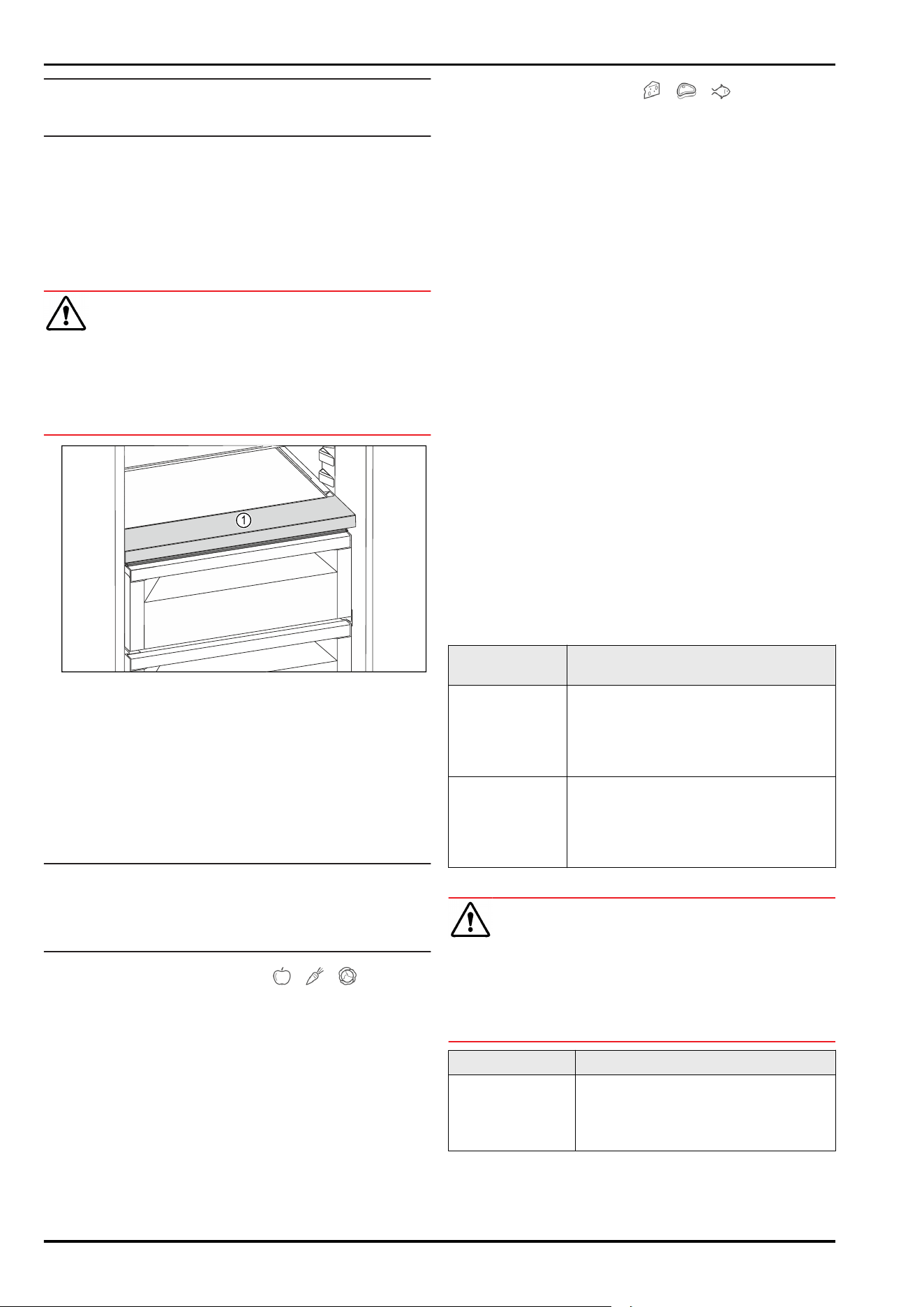

Note

Failure to follow these guidelines can lead to foodstuffs

spoiling.

6.2 Fridge compartment

The air circulation in the appliance creates different temper‐

ature zones. You will find the different temperature zones in

the appliance and equipment overview. (see2.2 Overview of

the appliance and equipment)

6.2.1 Arranging your food properly

CAUTION

Risk of injury and damage to the appliance due to incor‐

rectly stored food or objects!

If you place food or objects on the bottom glass shelf, the

door may not close properly. This could cause the door racks

to break, food or objects to fall out and cause injury.

► Keep the front area of the bottom glass shelf clear.

Fig. 110 Example illustration

(1)

Front area

► Upper area and door: Store butter, cheese, tinned food

and tubes.

► Coldest temperature zone: Store perishable foods such

as pre-cooked meals.

6.3 BioFresh

BioFresh will extend the storage time for some fresh foods

compared to traditional refrigeration.

Note

If the temperature drops below 0°C foods may freeze.

► Store cold-sensitive produce such as cucumbers, auber‐

gines, courgettes and tropical fruit in the fridge compart‐

ment.

6.3.1 Fruit & Vegetable safe

This safe creates a storage climate of close to 0°C. The

compartment lid ensures constant levels of humidity. This

storage climate is suitable for storing unpackaged food with

high intrinsic moisture (for example, lettuce, vegetables,

fruit).

The humidity in the compartment depends on the moisture

content of the chilled goods placed in it, and also depends

on how often the compartment is opened. You can regulate

the humidity level.

Arranging your food properly

► Store unpackaged fruit and vegetables.

If the humidity is too high:

► Regulate the humidity.

6.3.2 Meat & Dairy safe

This safe creates a storage climate of close to 0°C. This

storage climate is suitable for more sensitive foods (e.g.

dairy products, meat, fish, sausage).

Arranging your food properly

► Store dry or packaged food.

6.4 Freezer compartment

Here, a dry, frosty storage climate is created at -18°C. A

frosty storage climate is suitable for storing frozen food for

several months, for making ice cubes or freezing fresh food.

6.4.1 Freezing food

Freezing quantity

The maximum amount of fresh food that you can

freeze within 24 hours is specified on the type plate

(see 11.5 Model plate) under “Freezing capacity ... kg/24h”.

To ensure that food quickly freezes through, adhere to the

following quantities per package:

Fruit and vegetables up to 1 kg

Meat up to 2.5 kg

Freezing food using SuperFrost

Depending on the quantity to be frozen, you can activate

SuperFrost before freezing in order to achieve lower freezing

temperatures. (see SuperFrost)

► Activate SuperFrost if the amount of food you have to

freeze is more than approx. 2 kg.

The time at which you activate SuperFrost depends on the

amount of food you have to freeze:

Freezing quan‐

tity

Time at which you should activate

SuperFrost

Small amount of

food to freeze

Activate SuperFrost about 6 hours

before freezing.

As soon as the appliance automatically

deactivates SuperFrost, you can rear‐

range the food.

Maximum

amount of food

to freeze

Activate SuperFrost about 24 hours

before freezing.

As soon as the appliance automatically

deactivates SuperFrost, you can rear‐

range the food.

Arranging your food properly

CAUTION

Risk of injury from broken glass!

Bottles and cans with beverages can burst during freezing.

This applies in particular to carbonated beverages.

► Only freeze bottles and cans with beverages if you have

activated the BottleTimer function in the SmartDevice

app.

Freezing quantity Arranging your food properly

Small amount of

food to freeze

Distribute packaged groceries

throughout all drawers.

If possible, place groceries at the back

of the drawer near the rear wall.

Storage

* Depending on model and options 29

Freezing quantity Arranging your food properly

Maximum amount

of food to freeze

Distribute packaged groceries

throughout all drawers.

If possible, place groceries at the back

of the drawer near the rear wall.

6.4.2 Defrosting food

WARNING

Risk of food poisoning!

► Do not re-freeze thawed food.

► Use defrosted foodstuff as soon as possible.

You can defrost food in several ways:

In the fridge compartment

In the microwave

In the oven/fan-assisted oven

At room temperature

► Take out only as much food as necessary.

6.5 Storage times

Refer to the specified storage times as a guide.

In the case of foods with a minimum shelf life, the date

indicated on the packaging still applies.

6.5.1 Fridge section

Always follow the best-before date stated on the packaging.

6.5.2 BioFresh

Recommended storage periods in the Meat & Dairy-Safe

Butter at 1°C up to 90 days

Hard cheese at 1°C up to 110 days

Milk at 1°C up to 12 days

Sausage, cold meats at 1°C up to 8 days

Poultry at 1°C up to 6 days

Pork at 1°C up to 6 days

Beef at 1°C up to 6 days

Game at 1°C up to 6 days

Note

► Remember that high-protein foods perish quicker; shell‐

fish and crustaceans do not last as long as fish, and fish

does not last as long as meat.

Recommended storage periods in the Fruit & Vegetable-

Safe

Vegetables, salads

Artichokes at 1°C up to 14 days

Celery at 1°C up to 28 days

Cauliflower at 1°C up to 21 days

Broccoli at 1°C up to 13 days

Chicory at 1°C up to 27 days

Lettuce at 1°C up to 19 days

Peas at 1°C up to 14 days

Kale at 1°C up to 14 days

Recommended storage periods in the Fruit & Vegetable-

Safe

Carrots at 1°C up to 80 days

Garlic at 1°C up to 160 days

Turnip at 1°C up to 14 days

Lettuce at 1°C up to 13 days

Herbs at 1°C up to 13 days

Leeks at 1°C up to 29 days

Mushrooms at 1°C up to 7 days

Radishes at 1°C up to 10 days

Brussels sprouts at 1°C up to 20 days

Asparagus at 1°C up to 18 days

Spinach at 1°C up to 13 days

Savoy at 1°C up to 20 days

Fruit

Apricots at 1°C up to 13 days

Apples at 1°C up to 80 days

Pears at 1°C up to 55 days

Blackberries at 1°C up to 3 days

Dates at 1°C up to 180 days

Strawberries at 1°C up to 7 days

Figs at 1°C up to 7 days

Blueberries at 1°C up to 9 days

Raspberries at 1°C up to 3 days

Currants at 1°C up to 7 days

Sweet cherries at 1°C up to 14 days

Kiwis at 1°C up to 80 days

Peaches at 1°C up to 13 days

Plums at 1°C up to 20 days

Cranberries at 1°C up to 60 days

Rhubarb at 1°C up to 13 days

Gooseberries at 1°C up to 13 days

Grapes at 1°C up to 29 days

6.5.3 Freezer compartment

Recommended storage period for various types of food

Ice cream at -18°C 2 to 6 months

Sausages, ham at -18°C 2 to 3 months

Bread, baked goods at -18°C 2 to 6 months

Game, pork at -18°C 6 to 9 months

Fatty fish at -18°C 2 to 6 months

Lean fish at -18°C 6 to 8 months

Cheese at -18°C 2 to 6 months

Poultry, beef at -18°C 6 to 12 months

Vegetables, fruit at -18°C 6 to 12 months

Storage

30 * Depending on model and options

7 Saving energy

Pay attention to good ventilation. Do not cover ventilation

holes or grids.

Always keep the fan air slits clear.

Do not install the appliance in direct sunlight or near

radiators or similar sources of heat.

If the appliance is installed directly next to an oven,

the energy consumption may increase slightly. This is

dependent on the service life and usage intensity of the

oven.

Energy consumption depends on the installation condi‐

tions, e.g. the ambient temperature . A warmer ambient

temperature can increase the energy consumption.

Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy

consumption.

Sort your food: home.liebherr.com/food.

Keep all food properly packed and covered. This prevents

frost from forming.

Only take food out for as long as necessary so that it

doesn’t warm up too much.

Inserting warm food: allow to cool down to room temper‐

ature first.

Thaw frozen food in the refrigerator.

For longer periods of absence, use HolidayMode

(seeHolidayMode) .

8 Controls

8.1 Controls and displays

8.1.1 Status display

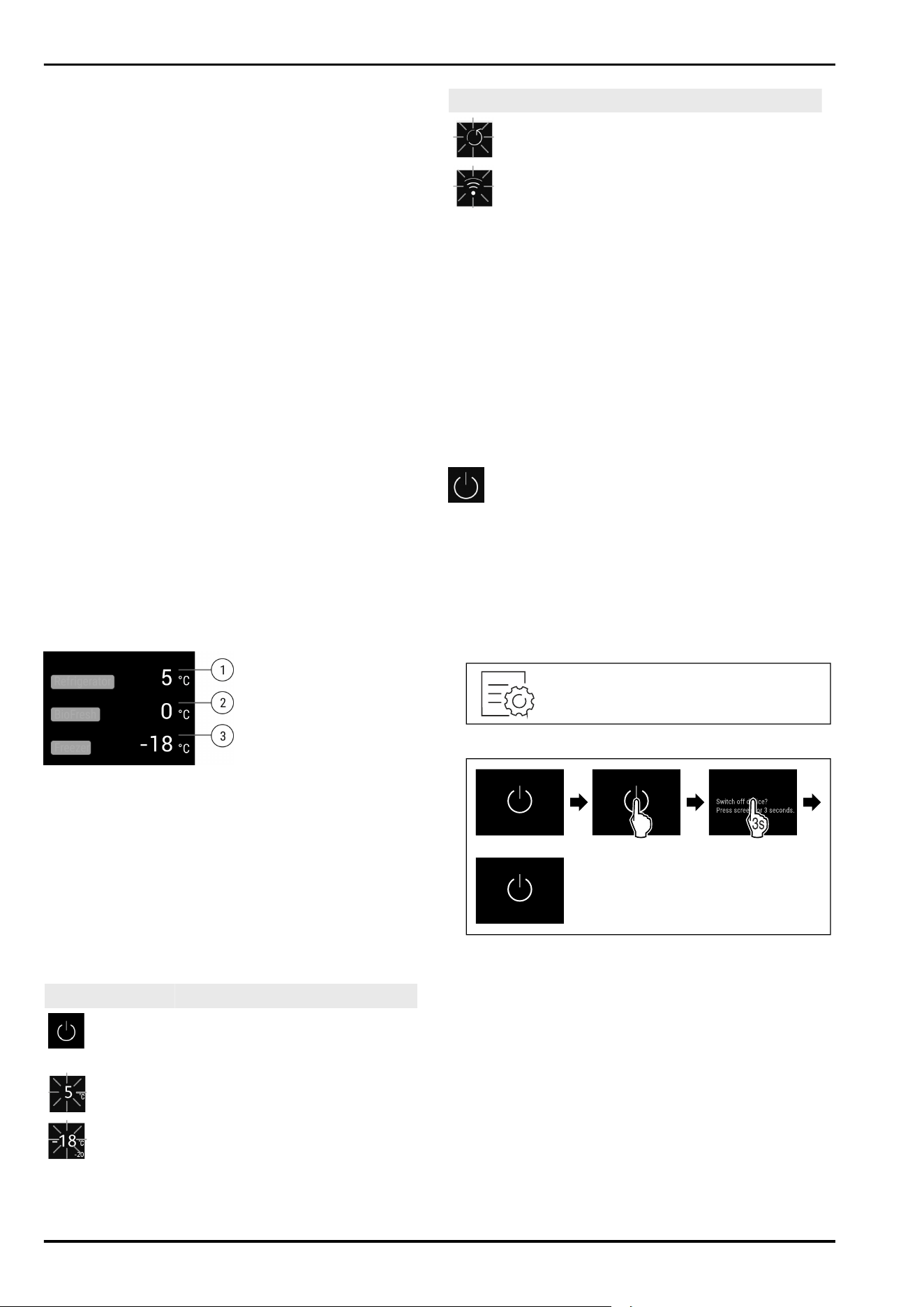

Fig. 111 The status display shows the actual temperature.

(1)

Temperature display of

the fridge section

(3) Freezer compartment

temperature display

(2) Temperature display

BioFresh

The status display shows the actual temperature and is the

initial display. Navigation to the functions takes place from

there.

8.1.2 Display symbols

Display symbols provide information on the current appli‐

ance status:

Symbol

Appliance status

Standby

The appliance or temperature zone

is switched off.

Flashing number

Appliance is working. Temperature

flashes until the set temperature is

reached.

Symbol Appliance status

Flashing symbol

Appliance is working. Setting is

made.

8.2 Appliance functions

8.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your

appliance is fully functional.

Before you alter, activate or deactivate the device functions,

make sure that the following requirements are met:

❑

You have read and understood the descriptions of

how the display works. (see4 Functionality of the

Touch&Swipe display)

❑

You have familiarised yourself with the operating and

display elements of your appliance.

Switching the appliance off and on

Use this function to switch the entire appliance off and on.

Switching off the appliance

When you switch the appliance off, then the previously

saved settings are saved.

Make sure that the following requirements are fulfilled:

❑

Handling instructions (see12Shutting down) are carried

out.

Fig.112

Fig.113

► Carry out action steps according to the illustration.

▷ Appliance is switched off.

▷ The standby symbol appears in the display.

▷ Display turns black.

Switching on the appliance

If the display is in sleep mode:

► Briefly touch the display.

Saving energy

* Depending on model and options 31

Fig. 114 Example illustration

► Carry out action steps according to the illustration.

When the appliance starts in demo mode:

► Deactivating demo mode. (see Deactivating demo mode)

▷ The appliance is switched on.

▷ Previous settings are restored.

▷ The appliance cools to the target temperature set.

Switching temperature zone off and on

You can switch temperature zones of the appliance off inde‐

pendently.

Switching the fridge compartment off

Make sure that the following requirements are fulfilled:

❑

Refrigerator compartment has been emptied.

Fig. 115 Example illustration

► Carry out action steps according to the illustration.

▷ Refrigerator compartment is switched off.

Switching the fridge compartment on

Fig. 116 Example illustration

► Carry out action steps according to the illustration.

▷ Refrigerator compartment is switched on.

▷ The appliance cools to the last set temperature.

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

Frequency of door opening

Duration of door opening

Room temperature of the installation site

Type, temperature and quantity of food

Temperature zone Factory-set

temperature

Recommended

setting

Fridge section

5°C 4°C

Freezer section

-18°C -18°C

BioFresh

0°C B-Value

(see BioFresh B-

Value )

Setting the temperature in the fridge section

Fig. 117 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Setting the temperature in the freezer section

Fig. 118

► Carry out action steps according to the illustration.

▷ Temperature is set.

Setting the temperature in BioFresh

Set the temperature using the BioFresh B-Value.

(see BioFresh B-Value )

Controls

32 * Depending on model and options

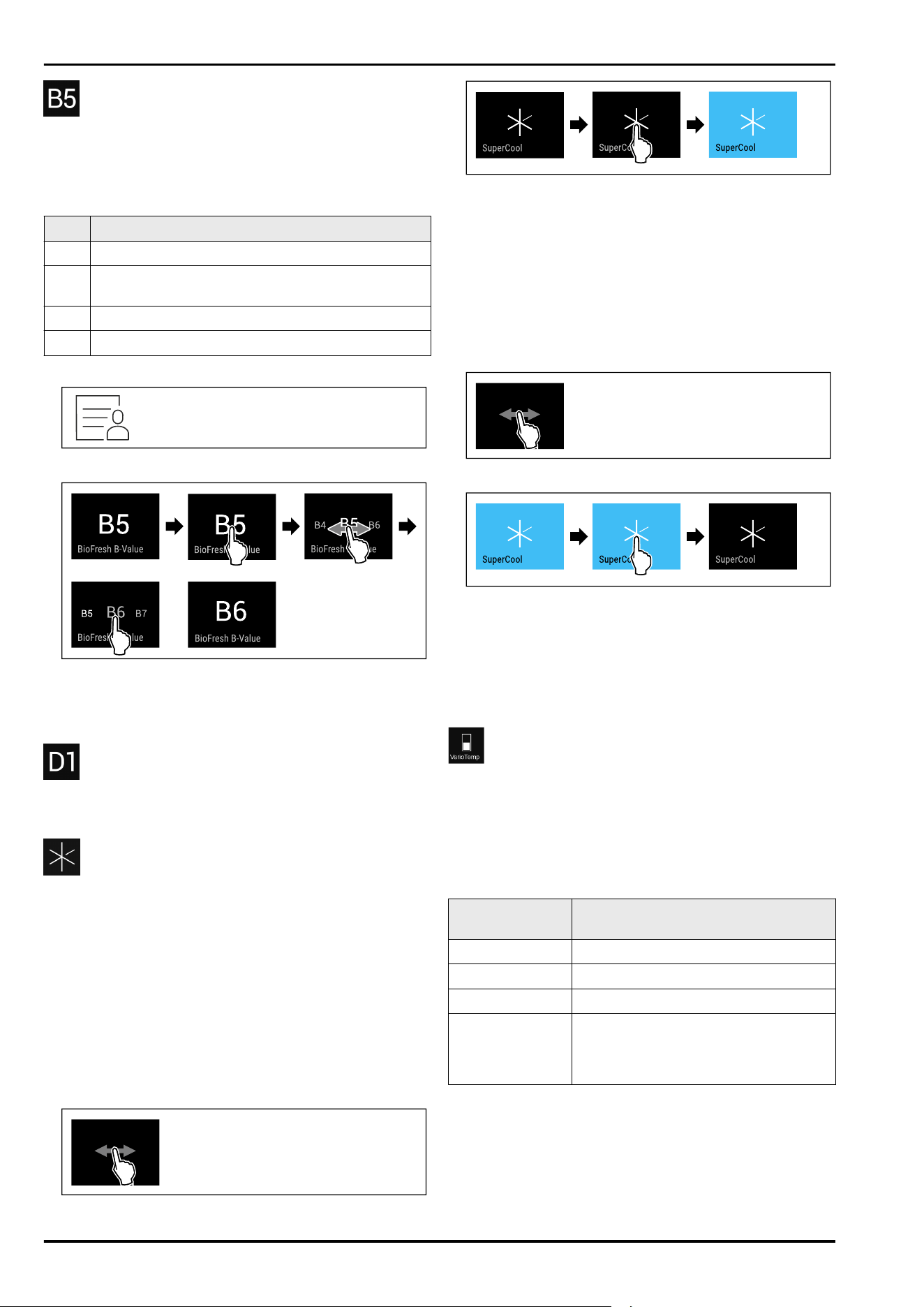

BioFresh B-Value

Use this function to set the BioFresh B-Value. With the

BioFresh B-Value, you can set BioFresh slightly warmer or

colder if necessary due to higher or lower ambient temper‐

atures. The BioFresh B-Value is pre-set to valueB5 as deliv‐

ered. If you change the B-Value, refer to the following table:

Value Description

B1 Lowest temperature

B1-B4 The temperature can drop below 0°C which means

foods can easily freeze.

B5 Pre-set temperature

B9 Highest temperature

Setting the BioFresh B-Value

Fig. 119

Fig. 121 Example illustration: Switch from B5 to B6.

► Carry out action steps according to the illustration.

▷ The BioFresh B-Value is set.

▷ Status display shows target temperature.

D-Value

The D-Value is pre-set for your appliance and is not

permitted to be changed.

SuperCool

You can use this function to activate or deactivate Super‐

Cool. If SuperCool is activated, then the appliance increases

the cooling capacity. It allows you to achieve lower cooling

temperatures. You can activate SuperCool when you would

like to cool a large quantity of food quickly.

If the function is active, the appliance operates at higher

power. As a result, the appliance's operating noise may be

temporarily louder and energy consumption will increase.

Activating SuperCool

Time for activation of the function:

When you would like to store fresh food in the fridge

section: Activate the function when inserting food.

Fig.122

Fig.123

► Carry out action steps according to the illustration.

-or-

► Activate with the SmartDevice app.

▷ SuperCool is activated.

▷ The temperature display turns blue.

Deactivating SuperCool

SuperCool is deactivated automatically after 18 hours.

However, you can also deactivate SuperCool manually at

any time:

Fig. 124

Fig.125

► Carry out action steps according to the illustration.

-or-

► Deactivate with the SmartDevice app.

▷ SuperCool is deactivated.

▷ The appliance continues to run in normal mode.

▷ The appliance cools to the temperature set previously.

VarioTemp

This function allows you to use the freezer compartment

as an additional cooling zone. You can set the temperature

from -2°C to 14°C. If you activate this function, it may

cause more noise. However, the appliance is still fully func‐

tional.

For storage of foodstuff in the freezer compartment with

the VarioTemp function activated, Liebherr recommends:

Temperature

range

Foodstuff

4°C to 9°C Cooked foods, cheese, preserves

0°C Packaged fruit and vegetables

-2°C Fresh fish and seafood

10°C to 14°C Cold-sensitive foodstuffs such as

sweet potatoes, pumpkin or exotic

fruits, food or drinks that should not be

eaten too cold

Activating VarioTemp

Ensure that the following requirements are met:

❑

The IceMaker has been cleaned. (see 10.8.4Cleaning the

IceMaker)

Controls

* Depending on model and options 33

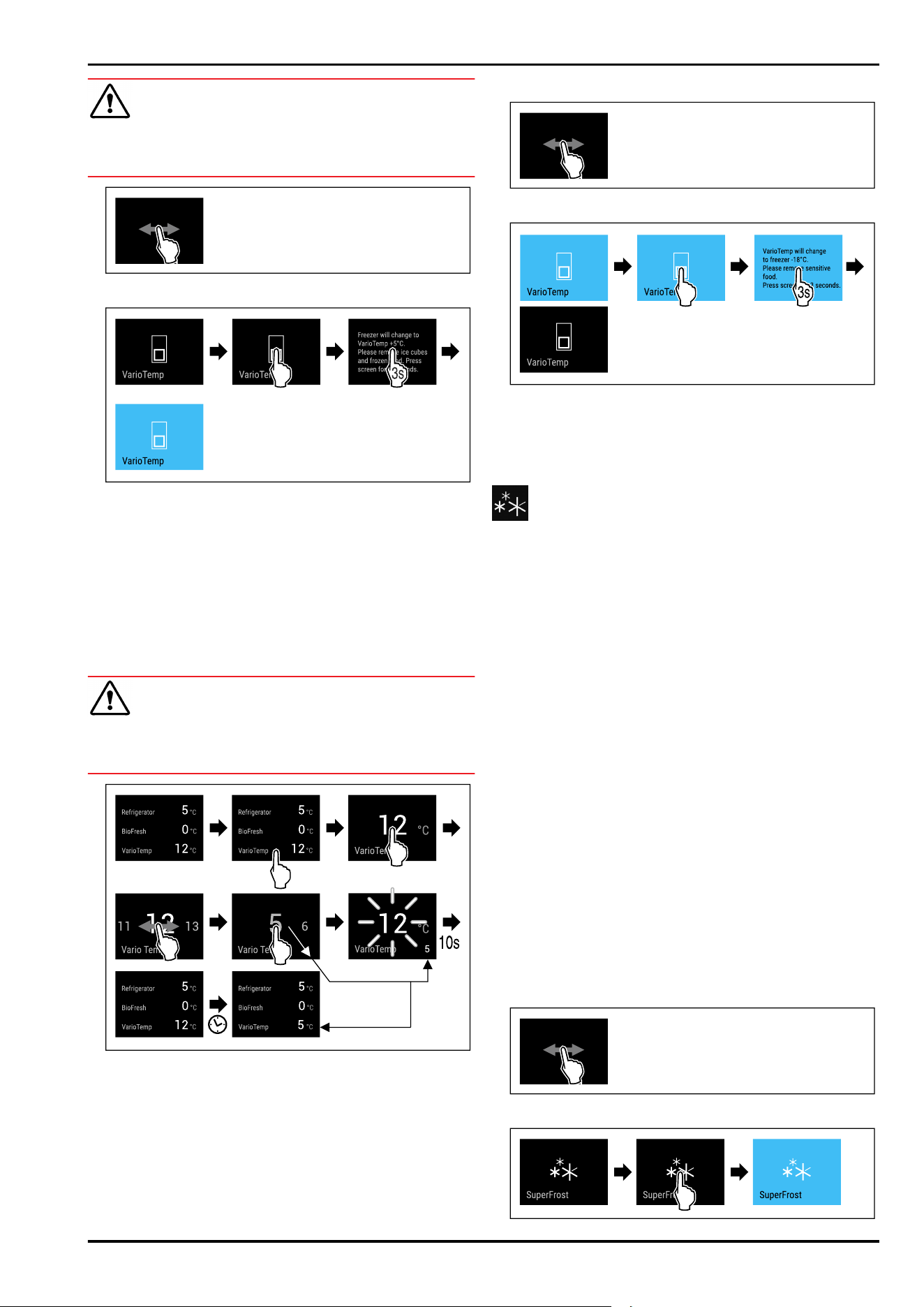

WARNING

Risk of food poisoning!

► Do not re-freeze thawed food.

► Use defrosted foodstuff as soon as possible.

Fig. 126

Fig.127

► Carry out steps according to the illustration.

▷ VarioTemp is activated.

▷ IceMaker is deactivated.

▷ VarioTemp is set to the preselected value.

▷ The status display does not show the preset temperature

until it is reached.

Adjusting VarioTemp

Ensure that the following requirements are met:

❑

The VarioTemp is activated. (see Activating VarioTemp)

WARNING

Risk of food poisoning!

► Do not re-freeze thawed food.

► Use defrosted foodstuff as soon as possible.

Fig. 128 Example illustration: Change VarioTemp from 12°C

to 5°C for a fridge-freezer combination with BioFresh.

► Carry out steps according to the illustration.

▷ VarioTemp is adjusted.

▷ The status display does not show the new set tempera‐

ture until it is reached.

Deactivating VarioTemp

Fig.129

Fig.130

► Carry out steps according to the illustration.

▷ VarioTemp is deactivated.

▷ The freezer compartment is cooled to the preset temper‐

ature.

SuperFrost

You can use this function to activate or deactivate

SuperFrost. If SuperFrost is activated, then the appliance

increases the freezing capacity. It allows you to achieve

lower freezing temperatures.

Application:

Quickly freeze fresh food through to the core.

This ensures that the nutrition, appearance and taste of

frozen food is maintained.

Increase the cold reserve in stored frozen food before

defrosting the appliance.

If the function is active, the appliance operates at higher

power. As a result, the appliance's operating noise may be

temporarily louder and energy consumption will increase.

If the door is open for too long, e.g. because you are

putting food in, the appliance automatically checks whether

the actual temperature in the appliance matches the set

temperature. If the difference exceeds a certain value, the

appliance automatically cools more vigorously. As a result,

the temperature shown on the display may be higher than

the actual temperature in the appliance. This is normal and

your appliance is working correctly.

Activating SuperFrost

Make sure that the following requirements are fulfilled:

❑

Freezing quantity and time for activation of SuperFrost

are taken into account. (see Freezing food using

SuperFrost)

❑

VarioTemp is deactivated. (see VarioTemp)

Fig.131

Controls

34 * Depending on model and options

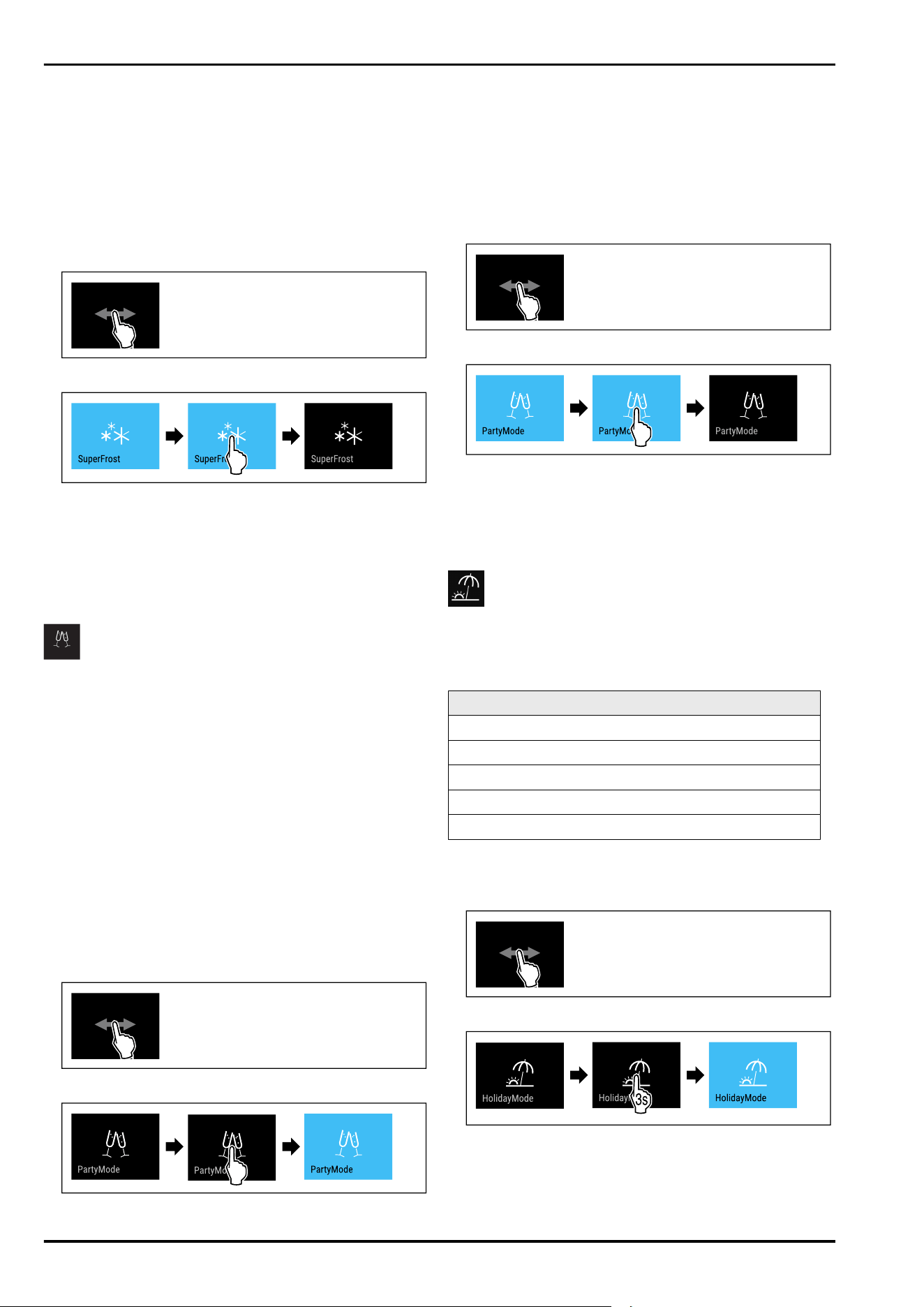

Fig.132

► Carry out action steps according to the illustration.

-or-

► Activate with the SmartDevice app.

▷ SuperFrost is activated.

▷ The temperature display turns blue.

Deactivating SuperFrost

SuperFrost is automatically deactivated after 56 to 72 hours

depending on the quantity of the food inserted. However,

you can also deactivate SuperFrost manually at any time:

Fig.133

Fig.134

► Carry out action steps according to the illustration.

-or-

► Deactivate with the SmartDevice app.

▷ SuperFrost is deactivated.

▷ The appliance continues to run in normal mode.

▷ The appliance cools to the temperature set previously.

PartyMode

You can use this function to activate or deactivate Party‐

Mode. PartyMode activates various functions that are useful

for a party.

PartyMode activates the following functions:

SuperCool (seeSuperCool)

SuperFrost (see SuperFrost)

IceMaker with MaxIce (see IceMaker / MaxIce )

You can adjust all listed functions individually and flexibly.

When you deactivate PartyMode, all changes are discarded.

If the function is active, the device operates at higher

power. As a result, the device's operating noise may be

temporarily louder and energy consumption will increase.

Activating PartyMode

Make sure that the following requirements are fulfilled:

❑

The IceMaker has been started. (see 5.2Starting the

IceMaker for the first time)

Fig.135

Fig.136

►

Carry out action steps according to the illustration.

▷ PartyMode and the associated functions are activated.

▷ The temperature display turns blue.

▷ The current temperature flashes until the target tempera‐

ture is reached.

Deactivating PartyMode

The PartyMode is automatically deactivated after

24 seconds. However, you can also deactivate PartyMode

manually at any time:

Fig.137

Fig.138

► Carry out action steps according to the illustration.

▷ PartyMode is deactivated.

▷ The appliance cools to the temperature set previously:

The current temperature flashes until the target tempera‐

ture is reached.

HolidayMode

You can use this function to activate or deactivate Holiday‐

Mode. If you activate HolidayMode, the fridge section is set

to 15°C. This saves you energy during longer periods of

absence and prevents bad odours and growth of mould.

Appliance status when HolidayMode is active

Fridge section cools to 15°C.

BioFresh cools to 15°C.

The set temperature is maintained in the freezer section.

PartyMode is deactivated.

SuperCool is deactivated.

Activating HolidayMode

► Empty the fridge section completely.

► Empty BioFresh completely.

Fig. 139

Fig. 140

► Carry out action steps according to the illustration.

▷ HolidayMode is activated.

▷ Temperature display turns blue and shows HolidayMode

symbol.

Controls

* Depending on model and options 35

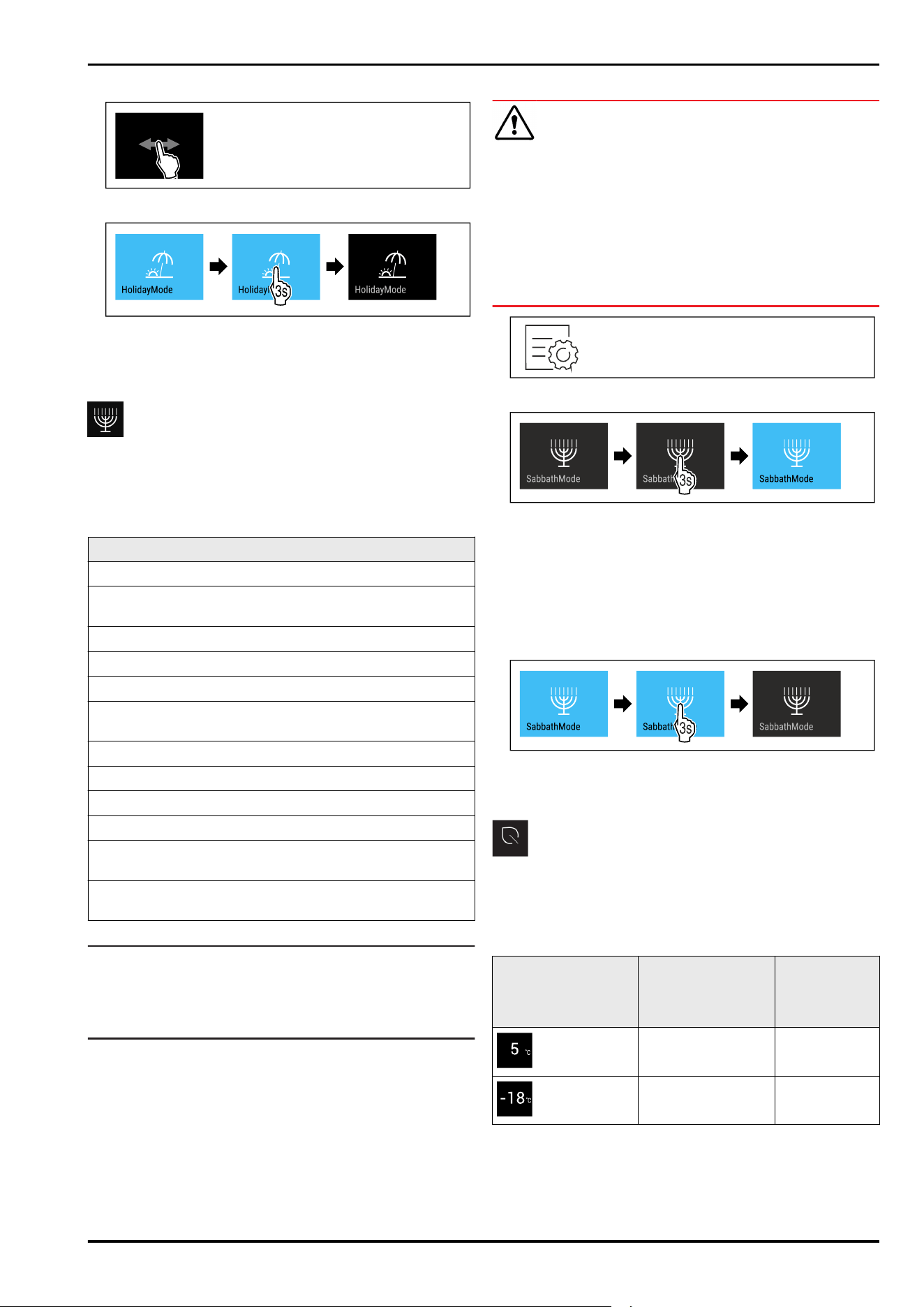

Deactivating HolidayMode

Fig. 141

Fig. 142

► Carry out action steps according to the illustration.

▷ HolidayMode is deactivated.

▷ The appliance cools to the temperature set previously.

SabbathMode

You can use this function to activate or deactivate

SabbathMode. If you activate this function, some electronic

functions are switched off. As a result, your device meets

the religious requirements for Jewish holidays such as

Sabbath and complies with STAR-K Kosher certification.

Device status when SabbathMode is active

The status display shows SabbathMode permanently.

All functions on the display are locked except for the

Deactivate SabbathMode function.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Reminders are not implemented. The set time interval

stops.

Reminders and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The IceMaker is switched off.

The defrosting cycle operates only for the specified time,

without considering the appliance consumption.

After a power failure, the appliance returns to

SabbathMode.

Device status

Note

This appliance has certification from the “Institute for

Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at

www.star-k.org/appliances.

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food!

If you have SabbathMode activated and a power failure

occurs, no message appears in the status display about the

power failure. Once the power is restored, the appliance

continues to operate in SabbathMode. The power failure

may mean that food spoils and the consumption of this food

could lead to food poisoning.

After a power failure:

► Do not consume food that was frozen and has thawed

out.

Fig. 143

Fig. 144

► Carry out action steps according to the illustration.

▷ SabbathMode is activated.

▷ The status display shows SabbathMode permanently.

Deactivating SabbathMode

The SabbathMode is automatically deactivated after

80 hours. However, you can also deactivate SabbathMode

manually at any time:

Fig. 145

► Carry out action steps according to the illustration.

▷ SabbathMode is deactivated.

EnergySaver

You can use this function to activate or deactivate Energy

saving mode. If energy saving mode is activated, the energy

consumption decreases and the temperature in the device

increases. The food remains fresh, but the shelf life is short‐

ened.

Temperature zone

Recommended

setting (see Setting

the temperature in

the fridge section)

Temperature

with active

EnergySaver

Fridge section

4°C 7°C

Freezer section

-18°C -16°C

Temperatures

Controls

36 * Depending on model and options

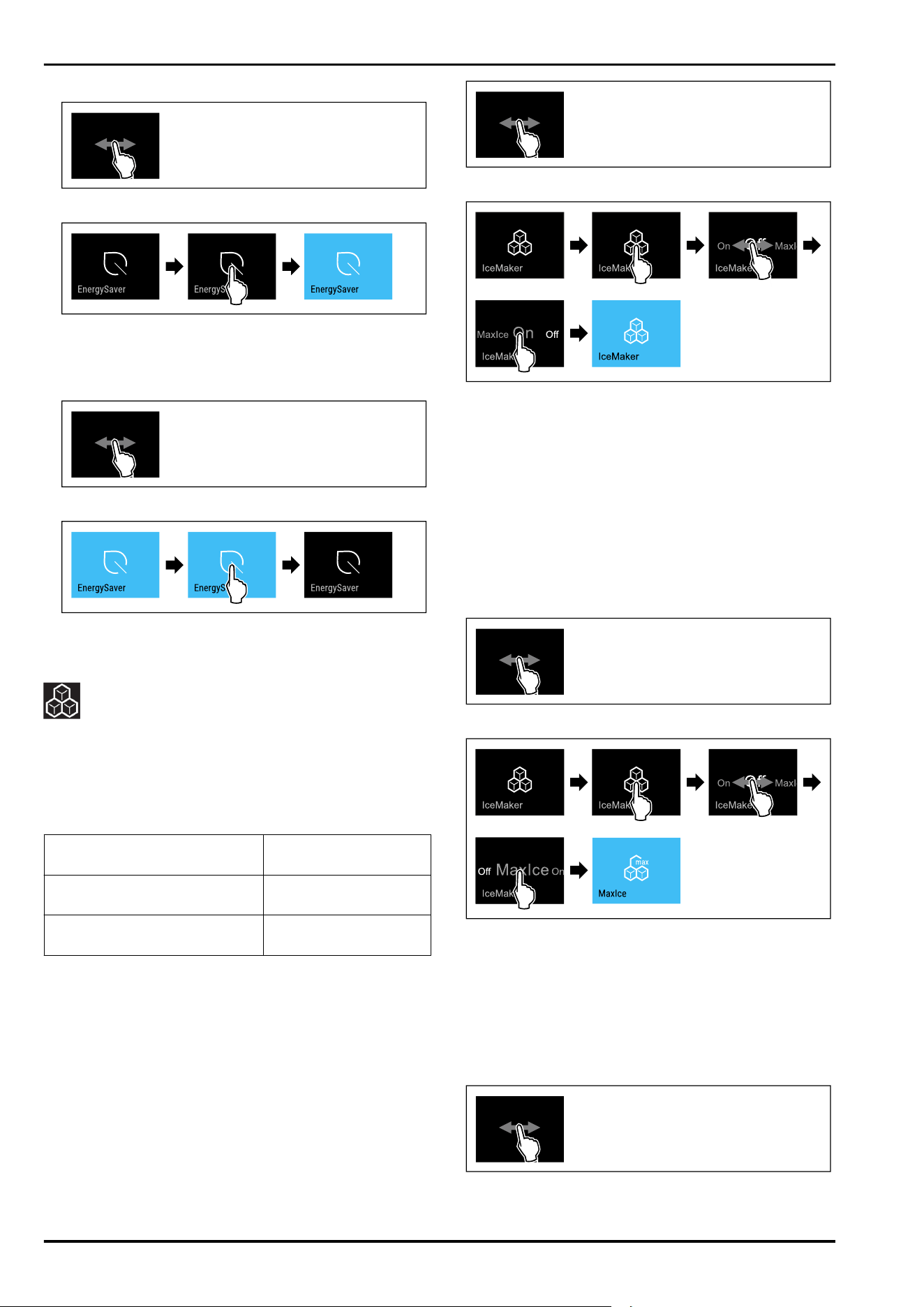

Activating EnergySaver

Fig. 146

Fig. 147

► Carry out action steps according to the illustration.

▷ Energy saving mode is activated.

Deactivating EnergySaver

Fig. 148

Fig. 149

► Carry out action steps according to the illustration.

▷ Energy saving mode is deactivated.

IceMaker / MaxIce

Use the IceMaker function to activate or deactivate the

production of ice cubes. Use the MaxIce function to

increase the amount of ice cubes produced by the IceMaker.

MaxIce is automatically deactivated after 48 hours.

However, you can also deactivate MaxIce manually at any

time: (see Deactivating MaxIce)

More information on the number

of ice cubes:

(see11.1 Technical spec‐

ifications)

Further information on the

IceMaker water supply:

(see IceMaker water

supply)

More information on cleaning

the lines of the IceMaker:

(see TubeClean )

If the function is active, the device operates at higher

power. As a result, the device's operating noise may be

temporarily louder and energy consumption will increase.

Activating the VarioTemp function will result in the auto‐

mated deactivation of the IceMaker. (see VarioTemp)

Activating IceMaker

Make sure that the following requirements are fulfilled:

❑

The water supply is established at the fixed water

connection. See installation instructions.

❑

IceMaker is put into operation. (see 9.8 IceMaker)

Fig. 150

Fig. 151

► Carry out action steps according to the illustration.

-or-

► Activate with the SmartDevice app.

▷ IceMaker is activated. It can take up to 24 hours for the

IceMaker to produce the first ice cubes.

Activating the IceMaker with MaxIce

If you have not activated the IceMaker function before,

make sure that the following requirements are met:

❑

The water supply is established at the fixed water

connection. See installation instructions.

❑

IceMaker is put into operation. (see 9.8 IceMaker)

Fig. 152

Fig. 153

► Carry out action steps according to the illustration.

-or-

► Activate with the SmartDevice app.

▷ The IceMaker is activated with MaxIce.

Changing between the IceMaker and MaxIce

If you have activated the IceMaker and would like to change

to MaxIce:

Fig. 154

Controls

* Depending on model and options 37

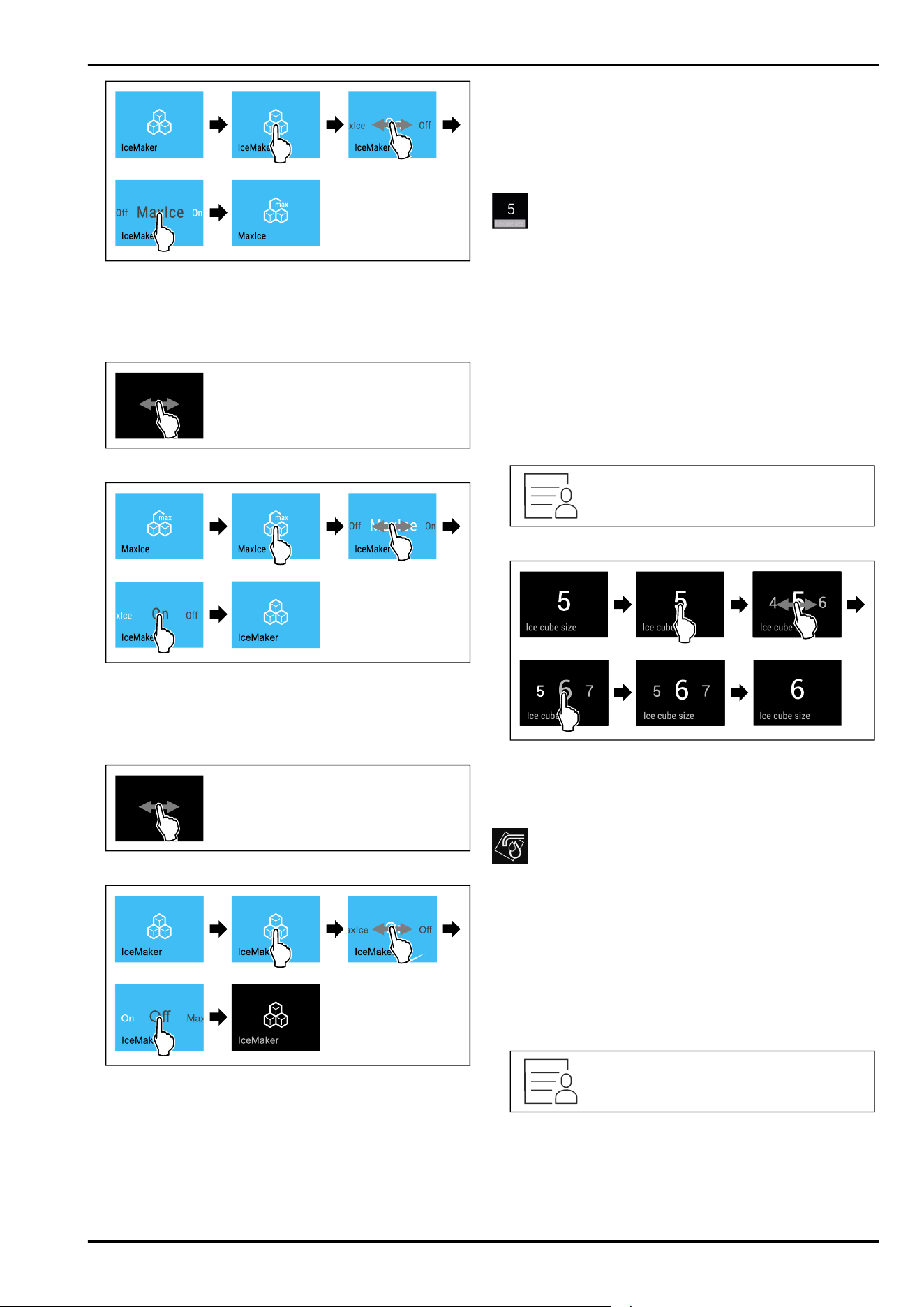

Fig. 155

► Carry out action steps according to the illustration.

▷ The IceMaker is activated with MaxIce.

If you have activated MaxIce and would like to change to the

IceMaker:

Fig. 156

Fig. 157

► Carry out action steps according to the illustration.

▷ IceMaker is activated.

▷ MaxIce is deactivated.

Deactivating the IceMaker and MaxIce

Fig. 158

Fig. 159 Example illustration of the active IceMaker func‐

tion

► Carry out action steps according to the illustration.

-or-

► Deactivate with the SmartDevice app.

▷ IceMaker and MaxIce are deactivated.

▷ If ice cubes are currently being made, the system

completes the process.

▷ The IceMaker goes off automatically.

Deactivating MaxIce

► Activate the IceMaker. (see Activating IceMaker )

▷ MaxIce is deactivated.

▷ IceMaker is activated.

▷ To deactivate the IceMaker and MaxIce: (see Deactivating

the IceMaker and MaxIce)

IceMaker water supply

Use this function to set the water supply. The water supply

regulates the amount of water supplied. The water supply

can be changed if it does not match the water pressure and

the ice cube size dispensed.

The water supply is pre-set to value 4 as delivered. A value

from 1 (smallest inflow volume) to 8 (largest inflow volume)

can be selected.

Setting water supply

Make sure that the following requirements are fulfilled:

❑

The IceMaker has been started. (see 5.2Starting the

IceMaker for the first time)

❑

IceMaker is activated. (see IceMaker / MaxIce )

Fig. 160

Fig. 161 Example illustration: Switch from value 5 to

value6.

► Carry out action steps according to the illustration.

▷ The water supply is set.

TubeClean

You can use this function to activate or deactivate Tube‐

Clean. If TubeClean is activated, it cleans the IceMaker lines.

Activating TubeClean

Make sure that the following requirements are fulfilled:

❑

IceMaker cleaning is prepared. (see 10.8.4Cleaning the

IceMaker)

❑

Empty container with a capacity of 1.5l and with a

maximum height of 10cm is ready.

► Place the container in the drawer under the IceMaker.

Fig. 162

Controls

38 * Depending on model and options

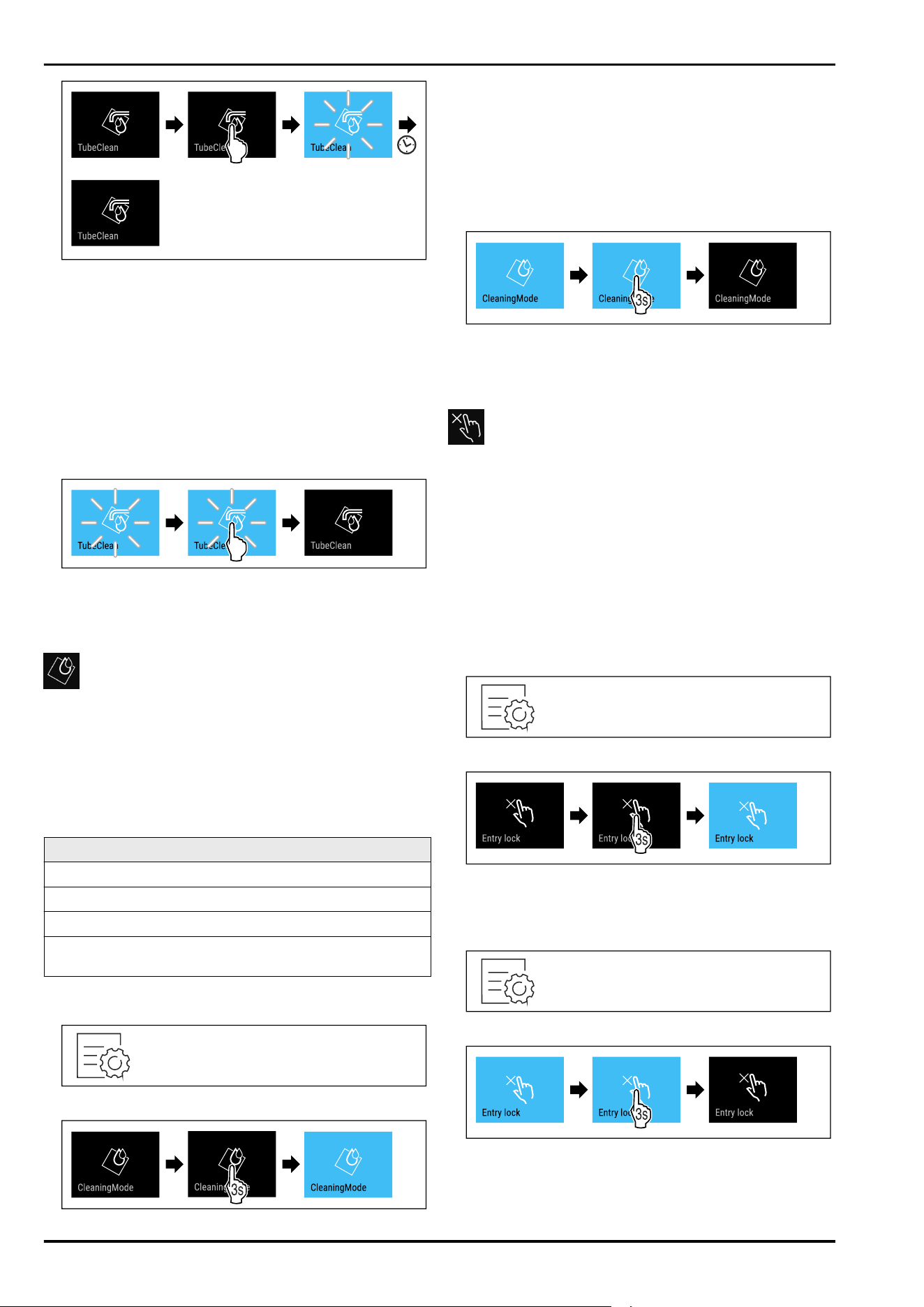

Fig. 163

► Carry out action steps according to the illustration.

▷ TubeClean is activated.

▷ The cleaning process has started: Icon flashes until

the cleaning process is automatically completed after

60 minutes.

▷ When the cleaning process is complete: The device

continues to run in normal mode.

Deactivating TubeClean

TubeClean is automatically ended after 60 minutes.

However, TubeClean can also be deactivated at any time

during the cleaning process:

Fig. 164

► Carry out action steps according to the illustration.

▷ TubeClean is deactivated: Cleaning process is aborted.

▷ The device continues to run in normal mode.

CleaningMode

You can use this function to activate or deactivate Cleaning‐

Mode. CleaningMode enables the appliance to be cleaned

conveniently.

This setting applies to the fridge section.

Application:

Clean the fridge section. (see 10.8Cleaning the appli‐

ance)

Device status when CleaningMode is active

The status display shows CleaningMode permanently.

The fridge section is switched off.

Interior lighting is activated.

The reminders and warnings are not displayed. No signal

tone sounds.

Device status

Activating CleaningMode

Fig. 165

Fig. 166

► Carry out action steps according to the illustration.

▷ CleaningMode is activated.

▷ The status display shows CleaningMode permanently.

Deactivating CleaningMode

CleaningMode is deactivated automatically after

60 minutes. However, you can also deactivate Cleaning‐

Mode manually at any time:

Fig. 167

► Carry out action steps according to the illustration.

▷ CleaningMode is deactivated.

▷ The appliance cools to the temperature set previously.

Input lock

You can use this function to activate or deactivate the input

lock. The input lock prevents the appliance being operated

accidentally, e.g. by children.

Application:

Avoid unintentional modification of functions.

Avoid unintentional switching off of the device.

Avoid unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate

in the menus but you cannot select or change other func‐

tions.

Fig. 168

Fig. 169

► Carry out action steps according to the illustration.

▷ Input lock is activated.

Deactivating the input lock

Fig.170

Fig.171

► Carry out action steps according to the illustration.

▷ Input lock is deactivated.

Controls

* Depending on model and options 39

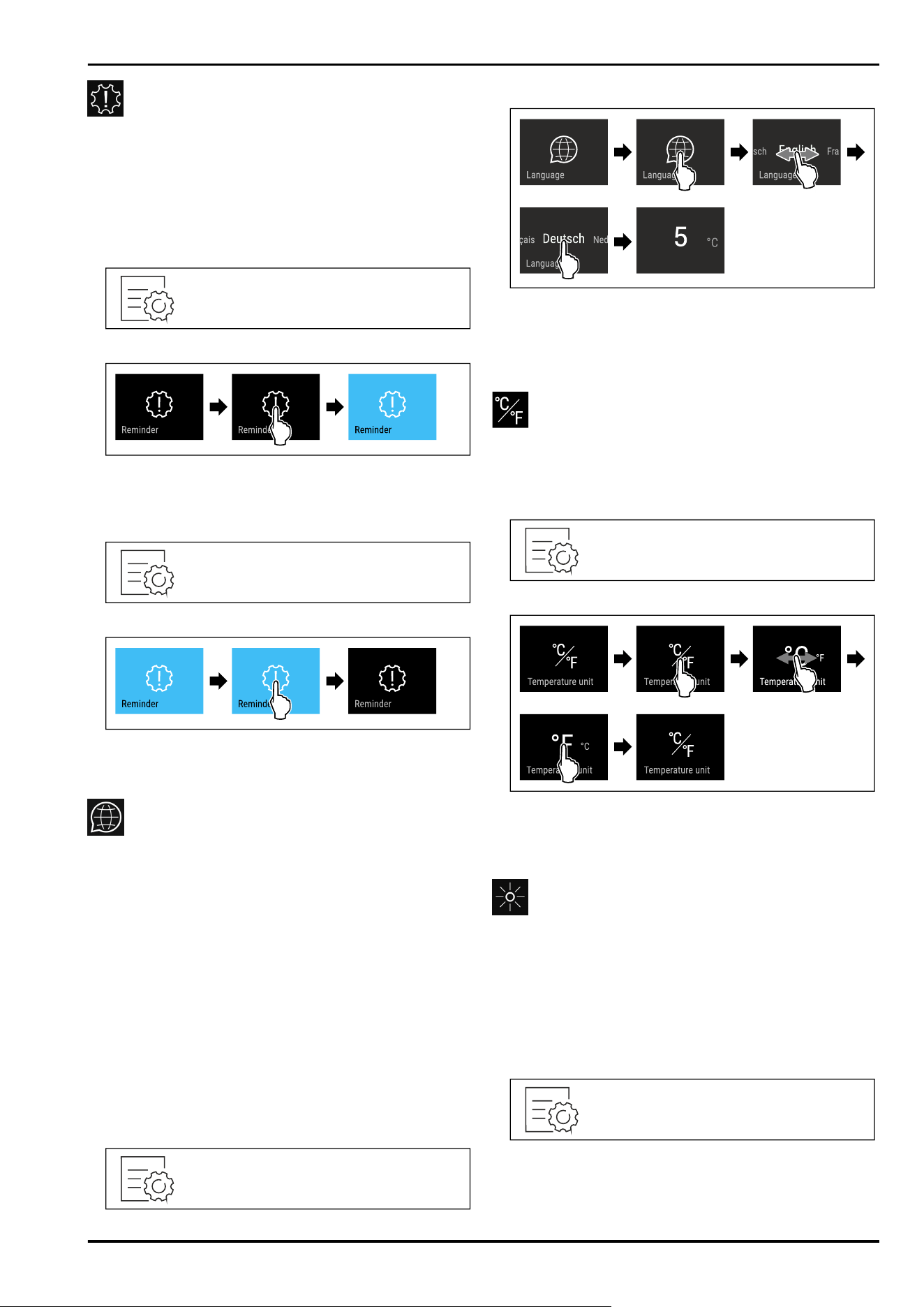

Reminder

Use this function to activate or deactivate the reminders.

The function is activated on delivery.

If the function is activated, the following reminders will

appear:

Replace the FreshAir activated carbon filter (see Replace

the FreshAir activated carbon filter)

Activating the reminder

Fig.172

Fig.173

► Carry out action steps according to the illustration.

▷ Reminder is activated.

Deactivating the reminder

Fig. 174

Fig.175

► Carry out action steps according to the illustration.

▷ Reminder is deactivated.

Language

Use this function to set the display language.

You can select the following languages:

Deutsch

English

Français

Español

Italiano

Nederlands

Čeština

Polski

Português

Bulgarian

Русский

温度单位

Setting the language

Fig. 176

Fig. 177 Example illustration depending on the language

and temperature

► Carry out action steps according to the illustration.

▷ The language is set.

▷ The display returns to the status display.

Temperature unit

Use this function to set the temperature unit. You can set

degrees Celsius or degrees Fahrenheit as the temperature

unit.

Setting the temperature unit

Fig.178

Fig. 180 Example illustration: Switch from degreesCelsius

to degrees Fahrenheit.

► Carry out action steps according to the illustration.

▷ The temperature unit is set.

Display brightness

Use this function to set the display brightness in stages.

You can select the following brightness levels:

40%

60%

80%

100 % (pre-setting)

Setting the brightness

Fig. 181

Controls

40 * Depending on model and options

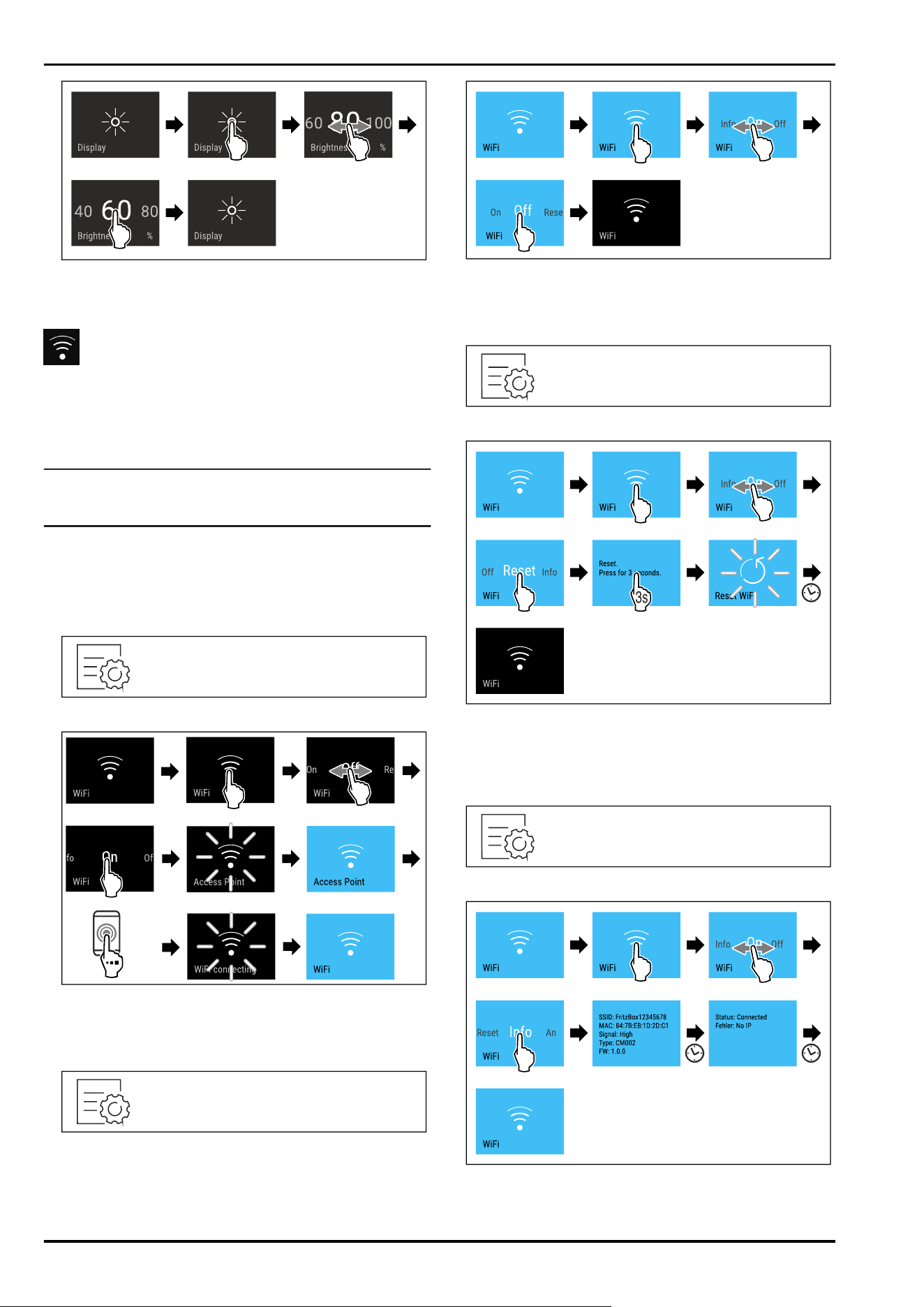

Fig. 182 Example illustration: Switch from 80 % to 60%.

► Carry out action steps according to the illustration.

▷ The brightness is set.

WiFi

Use this function to connect your appliance to WiFi. You can

then operate it via the SmartDevice app on a mobile device.

You can also use this function to disconnect or reset the

WiFi connection.

More information on the SmartDevice: (see 2.3 SmartDevice)

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

❑

You have installed the SmartDevice app (see

apps.home.liebherr.com).

❑

Registration in the SmartDevice app is completed.

Fig. 183

Fig. 184

► Carry out action steps according to the illustration.

▷ Connection is established.

Disconnecting from the WiFi

Fig. 185

Fig. 186

► Carry out action steps according to the illustration.

▷ There is no connection.

Resetting the WiFi connection

Fig. 187

Fig. 188

► Carry out action steps according to the illustration.

▷ WiFi connection and other WiFi settings are reset to

factory settings.

Showing information about the WiFi connection

Fig. 189

Fig. 190

► Carry out action steps according to the illustration.

Controls

* Depending on model and options 41

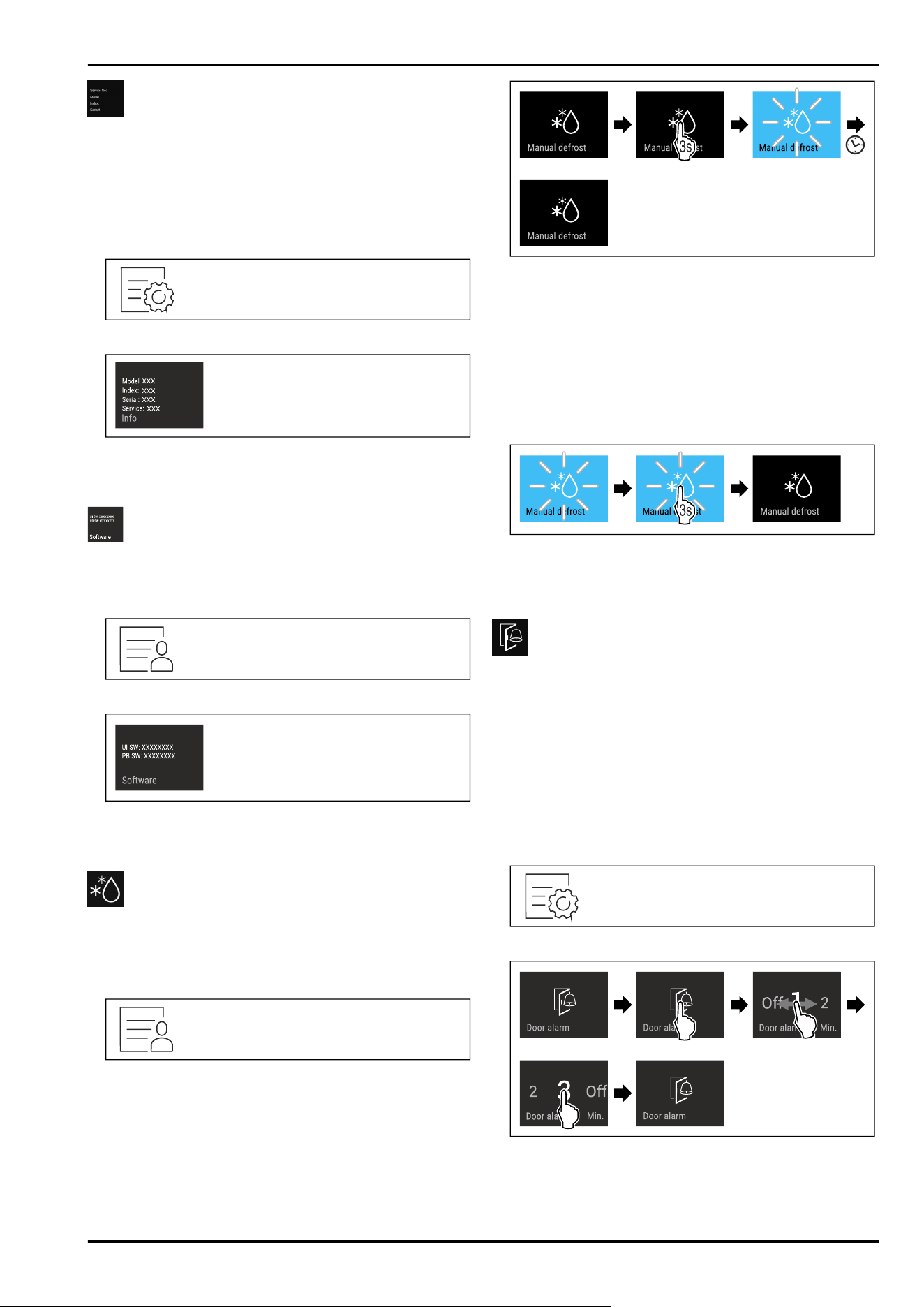

Device information

Use this function to indicate the model name, index, serial

number and service number of your device. You will need

the device information when you contact customer service.

(see11.4 Customer Service)

This function also opens the Advanced menu. (see4 Func‐

tionality of the Touch&Swipe display)

Indicating the device information

Fig. 191

Fig. 192

► Carry out action steps according to the illustration.

▷ Display indicates device information.

Software

Use this function to indicate the software version of your

device.

Indicating the software version

Fig. 193

Fig. 194

► Carry out action steps according to the illustration.

▷ Display indicates software version.

Start defrosting cycle

Use this function to start the automatic defrosting cycle

manually if it does not start automatically in the event of a

fault.

Starting defrosting cycle

Fig. 195

Fig. 196

► Carry out action steps according to the illustration.

▷ Defrosting cycle has started: Icon flashes until defrosting

cycle is automatically completed.

▷ When defrosting cycle is finished: The device continues

to run in normal mode.

Cancelling defrosting cycle

The defrosting cycle will be stopped automatically. However,

you can also cancel the defrosting cycle at any time during

the defrosting process:

Fig. 197

► Carry out action steps according to the illustration.

▷ Defrosting cycle is cancelled.

▷ The device continues to run in normal mode.

Door alarm

Use this function to activate or deactivate the door alarm.

The door alarm sounds if the door is open for too long. The

door alarm is activated on delivery. You can set how long

the door may be open before the door alarm sounds.

The following values can be set:

1 minute

2 minutes

3 minutes

Off

Setting the door alarm

Fig. 198

Fig. 199 Example illustration: Change door alarm from

1 minute to 3 minutes.

► Carry out action steps according to the illustration.

▷ The door alarm is set.

Controls

42 * Depending on model and options

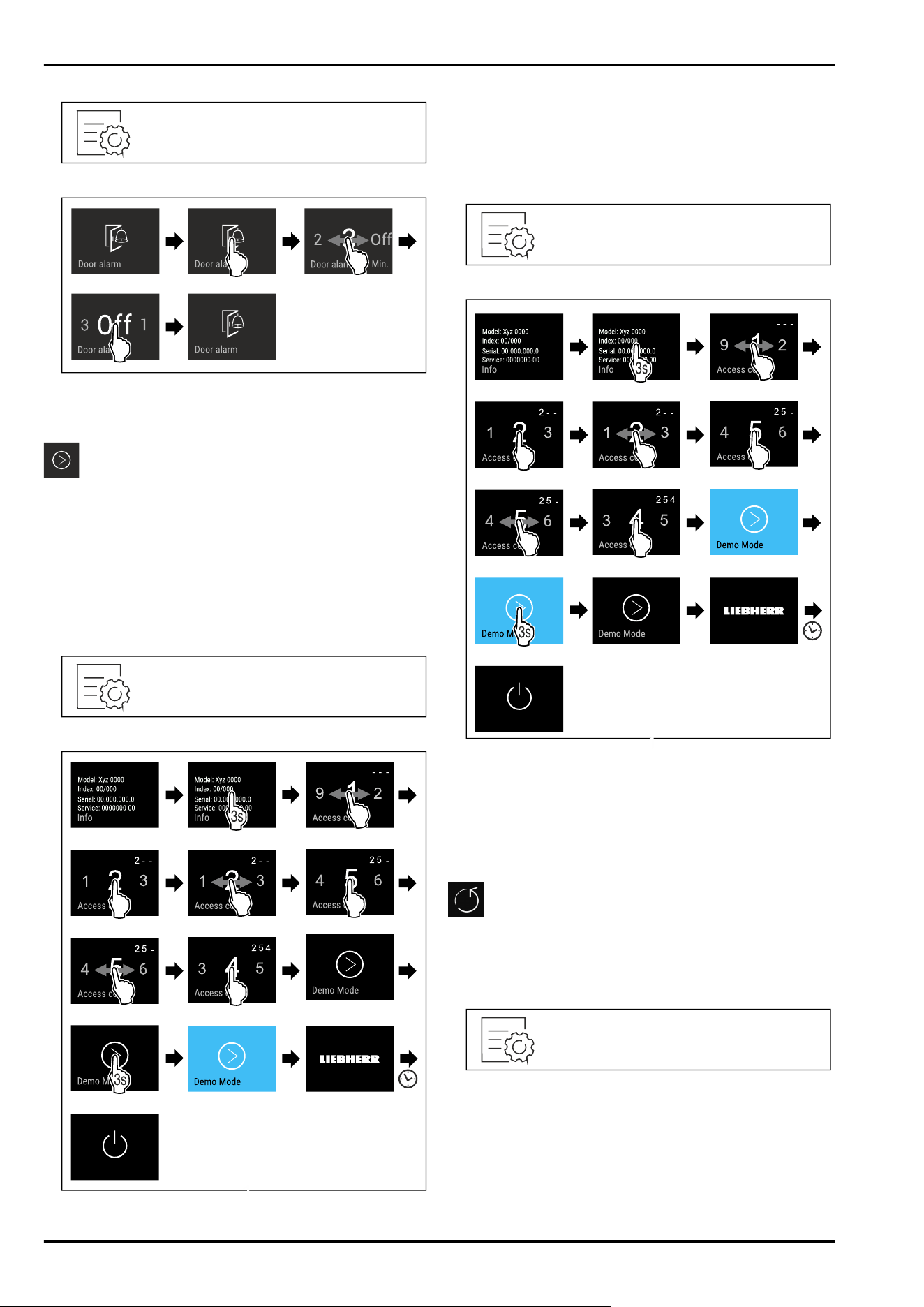

Deactivating the door alarm

Fig.201

Fig.202

► Carry out action steps according to the illustration.

▷ The door alarm is deactivated.

Demo mode

Demo mode is a special feature for dealers who want to

demonstrate appliance features. If you activate demo mode,

all refrigeration functions are deactivated.

If you switch on your appliance and “Demo” appears in the

status display, then demo mode is already activated.

If you activate and then deactivate demo mode, the appli‐

ance will be reset to factory defaults. (see Resetting to

factory settings)

Activating demo mode

Fig.203

Fig.204

►

Carry out action steps according to the illustration.

▷ Demo mode is activated.

▷ Appliance is switched off.

► Switch on the appliance. (see 5.1 Switching on appliance

(first use))

▷ “DEMO” appears in the status display.

Deactivating demo mode

Fig.205

Fig.206

► Carry out action steps according to the illustration.

▷ Demo mode is deactivated.

▷ Appliance is switched off.

► Switch on the appliance. (see 5.1 Switching on appliance

(first use))

▷ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory defaults.

All settings you have made so far are reset to their original

settings.

Performing a reset

Fig.207

Controls

* Depending on model and options 43

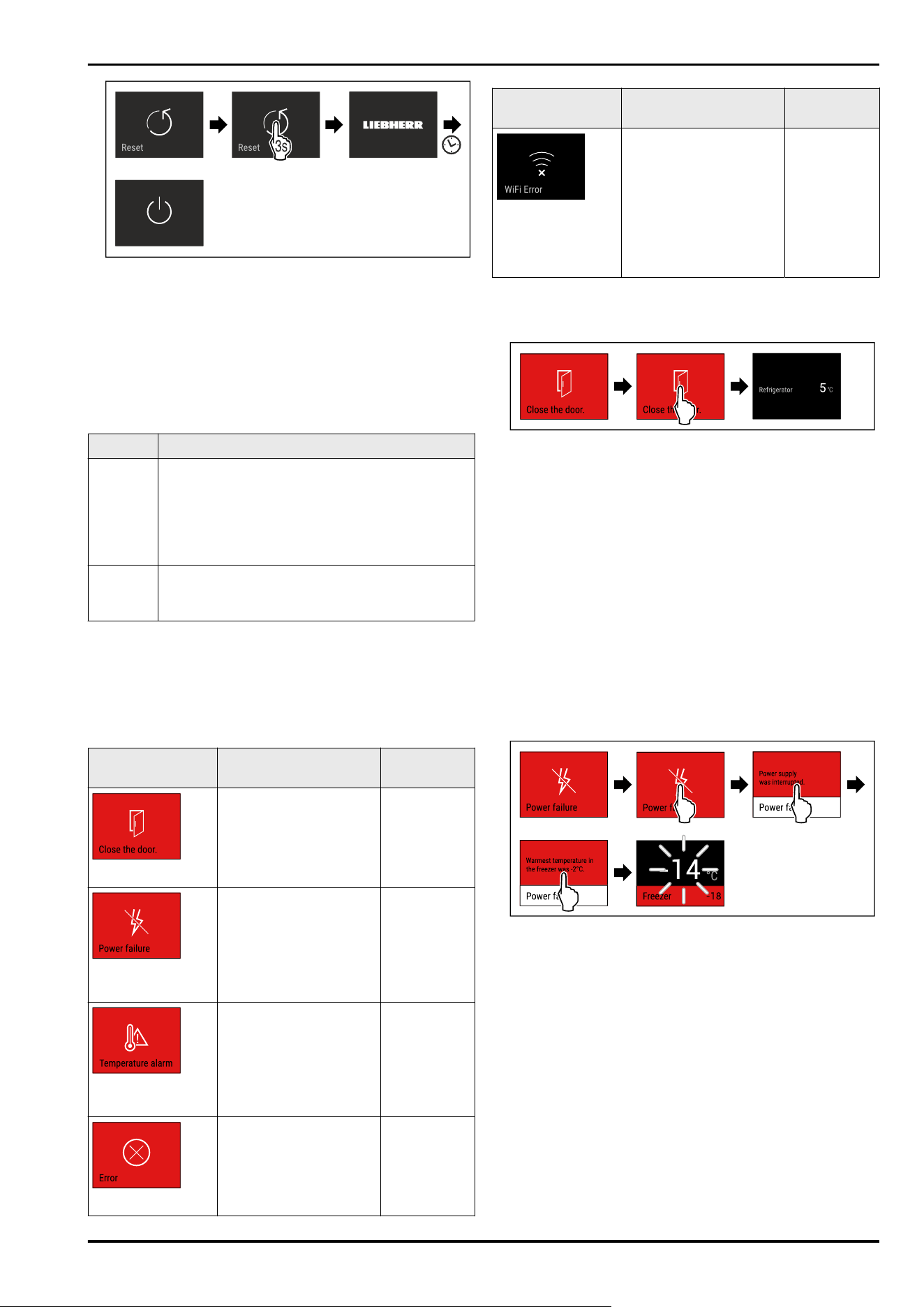

Fig.208

► Carry out action steps according to the illustration.

▷ Device is reset.

▷ Device is switched off.

► Restart the device. (see 5.1 Switching on appliance (first

use))

8.3 Messages

There are two categories of messages:

Category

Importance

Warning Warnings appear in the event of a door alarm or

malfunction.

Simple warnings can be cancelled by yourself.

In the event of serious malfunctions, you must

contact customer service. (see11.4 Customer

Service)

Reminder Reminders remind you of general processes.

You can carry out these operations to end the

message.

8.3.1 Overview of warnings

Behaviour of the appliance in the event of warnings:

Warning appears in red on the display.

The alarm tone sounds at an ever-increasing volume.

The interior lighting pulsates for some warnings.

Message

Cause Exit the

message

Door alarm

The message appears if

the door is open for too

long.

Carry out

action steps.

(seeDoor

alarm)

Power outage

alarm

The message appears

if the freezing tempera‐

ture has risen due to a

power failure.

Temperature

alarm

The message appears

if the freezing temper‐

ature does not corre‐

spond to the set

temperature.

Carry out

action steps.

(see Temper‐

ature alarm)

Error

The message appears

if there is an appliance

error. A component of

the appliance has a

fault.

Carry out

action steps.

(see Error)

Message Cause Exit the

message

WLAN error

The message appears

if the appliance could

not be connected to

the WLAN. (see Estab‐

lishing the WiFi

connection for the first

time) The message

only appears during the

initial setup.

Carry out

action steps.

(seeWLAN

error)

8.3.2 Ending warnings

Door alarm

Fig. 209 Example illustration

► Carry out action steps according to the illustration.

-or-

► Close the door.

▷ The display returns to the status indicator.

▷ The appliance cools more vigorously, which means that

the temperature shown on the display may be higher

than the actual temperature inside the appliance.

▷ Appliance noises can be louder.

You can set how long the door may be open before the door

alarm sounds. (see Setting the door alarm)

Power outage alarm

When the power failure has ended, the appliance will auto‐

matically cool down to the previously set target tempera‐

ture without you having to confirm the message. However,

for the message to disappear from the display, you must

confirm it.

Fig. 210 Example illustration

► Briefly touch the display.

▷ Display shows information about the warning.

► Briefly touch the display.

▷ Warmest freezing temperature is displayed.

▷ If the freezing temperature was below -9°C: Food can

still be consumed.

If the freezing temperature has risen above -9°C:

► Check the food.

► Briefly touch the display.

▷ The display returns to the status indicator: Current

temperature and target temperature are displayed.

Temperature alarm

Temperature differences can be caused by:

You have put in warm, fresh food.

Too much warm air has got in while you were sorting out

the freezer or removing items.

Controls

44 * Depending on model and options

There has been a longer power failure.

The appliance is faulty.

► Eliminate causes.

▷ The appliance cools to the target temperature set previ‐

ously.

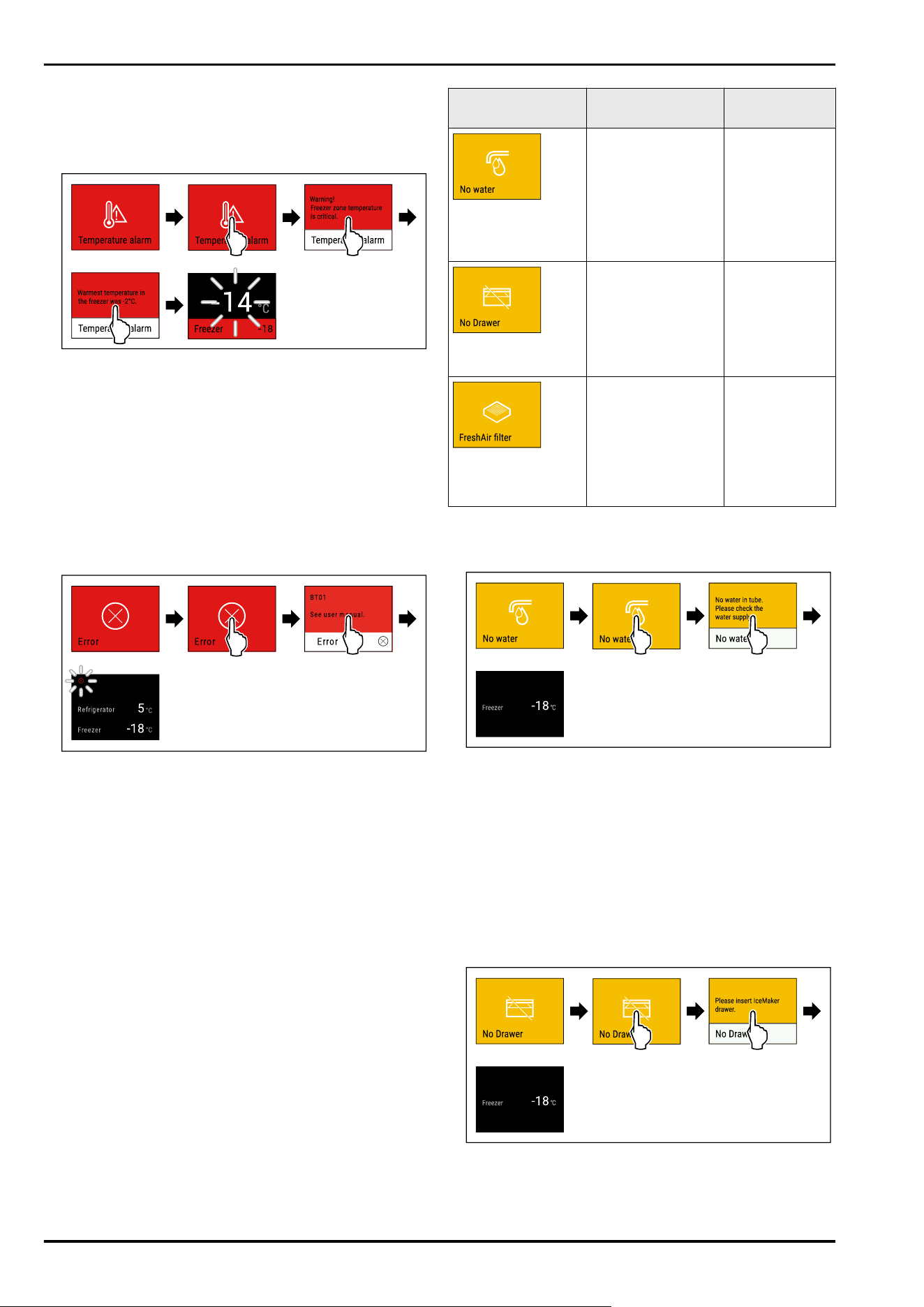

Fig. 211 Example illustration

► Briefly touch the display.

▷ Display shows information about the warning.

► Briefly touch the display.

▷ Warmest freezing temperature is displayed.

▷ If the freezing temperature was below -9°C: Food can

still be consumed.

If the freezing temperature has risen above -9°C:

► Check the food.

► Briefly touch the display.

▷ The display returns to the status indicator: Current

temperature and target temperature are displayed.

Error

Fig. 212 Example illustration

► Briefly touch the display.

▷ Error code is displayed.

► Note the error code.

► Briefly touch the display.

▷ The display returns to the status indicator.

► Contact Customer Service. (see11.4 Customer Service)

WLAN error

► Check WLAN connection.

► Reconnect the appliance to the WLAN. (seeWiFi)

8.3.3 Overview of reminders

Behaviour of the appliance during reminders:

Reminder appears yellow on the display.

Alarm tone sounds.

The interior lighting pulsates for some reminders.

The following reminders can be deactivated (seeDeacti‐

vating the reminder) :

Replace the FreshAir activated carbon filter

Message

Cause Exit the

message

Check the water

connection

The message

appears if the

IceMaker is acti‐

vated but the

IceMaker is not

being supplied with

water via the fixed

water connection.

Carry out

action steps.

(seeCheck the

water connec‐

tion)

Insert the IceMaker

drawer

The message

appears if the

IceMaker is acti‐

vated but the

IceMaker drawer is

open.

Carry out

action steps.

(seeInsert the

IceMaker

drawer)

Replace the Fres‐

hAir activated

carbon filter

The message

appears when the

FreshAir activated

carbon filter needs

to be replaced.

Carry out

action steps.

(see Replace

the FreshAir

activated

carbon filter)

8.3.4 Ending reminders

Check the water connection

Fig. 213 Example illustration

► Briefly touch the display

▷ Display shows reminder information.

► Briefly touch the display

► Check the water connection.

-or-

► Deactivate IceMaker. (see Deactivating the IceMaker and

MaxIce)

If water connection is checked and IceMaker is activated:

► Clean the IceMaker. (see 10.8.4 Cleaning the IceMaker)

▷ IceMaker produces ice cubes.

Insert the IceMaker drawer

Fig. 214 Example illustration

► Briefly touch the display.

▷ Display shows reminder information.

► Briefly touch the display.

Controls

* Depending on model and options 45

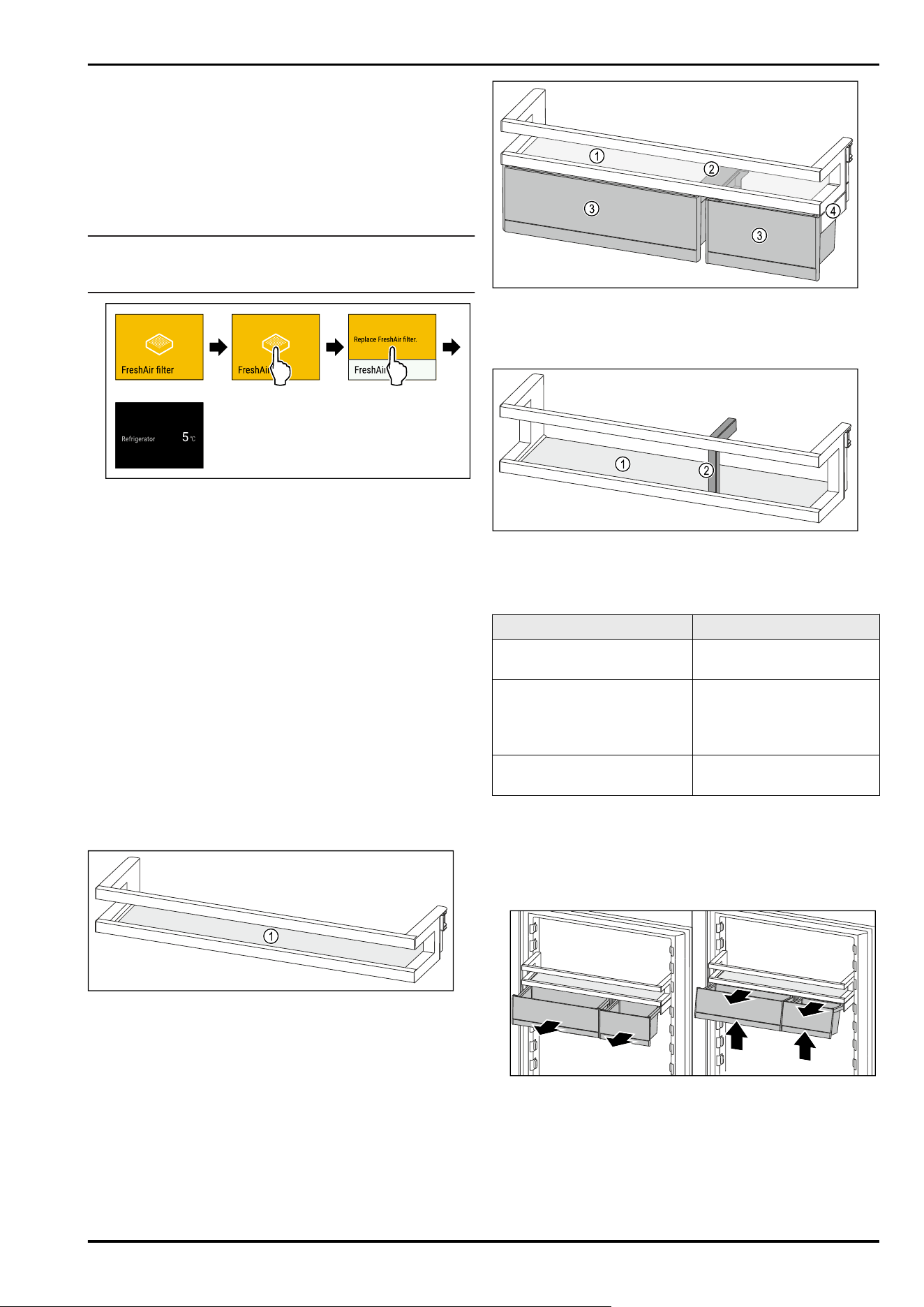

► Insert the IceMaker drawer.

-or-

► Deactivate IceMaker. (see IceMaker / MaxIce )

▷ If IceMaker drawer is inserted and IceMaker is activated:

IceMaker produces ice cubes.

Replace the FreshAir activated carbon filter

Liebherr recommends: Replace the FreshAir activated

carbon filter every 6 months.

Note

Sie erhalten den FreshAir-Aktivkohlefilter im Liebherr-

Hausgeräte-Shop unter go.liebherr.com/47wtc4.

Fig. 215 Example illustration

► Briefly touch the display.

▷ Display shows reminder information.

► Briefly touch the display.

► Replace the activated carbon filter. (see 10.1 FreshAir

carbon filter)

▷ Activated carbon filter ensures optimum air quality in the

cooling unit.

▷ Reminder appears again after 6 months.

If you no longer wish to receive this reminder, you can deac‐

tivate it. (see Deactivating the reminder)

9 Features

9.1 Door rack

Door racks are suitable for storing drinks and food. You can

move door racks for your own individual use and take them

apart for cleaning. However, Liebherr recommends using the

door racks in the position in the door as delivered from the

factory.

Fig. 216 Example illustration, Door rack

(1)

Shelf

Fig. 217 Example illustration, Door racks with VarioBoxes

(1)

Shelf (3) VarioBoxes

(2) Holding part for Vario‐

Boxes

(4) Side part

Fig. 218 Example illustration, Door rack with bottle holder

(1)

Shelf (2) Bottle holder

The following table shows examples of what can be stored

in each door rack.

Door rack

Food

Door rack (see Fig.216) Butter, cheese, tinned food,

tubes

Door rack with bottle holder

(see Fig. 218)

Bottles

The sliding bottle holder

secures the bottles in the

door rack.

Door rack with VarioBoxes

(see Fig. 217)

small food items

9.1.1 Removing VarioBoxes

Either one or both VarioBoxes can be used. If you want to

store particularly tall bottles in the door rack under the

door rack with VarioBoxes, you can remove one or both Vari‐

oBoxes.

Fig. 219

► Pull out VarioBox to the end stop.

► Lift VarioBoxes out forwards.

► Take VarioBox out forwards.

Features

46 * Depending on model and options

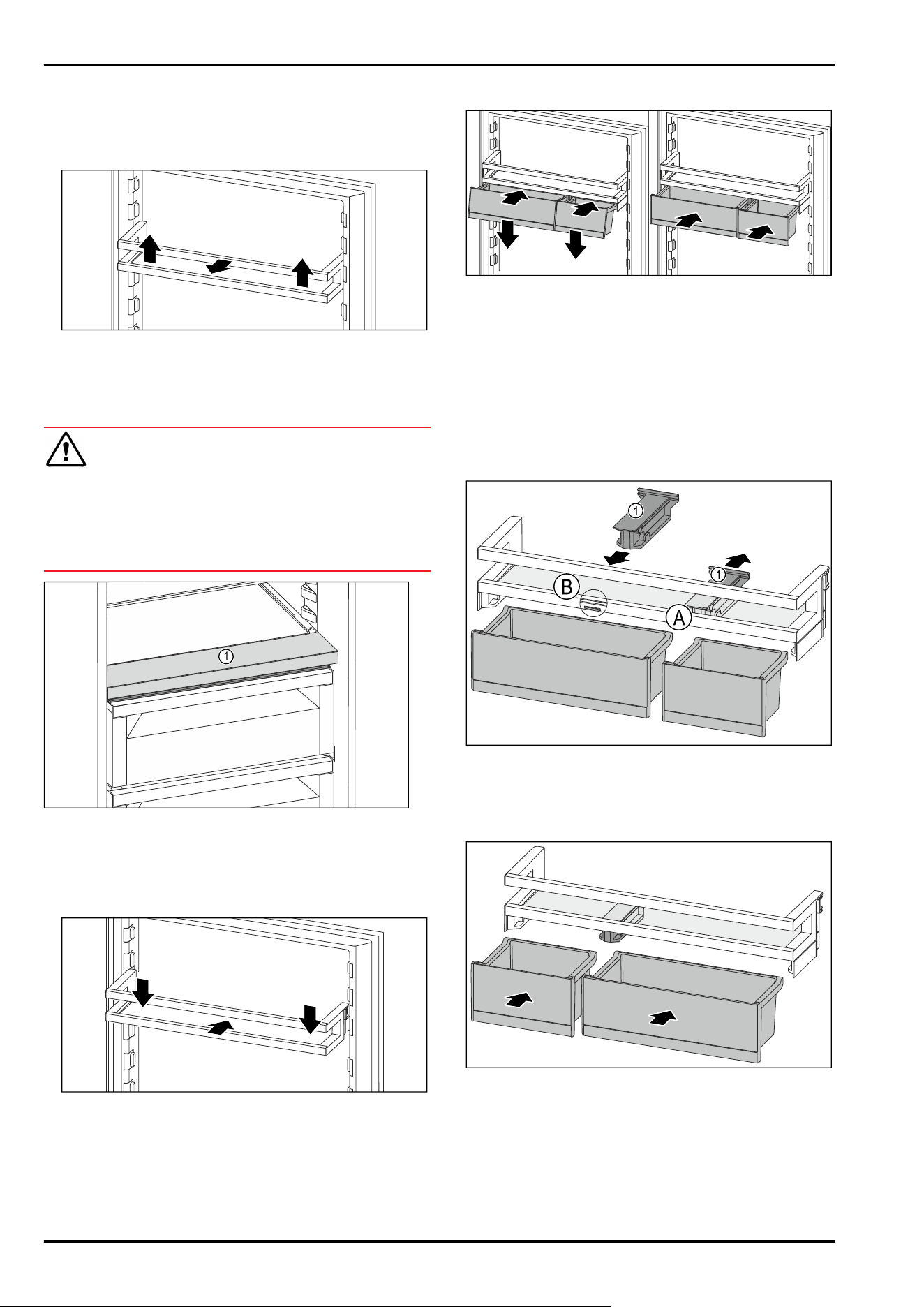

9.1.2 Removing the door rack

Ensure that the following requirements are met:

❑

VarioBoxes have been removed. (see 9.1.1 Removing Vari‐

oBoxes)

Fig. 220 Example illustration

► Push the door rack upwards.

► Pull the door rack forward.

9.1.3 Inserting the door rack

CAUTION

Risk of injury and damage to the appliance due to incor‐

rectly stored food or objects!

If you place food or objects on the bottom glass shelf, the

door may not close properly. This could cause the door racks

to break, food or objects to fall out and cause injury.

► Keep the front area of the bottom glass shelf clear.

Fig. 221 Example illustration

(1)

Front area

Ensure that the following requirements are met:

❑

VarioBoxes have been removed. (see 9.1.1 Removing Vari‐

oBoxes)

Fig. 222 Example illustration

► Slide in the door rack.

► Press the door rack down.

9.1.4 Inserting VarioBoxes

Fig.223

► Place VarioBoxes at an angle on the rib of the door rack.

► Lower VarioBoxes.

► Push in the VarioBoxes.

9.1.5 Converting VarioBoxes

Ensure that the following requirements are met:

❑

VarioBoxs have been removed. (see 9.1.1 Removing Vario‐

Boxes)

❑

Door rack has been removed. (see 9.1.2 Removing the

door rack)

Fig. 224

► Take off the holding part Fig. 224(1) in position

Fig. 224(A) backwards.

► Insert the holding part Fig. 224(1) in position Fig. 224(B).

► Insert the door rack. (see 9.1.3 Inserting the door rack)

Fig.225

► Insert the VarioBoxes in reverse order. (see Fig.225)

9.2 Shelves

There are different storage areas depending on the type of

appliance:

Single-piece shelf

Features

* Depending on model and options 47

Divisible shelf

Variable bottle rack (see 9.4 Adjustable bottle shelf)

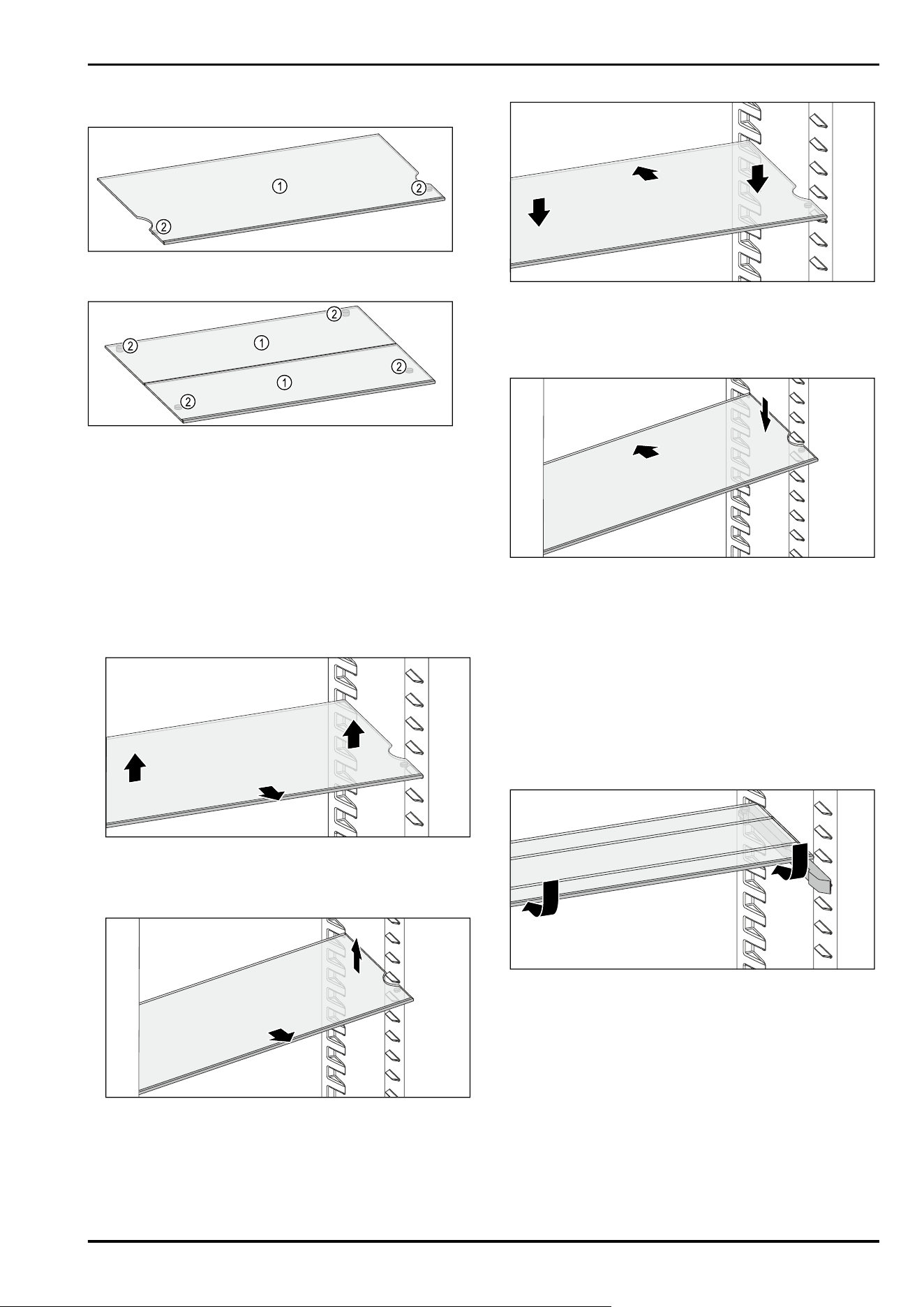

Fig. 226 Example illustration, shelf

(1) Shelf (2) Drawer stop

Fig. 227 Example illustration, divisible shelf

(1)

Shelf (2) Drawer stop

9.2.1 Using the shelves in the fridge section

The shelves can either be adjusted in height, or removed

completely or for cleaning.

Ensure that the following requirements are met:

❑

Shelves are empty.

Removing the shelf

The shelves are secured against accidental pulling out by

means of drawer stops.

Fig.228

► Raise the shelf.

► Pull out the shelf forwards.

-or-

Fig.229

► Easier removal: Tilt the shelf and pull it out forwards.

▷ Shelves have been removed.

▷ The shelves can be positioned at a different height.

Inserting the shelf

Fig.230

When the drawer stop points downwards:

► Pull the shelf out as far as it will go.

► Lower the shelf.

-or-

Fig.231

► Slide the shelf in at an angle and lower it.

▷ The drawer stops are located behind the front support

surface.

9.2.2 Using modular shelves

The divisible shelf can be pushed together in its factory-set

position, adjusted in height, or removed for cleaning.

Ensure that the following requirements are met:

❑

Shelves are empty.

Pushing the divisible shelf together

Fig.232

► Slide the front shelf into place as shown in the illustra‐

tion.

▷ The divisible shelf is pushed together.

▷ There is space for taller items on the shelf below.

Using both divisible shelves

► Grasp the pull-out shelf with one hand and pull it

forwards.

▷ The trim strip is at the front.

▷ The drawer stops point downwards.

Features

48 * Depending on model and options

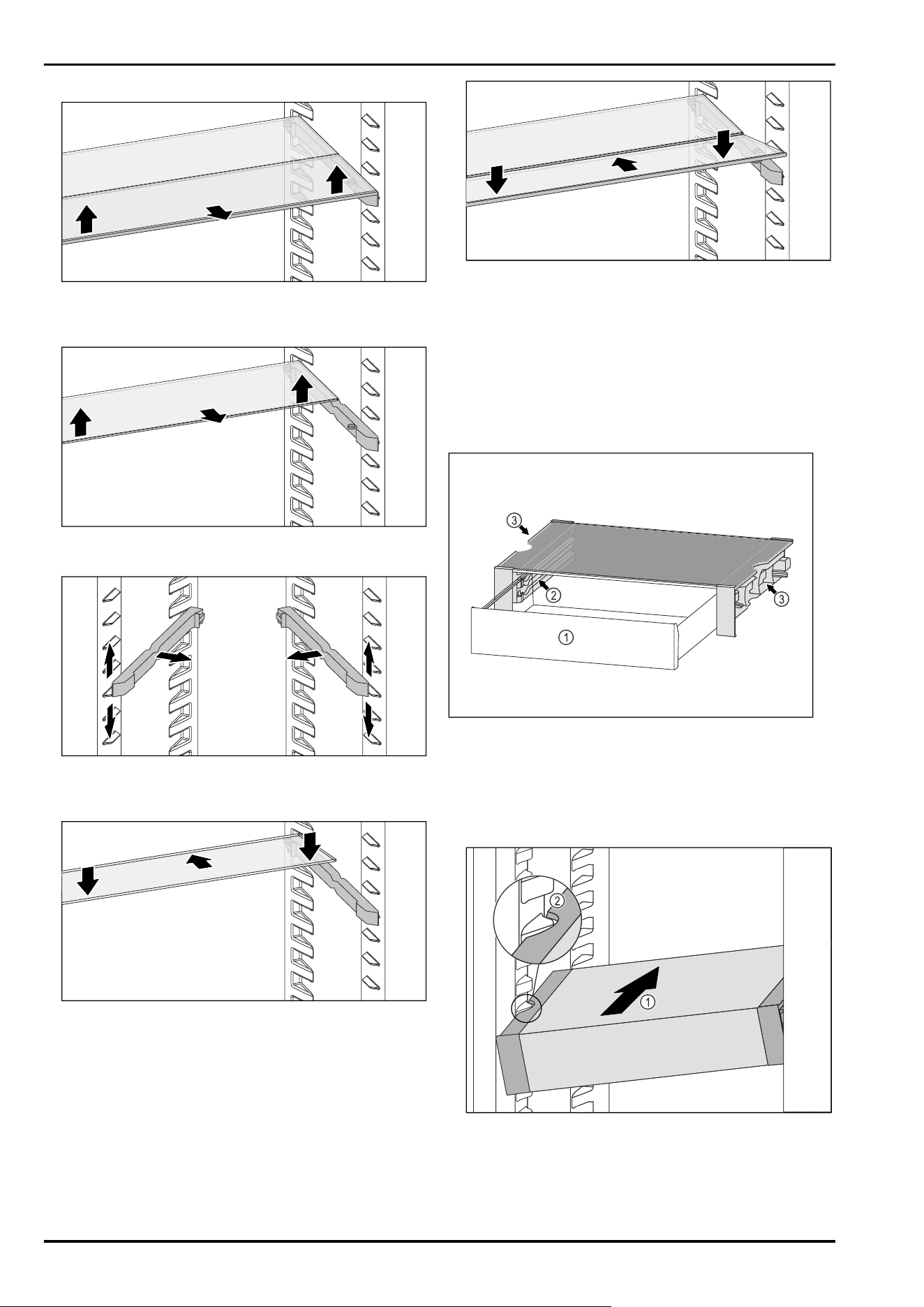

Adjusting the height of the divisible shelves

Fig.233

► Lift the front shelf forwards.

► Pull out the front shelf forwards.

Fig.234

► Repeat these steps for the rear shelf as well.

Fig.235

► Pull out the support rails.

► Insert the support rails at the desired height.

Fig.236

► Push the storage shelf, with the high drawer stops, all

the way in.

► Lower the shelf.

▷ The drawer stops are located behind the rear support

surface.

Fig.237

► Repeat these steps for the front shelf as well.

Removing the divisible shelf

The divisible shelves can be removed by moving them into

position. (see Adjusting the height of the divisible shelves)

9.3 VarioSafe

The VarioSafe offers space in the refrigerator compartment

for small groceries, packages, tubes and jars, for example.

Fig.238

(1)

VarioSafe drawer (3) Recesses on the left and

right side panel

(2) Side panels with ribs

for VarioSafe drawer

9.3.1 Inserting the VarioSafe

Fig. 239

► Insert the VarioSafe into the fridge section at an angle

Fig. 239(1) until the recesses in the side Fig. 239(2) of the

VarioSafe are at the level of the support rib in the fridge

section.

Features

* Depending on model and options 49

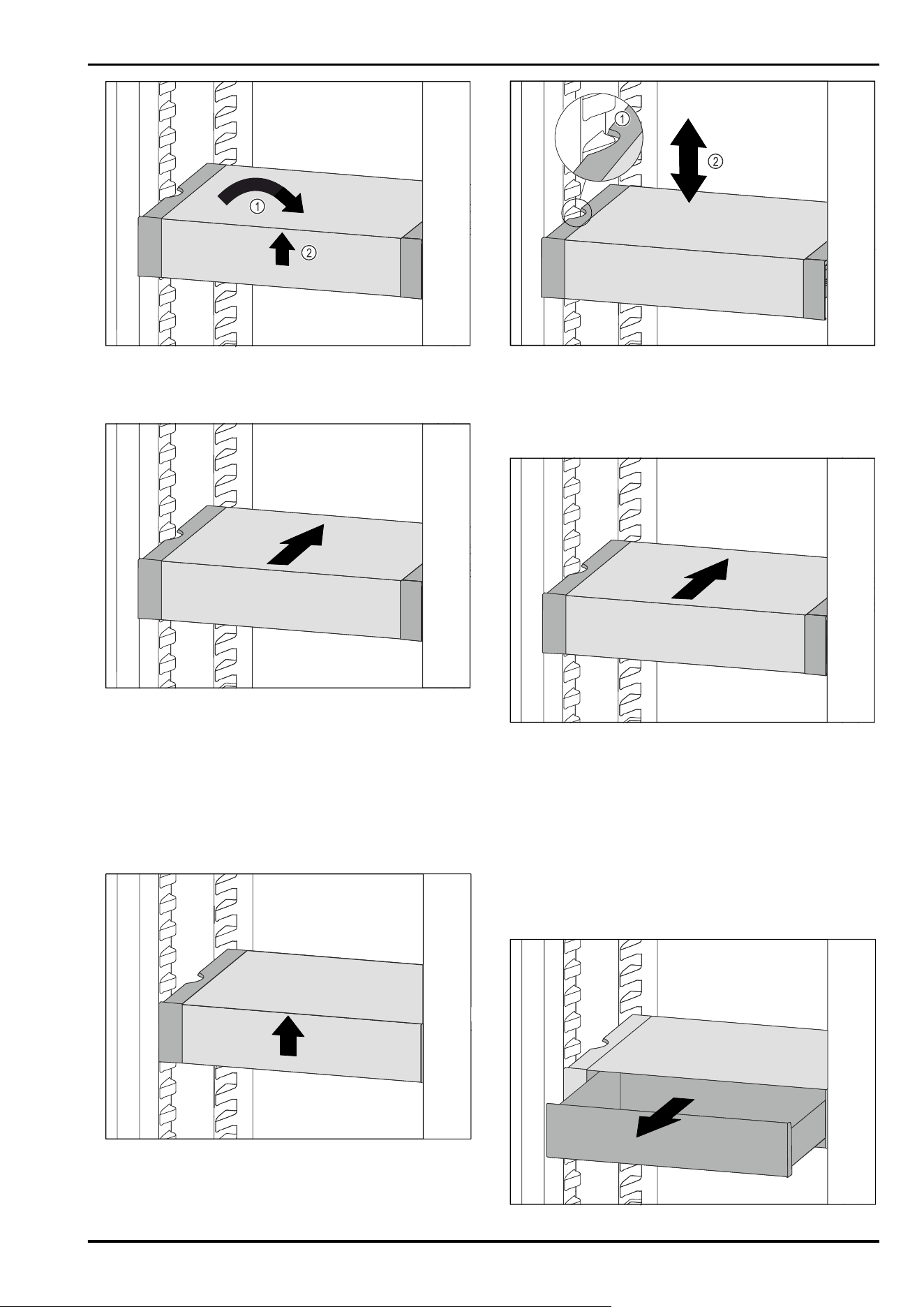

Fig. 240

► Set VarioSafe straight. Fig. 240(1)

► Lift VarioSafe at the front. Fig. 240(2)

Fig. 241

► Lift VarioSafe up toward the front.

► Push VarioSafe in to the rear.

► Lower VarioSafe.

▷ VarioSafe audibly engages.

▷ VarioSafe is inserted.

9.3.2 Repositioning the VarioSafe

You can move the VarioSafe as a whole in the refrigerator

compartment.

Fig. 242

► Lift VarioSafe at the front.

Fig. 243

► Pull VarioSafe forwards until the recesses in the side of

the VarioSafe are at the level of the support rib in the

refrigerator compartment. Fig. 243(1)

► Move VarioSafe up or down in the refrigerator compart‐

ment until the desired height is reached. Fig. 243(2)

Fig. 244

► Lift VarioSafe at the front.

► Push VarioSafe in to the rear.

▷ VarioSafe audibly engages.

▷ VarioSafe is offset in height.

9.3.3 Moving the VarioSafe drawer

You can use the VarioSafe drawer at two different heights.

If you would like to store taller foodstuffs in the VarioSafe

drawer, slide the VarioSafe drawer in on the bottom rib. If

you would like to store smaller foodstuffs in the VarioSafe

drawer, slide the VarioSafe drawer in on the top rib.

Features

50 * Depending on model and options

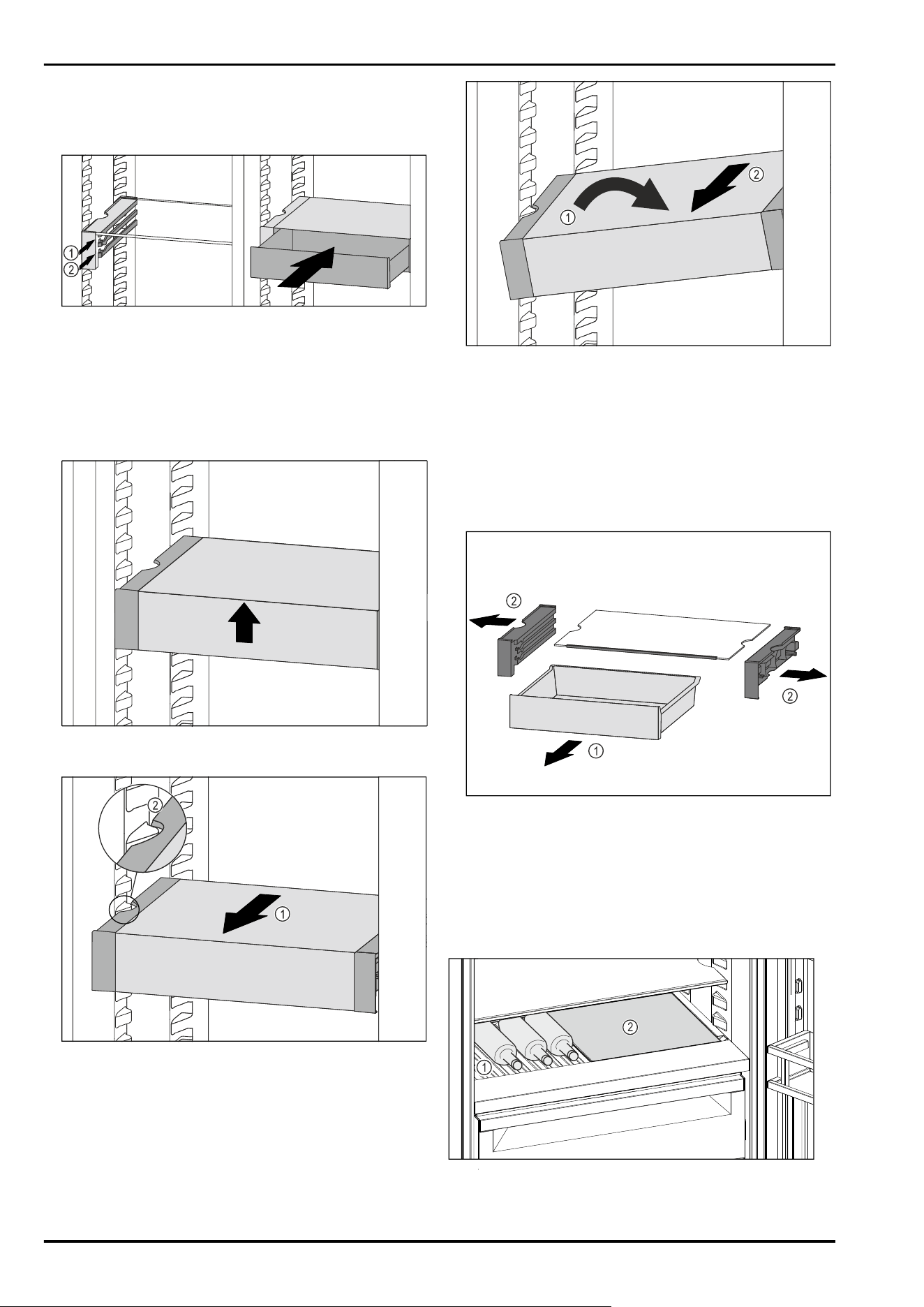

Fig. 245

► Pull out the VarioSafe drawer as far as it will go.

► Lift the VarioSafe drawer up at the front.

► Remove the VarioSafe drawer to the front.

Fig. 246

► Lift the VarioSafe drawer up at the front.

► Place the VarioSafe drawer behind the stoppers on

desired rib Fig. 246(1) or Fig. 246(2).

▷ VarioSafe drawer is offset in height.

9.3.4 Removing the VarioSafe

You can remove the VarioSafe as a whole.

Fig. 247

► Lift VarioSafe at the front.

Fig. 248

► Pull VarioSafe forwards Fig. 248(1) until the recesses in

the side of the VarioSafe are at the level of the support

rib in the fridge section. Fig. 248(2)

Fig. 249

► Set VarioSafe in refrigerator compartment at an angle.

Fig. 249(1)

► Take VarioSafe out to the front. Fig. 249(2)

▷ VarioSafe is removed.

9.3.5 Disassembling the VarioSafe

You can disassemble the VarioSafe into its individual parts if

you want to clean the VarioSafe or if you need to install or

remove parts.

Fig.250

► Remove VarioSafe as a whole. (see 9.3.4 Removing the

VarioSafe )

► Disassemble VarioSafe according to the illustration.

9.4 Adjustable bottle shelf

The glass shelf covers half of the variable bottle rack and

can be moved.

Fig. 251 Example illustration

(1)

Variable bottle rack (2) Glass shelf

Features

* Depending on model and options 51

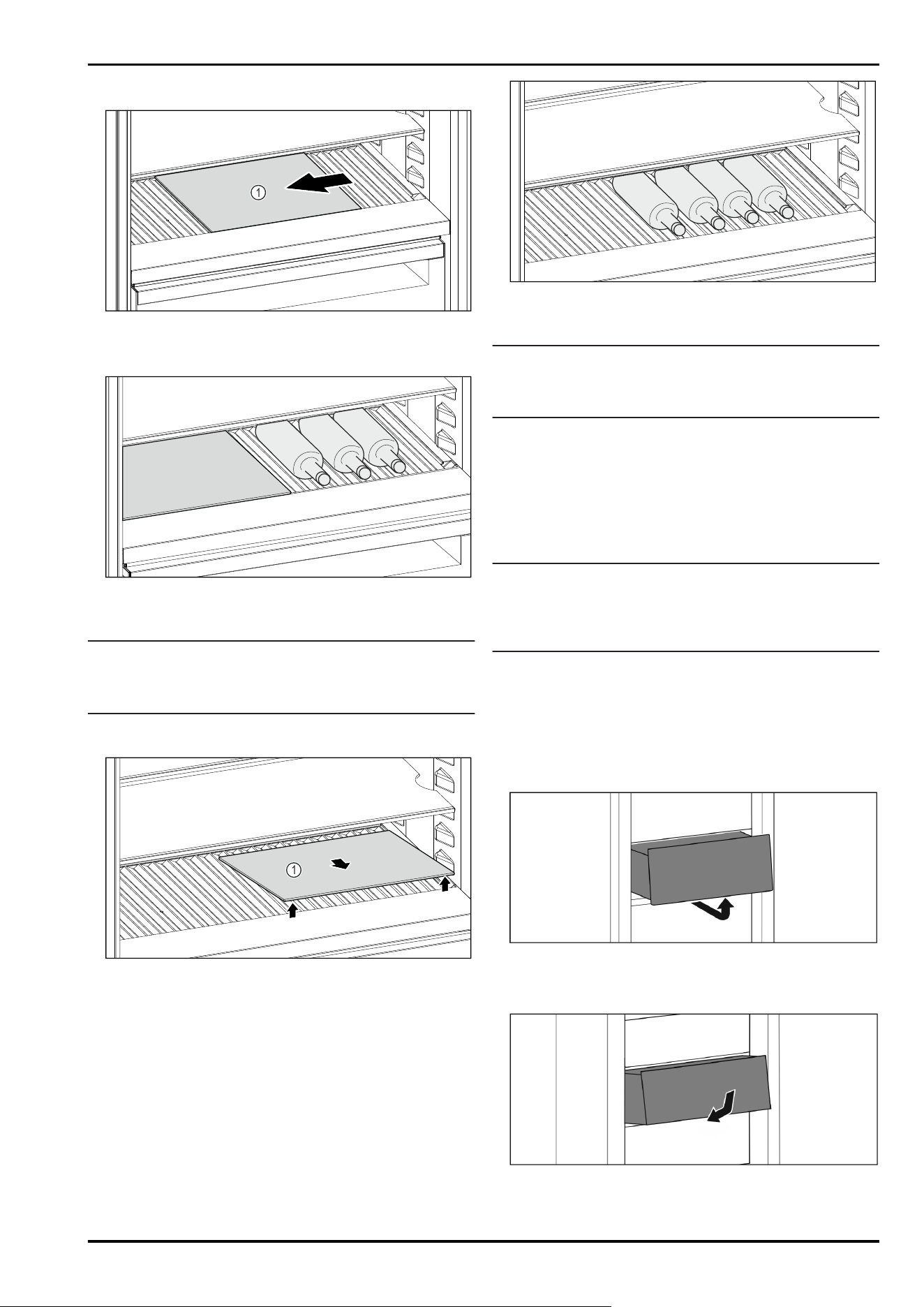

9.4.1 Use variable bottle rack and glass shelf

Fig.252

► Move the glass shelf to Fig.252(1) the left, centre or

right.

Fig. 253 Example illustration

► Place bottles in the back row with their bases against the

rear wall.

Note

When the bottles protrude over the variable bottle rack at

the front:

► Set the lower door rack one position higher.

9.4.2 Using the variable bottle rack

Fig.254

► Lift the glass shelf Fig.254(1) at the front and remove.

► Store the glass shelf Fig.254(1) in a safe place outside

the appliance.

Fig. 255 Example illustration

► Place bottles in the back row with their bases against the

back wall. (see Fig.255)

Note

When the bottles protrude over the variable bottle rack at

the front:

► Set the lower door rack one position higher.

9.5 Drawers

You can remove the drawers for cleaning.

You can remove the drawers to use VarioSpace.

The way to remove/insert the drawers varies depending

on the pull-out system. Your appliance can contain various

pull-out systems.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Leave the bottom drawer inside the appliance.

► Always keep the inside vents at the rear wall clear.

9.5.1 Drawer on appliance base or glass shelf

The drawer runs directly on the appliance base or on a glass

shelf. There are no rails.

When you remove the drawers, you can use the glass

shelves below them as storage shelves.

Removing drawer

Fig.256

► Remove drawer as shown in the illustration.

Inserting drawer

Fig.257

► Insert drawer as shown in the illustration.

Features

52 * Depending on model and options

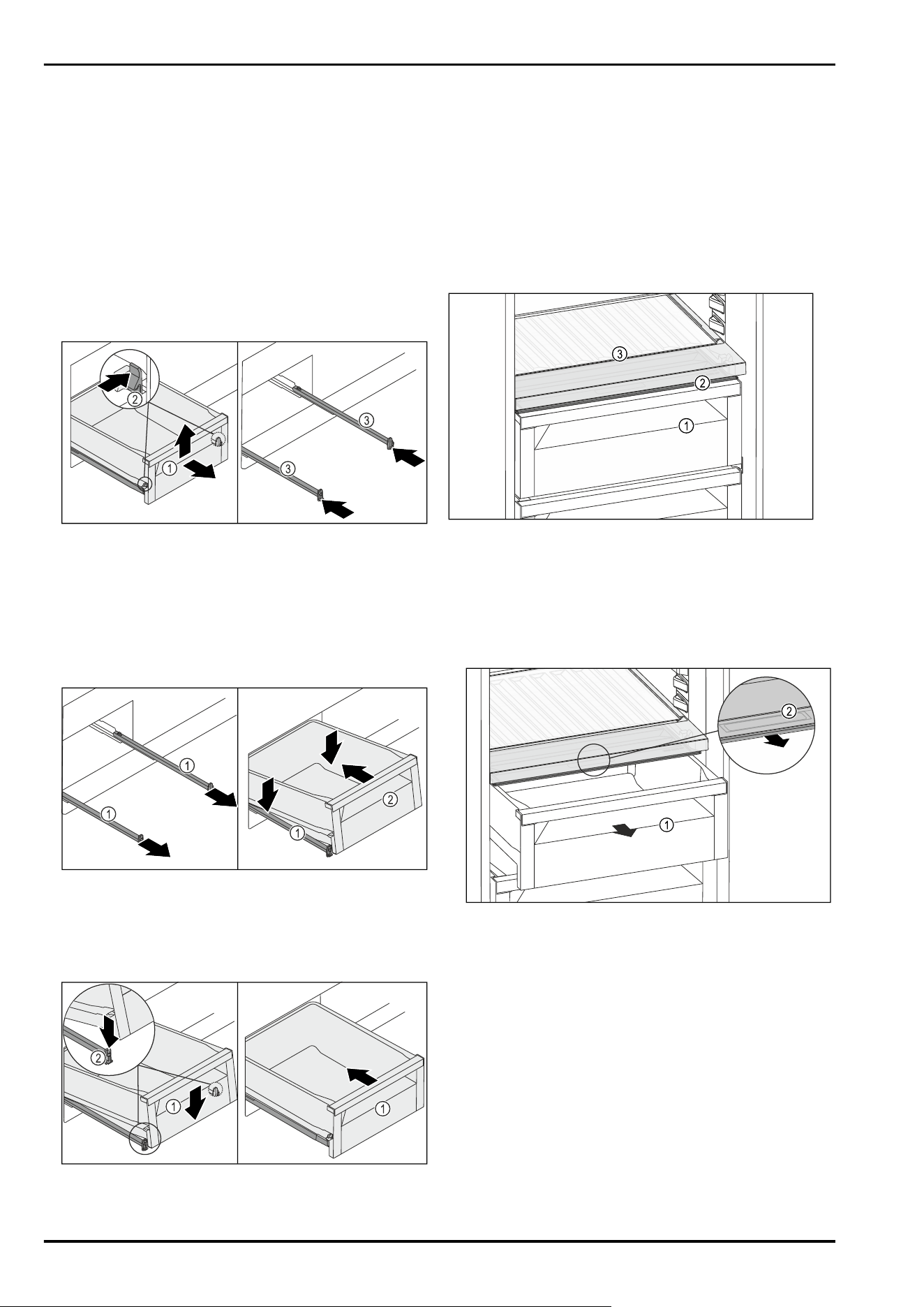

9.5.2 Drawer on telescopic rails

The drawer runs on extendible rails (telescopic rails). There

are fully extendible telescopic rails and telescopic rails with

partial pull-out. Drawers which are fully extendible can be

pulled out fully from the appliance. Drawers with partial

pull-out cannot be removed fully from the appliance. The

system in your appliance depends on the type of appliance.

Full extension

You can recognise the full extension by a clamp located at

the front left and right of the rail.

Removing the drawer

Ensure that the following requirements are met:

❑

Fridge section: Door is open more than 90°.

Fig.258

► Pull the drawer Fig.258(1) out as far as it will go.

► Press the left and right clamp Fig.258(2) inwards at the

same time.

▷ Drawer Fig.258(1) detaches from the rails.

► Lift up the drawer Fig.258(1) forwards.

► Remove the drawer Fig.258(1) forwards.

► Push in the rails Fig.258(3).

Inserting the drawer

Fig. 259

► Pull out the rails Fig. 259(1).

► Hold the rails Fig. 259(1) firmly and place the drawer

Fig. 259(2) diagonally on the rails Fig. 259(1) from above.

► Slide the drawer Fig. 259(2) backwards on the rails

Fig. 259(1) as far as it will go.

Fig. 260

►

Lower the drawer Fig. 260(1) at the front so that the

drawer slides into the clamp Fig. 260(2) on the left and

right.

▷ The drawer Fig. 260(1) locks in audibly.

► Push in the drawer Fig. 260(1).

9.6 Compartment lid for Fruit & Vege‐

table Safe

The compartment lid ensures constant levels of humidity.

The compartment lid is directly on the drawer and can be

covered by shelves or additional drawers.

Fig. 261 Example illustration, compartment lid for

Fruit & Vegetable Safe

(1)

Fruit & Vegetable Safe

(2) Compartment lid for

Fruit & Vegetable Safe

(3) Variable bottle rack

9.6.1 Reducing the air humidity in the drawer

Fig. 262

► Pull out the drawer Fig. 262(1).

► Grasp the recessed grip Fig. 262(2) on the compartment

lid and pull the compartment lid forwards at the same

time.

▷ When the drawer is closed, there is a small gap between

the compartment lid and the drawer.

Features

* Depending on model and options 53

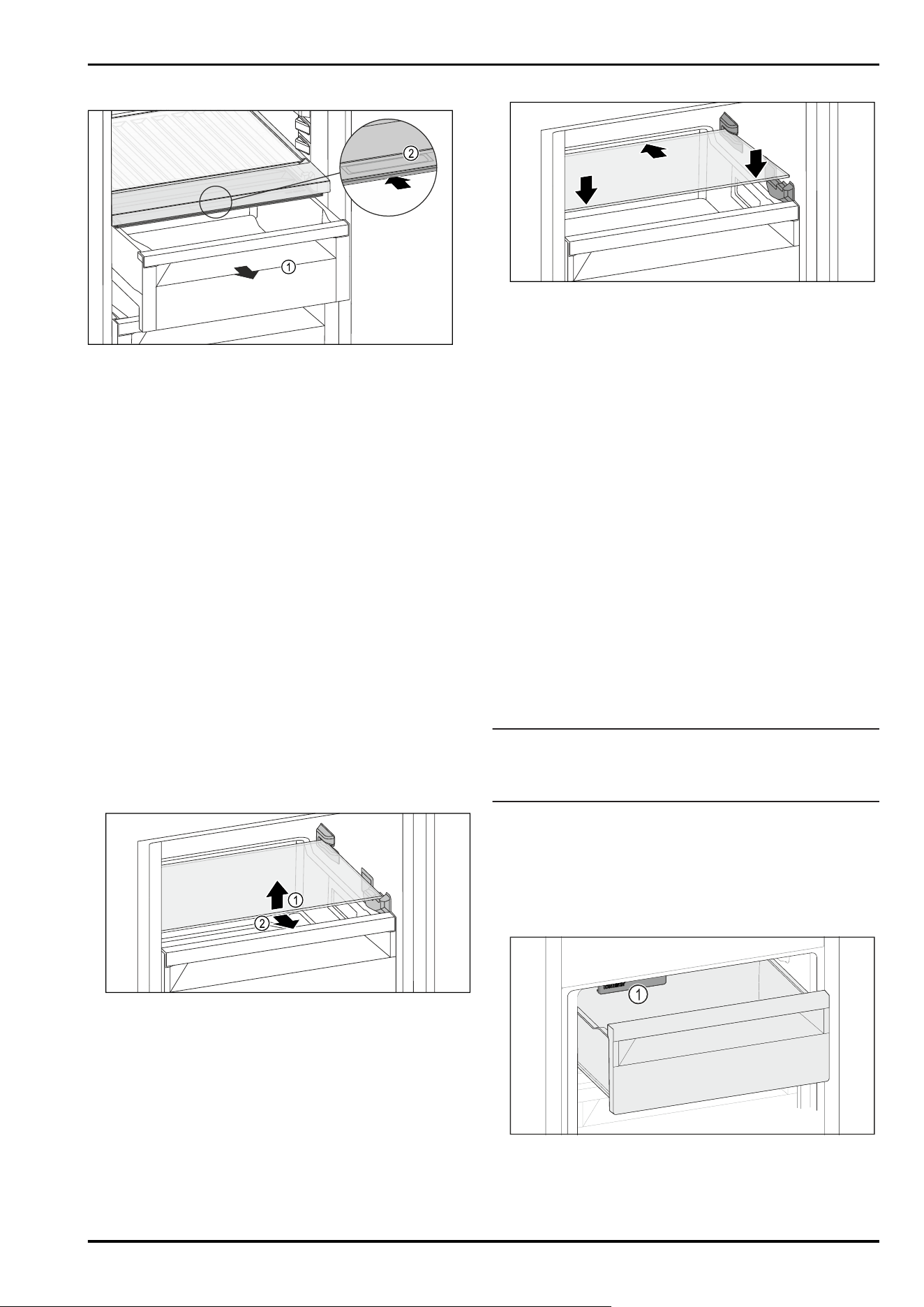

9.6.2 Increasing the air humidity in the drawer

Fig. 263

► Pull out the drawer Fig. 263(1).

► Grasp the recessed grip Fig. 263(2) on the compartment

lid and push the compartment lid backwards at the same

time.

▷ When the drawer is closed, the compartment lid seals

with the drawer.

9.6.3 Using Fruit & Vegetable Safe as

Meat & Dairy Safe

You can use the Fruit & Vegetable Safe as Meat&Dairy

Safe. To do this, you must reduce the humidity in the drawer.

(see 9.6.1 Reducing the air humidity in the drawer)

9.7 Glass shelves

You can remove the glass shelves under the drawers for

cleaning.

You can remove the glass shelves under the drawers to use

VarioSpace.

9.7.1 Removing / inserting the glass shelf

Make sure that the following requirements are fulfilled:

❑

Glass shelf under the drawer: The drawer has been

removed. (see 9.5 Drawers)

Removing glass shelf

Fig. 264 Example illustration, glass shelf

► Lift the glass shelf forwards.

► Remove the glass shelf forwards.

Inserting glass shelf

Fig. 265 Example illustration, glass shelf

► Place the glass shelf at an angle behind the stoppers.

► Lower glass shelf.

► Slide in glass shelf to the back.

9.8 IceMaker

The IceMaker will produce ice cubes for household use only.

Ensure that the following conditions are met:

The IceMaker is clean. (see 10 Maintenance)

IceMaker drawer is cleaned.

IceMaker drawer is fully inserted.

9.8.1 Producing ice cubes

The volume depends on the freezing temperature. The

colder the temperature, the more ice cubes the system can

produce in a certain time period.

After the IceMaker is turned on for the first time, it can take

up to 24 hours for the first ice cubes to be made.

► Activate the IceMaker function.

► Producing many ice cubes: Activate the MaxIce function.

► Distribute the ice cubes evenly in the drawer to increase

the capacity.

► Closing the drawer: IceMaker starts making ice cubes

again automatically.

Note

When a certain level is reached in the IceMaker drawer, it

stops producing ice cubes. The IceMaker does not fill the

drawer all the way to the top.

9.8.2 Using the drawer with the IceMaker deac‐

tivated

If you deactivate the IceMaker, then you can use the entire

IceMaker drawer as a freezer drawer.

► Deactivate IceMaker. (see Deactivating the IceMaker and

MaxIce)

Fig. 266

► Place food in drawer.

If you put food in the left side of the drawer:

► Watch out for the IceMaker Fig. 266(1).

Features

54 * Depending on model and options

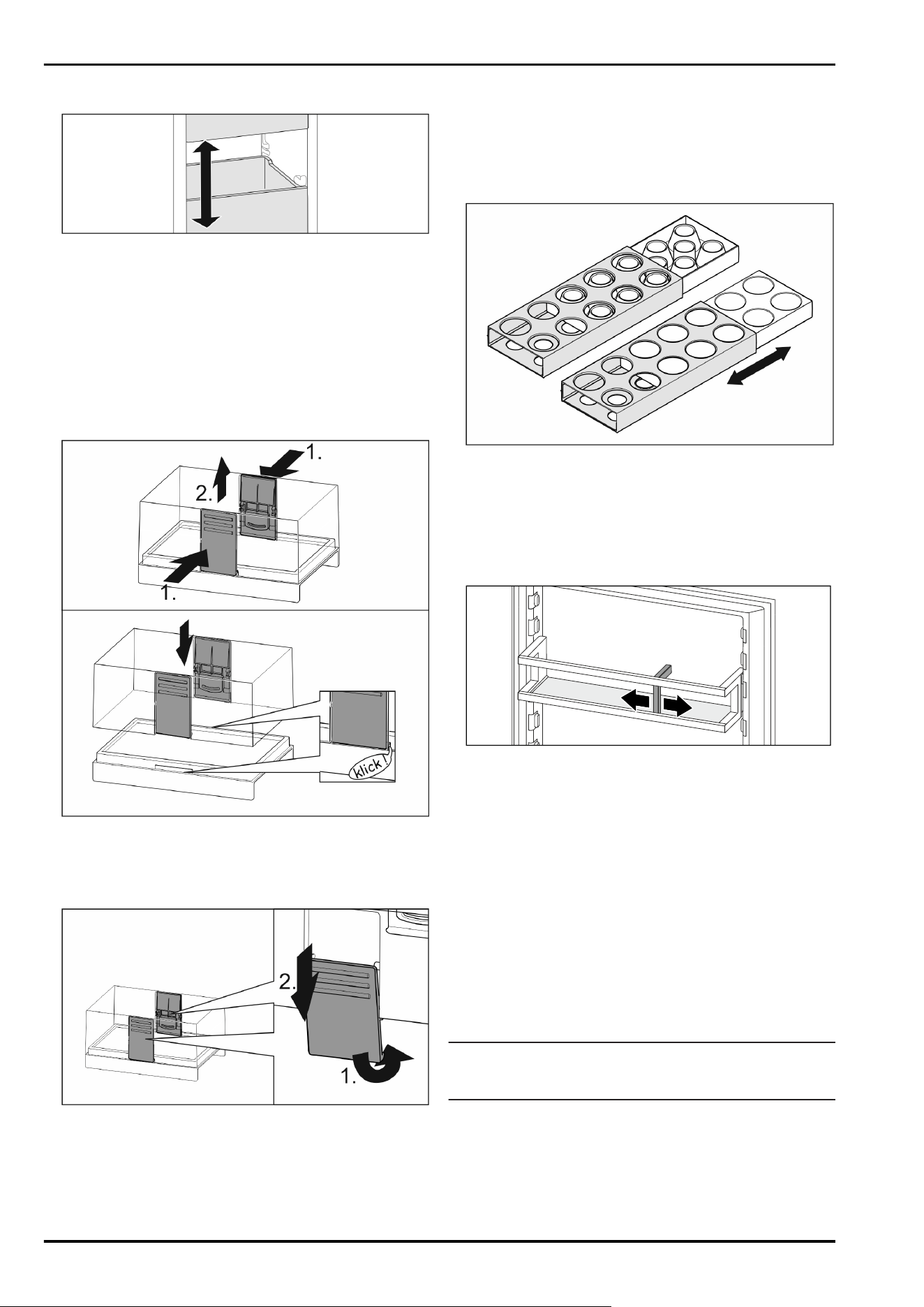

9.9 VarioSpace

Fig. 267

You can remove drawers and glass panels from your appli‐

ance. This provides more room for large food items such as

poultry, joints of meat, large game, and tall baked products.

You can then freeze these items whole for later preparation.

► Note the weight limits on the drawers and glass panels

(see11.1 Technical specifications) .

9.10 Butter dish

9.10.1 Opening/closing the butter dish

Fig. 268

9.10.2 Dismantling the butter dish

You can take the butter dish apart for cleaning.

Fig. 269

► Disassembling the butter dish.

9.11 Egg rack

You can pull out and turn the egg rack. You can use both

sides of the egg rack so you can label specifics like the

purchase date.

9.11.1 Using the egg rack

Fig.270

► Top layer: for storing hen eggs.

► Bottom layer: for storing quail eggs.

9.12 Bottle holder

9.12.1 Using the bottle holder

Fig.271

► Push the bottle holder onto the bottles.

▷ The bottles are prevented from falling over.

10 Maintenance

10.1 FreshAir carbon filter

The FreshAir carbon filter is in the compartment above the

fan.

It guarantees the best air quality.

❑

Replace the carbon filter every 6 months.

When the reminder is set, a message on the display

prompts you to change it.

❑

The carbon filter can be disposed of with the regular

household waste.

Note

Sie erhalten den FreshAir-Aktivkohlefilter im Liebherr-

Hausgeräte-Shop unter go.liebherr.com/47wtc4.

Maintenance

* Depending on model and options 55

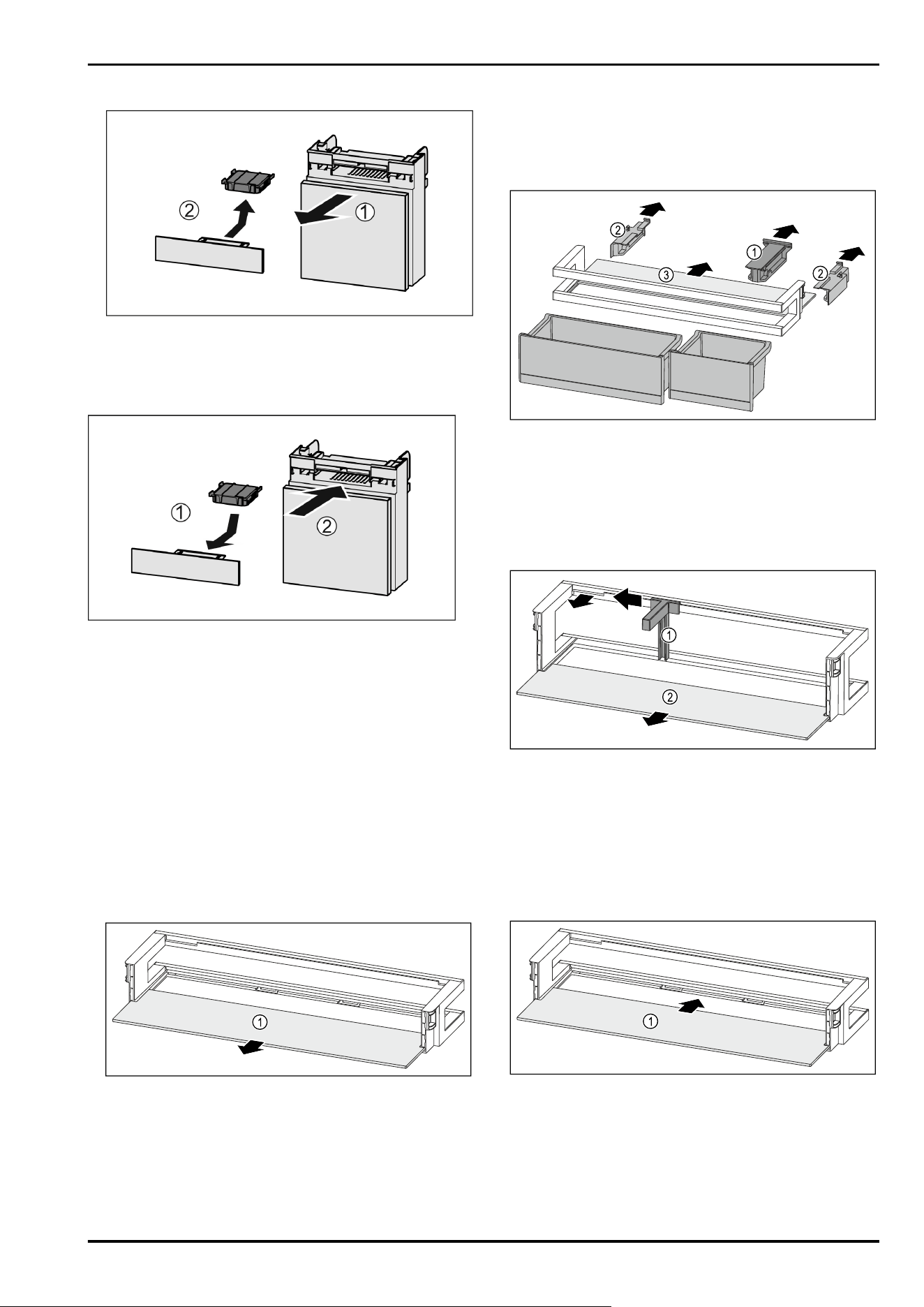

10.1.1 Removing the FreshAir carbon filter

Fig.272

► Pull out the compartment Fig.272(1).

► Remove the carbon filter Fig.272(2).

10.1.2 Inserting the FreshAir carbon filter

Fig.273

► Insert the carbon filter as shown in the diagram

Fig.273(1).

▷ The carbon filter clicks into place.

If the carbon filter is pointing downwards:

► Push the compartment in Fig.273(2).

▷ The carbon filter is now ready for use.

10.2 Dismantling the door rack

It is possible to dismantle some of the door racks if you

want to clean them or install or remove spare parts.

10.2.1 Dismantling the door rack

Ensure that the following requirements are met:

❑

Door rack has been removed. (see 9.1.2 Removing the

door rack)

Fig. 274 Door rack with shelf

► Remove the shelf Fig. 274(1).

10.2.2 Dismantling the door rack with Vario‐

Boxes

Ensure that the following requirements are met:

❑

Door rack has been removed. (see 9.1.2 Removing the

door rack)

Fig.275

► Remove the VarioBoxes. (see 9.1.1 Removing VarioBoxes)

► Pull off the holding part Fig.275(1).

► Pull off the side parts Fig.275(2).

► Remove the shelf Fig.275(3).

10.2.3 Dismantling the door rack with bottle

holder

Fig. 276 Door rack with bottle holder and shelf

► Slide the bottle holder Fig. 276(1) to the side as far as the

recess.

► Remove the bottle holder Fig. 276(1).

► Remove the shelf Fig. 276(2).

10.3 Assembling the door rack

10.3.1 Assembling the door rack

Fig. 277 Door rack with shelf

► Push the shelf Fig.277(1) into the side recesses.

Maintenance

56 * Depending on model and options

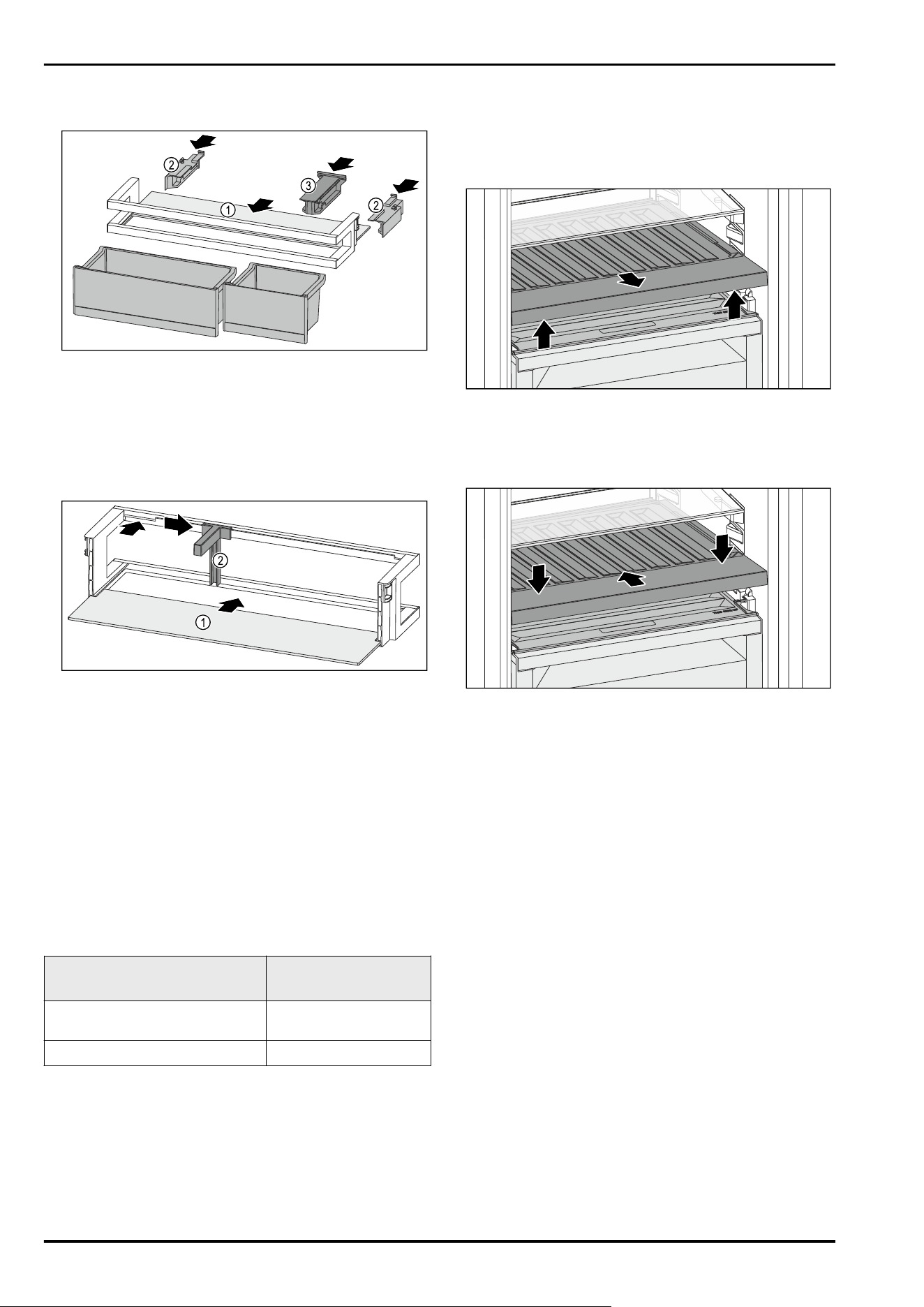

10.3.2 Assembling the door rack with Vario‐

Boxes

Fig.278

► Push the shelf Fig.278(1) into the side recesses.

► Insert the side parts Fig.278(2).

► Insert the holding part Fig.278(3).

► Insert the VarioBoxes. (see 9.1.4 Inserting VarioBoxes)

10.3.3 Assembling the door rack with bottle

holder

Fig. 279 Door rack with shelf

► Push the shelf Fig.279(1) into the side recesses.

► Insert the bottle holder Fig.279(2) in the recess.

► Push the bottle holder Fig.279(2) to the desired position

to the side.

10.4 Disassembling / assembling pull-

out systems

10.4.1 Notes on disassembly

You can disassemble some of the pull-out systems for

cleaning. Your appliance can contain a variety of pull-out

systems.

The following pull-out systems can be disassembled or

cannot be disassembled:

Pull-out system

can be disassembled/

cannot be disassembled

Drawer on appliance base or

glass shelf

cannot be disassembled

Fully extendible cannot be disassembled

10.5 Removing / inserting the variable

bottle rack

The variable bottle rack can be removed for cleaning.

10.5.1 Removing the variable bottle rack

Ensure that the following requirements are met:

❑

Bottles have been removed.

❑

Glass shelf has been removed. (see 9.4.2 Using the vari‐

able bottle rack)

Fig.280

► Lift the variable bottle rack at the front and pull it out.

▷ The compartment lid is visible.

10.5.2 Inserting the variable bottle rack

Fig.281

► Push the variable bottle rack in to the end stop and press

it down.

▷ The connectors at the back of the variable bottle rack are

connected via automated processes.

▷ LED lights up.

► Insert the glass shelf.

-or-

► Use the variable bottle rack for bottles.

10.6 Compartment lid for Fruit & Vege‐

table Safe

You can remove the compartment lid for cleaning.

10.6.1 Removing the compartment lid

Ensure that the following requirements are met:

❑

The glass shelf directly above the variable bottle rack has

been removed.

❑

The variable bottle rack has been removed.

❑

The drawer directly below the compartment lid has been

removed. (see 9.5 Drawers)

Maintenance

* Depending on model and options 57

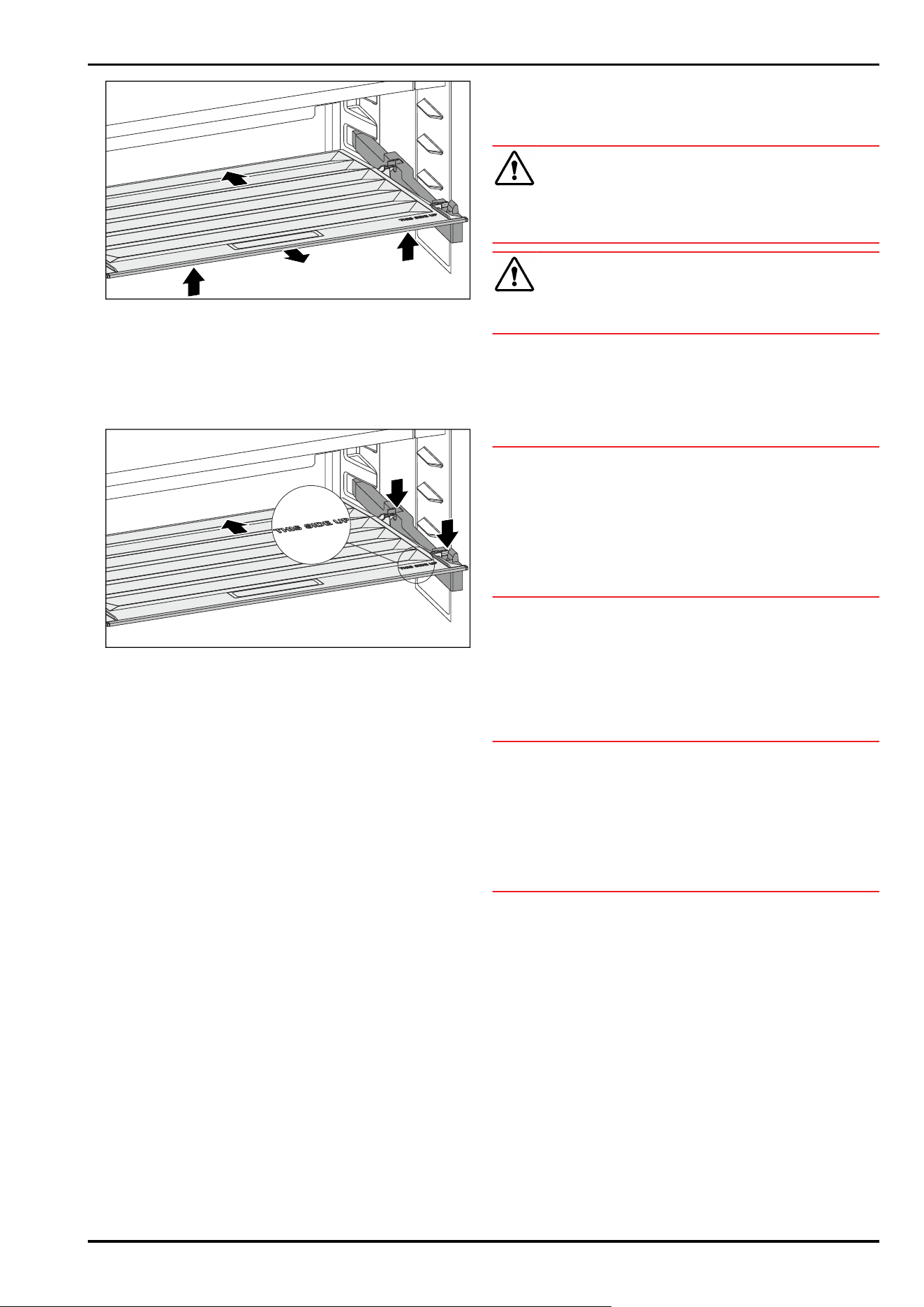

Fig.282

► Push the compartment lid backwards.

► Lift the compartment lid forwards.

► Remove the compartment lid forwards and upwards at an

angle.

10.6.2 Inserting the compartment lid

Fig.283

If the THIS SIDE UP lettering is at the top:

► Insert the rear retaining parts into the relevant rear open‐

ings.

► Push the compartment lid backwards.

► Lower the compartment lid forwards and engage the

front retaining parts into the openings.

► Move the compartment lid into the required position.

10.7 Defrosting the appliance

10.7.1 Defrosting the fridge compartment

Defrosting is performed automatically. The water from the

thawing process drains through the outlet and evaporates.

► Clean the drain opening at regular intervals.

(see 10.8Cleaning the appliance)

10.7.2 Defrosting the freezer compartment with

NoFrost

Defrosting is performed automatically with the NoFrost

system. The moisture is deposited on the evaporator, is peri‐

odically defrosted and evaporates.

The appliance does not have to be defrosted.

10.8 Cleaning the appliance

10.8.1 Preparation

WARNING

Danger of electric shock!

► Remove the refrigerator connector or interrupt the power

supply.

WARNING

Danger of fire!

► Do not damage the refrigeration circuit.

►

Empty the appliance.

► Unplug the mains plug.

-or-

► Activate the CleaningMode. (seeCleaningMode)

10.8.2 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

► Plastic surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Metal surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Drain hole: remove deposits using a thin item (for

example a cotton bud).

10.8.3 Clean the components

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some

detergent:

- Shelf

- Dividing shelf

- VarioSafe

- Compartment lid for Fruit & Vegetable Safe

- Drawer

Please note: Do not remove the magnet on the drawer.

The magnet ensures the functionality of the IceMaker.

- Adjustable bottle shelf

Clean with a damp cloth:

- Retractable rails

Please note: The grease in the tracks is used for lubrica‐

tion and must not be removed!

Wash in the dishwasher up to 60°C:

- Door rack

- VarioBox

- Bottle rack

- Holder of the dividing shelf

Maintenance

58 * Depending on model and options

- Egg rack

- Butter dish

- Ice cube scoop

► To disassemble components: see the relevant section.

► Clean the components.

10.8.4 Cleaning the IceMaker

There are various options for cleaning the IceMaker.

Cleaning is required in the following cases:

❑

Initial operation

❑

With mains connection:

If out of use for more than 5 days.

Ensure that the following conditions are met:

❑

IceMaker drawer is emptied.

❑

IceMaker drawer is in place.

❑

The IceMaker is activated.

First use or after a long period of non-use

Clean the IceMaker with the TubeClean function.

► Put an empty 1.5l vessel (max. height 10cm) in the

drawer under the IceMaker.

► Activate the TubeClean function.

▷ The rinse process is prepared (max. 60min.): Symbol

flashes.

▷ Water pipes are rinsed: Symbol flashes.

▷ Rinsing process is complete: Function turns off automati‐

cally.

► Remove the IceMaker drawer and remove the container.

► Clean the IceMaker drawer with warm water and a little

detergent.

► Push the IceMaker drawer in.

▷ The system starts making ice cubes automatically.

Without a water filter

► Dispose of any ice cubes that were made 24 hours after

the first ice cubes.

If cleaning is required

Clean the IceMaker by hand.

► Remove the IceMaker drawer and clean with warm water

and a little detergent.

► Push the IceMaker drawer in.

▷ The system starts making ice cubes automatically.

10.8.5 After cleaning

► Wipe the appliance and the components dry.

► Connect and switch on the appliance.

► Activate SuperFrost (see8.2Appliance functions) .

The temperature is cold enough:

► Place the food inside.

► Repeat cleaning regularly.

11 Customer help

11.1 Technical specifications

Temperature range

Cooling 3°C to 9°C

BioFresh 0°C to 3°C

Freeze -26°C to -15°C

Maximum ice cube quantity / 24 hours

Freezer compart‐

ment

see type plate under “Freezing

capacity …/ 24 h”

Maximum loading weight for the freezer drawer

Drawer Maximum loading

weight

Top and middle drawers (drawers

on a glass shelf)

18 kg

Bottom drawer (drawer on the

appliance base)

12 kg

Ice cube production with IceMaker

Ice cube produc‐

tion / 24 hours

At a temperature of -18°C: 1.2 kg of

ice cubes

maximum ice

cube produc‐

tion / 24 hours

With the MaxIce function on: 1.5 kg of

ice cubes

Time required to reach various temperatures with Vario‐

Temp

Initial tempera‐

ture

Target tempera‐

ture

Time taken to reach

target temperature

-18°C 0°C > 8 hours

-18°C 8°C > 12 hours

8°C 14°C > 6 hours

14°C -18°C > 4 hours

Lighting

Class

Light source

This product contains one or more energy

efficiency class G light sources.

LED

The appliance may contain light sources with different

energy efficiency classes. The lowest energy efficiency class

is indicated.

For appliances with a WiFi connection:

Frequency specification

Frequency band 2.4GHz

Maximum radiated

power

< 100 mW

Purpose of the

wireless equipment

Integration in the local WiFi network

for data communication

11.2 Operating noise

The appliance makes different noises when it is on.

At higher temperatures the appliance uses less energy

but works for longer. It is quieter.

With high cooling capacity, food is cooled more quickly.

The sound is louder.

Examples:

•

Functions on (see8.2Appliance functions)

•

Fan running

•

Food recently added

•

High ambient temperature

•

Door open for a while

Noise

Possible cause Type of noise

Bubbling and

splashing

Coolant flowing

into the cooling

circuit.

Normal operating

noise

Customer help

* Depending on model and options 59

Noise Possible cause Type of noise

Hissing Coolant sprays

into the cooling

circuit.

Normal operating

noise

Humming The appliance

is cooling. The

volume depends

on the cooling

output.

Normal operating

noise

Suction noises Soft-closing door

is being opened

and closed.

Normal operating

noise

Humming and

rustling

The fan is running. Normal operating

noise

Clicking Components are

switched on and

off.

Normal switching

noise

Rattling or

humming

Valves or flaps are

working.

Normal switching

noise

Noise Possible

cause

Type of noise Lifting

Vibration Improper

installation

Defective

noise

Check the

installation.

Level the

appliance.

Noise Possible

cause

Type of noise Lifting

Rattling Components,

items inside

the appliance

Defective

noise

Secure

components.

Leave

enough

space

between the

items.

11.3 Technical fault

Your appliance is designed and built to ensure it works reli‐

ably and has a long service life. In the unlikely event that

a fault occurs during operation, please check whether it is

due to an operating error. If so, you will be charged for the

callout and repair costs even if it falls within the warranty

period.

You can fix the following faults yourself.

11.3.1 Appliance function

Defect

Cause Remedy

The appliance is

not working.

→ The appliance is not switched on. ► Switch the appliance on.

→ The power plug is not properly

plugged into the socket.

► Check the power plug.

→ There is something wrong with the

power outlet fuse.

► Check the fuse.

→ Power cut ► Keep the appliance closed.

► Safeguarding food: Place cold packs on top of food or

use another freezer if the power cut lasts longer.

► Do not re-freeze defrosted food,

→ The IEC socket is not plugged into

the appliance correctly.

► Check the IEC socket.

Temperature is not

cold enough.

→ The appliance door is not closed

properly.

► Close the appliance door.

→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.

→ The ambient temperature is too

high.

► Problem solution: (see 1.7 Climate classes)

→ The appliance was opened too

many times or for too long.

► Wait to see if the required temperature corrects itself.

If not, contact Customer Service. (see11.4 Customer

Service)

→ Too much fresh food was placed

inside without SuperFrost.

► Solution: (see SuperFrost)

→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.

→ The appliance is too close to a heat

source (oven, radiator, etc).

► Move the appliance or the heat source.

→ The appliance was not correctly

installed in the recess.

► Check if the appliance was installed correctly and that

the door closes properly.

Customer help

60 * Depending on model and options

Defect Cause Remedy

The temperature

shown on the

display is higher

than the actual

temperature in the

appliance.

→ Appliance door was open for a long

time and the door alarm was trig‐

gered automatically. This causes

the appliance to cool more vigo‐

rously.

► Close appliance door.

The door seal is

defective or needs

to be replaced for

another reason.

→ The door seal can be replaced. It

can be replaced without the need

for special tools.

► Contact Customer Service. (see11.4 Customer Service)

The appliance

builds up too much

ice or condensa‐

tion.

→ The door seal may have slipped out

of its groove.

► Check that the door seal is well fitted in the groove.

11.3.2 Features

Defect Cause Remedy

You cannot acti‐

vate the IceMaker.

→ The appliance and therefore the

IceMaker are not connected.

► Connect the appliance (see the Installation Guide).

The IceMaker is

not producing ice

cubes.

→ The IceMaker is not on. ► Activate the IceMaker.

→ The drawer of the IceMakers is not

connected properly.

► Push the drawer in correctly.

→ The water connection is not open. ► Open the water connection.

The internal light

does not come on.

→ The appliance is not switched on. ► Switch the appliance on.

→ The door was open for longer than

15 minutes.

► Interior lighting switches off automatically after

about 15 minutes when the door is open.

→ The LED interior light is faulty or

the lid is damaged.

► Contact Customer Service. (see11.4 Customer Service)

11.4 Customer Service

First check whether you can rectify the fault yourself

(see11 Customer help) . If you cannot rectify the problem,

contact Customer Service.

You can find the address in the enclosed brochure “Liebherr-

Service” or at home.liebherr.com/service.

WARNING

Unprofessional repair!

Injuries.

► Have any repairs and action - not expressly specified -

on the appliance and mains cable carried out by service

personnel only. (see 10 Maintenance)

► A damaged mains cable may only be replaced by the

manufacturer, the manufacturer’s Customer Service or a

similarly qualified person.

► In the case of appliances with an IEC connector, the

change may be made by the customer.

11.4.1 Contacting Customer Service

Make sure that the following appliance information is avail‐

able:

❑

Appliance designation (model and index)

❑

Service no. (Service)

❑

Serial no. (S no.)

► Call up the appliance information via the display.

(see Device information)

-or-

► Refer to the type plate for appliance information.

(see 11.5 Model plate)

► Note down the appliance information.

► Notify customer service: Report errors and the appliance

information.

▷ This will help us to provide you with a faster, more accu‐

rate service.

► Follow further instructions from Customer Service.

11.5 Model plate

The model plate is behind the drawers on the inside of the

appliance.

Customer help

* Depending on model and options 61

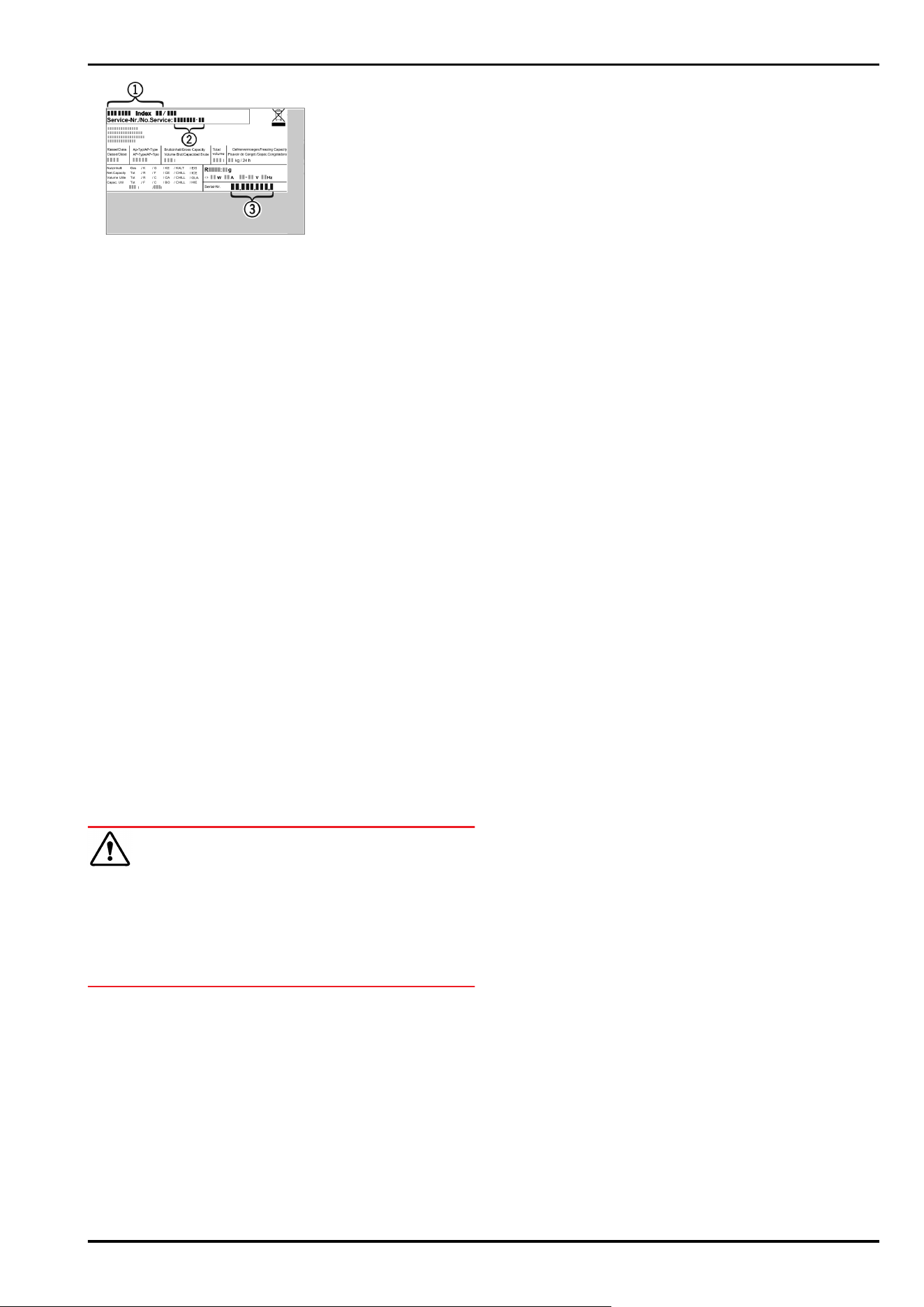

Fig.284

(1) Appliance description (3) Serial no.

(2) Service no.

► Note the data on the model plate.

12 Shutting down

► Empty the appliance.

► Deactivate IceMaker. (see Deactivating the IceMaker and

MaxIce)

► Switch off appliance. (see Switching the appliance off

and on)

► Pull the mains plug out of the socket.

► Remove the IEC socket if required: Pull the IEC socket out

of the appliance plug and move it to the left and right at

the same time.

► Clean appliance. (see 10.8Cleaning the appliance)

► Leave the door open, so that no unpleasant odours arise.

13 Disposal

Ensure that the following requirements are met:

❑

Meaning of the symbols on the appliance: are familiar.

❑

Notes on disposal are familiar. (see 1.5 Information

concerning disposal)

13.1 Preparing the appliance for

disposal

► Shutting your appliance down. (see12Shutting down)

13.2 Disposing of the appliance in an

environmentally friendly manner

WARNING

Risk of fire due to leaking refrigerant and oil!

The refrigerant inside the appliance is environmentally

friendly, but flammable. The oil it contains is also flam‐

mable. Escaping refrigerant and oil can ignite in high

concentrations and in contact with an external heat source.

► Do not damage the refrigerant circuit pipes or the

compressor.

► Observe the notes on transporting the appliance.

(see 3.6 Transporting the appliance)

► Remove the appliance without damaging it.

► Dispose of appliance according to specifications.

Shutting down

62 * Depending on model and options

Disposal

* Depending on model and options 63

Scan QR Code and find

digital operating and

installation instructions.

⸺

home.liebherr.com

1 2 3





20260803 

7088625-00

Liebherr-Hausgeräte GmbH

Memminger Straße 77-79

88416Ochsenhausen

Deutschland

Liebherr ICBNBI 7663 PRIME BIOFRESH NOFROST Combined refrigerator-freezer with BioFresh and NoFrost for integrated use

Product's Documents

Operating instructions

Specifications

Liebherr ICBNBI 7663 PRIME BIOFRESH NOFROST Questions and Answers

Related Products

Liebherr ICBND 5653 PRIME BIOFRESH NOFROST Combined refrigerator-freezer with BioFresh and NoFrost for integrated use

Liebherr ECBNH 9972 Combined Refrigerator-Freezer ECBNH 9972 BIOFRESH NOFROST

Liebherr ECBN 9471 Combined Refrigerator-Freezer ECBN 9471 BIOFRESH NOFROST

Liebherr ECBN 9671 Combined refrigerator-freezer ECBN 9671 WITH DOOR HINGES ON THE LEFT

Liebherr ECBN 9471 Combined refrigerator-freezer ECBN 9471 WITH DOOR HINGES ON THE RIGHT

Liebherr ECBN 9671 Combined Refrigerator-Freezer ECBN 9671 BIOFRESH NOFROST
