BG-AVTPG-MINI-SE
Mini 4K60 HDMI Diagnostic Tool with Signal Generator Pattern
Tester and HDCP Emulator
User Manual
BZBGEAR BG-AVTPG-MINI-SE PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-AVTPG-MINI-SE PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 8
Connection Diagram 10
Troubleshooting 11
Tech Support 12
Limited Product Warranty Terms 12
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-AVTPG-MINI-SE PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-AVTPG-MINI-SE PRODUCT MANUAL
Introduction
The BG-AVTPG-MINI-SE is a compact HDMI signal generator and display emulator
designed for field testing, troubleshooting, and validation of HDMI signal integrity
and HDCP behavior. It combines two essential functions in a single portable tool: a
signal generator capable of outputting multiple test patterns up to 4K@60Hz 4:4:4,
and a display emulator (signal analyzer) that can monitor HDMI source output
characteristics such as 5V power, TMDS activity, and HDCP version. This makes it
particularly useful for AV installers and technicians verifying system compatibility,
diagnosing handshake issues, or confirming signal formats in real-world
installations.
In generator mode, the device outputs selectable HDMI resolutions and HDCP
configurations via a 4-pin DIP switch, supporting 4K@60Hz (4:4:4 or 4:2:0),
4K@30Hz 4:4:4, and 1080p@60Hz, along with HDCP OFF, 1.4, or 2.2 test patterns.
In emulator mode, it passively analyzes incoming HDMI signals through its HDMI IN
port, using LED indicators to show signal presence and HDCP status in real time.
The SIG and HDCP LEDs provide immediate visual feedback for signal detection
and encryption state, while USB power ensures stable operation in generator mode
or optional power support in analyzer mode. This dual-function design makes the
unit a practical, fast diagnostic tool for HDMI system commissioning and
troubleshooting.
Features
● Dual Function Operation: Works as both an HDMI signal generator and a display
emulator (signal analyzer) for testing and troubleshooting HDMI systems.
● 4K Video Signal Support: Generates selectable HDMI test signals up to 4K@60Hz
4:4:4, including 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, and 1080p@60Hz.
● HDCP Testing Capability: Supports HDCP OFF, HDCP 1.4, and HDCP 2.2 output
modes for compatibility and encryption verification.
● 4-Pin DIP Switch Control: Built-in DIP switch allows quick configuration of video
resolution and HDCP test patterns without software.
● Display Emulation Analysis: As an emulator, detects HDMI source signal status
including 5V power, TMDS activity, and HDCP version.
● LED Status Indicators: SIG and HDCP LEDs provide real-time visual feedback for
signal presence and encryption status.
● Compact Portable Design: Lightweight mini chassis designed for field testing,
installation, and on-site troubleshooting.
● USB Powered Operation: Powered via Micro-USB for stable operation in generator
mode and optional power support in emulator mode.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-AVTPG-MINI-SE PRODUCT MANUAL
Packing List
● 1× Mini HDMI Signal Generator / Display
Emulator Unit
● 1× USB Power Cable (Micro-USB)
● 1× Carrying Cloth Bag
● 1× User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-AVTPG-MINI-SE PRODUCT MANUAL
Specifications
Technical Specifications
Product Type
HDMI Signal Generator & Display Emulator (Signal Analyzer)
HDMI Version
HDMI 2.0
Input Interface
1× HDMI IN (19-pin Type-A male)
Output Interface
1× HDMI OUT (19-pin Type-A male)
Control Method
4-pin DIP switch
Video Output
Resolutions
4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, 1080p@60Hz
Max Input Resolution
Up to 4K@60Hz 4:4:4 8-bit
HDCP Support
HDCP 1.4, HDCP 2.2, HDCP OFF
Test Pattern Support
4 selectable HDCP test patterns
Status Indicators
SIG LED, HDCP LED
Power Input
5V DC (Micro-USB)
Power Consumption
≤2W (Max)
Operating Temperature
23°F to 131°F / -5°C to +55°C
Storage Temperature
-13°F to +158°F / -25°C to +70°C
Relative Humidity
10% to 90%, non-condensing
Dimensions (W×H×D)
2.95 × 0.87 × 0.75in [75 × 22 × 19 mm]
Net Weight
0.14 lb [65 g]
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-AVTPG-MINI-SE PRODUCT MANUAL
Operation Controls and Functions

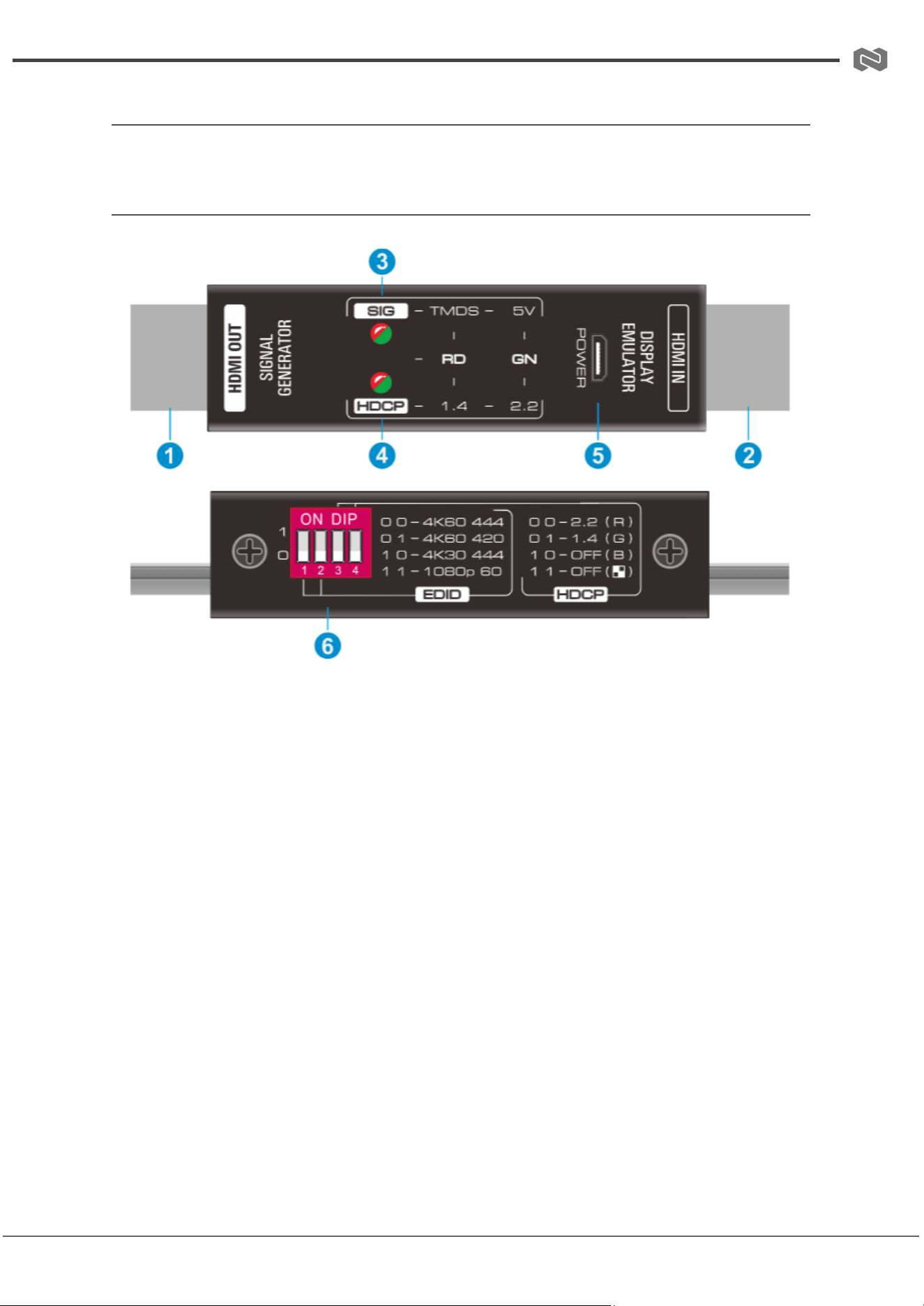

Front and Rear Panel
1. HDMI OUT (Output Port):
Used when the unit operates in signal generator mode. Connects to a display
device to output generated HDMI test signals including resolution and HDCP test
patterns selected via DIP switch.
2. HDMI IN (Input Port):
Used when the unit operates in display emulator mode. Connects to an HDMI
source device to analyze incoming signal status, including 5V power, TMDS activity,
and HDCP version detection.
3. SIG LED (Signal Status Indicator):
Indicates HDMI signal status depending on operating mode. In generator mode, it
lights red when an HDMI signal is being output. In emulator mode, it shows green
when only 5V is detected, red when both 5V and TMDS are active, and off when no
signal is present.
4. HDCP LED (HDCP Status Indicator):
Indicates HDCP status based on either DIP switch configuration (generator mode)
or detected source (emulator mode). Green indicates HDCP 2.2, red indicates HDCP
1.4, and off indicates HDCP disabled or no HDCP signal.
5. POWER (Micro-USB Port):
Provides 5V DC power input for generator mode operation. In emulator mode, the
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-AVTPG-MINI-SE PRODUCT MANUAL
device can be powered through the HDMI source; however, external USB power
may be required if the source does not supply sufficient power, in which case LEDs
may blink to indicate unstable power.
6. DIP SWITCH (4-Pin Configuration Switch):
Used to configure video resolution and HDCP settings in generator mode. Switches
1–2 control EDID/output resolution selection, while switches 3–4 control HDCP test
patterns.
● Switch Logic:
“0” = Down position
“1” = Up position
Resolution Selection (Switches 1–2):
● 00: 4K@60Hz 4:4:4
● 01: 4K@60Hz 4:2:0
● 10: 4K@30Hz 4:4:4
● 11: 1080p@60Hz / 3D
HDCP Test Selection (Switches 3–4):
● 00: HDCP 2.2 (Red Screen)
● 01: HDCP 1.4 (Green Screen)
● 10: HDCP OFF (Blue Screen)
● 11: HDCP OFF (Alternate White/Black Pattern)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-AVTPG-MINI-SE PRODUCT MANUAL

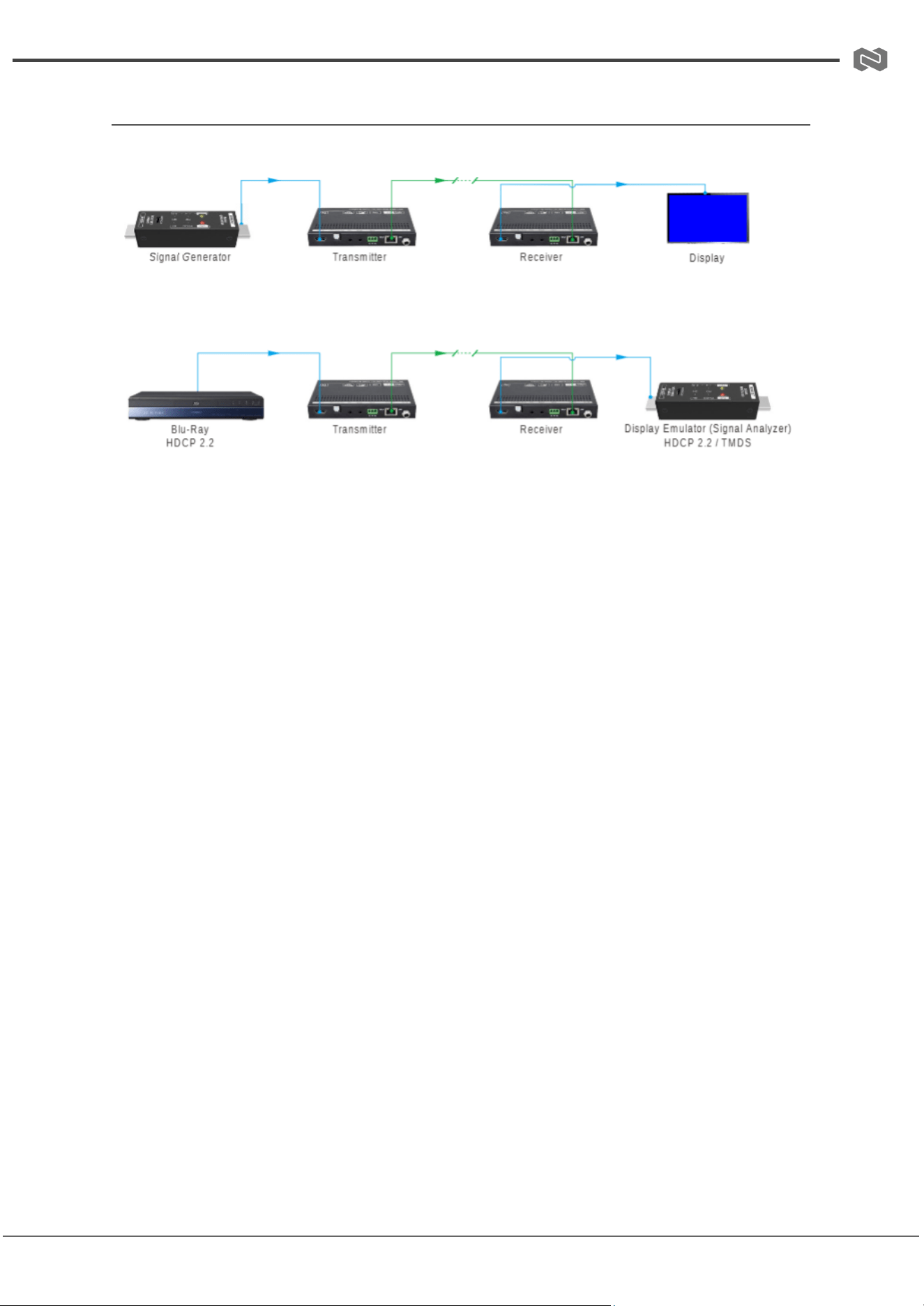

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-AVTPG-MINI-SE PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-AVTPG-MINI-SE PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
