July 2017
Residen al Electric
Water Heater
Installa on Instruc ons and
Use & Care Guide
Keep this manual in the pocket on heater for future reference whenever maintenance, adjustment or service is required.
Retain your original receipt as proof of purchase.
DO NOT RETURN THIS UNIT TO THE STORE
Read this manual and the labels on the water heater before you install,
operate, or service it. If you have diffi culty following the direc ons, or
aren’t sure you can safely and properly do any of this work yourself:
• Schedule an appointment with a qualified person to install your water heater.
• Call our Technical Assistance Hotline at 1-800-527-1953 or visit http:// www.
hotwater.com . We can help you with installation, operations, troubleshooting,
or maintenance. Before you call, write down the model and serial number from
the water heater’s data plate.
Incorrect installa on, opera on, or service can damage the water heater, your house
and other property, and present risks including fi re, scalding, electric shock, and
explosion, causing serious injury or death.
Table of Contents Page
IMPORTANT SAFETY INFORMATION .................................3
GETTING STARTED ............................................................ 6
INSTALLATION ...................................................................7
TROUBLESHOOTING .......................................................16
MAINTENANCE ............................................................... 19
REPAIR PARTS ..........................................................22
WIRE DIAGRAM .............................................................. 23
100288209 (REV A)/2000545998
2 • Electric Mini Tank Water Heater

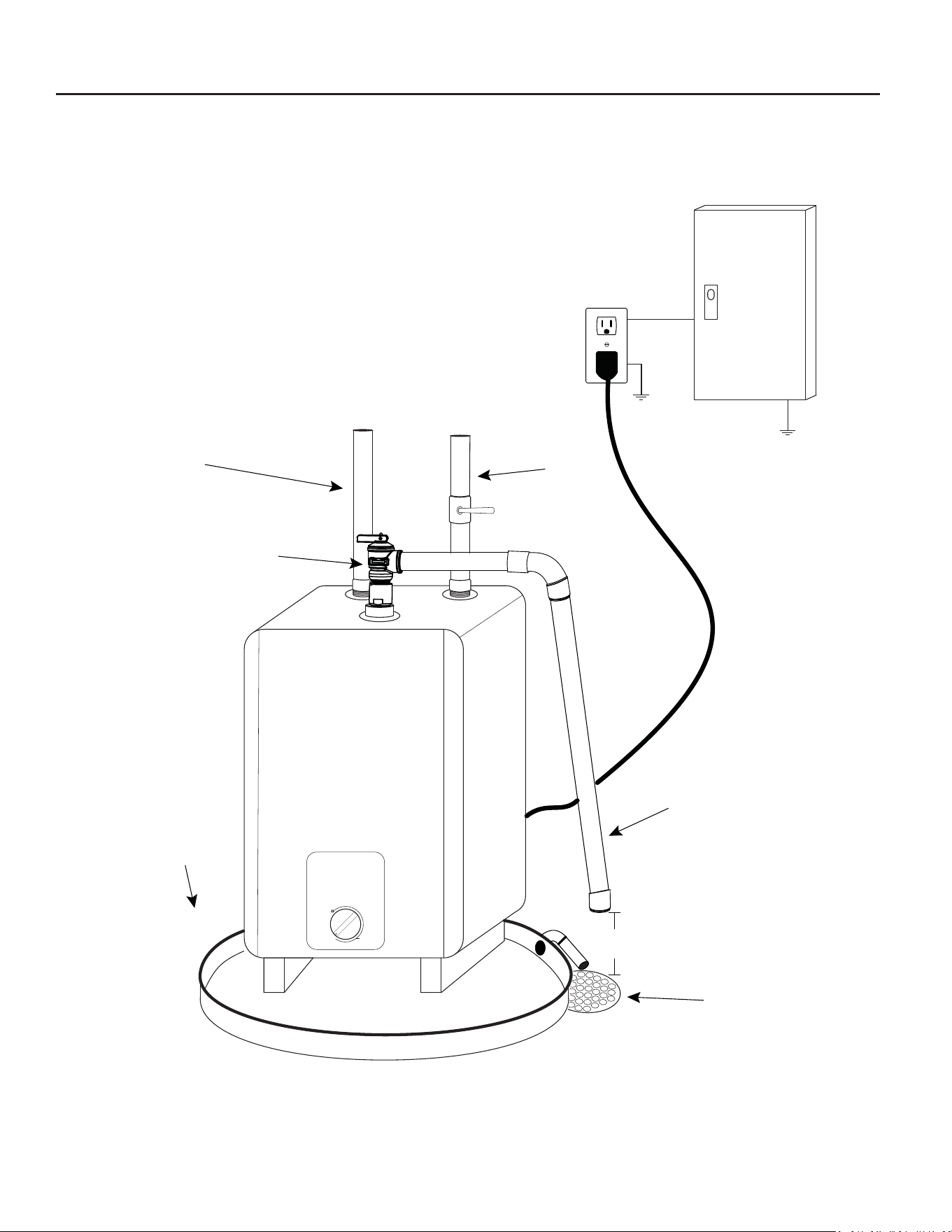

COMPLETED INSTALLATION TYPICAL
MAX
1
2
125°F
Hot Outlet Cold Inlet
Temperature & Pressure
Relief Valve
Discharge Pipe
(DO NOT CAP OR PLUG)
Floor Drain
6” Max
Drain Pan
Electrical
Service
Ground
Electrical
Service
Ground
NOTE: 6 Gallon models are hard wired and do not
have a cord. See “Step 8” on page 13 for instruc ons
on making electrical connec ons.
Electric Mini Tank Water Heater • 3
SAFETY
IMPORTANT SAFETY INFORMATION
Important informa on to keep
Fill out this sec on and keep this
manual in the pocket of the water heat-
er for reference.
Date Purchased:
Model number:
Serial number:
Maintenance performed:* Date:
This is the safety alert symbol. It is used to alert you to
poten al physical injury hazards. Obey all safety mes-
sages that follow this symbol to avoid possible property
damage, serious injury or death. Do not remove any
permanent instruc ons, labels, or the data plate from either the outside of
the water heater or on the inside of the access panels. Keep this manual
near the water heater.
DANGER
Read and follow all safety messages and instruc ons in
this manual.
DANGER indicates hazardous
situa on that, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a hazardous
situa on that, if not avoided, could
result in death or serious injury.
CAUTION
CAUTION indicates a hazardous
situa on that, if not avoided, could
result in minor or moderate injury.
NOTICE
NOTICE indicates prac ces not relat-
ed to physical injury.
*Drain and fl ush tank and remove and
inspect anode rod a er fi rst six months
of opera on and at least annually there-
a er. Operate the Temperature and
Pressure Relief Valve (T&P) annually and
inspect T&P valve every 2-4 years (see
the label on the T&P valve for mainte-
nance schedule). See the Maintenance
sec on for more informa on about
maintaining this water heater.
This product is certified to comply with a maximum weighted average of
0.25% lead content as required in some areas.
4 • Electric Mini Tank Water Heater
T
o reduce the risk of property damage,
serious injury or death, read and fol-
low the precau ons below, all labels on the
water heater, and the safety messages and
instruc ons throughout this manual.
RISKS DURING INSTALLATION AND
MAINTENANCE
Electric Shock Risk
Contact with the electrical parts
in the junction box and behind
the access doors can result in
severe injury or death from electrical
shock:
• Locate the water heater’s circuit break-
er and turn it OFF (or remove the cir-
cuits fuses).
• Use a non-contact circuit tester to con-
firm that power is off before working
on or near any electrical parts.
• Replace the junction box cover and
access door after servicing.
Lifting Risk
WARNING! The
water heater is heavy.
Follow these precau-
ons to reduce the risk
of property damage, injuries from li ing or
impact injuries from dropping the water
heater.
• Use at least two people to lift the water
heater.
• Be sure you both have a good grip
before lifting.
• U se an appliance dolly or hand
truck to move the water heater.
Capacity Empty Filled
6 Gal 24 lbs 73.5 lbs
4 Gal 17.5 lbs 49.5 lbs
2.5 Gal 14.5 lbs 36 lbs
RISKS DURING OPERATION
Scalding Risk
This water heater can
make water hot enough
to cause severe burns
instantly, resulting in severe injury or
death.
• Feel water before bathing or s hower-
ing.
• To reduce the risk of scalding, install
Thermostatic Mixing Valves (tempera-
ture limiting valves) at each point-of-
use. These valves automatically mix hot
and cold water to limit the temperature
at the tap. Mixing valves are available
from your local plumbing supplier.
Follow manufacturer’s instructions
for installation and adjustment of the
valves.
• The thermostat(s) on this water heater
have been factory set to approximately
105°F to reduce the risk of scalding.
Higher temperatures increase the risk
of scalding, but even at 105°F, hot
water can scald. If you choose a high-
er temperature, Thermostatic Mixing
Valves located at each point-of-use are
particularly important to help avoid
scalding.
Temperature Time to Produce a
Serious Burn
120°F (49°C) More than 5 minutes
125°F (52°C) 1½ to 2 minutes
130°F (54°C) About 30 seconds
135°F (57°C) About 10 seconds
140°F (60°C) Less than 5 seconds
145°F (63°C) Less than 3 seconds
150°F (66°C) About 1½ seconds
155°F (68°C) About 1 second
For informa on about changing the factory
thermostat se ng(s), refer to the “Adjust-
ing Temperature” sec on in this manual
(“Step 9” on page 14).
Even if you set the water heater thermo-
stat(s) to a low se ng, higher tempera-
tures may occur in certain circumstances:
• In some cases, repeated small draws of
water can cause the hot and cold water
in the tank to “stack” in layers. If this
happens, the water can be as much as
thirty degrees hotter than the thermo-
stat setting. This temperature variation
is the result of your usage pattern and
is not a malfunction.
• Water temperature will be hotter if
someone adjusted the thermostat(s) to
a higher setting.
• Problems with the thermostat(s), or
other malfunctions may result in higher
than expected water temperatures.
• If the water heater is in a hot envi-
ronment, the water in the tank can
become as hot as the surrounding air,
regardless of the thermostat setting.
• If the water supplied to the water heat-
er is pre-heated (for example, by a solar
system) the temperature in the tank
may be higher than the water heater’s
thermostat setting.
To reduce the risk of unusually hot water
reaching the fi xtures in the house, install
Thermosta c Mixing Valves at each point-
of-use.
If anyone in your home is at par cular
risk of scalding (for example, the elderly,
children, or people with disabili es) or if
there is a local code or state law requiring a
certain water temperature at the hot water
tap, then these precau ons are par cularly
important.
IMPORTANT SAFETY INFORMATION
SAFETY
Electric Mini Tank Water Heater • 5
According to a na onal standard:
American Society of Sanitary Engineering
(ASSE 1070) and most local plumbing codes,
the water heater’s thermostat should not
be used as the sole means to regulate water
temperature and avoid scalds.
Properly adjusted Thermosta c Mixing
Valves installed at each point-of-use allow
you to set the tank temperature to a higher
se ng without increasing risk of scalds.
Higher tank temperatures (140°F) also kill
bacteria that cause a condi on known as
“smelly water” and can reduce the levels of
bacteria that cause water-borne diseases.
Water Contamination Risk
Do not use chemicals that could contami-
nate the potable water supply. Do not use
piping that has been treated with chro-
mates, boiler seal, or other chemicals.
Fire Risk
To reduce the risk of a fire
that could destroy your
home and seriously injure
or kill people:
• D o not store things that can burn easily
such as paper or clothes next to the
water heater.
• Be sure the junction box cover and the
access door covers are in place. These
covers keep debris from entering and
potentially being ignited, and help keep
any internal fires from spreading.
• Keep the water heater from becoming
wet. Immediately shut the water heater
off and have it inspected by a quali-
fied person if you find that the wiring,
thermostat(s) or surrounding insulation
have been exposed to water in any way
(e.g., leaks from plumbing, leaks from
the water heater itself can damage
property and could cause a fire risk). If
the water heater is subjected to flood
conditions or the thermostat(s) have
been submerged in water, the entire
water heater must be replaced.
• For 6 gallon models, make electrical
connections properly, according to the
instructions on page 13. Use suitable
twist on wire connectors or other
approved means to make the power
connections. Use a UL listed or CSA
approved strain relief. Connect ground
wire to ground screw.
Explosion Risk
High temperatures and
pressures in the water heater
tank can cause an explosion
resulting in property damage, serious
injury or death. A new Temperature and
Pressure (T&P) Relief Valve is included
with your water heater to reduce risk of
explosion by discharging hot water.
Additional temperature and pressure
protective equipment may be required by
local codes.
A nationally recognized testing laborato-
ry maintains periodic inspection of the
valve production process and certifies
that it meets the requirements for Relief
Valves for Hot Water Supply Systems,
ANSI Z21.22. The T&P Relief Valve’s relief
pressure must not exceed the working
pressure rating of the water heater as
stated on the rating plate.
Maintain the T&P Relief Valve properly.
Follow the maintenance instructions
provided by the manufacturer of the T&P
Relief Valve (label attached to T&P Relief
Valve) and the procedure that starts on
page 21.
An explosion could occur if the T&P Relief
Valve or discharge pipe is blocked. Do not
cap or plug the T&P Relief Valve or dis-
charge pipe.
Fire and Explosion Risk if Hot Water is Not
Used for Two Weeks or More
C AUTION! Hydrogen gas builds up in
a hot water system when it is not used
for a long period (two weeks or more).
Hydrogen gas is extremely fl ammable. If
the hot water system has not been used
for two weeks or more, open a hot water
faucet for several minutes at the kitchen
sink before using any electrical appliances
connected to the hot water system. Do
not smoke or have an open fl ame or other
igni on source near the faucet while it is
open.
IMPORTANT SAFETY INFORMATION
SAFETY
6 • Electric Mini Tank Water Heater

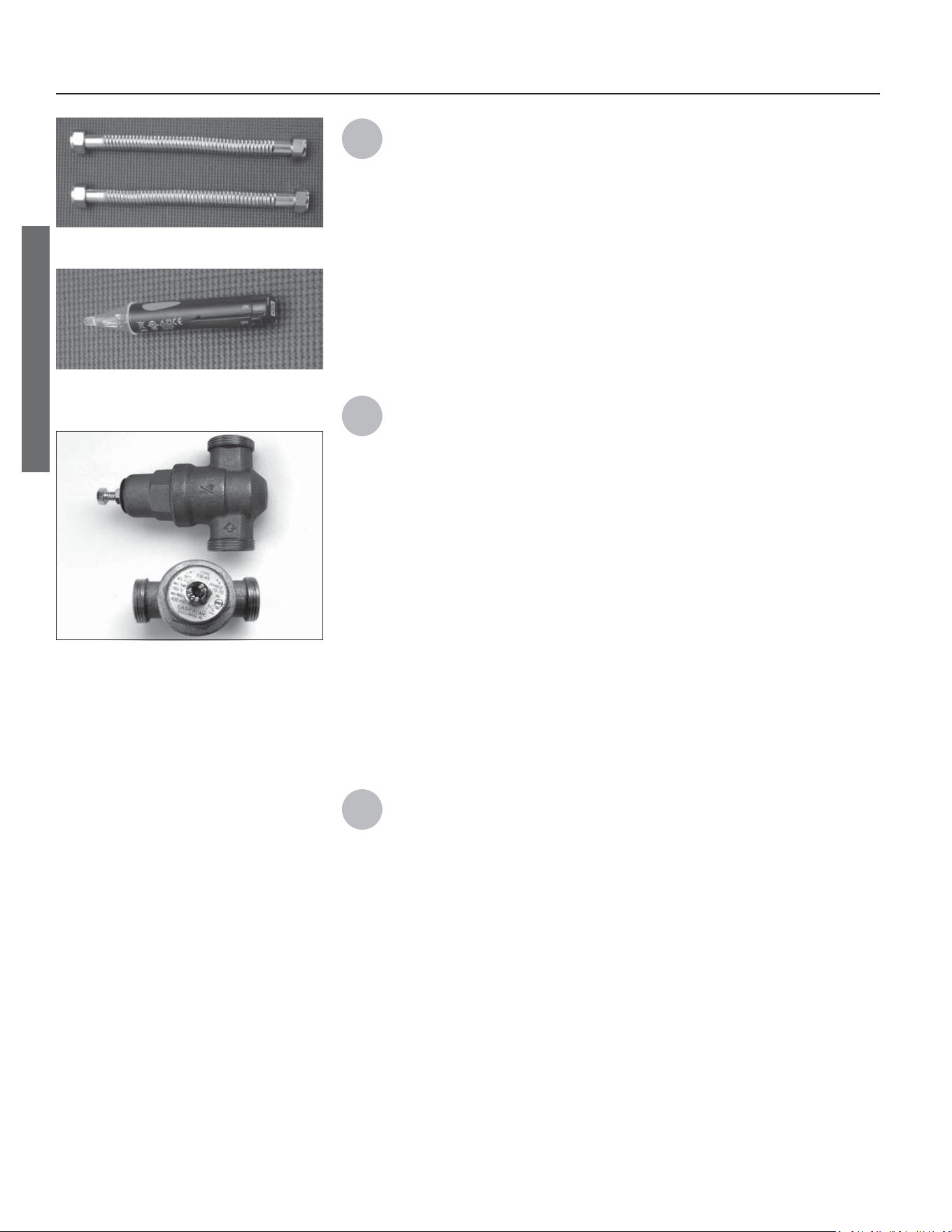

Figure 1 - Flexible connectors use compression
fittings and do not require soldering.
Figure 2 - Use a non-contact circuit tester to
insure that the power is off before you work on
a circuit.
Figure 3 - Install a Pressure Reducing Valve set
to 50 to 60 PSI.
1
Review all of the instruc ons
before you begin work.
If you aren’t sure that you can
safely and properly do this work yourself,
call your local plumbing supplier to
arrange for Professional Installa on (you
may also call a qualifi ed person of your
choice, such as a licensed plumber or
electrician, to have the work done).
Improper installa on can damage the
water heater, your home and other
property, and can present risks of serious
injury or death.
2
Check with your local and state
authori es for any local or state
codes that apply to your area. In
the absence of local and state codes, follow
Na onal Fire Protec on Associa on
(NFPA-70) and the current edi ons of the
Na onal Electric Code (NEC) and the
Interna onal Plumbing Code (IPC). The
instruc ons in this manual comply with
na onal codes, but the installer is responsi-
ble for complying with local codes.
Massachuse s code requires this water
heater to be installed in accordance with
Massachuse s 248-CMR 2.00 and 248-
CMR 5.00: State Plumbing Code. Other
local and state authori es may have similar
requirements or other codes applicable to
the installa on of this water heater.
3
Before you start, be sure you have,
and know how to use, the following
tools and supplies:
• Plumbing tools and supplies appropri-
ate for the type of water pipes in your
home
• Threaded connectors (Figure 1) for the
cold and hot water pipes
• For homes plumbed with plastic pipe,
use threaded connectors suitable for
the specific type of plastic pipe used:
CPVC and PEX (cross-linked polyeth-
ylene). Do not use PVC pipe.
• For homes with copper pipes, you may
purchase connector kits with compres-
sion fittings that don’t require soldering
(figure 1). Compression fittings are
easier to uinstall than soldering copper
pipes.
• Teflon® tape or pipe joint compound
approved for potable water
• Tools to make the electrical connec-
tions (for example, screwdrivers, wire
strippers)
• Non-Contact circuit tester to check for
power (Figure 2)
• Water Pressure Gauge (Figure 4)
Recommended Accessories:
• Suitable drain pan (Figure 6 on page
10)
• Automatic leak detection and shut-off
device
• Pressure Reducing Valve (Figure 14 on
page 12)
• Thermal Expansion Tank (Figure 5 on
page 7)
• Point-of-use Thermostatic Mixing Valves
(Figure 7 on page 8)
GETTING STARTED
GETTING STARTED
Electric Mini Tank Water Heater • 7
Completely read all instruc ons before
beginning. If you are not sure if you can
complete the installa on, DO NOT RE-
TURN THIS UNIT TO THE STORE.
Schedule an appointment with a qualified
person to install your water heater.
Follow these steps for proper
installa on:
Step 1:
✓
Verify that your
home is equipped
and up-to-date for
proper opera on
Installing a new water heater is the perfect
me to examine your home’s plumbing sys-
tem and make sure the system is up to cur-
rent code standards. There have likely been
plumbing code changes since the old water
heater was installed. We recommend
installing the following accessories and any
other needed changes to bring your home
up to the latest code requirements.
Use the checklist below and inspect your
home. Install any devices you need to com-
ply with codes and assure that your new
water heater performs at its best. Check
with your local plumbing offi cial for more
informa on.
✓
Water pressure
We recommend checking your
home’s water pressure with a pressure
gauge (Figure 4.) Most codes allow a
maximum incoming water pressure of 80
psi. We recommend a working pressure no
higher than 50-60 psi.
HOW: Purchase an inexpensive water
pressure gauge available at your local
plumbing supplier. Connect the Water
Pressure Gauge to an outside faucet and
measure the maximum water pressure
experienced throughout the day (highest
water pressures o en occur at night).

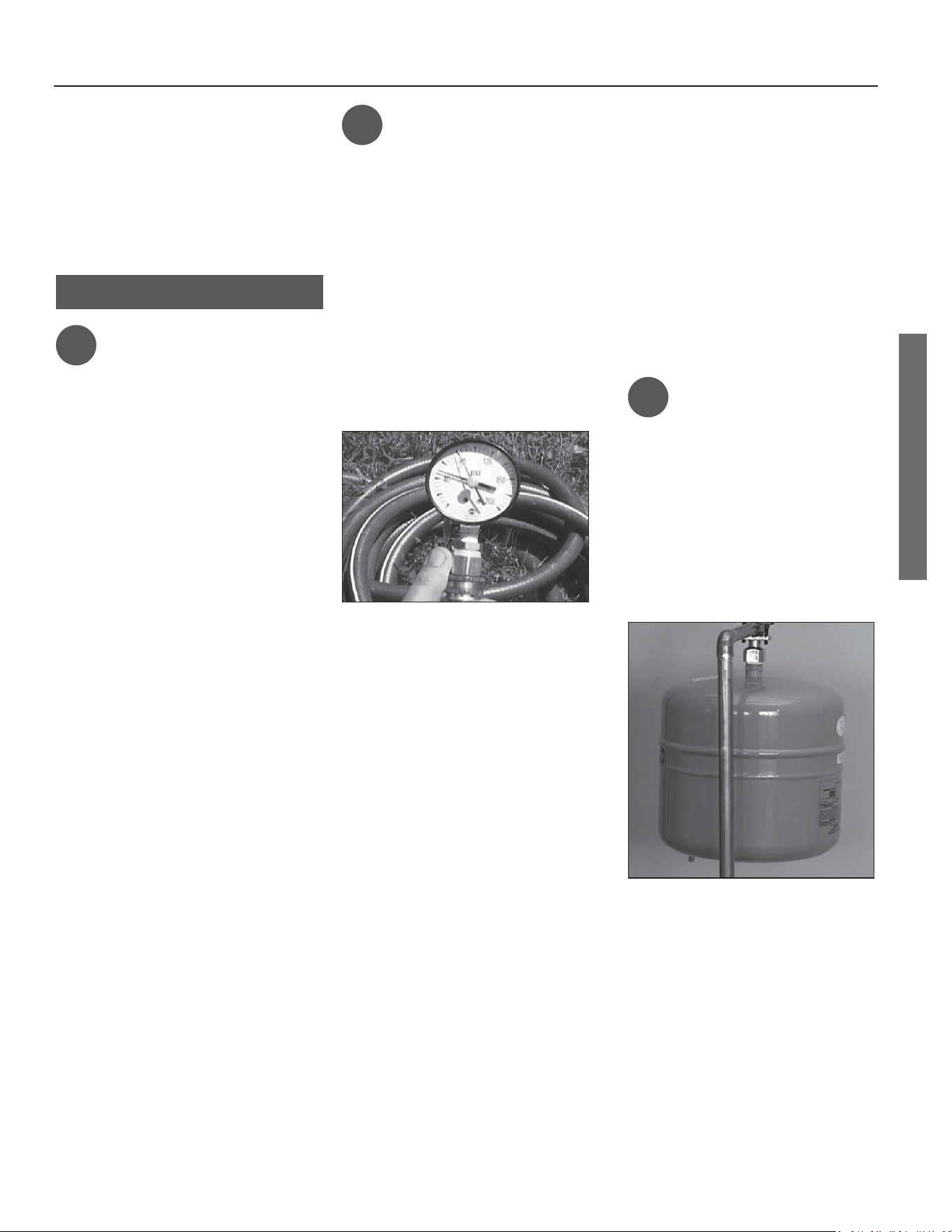

Figure 4 - Use a Water Pressure Gauge to make
sure your home’s water pressure is not too high.
To limit your home’s water pressure: Lo-
cate your home’s Pressure Reducing Valve
(PRV) on the main incoming (cold) water
supply line and adjust the water pressure
control to between 50 and 60 psi. If your
home does not have a Pressure Reducing
Valve, install a PRV on the home’s main
water supply line and set it to between 50
and 60 psi. Pressure Reducing Valves are
available at your local plumbing supplier.
BACKGROUND: Over the years, many
u li es have increased water supply
pressures so they can serve more homes.
In some homes today, pressures exceed
100 psi. High water pressures can damage
water heaters, causing premature leaks. If
you have replaced toilet valves, had a wa-
ter heater leak, or had to repair applianc-
es connected to the plumbing system, pay
par cular a en on to your home’s water
pressure. When purchasing a PRV, make
sure the PRV has a built-in bypass.
✓
Water pressure
increase caused by
thermal expansion
Verify that you have a properly sized
Thermal Expansion Tank (Figure 5). We
recommend installing an expansion tank
if your home does not have one. Codes
require a properly pressurized, properly
sized Thermal Expansion Tank in almost all
homes. (See photo on inside front cover.)

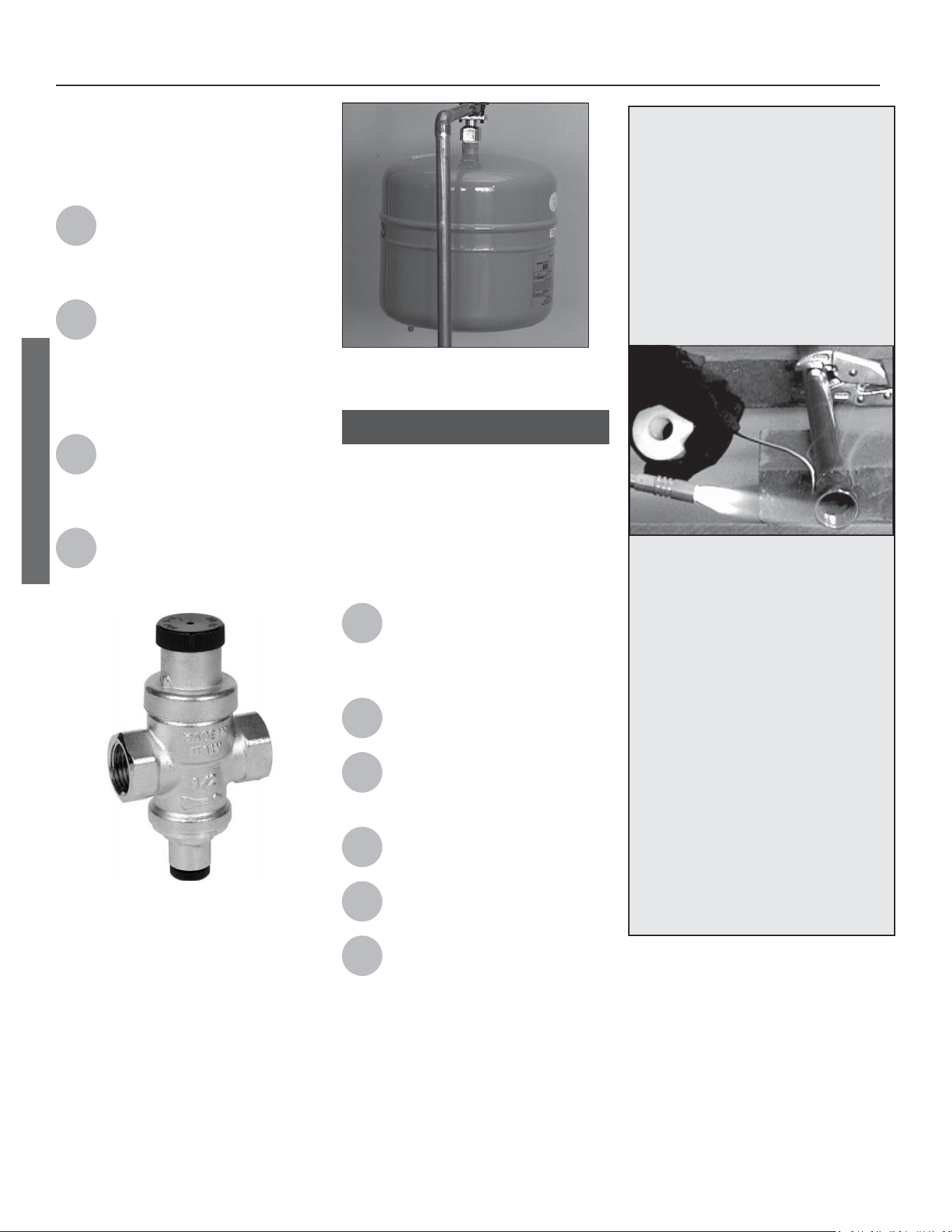

Figure 5 - A Thermal Expansion Tank helps pro-
tect the home’s plumbing system from pressure
spikes.
INSTALLATION
INSTALLATION

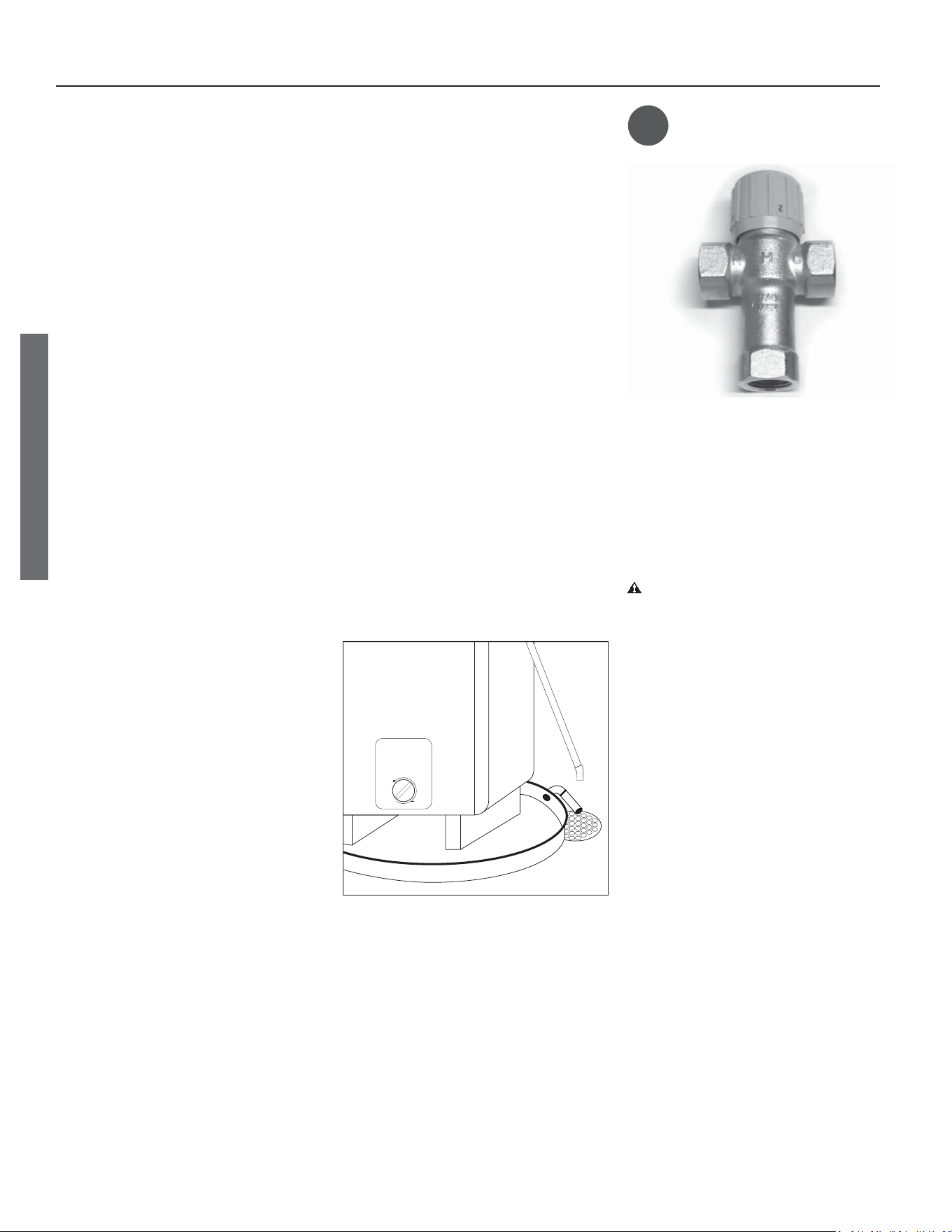

8 • Electric Mini Tank Water Heater
HOW: Connect the Thermal Expansion
Tank (available at your local plumbing
supplier ) to the cold water supply line
near the water heater. The expansion tank
contains a bladder and an air charge. To
work properly, the Thermal Expansion
Tank must be sized according to the water
heater’s tank capacity and pressurized to
match the home’s incoming water pres-
sure. Refer to the installa on instruc ons
provided with the Thermal Expansion
Tank for installa on details.
BACKGROUND: Water expands when
heated, and the increased volume of
water must have a place to go, or thermal
expansion will cause large increases in wa-
ter pressure (despite the use of a Pressure
Reducing Valve on the home’s main water
supply line). The Safe Drinking Water Act
of 1974 requires the use of backfl ow pre-
venters and check valves to restrict water
from your home reentering the public
water system. Backfl ow preventers are
o en installed in water meters and may
not be readily visible. As a result, most all
plumbing systems today are now “closed,”
and almost all homes now need a Thermal
Expansion Tank.
A Thermal Expansion Tank is a prac -
cal and inexpensive way to help avoid
damage to the water heater, washing
machine, dishwasher, ice maker and even
toilet valves. If your toilet occasionally
runs for no apparent reason (usually brief-
ly at night), that may be due to thermal
expansion increasing the water pressure
temporarily.
Water pipe and tank leaks
Leaks from plumbing pipes or from the
water heater itself can damage property
and could cause a fi re risk.
• Install an automatic leak detection and
shutoff device (available at your local
plumbing supplier ). These devices can
detect water leaks and can shut off the
water heater’s water supply if a leak
occurs.
• Install a suitable drain pan (available
at your local plumbing supply store )
under the water heater (Figure 6) to
catch condensation or leaks in the pip-
ing connections or tank. Most codes
require, and we recommend, installing
the water heater in a drain pan that is
piped to an adequate drain. The drain
pan must be at least two inches wider
than the diameter of the water heater.
Install the drain pan so the water level
would be limited to a maximum depth
of 1-3/4”.
IMPORTANT: The bottom of the water
heater shall be above the top of the drain
pan. Place heater on a stand inside the
drain pan to achieve this.
MAX
1
2
125°F
Figure 6 - A suitable drain pan piped to an
adequate drain can help protect flooring from
leaks and drips.
✓
Water temperature
regula on

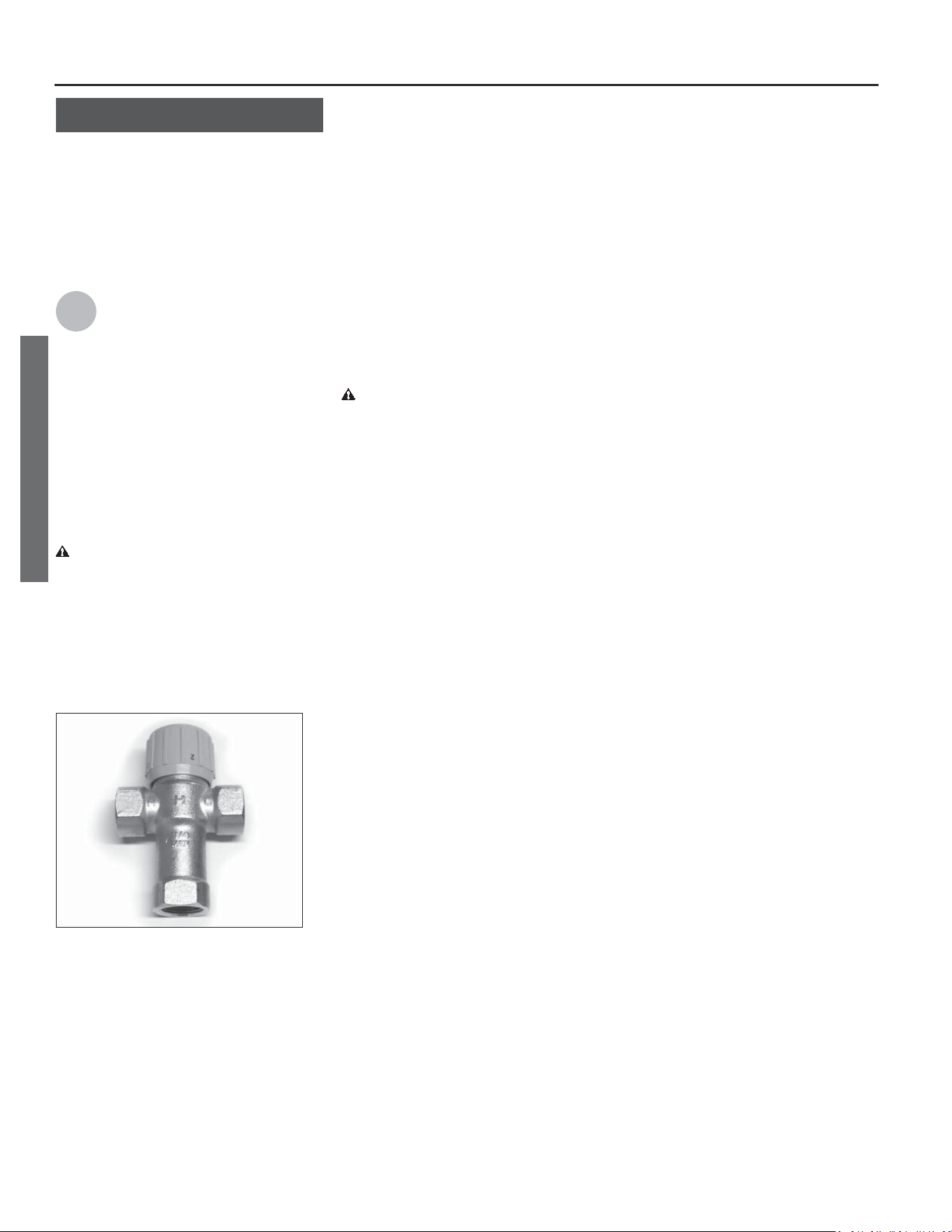

Figure 7 - Thermostatic Mixing Valves installed
at each point -of-use can help prevent scalds.
Install Thermosta c Mixing Valves (Figure
7) to regulate the temperature of the wa-
ter supplied to each point-of-use (for ex-
ample, kitchen sink, bathroom sink, bath,
shower). Consult the valve manufactur-
er’s instruc ons or a qualifi ed person.
WARNING! Even if the water heat-
er thermostat is set to a rela vely low
temperature, hot water can scald. Install
Thermosta c Mixing Valves at each point-
of-use to reduce the risk of scalding (page
4).
BACKGROUND: A Thermosta c Mixing
Valve, installed at each point-of-use, mix-
es hot water from the water heater with
cold water to more precisely regulate the
temperature of hot water supplied to
fi xtures. If you aren’t sure if your plumb-
ing system is equipped with properly in-
stalled and adjusted Thermosta c Mixing
Valves at each point where hot water is
used, contact a qualifi ed person for more
informa on.
INSTALLATION
INSTALLATION

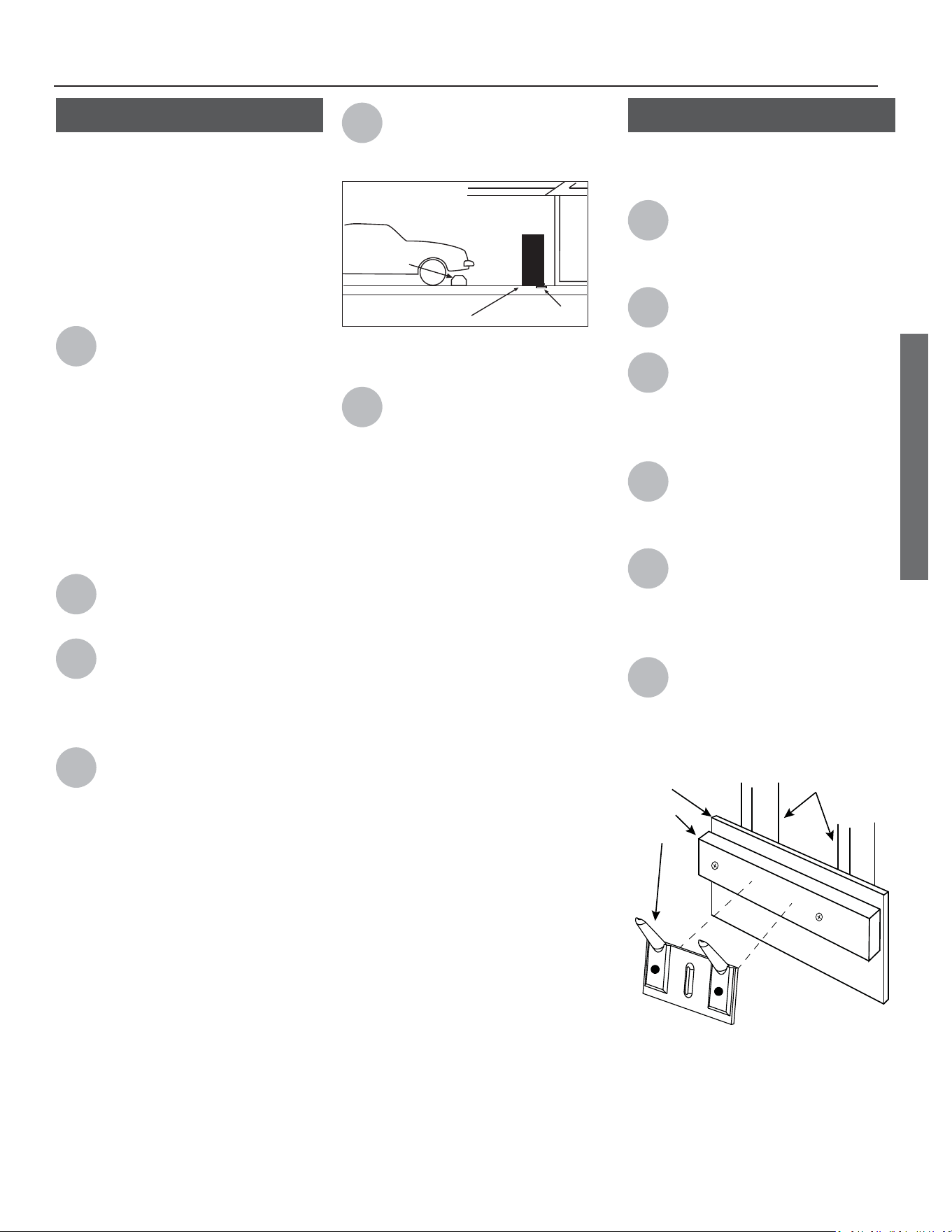

Electric Mini Tank Water Heater • 9
Step 2:
Verify that the loca on is
appropriate
Placement of water heater is very im-
portant to consider, for the safety and
economical use of the appliance.Before
installing your water heater, ensure that:
1
The water heater will be:
• Installed indoors close to the
center of the plumbing
system.
• In a suitable drain pan piped to an
adequate floor drain or external to the
building (Figure 6 on page 10).
• In an area that will not freeze
• In an area that is suitable for installing
the water heater vertically
2
The loca on has adequate space
(clearances) for periodic servic-
ing.
3
The selected wall or cabinet must
be capable of suppor ng at least
two mes the weight of the
water heater when fi lled with water (see
weight table on page 4).
4
The water heater must be
installed in a ver cal posi on
with water inlet and outlet
connec ons facing upwards and easily
accesible.
5
The loca on is not prone to
physical damage by vehicles,
fl ooding, or other risks.
Vehicle
Stop
Drain
Drain
P
a
n
Figure 8 - In a garage, install a vehicle stop to
avoid water heater damage.
6
Avoid loca ons such as a cs,
upper fl oors, or where a leak
might damage the structure or
furnishings. Due to the normal corrosive
ac on of water, the tank will eventually
leak. To minimize property damage from
leaks, inspect and maintain your water
heater in accordance with this manual’s
instruc ons. Install a suitable drain pan
under the water heater piped to an
adequate drain. Inspect the drain pan,
pipes, and surrounding area regularly and
fi x any leaks found. Drain pans are
available at your local plumbing supplier .
Drain pans must have a minimum length
and width of at least 2 inches greater than
the water heater dimensions and must be
piped to an adequate drain. Leaks are
frequently in the plumbing system itself
and not the water heater.
Step 3:
Moun ng - Drywall (Hol-
low Wall):
1
The selected wall or cabinet must
be capable of suppor ng double
the weight of the unit when
completely full of water (up to 150lbs.)
2
Locate the wall studs in the area
where the unit is to be mounted.
3
Cut two sec ons of 1/2” plywood
or equivalent material 3” inches
in height. The length of each
sec on should be suffi cient to span the
width of the wall studs (see fi gure 9).
4
Use appropriately sized nails or
wood screws to a ach the two
wall supports to the wall as
shown in Figure 9.
5
Using the bracket as a template,
mark holes to be drilled on upper
wall support and drill two 13/32”
holes.
NOTE: The holes MUST be level.
6
Insert the hollow wall anchors
into the drilled holes. Place the
wall bracket over the anchors and
screw the two Phillips head screws down
ght against the bracket.
Studs
Drywall
Plywood
Bracket
INSTALLATION
INSTALLATION

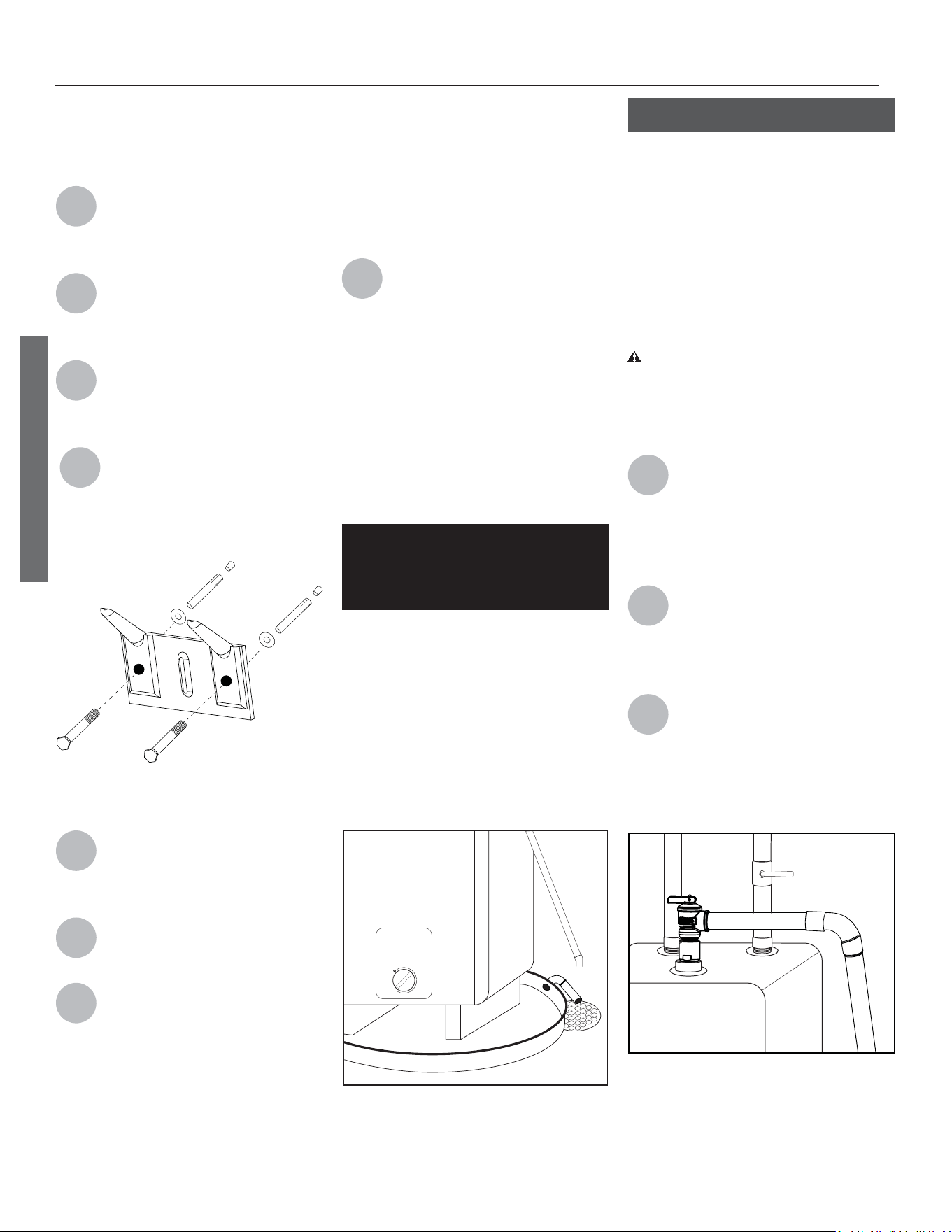

10 • Electric Mini Tank Water Heater
Figure 9 - Mounting for Drywall
Moun ng - Masonry Wall
(Solid Wall):
1
The selected wall or cabinet must
be capable of suppor ng double
the weight of the unit when
completely full of water (up to 150lbs).
2
The installa on area must
provide adequate clearances for
removal of the front panel and
servicing the unit.
3
Drill two 13/32” holes in the
masonry wall.
NOTE: The holes MUST be level
and at least 3-1/2” deep.
.
4
Insert the masonry wall anchors
into the drilled holes. Place the
wall bracket over the anchors
and screw the two Phillips head screws
ght against the bracket.
Figure 10 - Mounting Bracket for Masonry Wall.
Moun ng - Floor
1
The fl oor selected must be
capable of suppor ng double the
weight of the unit when com-
pletely full of water (up to 150 lbs.)
2
Installa on area must provide
adequate clearances for servicing
the unit.
3
Place a suitable drain pan under
the unit. The pan must limit the
water to a maximum depth of
2-1/2” and be 2” wider than the unit. The
pan must also be piped to an adequate
drain.
NOTICE: Most codes require se ng the
water heater in a suitable drain pan piped
to an adequate drain. The drain pan helps
avoid property damage which may occur
from condensa on or leaks in the piping
connec ons or tank. The drain pan must
be at least 2” wider than the diameter of
the water heater. Install the drain pan so
the water level is limited to a maximum
depth of 2-1/2”.
4
Verify that the water heater is
properly set in place. Check that:
• The T&P Relief Valve will not be in con-
tact with any electrical parts.
• There is adequate space to install the
T&P Relief Valve discharge pipe and
that it can be piped to a separate drain
(and not into the drain pan).
• There is adequate access and space
around the water heater for future
maintenance.
DO NOT CONNECT ELECTRICAL
WIRING UNTIL YOU ARE
INSTRUCTED TO DO SO.
NOTICE: Connec ng electrical power to
the tank before it is completely full of wa-
ter (water must run FULL STREAM from a
hot water tap for a full three minutes) will
cause the hea ng element to burn out.
IMPORTANT: The bottom of the water
heater shall be above the top of the drain
pan. Place heater on a stand inside the
drain pan to achieve this.
MAX
1
2
125°F
Figure 11 - A suitable drain pan piped to an
adequate drain can help protect flooring from
leaks and drips.
Step 4:
Connect the Temperature
and Pressure (T&P) Relief
Valve/Pipe
Most T&P Relief Valves are pre-installed
at the factory. In some cases, they are
shipped in the carton and must be installed
in the opening marked and provided for
this purpose and according to local codes.
WARNING! To avoid serious injury or
death from explosion, install a T&P Relief
Valve according to the following instruc-
ons:
1
Install the new T&P Relief Valve
that came with your water
heater. Do not reuse an old T&P
Relief Valve. Install a T&P Relief Valve
discharge pipe according to local codes
and the following guidelines:
2
The discharge pipe should be at
least 3/4” inside diameter and
sloped for proper drainage. Install
it to allow complete drainage of both the
T&P Relief Valve and the discharge pipe.
3
The discharge pipe must with-
stand 250°F (121°C) without
distor on. Use only copper or
CPVC pipe. Do not use any other type of
pipe, such as PVC, iron, fl exable plas c
pipe, or any other type of hose.
Figure 12 - The T&P Relief Valve discharge pipe
must be installed properly and piped to an
adequate drain.
INSTALLATION
INSTALLATION

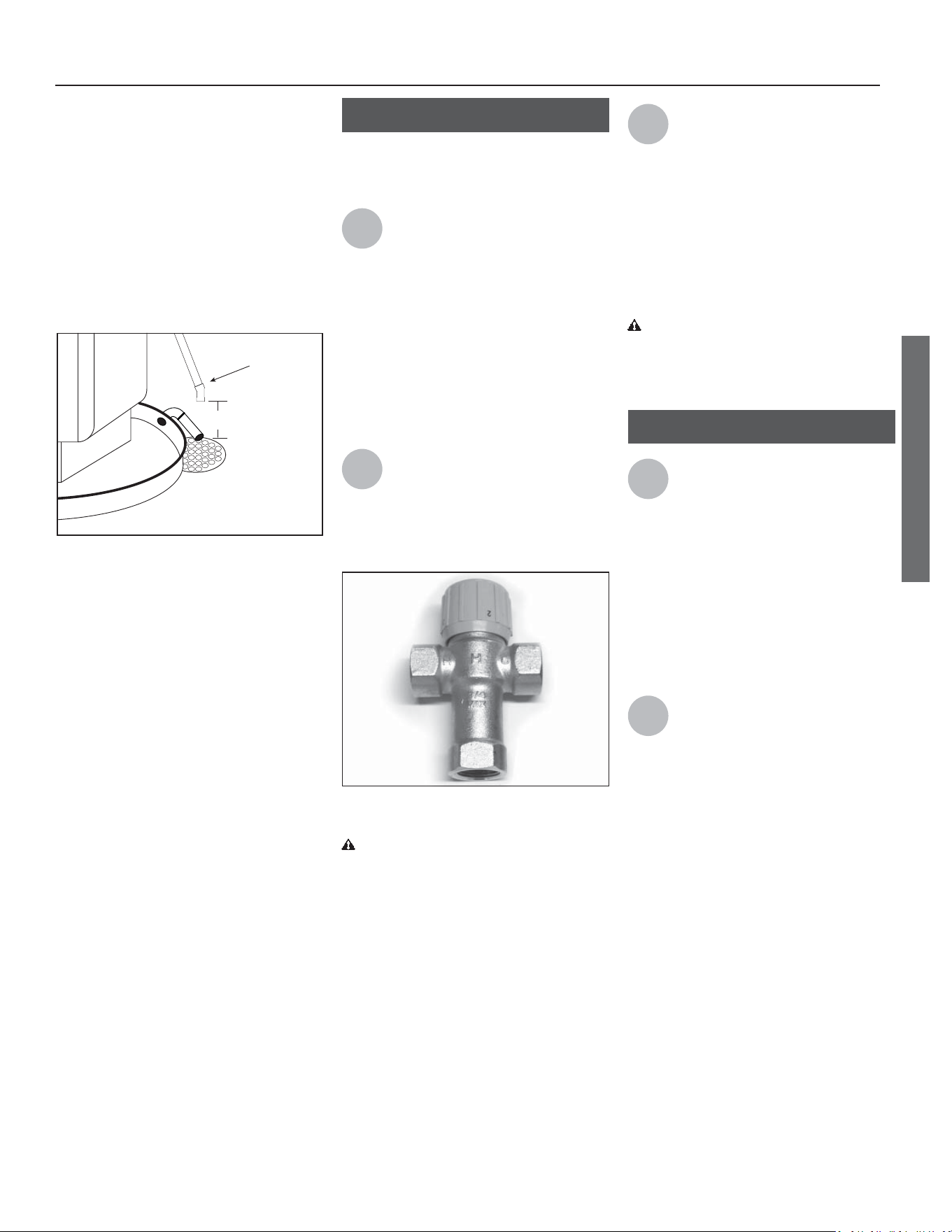

Electric Mini Tank Water Heater • 11
• Terminate the discharge pipe a maxi-
mum of six inches above a fl oor drain
or outside the building. Do not drain
the discharge pipe into the drain pan;
instead pipe it separately to an ade-
quate drain. In cold climates, terminate
the discharge pipe inside the building
to an adequate drain. Outside drains
could freeze and obstruct the drain line.
Protect the drain from freezing.
Discharge Pipe
6 “ (no more than)
Figure 13 - The end of the T&P Relief Valve
discharge pipe must stop no more than six
inches above a floor drain or terminate outside
the building.
• Do not place any valve or other restric-
on between the tank and T&P Relief
Valve. Do not cap, block, plug, or insert
any valve between the T&P Relief Valve
and the end of the discharge pipe. Do
not insert or install any reducer in the
discharge pipe.
Step 5:
Install shutoff and
tempering valves
1
If one is not already installed,
install a manual shutoff valve in
the cold water line that supplies
the water heater. Install the shutoff valve
near the water heater so that it is readily
accessible. Only use valves that are
compa ble with potable water. Use only
full-fl ow ball or gate valves. Other types of
valves may cause excessive restric on to
the water fl ow.
2
Install a Thermosta c Mixing
Valve at each point-of-use (for
example, kitchen sink, bathroom
sink, bath, shower). Consult the valve
manufacturer’s instruc ons or a qualifi ed
person.
Figure 14 - Install Thermostatic Mixing Valves at
each point where hot water will be used.
WARNING! Even if the water heater’s
thermostat(s) are set to a rela vely low
temperature, hot water can scald. Install
Thermosta c Mixing Valves at each point-
of-use to reduce the risk of scalding. (page
4.)
3
For water heaters that are fed by
a solar water hea ng system (or
any other pre-hea ng system),
always install a Thermosta c Mixing Valve
or other temperature limi ng device in the
inlet water supply line to limit water supply
inlet temperature to 120°F. Solar water
hea ng systems can supply water with
temperatures exceeding 170°F and may
result in water heater malfunc on.
WARNING! Hot water provided by solar
hea ng systems can cause severe burns
instantly, resul ng in severe injury or
death (page 4).
Step 6:
1
Connect the water
supply
Determine the type of water pipes in your
home. Most homes use copper water
pipes, but some use CPVC or cross-linked
polyethylene (PEX). Use fi ngs appropri-
ate for the type of pipe in your home. Do
not use iron or PVC pipe – they are not
suitable for potable water.
2
Connect the cold water supply
using 1/2” Na onal Pipe Thread
“NPT” to the cold water inlet
nipple.
For ease of removing the water heater for
service or replacement, connect the water
pipes with a coupling called a union. We
recommend using a dielectric-type union
(available at your local plumbing supply
store). Dielectric unions can help prevent
corrosion caused by ny electric currents
common in copper water pipes and can
help extend the life of the water heater.
INSTALLATION
INSTALLATION
12 • Electric Mini Tank Water Heater
NOTICE: Most water heater models con-
tain energy saving heat traps in the inlet
and outlet connec ons. Do not remove
the heat traps.
3
Connect the hot water supply
using 1/2” NPT to the hot water
outlet. Follow the same connec-
on guidelines as for the cold water supply.
4
Install insula on (or heat tape) on
the water pipes especially if the
indoor installa on area is subject
to freezing temperatures. Insula ng the
hot water pipes can increase energy
effi ciency.
5
Double check to make sure the
hot and cold water pipes are
connected to the correct hot and
cold water fi ngs on the water heater.
6
If needed, install (or adjust) the
home’s Pressure Reducing Valve
to 50-60 psi and install a Thermal
Expansion Tank.
Figure 15 - A Pressure Reducing Valve is re-
quired if your home’s water pressure is above
80 psi.
Figure 16 - The Thermal Expansion Tank should
be pressurized with air, to match the home’s
incoming water pressure.
Step 7:
Verify connec ons and
completely fi ll tank
To remove air from the tank and allow the
tank to fi ll completely with water, follow
these steps:
1
Remove the aerator at the nearest
hot water faucet. This allows any
debris in the tank or plumbing
system to be washed out.
2
Turn the cold water supply back
on.
3
Open a hot water faucet and allow
the water to run un l it fl ows with
a full stream.
4
Let the water run full stream for
three full minutes.
5
Close the hot water faucet and
replace the aerator.
6
Check inlet and outlet connec ons
and water pipes for leaks. Dry all
pipes so that any drips or leaks
will be apparent. Repair any leaks. Almost
all leaks occur at connec ons and are not a
tank leak.
IF YOU HAVE COPPER PIPES:
If your home has copper water pipes, you
can solder the water pipe connec ons
or use compression fi ngs which don’t
require soldering. Compression fi ngs are
easier to install than soldering pipe. Check
with local plumbing offi cials to determine
what types of pipe materials are suitable
for your loca on. Do not use lead-based
solder.
NOTICE: Do not solder pipes while they
are a ached to the water heater. The wa-
ter heater’s inlet and outlet connec ons
contain non-metallic parts which could be
damaged. The proper way to connect the
water heater to copper water pipes is as
follows:
• Solder a short length of pipe (about a
foot or so) to a threaded adapter using
only 95/5 n-an mony or equivalent
solder. A ach the threaded adapters to
the water heater’s connec ons (using
Tefl on® tape or pipe joint compound).
Connect the home’s water pipes by sol-
dering, keeping the connec ons at the
water heater cool with wet rags.
INSTALLATION
INSTALLATION

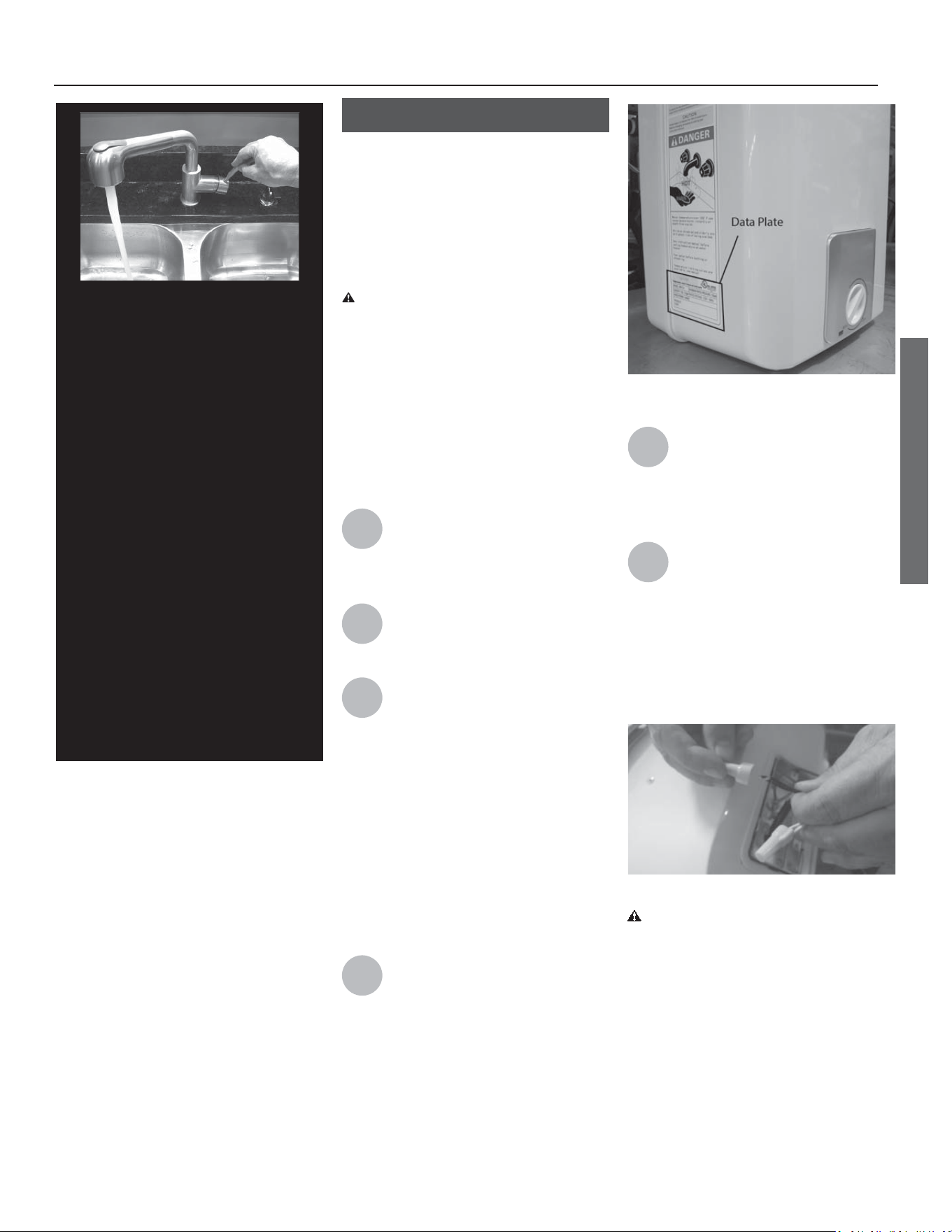

Electric Mini Tank Water Heater • 13
NOTICE: The tank must be completely
empty of air and full of water before
connec ng electrical power to avoid
“Dry Firing.” Dry Firing may result in
the element burning out. This is a
common installa on mistake. A er
you make the water connec ons,
but before you connect the electrical
power, open a hot water faucet and
let the water run full un l all the air is
removed. Let the “hot” water run full
for three minutes or longer before
connec ng any electrical wires. A Dry
Fired hea ng element is an installa-
on error and is not covered under
warranty.
If Dry Firing occurs, replace the heat-
ing element according to the instruc-
ons on page 20.
Step 8: (6 Gal. Models)
Make electrical
connec ons (2.5 and 4
gallon models have a
power cord, plug into an
outlet)
WARNING! Working on an energized
circuit can result in severe injury or death
from electrical shock.
NOTICE: Do not turn electrical power on
unless you are sure all of the air is out of
the tank and the tank is completely full of
water. If power is applied before the tank
is completely full of water, the element will
burn out (Dry Fire).
1
Be sure the electrical power to the
water heater is turned OFF at the
circuit breaker panel (or remove
the circuit’s fuses).
2
Using a non-contact circuit tester,
check the wiring to make certain
the power is OFF.
3
Check the water heater’s data
plate and ensure that the home’s
voltage, wiring size (ampacity) and
circuit breaker ra ng and type are correct
for this water heater. Refer to the wiring
diagram located on the inside of water
heater’s bo om compartment for the
correct electrical connec ons. Ensure that
wire sizes, type, and connec ons comply
with all applicable local codes. In the
absence of local codes, follow NFPA-70 and
the current edi on of the Na onal Electric
Code (NEC).
4
Remove the cover on the electri-
cal junc on box on the lower back
of the water heater.
Figure 17 - The water heater’s electrical require-
ments can be determined from the data plate.
5
Install wiring in an approved
conduit (if required by local
codes). Use a UL listed or CSA
approved strain relief to secure the
electrical wiring to the water heater.
6
Ensure that the green ground wire
is connected to the ground screw.
Connect yellow and green ground
wire to the supply ground wire. Connect
the supply line and supply neutral to the
water heater line (black wire) and neutral
(white wire). Use suitable wire connectors
or other approved means to make the
power connec ons.
Figure 18 - Connecting the electrical wires.
WARNING! Be sure cover is secured to
reduce the risk of fi re and electric shock.
INSTALLATION
INSTALLATION
14 • Electric Mini Tank Water Heater
Step 9:
Adjus ng the
Temperature
With the installa on steps completed, you
may adjust the water heater’s temperature
se ng if desired.
1
Set the thermostat(s) to desired
temperature. The thermostat on
this water heater has been factory
set to approximately 105°F to reduce the
risk of scald injury. You may wish to set a
higher temperature to provide more hot
water capacity, and to reduce bacterial
growth. Higher tank temperatures (140° F)
kill bacteria that cause a condi on known
as “smelly water” and can reduce the
levels of bacteria that cause water-borne
diseases.
WARNING! Higher temperatures
increase the risk of scalding, but even at
120°F, hot water can scald (page 4).
If you increase the water heater’s tempera-
ture se ng, install Thermosta c Mixing
Valve(s) at each point-of-use to reduce the
risk of scalding.
Figure 19 - Adjust Thermostat Mixing Valves
at each point-of-use to 120°F or lower.
To adjust the water heater’s thermostat:
• Turn the water temperature dial
clockwise ()to increase the tem-
perature, or counter clockwise () to
decrease the temperature.
• Check water temperature at several
points of use in your home (for exam-
ple, bathtub faucet, shower, or lava-
tory sink) and adjust the Thermosta c
Mixing Valves as needed. If you aren’t
sure how to adjust the Thermosta c
Mixing Valve se ngs, or aren’t sure if
you have Thermosta c Mixing Valves,
contact a qualifi ed person.
WARNING! If you have increased the
temperature se ng and the Thermosta c
Mixing Valves are not set properly (or not
installed) you could scald yourself while
checking the temperature.
INSTALLATION
INSTALLATION
Electric Mini Tank Water Heater • 15
Step 10:
Opera on
The water heater is now ready for normal
opera on. To keep your water heater
working safely and effi ciently and extend
its life, perform maintenance according to
the “Rou ne Maintenance” schedule on
page 19.
Vaca on
To save energy, lower the temperature
se ng on the thermostat(s) if you plan
to be gone for an extended me. Follow
the instruc ons in Step 9 for adjus ng the
thermostat to a lower temperature se ng
before you leave and to properly raise the
temperature se ng when you return.
C AUTION! Hydrogen gas builds up in
a hot water system when it is not used
for a long period (two weeks or more).
Hydrogen gas is extremely fl ammable. If
the hot water system has not been used
for two weeks or more, open a hot water
faucet for several minutes at the kitchen
sink before using any electrical appliances
connected to the hot water system. Do
not smoke or have an open fl ame or other
igni on source near the faucet while it is
open.
Need Assistance?
Call our Technical Assistance Hotline at 1-800-527-1953.
We can help you with installa on, opera on, troubleshoo ng, or maintenance.
Before you call, write down the model and serial number from the
water heater’s data plate.
INSTALLATION
INSTALLATION
16 • Electric Mini Tank Water Heater
WARNING! Working near an energized
circuit can result in severe injury or death
from electrical shock.
WARNING! When you are fi nished, be
sure all covers are secured to reduce the
risk of fi re and electric shock.
No Hot Water
The most likely reasons for an electric water
heater to produce NO hot water are:
• No electric power—a common problem
with new installations
• Burned out element (Dry Fired) — a
common problem with new installa-
tions
• The water heater’s inlet and outlet con-
nections are reversed (usually only in
new installations)
• Broken thermostat (or wiring)
• A leak in the hot water side of the plumb-
ing system that exceeds the water heat-
er’s heating capacity and makes it appear
that the water heater is producing little
to no hot water
Follow these steps to diagnose and cor-
rect common electrical problems:
1
Check the electric power to the
water heater. No hot water is
o en caused by a problem with
the home’s electrical wiring or circuit
breakers. You’ll need a non-contact circuit
tester. For six (6) gallon water heaters,
follow these guidelines:
• Locate the water heater’s circuit break-
er and turn it OFF (or remove the cir-
cuit’s fuses).
• Drain the water heater (see “Drain the
Water Heater” section).
• Locate the electrical junction box on
the botton of the water heater and
remove the cover.
• Identify the two power wires. The
power wires are usually black/white or
black/red—the green or copper wire is
the ground wire.

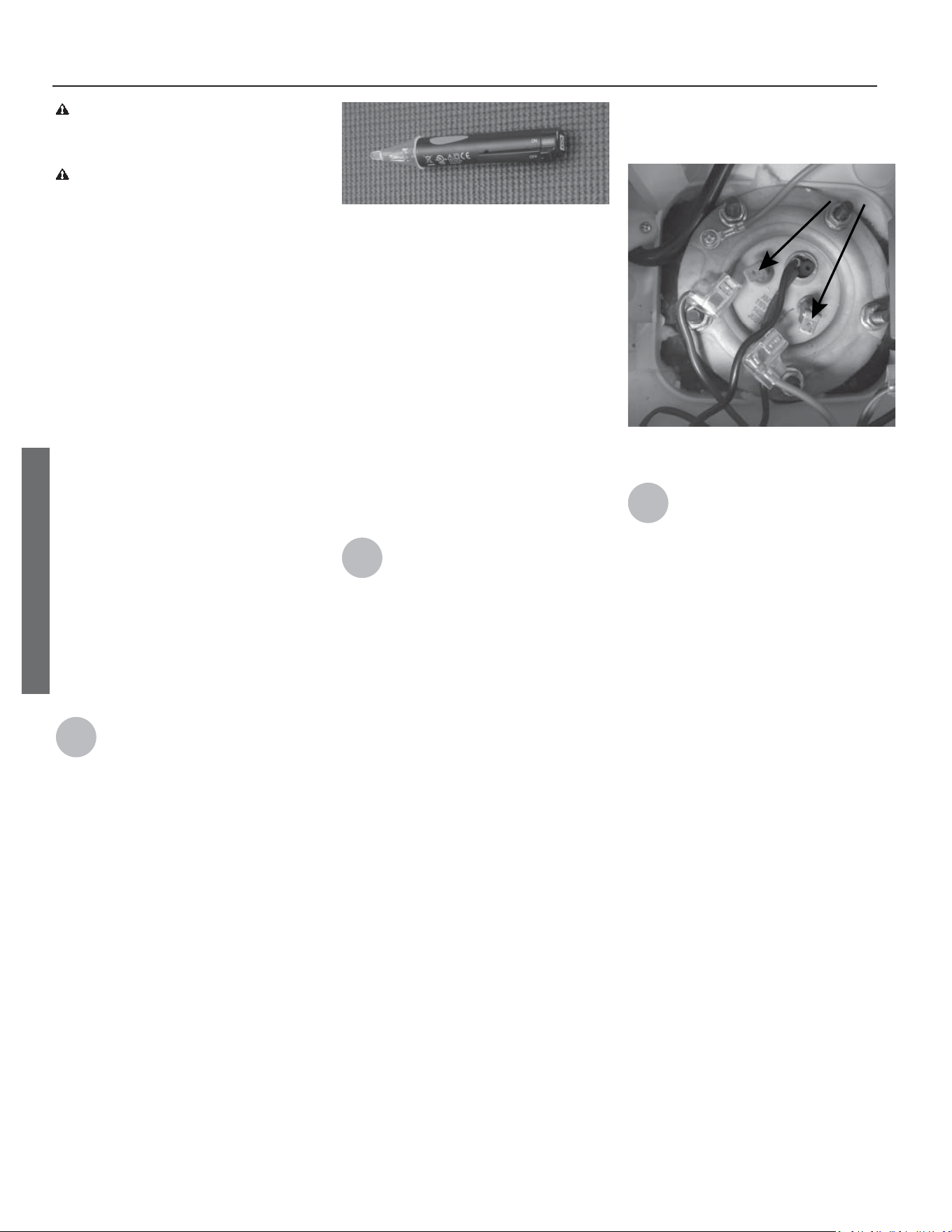

Figure 20 - Use a non-contact circuit tester
to check for electrical power.
• Turn the circuit breaker back on (or
install the fuses) and check the power
on both incoming power wires using a
non-contact circuit tester.
• Turn the power off and replace the
cover on the electrical junction box.
For 2.5 and 4 gallon models, check the
water heaters circuit breaker for a tripped
breaker. If it has been tripped, turn it back
on. If the water heater is not ge ng power,
contact a qualifi ed person to have your
home’s wiring or circuit breakers checked.
2
Check the hea ng element. If the
water heater is ge ng electrical
power, check to see if the hea ng
element has burned out. If the element is
burned out, you’ll have no hot water. To
check the element, you’ll need a mul me-
ter capable of reading resistance.
• For 6 gallon models, turn the power
OFF at the circuit breaker or remove
fuses. For models with a power cord,
unplug the unit.
• Drain the water heater (see “Drain the
Water Heater” section).
• Remove the access panel.
• With the electrical power off , remove
the two power wires from the hea ng
element.
Wires are
detached
Figure 21 - Use a multimeter to check the
resistance of the heating element.
3
Check the resistance of the
hea ng element using a mul me-
ter. Measure the resistance
between the two push terminals on the
hea ng element. A good element will have
a resistance ranging between 5 and 25
Ohms. If the resistance is:
Outside this range. Replace the element
(see the Rou ne Maintenance sec on on
page 19). On a new water heater, a burned
out hea ng element is almost always
caused by turning the power on before
the tank was completely full of water
(Dry Fire). (See Step 8 in the Installa on
sec on.)
Within this range. Rea ach the power
wires, making sure the wires are in good
condi on and the connec ons are clean
and ght.
TROUBLESHOOTING
TROUBLESHOOTING
Electric Mini Tank Water Heater • 17
Insuffi cient Hot Water or
Slow Hot Water
Recovery
WARNING! Be sure all covers are secured
to reduce the risk of fi re and electric shock.
WARNING! Because of the increased risk
from scalding, if you set the water heater’s
thermostat(s) higher than 120°F, Thermo-
sta c Mixing Valves at each point-of-use are
par cularly important (page 4).
If the hot water is simply not warm enough,
there are several possible causes:
• Faulty Thermostatic Mixing Valve in a faucet
or shower control (check other faucets in
the house for hot water)
• Thermostat set too low
• Water heater’s capacity too small (or usage
too high)
• Reversed plumbing connections or melted
dip tube (usually found soon after new
installation)
• Plumbing leak
• Bad element
• Low supply voltage
Thermosta c Mixing Valves. If the hot water
is simply not warm enough, make sure the
faucet you are checking doesn’t have a defec-
ve Thermosta c Mixing Valve. Many shower
controls now have built-in mixing valves. If
these devices fail, they can reduce the amount
of hot water the shower or faucet delivers
even though there is plenty of hot water in the
tank. Always check the water temperature at
several faucets to make sure the problem is
not in a faucet or shower control.
Thermostats set too low. If the water tem-
perature is too cool, adjust the thermostat by
turning dial clockwise for a higher tempera-
ture.
Undersized water heater. If your water heater
runs out of hot water too quickly, it may be
too small for your needs. If the water heater is
old, consider replacing it with a larger model. If
the water heater is in good condi on, you may
be able to meet your family’s hot water needs
with the exis ng water heater by installing
Thermosta c Mixing Valves at each point-of-
use and then turning the thermostat(s) to a
higher se ng. See “Step 9” on page 14.
You can also reduce your home’s hot water
needs by washing clothes in cold water, install-
ing fl ow restrictors on shower heads, repairing
leaky faucets, and taking other conserva on
steps.
Reversed connec ons. Check the hot and
cold connec ons and make sure your home’s
hot water pipe is connected to the hot water
outlet on the water heater. Usually, reversed
connec ons are found soon a er the installa-
on of a new unit.
Plumbing leak. Even a small leak in the hot
water side of the home’s plumbing system
can make it appear that the water heater is
producing li le to no hot water. Locate and
repair the leak.
TROUBLESHOOTING
TROUBLESHOOTING
18 • Electric Mini Tank Water Heater
Temperature Too High
If the water temperature is too hot:
• Install or adjust the Thermostatic Mix-
ing Valves for each point-of-use (see
manufacturer’s instructions), or
• Adjust the temperature by turning the
dial counter-clockwise.
A nonfunc oning thermostat or a shorted
hea ng element can cause extremely hot
water. If the Temperature and Pressure
Relief Valve (T&P Valve) releases large
amounts of very hot water, it is likely due
to a shorted hea ng element, or more
rarely a nonfunc oning thermostat.
Low Water Pressure
Check both the cold and hot water at a sink
to determine if the lower pressure is only on
the hot water side. If both hot and cold fau-
cets have low pressure, call your local water
u lity. If the low pressure is only on the hot
water side, the primary causes of this are:
• Partially closed supply valve. Open the
water heater’s supply valve fully.
Drips from T&P Relief
Valve Discharge Pipe
A small amount of water dripping from
the Temperature and Pressure (T&P) Relief
Valve usually means the home’s water
pressure is too high or you need a properly
sized and pressurized Thermal Expansion
Tank. Refer to Step 1 in the Installa on sec-
on of this manual for more informa on.
A large amount of hot water coming from
the T&P discharge pipe may be due to the
tank overhea ng.
WARNING! Do not cap or plug the T&P
relief valve or discharge pipe, and do not
operate the water heater without a func-
oning T&P Relief Valve - this could cause
an explosion.
Water pressure too high. High water pres-
sure can cause the T&P Relief Valve to drip.
Install a Pressure Reducing Valve (PRV) on
the main cold water supply line. Adjust the
PRV to between 50 and 60 psi.
Thermal Expansion Tank. Install a Thermal
Expansion Tank. If a Thermal Expansion
Tank is already installed and the T&P Relief
Valve discharge pipe drips, the Thermal
Expansion Tank may be pressurized to the
wrong pressure or the internal bladder
may be defec ve. Refer to the instruc ons
that came with the Thermal Expansion
Tank for more informa on.
Debris. In rare cases, debris can s ck inside
the T&P Relief Valve preven ng the valve
from sea ng fully. In that case, the T&P
Relief Valve discharge pipe will drip. You
may be able to clear debris from the T&P
Relief Valve by manually opera ng the
valve, allowing small quan es of water to
fl ush out the debris. See the label on the
T&P Relief Valve for instruc ons.
If the water pressure is between 50 and 60
psi, a Thermal Expansion Tank is installed
and properly pressurized, and the valve has
been cleared of any debris, and it s ll drips,
the valve may be broken—have a qualifi ed
person replace the T&P relief valve.
Water Odor
Harmless bacteria normally present in tap
water can mul ply in water heaters and
give off a “ro en egg” smell. Although
elimina ng the bacteria that causes
“smelly water” with a Chlorina on system
the only sure treatment is increasing the
water temperature.
In cases where the “ro en egg” smell
is pronounced, you can raise the tank
temperature to “MAX” in order to reduce
bacteria growth in the tank.
WARNING! Because higher tempera-
tures increase the risk of scalding, if you
set the thermostat(s) higher than 120°F,
Thermosta c Mixing Valves at each point-
of-use are par cularly important (page
4).
NOTE: To protect the tank, an anode rod
must be installed in the water heater at all
mes or the warranty is void.
TROUBLESHOOTING
TROUBLESHOOTING
Electric Mini Tank Water Heater • 19
Rou ne Maintenance
Rou ne maintenance will help your water
heater last longer and work be er. If you
can’t perform these rou ne maintenance
tasks yourself, contact a qualifi ed person.
A er the fi rst six months, drain and fl ush
the water heater and inspect the anode
rod. Depending on the hardness of your
water, repeat this process at least annually,
or more frequently if needed. From me
to me, you may need to replace a hea ng
element or a thermostat. All three mainte-
nance tasks are described below.
Draining and Flushing the
Water Heater
Tap water contains minerals that can
form lime deposits on hea ng elements
or sediment in the bo om of the tank.
The amount of lime deposits or sediment
depends on the hardness of your tap
water. The rate at which sediment builds
up depends on water quality and hardness
in your area, the temperature se ngs, and
other variables. We recommend draining
and fl ushing the water heater a er the fi rst
six months of opera on to determine the
amount of sediment build up. Draining sed-
iment extends the life of the tank, hea ng
elements, and drain valves.
• In areas with very hard water, remove
and check the heating element when-
ever you drain the tank. If you have
heavy lime deposits on heating ele-
ment, you will need to replace it more
often.
• Sediment may form large masses that
can prevent the tank from draining. Have
a qualified person use a de-liming agent
suitable for potable water to remove the
sediment buildup.
• In most cases, it is easier and cheaper
to replace lime-encrusted elements
than trying to remove heavy lime
deposits.
To drain and fl ush the tank:
1
For 6 gallon models, locate the
water heater’s circuit breaker and
turn it OFF (or remove the circuit’s
fuses). For 2.5 and 4 gallon models, unplug
unit from wall outlet.

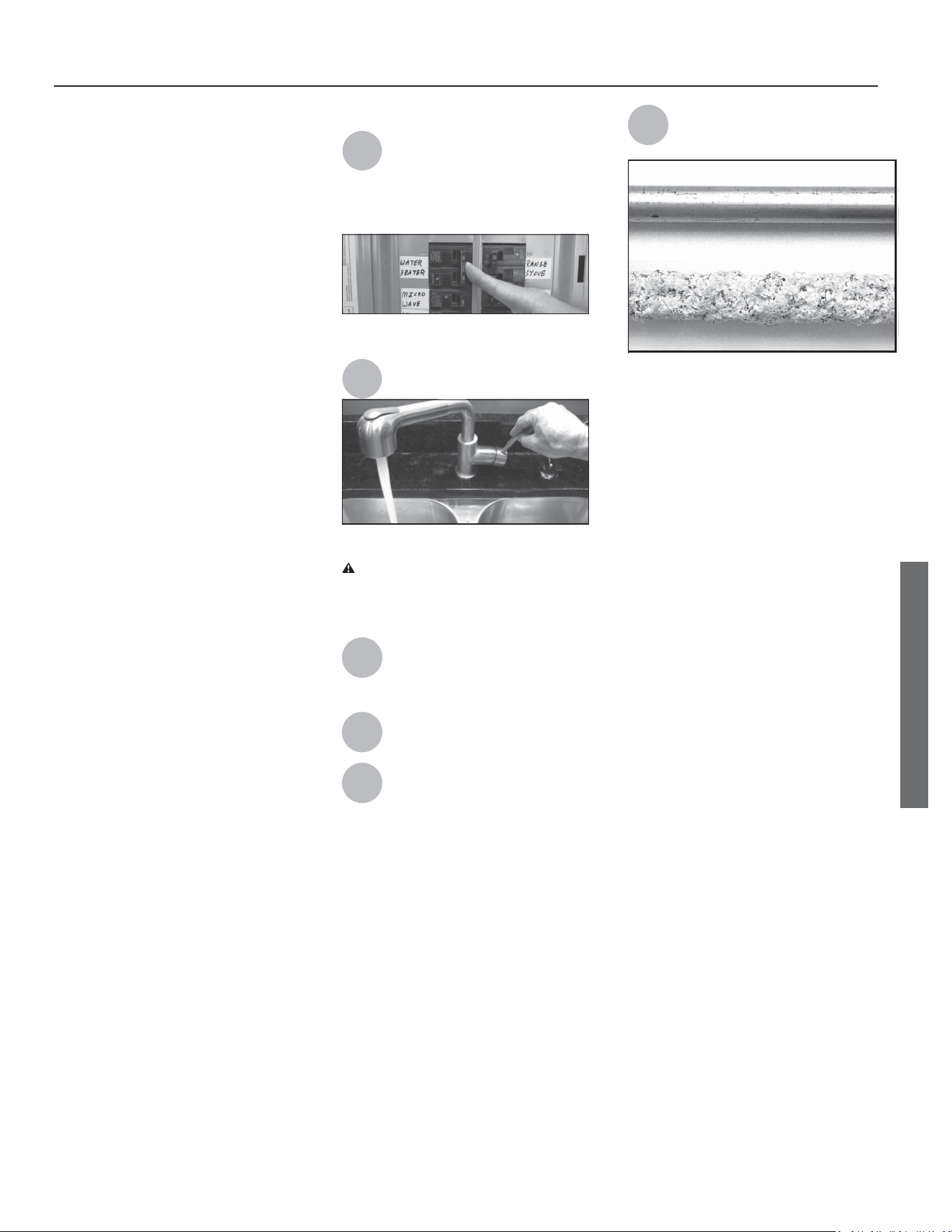

Figure 22 - Circuit Breaker
2
Open a hot water faucet and let
the hot water run un l it is cool.
Figure 23 - Water Faucet
WARNING! Be sure the water runs cool
before draining the tank to reduce the risk
of scalding.
3
Turn the cold water supply valve
OFF and open a nearby faucet to
relieve pressure inside the tank.
4
Remove inlet and outlet connec-
ons and siphon water out.
5
Tilt unit over to drain any remain-
ing water.
NOTICE: DO NOT turn electrical power
back on unless the tank is completely full
of water.
6
Remove and inspect the anode
rod.
Figure 24 - Anode Rods from new (top) to par-
tially depleted (bottom).
Anode Rod. The anode rod is a sacrifi cial
metal rod that helps reduce corrosion and
premature failure (leaks) in the tank. The
anode rod is a consumable item. Inspect
the anode rod a er the fi rst six months of
opera on when you drain and fl ush the tank.
Replace the anode rod if it is substan ally
worn out or depleted. Therea er, inspect
the anode rod annually or more frequently
if needed. If you use a water so ener, your
anode rod will deplete faster than normal.
MAINTENANCE
MAINTENANCE
20 • Electric Mini Tank Water Heater
Inspect the anode rod more frequently,
replacing the anode rod as needed. Obtain a
new anode rod by contac ng our Technical
Assistance Hotline (reference contact infor-
ma on on cover).
NOTE: Anode rods are a consumable item
and are not covered under warranty.
7
If the sediment was present when
the tank was drained, fl ush the
tank by opening the cold water
supply valve and le ng the water run un l
no more sediment drains from the tank.
NOTICE: Do not turn power back on un l
the tank is completely full of water. For
complete instruc ons on fi lling the tank,
follow Step 7 in the Installa on sec on.
8
Refi ll the tank by opening the cold
water supply valve. Make sure a
hot water faucet is open. Allow
the hot water to run full for at least three
minutes to make sure the tank has all the
air removed and is completely full of water.
Failure to perform this step can cause the
hea ng element to burn out. Once you are
certain the tank is completely full of water,
close the hot water faucet.
9
Restore power to the water
heater. It may take two hours for
the tank to heat up.
Replacing the Hea ng Element
WARNING! Working on an energized
circuit can result in severe injury or death
from electrical shock. Turn power off .
Check wires with a non-contact circuit
tester to make sure power is off . When
you are fi nished, be sure all covers are se-
cured to reduce the risk of fi re and electric
shock.
If you are not comfortable replacing a
hea ng element or thermostat yourself,
have this work done by a qualifi ed person.
To replace the hea ng element, you’ll need
the following tools and supplies:

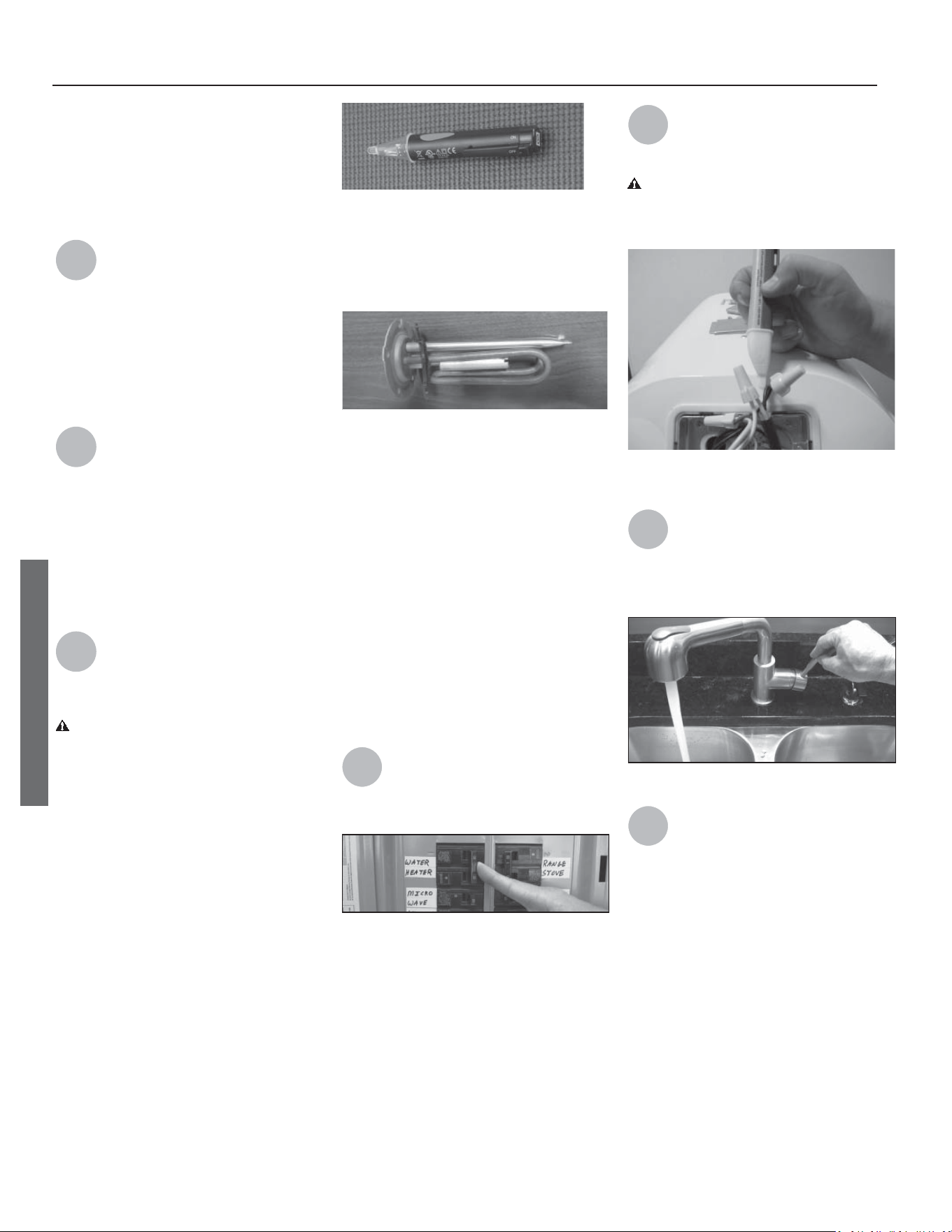

Figure 25 - Non-Contact Circuit Tester
• Always turn power OFF and check the
power wires with a non-contact circuit
tester before working on the water
heater.
Figure 26 - Heating Element (with gasket)
• Check your water heater’s data plate
for the correct wattage and voltage.
(Refer to page 22 for customer contact
information for replacement parts.)
• A 10mm nut driver.
• Hand dishwashing soap to lubricate the
gasket
• A clean cloth to clean the threaded
opening
• A flat blade and a Phillips screwdriver
Steps for Replacing the Hea ng
Element:
1
For the 2.5 and 4 gallon models,
unplug unit. For the 6 gallon
models, turn the power OFF at the
circuit breaker or remove fuses.
Figure 27 - Circuit Breaker
2
Open a hot water faucet and let
the hot water run un l it is cool
then siphon water from tank.
WARNING! Be sure the water runs cool
before draining the tank to reduce the risk
of scalding.
Figure 28 - Non-Contact Circuit Tester
3
Open the electrical junc on box
on the bo om of the water
heater. Using a non-contact circuit
tester, check the power wires to make
certain the power is OFF.
Figure 29 - Water Faucet
4
Remove the access panel on the
water heater then, with the tank
drained and power off , remove
the power wires from the element.
MAINTENANCE
MAINTENANCE
Electric Mini Tank Water Heater • 21

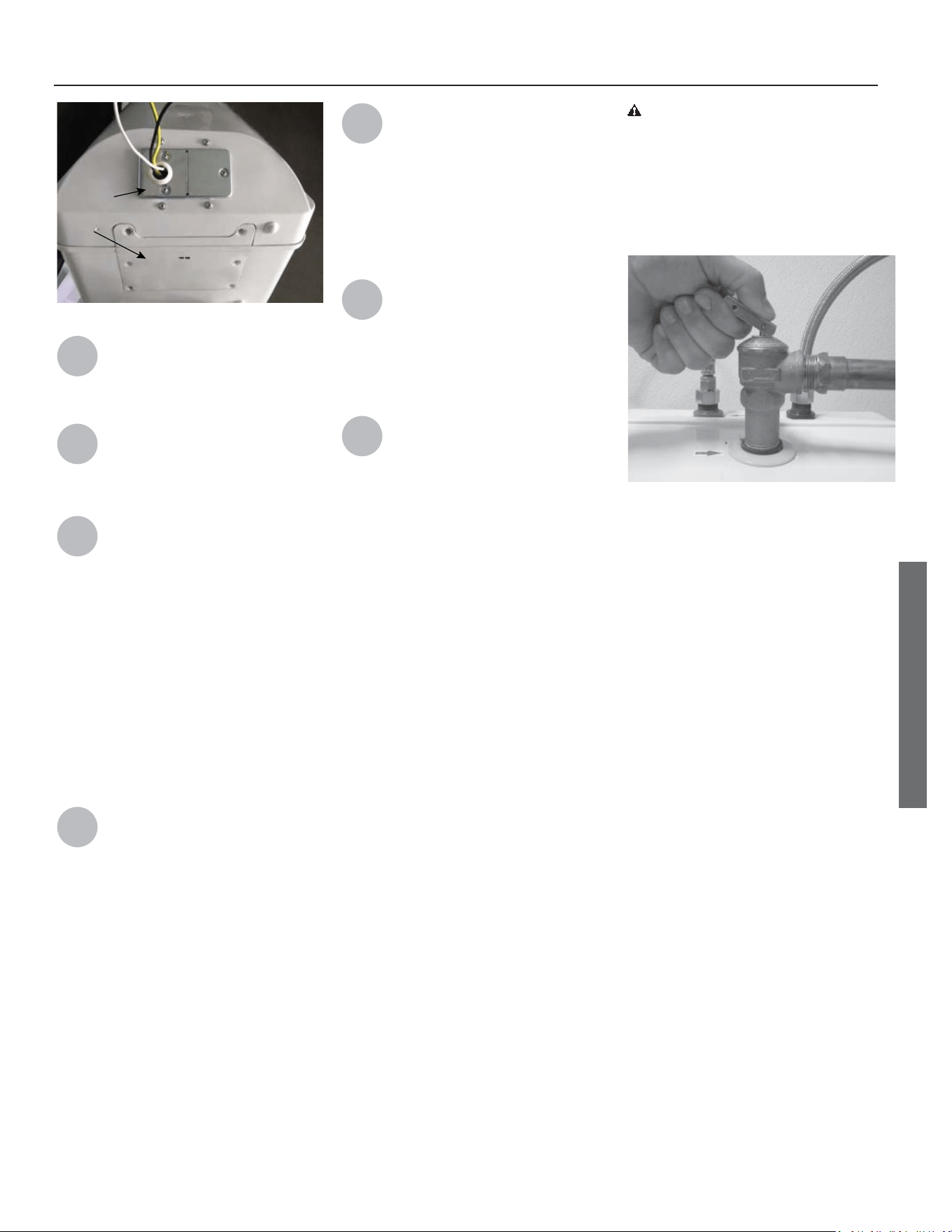

Junction Box
Access Panel
Figure 30 - Junction Box and Access Panel
5
Using a 10mm nut driver, remove
the fi ve (5) nuts a aching the
element to the tank and extract
the element from the tank.
6
Make sure the new element is the
correct replacement by referring to
the water heater’s data plate for
voltage and wa age informa on.
7
Clean the tank opening with a rag.
Insert the new element equipped
with a rubber gasket making sure
that the gasket and holes in the element are
lined up.. NOTE: Use a drop of hand dish-
washing liquid to lubricate the gasket to help
avoid damaging the gasket as it is being
ghtened. Using a 10mm nutdriver, rea ach
the nuts and hand ghten.
NOTICE: Do not turn power back on un l the
tank is completely full of water. For complete
instruc ons on fi lling the tank, follow Step 7
in the Installa on sec on.
8
Refi ll the tank by opening the cold
water supply valve. Make sure a hot
water faucet is open. Allow the hot
water to run full for at least three minutes to
make sure the tank has all the air removed
and is completely full of water. Failure to
perform this step can cause the hea ng
element to burn out. Once you are certain
the tank is completely full of water, close the
hot water faucet.
9
Check the newly installed element
for leaks. If a leak is present,
ghten the element un l the leak
stops. If you cannot stop the leak, drain the
tank and remove the element. Inspect the
gasket for damage. If the gasket is damaged,
replace the gasket and re-install the
element.
10
Once the element is successfully
installed and there are no leaks,
replace the power wires, and
access panel. Make sure all wire connec-
ons are ght. Replace the cover on the
electrical junc on box.
11
Restore power to the water heater.
It may take two hours for the tank
to heat up.
T&P Relief Valve Maintenance
Read and follow the opera ng and annual
maintenance instruc ons provided by
the manufacturer of the T&P Relief Valve
(yellow label a ached to T&P Relief Valve).
Minerals in the water can form deposits
that cause the valve to s ck or create
blocked passages, making the T&P Relief
Valve inopera ve. Follow these guidelines:
• At least annually, operate the T&P
Relief Valve manually to ensure the
waterways are clear and the valve
mechanism moves freely (above).
Before operating the valve manually,
check that it will discharge in a place
for secure disposal. If water does not
flow freely from the end of the dis-
charge pipe, turn OFF the power to the
water heater. Call a qualified person to
determine the cause.
WARNING! Hot water will be released.
Before opera ng the T&P relief valve
manually, check that it will discharge in a
safe place. If water does not fl ow freely
from the end of the discharge pipe, turn
the power to the water heater OFF. Call a
qualifi ed person to determine the cause.
Figure 31 - T&P Relief Valve
• At least every five years, have a quali-
fied person inspect the T&P Relief Valve
and discharge pipe. Damage caused
by corrosive water conditions, mineral
deposits, or other problems can only
be determined when a qualified person
removes and inspects the valve and its
components.
• Note that a dripping T&P Relief Valve
is usually caused by the home’s water
pressure being too high or the lack of
a Thermal Expansion Tank. If your T&P
Relief Valve drips, see page 18.
MAINTENANCE
MAINTENANCE
22 • Electric Mini Tank Water Heater

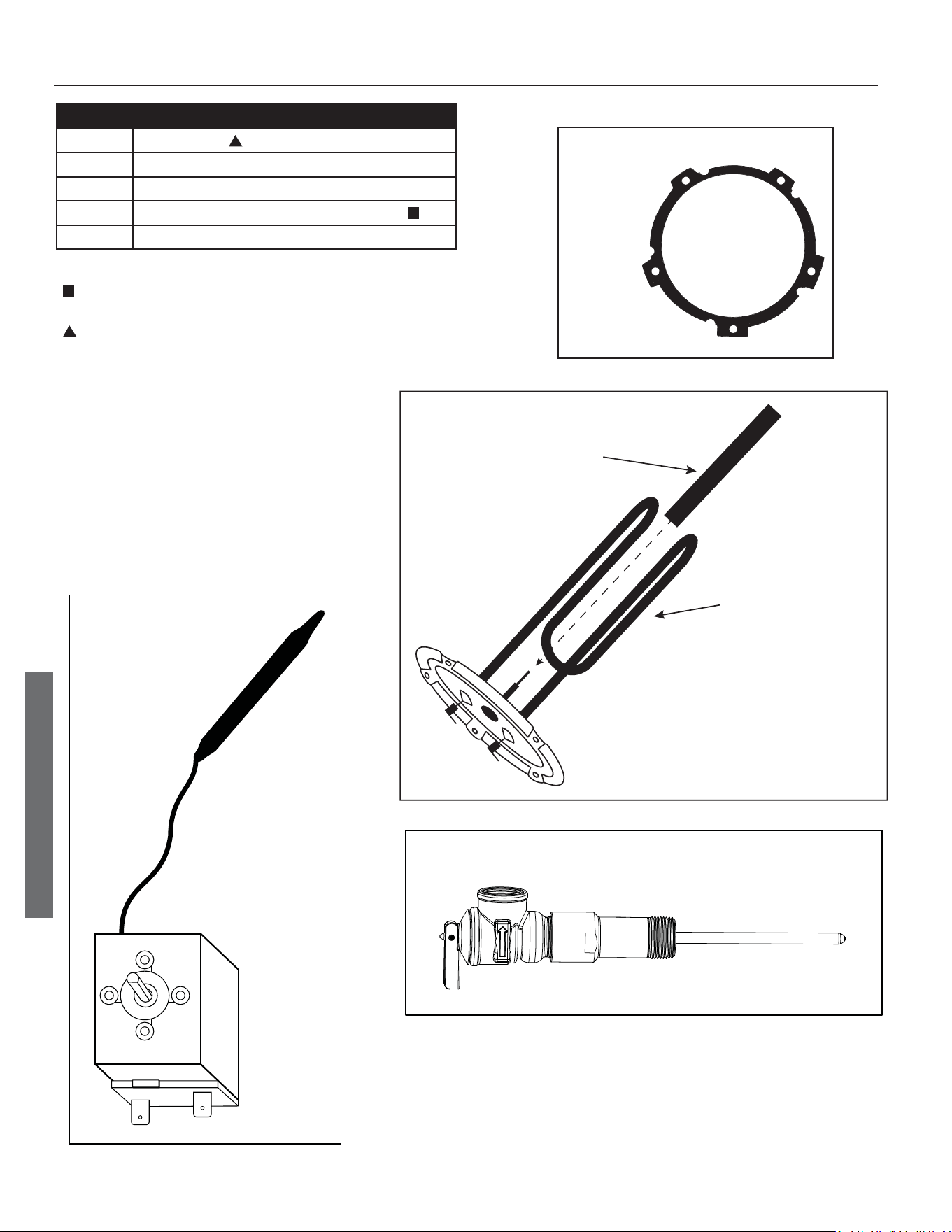

Key No. Part Descrip on
1 THERMOSTAT
2 ELEMENT
3 ELEMENT GASKET
4 TEMPERATURE & PRESSURE RELIEF VALVE
5 ANODE ROD
LEGEND
Temperature and Pressure Relief Valve is required, but
may not be factory installed.
Specifiy thermostat type when ordering
Repair parts may be ordered through your
plumber, local distributor or by calling
1-800-527-1953. When ordering repair
parts always give the following information:
1. Model and serial number.
2. Item number and part description.
REPAIR PARTS
(5) Anode Rod
(2) Element
(4) Temperature & Pressure Relief valve
(3) Element Gasket
(1) Thermostat
REPAIR PARTS
Electric Mini Tank Water Heater • 23

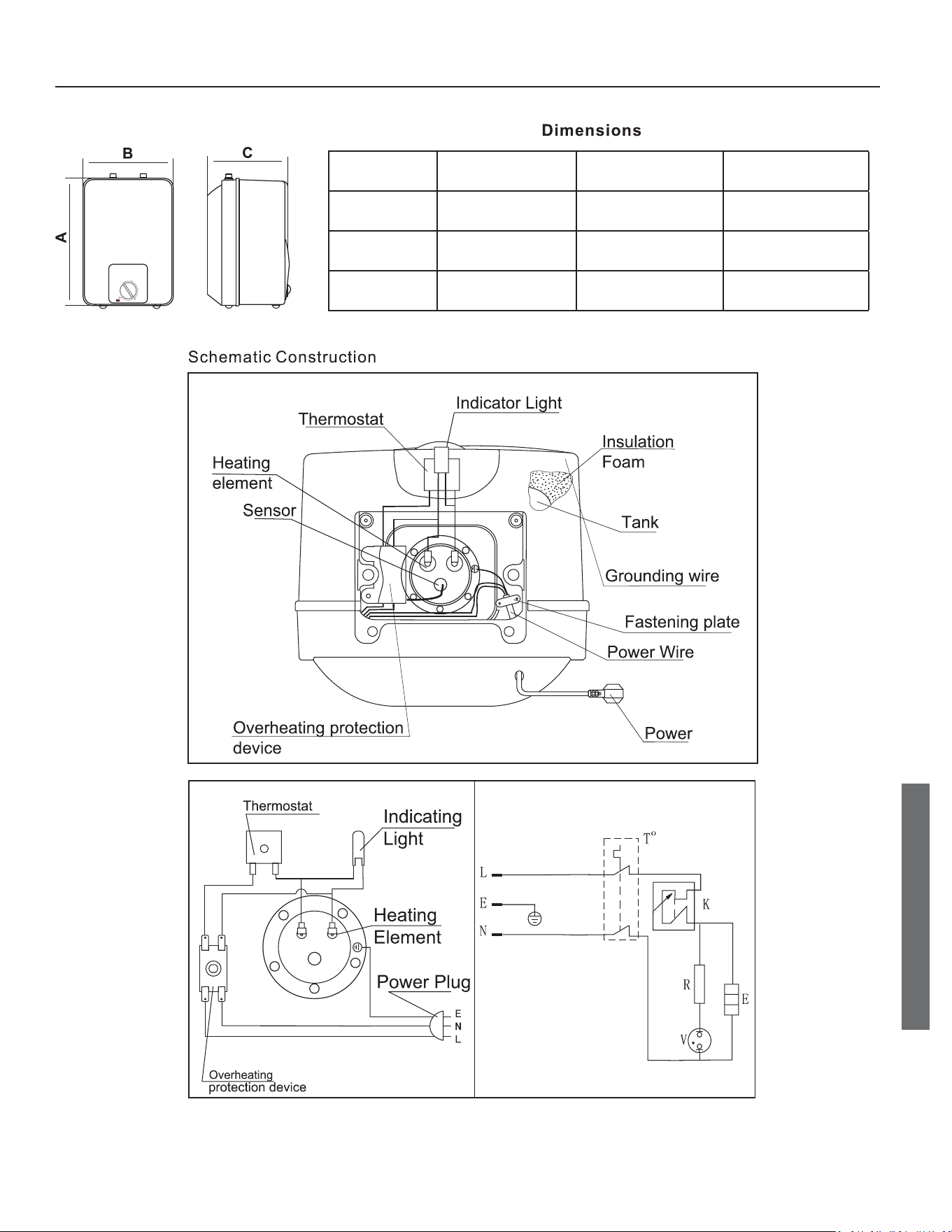

WIRE DIAGRAM
2.5 Gal./9.5 liter 4 Gal./15.1 liter 6 Gal./22.7 literCapacity
A (inch/cm)
B (inch/cm)
C (inch/cm)
14-1/2"/36.8cm
19-1/4"/48.9cm
20”/50.8cm
11-3/4"/29.8cm
11-3/4"/29.8cm
13 3/4”/34.9cm
10 3/8"/26.4cm
10-3/8"/26.4cm
12 1/2”/32.4cm
WIRE DIAGRAM
®Tefl on is a registered trademark of E.I. Du Pont De Nemours and Company
Limited Warranty provided by Manufacturer.
