Liebherr IRBH 5170 Integrated Fridge BioFresh Technology User Manual

User Guide

Quality, Design and Innovation

home.liebherr.com/fridge-manuals

Contents

1 General safety instructions.................................. 3

2 Appliance at a glance............................................ 4

2.1 Scope of delivery.......................................................... 4

2.2 Overview of the appliance and equipment.............. 4

2.3 SmartDevice.................................................................. 4

2.4 Appliance range of use............................................... 5

2.5 Conformity..................................................................... 5

2.6 Spare parts.................................................................... 5

3 Functionality of the Touch&Swipe display......... 5

3.1 Navigation and symbol explanation......................... 5

3.2 Menus............................................................................. 6

3.3 Sleep mode................................................................... 6

4 Putting into operation........................................... 6

4.1 Switching on appliance (first use)............................ 6

4.2 Starting the HydroBreeze for the first time............. 7

5 Storage.................................................................. 7

5.1 Information regarding storage................................... 7

5.2 Fridge compartment.................................................... 7

5.3 BioFresh......................................................................... 7

5.4 Storage times............................................................... 8

6 Saving energy........................................................ 9

7 Controls................................................................. 9

7.1 Controls and displays.................................................. 9

7.1.1 Status display..............................................................9

7.1.2 Display symbols.......................................................... 9

7.2 Appliance functions..................................................... 9

7.2.1 Notes on the appliance functions............................9

Switching the appliance off and on........................9

WiFi............................................................................ 10

Temperature.............................................................. 11

Temperature unit...................................................... 11

BioFresh B-Value ..................................................... 12

D-Value.......................................................................12

SuperCool..................................................................12

PartyMode ................................................................ 12

HolidayMode............................................................. 13

SabbathMode............................................................13

EnergySaver .............................................................14

HydroBreeze..............................................................14

CleaningMode...........................................................15

Display brightness...................................................15

Door alarm.................................................................16

Input lock...................................................................16

Language...................................................................16

Device information...................................................17

Software.....................................................................17

Reminder....................................................................17

Demo mode...............................................................18

Resetting to factory settings.................................18

7.3 Messages...................................................................... 19

7.3.1 Overview of warnings...............................................19

7.3.2 Ending warnings........................................................19

7.3.3 Overview of reminders............................................. 19

7.3.4 Ending reminders...................................................... 19

8 Features................................................................. 19

8.1 Door rack....................................................................... 19

8.2 Shelves.......................................................................... 23

8.3 Dividing shelf................................................................ 23

8.4 VarioSafe ...................................................................... 23

8.5 Space for baking tray.................................................. 26

8.6 Adjustable bottle shelf................................................ 26

8.7 Drawers.......................................................................... 26

8.8 Compartment lid for Fruit & Vegetable Safe........... 27

8.9 HydroBreeze.................................................................. 28

8.10 Butter dish.................................................................... 29

8.11 Egg rack......................................................................... 29

8.12 Bottle holder................................................................. 29

8.13 FlexSystem.................................................................... 29

8.14 FlexCube........................................................................ 30

9 Maintenance.......................................................... 30

9.1 FreshAir carbon filter................................................... 30

9.2 Disassembling / assembling pull-out systems...... 31

9.3 Removing / inserting the variable bottle rack........ 31

9.4 Compartment lid for Fruit & Vegetable Safe........... 31

9.5 Defrosting the appliance............................................ 32

9.6 Cleaning the appliance............................................... 32

10 Customer help....................................................... 33

10.1 Technical specifications............................................. 33

10.2 Operating noises.......................................................... 33

10.3 Technical fault.............................................................. 33

10.4 Customer Service......................................................... 35

10.5 Model plate................................................................... 35

11 Shutting down....................................................... 35

12 Disposal................................................................. 35

12.1 Preparing appliance for disposal.............................. 35

12.2 Disposing of the appliance in an environmentally

friendly manner............................................................ 35

The manufacturer is continually working on the further

development of all types and models. Please be aware that

we reserve the right to make changes to the shape, equip‐

ment and technology.

Symbol

Explanation

Read instructions

Please read the information in these instruc‐

tions carefully to understand all of the benefits

of your new appliance.

2 * Depending on model and options

Symbol Explanation

Additional information on the Internet

The digital manual with additional information

can be found via the QR code on the front of

the manual or by entering the service number

at home.liebherr.com/fridge-manuals.

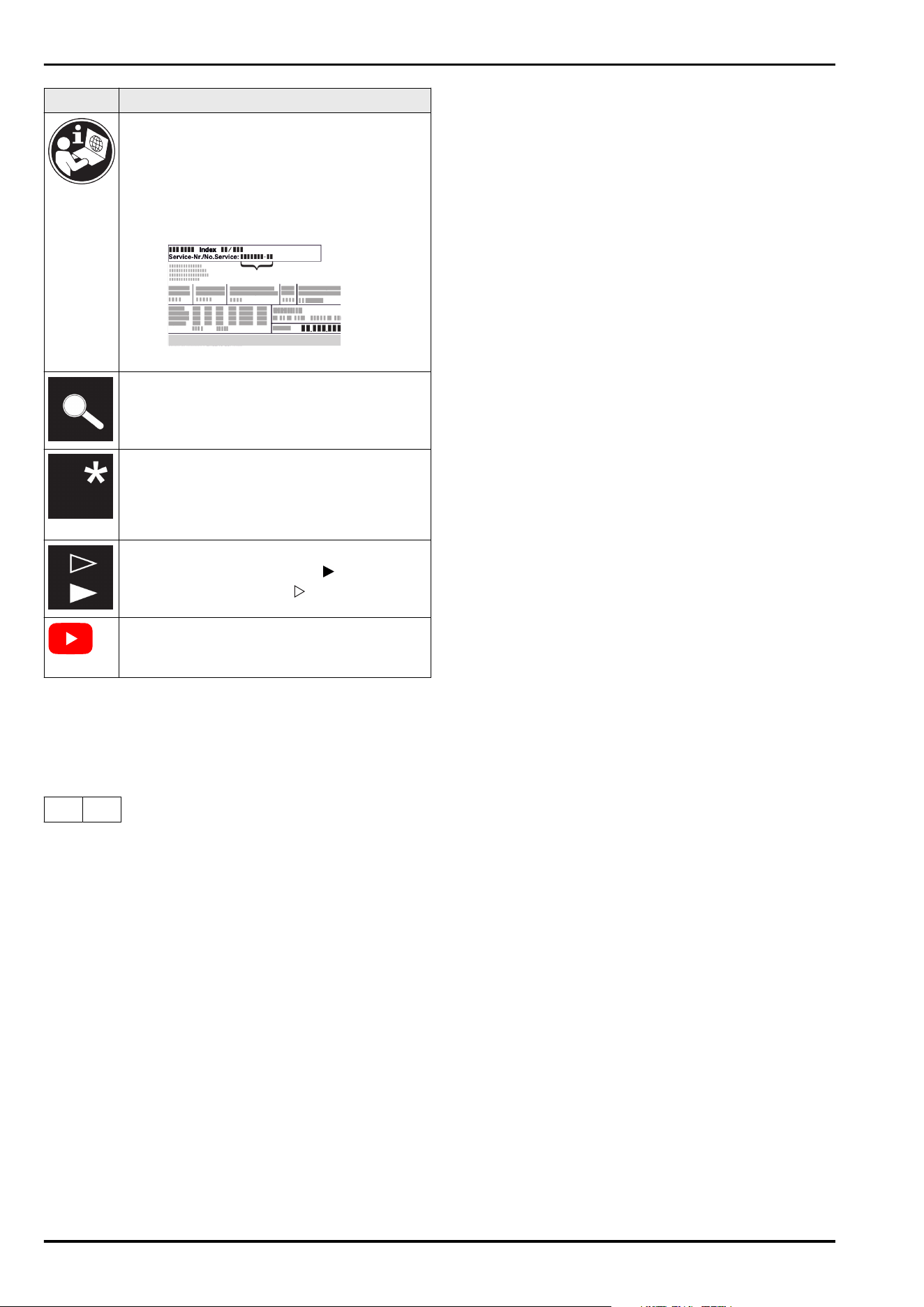

The service number can be found on the serial

tag:

Fig.Example illustration

Check appliance

Check all parts for transport damage. If you

have any complaints, please contact your

agent or customer service.

Differences

These instructions apply to a range of models,

so differences are possible. Sections that

apply to certain models only are marked with

an asterisk (*).

Instructions and results

Instructions are marked with a .

Results are marked with a .

Videos

Videos about the appliances are available on

the YouTube channels of Liebherr-Hausgeräte.

Open source licences:

The appliance contains software components that use

open source licences. Information on the open source

licences used can be found here: home.liebherr.com/

open-source-licences

These operating instructions apply to:

IRBh

5170

1 General safety instructions

Please keep these instructions in a safe place and pass

them on to any subsequent owners.

Read these operating instructions carefully before use to

ensure safe and correct use of the appliance. Follow the

instructions, safety instructions and warning messages

included at all times. They are important for ensuring you

can operate and install the appliance safely and without any

problems.

Danger for the user:

This device can be used by children and people with

impaired physical, sensory or mental abilities or with a

lack of experience and knowledge provided that they are

supervised or have received instruction in the safe use of

this device, and about the resulting hazards.

Children must not play with this appliance. Cleaning and

user maintenance work must not be carried out by chil‐

dren without adult supervision. Children aged between

3 and 8 are allowed to load and unload the appliance.

Children below the age of 3 must be kept away from the

appliance unless they are under continuous adult super‐

vision.

The socket must be easily accessible so that the appli‐

ance can be disconnected quickly from the electricity in

an emergency. It must not be located in the area behind

the appliance.

When disconnecting the appliance from the supply,

always take hold of the plug. Do not pull the cable.

In the event of a fault pull out the mains plug or deacti‐

vate the fuse.

Do not damage the mains power cable. Do not operate

the appliance with a defective mains power cable.

If the supply cord is damaged, it must be replaced by a

special cord or assembly available from the manufacturer

or its service agent.

Only customer service or other specially trained staff

may repair or perform other operations on the appliance.

Only install, connect and dispose of the appliance

according to the instructions.

Only use the appliance when is installed.

Special lights, such as LED lights on the appliance, are

used to illuminate the interior of the appliance and are

not suitable for room lighting.

Fire hazard:

This appliance contains a refrigerant which is environ‐

mentally friendly, but flammable. Leaking refrigerant may

ignite. It is hazardous for anyone other than an Author‐

ised Service Person to service this appliance. In Queens‐

land, the authorised Service Person MUST hold a Gas

Work Authorisation for hydrocarbon refrigerants, to carry

out Servicing or repairs where the gas system is being

opened or charged.

The coolant used (information on the model plate) is

ecofriendly but also flammable. Any leaking coolant may

ignite.

•

Do not damage the refrigerant circuit pipes.

•

Do not handle ignition sources inside the appliance.

•

Do not use electrical appliances inside the appliance

(e.g. steam cleaners, heaters, ice cream makers, etc.).

•

If the refrigerant leaks: remove any naked flames or

ignition sources from the vicinity of the leakage point.

Properly air the room. Inform customer services.

Do not store explosives or sprays using combustible

propellants such as butane, propane, pentane, etc. in the

appliance. To identify these spray cans, look for the list of

contents printed on the can, or a flame symbol. Gases

possibly escaping may ignite due to electrical compo‐

nents.

Keep burning candles, lamps and other items with naked

flames away from the appliance so that they do not set

the appliance on fire.

WARNING: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other

means to accelerate the defrosting process, other than

those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

Please be sure to store alcoholic drinks or other pack‐

aging containing alcohol in tightly closed containers.

Any alcohol that leaks out may be ignited by electrical

components.

Danger of tipping and falling:

Do not misuse the plinth, drawers, doors etc. as a step or

for support. This applies particularly to children.

Danger of food poisoning:

Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

Avoid prolonged skin contact with cold surfaces or refri‐

gerated/frozen goods or take protective measures, e.g

wear gloves.

Do not consume ice cream, water ice or ice cubes imme‐

diately and do not consume them too cold.

General safety instructions

* Depending on model and options 3

Danger of injury and damage:

Hot steam can lead to injury. Do not use electrical

heating or steam cleaning equipment, open flames or

defrosting sprays to defrost.

Do not use sharp implements to remove the ice.

Risk of crushing:

Do not hold the hinge when opening and closing the door.

Fingers may get caught.

Symbols on the appliance:

This symbol may be located on the

compressor. It relates to the oil in the

compressor and makes reference to the

risk that: Swallowing or inhaling can be

fatal. This advice is only relevant to recy‐

cling. There is no danger in normal opera‐

tion.

This symbol is located on the compressor

and indicates the danger of flammable

materials. Do not remove the sticker.

This or a similar sticker may be located

on the rear of the appliance. This sticker

indicates that there are vacuum insulation

panels (VIP) or perlite panels in the door

and/or housing. This advice is only relevant

to recycling. Do not remove the sticker.

Please note the warning messages and other specific

advice in the other chapters:

DANGER

indicates an immediately

hazardous situation which will

lead to death or serious injuries if

it is not avoided.

WARNING indicates a hazardous situation

which may lead to death or serious

injuries if it is not avoided.

CAUTION indicates a hazardous situation

which may lead to minor or

moderate injuries if it is not

avoided.

NOTICE indicates a hazardous situation

which may lead to damage to

property if it is not avoided.

Note indicates useful instructions and

tips.

2 Appliance at a glance

2.1 Scope of delivery

Check all parts for transport damage. Contact your

dealer or customer service in the event of complaints.

(see 10.4 Customer Service)

Your new appliance comes with the following parts:

Built-in appliance

Features (depending on the model)

Installation materials (depending on the model)

“Quick Start Guide”

“Installation Guide”

2.2 Overview of the appliance and

equipment

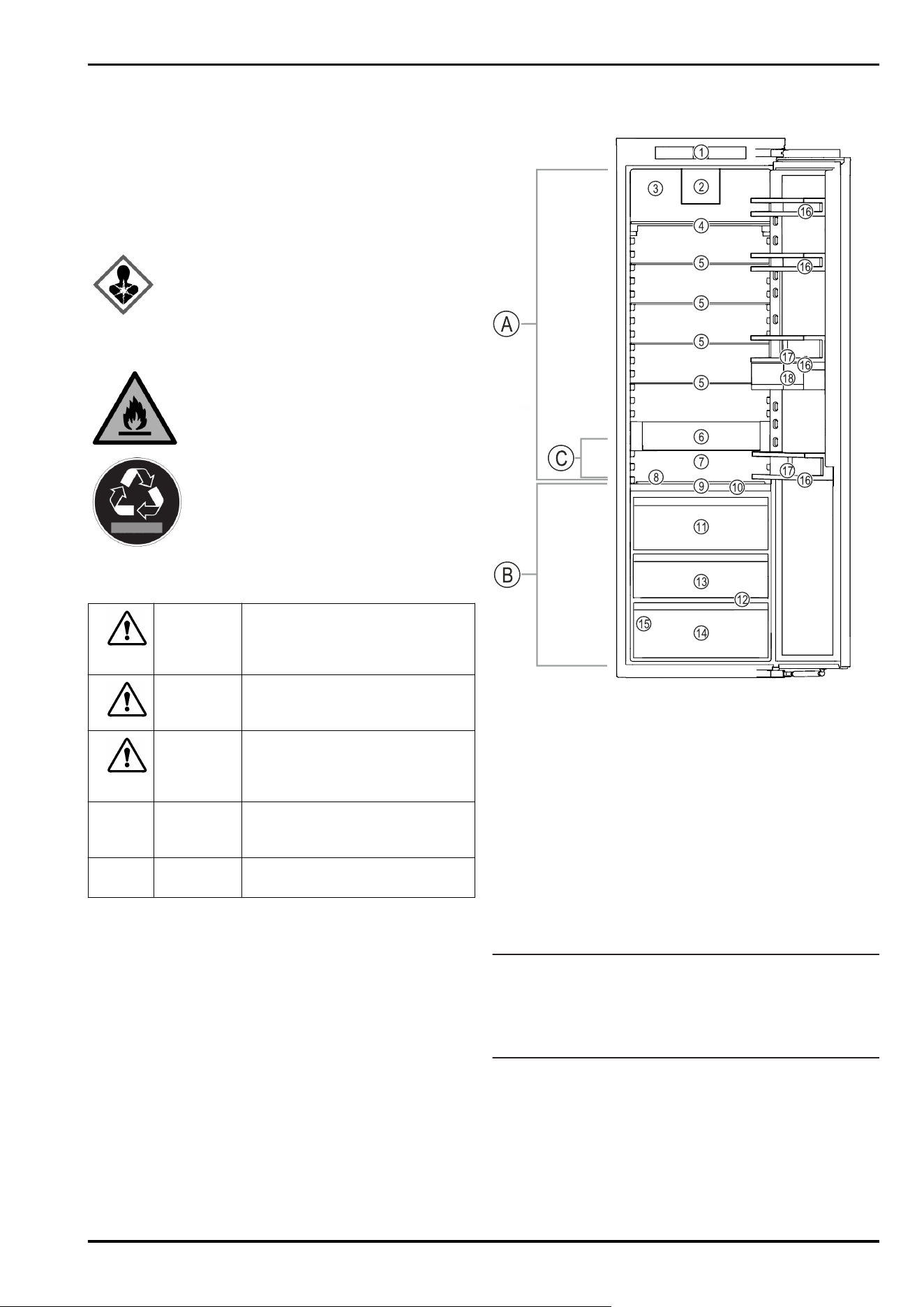

Fig. 1 Example illustration

Temperature range

(A)

Fridge section (C) Coldest area

(B) BioFresh

Equipment

(1)

Controls (10) Lid for Fruit & Vegetable-

Safe

(2) Fan with FreshAir acti‐

vated charcoal filter

(11) Fruit & Vegetable-Safe

(3) Dry rear wall (12) Drain opening

(4) Divisible shelf (13) Fish & Seafood-Safe

(5) Shelf (14) Meat & Diary-Safe

(6) VarioSafe (15) Type plate

(7) Space for baking tray (16) Door racks

(8) Variable bottle rack (17) Bottle holder

(9) HydroBreeze (18) VarioBoxes

Note

► Shelves, drawers and baskets are arranged for optimum

energy efficiency when the appliance is delivered.

Changing how the shelves, for example, are inserted in

the fridge compartment does not have any impact on

energy consumption.

2.3 SmartDevice

SmartDevice is the networking solution for your refrigerator.

If your appliance SmartDevice-enabled or compatible, you

can quickly and easily connect your appliance to your

WiFi. With the SmartDevice app, you can operate your appli‐

ance from a mobile device. Additional functions and setting

options are available in the SmartDevice SmartDevice app.

Appliance at a glance

4 * Depending on model and options

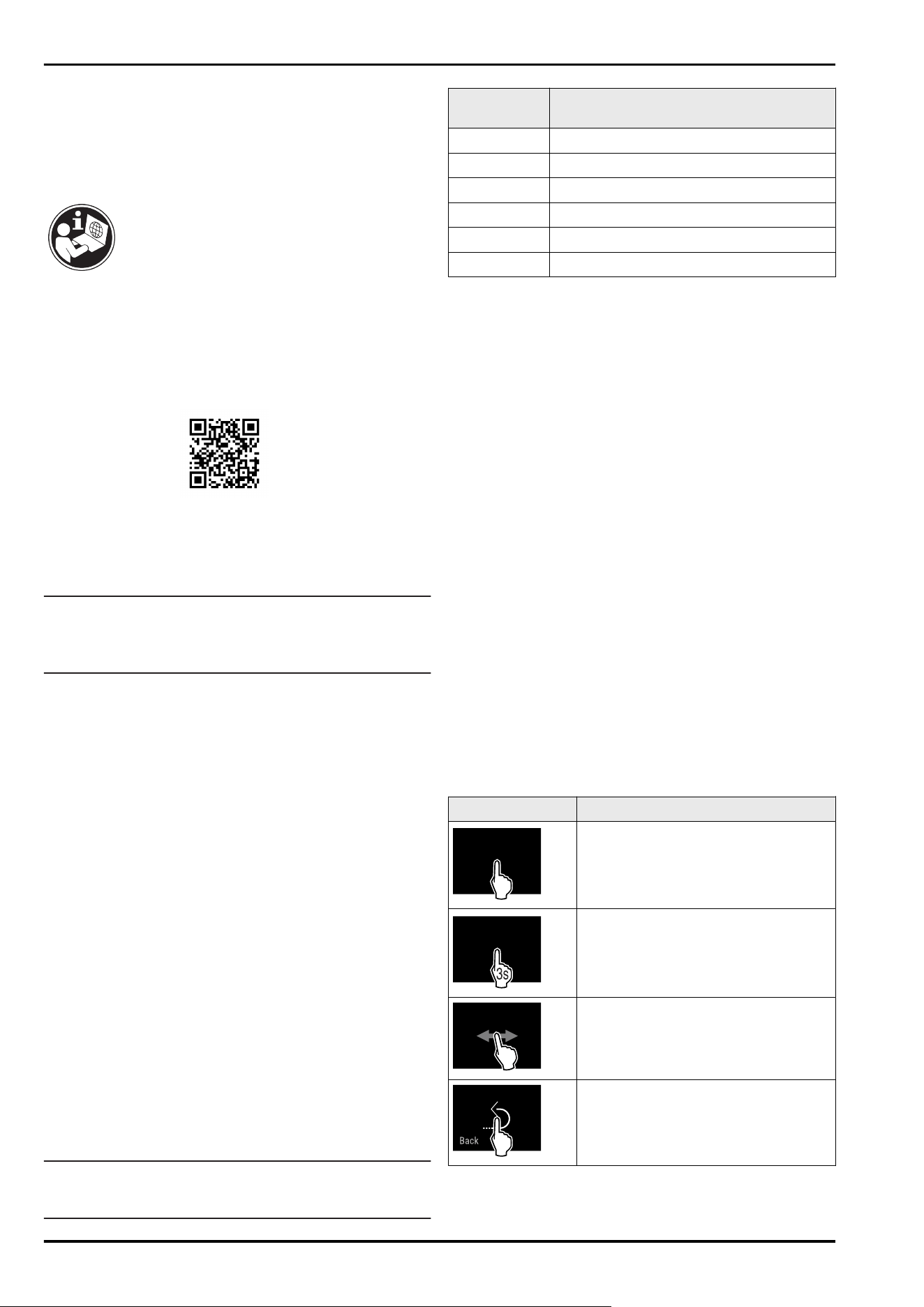

SmartDevice-

compatible appli‐

ance:

Your appliance is compatible for use

with the SmartDeviceBox. You must

first purchase and install the Smart‐

DeviceBox. In order to connect your

appliance to the WiFi, you need to

download the SmartDevice app.

More information

about SmartDe‐

vice:

smartdevice.liebherr.com

Purchasing the

SmartDeviceBox

in the Liebherr-

Hausgeräte store:

home.liebherr.com/shop/de/deu/

smartdevicebox.html

Downloading the

SmartDevice app:

After installing and configuring

the SmartDevice app, you can

connect your appliance to your Wi-Fi

(see WiFi) using the SmartDevice app

and the appliance's Wi-Fi function.

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

2.4 Appliance range of use

Intended use

The appliance is only suitable for cooling food products in

a domestic or household-like environment. This includes, for

example, use:

in staff kitchens, bed and breakfast establishments,

by guests in country houses, hotels, motels and other

accommodation,

for catering and similar services in the wholesale trade.

The appliance is not suitable for freezing food;

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly forbidden:

Storing and refrigerating medicines, blood plasma, labo‐

ratory preparations or similar substances and products

based on the Medical Device Directive 2007/47/EC

Use in outdoor areas with very high humidity

Use in areas at risk of explosions

Misusing the appliance may lead to damage to the goods

stored or they may spoil.

Climate classifications

Depending on the climate classification the appliance is

designed to operate in restricted ambient temperatures. The

climate classification applying to your appliance is printed

on the rating plate.

Note

► Keep to the specified ambient temperatures in order to

guarantee that the appliance works properly.

Climate clas‐

sification

for ambient temperatures of

SN 10°C to 32°C

N 16°C to 32°C

ST 16°C to 38°C

T 16°C to 43°C

SN-ST 10°C to 38°C

SN-T 10°C to 43°C

2.5 Conformity

The refrigerant circuit has been tested for leaks. When

installed, the appliance complies with the applicable safety

regulations and with the corresponding directives.

The full text of the EU Declaration of Conformity is available

on the following website: www.Liebherr.com

The BioFresh compartment meets the requirements of a

cold storage compartment as set out in DIN EN 62552:2020.

2.6 Spare parts

The spare parts availability for functional parts and stock‐

able parts of the equipment is 15 years.

3 Functionality of the

Touch&Swipe display

You operate your appliance using the Touch & Swipe display.

You select appliance functions in the Touch & Swipe display

(hereafter referred to as display) by tapping them. If you

do not perform any action on the display for 10 seconds,

the display either jumps back to the higher-level menu or

directly to the status display.

3.1 Navigation and symbol explanation

In the illustrations, different symbols are used to navigate

the display. The following table describes these symbols.

Symbol

Description

Briefly touch the display:

Activates/deactivates function.

Confirms selection.

Opens submenu.

Touch the display for a specified time

(e.g. 3seconds):

Activates/deactivates function or

value.

Swipe left or right:

Navigate in the menu.

Briefly touch the Back symbol:

Jumps back one menu level.

Functionality of the Touch&Swipe display

* Depending on model and options 5

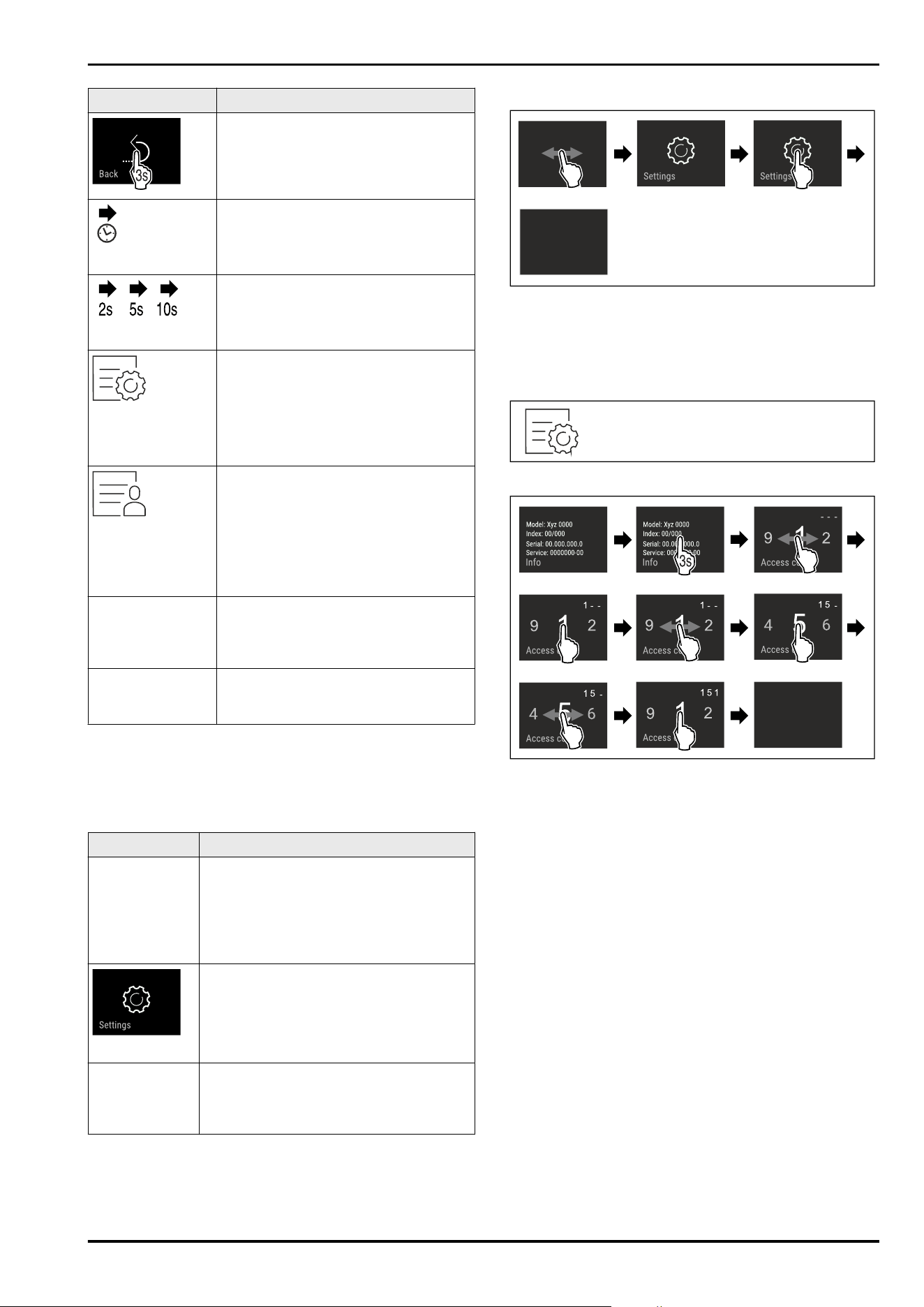

Symbol Description

Press and hold the Back symbol for

3seconds:

Jumps back to the status display.

Arrow with clock:

It takes more than 10 seconds for the

following message to appear in the

display.

Arrow with a time indication:

It takes the specified amount of time

until the following message appears in

the display.

“Open Settings menu” symbol:

Navigates to the Settings menu and

opens the settings menu.

If necessary: Navigate to the desired

function in the Settings menu.

(see 3.2.1 Opening the Settings menu)

“Open Advanced menu” symbol:

Navigates to the Advanced menu and

opens the advanced menu.

If necessary: Navigate to the desired

function in the Advanced menu.

(see 3.2.2 Opening the expanded

menu)

No action for

10seconds

If you do not perform any action on

the display for 10 seconds, the display

either jumps back to the higher-level

menu or directly to the status display.

Open door and

close it again.

If you open the door and immedi‐

ately close it again, the display jumps

directly back to the status display.

Note: Illustrations of the display are shown in the English

version.

3.2 Menus

The appliance functions are distributed over various menus:

Description

Main menu When you switch the appliance on, you

are automatically in the main menu.

From here you can navigate to the most

important appliance functions, to the

Settings menu and to the Advanced

menu.

Settings menu

The Settings menu contains additional

appliance functions for setting up your

appliance.

Advanced menu The advanced menu contains special

appliance functions for setting up your

appliance. Access to the Advanced menu

is protected by the numerical code 151.

3.2.1 Opening the Settings menu

Fig. 2 Example illustration

► Carry out action steps according to the illustration.

▷ Settings menu is open.

► If necessary: Navigate to the desired function.

3.2.2 Opening the expanded menu

Fig.3

Fig. 4 Example illustration, access with numerical code 151

► Carry out action steps according to the illustration.

▷ The expanded menu is open.

► If necessary: Navigate to the desired function.

3.3 Sleep mode

If you do not touch the display for 1 minute, the display

switches to sleep mode. In sleep mode, the display bright‐

ness is dimmed.

3.3.1 Ending sleep mode

► Touch the display briefly with your finger.

▷ Sleep mode is ended.

4 Putting into operation

4.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

❑

The appliance is properly installed and connected

according to the installation instructions.

❑

All adhesive strips, adhesive and protective films and

transport locks are removed from inside and on the appli‐

ance.

Putting into operation

6 * Depending on model and options

❑

All marketing leaflets are removed from the drawers.

❑

You are familiar with the functionality of the

Touch & Swipe display. (see 3 Functionality of the

Touch&Swipe display)

Switch on the appliance using the Touch&Swipe display:

► If the display is in sleep mode: Briefly touch the display.

► Carry out action steps according to the illustration.

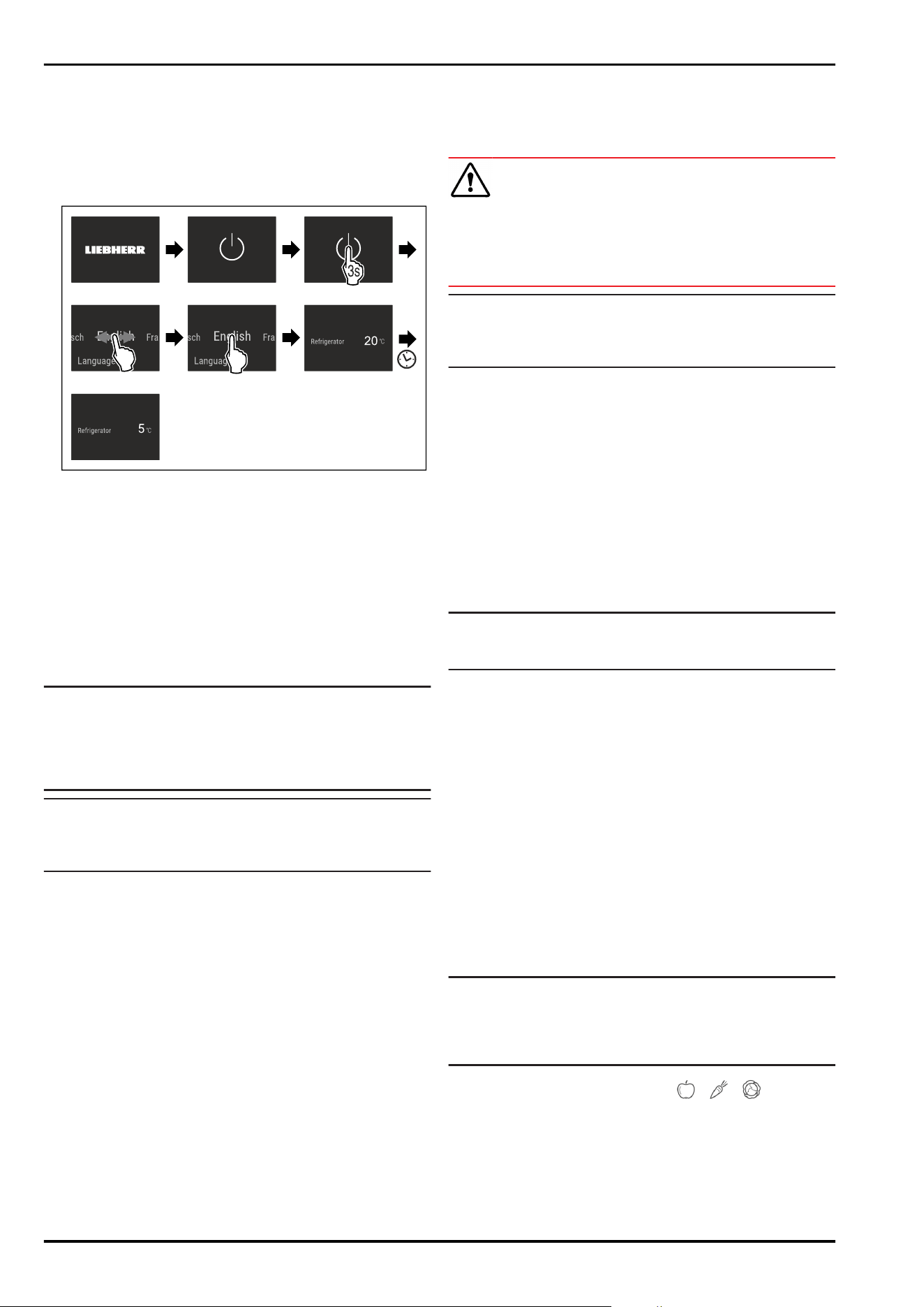

Fig. 5 Example illustration

▷ Status display appears.

▷ The appliance cools to the temperature set at the factory.

▷ The appliance starts in demo mode (status display with

DEMO appears): If the appliance starts in demo mode,

you can deactivate demo mode within the next 5 minutes.

(seeDemo mode)

More information:

Start the HydroBreeze for the first time. (see 4.2 Starting

the HydroBreeze for the first time)

Start the SmartDevice for the first time. (see 2.3 Smart‐

Device) and (seeWiFi)

Note

The manufacturer recommends:

► Stock with food: Wait for around 6 hours until the set

temperature is reached.

► Observe the notes on storing food. (see 5.1 Information

regarding storage)

Note

Accessories can be purchased from the Liebherr-

Hausgeräte store at home.liebherr.com/shop/de/deu/

zubehor.html.

4.2 Starting the HydroBreeze for the

first time

If your appliance is equipped with HydroBreeze, you must

clean the HydroBreeze before using it for the first time.

Make sure that the following requirements are fulfilled:

❑

The appliance is properly installed and connected.

► Clean the HydroBreeze. (see 9.6.4 Cleaning the Hydro‐

Breeze)

► Fill the water tank. (see 8.9.1 Fill the water tank)

► Activate HydroBreeze. (see HydroBreeze)

5 Storage

5.1 Information regarding storage

WARNING

Fire hazard from electrical appliances!

If you use electrical appliances in the food area of your

appliance, they can cause a fire.

► Do not use electrical appliances in the food area of the

appliance unless recommended by the manufacturer.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always keep air slots clear.

Observe the following specifications for storage:

Keep the air vents on the fan free.

Package or cover foods that readily take on or give off

odours or taste in closed containers.

Package raw meat or fish in clean, closed containers.

This will prevent meat or fish from touching or dripping

onto other food.

Keep liquids in closed containers.

Leave space between goods to ensure good air circula‐

tion.

Store food according to the instructions on the pack‐

aging.

Always observe the best-before date indicated on the

packaging.

Note

Failure to follow these guidelines can lead to foodstuffs

spoiling.

5.2 Fridge compartment

The air circulation in the appliance creates different temper‐

ature zones. You will find the different temperature zones in

the appliance and equipment overview. (see 2.2 Overview of

the appliance and equipment)

5.2.1 Arranging your food properly

► Upper area and door: Store butter, cheese, tinned food

and tubes.

► Coldest temperature zone: Store perishable foods such

as pre-cooked meals.

5.3 BioFresh

BioFresh will extend the storage time for some fresh foods

compared to traditional refrigeration.

Note

If the temperature drops below 0°C foods may freeze.

► Store cold-sensitive produce such as cucumbers, auber‐

gines, courgettes and tropical fruit in the fridge compart‐

ment.

5.3.1 Fruit & Vegetable safe

This safe creates a storage climate of close to 0 °C. The

compartment lid ensures constant levels of humidity. This

storage climate is suitable for storing unpackaged food with

high intrinsic moisture (for example, lettuce, vegetables,

fruit).

Storage

* Depending on model and options 7

The humidity in the compartment depends on the moisture

content of the chilled goods placed in it, and also depends

on how often the compartment is opened. You can regulate

the humidity level.

Arranging your food properly

► Store unpackaged fruit and vegetables.

If the humidity is too high:

► Regulate the humidity.

5.3.2 Meat & Dairy safe

This safe creates a storage climate of close to 0 °C. This

storage climate is suitable for more sensitive foods (e.g.

dairy products, meat, sausage).

Arranging your food properly

► Store dry or packaged food.

5.3.3 Fish & Seafood safe

This safe creates a storage climate of between -2 °C and

0 °C. This storage climate is great for dry or packaged

groceries (for example, dairy products, meat, fish, seafood,

sausage).

This compartment includes a Fish & Seafood tray that you

can move or take away.

You can set the temperature via the Touch & Swipe display.

Dividing the compartment into different temperature zones

is only possible with the Fish & Seafood tray inserted.

(see Setting the temperature in the fridge section)

The following temperature combinations are possible:

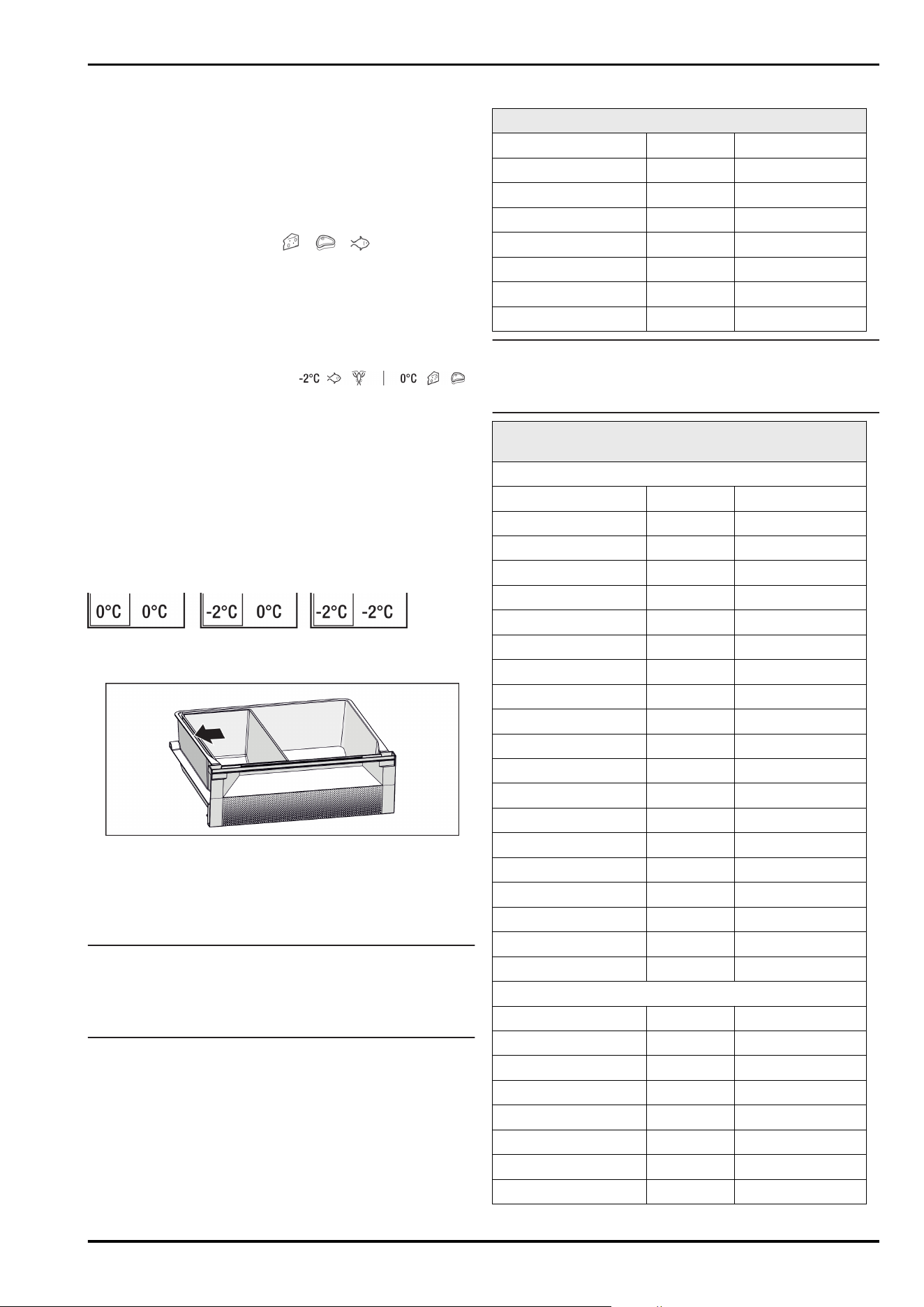

Fig.6

Arranging your food properly

Fig.7

► For an optimum cooling function: Position Fish & Seafood

tray according to illustration (see Fig.7) .

► Temperature zone -2°C: Store fresh seafood or fish.

► Temperature zone 0 °C: Store dairy products or packaged

meats.

Note

You can achieve the highest level of energy efficiency using

the temperature combination 0°C /0°C.

Energy consumption is slightly higher using the temperature

combination -2°C /0°C and -2°C /-2°C.

5.4 Storage times

Refer to the specified storage times as a guide.

In the case of foods with a minimum shelf life, the date

indicated on the packaging still applies.

5.4.1 Fridge section

Always follow the best-before date stated on the packaging.

5.4.2 BioFresh

Recommended storage periods in the Meat & Dairy-Safe

Butter at 1°C up to 90 days

Hard cheese at 1°C up to 110 days

Milk at 1°C up to 12 days

Sausage, cold meats at 1°C up to 8 days

Poultry at 1°C up to 6 days

Pork at 1°C up to 6 days

Beef at 1°C up to 6 days

Game at 1°C up to 6 days

Note

► Remember that high-protein foods perish quicker; shell‐

fish and crustaceans do not last as long as fish, and fish

does not last as long as meat.

Recommended storage periods in the Fruit & Vegetable-

Safe

Vegetables, salads

Artichokes at 1°C up to 14 days

Celery at 1°C up to 28 days

Cauliflower at 1°C up to 21 days

Broccoli at 1°C up to 13 days

Chicory at 1°C up to 27 days

Lettuce at 1°C up to 19 days

Peas at 1°C up to 14 days

Kale at 1°C up to 14 days

Carrots at 1°C up to 80 days

Garlic at 1°C up to 160 days

Turnip at 1°C up to 14 days

Lettuce at 1°C up to 13 days

Herbs at 1°C up to 13 days

Leeks at 1°C up to 29 days

Mushrooms at 1°C up to 7 days

Radishes at 1°C up to 10 days

Brussels sprouts at 1°C up to 20 days

Asparagus at 1°C up to 18 days

Spinach at 1°C up to 13 days

Savoy at 1°C up to 20 days

Fruit

Apricots at 1°C up to 13 days

Apples at 1°C up to 80 days

Pears at 1°C up to 55 days

Blackberries at 1°C up to 3 days

Dates at 1°C up to 180 days

Strawberries at 1°C up to 7 days

Figs at 1°C up to 7 days

Blueberries at 1°C up to 9 days

Storage

8 * Depending on model and options

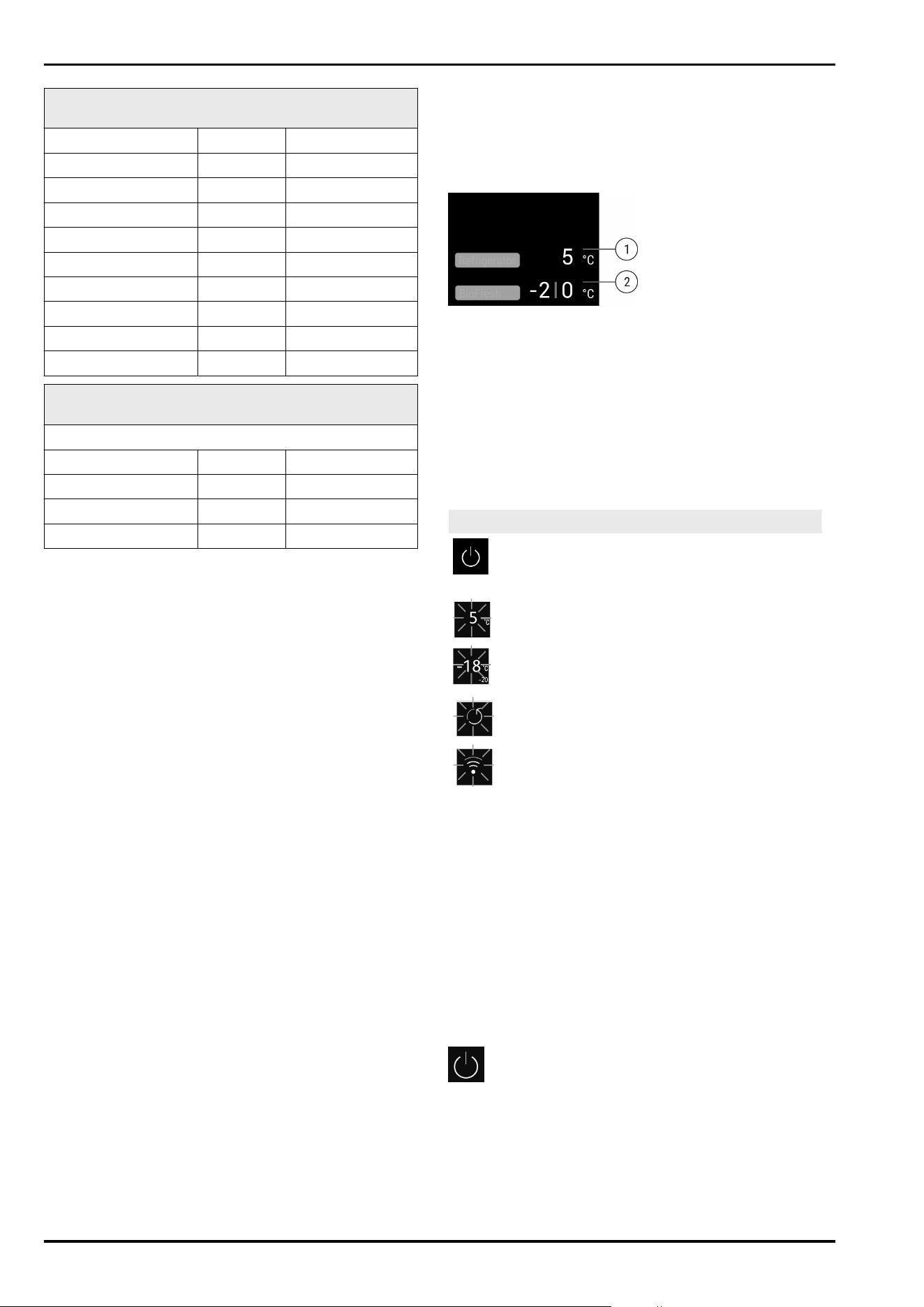

Recommended storage periods in the Fruit & Vegetable-

Safe

Raspberries at 1°C up to 3 days

Currants at 1°C up to 7 days

Sweet cherries at 1°C up to 14 days

Kiwis at 1°C up to 80 days

Peaches at 1°C up to 13 days

Plums at 1°C up to 20 days

Cranberries at 1°C up to 60 days

Rhubarb at 1°C up to 13 days

Gooseberries at 1°C up to 13 days

Grapes at 1°C up to 29 days

Recommended storage periods in the Fish & Seafood-

Safe

Seafood

Crabs at -2°C up to 4 days

Mussels at -2°C up to 6 days

Sushi at -2°C up to 4 days

Fish at -2°C up to 4 days

6 Saving energy

Pay attention to good ventilation. Do not cover ventilation

holes or grids.

Always keep the fan air slits clear.

Do not install the appliance in direct sunlight or near

radiators or similar sources of heat.

If the appliance is installed directly next to an oven,

the energy consumption may increase slightly. This is

dependent on the service life and usage intensity of the

oven.

Energy consumption depends on the installation condi‐

tions, e.g. the ambient temperature (see 2.4 Appliance

range of use) . A warmer ambient temperature can

increase the energy consumption.

Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy

consumption.

Sort your food: home.liebherr.com/food.

Keep all food properly packed and covered. This prevents

frost from forming.

Only take food out for as long as necessary so that it

doesn’t warm up too much.

Inserting warm food: allow to cool down to room temper‐

ature first.

For longer periods of absence, use HolidayMode

(seeHolidayMode) .

7 Controls

7.1 Controls and displays

7.1.1 Status display

Fig. 8 The status display shows the actual temperature.

(1)

Temperature display of

the fridge section

(2) Temperature displayBio‐

Fresh (Fish & Seafood

Safe)

The status display shows the actual temperature and is the

initial display. Navigation to the functions takes place from

there.

7.1.2 Display symbols

Display symbols provide information on the current appli‐

ance status:

Symbol

Appliance status

Standby

The appliance or temperature zone

is switched off.

Flashing number

Appliance is working. Temperature

flashes until the set temperature is

reached.

Flashing symbol

Appliance is working. Setting is

made.

7.2 Appliance functions

7.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your

appliance is fully functional.

Before you alter, activate or deactivate the device functions,

make sure that the following requirements are met:

❑

You have read and understood the descriptions of

how the display works. (see 3 Functionality of the

Touch&Swipe display)

❑

You have familiarised yourself with the operating and

display elements of your appliance.

Switching the appliance off and on

Use this function to switch the entire appliance off and on.

Switching off the appliance

When you switch the appliance off, then the previously

saved settings are saved.

Saving energy

* Depending on model and options 9

Make sure that the following requirements are fulfilled:

❑

Handling instructions (see 11 Shutting down) are carried

out.

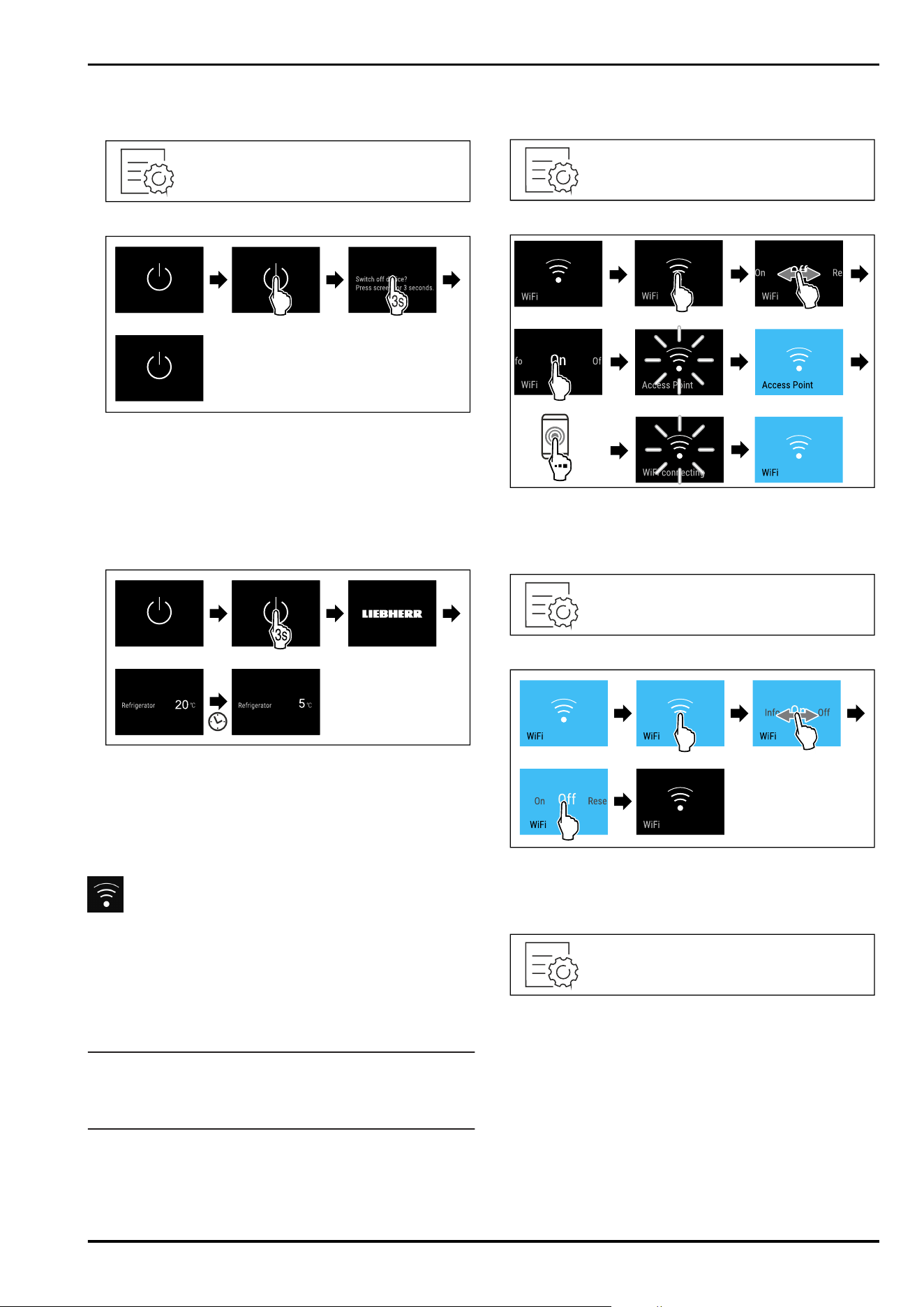

Fig.9

Fig. 10

► Carry out action steps according to the illustration.

▷ Appliance is switched off.

▷ The standby symbol appears in the display.

▷ Display turns black.

Switching on the appliance

If the display is in sleep mode:

► Briefly touch the display.

Fig. 11 Example illustration

► Carry out action steps according to the illustration.

When the appliance starts in demo mode:

► Deactivating demo mode. (see Deactivating demo mode)

▷ The appliance is switched on.

▷ Previous settings are restored.

▷ The appliance cools to the target temperature set.

WiFi

Use this function to connect your appliance to WiFi. You can

then operate it via the SmartDevice app on a mobile device.

You can also use this function to disconnect or reset the

WiFi connection.

To connect your device to WiFi, you need the SmartDevi‐

ceBox.

More information on the SmartDevice: (see 2.3 SmartDevice)

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

❑

You have purchased and inserted a SmartDeviceBox.

(see 2.3 SmartDevice)

❑

You have installed the SmartDevice app (see

apps.home.liebherr.com).

❑

Registration in the SmartDevice app is completed.

Fig.12

Fig.13

► Carry out action steps according to the illustration.

▷ Connection is established.

Disconnecting from the WiFi

Fig. 14

Fig. 15

► Carry out action steps according to the illustration.

▷ There is no connection.

Resetting the WiFi connection

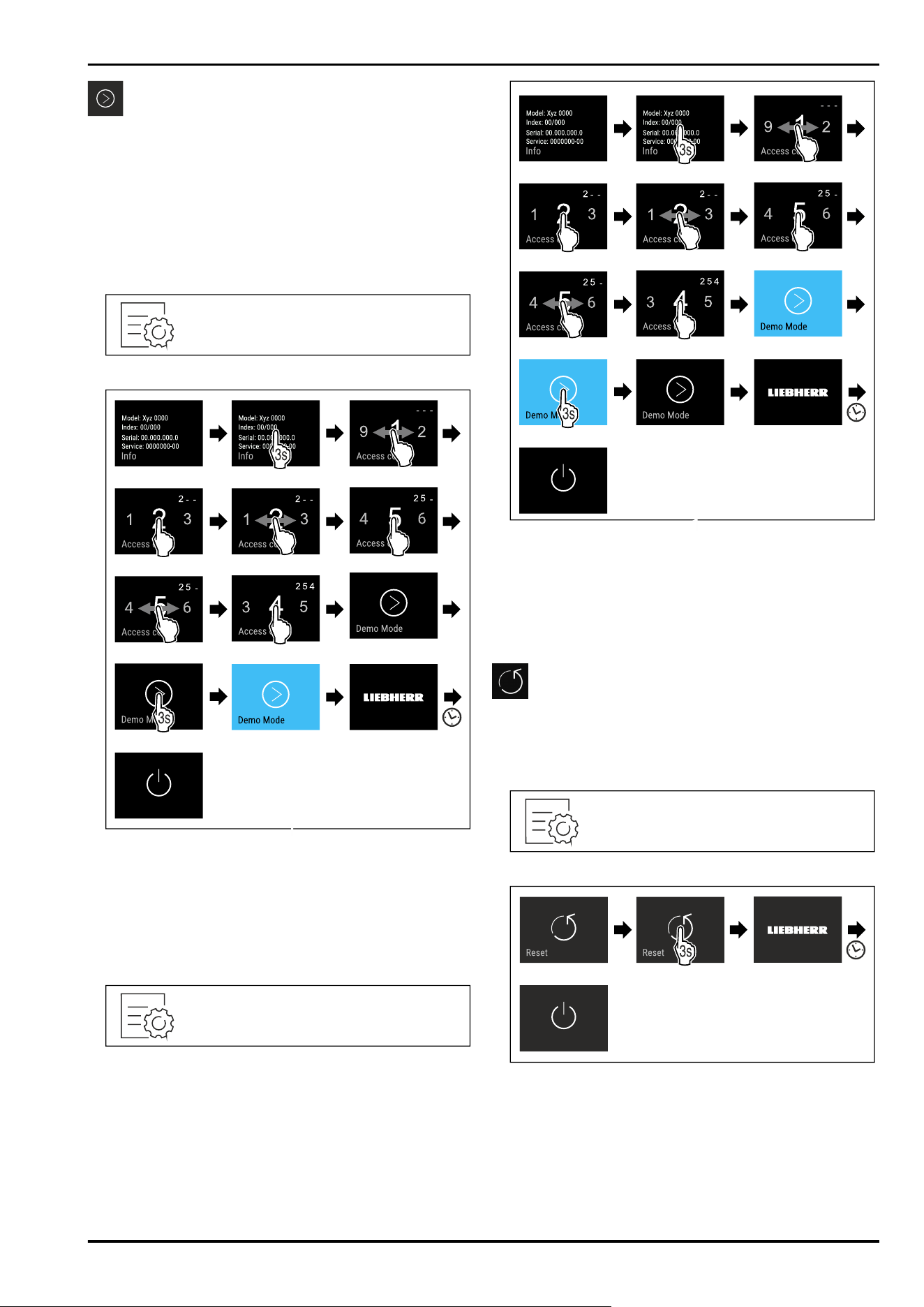

Fig. 16

Controls

10 * Depending on model and options

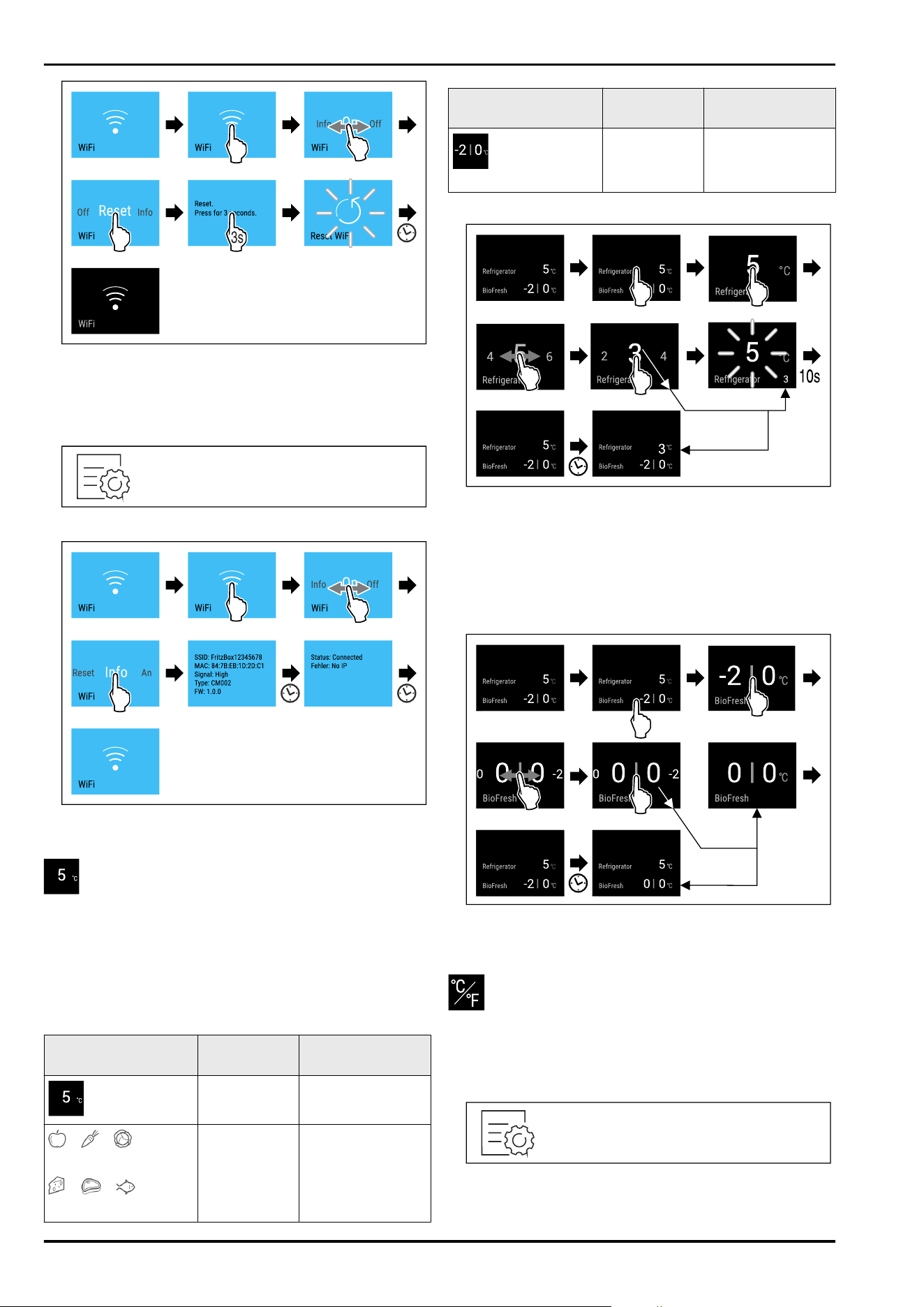

Fig.17

► Carry out action steps according to the illustration.

▷ WiFi connection and other WiFi settings are reset to

factory settings.

Showing information about the WiFi connection

Fig. 18

Fig. 19

► Carry out action steps according to the illustration.

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

Frequency of door opening

Duration of door opening

Room temperature of the installation site

Type, temperature and quantity of food

Temperature zone

Factory-set

temperature

Recommended

setting

Fridge section

5°C 4°C

Fruit & Vegetable-safe

Meat & Dairy-safe

0°C B-Value

(see BioFresh B-

Value )

Temperature zone Factory-set

temperature

Recommended

setting

Fish & Seafood-

safe

-2°C| 0°C (see 5.3.3 Fish & S

eafood safe)

Setting the temperature in the fridge section

Fig. 20 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Setting the temperature in BioFresh

Set the temperature using the BioFresh B-Value.

(see BioFresh B-Value )

Setting the temperature in the Fish & Seafood safe

Fig. 21 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Temperature unit

Use this function to set the temperature unit. You can set

degrees Celsius or degrees Fahrenheit as the temperature

unit.

Setting the temperature unit

Fig.22

Controls

* Depending on model and options 11

Fig. 24 Example illustration: Switch from degreesCelsius

to degrees Fahrenheit.

► Carry out action steps according to the illustration.

▷ The temperature unit is set.

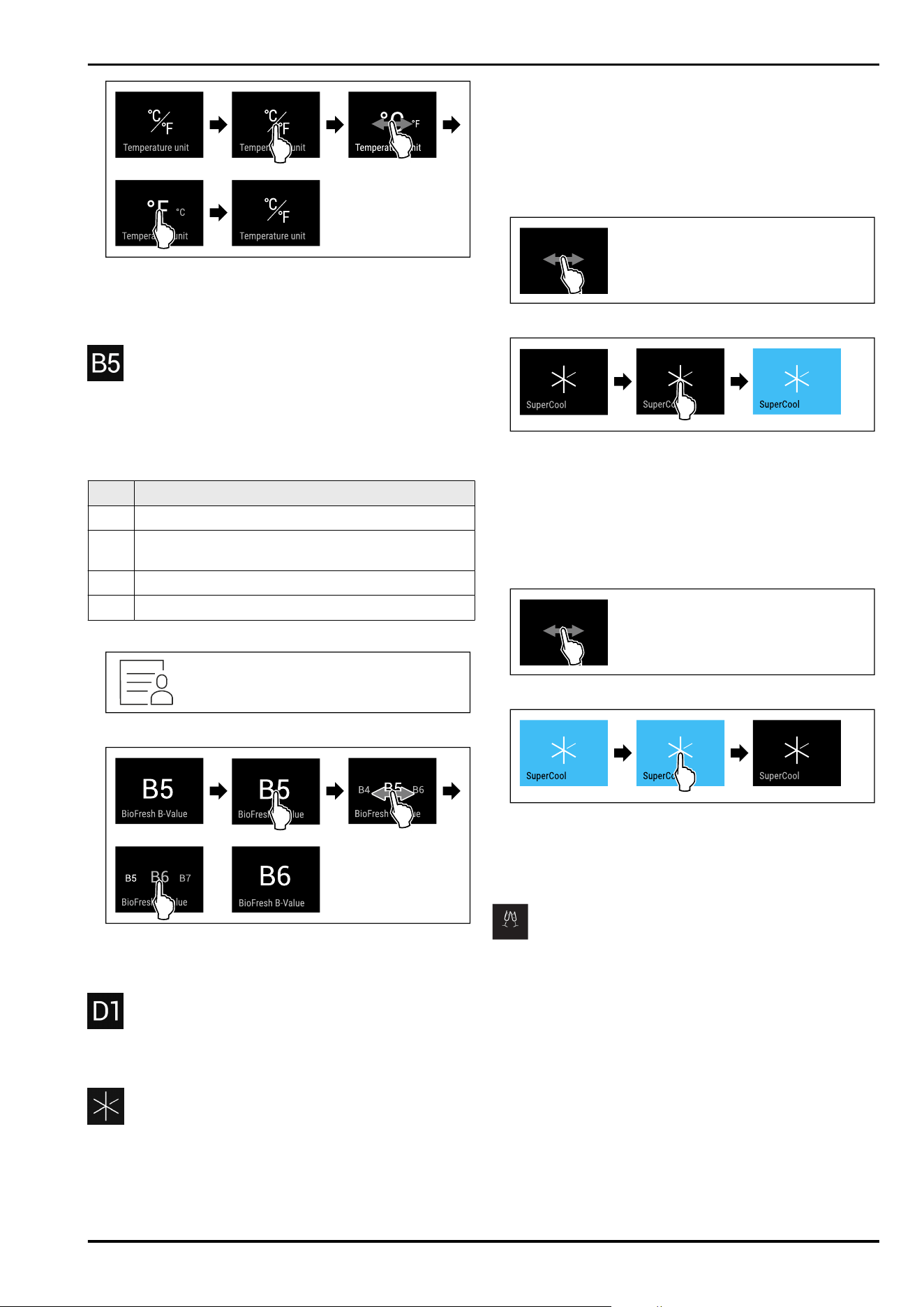

BioFresh B-Value

Use this function to set the BioFresh B-Value. With the

BioFresh B-Value, you can set BioFresh slightly warmer or

colder if necessary due to higher or lower ambient temper‐

atures. The BioFresh B-Value is pre-set to value B5 as deliv‐

ered. If you change the B-Value, refer to the following table:

Value

Description

B1 Lowest temperature

B1-B4 The temperature can drop below 0 °C which means

foods can easily freeze.

B5 Pre-set temperature

B9 Highest temperature

Setting the BioFresh B-Value

Fig.25

Fig. 27 Example illustration: Switch from B5 to B6.

► Carry out action steps according to the illustration.

▷ The BioFresh B-Value is set.

D-Value

The D-Value is pre-set for your appliance and is not

permitted to be changed.

SuperCool

You can use this function to activate or deactivate Super‐

Cool. If SuperCool is activated, then the appliance increases

the cooling capacity. It allows you to achieve lower cooling

temperatures. You can activate SuperCool when you would

like to cool a large quantity of food quickly.

If the function is active, the appliance operates at higher

power. As a result, the appliance's operating noise may be

temporarily louder and energy consumption will increase.

Activating SuperCool

Time for activation of the function:

When you would like to store fresh food in the fridge

section: Activate the function when inserting food.

Fig.28

Fig.29

► Carry out action steps according to the illustration.

▷ SuperCool is activated.

▷ The temperature display turns blue.

Deactivating SuperCool

SuperCool is deactivated automatically after 18 hours.

However, you can also deactivate SuperCool manually at

any time:

Fig.30

Fig.31

► Carry out action steps according to the illustration.

▷ SuperCool is deactivated.

▷ The appliance continues to run in normal mode.

▷ The appliance cools to the temperature set previously.

PartyMode

You can use this function to activate or deactivate Party‐

Mode. PartyMode activates various functions that are useful

for a party.

PartyMode activates the following functions:

SuperCool (seeSuperCool)

You can adjust all listed functions individually and flexibly.

When you deactivate PartyMode, all changes are discarded.

If the function is active, the device operates at higher

power. As a result, the device's operating noise may be

temporarily louder and energy consumption will increase.

Controls

12 * Depending on model and options

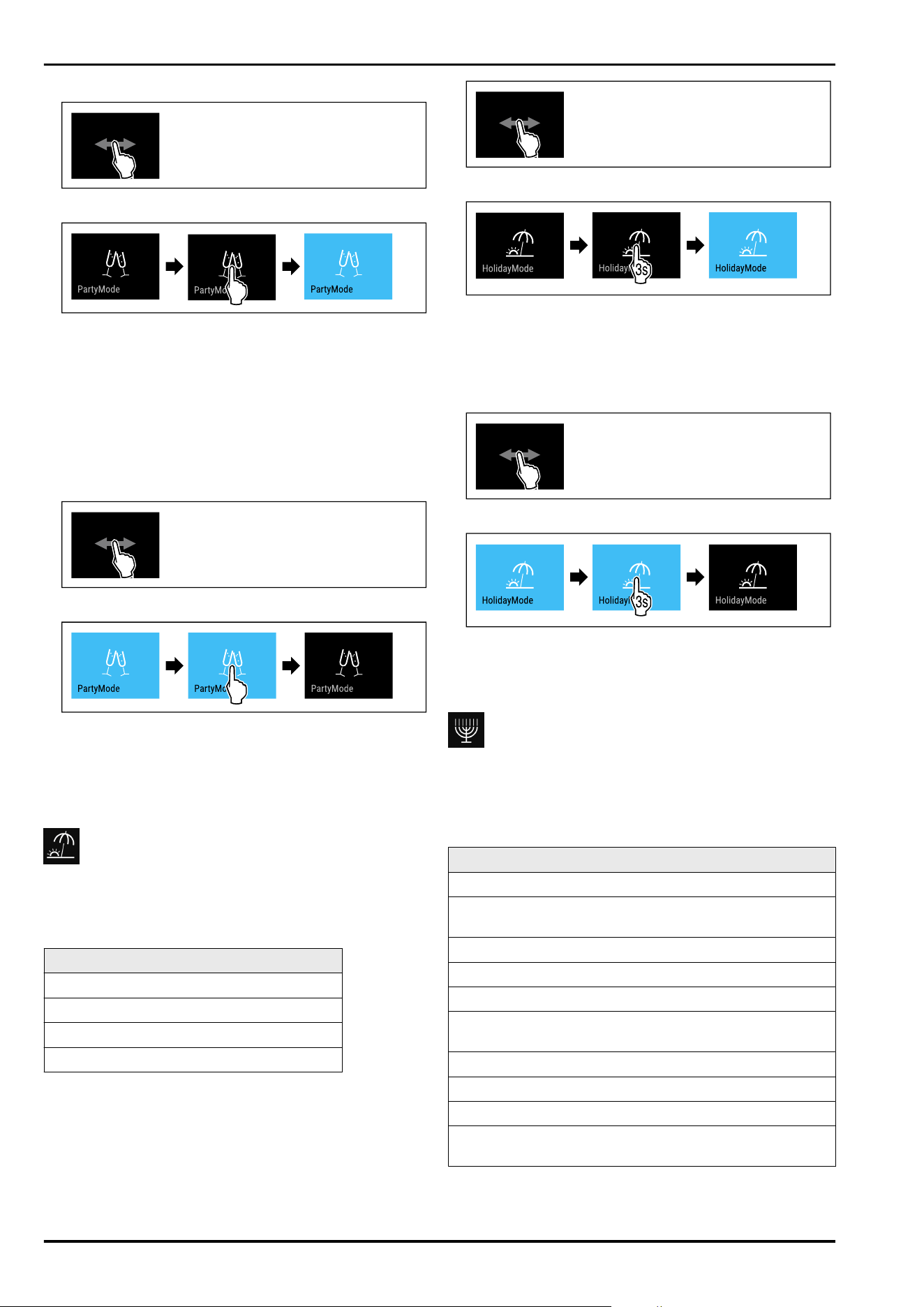

Activating PartyMode

Fig.32

Fig.33

► Carry out action steps according to the illustration.

▷ PartyMode and the associated functions are activated.

▷ The temperature display turns blue.

▷ The current temperature flashes until the target tempera‐

ture is reached.

Deactivating PartyMode

The PartyMode is automatically deactivated after

24 seconds. However, you can also deactivate PartyMode

manually at any time:

Fig.34

Fig.35

► Carry out action steps according to the illustration.

▷ PartyMode is deactivated.

▷ The appliance cools to the temperature set previously:

The current temperature flashes until the target tempera‐

ture is reached.

HolidayMode

You can use this function to activate or deactivate Holiday‐

Mode. If you activate HolidayMode, the fridge section is set

to 15 °C. This saves you energy during longer periods of

absence and prevents bad odours and growth of mould.

Appliance status when HolidayMode is active

Fridge section cools to 15°C.

BioFresh cools to 15°C.

PartyMode is deactivated.

SuperCool is deactivated.

Activating HolidayMode

► Empty the fridge section completely.

► Empty BioFresh completely.

Fig.36

Fig.37

► Carry out action steps according to the illustration.

▷ HolidayMode is activated.

▷ Temperature display turns blue and shows HolidayMode

symbol.

Deactivating HolidayMode

Fig.38

Fig. 39

► Carry out action steps according to the illustration.

▷ HolidayMode is deactivated.

▷ The appliance cools to the temperature set previously.

SabbathMode

You can use this function to activate or deactivate

SabbathMode. If you activate this function, some electronic

functions are switched off. As a result, your device meets

the religious requirements for Jewish holidays such as

Sabbath and complies with STAR-K Kosher certification.

Device status when SabbathMode is active

The status display shows SabbathMode permanently.

All functions on the display are locked except for the

Deactivate SabbathMode function.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Reminders are not implemented. The set time interval

stops.

Reminders and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The defrosting cycle operates only for the specified time,

without considering the appliance consumption.

Controls

* Depending on model and options 13

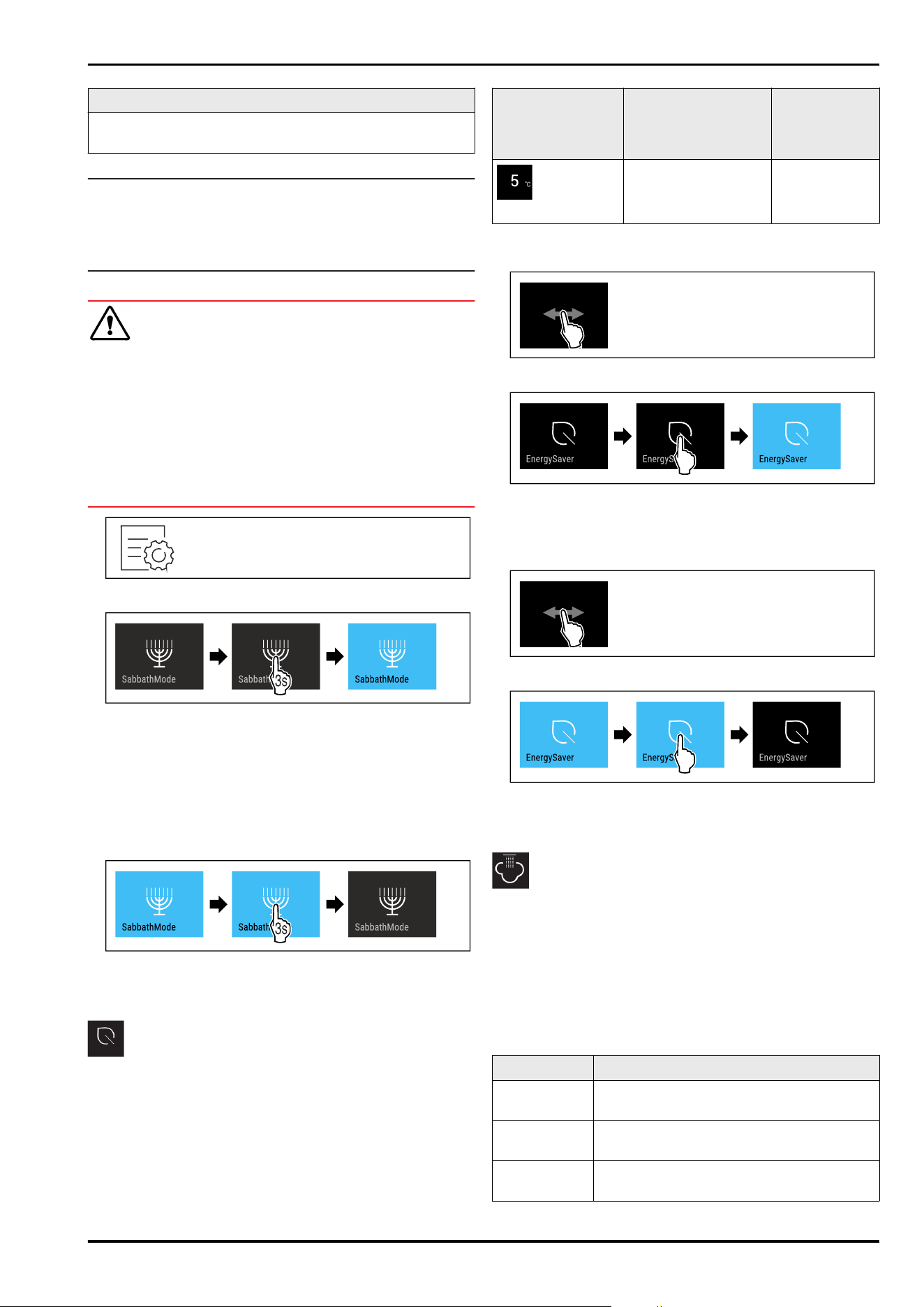

Device status when SabbathMode is active

After a power failure, the appliance returns to

SabbathMode.

Device status

Note

This appliance has certification from the “Institute for

Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at

www.star-k.org/appliances.

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food!

If you have SabbathMode activated and a power failure

occurs, no message appears in the status display about the

power failure. Once the power is restored, the appliance

continues to operate in SabbathMode. The power failure

may mean that food spoils and the consumption of this food

could lead to food poisoning.

After a power failure:

► Do not consume food that was frozen and has thawed

out.

Fig.40

Fig. 41

► Carry out action steps according to the illustration.

▷ SabbathMode is activated.

▷ The status display shows SabbathMode permanently.

Deactivating SabbathMode

The SabbathMode is automatically deactivated after

80 hours. However, you can also deactivate SabbathMode

manually at any time:

Fig. 42

► Carry out action steps according to the illustration.

▷ SabbathMode is deactivated.

EnergySaver

You can use this function to activate or deactivate Energy

saving mode. If energy saving mode is activated, the energy

consumption decreases and the temperature in the device

increases. The food remains fresh, but the shelf life is short‐

ened.

Temperature zone

Recommended

setting (see Setting

the temperature in

the fridge section)

Temperature

with active

EnergySaver

Fridge

section

4°C 7°C

Temperatures

Activating EnergySaver

Fig.43

Fig.44

► Carry out action steps according to the illustration.

▷ Energy saving mode is activated.

Deactivating EnergySaver

Fig.45

Fig.46

► Carry out action steps according to the illustration.

▷ Energy saving mode is deactivated.

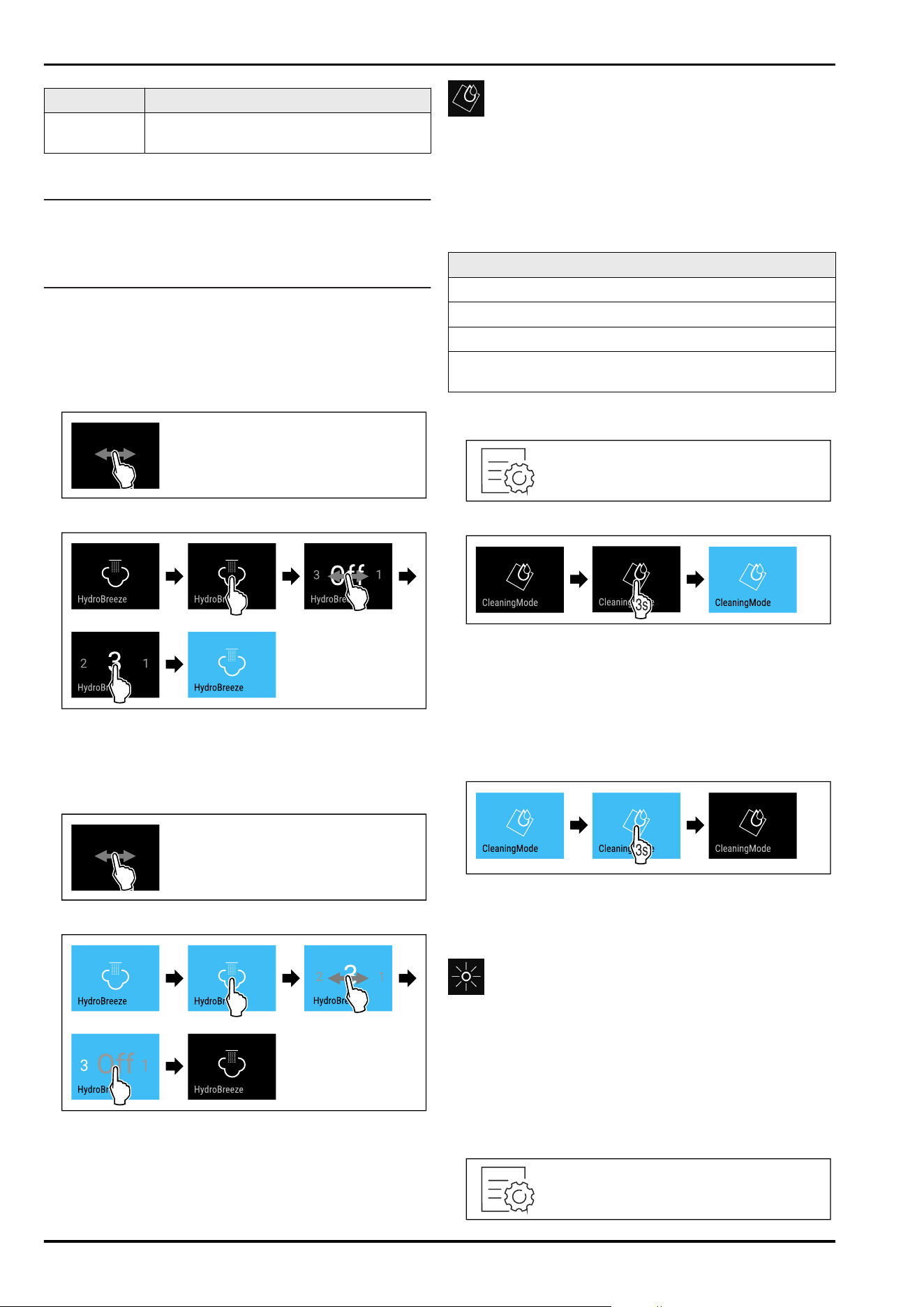

HydroBreeze

You can use this function to activate or deactivate Hydro‐

Breeze. If you activate the function, HydroBreeze generates

a fine, cool mist in BioFresh-safe. This extends the shelf

life of unpackaged salad, vegetables and fruit with high

intrinsic moisture.

If you activate the function, HydroBreeze activates every

90 minutes for 4 seconds when the door is closed. When

you open the door, HydroBreeze activates according to the

setting:

Value

Description

1 HydroBreeze is active for 4 seconds when

the door is open.

2 HydroBreeze is active for 6 seconds when

the door is open.

3 HydroBreeze is active for 8 seconds when

the door is open.

Controls

14 * Depending on model and options

Value Description

Deactivated

(pre-setting)

HydroBreeze is deactivated.

HydroBreeze duration when the door is open

Activating HydroBreeze

Note

If you activate HydroBreeze but there is no food in the

drawer, condensate forms on the base of the drawer.

► Only activate HydroBreeze if you are storing food in the

drawer.

Make sure that the following requirements are fulfilled:

❑

The HydroBreeze is clean. (see 9.6.4 Cleaning the Hydro‐

Breeze)

❑

The water tank is full. (see 8.9.1 Fill the water tank)

Activate HydroBreeze by selecting a value for the Hydro‐

Breeze duration:

Fig. 47

Fig. 48 Example illustration: Activate HydroBreeze with

value 3.

► Carry out action steps according to the illustration.

▷ HydroBreeze is activated.

Deactivating HydroBreeze

Fig. 49

Fig.50

► Carry out action steps according to the illustration.

▷ HydroBreeze is deactivated.

CleaningMode

You can use this function to activate or deactivate Cleaning‐

Mode. CleaningMode enables the appliance to be cleaned

conveniently.

This setting applies to the fridge section.

Application:

Clean the fridge section. (see 9.6Cleaning the appliance)

Device status when CleaningMode is active

The status display shows CleaningMode permanently.

The fridge section is switched off.

Interior lighting is activated.

The reminders and warnings are not displayed. No signal

tone sounds.

Device status

Activating CleaningMode

Fig.51

Fig.52

► Carry out action steps according to the illustration.

▷ CleaningMode is activated.

▷ The status display shows CleaningMode permanently.

Deactivating CleaningMode

CleaningMode is deactivated automatically after

60 minutes. However, you can also deactivate Cleaning‐

Mode manually at any time:

Fig.53

► Carry out action steps according to the illustration.

▷ CleaningMode is deactivated.

▷ The appliance cools to the temperature set previously.

Display brightness

Use this function to set the display brightness in stages.

You can select the following brightness levels:

40%

60%

80%

100 % (pre-setting)

Setting the brightness

Controls

* Depending on model and options 15

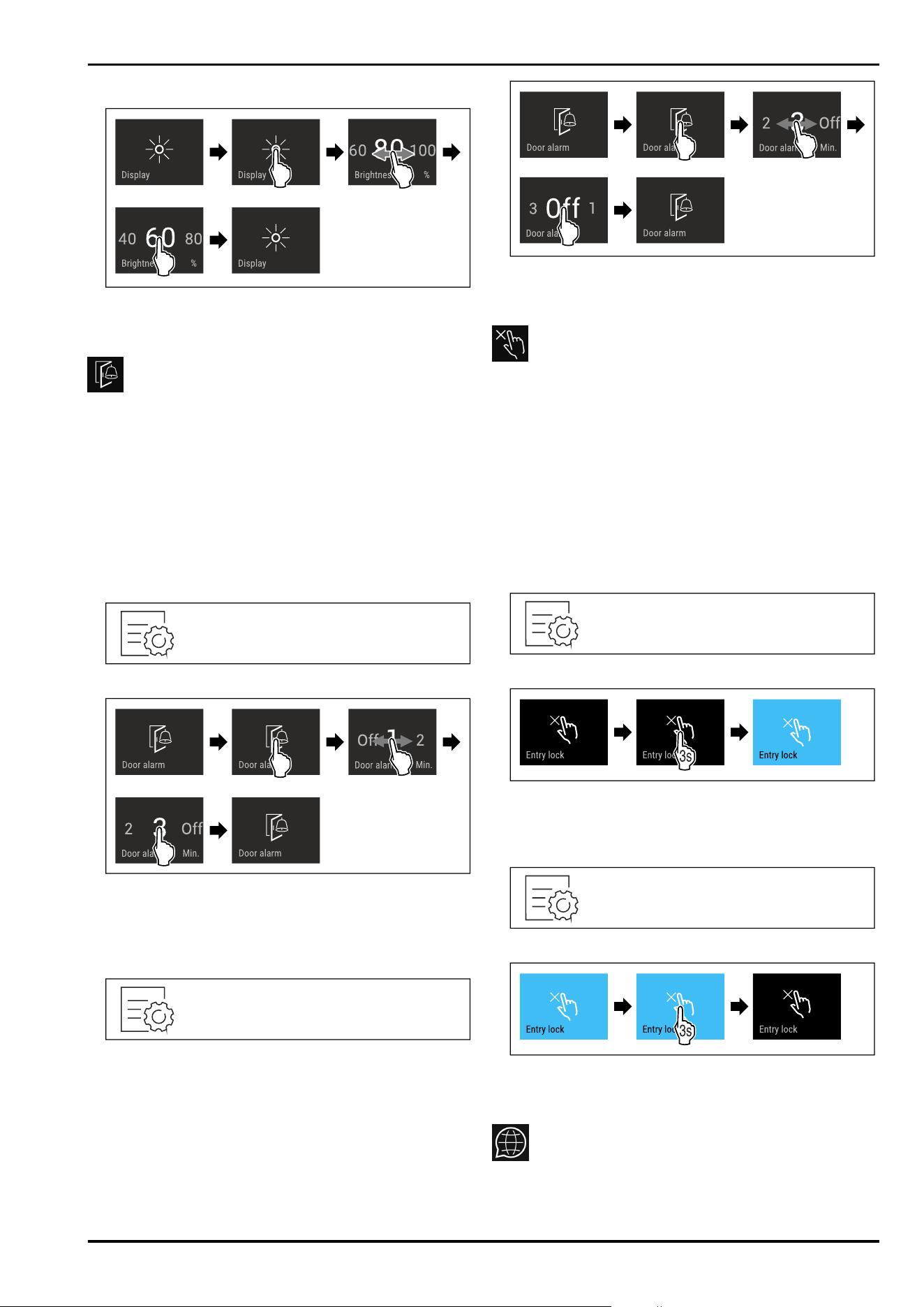

Fig.54

Fig. 55 Example illustration: Switch from 80 % to 60%.

► Carry out action steps according to the illustration.

▷ The brightness is set.

Door alarm

Use this function to activate or deactivate the door alarm.

The door alarm sounds if the door is open for too long. The

door alarm is activated on delivery. You can set how long

the door may be open before the door alarm sounds.

The following values can be set:

1 minute

2 minutes

3 minutes

Off

Setting the door alarm

Fig.56

Fig. 57 Example illustration: Change door alarm from

1 minute to 3 minutes.

► Carry out action steps according to the illustration.

▷ The door alarm is set.

Deactivating the door alarm

Fig. 59

Fig.60

► Carry out action steps according to the illustration.

▷ The door alarm is deactivated.

Input lock

You can use this function to activate or deactivate the input

lock. The input lock prevents the appliance being operated

accidentally, e.g. by children.

Application:

Avoid unintentional modification of functions.

Avoid unintentional switching off of the device.

Avoid unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate

in the menus but you cannot select or change other func‐

tions.

Fig.61

Fig. 62

► Carry out action steps according to the illustration.

▷ Input lock is activated.

Deactivating the input lock

Fig.63

Fig.64

► Carry out action steps according to the illustration.

▷ Input lock is deactivated.

Language

Use this function to set the display language.

Controls

16 * Depending on model and options

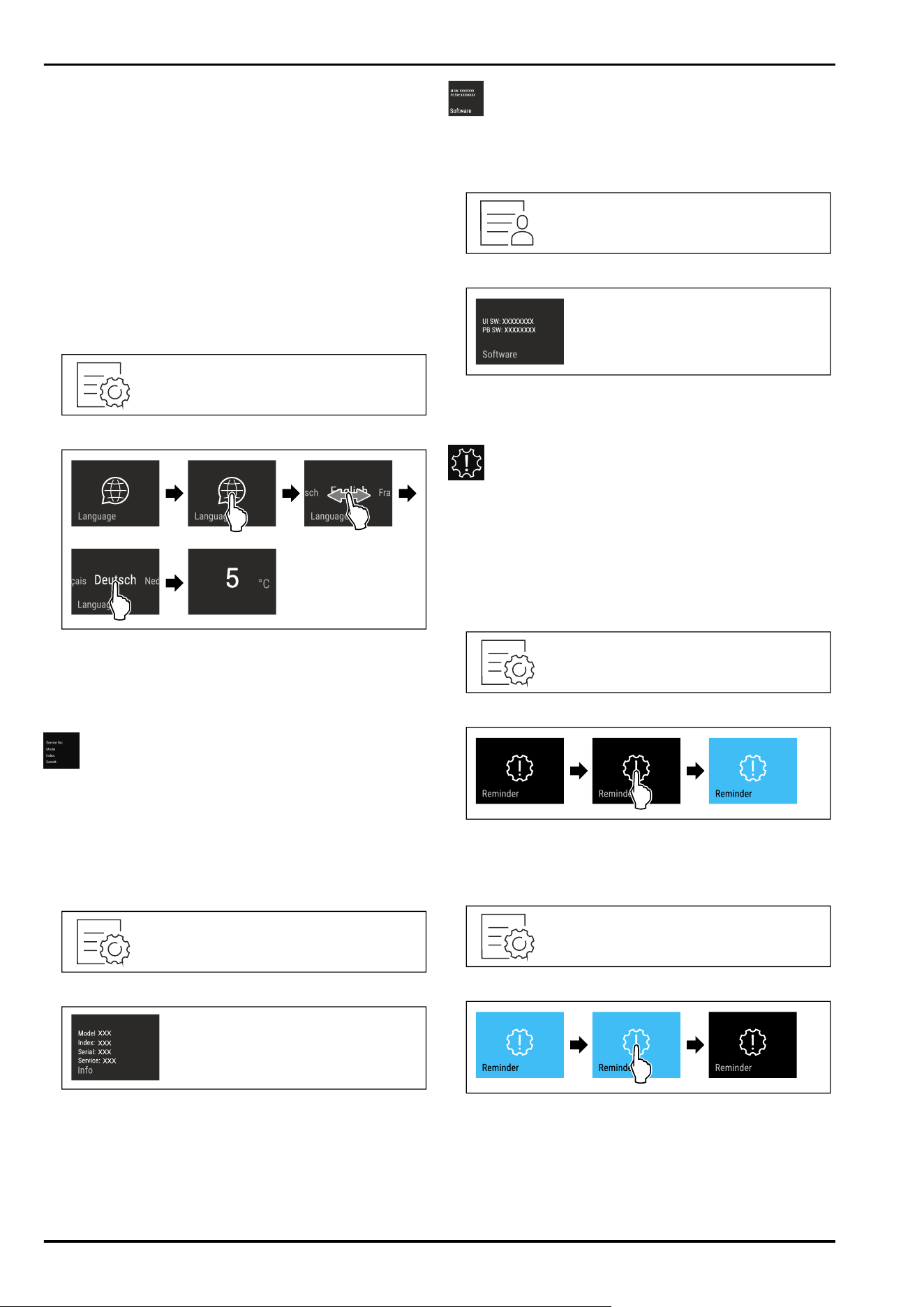

You can select the following languages:

Deutsch

English

Français

Español

Italiano

Nederlands

Čeština

Polski

Português

Bulgarian

Русский

温度单位

Setting the language

Fig.65

Fig. 66 Example illustration depending on the language

and temperature

► Carry out action steps according to the illustration.

▷ The language is set.

▷ The display returns to the status display.

Device information

Use this function to indicate the model name, index, serial

number and service number of your device. You will need

the device information when you contact customer service.

(see 10.4 Customer Service)

This function also opens the Advanced menu. (see 3 Func‐

tionality of the Touch&Swipe display)

Indicating the device information

Fig. 67

Fig.68

► Carry out action steps according to the illustration.

▷ Display indicates device information.

Software

Use this function to indicate the software version of your

device.

Indicating the software version

Fig. 69

Fig.70

► Carry out action steps according to the illustration.

▷ Display indicates software version.

Reminder

Use this function to activate or deactivate the reminders.

The function is activated on delivery.

If the function is activated, the following reminders will

appear:

Replace the FreshAir activated carbon filter (see Replace

the FreshAir activated carbon filter)

Activating the reminder

Fig.71

Fig.72

► Carry out action steps according to the illustration.

▷ Reminder is activated.

Deactivating the reminder

Fig.73

Fig. 74

► Carry out action steps according to the illustration.

▷ Reminder is deactivated.

Controls

* Depending on model and options 17

Demo mode

Demo mode is a special feature for dealers who want to

demonstrate appliance features. If you activate demo mode,

all refrigeration functions are deactivated.

If you switch on your appliance and “Demo” appears in the

status display, then demo mode is already activated.

If you activate and then deactivate demo mode, the appli‐

ance will be reset to factory defaults. (see Resetting to

factory settings)

Activating demo mode

Fig.75

Fig. 76

► Carry out action steps according to the illustration.

▷ Demo mode is activated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ “DEMO” appears in the status display.

Deactivating demo mode

Fig.77

Fig.78

► Carry out action steps according to the illustration.

▷ Demo mode is deactivated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory defaults.

All settings you have made so far are reset to their original

settings.

Performing a reset

Fig.79

Fig.80

► Carry out action steps according to the illustration.

▷ Device is reset.

▷ Device is switched off.

► Restart the device. (see 4.1 Switching on appliance (first

use))

Controls

18 * Depending on model and options

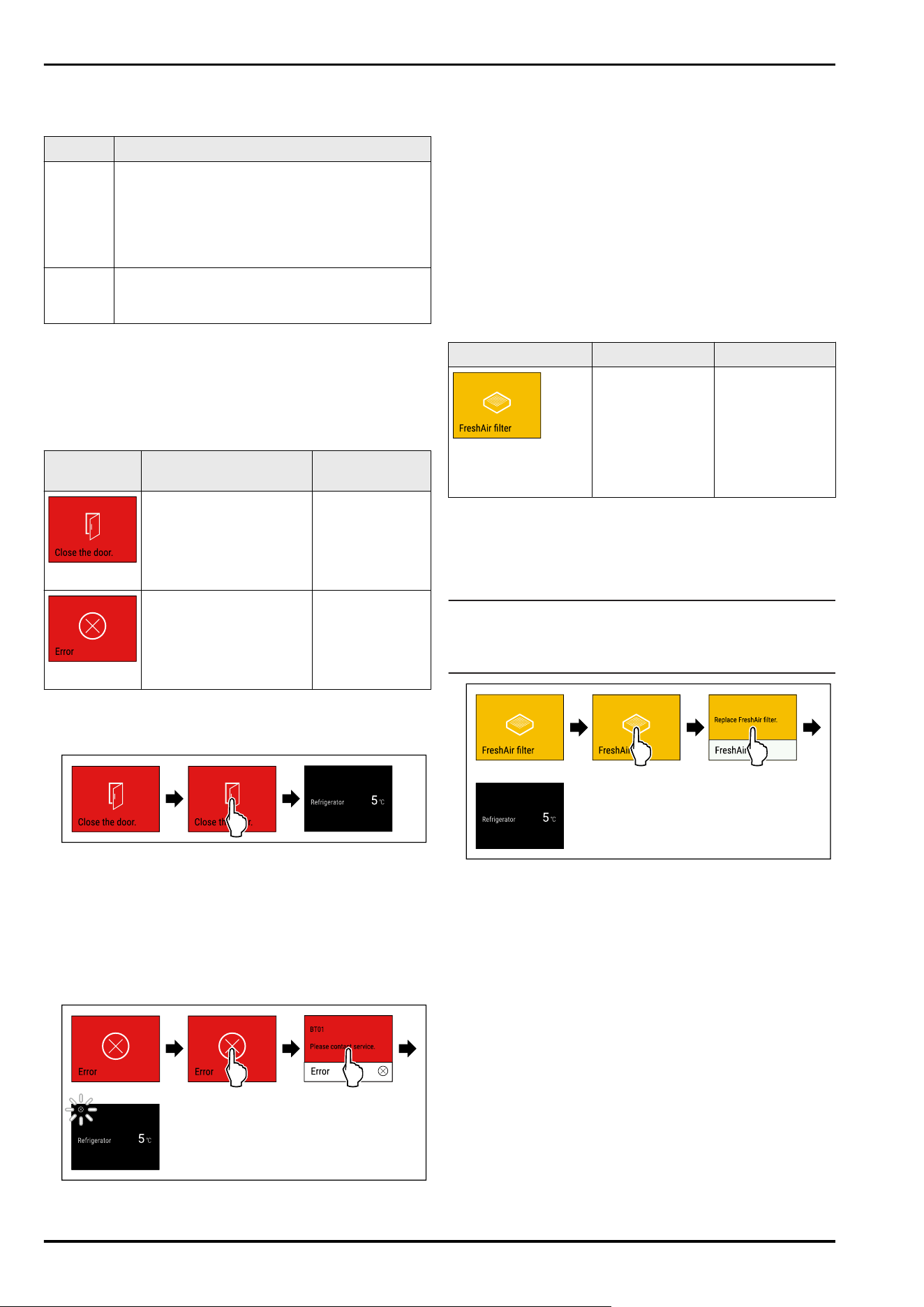

7.3 Messages

There are two categories of messages:

Category Importance

Warning Warnings appear in the event of a door alarm or

malfunction.

Simple warnings can be cancelled by yourself.

In the event of serious malfunctions, you must

contact customer service. (see 10.4 Customer

Service)

Reminder Reminders remind you of general processes.

You can carry out these operations to end the

message.

7.3.1 Overview of warnings

Behaviour of the appliance in the event of warnings:

Warning appears in red on the display.

The alarm tone sounds at an ever-increasing volume.

The interior lighting pulsates for some warnings.

Message

Cause Exit the

message

Door alarm

The message appears if

the door is open for too

long.

Carry out action

steps (see Door

alarm) .

Error

The message appears if

there is an appliance

error. A component of

the appliance has a

fault.

Carry out action

steps

(see Error) .

7.3.2 Ending warnings

Door alarm

Fig. 81 Example illustration

► Carry out action steps according to the illustration.

-or-

► Close the door.

▷ The display returns to the status indicator.

You can set how long the door may be open before the door

alarm sounds. (see Setting the door alarm)

Error

Fig. 82 Example illustration

► Briefly touch the display.

▷

Error code is displayed.

► Note the error code.

► Briefly touch the display.

▷ The display returns to the status indicator.

► Contact Customer Service. (see 10.4 Customer Service)

7.3.3 Overview of reminders

Behaviour of the appliance during reminders:

Reminder appears yellow on the display.

Alarm tone sounds.

The interior lighting pulsates for some reminders.

The following reminders can be deactivated (see Deacti‐

vating the reminder) :

Replace the FreshAir activated carbon filter

Message

Cause Exit the message

Replace the Fres‐

hAir activated

carbon filter

The message

appears when

the FreshAir acti‐

vated carbon

filter needs to be

replaced.

Carry out action

steps

(see Replace the

FreshAir acti‐

vated carbon

filter) .

7.3.4 Ending reminders

Replace the FreshAir activated carbon filter

Liebherr recommends: Replace the FreshAir activated

carbon filter every 6 months.

Note

FreshAir activated charcoal filters can be purchased

from the Liebherr-Hausgeräte store at home.liebherr.com/

shop/de/deu/zubehor.html.

Fig. 83 Example illustration

► Briefly touch the display.

▷ Display shows reminder information.

► Briefly touch the display.

► Replace the activated carbon filter. (see 9.1 FreshAir

carbon filter)

▷ Activated carbon filter ensures optimum air quality in the

cooling unit.

▷ Reminder appears again after 6 months.

If you no longer wish to receive this reminder, you can deac‐

tivate it. (see Deactivating the reminder)

8 Features

8.1 Door rack

Door racks are suitable for storing drinks and food. You can

move door racks for your own individual use and take them

apart for cleaning. However, Liebherr recommends using the

door racks in the position in the door as delivered from the

factory.

Features

* Depending on model and options 19

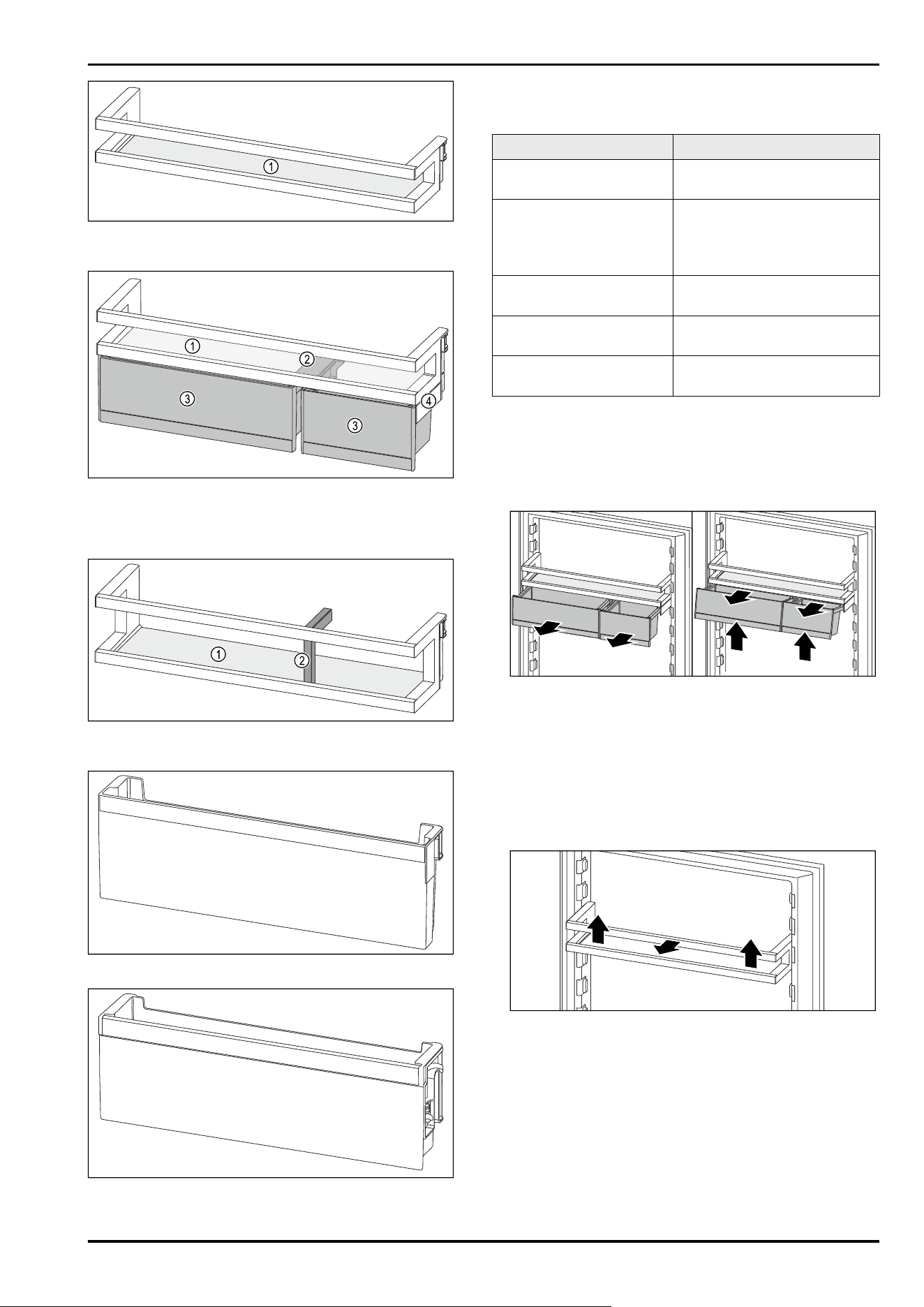

Fig. 84 Example illustration, Door rack

(1) Shelf

Fig. 85 Example illustration, Door racks with VarioBoxes

(1)

Shelf (3) VarioBoxes

(2) Holding part for Vario‐

Boxes

(4) Side part

Fig. 86 Example illustration, Door rack with bottle holder

(1)

Shelf (2) Bottle holder

Fig. 87 Example illustration, Door rack

Fig. 88 Example illustration, fold-down door racks

The following table shows examples of what can be stored

in each door rack. Do not exceed the maximum loading

weight of the door.

Door rack Food

Door rack (see Fig.84) Butter, cheese, tinned food,

tubes

Door rack with bottle

holder (see Fig.86)

Bottles

The sliding bottle holder

secures the bottles in the door

rack.

Door rack with VarioBoxes

(see Fig.85)

small food items

Door rack (see Fig. 87) small food items and pack‐

ages, tubes, cosmetics

Fold-down door rack (see

Fig.88)

small food items and pack‐

ages, tubes, cosmetics

8.1.1 Removing VarioBoxes

Either one or both VarioBoxes can be used. If you want to

store particularly tall bottles in the door rack under the

door rack with VarioBoxes, you can remove one or both Vari‐

oBoxes.

Fig.89

► Pull out VarioBox to the end stop.

► Lift VarioBoxes out forwards.

► Take VarioBox out forwards.

8.1.2 Removing the door rack

Ensure that the following requirements are met:

❑

VarioBoxes have been removed. (see 8.1.1 Removing Vari‐

oBoxes)

Fig. 90 Example illustration

► Push the door rack upwards.

► Pull the door rack forward.

8.1.3 Inserting the door rack

Ensure that the following requirements are met:

❑

VarioBoxes have been removed. (see 8.1.1 Removing Vari‐

oBoxes)

Features

20 * Depending on model and options

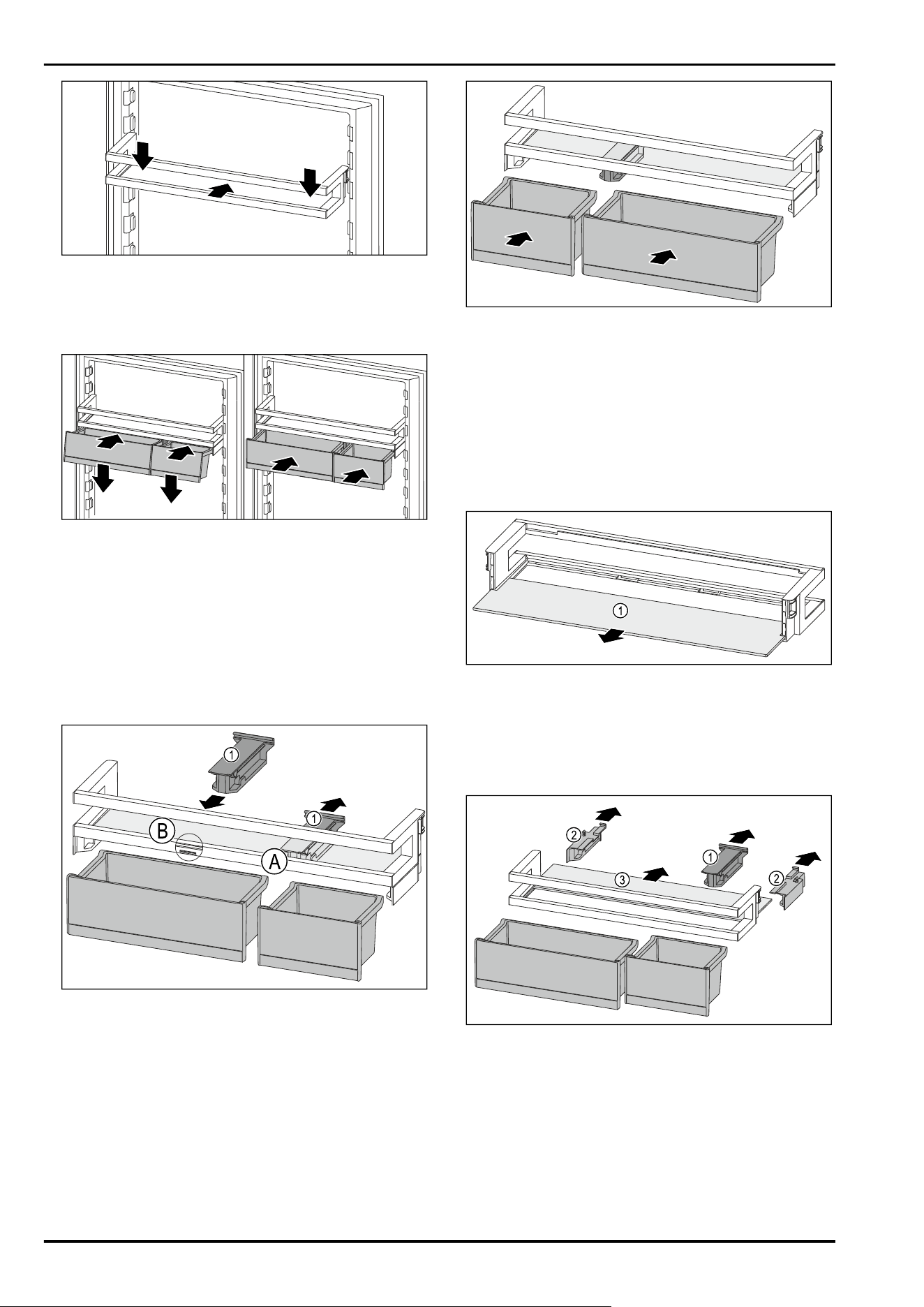

Fig. 91 Example illustration

► Slide in the door rack.

► Press the door rack down.

8.1.4 Inserting VarioBoxes

Fig.92

► Place VarioBoxes at an angle on the rib of the door rack.

► Lower VarioBoxes.

► Push in the VarioBoxes.

8.1.5 Converting VarioBoxes

Ensure that the following requirements are met:

❑

VarioBoxs have been removed. (see 8.1.1 Removing Vario‐

Boxes)

❑

Door rack has been removed. (see 8.1.2 Removing the

door rack)

Fig. 93

► Take off the holding part Fig. 93 (1) in position Fig. 93 (A)

backwards.

► Insert the holding part Fig. 93(1) in position Fig. 93(B).

► Insert the door rack. (see 8.1.3 Inserting the door rack)

Fig. 94

► Insert the VarioBoxes in reverse order. (see Fig. 94)

8.1.6 Dismantling the door rack

It is possible to dismantle some of the door racks if you

want to clean them or install or remove spare parts.

Dismantling the door rack

Ensure that the following requirements are met:

❑

Door rack has been removed. (see 8.1.2 Removing the

door rack)

Fig. 95 Door rack with shelf

► Remove the shelf Fig.95(1).

Dismantling the door rack with VarioBoxes

Ensure that the following requirements are met:

❑

Door rack has been removed. (see 8.1.2 Removing the

door rack)

Fig.96

► Remove the VarioBoxes. (see8.1.1 Removing VarioBoxes)

► Pull off the holding part Fig.96(1).

► Pull off the side parts Fig.96(2).

► Remove the shelf Fig.96(3).

Features

* Depending on model and options 21

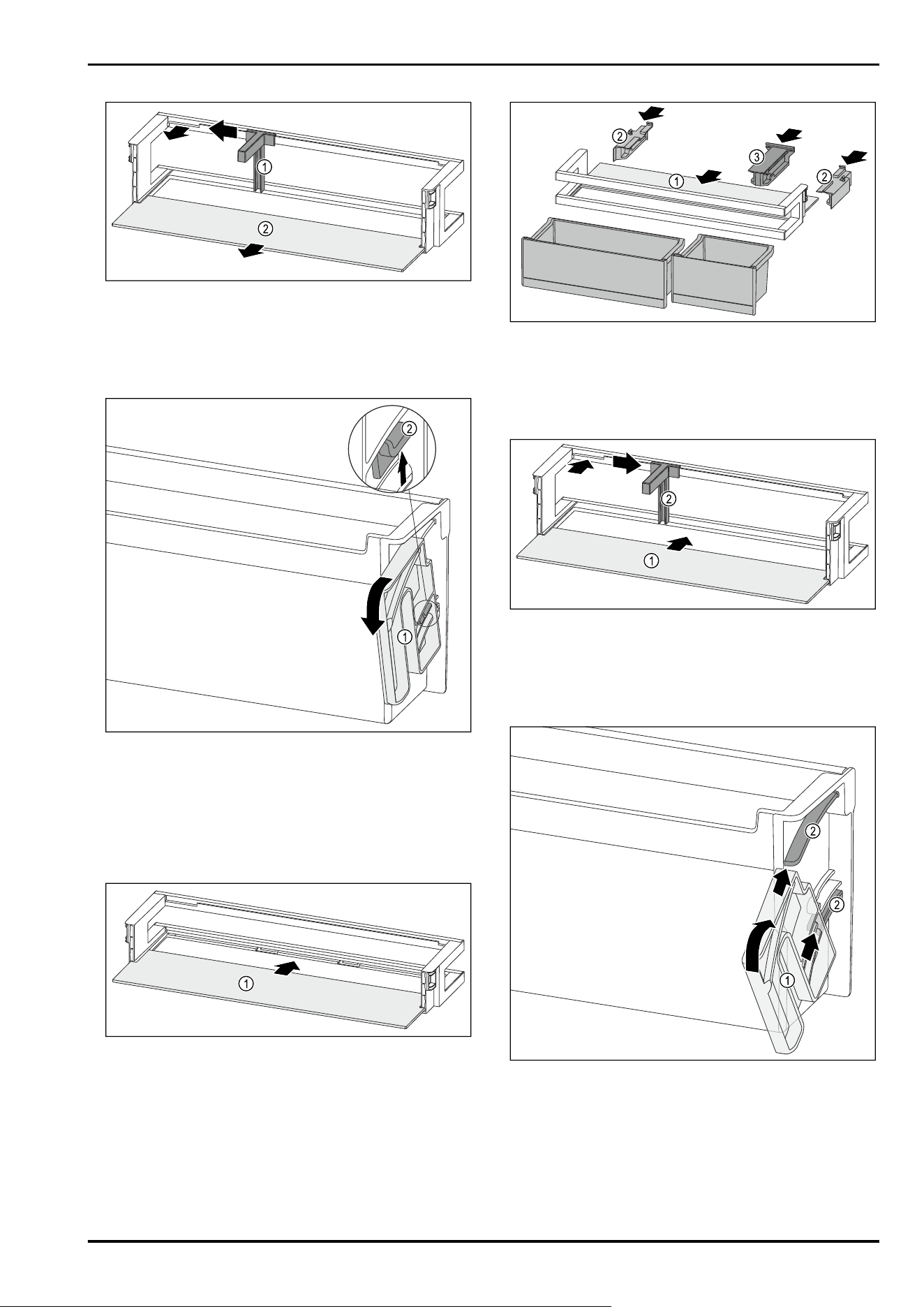

Dismantling the door rack with bottle holder

Fig. 97 Door rack with bottle holder and shelf

► Slide the bottle holder Fig. 97 (1) to the side as far as the

recess.

► Remove the bottle holder Fig.97(1).

► Remove the shelf Fig.97(2).

Dismantling the fold-down door rack

Fig.98

► Turn the turning unit Fig. 98 (1) in the specified direction

to the end stop.

► Press the tab Fig. 98 (2) up and remove the turning unit

Fig.98(1).

8.1.7 Assembling the door rack

Assembling the door rack

Fig. 99 Door rack with shelf

► Push the shelf Fig.99(1) into the side recesses.

Assembling the door rack with VarioBoxes

Fig. 100

► Push the shelf Fig. 100(1) into the side recesses.

► Insert the side parts Fig. 100(2).

► Insert the holding part Fig. 100(3).

► Insert the VarioBoxes. (see8.1.4 Inserting VarioBoxes)

Assembling the door rack with bottle holder

Fig. 101 Door rack with shelf

► Push the shelf Fig. 101(1) into the side recesses.

► Insert the bottle holder Fig. 101(2) in the recess.

► Push the bottle holder Fig. 101 (2) to the desired position

to the side.

Assembling the fold-down door rack

Fig. 102

► Position the turning unit Fig. 102 (1) so that the recesses

are exactly opposite the guide channels Fig. 102(2) of the

door rack.

► Turn the turning unit Fig. 102 (1) towards the specified

direction.

Features

22 * Depending on model and options

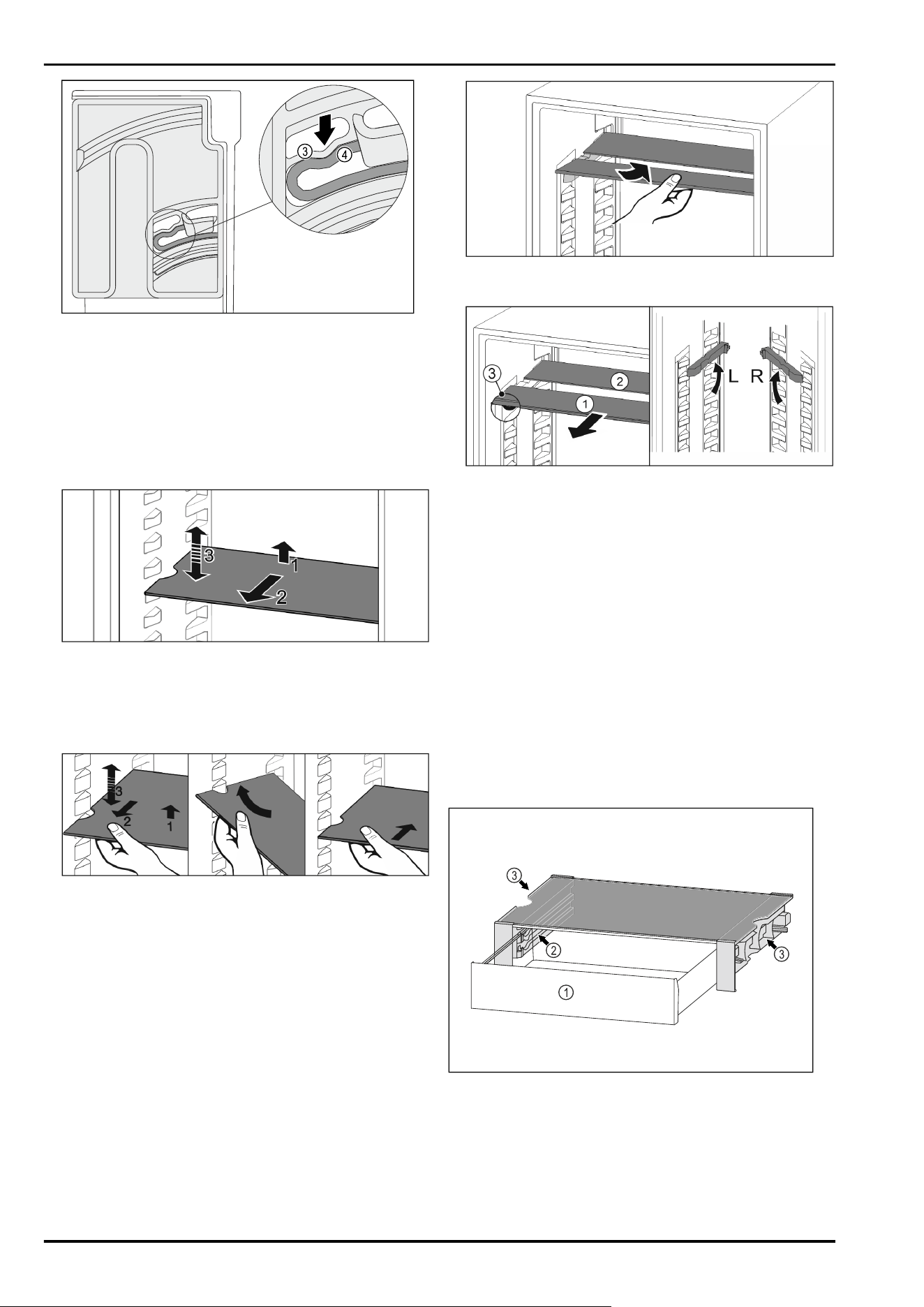

Fig. 103

▷ The elastic element Fig. 103(3) of the turning unit audibly

engages in the round shape of the rib Fig. 103(4).

8.2 Shelves

8.2.1 Adjusting/removing the shelves

The shelves are prevented from being pulled out acciden‐

tally by pull out stops.

Fig. 104

► Lift the shelf and pull forward.

▷ Line up the side runner.

► Adjust the height of the shelf: Lift or lower it to the

desired height and slide it in.

-or-

Fig. 105

► Remove the shelf completely: Pull it out to the front.

► Easier removal: Set the shelf at an angle.

► Insert the shelf again: Slide it in all the way.

▷ The pull-out stoppers point downwards.

▷ The pull-out stoppers are behind the front support.

8.3 Dividing shelf

8.3.1 Using the dividing shelf

The shelves are prevented from being pulled out acciden‐

tally by pull out stops.

Fig. 106

► Push the dividing shelf underneath as shown.

Fig. 107

Adjusting the height:

► Pull the glass panels out Fig. 107(1) from the front, one at

a time.

► Release the support rails and click in at the height you

want.

► Slide in the glass panels one at a time.

▷ Flat pull-out stoppers at the front, right behind the

support rails.

▷ High pull-out stoppers at the back.

Using both shelves:

► Hold the glass panel with one hand and pull it to the

front.

▷ The glass panel Fig. 107(1) and trim strip are at the front.

▷ The stops Fig. 107(3) point down.

8.4 VarioSafe

The VarioSafe offers space in the refrigerator compartment

for small groceries, packages, tubes and jars, for example.

Fig. 108

(1)

VarioSafe drawer (3) Recesses on the left and

right side panel

(2) Side panels with ribs

for VarioSafe drawer

Features

* Depending on model and options 23

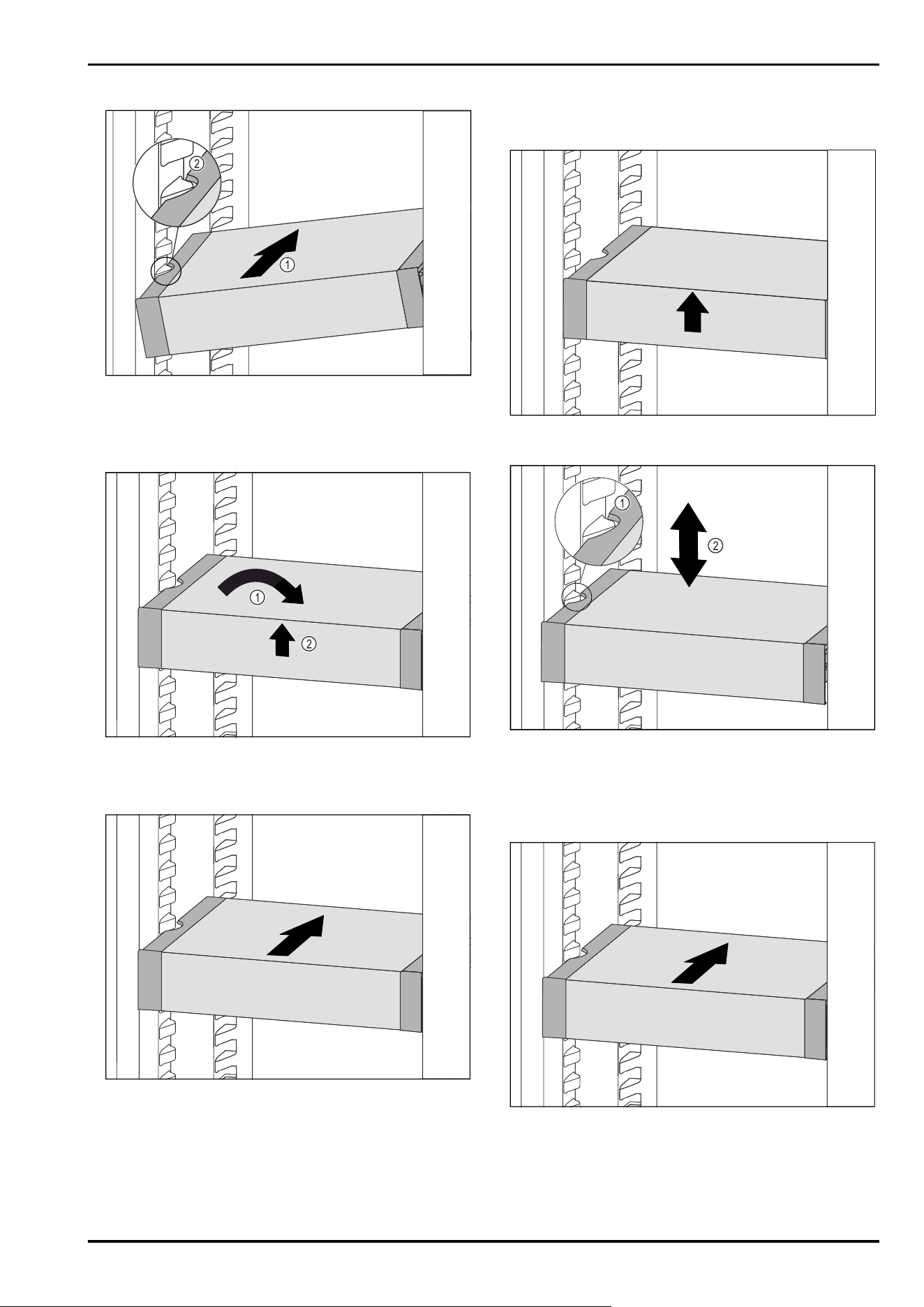

8.4.1 Inserting the VarioSafe

Fig. 109

► Insert the VarioSafe into the fridge section at an angle

Fig. 109(1) until the recesses in the side Fig. 109(2) of the

VarioSafe are at the level of the support rib in the fridge

section.

Fig. 110

► Set VarioSafe straight. Fig. 110(1)

► Lift VarioSafe at the front. Fig. 110(2)

Fig.111

► Lift VarioSafe up toward the front.

► Push VarioSafe in to the rear.

► Lower VarioSafe.

▷ VarioSafe audibly engages.

▷ VarioSafe is inserted.

8.4.2 Repositioning the VarioSafe

You can move the VarioSafe as a whole in the refrigerator

compartment.

Fig.112

► Lift VarioSafe at the front.

Fig.113

► Pull VarioSafe forwards until the recesses in the side of

the VarioSafe are at the level of the support rib in the

refrigerator compartment. Fig.113(1)

► Move VarioSafe up or down in the refrigerator compart‐

ment until the desired height is reached. Fig.113(2)

Fig. 114

► Lift VarioSafe at the front.

► Push VarioSafe in to the rear.

▷ VarioSafe audibly engages.

▷ VarioSafe is offset in height.

Features

24 * Depending on model and options

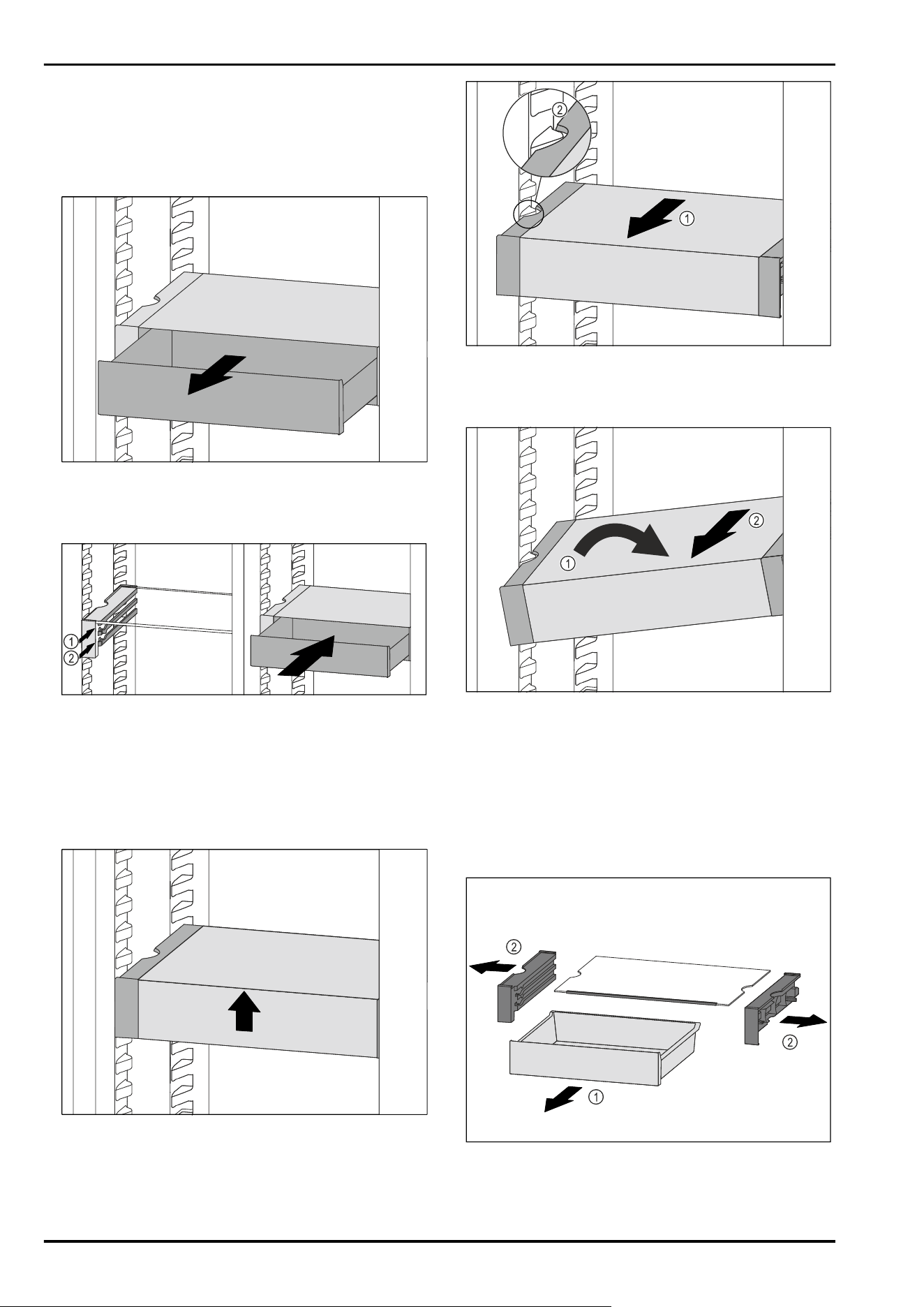

8.4.3 Moving the VarioSafe drawer

You can use the VarioSafe drawer at two different heights.

If you would like to store taller foodstuffs in the VarioSafe

drawer, slide the VarioSafe drawer in on the bottom rib. If

you would like to store smaller foodstuffs in the VarioSafe

drawer, slide the VarioSafe drawer in on the top rib.

Fig. 115

► Pull out the VarioSafe drawer as far as it will go.

► Lift the VarioSafe drawer up at the front.

► Remove the VarioSafe drawer to the front.

Fig. 116

► Lift the VarioSafe drawer up at the front.

► Place the VarioSafe drawer behind the stoppers on

desired rib Fig. 116(1) or Fig. 116(2).

▷ VarioSafe drawer is offset in height.

8.4.4 Removing the VarioSafe

You can remove the VarioSafe as a whole.

Fig.117

► Lift VarioSafe at the front.

Fig. 118

► Pull VarioSafe forwards Fig. 118 (1) until the recesses in

the side of the VarioSafe are at the level of the support

rib in the fridge section. Fig. 118(2)

Fig. 119

► Set VarioSafe in refrigerator compartment at an angle.

Fig. 119(1)

► Take VarioSafe out to the front. Fig. 119(2)

▷ VarioSafe is removed.

8.4.5 Disassembling the VarioSafe

You can disassemble the VarioSafe into its individual parts if

you want to clean the VarioSafe or if you need to install or

remove parts.

Fig.120

► Remove VarioSafe as a whole. (see 8.4.4 Removing the

VarioSafe )

► Disassemble VarioSafe according to the illustration.

Features

* Depending on model and options 25

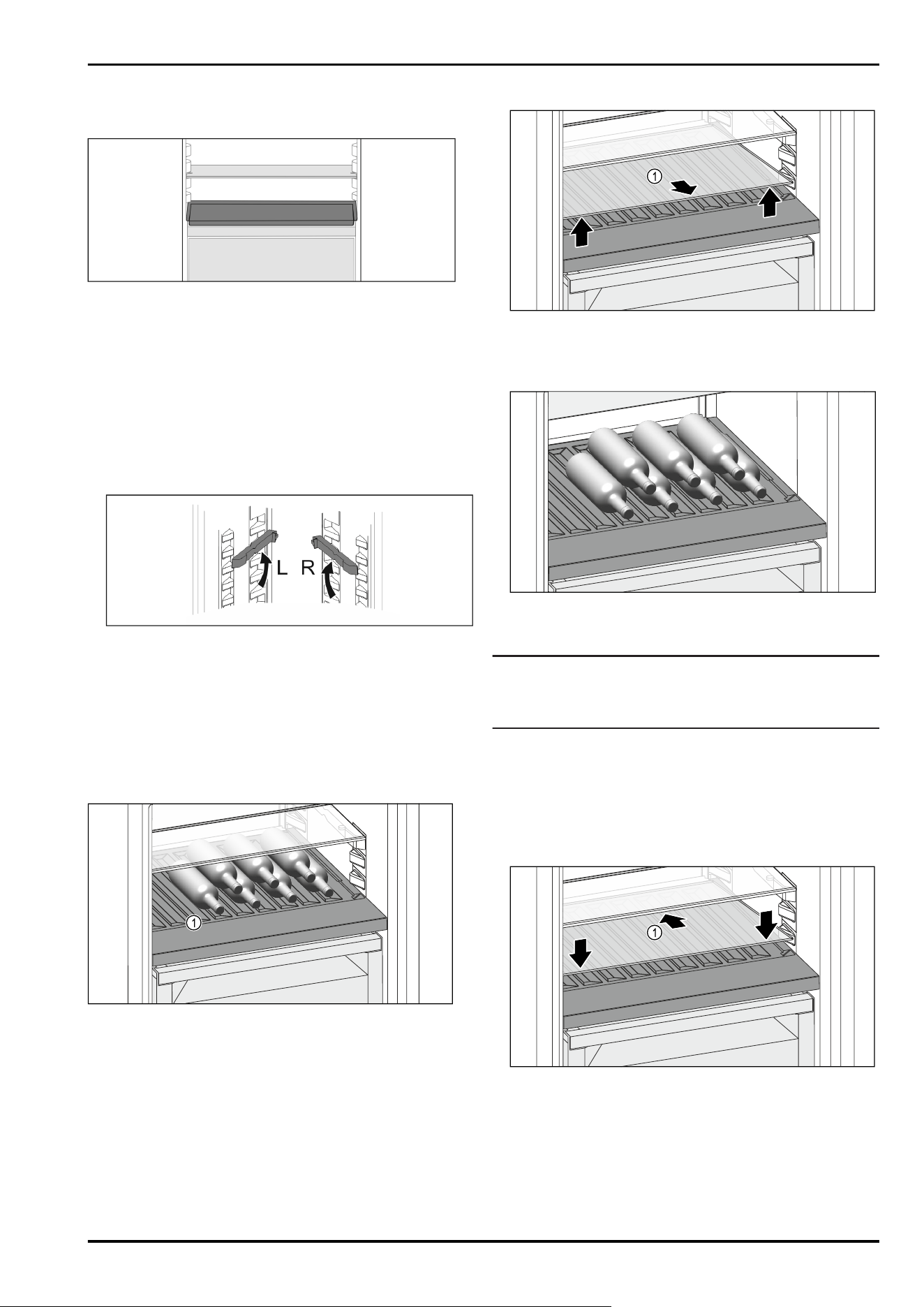

8.5 Space for baking tray

There is space for a baking tray Fig.1(7) above the drawers.

Fig.121

Ensure that the following conditions are met:

❑

Max. baking tray dimensions are adhered to

(see 10.1 Technical specifications) .

❑

Baking tray is cooled to room temperature.

❑

The lowest door rack is set at least one position higher.

With the door open to 90°:

► Slide the baking tray onto the lower side runners.

-or-

If baking tray is uneven:

► Use the supplied support rails.

Fig.122

► Snap support rails into the lowest runners.

With the door open to 90°:

► Slide the baking tray in on the support rails.

8.6 Adjustable bottle shelf

Either the glass shelf or the variable bottle rack can be used

in the bottom section of the refrigerator. The glass shelf is

inserted at delivery.

Fig. 123 Example illustration

(1)

Variable bottle rack

8.6.1 Using the variable bottle rack

Fig. 124

► Lift the glass shelf Fig. 124(1) at the front and remove.

► Store the glass shelf Fig. 124 (1) in a safe place outside

the appliance.

Fig.125

► Place bottles in the back row with their bases against the

back wall. (see Fig.125)

Note

When the bottles protrude over the variable bottle rack at

the front:

► Set the lower door rack one position higher.

8.6.2 Using the glass shelf

Ensure that the following requirements are met:

❑

Bottles have been removed.

❑

Variable bottle rack has been cleaned.

(see 9.3 Removing / inserting the variable bottle rack)

(see 9.6.3 Clean the components)

Fig. 126

► Place the glass shelf Fig. 126 (1) at an angle, sloping it

downwards and backwards.

► Lower the glass shelf Fig. 126(1) at the front.

8.7 Drawers

You can remove the drawers for cleaning.

Features

26 * Depending on model and options

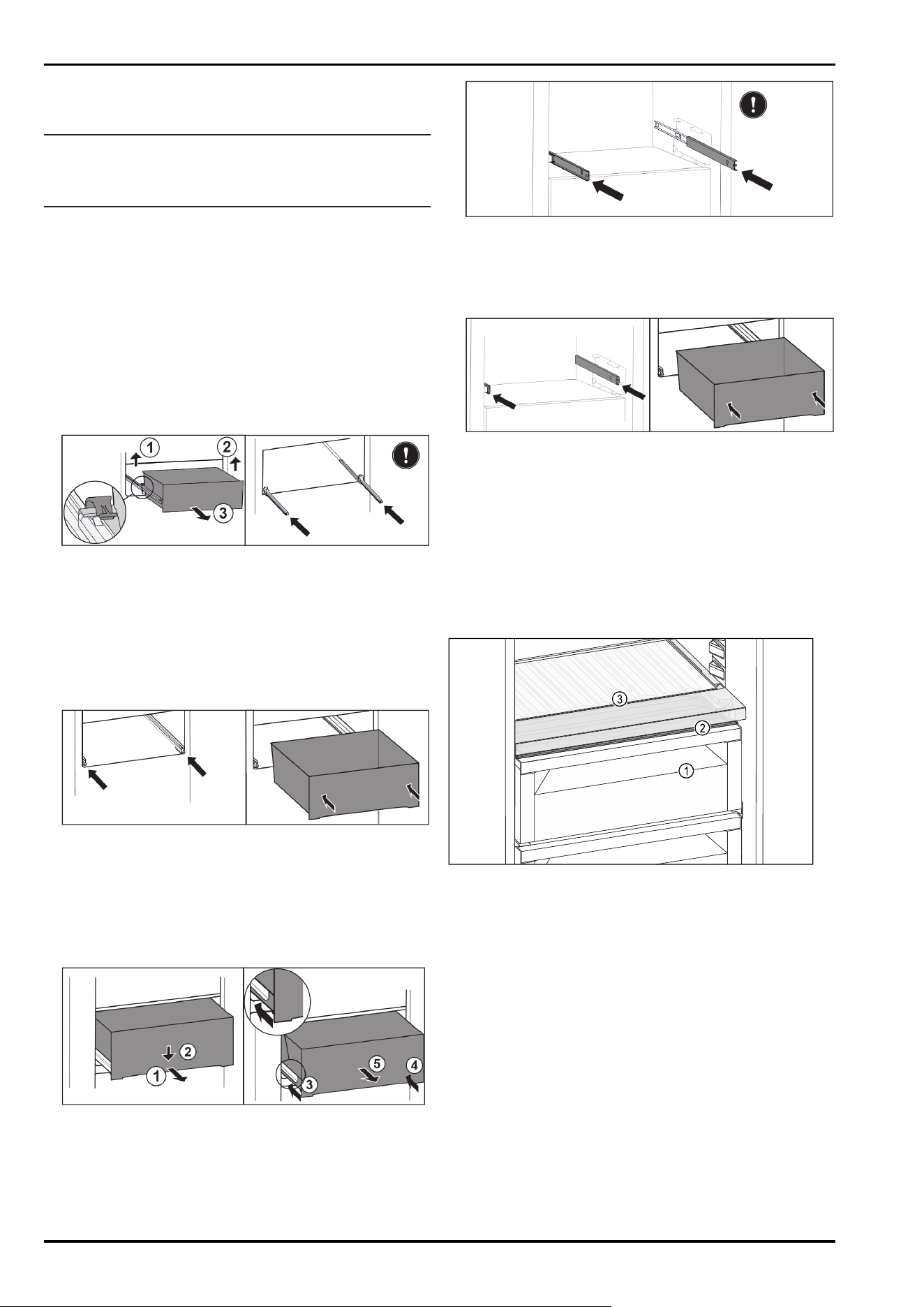

The way to remove/insert the drawers varies depending

on the pull-out system. Your appliance can contain various

pull-out systems.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always leave the fan air vents clear on the back wall!

8.7.1 Drawer on telescopic rails

The drawer runs on extendible rails (telescopic rails). There

are fully extendible telescopic rails and telescopic rails with

partial pull-out. Drawers which are fully extendible can be

pulled out fully from the appliance. Drawers with partial

pull-out cannot be removed fully from the appliance. The

system in your appliance depends on the type of appliance.

Fully extendible*

If you have fully extendible rails, there is a clamp located at

the back on the left and right of the rail.

Removing drawer

Fig.127

► Pull out drawer as far as it will go.

► Lift left clamp and simultaneously pull drawer forwards

on the left. Fig.127(1)

► Lift right clamp and simultaneously pull drawer forwards

on the right. Fig.127(2)

► Remove drawer to the front. Fig.127(3)

► Slide rails in.

Inserting drawer

Fig.128

► Slide rails in.

► Place drawer on rails.

► Slide in drawer to the back.

▷ Drawer latches in audibly at the back.

Partial pull-out fridge compartment*

Removing drawer

Fig.129

► Pull out drawer half-way. Fig.129(1)

► Push the drawer down at the front. Fig.129(2)

► Push the left rail in by about 2cm. Fig.129(3)

► Push the right rail in by about 2cm. Fig.129(4)

► Remove drawer to the front. Fig.129(5)

Fig.130

If the rails are not yet fully inserted after removing the

drawer:

► Push rails in completely.

Inserting drawer

Fig.131

► Slide rails in.

► Place drawer on rails.

► Slide in drawer to the back.

8.8 Compartment lid for Fruit & Vege‐

table Safe

The compartment lid ensures constant levels of humidity.

The compartment lid is directly on the drawer and can be

covered by shelves or additional drawers.

Fig. 132 Example illustration, compartment lid for

Fruit & Vegetable Safe

(1)

Fruit & Vegetable Safe

(2) Compartment lid for

Fruit & Vegetable Safe

(3) Variable bottle rack

Features

* Depending on model and options 27

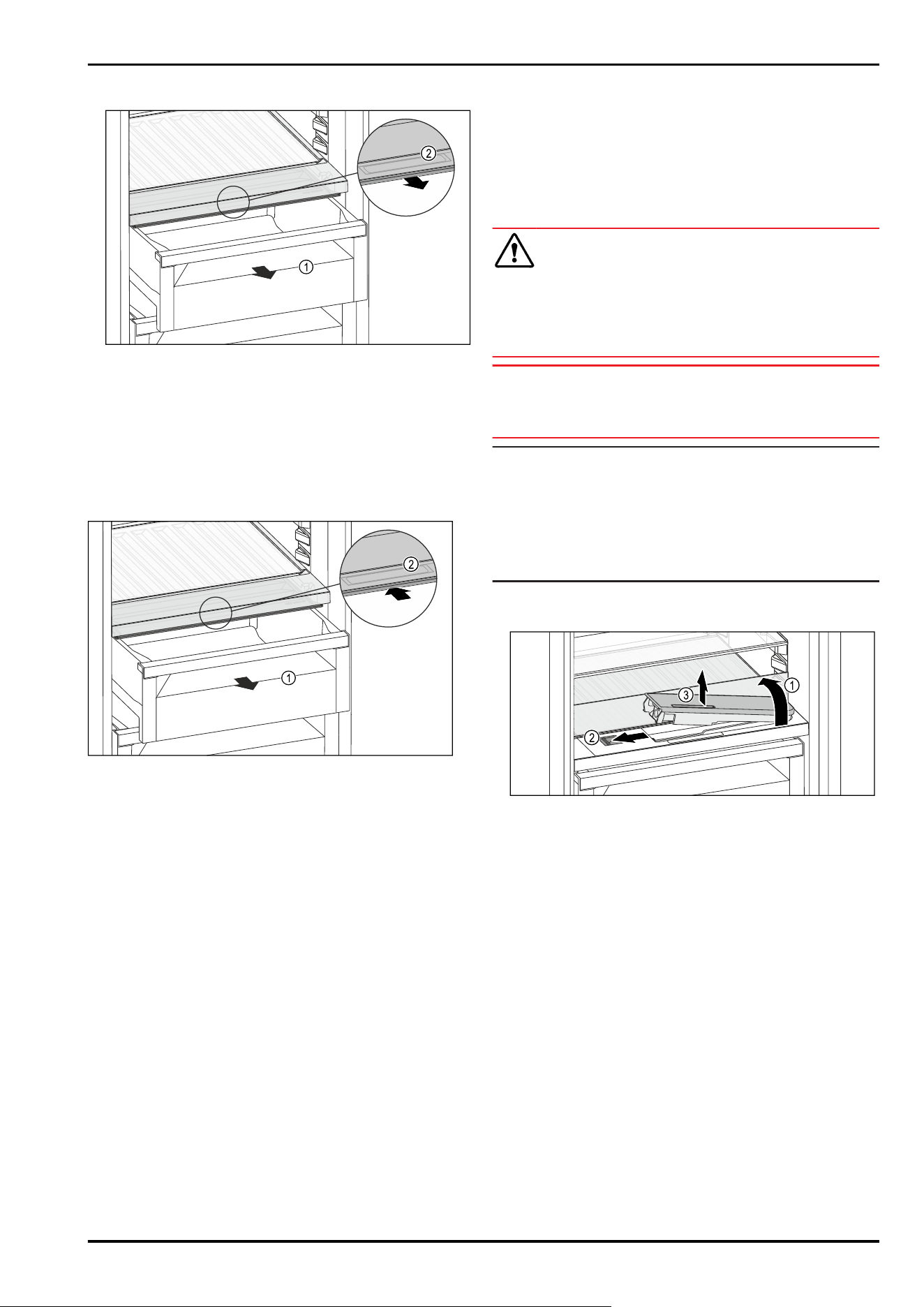

8.8.1 Reducing the air humidity in the drawer

Fig.133

► Pull out the drawer Fig.133(1).

► Grasp the recessed grip Fig. 133 (2) on the compartment

lid and pull the compartment lid forwards at the same

time.

▷ When the drawer is closed, there is a small gap between

the compartment lid and the drawer.

▷ Using HydroBreeze is not possible. (see 8.9 HydroBreeze)

8.8.2 Increasing the air humidity in the drawer

Fig.134

► Pull out the drawer Fig.134(1).

► Grasp the recessed grip Fig. 134 (2) on the compartment

lid and push the compartment lid backwards at the same

time.

▷ When the drawer is closed, the compartment lid seals

with the drawer.

▷ Using HydroBreeze is possible. (see 8.9 HydroBreeze)

8.8.3 Using Fruit & Vegetable Safe as

Meat & Dairy Safe

You can use the Fruit & Vegetable Safe as Meat & Dairy

Safe. To do this, you must reduce the humidity in the drawer.

(see8.8.1 Reducing the air humidity in the drawer)

8.8.4 Using Fruit & Vegetable Safe with Hydro‐

Breeze

You can use the Fruit & Vegetable Safe with HydroBreeze.

To do this, you must increase the humidity in the drawer.

(see8.8.2 Increasing the air humidity in the drawer)

8.9 HydroBreeze

HydroBreeze emits a mist over the refrigerated goods to

provide moisture every time the door is opened.

The HydroBreeze and its water tank are located in the

adjustable bottle shelf.

Ensure that the following conditions are met:

The water tank is clean. (see 9.6.3 Clean the components)

The water tank is properly engaged.

The humidity in the drawer is set to high air humidity.

(see8.8.2 Increasing the air humidity in the drawer)

HydroBreeze is activated. (see HydroBreeze)

8.9.1 Fill the water tank

WARNING

Unclean water!

Contaminants.

► Only fill with drinking water.

► The HydroBreeze is off: empty water tank.

► The HydroBreeze is no longer in use: empty water tank.

NOTICE

Sugar-content liquids!

Damage to HydroBreeze.

► Only fill with drinking water.

Note

Only use filtered, decarbonised water for the best quality

drinking water and to make the HydroBreeze, work

smoothly.

This water quality can be achieved using a table water filter

of the kind available in trade retail outlets.

► Only ever fill the water tank with filtered, decarbonised

drinking water.

The water tank is built into the adjustable bottle shelf

(see2.2 Overview of the appliance and equipment) .

Fig.135

► Press on the back-left corner of the front glass plate.

▷ The glass panel folds up at the front.

► Lift the glass panel and fold towards the rear until it

clicks into place Fig.135(1).

▷ Glass panel stands upright.

► Slide the slider Fig.135(2) to the left.

▷ The water tank jumps out of its recess.

► Remove the water tank Fig.135(3).

► Cleaning the water tank (see 9.6.3 Clean the compo‐

nents) .

Square opening:

► Fill with drinking water up to the marker.

► Insert the water tank into the recess, bottom first.

► Slowly lower the front part and push the tank in.

▷ The water tank is clicked into place.

8.9.2 Dismantling the water tank

You can remove the HydroBreeze water tank for cleaning.

Features

28 * Depending on model and options

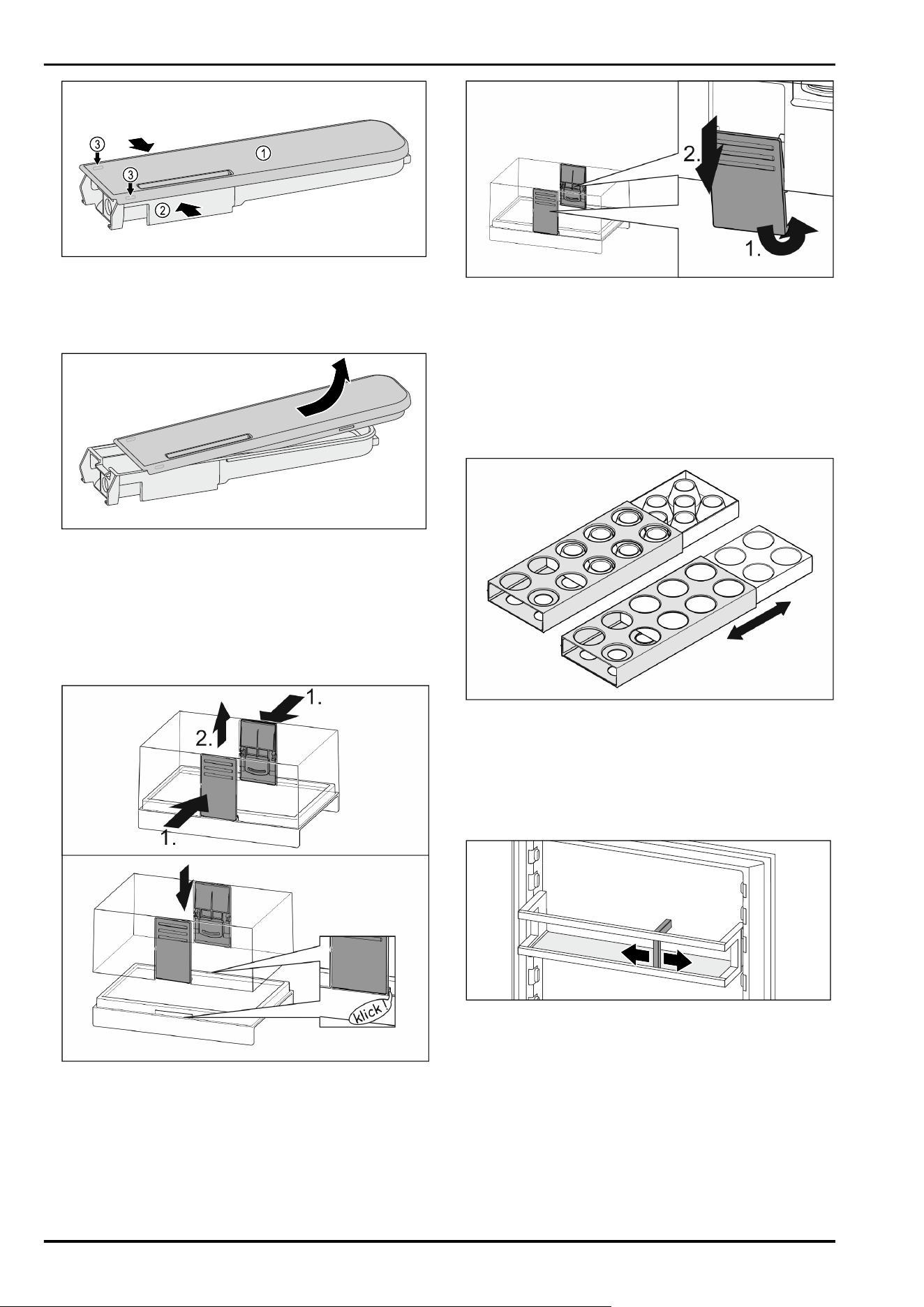

Fig.136

► Push the water tanks Fig. 136 (2) together, leverage

the cover Fig. 136 (1) carefully over the latching

tabs Fig.136(3) and lift it up.

▷ The cover is released.

Fig.137

► Move the cover Fig. 136 (1) slightly forwards and back,

and remove to the top.

▷ The water tank has been dismantled.

8.10 Butter dish

8.10.1 Opening/closing the butter dish

Fig.138

8.10.2 Dismantling the butter dish

You can take the butter dish apart for cleaning.

Fig. 139

► Disassembling the butter dish.

8.11 Egg rack

You can pull out and turn the egg rack. You can use both

sides of the egg rack so you can label specifics like the

purchase date.

8.11.1 Using the egg rack

Fig. 140

► Top layer: for storing hen eggs.

► Bottom layer: for storing quail eggs.

8.12 Bottle holder

8.12.1 Using the bottle holder

Fig. 141

► Push the bottle holder onto the bottles.

▷ The bottles are prevented from falling over.

8.13 FlexSystem

8.13.1 Using the FlexSystem

The FlexSystem helps you store and organise your food in

a clear and flexible way. It lets you clearly divide your food

into fruit, vegetables or by use-by dates, for example.

Features

* Depending on model and options 29

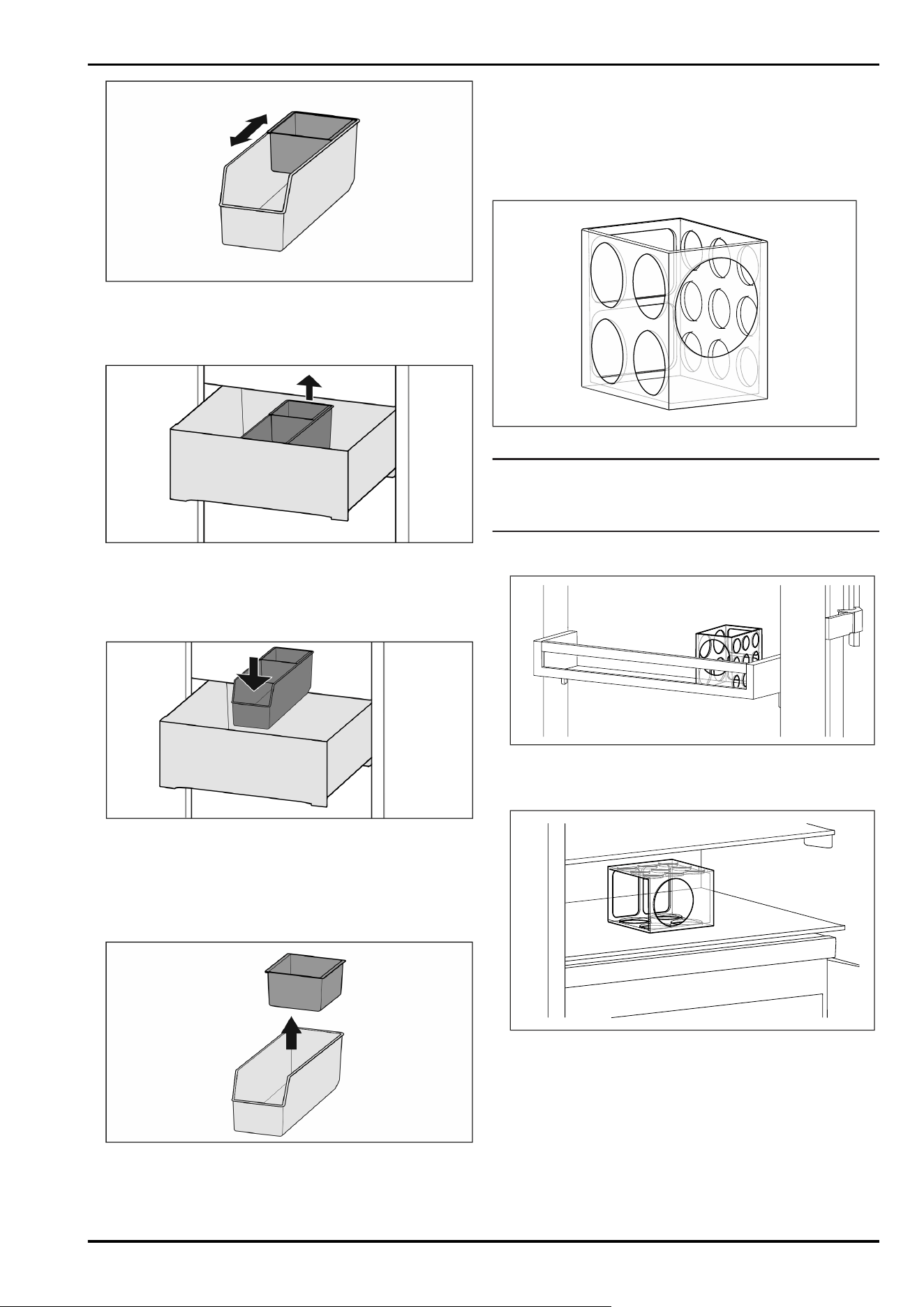

Fig. 142

► Move the inner shell.

8.13.2 Removing the FlexSystem

Fig. 143

► Lift the FlexSystem from the back.

► Pull up and out.

8.13.3 Inserting the FlexSystem

Fig. 144

► Insert the FlexSystem front-first.

► Lower the rear part.

8.13.4 Disassembling the FlexSystem

You can take the FlexSystem apart for cleaning.

Fig. 145

► Disassembling the FlexSystem

8.14 FlexCube

The FlexCube has different sized openings, so you can store

small items such as tubes, open yoghurt pots or quail

eggs in it. The FlexCube fits into all Liebherr door racks,

for example. If necessary, you can also set up several Flex‐

Cubes next to each other.

Fig. 146 Example illustration

Note

These accessories can be purchased from the Liebherr-

Hausgeräte shop at home.liebherr.com/shop/de/deu/

zubehor.html.

8.14.1 Using the FlexCube

Fig. 147 Example illustration

► Insert the FlexCube in the door rack.

-or-

Fig. 148 Example illustration

► Place FlexCube on shelf.

► Sort small parts into the FlexCube for storage.

9 Maintenance

9.1 FreshAir carbon filter

The FreshAir carbon filter is in the compartment above the

fan.

Maintenance

30 * Depending on model and options

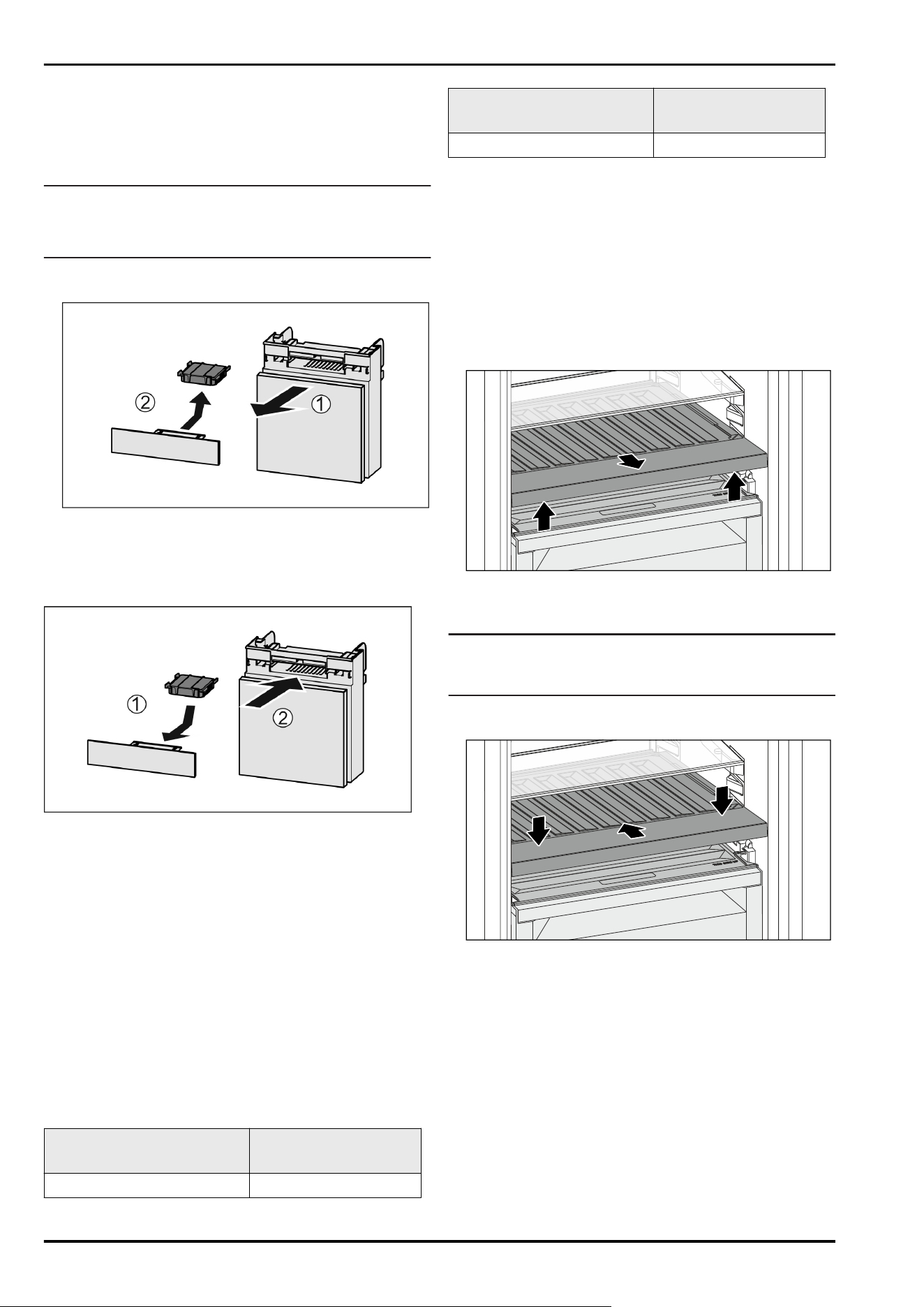

It guarantees the best air quality.

❑

Replace the carbon filter every 6 months.

When the reminder is set, a message on the display

prompts you to change it.

❑

The carbon filter can be disposed of with the regular

household waste.

Note

FreshAir activated charcoal filters can be purchased

from the Liebherr-Hausgeräte store at home.liebherr.com/

shop/de/deu/zubehor.html.

9.1.1 Removing the FreshAir carbon filter

Fig. 149

► Pull out the compartment Fig. 149(1).

► Remove the carbon filter Fig. 149(2).

9.1.2 Inserting the FreshAir carbon filter

Fig. 150

► Insert the carbon filter as shown in the diagram

Fig. 150(1).

▷ The carbon filter clicks into place.

If the carbon filter is pointing downwards:

► Push the compartment in Fig. 150(2).

▷ The carbon filter is now ready for use.

9.2 Disassembling / assembling pull-

out systems

9.2.1 Notes on disassembly

You can disassemble some of the pull-out systems for

cleaning. Your appliance can contain a variety of pull-out

systems.

The following pull-out systems can be disassembled or

cannot be disassembled:

Pull-out system

can be disassembled/

cannot be disassembled

Fully extendible* cannot be disassembled*

Pull-out system can be disassembled/

cannot be disassembled

Fridge section partial pull-out* cannot be disassembled*

9.3 Removing / inserting the variable

bottle rack

The variable bottle rack can be removed for cleaning.

9.3.1 Removing the variable bottle rack

Ensure that the following requirements are met:

❑

Bottles have been removed.

❑

Glass shelf has been removed. (see 8.6.1 Using the vari‐

able bottle rack)

Fig. 151

► Lift the variable bottle rack at the front and pull it out.

▷ The compartment lid is visible.

Note

Liebherr recommends:

Do not place any items on the compartment lid below.

9.3.2 Inserting the variable bottle rack

Fig. 152

► Push the variable bottle rack in to the end stop and press

it down.

▷ The connectors at the back of the variable bottle rack are

connected via automated processes.

▷ LED lights up.

► Insert the glass shelf. (see8.6.2Using the glass shelf)

-or-

► Use the variable bottle rack for bottles.

9.4 Compartment lid for Fruit & Vege‐

table Safe

You can remove the compartment lid for cleaning.

Maintenance

* Depending on model and options 31

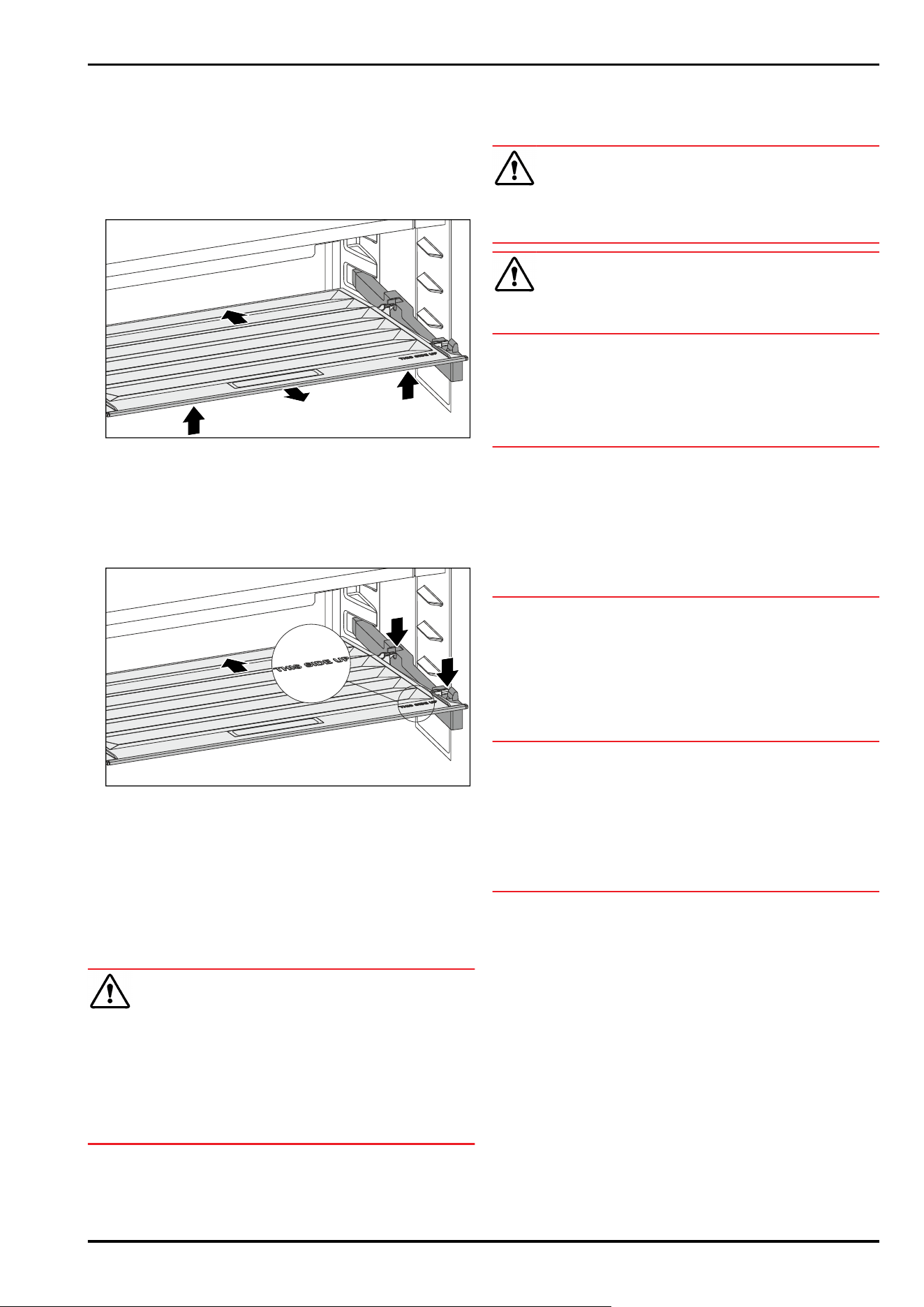

9.4.1 Removing the compartment lid

Ensure that the following requirements are met:

❑

The glass shelf directly above the variable bottle rack has

been removed.

❑

The variable bottle rack has been removed.

❑

The drawer directly below the compartment lid has been

removed. (see 8.7 Drawers)

Fig. 153

► Push the compartment lid backwards.

► Lift the compartment lid forwards.

► Remove the compartment lid forwards and upwards at an

angle.

9.4.2 Inserting the compartment lid

Fig. 154

If the THIS SIDE UP lettering is at the top:

► Insert the rear retaining parts into the relevant rear open‐

ings.

► Push the compartment lid backwards.

► Lower the compartment lid forwards and engage the

front retaining parts into the openings.

► Move the compartment lid into the required position.

9.5 Defrosting the appliance

WARNING

Improper defrosting of the appliance!

Injuries and damage.

► Do not use mechanical equipment or other methods to

speed up the defrosting process other than those recom‐

mended by the manufacturer.

► Do not use electrical heating or steam-cleaning appli‐

ances, naked flames or defroster sprays to defrost.

► Do not use sharp objects to remove ice.

Defrosting is performed automatically. The water from the

thawing process drains through the outlet and evaporates.

► Clean the drain opening at regular intervals.

(see 9.6Cleaning the appliance)

9.6 Cleaning the appliance

9.6.1 Ready

WARNING

Danger of electric shock!

► Remove the refrigerator connector or interrupt the power

supply.

WARNING

Risk of fire

► Do not damage the refrigeration circuit.

►

Empty the appliance.

► Remove mains connector.

-or-

► Activate CleaningMode. (seeCleaningMode)

9.6.2 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

► Plastic surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Metal surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Drain hole: remove deposits using a thin item (for

example a cotton bud).

9.6.3 Clean the components

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some

detergent:

- Shelf

- Dividing shelf

- VarioSafe

- Compartment lid for Fruit & Vegetable Safe

- Drawer

- Adjustable bottle shelf

- FlexSystem

Clean with a damp cloth:

- Retractable rails

Please note: The grease in the tracks is used for lubrica‐

tion and must not be removed!

Wash in the dishwasher up to 60°C:

- Door rack

- VarioBox

- Bottle rack

- Holder of the dividing shelf

- HydroBreeze water tank and water tank lid

Maintenance

32 * Depending on model and options

- Egg rack

- Butter dish

- FlexCube

► To disassemble components: see the relevant section.

► Clean the components.

9.6.4 Cleaning the HydroBreeze

Cleaning is required in the following cases:

❑

Initial operation

❑

HydroBreeze is off for more than 48 hours.

❑

Refill the water tank.

Ensure that the following conditions are met:

❑

HydroBreeze is off (see HydroBreeze) .

❑

Water tank has been removed and cleaned in the dish‐

washer.

► Wipe out the recess with a damp cloth.

► Insert the water tank.

► Activate the HydroBreeze.

9.6.5 After cleaning

► Wipe the appliance and the components dry.

► Connect and switch on the appliance.

The temperature is cold enough:

► Place the food inside.

► Repeat cleaning regularly.

10 Customer help

10.1 Technical specifications

Temperature range

Cooling 3°C to 9°C

BioFresh 0°C to 3°C

Fish & SeaF

ood

-2°C to 0°C

Possible settings :

0°C | 0°C

-2°C | 0°C*

-2°C | -2°C

Maximum size baking tray

Width 466mm

Depth 386mm

Height 50mm

10.2 Operating noises

The appliance makes different noises when it is on.

At higher temperatures the appliance uses less energy

but works for longer. It is quieter.

At lower temperatures the food is cooled faster. It is

louder.

Examples:

•

Functions on (see 7.2Appliance functions)

•

Fan running

•

Food recently added

•

High ambient temperature

•

Door open for a while

Noise Possible cause Type of noise

Bubbling and

splashing

Coolant flowing

into the cooling

circuit.

Normal operating

noise

Hissing Coolant sprays

into the cooling

circuit.

Normal operating

noise

Humming The appliance

is cooling. The

volume depends

on the cooling

output.

Normal operating

noise

Suction noises Soft-closing door

is being opened

and closed.

Normal operating

noise

Humming and

rustling

The fan is running. Normal operating

noise

Clicking Components are

switched on and

off.

Normal switching

noise

Rattling or

humming

Valves or flaps are

working.

Normal switching

noise

Noise Possible

cause

Type of noise Lifting

Vibration Improper

installation

Defective

noise

Check the

installation.

Level the

appliance.

Rattling Components,

items inside

the appliance

Defective

noise

Secure

components.

Leave

enough

space

between the

items.

10.3 Technical fault

Your appliance is designed and built to ensure it works reli‐

ably and has a long service life. In the unlikely event that

a fault occurs during operation, please check whether it is

due to an operating error. If so, you will be charged for the

callout and repair costs even if it falls within the warranty

period.

You can fix the following faults yourself.

10.3.1 Appliance function

Defect

Cause Remedy

The appliance is

not working.

→ The appliance is not switched on. ► Switch the appliance on.

Customer help

* Depending on model and options 33

Defect Cause Remedy

→ The power plug is not properly

plugged into the socket.

► Check the power plug.

→ There is something wrong with the

power outlet fuse.

► Check the fuse.

→ Power cut ► Keep the appliance closed.

→ The IEC socket is not plugged into

the appliance correctly.

► Check the IEC socket.

Temperature is not

cold enough.

→ The appliance door is not closed

properly.

► Close the appliance door.

→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.

→ The ambient temperature is too

high.

► Problem solution: (see2.4 Appliance range of use)

→ The appliance was opened too

many times or for too long.

► Wait to see if the required temperature corrects itself.

If not, contact Customer Service. (see 10.4 Customer

Service)

→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.

→ The appliance is too close to a heat

source (oven, radiator, etc).

► Move the appliance or the heat source.

→ The appliance was not correctly

installed in the recess.

► Check if the appliance was installed correctly and that

the door closes properly.

The door seal is

defective or needs

to be replaced for

another reason.

→ The door seal can be replaced. It

can be replaced without the need

for special tools.

► Contact Customer Service. (see 10.4 Customer Service)

The appliance

builds up too much

ice or condensa‐

tion.

→ The door seal may have slipped out

of its groove.

► Check that the door seal is well fitted in the groove.

10.3.2 Features

Defect Cause Remedy

HydroBreeze is not

keeping refriger‐

ated goods moist.

→ The HydroBreeze is not on. ► Activate the HydroBreeze.

→ There is not enough water in the

water tank.

► Fill the water tank.

→ There is dirt in front of the concen‐

trator.

► Clean the HydroBreeze.

→ The water tank is not clicked into

place properly.

► Click the water tank into place.

→ The compartment cover of the Fruit

& Vegetable Safe is set to “low

humidity”.

► The compartment cover of the Fruit & Vegetable Safe is

set to “high humidity”.

The internal light

does not come on.

→ The appliance is not switched on. ► Switch the appliance on.

→ The door was open for longer than

15 minutes.

► Interior lighting switches off automatically after

about 15 minutes when the door is open.

→ The LED interior light is faulty or

the lid is damaged.

► Contact Customer Service. (see 10.4 Customer Service)

Customer help

34 * Depending on model and options

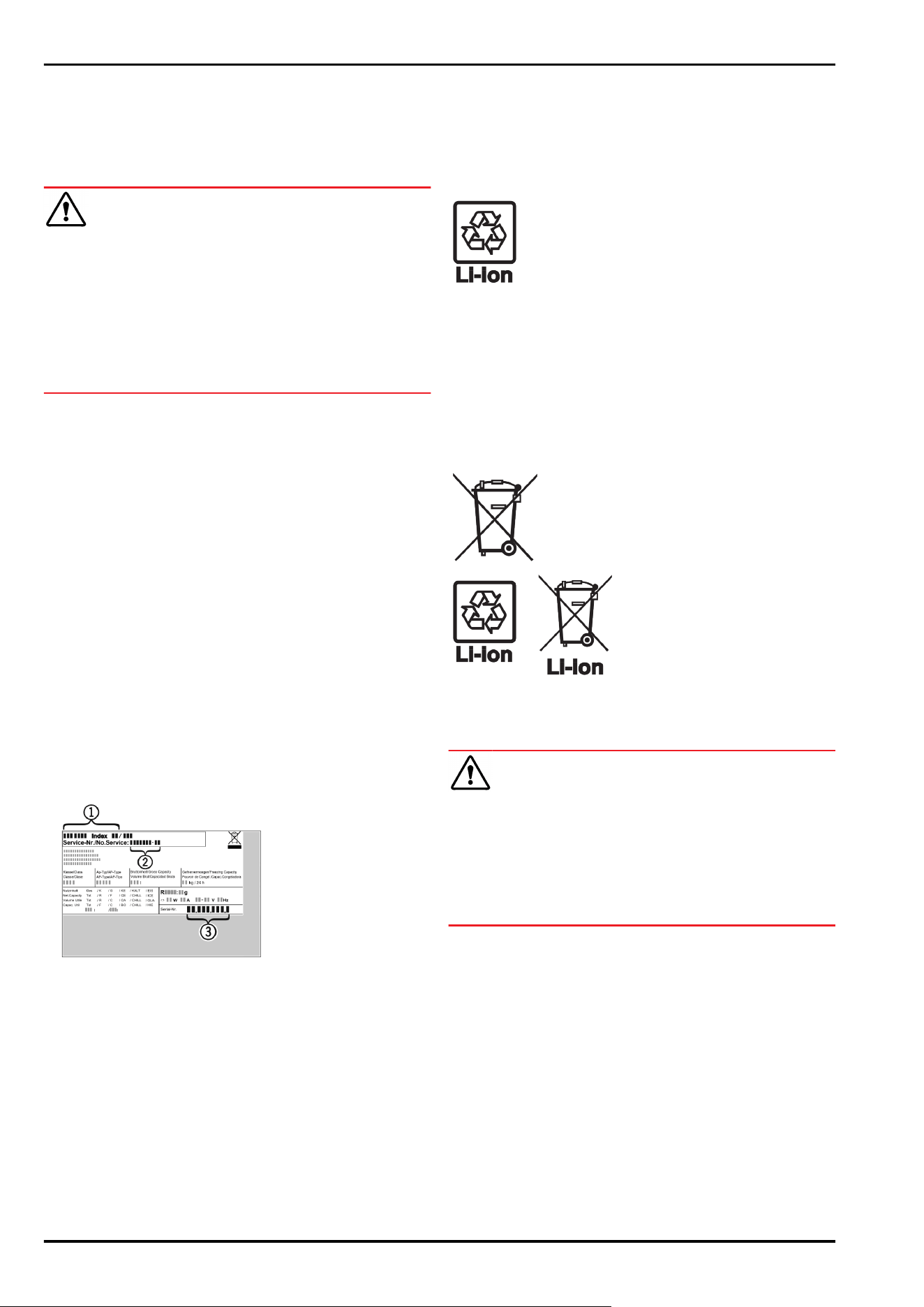

10.4 Customer Service

First check whether you can rectify the fault yourself

(see 10 Customer help) . If you cannot rectify the problem,

contact Customer Service.

You can find the address at home.liebherr.com/service.

WARNING

Unprofessional repair!

Injuries.

► Have any repairs and action - not expressly specified -

on the appliance and mains cable carried out by service

personnel only. (see9 Maintenance)

► A damaged mains cable may only be replaced by the

manufacturer, the manufacturer’s Customer Service or a

similarly qualified person.

► In the case of appliances with an IEC connector, the

change may be made by the customer.

10.4.1 Contacting Customer Service

Make sure that the following appliance information is avail‐

able:

❑

Appliance name (model and index)

❑

Service no. (Service)

❑

Serial no. (S no.)

► Call up the appliance information via the display.

(see Device information)

-or-

► Refer to the type plate for appliance information.

(see 10.5 Model plate)

► Note down the appliance information.

► Notify customer service: Report errors and the appliance

information.

▷ This will help us to provide you with a faster, more accu‐

rate service.

► Follow further instructions from Customer Service.

10.5 Model plate

The model plate is behind the drawers on the inside of the

appliance.

Fig. 155

(1)

Appliance description (3) Serial no.

(2) Service no.

► Note the data on the model plate.

11 Shutting down

► Empty the appliance.

► Deactivate HydroBreeze. (see Deactivating HydroBreeze)

► Switch off appliance. (see Switching the appliance off

and on)

► Pull the mains plug out of the socket.

► Remove the IEC socket if required: Pull the IEC socket out

of the appliance plug and move it to the left and right at

the same time.

► Clean appliance. (see 9.6Cleaning the appliance)

►

Leave the door open, so that no unpleasant odours arise.

12 Disposal

12.1 Preparing appliance for disposal

Liebherr uses batteries in some of its appli‐

ances. In the EU, for environmental reasons,

legislation obliges the end user to remove

these batteries before disposing of old appli‐

ances. If your appliance contains batteries, a

corresponding notice is attached.

Lamps If you can remove the lamps yourself without

destroying them, also remove these before

disposal.

► Take the appliance out of operation.

► If possible: remove lamps without destroying them.

12.2 Disposing of the appliance in an

environmentally friendly manner

The appliance still contains

valuable materials and must

be disposed of separately from

unsorted municipal waste.

Dispose of batteries separately

from the old appliance. To do

this, you can return the batteries

free of charge to retailers as

well as recycling centres and

collection centres for recyclable

materials.

Lamps Dispose of removed lamps

via the respective collection

systems.

WARNING

Leaking coolant and oil!

Fire. The coolant contained in the appliance is eco-friendly,

but also flammable. The oil contained in the appliance

is flammable. Escaping coolant and oil can ignite if the

concentration is high enough and in contact with an

external heat source.

► Do not damage the pipelines of the coolant circuit and

the compressor.

► Observe the notes on transporting the appliance.

► Transport the appliance without damaging it.

► Dispose of batteries, lamps and the appliance according

to the above specifications.

Shutting down

* Depending on model and options 35

home.liebherr.com/fridge-manuals

integrated fridge with BioFresh

Issue date:20250922

Part number index: 7088407-00

Liebherr-Hausgeräte GmbH

Memminger Straße 77-79

88416Ochsenhausen

Deutschland

Liebherr IRBH 5170 Integrated Fridge BioFresh Technology and Advanced Freshness Features IRBH 5170 PEAK BIOFRESH

Product's Documents

Operating instructions

Specifications

Liebherr IRBH 5170 PEAK BIOFRESH Questions and Answers
