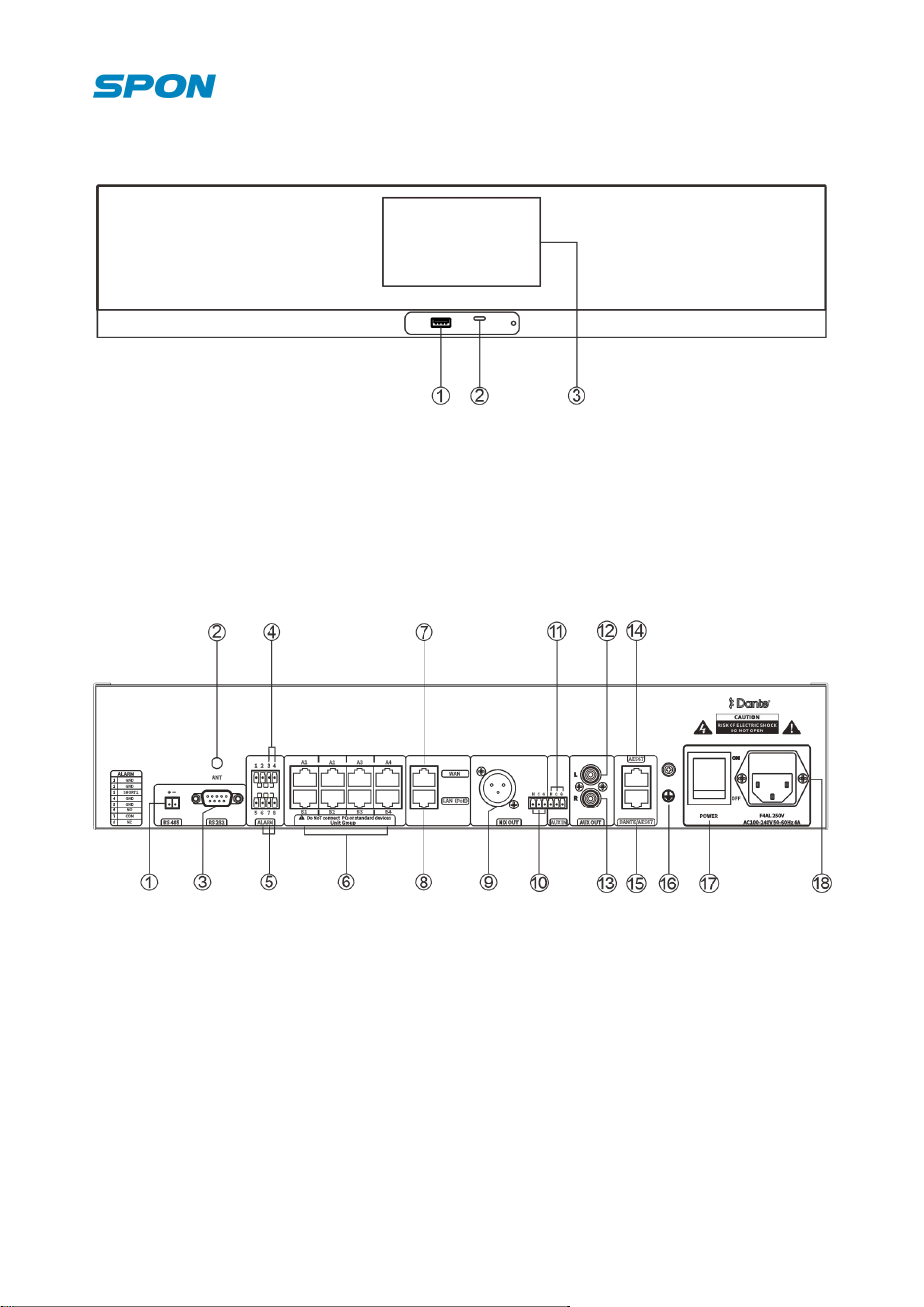

Interface Description
Front Panel
①USB Interface: Insert a USB flash drive for audio recording purposes.
②USB Sound Card: Receives audio signals from the computer, or outputs the audio
of the host.
③Touch Screen: Displays device status information.
Rear Panel
①RS485 interface
②ANT：2.4 antenna interface
③RS232 interface
④Short-Circuit Input Interface:
3: SHORT 1
4: GND
⑤Short-Circuit Output Interface:
6：NO
7：COM
installation manual
8：NC
⑥A1-B4:For Connecting Microphones
⑦WAN: RJ45 Network Interface (POE Not Supported)
⑧LAN: RJ45 Network Interface (POE Supported)
⑨MIX OUT: XLR Audio Balanced Output Port.
⑩MIX OUT-HCG: Phoenix Audio Balanced Output Port.
⑪AUX IN-HCG: Phoenix Audio Balanced Input Port.
⑫Stereo Line Output (Left Channel) - L
⑬Stereo Line Output (Right Channel) - R
⑭AES67 Interface: Reserved
⑮DANTE/AES67 Interface
⑯Ground Terminal: Safety ground point.
⑰POWER：Power Switch.
⑱Power Socket: For Connection to Mains Power.
Connection Instructions

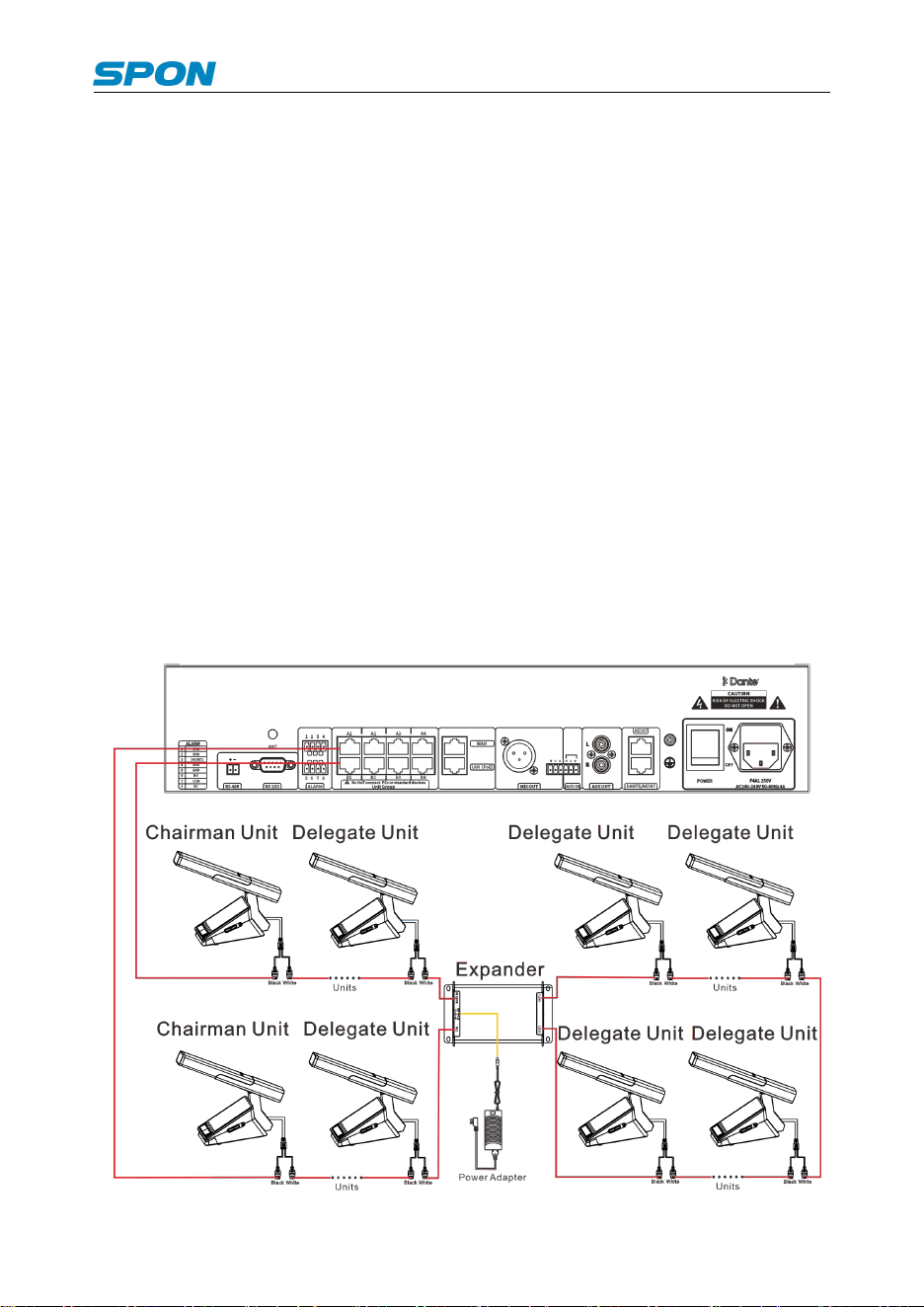

[Local Ring Network Connection]
installation manual

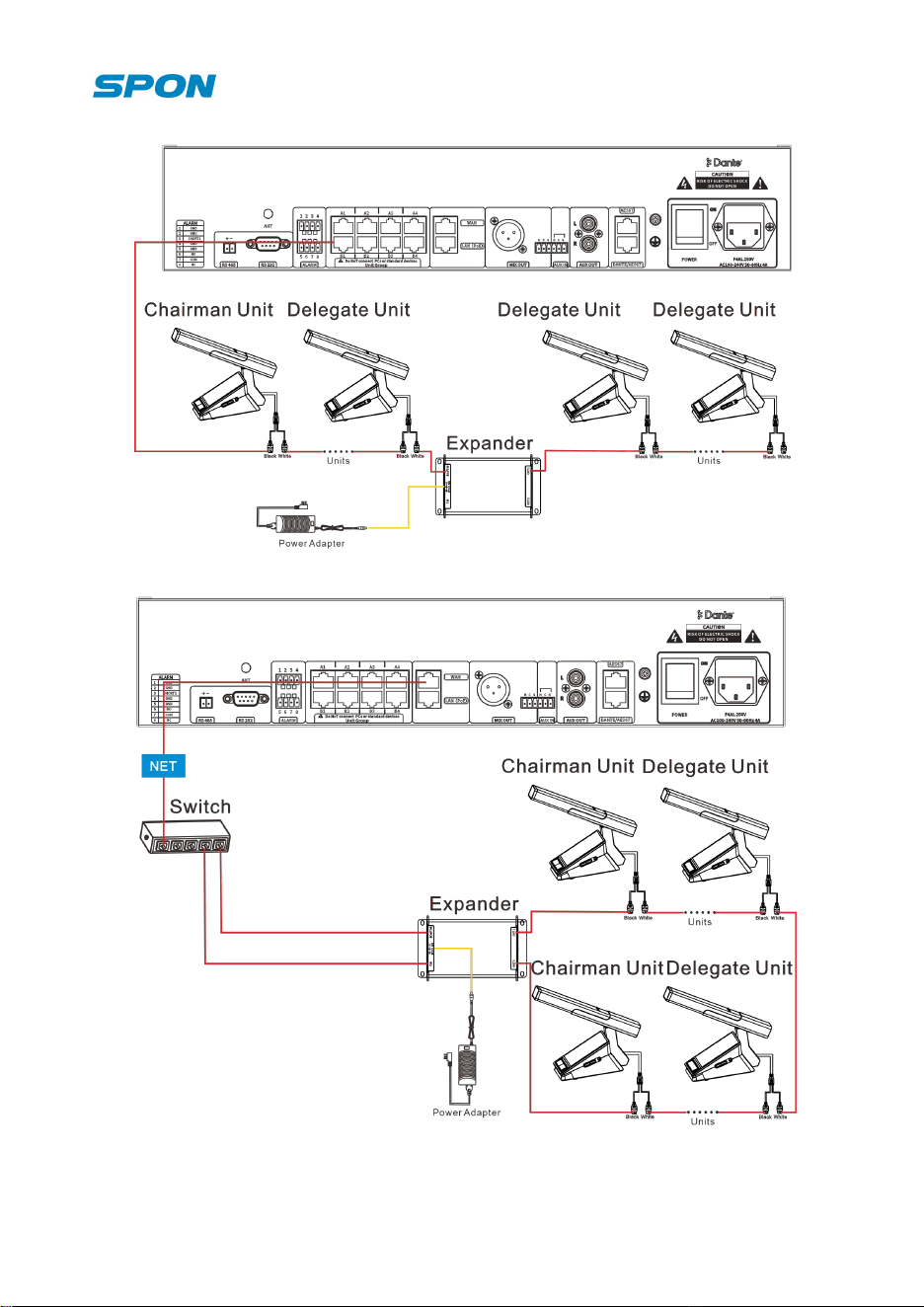

[Local Daisy-Chain Connection]
[Network Expansion Ring Connection]
installation manual

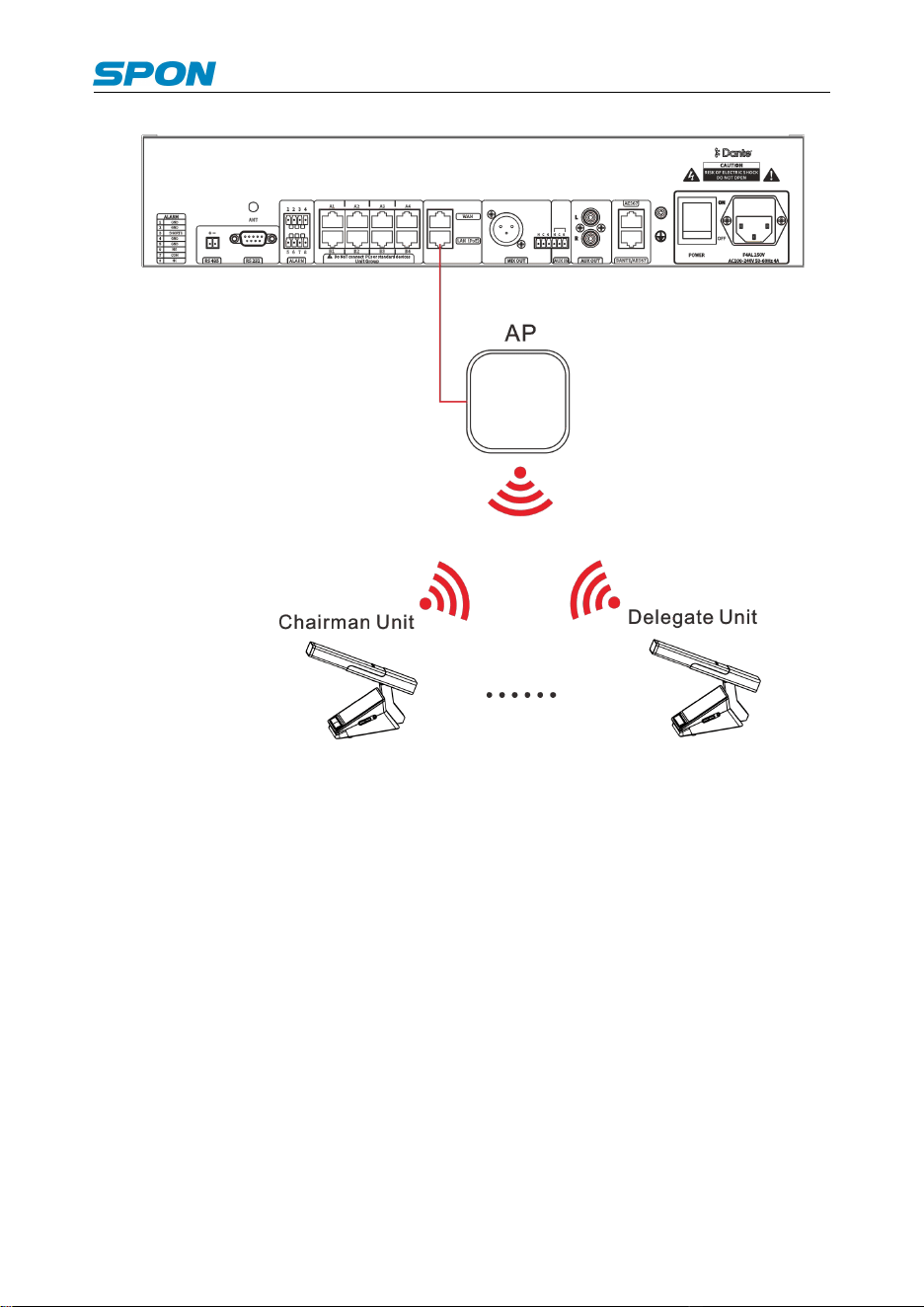

[Wireless Connection]
installation manual

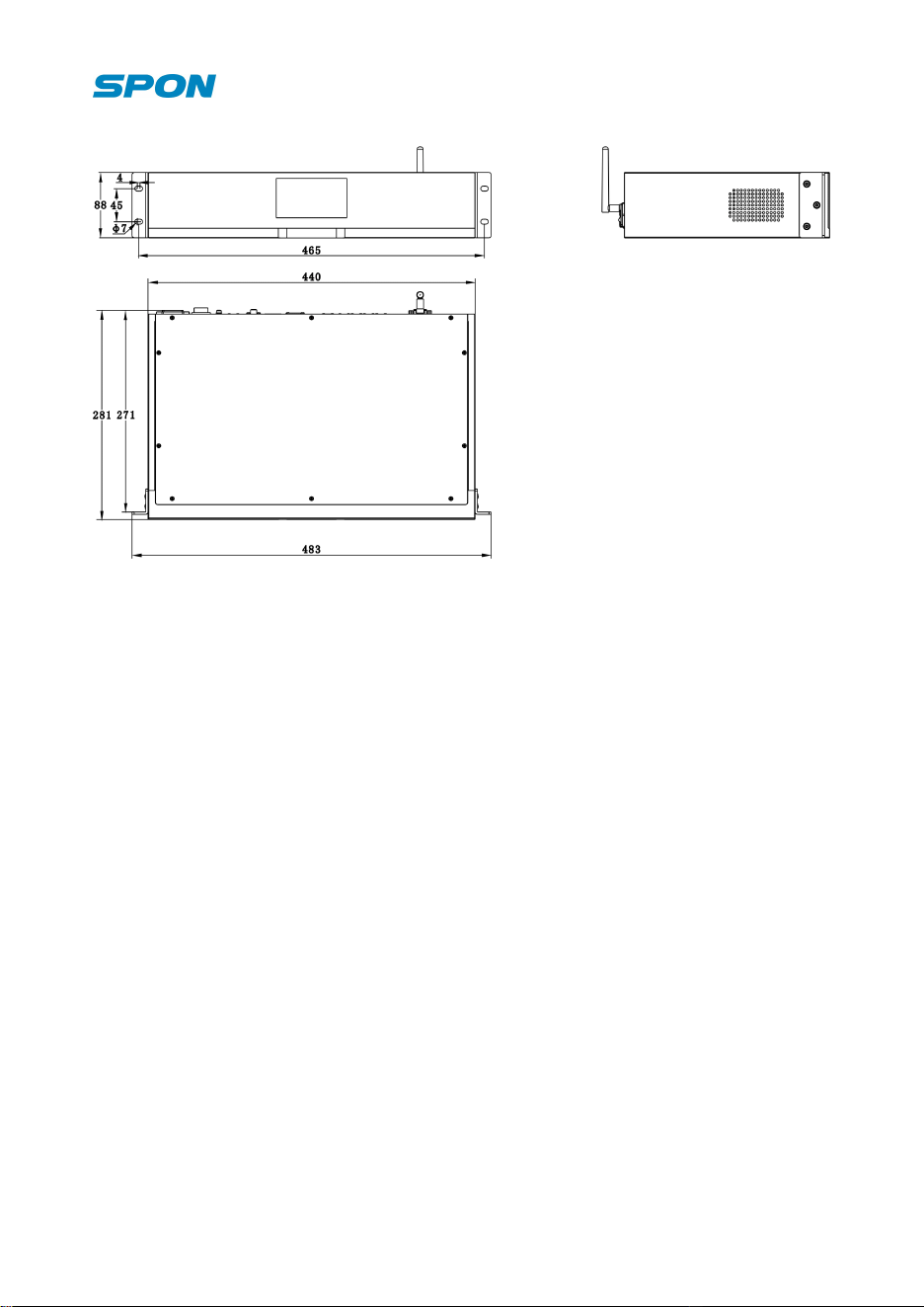

Product Dimension Diagram (unit :mm)
installation manual
Specifications, Functional Components and Parameters
Power Supply & Power
Consumption
100V–240V~ 50Hz–60Hz 4A, ≤10W (without
microphones connected)
Display
4.3-inch Color Touch LCD Screen
Resolution
480×272
Network Interfaces
1 × WAN Port; 1 × LAN Port (POE-supported, for
wireless repeater connection)
Network Chip Rate
100Mbps
Network
Communication
Protocols
TCP/IP、UDP、ARP、ICMP、IGMP、HTTP
Microphone unit
interface
RJ45 * 8
Audio Outputs
1 × Phoenix Balanced Output; 1 × XLR Balanced
Output; 1 × RCA Stereo Line Output
Audio Inputs
1 × Phoenix Balanced Input
Digital Audio I/O
1 × 2×2 Dante Audio Interface
Audio Sampling Rate
44.1Khz
Signal-to-Noise Ratio
(SNR)
＞83dB
Frequency Response
40Hz-18KHz
Total Harmonic
Distortion (THD)
0.05%
Display Language
Chinese
Other Interfaces
1 × USB Port; 1 × RS232 Serial Output; 1 × RS485
Communication Interface; 1 × Short-Circuit Input; 1
× Short-Circuit Output
Operating Temperature
& Humidity
0–45℃, ≤90% RH (non-condensing)
Product Dimensions
483×281×88mm
Installation Method
Standard Rack Mount
installation manual

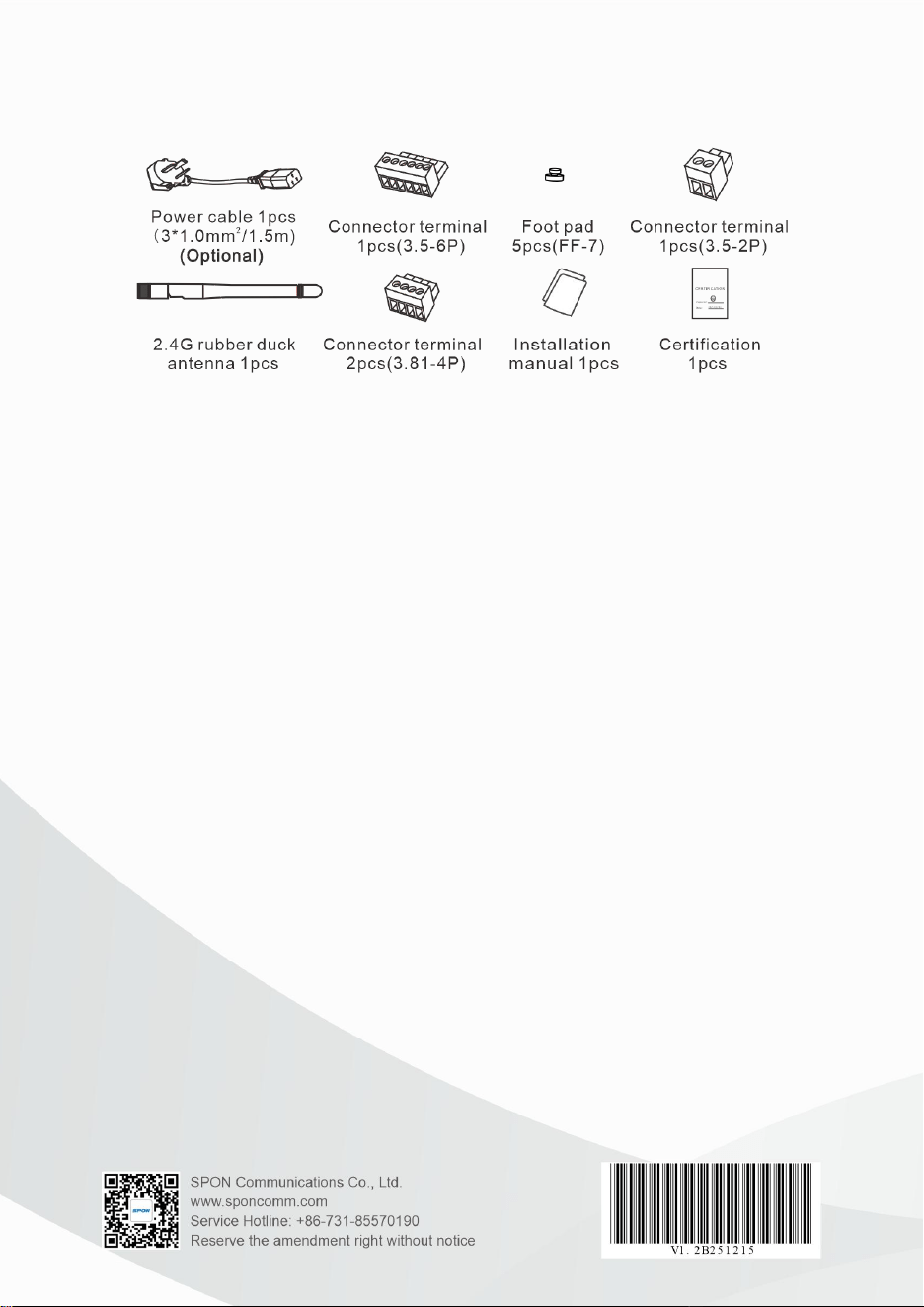

Packing List
FCC Statement
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions (1)this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
