1
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
Models:
Installation/Owner’s Manual
Appliance Setup, Care and Operation
NOTICE: DO NOT discard this manual!
INSTALLER: Leave this manual with the appliance
OWNER: Retain this manual for future reference.
LUM-OD-NM
LUM-OD-PM
Lumonessen
Series
MH61458
GAS-FIRED
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open ame.
• If odor continues, leave the area immediately.
• After leaving the area, call your gas supplier or re
department.
• Failure to follow these instructions could result in re
or explosion, which could cause property damage,
personal injury, or death.
WARNING
Do not store or use gasoline or other ammable va-
pors and liquids in the vicinity of this or any other
appliance
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING: For outdoor use only.
Installation and service must be performed by a
qualied installer, service agency, or the gas supplier.
WARNING: If the information in this manual
is not followed exactly, a re or explosion may
result causing property damage, personal injury, or
loss of life.
Outdoor Burner/Log Set
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/232
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
NOTE: Our gas logs are hand painted for ultimate
beauty and realism. As a result, some variation in color
and shading will occur from set to set. This is intentional
and designed to make each product unique, as found in
nature.
Installation Standard Work Checklist .................... 3
1 Product Specic & Important Safety Information
A. Appliance Certication ............................4
B. BTU Specications and Weight .....................4
C. Gas Pressures ..................................4
D. High Altitude Installations ..........................4
E. Non-Combustible Materials Specication. . . . . . . . . . . . . . 4
2 Getting Started
A. Design and Installation Considerations ............... 5
B. Tools and Supplies Needed ........................5
C. Appliance Location Requirements/Outdoor Living Space . 6
D. Inspect Appliance and Components ..................7
E. Check Parts ....................................7
F. Installation Information ............................7
3 Clearances & Height Requirements
A. Clearances & Height Requirements .................. 9
B. Before Installing the Appliance ..................... 12

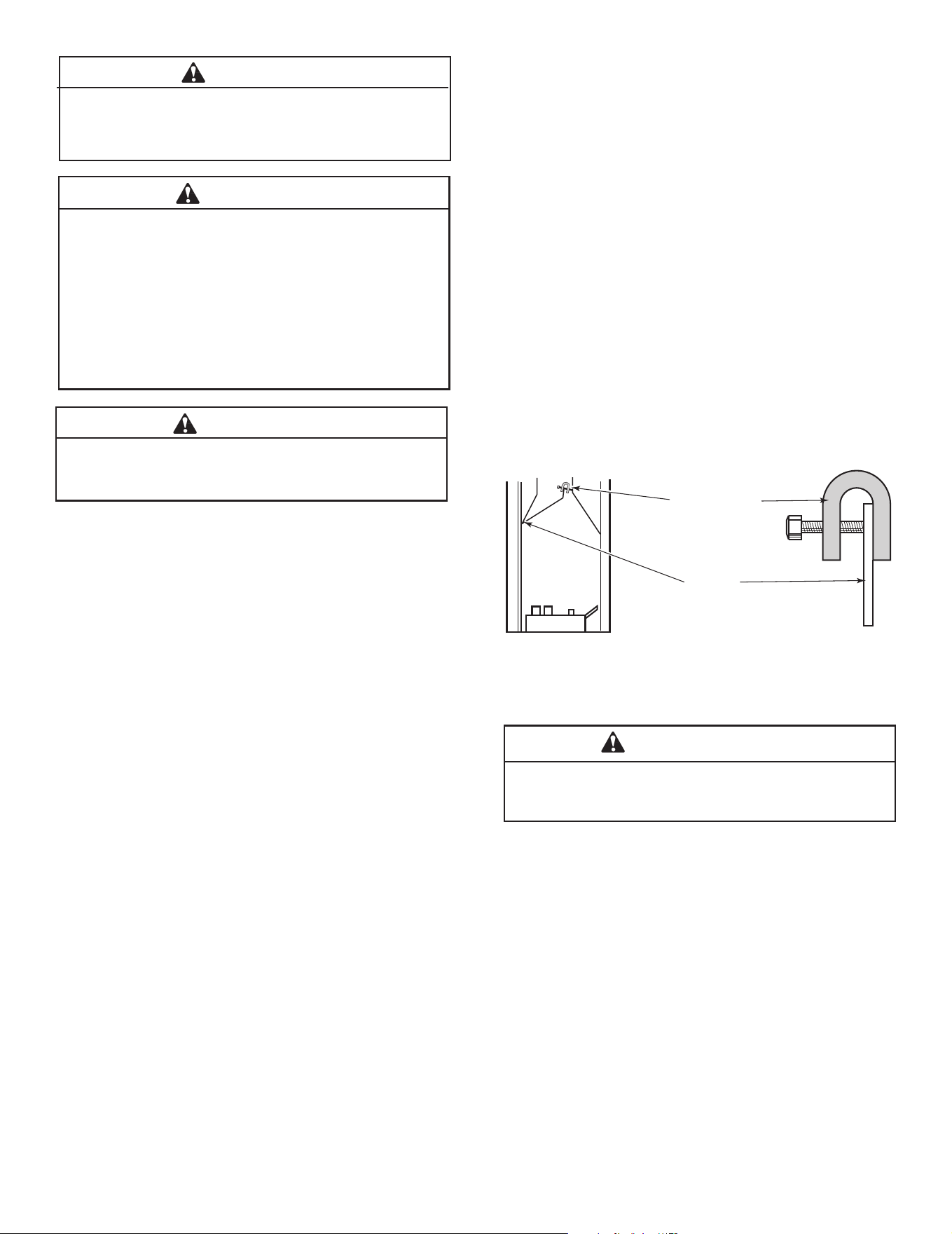

C. Damper Stop Installation .........................12
D. Assembly Procedure ............................13
4 Gas Information
A. Gas Line Connection ............................14
B. Fuel Type .....................................14
C. Gas Pressure ..................................14
D. Gas Service Access .............................15
E. Check Gas Pressure ............................15
5 Electrical Information
A. General Information .............................16
6 Gas Log Set

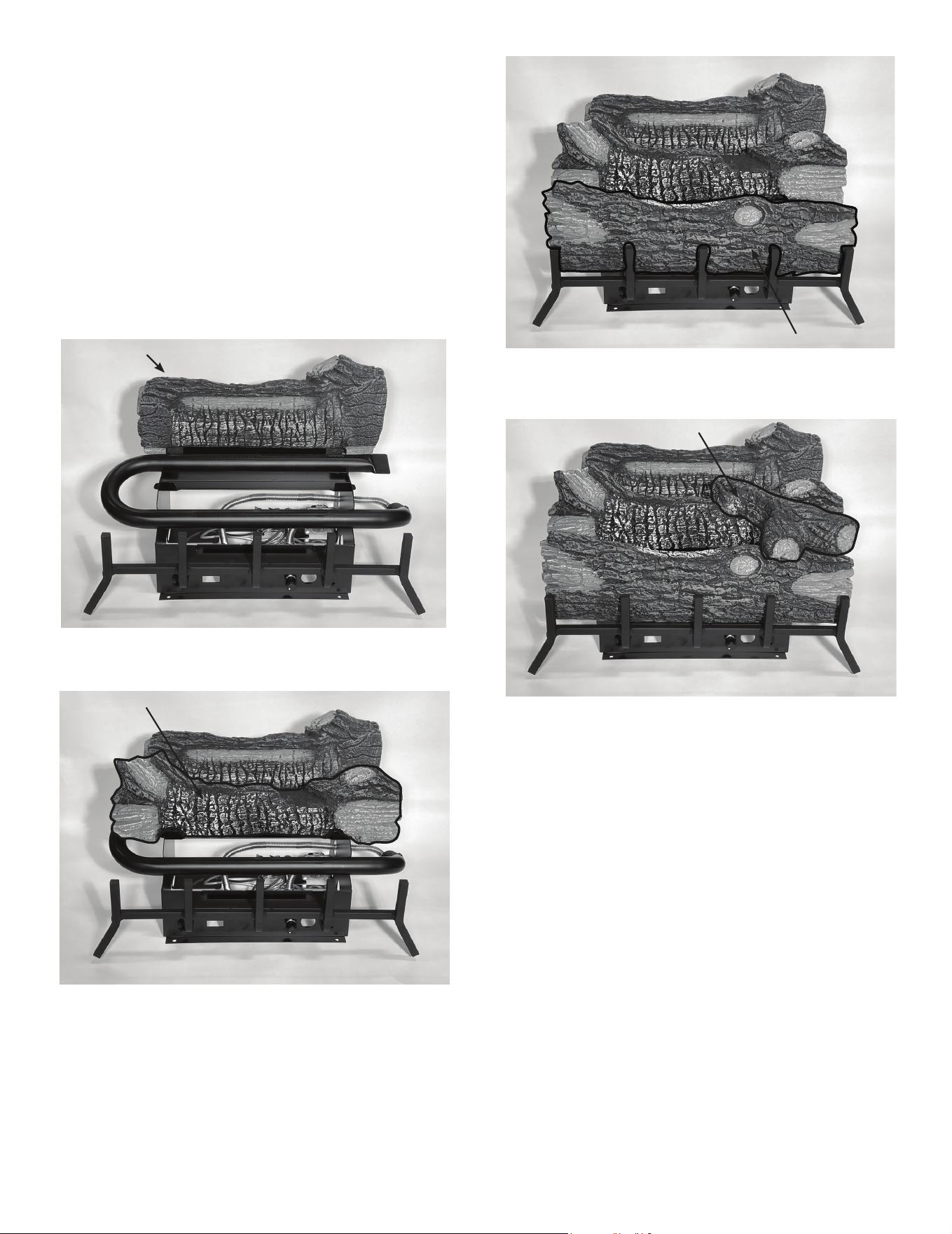

A. Grate & Log Installation ..........................17
B. Log Placement (Mezmer) ......................... 18

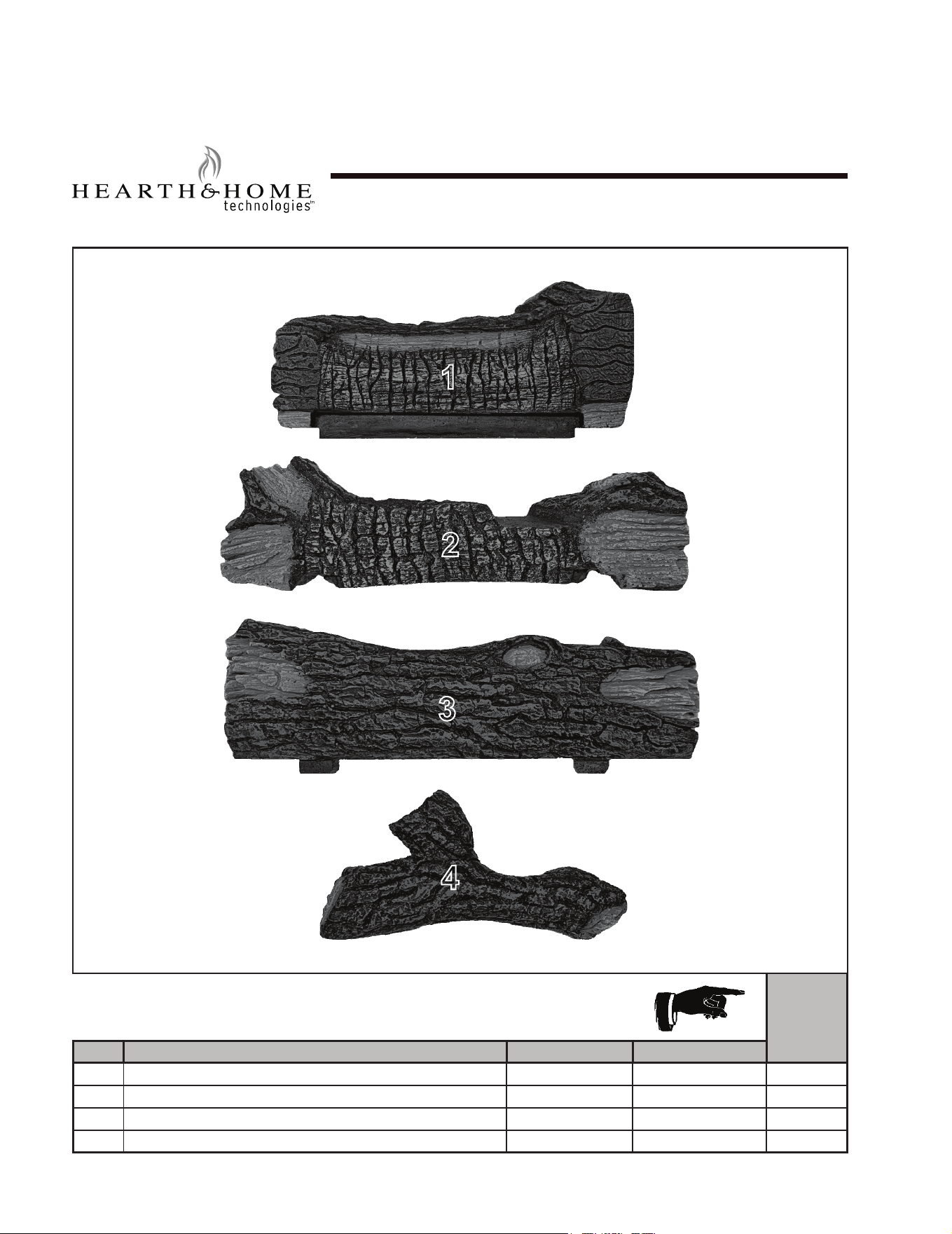

C. Log Placement (Mountain Oak-18) .................19

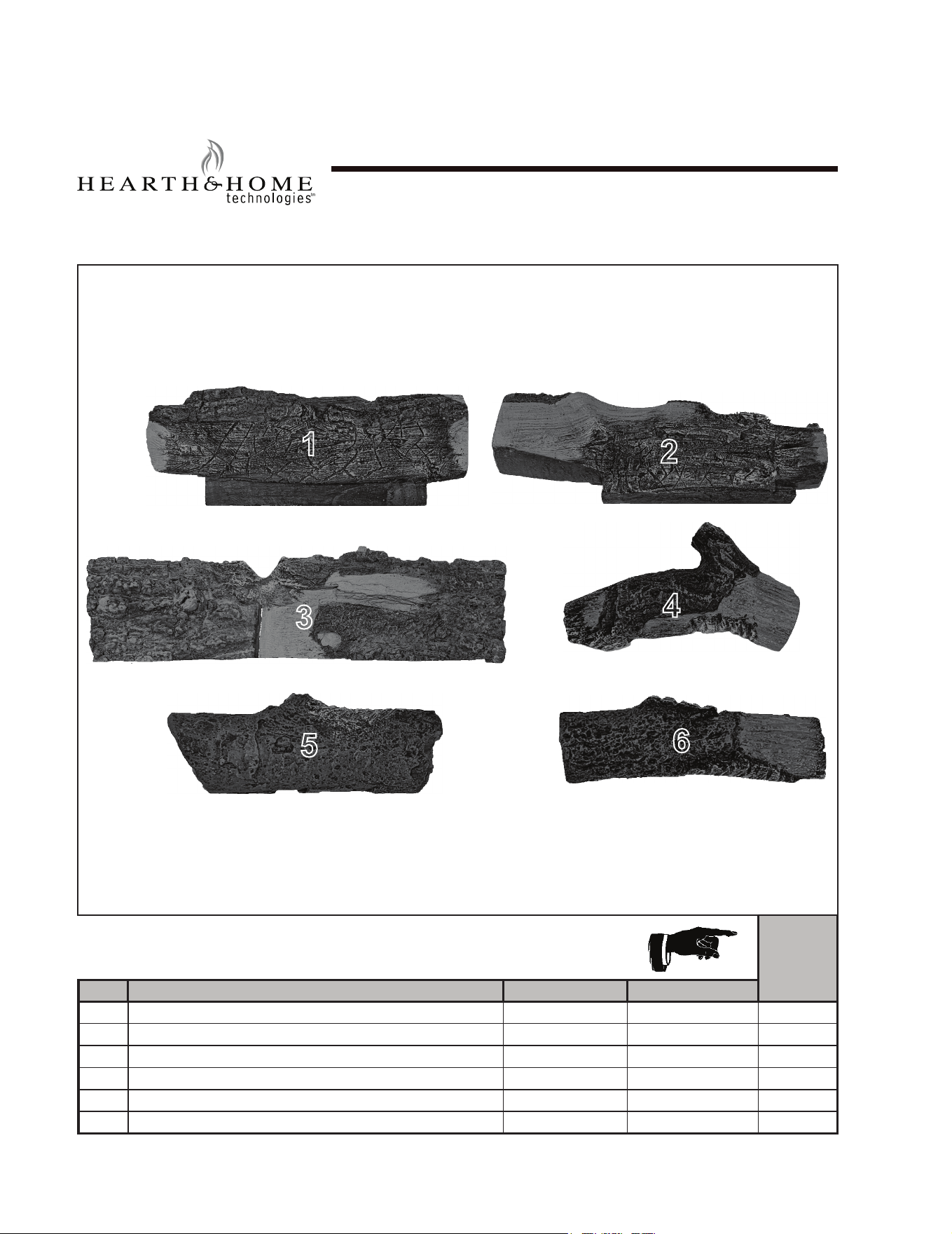

D. Log Placement (Mountain Oak-24/30) ...............20
E. Flame Appearance ..............................21
F. Operating Instructions ...........................21
7 Owner’s Manual
A. Congratulations ................................23
B. Limited Lifetime Warranty .........................24
8 Product Specication Information
A. Application Certication ..........................26
B. BTU Specications and Weight ....................26
9 Important Safety & Operating Information
A. Appliance Safety ...............................27
B. General Operating Parts .........................29
C. Fuel Specications ..............................29
D. Before Lighting Appliance. . . . . . . . . . . . . . . . . . . . . . . . . 29
10 Lighting Instructions

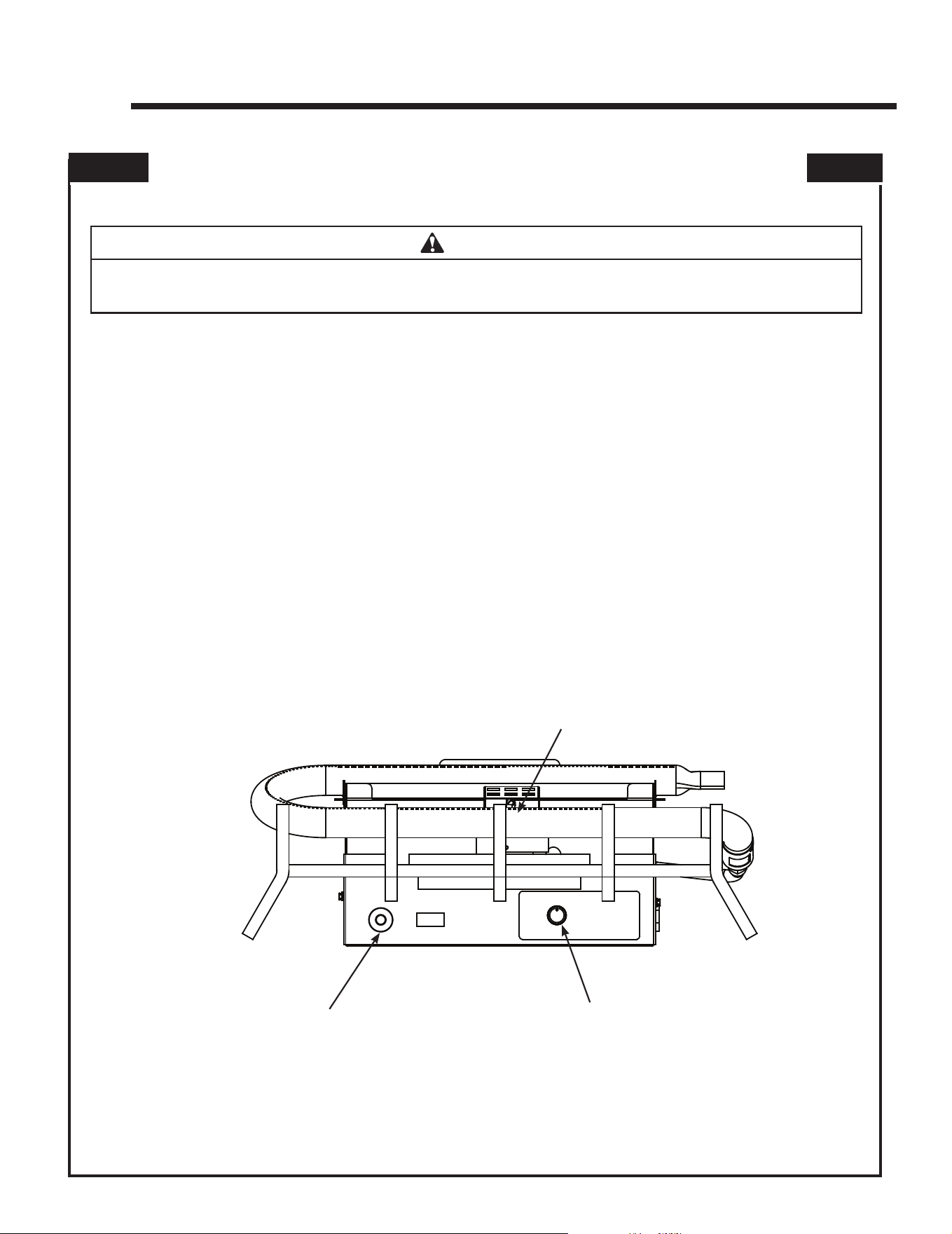

A. Manual Valve ..................................30
B. Lighting Instructions .............................32
C. Initial Use .....................................34
11 Maintenance & Service
A. Maintenance: Frequency & Tasks ................. 35
B. Maintenance Tasks: Qualied Service Technician ..... 35
C. Burner Ignition & Operation .......................35
D. Cleaning & Servicing ............................36
12 Troubleshooting
A. Manual Valve Control System .....................37
13 Service Parts & Accessories

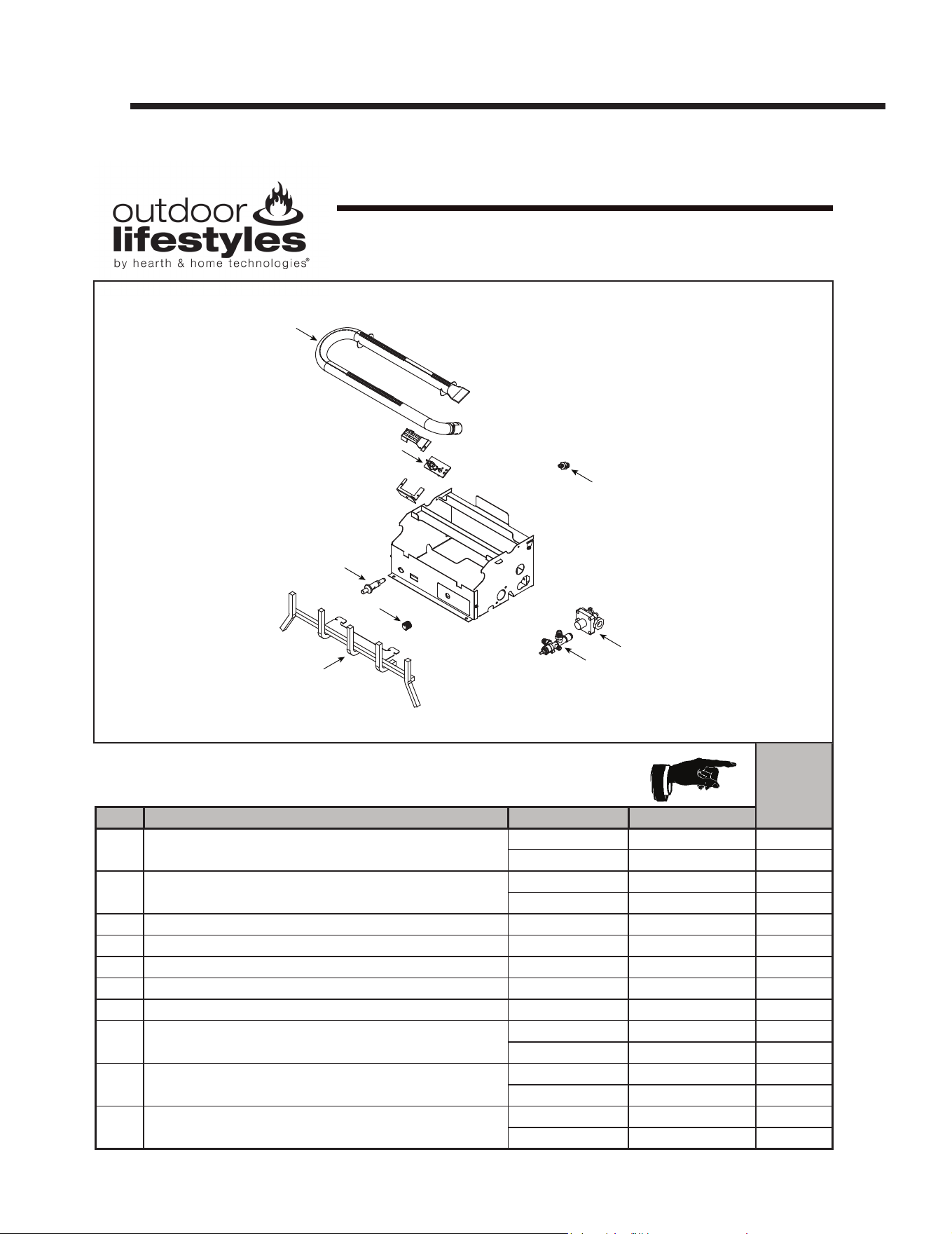

A. Service Parts ..................................38
B. Massachusetts Residents Only .................... 60
C. Contact Information .............................61
Table of Contents
3
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
Installation Standard Work Checklist
Customer:
Lot/Address:
Model
(circle one): LUM-OD-NM, LUM-OD-PM
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective
action needed _____________________________________________________________________________________
Comments Communicated to party responsible ____________________ by ______________________on ___________
(Builder / Gen. Contractor/) (Installer) (Date)
?YHW , ON F I SEY
___________________________
___________________________
___________________________
___________________________
___________________________
Gas Log Install Sections 2 and 5
Verified that the chimney has been cleaned. (pg. 12)
Verifi ed clearances to combustibles.
Gas Logs are leveled and secured.
See page 7 for adequate provisions for combustion and
ventilation air have been verified.
Gas Section 4
Proper appliance for fuel type.
Leak check performed and inlet pressure verified.
Verified proper air shutter setting for installation type.
___________________________
___________________________
___________________________
___________________________
___________________________
Finishing Section 3
Verifi ed all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
___________________________
___________________________
___________________________
___________________________
___________________________
Manual bag and all of its contents are removed and the log set
given to party responsible for use and operation.
Started log set and veried no gas leaks exist.
___________________________
___________________________
4629-982A 02/22
= Contains updated information.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the appliance until the installation is complete.
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this
installation manual.
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions could
lead to a fire or explosion.
ATTENTION INSTALLER:
Follow this Standard Work Checklist
Embers & Logs Section 6
All packaging and protective materials removed (inside & outside of appliance).
Embers and logs installed correctly.
Accessories installed properly.
Electrical Section 5
Switch wires properly installed.
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/234
1 1
Product Specic and Important Safety Information
Models
Maximum
Input
BTU/h
Minimum
Input
BTU/h
Orice
Weight
Pounds
LUM-OD-NM (0-2000 FT) 38,000 19,000
.136 in
(3.45mm)
#29
7
LUM-OD-PM (0-2000 FT) 38,000 31,000
.0.78 in
(1.98mm)
#47
7
This product is listed to ANSI standards for "Unvented
Room Heaters” and applicable sections of "Gas Burning
Heating Appliances for Manufactured Homes" and "Gas
Fired Appliances for Use at High Altitude."
A. Appliance Certication
E. Non-Combustible Materials Specication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in
a Vertical Tube Furnace at 750 ºC shall be considered
non-combustible materials.
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heater or as a decorative appliance. It should not
be factored as primary heat in residential heating calcula-
tions.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A.
B. BTU Specications and Weight
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation: Reduce input
rate 4% for each 1000 feet above sea level.
Check with your local gas utility to determine proper
orice size.
MODEL: LUM-OD-NM, LUM-OD-PM
LABORATORY: Underwriters Laboratory (UL)
TYPE: Outdoor Decorative Gas Appliance
STANDARD: ANSI Z21.97-2017, CSA 2.41-2017

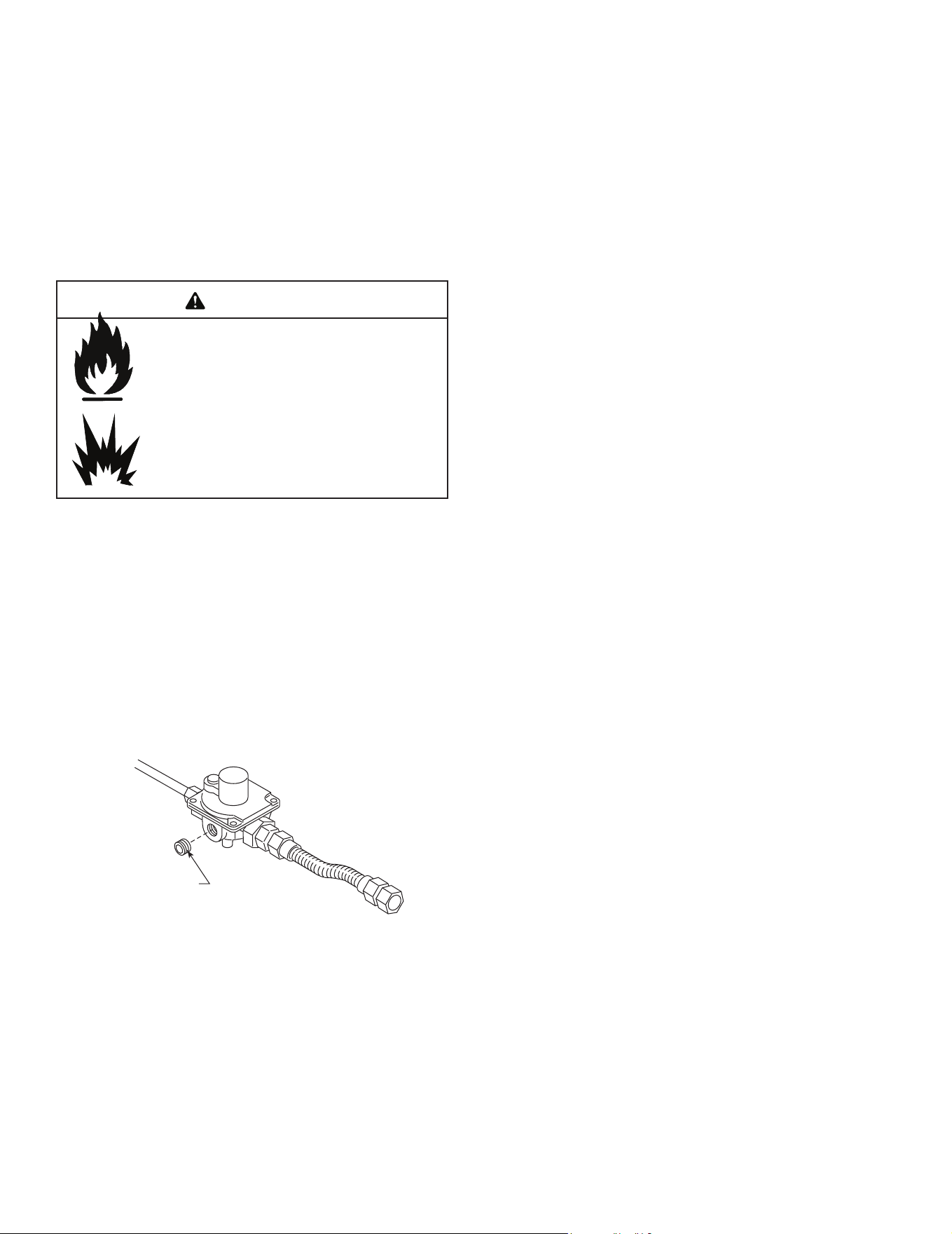

NOTE: For LP models an external regulator is required
to reduce supply pressure to a maximum of 13" w.c.
NATURAL PROPANE (LP)
Inlet Minimum 5.0" w.c. 11.0" w.c.
Inlet Maximum 10.5" w.c. 13.0" w.c.
Gas Valve Manifold
Pressure Setting
3.5" w.c. 10" w.c.
NATURAL GAS: An external regulator is required to reduce
supply pressure to a maximum of 10
1
⁄2" w.c. on natural gas
systems operating at higher pressure.
PROPANE/LPG: An external regulator is required to reduce
supply pressure to a maximum of 13" w.c.
C. Gas Pressures
5
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
2 2
Getting Started
A. Design and Installation Considerations
Installation MUST comply with local, regional, state and
national codes and regulations. Consult insurance carrier,
local building inspector, re ofcials or authorities having
jurisdiction over restrictions, installation inspection and
permits.
Before installing, determine the following:
• Where burner assembly and log set are to be installed.
• Gas supply piping.
• Whether optional accessories—devices such as a wall
switch or remote control—are desired.
• Approved wood burning masonry replace or vent-free
replace.
The Lumonessen outdoor series gas appliance is de-
signed for outdoor use and may be installed as a stand
alone appliance or built into a wall.

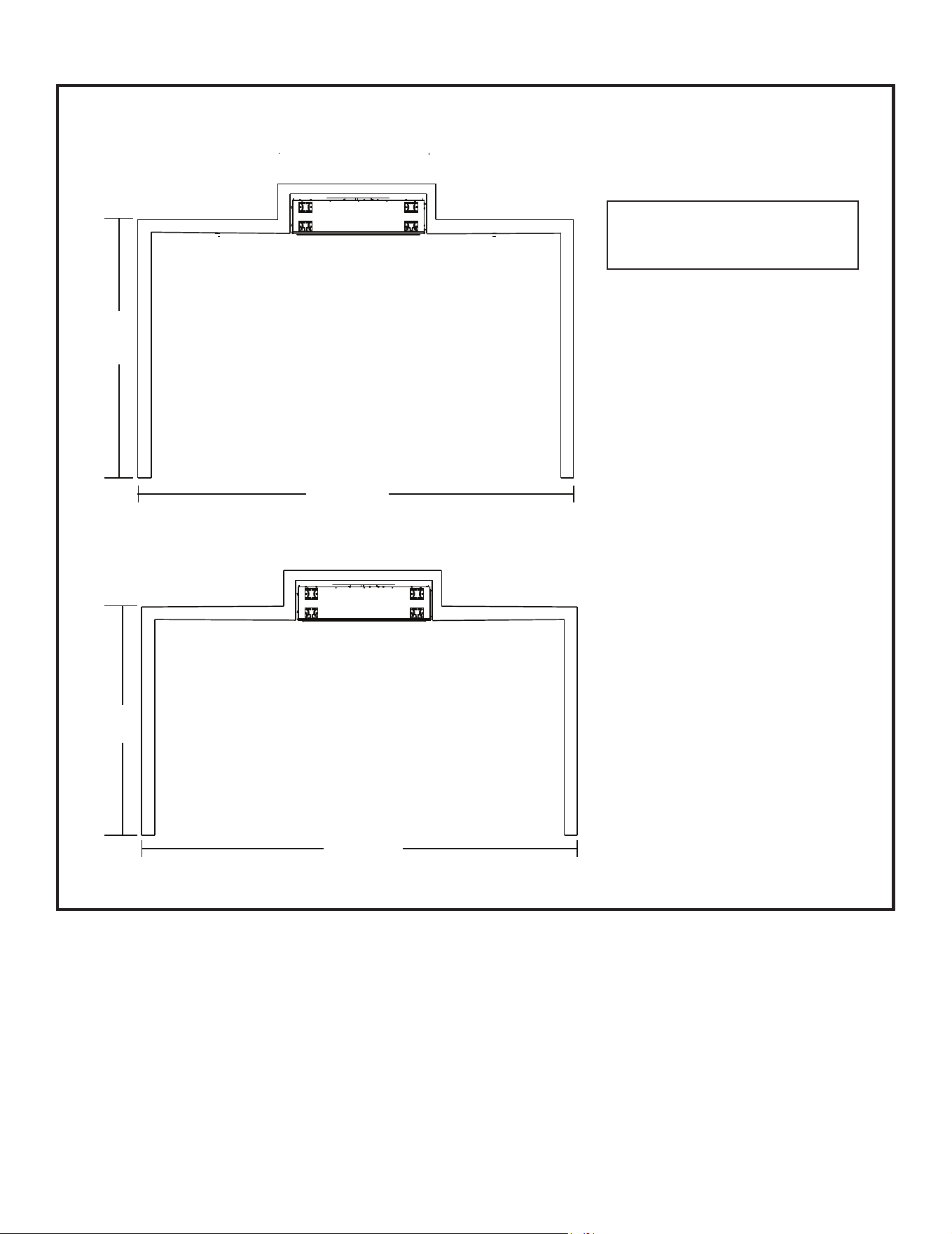

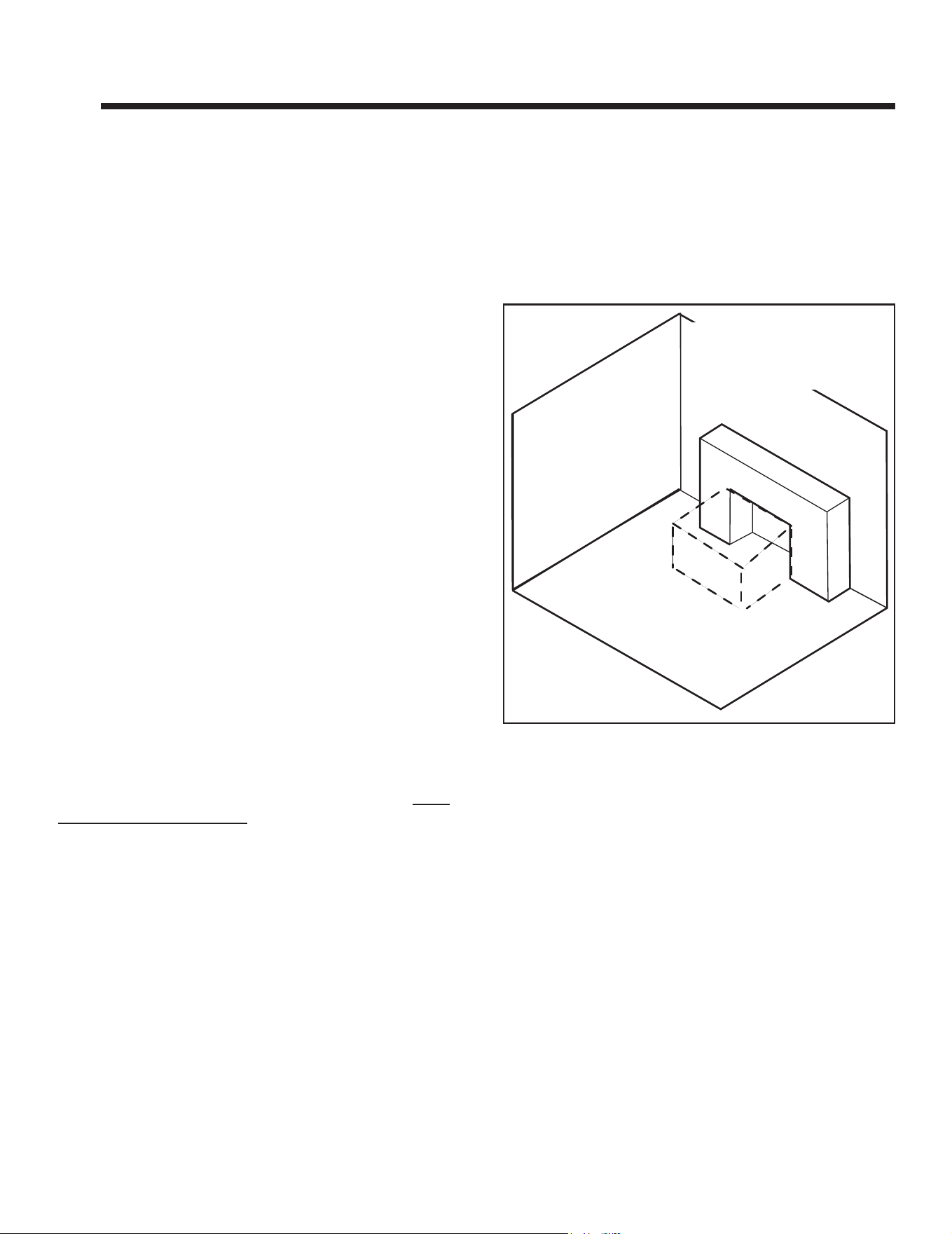

Outdoor spaces - For the purpose of these instructions,
an appliance is considered to be outdoors if installed with
shelter no more inclusive than:
1. With walls on all sides, but no overhead cover
2. Within a partial enclosure which includes an over-
head cover and no more than two side walls. These
side walls may be parallel, as in a breezeway, or at
right angles to each other; or
3. Within a partial enclosure which includes an over-
head cover and three sidewalls, as long as 30 % or
more of the horizontal periphery of the enclosure is
permanently open.
NOTE: Screen may be used on the open sides of the
shelter. 14x18 and 16x18 screen mesh is approved for
use. DO NOT use solar screen or no-see-um screen.
NOTE: See page 6 for additional information on appli-
ance location requirements for outdoor living spaces.
The appliance may be installed on a wood or non-com-
bustible deck.
Refer to section three for clearances.
Installation MUST comply with local, regional, state and
national codes and regulations. Consult the authorities
having jurisdiction over restrictions, installation inspection
and permits.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
service technician, service agency or your dealer.
Installation and service of this appliance should
be performed by qualied personnel. Hearth
& Home Technologies recommends HHT
Factory Trained or NFI certied professionals.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
• Tape measure
• Gloves
• Voltmeter
• Manometer
• Phillips screwdriver
• Safety glasses
• Flat blade screwdriver
• Soapy water solution for gas leak testing
• Electric drill and bits (1/4 in. magnetic)
• External regulator (for propane/LPG only & 1/2 psi
Natural gas system)
• Piping which complies with local codes
• Pipe sealant approved for use with propane/LPG
(Resistant to sulfur compounds)
• Manual shutoff valve
• Sediment trap
• Tee joint
• Pipe wrench
Gloves are recommended when handling
refractory and logs to prevent skin irritation
from loose bers. Logs are fragile; handle
with care.
CAUTION
Before installing, determine the following:
• Where the appliance is to be installed.
– Clearances to side walls.
– Location of indoor appliance terminations, air in-
lets, gas meters, etc.
– Location of the appliance to a door that swings
open to ensure it doesn’t interfere with the appli-
ance when opened
– Location of Windows.
– Location of Walkways.
– Possibility of ooding or running water.
• Gas supply piping requirements.
• Electrical wiring requirements.
• Framing and nishing details.
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/236
16’
(4.87m)
1. Add lengths of the outside
living space.
16’+20’+16’+20’=72’
2. Divide the open area length
by the total outdoor living
space.
20/72=.28
.28 is less than the .30 required
and therefore this installation
would not be approved.
1. Add lengths of the outside
living space.
12’+20’+12’+20’=64’
2. Divide the open area length
by the total outdoor living
space.
20/64=.31
.31 is greater than the .30
required and therefore this
installation would be approved.
How to Calculate the Minimum Opening Needed In an Outdoor Living Space
30% (or .30) of the outdoor living
space periphery needs to be
open.
20’
(6.09m)
20’
(6.09m)
12’
(3.65m)
C. Appliance Location Requirements in Outdoor Living Space
Figure 2.1 - Outdoor Living Space
7
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
F. Installation Information
Use manufacturer's installation and clearance require-
ments as dened in their manual.
This Gas-Fired Unvented Gas Log Type Room Heater is
approved for installation into a CSA/ANSI Z21.91:20 listed
Ventless Firebox Enclosure for Gas-Fired Unvented Gas
Log Type Room Heaters, so long as the rebox hearth
dimensions meet the minimum hearth dimensions listed
in this manual.
This appliance is for installation only in a solid-fuel
burning masonry or UL127 factory-built replace
or in listed ventless rebox enclosure. It has been
design certied for these installations.
Exception: DO NOT install this appliance in a factory-
built replace that includes instructions stating
it has not been tested or should not be used with
unvented gas logs.
WARNING
E. Check Parts
Verify contents to ensure you have received all parts. You
should have the following:
LUM-OD-NM and LUM-OD-PM Models
• Unvented gas log burner assembly
• Two (2) bags of crushed volcanic rock
• Installation/operating instructions
• Two (2) anchoring screws
• Ceramic ber logs (sold separately)
Carefully inspect the contents for shipping damage. If any
parts are missing or damaged, immediately inform the
dealer from whom you purchased the appliance. Do not
attempt to install any part of the appliance unless you
have all parts in good condition.
D. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• Logs are packaged and sold separately.
• Report to your dealer any parts damaged in shipment.
• Read all of the instructions before starting the instal-
Hearth & Home Technologies disclaims any responsibility
for, and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
Any such action may cause a re hazard.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualied service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benet.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
WARNING: This product and the
fuels used to operate this product (liquid
propane or natural gas), and the products
of combustion of such fuels, can expose
you to chemicals including benzene, which
is known to the State of California to cause
cancer and reproductive harm. For more
information go to: www.P65Warnings.
ca.gov.
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/238
A
C
D
B

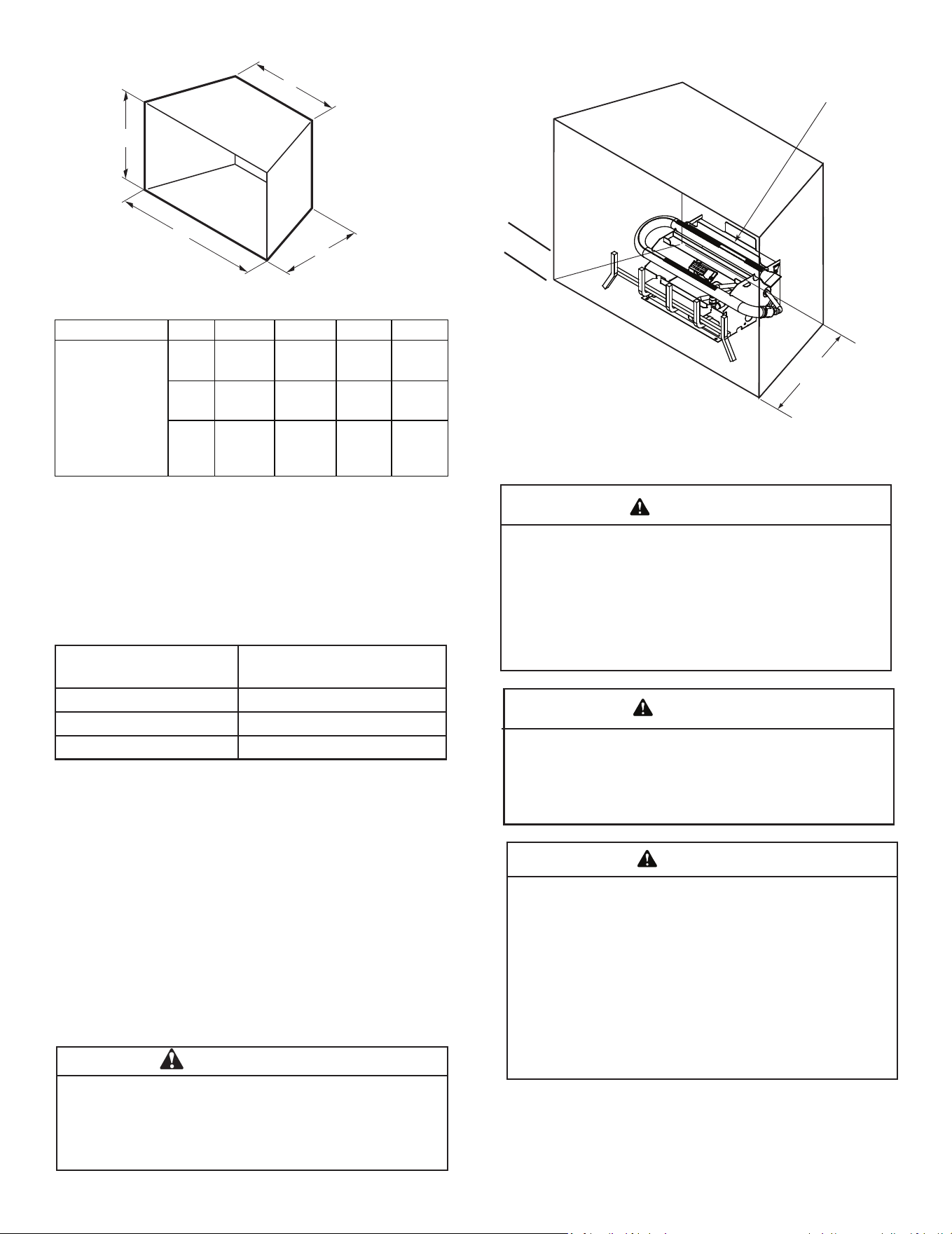

Figure 2.2 - Minimum Dimensions for Engine, Logs &
Firebox
Do not install the heater:
• Where curtains, furniture, clothing, or
other ammable objects are less than
36" from the front of the heater.
• In high trafc areas.
• In windy or drafty areas.
WARNING
WARNING
Gloves are recommended when handling
logs to prevent skin irritation from loose
bers. Logs are fragile—handle with care.
Placement in Fireplace with a Restrictive Barrier
The following are guidelines for placing a gas log set in a
replace that has a restrictive barrier on the replace for
vented appliance only. See Figure 2.3.
Height of Restriction
(x)
Minimum Depth of
Fireplace/Firebox
No Restriction 14" (356mm)
0" to 3" (76mm) 16" (406mm)
Greater than 3" (76mm) *
*Any barrier greater than 3" placed in front of the gas log set is not
recommended by the manufacturer.
NOTE: Non-combustible material such as refractory brick
may be used to line the oor of the replace in order to raise
the height of the gas log set in relation to a restrictive barrier.
If the unit is raised, the minimum height dimension listed
in the homeowner’s manual must be met or exceeded.
NOTE: If the log set is equipped with a remote receiver, a
restrictive barrier may reduce the battery life by increasing
the ambient temperature inside the replace. Placement of
the receiver outside of the replace will extend the battery
life. (MV models only)
Barriers such as the bottom of a glass door frame
placed in front of a gas log set can change the air
ow characteristics of the replace which in turn
can cause the unit to overheat and malfunction when
installed as a vented log set.
WARNING
Figure 2.3 - Reference Drawing of a Lumonessen Log Set
in an Enclosure
Minimum Hearth
Dimensions Inches
Model A B C D
LUM-OD-NM,
LUM-OD-PM with
18, 24 or 30 in. logs
18
26
(660mm)
13
(330mm)
18
(457mm)
17
(432mm)
24
29
(737mm)
13
(330mm)
22.25
(571mm)
17
(432mm)
30 33
(838mm)
13
(330mm)
22.25
(571mm)
17
(432mm)
If the area in which the heater may be
operated does not meet the required volume
for indoor combustion air, combustion and
ventilation air shall be provided by one
of the methods described in the National
Fuel Gas Code, ANSI Z223.1/NFPA 54, the
International Fuel Gas Code or applicable
local codes.
WARNING
Depth of re-
place/rebox
(Refer to table)
The log set should be placed against
or as near as possible to the rear
wall of the replace/rebox.
3”
(76mm)
9
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
3 3

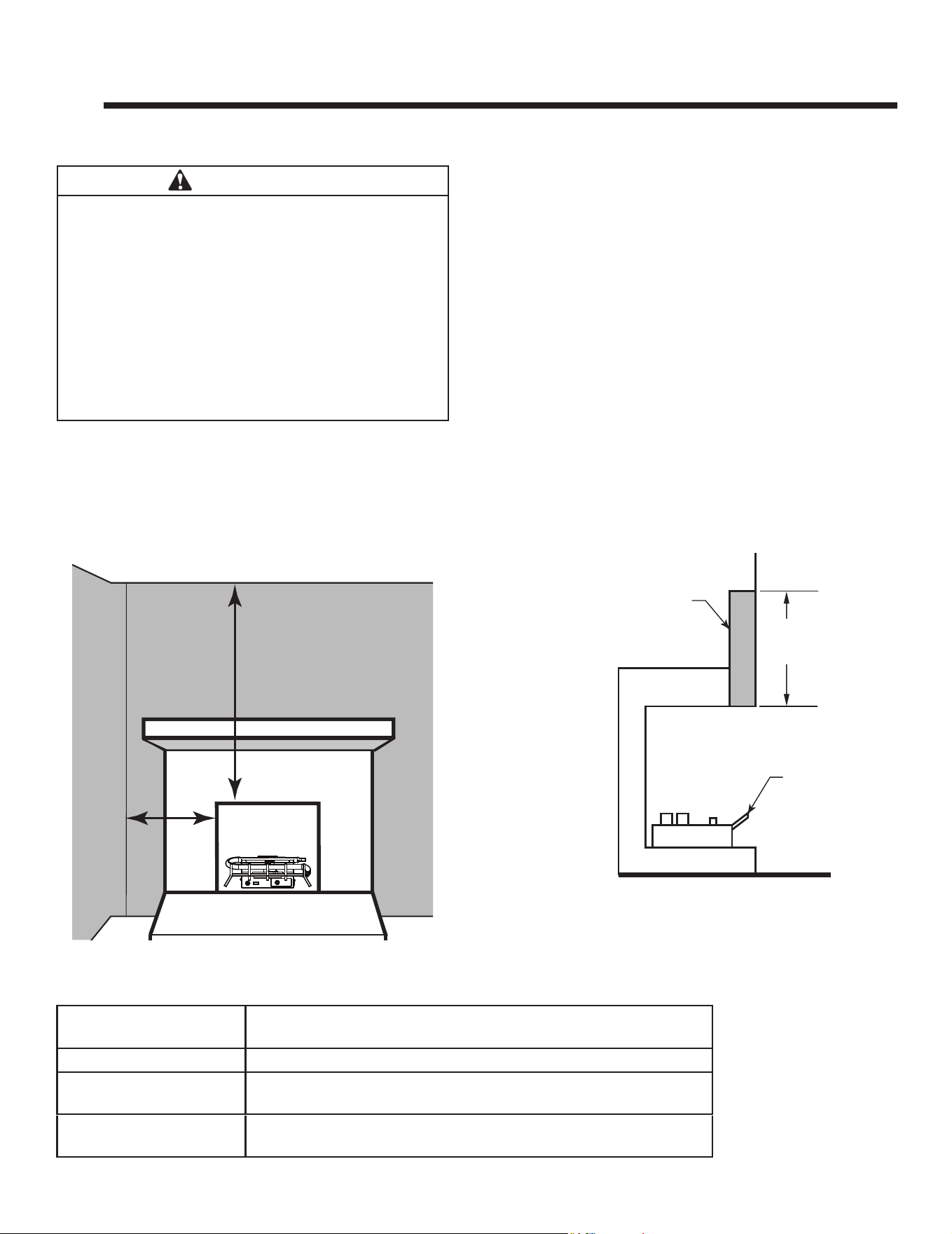

Clearances and Height Requirements
Sidewall and ceiling clearances: The sides of the re-
place opening must be at least 9" from any combustible
wall. The ceiling must be at least 42" from the top of the
replace opening.
Heat resistant material (minimum requirements) with
no wooden mantel or other combustible projection:
To install the gas logs into a replace with no wooden
mantel, shelf or other combustible projection above the
replace opening, measure the heat resistant material
height, according to Figure 3.2 and TABLE A.
Heat resistant materials such as slate and marble must be
at least 1/2" thick. Sheet metal should not be installed
onto combustible material.
IMPORTANT: If you cannot meet these minimum clear-
ances you must operate the heater with chimney ue
damper open. Refer to “Installing Vented Applications”
found on page 13.
FP2254
measure heat resist
Heat resistant
Material
Measure
This
Distance
Heater in
Fireplace/
Firebox

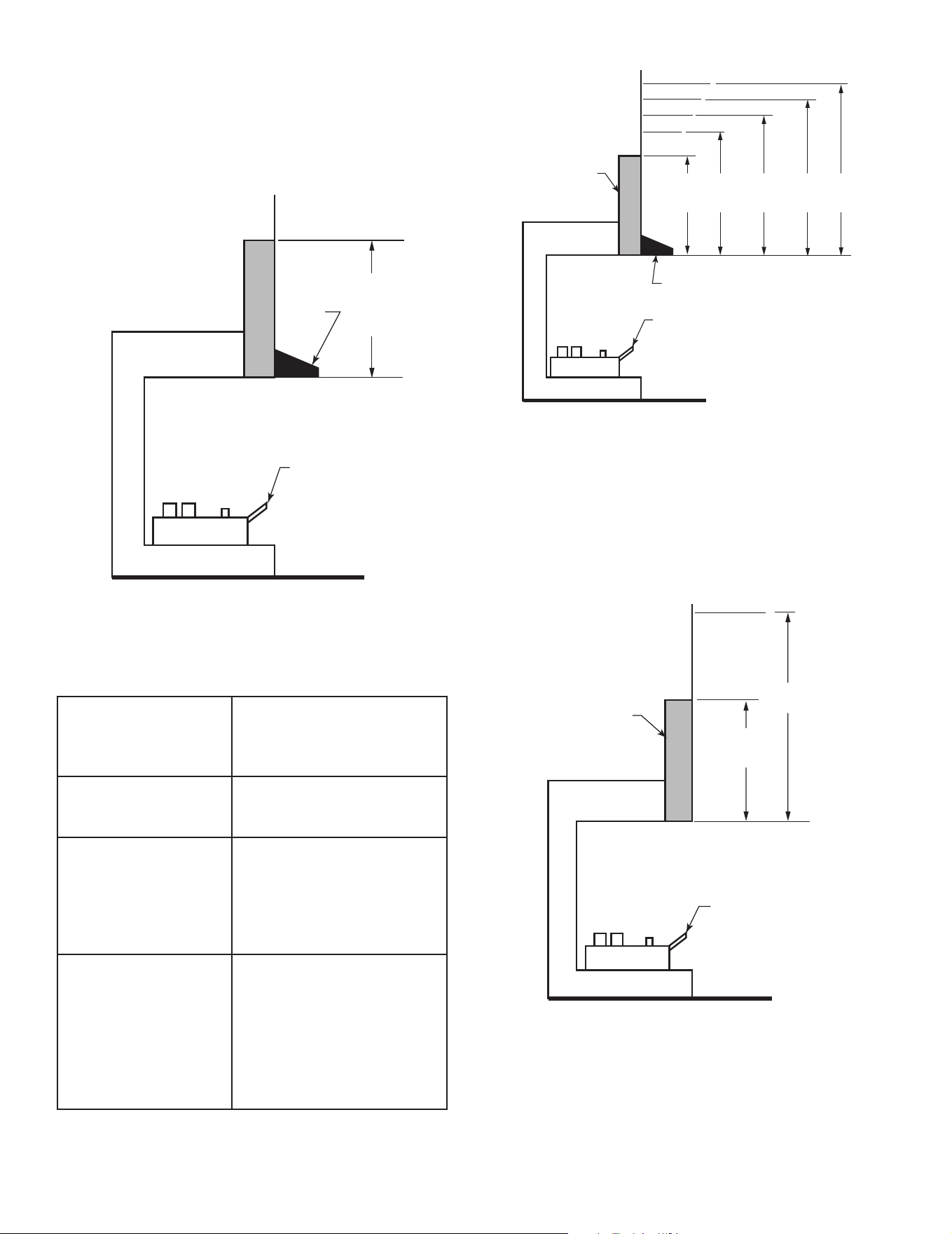

Figure 3.2 - Measure Heat Resistant Material
Table A — Heat Resistant Material Requirements with No Mantel or Combustible Projection
Heat Resistant Material
Measurement
Requirements for Safe Installation
12" (305mm) or more Hood not required
8" (203mm) or less than
12" (305mm)
Extend heat resistant material to 12" or install hood. Figure 3.3
Less than 8" (203mm) Extend heat resistant material to 8" AND install hood Figure 3.4.
OR Extend heat resistant material to a height of at least 12".
9"
(229mm)
42" (1067mm)
Figure 3.1 - Sidewall and Ceiling Clearances
The dimensions shown in Figures 3.1 through
3.8 and defined in the fireplace manufacturer's
instructions are minimum clearances to maintain
when installing this heater. Left and right clearances
are determined when facing the front of the heater.
When heater is installed into a ventless rebox,
minimum clearances, as specied by the ventless
rebox manufacturer, must be met.
Follow these instructions carefully to ensure safe
installation. Failure to follow instructions exactly
can create a re hazard.
WARNING
A. Clearances and Height Requirements
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2310
Heat resistant material (minimum requirements) with
wooden mantel or other combustible projection:
To install the heater with a wooden mantel, shelf or other
combustible projection above, rst measure the heat resis-
tant material shown in Figure 3.3, then refer to Table B.
FP2255
measure heat resist
Hood
Heater in Fireplace
or Firebox
8"(203mm) or
More of Heat
Resistant
Material
Figure 3.3 - Measuring Heat Resistant Material for Mantel
Table B - Heat Resistant Material Requirements
Height and Mantel Location
Heat Resistant
Material
Measurement
Requirements for Safe
Installation with Wooden
Mantel, Shelf or other
Combustible Projection
12" (305mm) or more Hood not required. Observe
proles (side elevations)
shown in Figure 3.5.
8" (203mm) or less
than 12" (305mm)
Install hood and observe
proles shown in Figure 3.4
OR Extend heat resistant
material to at least 12" and
observe proles shown in
Figure 3.5.
Less than 8" (203mm) Extend heat resistant
material to at least 8",
install hood and observe
proles shown in Figure 3.4
. OR Extend heat resistant
material to at least 12" and
observe proles shown in
Figure 3.5.
Figure 3.4 - Minimum Mantel Clearance with Hood — All
Models
Example: A mantel may project from the wall a maximum
of 2
1
⁄2" at a minimum of 8" above the opening, and a
maximum of 6" at a minimum of 14
1
⁄2" above the opening.
FP2257
min clear with hood
10"
(254mm)
8"
(203mm)
6"
(152mm)
2¹⁄₂"
(63mm)
8" 14¹⁄₂" 18⁵⁄₈" 22¹⁄₂" 26"
12"
(305mm)
(203mm)
(368mm)
(473mm) (571mm)
(660mm)
Heat
Resistant
Material
Heater in
Fireplace or
Firebox
Hood
Figure 3.5 -Minimum Mantel Clearance with No Hood
Example: The bottom of the mantel may project from the
wall a maximum of 10" at a minimum of 28" above the
opening.
10"(254mm) or less
12" min.
FP2260
min mantel 24
28"
(711mm)
(305mm)
Heat
Resistant
Material
Heater in
Fireplace or
Firebox
11
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
The gas log heater must be installed at least 1
3
⁄8" above any
combustible ooring material, such as carpeting, which is
closer than 14" to the base of the replace. The minimum
distance must be maintained from the top surface of car-
peting, etc. Figure 3.6
OR
The gas log heater may be installed nearer to the oor if a
minimum of 14" of noncombustible material such as slate
or marble is installed between the base of the replace and
the combustible ooring. Figure 3.7

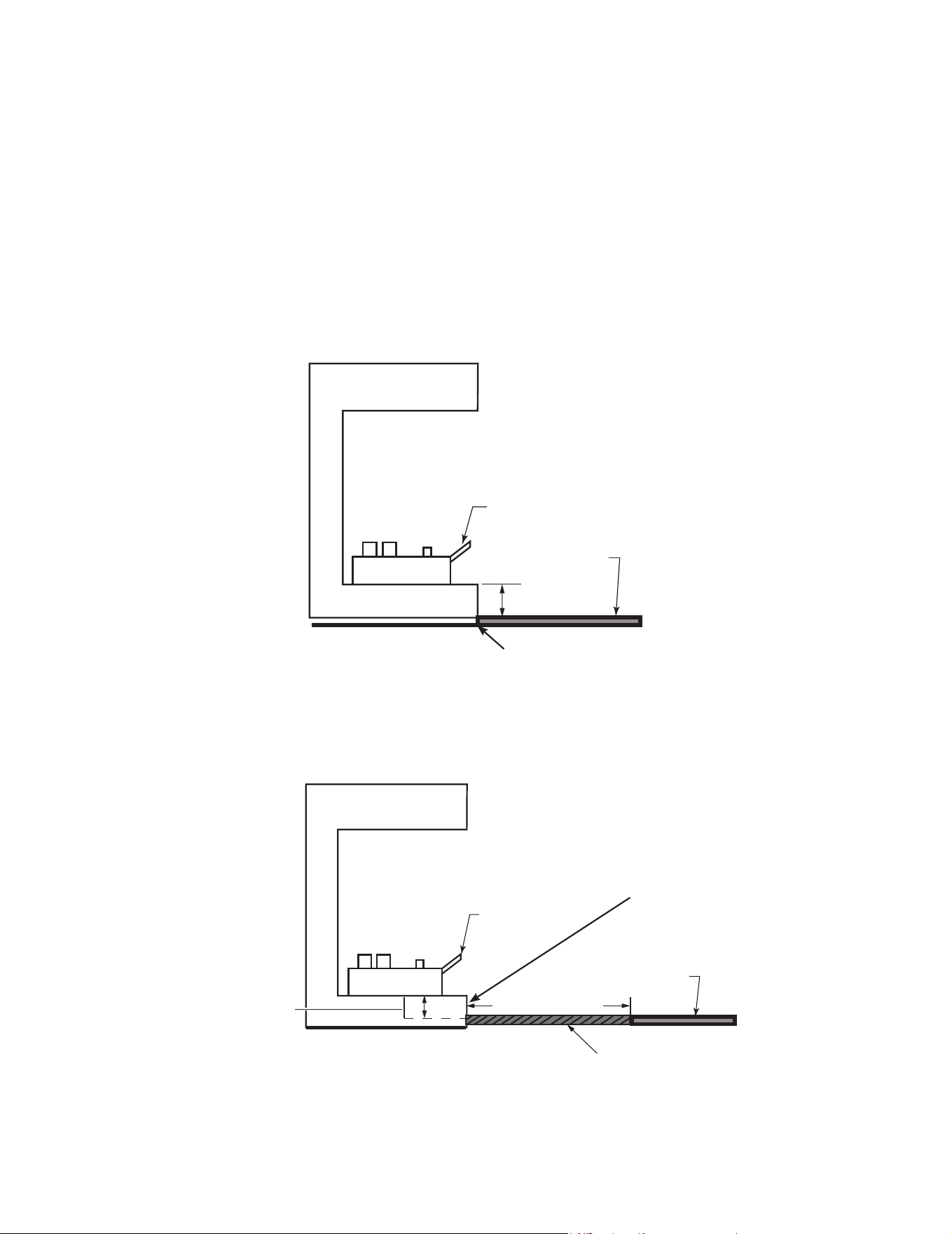

Figure 3.6 - Minimum Clearance above Combustible Flooring
FP2261
Min comb floor clear
Heater in Fireplace
or Firebox
Combustible
Material
1
3
⁄8"(35mm) Min.
Figure 3.7 - Minimum Clearance above Combustible Flooring with Non-combustible
Material Installed at Base of Fireplace
FP2262
Min noncomb oor clearance
14” (356mm) Min.
Heater in Fireplace
or Firebox
Combustible
Material
This Distance
May Now be
Less Than 1
3
⁄8"
Non-Combustible
Material
Vinyl Flooring
Vinyl Flooring is sensitive to heat. A 14 inch minimum
depth hearth extension is recommended when using vinyl
ooring up to the wall. See Figure 3.7.
NOTICE: Clearances that do not meet the minimum
guidelines could result in damage or buckling to the vinyl
ooring and is done at the installer’s risk.
Hearth & Home Technologies does not recommend adhe-
sive based vinyl ooring due to thermal expansion. Float-
ing-style ooring can be used, but will reach temperatures
up to 110°F in a room with ambient temperature of 70°F.
Consult ooring specications to ensure compatibility.
Minimum Hearth Requirement - 0 in.
Note: For installations with vinyl ooring,
special clearance recommendations
apply.
Minimum Hearth Requirement -14 in.
Note: For installations with vinyl ooring,
special clearance recommendations
apply.
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2312
Before Fully Installing the Unit:
•
Turn OFF the gas supply to the replace or rebox.
• Seal any fresh air vents and/or ash clean-out doors
located on the oor or wall of the replace. If left
unsealed, drafting may cause pilot outage or soot-
ing. Use a heat resistant sealant. Do not seal the
chimney ue damper.
Vented Application Installations —
Since, the gas logs are operated with the damper
open, non-combustible material and minimum mantel
requirements do not apply.
B. Before Installing the Appliance:
• Turn off gas supply to replace or rebox.
• Have the replace oor and chimney professionally
cleaned to remove ashes, soot, creosote or other
obstructions. Have this cleaning performed annually
after installation.
• Seal any fresh air vents or ash clean-out doors
located on oor or wall of replace. If not, drafting
may cause pilot outage or sooting. Use a heat-
resistant sealant.
Install and operate the appliance as directed in this
manual.
C. Damper Stop Installation:
A damper stop must be provided with the unit. Contact your
dealer to obtain one. The damper stop must be installed as
shown in Figure 3.8 to prevent full closure of the replace
damper blade and provide a minimum 29 square inch ue
opening.
Figure 3.8 - Damper Stop Installation.
FP2263
Damper stop install
Damper Stop
Damper
Before installing in a solid fuel burning replace,
The chimney ue and rebox must be cleaned of
soot, creosote, ashes and loose paint by a qualied
chimney cleaner.
WARNING
This log set can be installed in a solid fuel burning
fireplace (masonry fireplace or manufactured
replace) with a working ue and constructed of
non combustible material or in a vent-free rebox.
Exception: DO NOT install this appliance in a factory-
built replace that includes instructions stating that
it has not been tested or should not be used with
unvented gas logs. This log set may be installed as
a vented log set.
WARNING
The use of thermostat is not allowed on vented log
application. It is only allowed on unvented room
heater classication.
WARNING
When this log set is installed in a vented application,
the damper must be clamped to be fully open.
WARNING
NOTE: The use of a thermostat is prohibited in vented
log installations.
13
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23

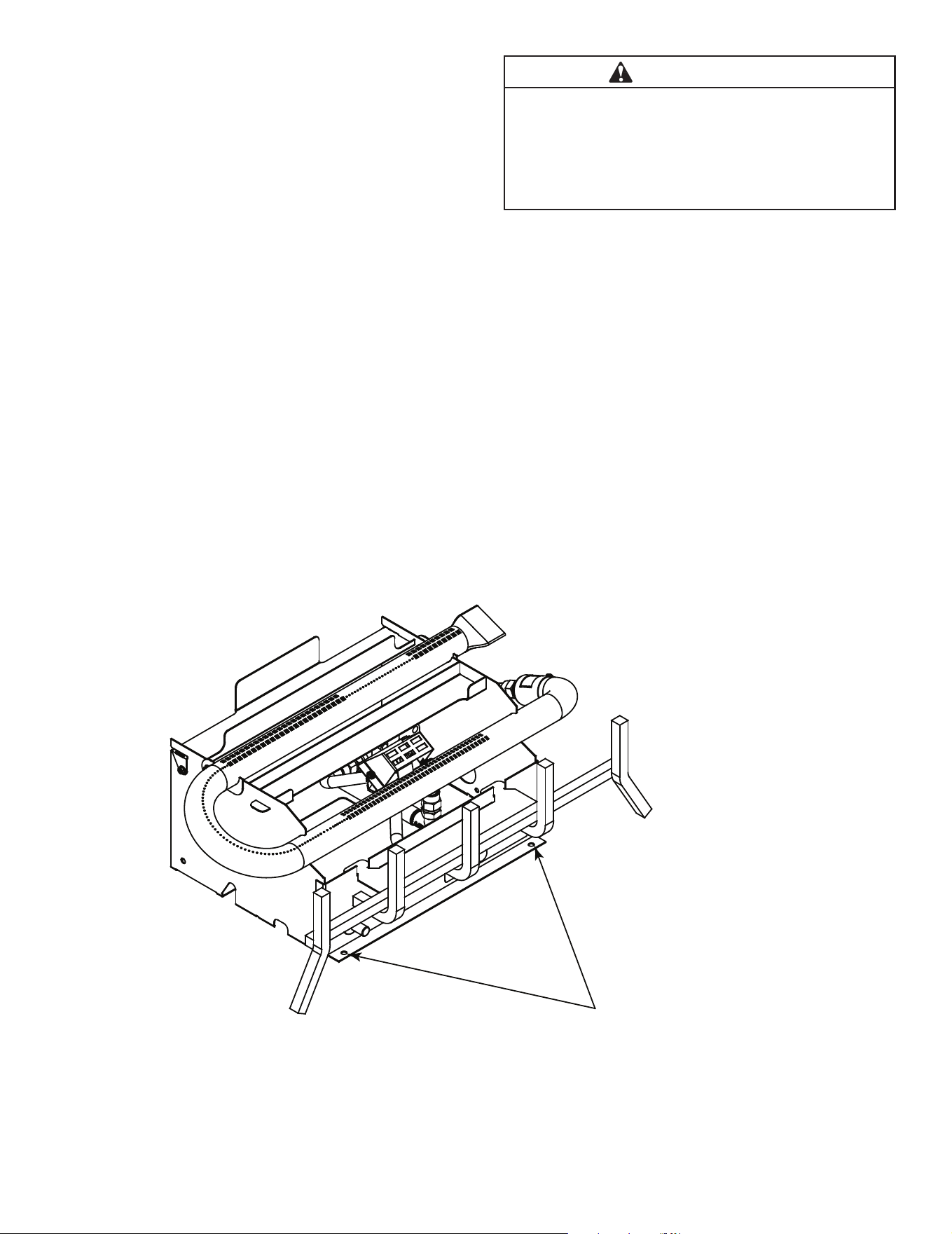

Figure 3.9 - Securing Heater to Floor of Fireplace/Firebox
D. Assembly Procedure
1. Center the burner assembly inside the fireplace or
firebox. Make certain that the front of the burner
assembly sits inside the front edge of the replace or
the rebox. Burner assembly should be as far to back
of box as possible.
2. Anchor holes are located on the right and left sides of the
front bracket attached to the engine base. After centering
the burner assembly correctly, mark the holes on the
replace or rebox oor. Drill two (2) 5/32” diameter holes
in the oor of the rebox. Anchor the two anchoring
screws shipped with the unit using Phillips head chuck
and secure the burner assembly to the replace through
the holes drilled earlier.
You must secure the gas log heater to the replace
oor. If not, the entire unit may move when you
adjust the controls. Movement of unit may cause
shifting of the gas logs which leads to sooting and
improper burning. Grate movement could cause a
gas leak.
WARNING
Anchoring screws
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2314
4 4
Gas Information
A. Gas Line Connection
NOTICE: A qualied gas appliance installer must connect
the heater to the gas supply. Consult all local codes.
IMPORTANT: Hold heater valve rmly with a wrench to
prevent movement when connecting to inlet pipe.
Always use an external regulator for all propane/LPG
heaters and high pressure one to two-pound systems
only, to reduce the supply tank pressure to a maximum of
13" w.c. This is in addition to the internal regulator in the
heater valve.
The heater gas inlet connection is a 3/8" NPT at the valve.
On all control type units, the inlet connection is on the right
side of unit. To connect from the opposite side, route the
pipe around the back portion of the unit.
When tightening up the joint to the valve, hold the valve
securely to prevent movement.
Test all gas joints from the gas meter to the heater valve for
leaks using a gas analyzer or soap and water solution after
completing connection. DO NOT USE AN OPEN FLAME.
Check the gas pressure with the appliance burning and
the control set to HIGH.
Use new black iron or steel pipe. Internally tinned
copper or copper tubing can be used per National
Fuel Code, section 2.6.3, providing gas meets
hydrogen sulde limits, and where permitted by local
codes. Gas piping system must be sized to provide
minimum inlet pressure (Listed on Data Plate) at the
maximum ow rate (BTU/hr). Undue pressure loss
will occur if the pipe is too small.
A manual shutoff valve must be installed upstream
of the appliance. Union tee and plugged 1/8" NPT
pressure tapping point should be installed upstream
of the appliance.
WARNING
Connecting directly to an unregulated propane/
LPG tank can cause an explosion.
WARNING
CHECK GAS TYPE: The gas supply must be the
same as stated on the heater’s rating plate. If the
gas supply is different, DO NOT INSTALL THE
HEATER. Contact your dealer for the correct model.
WARNING

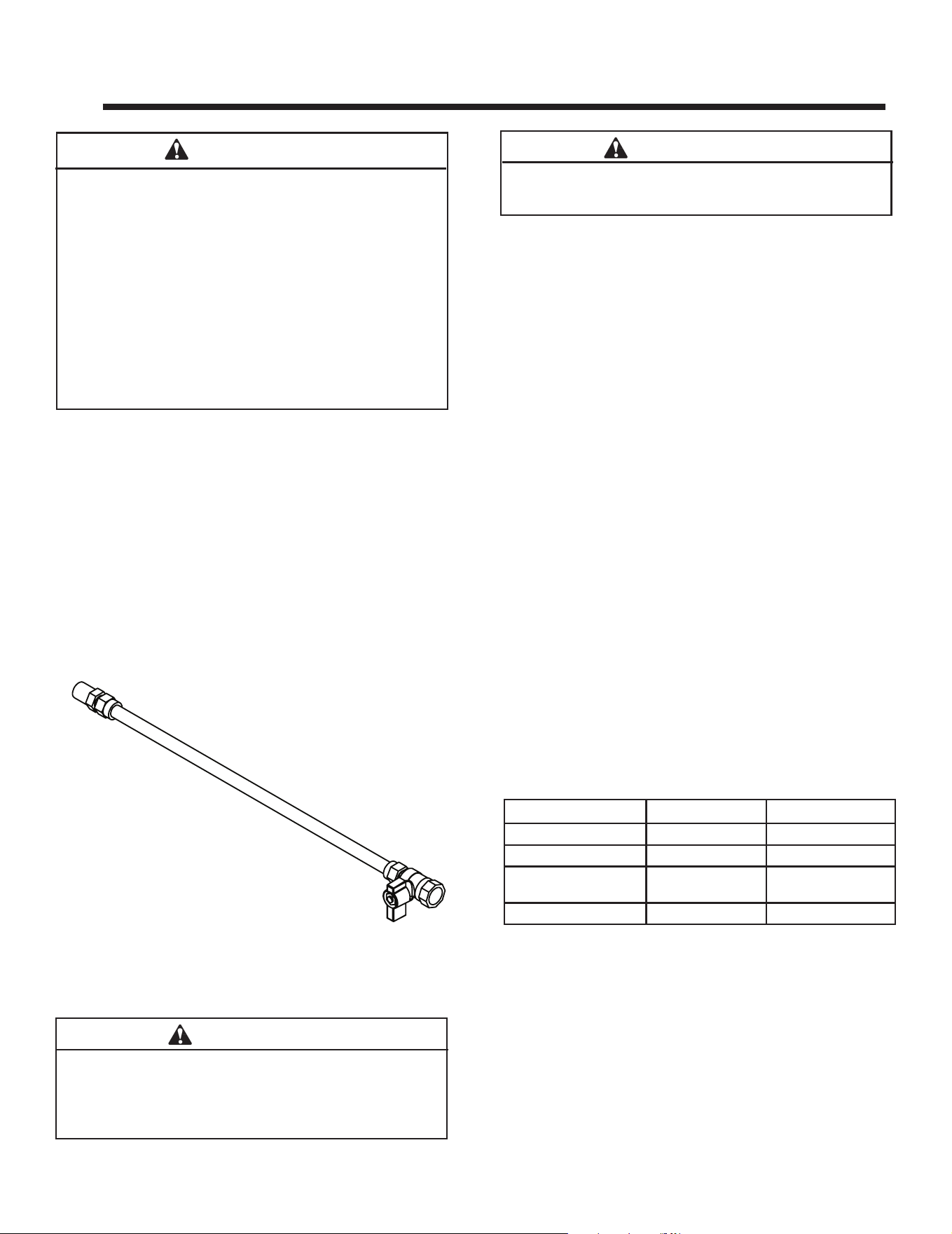

Figure 4.1 Gas Connection
B. Fuel Type
• This appliance is equipped for either natural or propane
gas.
• Make sure the appliance is compatible with available gas
types.
C. Gas Pressure
• Optimum appliance performance requires proper input
pressures.
• Gas line sizing requirements will be determined in ANSI
Z223.1 National Fuel Gas Code in the USA.
• Pressure requirements are:
NATURAL PROPANE (LP)
Inlet Minimum 5.0" w.c. 11.0" w.c.
Inlet Maximum 10.5" w.c. 13.0" w.c.
Gas Valve Manifold
Pressure Setting
3.5" w.c. 10" w.c.
Pilot Regulator 3.5" w.c. —
WARNING! Risk of Fire or Explosion! High pressure
will damage valve. Low pressure could cause explosion.
• Verify inlet pressures. Verify minimum pressures when
other household gas appliances are operating.
• Install regulator upstream of valve if line pressure is
greater than 1/2 psig.
• Valve pressure taps are accessible by removing the right
side log. See Figure 4.2.
15
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
Note: Have the gas supply line installed in accordance with
local codes, if any. If not, follow ANSI Z223.1. Installation
should be done by a qualied installer approved and/or
licensed as required by the locality. (In the Commonwealth
of Massachusetts installation must be performed by a
licensed plumber or gas tter).
Fire Risk.
Explosion Hazard.
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 1/2 psig.
WARNING
Depending upon local code, a manual gas shutoff, in
a readily accessible area may be required and located
upstream from the appliance.
D. Gas Service Access
E. Check Gas Pressure
Manual Valve
The pressure regulator is preset and locked to discourage
tampering. If the pressure is not as specied, replace the
regulator with the correct part from the parts list in this
manual.
Remove 1/8” NPT plug, located on side of regulator body.
Install tting and tubing to pressure gauge. After taking
pressure reading, reinstall test plug. Check for gas leaks.
See Figure 4.2.
NPT Test Plug
Figure 4.2 Pressure Test Point Location Manual Control
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2316
5 5
Electrical Information
CAUTION
Label all wires before disconnecting when
servicing controls. Wiring errors can cause
improper and dangerous operation.
Do not connect wall switch to 110 V circuit.
WARNING
Electrical connections should only be performed
by a qualied, licensed electrician. Main power
must be off when connecting to main electrical
power supply or performing service. All wiring
shall be in compliance with all local, city and
state codes. The appliance, when installed,
must be electrically grounded in accordance
with local codes or in the absence of local
codes, with the National Electrical Code ANSI/
NFPA 70 (latest edition) and Canadian Electrical
Code, CSA C22.1.
WARNING
A. General Information
WARNING! Risk of Shock or Explosion! DO NOT wire
110-120 VAC to the valve or to the appliance wall switch.
Incorrect wiring will damage controls.
• A 110-120 VAC circuit for this product must be protected
with ground-fault circuit-interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in locations such as in bathrooms or near
sinks.
• Low voltage and 110/120 VAC voltage cannot be shared
within the same wall box.
Electrical Service and Repair
WARNING! Risk of Shock! Label all wires prior to dis-
connection when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify proper
operation after servicing.
WARNING! Risk of Shock! Replace damaged wire with
type 105º C rated wire. Wire must have high temperature
insulation.
Accessories Requirements
Wiring for optional Hearth & Home Technologies approved
accessories should be done now to avoid reconstruction.
Follow instructions that come with those accessories.
17
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
6 6
Gas Log Sets
BEFORE YOU BEGIN
This unit requires the use of concrete logs. Do not handle
these logs with your bare hands. Always wear gloves
to prevent skin irritation from ceramic bers. After
handling the logs, wash your hands gently with soap and
water to remove any traces of bers.
The positioning of the logs is critical to the safe and
clean operation of this heater. Sooting and other
problems may result if the logs are not properly
and rmly positioned in the appliance. Never add
additional logs or embellishments such as pine
cones, vermiculite or rock wool to the heater. Only
use the logs and rock wool supplied with the unit.
Failure to position the parts in accordance with
diagrams on the following pages or failure to use
only parts specically approved for this heater may
result in property damage or personal injury.
WARNING
A. Grate and Log Installation

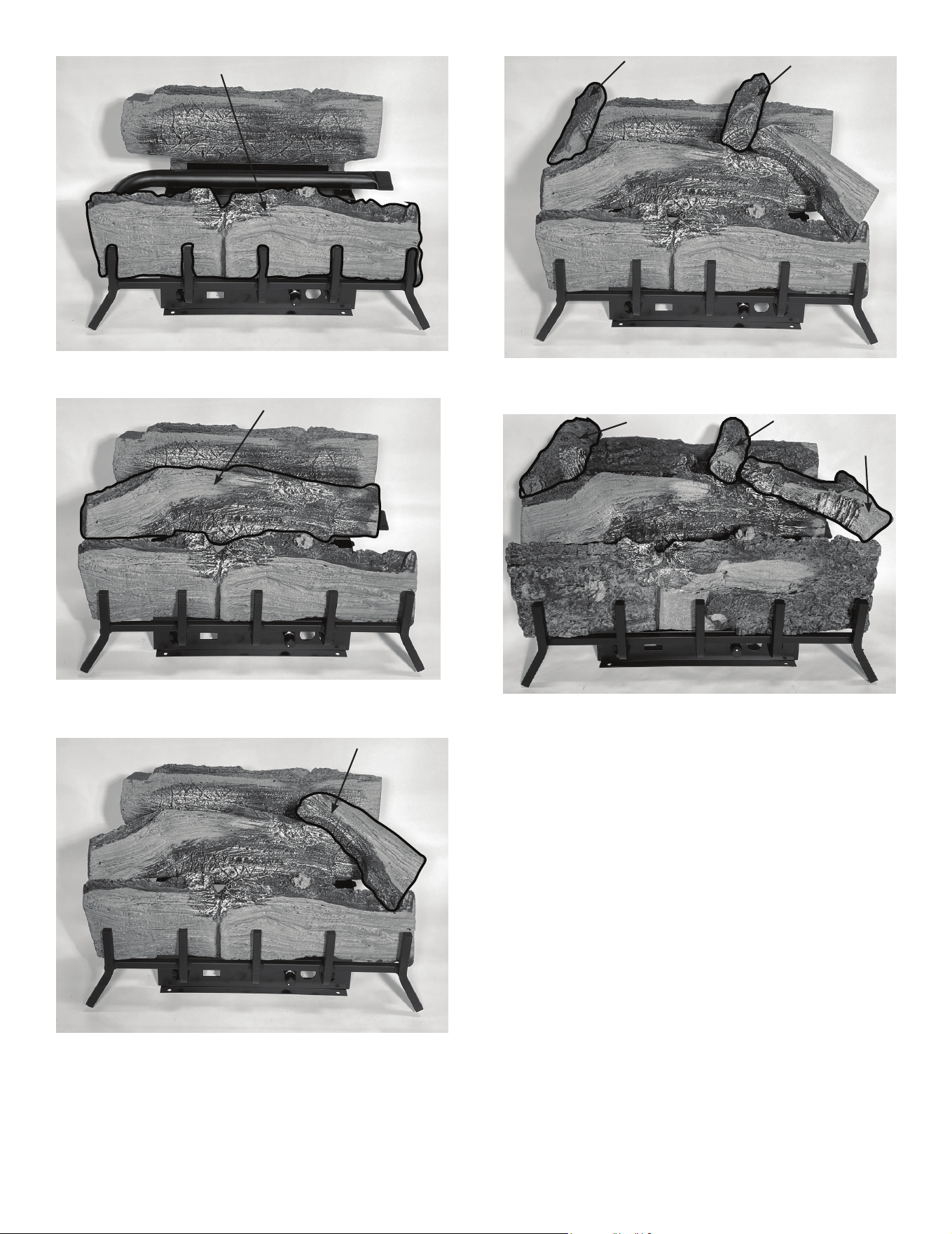

B. LOG PLACEMENT MEZMER-18/24/30
LOG SETS
1. Place Rear Log (#1) on rear support. Figure 6.1
2. Place Front Log (#3) between burner and grate. Use
tab on right side as guide on grate. Figure 6.2
3. Place Middle Log (#2) on middle support. Log will sit
on right side of support. Rest bottom left corner on front
log in notch. Figure 6.3
4. Place Top Right Log (#4) by resting log on front and
middle log. Figure 6.4
5. Place last two logs (#5, #6) by resting logs on middle
and back logs. Figures 6.5a and 6.5b
NOTE: Logs #1, #2 and #3 have ridges on the bottom which
secure the logs to burner frame. After installing each log,
check to be sure it is stable.

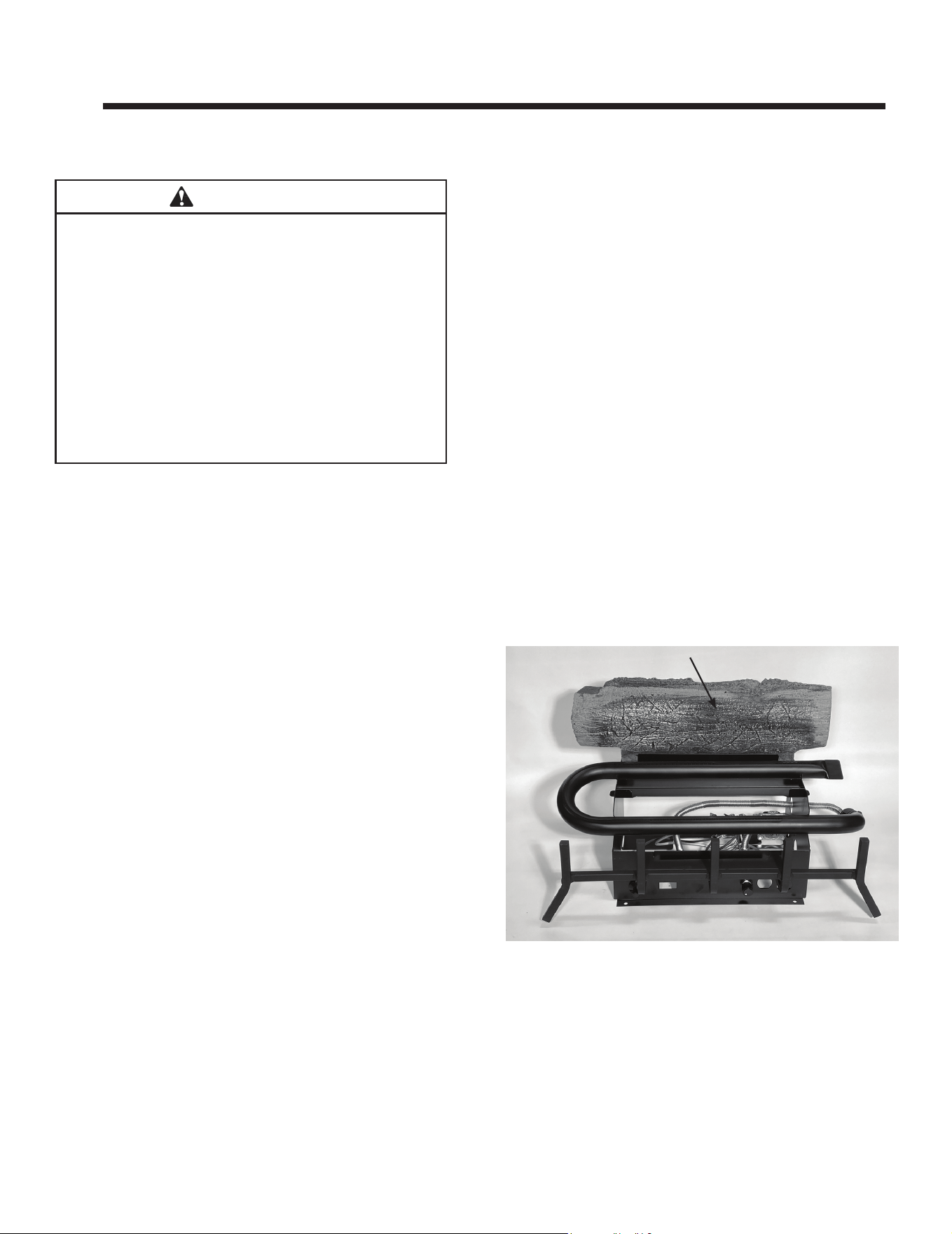

Figure 6.1 - Place Rear Log
Rear Log #1
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2318
Figure 6.3 - Place Middle Log
Figure 6.4 - Place Top Right Log
Front Log #3
Figure 6.2 - Place Front Log
Middle Log #2
Top Right Log
#4
Figure 6.5a - Mezmer Bark Log Set
Place Top Left and Middle Logs
Top Left Log #5
Top Center Log #6
Figure 6.5b- Mezmer Bark Log Set
Place Top Left and Center Logs
Top Left Log #5
Top Center Log #6
Top Right
Log #4
19
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
C. LOG PLACEMENT MOUNTAIN OAK-18
LOGS
1. Place Rear Log (#1) on rear support. Figure 6.6
2. Place Middle Log (#2) on middle support. Figure 6.7
3. Place Front Log (#3) in between burner and grate.
Figure 6.8
4. Rest Top Log (#4) in front and middle log cutouts. Figure
6.9
NOTE: Logs #1, #2 and #3 have ridges on the bottom which
secure the logs to burner frame. After installing each log,
check to be sure it is stable.
Figure 6.6 - Place Rear Log
Figure 6.7 - Place Middle Log
Figure 6.8 - Place Front Log
Figure 6.9 - Place Top Log
Rear Log #1
Middle Log #2
Front Log #3
Top Log #4
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2320

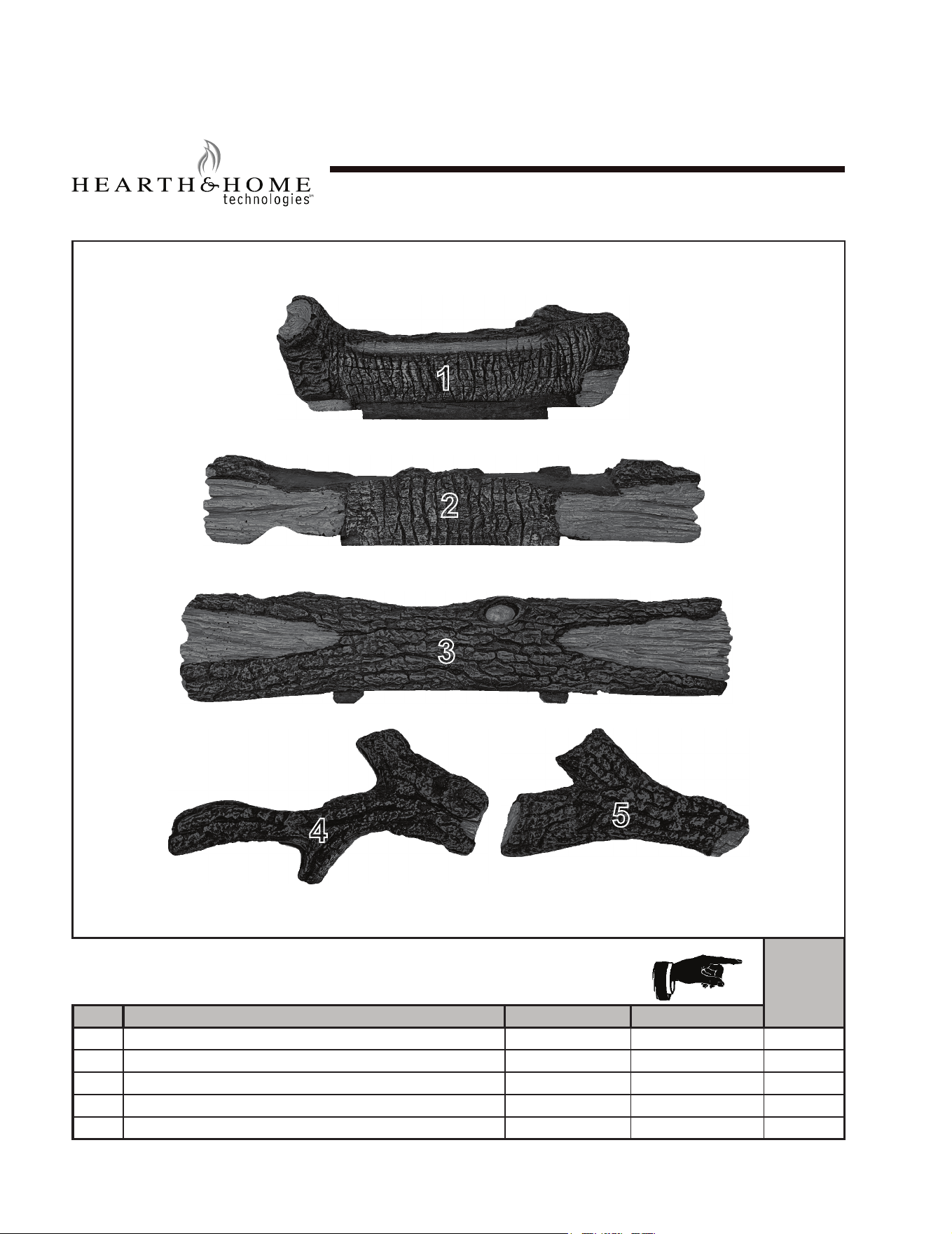

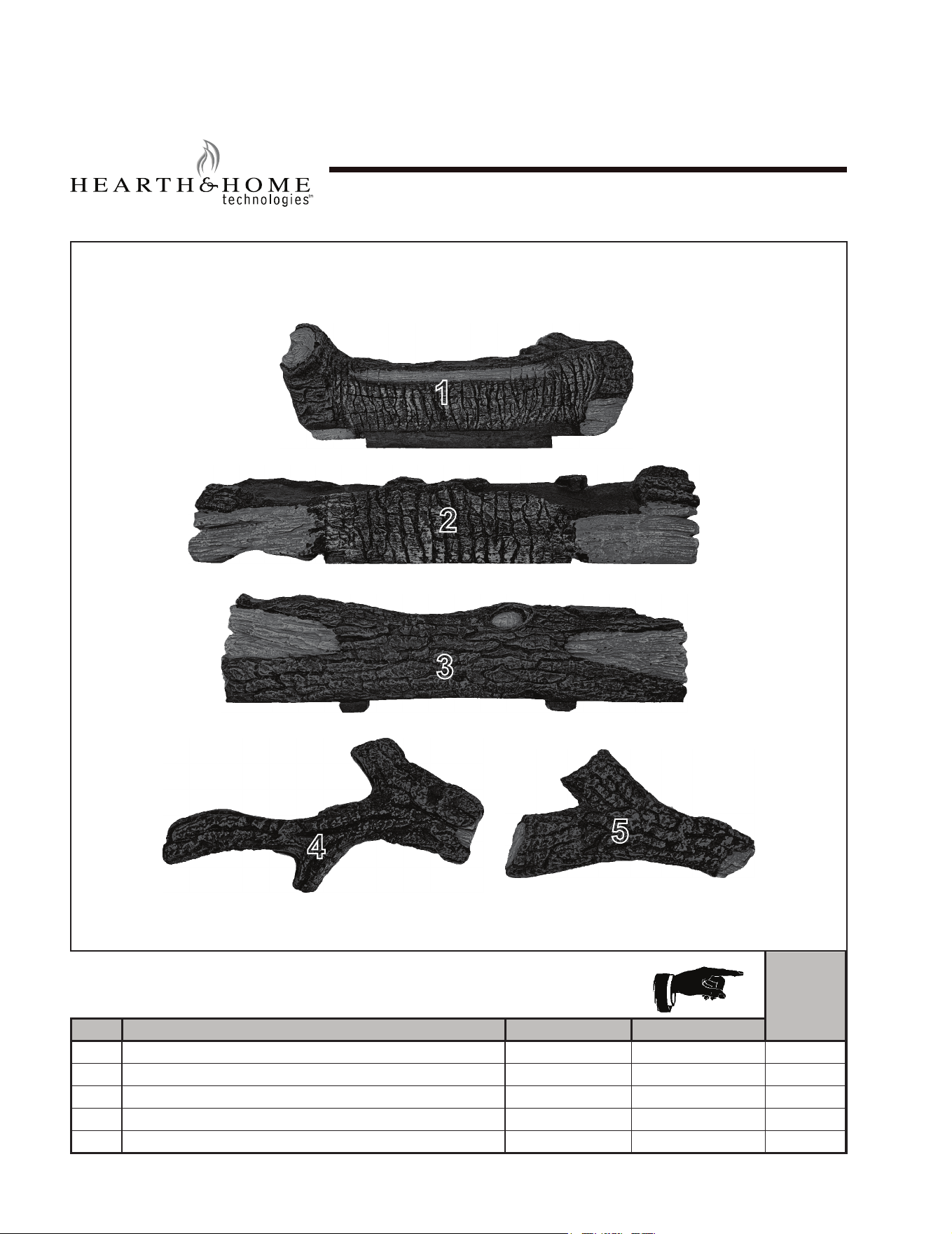

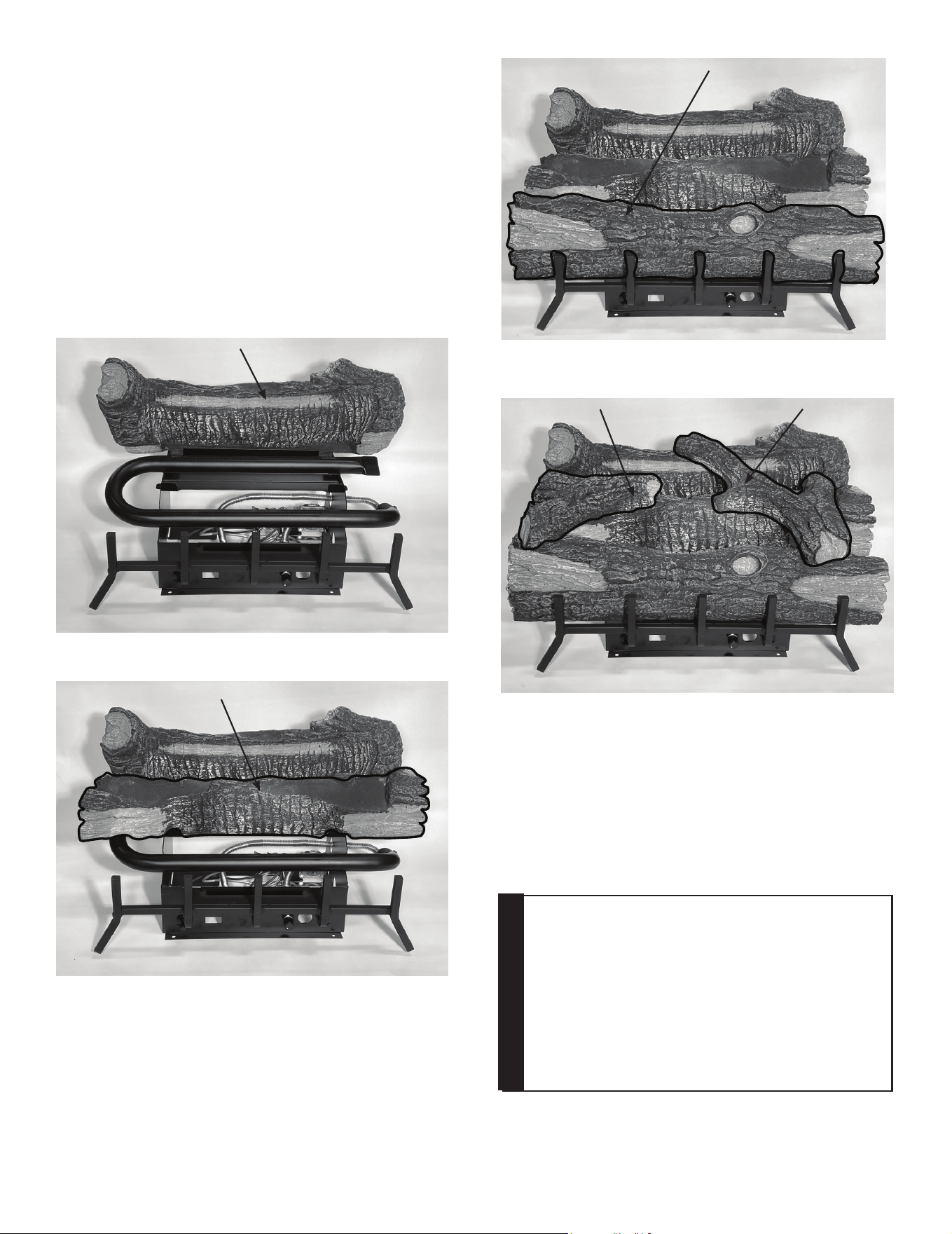

D. LOG PLACEMENT MOUNTAIN OAK-24/30
LOG SETS
1. Place Rear Log (#1) on rear support. Figure 6.10
2. Place Middle Log (#2) on middle support. Figure 6.11
3. Place Front Log (#3) in between burner and grate.
Figure 6.12
4. Place Top Right Log (#4) in bottom log cutouts.
Figure 6.13
5. Rest Top Left Log (#5) in front and middle log cutouts.
Figure 6.13
NOTE: Logs #1, #2 and #3 have ridges on the bottom which
secure the logs to burner frame. After installing each log,
check to be sure it is stable.
Figure 6.10 - Place Rear Log
Figure 6.11 - Place Middle Log
Figure 6.12 - Place Front Log
Figure 6.13 - Place Top Right and Left Logs
MIddle Log #2
Rear Log #1
Front Log #3
Top Left Log #5
Top Right Log
#4
PLACE THE DECORATIVE ROCK
The volcanic rocks are shipped with your log set. The vol-
canic rocks may be placed around the unit on the oor of
the rebox. Be sure to avoid any areas on the burner itself.
DO NOT sprinkle volcanic rocks on the logs,
around the pilot, nor near the burners. This
may cause sooting. Place volcanic rocks
only on the oor of the replace.
During initial operation of the new heater,
new burning logs and/or rock wool will give
off a paper burning smell and orange ames
will be present. Simply open the windows
for a few hours to vent the odor.
CAUTION
21
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23

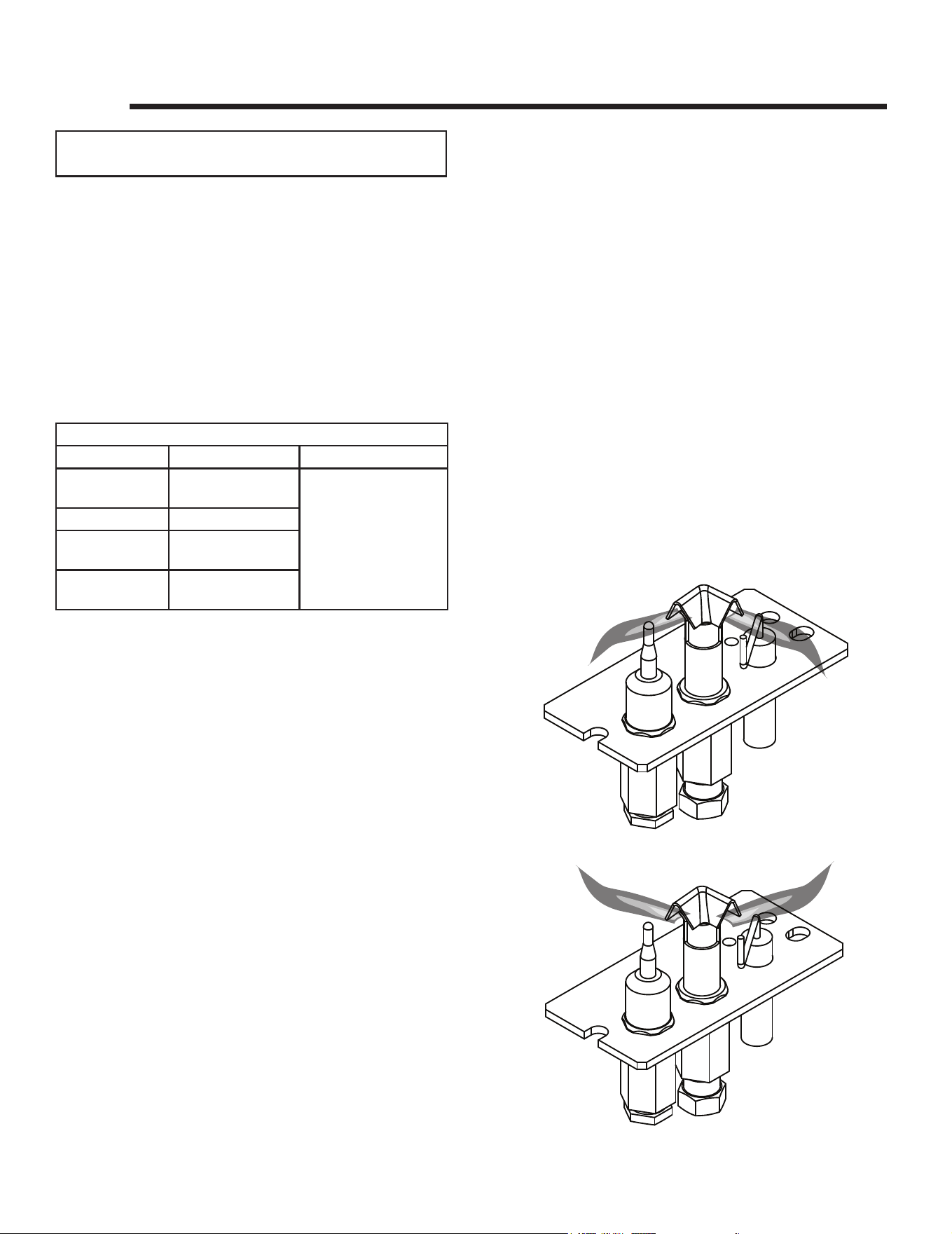

E. Flame Appearance
Flames from the pilot and burner should be visually
checked as soon as the heater is installed. In addition,
periodically check the ames visually during operation.
Check the Pilot Flame (refer to lighting instructions)
The pilot ame must always be present when the heater is
in operation. It should just touch the top of the thermocouple
tip. Refer to Figure 6.14 for correct pilot ame.
If the pilot ame does not touch the thermocouple, then
the main burner cannot function reliably. Figure 6.15 for
incorrect shape of pilot ame.

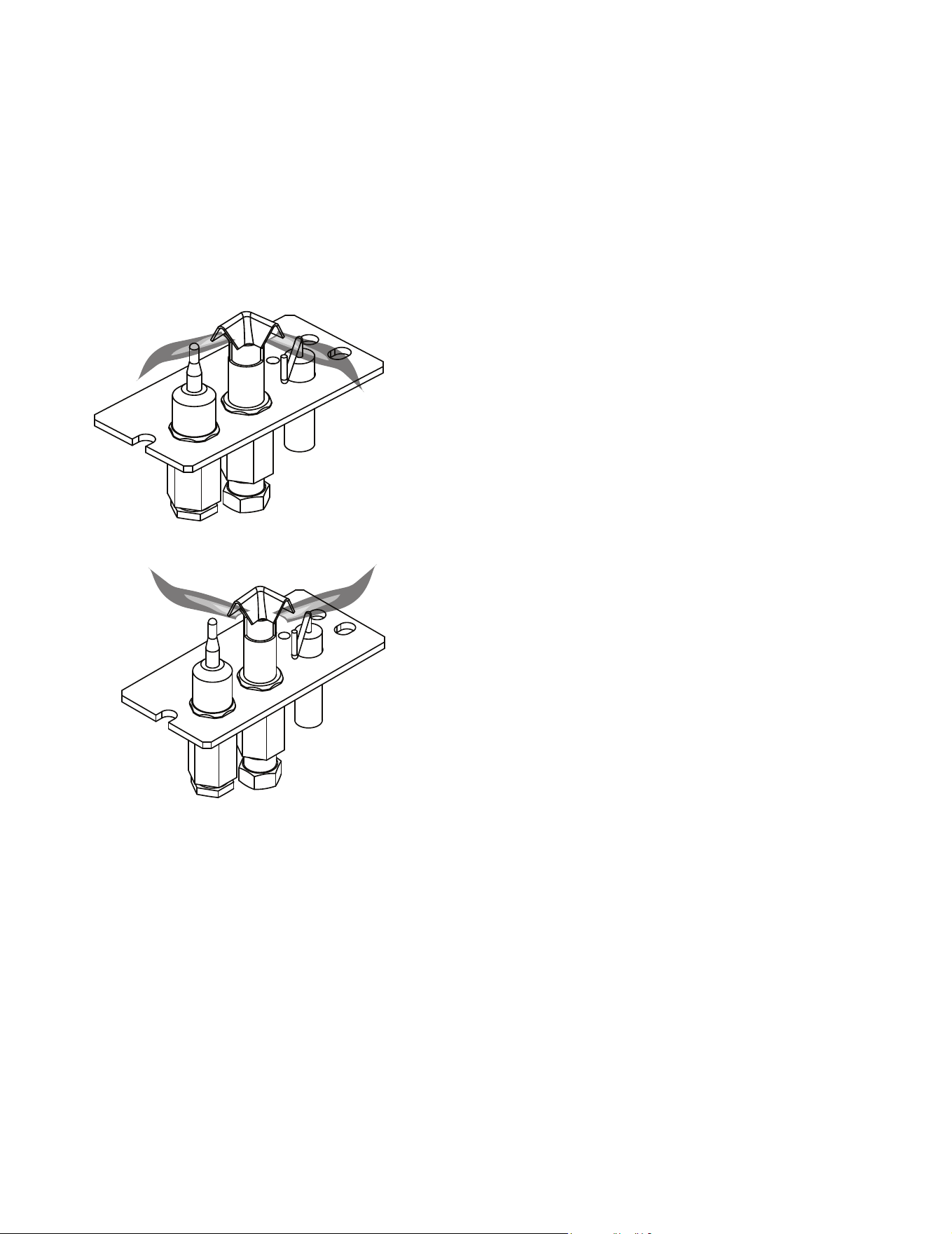

Figure 6.14 - Correct Appearance of Pilot Flame
Figure 6.15 - Incorrect Appearance of Pilot Flame
F. Operating Instructions
Avoid any drafts that alter burner ame patterns. Do
not allow fans to blow directly into the replace. Do not
place a blower inside the burn area of the rebox. Ceiling
fans may create drafts that alter ame patterns. Sooting
and improper burning will result.
During manufacturing, fabricating and shipping, various
components of this appliance are treated with certain oils,
lms or bonding agents. These chemicals are not harm-
ful, but may produce annoying smoke and smells as they
are burned off during the initial operation of the appliance,
possibly causing headaches or eye or lung irritation. This
is a normal and temporary occurrence.
The initial break-in operation should last four hours with the
burner at the highest setting. Provide maximum ventilation
by opening windows or doors to allow odors to dissipate.
Any odors remaining after this initial break-in will be slight
and will disappear with continued use.
This appliance must not be used with glass doors in the
closed position. This can lead to pilot outages and severe
sooting outside the replace.
CAUTION: After a 15 minute pre-heat period, observe all
yellow ames to ensure there is no impingement with any
log. If any yellow ame is contacting any log, turn off log
set and allow to cool. Remove all logs and carefully rein-
stall following log placement instructions precisely. Relight
burner and check again for impingement of any ame on
log. If ame impingement cannot be eliminated, contact
your installer or dealer for assistance. Flame impingement
on logs may create soot and possible property damage.
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2322
7 7
Owner’s Manual Care & Operation
Owner’s Manual
Care and Operation
INSTALLER: Leave this manual with the appliance
OWNER: Retain this manual for future reference.
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open ame.
• If odor continues, leave the area immediately.
• After leaving the area, call your gas supplier or re
department.
• Failure to follow these instructions could result in re
or explosion, which could cause property damage,
personal injury, or death.
WARNING
Do not store or use gasoline or other ammable va-
pors and liquids in the vicinity of this or any other
appliance
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING: For outdoor use only.
Installation and service must be performed by a
qualied installer, service agency, or the gas supplier.
WARNING: If the information in this manual
is not followed exactly, a re or explosion may
result causing property damage, personal injury, or
loss of life.
Models:
NOTICE: DO NOT discard this manual!
LUM-OD-NM
LUM-OD-PM
Lumonessen
Series
MH61458
GAS-FIRED
Outdoor Burner/Log Set
23
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23

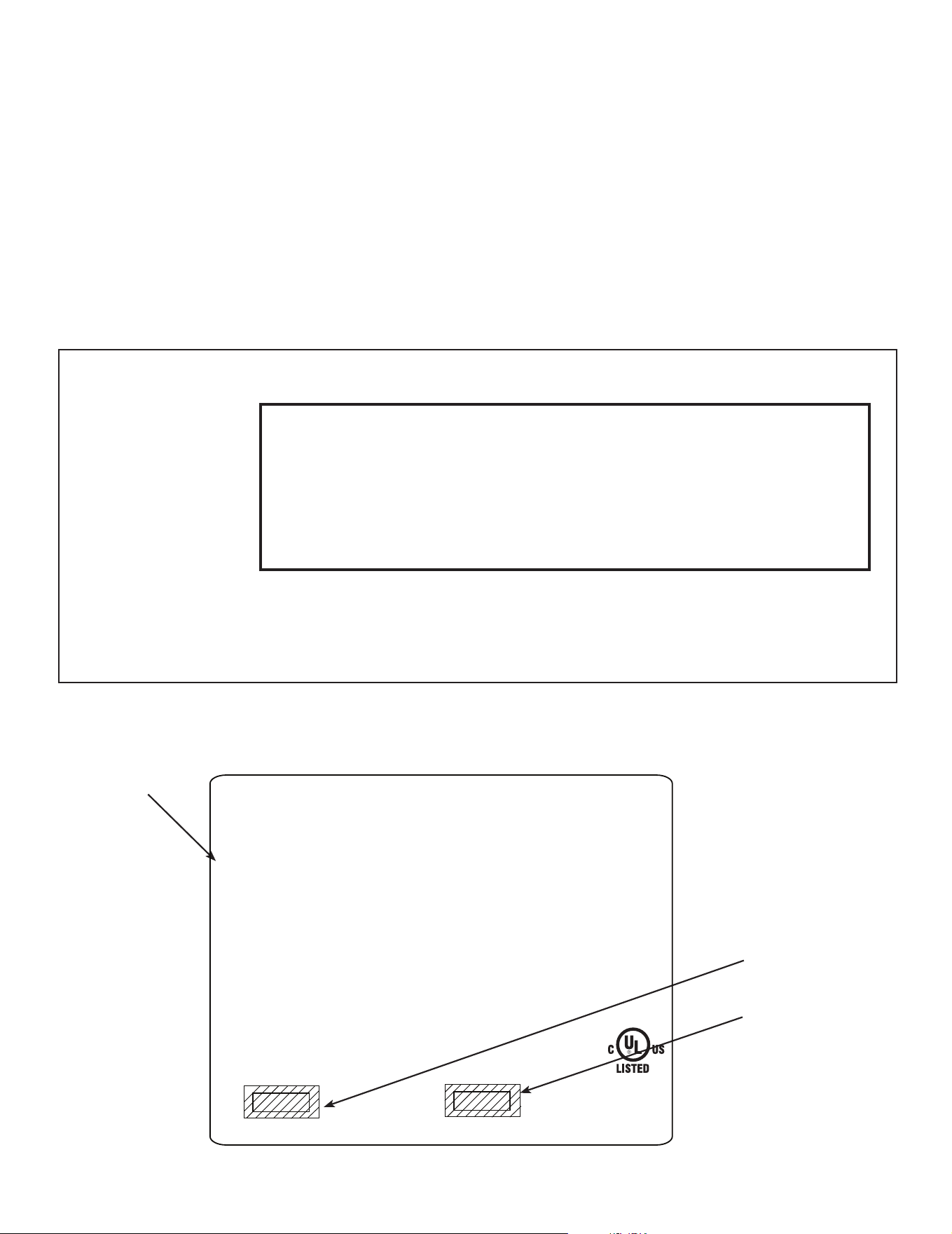

Listing Label Information/Location
Serial Number
Type of Gas
The model information regarding your specic gas log set can be found
on the rating plate usually located in the control area of the gas log set.
Model Number
Read this manual before operating this appliance.
Please retain this Owner’s Manual for future reference.
Read the Installation Manual before making any installation or nishing changes.
Brand: ________________________________________________ Model Name: ___________________________
Serial Number: __________________________________________ Date Installed: __________________________
Appliance Information:
Dealer: Fill in your
name, address,
phone and email
information here and
appliance information
below.
Dealer Name: ________________________________________________________
Address: ____________________________________________________________
____________________________________________________________
Phone: _____________________________________________________________
Email: _____________________________________________________________
A. Congratulations
Congratulations and thank you for selecting a Outdoor
Lifestyles vent free gas log set, an elegant and clean
alternative to wood burning replaces. The gas log set you
have selected is designed to provide the utmost in safety,
efciency, and style.
As the owner of a new vent free log set, you’ll want to read
and carefully follow all of the instructions contained in this
owner’s manual. Pay special attention to all cautions and
warnings.
This owner’s manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems noted on the cover page.
Your new Outdoor Lifestyles gas log set will give you years
of durable use and trouble-free enjoyment. Welcome to
the Outdoor Lifestyles family. We are glad you joined us!
Local Dealer Information
Hearth & Home Technologies
7571 - 215th Street West
Lakeville, MN 55044
GAS:NATURAL
MFG. DATE:
BAR CODE
This appliance is for installation only in a solid fuel
burning masonry or UL 127 factory-built fireplace or in
an ANSI Z21.91 listed ventless firebox enclosure. It
has been design certified for these installations.
Exception: DO NOT install this appliance in a
factory-built fireplace that includes instructions stating
it has not been tested or should not be used with
unvented gas logs.
State or local codes may only allow operation of this
appliance in a vented configuration. Check your state
or local codes.
Min. Clearances: 9” (229 mm) from side combustible
wall; 42” (1067 mm) from top of fireplace opening to
ceiling. For other installation options and clearances
refer to Owner’s Manual.
Input Rating: Max. 38,000 BTU/Hr.(11.1kW)
Min. 19,000 BTU/Hr.(5.5kW)
Manifold Pressure: 3.5” W.C.(.87kPa)
For Purpose of Input Adjustment:
Min. Supply Pressure: 5” W.C.(1.24kPa)
Max. Supply Pressure: 10.5” W.C.(2.61kPa)
Burner Orifice Size: .136 in. #29(3.45mm)
This unit complies with:
ANSI Z21.97-2017
CSA 2.41-2017
Outdoor Decorative Gas Appliances
Appareils à gaz décoratifs extérieurs
MODEL: LUM-OD-NM
SERIAL:
BAR CODE
MODEL NO: LUM-OD-NM
SERIAL NO:
ITEM NO: LUM-OD-NM
4629-994A
GAS-FIRED
MH61458
FOR OUTDOOR USE ONLY
POUR UTILISATION EXTÉRIEURE
UNIQUEMENT
Removal of this marking will void
compliance with ANSI Z21.97/CSA 2.41
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2324
B. Limited Lifetime Warranty
Outdoor Lifestyles Warranty - 2108-975C – 6/5/2019 - 1
Outdoor Lifestyles by Hearth & Home Technologies™
Limited Lifetime Warranty
Hearth & Home Technologies (“HHT”) extends the following warranty for all Outdoor Lifestyles by HHT™
brand products (“Products”) that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the Product at the site of installation, and to any transferee taking
ownership of the Product at the site of installation within one year following the date of original purchase,
that the Product will be free from defects in materials and workmanship at the time of manufacture. After
installation, if covered components manufactured by HHT are found to be defective in materials or
workmanship during the applicable warranty period, HHT will, at its option, repair or replace the covered
components. This warranty is subject to conditions, exclusions and limitations as described below.
WARRANTY PERIOD:
The warranty period begins on the earlier of: (i) the date of invoice for the Product;
(ii) in the case of new home construction, the date of first occupancy of the residence or six months after
the date of sale of the Product by an HHT authorized dealer, whichever occurs first; or (iii) the date 24
months following the date of Product shipment from HHT, regardless of the invoice or occupancy date.
WARRANTY CONDITIONS:
• The Limited Lifetime Warranty covers Products that are purchased through a HHT authorized
dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites.
• This warranty is only valid while the Product remains at the site of original installation.
• Contact your installing dealer for warranty service. If the installing dealer is unable to provide
necessary parts, contact the nearest HHT authorized dealer. Additional service fees may apply if
you are seeking warranty service from a dealer other than the dealer from whom you originally
purchased the Product.
• Check with your dealer in advance for any costs to you when arranging a warranty call. Travel
and shipping charges for parts are not covered by this warranty.
• The Product body, metal firebox and heat exchanger carry the Limited Lifetime Warranty from the
date of installation.
• The following components do not carry the Limited Lifetime Warranty but are warranted as follows:
o One Year from Date of Installation:
▪ Gas and Electrical Components or Gaskets
▪ Nickel Plated Materials
• Excludes tarnishing
▪ Glass Breakage, Logs/Refractory/Glass Panels due to thermal breakage
• Surface, hairline cracks, scratches and slight color changes are not covered
▪ Venting, optional accessories, optional glass doors
▪ Labor Associated with Warranty Service Work
WARRANTY EXCLUSIONS:
This warranty does not cover the following:
• Changes in surface finishes as a result of normal use. As a heating appliance, some changes in
color of interior and exterior surface finishes may occur; this is not a flaw and not covered under
warranty.
• Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse,
scratches, melted items, or other external sources and residues left on surfaces from the use of
abrasive cleaners or polishes.
• Repair or replacement of parts that are subject to normal wear and tear during the warranty
period. These parts include: paint, firebricks, grates, flame guides and the discoloration of glass.
• Minor expansion, contraction, or movement of certain parts causing noise. These conditions are
normal and complaints related to this noise are not covered by this warranty.
25
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
B. Limited Lifetime Warranty (continued)
Outdoor Lifestyles Warranty - 2108-975C – 6/5/2019 - 2
• Damages resulting from: (1) failure to install, operate, or maintain the Product in accordance with
the installation instructions, operating instructions, and listing agent identification label furnished
with the Product; (2) failure to install the Product in accordance with local building codes; (3)
shipping or improper handling; (4) improper operation, abuse, misuse, continued operation with
damaged, corroded or failed components, accident, or incorrectly performed repairs; (5) inad-
equate ventilation, negative pressure or environmental conditions, including, without limitation:
hail, snow, ice, fallen branches, flooding, water damage and fading of color; (6) use of fuels other
than those specified in the operating instructions; (7) installation or use of components not
supplied with the Product or any other components not expressly authorized and approved by
HHT; (8) modification of the Product not expressly authorized and approved by HHT in writing;
and/or (9) interruptions or fluctuations of electrical power supply to the Product.
• Non-HHT venting components, hearth components or other accessories used in conjunction with
the Product.
• Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is
installed.
• The Product’s capability to heat the desired space. Information is provided to assist the consumer
and the dealer in selecting the proper appliance for the application. Consideration must be given
to the Product’s location and configuration and environmental conditions.
This warranty is void if:
• The Product has been over-fired or operated in atmospheres contaminated by chlorine, fluorine,
or other damaging chemicals. Over-firing can be identified by, but not limited to, warped plates or
tubes, rust colored cast iron, bubbling, cracking and discoloration of steel or enamel finishes and
cracking or spalling of refractory or cementitious materials.
• The Product is subjected to prolonged periods of dampness, condensation, ice or snow.
• There is any damage to the Product or other components due to water or weather damage
which is the result of, but not limited to, improper chimney or venting installation.
LIMITATIONS OF LIABILITY:
Repair or replacement in accordance with the provisions of this warranty will be the owner’s exclusive
remedy for and will constitute HHT’s sole obligation under this warranty, under any other warranty
(express or implied), or in contract, tort or otherwise; provided, however, that if HHT is unable to provide
repair or replacement in an expedient and cost effective manner, HHT may discharge all such obligations
by refunding the purchase price of the Product. No employee, agent, dealer, or other person is authorized
to give any warranty on behalf of HHT. TO THE EXTENT ALLOWED BY LAW, HHT MAKES NO OTHER
WARRANTY, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. HHT WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES ARISING OUT OF DEFECTS IN OR USE OF THE PRODUCTS. Some
states do not allow exclusions or limitation of incidental or consequential damages, so these limitations
may not apply to you. This warranty gives you specific rights; you also may have other rights, which vary
from state to state. The duration of any implied warranty is limited to the duration of the warranty period
specified herein.
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2326
A. Appliance Certication
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1—latest edition in
the U.S.A.
8 8
Product Specic Information
This product is listed to ANSI standards for “Unvented
Room Heaters” and applicable sections of “Gas Burning
Heating Appliances for Manufactured Homes and Recre-
ational Vehicles”, and “Gas Fired Appliances for Use at
High Altitudes”.
Installation and service of this appliance should
be performed by qualied personnel. Hearth
& Home Technologies recommends HHT
Factory Trained or NFI certied professionals.
B. BTU Specications and Weight
MODEL: LUM-OD-NM, LUM-OD-PM
LABORATORY: Underwriters Laboratory (UL)
TYPE: Outdoor Decorative Gas Appliance
STANDARD: ANSI Z21.97-2017, CSA 2.41-2017
Models
Maximum
Input
BTU/h
Minimum
Input
BTU/h
Orice
Weight
Pounds
LUM-OD-NM (0-2000 FT) 38,000 19,000
.136 in
(3.45mm)
#29
7
LUM-OD-PM (0-2000 FT) 38,000 31,000
.0.78 in
(1.98mm)
#47
7
27
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
9 9
Important Safety and Operating Information
Clear Space
WARNING! DO NOT place combustible objects in front
of the replace. High temperatures may start a re. See
Figure 9.1.
Avoid placing candles, electronics and other heat-sensitive
objects on mantel or hearth. Heat may damage these
objects.
Figure 9.1 Clear Space
Over Firing
The appliance is considered to be over ring if the ames
are contacting the top of the rebox. Call a qualied service
technician to service the appliance.
WARNING! DO NOT operate gas log set before read-
ing and understanding operating instructions. Failure
to operate gas log set according to operating instructions
could cause re or injury.
Young children should be carefully supervised when they
are in the same room as the appliance. Toddlers, young
children and others may be susceptible to accidental
contact burns.
• A physical barrier is recommended if there are at risk
individuals in the house.
• To restrict access to a replace, install an adjustable
safety gate to keep toddlers, young children, pets and
other at risk individuals out of the room and away from
hot surfaces.
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
• Never leave children alone near a hot replace, whether
operating or cooling down.
• Teach children to NEVER touch the replace.
• Consider not using the replace when children will be
present.
Contact your dealer for more information, or visit: www.
hpba.org/safety-information.
To prevent unintended operation when not using your re-
place for an extended period of time (summer months,
vacations, trips, etc):
• Turn off pilot or gas valve.
A. Appliance Safety
WARNING! Choking Hazard! Keep media out of reach
of children.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
ammable materials.
• Clothing, furniture, draperies, and other flammable
materials must not be placed on or near the appliance.
CLEAR SPACE
3 FT. IN FRONT
OF FIREPLACE
Note: See appliance
Installation Manual for
hearth, mantel and nishing
requirements.
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2328
• Any change to this heater or its controls can be dangerous.
• Improper installation or use of the heater can cause serious injury or death from re, burns, explosion
or carbon monoxide poisoning.
• Do not allow fans to blow directly into the replace. Avoid any drafts that alter burner ame patterns.
• Do not use a blower insert, heat exchanger insert or other accessory, not approved for use with
this heater where applicable.
OWNER
Please retain these instructions for future reference
.
1. Due to high temperatures, the appliance should be
located out of trafc and away from furniture and
draperies.
2. Children and adults should be alerted to the hazard
of high surface temperature and should stay away
to avoid burns or clothing ignition.
3. Young children should be carefully supervised when
they are in the same room with the appliance.
4. Do not place clothing or other ammable material
on or near the appliance.
5. Any safety screen removed for servicing an appli-
ance, must be replaced prior to operating the heater.
6. Installation and repair should be done by a quali-
ed service person. To prevent malfunction and/or
sooting, an unvented gas heater should be cleaned
before use and at least annually by a professional
service person. More frequent cleaning may be
required due to excessive lint from carpeting, bed-
ding materials, etc. It is imperative that control com-
partments, burners and circulating air passageways
be kept clean.
7. WARNING: Any change to this heater or its controls
can be dangerous.
8. Unvented gas room heaters are a supplemental
zone heater. They are not intended to be the primary
heating appliance.
9. CARBON MONOXIDE POISONING: Early signs of
carbon monoxide poisoning are similar to the u with
headaches, dizziness and/or nausea. If you have these
signs, obtain fresh air immediately. Have the heater
serviced as it may not be operating properly.
10. The installation must conform with local codes or, in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.l/NFPA54.
11. This unit complies with ANSI Z21.97-2017 CSA 2.41-
2017 Outdoor Decorative Gas Appliances.
12. Do not install the heaters in a bathroom or bedroom.
13. Correct installation of the logs, proper location of the
heater, and annual cleaning are necessary to avoid
potential problems with sooting. Sooting, resulting
from improper installation or operation, can settle on
surfaces outside the replace. Refer to log placement
instructions for proper installation.
14. Avoid any drafts that alter burner ame patterns. Do not
allow fans to blow directly into replace. Do not place
a blower inside burn area of rebox. Ceiling fans may
create drafts that alter burner ame patterns. Sooting
and improper burning will occur.
15. Caution: Candles, incense, oil lamps, etc. produce
combustion by-products including soot. The Outdoor
Appliance will not lter or clean soot produced by
these types of products. In addition, the smoke and/
or aromatics (scents) may be reburned in the vent-free
appliance which can produce odors. It is recommended
to minimize the use of candles, incense, etc. while the
Outdoor Appliance is in operation.
16. Keep room area clear and free from combustible mate-
rials, gasoline and other ammable vapors and liquids.
17. During manufacturing, fabricating and shipping, various
components of this appliance are treated with certain
oils, lms or bonding agents. These chemicals are not
harmful but may produce annoying smoke and smells
as they are burned off during the initial operation of the
appliance; possibly causing headaches or eye or lung
irritation. This is a normal and temporary occurrence.
18. Input ratings are shown in BTU per hour and are for
elevations up to 2,000 feet. For elevations above 2,000
each 1,000 feet above sea level. Refer to the National
Fuel Gas Code.
19. The appliance and its appliance main gas valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test pres-
sures in excess of
1
⁄2 psig (3.5 kPa).
Important Safety and Operating Information (continued)
WARNING
29
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23

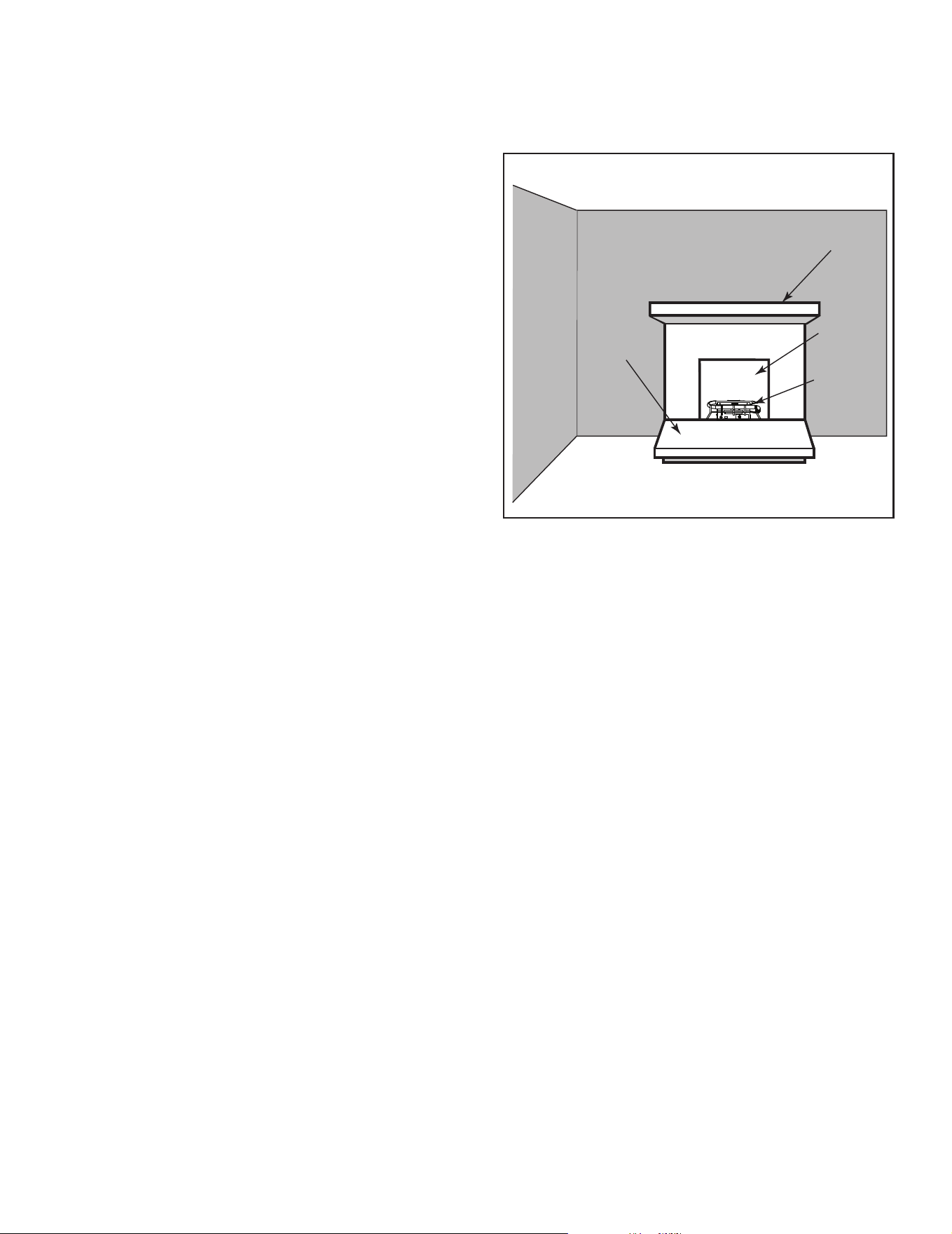

Figure 9.2 General Operating Parts
B. General Operating Parts
C. Fuel Specications
WARNING! Risk of Fire or Explosion! Appliance must
be set up for compatible gas type!
• This appliance is designed to operate on either natural
gas or propane. Make sure the appliance is compatible
with gas type selected for installation site.
Figure 9.2 references the general operating parts of the
appliance.
WARNING! Risk of Fire! Comply with all minimum
clearances to combustibles as specied in the installation
instructions.
BUILDING CODE INFORMATION
Adhere to all local codes or, in their absence, the latest
edition of THE NATIONAL FUEL GAS CODE ANSI Z223.1
or NFPA54 which can be obtained from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
or
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
20. The appliance must be isolated from gas supply piping
system by closing its equipment shutoff valve during
any pressure testing of the gas supply piping system at
test pressures equal to or less than
1
⁄2 psig (3.5 kPa).
21. Do not use this room heater if any part has been under
water. Immediately call a qualied service technician
to inspect the room heater and to replace any part of
the control system and any gas control which has been
under water.
22. Never burn solid fuels in a replace where a unvented
room heater is installed.
D. Before Lighting Appliance
Before operating this heater for the rst time, have a
qualied service technician:
• Verify all shipping materials have been removed from
inside and/or underneath the gas log set
• Review proper placement of logs
• Ensure that there are no gas leaks
Mantel
Hearth
Firebox
Burner
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2330
A. This appliance is equipped with a piezo ignition device which lights the pilot. If piezo is not working
properly see Match Lighting Instructions.
B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the oor
because some gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS:
• Do not attempt to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re department.
C. Use only your hand to push in, or turn the gas control knob. Never use tools. If the knob will not push
in or turn by hand, don't try to repair it. Call a qualied service technician. Force or attempted repair
may result in a re or explosion.
D. Do not use this appliance if any part of it has been under water. Immediately call a qualied service
technician to inspect the appliance and to replace any part of the control system and any gas control
that has been under water.
FOR YOUR SAFETY READ BEFORE LIGHTING

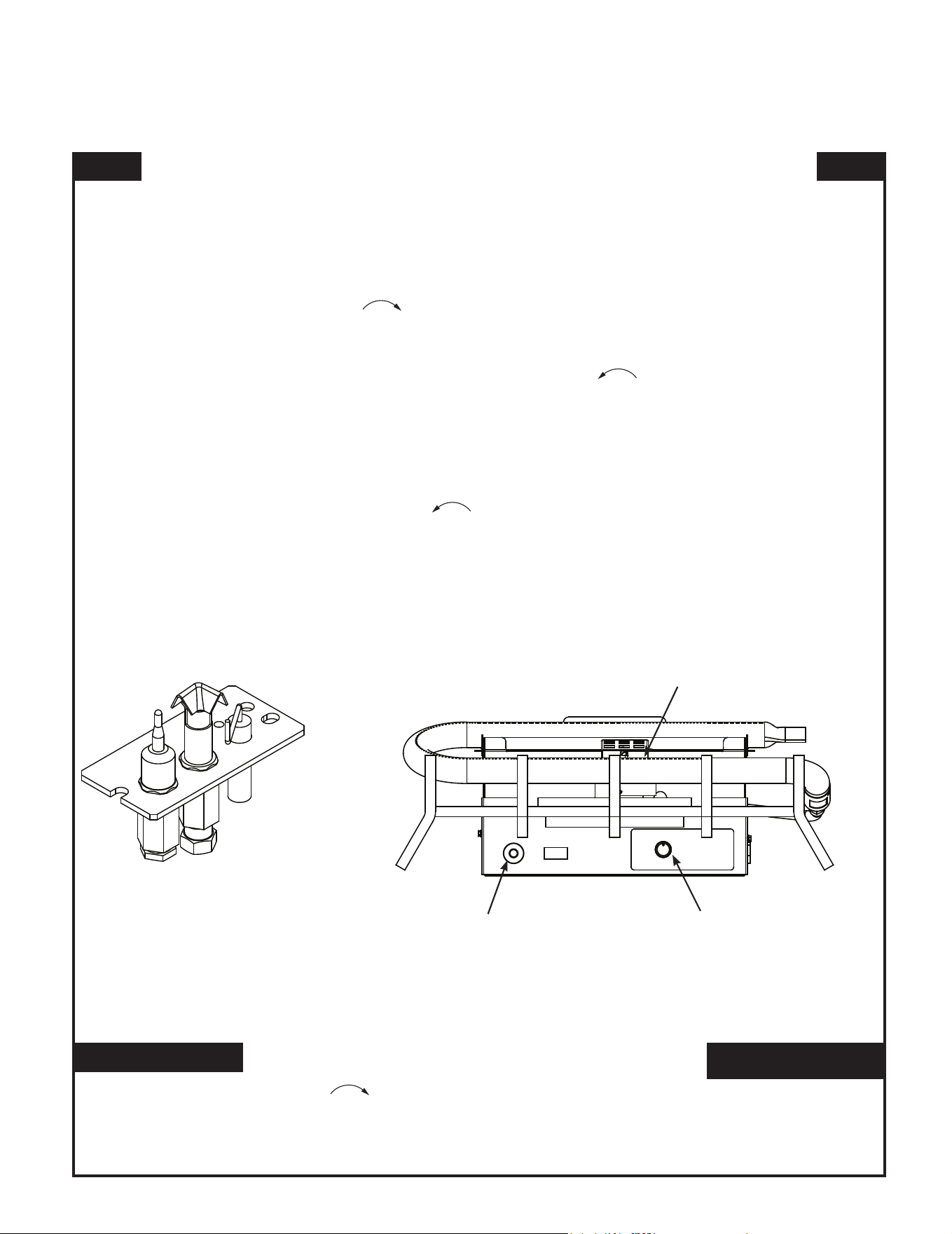

Figure 10.1 - Location of Piezo Ignitor and Control Knobs
Piezo Ignitor
Pilot
Pilot On/Off/Hi/Lo
If you do not follow these instruction exactly, a re or explosion may result causing property damage,
personal injury or loss of life.
WARNING
10 10
Lighting Instructions
A. Manual Valve
31
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
1. STOP! Read the safety information label.
2. Make sure the manual shutoff valve is fully open.
3. This gas log set is equipped with an ignition device (piezo) which automatically lights the pilot. If
piezo ignitor does not light the pilot, refer to instructions for Match Lighting Instructions.
4. Turn gas control knob clockwise to the OFF position and turn ON/OFF switch to OFF position.
5. Wait (5) minutes to clear out any gas. Then smell for gas, including near the oor. If you smell gas,
STOP! Follow the instructions under What To Do If You Smell Gas.
6. From OFF position, turn the gas control knob counterclockwise
to IGN position. Push in control
knob for 5 seconds. NOTE: If you are running the heater for the rst time, it may be necessary to
press in the control knob for 30 seconds or longer to allow air to bleed out of the gas piping.
7. With the control knob pushed in, push in and release the piezo ignitor button to light the pilot.
8. Continue pushing the control knob in for a further 60 seconds to prevent the ame detector from
shutting off the gas while the probe is warming up. Release the control knob.
9. Turn gas control knob counterclockwise
to the ON position.
10. After the pilot has been lit for one minute, the burners can be turned on. Turn the ON/OFF switch to
ON position.
11. If the gas logs will not operate, follow the instructions To Turn Off Gas To Heater below and call your
service technician or gas supplier.
Pilot
MANUAL CONTROL LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO HEATER
1. Turn control knob clockwise to OFF position to completely shut off the heater.
2. If applicable: Turn ON/OFF switch to OFF position and/or set thermostat (if present) to lowest setting.
3. If applicable: Turn off all electric power to the heater.
4. Call a qualied service technician for repair or replacement of the piezo ignitor.
Controls
Lighting Instructions (continued)
Figure 10.2 - Piezo Ignitor
Piezo Ignitor
Pilot
Pilot On/Off/Hi/Lo
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2332

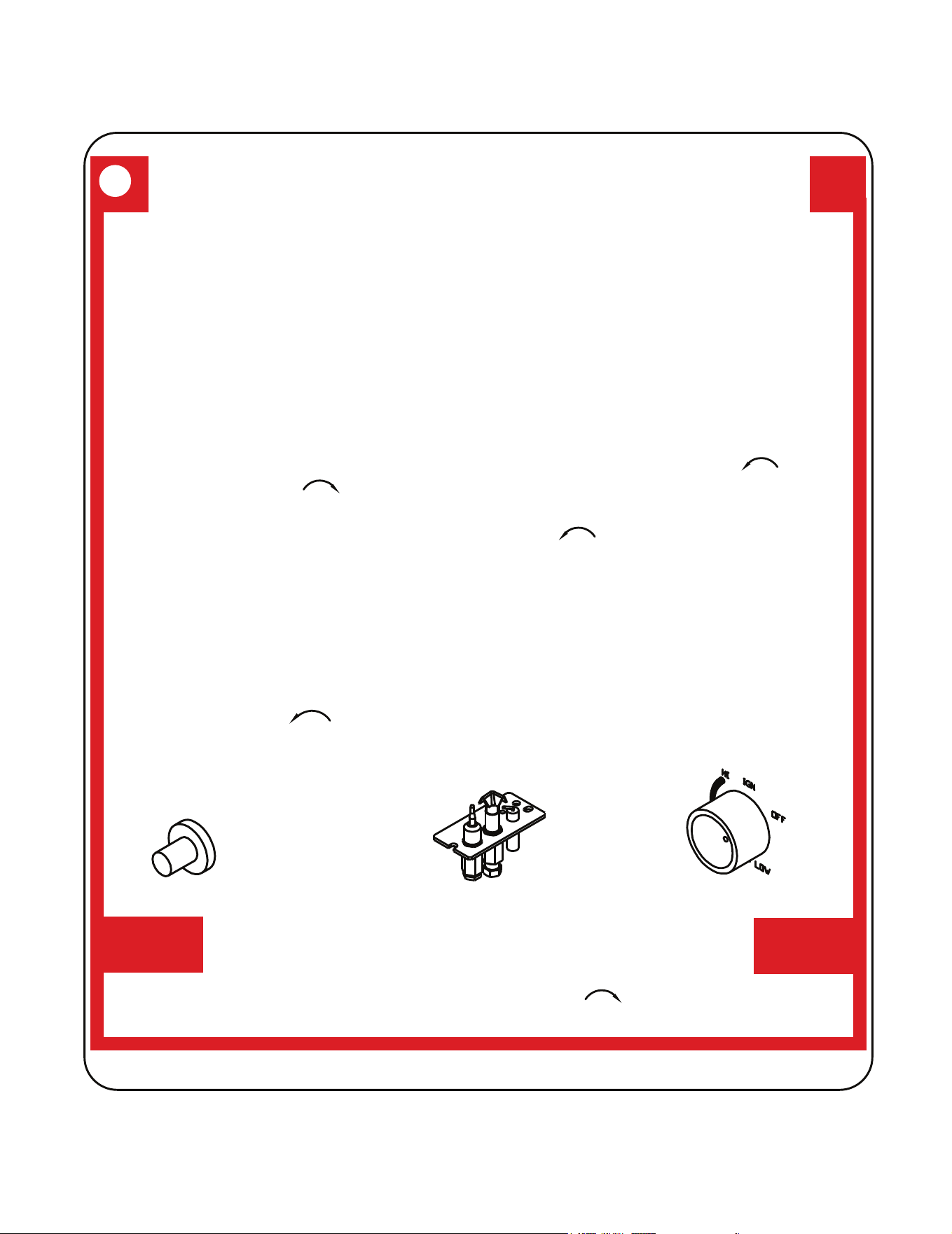

WARNING
4629-914
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or
explosion may result causing property damage, personal injury or loss
of life.
A. This appliance has a standing pilot. When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will settle to the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Do not use this appliance if any part has been under water. Immediately call a qualified
service technician to inspect the appliance and to replace any part of the control system and
any gas control which has been under water.
Due to high surface termperatures, keep children, clothing and furniture away.
Keep burner and control compartment clean. See installation and operating instructions accompanying
the appliance.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
B. Lighting Instructions
33
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
Removal of this plate will void the compliance with ANSI Z21.97
OPERATING INSTRUCTIONS - VARIABLE MANUAL CONTROL
1. STOP! Read the safety
information label.
2. Make sure the manual shutoff
valve is fully open.
3. This heater is equipped with an
ignition device (piezo) which
automatically lights the pilot.
Refer to instructions for match
lighting.
4. Push in gas control knob slightly
and turn clockwise to “OFF”.
5. Wait five (5) minutes to clear out
any gas. Then smell for gas,
including near the floor. If you
smell gas, STOP! Follow “B” in
the safety information label. If
you don’t smell gas, go to next
step.
6. From “OFF” position, push in gas
control knob slightly turn
counterclockwise to “IGN”
position. Push in contol knob for
five (5) seconds.
7. With control knob pushed in, push
and release the piezo ignitor button
to light the pilot.
8. Continue pushing the control knob in
for another 10 seconds to prevent the
flame detector from shutting off the
gas while probe is warming up.
Release the control knob.
9. Push in the gas control knob slightly
and turn counterclockwise to
“HIGH”. Once the burner has been
lit, turn the control knob counterclock-
wise to desired position between
“HI” and “LOW”.
10. If the heater will not operate, follow
the instructions “TO Turn Off Gas To
Appliance” and call your service
technician or gas supplier.
11. Wait 30 seconds before readjusting
the heater when the control knob has
been turned down to a lower setting.
PIEZO IGNITOR
PILOT
CONTROL KNOB
1. Push in gas control knob slightly and turn clockwise to “OFF”. Do not force.
2. If applicable: Turn off all electric power to appliance.
4629-914
Lighting Instructions (continued)
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2334
C. Initial Use
Initial Break-in Procedure
• The burner should run three to four hours continuously
on high.
• Turn the burner off and allow it to completely cool.
This cures the materials used to manufacture the burner.
NOTICE! Allow air circulation during heater break-in.
• Some people may be sensitive to smoke and odors.
• Smoke detectors may activate.
35
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
Any safety screen removed for servicing must be replaced
prior to operating the unvented room heater.
11 11
Maintenance and Service
Task Frequency To be completed by
Pilot Inspection
& Cleaning
Annually
Qualied Service
Technician
Log Inspection Annually
Firebox
Inspection
Annually
Burner Ignition
& Operation
Annually
A. Maintenance: Frequency and Tasks
The matrix below is an overview of maintenance tasks to
be performed on the appliance. Section B gives details
and instructions needed to assist the appropriate person
in performing the tasks.
When properly maintained, your replace will give you
many years of trouble-free service. Contact your dealer
to answer questions regarding proper operation, trou-
bleshooting and service for your appliance. Visit www.
hearthnhome.com to locate a dealer. We recommend an-
nual service by a qualied service technician.
B. Maintenance Tasks: Qualied Service
Technician
The following tasks must be performed by a qualied ser-
vice technician.
Pilot
Frequency: Annually
By: Qualied Service Technician
Tools needed: Small soft brush, pipe cleaner
• Inspect and remove dust, spider webs and lint
• Gently run pipe cleaner through air intake port
Firebox
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, sandpaper, steel wool,
cloths, mineral spirits, primer and touch-up paint.
• Inspect for paint condition, warped surfaces, corrosion
or perforation. Sand and repaint as necessary.
• Replace replace if rebox has been perforated.
Figure 11.1 Correct Pilot Flame Appearance
C. Burner Ignition and Operation
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, vacuum cleaner, whisk
broom, ashlight, voltmeter, indexed drill bit set, and a
manometer.
• Verify burner is properly secured and aligned with pilot
or igniter.
• Clean off burner top, inspect for plugged ports, corrosion
or deterioration. Replace burner if necessary.
• Inspect for lifting or other ame problems.
• Inspect orice for soot, dirt and corrosion. Verify orice
size is correct. See Service Parts List for proper orice
sizing.
• Verify manifold and inlet pressures. Adjust regulator as
required.
• Inspect pilot ame pattern and strength. See Figure 11.1
and 11.2 for proper pilot ame pattern. Clean or replace
orice spud as necessary.
Figure 11.2 Incorrect Pilot Flame Appearance
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2336
D. Cleaning and Servicing
Annual inspection and cleaning by your dealer or
qualied service technician is recommended to pre-
vent malfunction and/or sooting.
Remove logs, handling carefully by holding gently at each
end. Gloves are recommended to prevent skin irritation
from logs. If skin becomes irritated, wash gently with soap
and water. Refer to manual for correct log placement.
Turn off heater and allow to cool before cleaning.
WARNING
PERIODIC CLEANING - Refer to parts diagram for
location of items discussed below.
• Do not use cleaning uid to clean logs or any part of
heater.
• Brush logs with soft bristle brush or vacuum with
brush attachment.
• Vacuum loose particles and dust from the front and
rear burner, control and piezo covers and grate weld-
ment.
• Inspect and clean burner air intake holes. Remove
lint or particles with vacuum, brush, or pipe cleaners.
Failure to keep air intake holes clean will result
in sooting and poor combustion.
• External case should be dusted and wiped with a
wet soapy cloth.
ANNUAL CLEANING/INSPECTION - Refer to parts
diagram for location of items discussed below.
• Inspect and clean burner air intake holes. Remove
lint or particles with vacuum, brush or pipe cleaners.
Failure to keep air intake holes clean will result
in sooting and poor combustion.
• Inspect and clean all burner ports.
• Inspect ODS pilot for operation and accumulation of
lint at air intake holes.
• Verify ame pattern and log placement for proper
operation.
• Verify smooth and responsive ignition of main burner
and rear burner.
• Replace battery in remote control device.
37
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
A. MANUAL VALVE CONTROL SYSTEM
NOTE: All troubleshooting items are listed in order of operation.
Turn appliance OFF and allow to cool before servicing. Only a qualied service person should service and
repair the heater.
WARNING
PROBLEM POSSIBLE CAUSE SOLUTION
When Piezo button is pressed, there is
no spark at pilot.
Ignitor electrode positioned wrong. Replace ignitor.
Ignitor electrode is broken. Replace ignitor.
Ignitor electrode not connected to ignitor
cable.
Reconnect ignitor cable.
Ignitor cable pinched or wet. Keep ignitor
cable dry.
Free ignitor cable if pinched by any metal
or tubing.
Broken ignitor cable. Replace ignitor cable.
Bad piezo ignitor. Replace piezo ignitor.
Appliance produces unwanted odors.
Appliance burning vapors from paint, hair
spray, glues, etc.
Ventilate room. Stop using odor causing
products while heater is running.
Gas leak. Locate and correct all leaks.
Initial burn off.
Ventilate room and turn unit on high until
odor is gone. Odor should be gone after
six hours of continuous use.
Low line pressure. Contact local gas company.
Pilot is partially clogged. Clean pilot.
Defective thermocouple. Replace thermocouple.
Gas odor even when control knob is in
OFF position.
Gas leak. Locate and correct all leaks.
Control valve defective. Replace control valve.
When ignitor button is pressed, there is
spark at pilot, but no ignition.
Gas supply turned off or manual shutoff
valve closed.
Turn on gas supply or open manual
shutoff valve.
Control knob not in PILOT position. Turn control knot to PILOT position.
Control knob not pressed in while in
PILOT position.
Press in control knob while in PILOT
position.
Air in gas lines when installed.
Continue holding down control knob.
Repeat igniting operation until air is
removed.
Pilot is clogged. Replace pilot assembly or get it serviced.
Gas regulator setting is not correct.
Check incoming pressure. Replace gas
regulator.
12 12
Troubleshooting
With proper installation, operation, and maintenance your gas appliance will provide years of trouble-free service. If you do
experience a problem, this troubleshooting guide will assist a qualied service technician in the diagnosis of a problem and
the corrective action to be taken. This troubleshooting guide can only be used by a qualied service technician. Contact
your dealer to arrange a service call by a qualied service technician.
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2338
13 13
Service Parts
A. Service Parts
Service Parts
LUM-OD-NM, LUM-OD-PM
Beginning Manufacturing Date: Jul 2023
Ending Manufacturing Date: Active
Lumonessen Outdoor Hearth Kit
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Burner, Tube
NG SRV4625-300 Y
Propane SRV4625-302 Y
2 Pilot, Manual
NG SRV4018-151 Y
Propane SRV4018-152 Y
3 Piezo Ignitor SRV14D0503 Y
Piezo Wire SRV00K0632 Y
4 Knob, Control SRV18D0603
5 Grate Assembly SRV4629-312
6 Valve NG & Propane SRV4018-154 Y
7 Regulator
NG SRV65D2039 Y
Propane SRV24D0306 Y
8 Orice, Flare
NG SRV4018-350 Y
Propane SRV4018-353 Y
Flex Gas Line
Valve to Regulator SRV4018-080 Y
Valve to Burner SRV4121-006 Y
2/23
1
2
4
5
6
7
8
3
39
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
Service Parts
MTNOK-18
Beginning Manufacturing Date: Jul 2203
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Log, Rear SRV4625-701
2 Log, Middle SRV4625-702
3
Log, Front SRV4625-700
4
Log, Top SRV4625-703
2/23
Mountain Oak 18” Log Set
1
2
3
4
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2340
Service Parts
MTNOK-24
Beginning Manufacturing Date: Jul 2203
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Log, Rear SRV4625-711
2 Log, Middle SRV4625-712
3
Log, Front SRV4625-710
4
Log, Top Right Hand 65D1034
5 Log, Top Left Hand 65D1035
2/23
Mountain Oak 24” Log Set
2
3
4
1
5
41
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
Service Parts
MTNOK-30
Beginning Manufacturing Date: Jul 2203
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Log, Rear SRV4625-711
2 Log, Middle SRV4625-722
3
Log, Front SRV4625-720
4
Log, Top Right Hand 65D1034
5 Log, Top Left Hand 65D1035
2/23
Mountain Oak 30” Log Set
2
3
4
1
5
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2342

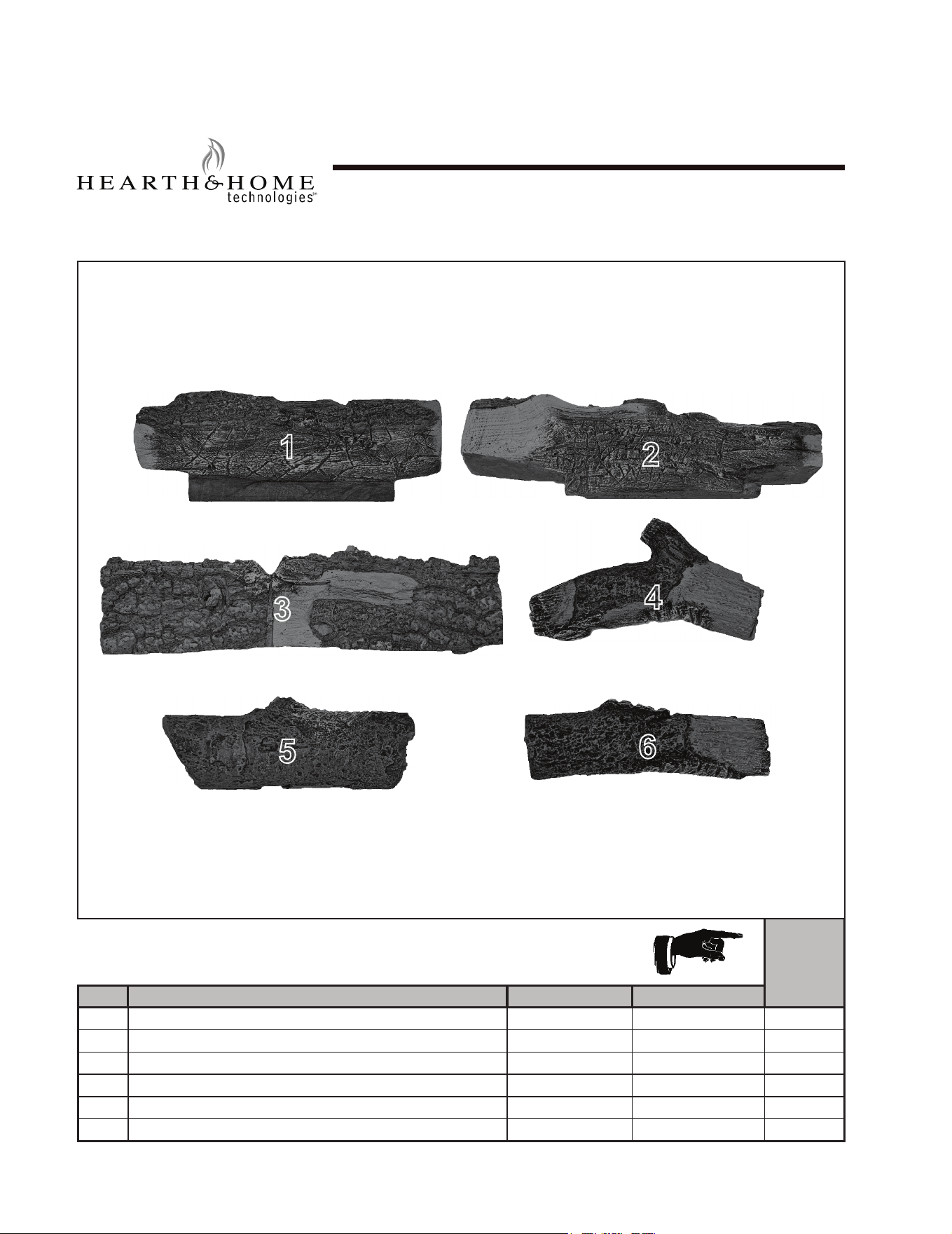

Service Parts
MZMR-18
Beginning Manufacturing Date: Jul 2203
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Log, Rear SRV4625-731
2 Log, Middle SRV4625-732
3
Log, Front SRV4625-730
4
Log, Top Right Hand SRV4625-733
5 Log, Top Left Hand SRV4625-734
6 Log, Top Center SRV4625-735
2/23
Mezmer 18” Log Set
1
2
3
4
5
6
43
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
Service Parts
MZMR-24
Beginning Manufacturing Date: Jul 2203
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Log, Rear SRV4625-741
2 Log, Middle SRV4625-742
3
Log, Front SRV4625-740
4
Log, Top Right Hand SRV4625-743
5 Log, Top Left Hand SRV4625-734
6 Log, Top Center SRV4625-735
2/23
Mezmer 24” Log Set
1
2
3
4
5
6
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2344

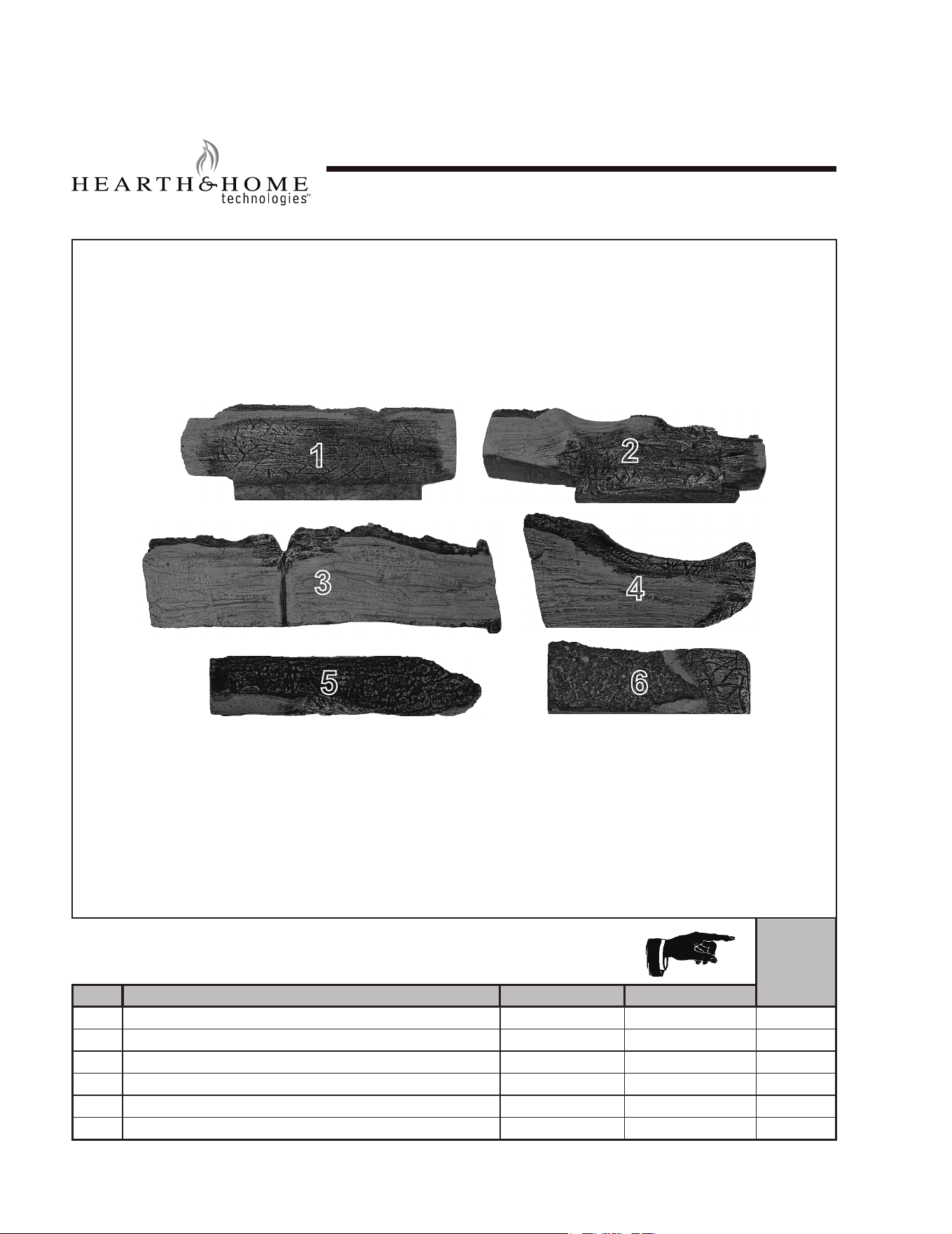

Service Parts
MZMR-30
Beginning Manufacturing Date: Jul 2203
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Log, Rear SRV4625-741
2 Log, Middle SRV4625-742
3
Log, Front SRV4625-750
4
Log, Top Right Hand SRV4625-743
5 Log, Top Left Hand SRV4625-734
6 Log, Top Center SRV4625-735
2/23
Mezmer 30” Log Set
1
2
3
4
5
6
45
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23

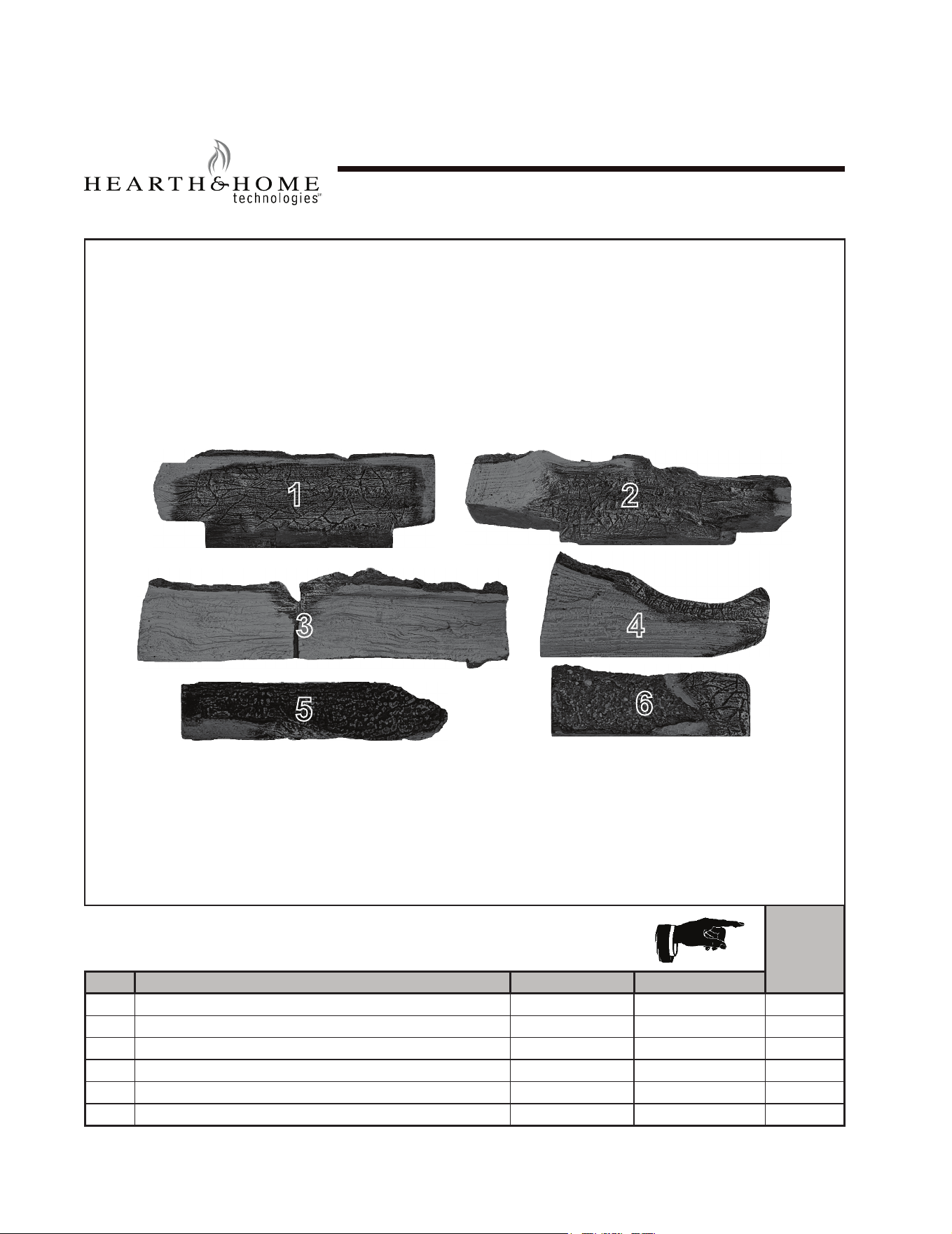

Service Parts
MZMRSP-18
Beginning Manufacturing Date: Jul 2203
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Log, Rear SRV4625-761
2 Log, Middle SRV4625-732
3
Log, Front SRV4625-760
4
Log, Top Right Hand SRV4625-763
5 Log, Top Left Hand SRV4625-764
6 Log, Top Center SRV4625-765
2/23
Mezmer Split 18” Log Set
1
2
3
4
5
6
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2346

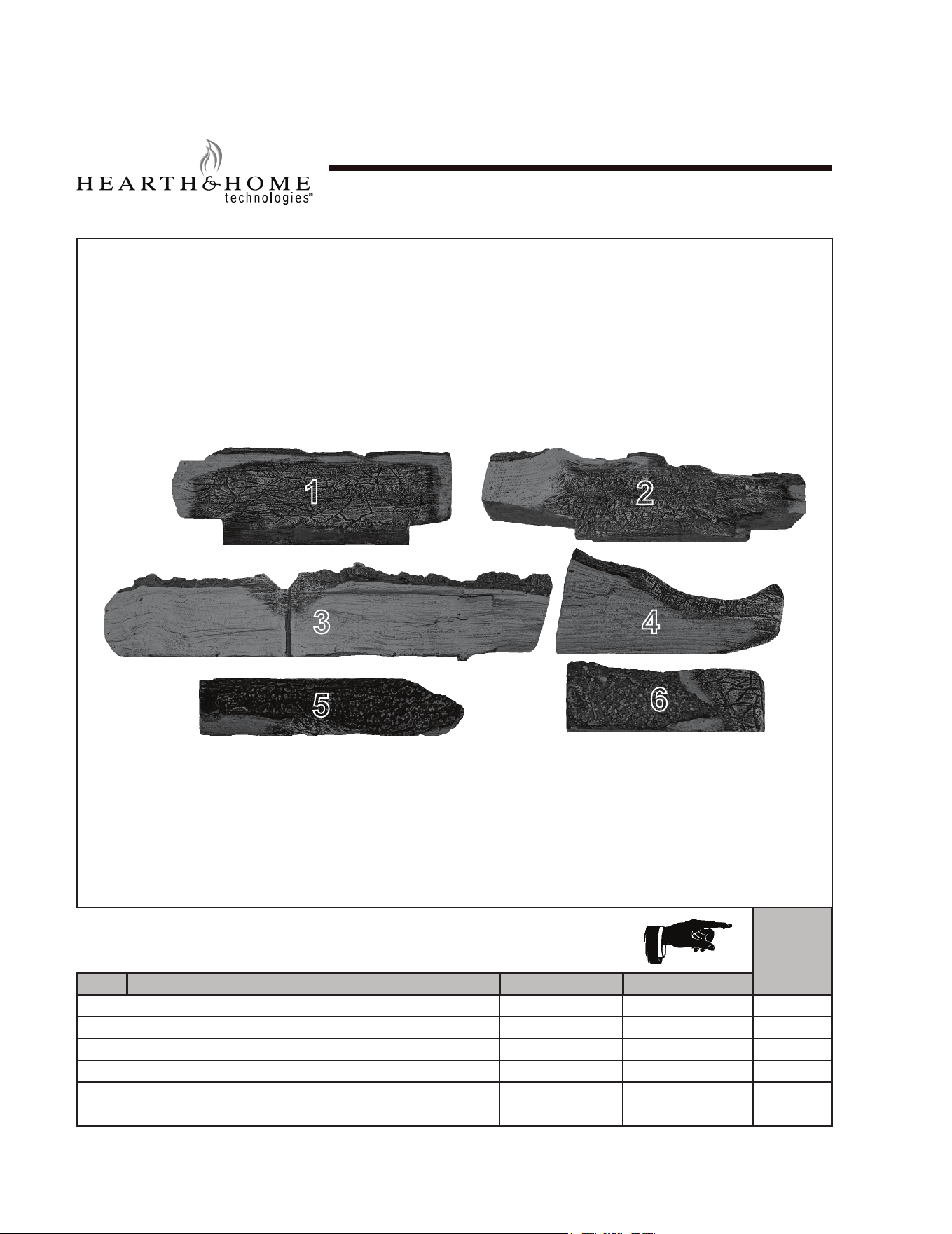

Service Parts
MZMRSP-24
Beginning Manufacturing Date: Jul 2203
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Log, Rear SRV4625-771
2 Log, Middle SRV4625-742
3
Log, Front SRV4625-770
4
Log, Top Right Hand SRV4625-773
5 Log, Top Left Hand SRV4625-764
6 Log, Top Center SRV4625-765
2/23
Mezmer Split 24” Log Set
1
2
3 4
5
6
47
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
Service Parts
MZMRSP-30
Beginning Manufacturing Date: Jul 2203
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Log, Rear SRV4625-771
2 Log, Middle SRV4625-742
3
Log, Front SRV4625-780
4
Log, Top Right Hand SRV4625-773
5 Log, Top Left Hand SRV4625-764
6 Log, Top Center SRV4625-765
2/23
Mezmer Split 30” Log Set
1
2
3 4
5
6
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/2348
NOTE REGARDING VENTED PRODUCTS
This product must be installed by a licensed plumber or
gas tter when installed within the Commonwealth of
Massachusetts.
Any residence with a direct vent product must have a carbon
monoxide (CO) detector installed in the residence.
Installation of the replace or vented gas log in the State
of Massachusetts requires the damper to be permanently
removed or welded in the fully open position.
In addition, a naturally vented gas log may not be installed in a
bedroom or bathroom in the State of Massachusetts.
Flex line installation must not exceed 36 inches and must have
a T shutoff valve.
NOTE REGARDING VENT FREE PRODUCTS
This product must be installed by a licensed plumber or
gas tter when installed within the Commonwealth of
Massachusetts.
In addition, vent free products may not be installed in a
bedroom or bathroom regardless of size or type in the State of
Massachusetts.
Flex line installation must not exceed 36 inches and must have
a T shutoff valve.
CARBON MONOXIDE DETECTOR REQUIREMENTS
(2) Revise 10.8.3 by adding the following additional
requirements:
(a) For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in whole
or in part for residential purposes, including those owned
or operated by the Commonwealth and where the side wall
exhaust vent termination is less than seven (7) feet above
nished grade in the area of the venting, including but not
limited to decks and porches, the following requirements shall
be satised:
1. Installation of carbon monoxide detectors. At the time
of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gas tter shall observe
that a hard wired carbon monoxide detector with an alarm and
battery back-up is installed on the oor level where the gas
equipment is to be installed. In addition, the installing plumber
or gas tter shall observe that a battery operated or hard wired
carbon monoxide detector with an alarm is installed on each
additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It
shall be the responsibility of the property owner to secure the
services of qualied licensed professionals for the installation
of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas
fueled equipment is installed in a crawl space or an attic, the
hard wired carbon monoxide detector with alarm and battery
back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision
can not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply with the
above requirements; provided, however, that during said thirty
(30) day period, a battery operated carbon monoxide detector
with an alarm shall be installed.
B. MASSACHUSETTS RESIDENTS ONLY
2. Approved Carbon Monoxide Detectors. Each carbon
monoxide detector as required in accordance with the above
provisions shall comply with NFPA 720 and be ANSI/UL 2034
listed and IAS certied.
3. Signage. A metal or plastic identication plate shall
be permanently mounted to the exterior of the building at a
minimum height of eight (8) feet above grade directly in line
with the exhaust vent terminal for the horizontally vented gas
fueled heating appliance or equipment. The sign shall read, in
print size no less than one-half (1/2) inch in size, “GAS VENT
DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS.”
4. Inspection. The state or local gas inspector of the
side wall horizontally vented gas fueled equipment shall not
approve the installation unless, upon inspection, the inspector
observes carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a)1
through 4.
(b) Exemptions: The following equipment is exempt from 248
CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment
Not Required To Be Vented" in the most current edition of
NFPA 54 as adopted by the Board; and
2. Product Approved side wall horizontally vented gas fueled
equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for
residential purposes.
(c) Manufacturer requirements — Gas Equipment Venting
System Provided. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides
a venting system design or venting system components with
the equipment, the instructions provided by the manufacturer
for installation of the equipment and the venting system shall
include:
1. Detailed instructions for the installation of the venting
system design or the venting system components; and
2. A complete parts list for the venting system design or
venting system.
(d) Manufacturer requirements — Gas Equipment Venting
System Not Provided. When the manufacturer of a Product
Approved side wall horizontally vented gas fueled equipment
does not provide the parts for venting the ue gases, but
identies “special venting systems,” the following requirements
shall be satised by the manufacturer:
1. The referenced "special venting system" instructions
shall be included with the appliance or equipment installation
instructions; and
2. The “special venting systems” shall be Product Approved
by the Board, and the instructions for that system shall include
a parts list and detailed installation instructions.
(e) A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled equipment,
all venting instructions, all parts lists for venting instructions,
and/or all venting design
Please read and follow these special requirements
49
Outdoor Lifestyles • Lumonessen Owner’s /Installation Manual • 4629-900 Rev. A • 02/23
C. Contact Information
- NOTES -
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
DO NOT DISCARD THIS MANUAL
NOTICE
• Leave this manual with
party responsible for use
and operation.
• Important operating
and maintenance
instructions included.
• Read, understand and follow
these instructions for safe
installation and operation.
Printed in U.S.A. - Copyright 2016
This product may be covered by one or more of the following patents: (United States) 6601579, 6769426, 6863064,
7077122, 7074035, 7098269, 7234932, 7258116, 7322819, 7422011, 7470729, 7726300, 8147240, 9625149 or other U.S.
and foreign patents pending.
2000-945E
Please contact your dealer with any questions or concerns.
For the location of your nearest dealer,
please visit www.hearthnhome.com
Hearth & Home Technologies
7571 215th Street West
Lakeville, MN 55044
www.hearthnhome.com
