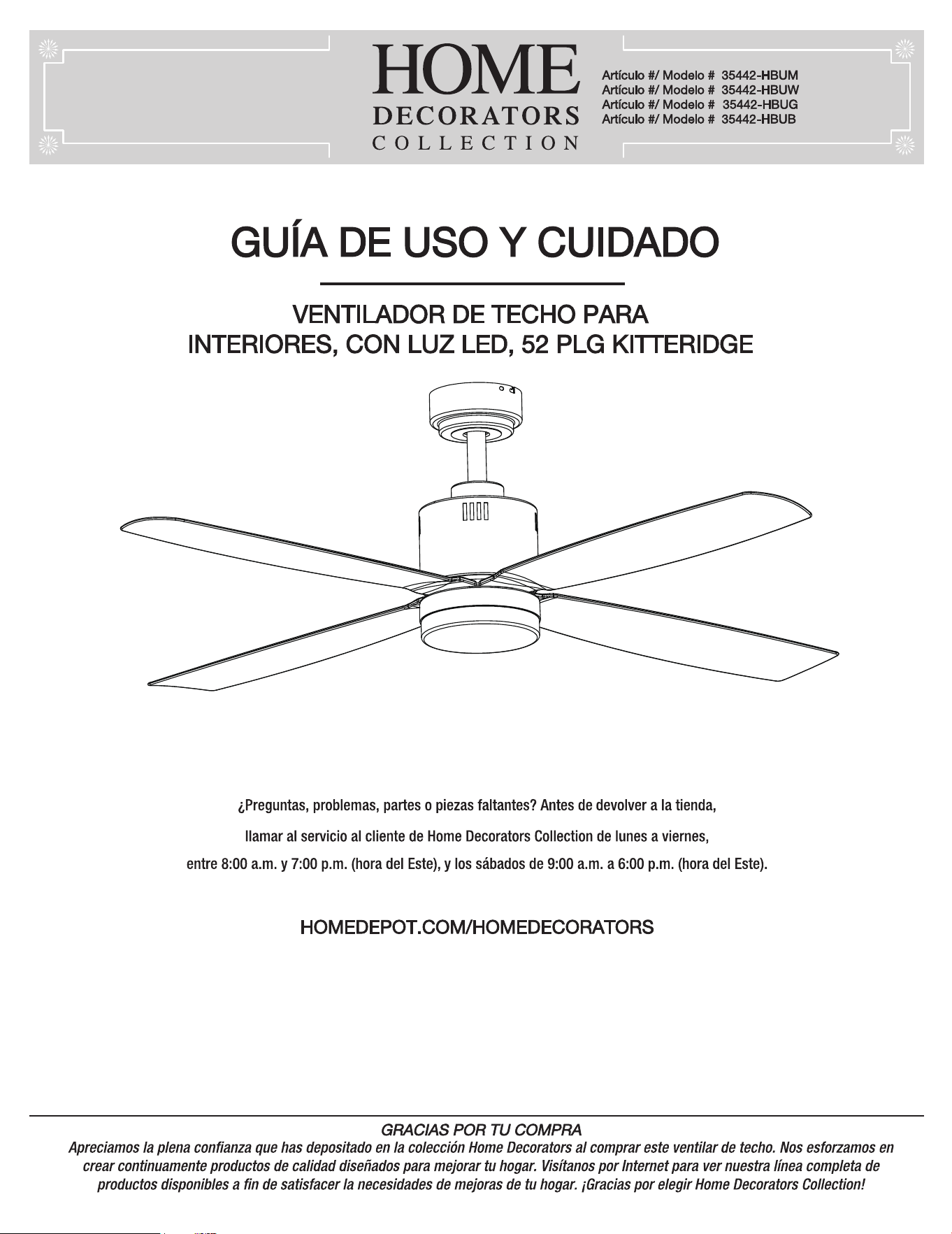

USE AND CARE GUIDE
KITTERIDGE 52-INCH INDOOR LED CEILING FAN
THANK YOU
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #/ Model #: 35442-HBUM
Item #/ Model #: 35442-HBUW
Item #/ Model #: 35442-HBUG
Item #/ Model #: 35442-HBUB
(1004292173)
(1004292141)
(1004292145)
(1004292144)
1-800-986 3460
HOMEDEPOT.COM/HOMEDECORATORS
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
2

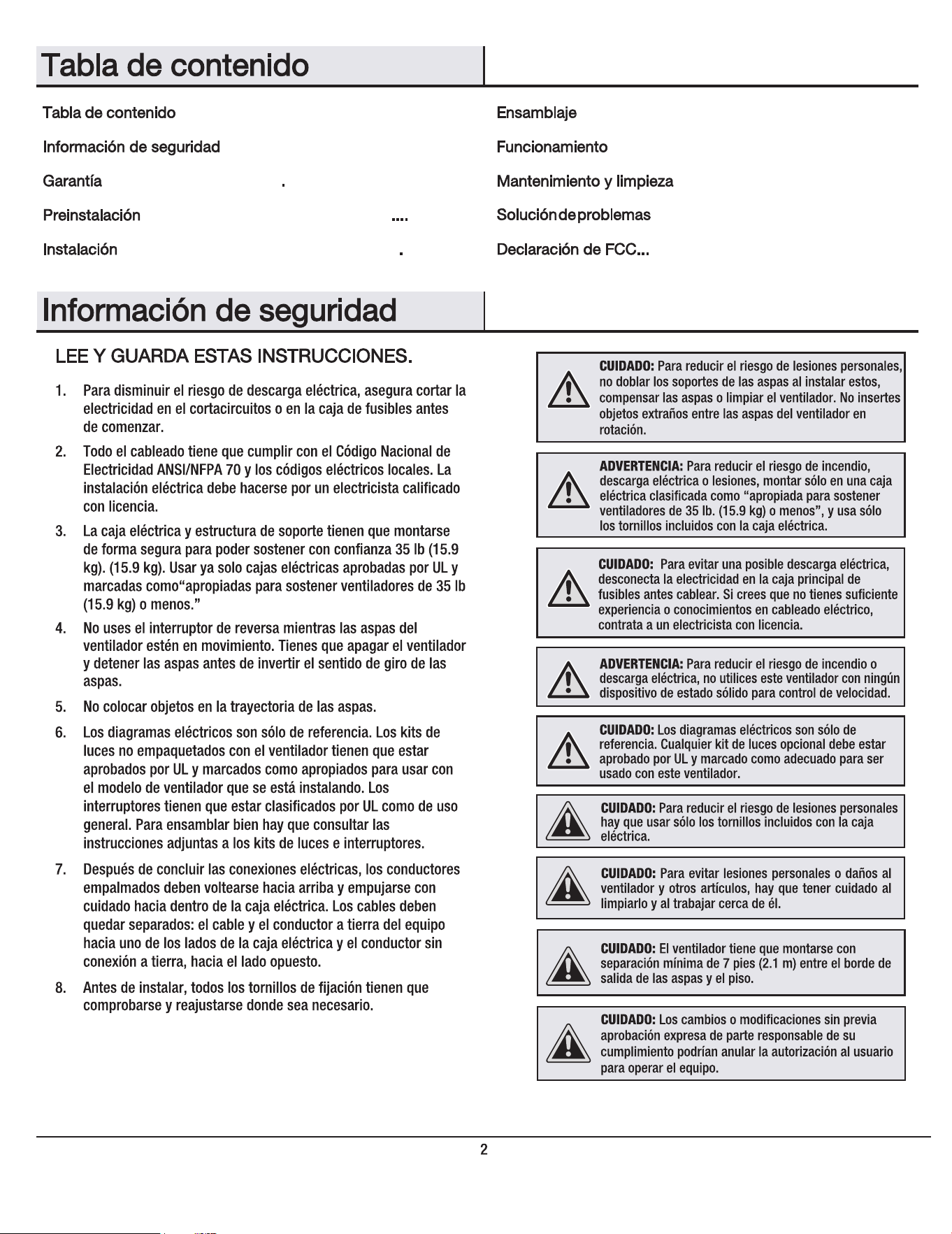

Table of Contents ................................................................ 2
Safety Information ............................................................... 2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation ............................................................................ 6
Assembly ............................................................................ 7
Operation ........................................................................... 15
Care and Cleaning .............................................................15
Troubleshooting .................................................................16
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35
lbs. (15.9 kg). Use only UL
Listed outlet boxes marked “Acceptable for Fan Support of 35
lbs. (15.9 kg) or less.”
4. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
5. Do not place objects in the path of the blades.
6. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL-listed and marked suitable for
use with the model fan you are installing. Switches must be UL
General Use Switches. Refer to the instructions packaged with
the light kits and switches for proper assembly.
Safety Information
Table of Contents
READ AND SAVE THESE INSTRUCTIONS.
installation should be performed by a qualified licensed
FCC Statement .
...................................................................17
WARNING: To reduce the risk of personal injury, do not
WARNING:
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL-listed
and marked suitable for use with this fan.
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
CAUTION: To avoid personal injury or damage to the
fan
and other items, use caution when working around or
cleaning the fan.
bend the blade brackets when installing the brackets
balancing the blades, or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
To reduce the risk of fire, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35 lbs. (15.9Kg)
or less” and use screws provided with the outlet box.
The fan must be mounted with a minimumCAUTION:
of 7 ft (2.1 m) clearance from the trailing edge of the
blades to the floor.
After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
All setscrews must be checked and retightened where
necessary before installation.
7.
8.
Changes or modifications not expresslyCAUTION:
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
WARNING:
shock, do not use this fan with any solid-state speed
control device.
To reduce the risk of fire or electric
3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation

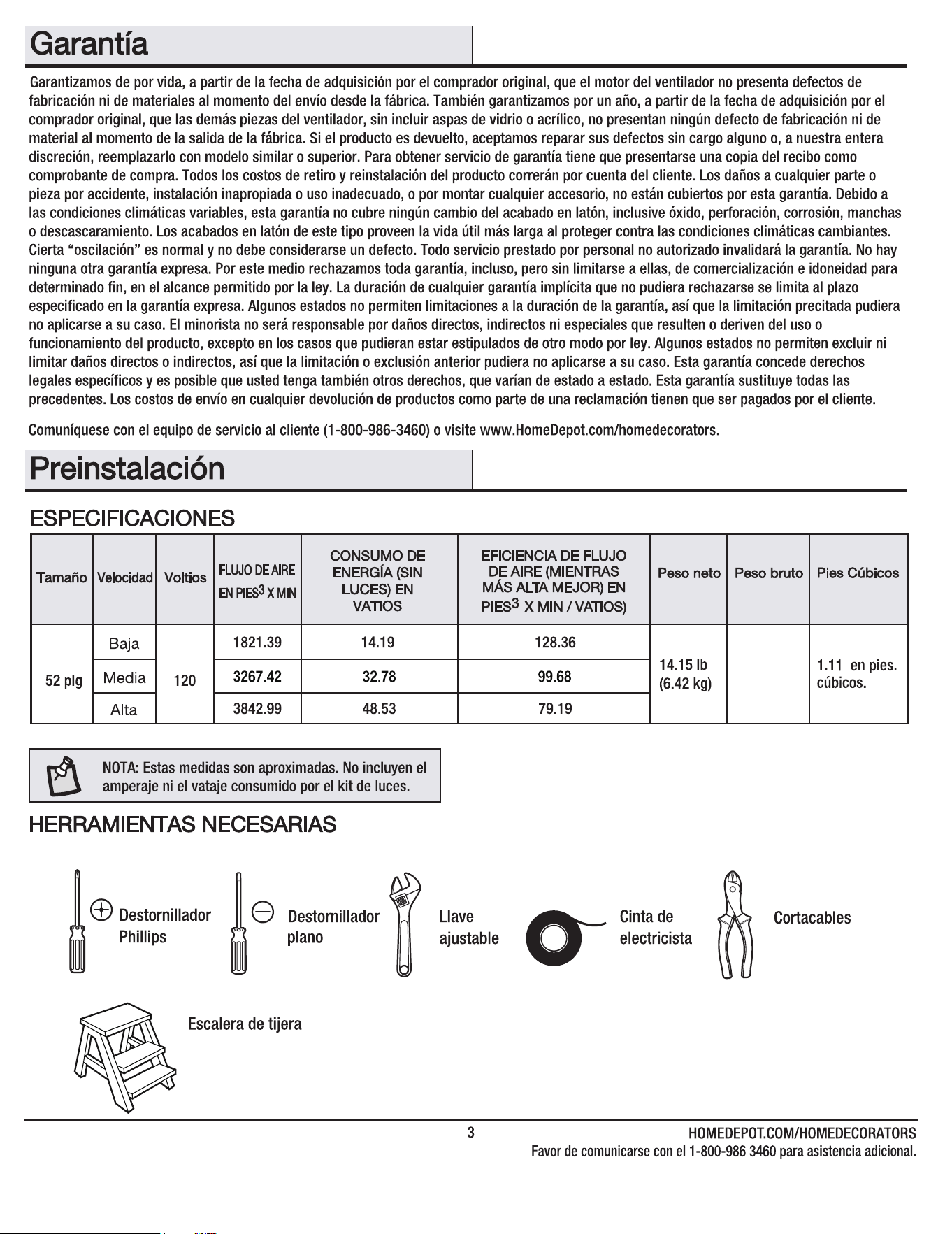

Warranty

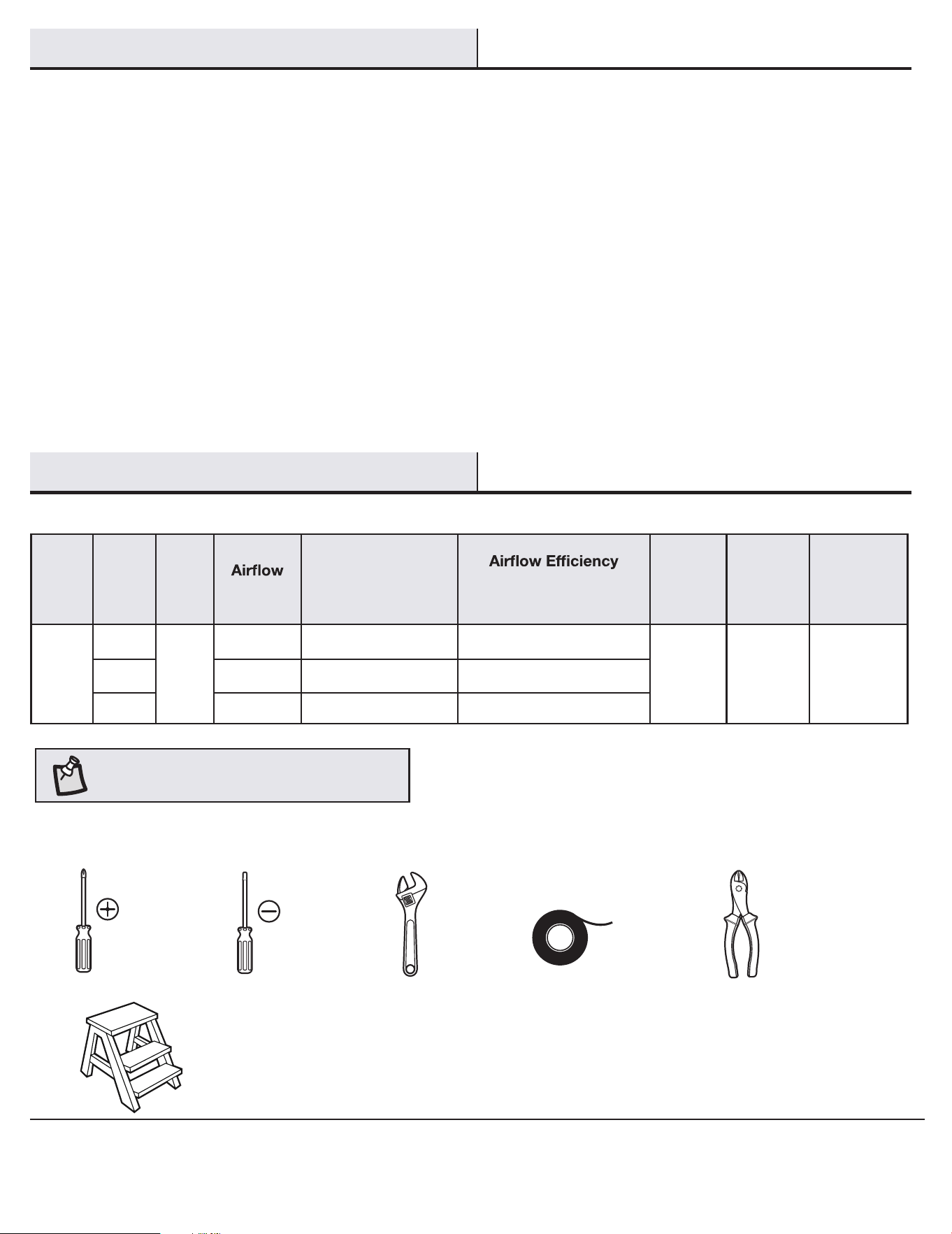

TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
SPECIFICATIONS
79.19
99.68
128.36
3842.99
3267.42
1821.39
Size Speed Volts
CFM
Fan Power
Consumption
(Without Lights)
WATT
(Higher Is Better)
CFM/WATT
Net
Weight
Gross
Weight
Cube Feet
52 in.
Low
120
14.19
1.11 cu. ft.
Medium 32.78
High 48.53
14.15 lbs
(6.42 kgs)
17.7 lbs
(8.03 kgs)
4
Pre-Installation (continued)

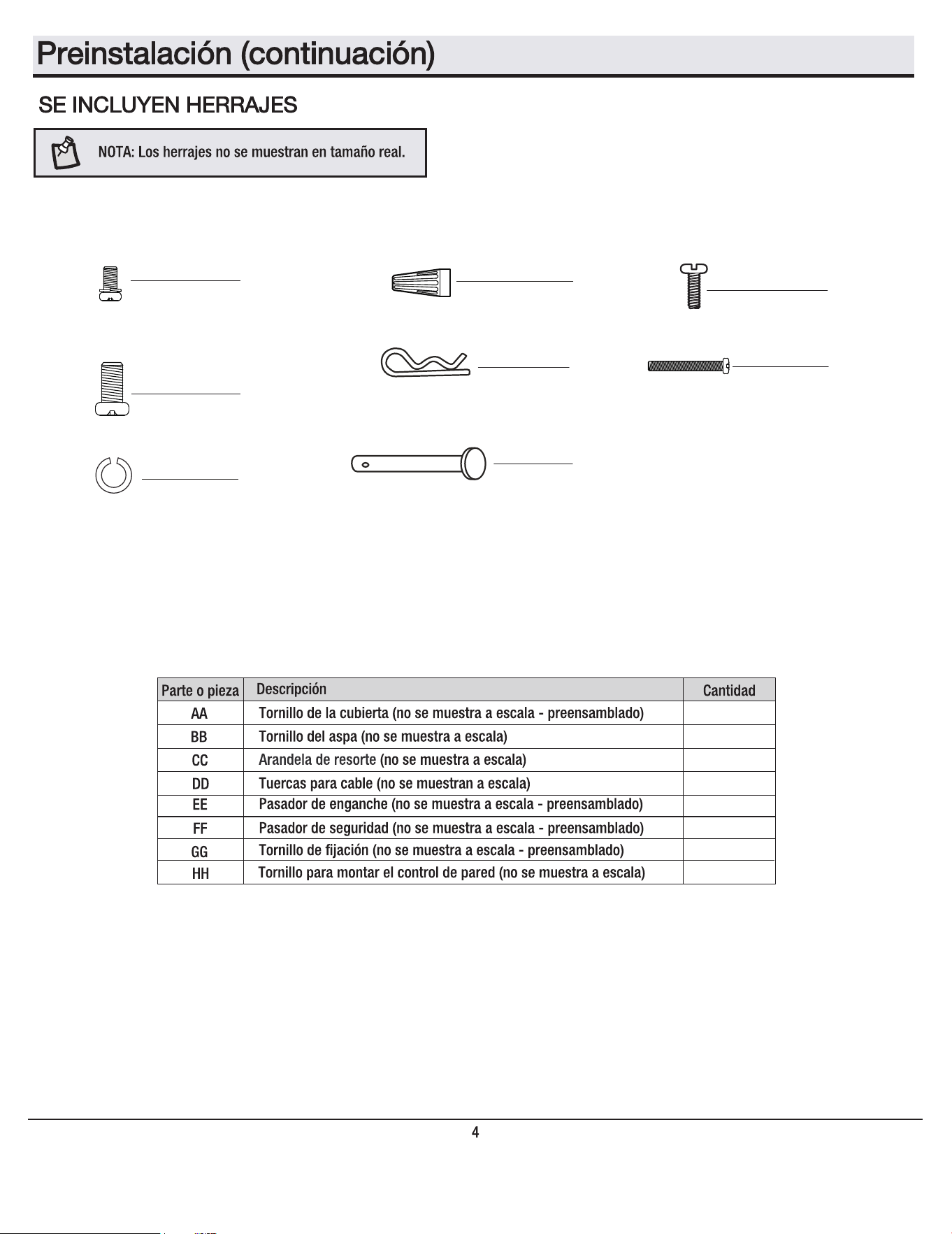

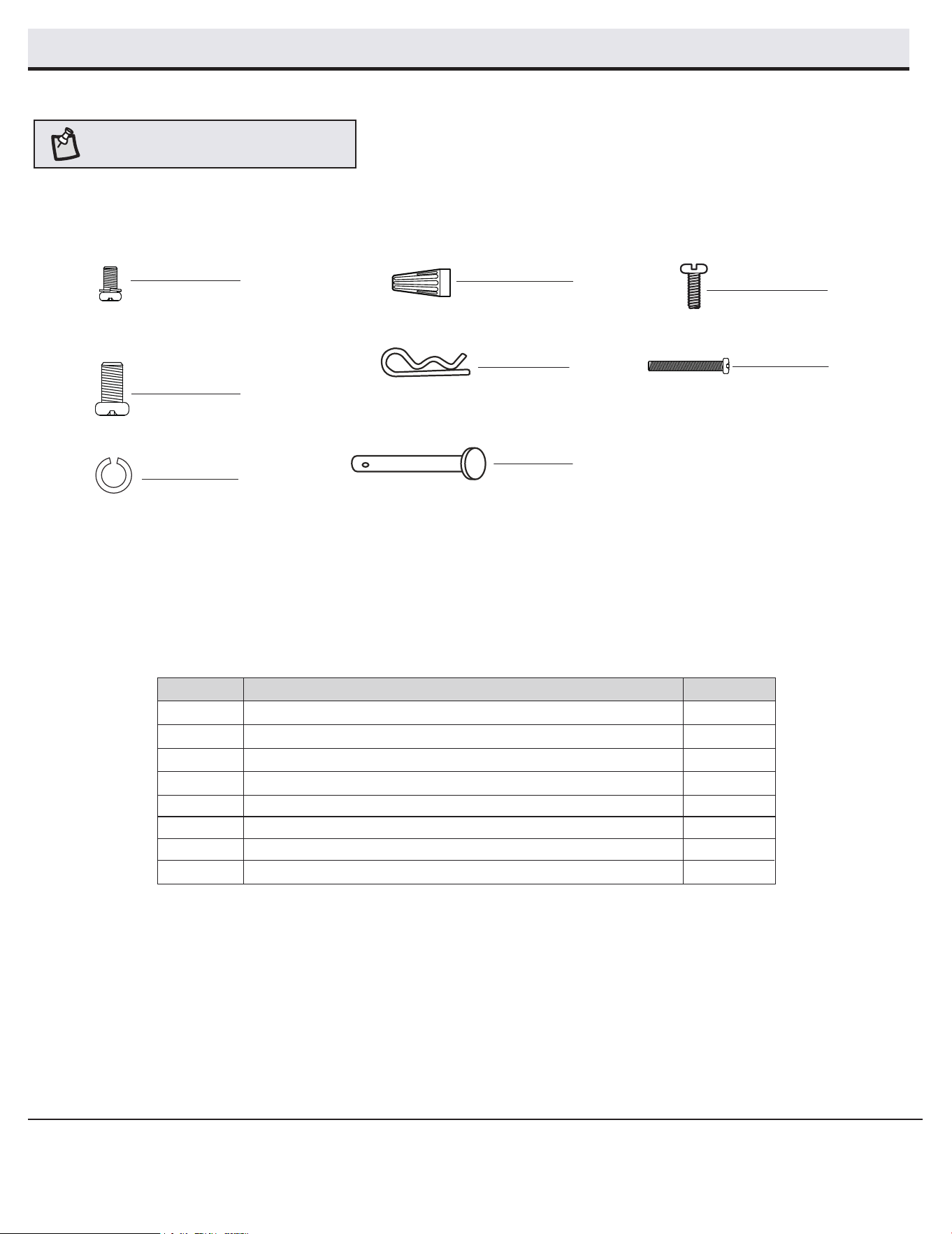

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA
BB
CC
DD
EE
Blade screw (not to scale)
Canopy screw (not to scale) (preassembled) 4
Wire nuts (not to scale)
8
7
1
8
1
Hitch pin (not to scale) (preassembled)
Spring washer (not to scale)
2
FF
GG
Set screw (not to scale) (preassembled)
AA
BB
EE
FF
GG
CC
DD
Part
Description
Quantity
Lock pin (not to scale) (preassembled)
HH
2
HH Wall control mounting screw (not to scale)
5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

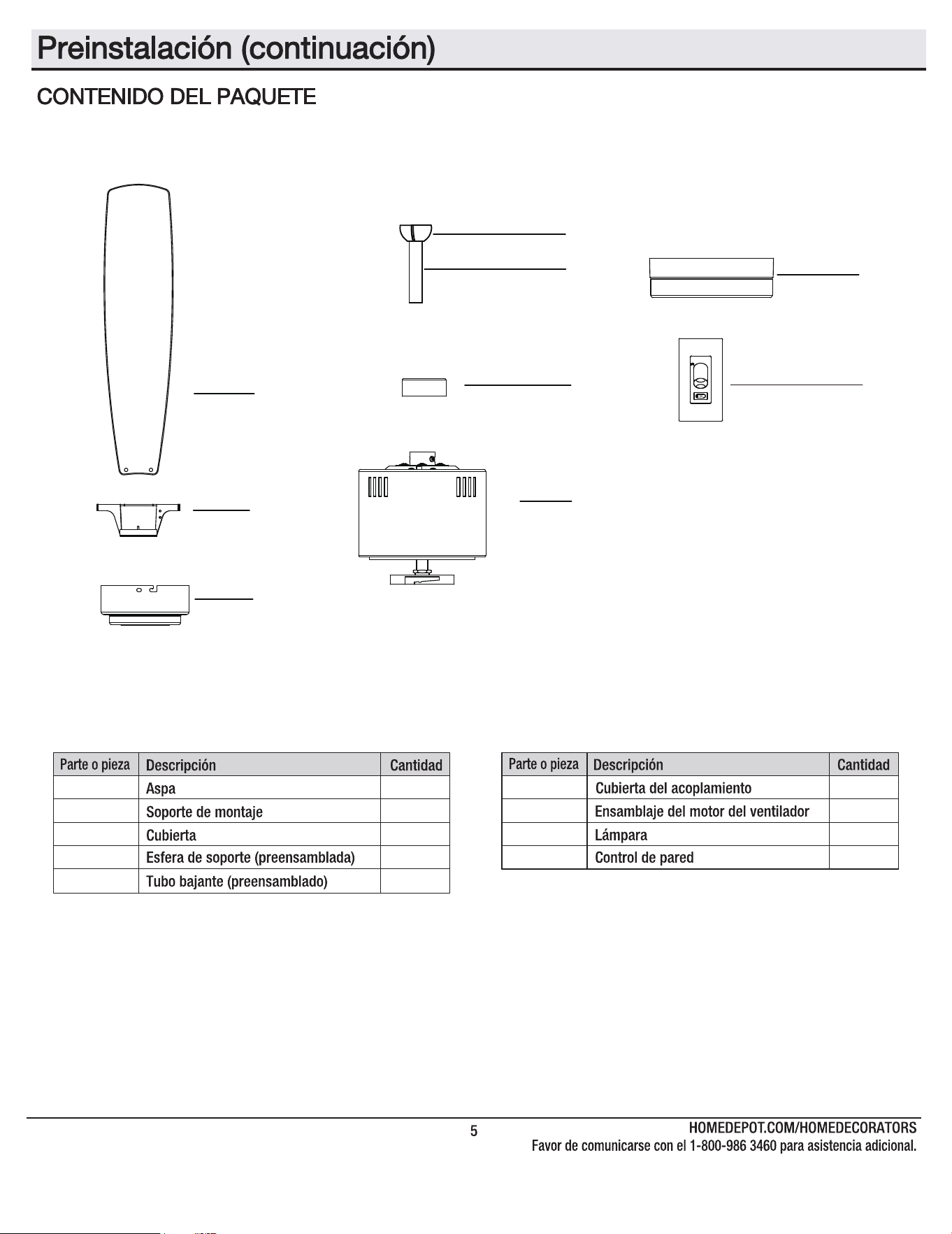

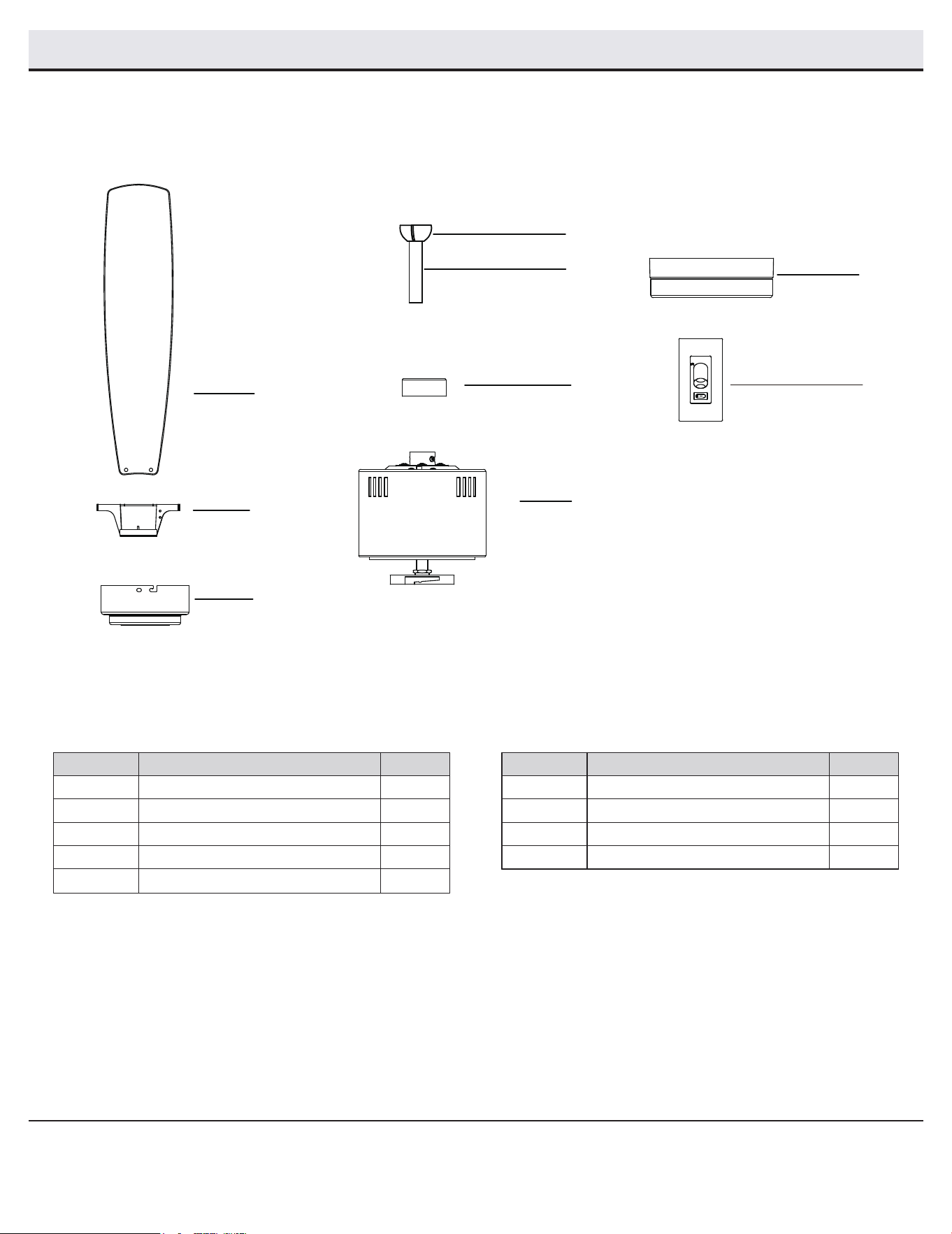

PACKAGE CONTENTS
D
E
F
Hanger ball (preassembled)
Downrod (preassembled)
1
1
1
A
B
C
4
1
1
Blade
Mounting bracket
Canopy
Fan motor assembly
Wall control
1
Coupling cover
H
I
1
1
G
Lamp
B
F
E
D
C
A
H
Part
Description
Quantity
Part
Description
Quantity
Pre-Installation (continued)
G
I
L
M
H
0
6
Installation

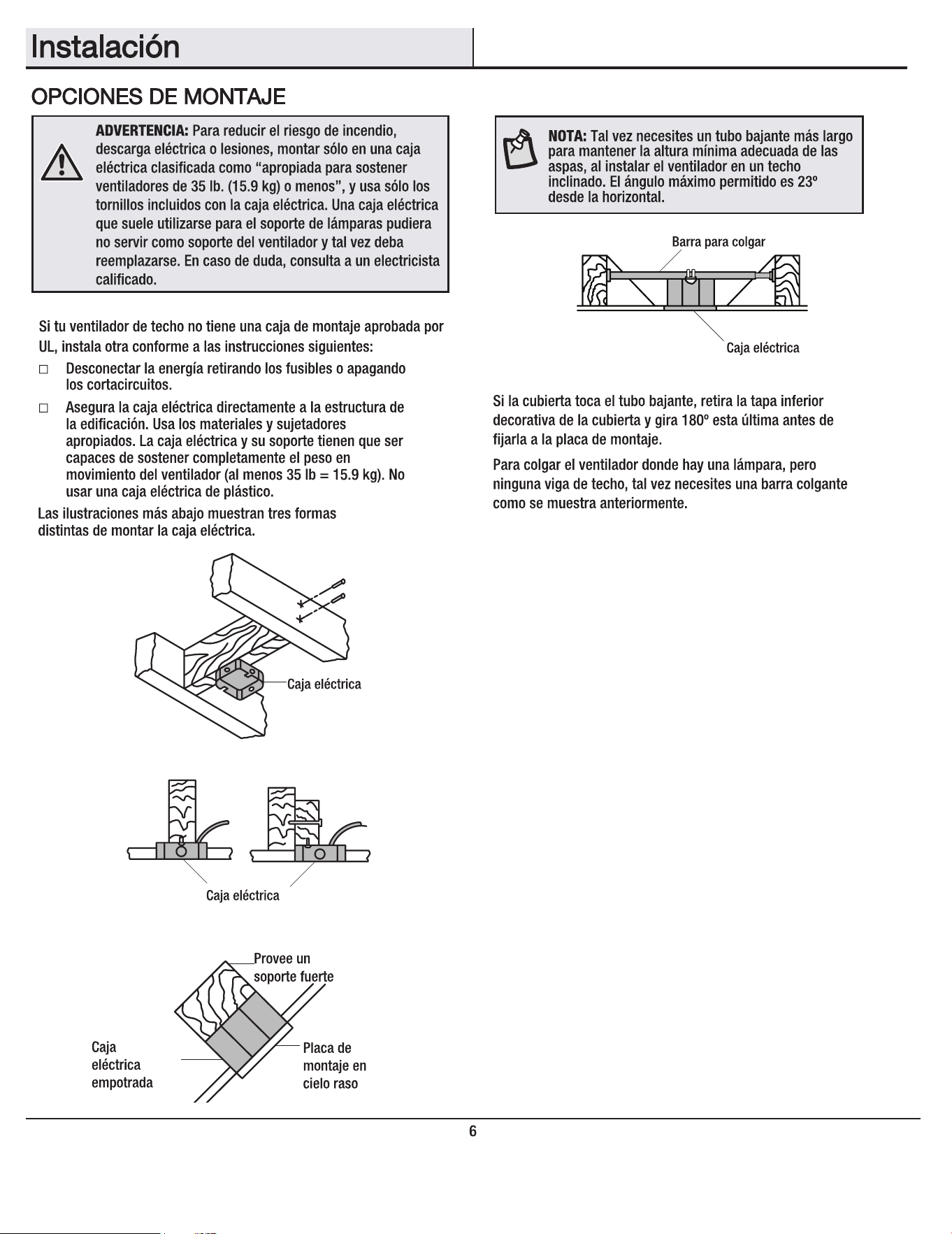

MOUNTING OPTIONS
WARNING:
personal injury, mount to outlet box marked “acceptable
for fan support of 35 lbs. (15.9 Kg) or less” using the
screws provided with the outlet box. An outlet box
not be acceptable for fan support and may need to be
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 35 lbs.). Do not use a plastic
outlet box.

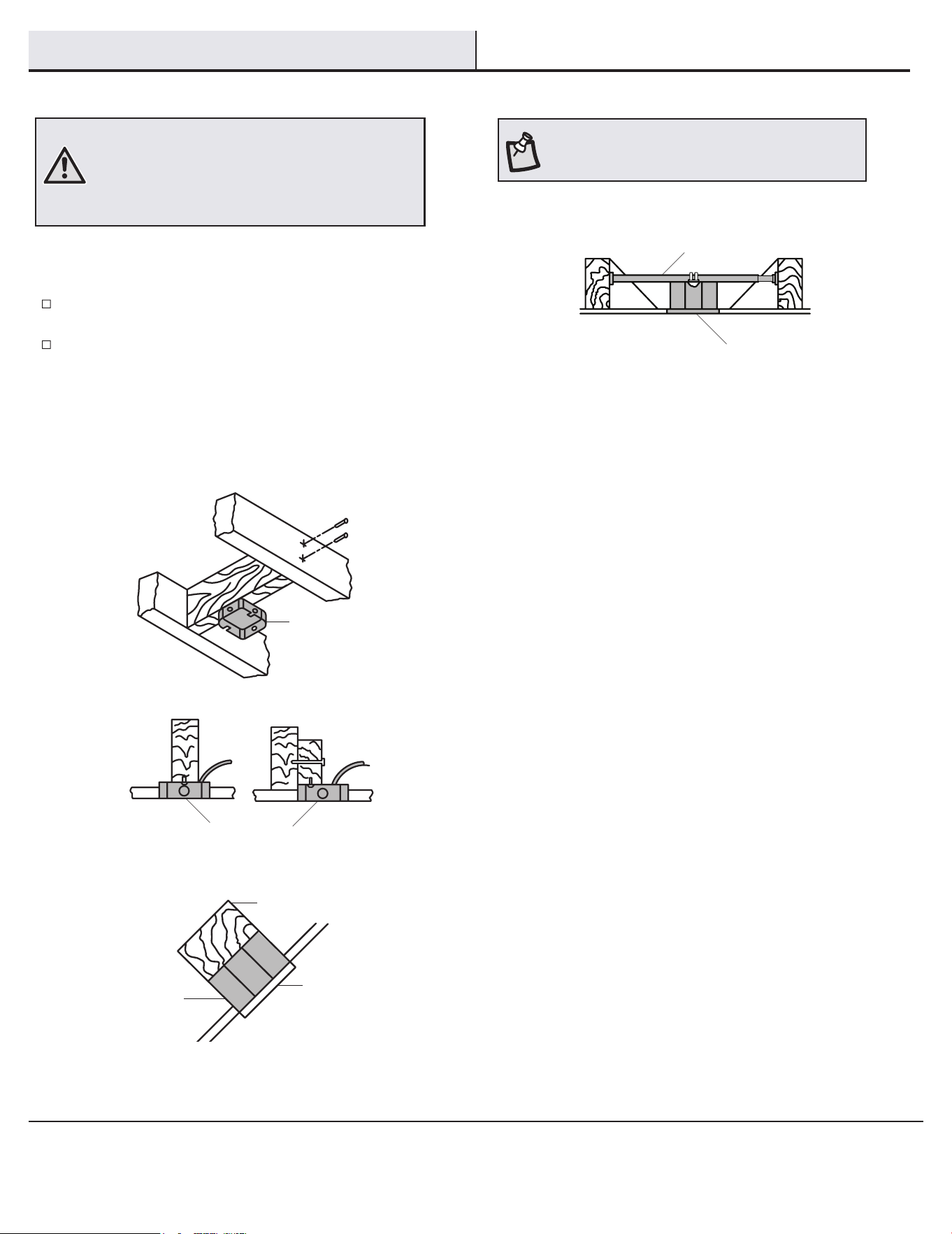

The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
you may need an installation hanger bar as shown above.
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 23° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar
To reduce the risk of fire, electric shock, or
commonly used for the support of lighting fixtures may
replaced. If in doubt, consult a qualified electrician.
To hang your fan where there is an existing fixture but no ceiling joist
7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

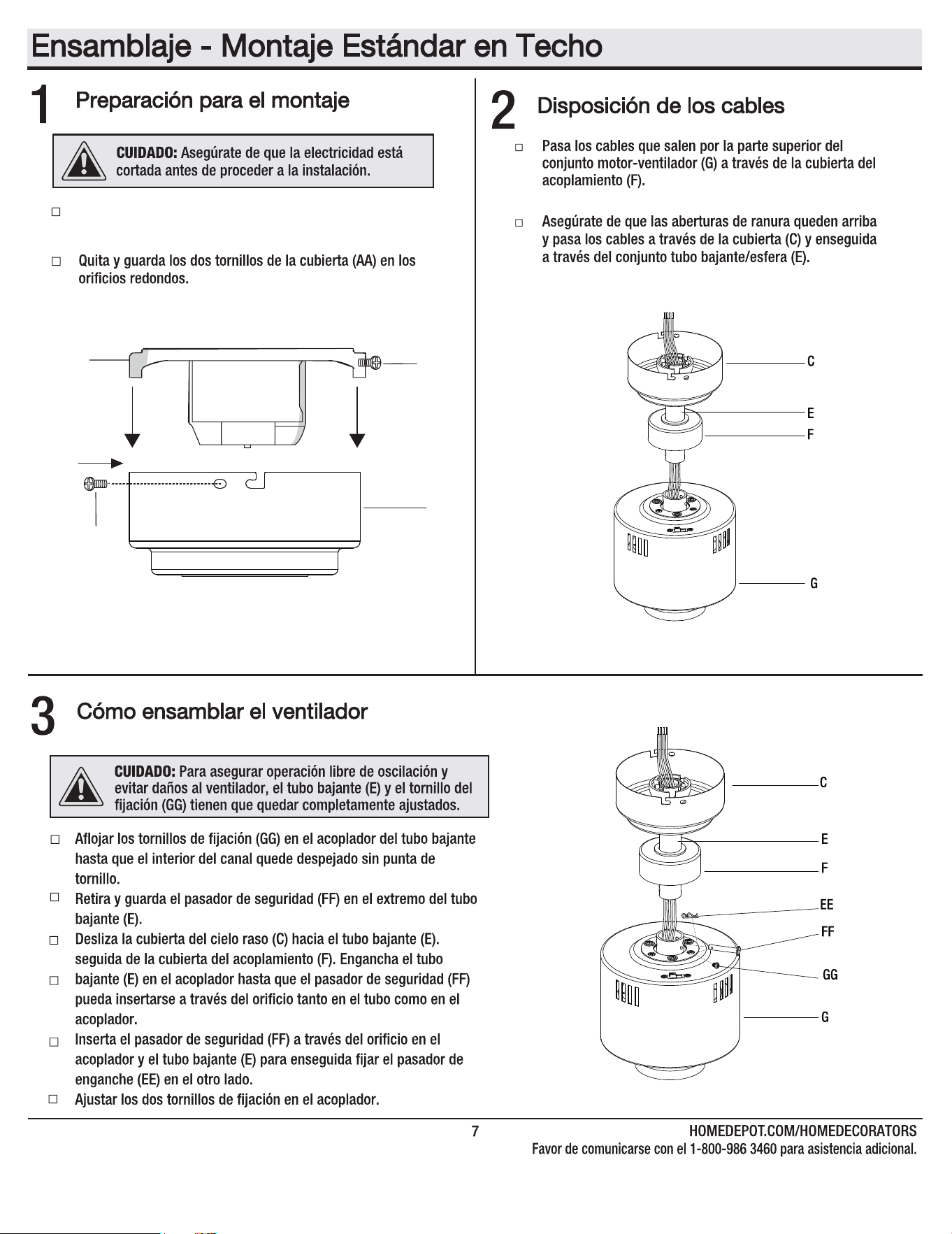

Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan
Preparing for mounting

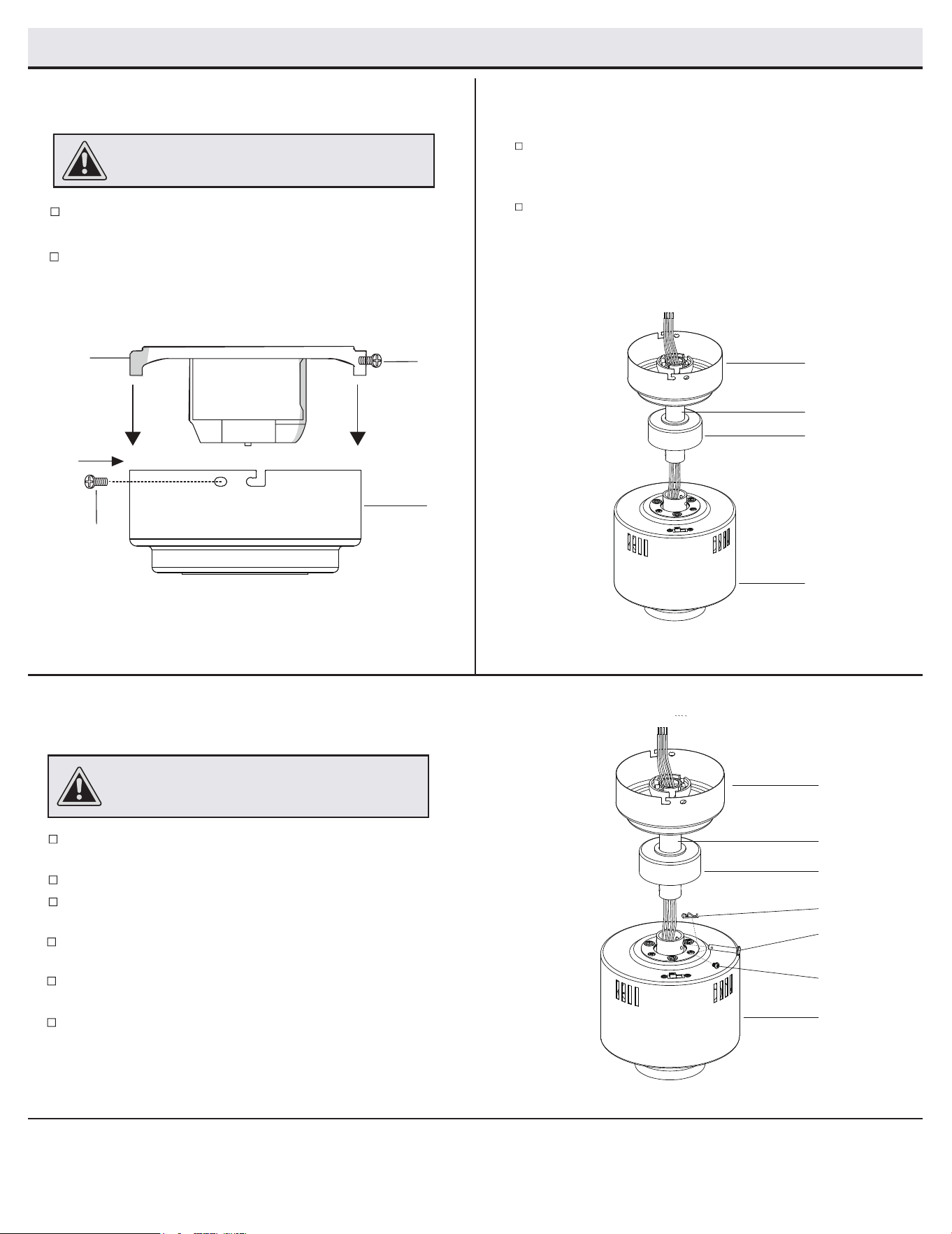

Route the wires exiting the top of the fan motor
assembly (G) into the coupling cover (F).
Make sure the slot openings are on top and route the
wires through the canopy (C) and then through the
downrod (E) assembly.
2
3
1
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (E) and the set screw
(GG) must be completely tightened.
C
E
F
G
Loosen the set screws (GG) in the downrod coupler until the inside
of the channel is clear of the screw tip.
Remove and save the lock pin (FF) on
the end of the downrod (E).
Slide the ceiling canopy (C) onto the downrod (E) followed by the
coupling cover (F).
Attach the downrod (E) into the coupler until the lock pin (FF) can
be inserted through the hole in both the rod and coupler.
Tighten both set screws on the coupler.
Insert the lock pin (FF) through the hole in the
coupler and
downrod (E) then attach the hitch pin (EE) on the other side.
C
E
F
G
GG
FF
EE
WARNING: Make sure power is off before attempting
installation.

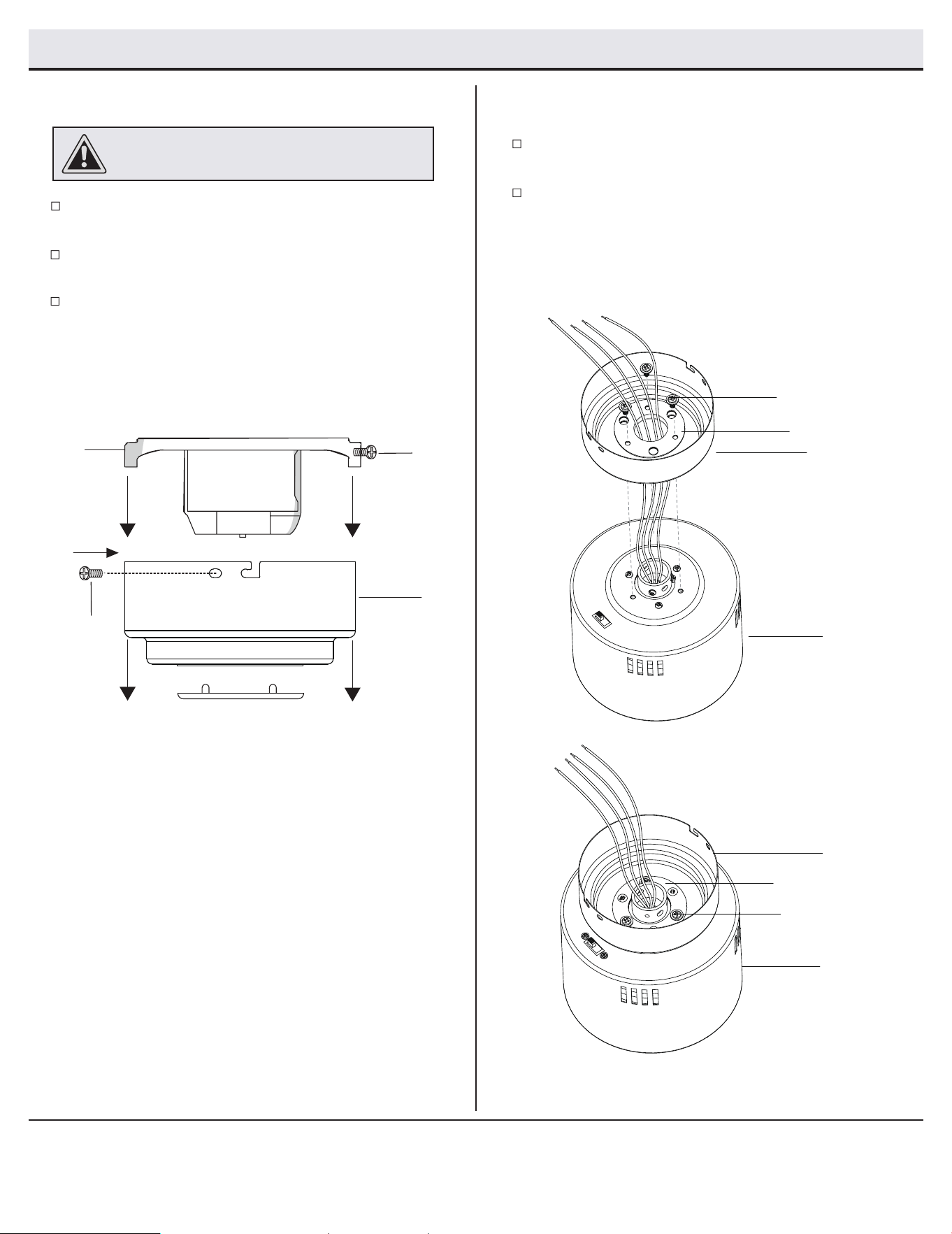

Remove and save the two canopy screws (AA) in the round
holes.
Loosen the two canopy screws (AA) from the mounting
bracket (B) located in the “L-shaped” slots.
B
C
AA
AA
8

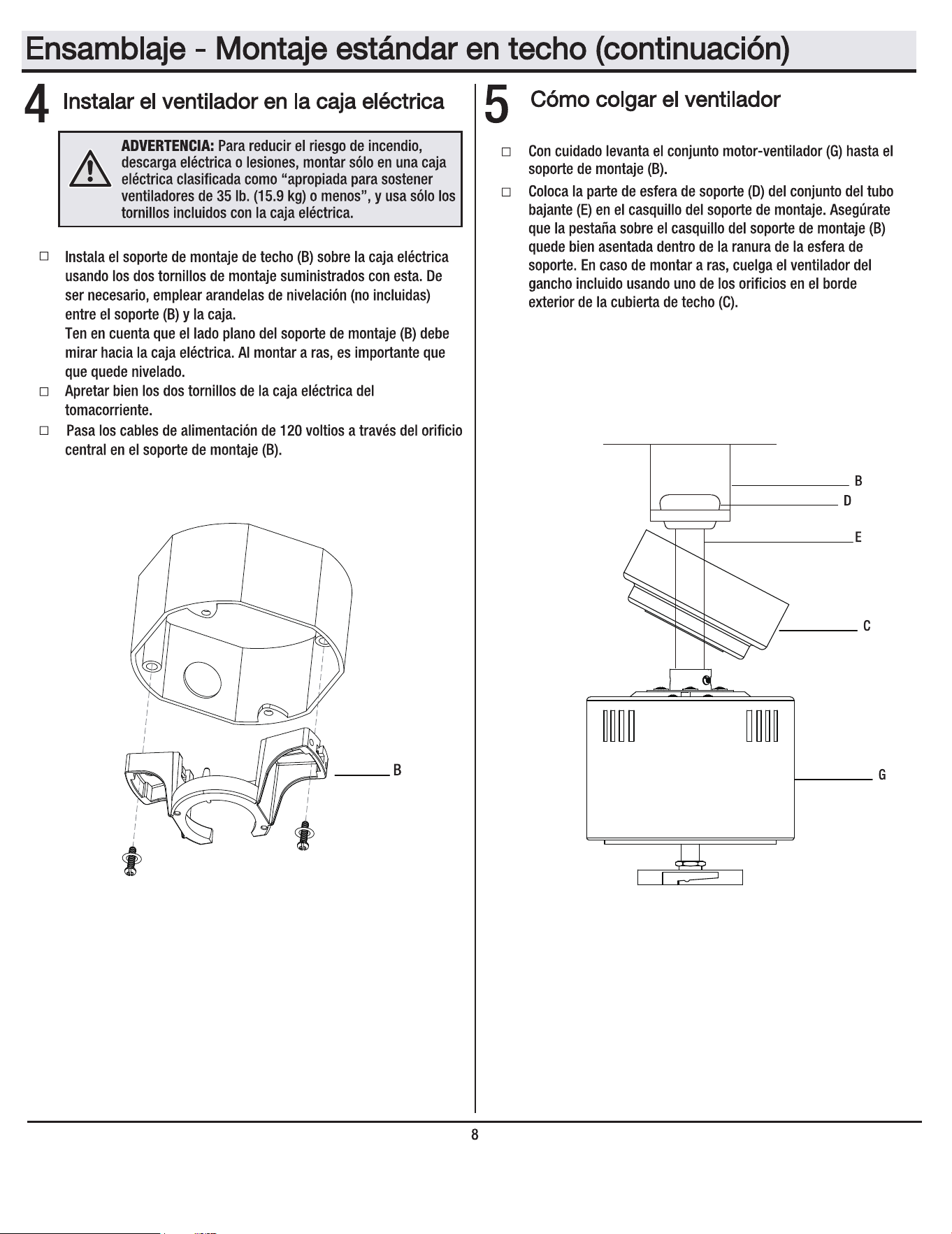

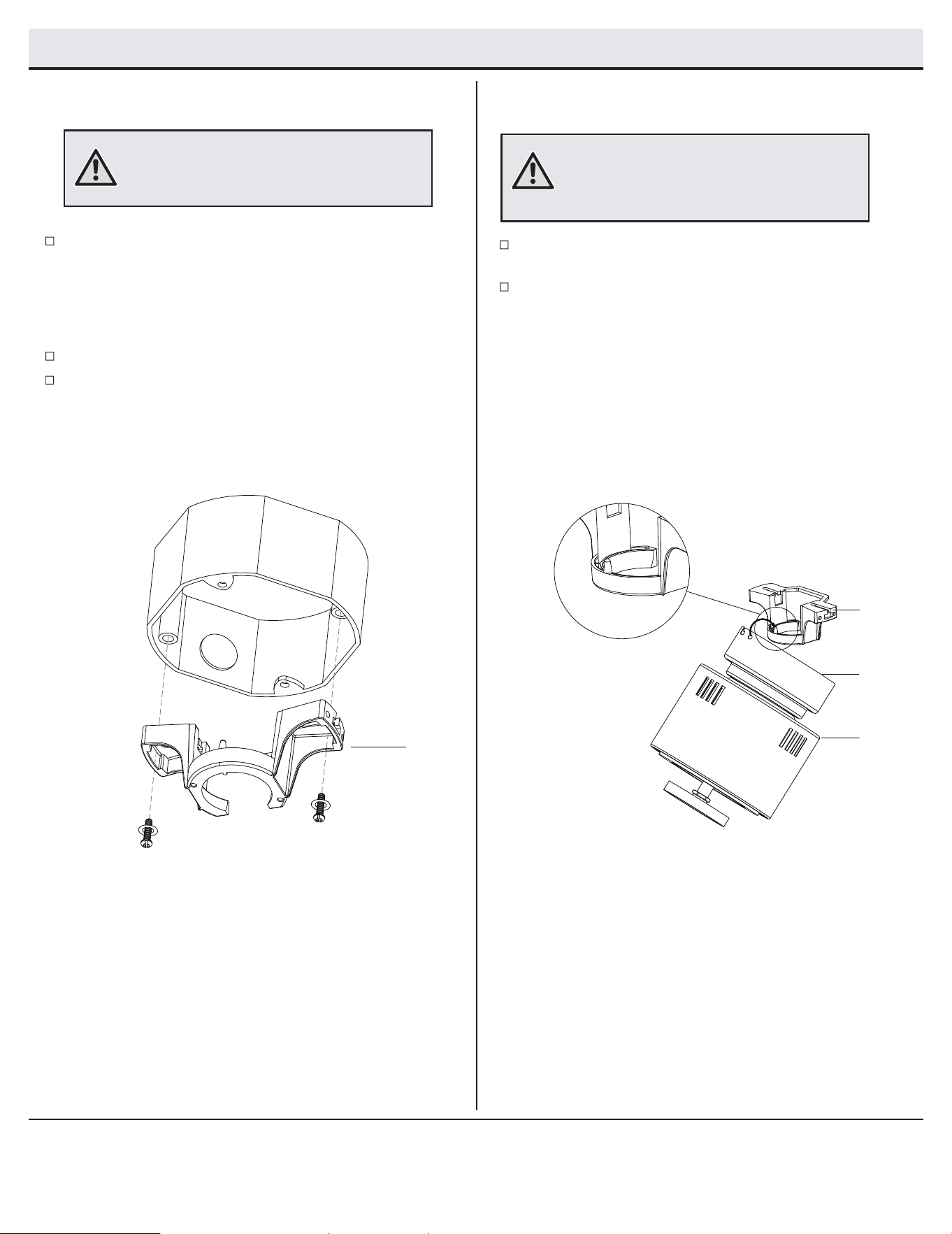

Assembly - Standard Ceiling Mount (continued)

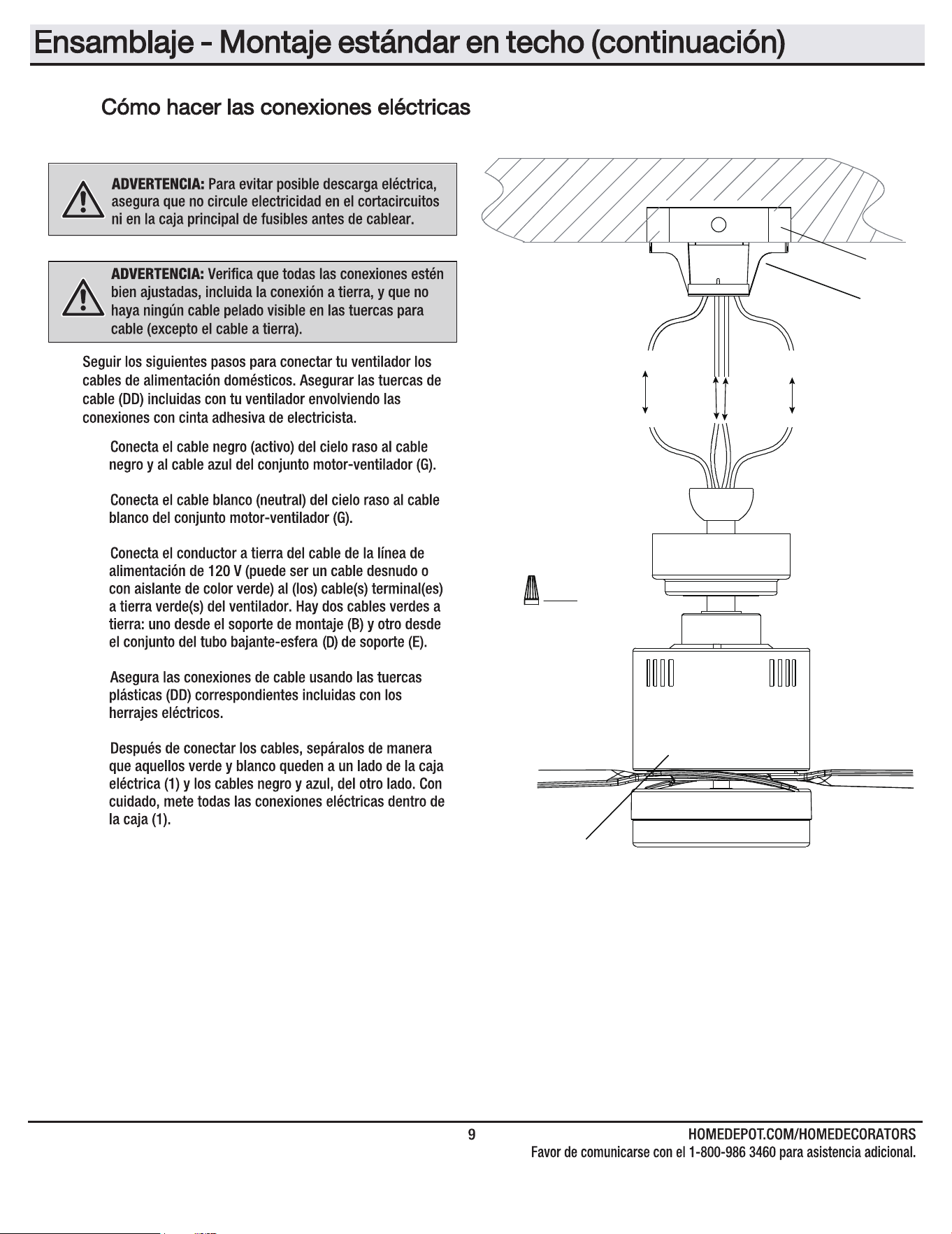

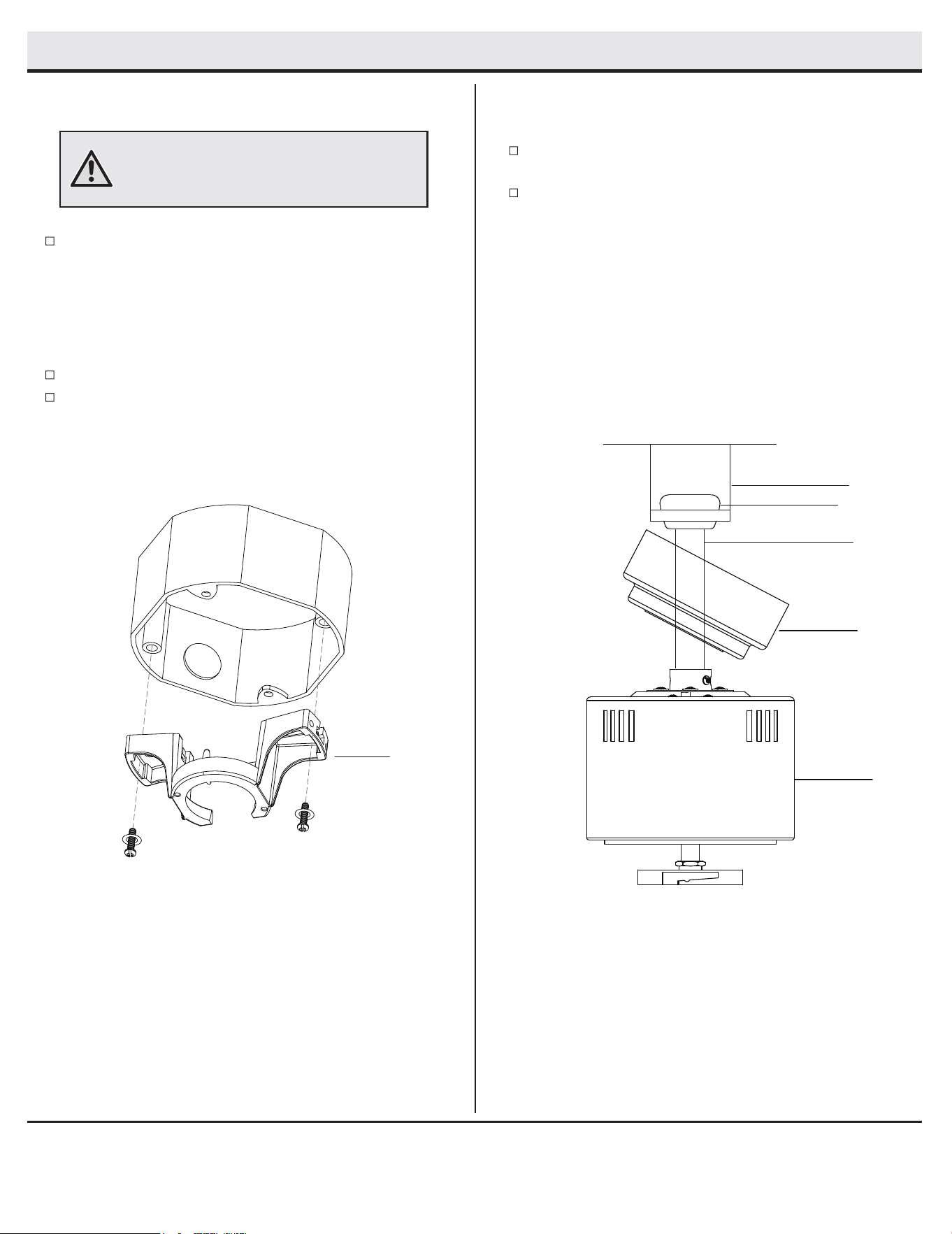

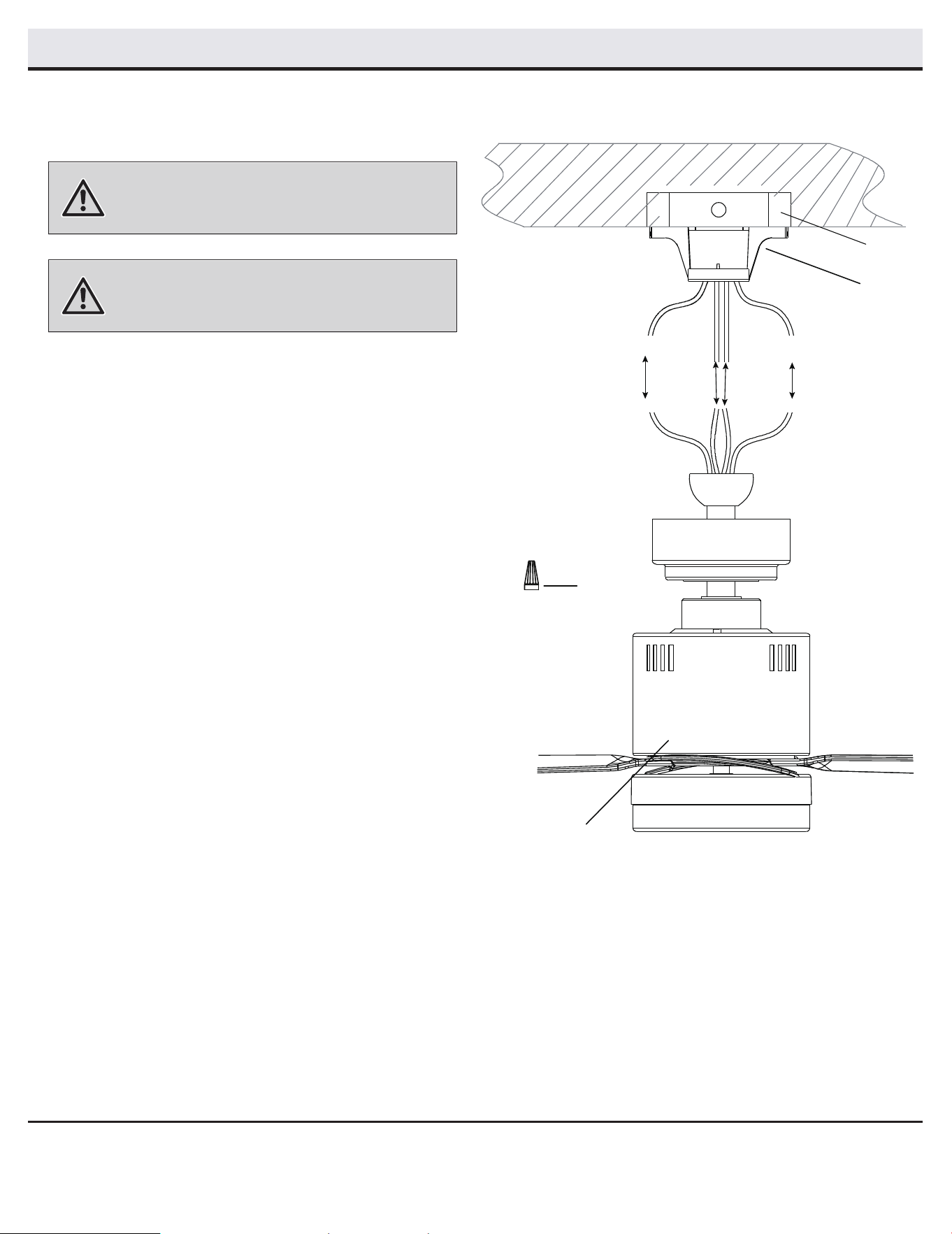

Attaching the fan to the electrical box
4
Hanging the fan

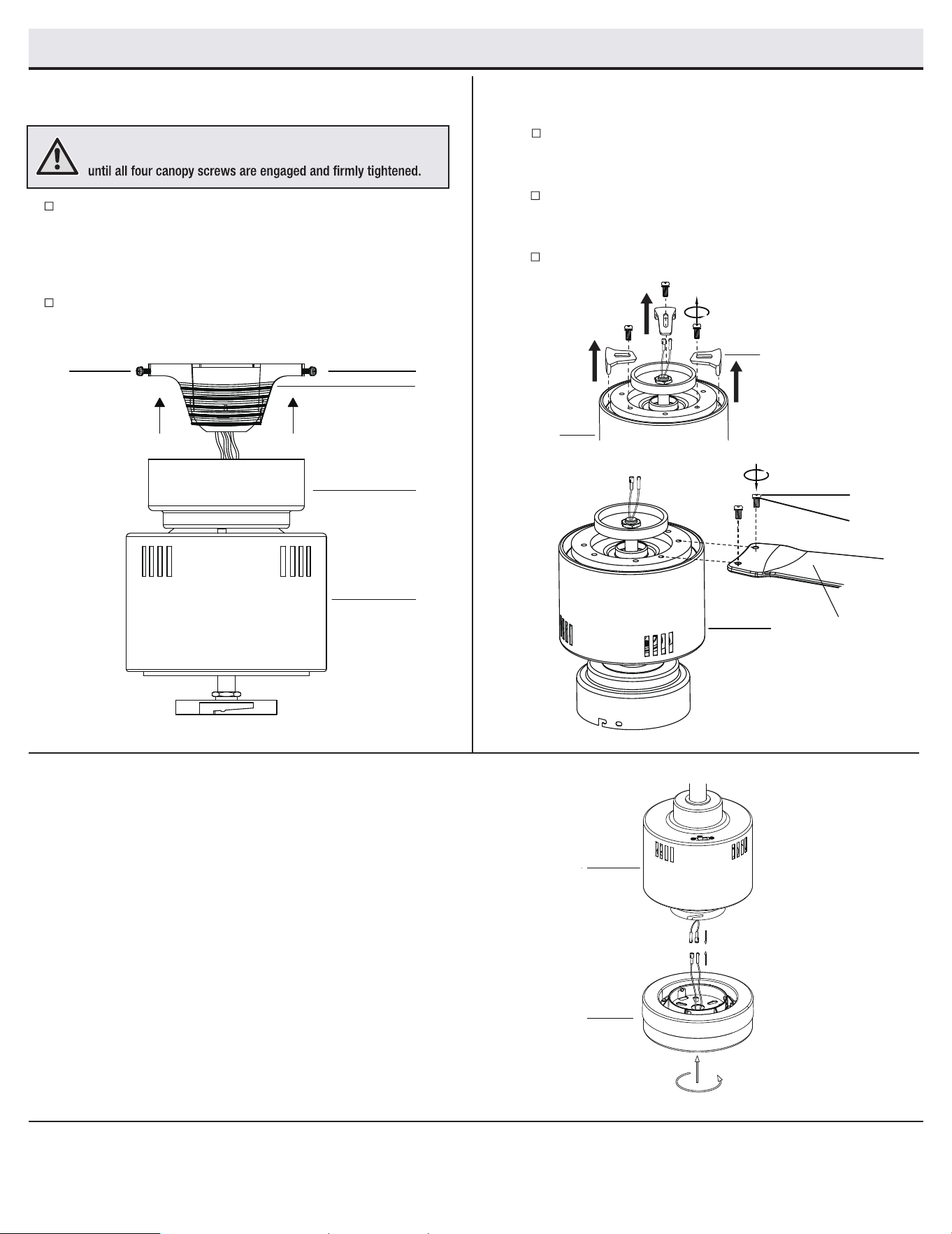

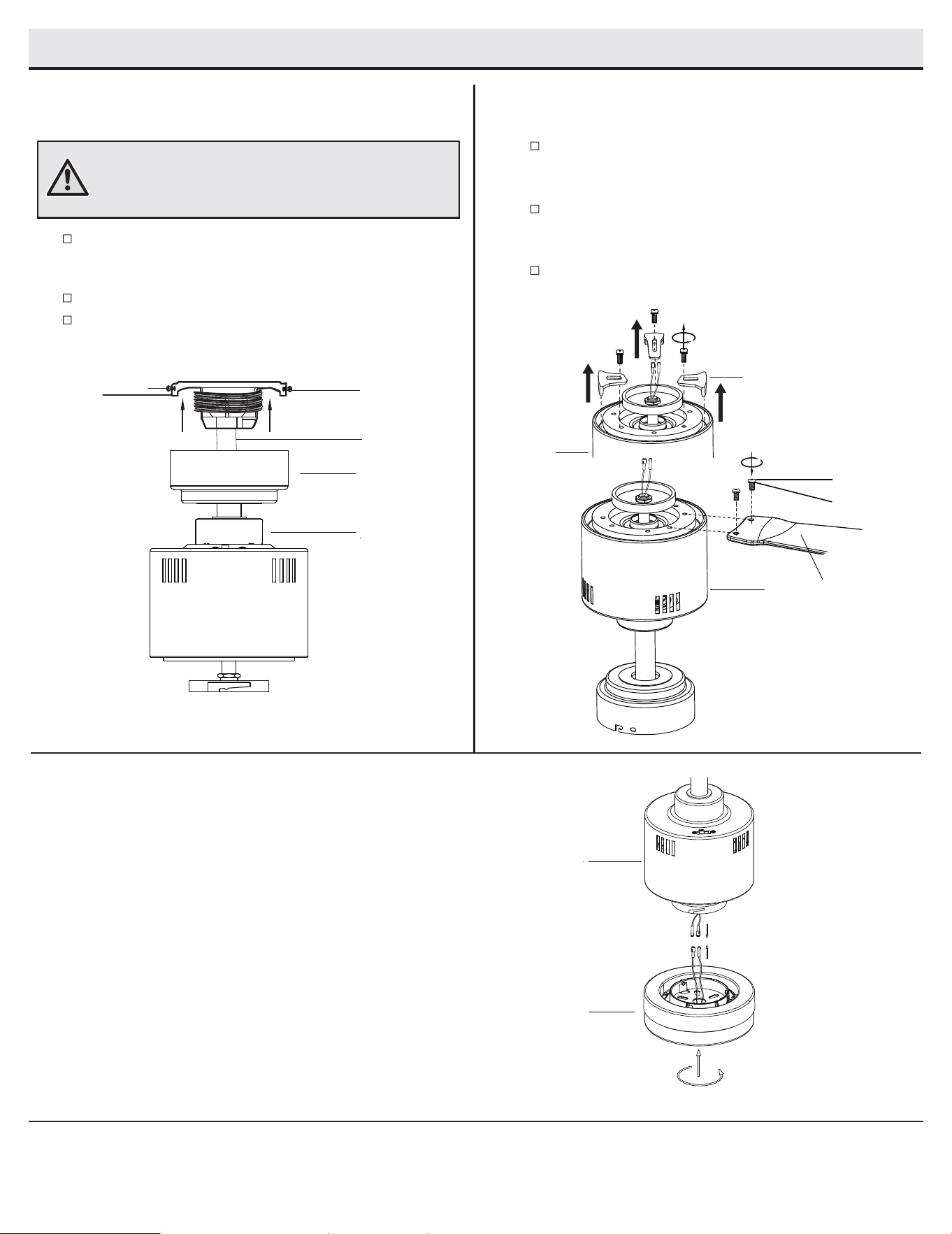

Carefully lift the fan motor assembly (G) up to the mounting
bracket (B).
Seat the hanger ball (D) portion of the downrod assembly (E)
in the mounting bracket socket. Ensure that the tab on the
mounting bracket (B) socket is properly seated in the groove
in the hanger ball. If using flushmount, hang the fan on the
hook provided by utilizing one of the holes at the outer rim
of the ceiling canopy (C).
5
B
E
Pass the 120-Volt supply wires through the center hole in the
mounting bracket (B).
WARNING:
To reduce the risk of fire, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35 lbs. (15.9Kg)
or less” and use screws provided with the outlet box.
B
Securely tighten the two outlet box screws.
Install the ceiling mounting bracket (B) on the outlet box using the
two mounting screws provided with the outlet box. If necessary
use leveling washers (not included) between the mounting
bracket (B) and outlet box.
Note that the flat side of the mouting bracket (B) is toward the
outlet box. When using flushmount, it is important that the
mounting bracket be level.
D
C
G
9
Assembly - Standard Ceiling Mount (continued)
Making the electrical connections
6
WARNING:
WARNING:
Follow the steps below to connect the fan to your house
supply wires. Secure the wire nuts (DD) supplied with your
fan by wrapping the connections with electrical tape.
the electricity is turned off at the circuit breaker or main
fuse box before wiring.
To avoid possible electrical shock, ensure
including the ground, and that no bare wire is visible at
the wire nuts, except for the ground wire.
Check to see that all connections are tight,
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
□ Connect the Black (live) wire from the ceiling to the
Black wire and Blue wire from the fan motor assembly (G).
□ Connect the White (neutral) wire from the ceiling to
the White wire from the fan motor assembly (G).
□
□
Secure the wire connections with plastic wire nuts
(DD) provided with the electrical hardware.
□ After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (1) and the black and blue wires are on the
other side. Carefully tuck the wire connections up
into the outlet box (1).
Connect the ground conductor of the 120-VOLT supply
(this may be a bare wire or a wire with green colored
insulation) to the green ground lead(s) of the fan.
There are two green grounding leads: one from the
mounting bracket (B) and one from the hanger ball (D)/
downrod (E) assembly.
WHITE
NEUTRAL
GROUND
GREEN
BLACK
“TO MOTOR L”
“FOR LIGHT”
BLUE
1
B
G
BLACK
BLUE
WHITE
DD (X4)
Unscrew three screws and detach the shipping bloks from
the motor assembly (G).These shipping blocks are used for
protection only. Discard when they are being removed.
Attach the fan blades (A) to the fan motor assembly (G)
by using the blade screws (BB) and fiber washers (CC).
Tighten blade screws (BB) securely.
Repeat these steps for the remaining blades (A).
10

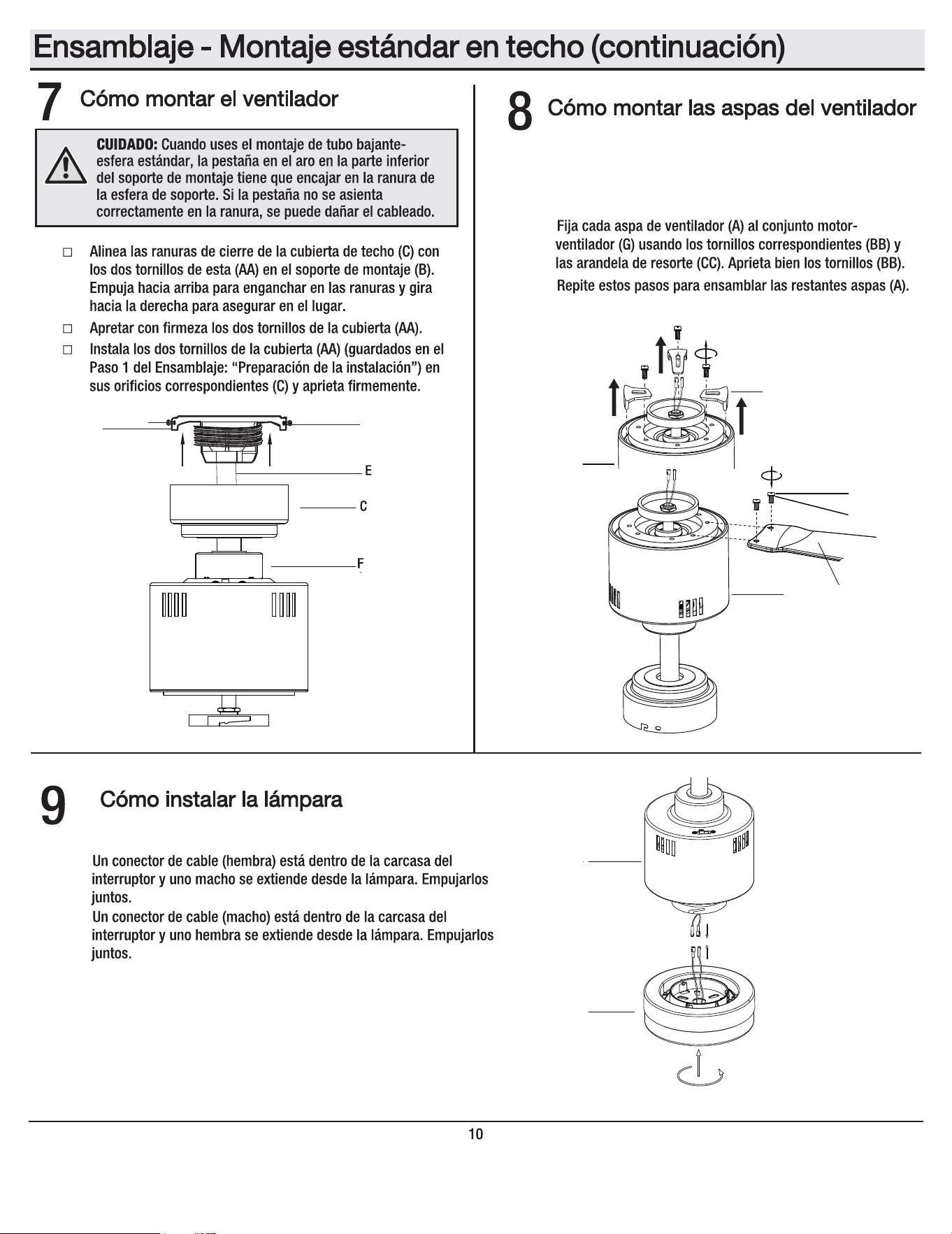

Assembly - Standard Ceiling Mount (continued)
Mounting the fan
7
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
B
AA
AA
C
E
Attaching the fan blades
8
□
A wire connector (female) is located inside the electrical switch
housing and a male connector extends from the lamp. Push them
together.
Installing the lamp
9
□
BB
CC
A
F
G
G
H
□
A wire connector (male) is located inside the electrical switch
housing and a female connector extends from the lamp. Push them
together.
Align the locking slots of the ceiling canopy (C) with the two
canopy screws (AA) in the mounting bracket (B). Push up tor
engage the slots and turn clockwise to lock in place.
Firmly tighten the two canopy screws (AA).
Install the two canopy screws (AA) (saved from Assembly
Step 1 “Preparing for mounting”) into the holes in the
canopy (C) and tighten firmly.
Place the lamp (H) into the electrical switch housing aligning the
three at areas on the electrical switch housing with the three
raised dimples in the lamp (H). Turn the lamp (H) clockwise until
it stops.
G
Shipping Block
11

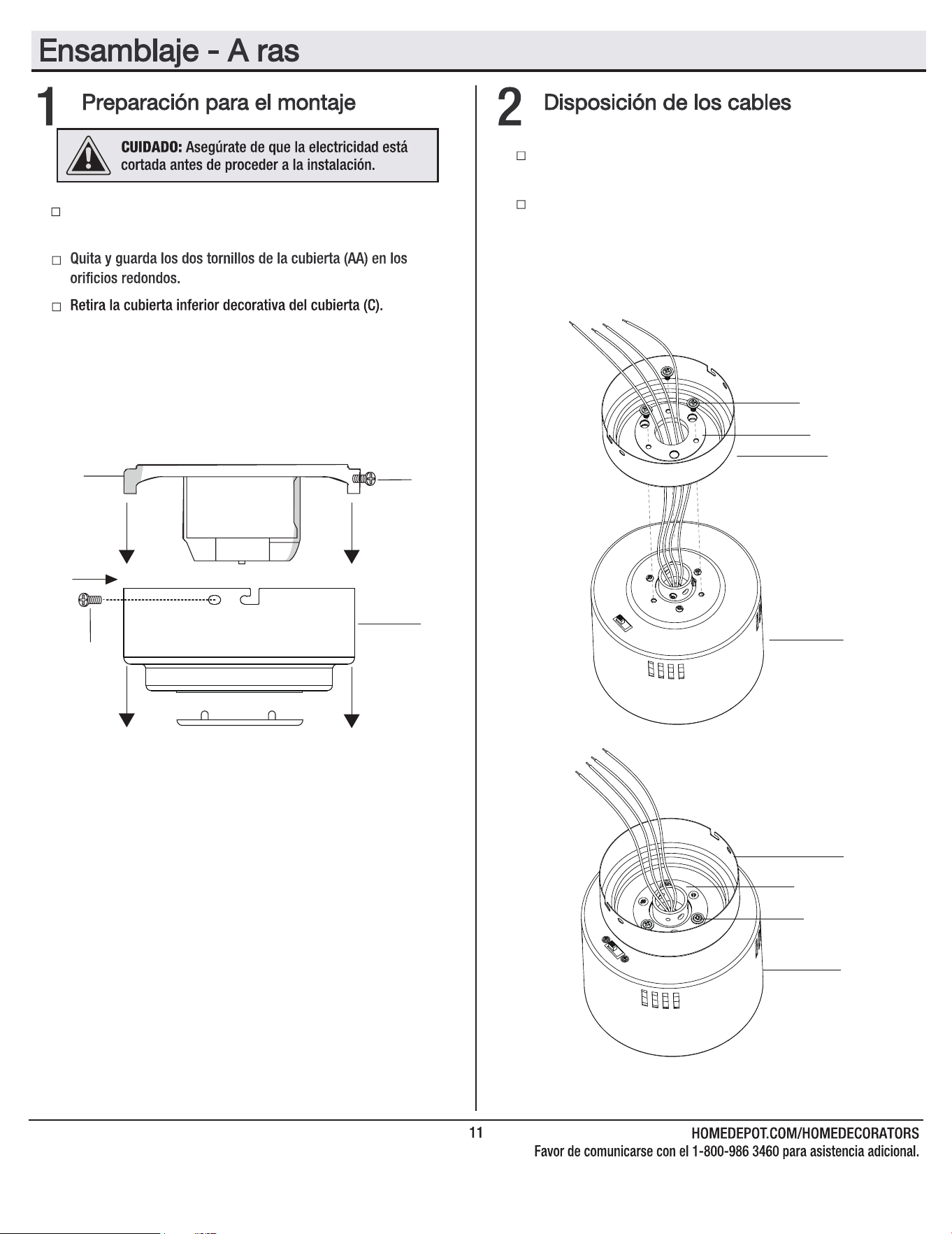

Assembly - Flushmount
Preparing for mounting Routing the wires
1 2
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
WARNING: Make sure power is off before attempting
installation.
Remove and save the two canopy screws (AA) in the round
holes.
Remove the decorative canopy bottom cover from the
canopy (C).
Remove the three mounting screws and the black metal
sheet from the motor housing. Retain them for further use.
Place the canopy (C) onto the motor housing, followed by the
black metal sheet, and use the three mounting screws to
rmly attach the canopy to the motor housing.
Loosen the two canopy screws (AA) from the mounting
bracket (B) located in the “L-shaped” slots.
C
G
G
Black Metal Sheet
Black Metal Sheet
C
B
C
AA
AA
Mounting Screw
Mounting Screw
12

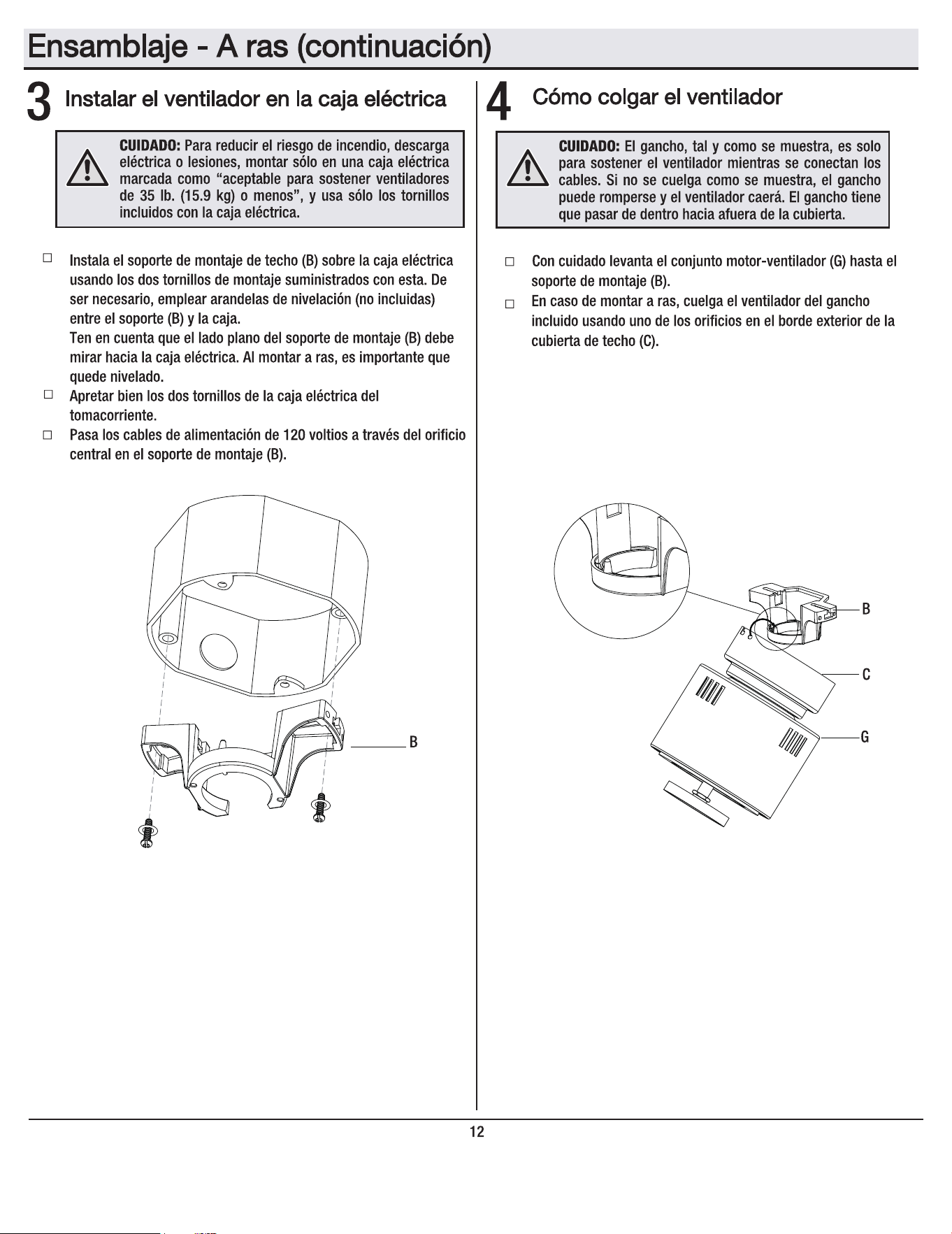

Assembly - Flushmount (continued)
Attaching the fan to the electrical box
3
Hanging the fan
4
WARNING: The hook as shown is only to balance the
fan while attaching wiring. Failure to hang as shown
may result in hook breaking, causing the fan to fall.
The hook must pass from inside to the outside of the
canopy.
Pass the 120-Volt supply wires through the center hole in the
mounting bracket (B).
WARNING:
To reduce the risk of fire, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35 lbs. (15.9Kg)
or less” and use screws provided with the outlet box.
B
Securely tighten the two outlet box screws.
Install the ceiling mounting bracket (B) on the outlet box using the
two mounting screws provided with the outlet box. If necessary
use leveling washers (not included) between the mounting
bracket (B) and outlet box.
Note that the flat side of the mouting bracket (B) is toward the
outlet box. It is important that the mounting bracket be level.
Carefully lift the fan motor assembly (G) up to the mounting
bracket (B).
If using flushmount, hang the fan on the hook provide by
utilizing one of the holes at the outer rim of the ceiling
canopy (C).
B
C
G
13

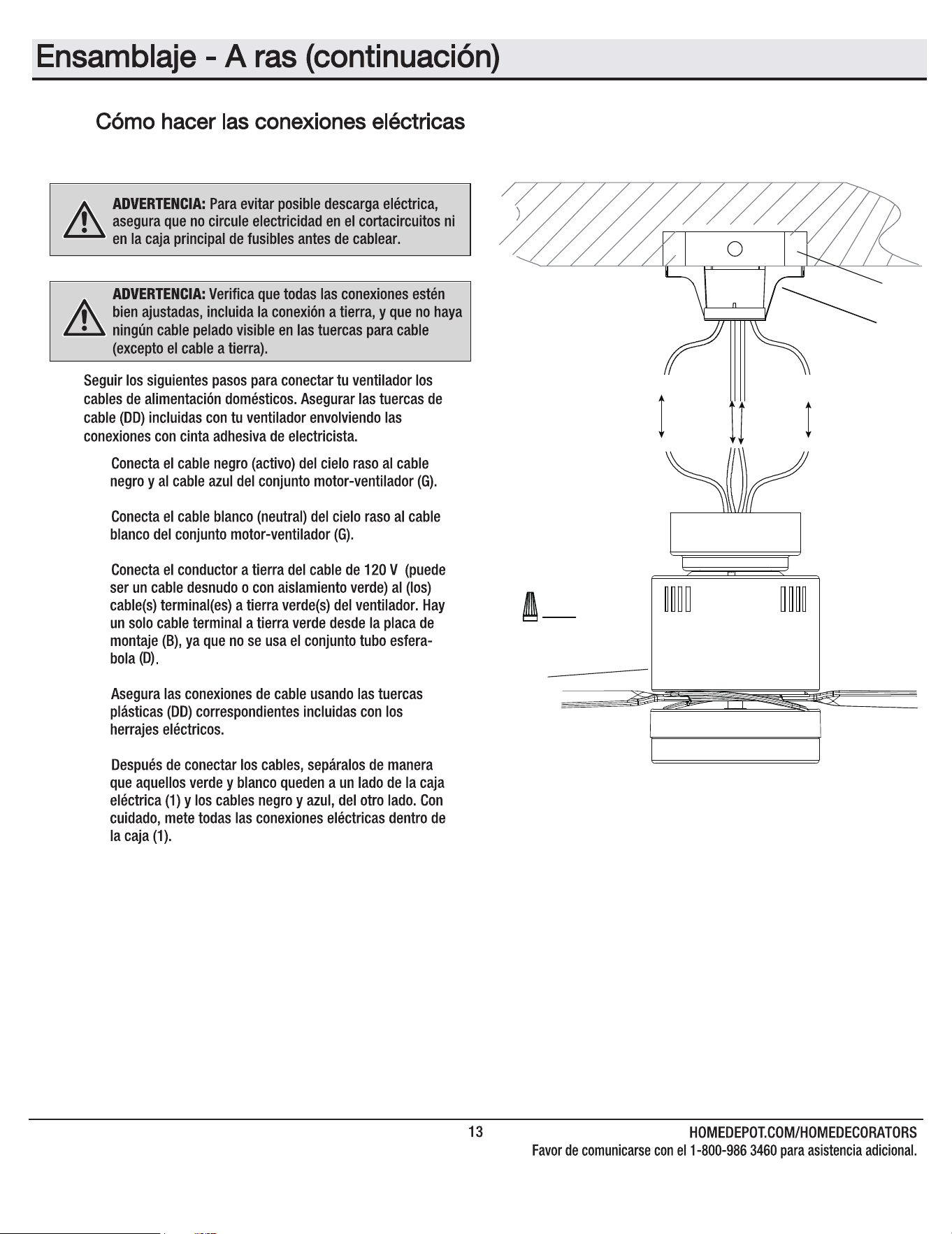

Assembly - Flushmount (continued)

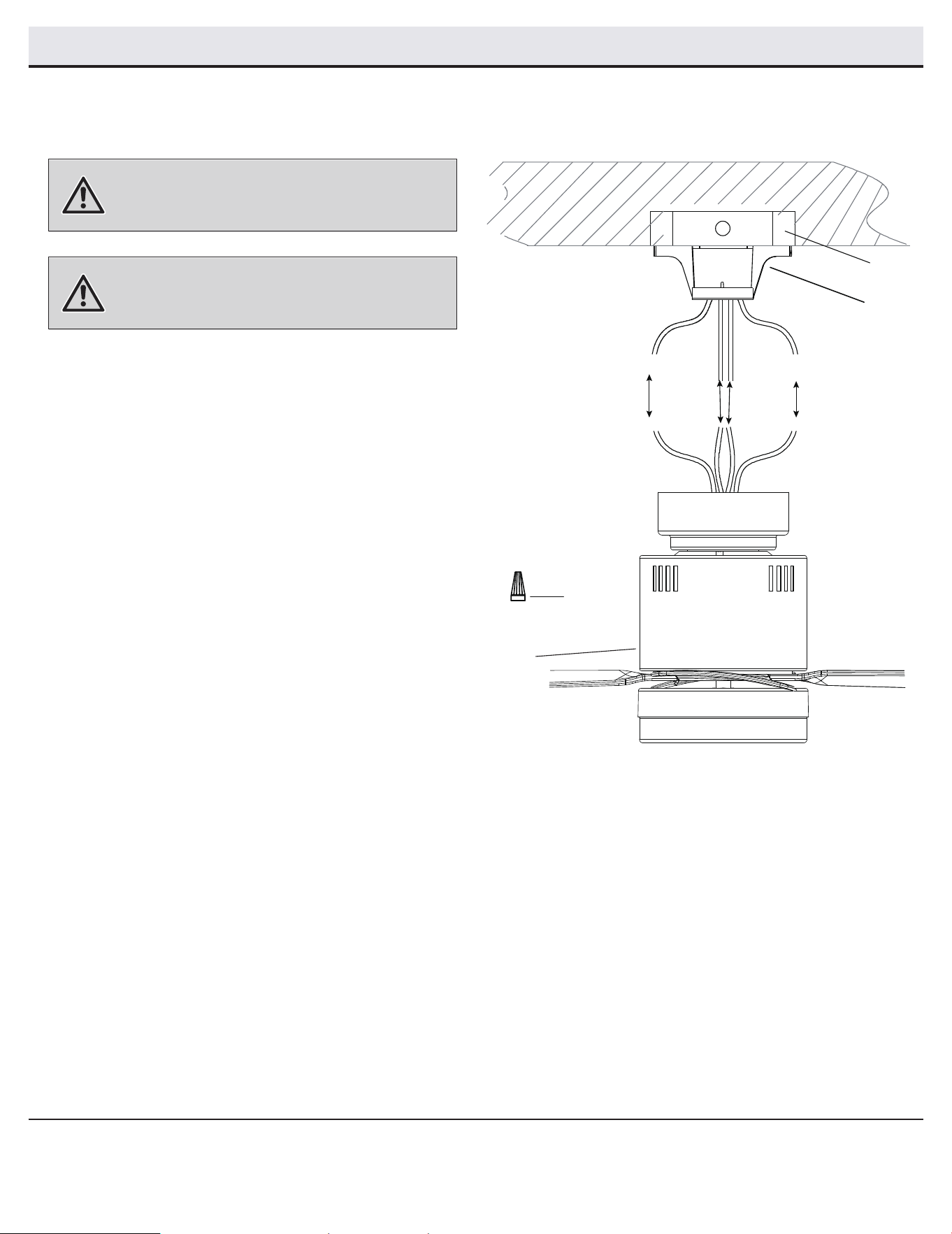

Making the electrical connections
5
WARNING:
WARNING:
Follow the steps below to connect the fan to your house
supply wires. Secure the wire nuts (DD) supplied with your
fan by wrapping the connections with electrical tape.
□ Connect the Black (live) wire from the ceiling to the
Black wire and Blue wire from the fan motor assembly (G).
□ Connect the White (neutral) wire from the ceiling to
the White wire from the fan motor assembly (G).
□
□ Secure the wire connections with plastic wire nuts
(DD) provided with the electrical hardware.
□ After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (1) and the black and blue wires are on the
other side. Carefully tuck the wire connections up
into the outlet box (1).
the electricity is turned off at the circuit breaker or main
fuse box before wiring.
To avoid possible electrical shock, ensure
including the ground, and that no bare wire is visible at
the wire nuts, except for the ground wire.
Check to see that all connections are tight,
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Connect the ground conductor of the 120-VOLT supply
(this may be a bare wire or a wire with green colored
insulation) to the green ground lead(s) of the fan. There
is only one green ground lead from the mounting bracket (B),
since the hanger ball (D)/downrod assembly is not used.
G
DD (X4)
WHITE
NEUTRAL
GROUND
GREEN
BLACK
“TO MOTOR L”
“FOR LIGHT”
BLUE
1
B
BLACK
BLUE
WHITE
14

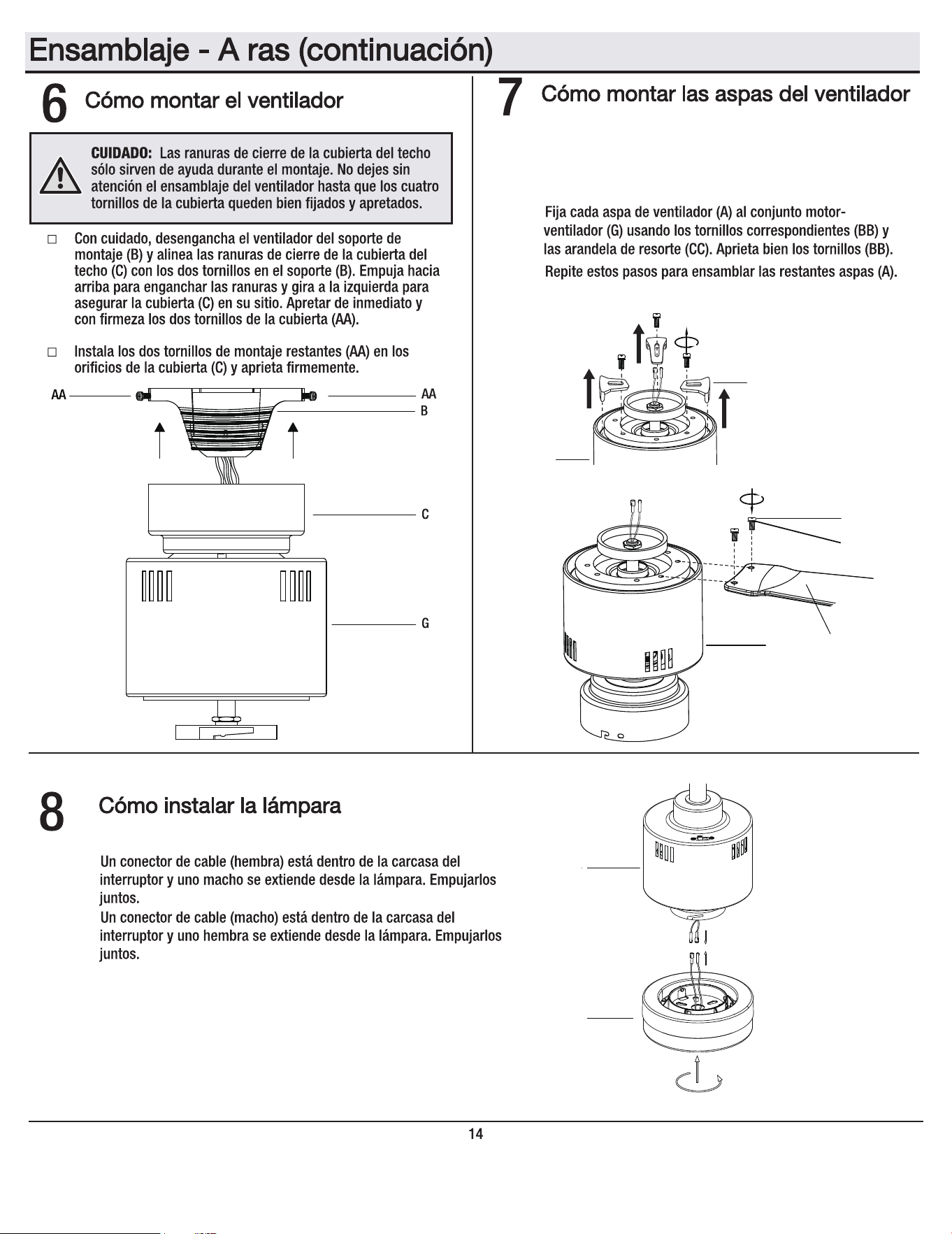

Assembly - Flushmount (continued)
Mounting the fan
6
WARNING: The locking slots of the celling canopy are provided only
as an aid to mounting. Do not leave the fan assembly unattended
AA
AA
Carefully unhook the fan from the mounting bracket (B) and
align the locking slots of the ceiling canopy (C) with the two
screws in the mounting bracket (B). Push up to engage the
slots and turn clockwise to lock the canopy (C) in place. Im-
Install the remaining two canopy screws (AA) into the holes in
the canopy (C) and tighten firmly.
mediately tighten the two canopy screws (AA) firmly.
C
G
Attaching the fan blades
7
B
A
G
□
A wire connector (female) is located inside the electrical switch
housing and a male connector extends from the lamp. Push them
together.
Installing the lamp
8
□
G
H
□
A wire connector (male) is located inside the electrical switch
housing and a female connector extends from the lamp. Push them
together.
BB
CC
Attach the fan blades (A) to the fan motor assembly (G)
by using the blade screws (BB) and fiber washers (CC).
Tighten blade screws (BB) securely.
Repeat these steps for the remaining blades (A).
Place the lamp (H) into the electrical switch housing aligning the
three at areas on the electrical switch housing with the three
raised dimples in the lamp (H). Turn the lamp (H) clockwise until
it stops.
G
Shipping Block
Unscrew three screws and detach the shipping bloks from
the motor assembly (G).These shipping blocks are used for
protection only. Discard when they are being removed.
15

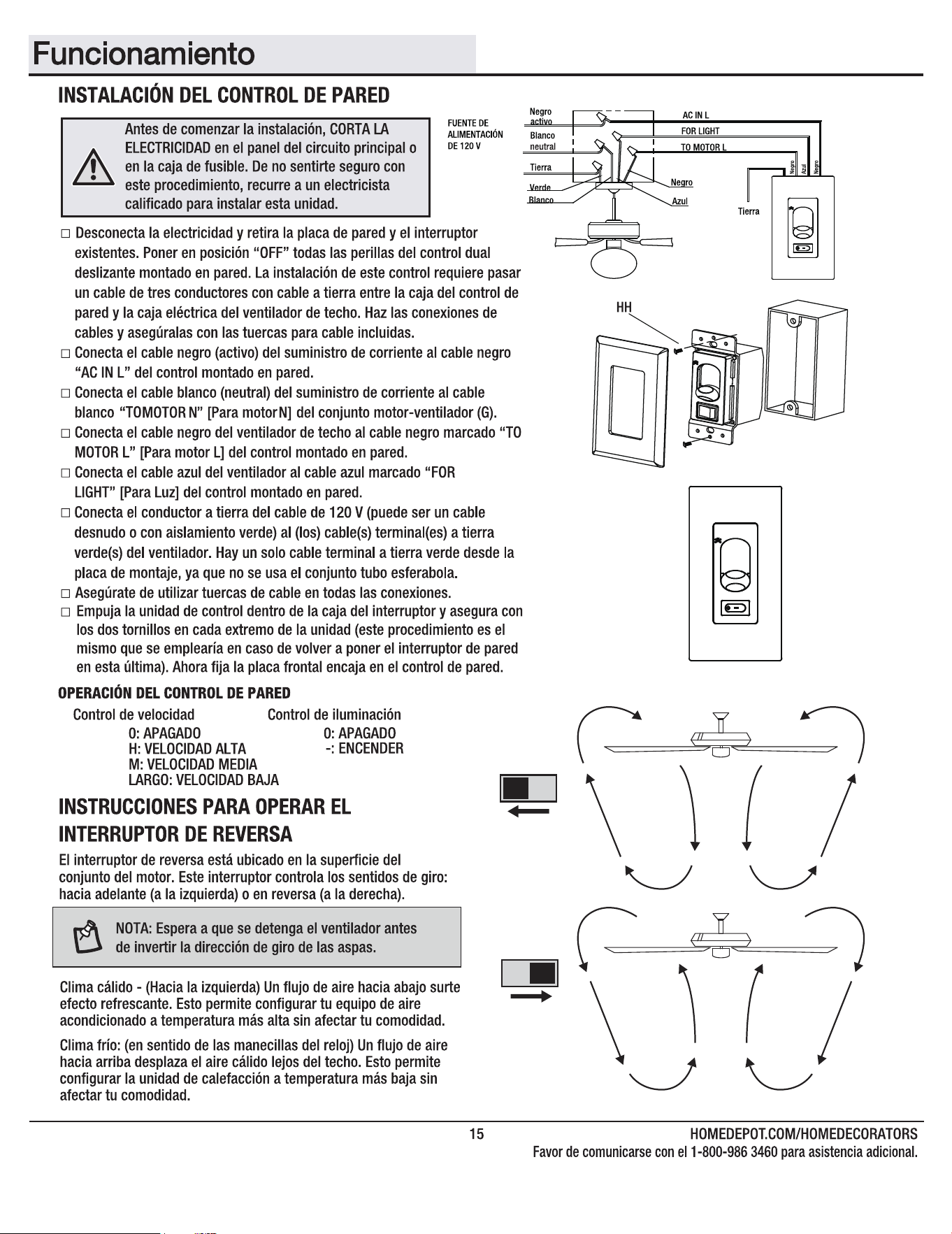

Operation
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
The reverse switch is located on the surface of the motor assembly.
This switch controls directions: forward (switch left) or reverse
(switch right).
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Before you begin, TURN OFF THE ELECTRICITY at the main
circuit panel or fuse box. If you feel unsure of this procedure,
have a qualified electrician install this unit.
GREEN
BLACK
BLUE
GROUND
FOR LIGHT
GROUND
TO MOTOR L
AC IN L
L
M
H
0
BLACK
BLUE
BLACK
Speed Control
0: POWER OFF
H: HIGHT SPEED
M: MEDIUM SPEED
L : LOW SPEED
Light Control
0: POWER OFF
-: POWER ON
L
M
H
0

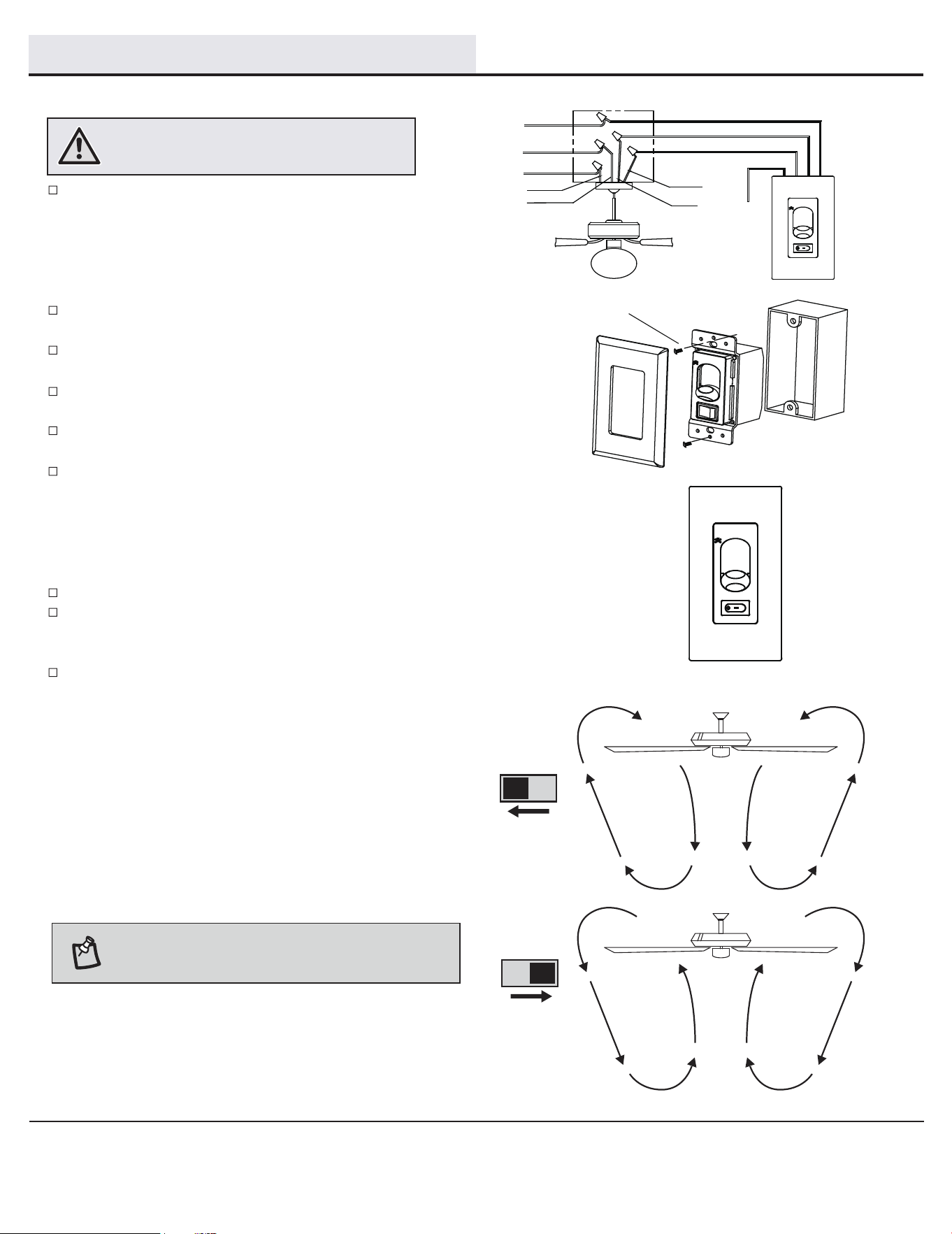

WALL CONTROL INSTALLATION
REVERSE SWITCH OPERATING INSTRUCTIONS
WHITE
WHITE
120V
POWER
SUPPLY
L
M
H
0
NEUTRAL
BLACK
LIVE
HH
WALL CONTROL OPERATION
Disconnect the power and remove the existing wall plate and switch.
Set all knobs on the dual slide wall-mounted control in the OFF
position. Installation of this control requires that a three conductor
cable with ground wire be run between the control wall box and the
ceiling fan outlet box. Make wire connections and secure with wire
nuts supplied.
Connect the Black (live) wire from the power supply to the Black wire
“AC IN L” from the wall-mounted control.
Connect the White (neutral) wire from the power supply to the White
wire “TO MOTOR N” from the fan motor assembly (G).
Connect the Black wire from ceiling fan to the Black wire “TO MOTOR
L” from the wall-mounted control.
Connect the Blue wire from ceiling fan to the Blue wire “FOR LIGHT”
from the wall-mounted control.
Connect the ground conductor of the 120-VOLT supply (this may be a
bare wire or a wire with green colored insulation) to the green ground
lead(s) of the fan. There are two green grounding leads: one from the
mounting bracket and one from the hanger ball/downrod assembly.
If for ush mount, Only one green grounding lead come from the
mounting backet.
Make sure to use wire nuts on all connections.
Push the control unit into the switch box and secure it with the two
screws at each end of the unit (this procedure is the same as if you
were to put the original wall switch back into the wall).
Now attach the face plate to the wall control.
16

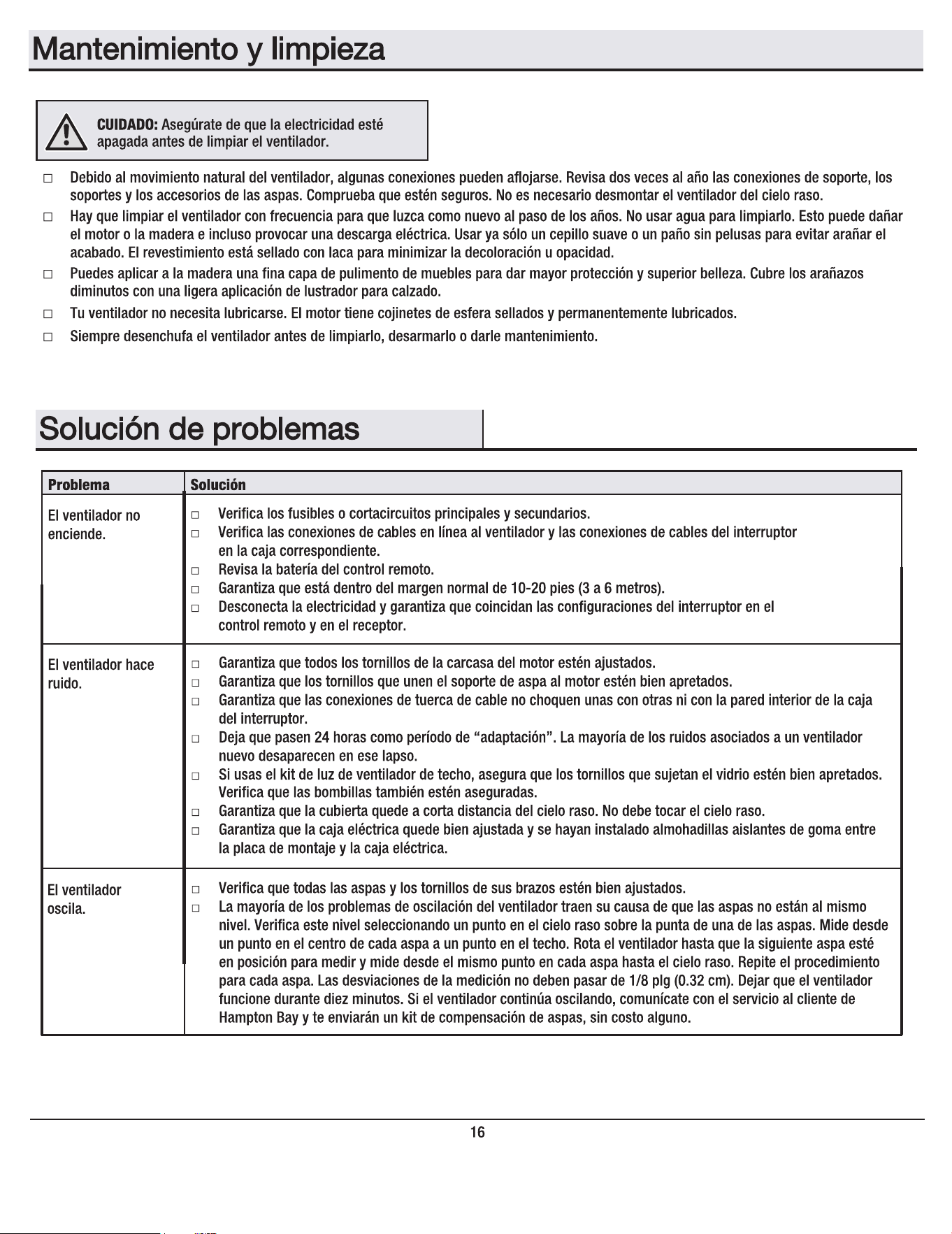

Care and Cleaning
Troubleshooting
Problem Solution
The fan will not start. Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Check the battery in the remote control.
Ensure you are in the normal range of 10-20 feet.
Turn the power off and ensure that the dip switch settings are the same on the remote control and receiver.
The fan is noisy.
Ensure all motor housing screws are snug.
Ensure the screws that attach the fan blade bracket to the motor hub are tight.
Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles.
Check that all blade and blade arm screws are secure.
Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Hampton Bay Customer Service and a balancing kit
will be sent to you at no charge.
Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
plating is sealed with a lacquer to minimize discoloration or tarnishing.
You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the finish. The
Always unplug the fan before cleaning, disassembly or servicing.

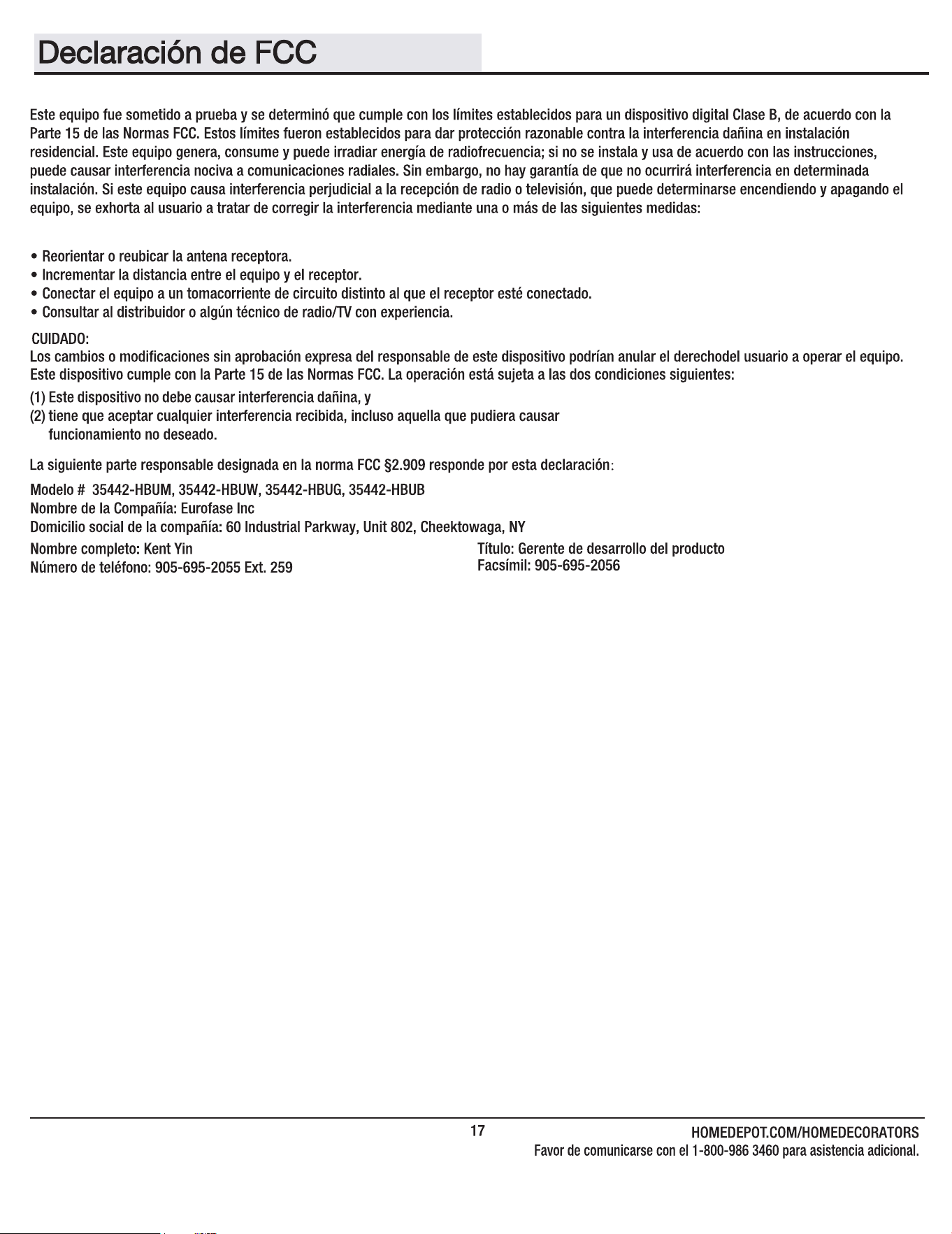

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
17
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
FCC Statement
The following responsible party designated in FCC §2.909 is responsible for this declaration：
Model Number:
35442-HBUM, 35442-HBUW, 35442-HBUG, 35442-HBUB
Company Name: Eurofase Inc
Company Address: 60 Industrial Parkway, Unit 802, Cheektowaga, NY
Full Name: Kent Yin Title: Product Development Manager
Telephone Number: 905-695-2055 Ext. 259 Fax: 905-695-2056
Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
(1004292173)
(1004292141)
(1004292145)
(1004292144)
:
:
:
:
1-800-986 3460
................................................................ 2
..................................................... 2
......................................... ...................................... 3
.......................................................... .......... 3
................................................................. ........... 6
.......................................................................... 7
.................................................................. 15
.................................................... 16
.......................................................... 16
71............................................................
17.7 lb
(8.03 kg)
4
8
7
1
8
1
2
AA
EE
FF
GG
DD
HH
2
BB
CC
D
E
F
1
1
1
A
B
C
4
1
1
1
H
I
1
1
G
B
F
E
D
C
A
H
G
I
L
M
H
0
Aojar los dos tornillos de la cubierta (AA) del soporte de (B)
ubicados en las ranuras con forma de “L”.
B
C
AA
AA
6
□
□
□
□
□
BLANCO
NEUTRAL
TIERRA
VERDE
NEGRO
“PARA MOTOR L”
“PARA LUZ”
AZUL
1
B
G
NEGRO
AZUL
BLANCO
DD (X4)
□
□
□
A
G
G
H
□
□
□
BB
CC
Desatornille tres tornillos y separe los tacos de transporte
del conjunto del motor (G). Estos bloques de envío se
utilizan únicamente como protección. Deséchelos cuando
los vaya a retirar.
G
Coloca la lámpara (H) dentro de la carcasa del interruptor u alinea
de la carcasa del interruptor tres áreas planas de aquella (H) con
sus tres muescas salientes (H). Gira la lámpara (H) hacia la derecha
hasta que se detenga.
Bloques de envío
Aojar los dos tornillos de la cubierta (AA) del soporte de (B)
ubicados en las ranuras con forma de “L”.
C
G
G
La Chapa Negra
La Chapa Negra
C
Retire los tres tornillos de jación y la chapa negra de la
carcasa del motor. Consérvelos para un uso posterior.
Coloque la cubierta (C) en la carcasa del motor, seguida de la
chapa negra, y utilice los tres tornillos de montaje para jar
rmemente la cubierta a la carcasa del motor.
B
C
AA
AA
Tornillos De Fijación
Tornillos De Fijación
5
□
□
□
□
□
G
DD (X4)
BLANCO
NEUTRAL
TIERRA
VERDE
NEGRO
“PARA MOTOR L”
“PARA LUZ”
AZUL
1
B
NEGRO
AZUL
BLANCO
A
G
G
H
□
□
□
BB
CC
Coloca la lámpara (H) dentro de la carcasa del interruptor u alinea
de la carcasa del interruptor tres áreas planas de aquella (H) con
sus tres muescas salientes (H). Gira la lámpara (H) hacia la derecha
hasta que se detenga.
G
Bloques de envío
□
□
□
Desatornille tres tornillos y separe los tacos de transporte
del conjunto del motor (G). Estos bloques de envío se
utilizan únicamente como protección. Deséchelos cuando
los vaya a retirar.
L
M
H
0
L
M
H
0
L
M
H
0
1-800-986 3460
