Instruction Manual
PETROL PRESSURE WASHER
HYW3400P
WARNING: Read the instructions carefully before use. Iss.Nov/25
www.hyundaipowerproducts.co.uk
2
Contents
Introduction……..……………………………3
Safety Information…..…………………..4-12
Understand Your Machine.…..……….……...4
Personal Safety...…….………………….……4-5
Inspect Your Machine……………….……......5
Vibrations….…………………………….............6
Noise…….……………………………….............6
Residual Risks…………………….......................6
Intended Use…………………………...............7
Personal Protective Equipment……..............8
Symbols On The Machine……………………..9
General Warnings & Disposal……………….10
Fuel Safety………………………………….11-13
Carbon Monoxide Warning………………...13
Unboxing…………………………...............14
Features………………………….................15
Assembly……..…………………….......16-19
Box Contents.…………………………………16
Wheel Assembly…..…………………………..16
Main Handle Assembly…..…….……………17
Nozzle Plate.……………….……….………….18
Water Outlet/Inlet connection………….....18
Lance Assembly………………………………19
Nozzle Selection………………………………19
Operation……………………………….20-24
Pre-Operation Oil Level check…...………...20
Pre-Operation Fuel Level Check………...…21
Pre-Operation Water checks………………..22
Starting with Recoil…………………………...23
Stopping………………………………………..23
Pressure Washing………………………………24
Soap Function……………………………….…24
Maintenance & Care……….….........25-32
General Maintenance……..………………25
Storage………………………..………………25
Cleaning……………………..………….…….25
Replacement Parts/Spares Information...26
Oil Servicing…………………………………..27
Sparkplug……………………………………...28
Sediment Filter & Draining Fuel……………29
Preventing Seizing…………………………...29
Troubleshooting…………………….......30&31
Maintenance Schedule…………….……..32
Technical Data…………..………………...33
Recycling & Disposal……..…..…………..34
Declaration of Conformity……………….35
Useful Information…..……………………..36
Our YouTube Channel…..………………..36
Warranty…………………………………….36
Manual Updates….……………………….36
Returning Your Product….……………….36
Leaving A Review….……………………...36
Ordering Spare Parts.……………………..36
Product Record…..………………………...37
Contact Us…..……………………………....38
Notes…………………………………………39
www.hyundaipowerproducts.co.uk
3
Introduction
Thank You For Purchasing Your HYUNDAI Product
We work very hard to give all of our customers the best possible service. If you
have any problems, before leaving negative feedback, please contact us to give
us a chance to resolve the issue. We would be delighted if you left us positive
feedback! Thank you for purchasing this product.
Important!
WARNING: READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING
THE MACHINE. Keep for future reference and pass it on if the machine is
loaned or sold to another user.
!
This manual has been produced by Hyundai Power Products and should be kept
with the product. Please read and understand these instructions before you use
your product. Failure to do this may result in personal injury or damage to the
product.
The safety precautions and warnings are to ensure your safety and protect you
from harm or damage to the product.
The information contained in this manual was accurate at the time of production,
however HYUNDAI Power Products may make modifications to the product
without notification.
These are the original product instructions. This document is part of the product;
retain it for the life of the product, passing it on to subsequent holders. Read this
manual in full before attempting to assemble, operate or maintain this product.
This manual describes the purpose of the product and contains all the necessary
information to ensure its correct and safe use. Following all the instructions and
guidance in this manual will ensure the safety of both the product and the
operator and increase the lifespan of the product.
All photographs and drawings within this manual are to help illustrate correct
operation of the product. Every effort has been made to ensure the information
contained in this manual is accurate. However, we reserve the right to amend this
document without prior warning. Always use the latest version of the product
manual.
www.hyundaipowerproducts.co.uk
4
Safety Information
Understand Your Machine
• WARNING! You must read these instructions carefully before operating the
machine. Make sure that you are familiar with the controls and properly operate
the machine. You must learn how to stop the machine quickly. If you do not follow
the warnings and instructions, it may result in fire and/or serious injury. Make sure to
save all warnings and instructions for future reference.
• Read this manual and labels affixed to the machine to understand its limitations
and potential hazards.
• Be thoroughly familiar with the controls and their proper operation. Know how to
stop the machine and disengage the controls quickly.
• If the unit is to be used by someone other than original purchaser, or is to be
loaned, rented, or sold, always provide this manual and any needed safety
training before operation. The user can prevent and is responsible for accidents or
injuries that may occur to themselves, to other people, or to property.
• Do not force the machine beyond its limits. Use the correct machine for your
application.
• Know how to stop the machine quickly in case of emergency. Understand the
use of all controls.
• ALL MAINTENANCE other than that listed in this manual, should be carried out by
professionally trained and certified personnel.
• When using this machine for the first time and before actual work, you MUST
learn how to handle the machine from an experienced or skilled person.
Personal Safety
• WARNING! Never allow children or people unfamiliar with these instructions to
use the product. Local regulations can restrict the minimum age of the operator.
• Keep children, pets, and other people not using the unit away from the work
area (at least 15m). Be alert and shut off the unit if anyone enters work area. Keep
children under the watchful care of a responsible adult.
• Stay alert, watch what you are doing and use common sense when operating
the machine. Never operate the machine when unwell or tired, or if you have
taken alcohol, medicine, drugs or any substances which may slow your reflexes
and compromise judgment. A moment of inattention while operating the machine
may result in serious personal injury.
• Appropriate Personal Protective Equipment (PPE), MUST be worn at all times
when operating or repairing the machine. Always wear anti-slip and resistant work
footwear and long trousers while using the machine. Do not use the machine
when barefoot, wearing sandals or similar lightweight footwear. Do not wear
chains, bracelets or clothing that is loose fitting or hanging ties or cords. Tie long
hair back. Always wear protective earplugs. Loose clothes, jewellery, or long hair
can be caught in moving parts. Protect eyes, face, and head from objects that
may be thrown from the unit. Always wear safety goggles or safety glasses with
side shields when operating.
•Always keep hands and feet away from all moving parts during operation.
Moving parts can cut or crush body parts. Always keep hands and feet away from
all pinch points.
!
!
www.hyundaipowerproducts.co.uk
5
Safety Information
Personal Safety (Continued)
• Do not touch parts that might be hot from operation. Allow parts to cool before
attempting to maintain, adjust, or service.
• Do not overreach. Keep proper footing and balance at all times. This enables
better control of the machine in unexpected situations. Extending your body too
far can result in a loss of balance and you may fall which will result in injury.
• Never place any part of your body where it would be in danger if movement
should occur during assembly, installation, and operation, maintenance, repairing
or moving.
• Keep in mind that the operator or user is responsible for accidents, hazards or
unexpected events involving the machine that occur to other people or their
property. It is the responsibility of the user to assess the potential risk of the area
where work is being carried out. The operator or user must take all necessary
precautions to ensure their own safety and that of others, especially on slopes or
rough, slippery and unstable ground.
Inspect Your Machine
• Check your machine before starting it. Keep guards in place and in working
order. Make sure all nuts, bolts, etc., are securely tightened.
• You must check the general condition of the machine before use.
• Never operate the machine when it is in need of repair or is in poor mechanical
condition. Replace damaged, missing, or failed parts before using it. Check for fuel
leaks. Keep the machine in safe working condition.
• Do not use the machine if the machine’s switch does not turn off the machine
when running. Any machine that can’t be controlled with the switch is dangerous
and must be replaced.
• Regularly check to see that keys and adjusting wrenches are removed from the
machine area before starting it. A wrench or a key that is left attached to a
rotating part of the machine may result in personal injury.
• If the machine should start to vibrate abnormally, stop the machine and check
immediately for the cause. Vibration is generally a warning sign of trouble.
• Avoid accidental starting. Be sure the switch is off before transporting the
machine or performing any maintenance or service on the unit. Transporting or
performing maintenance or service on a machine with its switch on invites
accidents.
• Do not tamper with or disable safety systems.
• Only use manufacturer-recommended attachments.
• Before using, always visually inspect to see that the tools are not worn out or
damaged. Replace worn out or damaged elements and bolts in set to preserve
balance.
• Keep the machine in good operating condition. Operating the machine in poor
or questionable condition could result in serious injury.
• Be sure all safety devices are in working order and warning labels are in place.
These items are installed for your safety.
!
!
• The operating noise of the machine can damage your hearing. When wearing
protection such as earplugs or ear defenders to protect your hearing. Long-term
and regular users are advised to have hearing checked regularly. Be especially
vigilant and cautious when wearing ear protection because your ability to hear
alarm warnings will be reduced.
• Noise emissions for this equipment is unavoidable. Carry out noisy work at
approved times and for certain periods. Limit the working time to a minimum. For
your personal protection and protection of people working nearby it is also
advisable for them to wear hearing protection.
• See Certificate of Conformity section for Outdoor Noise declaration of
. . conformity.
www.hyundaipowerproducts.co.uk
6
Safety Information
Vibrations (Where Applicable)
• Prolonged use of hand held (operated) machines will cause the user to feel the
effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s
phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the
hand to feel and regulate temperature, causing numbness and heat sensations
and may cause nerve damage and circulatory tissue death.
• Not all factors that lead to white finger disease are known, but cold weather,
smoking and other diseases that affect blood vessels and blood circulation as well
as large and long-lasting impact of shocks are considered factors in the formation
of white finger. Note the following to reduce the risk of white finger and carpal
tunnel syndrome;
• Wear gloves and keep your hands warm.
• Take regular breaks.
• All of the above precautions may help reduce the risk of white finger disease but
not rule out the carpal tunnel syndrome. Long-term and regular users are therefore
recommended to observe the condition of your hands and fingers. Seek medical
attention immediately if any of the above symptoms should occur.
Noise (Where Applicable)
!
!
Residual Risks
Even when tool is used as prescribed it is not possible to eliminate all residual risk
factors. The following hazards may arise in connection with the tool’s construction
and design:
1. Damage to lungs if an effective dust mask is not worn.
2. Damage to hearing if effective hearing protection is not worn.
Health defects resulting from vibration emission if the power tool is being used over
longer period of time or not adequately managed and properly maintained.
!
www.hyundaipowerproducts.co.uk
7
Safety Information
Intended Use
The HYW3400P is a petrol pressure washer from HYUNDAI. The HYW3400P has a
maximum pump head pressure of 3600psi, powered by a 212cc petrol motor. The
pump has a 6 litres per minute output, with various spray pattern nozzles.
This machine is for DIY home and garden use, specifically pedestrian. The machine
is manufactured according to the latest safety requirements. Every precaution is
only effecting when it is followed exactly.
Intended Use
This machine was designed and manufactured for pressure washing various
surfaces at high pressures. Any sensitive surfaces i.e car panels or soft render
proceed with caution and start further away, close high pressure will cause
damage
User Types
This machine is intended for use by consumers, i.e. non professional operators. The
machine is intended for “DIY” and domestic use only.
Improper Use
Any other usage not in keeping with the above mentioned may be hazardous and
harm persons and/or cause damage. Larger stones are not suitable to be mixed
within this machine, as they may cause damage to the drum.
!
www.hyundaipowerproducts.co.uk
8
Safety Information
Personal Protective Equipment
Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when
operating or repairing the machine. No protective equipment can ensure 100%
protection.
When selecting PPE, make sure it’s CE marked and it suits the user in terms of size,
fit, etc. If more than one item of PPE is worn at the same time, make sure they can
be used together, e.g. wearing safety glasses may disturb the seal of a respirator,
causing air leaks.
!
Hand Protection Must Be Worn
Protective electrically non-conductive gloves are highly
recommended when working.
Foot Protection Must Be Worn
Non-skid heavy duty footwear are highly recommended when
working.
Hearing Protection Must Be Worn
Suitable safety hearing protection is recommended.
Eye Protection Must Be Worn
Always wear safety glasses/goggles and/or face shields. Everyday
eyeglasses have only impact resistant lenses; they are not safety
glasses/goggles.
Protective Clothing Must Be Worn
Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings,
wrist watches), which can be caught in moving parts.
Head Protection Must Be Worn
Wear a safety helmet with a safety visor.
Face Shield Must Be Worn
Wear a face shield to protect your face.
www.hyundaipowerproducts.co.uk
9
Safety Information
Symbols On The Machine
We have provided safety messages in this manual and on the machine. This
information alerts you to potential hazards that could hurt you or others. Please
read these messages carefully. However, we may not have listed all of the possible
hazards, you must also use your own judgement.
!
Symbol Description Symbol Description
Safety alert – Indicates a
precaution, a warning or a
danger.
Eye protection must be
worn.
Hand protection must be
worn.
Sound power level LWA
data in dB.
Foot protection must be
worn.
This product should not be
disposed of in domestic
waste. Please contact your
local recycling centre for
disposal service.
Read operator’s manual. Class II tools symbol.
This product complies with
the European directives and
an evaluation method of
conformity for these
directives was done.
The UKCA (UK Conformity
Assessed) marking is a UK
product marking that is
required for goods being
placed on the market in
Great Britain (England,
Wales and Scotland).
107
www.hyundaipowerproducts.co.uk
10
Safety Information
General Warnings & Disposal
!
Electrocution Warning : This machine is a potential source of electrical shock.
Never expose to moisture, rain or snow. Do not operate with wet hands or feet.
Exhaust Gas Warning : Exhaust Gas from this machine is poisonous, NEVER
operate in an unventilated area
Hot Surface Warning : During the operation of this machine, it becomes
dangerously hot. Allow to cool before moving
Fire Risk Warning : Due to using flammable liquids, risk of fire is always present.
NEVER refuel during operation.
Operation Safety Warning : ALWAYS point the lance in a safe direction away
from people or animals. The pressure of this machine is so high it will cause
accident and injury.
Operation Safety Warning :Ensure when operating this machine you always
wear eye protection. The high pressure nature of machine can cause
projectiles and high velocity water steams which will injure the naked the eye.
Kickback Warning : Always hold the machine Lance with 2 hands. The machine
builds up pressure during operation. When initially pulling the trigger, kickback
can occur.
Risk of Liquid Injection : NEVER point the lance in the direction of People or
Animals whilst operating. This can result in Hypotonic injury (water in the blood
stream) and Arterial Gas Embolism (air in the blood stream). Both these are
serious ailments and can cause death.
www.hyundaipowerproducts.co.uk
11
Safety Information
Fuel Safety
Fuel Safety
• If you have spilled fuel, make sure you do not attempt to ignite the engine but move
the machine away from the area of spilled fuel and avoid creating any source of
ignition until the fuel has evaporated and fuel vapours have dissipated.
• When fuel is spilled on yourself or your clothes, wash your skin and change clothes
immediately.
• ALWAYS clean up spills promptly using absorbent granules and a lidded bin.
!
CAUTION! ALL FUELS ARE HIGHLY FLAMMABLE &
PETROL VAPOUR IS EXPLOSIVE. TAKE EXTREME CARE
WHEN HANDLING FUEL. KEEP FUEL OUT OF REACH OF
CHILDREN.
Spilled Fuel
!
• NEVER smoke when handling fuel.
• ALWAYS avoid inhaling fumes.
• ALWAYS carry fuel in the correct and clearly marked container.
• ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE),
suggested items are but not limited to safety gloves and overalls.
• To avoid sparking or arcing, keep grounded conductive objects such as tools away
from exposed, live electrical parts and connections. These events could ignite fumes or
vapours.
• Do not operate the machine with known leaks in the fuel system.
• Fire hazard - keep fuel away from all sources of ignition for example heaters, lamps,
sparks from grinding or welding.
• DO NOT carry out hot work on tanks that have contained fuel.
• ALWAYS keep the work area tidy.
• ALWAYS dispose of waste fuels correctly.
• Serious personal injury can occur when petrol is spilled on yourself or your clothes. Rinse
your skin and change your clothes immediately.
Fuel Information
!
Using E10 Petrol Important: This product must be used with high-quality unleaded fuel
ONLY. ALWAYS use automotive petrol/gasoline suitable for four-stroke engines; DO NOT
mix fuel and oil. It is recommended to use E10 (95 RON) automotive fuel, with an
appropriate additive or stabiliser in this product. Damage caused by failure to add fuel or
using incorrect or poor-quality fuel is not covered by your warranty. CAUTION! E10 petrol is
hygroscopic and attracts moisture, which may damage the fuel system if stored in the
product for more than four weeks. After draining the fuel tank, always run the engine until
the last of the fuel in the system is spent and drain the f loat bowl when the engine is cool.
E10 petrol should be used within 30 days of purchase. Some petrol brands contain other
quantities of ethanol. DO NOT use fuels with more than 10% ethanol in your Genpower
product. Always store and dispose of fuels responsibly and in accordance with local
regulations.
www.hyundaipowerproducts.co.uk
12
Safety Information
Fuel Safety (Continued)
!
Storage
• Store fuel in containers specifically designed and approved for fuel storage.
• Store fuel in a cool, well-ventilated area, safely away from sparks, open flames,
or other sources of ignition.
• Never store fuel or a machine with fuel in the tank inside a building where
fumes may reach a spark, open flame, or any other source of ignition (such as
a water heater, furnace, or clothes dryer). Allow the engine to cool before
storing in any enclosure.
• Replace all fuel tank and container caps securely and wipe up spilled fuel.
Never operate the unit without the fuel cap securely in place.
Fuelling / De-Fuelling
• ALWAYS fuel and de-fuel in a well ventilated area outside of buildings. Use a
funnel to add fuel, only outdoors. Do not smoke during this and each time fuel
is handled.
• Add fuel before igniting the engine, never remove the fuel tank cap or add
fuel whilst the engine is running or when it is hot.
• When de-fuelling ALWAYS use a proper fuel retriever.
• Never overfill the fuel tank. Engine heat can cause fuel to expand, never fill
the tank to more than 1/2” below the bottom of the filler neck. This will
provide space for fuel expansion.
• When refilling or draining the fuel tank, use an approved fuel storage
container while in a clean, well-ventilated outdoor area. While adding fuel or
operating the unit, do not smoke, and stay away from sparks, open flames, or
other sources of ignition near the area of operation.
• Always stop the engine and allow it to cool before filling the fuel tank. Never
remove the cap of the fuel tank or add fuel while the engine is running or
when the engine is hot.
• Loosen the fuel tank cap slowly to relieve any pressure in the tank.
• ALWAYS keep the handles dry, clean and free of oil and fuel.
• After fueling, ensure to tighten the cap securely.
• Never use the lock-function when filling with fuel.
www.hyundaipowerproducts.co.uk
13
Safety Information
Fuel Safety (Continued)
!
Carbon Monoxide Warning
BREATHING IN CARBON MONOXIDE FUMES CAN CAUSE DEATH! Using this machine
indoors CAN KILL YOU IN MINUTES! The exhaust fumes from machines contain
Carbon Monoxide. This is a poisonous gas that you can’t see or smell.
• NEVER use inside a building.
• NEVER use inside a confined space such as but not limited to a house, garage,
large vehicle, boat or tent.
• Never operate the machines near other machines which use flammable liquids as
a fuel source.
• Only use the machine outside far away from open windows, doors and vents.
www.hyundaipowerproducts.co.uk
14
Unboxing
WARNING : Unboxing and assembling the machine should be done on a flat,
surface with enough room. Disposal of the packaging should be done in
accordance with the local regulations in force.
!
WARNING : Some of the packaging material may be harmful to children. Keep
out of reach of children.
1. Carefully remove the product from the packaging and examine it for any sign of
damage caused during shipping.
2. Lay the contents out and check them. If any part is damaged or missing, you
must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately.
3. You must keep the packaging material in case the machine needs to be
returned or repaired.
4. Ensure that you have all the accessories and tools you need for assembly and
operation including the suitable personal protective equipment.
We recommend that you fill out the information in the ‘Product Record’ section. If
you need to contact an authorised dealer or customer service, you may need to
provide this information.
!
www.hyundaipowerproducts.co.uk
15

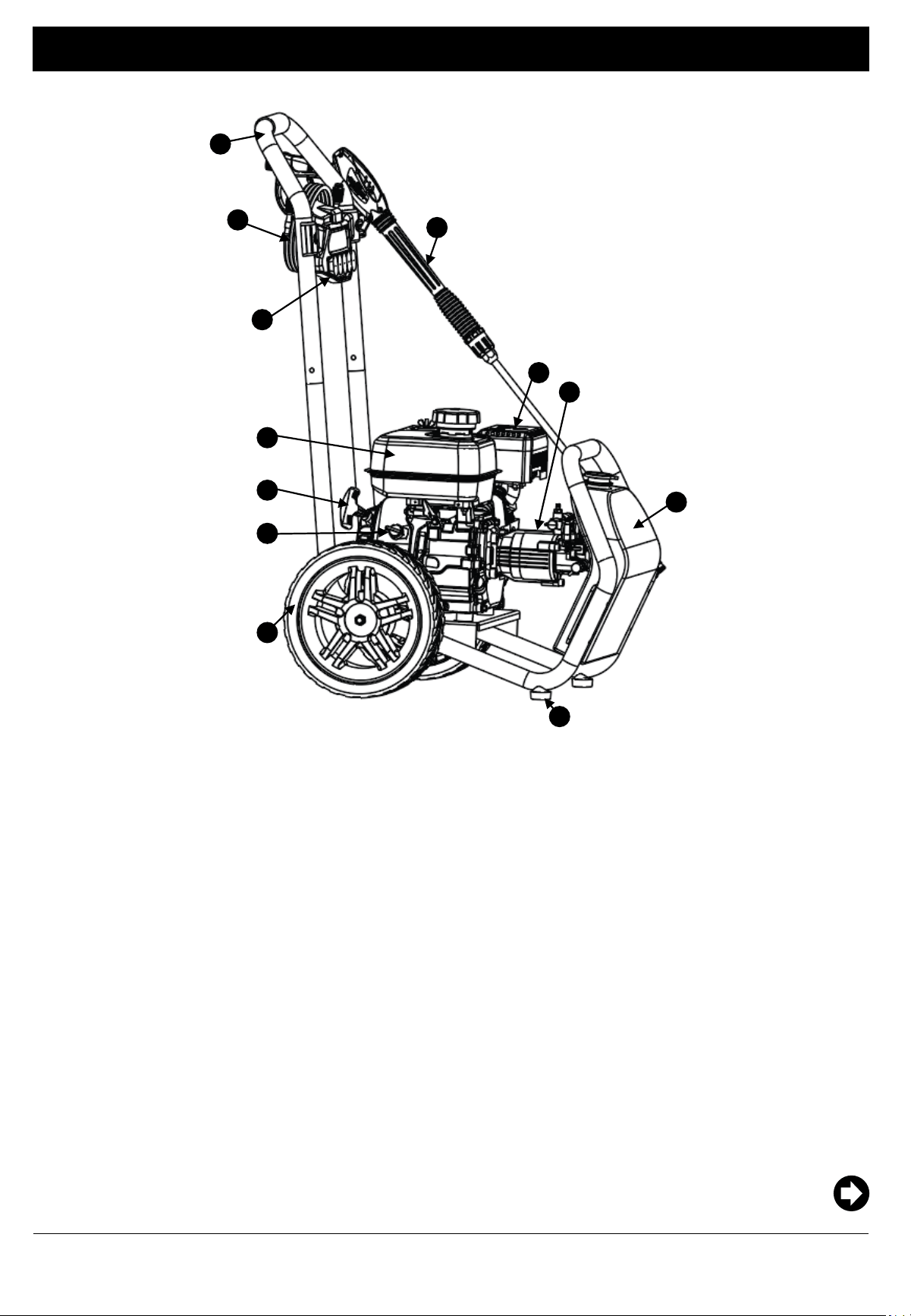

Features
Descriptions on next page
1. Lance
2. Exhaust
3. Water Pump
4. Detergent Tank
5. Feet
6. Wheels
7. On/Off Switch
8. Recoil Starter
9. Fuel Tank
10. Nozzle Plate & Nozzles
11. Hose
12. Main Handle
1
2
3
7
8
9
10
4
5
6
11
12
www.hyundaipowerproducts.co.uk
16
Assembly
Box Contents
!
When unpacking your machine, make sure the following items are present:
• Hose
• Spray Gun/Lance
• Nozzle Plate
• Lance Nozzles
• Wheels & Fixings
• Handles & Fixings
• Garden Hose adapter
If any of these components are missing, please contact us.
Assembly Required
!
Due to our committed and continuous improvement, your machine may require
less assembly than advised within this manual. If your machine comes assembled,
please disregard the following instructions.
Wheel Assembly
1. Simply slide an axle into location, use the ball lock to locate axle correctly. Press
the ball down and slide the axle so the ball locks into position. Repeat on both
sides
2. Place a wheel onto the axle. Repeat both sides.
The tread MUST point to the front of the machines as shown below.
3. Place a washer then the locking nylon nut. DO NOT over tighten this bolt as it
will prevent the wheel from turning. Repeat on both sides.
Tyre tread points
toward the front
!
www.hyundaipowerproducts.co.uk
17
Assembly

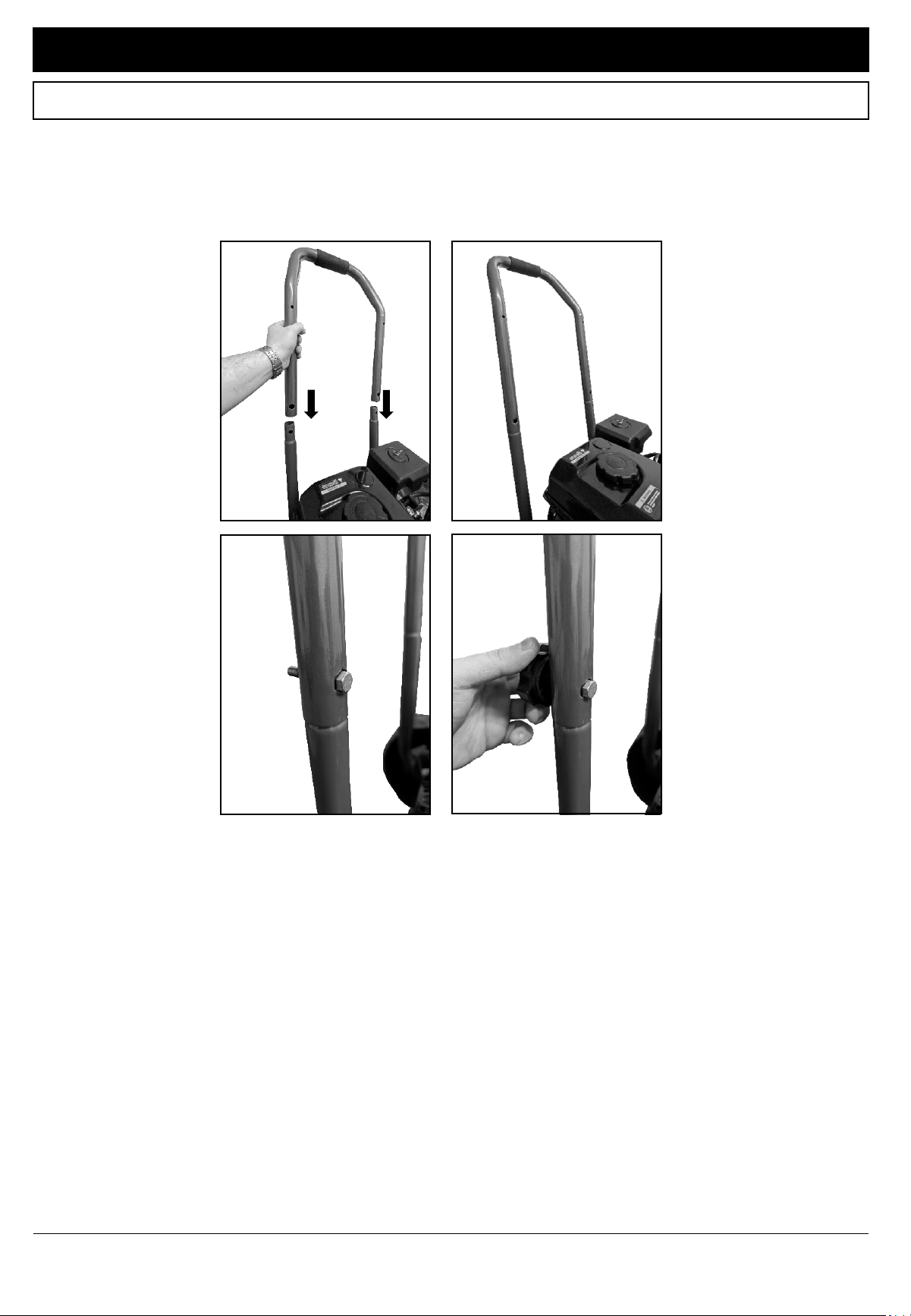

Main Handle Assembly
1. Place the main handle into position on the frame. Make sure the handle is
angled toward the back of the machine.
2. Place the bolt through frame and secure with the handnut.
www.hyundaipowerproducts.co.uk
18
Assembly
Nozzle Plate
1. The nozzle plate is simply secure into position with the bolts provided. Line up
with the holes in the frame and secure on both sides.

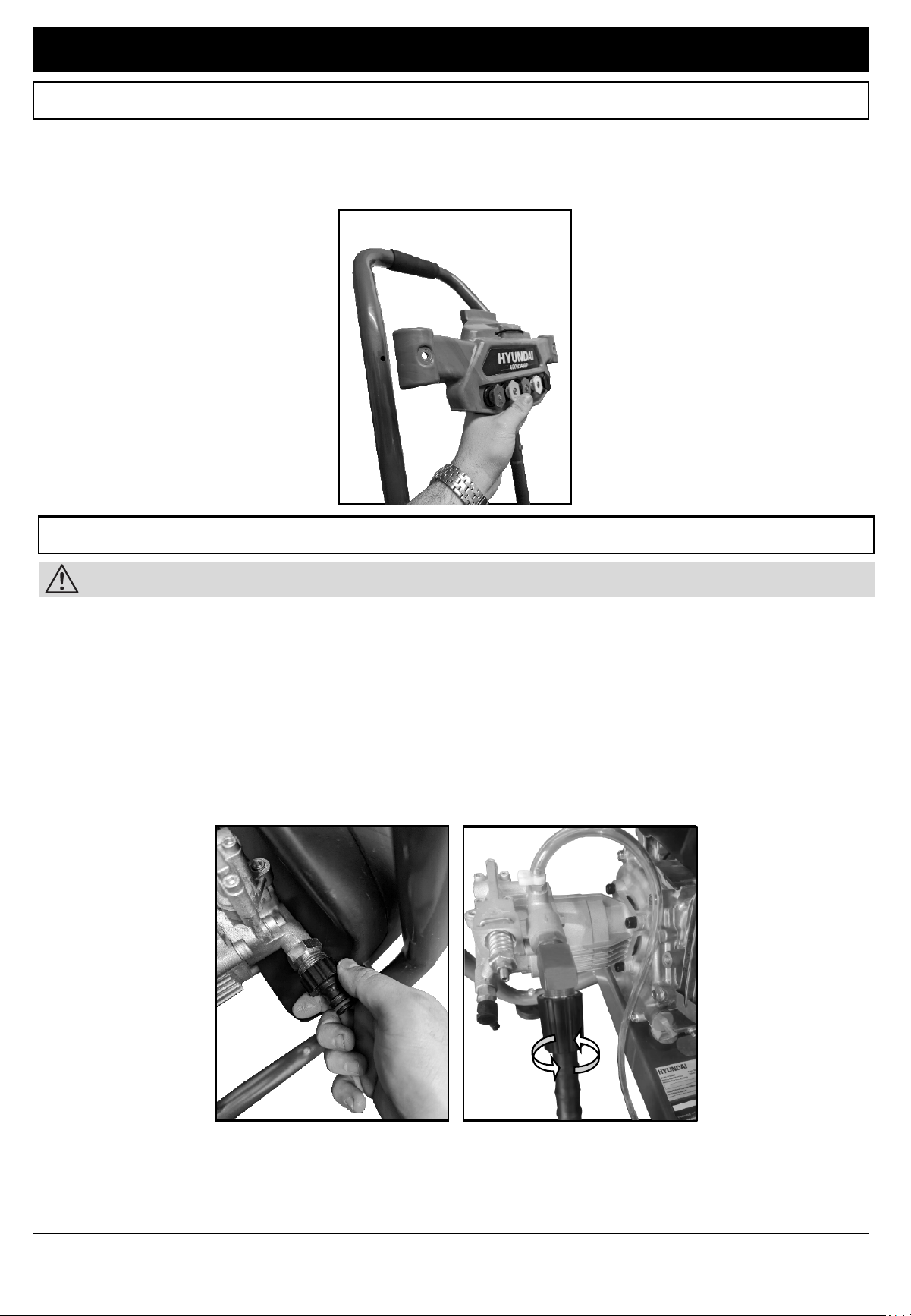

Water Outlet/Inlet connection.
1. Ensure the Garden Hose adapter to the Water Inlet as shown below. This will
allow you to supply the machine with clean water direct from a quick
connection style hose & adapter (not included)
2. Secure either end of the included high pressure hose to the water outlet as
shown below. BE CAREFUL when securing this, cross threading can occur which
will damage the components.
Water Inlet Water Outlet
The water inlet adapter may already be installed. If so skip this step.
www.hyundaipowerproducts.co.uk
19
Assembly

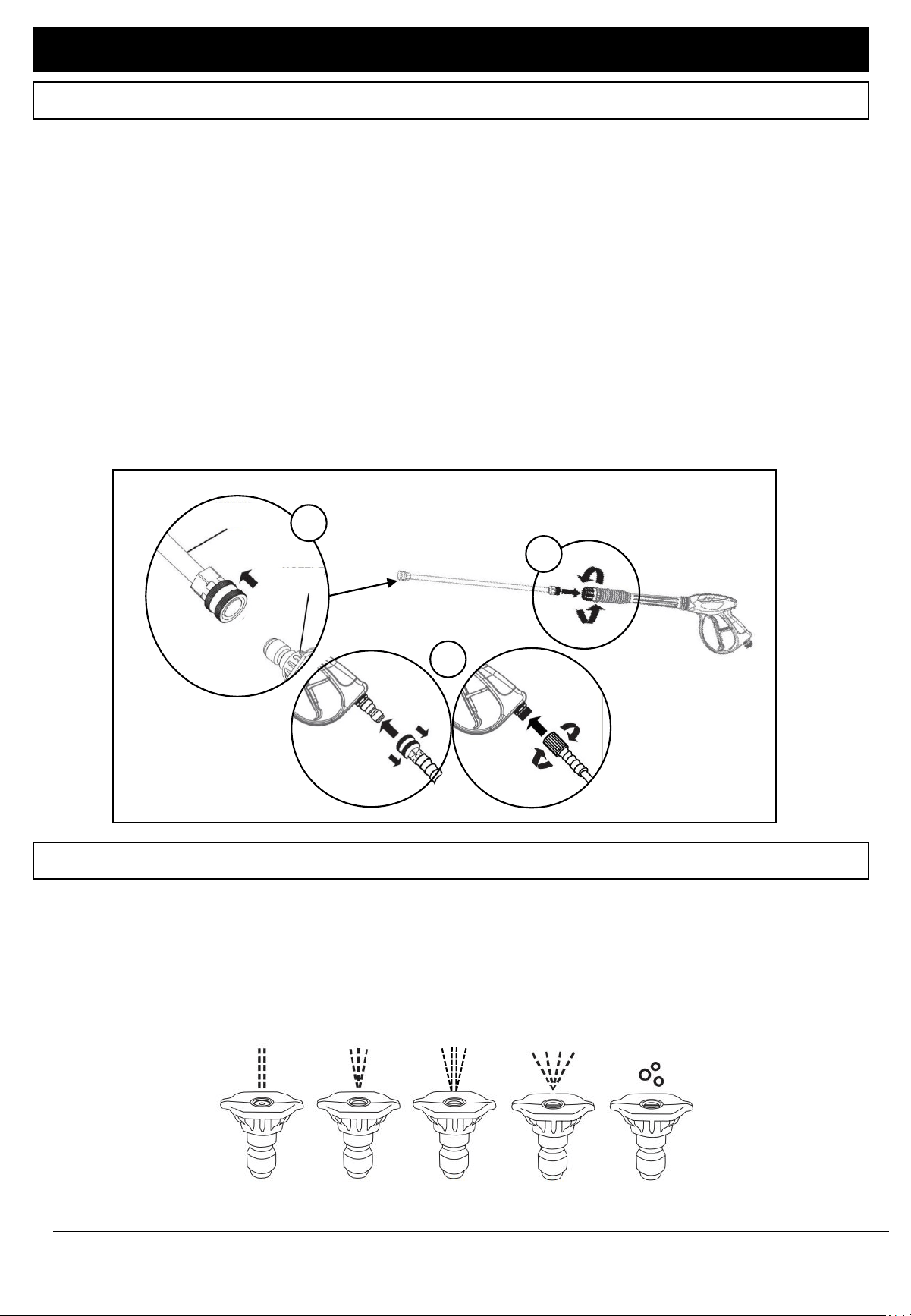

Lance
A – Attaching Nozzles –Bull back on the brass collar on the quick release fitting
Lance Outlet. Place the Nozzle into the outlet and release the collar. Check the
Nozzle is secure by giving it a slight pull. If seated correctly it should stay in place.
B – Mating Lance Handle to Lance Outlet – The Lance Outlet simply twists into the
Lance Handle.
C- High Pressure Hose – Your machine may have either a quick release fit, or a
threaded fit. For Quick release, bull back the collar on the High Pressure Hoses
Quick Release fitting and place over the Lances fitting. Similarly with the Nozzle,
Check the hose is secure by giving it a slight pull. If seated correctly it should stay
in place.
For the Threaded fitment, simply twist the High Pressure hose onto the thread of
the Lance Handle.
Nozzle Selection
WARNING! Never use the Red Nozzle with delicate surfaces i.e. Car Cleaning or House
Render. THIS WILL CAUSE DAMAGE
The nozzles included with the machine alter the washer fan pattern. These are identified
by colour and Degrees
o
. The lower the amount of Degrees
o
the more focused the fan
pattern. For example the 0
o
Red nozzle, will provide a focused beam of water, which is
very powerful. If you want to use soap YOU MUST use the black nozzle, or 3
rd
party
attachment.
B
Lance Outlet
Nozzle
A
C
0
0
Red
15
0
Yellow
25
0
Green
40
0
White
Soap
Black
www.hyundaipowerproducts.co.uk
20
Operation
Pre-Operation Checks
Oil Level

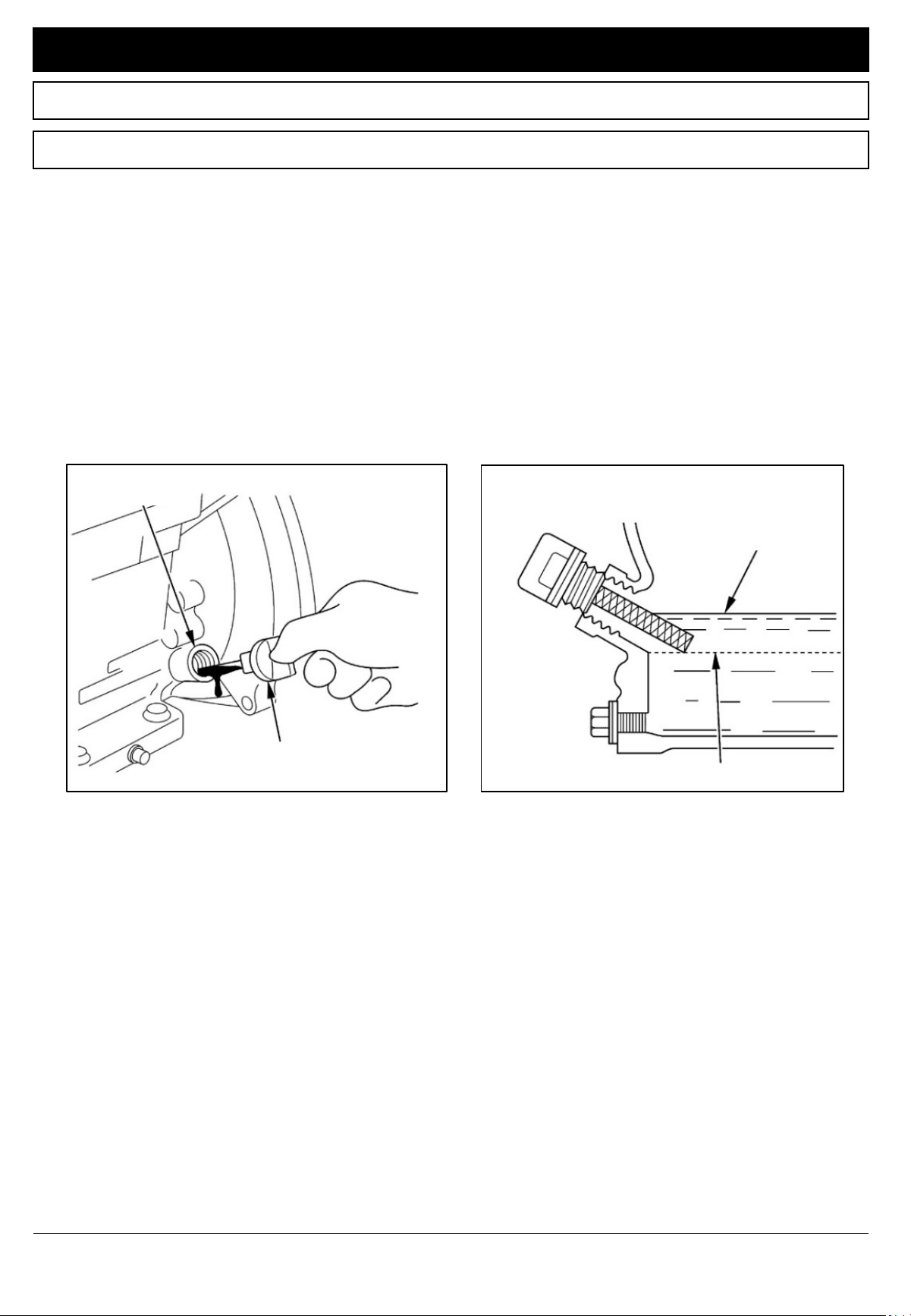

Check Engine Oil Level Check the engine oil level with the engine stopped and
in a level position.
• Remove the oil filler cap/dipstick and wipe it clean.
• Insert and remove the dipstick without screwing it into the filler neck. Check the
oil level shown on the dipstick.
• If the oil level is low, fill to the edge of the oil filler hole with the recommended
oil (SAE 15W-40 ). Screw in the oil filler cap/dipstick securely.
Oil Filler Cap / Dipstick
Oil Inlet
Maximum Level
Minimum Level
www.hyundaipowerproducts.co.uk
21
Operation
Pre-Operation Checks
Fuel Level

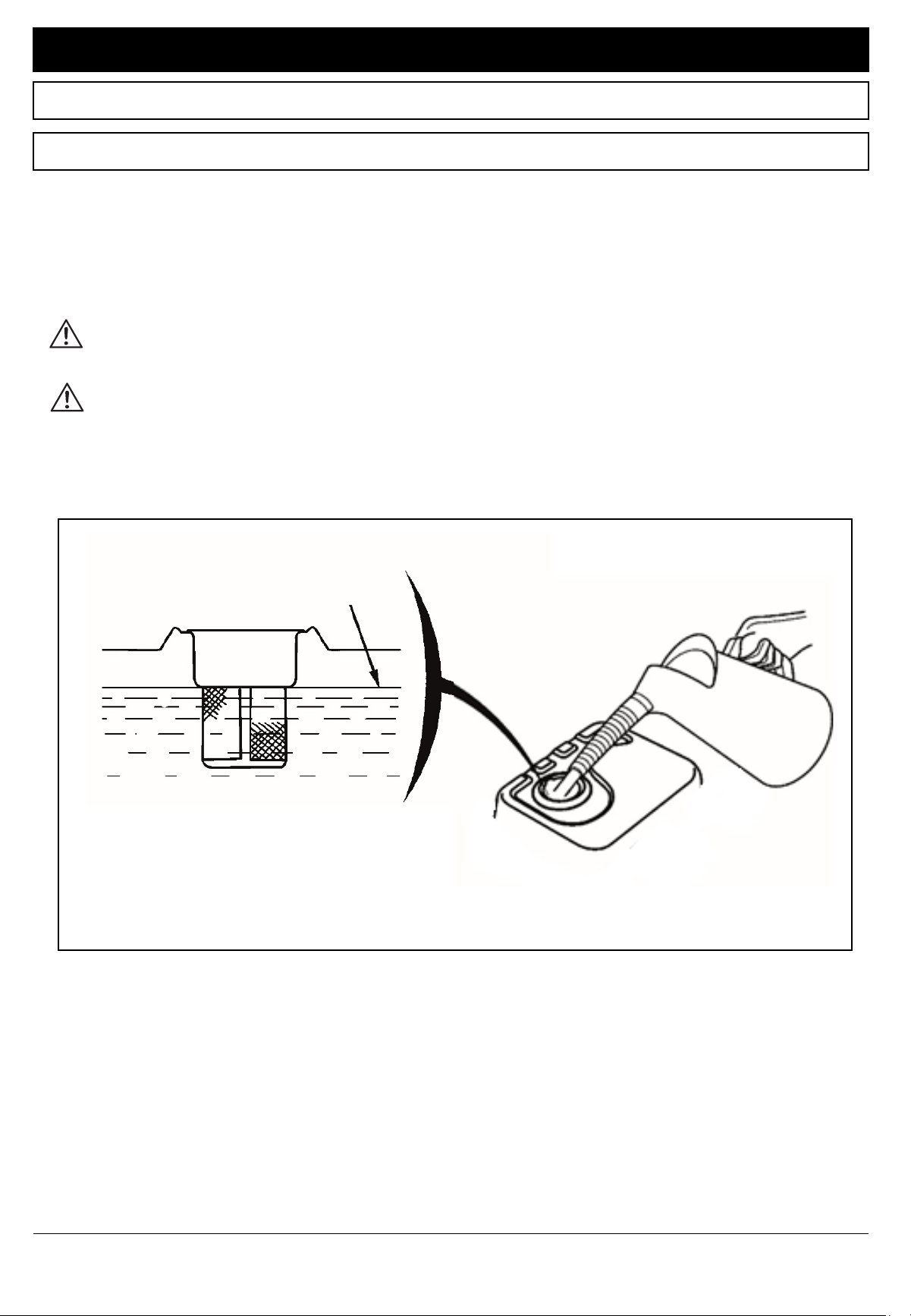

With the engine off and on a level surface, remove the fuel tank cap and check
the fuel level. You will be able to see the fuel through the fuel strainer. Refill the
tank if you can cannot see any fuel in the strainer. After refuelling, tighten the fuel
tank cap securely.
Always use a funnel or Fuel Bottle with a Flexible spout like shown below
Fossil Fuels are combustible and cause skin irritation. You can be burned or
seriously injured when handling fuel.
NEVER fill above the Maximum Fuel Level.
Standard grade E5 & E10 petrol fuel from a fuel station is acceptable to use with
this machine.
Maximum Fuel Level
Maximum Fuel Level
www.hyundaipowerproducts.co.uk
22
Operation
Pre-Operation Checks

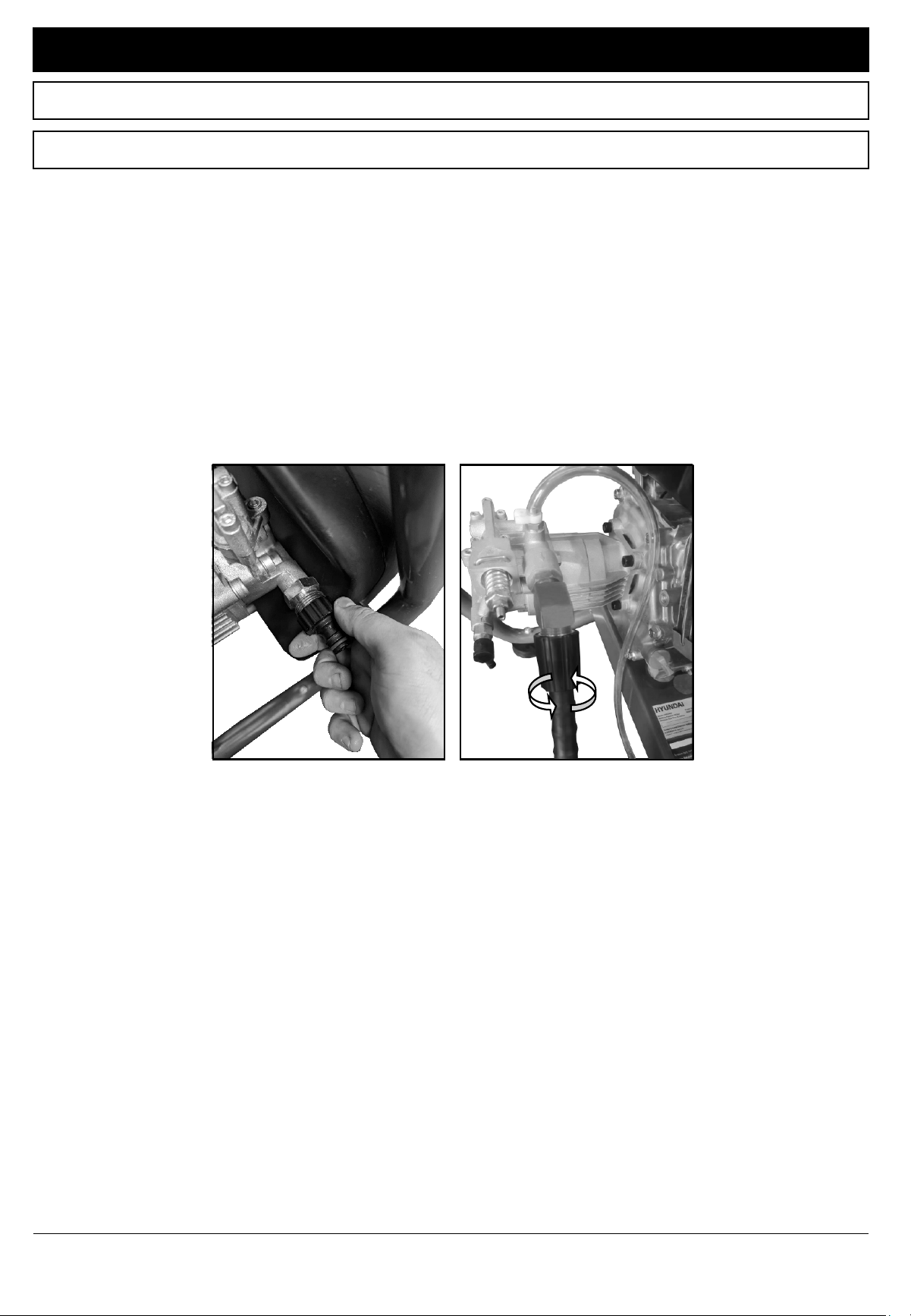

Water Supply and Outlet
Before connecting the water supply, allow the water to run to ensure no debris is
present.
• Connect Water supply to Inlet. Ensure there is 3 metres of unrestricted hose
feeding the machine, capable of supplying water at a flow rate greater than
14.4 litres per minute and no less than 20 PSI at pressure washer.
• Connect the High pressure hose to the pump outlet.
• Turn on the Water supply
Water Inlet Water Outlet
www.hyundaipowerproducts.co.uk
23
Operation
Stopping
• Stop any spraying and allow the machine to return to Idle.
• Reduce the engine RPM by moving the throttle to low position ( )
• Turn the Engine switch into the Off Position. Turn the Fuel tap to the off position.
• Release the residual pressure in the Lance as this will still be at a high pressure and stop your
removing the Nozzles for storage. Ensure you NEVER point the lance in a dangerous area when
releasing pressure.

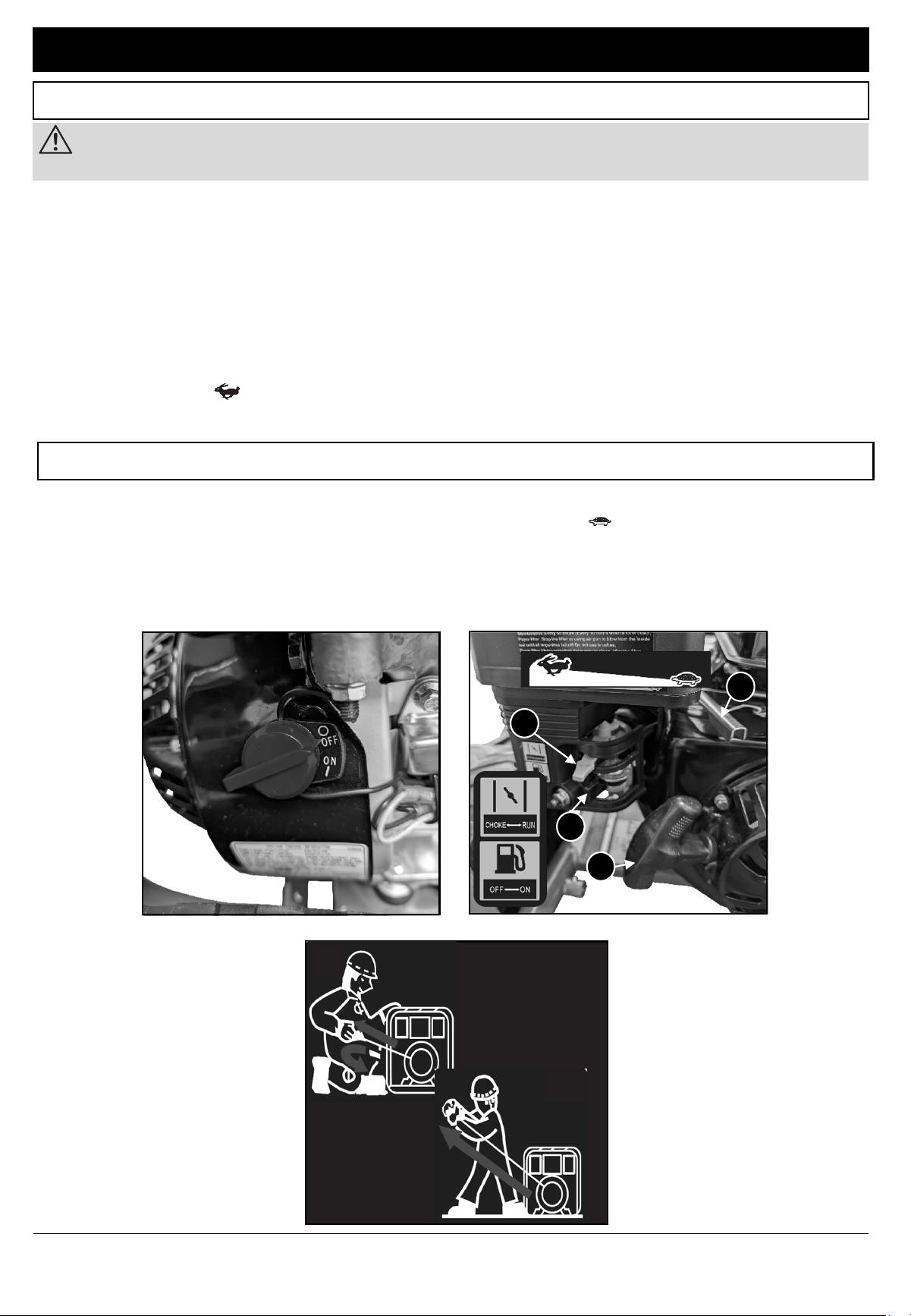

Starting with Recoil
• To start the machine by recoil, turn the ignition switch to the ON position.
• IF starting from cold, put the Choke lever (1) into the choke position. Ignore if restarting from
warm/hot.
• Turn the fuel tap (2) into the on position.
• Gently pull recoil (3) until you feel some resistance when pulling.
• With your other hand hold the trigger of the lance to release water pressure within the pump. This
will prolong the life of your machine.
• Take a firm grip of recoil starter and pull the whole rope in 1 pull.
• When the engine starts, move the Choke Lever (1) into the run position. Also move the throttle
lever into fully on ( ), this will increase the RPM which is required to meet full pump pressure.
• Once the machine is running release water pressure by squeezing the trigger on the gun.
Ensure all the pre-operation checks have been carried out before starting the
machine.
Gently pull
to build
compression
Firmly pull
the recoil all
the way
4
1
3
2
www.hyundaipowerproducts.co.uk
24
Operation
Pressure Washing
IMPORTANT – When using pressure washer, don’t allow the machine to idle for a long
time. This will overheat the pump and cause damage. If not using for extended periods of
time, turn off the machine.
• With the Machine running with a constant water supply, Choose the nozzle best suited
for your activity. Simply pull the Lance Trigger and the machine will expel high pressure
water.

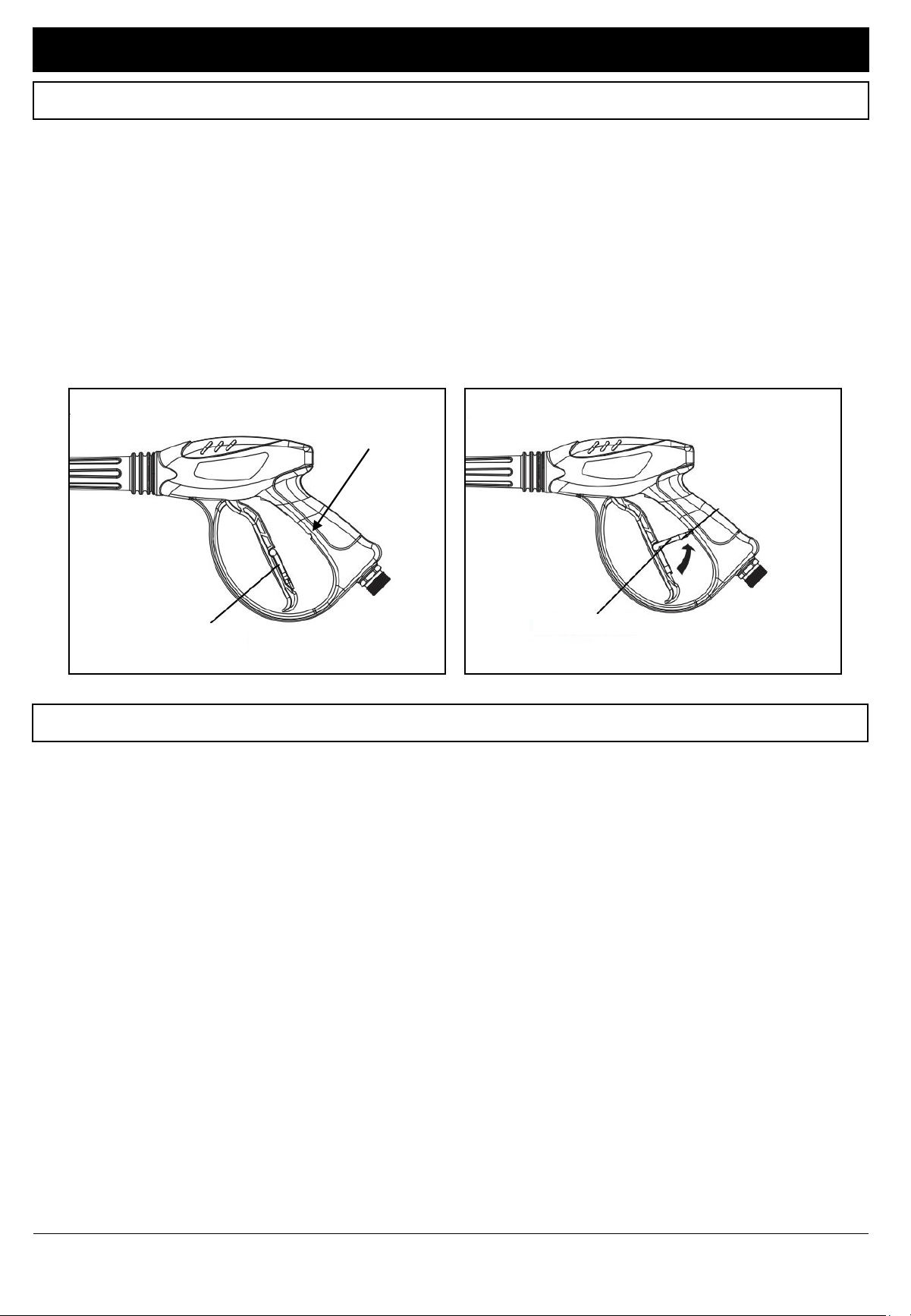

• The trigger has an inbuilt Safety Lock Out. When not using the machine, to avoid
accidental overspray, simply extend the Safety Lock Out. There is a slot which the Lock
Out will sit within
Location Slot
Lance Trigger
Safety Lock Out
Soap Function
This machine has an automatic soap feed. Fill the Detergent tank at the front of
the machine and attach the black nozzle. The pump has a function which utilizes
the pressure within the pump to mix the soap into the water output. Detergent will
never be expelled using a high pressure nozzle.
The detergent function will also work with 3
rd
party low pressure detergent
nozzles/detergent bottles.
When using detergent, always mix to the manufacturers recommended mix ratios.
If there are no ratio’s stated, assume it’s meant to be used neat.
www.hyundaipowerproducts.co.uk
25
Maintenance & Care
General Maintenance
WARNING : Turn OFF the machine, allow all moving parts to come to a
complete stop, and disconnect the power cord before maintaining the machine.
You need to wear proper clothing and protective gloves whenever your hands are
at risk.
• Keep all nuts, bolts and screws tight to be sure the machine is in a safe working
condition.
• Replace worn or damaged parts for safety. Only use manufacturer-
recommended parts and accessories.
• To keep your machine in good working condition, you can use spray lubricating
oil along the blade, on the top of the blade, and the bottom of the blade.
!
Storage
Keep the machine stored in a dry, level area away from damp, moisture and
rain fall. Allow the machine to cool down before storing.
• Make sure the machine is clean and dry before storing.
• Put the blade cover on the blade when in storage.
• Ensure the machine is stored in a position, where any persons cannot step on, to
attempt to reach items up high, due to risk of movement.
• DO NOT store the machine near an ignition source, such as a wood stove, gas
or electric heater, or an appliance or heater with a pilot light.
• Store the machine out of reach of children or anyone who is not familiar with
operation.
• DO NOT stack other items on top of the machine when in storage.
• Make sure the machine is stored away from direct sunlight. Store indoors or in a
safe, frost-free area during severe weather and winter months.
!
Cleaning
Always remove the electric plug from the mains supply before any cleaning is
undertaken.
• Remove any grass and mud after each use to prevent it from drying. Use a
clean cloth to remove dirt, grease, etc.
• DO NOT use any water on any part of the main machine.
• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to
damage from various types of commercial solvents and may be damaged by
their use.
• Always ensure that ventilation openings are kept clear of debris.
!
www.hyundaipowerproducts.co.uk
26
Replacement Parts/Spares Information
To maintain your machine in peak operating condition, proper maintenance and
care are crucial. Some machines have consumable parts that will need
replacement to ensure they continue operating at their full potential. Power-
Spares provide manufacturer parts for all your machines, ensuring they remain in
peak condition.
Power-Spares has your back if you damage your lawn mower blade, find your
spark plugs not sparking, or snap your recoil. Power-Spares operates under the
trading name of Genpower Limited.
As part of the Genpower family, Power-Spares offers you the expertise, efficiency,
and quality assurance of a large organisation. We leverage the latest
warehousing, distribution, customer service, and inventory management
technology to ensure you receive your parts as quickly as possible.
With extensive stock-holding of spare parts in our UK warehouses, Power-Spares is
ready to assist you promptly when your machine needs repair. We’re Committed
to help you get back up and running as quickly as possible.
About Power Spares
Same Day Dispatch*No Hassle Returns
Over 10,000 Spare Parts
QR Code – Scan the QR code for a direct link
to our website
Our Website : power-spares.co.uk
Call us : 01646 404406
Email us : sales@power-spares.co.uk
www.hyundaipowerproducts.co.uk
27
Maintenance & Care
Oil Servicing

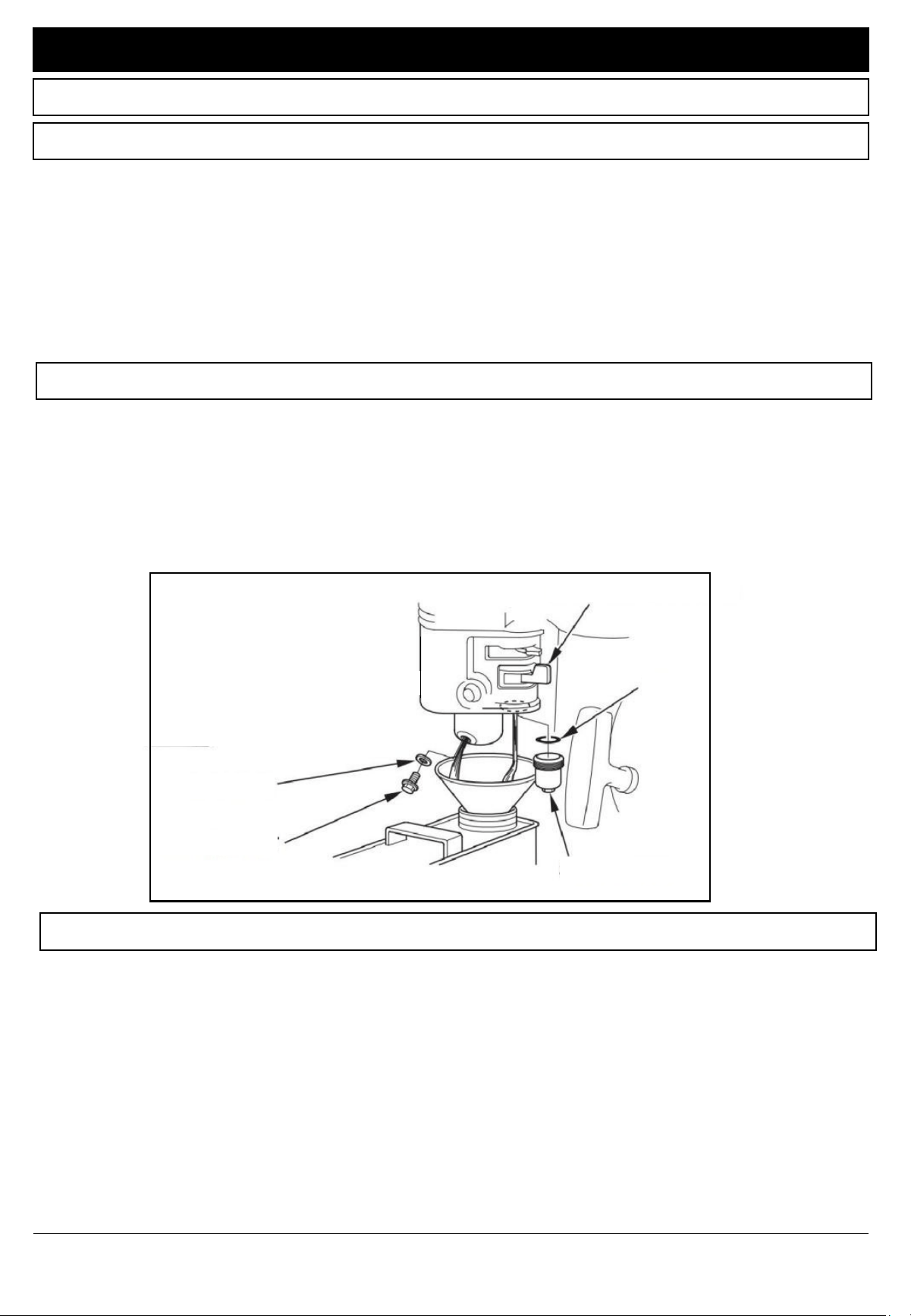

When changing a machines oil, run the machine for a few minutes. Warm oil will
always drain faster and more through compared to oil that’s cold.
• Place a suitable container below the engine to catch the used oil.
• Remove the oil filler cap/dipstick, oil drain plug and washer.
• Allow the used oil to drain completely
• Reinstall the oil drain plug and new washer, and tighten the oil drain plug
securely. Please dispose of used motor oil in a manner that is compatible with the
environment. We suggest you take used oil in a sealed container to your local
recycling centre or service station for reclamation. Do not throw it in the General
Waste, pour it on the ground, or down a drain.
• 3. With the engine in a level position, fill to the upper limit mark (bottom edge of
the oil fill hole) on the dipstick with the recommended oil.
Use 4-stroke motor oil that meets or exceeds
the requirements for API service classification
SJ, SL, or equivalent. Always check the API
service label on the oil container to be sure it
includes the letters SJ, SL, or equivalent. SAE
15W-40 is recommended for general use.
Other viscosities shown in the chart may be
used when the average temperature in your
area is within the indicated range.
Oil Grade
Oil Filler Cap
/Dipstick
Drain Plug & Washer
www.hyundaipowerproducts.co.uk
28
Maintenance & Care
Spark Plug
• Firstly remove the Spark plug cap. This is a push/pull fit.
• Using a suitable spark plug wrench, loosen the spark plug and remove it.
• Inspect the sparkplug. Replace if your inspection finds:
1. Visible Damage
2. Badly fouled with Oil/Carbon
3. Washer health is compromised
• Using a feeler gauge, check the gap of the spark electrode. The gap should be
with these tolerances
0.7-0.8 mm (0.026-0.031 inch).
• Reinstall the sparkplug, firstly winding it by hand, this is to avoid cross threading.
• After properly seated, fully tighten using spark plug wrench.
• When the washer has started to compress tighten to the following instruction:
1. New Sparkplug – a 1/2 Turn tight
2. Re-used Spark Plug – a 1/8 to 1/4 Turn tight
Recommended Spark Plugs – NGK:BPR7ES/Champion:RN7YC
This variation of spark plug is recommended for normal engine running conditions
and temperatures.
Incorrect specifications of sparkplug can cause damage to your machine. Ensure
any sparkplug is correctly gapped and free of any deposits
www.hyundaipowerproducts.co.uk
29
Maintenance & Care
Sediment Filter & Draining Fuel
Fuel Valve
Lever
O-Ring
Sediment Cup
Drain Bolt
Washer/Gasket
• Move the fuel valve to the OFF position, then remove the fuel sediment cup by twisting
off. Also remove the O-ring.
• Wash the sediment cup and O-ring in non-flammable solvent, and dry them thoroughly.
• Place the O-ring in the fuel valve, and install the sediment cup. Tighten the sediment cup
securely.
• Move the fuel valve to the ON position, and check for leaks. Replace the O-ring if there is
any leakage.
Sediment Filter
Draining Fuel
• Place an approved gasoline container below the carburettor, and use a funnel to
avoid spilling fuel.
• Remove the carburettor drain bolt and sediment cup, and then move the fuel valve
lever to the ON position.
• After all the fuel has drained into the container, reinstall the drain bolt and sediment
cup. Tighten them securely.
Preventing Seizing
• When storing machine for longer than a period of 8 weeks, the following
procedure should be followed:
• Remove and Replace engine oil. Remove Spark plug and pour 15ml of fresh
engine oil through the sparkplug hole.
• Pull the starter grip several times to distribute the oil around the cylinder walls.
• Reinstall the Sparkplug. Pull the starter cord until resistance is felt. This ensures
the valves are closed preventing moisture build up.
• Return the recoil grip gently.
www.hyundaipowerproducts.co.uk
30
Maintenance & Care
Troubleshooting
NOTE : All corrective actions should be carried out by suitably qualified person/s.
!
Engine Will not Start Possible Cause
Correction
1. Check Control Positions
Fuel Valve OFF
Move fuel valve lever to
ON position.
Choke open
Move choke lever to
CLOSED position unless
engine is warm.
Ignition Switch Off
Turn ignition switch to ON.
2. Check Fuel
Out of
Fuel
Refuel
Bad fuel; pump stored
without treating or draining
gasoline, or refuelled with
bad gasoline
Drain fuel tank and
carburettor. Refuel with
fresh gasoline
3. Remove and inspect
spark plug.
Spark plug faulty, fouled, or
improperly gapped.
Gap or replace spark plug
Spark plug wet with fuel
(flooded engine).
Dry and reinstall spark plug.
Start engine with throttle
lever in FAST position.
4. Take engine to an
authorized servicing dealer,
or refer to shop manual.
Fuel filter clogged,
carburettor malfunction,
ignition malfunction, valves
stuck, etc.
Replace or repair faulty
components as necessary.
Engine Lacks Power Possible Cause Correction
1. Check air filter. Air filter clogged. Clean or replace filter.
2. Check fuel. Bad fuel; pump stored
without treating or
draining gasoline, or
refuel with bad gasoline.
Drain fuel tank and
carburettor. Refuel with
fresh gasoline
3. Take engine to an
authorized servicing
dealer, or Refer to shop
manual.
Fuel filter clogged,
carburettor malfunction,
ignition malfunction,
valves stuck, etc.
Replace or repair faulty
components as
necessary.
www.hyundaipowerproducts.co.uk
31
Maintenance & Care
Troubleshooting
NOTE : All corrective actions should be carried out by suitably qualified person/s.
!
Symptoms Possible Causes Corrections
Water pressure is weak 1. Water supply is
restricted.
2. Water not turned on
to full power
3. Not using high
pressure nozzle
1. Inspect garden hose
for kinks or leaks. Make
sure you are using a
large enough garden
hose (min. ¾ inch
diameter)
2. Open water source all
the way.
3. Change nozzle
Pump fails to produce
pressure or pressure is
inconsistent
1. Water supply is
restricted
2. Water not turned on
full power
3. Nozzle is clogged
4. Spray gun leaks
5. Air in line
6. Inlet hose screen is
clogged
7. Water supply is over
100°F 8. Pump is faulty
1. Inspect garden hose
for kinks or leaks. Make
sure you are using a
large enough garden
hose (Min. ¾ inch
diameter)
2. Open water source all
the way.
3. Clean nozzle
4. Check spray gun
connection or replace
spray gun
5. Squeeze trigger
handle to remove air
6. Clean inlet
7. Use cool water supply
Contact service centre
www.hyundaipowerproducts.co.uk
32
Maintenance & Care
Maintenance Schedule
Schedule for Regular Maintenance Per Use
Every 20
hours or in
the first
month of
initial use
Every
50
hours
or ever
3
month
s
Every
100
hours
or
every
6
month
s
Every
300
hours
or
every
year
Engine Oil
Inspect the Oil
Level
•
Replace • •
Air Filter
Inspect •
Clean • (1)
Fuel Strainer Bowl Clean •
Spark Plug Clean •
Repla
ce
Valve Clearance Readjust •
Cylinder Head Clean Every 300 Hours (2)
Fuel Tank and
Strainer
Clean Every 2 Years (2)
www.hyundaipowerproducts.co.uk
33
Technical Data
Specification
Model HYW3400P
Fuel Type Petrol
Engine Displacement (cc) 209
Rated Power Continuous (hp/kW) 5/3.7
Rated Power Maximum (hp/kW) 5.8/4.3
Fuel Tank Capacity (L) 3.3
Engine Oil Capacity (L) 0.5
Sound Level (dB) 107
Maximum Pump Flow Rate (L/m) 9
Maximum Pump Head Pressure (psi) 3400 (±10% tolerance)
Operating Pressure (psi) 2800
www.hyundaipowerproducts.co.uk
34
Recycling & Disposal
Recycling & Disposal
We do not offer a takeback scheme for the recovery of Waste Electrical Electronic
Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or
Batteries is passed onto you by us.
So when it becomes necessary to dispose of your machine you must take it to your
local Civic Amenity Site. For further information please contact your local Authority
for disposal advice.
You MUST make sure that all unused oil and fuel is disposed of correctly either
beforehand or at your local Civic Amenity Site.
• Under NO circumstances must any fuel or oil be put down any drains.
• Certain products contain WEEE waste which should not be disposed of in your
domestic waste.
• You MUST recycle WEEE in accordance with your local authority or recycling
centre.
• Certain products contain batteries which should not be disposed of in your
domestic waste.
• You MUST recycle batteries in accordance with your local authority or recycling
centre.
• Unwanted packaging and materials should be stored and taken to a recycling
centre so it can be disposed of in a manner which is compatible with the
environment.
We are a Member of the VALPAK National Compliance Scheme and our
registration number is RM08660. For further information about disposal please
contact your Local Authority.
You can also get more advice and guidance about recycling at the following
website http://www.recycle-more.co.uk
Should you pass this product on to another user either sold or loaned, you MUST
pass on this user manual. This will make sure that all other users can use and
maintain this machine safely.
1. Environmental protection should be a priority of considerable importance when
using the machine, for the benefit of both social coexistence and the environment
in which we live. Try not to cause any disturbance to the surrounding area.
2. You must comply with local regulations and provisions for the disposal of
packaging, oils, fuel, filters, damaged parts or any elements which have a strong
impact on the environment. This waste must not be disposed of as normal waste. It
needs to be separated and taken to specified waste disposal centres where the
material will be recycled.
3. You must comply with local regulations for the disposal of waste materials after
mowing.
4. When disposing, do not pollute the environment with the machine, but hand it
over to a disposal centre, in accordance with the local laws in force.
Environmental Protection
www.hyundaipowerproducts.co.uk
35
EU Declaration Of Conformity
Importer and Authorised Representative
Genpower Ltd
Isaac Way, Pembroke Dock, SA72 4RW
Country of Origin: China
Description: Petrol Pressure Washer
SKU Code: HYW3400P
Date of Issue: 01/01/2024
Regulations and Directives of Compliance
• 2006/42/EC The Machine Directive
• 2014/30/EU EMC Directive
• 2000/14/EC Noise Emissions
• 2011/65/EU RoHS
Statement of Declaration
We the importer and authorised representative of the product described confirm
conformity within the provisions of applicable regulations and directives listed
within this document.
Signed on Behalf of Genpower Ltd
Place of Issue: Genpower Ltd
Signatory Name: Roland Llewellin
Position: Managing Director
……………………………………
www.hyundaipowerproducts.co.uk
36
Useful Information
Check Out Our YouTube Channel
Our videos on YouTube include:
• Unboxing
• Assembly of your machine
• How to service your machine
• Products in use
• ‘How To’ videos
• Product features
Go to YouTube and search ‘Hyundai Power Products’.
Manual Updates
Our manuals are constantly being reviewed and updated. Should you find an
error, omission or something unclear, please contact us for assistance. We reserve
the right to make any modifications without prior notice whenever necessary.
Our latest manuals are also placed online. All our manuals can be downloaded at:
www.hyundaipowerproducts.co.uk
Returning Your Product
If you are returning your product, please contact the dealer for their returns policy.
Leaving A Review
We work very hard to give all of our customers the best possible service. If you have
any problems, before leaving negative feedback, please contact us to give us a
chance to resolve the issue. We would be delighted if you left us positive
feedback! To leave a review, please go to:
uk.trustpilot.com/review/hyundaipowerequipment.co.uk
Ordering Spare Parts
You can find the spare part you are looking for at power-spares.co.uk
Warranty
Proof of purchase will be required before you make a warranty claim. Full warranty
terms and conditions can be found on the HYUNDAI POWER PRODUCTS website:
www.hyundaipowerproducts.co.uk
www.hyundaipowerproducts.co.uk
37
Product Record
Information
As soon as you have purchased the machine, we recommend that you fill out the
following. If you need to contact an authorised dealer or customer service for
information on servicing, you may need to provide the following information.
Date Of Purchase:……………………………………………………………………………….....
Dealer Name:………………………………………………………………………………………..
Dealer Phone:…………………………………………………………………………………….....
Model Number:…………………………………………………………………………………......
Serial/Batch Number:………………………………………………………..………………........
www.hyundaipowerproducts.co.uk
38
Contact Us
Need Help? Talk To Our Experts
Our friendly aftersales team will be more than happy to help you.
Phone
Call our team on 01646 687 880
Email
aftersal[email protected]
Online Live Chat
Go to www.hyundaipowerproducts.co.uk
Post
Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW.
Hyundai Support Website
Go to hyundaisupport.co.uk
www.hyundaipowerproducts.co.uk
39
Notes
For Inquiries, Please Contact:
GENPOWER LTD
Isaac Way, London Road,
Pembroke Dock, UK, SA72 4RW.
T: +44 (0) 1646 687 880
E: info@hyundaipowerproducts.co.uk
www.hyundaipowerproducts.co.uk
Imported / Distributed by Genpower Ltd for
the United Kingdom & Ireland
Licensed by Hyundai Corporation Holdings, Korea
