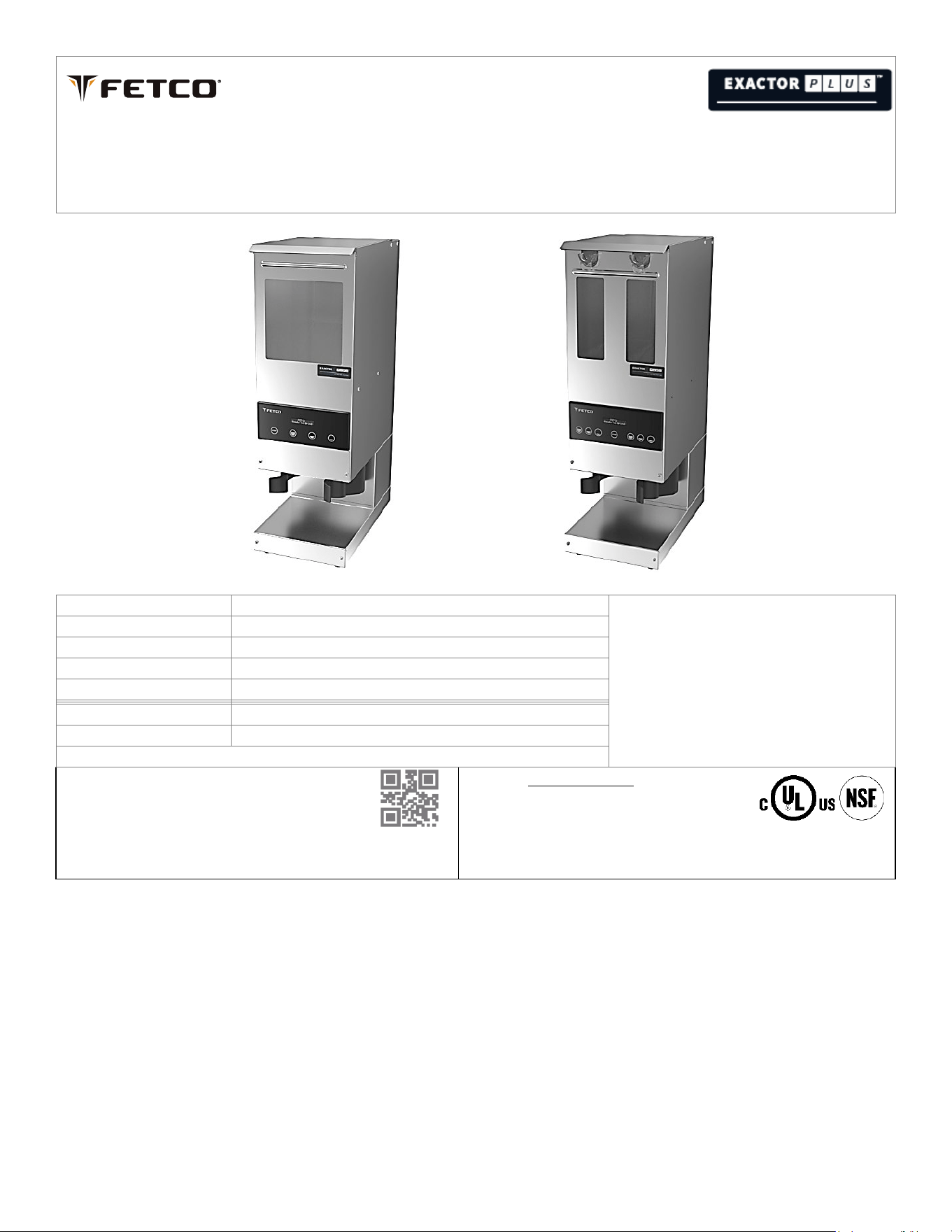

GRS-1201 Commercial Coffee Grinder GRS-1202 Commercial Coffee Grinder
SKU
Product Description
Features
G1201US-1A000-00001
One permanent hopper – 3 portion sizes
-FETCO slicing type grinding burrs
-Self-adjusting brew basket holder
-Fully automatic, with digital timer control
-Front accessible & Service Friendly
-Motor overload protection
-Export versions: 200-240Vac; 50Hz motor
G1202US-1A000-00001
Two removable hoppers – 3 portion sizes per side
G1201IN -1B000-00005
Export only: One permanent hopper – 3 portion sizes
G1202IN-1B000-00005
Export Two removable hoppers – 3 portion sizes per side
1201C E -1B000-00005
xpor t only: On e permanent hopper – 3 por ti on si zes
1202C E-1B000-000 05
xport Two removable hoppers – 3 porti on siz es per sid e
G1201NM-1A000-00001*
One permanent hopper – 3 portion sizes
G1202NM-1A000-00001*
Two removable hoppers – 3 portion sizes per side
*NM denotes Spanish language labeling and user guide
Contact Information
FETCO®
Food Equipment Technologies Company
600 Rose Road
Lake Zurich • IL • 60047-1560 • USA
© 2018-2024 Food Equipment Technologies Company
Internet: www.fetco.com
Phone: (800) 338-2699 (US & Canada)
(847) 719-3000
Fax: (847) 719-3001
Email: sales@fetco.com
techsupport@fetco.com
Commercial Digital Coffee Grinder P235 Rev.:000 May 2024
Table of Contents
Specifications 2
Dimensions & Utility Connections 2
Starting the Grind 3
Enter Programming 3
Layout for Programing Menu 4
Factory default settings for grinder outputs 5
A Grinder Program 5
B General Settings 6
C Service Inputs 6
D Service Outputs 6
F Service Menu 6

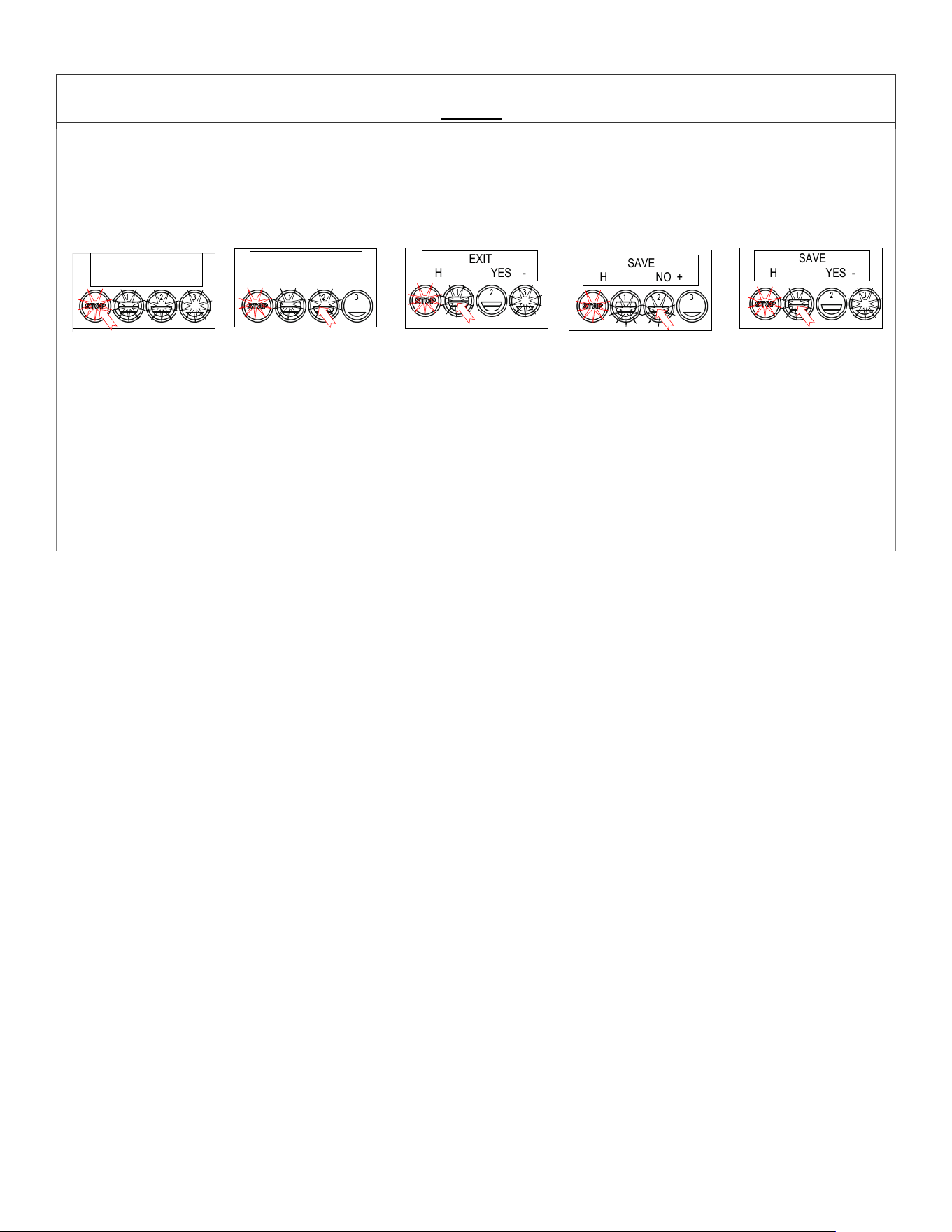

H Save & Exit 7
Grinder service and maintenance 8

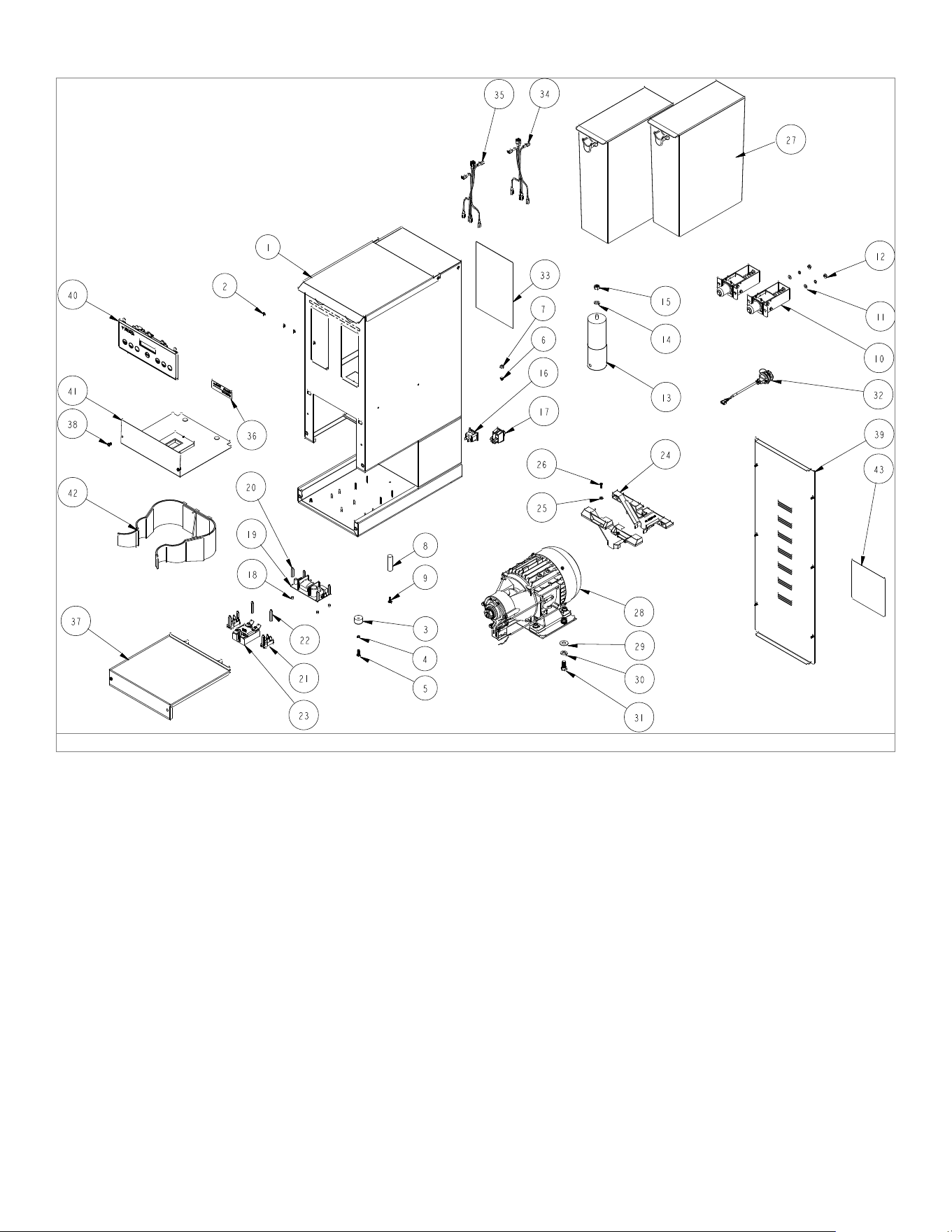

Parts Diagrams 9

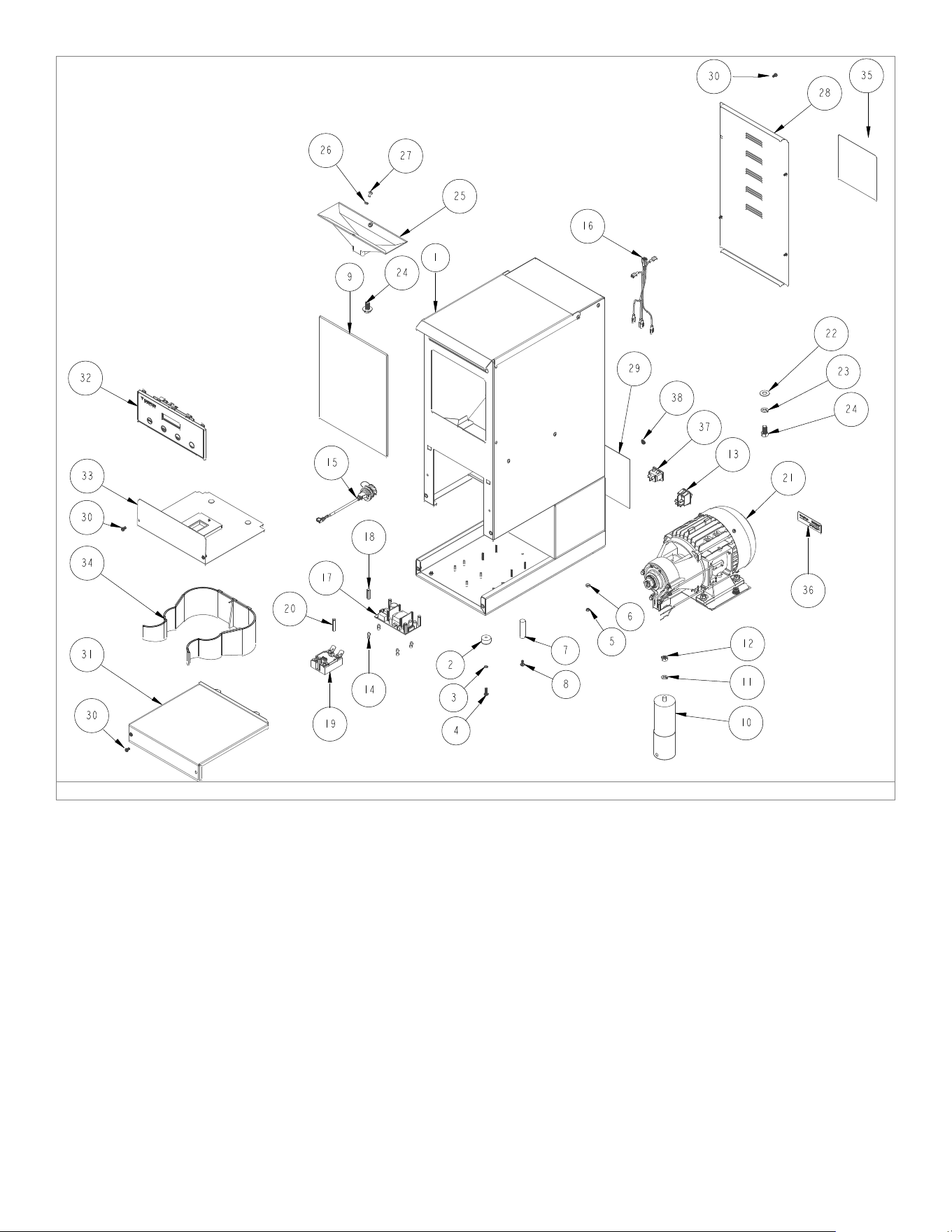

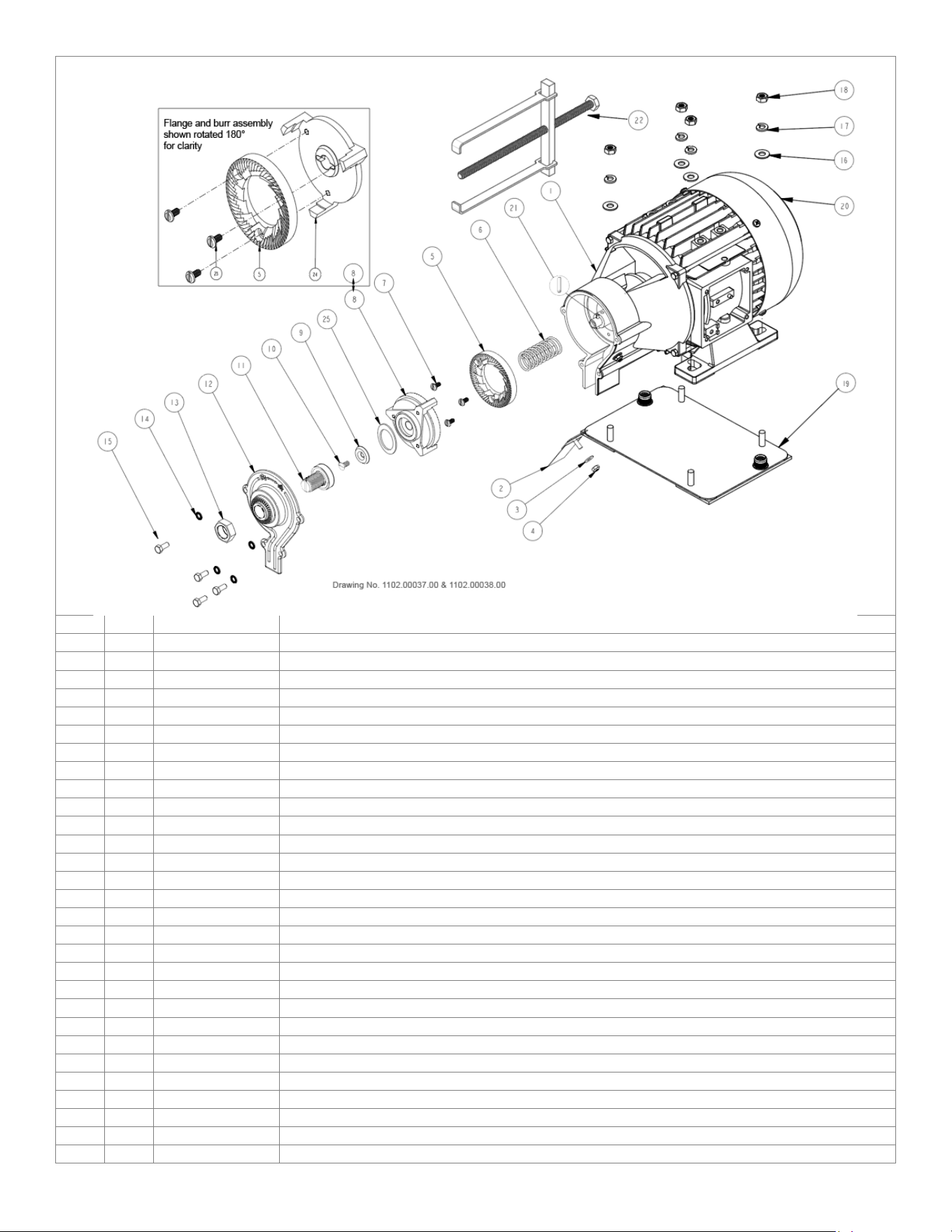

GRS-1200 Motor Assembly 13

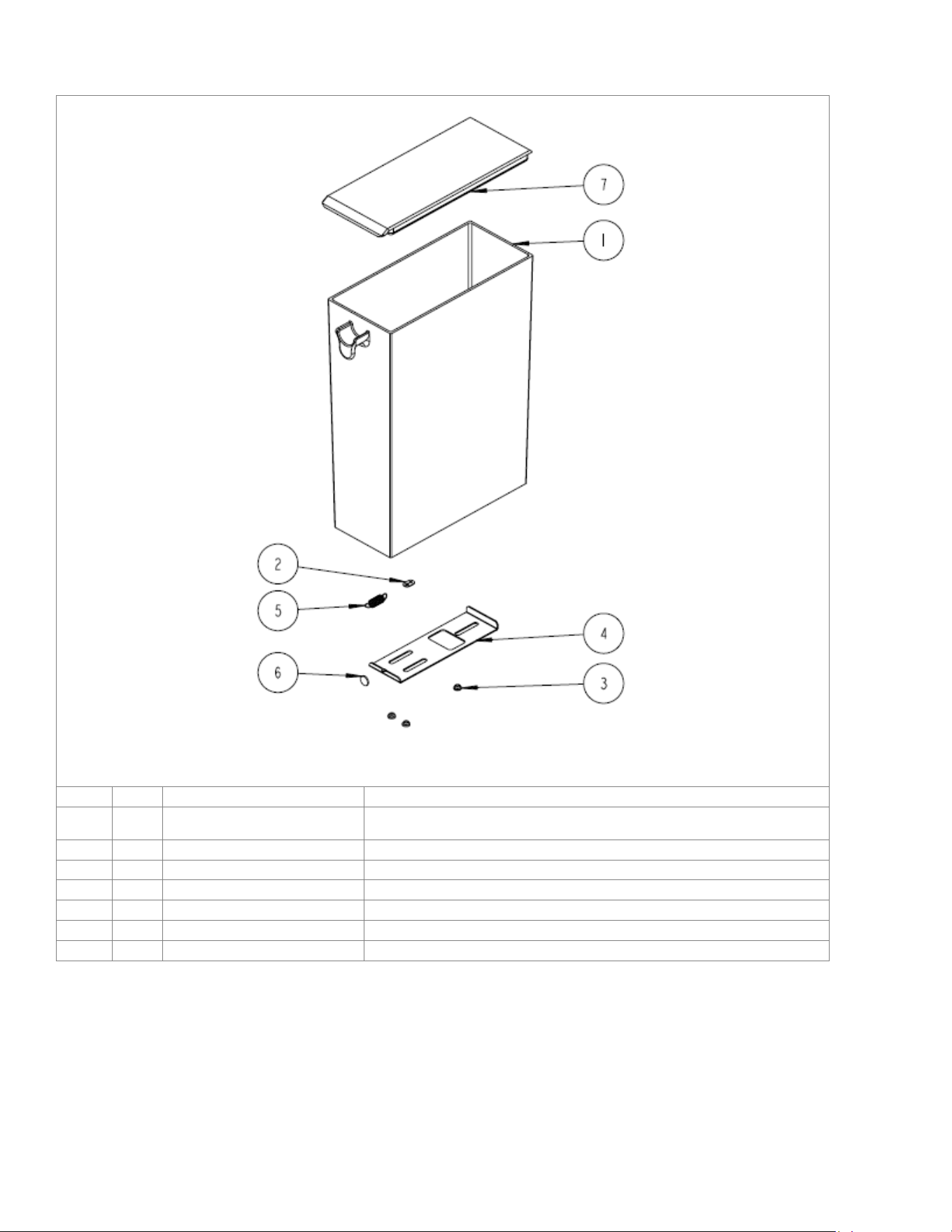

GRS-1202 Hopper Assembly 14

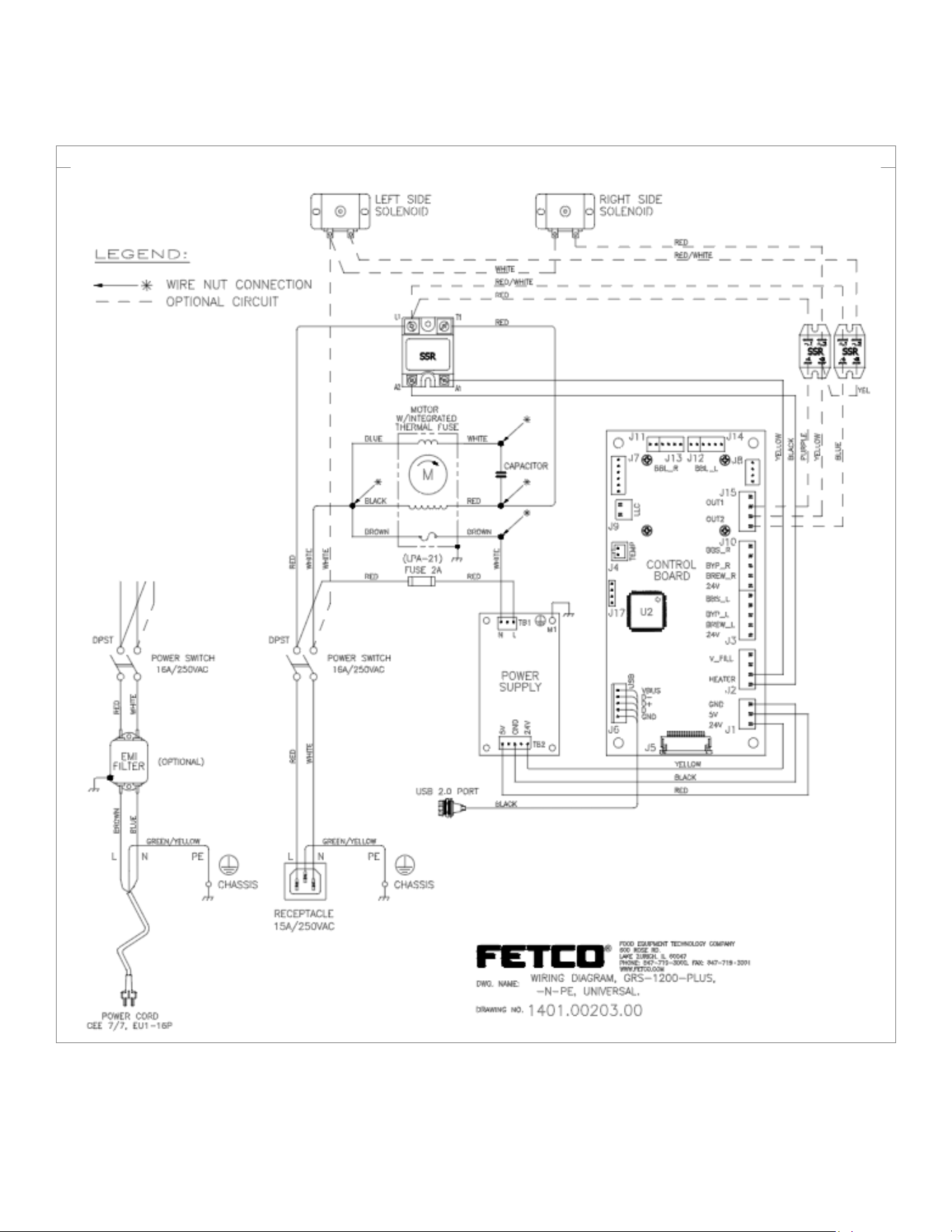

Wiring Diagram 15
www.fetco.com
User’s Guide and Operator Instruction
GRS-1200 Commercial Coffee Grinder
FETCO Commercial Beverage Equipment
EXACTOR PLUS GRINDING SYSTEM®
fetco.com
Go to fetco.com for the latest versions of all information 2 P235 May 2024
Specifications
Electrical
Hopper Capacity: GRS-1201: 15 lbs. / 6.8 kg.
GRS-1202: 5 lbs. / 2.3 kg. each
North America: 120 VAC, 60 Hz single phase 475 Watts
Motor: 5.7 amps, 370 Watts, 0.67 HP
Grinder is IPX-1 Motor is IP 44
NEMA 5-15P plug/cord
Timer Range: 5-60 sec .
Grind Rate*: 16oz. / 450g per minute
Export: 230 VAC, 50 Hz single phase 250 Watts
Motor: 3.8 amps, 370 Watts, 0.74 HP IP 44 (motor only)
Grinder is IPX-1 Motor is IP 44
Plug/cord configuration set per country electrical-see below
Grind Setting Default: Medium
Brew Basket Size: 7” to 9” diameter
Sound Rating
Normal 72-75db Momentary pulse for GRS-1202 hopper actuator: 85db
* Grind rate is determined at medium grind with medium size, average to dark roast beans

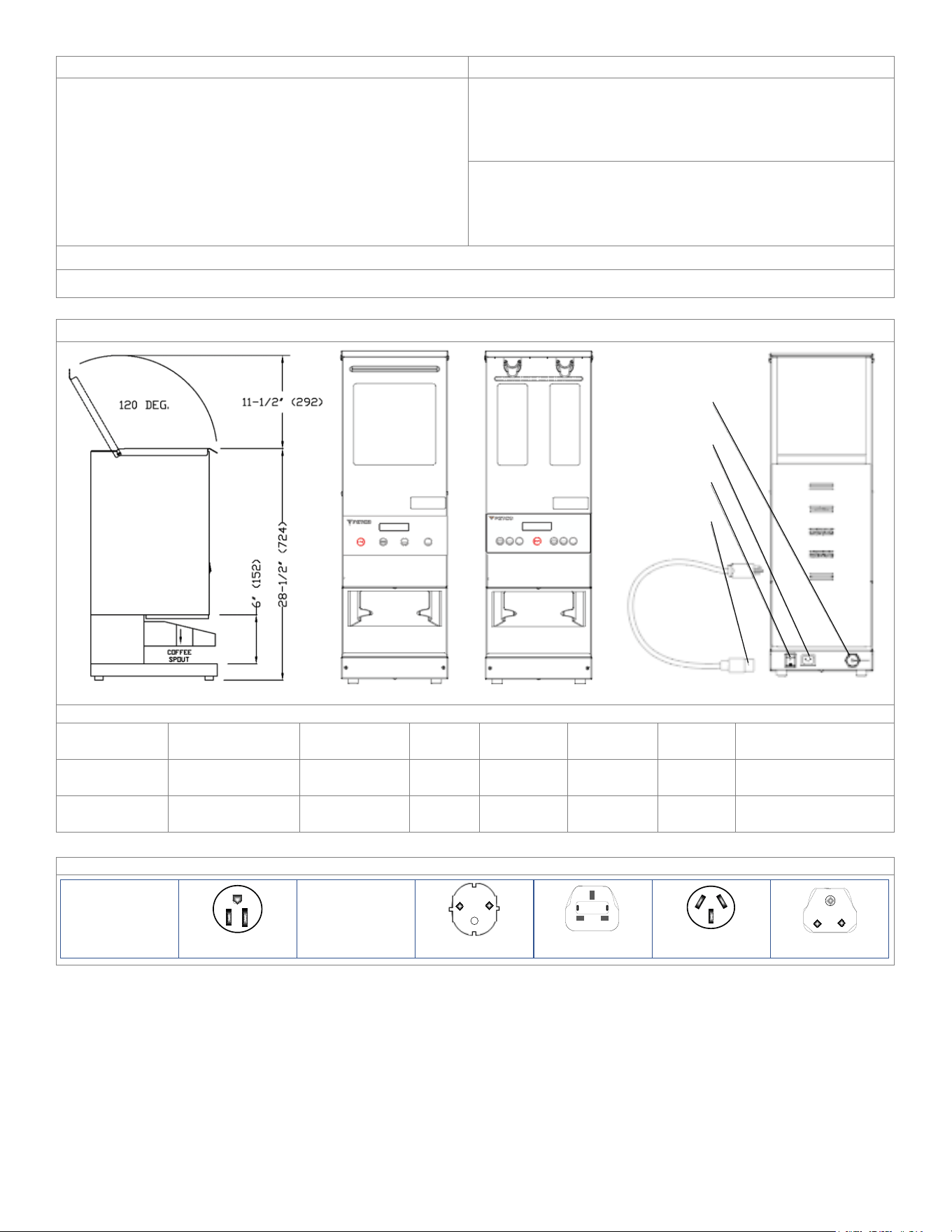

Dimensions & Utility Connections
GRS-1200 Rough-In GRS-1201 Front view GRS-1202 Front view Back view-utility connections
Model
Minimum height
for top opening
Height Width Depth Weight
Shipping
Weight
Shipping
Dimensions
GRS-1201
40 1/8 (+) in.
1019(+) mm
28 3/4 in.
729mm
9 1/8in.
233mm
16 3/8in.
416 mm
51lb
23kg
67lb
31kg
31”HX12WX19D
788mmHX305mmWx483mmD
GRS-1202
40 1/8 (+) in.
1019(+) mm
28 3/4 in.
729mm
9 1/8in.
233mm
16 3/8in.
416 mm
52lb
24kg
67lb
31kg
31”HX12WX19D
788mmHX305mmWx483mmD
Electrical plug/cord configuration
USB Port
Power Cord Inlet
Power
Switch
Power Cord
Export Only 250V 13 A
BS 1363A UK
NEMA 5-15P; 120 V
Plug Configuration
G
W
Export Only 250V 16 A
“Schuko" CEE 7/7 PLUG
Australian AS3112 (YP-35)
Plug Configuration
S AFRICA 250 V; 15/16 A
BS 546 [UK2-15P] TYPE M Plug
North America
Plug Configuration
International Only
Plug Configurations
Go to fetco.com for the latest versions of all information 3 P235 May 2024

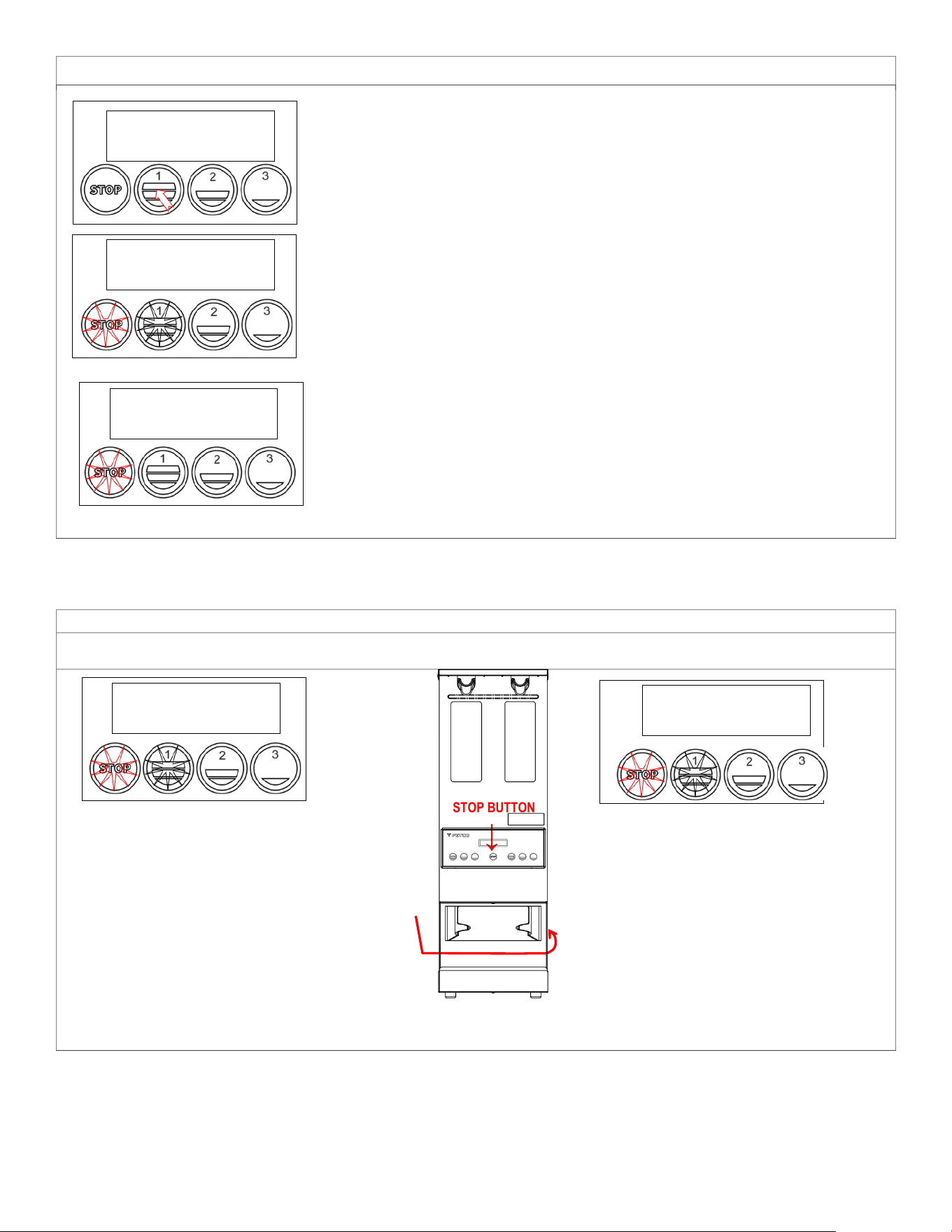

Starting the Grind
GR-1202 shown on display
1. Place whole coffee beans in hopper
2. Prepare a brew basket with the correct size filter.
3. Slide the prepared brew basket completely into the holder
4.. Turn the power switch “ON”
5...Select a batch & press the corresponding BATCH button in to start
6. STOP button will illuminate, Batch Selector button will illuminate
7. -Countdown time will display. Default time setting is 20;13;7 seconds (6,4,2.5 oz)
-Selected BATCH button will slowly pulsate to indicate grinding is in progress.
-All other BATCH buttons will remain unlit during the grind cycle.
8. When the grind cycle is finished,
STOP button will extinguish ..
9. Remove the filled brew basket and proceed to brew
GRS-1202 only-Solenoid Delay
1. Closes hopper guillotine and leaves motor running to empty grind chamber
(If activated)
2. Factory default is ACTIVATED with 20 SECOND delay.
The GRS-1202 solenoid delay feature prevents mixing the coffee types in the two
hoppers (such as regular in one hopper and decaffeinated in the other)
Enter Programming
There are 6 menu groups-A-F plus EXIT (G). (“E” level has not been added as of January 2024)
See the following pages for the batch parameter definitions and all settings for the grinder
TO ENTER PROGRAMMING
1-Turn grinder “OFF” from power switch
2-Then turn power switch to “ON”
…Screen will initialize and then
display digital process notifications
3-After Initialization-
The red “STOP” lamp turns on
4-When red “STOP” button illuminates:
Quickly press it (no need to hold)
First programming screen will display:
“Grind Program A”
When grinder is in PROGRAMMING MODE
-the screen will display:
|Grind Program|
|A (or B-F) |
-
Illuminated LED shows active keypad positions
See the following pages for batch parameter
definitions and all settings for the grinder
Batch Program
A
STOP BUTTON
↓
ON/OFF switch
is located on
lower right on
b
ack of grinder
GRS-1202
Ver.1.0.2023
FETCO
Ready to Grind
Solenoid Delay
20
<<Grinding
20
Go to fetco.com for the latest versions of all information 4 P235 May 2024
Layout for Programing Menu
GRS-1220 series
A10 to A70
B10-B40
C10-C50
D10-D90
F10-F120
G1-G15
H10-H11
Grind Program
General Settings
Service Inputs
Service Outputs
Service Menu
Counters
Exit and Save
|
|
|
|
|
|
|
A20
Grind Enabled
Left-1 (large)
B1
Motor Delay
C1
USB Drive
D1
Motor Outputs
F1
Firmware Version
F1 4.0240118a
G4
Counter Reset
H1
Save Changes
|
|
|
|
|
|
A22
Grind Time
5-60 sec
B2
Solenoid Delay
C2
Keyboard Test
D2
Lt Solenoid
Left solenoid GRS-1202
F2
Bootloader Version
F2 2.2.220811
H2
EXIT?
|
|
|
A30
Grind Enabled
Left -2 (medium)
B3
Customer Name
D3
Rt Solenoid
Right solenoid GRS-1202
F3
Select Model
GRS-1201 GRS-1202
|
|
|
|
A32
Grind Time
5-60 sec
B4
Customer Name
D4
LCD Brightness
(display) 20-100%
F8
Backup to USB
|
|
|
|
A40
Grind Enabled
Left-3 (small)
B5
Demo Mode
D5
LED Brightness
(keypad) 20-100%
F9
Restore From USB
|
|
A42
Grind Time
5-60 sec
F10
Restore Defaults
|
A50
Grind Enabled
F11
Error Log
|
|
A52
Grind Time
5-60 sec
F12
Erase Error Log
|
|
A60
Grind Enabled
F13
Service Phone #
8003382699
|
A62
Grind Time
5-60 sec
|
A90
Copy Batch
|
A91
Copy Batch:
From
|
A92
PASTE: To
Go to fetco.com for the latest versions of all information 5 P235 May 2024

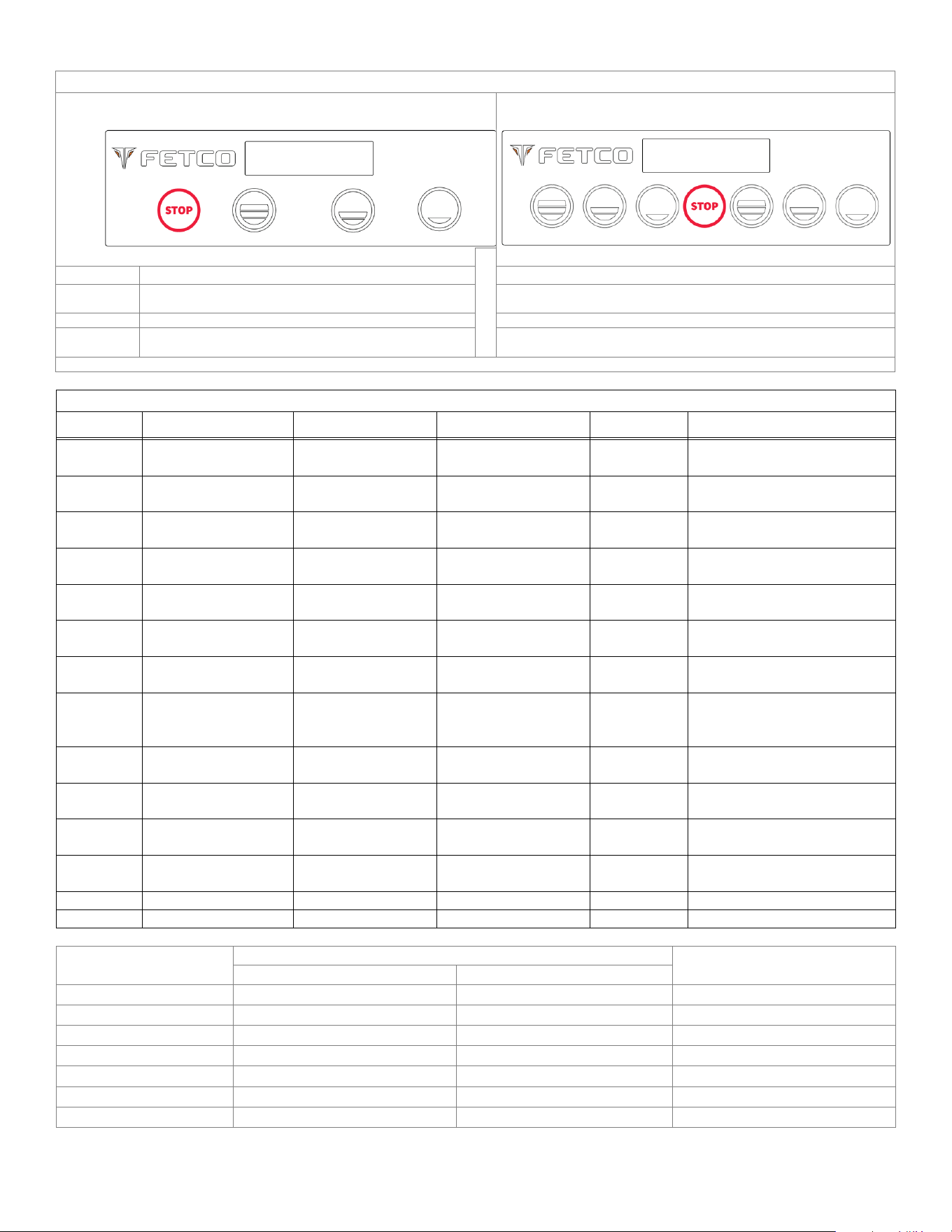

Factory default settings for grinder outputs
GRS-1201 -Single hopper
GRS-1202 -Dual hopper
Display↓
Display↓
Stop
Batch A1
Batch A2
Batch A3
Batch A1
Batch A2
Batch A3
Stop
Batch A4
Batch A5
Batch A6
DEFAULT
ON
ON
ON
ON
ON
ON
ON
ON
ON
Selection Permanent
Off/On User selectable
Off/On User
selectable
Permanent
Off/On User
selectable
Off/On User
selectable
Permanent
Off/On User
selectable
Off/On User
selectable
Default time
20sec
13sec
7seconds
20sec
13sec
7seconds
20sec
13sec
7seconds
Default weight*
6oz or
170grams
4oz or
114grams
2.5oz or
70grams
6oz or
170grams
4oz or
114grams
2.5oz or
70grams
6oz or
170grams
4oz or
114grams
2.5oz or
70grams
* Default weight is approximate based on medium grind with medium size, average to dark roast Arabica beans. Expect more variation when timer is ten seconds or less.
A Grinder Program
Menu Features: Setting Parameters
POSITION Program Items Factory set Default
Programming Range
Increments Notes
A1:00
Grind Enabled
Left 1 (large)
(Screen does not display)
5-60 sec 1sec Always Enabled
A1.20 Grind Time
20sec (+20sec-see B1)
6oz or 170grams
5-60 sec 1sec
Adjustable 5-60 sec or
2oz/50g to 16oz/450g
A2.00
Grind Enabled
Left-1 (large)
YES YES/NO On,Off Can be turned Off/On
A2.20 Grind Time
13sec (+20sec-see B1)
(4oz or 114grams)
5-60 sec 1sec
Adjustable 5-60 sec or
2oz/50g to 16oz/450g
A3.00
Grind Enabled
Left -2 (medium)
YES YES/NO On,Off Can be turned Off/On
A3.20 Grind Time
7sec. (+20sec-see B1)
(2.5oz or 70grams)
5-60 sec 1sec
Adjustable 5-60 sec or
2oz/50g to 16oz/450g
A4.00
(GRS-1202 only)
Grind Enabled
Right-1 (large)
(Screen does not display)
5-60 sec 1sec Always Enabled
A4.20 Grind Time
20sec
(+20sec-see B1)
6oz or 170grams
5-60 sec 1sec
Always Enabled
Adjustable 5-60 sec or
2oz/50g to 16oz/450g
A5.00
(GRS-1202 only)
Grind Enabled
Right-2 (medium)
YES YES/NO On,Off Can be turned Off/On
A5.20 Grind Time
13sec(+20sec-see B1)
(4oz or 114grams)
5-60 sec 1sec
Adjustable 5-60 sec or
2oz/50g to 16oz/450g
A6.00
(GRS-1202 only)
Grind Enabled
Right-3 (small)
YES YES/NO On,Off Can be turned Off/On
A6.20 Grind Time
7sec. (+20sec-see B1)
(2.5oz or 70grams)
5-60 sec 1sec
Adjustable 5-60 sec or
2oz/50g to 16oz/450g
A90
Copy Batch
Select batch 1-6
A92
Paste To
Select batch 1-6
Batch Size
Typical Coffee Dosage
Timer setting
Ounces*
Grams*
½ Gallon
2 – 4 oz.
57 – 113 grams
6.7 - 13.3 sec.
2.5 – 3.0 Liters
2 - 4.5 oz.
57 – 128 grams
6.7 - 15 sec.
1 Gallon
4 – 8 oz.
113 – 227 grams
13.3 - 27 sec.
1.5 Gallons
6 – 12 oz.
170 – 340 grams
20 – 40 sec.
2 Gallons
8 – 16 oz.
227 – 454 grams
27 – 53 sec.
3 Gallons
12 – 24 oz.
340 – 680 grams
40 - 80 sec.
6 Gallons
39 – 51 oz.
1.1 – 1.44 kg.
130 -170 sec.
*Weights are approximate based on medium grind with medium size, average to dark roast Arabica beans. Expect more variation when timer is ten seconds or less
FETCO
Ready to Grind
FETCO
Ready to Grind
Go to fetco.com for the latest versions of all information 6 P235 May 2024
B General Settings
Grinder operation and controls settings
POSITION Program Items Factory set Default Programming Range
Increments Notes
B1 Motor Delay* 20 seconds 0-60 seconds 1 sec.
GRS-1202 only. Shuts
hopper/grinder is ON to
empty grind chamber
B2 Solenoid Delay 1 second 0-2 seconds 1 sec.
Timer to pause hopper
opening from motor start
B3 Customer Name OFF ON/OFF Activates B4 name
B4 Customer Name Enter letters
B5 Demo Mode OFF ON/OFF Operate keys alone
*GRS-1202 dual hopper only. Delay starts after timed grind is completed and shuts off the coffee hopper while the motor
runs to completely empty the grind chamber. This prevents cross contamination from the contents of the two hoppers
C Service Inputs
Peripheral communication and keypad
POSITION
Program Items
Factory set Default
Programming Range
Increments
Notes
C1 USB Drive OFF ON/OFF Shows active USB
C2 Keyboard Test Reboot when complete
D Service Outputs
Test motor, solenoids and set screen & button brightness
POSITION Program Items Factory set Default Programming Range
Increments Notes
D1 Motor Output OFF OFF/ON Shows motor ON/OFF
D2
Lt Solenoid
Left solenoid
GRS-1202 only
OFF
OFF/ON
Activate hopper solenoid and
hopper solenoid SSR
D3
Rt Solenoid
Right solenoid
GRS-1202 only
OFF
OFF/ON
Activate hopper solenoid and
hopper solenoid SSR
D4 LCD Brightness 90% 20% to 100% 5% This is DISPLAY brightness
D5 LED Brightness 60% 20% to 100% 5% This is BUTTON brightness
F Service Menu
Set Model Type, Software & View Codes and Settings
POSITION Program Items Factory set Default Programming Range
Increments Notes
F1 Firmware Version 4.0240118a January 2024
Software to program and
operate all grinder functions
F2 Bootloader Version 2.2.220811 January 2024
Embedded BIOS to operate
and update the firmware
(BIOS basic input/output system)
F3 Select Model
Sold as GRS-1201
or GRS-1202
GRS-1201/GRS-1202
Factory set
Reset if board is serviced
F8 Backup to USB NO Follow prompts Save programmed settings
F9 Restore From USB NO
Applies settings from USB
Insert USB
Will need reboot
F10 Restore Defaults NO NO/YES Restores settings to factory
F11 Error Log Lists error codes 1: ;2: ;3: (1= newest)
Newest first
See chart for error code definitions
F12 Erase Error Log NO
Toggle +/-
YES or NO
FACTORY USE ONLY.
DO NOT RESET
F13 Service Phone # 800-338-2699 Factory technical support
Go to fetco.com for the latest versions of all information 7 P235 May 2024
H Save & Exit
Saving changes and exiting PROGRAMMING
The grinder will save changes only from the “H” menu. DO NOT reboot grinder or toggle ON/OFF-Exit as below.
To exit programming & how to save control setting changes
HOW TO SAVE CHANGES AND EXIT
-The grinder is in PROGRAMMING mode.
A convenient way to access the steps is to remember to scroll to EXITYES and scroll to SAVE YES
Programming changes must be saved as shown below. Do not turn grinder off-all programming will be lost.
Exit Programming & Save
Control Setting Changes
Model Selected
In “F” Screen
(GRS-1202 shown)
Press “STOP” 3X to
proceed to “SAVE”
From the “H” screen
Press button 2 to
toggle to the EXIT-
YES
screen.
From EXIT screen
Press button 1 to
toggle to the SAVE
screen
From SAVE screen
Press button 2 to
toggle to the SAVE-
YES screen
To SAVE and EXIT
Press button 1 to
SAVE your changes
and EXIT to
OPERATING MODE
NOTE: User programmed settings will be erased and overwritten to factory default settings by the following three
programming changes
1) When setting grinder model The software sets equipment to grinder defaults (SETTING F3)
2) When loading from USB (Reprograms settings) (SETTING F9)
3) When restoring defaults (Reloads to defaults ) (SETTING E10)
Select Model
F3 GRS-1202
EXIT
H NO +
EXIT
H YES -
SAVE
H NO +
SAVE
H YES -
Go to fetco.com for the latest versions of all information 8 P235 May 2024
Grinder service and maintenance
INSTALLATION, ADJUSTMENT AND SERVICE….......
THESE SECTIONS ARE FOR PROFESSIONAL USE ONLY!
Danger of fire or electric shock-do not open panels. No user serviceable parts inside.
All adjustments and service to be performed by authorized professional personnel.
Grind Adjustment
Empty the hopper(s).
GRS 12001: Scoop out as many beans as possible. Lift the window up and sweep out the remaining beans.
GRS-1202: Remove both hoppers and dump the beans out. Place both hoppers back in grinder.
1. Press one of the large portion switches. This will clear the grinding chamber of any remaining beans.
2. Remove the front cover. There are 2 screws in front and 2 underneath near the coffee outlet.
3. Using a 7/8” or 22 mm wrench turn the retaining nut counterclockwise at least one turn.
4. Using a 3/8” to 1/2” standard screwdriver turn the adjustment screw clockwise for a finer grind, counterclockwise
for a coarser grind.
Note: Do not exceed more than a 1/4 turn in either direction.
5. Turn retaining nut clockwise, locking adjustment screw in place.
6. Grind a small amount of coffee beans to test the setting. Repeat the above steps if necessary.
To reset the grind setting to the factory default:
• Follow steps 1 - 4 of the grind adjustment procedure.
• Turn the adjustment screw clockwise until the grinding discs touch, then back off
slightly.
• Using a marker, mark the twelve o’clock position of the adjustment screw.
• Turn the screw counterclockwise to just past the four o’clock position.
• Turn retaining nut clockwise locking adjustment screw in place.
• Test by grinding a small batch.
Note: It may be necessary to adjust the grind time to compensate for the new grind setting.
A finer grind will produce less ground coffee per minute and a coarser grind will produce more ground coffee per minute
FINE
COARSE
Go to fetco.com for the latest versions of all information 9 P235 May 2024
Parts Diagrams
GRINDER ASSEMBLY, GRS-1202 BILL OF MATERIALS DRAWING NO.1101.00612.00
Go to fetco.com for the latest versions of all information 10 P235 May 2024
GRINDER ASSEMBLY, GRS-1202 BILL OF MATERIALS DRAWING NO.1101.00612.00
#
QTY
PART NO
DESCRIPTION
1
1
1111.00117.00
BODY, WELDMET, GRS-1202
2
4
1029.00009.00
FASTENER, PUSH IN, 9/32" HD. DIA X .165" LG,
3
4
1073.00006.00
FOOT, GRINDER
4
8
1083.00019.00
WASHER, #10 SCREW SIZE, SPRING LOCK
5
4
1082.00031.00
SCREW, #10-32 X 5/8", PAN HD PHIL, MACHINE
6
1
1083.00011.00
WASHER, #8 SCREW SIZE, INTERNAL TOOTH LOCK
7
1
1084.00006.00
NUT, 8-32 18-8 HEX MACHINE SCREW
8
1
1021.00005.00
ROD, VIBRATION DAMPENING, GR-2
9
1
1082.00130.00
SCREW, TRUSS, HD, SELF TAPPING #8 X .500 SS
10
2
1102.00034.00
SOLENOID ASSEMBLY, 120VAC, GR-2
11
4
1083.00026.00
WASHER, #10 SCREW SIZE, FLAT
12
4
1084.00014.00
NUT, HEX, #10-32, MACHINE SCREW
13
1
1067.00001.00
CAPACITOR, 120VAC VERSION, 40uF, 450VAC, 50-60Hz
67005
CAPACITOR, 230VAC VERSION, 18uF, 450VAC, 50Hz (EXPORT VERSION ONLY)
1067.00005.00
CAPACITOR, 120VAC VERSION, 80uF, 450VAC, 50-60Hz (JAPAN VERS.-2 REQD.)
14
1
1083.00025.00
WASHER, M8 SCREW SIZE, SPRING LOCK
15
1
1084.00018.00
NUT, HEX, M8 SCREW SIZE
16
1
1065.00003.00
CONNECTOR, POWER INLET, 15A, 250VAC
17
1
1058.00024.00
SWITCH, POWER, DOUBLE POLE, 16A, 125/250 VAC
18
4
1081.00006.00
SPACER, 6MM OD x 3.2MM ID x 5MM LG, Z/P
19
1
1052.00001.00
POWER SUPPLY, 90-264VAC/24VDC, 1.8A
20
4
1029.00012.00
SPACER, .25" HEX X 1" LG, FEM #4-40 THREAD
21
2
1052.00056.00
RELAY, SOLID STATE, PANEL MTG. EL240A30-24P
22
6
1081.00042.00
STANDOFF, 1/4" HEX
23
1
1052.00033.00
RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
24
2
1023.00044.00
MANIFOLD, GR-2
25
4
1083.00010.00
WASHER, #12 SCREW W/NEOPRENE-BONDED SEAL
26
4
1082.00017.00
SCREW, TRUSS HD. PHIL. MACHINE, # 6-32 X 1/2 LG.
27
2
1102.00033.002
HOPPER, ASSEMBLY, GR-2 [ORDER AS A066]
28
1
1102.00038.00
GRINDING MOTOR AND PLATE ASSY, 120V/60Hz
28
1
1102.00185.00
COMPLETE GRINDING MOTOR ASSEMBLY, 230VAC/50Hz
29
2
1083.00022.00
WASHER, 3/8" SCREW SIZE, FLAT
30
2
1083.00020.00
WASHER, SPRING LOCK, 3/8 SCREW, 18-8 SS
31
2
1082.00032.00
SCREW, 3/8"-16 X 3/4" LG, HEX HEAD CAP
32
1
1058.00055.00
USB CONNECTOR
33
1
1401.00203.00
WIRING DIAGRAM, GRS-1200, L-N-PE, UNIVERSAL
34
1
1402.00125.00
HARNESS, GRS-1200, UNIVERSAL
35
1
1402.00125.01
HARNESS, GRS-1202, ADDITIONAL
36
1
1041.00035.00
LABEL, EXACTOR PLUS GRINDING SYSTEM
37
1
1112.00023.00
BASE COVER WELDMENT, GR/GRF
38
10
1082.00033.00
SCREW, PAN HD PHIL. MACH., W/DUAL ACT WASHER, #6-32x3/8LG.
39
1
1001.00035.00
COVER, REAR, GR-2
40
1
1102.00534.00
ASSEMBLY, FRONT PANEL, GRS-1202
41
1
1102.00533.00
COVER, GRS-1200 SERVICE ASSEMBLY, W/O RAILS
42
1
1023.00041.00
HOLDER, BREW BASKET, GR-1/2
43
1
1046.00035.00
LABEL, WARNING "TO REDUCE RISK OF ELECTRIC SHOCK OR FIRE"
1
1063.00003.00
CORD, POWER, AMERICAN, 120VAC, 13A, 6FT LG.
1
1063.00027.00
CORD, ENGLAND, 6.5FT
1
1063.00026.00
CORD, AUSTRALIAN, 6.5FT
1
1063.00025.00
CORD, EUROPEAN, 6.5FT
1
1063.00028.00
CORD, SOUTH AFRICA , 6.5FT
Go to fetco.com for the latest versions of all information 11 P235 May 2024
GRINDER ASSEMBLY, GRS-1201 BILL OF MATERIALS DRAWING NO.1101.00613.00
Go to fetco.com for the latest versions of all information 12 P235 May 2024
GRINDER ASSEMBLY, GRS-1201 BILL OF MATERIALS DRAWING NO.1101.00613.00
#
QTY
PART NO
DESCRIPTION
1
1
1111.00118.00
WELDMENT BODY, GRINDER; COMPLETE, GRS-1201,120VAC
2
4
1073.00006.00
FOOT, GRINDER
3
4
1083.00019.00
WASHER, #10 SCREW SIZE, SPRING LOCK
4
4
1082.00031.00
SCREW, #10-32 X 5/8", PAN HD PHIL, MACHINE
5
1
1083.00011.00
WASHER, #8 SCREW SIZE, INTERNAL TOOTH LOCK
6
1
1084.00006.00
NUT, 8-32 18-8 HEX MACHINE SCREW
7
1
1021.00005.00
ROD, VIBRATION DAMPENING, GR-2
8
1
1082.00130.00
SCREW, TRUSS, HD, SELF TAPPING #8 X .500 SS
9
1
1028.00001.00
WINDOW, GR-1
10
1
1067.00001.00
CAPACITOR, 120VAC VERSION, 40uF, 450VAC, 50-60Hz
67005
CAPACITOR, 230VAC VERSION, 18uF, 450VAC, 50Hz (EXPORT VERSION ONLY)
1067.00005.00
CAPACITOR, 120VAC VERSION, 80uF, 450VAC, 50-60Hz (JAPAN VERS.-2 REQD.)
11
1
1083.00025.00
WASHER, M8 SCREW SIZE, SPRING LOCK
12
1
1084.00018.00
NUT, HEX, M8 SCREW SIZE
13
1
1058.00024.00
SWITCH, POWER, DOUBLE POLE, 16A, 125/250 VAC
14
8
1081.00006.00
SPACER, 6MM OD x 3.2MM ID x 5MM LG, Z/P
15
1
1058.00055.00
USB CONNECTOR
16
1
1402.00125.00
HARNESS, GRS-1200, UNIVERSAL
17
1
1052.00001.00
POWER SUPPLY, 90-264VAC/24VDC, 1.8A
18
4
1029.00012.00
SPACER, .25" HEX X 1" LG, FEM #4-40 THREAD
19
1
1052.00033.00
RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
20
2
1081.00042.00
STANDOFF, 1/4" HEX
21
1
1102.00038.00
GRINDING MOTOR AND PLATE ASSY, 120V/60Hz
22
2
1083.00022.00
WASHER, 3/8" SCREW SIZE, FLAT
23
2
1083.00020.00
WASHER, SPRING LOCK, 3/8 SCREW, 18-8 SS
24
2
1082.00032.00
SCREW, 3/8"-16 X 3/4" LG, HEX HEAD CAP
25
1
1023.00148.00
FUNNEL, HOPPER, GR-1
26
2
1083.00010.00
WASHER, #12 SCREW W/NEOPRENE-BONDED SEAL
27
2
1082.00023.00
SCREW, #8-32 X 3/8 TRUSS HD PHIL., MACHINE
28
1
1001.00020.00
COVER, REAR, GR-1/GRF-2
29
1
1401.00203.00
WIRING DIAGRAM, GRS-1200, L-N-PE, UNIVERSAL
30
8
1082.00033.00
SCREW, PAN HD PHIL. MACH., W/DUAL ACT WASHER, #6-32x3/8LG.
31
1
1112.00023.00
BASE COVER WELDMENT, GR/GRF
32
1
1102.00536.00
ASSEMBLY, FRONT PANEL, GRS-1201
33
1
1102.00533.00
COVER, GRS-1200 SERVICE ASSEMBLY, W/O RAILS
34
1
1023.00041.00
HOLDER, BREW BASKET, GR-1/2
35
1
1046.00035.00
LABEL, WARNING "TO REDUCE RISK OF ELECTRIC SHOCK OR FIRE"
36
1
1041.00035.00
LABEL, EXACTOR PLUS GRINDING SYSTEM
37
1
1065.00003.00
CONNECTOR, POWER INLET, 15A, 250VAC
38
1
1084.00051.00
NUT, HEX LOCKWASHER, #8-32, 18-8 ST. STL.
1
1063.00003.00
CORD, POWER, AMERICAN, 120VAC, 13A, 6FT LG.
1
1063.00027.00
CORD, ENGLAND, 6.5FT
1
1063.00026.00
CORD, AUSTRALIAN, 6.5FT
1
1063.00025.00
CORD, EUROPEAN, 6.5FT
1
1063.00028.00
CORD, SOUTH AFRICA , 6.5FT
Go to fetco.com for the latest versions of all information 13 P235 May 2024
GRS-1200 Motor Assembly
.
Ref.
#
PART NO
DESCRIPTION
1
1
1102.00029.00
GRINDING CHAMBER ASSEMBLY WITH 120VAC/60Hz MOTOR
1
1
1102.00030.00
GRINDING CHAMBER ASSEMBLY WITH 230VAC/50Hz MOTOR EXPORT ONLY
2
1
1112.00035.00
GUIDE COFFEE FLOW, WELDMENT, GR
3
1
1083.00016.00
WASHER, #8 SCREW SIZE, FLAT
4
1
1084.00015.00
LOCKNUT, #8-32 SCREW SIZE, HEX THIN NYLON INSERT
5
2
1014.00005.00
DISC, GRINDING, 64 MM DIA (One burr attached to a complete rotating disc flange)
5
1000.00085.00
KIT: DISC, GRINDING, 64 MM DIA ( Kit of two burrs)
1000.00141.00
KIT: DISC, GRINDING, 64 MM DIA ( Kit of two burrs and #22 burr puller)
6
1
1085.00002.00
SPRING, GRINDER AUGER, 6 MM PITCH
7
3
1082.00026.00
SCREW, M4 X 10, PAN HEAD, SLOTTED
8
1
1102.00032.00
FRONT GRINDING DISC ASSEMBLY, GR (Flange and burr assembled)
9
1
1013.00021.00
WASHER, GR1/GR2 COUNTERSUNK
10
1
1082.00027.00
SCREW, M5 X 10, FLAT HEAD, SLOTTED
11
1
1102.00036.00
SHAFT AND BEARING ASSEMBLY
12
1
1015.00005.00
COVER , GRINDING CHAMBER HSG, MACHINED
13
1
1084.00016.00
NUT, M16x1 JAM
14
4
1083.00017.00
WASHER, M5, SERRATED BELLEVILLE
15
4
1082.00028.00
SCREW, M5 X 12, HEX HEAD
16
4
1083.00023.00
WASHER, 1/4" SCREW SIZE, FLAT
17
4
1083.00021.00
WASHER, 1/4" SCREW SIZE, SPRING LOCK
18
4
1084.00017.00
NUT, HEX, 1/4"-20
19
1
1102.00035.00
PLATE ASSEMBLY, GRINDER MOTOR
20
1
1102.00037.00
COMPLETE GRINDING MOTOR ASSEMBLY, 120VAC/60Hz
20
1
1000.00078.00
COMPLETE GRINDING MOTOR ASSEMBLY, 230VAC/50Hz
21
1
1087.00003.00
PIN, SLOTTED SPRING, M3x14mm
22
1105.00005.00
Burr Puller, (not included, sold only as an aftermarket accessory)
23
3
1082.00026.00
SCREW, M4 X 10, PAN HEAD, SLOTTED
24
1
1102.00031.00
ROTATING DISC, FLANGE & WASHER, ASSEMBLY, GR
25
1
1083.00015.00
RUB WASHER, 1.25"OD X 0.900"ID, FLAT (-requires RED Loctite®)
Go to fetco.com for the latest versions of all information 14 P235 May 2024
GRS-1202 Hopper Assembly, Part # 1109.00019.00 [ORDER AS A066]
Hopper Parts List A066 – GRS-1202
Ref
QTY
PART NO.
DESCRIPTION
1 1
Sold as A066
1021.00034.00 (MFG use only)
BODY, HOPPER, GR-2
2
1
1003.00035.00
BRACKET, GUILLOTINE SPRING, GR-2
3
3
1029.00008.00
WASHER, SHOULDER, NYLON
4
1
1003.00034.00
GUILLOTINE, GR-2
5
1
1085.00003.00
SPRING, EXPANSION, 3/8"OD X .026"W X 1.375"L, 0.60 LB/IN
6
1
1097.00013.00
BUMPER, 1/2" DIA, FLAT TOP, ADHESIVE BACKED, BLK
7
1
1023.00043.00
LID, HOPPER, GR-2
Go to fetco.com for the latest versions of all information 15 P235 May 2024
Wiring Diagram
