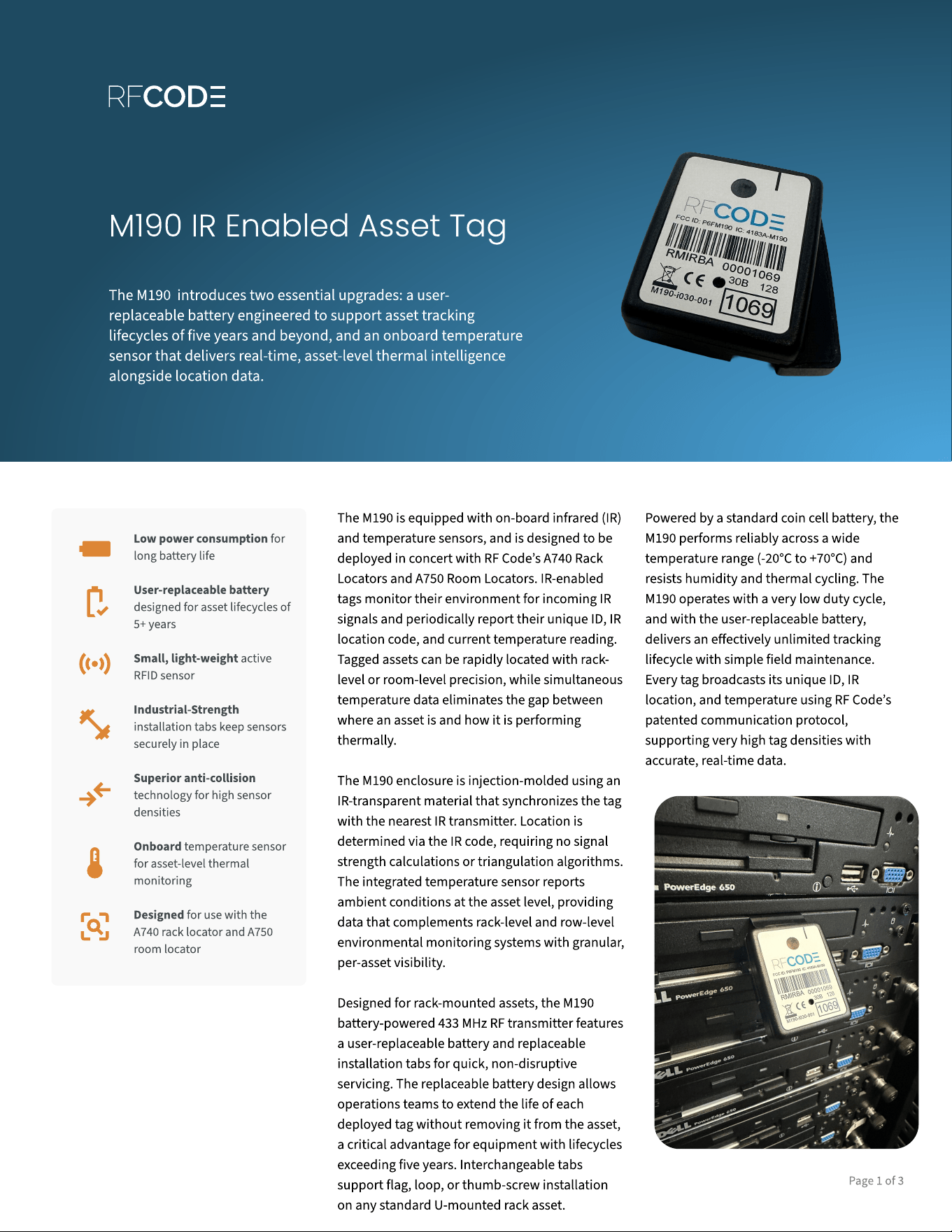

M190 IR Enabled Asset Tag
The M190 introduces two essential upgrades: a user-
replaceable battery engineered to support asset tracking
lifecycles of five years and beyond, and an onboard temperature
sensor that delivers real-time, asset-level thermal intelligence
alongside location data.
Low power consumption for
long battery life
User-replaceable battery
designed for asset lifecycles of
5+ year
Small, light-weight active
RFID senso
Industrial-Strength
installation tabs keep sensors
securely in plac
Superior anti-collision
technology for high sensor
densitie
Onboard temperature sensor
for asset-level thermal
monitorin
Designed for use with the
A740 rack locator and A750
room locato
The M190 is equipped with on-board infrared (IR)
and temperature sensors, and is designed to be
deployed in concert with RF Code’s A740 Rack
Locators and A750 Room Locators. IR-enabled
tags monitor their environment for incoming IR
signals and periodically report their unique ID, IR
location code, and current temperature reading.
Tagged assets can be rapidly located with rack-
level or room-level precision, while simultaneous
temperature data eliminates the gap between
where an asset is and how it is performing
thermally
The M190 enclosure is injection-molded using an
IR-transparent material that synchronizes the tag
with the nearest IR transmitter. Location is
determined via the IR code, requiring no signal
strength calculations or triangulation algorithms.
The integrated temperature sensor reports
ambient conditions at the asset level, providing
data that complements rack-level and row-level
environmental monitoring systems with granular,
per-asset visibility
Designed for rack-mounted assets, the M190
battery-powered 433 MHz RF transmitter features
a user-replaceable battery and replaceable
installation tabs for quick, non-disruptive
servicing. The replaceable battery design allows
operations teams to extend the life of each
deployed tag without removing it from the asset,
a critical advantage for equipment with lifecycles
exceeding five years. Interchangeable tabs
support flag, loop, or thumb-screw installation
on any standard U-mounted rack asset.
Powered by a standard coin cell battery, the
M190 performs reliably across a wide
temperature range (-20°C to +70°C) and
resists humidity and thermal cycling. The
M190 operates with a very low duty cycle,
and with the user-replaceable battery,
delivers an eectively unlimited tracking
lifecycle with simple field maintenance.
Every tag broadcasts its unique ID, IR
location, and temperature using RF Code’s
patented communication protocol,
supporting very high tag densities with
accurate, real-time data.
Page 1 of 3

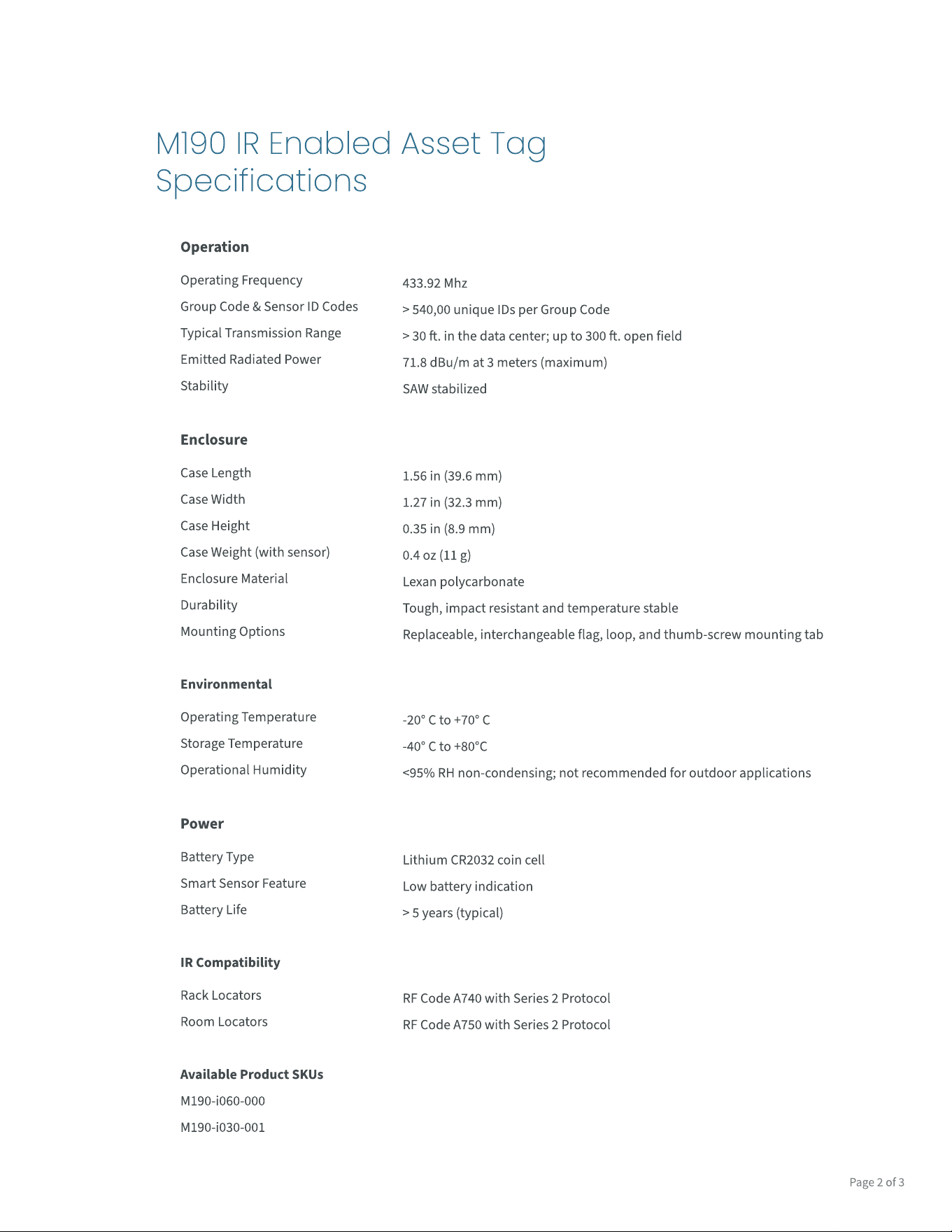

M190 IR Enabled Asset Ta
Specifications
Operatio
Operating Frequenc
Group Code & Sensor ID Code
Typical Transmission Rang
Emitted Radiated Powe
Stabilit
Enclosur
Case Lengt
Case Widt
Case Heigh
Case Weight (with sensor
Enclosure Materia
Durabilit
Mounting Option
Environmenta
Operating Temperatur
Storage Temperatur
Operational Humidit
Powe
Battery Typ
Smart Sensor Featur
Battery Lif
IR Compatibilit
Rack Locator
Room Locator
Available Product SKU
M190-i060-00
M190-i030-00
433.92 Mh
> 540,00 unique IDs per Group Cod
> 30 . in the data center; up to 300 . open fiel
71.8 dBu/m at 3 meters (maximum
SAW stabilized
1.56 in (39.6 mm
1.27 in (32.3 mm
0.35 in (8.9 mm
0.4 oz (11 g
Lexan polycarbonat
Tough, impact resistant and temperature stabl
Replaceable, interchangeable flag, loop, and thumb-screw mounting tab
-20
°
C to
+
70
°
-40
°
C to
+
80
°
<
95
%
RH non-condensing; not recommended for outdoor applications
Lithium CR2032 coin cel
Low battery indicatio
> 5 years (typical
)
RF Code A740 with Series 2 Protoco
RF Code A750 with Series 2 Protocol
Page
2
of
3
FCC Warning

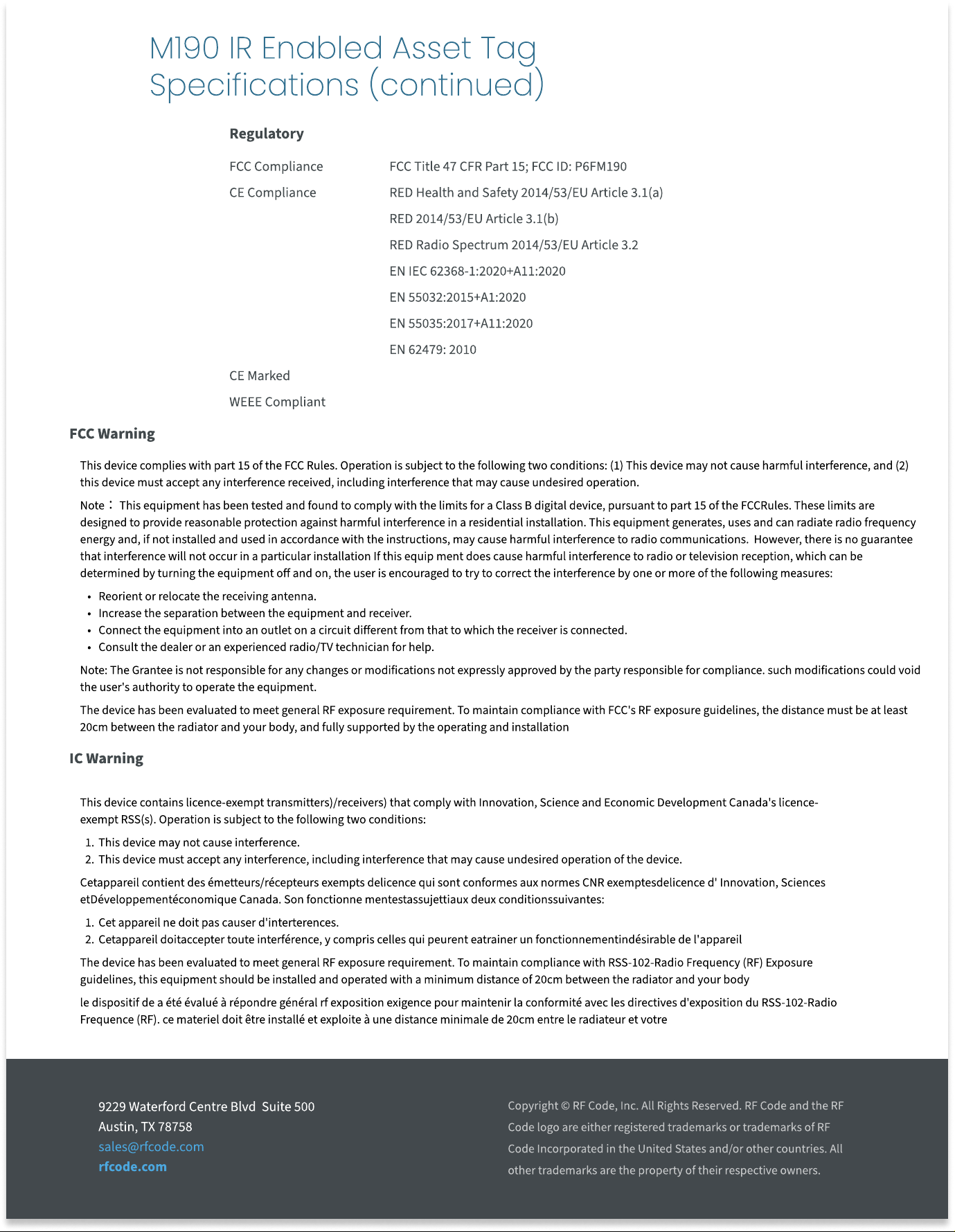

M190 IR Enabled Asset Ta
Specifications (continued)
Regulator
FCC Complianc
CE Complianc
CE Marke
WEEE Compliant
FCC Title 47 CFR Part 15; FCC ID: P6FM19
RED Health and Safety 2014/53/EU Article 3.1(a
RED 2014/53/EU Article 3.1(b
RED Radio Spectrum 2014/53/EU Article 3.
EN IEC 62368-1:2020+A11:202
EN 55032:2015+A1:202
EN 55035:2017+A11:202
EN 62479: 2010
I
C Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired operation
Note
：
This equipment has been tested and found to comply with the limits for a Class
B
digital device, pursuant to part 15 of the FCCRules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation If this equip ment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one or more of the following measures
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit di
erent from that to which the receiver is connected
Consult the dealer or an experienced radio/T
V
technician for help
Note: The
G
rantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void
the user's authority to operate the equipment
The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, the distance must be at least
20cm between the radiator and your body, and fully supported by the operating and installation
This device contains licence-exempt transmitters)/receivers) that comply with Innovation, Science and Economic Development Canada's licence-
exempt RSS(s). Operation is subject to the following two conditions
This device may not cause interference
This device must accept any interference, including interference that may cause undesired operation of the device
Cetappareil contient des émetteurs/récepteurs exempts delicence qui sont conformes aux normes CNR exemptesdelicence d' Innovation, Sciences
etDéveloppementéconomique Canada. Son fonctionne mentestassujettiaux deux conditionssuivantes
Cet appareil ne doit pas causer d'interterences
Cetappareil doitaccepter toute interférence, y compris celles qui peurent eatrainer un fonctionnementindésirable de l'apparei
The device has been evaluated to meet general RF exposure requirement. To maintain compliance with RSS-102-Radio Frequency (RF) Exposure
guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your bod
le dispositif de a été évalué à répondre général rf exposition exigence pour maintenir la conformité avec les directives d'exposition du RSS-102-Radio
Frequence (RF). ce materiel doit être installé et exploite à une distance minimale de 20cm entre le radiateur et votre
