CONTENTS
IMPORTANT SAFETY INSTRUCTIONS...........................................3
INSTALLATION MATERIALS...........................................................5
DISHWASHER SPECIFICATION......................................................7
ENCLOSURE PREPARATION..........................................................8
ADJUSTING THE MOVABLE TOE KICK (SELECT MODELS).....14
INSTALLING THE OUTER DOOR (SELECT MODELS)................15
INSTALLER CHECKLIST................................................................19
FINAL INSTRUCTIONS..................................................................19
HELPFUL HINTS............................................................................19
EN - 2
Thank you for choosing this product.
These installation instructions contain important information on safety
and instructions intended to assist you in the operation and maintenance
of your appliance.
INTRODUCTION
WARNING: Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation that, if
not avoided, may result in injury. It may also be used to alert against
unsafe practices.
NOTICE: Indicates a potentially hazardous situation that, if not
avoided, may result in damage to the dishwasher, the tableware, the
equipment, or the environment.
• Please read this user manual and, particularly, the safety instructions
FRPSOHWHO\DQGFDUHIXOO\7KH\ZLOOVDYH\RXWLPHDQGHႇRUWDQGKHOS
to ensure optimum dishwasher performance.
EN - 3
1 IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using the dishwasher, follow basic precautions. Read all
instructions before using the dishwasher! Save these operating instructions and
pass them on to any future user.
When installing the dishwasher, follow basic safety precautions, including the
following:
• The dishwasher could only be converted from cord-connected to permanently
connected by an authorized service representative. (If needed, contact
your dealer to schedule an authorized service agent for conversion with an
appropriate conversion kit.)
• $TXDOL¿HGLQVWDOOHUVKRXOGSHUIRUPLQVWDOODWLRQDQGUHSDLU:RUNE\XQTXDOL¿HG
persons could be dangerous and may void the warranty.
• The dishwasher should be installed by an insured licensed plumber, contractor,
or trained installer. Installation performed by persons other than this could result
in improper installation and property damage.
• Do not operate the appliance if damaged, malfunctioning, partially
disassembled or if it has missing or broken parts.
• Follow the safety instructions of the user manual.
• 7RUHGXFHWKHULVNRIHOHFWULFVKRFN¿UHRULQMXU\WRSHUVRQVWKHLQVWDOOHUPXVW
ensure that the dishwasher is completely enclosed at the time of installation.
• Only connect the dishwasher to the power supply when all installation and
plumbing work is complete
• If the dishwasher is installed in a location that experiences freezing
temperatures (e.g., in a vacation home, cabin, etc.), you must drain all the water
from the dishwasher’s interior. Water system ruptures that occur as a result of
freezing are not covered by the warranty
• Dishwasher must be secured to adjacent cabinetry using the brackets provided.
Failure to do this may cause damage to property or bodily injury
• Connect to a properly rated, protected, and sized power supply circuit to avoid
electrical overload. The dishwasher is designed for an electrical supply of
120V (volts), 60Hz (hertz), AC, connected to a dishwasher dedicated, properly
grounded electrical circuit with a fuse or breakers rated for 15 amperes.
EN - 4
Electrical supply conductors shall be a minimum of #16 AWG copper wire rated
at 167 °F (75 °C) or higher. These requirements must be met to prevent injury
DQGPDFKLQHGDPDJH&RQVXOWDTXDOL¿HGHOHFWULFLDQLILQGRXEW
• This dishwasher includes a heating element. Do not touch the heating element
during or immediately after use
• Do not use any extension cord or portable outlet device to connect the
dishwasher to a power supply.
• Ensure that any plastic wrappings, bags, small pieces, etc. are disposed of
VDIHO\DQGNHSWRXWRIWKHUHDFKRIFKLOGUHQ7KHUHLVDGDQJHURIVXႇRFDWLRQ
• Remove the door to the washing compartment when removing an old
dishwasher from service or discarding it. Ensure that the appliance presents no
danger to children while being stored for disposal.
• Old appliances may contain materials that can be recycled. Please contact your
local recycling authority about the possibility of recycling these materials.
• The dishwasher drain hose must be installed with a drain loop at least 28”
PPRႇWKHFDELQHWÀRRURWKHUZLVHWKHGLVKZDVKHUPD\QRWGUDLQSURSHUO\
• This dishwasher is intended for residential use only and should not be used in
commercial establishments.
• New installation: If the dishwasher is a new installation, most of the work must
be done before the dishwasher is moved into place.
• Replacement: If the dishwasher is replacing another dishwasher, check the
existing dishwasher connections for compatibility with the new dishwasher, and
replace parts, as necessary.
EN - 5
2 INSTALLATION MATERIALS

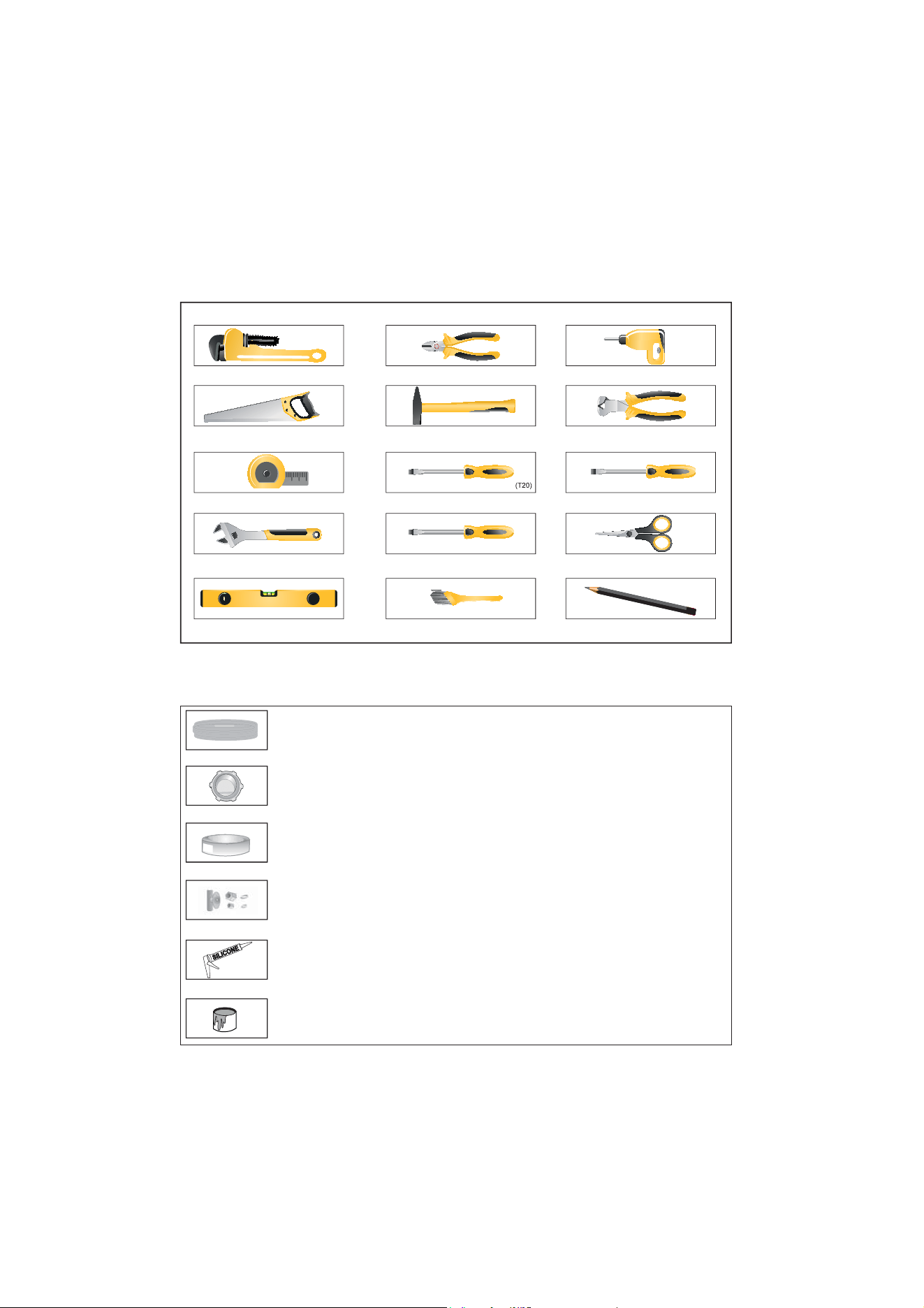

Tools Needed
Materials Needed
Pipe Wrench
Hole Saw
Tape Measure
Adjustable Wrench Slot Screwdriver
Torx Screwdriver Phillips Screwdriver
Scissors
PencilBrushLevel
Hot Water Supply Line - Minimum 3/4” O.D. copper tubing or metal braided
dishwasher supply line.
UL listed conduit connector or strain relief.
Silicone
Glue
7HÀRQWDSHRURWKHUSLSHWKUHDGFRPSRXQGWRVHDOSOXPELQJFRQQHFWLRQV
6KXWRႇYDOYHDQG¿WWLQJVDSSURSULDWHIRUKRWZDWHUVXSSO\OLQHFRSSHUWXELQJ
FRPSUHVVLRQ¿WWLQJRUEUDLGHGKRVH
Hammer Wire Stripper
Wire Cutter Drill
EN - 6
Materials Supplied

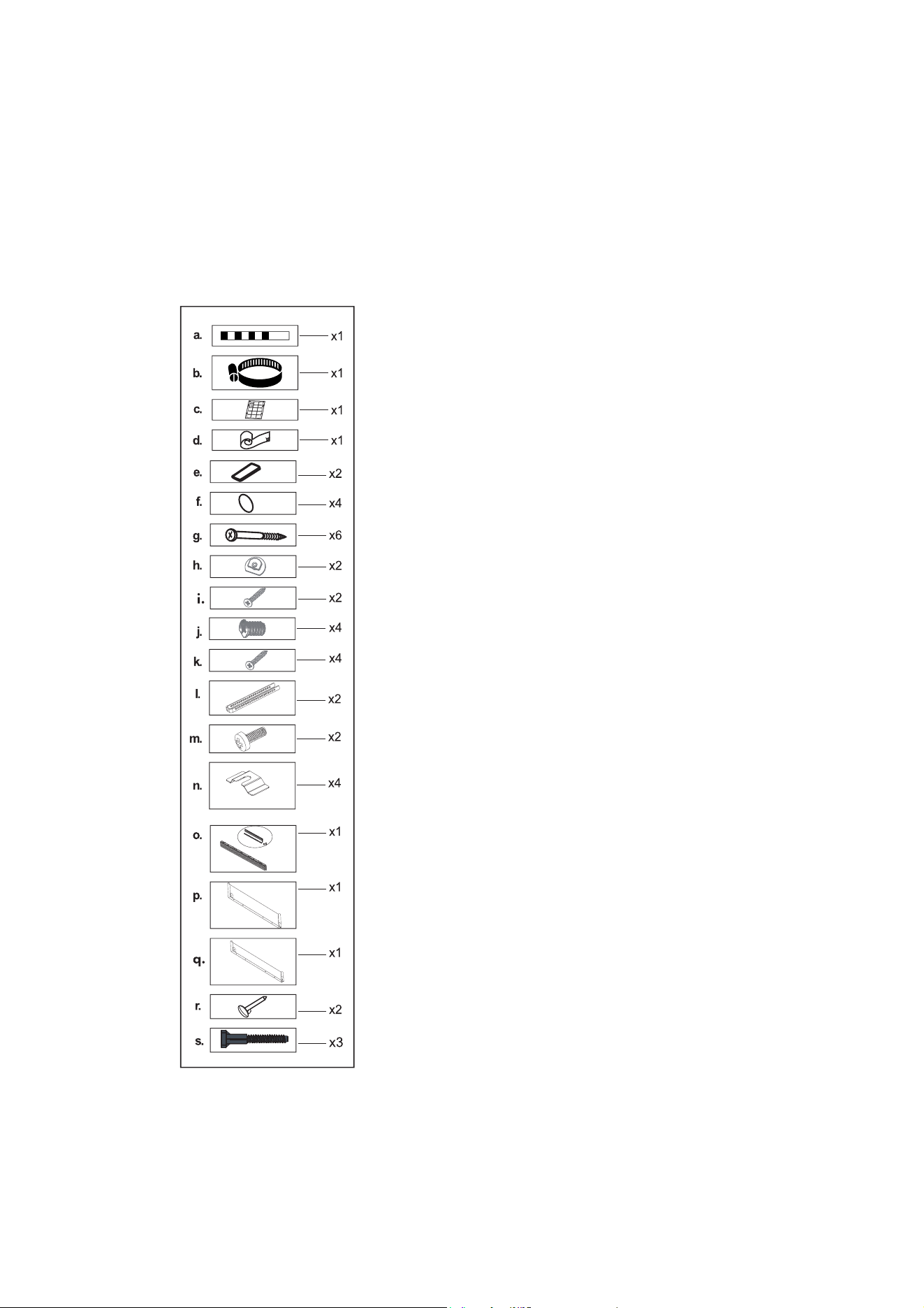

The parts required for positioning the dishwasher are in plastic bags. Check that all the
following parts are included with your unit:
Manual Bag
The dishwasher comes with a manual bag containing the
User Manual and the Installation Instructions.
Dishwasher Parts Bag 1
This dishwasher bag comes with the following parts:
a) Test strip (Select Models)
b) Hose clamp
Dishwasher Parts Bag 2
c) Mounting plan (Select Models)
d) Steam protection foil
H:RRGHQGRRU¿[LQJVWULSV6HOHFW0RGHOV
f) Hole covers (Select Models)
Dishwasher Parts Bag 3
g) Screws 5/32” x 53/32” (4mm x 42mm) (Select Models)
h) Door mounting plastics (Select Models)
i) Screws Ø5/32 x 7/8" (4mm x 22mm) (Select Models)
j) Cabinetry mounting plastics
k) Screws for cabinetry mounting plastics Ø 5/32” x 1 1/8”
(4mm x 28mm)
Dishwasher Parts Bag 4
(Select Models)
l) Toe kick bracket
m) Screws 5/32” x 7/32” (4mm x 6mm)
Q3OLQWK¿[LQJPHWDO
o) Adjustable plinth
p) Adjustable plinth metal (130mm) (Select Models)
q) Adjustable plinth metal (80mm) (Select Models)
r) Plinth locking
Dishwasher Parts Bag 5
(Select Models)
s) Long legs
EN - 7

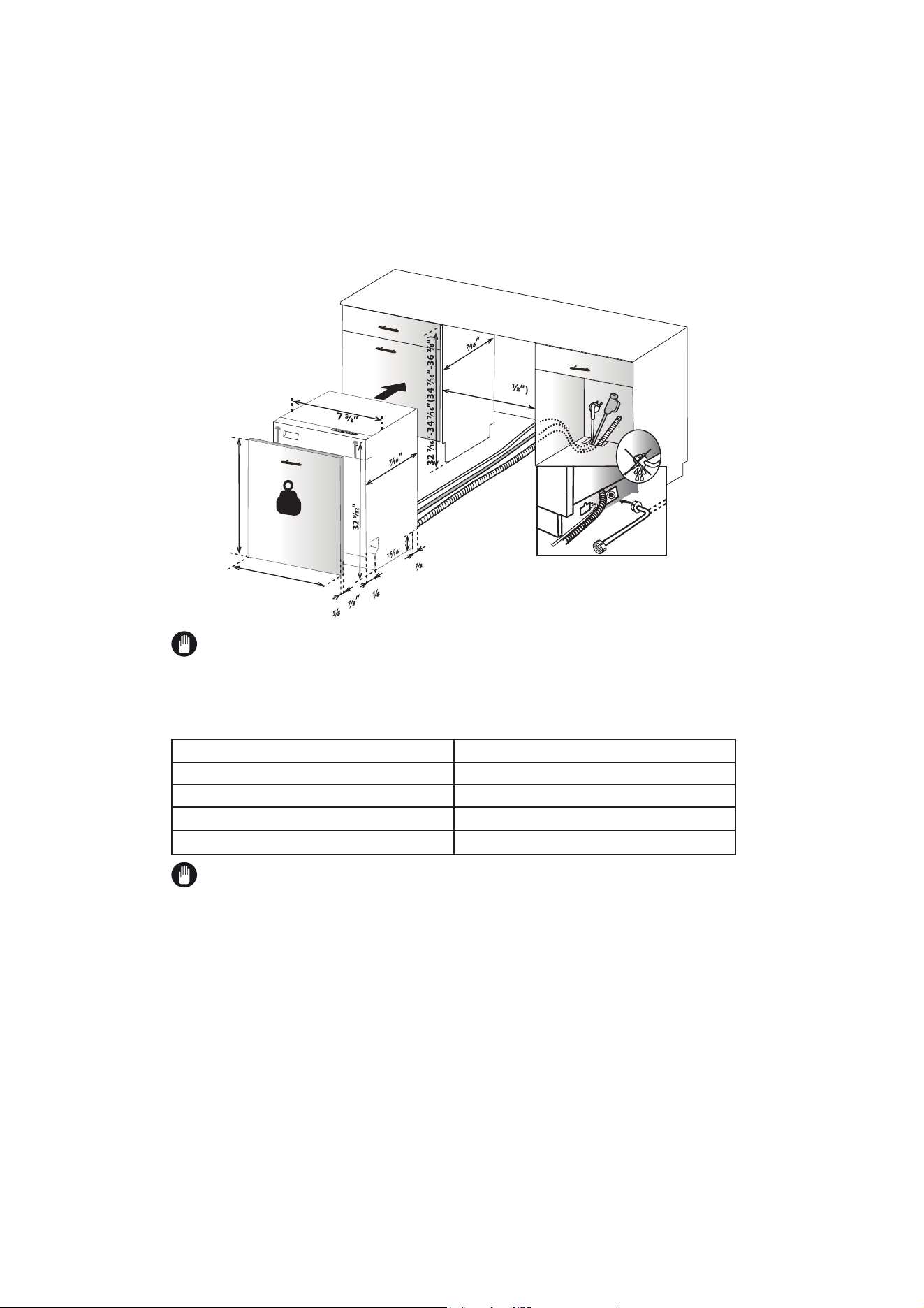

3 DISHWASHER SPECIFICATION
ww
w
w
w
w
NBY
NJO£
w
NBYLH
NJOLHMCT
MCT
NOTICE:$VVKRZQLQ¿JXUH\RXPXVWPHDVXUHWKHKHLJKWDQGGHSWKRIWKHFDELQHWU\
to determine the dimensions of the outer door.
Technical Features
Load Capacity 10 place settings
Permissible Water Pressure 4.35 – 145 PSI (0.3 – 10 bars)
Electrical Connection 120V, 12A, 60Hz
Total Power 1400W
Heater Power 1100W
NOTICE: We continue to strive to improve our products. We may change our
VSHFL¿FDWLRQVRUGHVLJQZLWKRXWSULRUQRWLFH
(17 13⁄32” c~w
EN - 8
4 ENCLOSURE PREPARATION
Electrical Preparation
CAUTION: This dishwasher is designed for an electrical supply of 120V, 60Hz AC,
connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or
breaker rated for 15 Amps. Unit ships with a NEMA 5-15P connector.
The power supply receptacle for the appliance shall be installed in a cabinet or on a wall
adjacent to the under-counter space in which the appliance is to be installed.

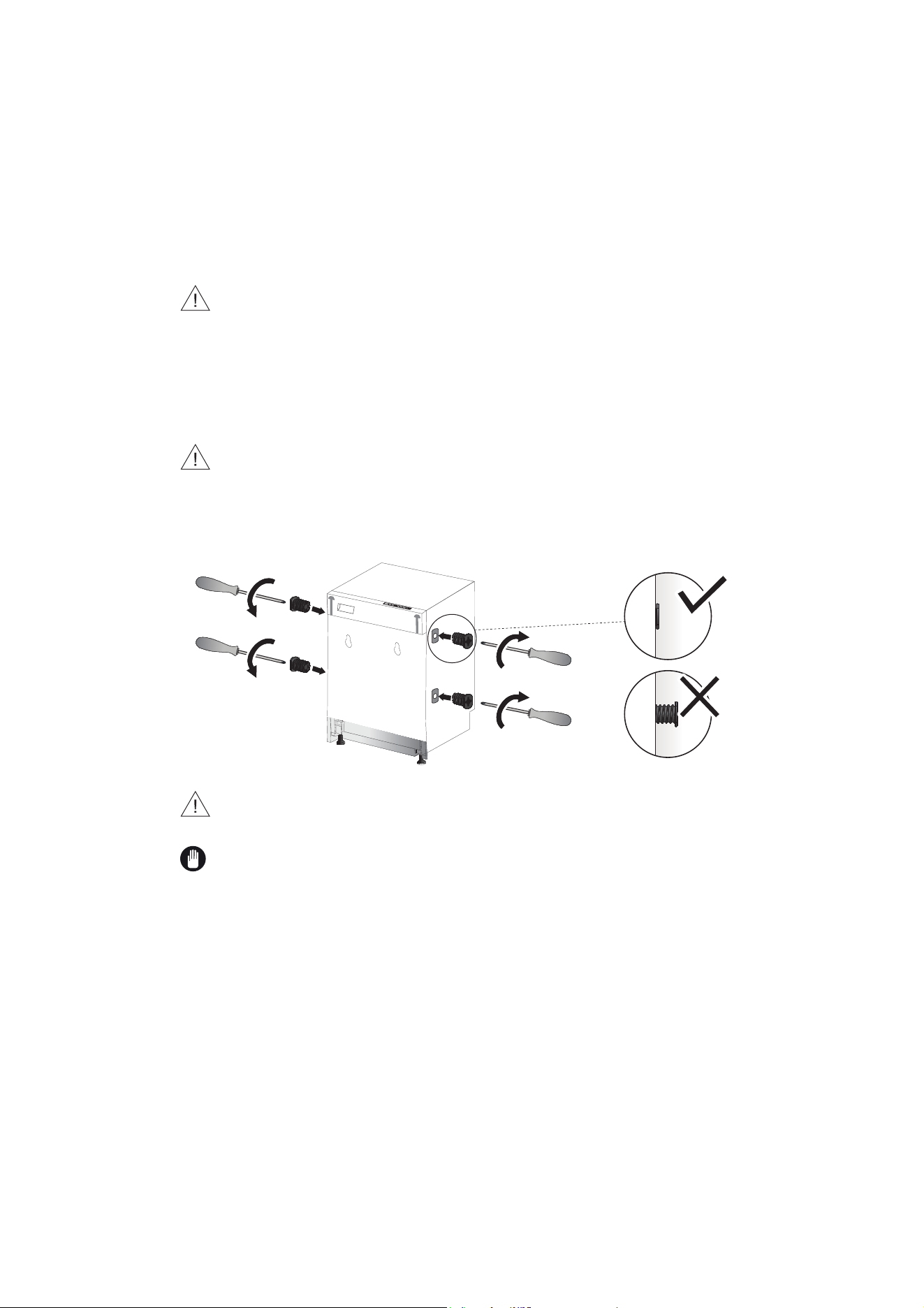

Preparation for Installing Mounting Plastics
CAUTION: Cabinetry mounting plastics and screws in the plastic bag should be used
when the dishwasher is installed in the cabinetry. Use of any part other than the mounting
parts may result in damage to property or bodily injury.
Cabinetry mounting plastics should be assembled with a screwdriver in the marked areas
as shown.
CAUTION: Cabinetry mounting plastics should not remain outside. It should
FRPSOHWHO\¿WLQVLGHWKHVLGHSDQHO2WKHUZLVHWKHGLVKZDVKHUFDQQRWHQWHUWKHFDELQHWU\
NOTICE: It is recommended not to use a drill.
EN - 9

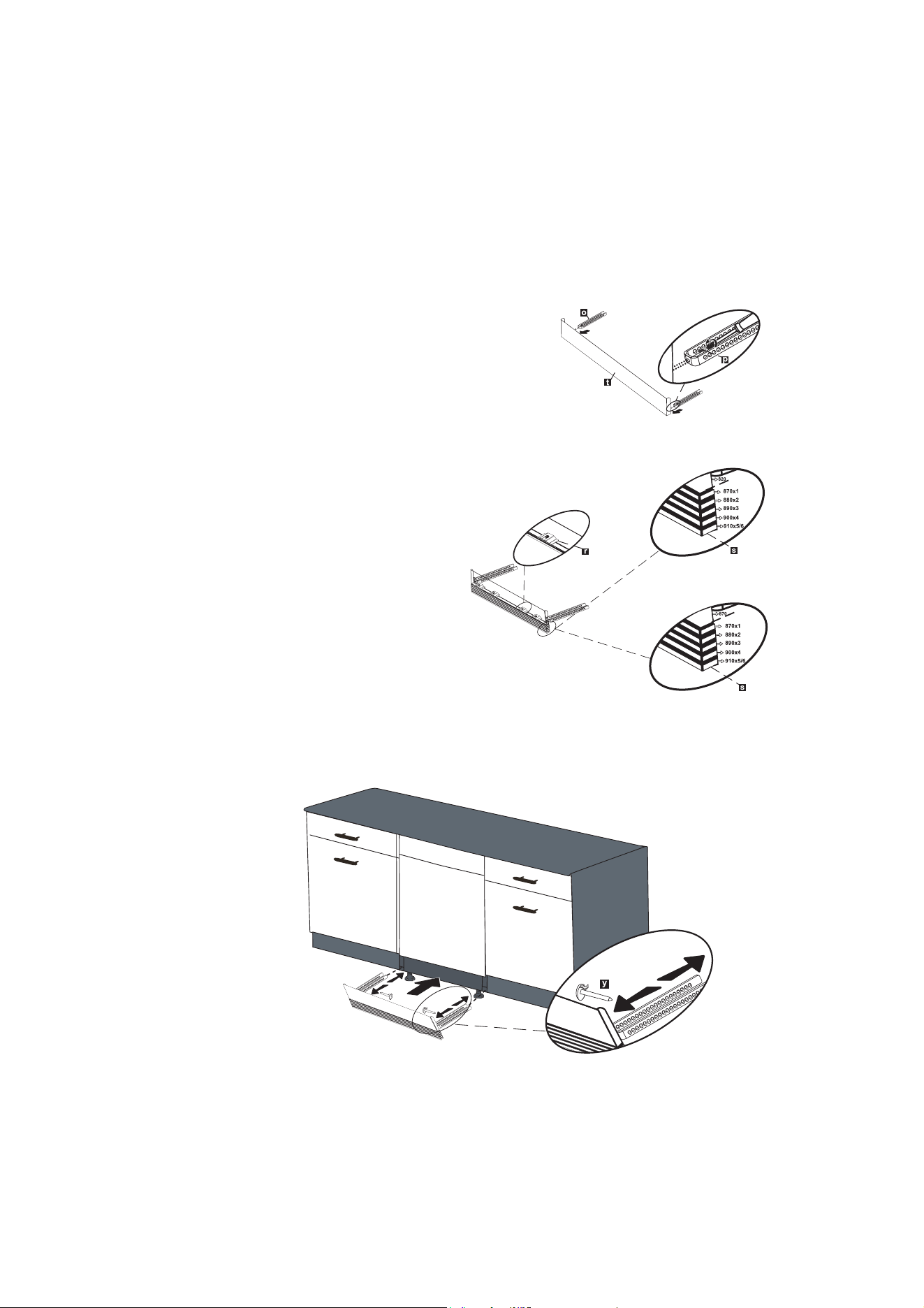

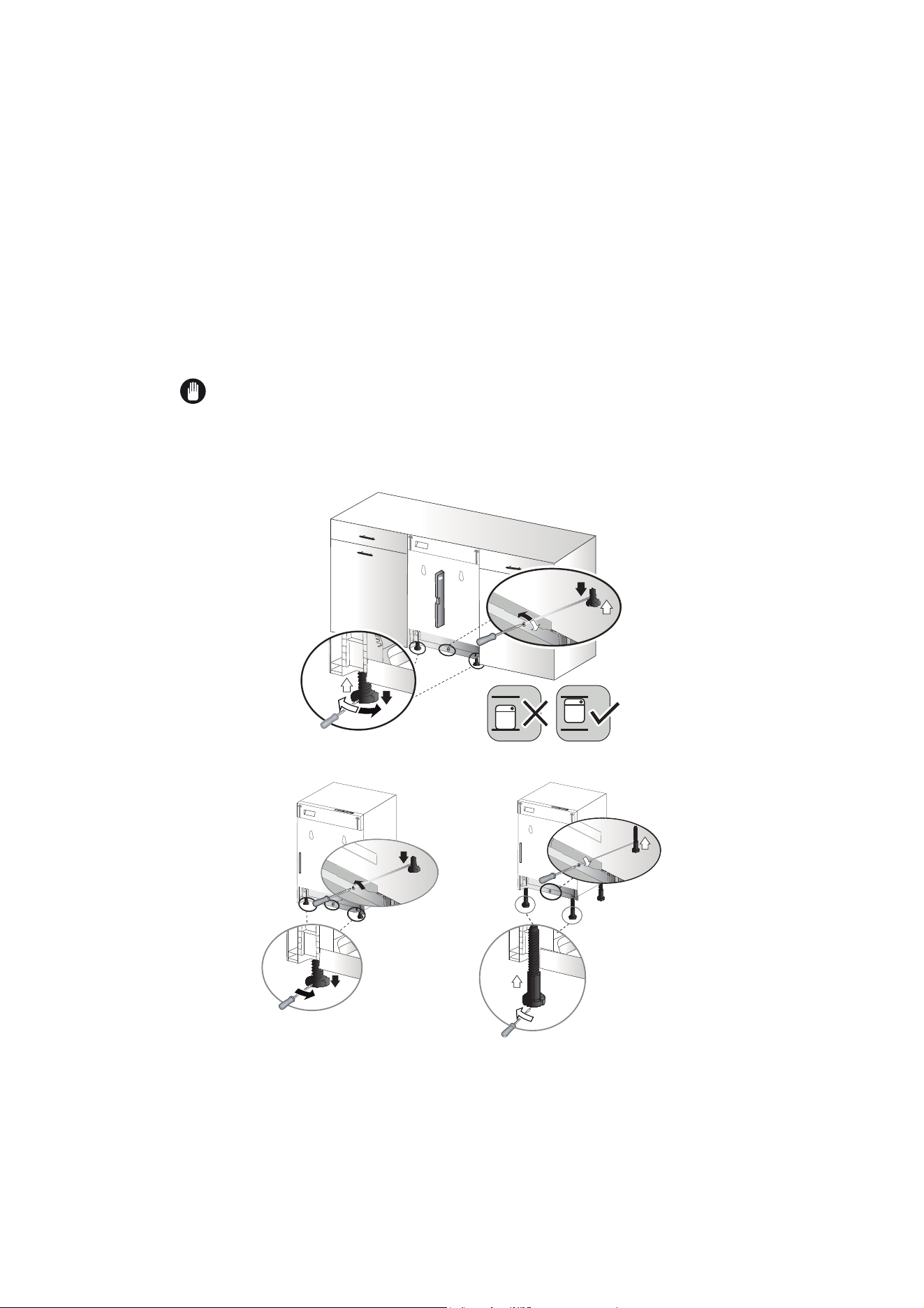

Adjusting Height
First Step: Before the dishwasher is placed in the cabinetry, the front feet are closed until
the end and the dishwasher is placed in the cabinetry.
Second Step: Adjust the forefoot level with a slot screwdriver to stabilize the dishwasher
and raise it to the enclosure height.
Third Step: Adjust the rear foot level with a philips screwdriver to balance and raise the
dishwasher to the enclosure height.
NOTICE: Make sure the dishwasher is plumb with the top of the enclosure. It does not
need a large clearance underneath the countertop.
For front feet; turning the feet in the direction of the white arrows with the slot screwdriver
allows the dishwasher to move downwards.
For rear feet; Turning the philips screwdriver in the direction of the white arrows will take
the dishwasher feet down.
If the height of the enclosure is 32 9/32" to 34 1/4" (824mm-874mm) use short supports as
VKRZQLQWKH¿JXUH
If the height of the enclosure is above 34 1/4" (874mm) use long supports as shown in the
¿JXUH
EN - 10
Water Supply Connection
Water supply may be connected to the dishwasher in one of two ways:
• With metal braided hose.
• With copper tubing
BRAIDED HOSE/COPPER TUBING
After connections are made turn on the water supply to check for leaks.
CAUTION: Hot water supply line: Use a minimum 3/4" O.D. copper tubing or metal
braided dishwasher supply line.
Water Inlet valve of the dishwasher has a 3/4"-11.5NH inlet coupling thread dimension
according to ASME B1.20.7-1991.
When you buy a water inlet hose for your dishwasher, please choose the thread dimension
of the inlet hose as compatible with indicated water inlet valve inlet coupling thread
dimension (3/4"-11.5NH) of your dishwasher.
Temperatures required for soldering and sweating will damage the dishwasher's water inlet
valve so if any such operation is needed, keep the heat source min. 77/8" (200mm) away
from the dishwasher's water inlet valve.
7KHUHVKRXOGQRWEHDQ\VKDUSEHQGVLQWKHZDWHUOLQHWKDWPD\UHVWULFWWKHZDWHUÀRZ
7HÀRQWDSHRUSLSHWUHDGFRPSRXQGPXVWEHXVHGIRUVHDOLQJWKHFRQQHFWLRQ%HIRUH
FRQQHFWLQJWKHFRSSHUZDWHUVXSSO\OLQHWRWKHGLVKZDVKHUÀXVKLWZLWKKRWZDWHUWRFOHDU
any foreign material.
EN - 11
Steam Protection Foil

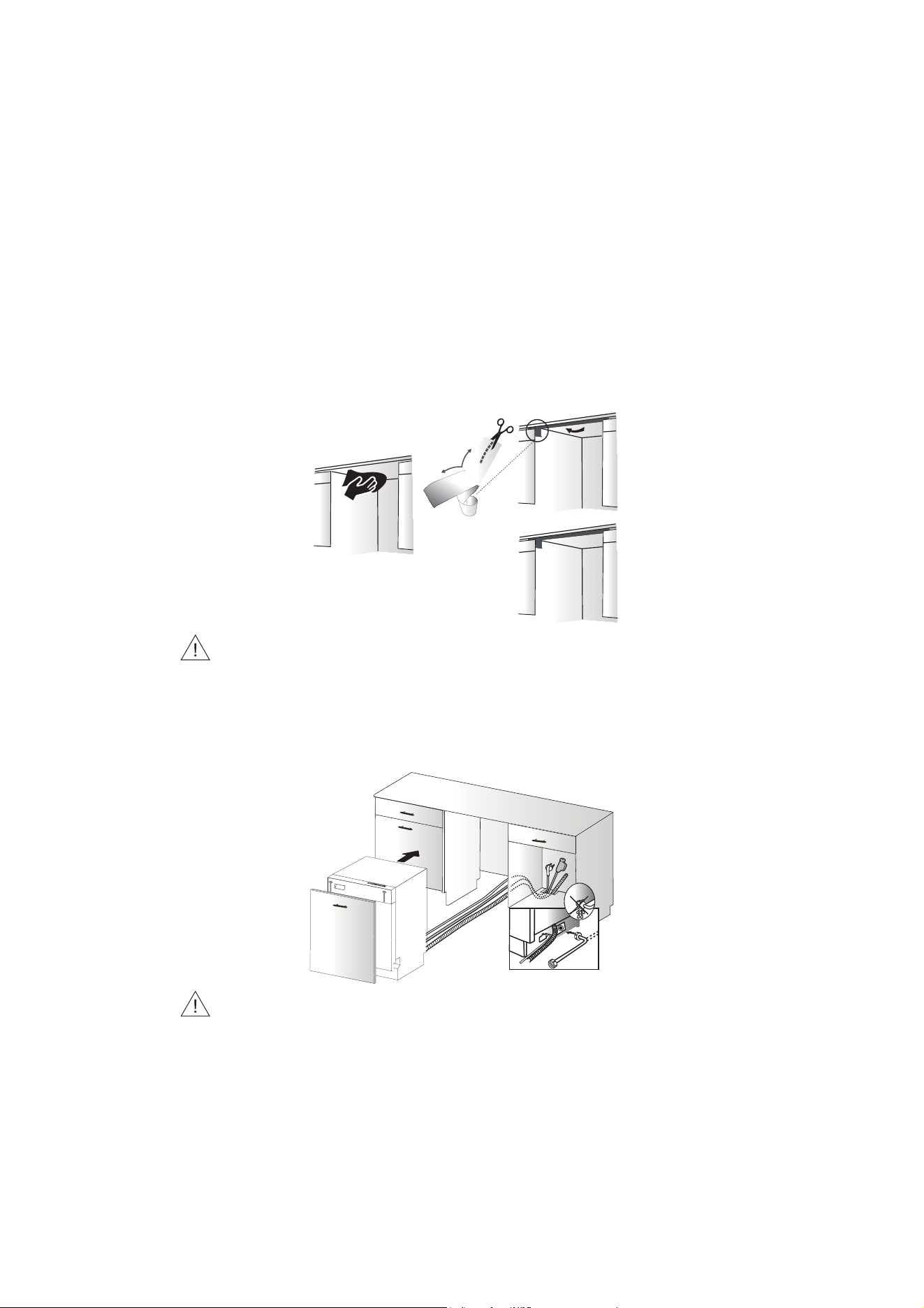

Steam will be output when the dishwasher door is opened during the operation of the
dishwasher and after completion of the working cycle. In order to prevent the resulting
steam from collecting and damaging at the underside of the counter top, use a steam
protection foil included in the plastic bag.
First Step: Clean the surface with a damp cloth before applying steam protection to the
underside of the counter top.
Second Step:)L[DVVKRZQLQWKH¿JXUH
CAUTION: Steam protection foil must be applied where the steam escapes when
GRRULV¿UVWRSHQHG)DLOXUHWRLQVWDOOWKHVWHDPSURWHFWLRQIRLOGXULQJLQVWDOODWLRQFDQOHDGWR
damage to the cabinets and countertop.
Placing the Dishwasher into the Opening
Gently place the dishwasher into the opening and get ready to connect all hoses and
electrical connections.
CAUTION: Make sure all hoses are pulled through the side opening of the cabinet. No
hoses should be kinked and ensure all slack is taken out, as shown above.
EN - 12

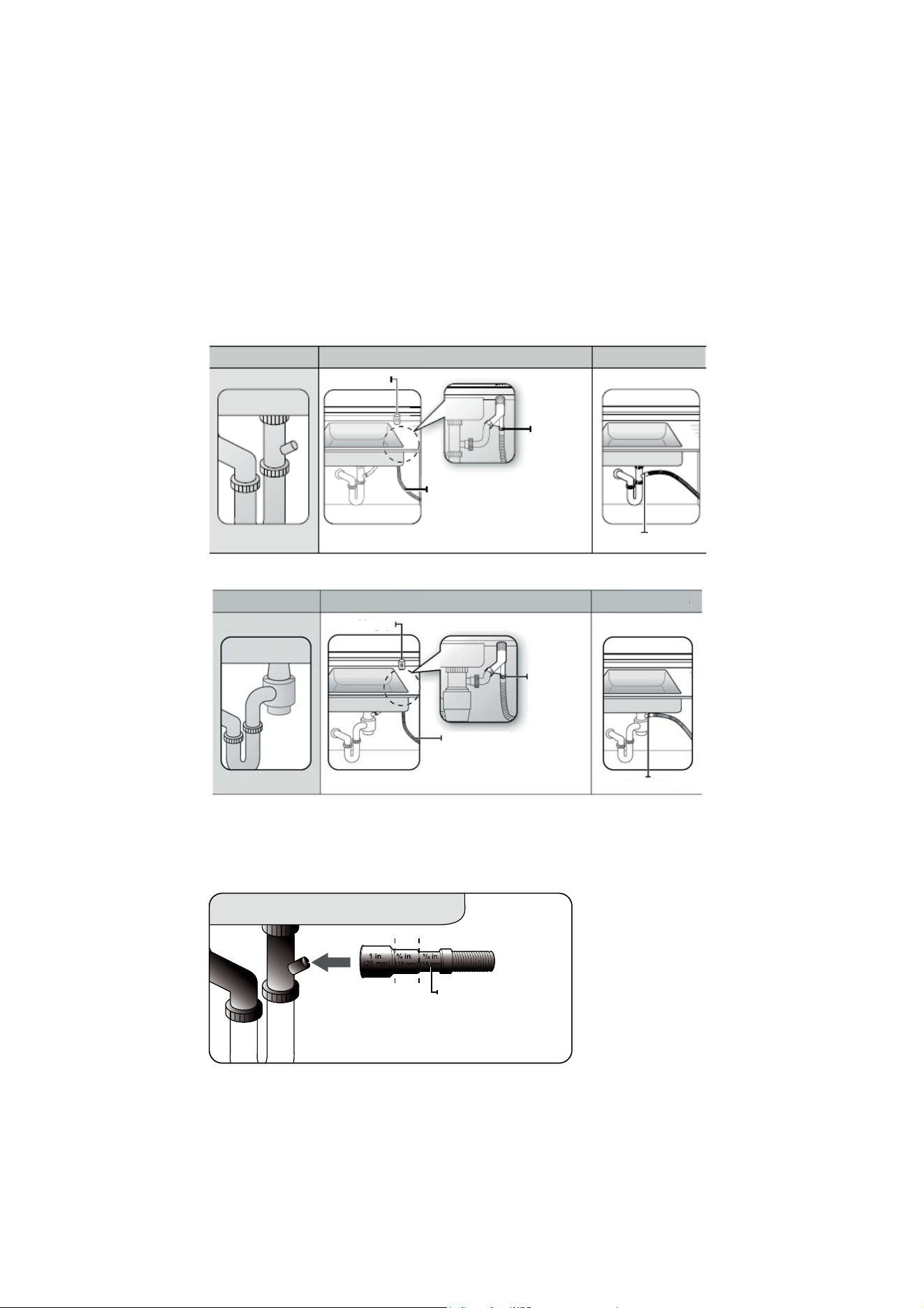

Drain Hose Connection

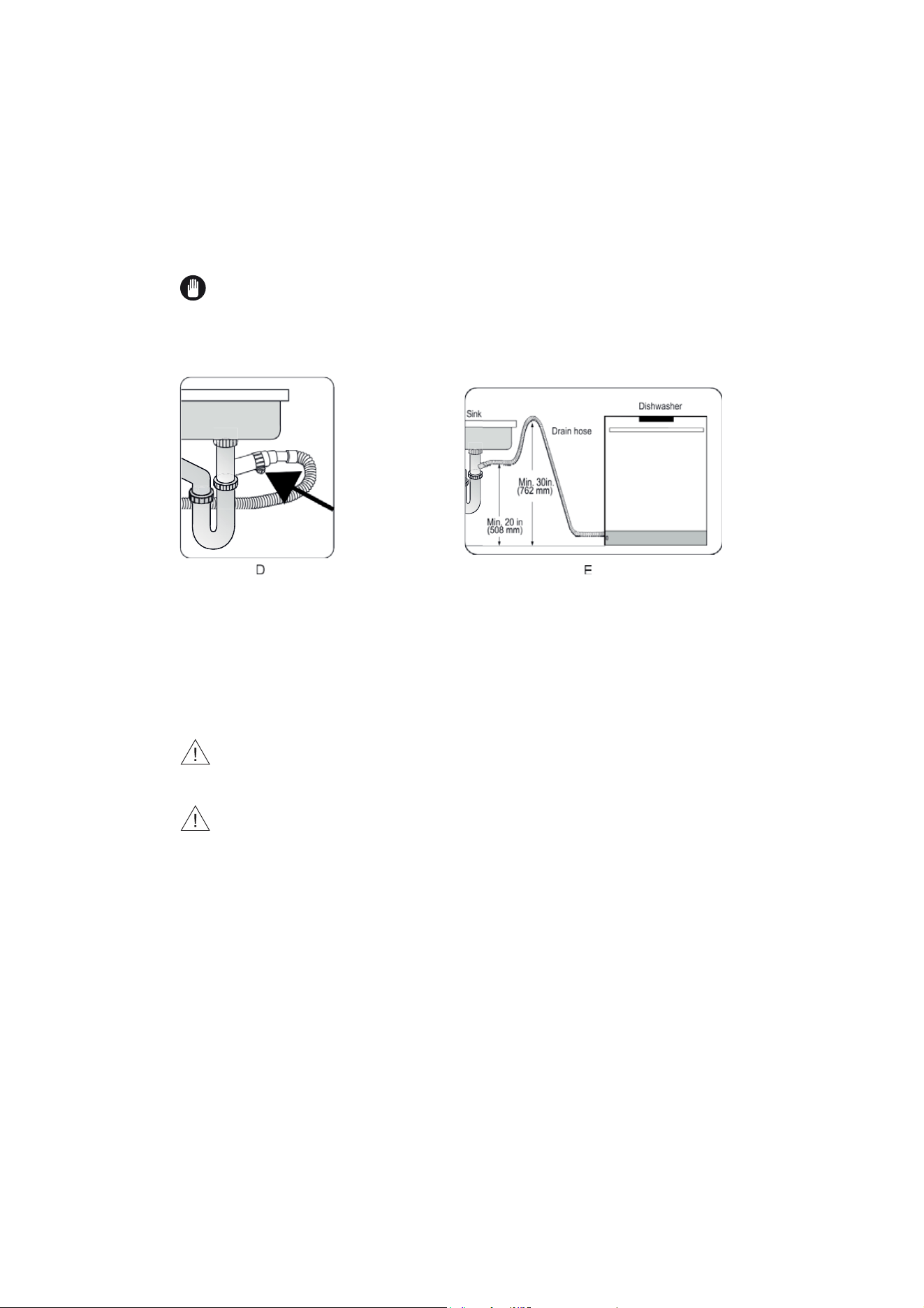

1. Check the parts on the sink to which the drain hose will be connected.
2. There are several ways to insert the drain hose into the drain hose connector of the sink,
DVVKRZQLQWKHIROORZLQJ¿JXUHV<RXPXVWFRQQHFWWKHGUDLQKRVHLQDFFRUGDQFHZLWK
the water pipe installation regulations in your region.
Without disposal:
Garbage disposal With an air gap Without an air gap
Air gap
Hose clamp
Hose clamp
Drain hose
With disposal:
Garbage disposal With an air gap Without an air gap
Air gap
Hose clamp
Hose clamp
Drain hose
3. Check the size of the sink’s drain hose connector. If needed, cut the drain hose so its
HQG¿WVRQWRWKHVLQNFRQQHFWRULQLQRULQDVVKRZQLQ&EHORZ,IWKHHQG
RIWKHGUDLQKRVHGRHVQRW¿WRQWRWKHGUDLQKRVHFRQQHFWRURIWKHVLQNXVHDQDGDSWRU
purchasable at a plumbing/hardware supply store.
,IQHFHVVDU\FXWRႇWKH
dotted line of the drain
KRVHWR¿WWKHVL]H
EN - 13
4. Slide a hose clamp over the end of the drain hose. Attach the drain hose to the sink
connector, slide the hose clamp to the end of the hose, and then tighten the hose clamp.
NOTICE:<RXPXVWXVHDKRVHFODPS)DLOXUHWRGRVRPD\FDXVHZDWHUOHDNDJH
5. If there is no air gap, make sure to hang. the middle of the drain hose well above the
VLQNFDELQHWEDVHWRSUHYHQWEDFNÀRZVHH)LJXUH(EHORZ
DD
Use hose clamp
that shown at the
Figure D for drain
hose assembly to
the sink.
6. When drilling a hole for the drain hose on the cabinet wall, take caution not to damage
the drain hose by sharp edges of the hole. On wooden walls, use sanding to soften the
edges. On metal walls, use insulation tape or duct tape to cover the sharp edges around
the hole.
7. 7DNHFDXWLRQQRWWRGDPDJHWKHGUDLQKRVHZKHQLQVWDOOLQJWKHGLVKZDVKHURQWKHÀRRU
wall, or cabinet. To prevent leaks or drainage problems, make sure the drain hose is not
damaged, kinked, or twisted.
8. 'RQRWFXWWKHZULQNOHGDUHDRIWKHGUDLQKRVHWR¿WWKHVL]H:KHQDUUDQJLQJWKHGUDLQ
hose, take caution not to contact on sharp edges of the cabinet or under-sink.
CAUTION:%HFDUHIXOZKHQFXWWLQJRႇWKHHQGRIWKHGUDLQKRVHDVWKHUHLVDULVN
of injury. Clean around the sink’s drain connection so that it does not damage the hose.
Check for any foreign items in the drain hose and remove them.
CAUTION: When arranging the drain hose, make sure the drain hose is not cut, torn,
or broken by any sharp edges.
EN - 14
5 ADJUSTING THE MOVABLE
TOE KICK (SELECT MODELS)
Now that you have successfully installed
the dishwasher, you need to attach the
toe kick to the dishwasher. The two-piece
toe kick can be adjusted to the height and
depth needed for your kitchen.
1. If the height is 32 9/32" to 34 1/4" and
uses short supports, the adjustable plinth
metal with 80mm length and toe kick
brackets should be installed. Mounting is
done using the 5/32" x 7/32" screws and a
Phillips head screwdriver.
If the height is above 34 1/4" and uses short
supports, the adjustable plinth metal with
130mm length and toe kick brackets should
be installed. Mounting is done using the
5/32” x 7/32” screws and a Phillips head
screwdriver.
2. The adjustable plinth’s height is
determined according to the required
distance and assembled to each other.
3. As shown, the cylindrical feet of the
adjustable plinth are attached to the plinth
¿[LQJPHWDOSDUWVDQGVKLIWHGWKURXJKWKH
cavity of the part.
4. Depending on the desired depth, the
plinth locking (y) is attached to the gaps
under the machine and the installation is
compeleted.
EN - 15
6 INSTALLING THE OUTER
DOOR (SELECT MODELS)

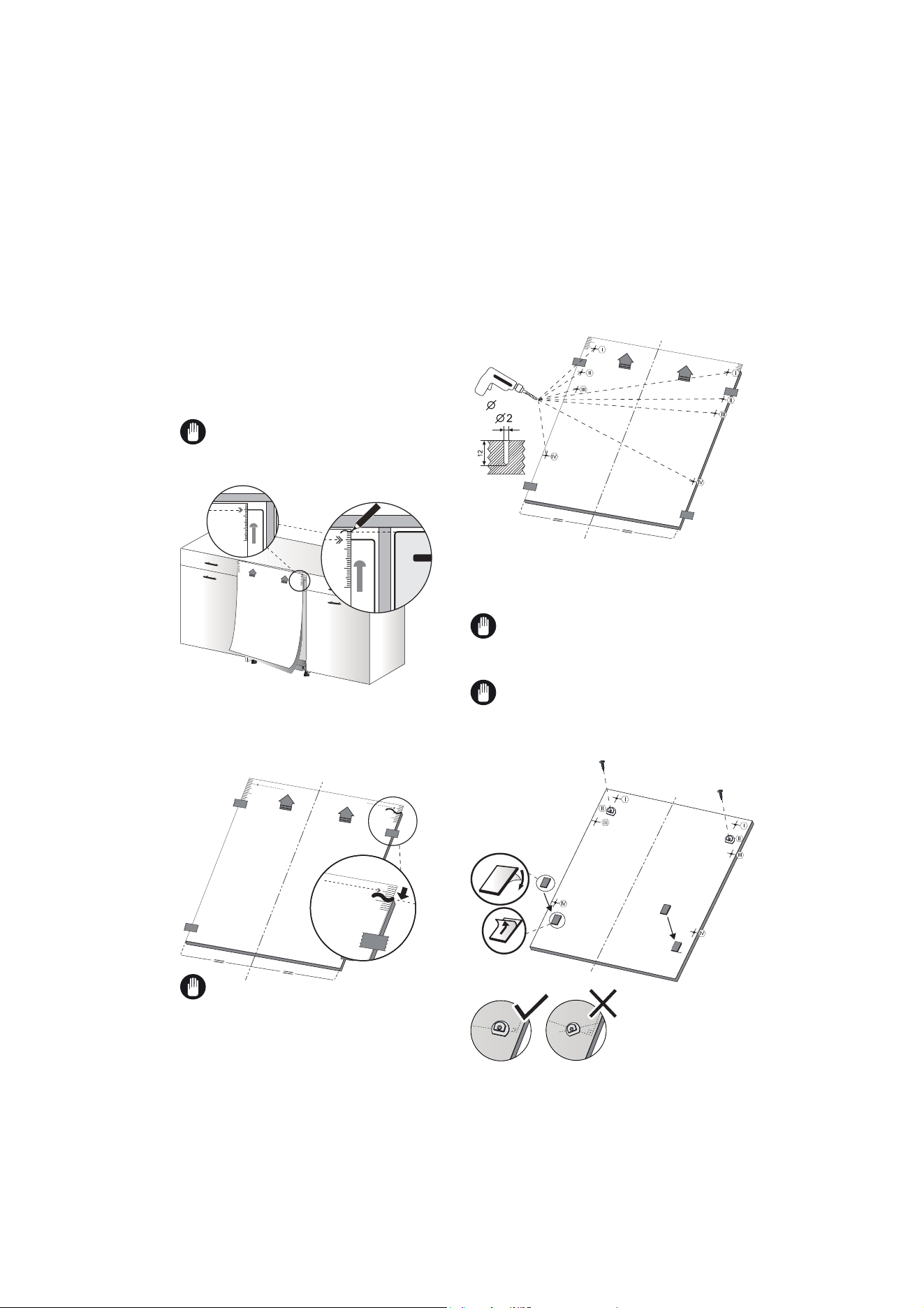

1. The mounting plan in the plastic bag is
placed to the outside of the dishwasher
door. The arrow mark and the top level of
the dishwasher door must be at the same
level. The top of the cabinet next to it is
determined and marked on the mounting
plan at the same level.
NOTICE: If it is not aligned, the outer
GRRUDOLJQPHQWZLOOEHGLႇHUHQW
Figure A
7KHPRXQWLQJSODQLV¿[HGWRWKHLQVLGH
of the Dishwasher door. The marked line
should be level with the top of the wooden
door.
Figure B
NOTICE::KLOH¿[LQJWKHPRXQWLQJ
plan, ensure that the plan adheres to the
inside of the door. When the process is
complete, the mounted plan must remain
straight on the outer door.
3. As shown in Figure C, the screw hole is
opened to the outer door from the points
marked on the mounted plan. Diameter of
Drilling Bit: 5/64" (2 mm) Depth of Drilling
Bit: 15/32" (12 mm)
Figure C
15/32"
5/64"
4. As shown in Figure D, door mounting
plastics are installed in positions II and
Wooden Door Fixing Strips are installed in
SRVLWLRQVVKRZQLQWKH¿JXUH
NOTICE: Before attaching Wooden
Door Fixing Strips, white papers on both
sides are taken from the surface.
NOTICE: Door mounting plastics must
be installed in the position shown in the
¿JXUH
Figure D
EN - 16

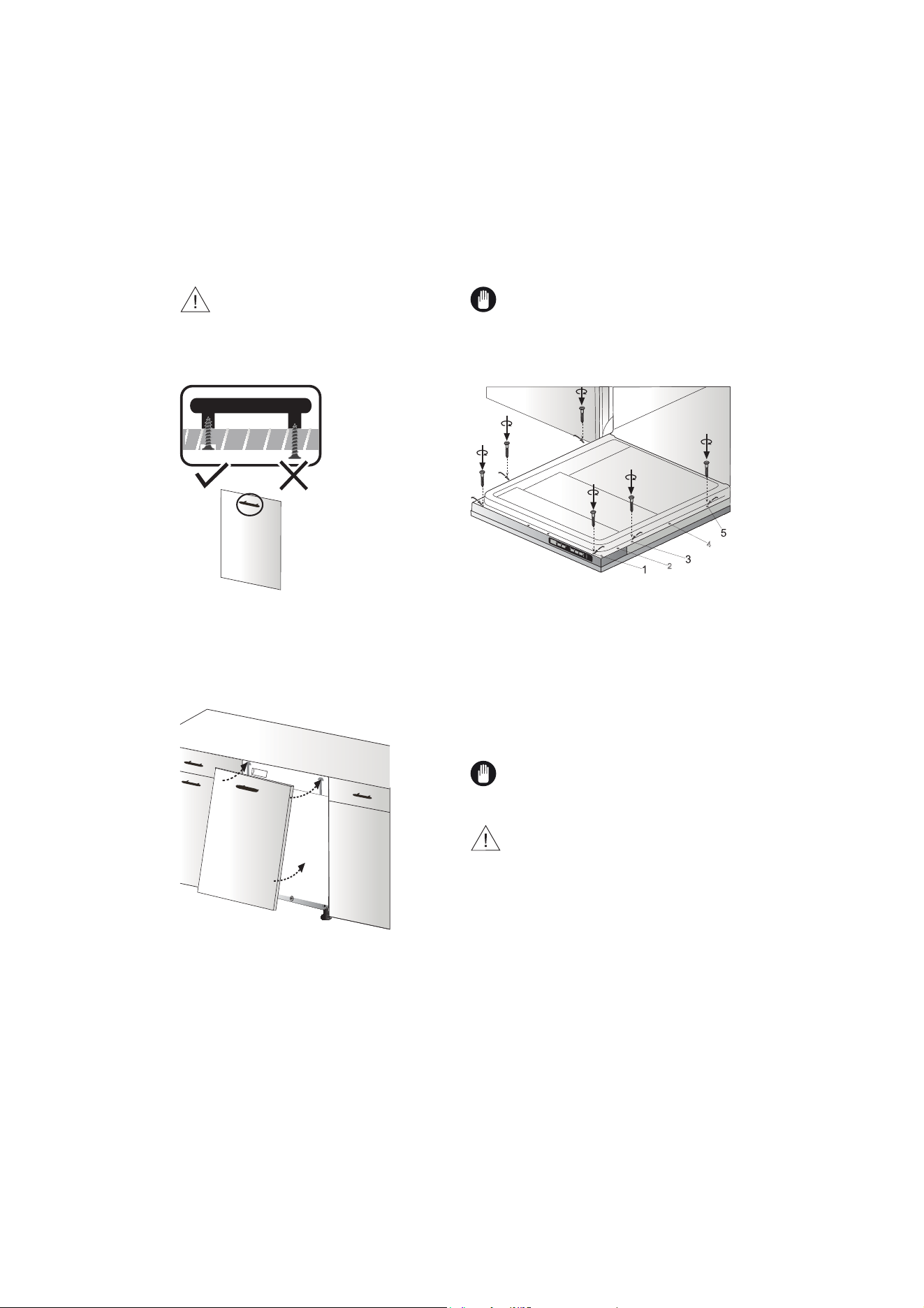

5. Before mounting the wooden door on
the dishwasher, mount the handle on the
ZRRGHQGRRUDVLQ¿JXUH(
CAUTION: The screw head must
remain inside the wooden door. Otherwise,
it may cause permanent damage to the
door.
Figure E
6. Door mounting plastics located on the
ZRRGHQGRRUDUH¿WWHGZLWKWKHGLVKZDVKHU
corresponding to the discharges located
on the control panel and are assembled as
shown in Figure F.
Figure F
7. As shown in Figure G, Screws Ø 5/32”
x 53/32” (Ø 4mm x 42,5mm) is installed in
positions I,III and V.
NOTICE: Before mounting the Screws
Ø 5/32” x 53/32” (Ø 4mm x 42,5mm);
Screws in positions I,III and V must be
removed.
Figure G
8. According to the weight of the assembled
wooden door, the balancing must be
provided by the mechanism shown in
Figure H. The right and left mechanisms
should be rotated equally.
a. If the wooden door is falling down, the
mechanism must be turned in the direction
of the black arrow with a philips screwdriver.
b. If the wooden door is lifted upwards, the
mechanism must be turned in the direction
of the white arrow with a philips screwdriver.
NOTICE:Minimum Philips Screwdriver
Diameter is 15/64" (6 mm) for this
application.
CAUTION: Maximum weight of custom
panel must not exceed 6 kg.
EN - 17
Figure H
4X
NOTICE: It is recommended not to use a drill.

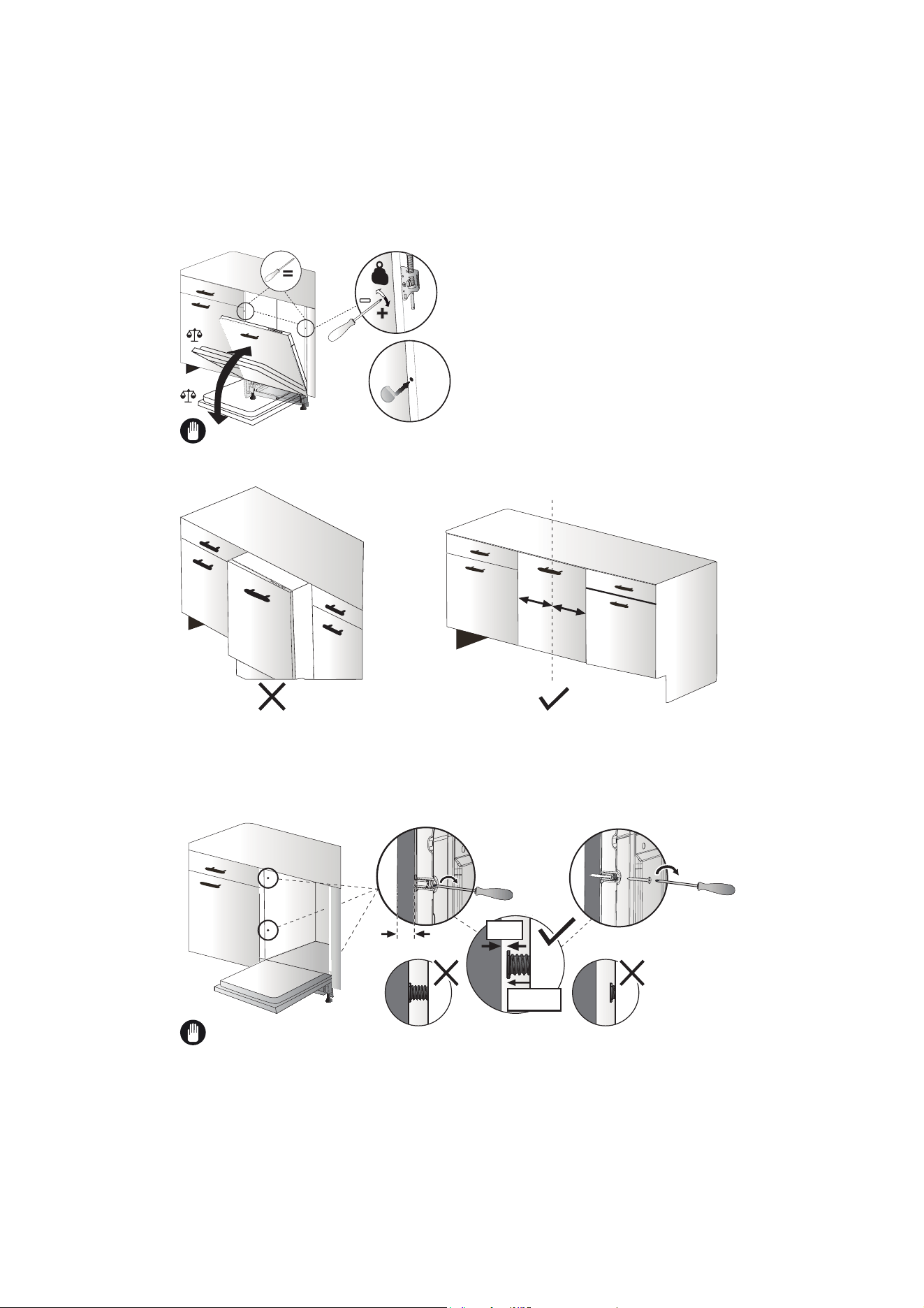

9. The dishwasher must be placed centered and correctly as shown in the Figure J.
Figure J
=
=
&DELQHWU\PRXQWLQJSODVWLFVSUHYLRXVO\SODFHGWRWKHGLVKZDVKHUDUHDOVR¿[HGLQWKH
cabinetry with Screws Ø 5/32” x 1 1/8” (Ø 4mm x 28mm). Before screwing, use a philips
screwdriver to adjust the gap between the dishwasher and the cabinetry to be about 1mm
with cabinetry door plastics.
Figure I
mm
~
1
1/32"
max. 1/4"
max. 6 mm
min. 5/8"
=
min. 16 mm
NOTICE: It is recommended not to use a drill.
EN - 18

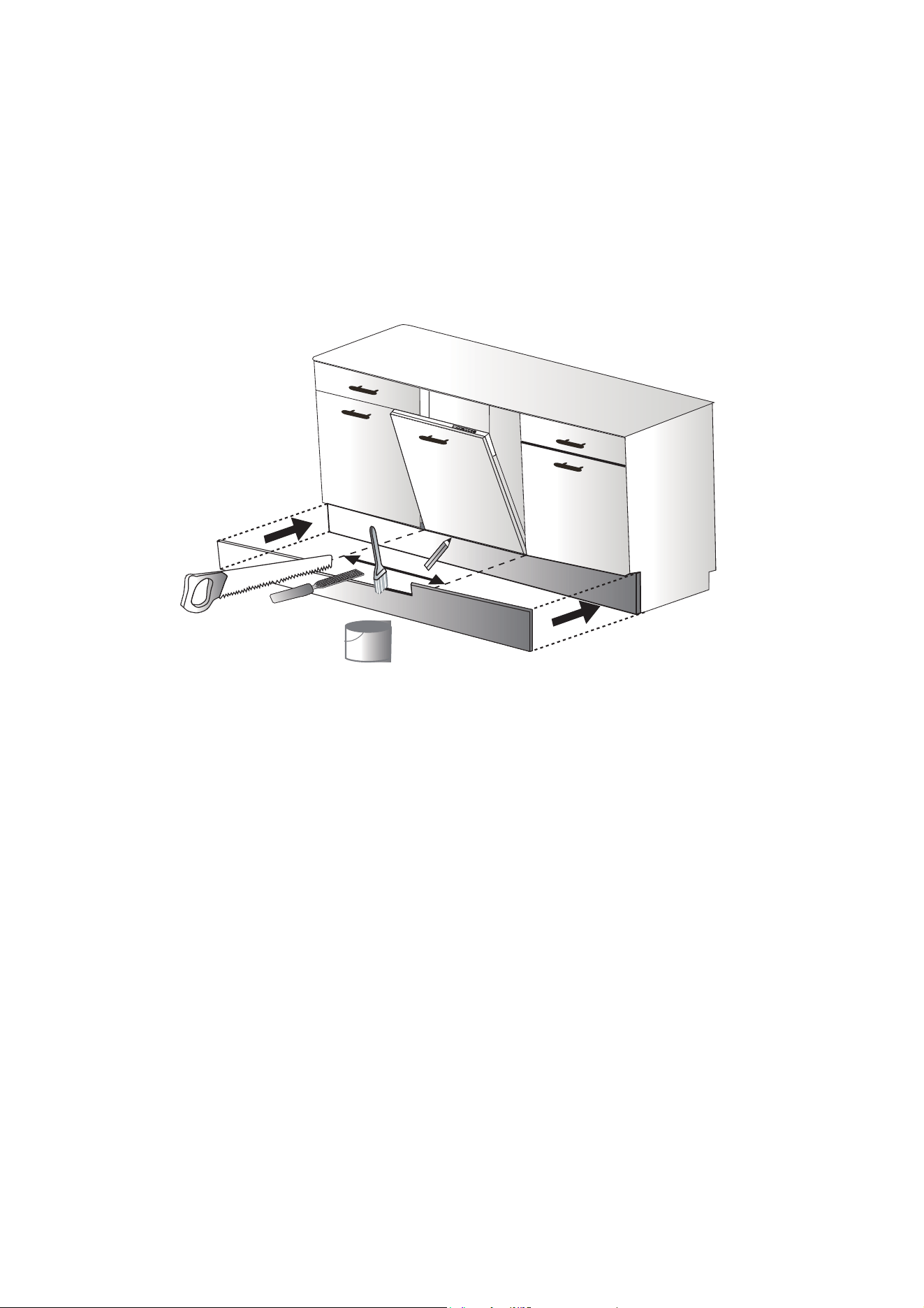

11. Check whether the bottom of the door hits the toe kick of the kitchen cabinet.
a. If the door hits the toe kick cut the necessary section out of the toe kick.
b. Apply silicon or sealant to the cut edge of the kitchen cabinet toe kick or paint so it does
not absorb moisture.
w
