MICROWAVE SENSOR DOME LIGHT
TECHNICAL DATA
WARNING
• Please make sure to turn o the power before starting the installation.
• Installation should only be done by a certified electrician.
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully
before starting the installing and keep this manual handy for future reference. If you have any another query, please
contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you
at the best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by
incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to
incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of prod-
uct for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] FOR
MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC
EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
INSTRUCTION MANUAL
MODEL
SKU
DETECTION RANGE
INPUT VOLTAGE
POWER
TIME DELAY
AMBIENT LIGHT
DETECTION DISTANCE
INSTALLATION HEIGHT
TRANSMISSION POWER
HF SYSTEM
DIMENSION
ADDITIONAL
SWITCHING CAPACITY
300W LED
Ø277x 112.4mm
24GHz CW radar, ISM band
<0.2mW
Wall : 1-2.5m
Ceiling : 2-4m
Wall : Max 6m
Ceiling : 2-8m(diameter), adjustable
<3-2000LUX (adjustable)
Min. 10sec±3sec
Max. 12min±1min
Max.2x20W,With E27 Holder
(Bulb not included)
220-240V/AC,50/60Hz
180°/360°
24359
VT-8178

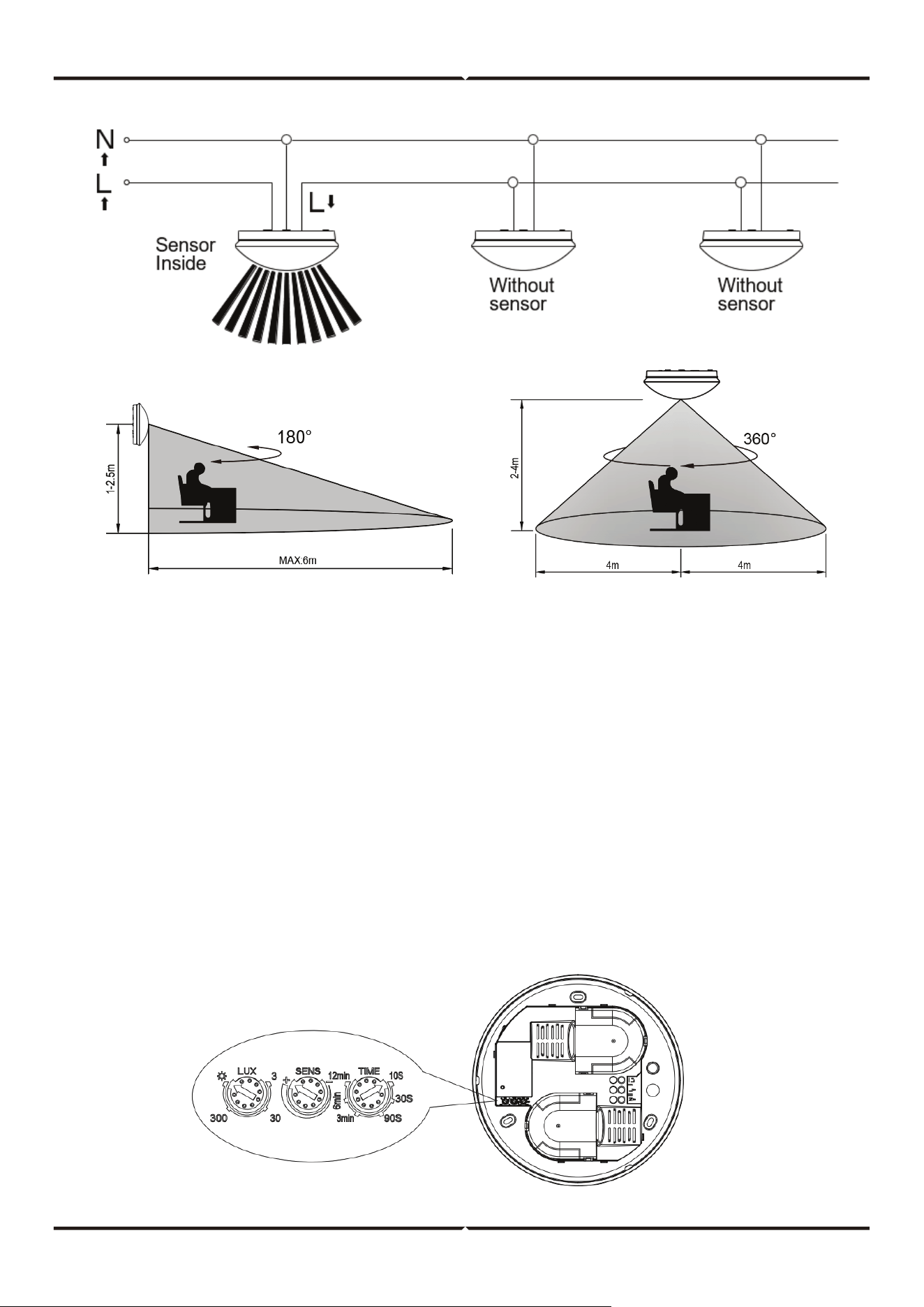

WIRING DIAGRAM
INSTALLATION INSTRUCTIONS
• Can identify day and night: It can work in the daytime and at night when it is adjusted on the “sun”
position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “3” position
(min). As for the adjustment pattern, please refer to the testing pattern.
• SENS adjustable: It can be adjusted according to using location. The low detection distance could be
only 2m and the high sensitivity could be 8m which fits for large room.
• Time-Delay is added continually: When it receives the second induction signals within the first induc-
tion,it will restart to time from the moment.
• Time–Delay is adjustable. It can be set according to the consumer’s desire. The minimum time is
10sec±3sec. The maximum is 12min±1min.

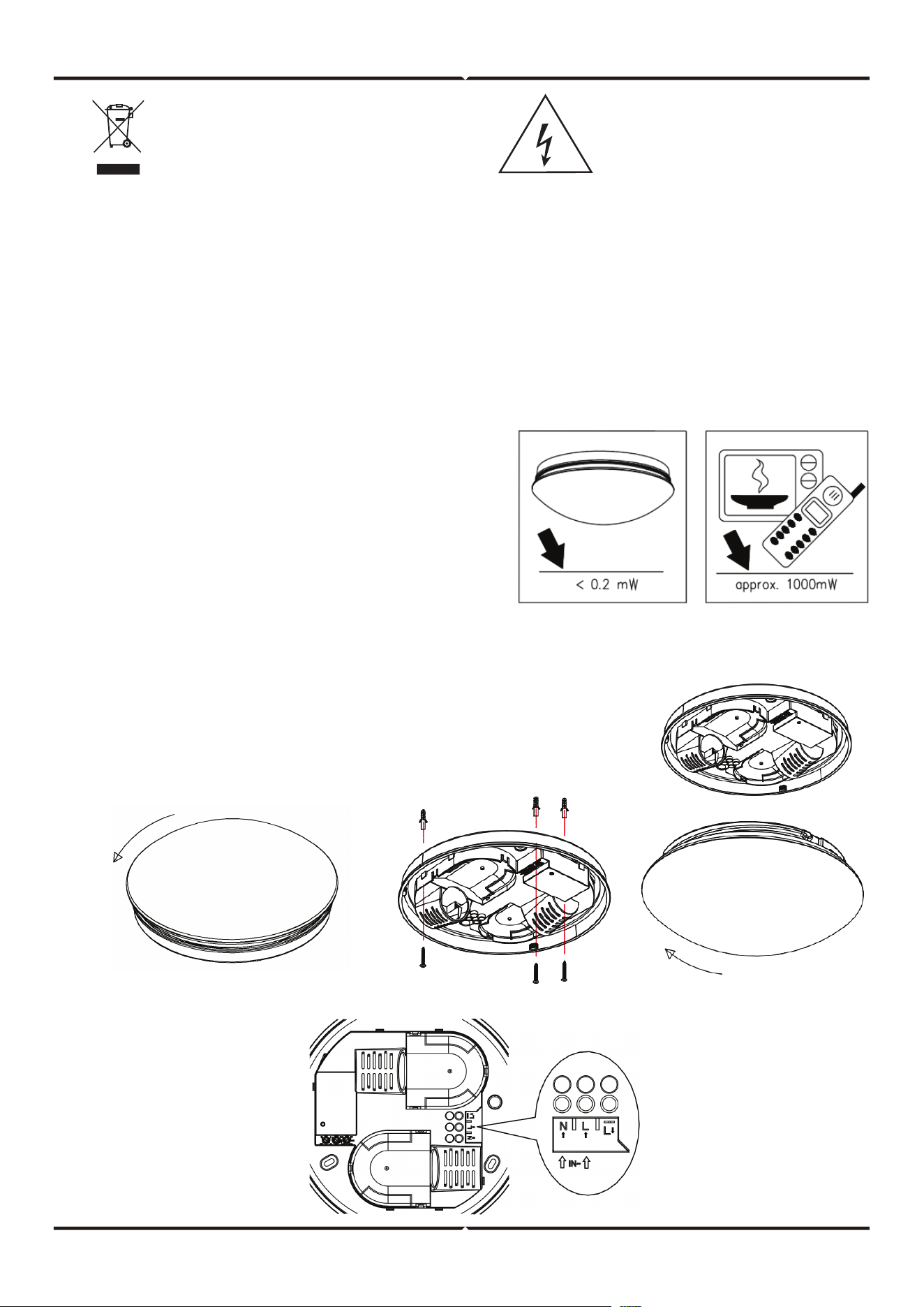

1. Switch o the power supply.
2. Remove the PMMA cover by turning it anti-clockwise.
3. Pass the wire through the rubber grommet in the bottom pan
and connect it to the terminal according to the wiring diagram.
4. Fix the base to the ceiling using the holes in the bottom pan and
the supplied expansion screws.
5. Switch on the power and test the unit.
FUNCTION
This marking indicates that this
product should not be disposed
of with other household wastes.
NOTE: the high-frequency output of the HF sensor is
<0.2Mw- that is just one 5000th of the transmission
power of a mobile phone or the output of a microwave
oven, the baby can't touch it.
Caution, risk of electric shock.
SENSOR INFORMATION
TEST
• Turn the LUX knob clockwise on the maximum (sun). Turn the SENS knob clockwise on the maximum
(+). Turn the TIME knob anti-clockwise on the minimum (10s).
• When you switch on the power, the light will be on at once. And 10sec±3sec later the light will be o
automatically. Then if the sensor receives induction signal again, it can work normally.
• When the detection distance is less than 4m, it can detect human movement or human breathing and
keep the light turn on continuously, when the detection distance is too far away and there is no other
movement aer the set time, the light will go out.
• When the sensor receives the second induction signals within the first induction, it will restart to time
from the moment.
• Turn LUX knob anti-clockwise on the minimum (3). If the ambient light is less than 3LUX (darkness), the
inductive load could work when it receives induction signal.
Another way as follow if connecting with other lamp
Height of installation: 1-2.5m (wall mounting) Height of installation: 2-4m (ceiling mounting)
Note: when testing in daylight, please turn LUX knob to ☼ (SUN) position, otherwise the
sensor lamp could not work!
NOTES
• Electrician or experienced human can install it.
• Can not be installed on the uneven and shaky surface.
• In front of the sensor there shouldn’t be obstructive object aecting detection.
• Avoid installing it near the metal and glass which may aect the sensor.
• For your safety,please don’t open the case if you find hitch aer installation.
TROUBLESHOOTING
• The load don’t work
a. Check the power and the load.
b. Please check if the working voltage corresponds to the power source.
• The sensitivity is poor
a. Please check the ambient temperature
b. Please check if the signal source is in the detection fields.
c. Please check the installation height.
• The sensor can’t shut automatically the load
a. If there are continual signals in the detection fields.
b. If the time delay is set to the longest.
c. If the power corresponds to the instruction.
