PUBLIC ADDRESS AMPLIFIER
Power amplifier with reverberation voltage
OWNER’S MANUAL
AMP-CP180BT/AMP-CP350BT
AMP-CP650BT/AMP-CP1000BT
SPECIFICATIONS
Model:
110V ±10% AC,
50Hz–60Hz.
AMP-CP180BT
100W
180W
AMP-CP350BT
260W
350W
AMP-CP650BT
500W
650W
AMP-CP1000BT
700W
1000W
4–16Ω, 70V
(6-channel zone
output at 70V).
40Hz ~ 18kHz,
±0.5dB.
< 0.2%.
> 76dB.
110V ±10% AC,
50Hz–60Hz.
4–16Ω, 70V
(6-channel zone
output at 70V).
40Hz ~ 18kHz,
±0.5dB.
< 0.2%.
> 76dB.
110V ±10% AC,
50Hz–60Hz.
4–16Ω, 70V
(6-channel zone
output at 70V).
40Hz ~ 18kHz,
±0.5dB.
< 0.2%.
> 76dB.
110V ±10% AC,
50Hz–60Hz.
4–16Ω, 70V
(6-channel zone
output at 70V).
40Hz ~ 18kHz,
±0.5dB.
< 0.2%.
> 76dB.
Nominal Power:
Max Output Power:
Input:
Output:
WOOFER:
Total Harmonic
Distortion (THD):
Signal-to-Noise
Ratio (SNR):
Power Supply:
WARRANTY:
1 Year 1 Year 1 Year 1 Year
WARRANTY:
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate
the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This
equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions,-
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20cm between the radiator and your body.This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
FCC REQUIREMENT
www.Herdiotech.com
3-way microphone input,
3-way line input,
optical/coaxial input.
Supports USB flash
drive, SD card, FM radio
playback, Bluetooth
playback, and reverb
processing.
Optional; factory
default is without
remote control
Optional; factory
default is without
remote control
Optional; factory
default is without
remote control
Optional; factory
default is without
remote control
3-way microphone input,
3-way line input,
optical/coaxial input.
Supports USB flash
drive, SD card, FM radio
playback, Bluetooth
playback, and reverb
processing.
3-way microphone input,
3-way line input,
optical/coaxial input.
Supports USB flash
drive, SD card, FM radio
playback, Bluetooth
playback, and reverb
processing.
3-way microphone input,
3-way line input,
optical/coaxial input.
Supports USB flash
drive, SD card, FM radio
playback, Bluetooth
playback, and reverb
processing.
Suitable for 2Umodels

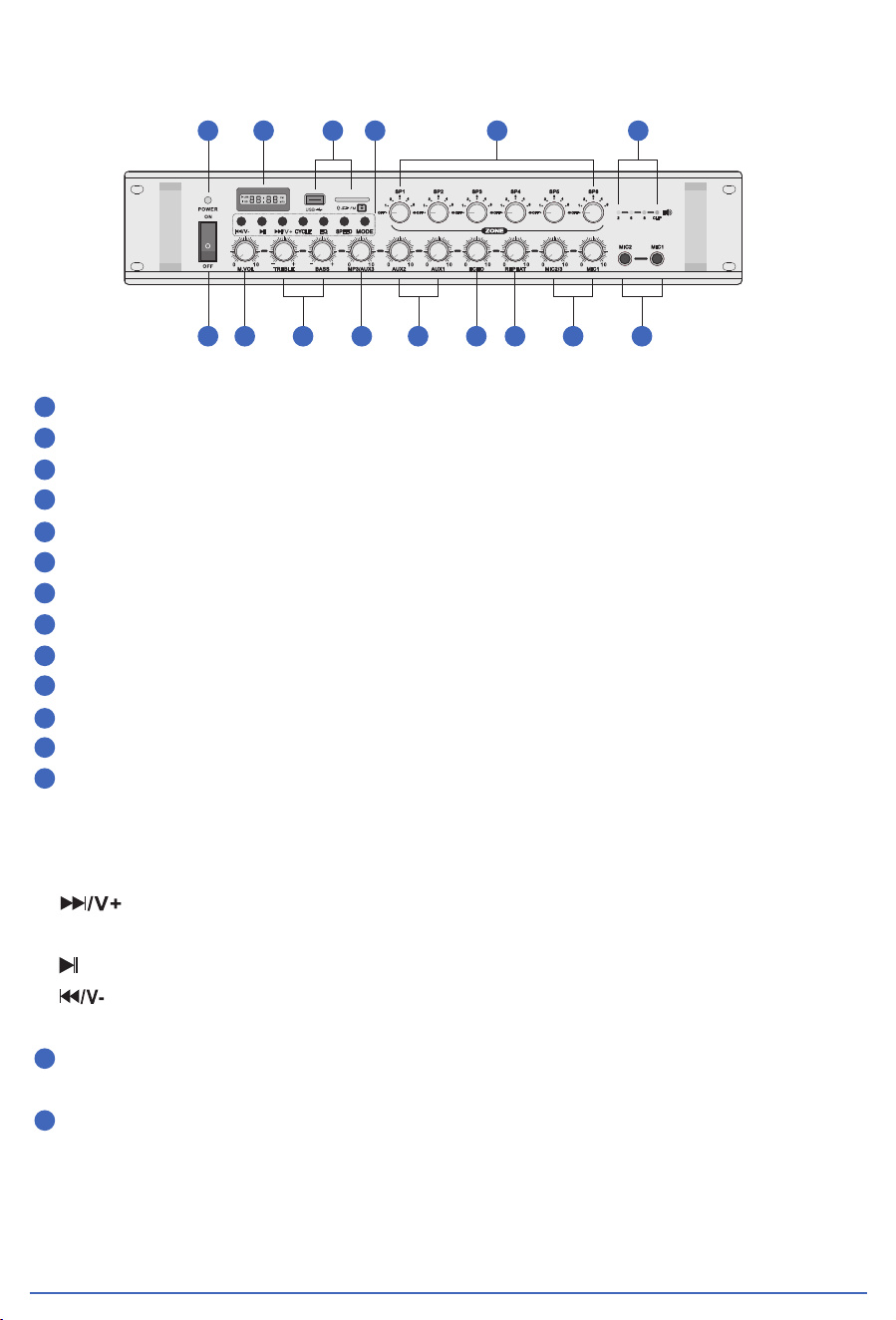

FRONT PANEL
Power switch: ON start; OFF shut down
Master Volume Knob: Control the volume of all input audio sources
Bass and treble knobs: BASS for low frequency adjustment, TREBLE for high frequency adjustment.
Mp3 knob: Adjust the volume of USB/TF card, radio, Bluetooth and AUX3 input
Line input volume knob: Adjust the size of the corresponding line input volume.
Echo volume control knob: adjust the echo effect processing of the microphone
Echo frequency adjustment knob: adjust the echo frequency of the microphone
Microphone volume knob: adjust the volume of the corresponding 3-channel microphone
Microphone input port: where MIC1 input has priority mute function
POWER indicator: Power indicator, light on for power on, light off for power off, alarm flashing.
LED display screen: Display the current
USB/SD port: Insert a USB flash drive/SD card with MP3 format music into this port to play
Control key: MODE: switch between USB, FM, Bluetooth, fiber, coaxial
SPEED: Adjust the playback speed of music in USB or SD card
EQ: Audio effect mode selection
CYCLE:Switch to song cycle mode
Skip to the next track in USB/Bluetooth mode with a short press; press andhold to increase the
volume.Short press to the next channel in FM mode
Pause/play in USB/Bluetooth mode; auto search radio station in FM mode.
Previous track in USB/Bluetooth mode, long press volume down,
Short press previous channel in FM mode
Partition control key: there are 6 partitions in total, and thevolume of each partition output can be
adjusted separately.
Level indicator: When the CLIP red light is on, it indicates that themaximum output power of the power
amplifier has been reached.
www.Herdiotech.com
1
1
10 11 12 13 14 15
2 3 4 5 6 7 8 9
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Suitable for 2U models

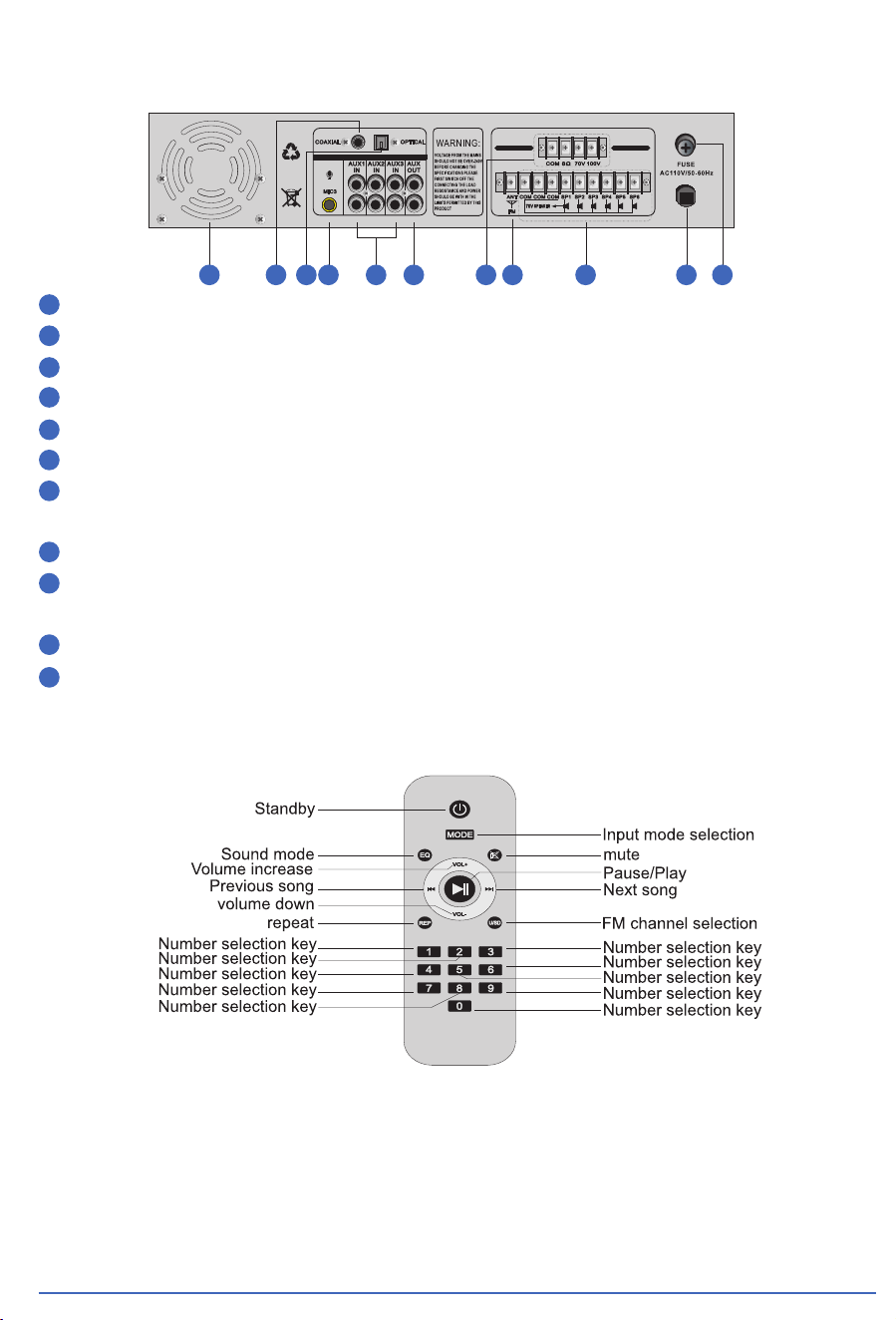

BACK PANEL
This function is optional
BACK PANEL
Ventilation port: To ensure the machine operates normally, please do not block the ventilation port.
Digital signal input: COAXIAL coaxial input
Digital signal input: OPTICAL fiber input;
Microphone 3 input: volume controlled by MIC2/3 on the panel.
AUX input: 3-channel audio input, volume controlled by the corresponding volume knob on the panel.
AUX-OUT: RCA port for line output, can be used for recording or connecting other amplifiers
Power output: COM is the common negative pole, which can be connected to 4-160constant
resistance speakers and constant pressure speakers respectively
FM radio antenna: FM radio antenna, connect a wire longer than 1.5 meters to enhance the signall
Partition output: COM is the common negative pole, connected to a 70V-100Vconstant pressure
speaker, with independent volume adjustment
Power input: connect to AC110V/60Hz mains power
FUSE: is a fuse holder, which can be easily replaced fuse;
www.Herdiotech.com
1
2
3
4
5
6
7
8
9
10
11
1 2 3 4 5 6 7 8 9 10 11
