Notes
Read this instruction carefully before starting installation.
Proper tools will improve the quality of installation and reduce the time
required.
All mirrors are asymmetrical design for better view range.
For vehicles without factory heat and signal light functions require an addi-
tional wiring.
If missing parts or any damage found, please take a picture and contact us.
Reference the vehicle owner’s manual to adjust the new mirrors.

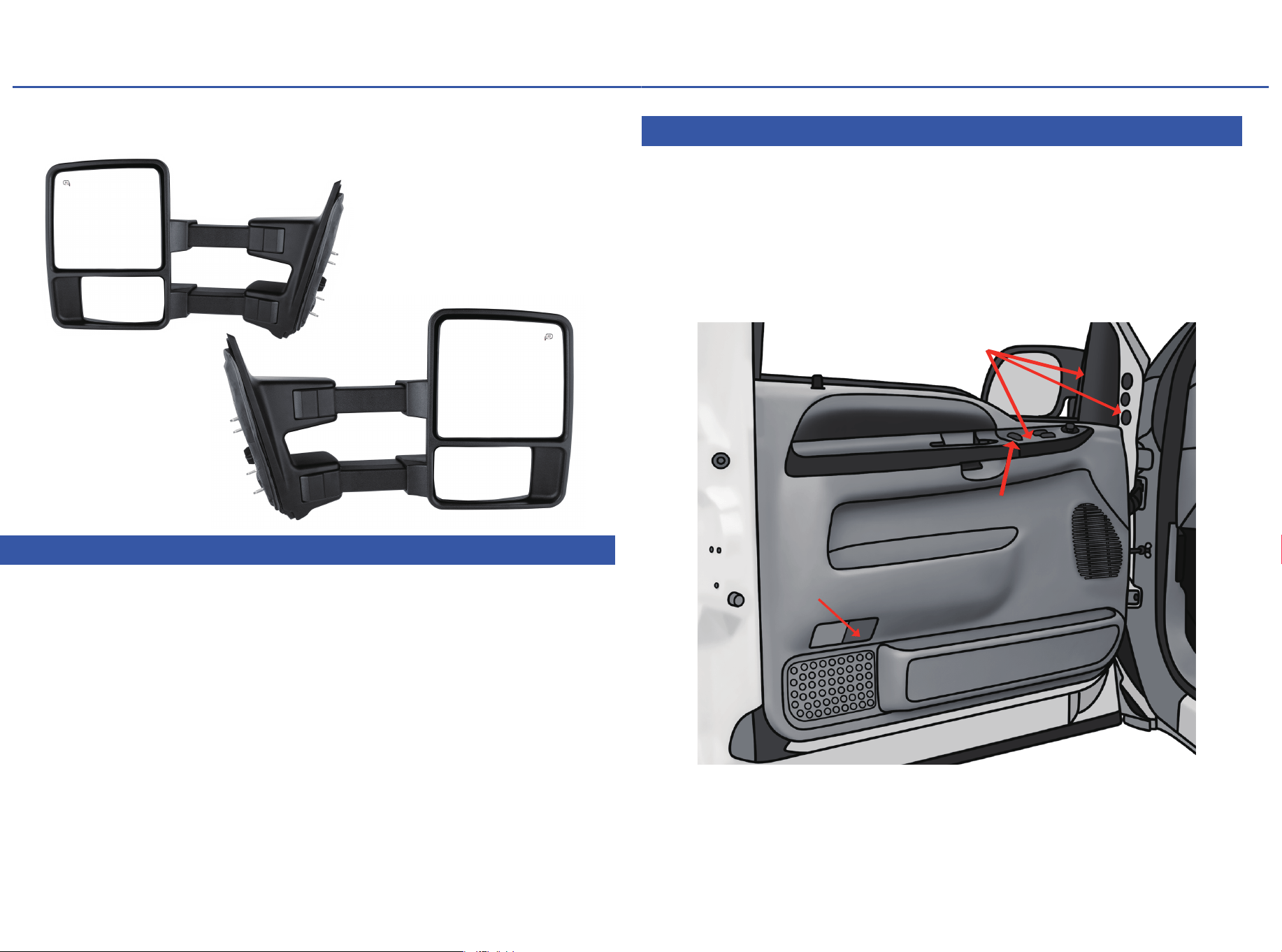

Step 1:
1. Open the front door to remove the upper extension triangular trim panel.
2. Remove (3) rubber plug beside triangular trim panel.
3. Remove the courtesy lamp cover.
4. Pry up the door switch panel, and disconnect all connctors.
5. Remove (2) 7mm bolts.
6. Carefully pull the door trim panel up and remove courtesy lamp socket.
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
CETM-0014 CETMTM-0004
CETM-0036 CETMTM-0007
CETM-0057 CETMTM-0113
CETM-0057 CETMTM-0119
Remove
7mm Bolt
7mm Bolt
Remove
-3- -4-
Step 2: Reference Wire Diagram:
1. Peel up the weather shield (do not remove),
and disconnect mirror harness.
2. Remove (4) 11mm hex nuts.
3. Carefully remove factory mirror.
4. Cut off the ridge on the base of the new mirror.
Step 3:
1. Take the new mirror, feed studs and harness through the holes on door
panel.
2. Install (4) provided hex nuts to secure the new mirror. Torque to 80 lb in.
3. Connect mirror harness, 99-02 models require the provided adaptor.
Step 4:
1. Take the door trim panel, reinstall the courtesy lamp socket and feed the
door lock tab through the hole.
2. Positon the door trim panel and reinstall (2) 7mm bolts.
3. Connect all conenctor back to door switch panel, and reinstall the panel.
4. Reinstall the courtesy lamp cover.
5. Reinstall the triangular trim panel and (3) rubber plugs.
Step 5:
1. Repeat above steps on the passenger side.
2. Carefully check all mirrors functions before first drive.
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS

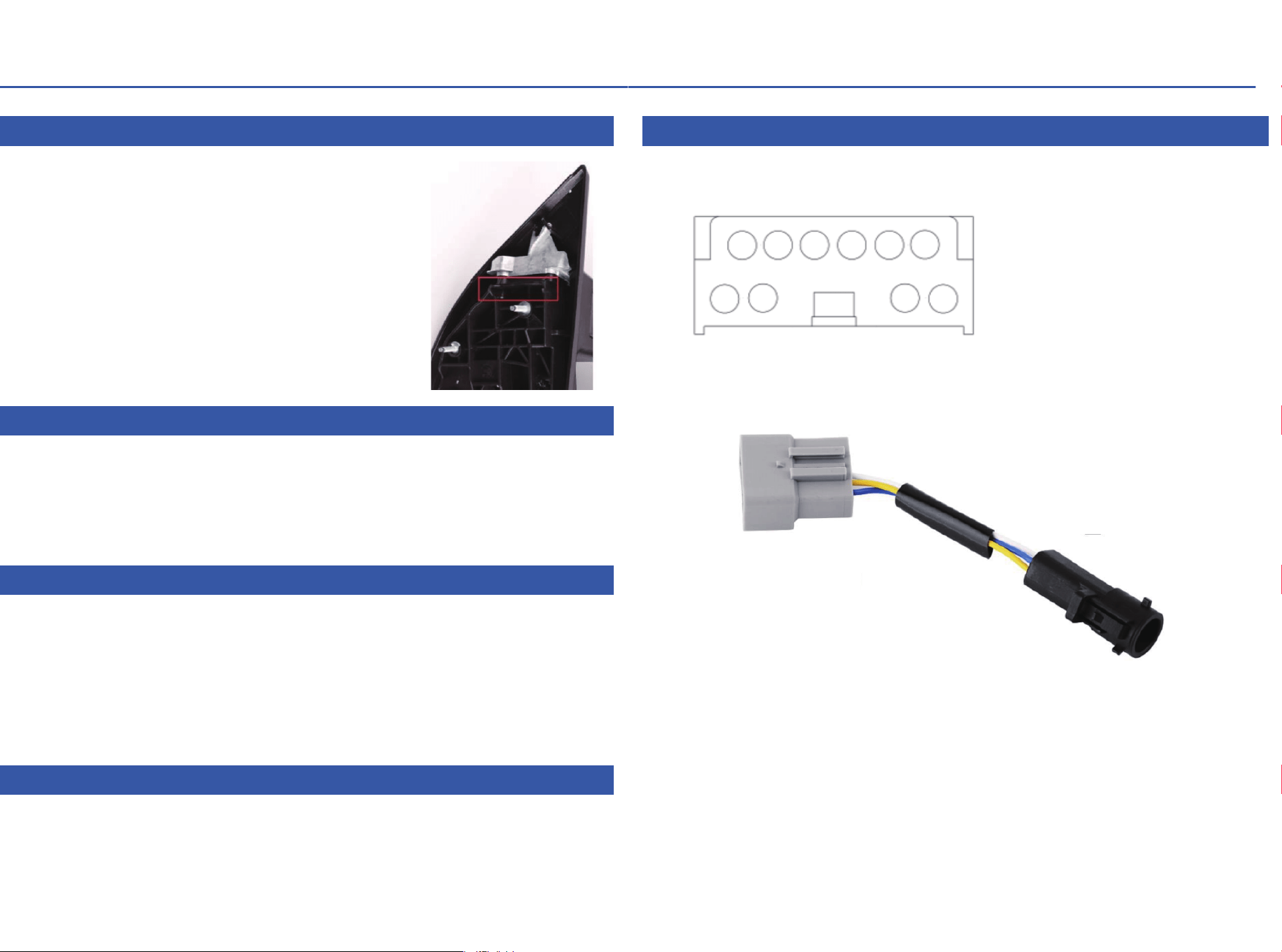

See the connector form the wire side.
1: Mirror Heater
2: Ground
3: Signal Light
4-6: Mirror Motor
7-9: Not Used
10: Side Marker Light
Mirror Side
Vehicle Side
99-02 Adaptor
1
7
6
10
