LED BACKLIT PANEL
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any anoth-
er query, please contact our dealer or local vendor from whom you have purchased the product. They are
trained and ready to serve you at the best. The warranty is valid for 3 years from the date of purchase. The war-
ranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives
no warranty against damage to any surface due to incorrect removal and installation of the product. The prod-
ucts are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty.
This product is warranted for manufacturing defects only.
WARNING
TECHNICAL DATA
This product contains a light source of energy eciency
class <E>', where <E> shall be replaced by the energy
eciency class of the contained light source.
SKU
24366, 24367
SHAPE
Square
WATTS
40W
LUMEN @SPHERE360°
4500 Lm
BEAM ANGLE
110°
CRI
≥80
DF
≥0.9
BODY TYPE
Fe + PS
ON/OFF CYCLE
15,000 Times
LIFE SPAN
25,000 Hours
INPUT VOLTAGE
PROTECTION RATING
AC: 220-240V, 50/60Hz
CONNECT WITH DRIVER
1050mA
OPERATION
TEMPERATURE
-10°C to +35°C
IP20
DIMENSION
595x595x33mm
INSTRUCTION MANUAL
MODEL
VT-61043
1. Please make sure to turn o the power before starting the installation.
2. Installation should only be done by a certified electrician.
3. The light source contained in this luminaire shall only be replaced by the manufacturer or his
service agent or a similar qualified person.
4. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced
by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
5. For Indoor use only
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

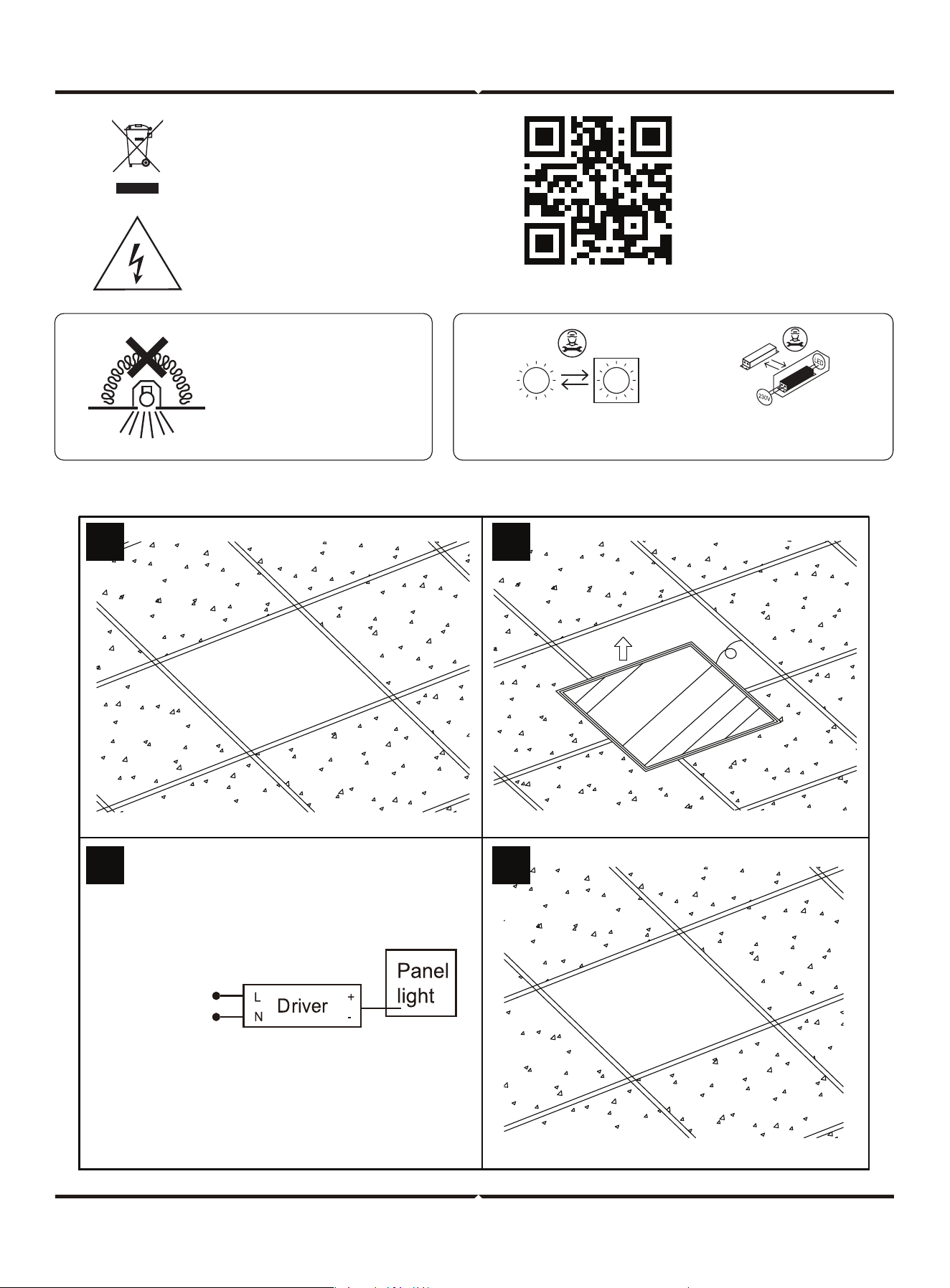

INSTALLATION DIAGRAM
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
AC 220-240V
1 2
3 4
Luminaires not suitable for
covering with thermally
insulating material.
Replaceable control
gear by a professional
Replaceable light source
by a professional
INSTALLATION INSTRUCTIONS
Note: The panel works on DC 30-40V, please connect correctly with the conductor
before connecting the conductor to the power supply main.
1. Ensure the power is turned o before starting the installation.
2. Cut an appropriately sized hole in the ceiling.
3. Mount the panel securely into the ceiling opening.
4. Connect the DC cable from the panel to the driver.
5. Connect the AC source cable to the input side of the driver.
6. Turn on the power and test the lamp.
V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT:
[email protected] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT:
[email protected] V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX

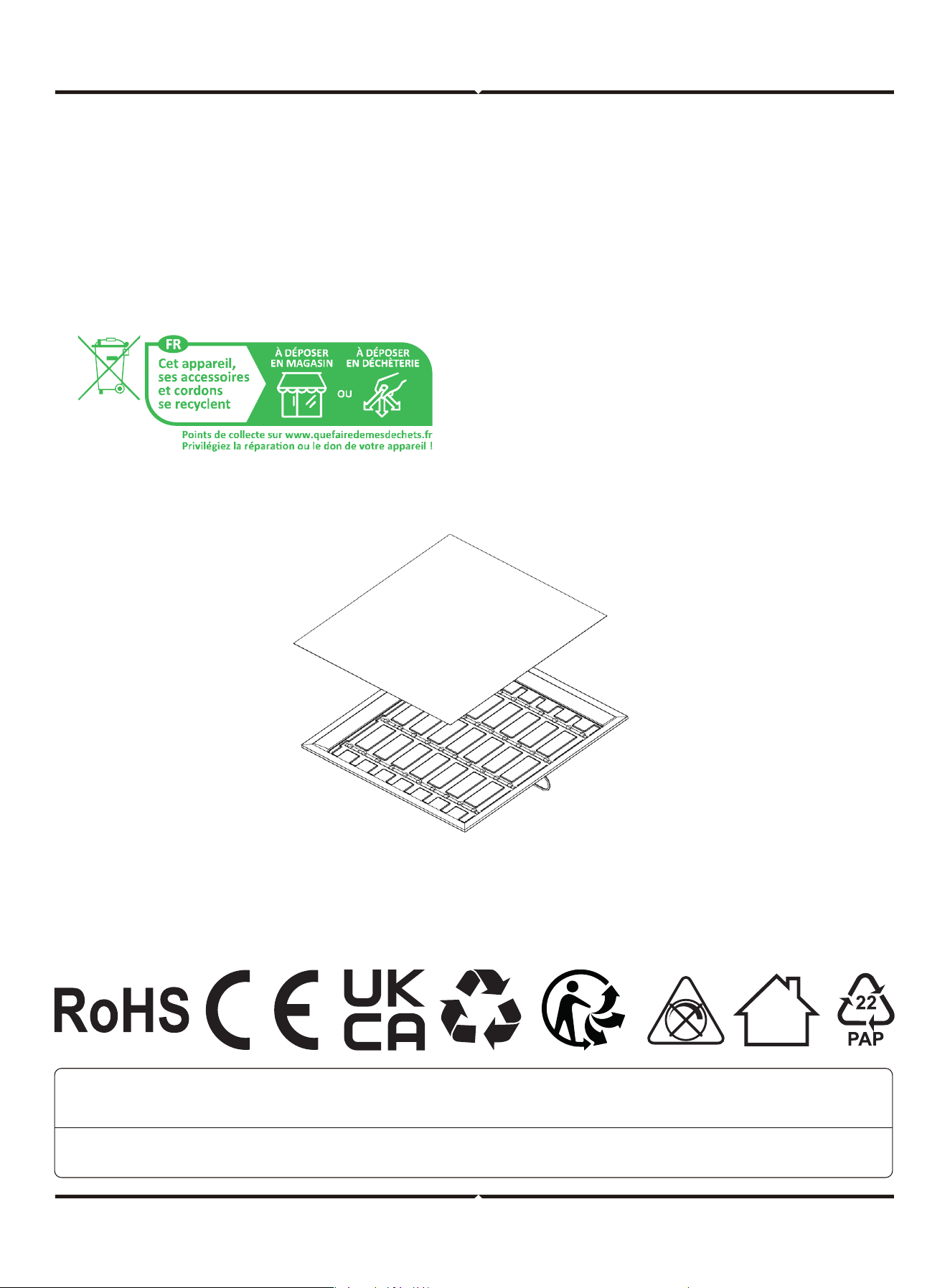

DISMANTLING INSTRUCTIONS
(For Market surveillance team only)
Note: Light source removal will void the warranty
1.Dismantle the diuser
2. The light source module was
illuminated and tested via
connection to its driver
