Surface finish: smoke
Location: Mounts using factory mounting locations
Weather Sealed: Completely weather sealed to keep the elements out
Package Include: 1 Pair Tail Lights (Left & Right Side)
Product Specifications:
1. Make sure the lamp switch is in the off position, then open the tailgate.
2. Remove the (2) rear lamp assembly screws near the tailgate latch and pull
out the lamp assembly.
3. Disconnect the socket connectors.
1. Press the tab and turn the bulb sockets counterclockwise to remove
sockets from the taillamp housing.
2. Take the new taillamp housing and insert sockets turn the sockets
clockwise into the taillamp housing until it clicks.
3. Connect the socket connectors
4. Replace the rear lamp assembly and tighten the screws.
5. Close the tailgate.
Installation:
Step 1
Step 2

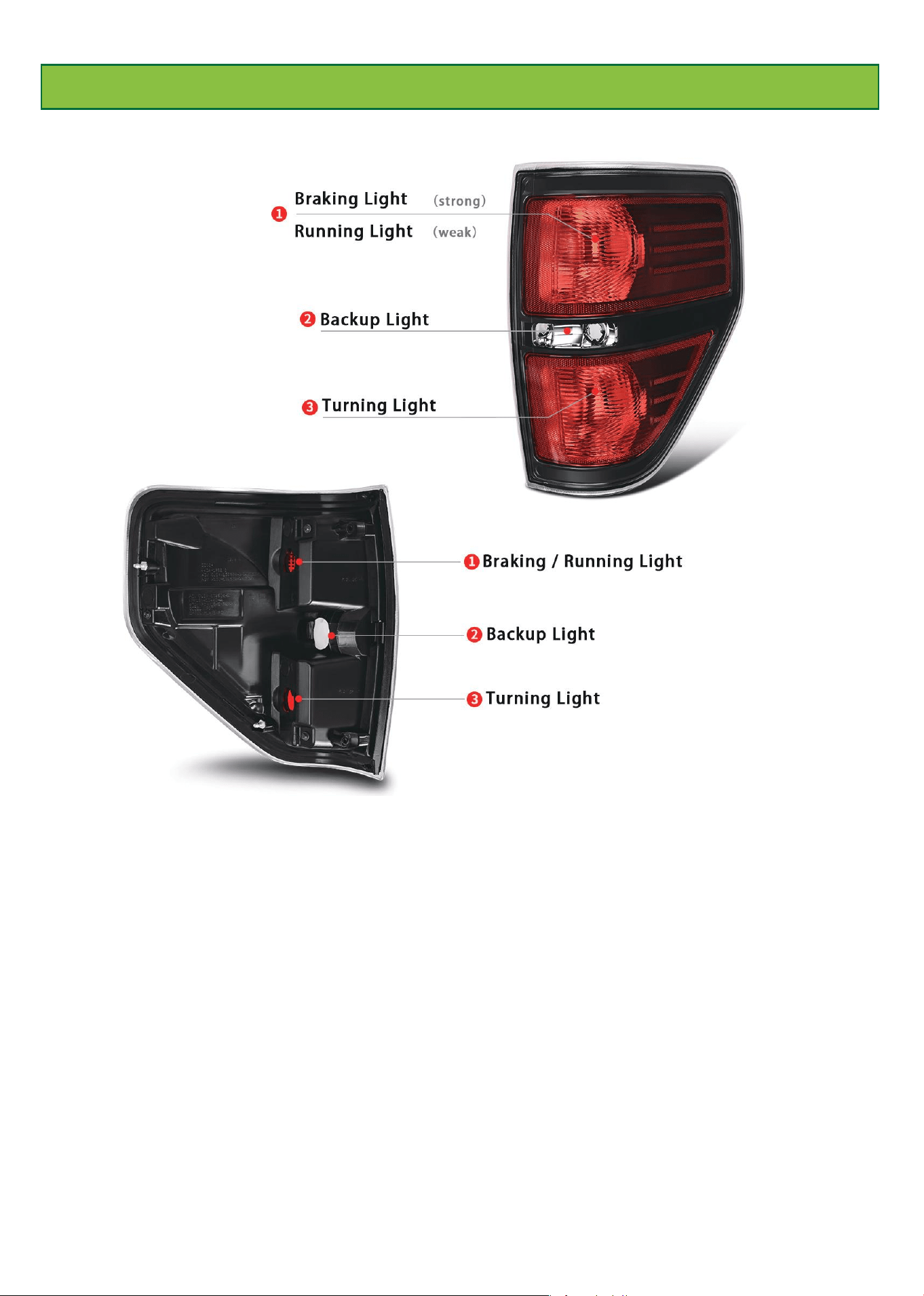

① Stop/Turn/Sidemarker/Taillamp：3057K
② Back-up：921
Wiring Diagram:
