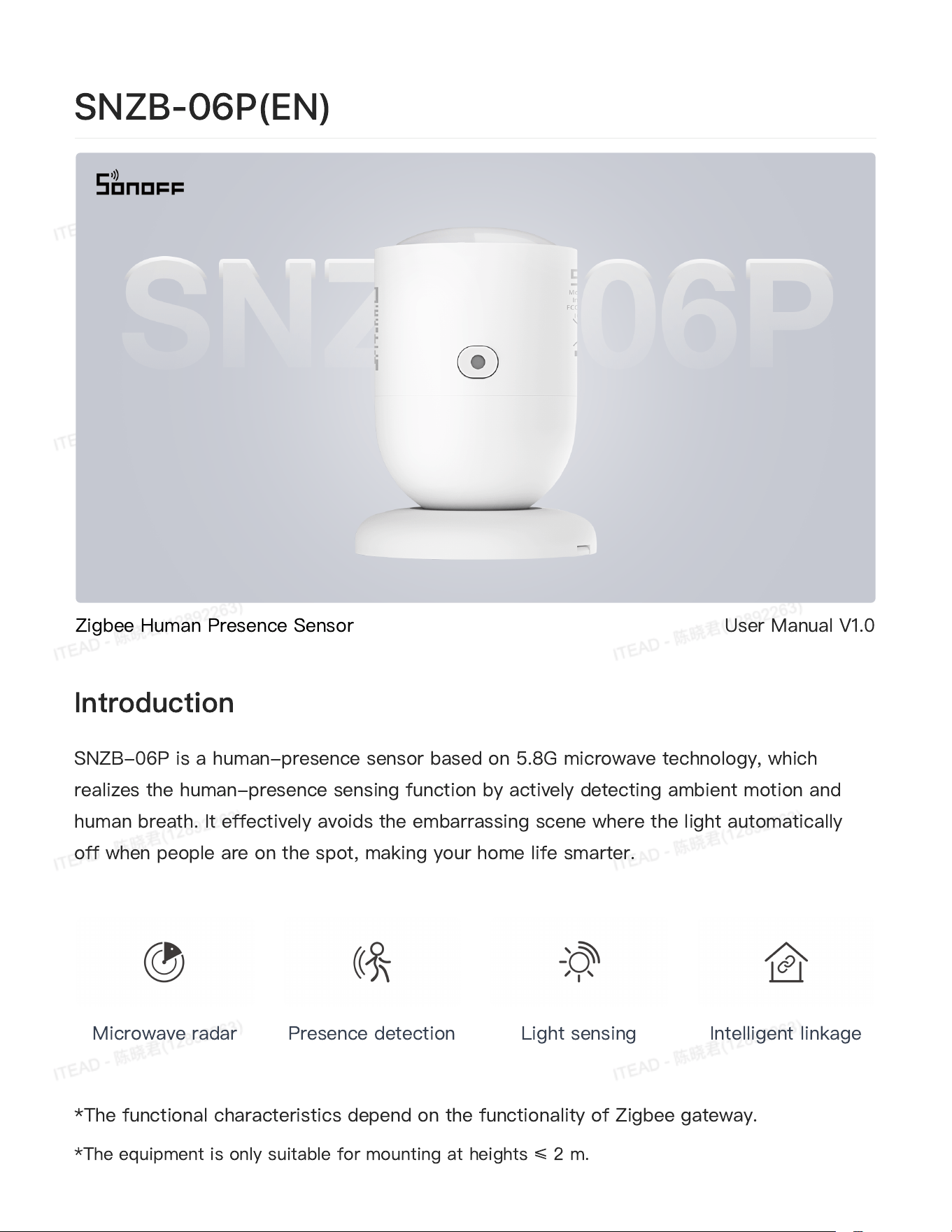

SNZB-06P is a human-presence sensor based on 5.8G microwave technology, which
realizes the human-presence sensing function by actively detecting ambient motion and
human breath. It effectively avoids the embarrassing scene where the light automatically
off when people are on the spot, making your home life smarter.
*The functional characteristics depend on the functionality of Zigbee gateway.
*The equipment is only suitable for mounting at heights
≤
2 m.
Introduction
Zigbee Human Presence Sensor
User Manual V1.0
Microwave radar
Presence detection
Light sensing
Intelligent linkage
2
Instruction of LED indicator status

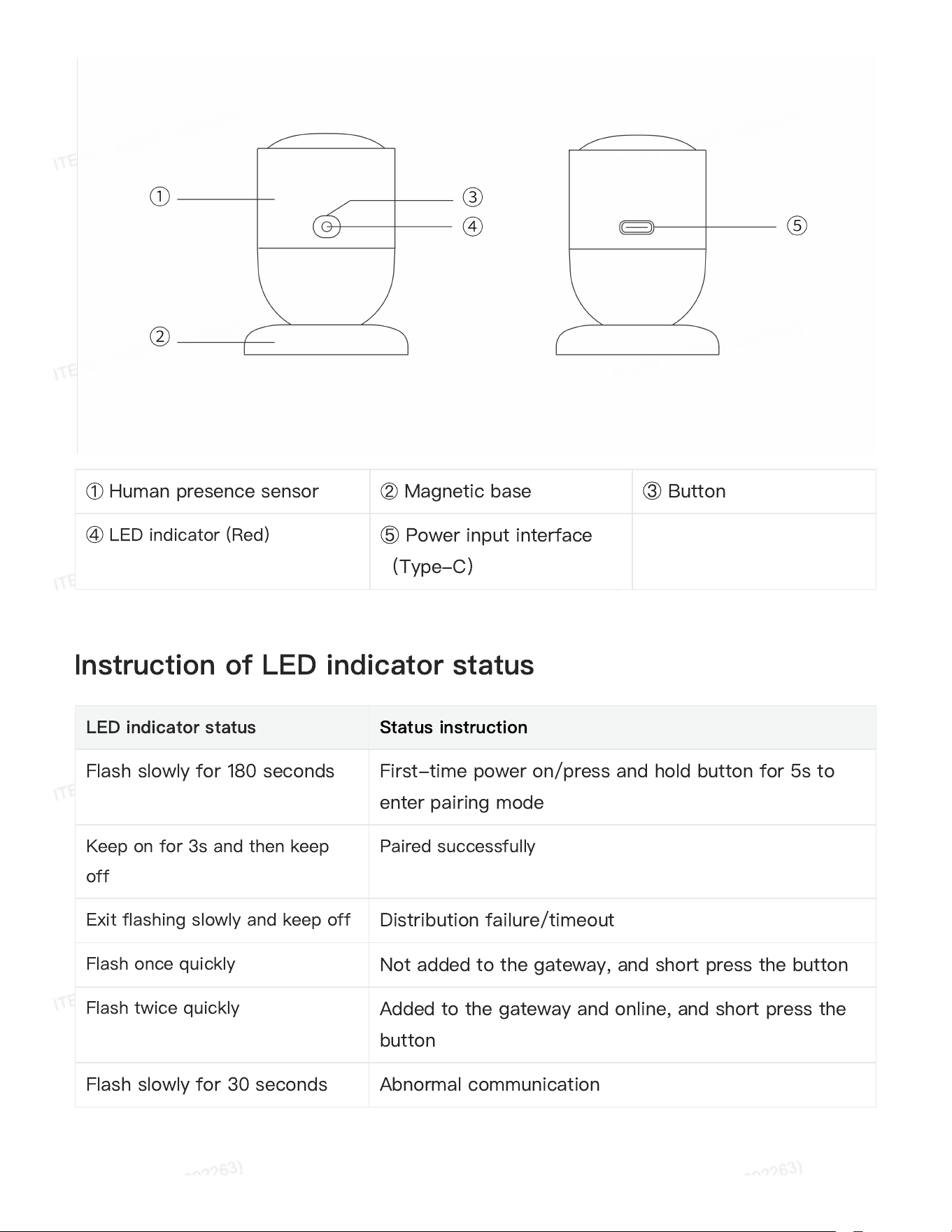

①
Human presence sensor
②
Magnetic base
③
Button
④
LED indicator (Red)
⑤
Power input interface
（
Type-C
）
LED indicator status
Status instruction
Flash slowly for 180 seconds
First-time power on/press and hold button for 5s to
enter pairing mode
Keep on for 3s and then keep
off
Paired successfully
Exit flashing slowly and keep off
Distribution failure/timeout
Flash once quickly
Not added to the gateway, and short press the button
Flash twice quickly
Added to the gateway and online, and short press the
button
Flash slowly for 30 seconds
Abnormal communication
3
Please download the "
eWeLink
" App from
Google Play Store
or
Apple App Store
.

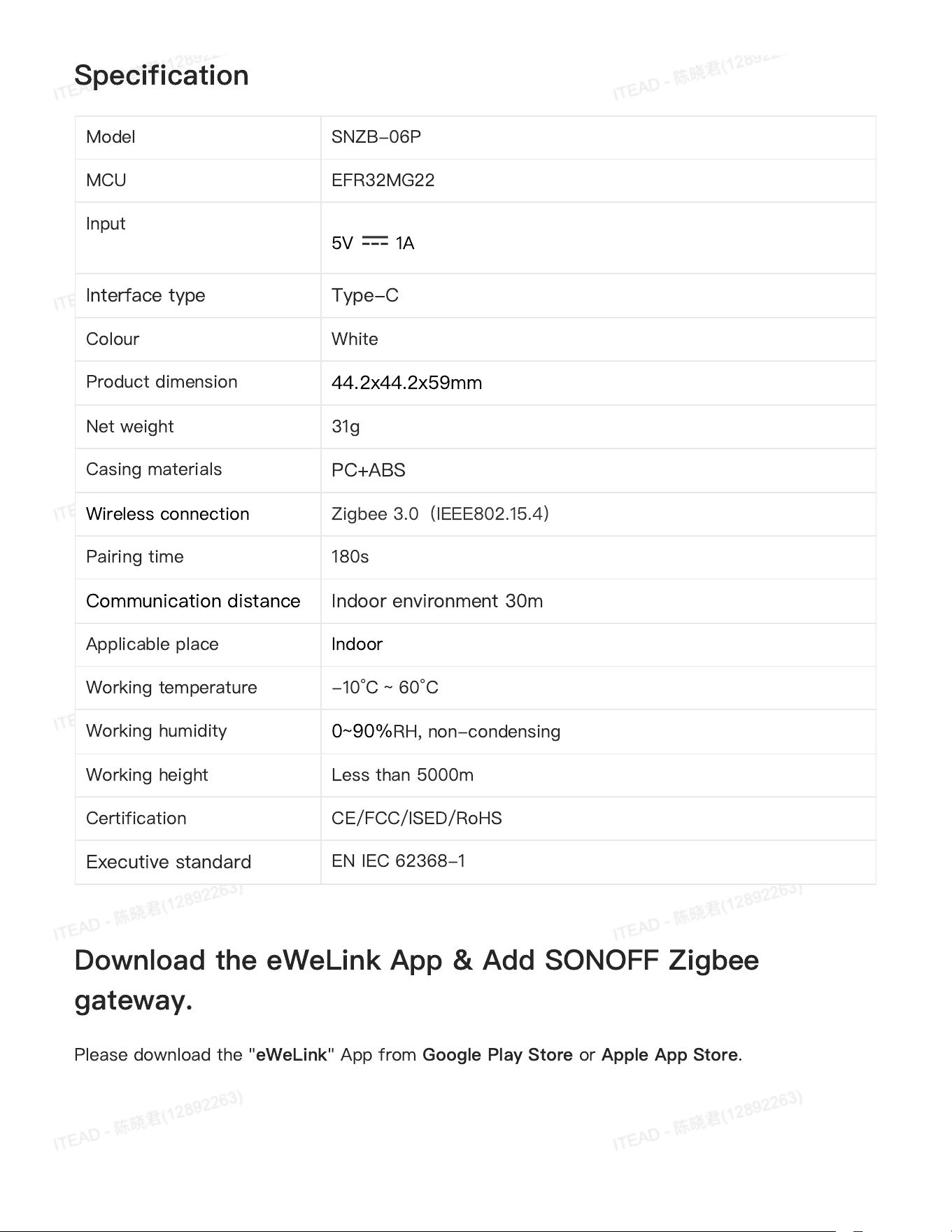

Specification
Download the eWeLink App & Add SONOFF Zigbee
gateway.
Model SNZB-06P
MCU EFR32MG22
Input
5V
⎓
1A
Interface type
Type-C
Colour White
Product dimension
44.2x44.2x59mm
Net weight 31g
Casing materials
PC+ABS
Wireless connection Zigbee 3.0
（
IEEE802.15.4
）
Pairing time 180s
Communication distance
Indoor environment 30m
Applicable place Indoor
Working temperature -10°C ~ 60°C
Working humidity
0~90%
RH, non-condensing
Working height Less than 5000m
Certification CE/FCC/ISED/RoHS
Executive standard
EN IEC 62368-1
4

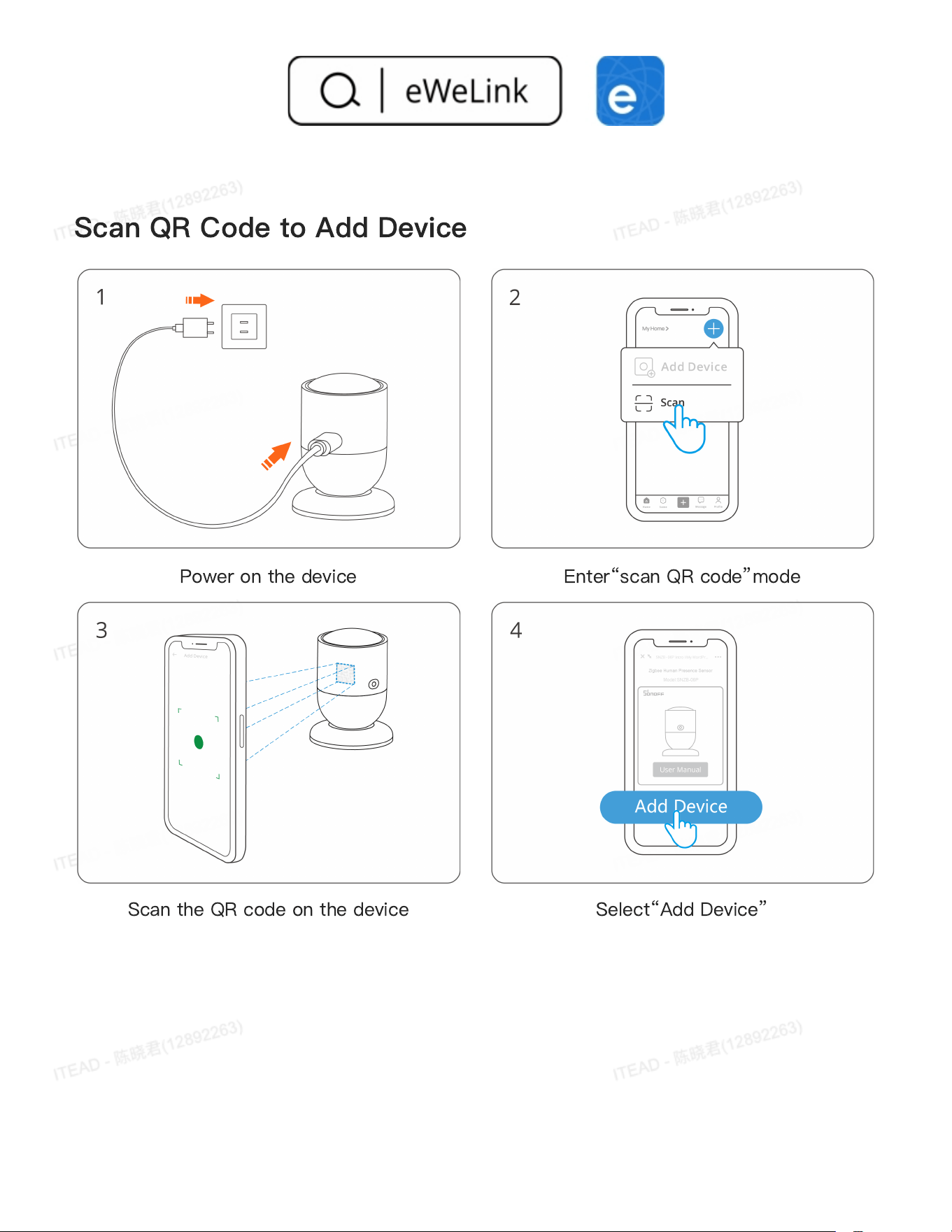

Scan QR Code to Add Device
Power on the device
Enter
“
scan QR code
”
mode
Scan the QR code on the device
Select
“
Add Device
”
5
SONOFF ZBBridge, ZBBridge-P, NSPanel PRO, AIBridge, ZBDongel-P
，
ZBDongel-E
Third-party compatible gateway models:
Amazon Gateway Model: Echo Plus 2nd, Echo Show 2nd
Other gateways supporting ZigBee3.0 wireless protocol. Detailed information is in accordance
with the final product.
*Displays as a human motion sensor under some gateways.
Matched gateways
Effective Communication Distance Verification

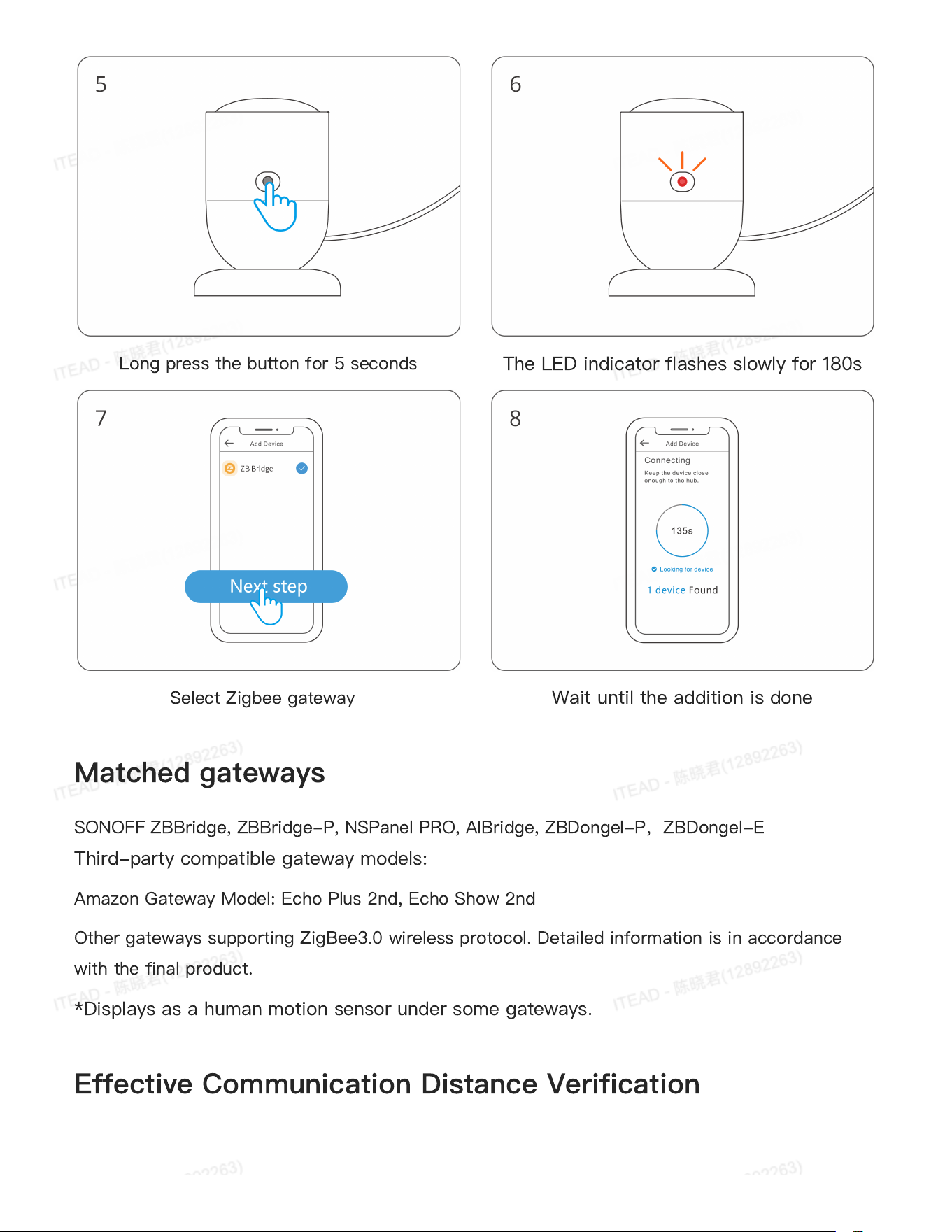

Long press the button for 5 seconds
The LED indicator flashes slowly for 180s
Select Zigbee gateway
Wait until the addition is done
6
Install the device in the desired place, then press the Pairing button on the device. The LED
indicator flashes twice means the device and the device under the same Zigbee network (the
router device or hub) are in the effective communication distance.

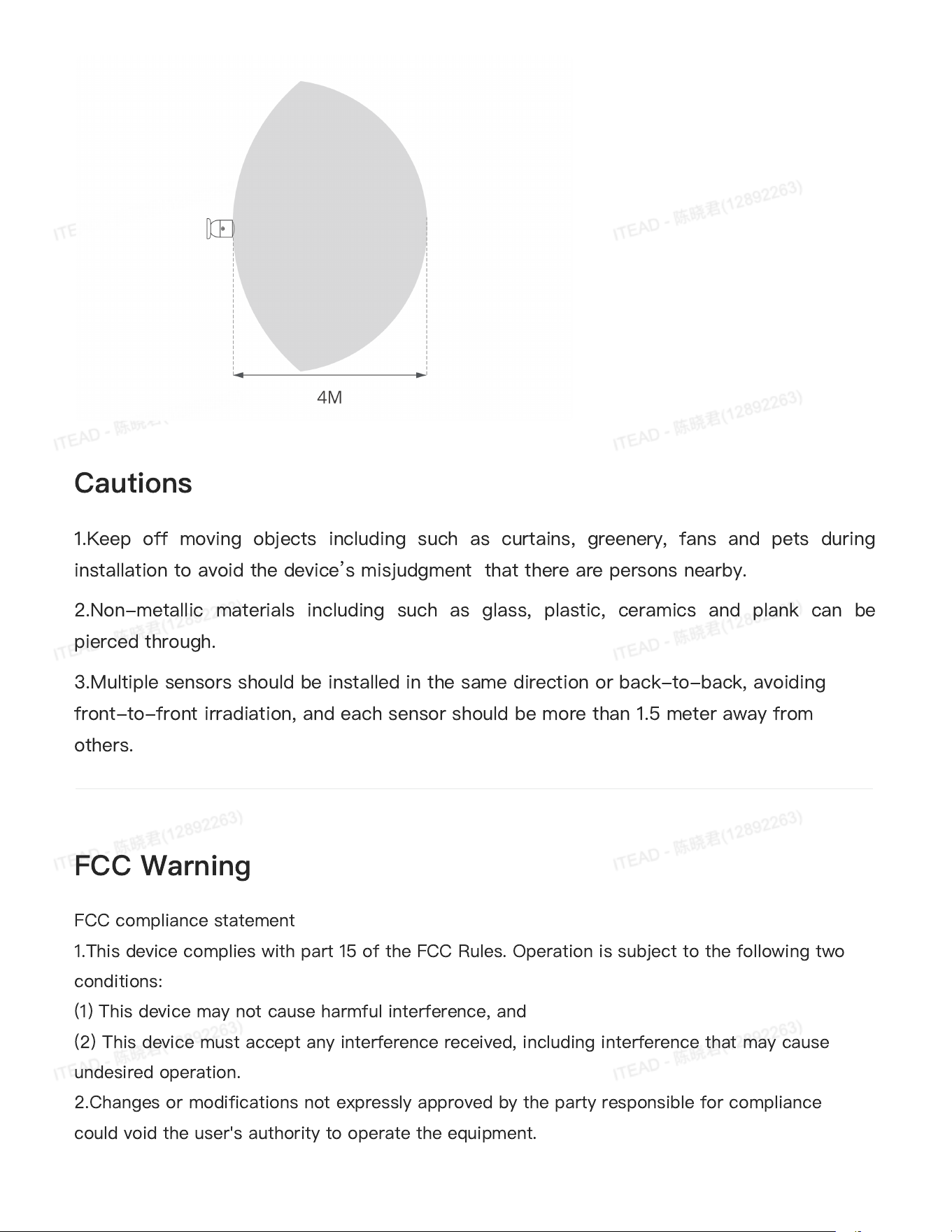

The radar's radial detection distance is approximately 4 meters.

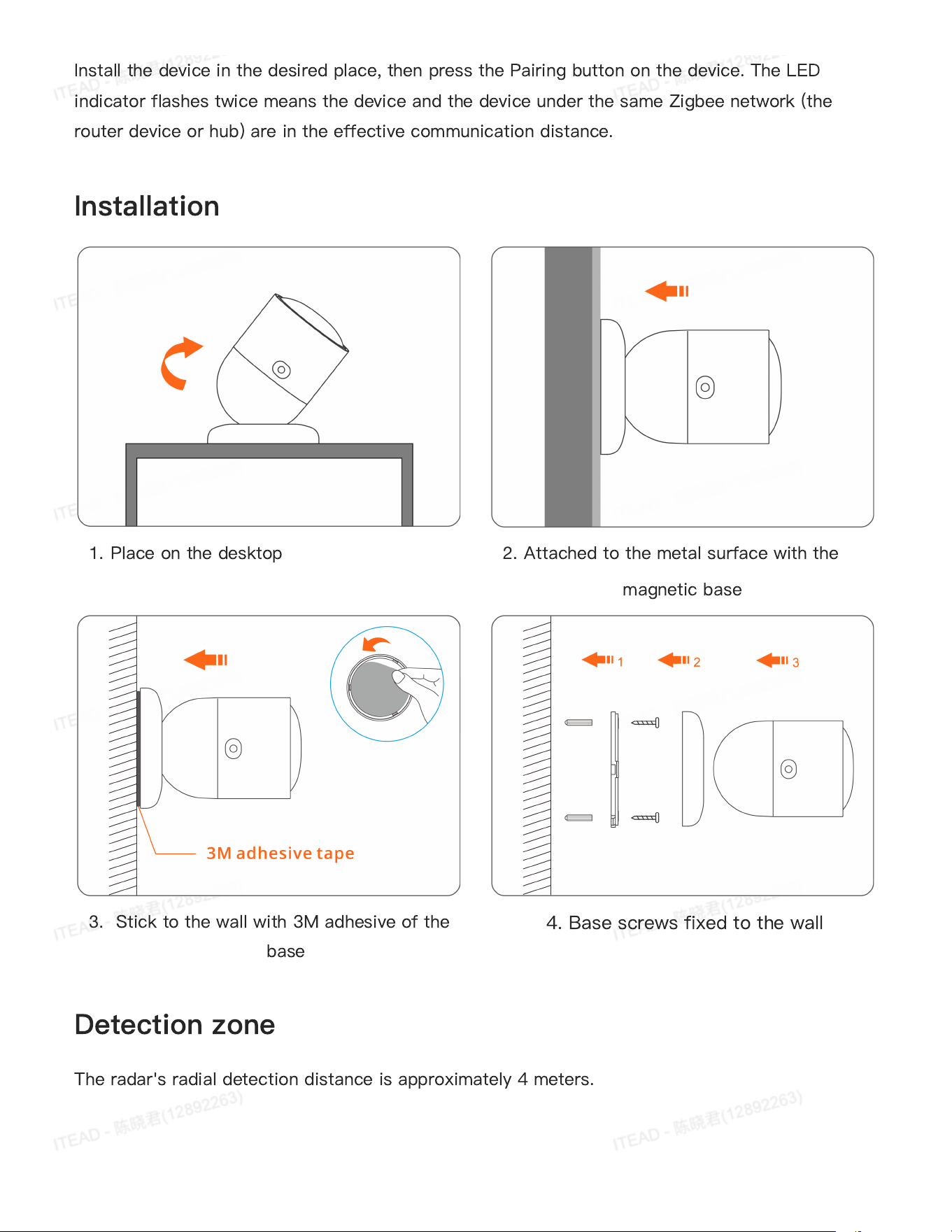

Installation
Detection zone
1.
Place on the desktop
2.
Attached to the metal surface with the
magnetic base
3.
Stick to the wall with 3M adhesive of the
base
4. Base screws fixed to the wall
7
1.Keep off moving objects including such as curtains, greenery, fans and pets during
installation to avoid the device
’
s misjudgment that there are persons nearby.
2.Non-metallic materials including such as glass, plastic, ceramics and plank can be
pierced through.
3.Multiple sensors should be installed in the same direction or back-to-back, avoiding
front-to-front irradiation, and each sensor should be more than 1.5 meter away from
others.
FCC compliance statement
1.This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2.Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Cautions
FCC Warning
8

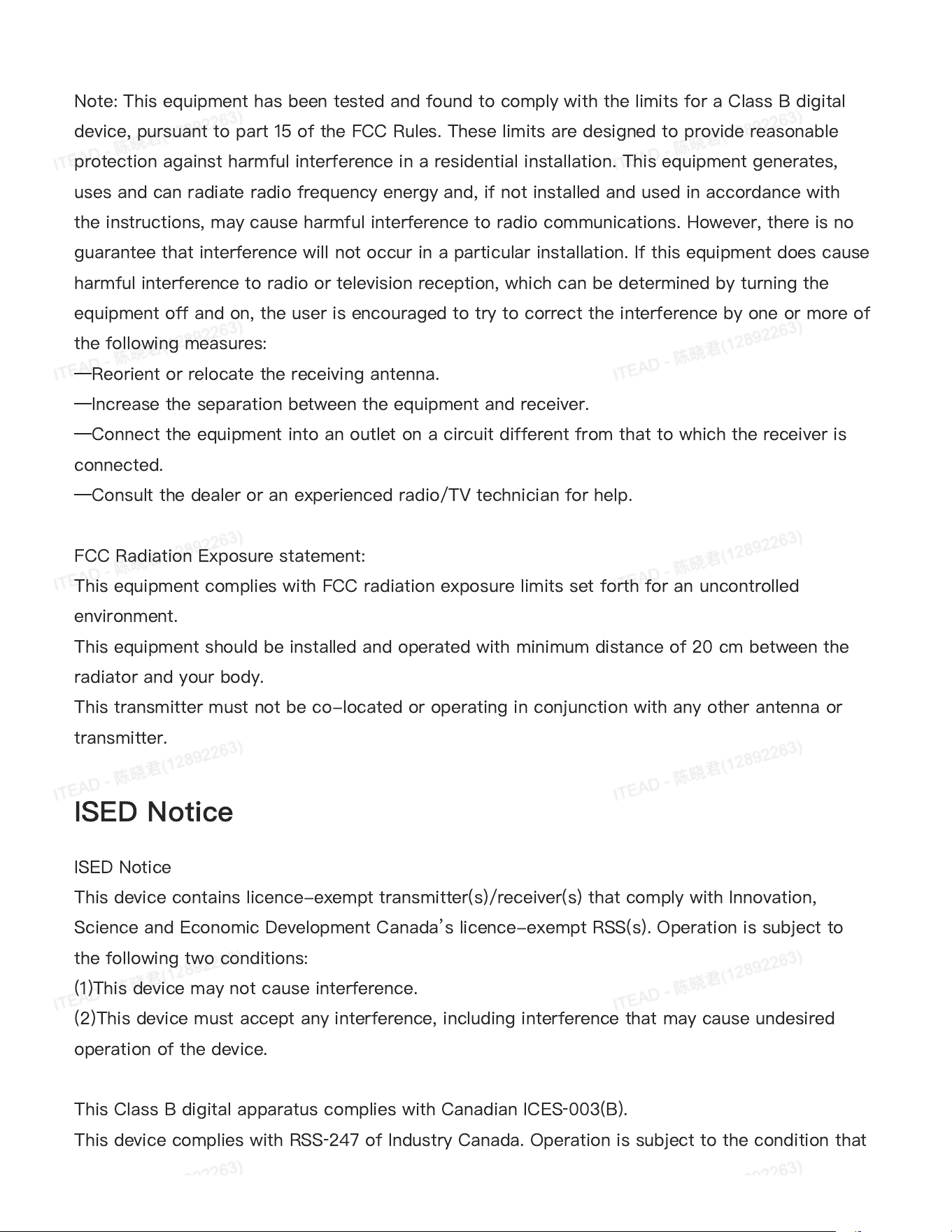

Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—
Reorient or relocate the receiving antenna.
—
Increase the separation between the equipment and receiver.
—
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and operated with minimum distance of 20 cm between the
radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
ISED Notice
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada
’
s licence-exempt RSS(s). Operation is subject to
the following two conditions:
(1)This device may not cause interference.
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.
This Class B digital apparatus complies with Canadian ICES
‐
003(B).
This device complies with RSS
‐
247 of Industry Canada. Operation is subject to the condition that
ISED Notice
9

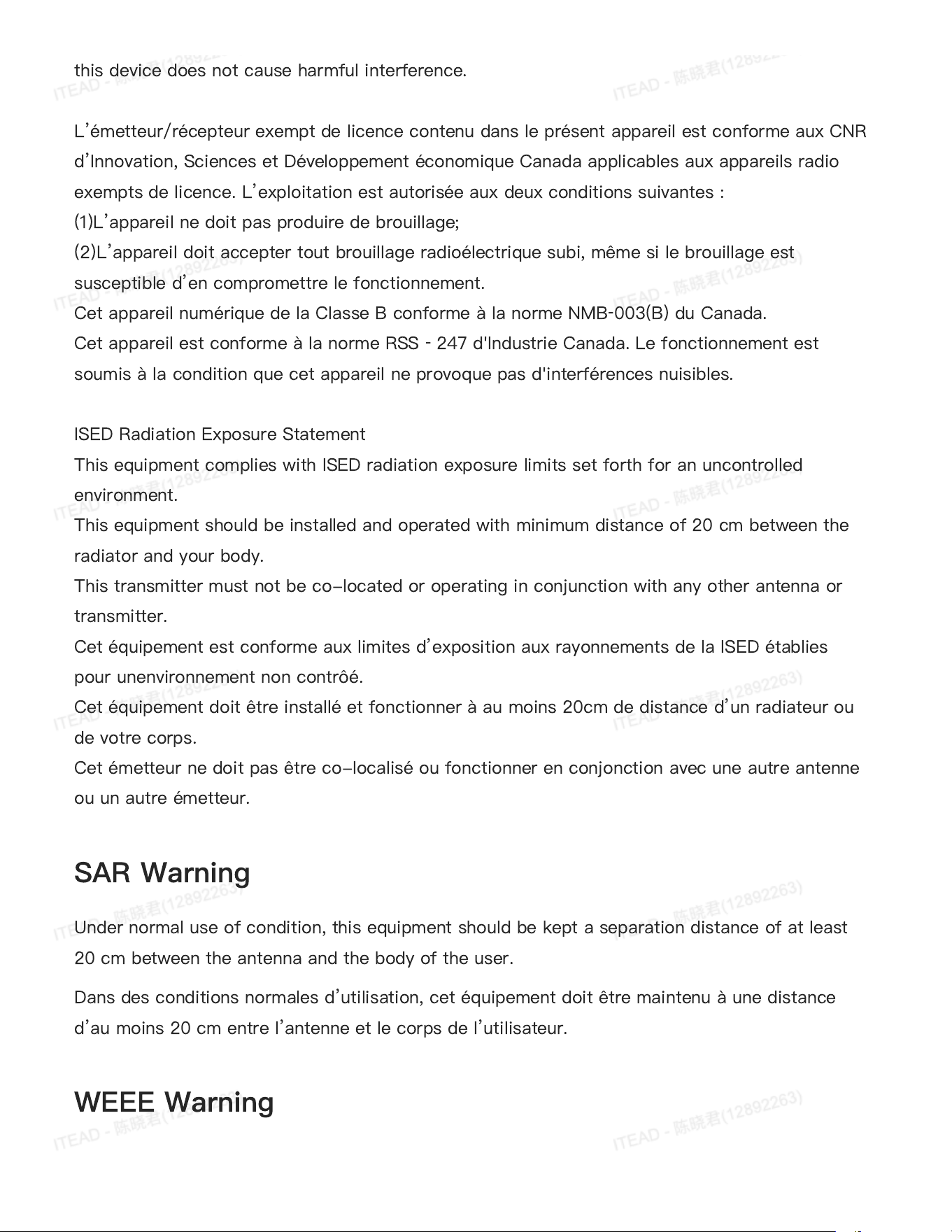

this device does not cause harmful interference.
L
’
émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d
’
Innovation, Sciences et Développement économique Canada applicables aux appareils radio
exempts de licence. L
’
exploitation est autorisée aux deux conditions suivantes :
(1)L
’
appareil ne doit pas produire de brouillage;
(2)L
’
appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d
’
en compromettre le fonctionnement.
Cet appareil numérique de la Classe B conforme à la norme NMB
‐
003(B) du Canada.
Cet appareil est conforme à la norme RSS
‐
247 d'Industrie Canada. Le fonctionnement est
soumis à la condition que cet appareil ne provoque pas d'interférences nuisibles.
ISED Radiation Exposure Statement
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and operated with minimum distance of 20 cm between the
radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Cet équipement est conforme aux limites d
’
exposition aux rayonnements de la ISED établies
pour unenvironnement non contrôé.
Cet équipement doit être installé et fonctionner à au moins 20cm de distance d
’
un radiateur ou
de votre corps.
Cet émetteur ne doit pas être co-localisé ou fonctionner en conjonction avec une autre antenne
ou un autre émetteur.
Under normal use of condition, this equipment should be kept a separation distance of at least
20 cm between the antenna and the body of the user.
Dans des conditions normales d
’
utilisation, cet équipement doit être maintenu à une distance
d
’
au moins 20cm entre l
’
antenne et le corps de l
’
utilisateur.
SAR Warning
WEEE Warning
10

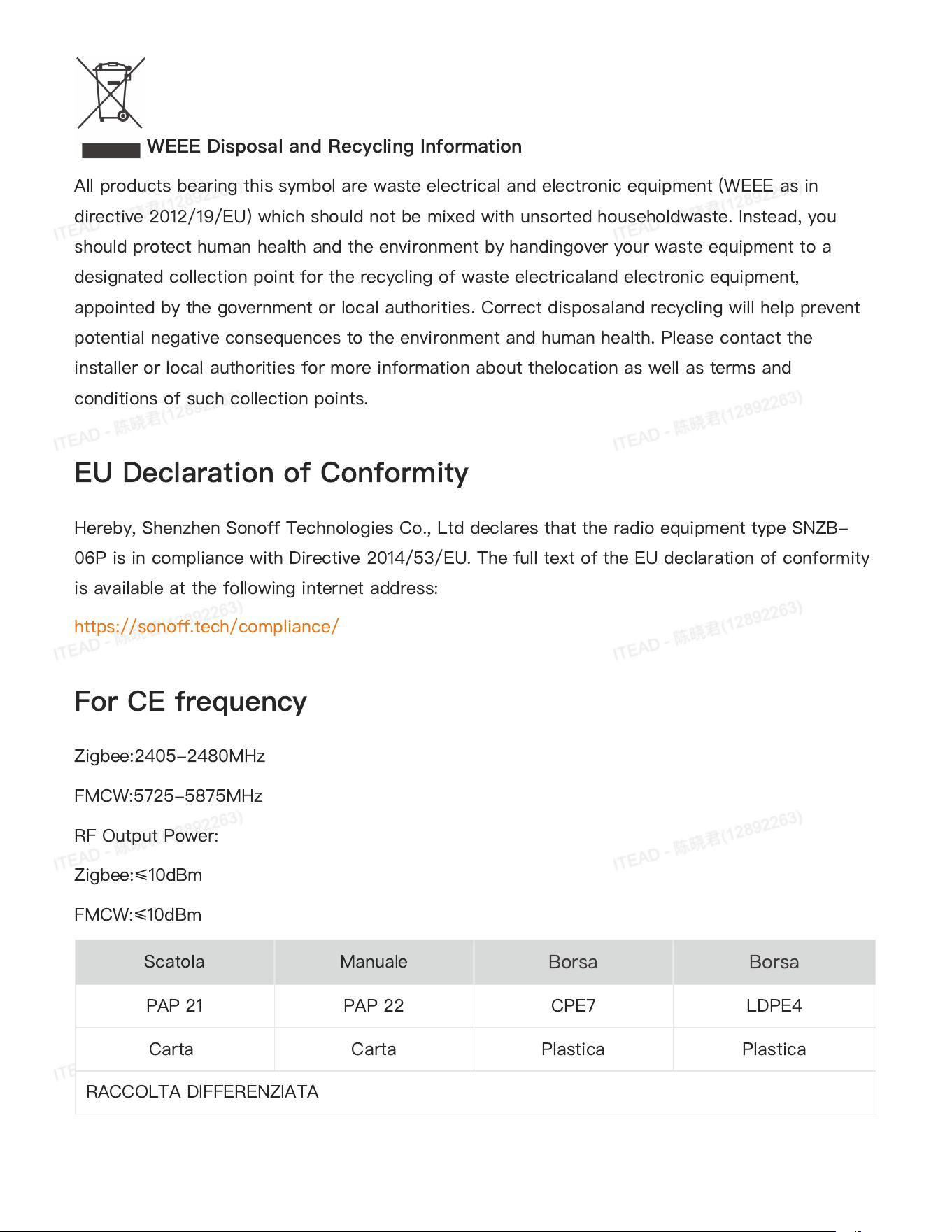

WEEE Disposal and Recycling Information
All products bearing this symbol are waste electrical and electronic equipment (WEEE as in
directive 2012/19/EU) which should not be mixed with unsorted householdwaste. Instead, you
should protect human health and the environment by handingover your waste equipment to a
designated collection point for the recycling of waste electricaland electronic equipment,
appointed by the government or local authorities. Correct disposaland recycling will help prevent
potential negative consequences to the environment and human health. Please contact the
installer or local authorities for more information about thelocation as well as terms and
conditions of such collection points.
Hereby, Shenzhen Sonoff Technologies Co., Ltd declares that the radio equipment type SNZB-
06P is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity
is available at the following internet address:
https://sonoff.tech/compliance/
Zigbee:2405-2480MHz
FMCW:5725-5875MHz
RF Output Power:
Zigbee:
≤
10dBm
FMCW:
≤
10dBm
EU Declaration of Conformity
For CE frequency
Scatola Manuale
Borsa
Borsa
PAP 21 PAP 22 CPE7 LDPE4
Carta Carta Plastica Plastica
RACCOLTA DIFFERENZIATA
11

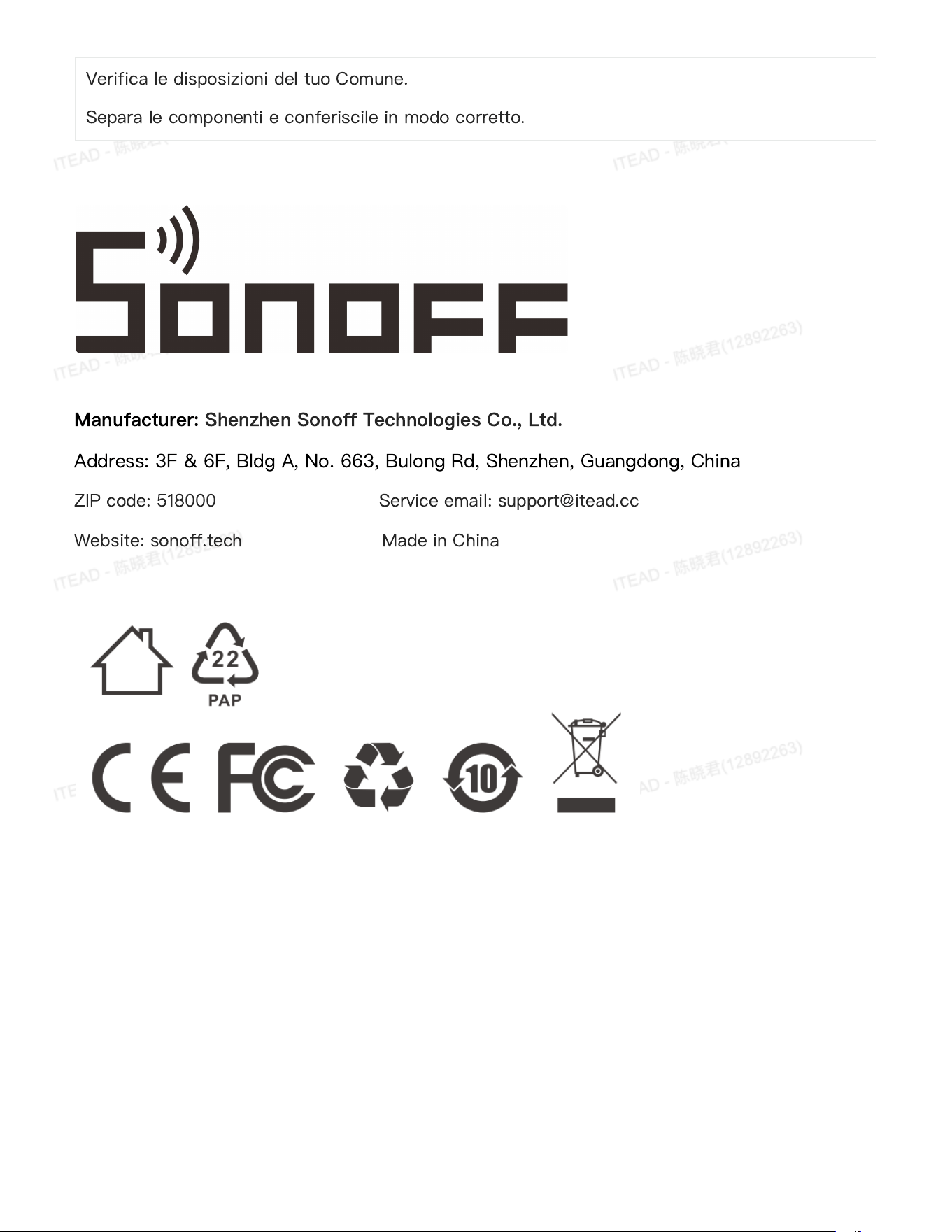

Manufacturer: Shenzhen Sonoff Technologies Co., Ltd.
