WELLS MANUFACTURING
265 Hobson Street, Smithville, Tennessee 37166
telephone: 800-264-7827
www.wells-mfg.com
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.

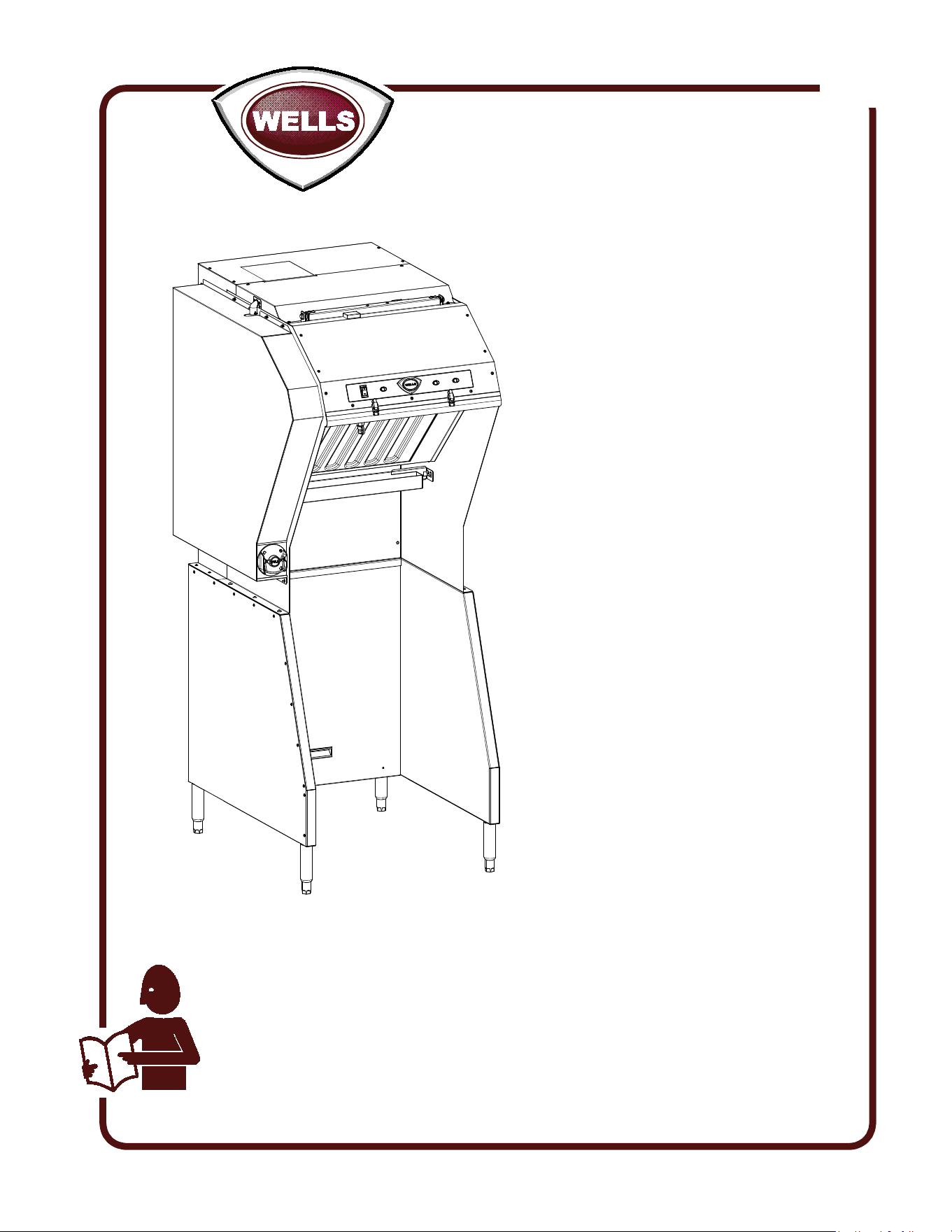

OWNER'S MANUAL
VENTLESS UNIVERSAL
MODULAR HOOD SYSTEM
for
ELECTRIC
COOKING
APPLIANCES
MODEL
WVU-26
Manual Includes
INSTALLATION
USE & CARE
EXPLODED VIEW
PARTS LIST
WIRING DIAGRAM
521
2M-Z18099 REV F (04-25)
Model WVU26
LIMITED EQUIPMENT WARRANTY
Wells Manufacturing warrants to the original purchaser of new Wells
products to be free from defects in material or workmanship, under normal
and proper use and maintenance service as specified by Wells and upon
proper installation and start-up in accordance with the instructions
supplied with each Wells unit. Wells’ obligation under this warranty is
limited to a period of one [1] year beginning from the date of original
installation. The warranty period begins upon the earlier of the date of
original installation or up to six [6] months after the original shipment, from
the factory, of the covered product. Defects that occur as a result of normal
use, within the time period and limitations defined in this warranty, will at
Wells’ discretion have the parts replaced or repaired by Wells or a Wells-
authorized service agency.
THIS WARRANTY IS SUBJECT TO ALL LISTED CONDITIONS
Repairs performed under this warranty are to be performed by a Wells
authorized service agency. Wells will not be responsible for charges
incurred or service performed by non-authorized repair agencies. In all
cases, the nearest Wells-authorized service agency must be used. Wells will
be responsible for normal labor charges incurred in the repair or
replacement of a warrantied product within 50 miles (80.5 km) of an
authorized service agency. Time and expense charges for anything beyond
that distance will be the responsibility of the owner. All labor will need to
be performed during regular service hours. Any overtime premium will be
charged to the owner. For all shipments outside the U.S.A. and Canada,
please see the International Warranty for specific details. It is the
responsibility of the owner to inspect and report any shipping damage
claims, hidden or otherwise, promptly following delivery. No mileage or
travel charges will be honored on any equipment that is deemed portable.
In general, equipment with a cord and plug weighing less than 50 lb. (22.7
kg) is considered portable and should be taken or shipped to the closest
authorized service agency, transportation prepaid.
CONTACT
Should you require any assistance regarding the operation or
maintenance of any Wells Manufacturing; phone or email our service
department. In all correspondence provide the model number and
serial number of the unit needing service; include the voltage or gas
type.
Normal Business Hours: 8:00 a.m. to 4:30 p.m. Central
Telephone: 800-264-7827 Tech Service Option 2
Email: TechServ[email protected]
www.Wells-Mfg.com
WARRANTY EXCLUSIONS
THE FOLLOWING WILL NOT BE COVERED UNDER WARRANTY.
Wells’ sole obligation under this warranty is limited to either repair or
replacement parts, subject to the additional limitations detailed below.
This warranty neither assumes nor authorizes any person to assume
obligations other than those expressly covered by this warranty.
• Any product which has not been used, maintained, or installed in
accordance with the directions published in the appropriate installation
sheet and/or owner’s manual, including incorrect gas or electrical
connection. Wells is not liable for any unit which has been mishandled,
abused, misapplied, subjected to harsh chemicals, modified by
unauthorized personnel, damaged by flood, fire, or other acts of nature
[or God], or which have an altered or missing serial number.
• Installation, labor, and job checkouts, calibration of heat controls, air
and gas burner/bypass/pilot adjustments, gas or electrical system checks,
voltage and phase conversions, cleaning of equipment, or seasoning of
griddle surface.
• Replacement of fuses or resetting of circuit breakers, safety controls, or
reset buttons.
• Replacement of broken or damaged glass components, quartz heating
elements, and light bulbs.
• Labor charges for all removable and consumable parts in gas charbroilers
and hotplates, including but not limited to burners, grates, and radiants.
• Any labor charges incurred by delays, waiting time, or operating
restrictions that hinder a service technician’s ability to perform service.
• Replacement of parts that fail or are damaged due to normal wear or
labor for replacement of parts that can be replaced during a daily cleaning
routine, such as but not limited to silicone belts, PTFE non-stick sheets,
control labels, knobs, bulbs, fuses, quartz heating elements, baskets,
racks, and grease drawers.
• Any economic loss of business or profits.
• Non-OEM parts. Use of non-OEM parts without Wells’ approval will void
the warranty.
• Units exceeding one [1] year from original installation date.
ADDITIONAL WARRANTIES
• Specific/chain-specific equipment may have additional and/or extended
warranties.
The foregoing warranty is in lieu of any and all other warranEes
expressed or implied and consEtutes the enEre warranty.
PRODUCTS PARTS LABOR
Universal Ventless Hoods (WVU) 1 year 1 year
Canopy Ventless Hoods (WVC) 1 year 1 year
*Univers al ven tless hoods and/or canopy ventles s
hoods purchased with approved Star Holdings
electric equip ment.
**Star Holdings approved electric equ ipmen t
purchased and installed a under ventless hood.
*** Univers al ventles s hood and Star Holdin gs
electric equip ment mus t be on the s ame po and
listed on the ventless start-up document for the
2-year warranty to apply.
2 years 2 years
"Cook'n Hold equipment (HW-106D) 2 years 2 years
Cast iron gates, burners and burner shields 1 year
Original Wells parts sold to repair Wells equipment 90 days
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
1
WARRANTY
SPECIFICATIONS 1
WARNINGS - ENGLISH 2
WARNINGS - FRENCH 3

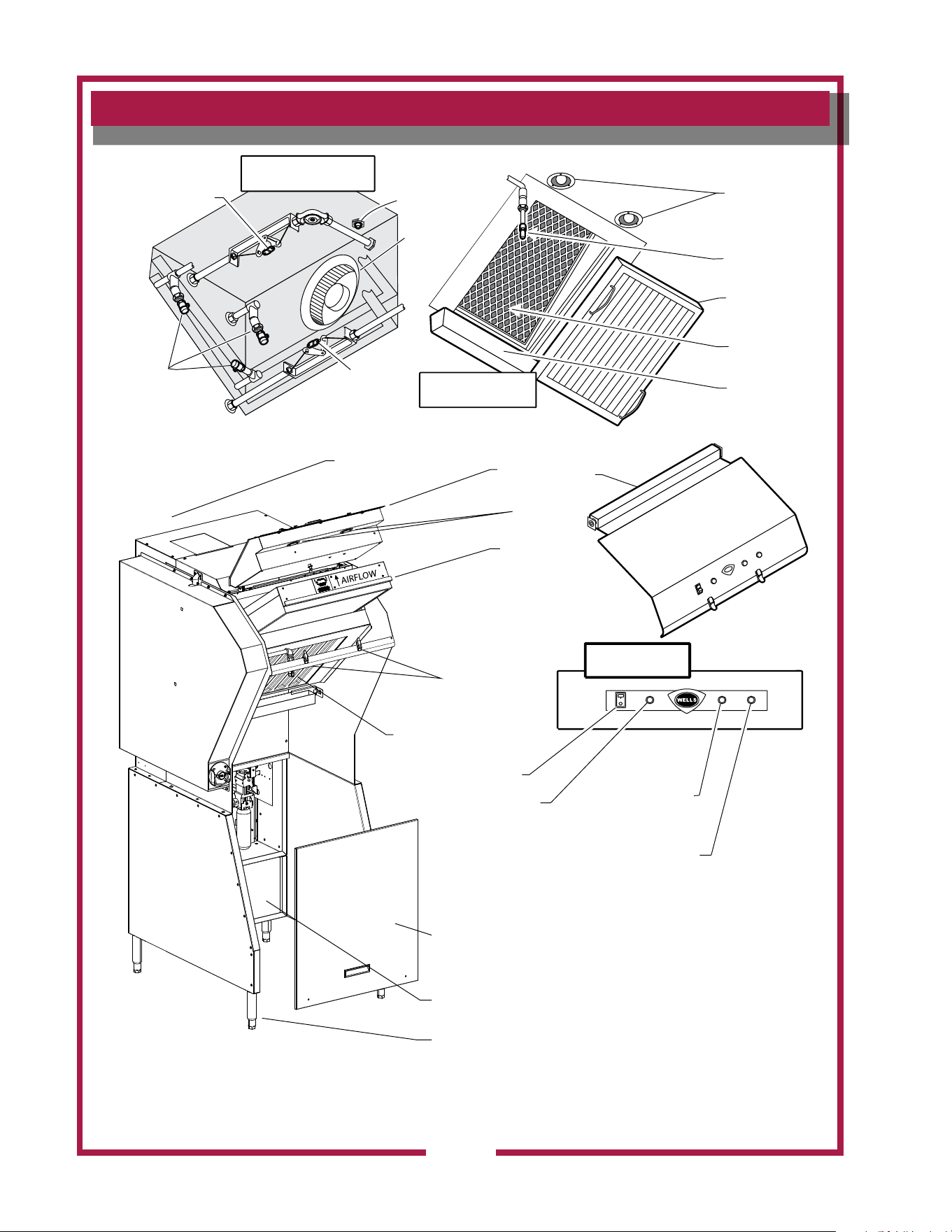

FEATURES & OPERATING CONTROLS 4
PRECAUTIONS & GENERAL INFORMATION 5
AGENCY LISTING INFORMATION 6
INSTALLATION 6

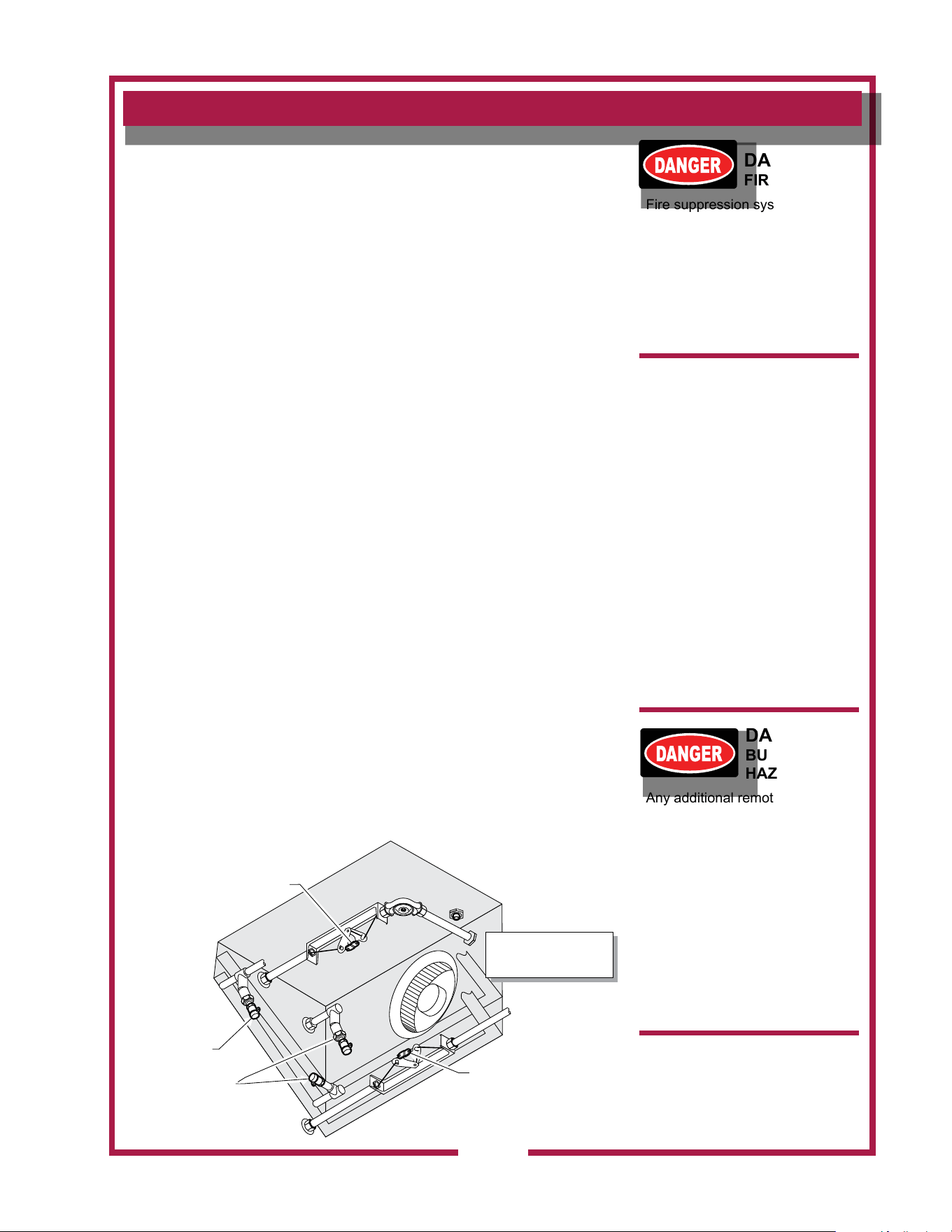

ANSUL® INSTALLATION & SETUP 9

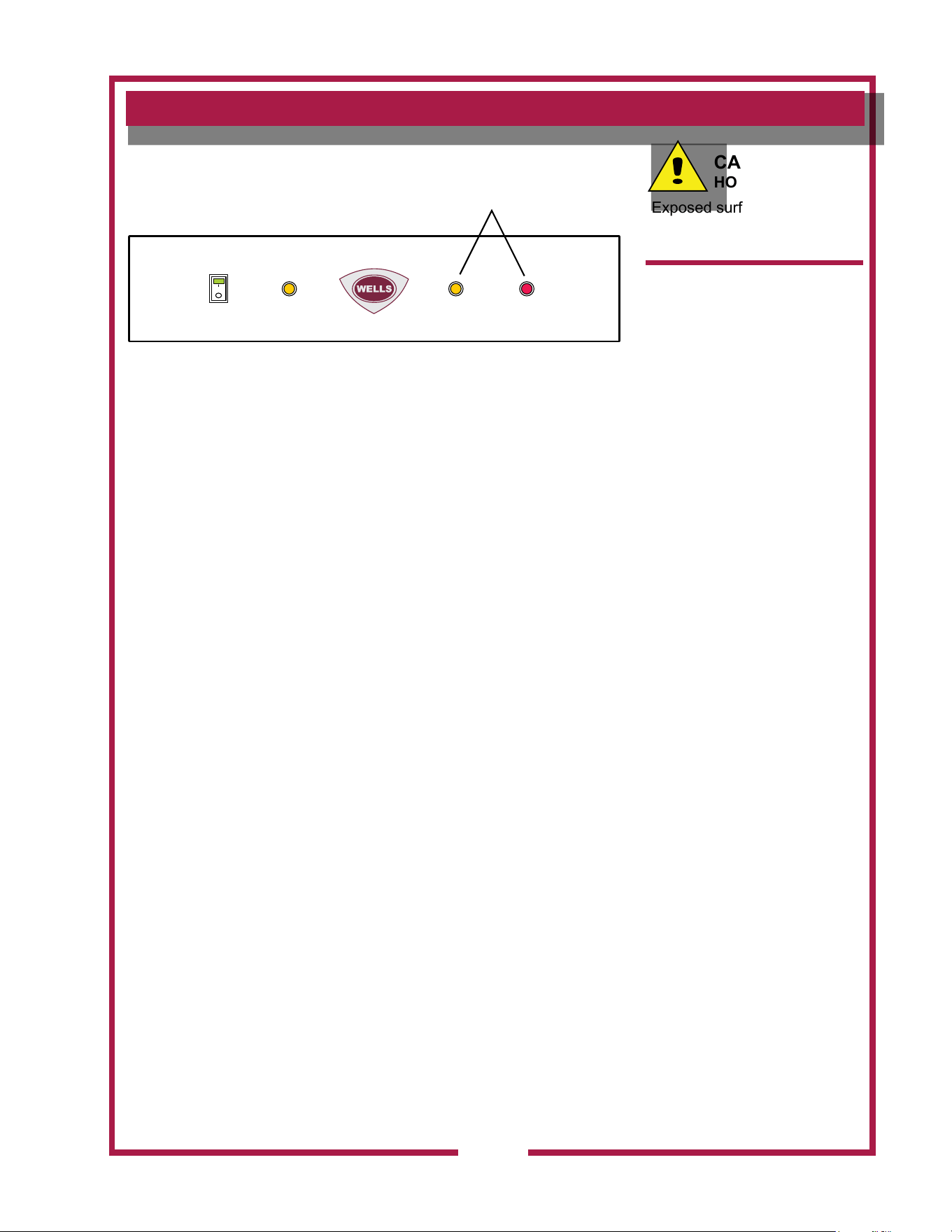

OPERATION 11
CLEANING INSTRUCTIONS 12
TROUBLESHOOTING SUGGESTIONS 15
REQUIRED MAINTENANCE & MAINTENANCE LOGS 15
MSDS Ansulex Low-pH ™ 18

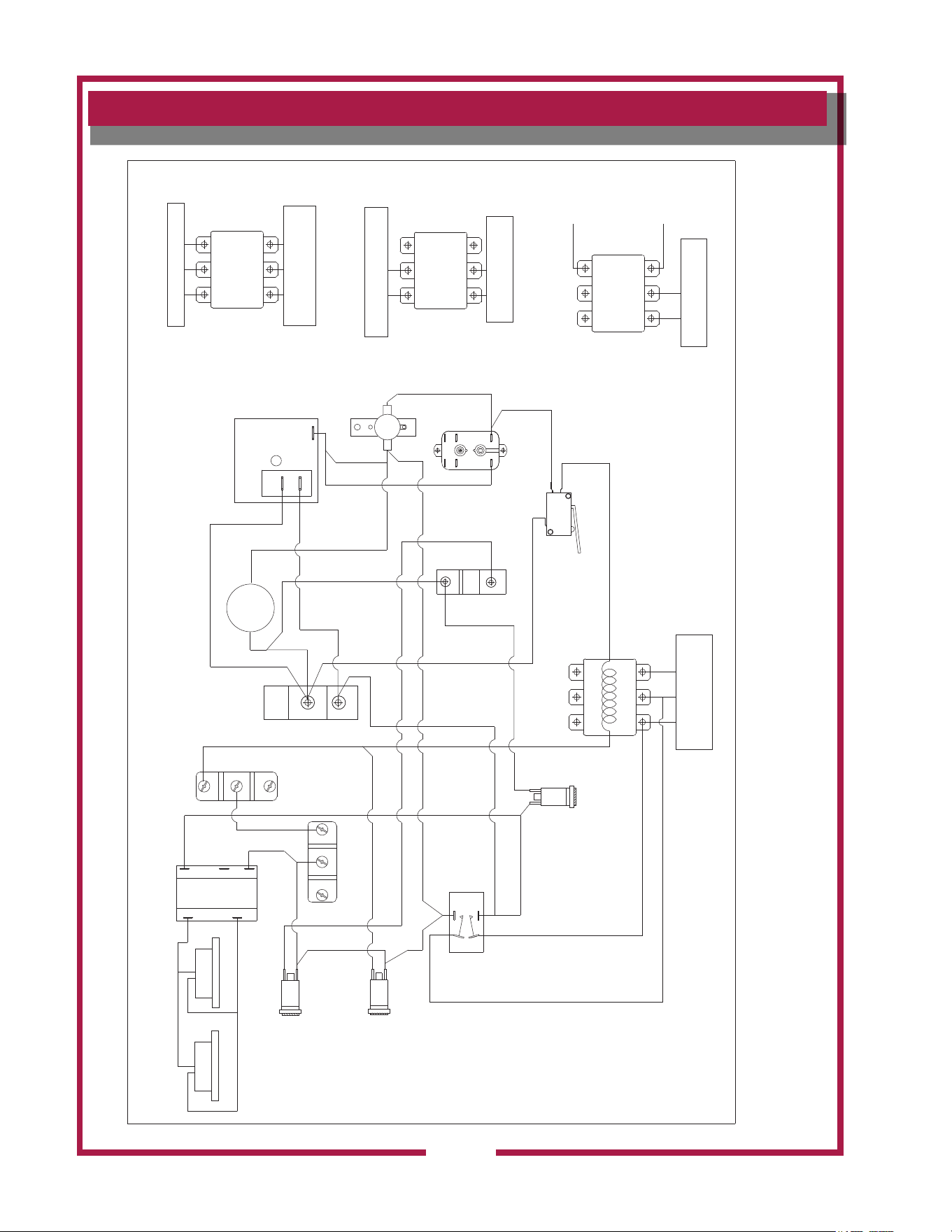

WIRING DIAGRAM 20

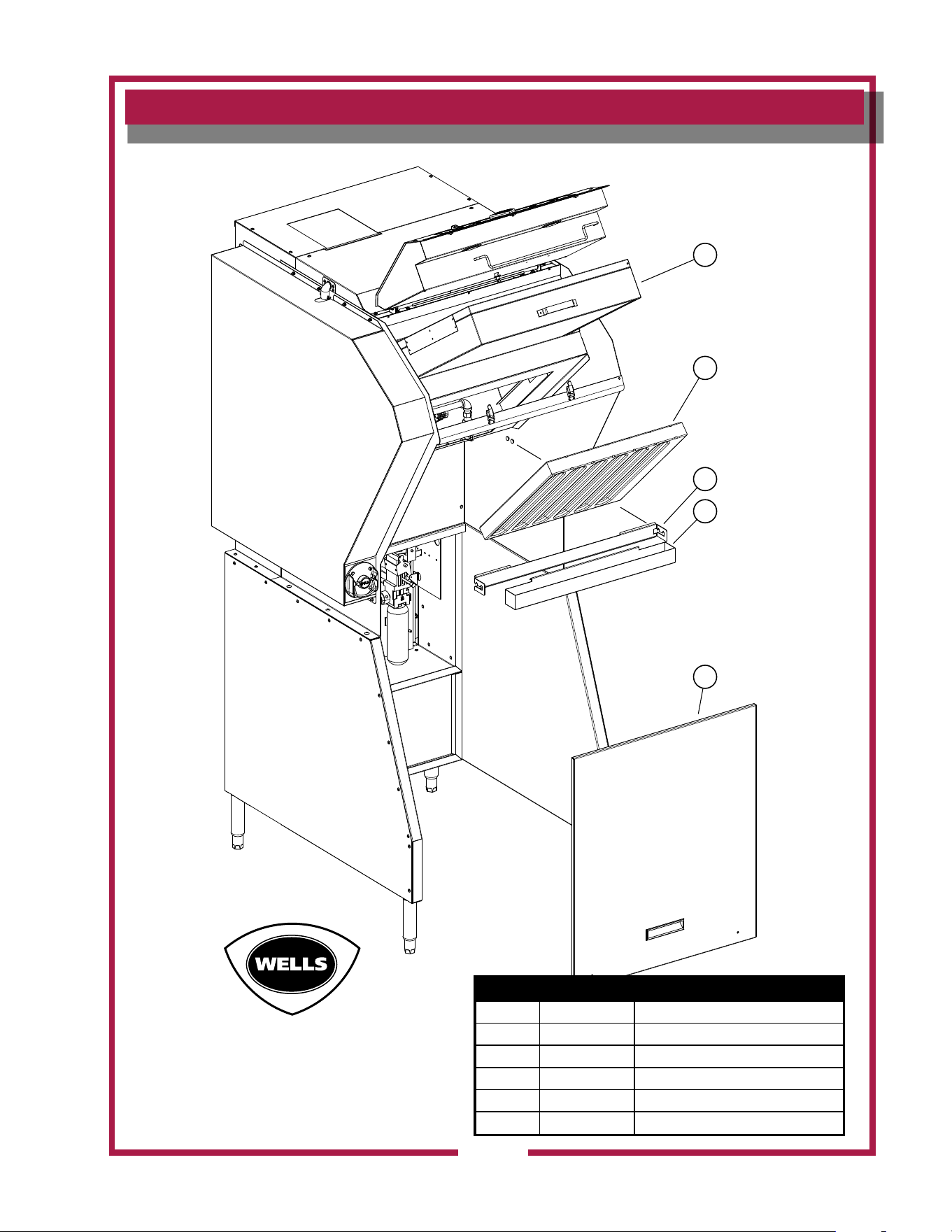

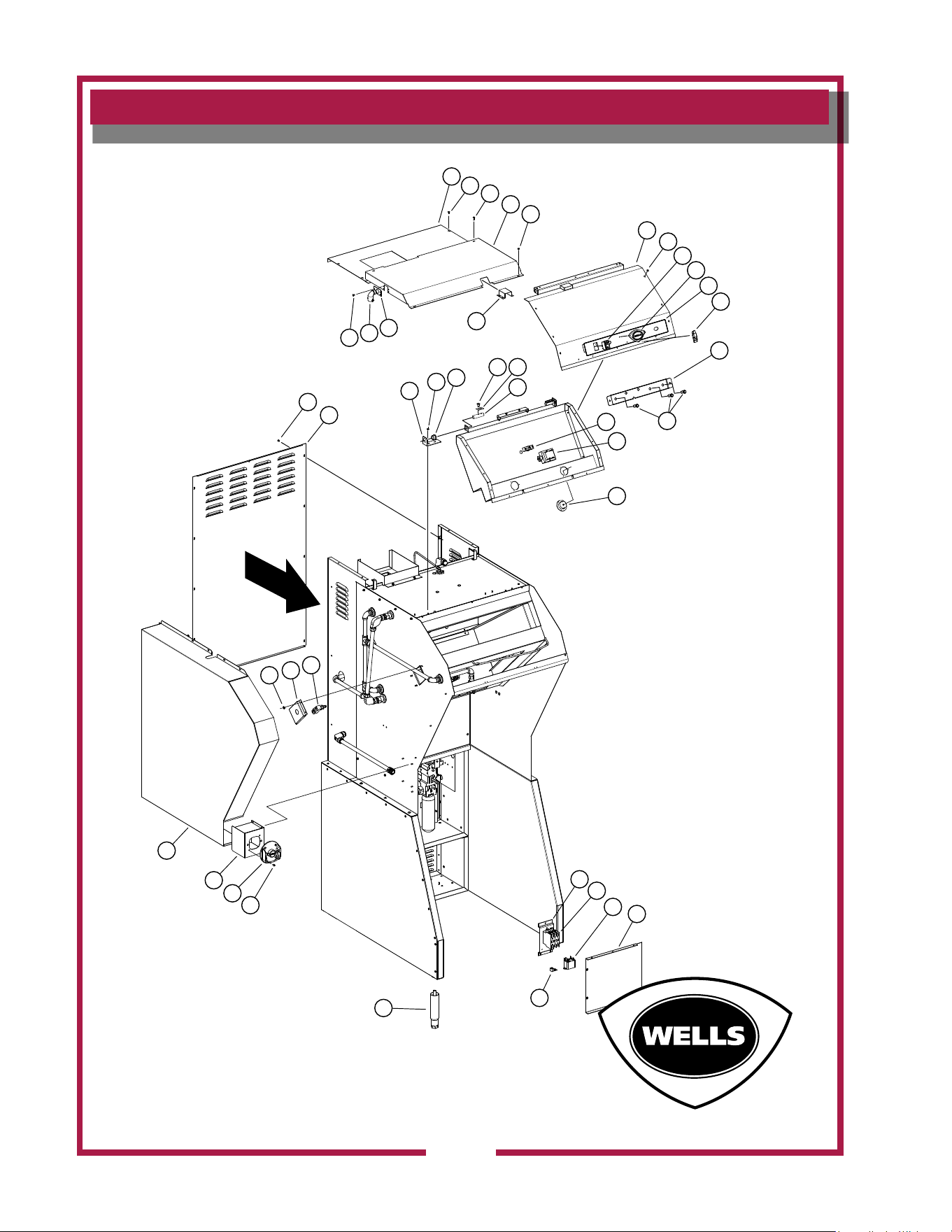

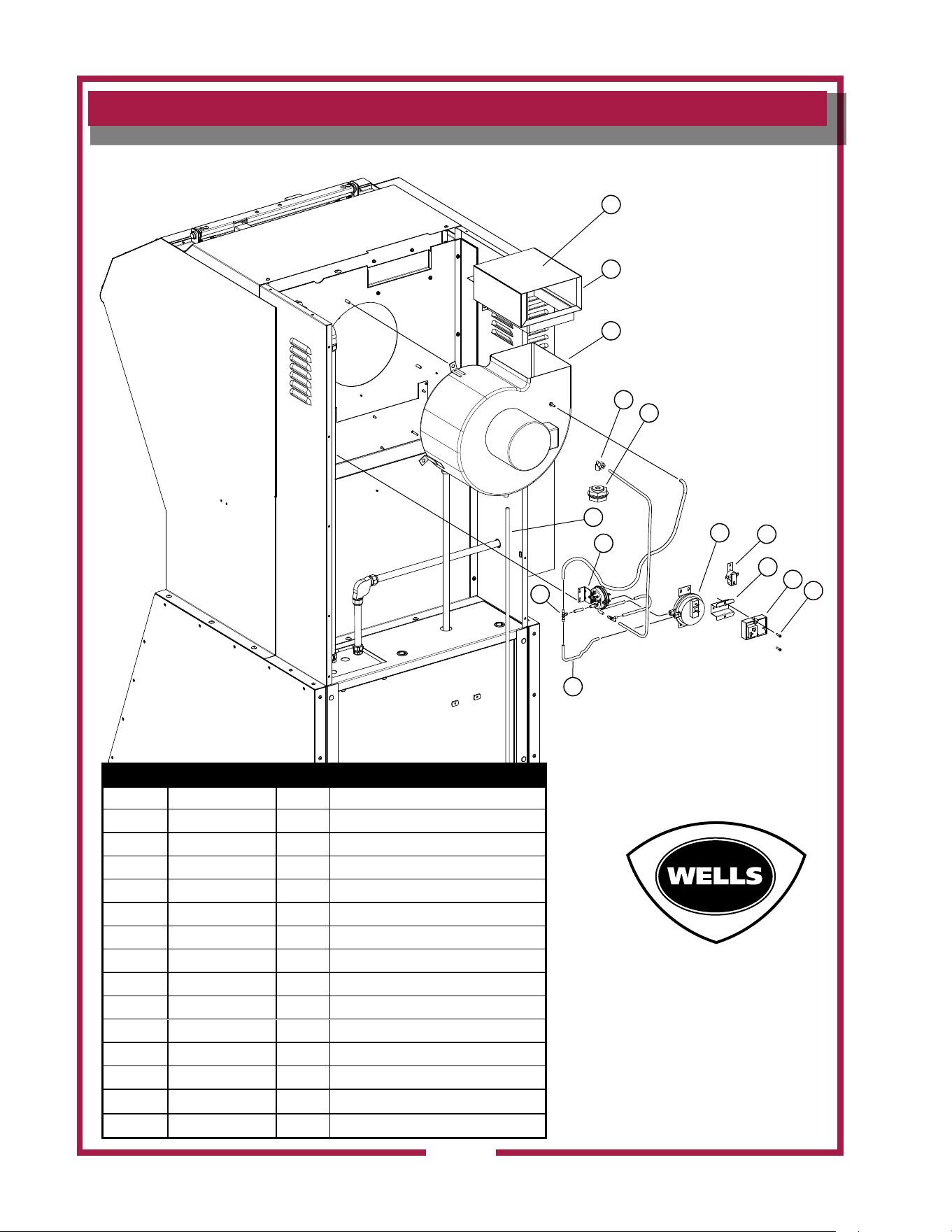

EXPLODED VIEW & PARTS LIST 21
Thank You for purchasing this Wells Manufacturing appliance.
Proper installation, professional operation and consistent maintenance of this appliance will ensure
that it gives you the very best performance and a long, economical service life.
This manual contains information and instructions for the ventless ventilation hood, its use and care.
For information regarding cooking appliance(s), please refer to the manufacturer’s operation manual.
TABLE OF CONTENTS
ELECTRICAL SPECIFICATIONS
INTRODUCTION
UNDER-HOOD APPLIANCE LIMITATIONS:
1.
Appliance Maximum output of 22Kw
2. Cooking surface must be 34-38” (864—965mm) from oor, no more than 25.5”
(648mm) from back wall, no wider than 24” (610mm)
3. Appliance must be installed per manufactures instructions.
4. Electrical appliance only. Not Intended for gas red units.
MODEL
VOLTS
AMPS 1ø WATTS POWER SUPPLY
60Hz 1 ø
WVU26 208/240V 6A 1.4kW
Each cooking appliance requires a circuit sized to
the appliance power requirements, connected to an
interlock contactor with 208/240 volt control coil rating.
2
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
WARNINGS - ENGLISH
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of this
appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR INSTALLING THIS
APPLIANCE. Contact your WELLS DEALER if you have any questions concerning installation, operation
or maintenance of this equipment.
DANGER
FIRE HAZARD
Fire suppression system must be charged and
certied by an authorized Ansul® distributor.
DO NOT attempt to modify or bypass the re
suppression system.
An uncontrolled re can cause serious injury or
death.
WARNING:
If the re suppression system is
discharged, a buzzer will sound
continuously. The unit will remain
inoperable until the re suppression system
is serviced, recharged and reset by an
authorized Ansul® distributor.
NOTE:
If a REMOTE MANUAL PULL STATION
is installed, moving the ventilator for any
reason may cause the Ansul® system to
discharge.
DANGER - DO NOT BLOCK ACCESS
TO THE FIRE EXTINGUSHING
MANUAL PULL.
DANGER:
SUFFOCATION HAZARD
“Do not attempt to use this ventilator with
gas-red units. This ventilator will not
remove products of combustion. Unvented
exhaust gasses can be deadly.”
WARNING:
SHOCK HAZARD
All servicing requiring access to non-insulated
electrical components must be performed by
a factory authorized technician.
DO NOT open any access panel which
requires the use of tools. Failure to follow this
warning can result in severe electrical shock.
WARNING:
RISK OF INJURY
Installation procedures must be performed by
a qualied technician with full knowledge of all
applicable electrical codes. Failure can result
in personal injury and property damage.
WARNING:
SLIP AND FALL HAZARD
DO NOT operate any grease-producing
cooking appliance unless the grease cup
is properly installed. Oil will drip onto oor
creating a slipping hazard.
WARNING:
DO NOT attempt to wash the HEPA /
CHARCOAL lter pack or pre-lter. Water
absorption will render the lter unusable.
Use of a wet or clogged lter will cause the
ventilator system to shut down. Use only
new, clean Wells® Authorized Service Parts.
Keep spare lter packs on hand to avoid
distrupions.
Service Department 1-314-678-6314.
Exposed surfaces can be hot to the touch and
may cause burns. Allow unit to cool before
cleaning or servicing.
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
3
WARNINGS - FRENCH
IMPORTANT : NE JETEZ PAS CE MANUEL
Ce manuel fait partie intégrante de l’appareil et doit être remis au PROPRIÉTAIRE, au GÉRANT
du restaurant ou au responsable de la FORMATION DES UTILISATEURS. Des manuels
supplémentaires sont disponibles auprès de votre concessionnaire WELLS.
TOUTE PERSONNE INSTALLANT OU UTILISANT CET APPAREIL DOIT LIRE CE MANUEL ET
S’ASSURER DE L’AVOIR COMPRIS.
Veuillez contacter votre CONCESSIONNAIRE WELLS pour toute question concernant
l’installation, l’utilisation ou l’entretien de cet équipement.
DANGER
RISQUE D’INCENDIE
Le système anti-incendie doit être chargé
et certié par un distributeur agréé Ansul®.
N’essayez PAS de modier ou de
contourner le système anti-incendie.
Un feu hors de contrôle risque de
provoquer des blessures graves, voire
mortelles.
AVERTISSEMENT :
Une alarme sonore se déclenche en
continu si le système anti-incendie est
déchargé. L’unité reste inutilisable
jusqu’à ce qu’un distributeur agréé Ansul®
effectue son intervention, le recharge et le
réinitialise.
REMARQUE :
Si un AVERTISSEUR D’INCENDIE À
DISTANCE MANUEL est installé, tout
déplacement du ventilateur, quel qu’en soit
le motif, peut provoquer la décharge du
système Ansul®.
DANGER - NE PAS BLOQUER
L’ACCÈS À LA POIGNÉE DE
L’EXTINCTEUR !
DANGER :
RISQUE DE SUFFOCATION
“Ce ventilateur ne doit pas être utilisé avec
des appareils à gaz. Il n’absorbe pas les
produits de combustion. En l’absence de
sortie d’aération, les gaz de combustion
peuvent être mortels.”
AVERTISSEMENT :
RISQUE DE DÉCHARGE ÉLECTRIQUE
Toute intervention nécessitant d’accéder à des
composants électriques non isolés doit être
effectuée par un technicien agréé usine.
N’ouvrez AUCUN panneau d’accès nécessitant
l’utilisation d’un outil. Le non-respect de cet
avertissement peut exposer à une décharge
électrique sévère.
AVERTISSEMENT :
RISQUE DE BLESSURE
Les procédures d’installation doivent être
effectuées par un technicien qualié ayant pleine
connaissance des réglementations applicables. Le
non-respect de cet avertissement peut provoquer
des blessures et des dommages matériels.
AVERTISSEMENT :
RISQUE DE CHUTE
N’utilisez PAS d’appareil de cuisson produisant
de la graisse sans que le godet à graisse soit
correctement installé. Vous risqueriez de glisser
car la graisse éclabousserait le sol.
AVERTISSEMENT :
N’essayez PAS de nettoyer le ltre ou le pré-ltre
HEPA ou à CHARBON. L’eau absorbée rendrait
le ltre inutilisable. Un ltre humide ou colmaté
provoque l’arrêt du système de ventilation. Utilisez
uniquement des pièces neuves et propres,
homologuées par Wells®. Conservez des
ltres de rechange pour éviter l’interruption du
fonctionnement.
Service clientèle : +1-314-678-6314.
4
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
FEATURES & OPERATING CONTROLS
Universal Ventless Hood Features & Operating Controls
FILTER PACK
(PARTIALLY
INSTALLED)
ANSUL® NOZZLE
ON SWIVEL
CONTROL PANEL/
FILTER ACCESS
SYSTEM
EXHAUST
OUTLET
ADJUSTABLE LEG
SERVICE ACCESS DOOR
ANSUL®
PULL STATION
ELECTRICAL
CONNECTION BOX
APPLIANCE
LIGHTS
AREA UNDER HOOD
(LOOKING UP)
FILTER PACK
(IN PLACE)
GREASE
BAFFLE
(REMOVED)
GREASE CUP
ANSUL® NOZZLE
ON SWIVEL
AREA BEHIND FILTERS
(LOOKING UP)
ANSUL® SERIES
DETECTOR W/
212ºF FUSIBLE LINK
ANSUL® SERIES
DETECTOR W/
165ºF FUSIBLE LINK
PRESSURE
SENSOR TAP
VENTILATOR
FAN
ANSUL®
NOZZLE
FILTER
GREASE BAFFLE
APPLIANCE
LIGHTS
CHECK
FILTER
CHANGE
FILTER
SERVICE
REQUIRED
LIGHTED POWER
SWITCH (GREEN)
"CHECK FILTERS"
FILTER(S) OUT OF
POSITION INDICATOR
(AMBER)
"REPLACE FILTERS"
FILTERS NEARING
END OF SERVICE LIFE
INDICATOR (AMBER)
"SERVICE REQUIRED"
FILTERS EXPENDED
INDICATOR (RED -
SYSTEM SHUT DOWN)
CONTROL PANEL
PANEL LATCHES
IL2809 Rev. A
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
5
PRECAUTIONS AND GENERAL INFORMATION
This ventilator hood is part of an engineered system and is intended for
use in commercial establishments only.
This ventilator is intended
for commercial establishments for use
in the preparation food for human consumption. No other use is
recommended or authorized by the manufacturer or its agents.
Operators of this appliance must be familiar with the appliance use,
limitations and associated restrictions. Operating instructions must be
read and understood by all persons using or installing this appliance.
This ventilator hood system is designed to reduce odor emissions,
but will not completely eliminate all cooking odors. Air exchange
rates at the installation site must comply with the requirements of the
local jurisdictional authority. To ensure that odors do not accumulate,
recommended minimum air exchange is 400 cfm into and out of the
site.
This unit is intended for use with light and medium duty electric cooking
appliances only. Cooking appliances placed under this ventilator must
comply with the restrictions set forth in the Installation Instructions
shipped with the unit.
Also see Under Hood Cooking Appliance Limitations, page 1.
Do not connect or energize this appliance until all installation
instructions are read and followed. Damage to the ventilator and/or
cooking appliances may result if these instructions are not followed.
Disconnect this appliance from electrical power before performing any
maintenance or servicing.
Cleanliness of this appliance is essential to good sanitation. Read and
follow all included cleaning instructions and schedules to ensure the
safety of the food product.
This appliance is not jet stream approved. Do not direct water jet or
steam jet at this appliance, or at any control panel or wiring. Do not
splash or pour water on, in or over any controls, control panel or wiring.
Do not attempt to wash lter packs. Water will cause their immediate
failure and disable the ventilator.
Exposed surfaces of this appliance can be hot to the touch and may
cause burns.
Avoid storing ammable or combustible materials in, on or near the
ventilator or associated cooking appliance.
The technical content of this manual, including any wiring diagrams,
schematics, parts breakdown illustrations and/or adjustment
procedures, is intended for use by qualied technical personnel.
Any procedure which requires the use of tools must be performed by a
qualied technician.
All supplied instructions, diagrams, schematics, parts breakdown
illustrations, notices and labels must remain with the appliance if it is
sold or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this
appliance has American sizes on all hardware.
DANGER:
SUFFOCATION HAZARD
Do not attempt to use this
ventilator with gas-red units.
This ventilator will not remove
products of combustion.
Unvented exhaust gasses
can be deadly.
WARNING:
SHOCK HAZARD
All servicing requiring
access to non-insulated
electrical components must
be performed by a factory
authorized technician.
DO NOT open any access
panel which requires the use
of tools. Failure to follow this
warning can result in severe
electrical shock.
IMPORTANT:
The ventilator is disabled
when the lters are plugged
to the point of insufcient
airow for proper operation.
Also, power to the cooking
appliances is interrupted if
either the lter pack or the
grease bafe is removed.
It is the responsibility of
the store management to
maintain sufcient spares
of lter packs to avoid
prolonged shutdown of the
ventilator when this lter
pack is expended. Filter
packs cannot be cleaned.
Wells Manufacturing
assumes no liability for loss
of business due to lter
related shutdown.
6
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
INSTALLATION
NOTE: DO NOT discard
the carton or other packing
materials until you have
inspected the appliance for
hidden damage and tested it
for proper operation.
Refer to SHIPPING DAMAGE
CLAIM PROCEDURE on
the inside front cover of this
manual.
WARNING:
RISK OF INJURY
Installation procedures must
be performed by a qualied
technician with full knowledge
of all applicable electrical
codes. Failure can result in
personal injury and property
damage.
IMPORTANT:
Fire suppression system must
be charged and certied by an
authorized Ansul® distributor.
Ventilator will not operate and
cooking appliance will not be
energized until the Ansul® re
suppression system has been
charged.
IMPORTANT:
After cooking appliances
are positioned under the
hood, swivel nozzles must
be positioned per Ansul®
recommendations.
UNPACKING & INSPECTION
Carefully remove the appliance from the carton. Remove all
protective plastic lm, packing materials and accessories from the
appliance before connecting electrical power or otherwise performing
any installation procedure.
Carefully read all instructions in this manual before starting any
installation.
Read and understand all labels and diagrams attached to the
ventilator.
Carefully account for all components and accessories before
discarding packing materials.
COMPONENTS
Per module:
4 ea. Leg Assemblies
1 ea. Grease bafe
1 ea. Filter pack
1 ea Grease cup
Ansul® components - must be installed by an authorized ANSUL®
distributor only:
1 ea. Fire suppression agent tank
1 ea. Fire suppression agent (Ansulex® Low pH) 1.5 gal.
1 ea. Fire suppression system charging cartridge
Store these components in a convenient place for later use.
AGENCY LISTING INFORMATION
NSF
STD 4
This appliance conforms to NSF Standard 4 for sanitation only if
installed in accordance with the supplied Installation Instructions
and operated and maintained in accordance with the instructions in this
manual.
This appliance is ETL listed.
UL710B
Recirculating System
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
7
INSTALLATION (continued)
SERVICE TECHNICIAN INSTALLATION NOTES
This ventilator hood is to be used with light-duty and medium-duty
electrically powered cooking appliances only.
• DO NOT attempt to use this ventilator hood with gas-red units.
• DO NOT use this ventilator hood with electrical appliances whose
dimensions or wattage characteristics exceed those dened in the
Under Hood Cooking Appliance Limitations, page 1.
Installation and start up must be performed by an Authorized
Installation Company.
Ansul® Installer must complete the WARRANTY INITIATION form
(2M-303912) included with the unit for the warranty to begin, and record
installation particulars on the CUSTOMER SERVICE DATA form
located at the end of this manual.
IT IS THE RESPONSIBILITY OF THE INSTALLER TO verify that
this VENTILATOR installation is in compliance with the specications
listed in this manual, with local code requirements, and in accordance
with the STANDARD FOR VENTILATON CONTROL AND FIRE
PROTECTION OF COMMERCIAL COOKING OPERATIONS as
detailed in N.F.P.A 96 (current edition).
NOTE: Certain codes require FRYERS to be restrained with a
TETHER or other RESTRAINT DEVICE. If this ventilator is to be used
with a fryer, it is the RESPONSIBILITY OF THE INSTALLER to check
with the AUTHORITY HAVING JURISDICTION, in order to ascertain
the applicability of this requirement to this specic installation . Any
restraint device must allow access to the back and sides of the unit to
provide for servicing and maintenance, and must not interfere with the
operation of the re suppression system.
SETUP
Setup the appliance only on a rm, level, non-combustible surface.
Verify local codes for requirements. Concrete, tile, terrazzo or metal
surfaces are recommended. Metal over combustible material may not
meet code for non-combustible surfaces.
Verify vertical clearances. Unit requires a minimum of 96” (oor to
overhead) to allow for adequate air circulation and replacement of
lters. Combustible object from the top must be 99” or higher, or 3”
above the unit while the control panel door is open.
Verify that the unit sits rmly on all legs or casters depending on your
model. With a spirit level, check that the appliance is level front-to-
back and side-to-side. With the adjustable legs, adjust as required
to level the appliance. In order to prevent tipping or deection, legs
must be adjusted such that all legs are in rm contact with the oor.
DANGER:
SUFFOCATION HAZARD
Do not attempt to use this
ventilator with gas-red units.
This ventilator will not remove
products of combustion.
Unvented exhaust gasses
can be deadly.
WARNING:
SHOCK HAZARD
All servicing requiring ac-
cess to non-insulated elec-
trical components must be
performed by a factory
authorized technician.
DO NOT open any access
panel which requires the use
of tools. Failure to follow this
warning can result in severe
electrical shock.
CAUTION:
RISK OF
DAMAGE
DO NOT connect or
energize this appliance
until all installation
instructions are read and
followed. Damage to the
appliance will result if
these instructions are not
followed.
IMPORTANT:
If a remote pull station is to
be used, ventilator cannot be
moved without rst disabling
the remote pull station.
Contact your Ansul® agent
for details.
8
M521 p/n 2M-Z18099 OpM WVU- Universal Hood

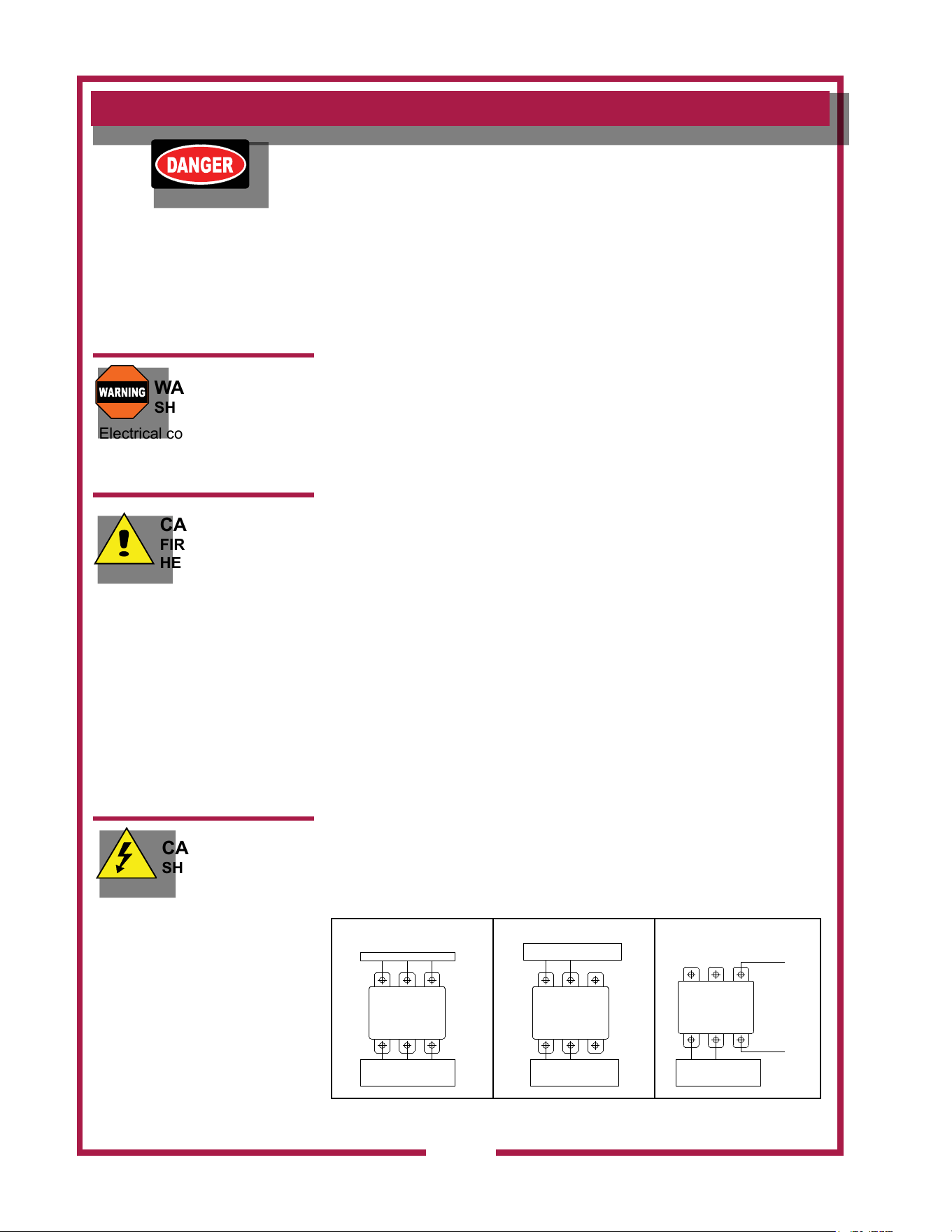

ELECTRICAL INSTALLATION
The ventless hood system is rated 208/240 volt single phase and requires a
15 amp electrical circuit for hood operation. A 208/240 volt 3 pole contactor is
provided for electrical supply and appliance interface connection. The ground
lug adjacent to the supply connection contactor must be connected to a
suitable building ground. All under hood appliances must be controlled by the
appliance interface. This interface will disable all under hood appliances in the
event the hood is switched off, the required lters are not in place, the airow
is less than the required minimum or the re suppression system is activated.
The supply connection and appliance interface contactor is located in the
electrical box below the Ansul re suppression mechanical actuator. Access
is provided through the front lift off door. This electrical box also houses a dry
contact relay for connection to a building re alarm system. Both Normally
Open and Normally Closed contacts are provided. The installation and all
connections shall be in accordance with the National Electric Code NFPA 70. It
is the responsibility of the electrical contractor to provide suitable wiring, exible
or rigid conduit, and an appropriate strain relief. Overcurrent protection must be
provided for all circuits.
SUPPLY CONNECTIONS
Under hood appliances with a load of less than 30 amps can be controlled
directly by the supply connection contactor. Single phase supply connections
are made to contactor terminals L1 and L2. Three phase supply connections
are made to contactor terminals L1, L2 and L3. Appliance load connections are
made to contactor terminals T1, T2 and T3. See equipment interface option 1.
Appliances rated more than 30 amps must be controlled by a customer
supplied contactor. This contactor must be a UL listed, denite purpose
AC resistive air heating type, suitable for the appliance load. Single phase
connection to the hood is made to supply connection contactor terminals L1
and L2. Customer supplied contactor control circuits rated 208 or 240 volt AC
can be connected to contactor terminals T1 and T2. See equipment interface
option 2.
Customer supplied contactors with control circuits rated other than 208 or 240
volt AC can be controlled through single pole single throw switched contactor
terminals L3 and T3. See equipment interface option 3.
The ventilator will operate properly, and the control relay will be
energized, only when:
1. The VENTILATOR POWER SWITCH is “ON”.
2. The Ansul® Fire Suppression System is charged and armed.
3. The grease bafe and lter pack are in position and serviceable, and
the ventilator pressure sensing system is satised.
INSTALLATION (continued)
DANGER:
SUFFOCATION HAZARD
Do not attempt to use this
ventilator with gas-red units.
This ventilator will not remove
products of combustion.
Unvented exhaust gasses
can be deadly.
WARNING
SHOCK HAZARD
Electrical connections must
be made by a licensed
electrician.
CAUTION:
FIRE HAZARD
HEALTH HAZARD
The cooking appliance must
be connected to the cooking
appliance contactor, the
control circuit of which is
controlled by the ventilator.
Failure to control cooking
appliances will provide no
protection in the event of a
re, nor will cooking vapors
and odors be contained in
the event of ventilator hood
malfunction.
CAUTION:
SHOCK HAZARD
The ground lug of this
appliance must be connected
to a suitable building ground.
IMPORTANT:
Contact a licensed electrician
to install and connect electrical
power to the appliance.
IMPORTANT:
Damage due to being
connected to the wrong
voltage or phase is NOT
covered by warranty.
L1 L2 L3
T1 T2 T3
L3-T3
SINGLE POLE
SINGLE THROW
SWITCHED
CONTACTS
NORMALLY
OPEN
208-240 V
AC SUPPLY
SINGLE PHASE L1-L2
APPLIANCE CONNECTION OPTION 3
CONTROL CIRCUITS OTHER THAN
208/240 VOL
T AC
SUPPLY AND
INTERFACE
CONTACTOR
L1 L2 L3
T1 T2 T3
APPLIANCE CONTACTOR
COIL CIRCUIT
208-240 V
AC SUPPLY
SINGLE PHASE L1-L2
APPLIANCE CONNECTION OPTION 2
208/240 VOLT AC CONTROL CIRCUIT
SUPPLY AND
INTERFACE
CONTACTOR
L1 L2 L3
T1 T2 T3
POWER TO APPLIANCES
208-240 VAC SUPPLY
SINGLE PHASE L1-L2
THREE PHASE L1-L2-L3
APPLIANCE CONNECTION OPTION 1
MAXIMUM APPLIANCE LOAD 30 AMP
SUPPLY AND
INTERFACE
CONTACTOR
IL2997
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
9
INSTALLATION (continued)
DANGER
FIRE HAZARD
Fire suppression system must
be charged and certied by an
authorized Ansul® distributor.
DO NOT attempt to modify or
bypass the re suppression
system.
An uncontrolled re can cause
serious injury or death.
NOTE:
If the re suppression system
is discharged, a buzzer will
sound continuously. The unit will
remain inoperable until the re
suppression system is serviced,
recharged and reset by an
authorized Ansul® distributor.
Charging of the Ansul® Fire
Suppression system must be in
accordance with Ansul® Design,
Installation, Recharge and
Maintenance Manual, #418087.
NOTE:
If a REMOTE MANUAL PULL
STATION is installed, moving
the ventilator for any reason
may cause the Ansul® system to
discharge.
DANGER
BURN
HAZARD
Any additional remote pull station
must NOT be installed on the
front of the cooking appliances,
nor forward of the ventilator side
panels.
Discharge of the re
extinguishing system into hot
grease or oil may cause hot
foam to spill over from the
cooking surface or frypot.
Serious burns and other injuries
can result from contact with hot
oil and from slipping in spilled oil.
Manual pull station is factory
installed on the left side (facing
the unit. It may, however,
be relocated to the right side
of the ventilator hood by an
authorized Ansul® agent.

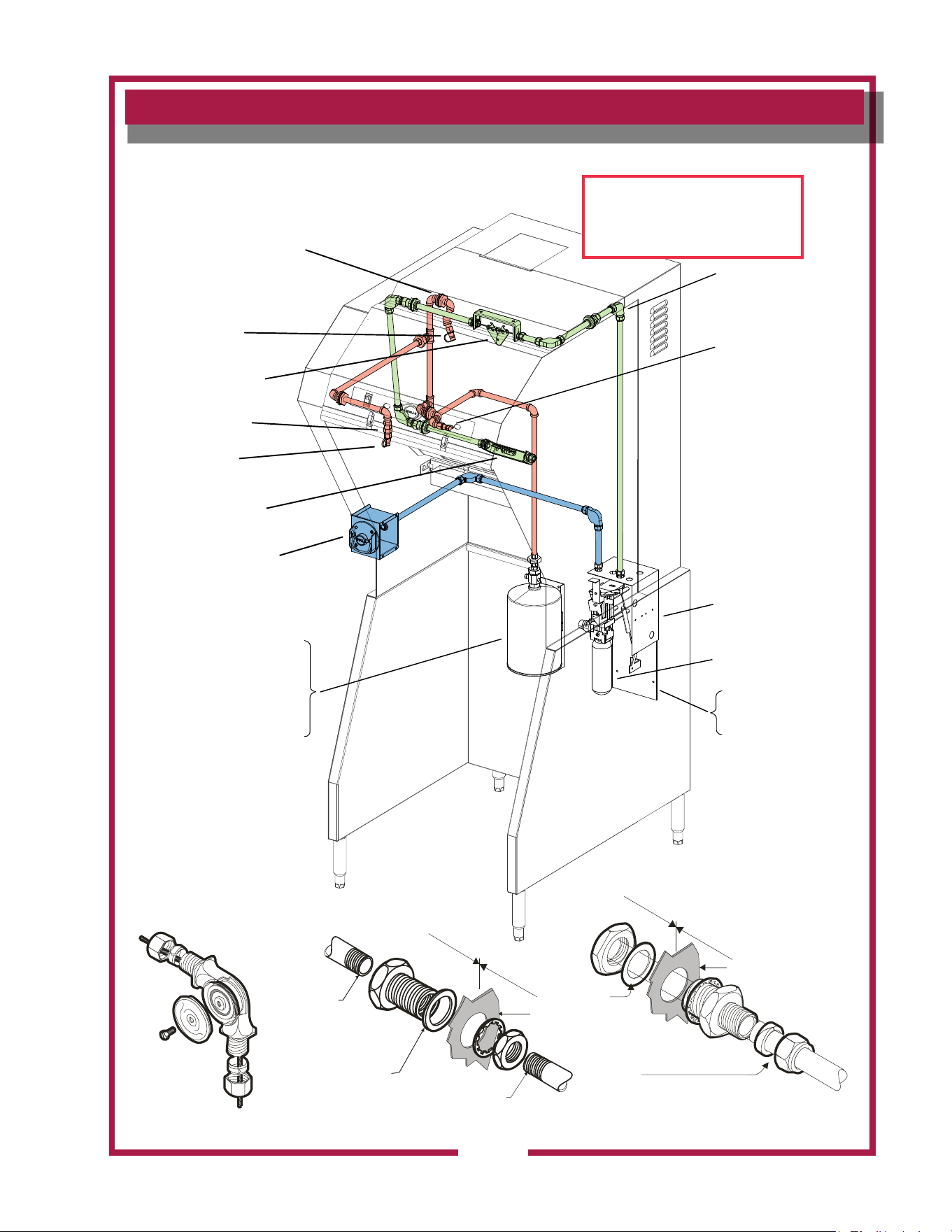

FIRE SUPPRESSION SYSTEM INSTALLATION
FIRE SUPPRESSION SYSTEM is comprised of a container of
Ansulex® Low pH liquid re suppression media and a system
pressurization canister, plus associated plumbing. Actuation controls
are located behind the front access panel.
Two FUSIBLE LINKS are utilized for automatic actuation of the re
suppression system. Additionally, the hood is supplied with a MANUAL
PULL STATION, which must be set-up at the time of installation by an
authorized Ansul® distributor.
The MANUAL PULL STATION allows for for manual emergency
shutdown of cooking appliance power, and actuation of the re
suppression system.
Three NOZZLES disperse the re suppression media. Two inner
nozzles protect the fan and plenum. The third, front mounted, nozzle is
swivel mounted, and must be directed toward the cooking surface of the
installed cooking appliance.
If the ventilator is situated such that the supplied manual pull station
cannot be installed or is not readily accessible, a REMOTE MANUAL
PULL STATION may be required by local codes. Any such remote
manual pull station must be installed by an authorized Ansul®
distributor in accordance with the AUTHORITY HAVING JURISDICTION
When the re suppression system discharges, the cooking appliance
contactor is de-energized; and, the re suppression media is
discharged. Fire supression media will form an emulsion designed to
both smother and cool the fuels in/on the cooking appliance.
Two fusible links are used to detect re. One (165ºF) is located
between the grease bafe and lter pack, and is for protection from
a cooking appliance re. The other (212ºF) is located in the lter
plenum, and will protect against a re in the plenum. Either link melting
will discharge the re suppression media through all nozzles, disable
the cooking appliance and cause a buzzer to sound.
The MANUAL PULL STATION and any similar REMOTE MANUAL
PULL STATION will activate the re suppression system when the ring
on the pull station is pulled to its full extent.
INSIDE OF HOOD
LOOKING UP
(FILTERS REMOVED)
212ºF
FUSIBLE LINK
FIXED
DISCHARGE
NOZZLES
SWIVEL
DISCHARGE
NOZZLE
INSIDE OF
HOOD
165ºF
FUSIBLE LINK
IL1817a
10
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
INSTALLATION (continued)
NOTE:
The GREASE BAFFLE
and FILTER PACK actuate
position switches when they
are properly positioned. They
must be properly installed
for the under hood cooking
appliance contactor to be
energized.
CAUTION
SLIP AND FALL
HAZARD
DO NOT operate any
cooking appliance unless the
grease cup is installed.
Moisture dripping onto oor
can cause a slip and fall
hazard.

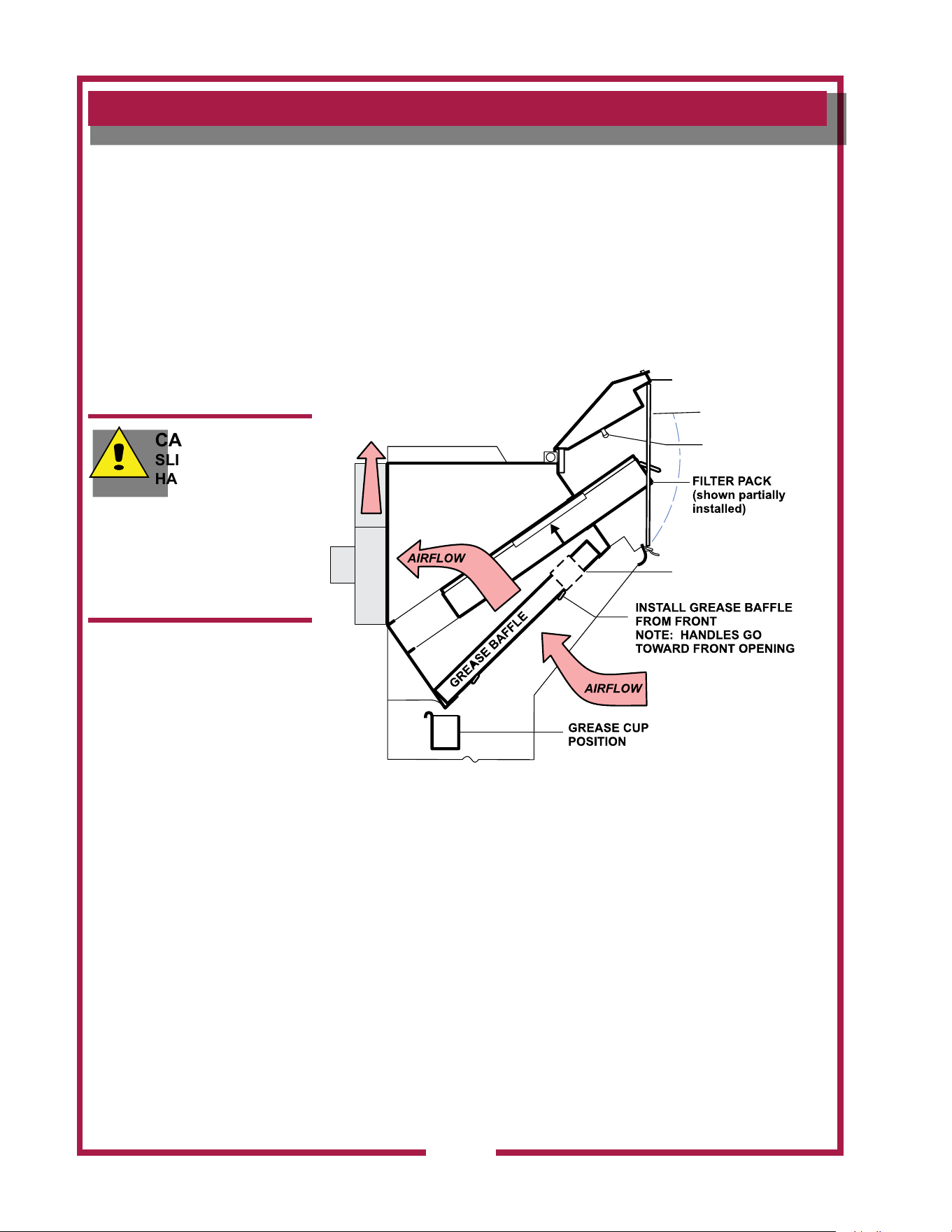

FILTER INSTALLATION
1. Release two catches holding control panel/lter access panel. Lift the
panel and raise the Prop Panel Rod to support and secure the panel in
the raised position.
2. Note air ow direction arrow on lter pack. Remove old lter pack
and slide new lter pack fully into the appropriate slot. Verify that
the airow arrow points toward the fan.
Use the provided handle to raise and lower the lter pack.
3. Raise the panel and put the Prop Panel Rod back to its lowered
position, then lower the panel and secure the catches.
GREASE BAFFLE and GREASE CUP INSTALLATION
1. Install grease bafe from front. Engage the bafe in the retainer
slot. Push up until the bafe bottom clears the lower lip of the
retainer, then lower the bafe into the bottom retainer
2. Install GREASE CUP into brackets below grease bafe.
Note: Failure to install GREASE CUP will allow grease and moisture
from GREASE BAFFLE to drop into hot cooking surfaces, creating
both a SAFETY HAZARD (hot oil splatter) and a HEALTH HAZARD
(contamination of the cooking surface or cooking oil).
A
IR
F
LO
W
FAN
CONTROL PANEL/
FILTER ACCESS PANEL
FILTER POSITION
SWITCH
PANEL SUPPORT
GREASE BAFFLE
POSITION SWITCH
IL1818
FILTER PACK
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
11
Control Panel
NOTE: Cooking appliances must be operated in accordance with the
manufacturer’s instructions.
During normal operation, VENTILATOR POWER ON (illuminated power
switch) will be the only light on the control panel that will be ON, when
the unit is operating properly.
If the CHECK FILTERS light illuminates, check both GREASE BAFFLE
and the HEPA AIR FILTER for proper installation.
If REPLACE FILTER light illuminates, replace FILTER PACK.
NOTE: REPLACE FILTERS light is a warning that lter pack is nearing
the end of its service life. The ventilator will continue to operate for
a period of time after REPLACE FILTER LIGHT turns ON to allow
continued operation through a peak period. However, lter pack must
be replaced within a short time period or it will clog, disabling the
ventilator.
If SERVICE REQUIRED light illuminates, lter pack is restricted to the
point of insufcient airow for proper operation or a malfunction has
occurred. Ventilator is shut down until the underlying clogged lter
situation has been corrected. Replace clogged item with a fresh lter
pack to correct the condition. Reset the unit by turning VENTILATOR
POWER SWITCH to OFF, then back to ON. If the SERVICE REUIRED
light remains on, contact a Wells Authorized Service Agent.
A failure of incoming electric power will cause a shut down of the unit.
Reset the unit by turning VENTILATOR POWER SWITCH to OFF, then
back to ON.
Operation Lights
There are two equipment lights that will be on during normal operation.
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
IMPORTANT:
The cooking appliance control
relay are disabled when
SERVICE REQUIRED light
is illuminated. Note that the
ventilator cannot operate if
the lter pack is removed.
It is the responsibility of
the store management to
maintain sufcient spares
of lter packs to avoid
prolonged shutdown of the
ventilator when this lter is
expended.
Filter packs cannot be
cleaned.
Wells Manufacturing
assumes no liability for loss of
business due to lter related
shutdown.
OPERATION
POWER
ON
OFF
CHECK
FILTER
REPLACE
FILTER
SERVICE
REQUIRED
IL1820
ON DURING POWER UP
12
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
CLEANING INSTRUCTIONS
PRECAUTIONS: Allow to cool
Cover frypot to prevent oil contamination
FREQUENCY: Weekly
TOOLS: Mild detergent, clean non-abrasive towels
NOTE: Ventilator section to be cleaned in conjunction with cooking
appliance. Refer to appliance user instructions for cleaning procedure.
1. Disconnect unit from electric power and allow to cool.
Cover cooking appliance to prevent oil contamination.
2. Remove GREASE BAFFLE, GREASE CUP.
3. Empty GREASE CUP into an appropriate grease collection receptacle.
4. Clean GREASE BAFFLE, GREASE CUP and in a sink or dishwasher
using mild detergent and warm water.
5. Dry components with a clean non-abrasive cloth.
Reinstall GREASE BAFFLE, GREASE CUP in ventilator.
6. Wipe exterior of ventilator with a clean cloth moistened with warm
water and mild detergent. Rinse by wiping with a clean cloth
moistened with warm water.
7. Uncover the cooking appliance and reconnect unit to electric power.
Procedure is complete
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns. Allow unit to cool
before cleaning.
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
13
CLEANING INSTRUCTIONS
PRECAUTIONS: Allow to cool
Cover cooking surfaces and frypots to prevent
contamination.
FREQUENCY: Monthly
TOOLS: Mild detergent, clean non-abrasive towels
NOTE: Ventilator section to be cleaned in conjunction with cooking
appliance. Refer to appliance user instructions for cleaning procedure.
1. Disconnect unit from electric power and allow to cool.
Cover cooking applaince to prevent oil contamination.
2. Remove GREASE BAFFLE, GREASE CUP, and FILTER PACK.
3. Wipe interior of ventilator with a clean cloth moistened with warm
water and mild detergent. Rinse by wiping with a clean cloth moistened
with warm water. DO NOT clean by spraying.
4. Dry ventilator thoroughly with a clean non-abrasive cloth.
Reinstall FILTER PACK, GREASE BAFFLE, GREASE CUP.
5. Uncover the cooking appliance and reconnect unit to electric power.
Procedure is complete
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns. Allow unit to cool
before cleaning.
CAUTION:
SHOCK HAZARD
DO NOT splash or pour water
or grease onto control panel.
IMPORTANT:
DO NOT wash FILTER
PACK. Washing these lters
will clog them, and cause
installed cooking appliance
to be disabled.
IMPORTANT:
DO NOT clean interior
of ventilator by pressure
spraying.
Spraying can contaminate the
cooking appliance, and may
cause internal damage to the
ventilator blower, operation
proong system and/or re
suppression system.
Clean by wiping only.
14
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
TROUBLESHOOTING SUGGESTIONS
NOTE:
FILTERS are the only user serviceable components in this ventilator hood system. For all problems that cannot be remedied by
servicing the lters, contact:
Ventilator section - authorized Wells service agency
Fire suppression system - authorized Ansul® distributor
IMPORTANT:
Contact ANSUL® for re suppression system installation, set-up and service:
Ansul Incorporated 1-800-TO-ANSUL (1-800-862-6785)
One Station Street
Marinette, WI 54143-2542 website http;//www.ansul.com
IMPORTANT:
Parts used in the Ansul® re suppression system are not serviceable by the owner/operator.
Procedures for servicing re suppression equipment are described in:
ANSUL® R-102 SYSTEM DESIGN, INSTALLATION, RECHARGE AND MAINTENANCE MANUAL
(418087, current edition)
NOTE:
ANSUL® Manual 41807 and Wells Bulletin 301646 are intended for use by authorized Ansul® service
personnel only.
Problem Possible Cause Suggested Remedy
Unit will not operate
Disconnected from electric power
Reconnect to electric power
(no indicators lights lit) Reset circuit breaker for unit
Unit will not operate
Fire suppression system not set Contact an authorized Ansul® distributor for repairs
(buzzer sounds)
CHECK FILTER light lit Filter pack or grease bafe not in position Properly install lter pack and grease bafe
REPLACE FILTER light lit Filter pack nearing end of service life Arrange to replace lter pack in a timely manner
Filter pack plugged Replace lter pack
Fire damper in exhaust collar has closed Contact an authorized Wells service agent for repairs
SERVICE REQUIRED light lit (cooking
appliance not operating)
One or more vacuum sensing lines or ports plugged, or
sensing line dislodged.
Contact an authorized Wells service agent for repairs
NOTE: If, after 10 seconds, there is insufcient airow for proper operation, SERVICE REQUIRED light will
illuminate and under-hood appliance (s) will be de-energized.
Press VENTILATOR POWER SWITCH to OFF, then back to ON to reset system.
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
15
REQUIRED MAINTENANCE
USE AND MAINTENANCE SHALL BE IN ACCORDANCE WITH THE
STANDARD FOR VENTILATION CONTROL AND FIRE PROTECTION
OF COMMERIAL COOKING OPERATIONS, N.F.P.A. 96 (current
edition).
3-MONTH MAINTENANCE:
Thoroughly clean entire HOOD PLENUM and BLOWER section.
6-MONTH MAINTENANCE:
Inspection and testing of total operation including FIRE DAMPER and
all SAFETY INTERLOCKS shall be performed by qualied service
personnel.
All FIRE SUPPRESION SYSTEM actuation components including
MANUAL PULL STATION and any REMOTE MANUAL PULL STATION
must be inspected for proper operation in accordance with the
maintenance schedule published in
ANSUL® R-102 SYSTEM DESIGN,
INSTALLATION, RECHARGE AND MAINTENANCE MANUAL (418087).
ANNUAL (12-MONTH) MAINTENANCE:
FIRE SUPRESSION SYSTEM FUSIBLE LINKS must be replaced.
NOZZLES and MANUAL PULL STATION must be cleaned in
accordance with
ANSUL® R-102 SYSYTEM DESIGN, INSTALLATION,
RECHARGE AND MAINTENANCE MANUAL (418087).
12-YEAR MAINTENANCE:
The FIRE SUPRESSION AGENT TANK must be HYDROSTATICALLY
TESTED, and the FIRE EXTINGUISHING AGENT must be REPLACED
in accordance with the maintenance schedule published in ANSUL®
R-102 SYSTEM (STANDARD UL 300 LISTED). This maintenance to be
performed by qualied Ansul® service personnel only.
IMPORTANT:
Per NFPS 96, a signed and
dated VENTILATOR HOOD
MAINTENANCE LOG
must be maintained on the
premises, and be made
available for inspection by the
authority having jurisdiction
upon request.
IMPORTANT:
Should the re suppression
system discharge, all
lines and nozzles must be
thoroughly cleaned prior to
recharging the system.
Be sure to note such cleaning
on the hood maintenance log.
Residual re suppression
media may compromise the
ow and dispersion of re
suppression media in any
subsequent activation.

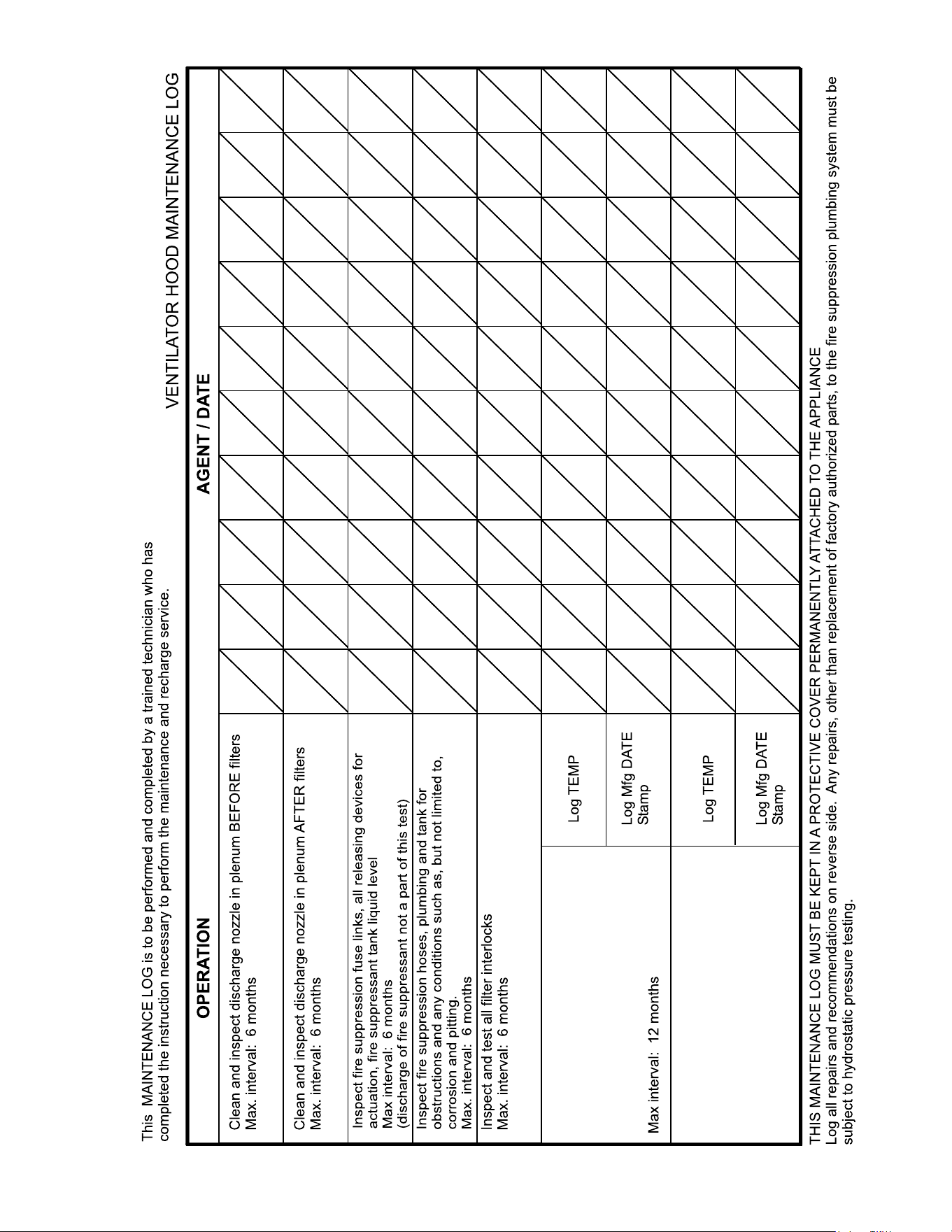

14
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
WELLS BLOOMFIELD, LLC
IL2144
Inspection shall be conducted on a monthly basis in accordance with
the manufacturer’s Operation Manual. At a minimum, this inspection
shall include verification of the following:
OPERATION AGENT DATE
Extinguishing system components:
In proper place and (visually in
good order
Manual pull station actuators for fire
suppression system are obstructed
The maintenance log is in place
and up to date
The nozzle blow-off caps are in place
and in good condition
The hood, duct and protection cooking
appliance have not been replaced,
modified or relocated
Clean plenum GREASE BAFFLE and
BLOWER (max. interval: 3 months)
Change PRE-FILTER and FILTER PACK
(as required)
No obvious physical damage or condition
exists that might prevent operation of the
fire suppression system
VENTILATOR HOOD OWNERS MONTHLY INSPECTION LOG
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
15
Replace two (2) fire suppression
links at cooking appliance:
each link is rated @ 165ºF
WELLS BLOOMFIELD, LLC
Replace fire damper fusible link:
rated @ 280ºF
Max interval: 12 months
IL2145
16
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
29
ANSUL
®
ANSUL INCORPORATED
MARINETTE, WI 54143-2542
MATERIAL SAFETY DATA SHEET
ANSULEX Low pH
QUICK IDENTIFIER (In Plant Common Name)
Manufacturer’s
Name:
Emergency
Telephone No.:
ANSUL INCORPORATED
CHEMTREC
(800) 424-9300 or (703) 527-3887
Prepared By:
Address:
One Stanton Street, Marinette, WI 54143-2542
Safety and Health Department
Other Information
Calls :
(715) 735-7411
Date Prepared:
February 1, 1999
SECTION 1 - IDENTITY
SECTION 2 - INGREDIENTS
SECTION 3 - PHYSICAL AND CHEMICAL CHARACTERISTICS (Fire and Explosion Data)
SECTION 4 - PHYSICAL HAZARDS
Common Name (Used on Label):
(Trade Name and Synonyms)
ANSULEX Low pH Liquid Fire Suppressant
CAS No.:
N/A
N/A N/A N/A N/A
N/A
N/A
N/A
N/A
N/A N/A
N/E
N/E
N/E
N/E
N/E
NDA
NDA
NDA
NDA
N/A
Chemical
Name:
N/A This is a M ixture
Chemical
Fa m ily :
M ixture
Formula:
PART A - HAZARDOUS INGREDIENTS
PART B - OTHER INGREDIENTS
Principal Hazardous Component(s) (chemical and common name(s)):
Other Component(s) (chemical and common name(s)):
W t.%
W t.%
CAS No.
CAS No.
ACGIH TLV
ACGIH TLV
Acute Toxicity Data
Acute Toxicity Data
None
Proprietary Mixture of Organic and Inorganic Salts
48.0 - 50.0
Phosphoric Acid 0.2
7664-38-2
Yellow-Green Fluorescent Dye 0.011
518-47-8
Oral LD (rat)
50
6800 mg/kg
EDTA
0.65
64--02-8
Water
Approx. 50.0
7732-18-5
Boilin g
Point:
Percent Volatile
by Volume (%):
Solubility
in Water:
Appearance
and Odor:
Flash Point:
Special Fire
Fighting Procedures:
Unusual Fire and
Explosion Hazards:
113ºC
Approx. 50.0
100%
Fluorescent Yellow Colored Liquid, Mild Odor
None to boiling
NONE - THIS IS AN EXTINGUISHING AGENT
None
Vapor Density:
(Air = 1):
Flammable Limits
in Air % by Volume:
1.03
Specific
Gravity (H O=1):
2
Vapor Pressure
(mm Hg):
1.33
Not Determined
Evaporation Rate:
(Butyl Acetate=1):
Approx. 0.005
Reactivity in
Water:
Mild exothermic reaction
Extinguisher
Media:
Auto-Ignition
Temperature:
Stability:
Incompatibility
(Materials to Avoid):
Hazardous
Decomposition Products:
Hazardous
Polymerization:
Unstable
Stable
Conditions
to Avoid:
Conditions
to Avoid:
Reactive Metals, ClF , electrically energized equipment, any material reactive with water.
3
Not established, acrid fumes.
May Occur
W ill Not O ccur
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
17
30
SECTION 5 - HEALTH HAZARDS
SECTION 6 - EMERGENCY AND FIRST AID PROCEDURES
SECTION 7 - SPECIAL PROTECTION INFORMATION
SECTION 8 - SPECIAL PRECAUTIONS AND SPILL/LEAK PROCEDURES
HAZARDOUS MATERIAL IDENTIFICATION SYSTEM
ANSULEX Low pH (continued)
Threshold
Limit Value:
None Established
Routes of Entry:
Eye Contact:
Irritant
Irritant
Skin Contact:
Skin Contact:
Inhalation:
Inhalation:
Not an expected route of entry. Can be irritating to mucous membranes.
Irritating to mucous membranes. Acute Oral LD (Sprague-Dawley rats) 825.5mg/kg.
50
Ingestion:
Ingestion:
Signs and
Symptom s:
Acute Exposure: Material irritates skin, eyes, and mucous membranes.
Chronic Exposure: None known.
Medical Conditions Generally
Aggravated by Exposure:
None known.
Chemical Listed as
Carcinogen or Potential:
Yes
No
Yes
No
Yes
No
National Toxicology
Program:
I.A.R.C
Monographs:
OSHA
Eye Contact:
Flush and irrigate with water for 15 minutes while holding eyelids open.
If irritation persists, seek medical attention.
Wash thoroughly with soap and water. If irritation persists, seek medical attention.
Fresh air if symptoms occur. If irritation persists, seek medical attention.
Dilute by drinking large quantities of water.
Respiratory Protection
(Specify Type):
N/A
N/A N/A
Ventilation:
Local
Exhaust:
Mechanical
(General):
Protective
Gloves:
Rubber gloves for spill/leak
Eye
Protection:
Chemical goggles recommended during
spill/leak procedures.
Other Protective
Clothing or Equipment:
Eye wash and safety showers are good safety practice.
Precautions to be taken
in Handling and Storage:
Other
Precautions:
Steps to be taken in Case
Material is Released or Spilled:
Waste Disposal
Methods:
Store in original container. Keep tightly closed. Keep separate from acid.
See incompatibility information in Section 4.
Stop leaks. Contain spills. Remove as much as possible. Place in closed container for proper disposal
Wash spill area with large amounts of water to remove traces and neutralize.
Dispose of in compliance with local, state and federal regulations.
HAZARD INDEX
4 SEVERE HAZARD
0
HEALTH
3 SERIOUS HAZARD
2 MODERATE HAZARD 0 FLAMMABILITY
1 SLIGHT HAZARD
0 MINIMAL HAZARD 0 REACTIVITY
N/A = Not Applicable NDA = No Data Available N/E = Not Established
ANSUL and ANSULEX are registered trademarks.
Internet Address: http://www.ansul.com
ANSUL INCORPORATED, ONE STANTON STREET, MARINETTE, WI 54143-2542 Form No. F-90160-6 ©1999 Ansul Incorporated
503 p/n 2M-304989 Owners Manual WVF-886 Ventless Fryer
20
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
WIRING DIAGRAM
POWER
SWITCH
VACUUM
SWITCH
(SHUTDOWN)
6
5
4
2
31
BUILDING
ALARM RELAY
L1 L2 L3
T1
T2 T3
N.C.
N.O.
C
1
4
3
2
CHECK FILTERS
LIGHT (AMBER)
REPLACE FILTERS
LIGHT (AMBER)
SERVICE REQ
LIGHT (RED)
COM
12V
208 / 240V
COM
MTR
BUZZER
#1
#1
#4
#5
#2
#15
#3
#6
#26
#26
#12
#24
#23
#22
#13
#18
#21
#12
#12
#16
#20
#11
#10
#14
#14
#15
#27
#8
#7
#9
#12
#6
#6
#19
#25
#5
#17
2M-Z18098 REV C 5-6-2015
12V LED APPLIANCE
LIGHTS
BAFFLE FILTER
INTERLOCK
FILTER PACK
INTERLOCK
WVU-26 208/240V 60 HZ
#19
#22
#13
#18
#28
#20
#17
#17
#25
BLUE
WHITE
#29
#30
#29
#30
L1 L2 L3
T1 T2 T3
POWER TO APPLIANCES
208-240V AC SUPPLY
SINGLE PHASE L1-L2
THREE PHASE L1-L2-L3
CONNECTION OPTION 1
MAXIMUM APPLIANCE LOAD 30 AMP
L1 L2 L3
T1
T2 T3
APPLIANCE CONTACTOR
COIL CIRCUIT
208-240V AC SUPPLY
SINGLE PHASE L1-L2
CONNECTION OPTION 2
208/240 VOLT AC CONTROL CIRCUIT
L1 L2 L3
T1 T2 T3
L3-T3
SINGLE POLE
SINGLE THROW
SWITCHED
CONTACTS
NORMALLY
OPEN
208-240 VAC SUPPLY
SINGLE PHASE L1-L2
CONNECTION OPTION 3
CONTROL CIRCUITS OTHER THAN
208/240 VOLT AC
SUPPRESSION
SWITCH
N.C.
N.O.
C
C
C
C
N.O.
N.O.
N.O.
N.C.
N.C.
N.C.
VACUUM SWITCH
(REPLACE FILTER)
(NEUT.)
TIMER
N.O.
TRANSFORMER
SUPPLY AND
INTERFACE
CONTACTOR
SUPPLY AND
INTERFACE
CONTACTOR
208-240 VAC SUPPLY
SEE SUPPLY
CONNECTION OPTIONS
SUPPLY AND
INTERFACE
CONTACTOR
SUPPLY AND
INTERFACE
CONTACTOR
3
2
1
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
21
EXPLODED VIEW: WVU-26
MAINTENANCE COMPONENTS
SK2766, Rev. - 3/17/14
1
2
3
4
5
Model: WVU26 Maintenance Parts
Fig No. Part No Description
1 N1-307923 FILTER ASSY WVU
2 2I-Z19216 FILTER BAFFLE GREASE WVU
3 N1-Z18095 BRACKET, GREASE TRAY
4 N1-Z13496 TRAY, GREASE
5 N1-WL0586 ASM. ANSUL ACCESS DOOR
22
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
EXPLODED VIEW: WVU-26
MAIN ASSEMLBY
1
2
3
4
5
9
2
10
11
12
13
14
16
17
18
19
2021
22
5
23
24
25
26
27
3
28
33
32
31
30
29
2
16
34
5
15
7
6
8
2
See Detail
A
SK2767, Rev. A 7/23/15
Model: WVU-26, Universal Hood
Main Assy
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
23
PARTS LIST: WVU-26 MAIN ASSEMBLY
MAIN ASSEMBLY
Model: WVU-26 Main Assy
Fig No Part No Qty Description
1 N1-WL0581 1 PANEL,TOP REAR ASSY
2 2C-35487 43 SCREW 8-32X5/16 PH TR HD
3 2C-31730 86 SCREW 8-32X1/2 PH TR HD M
4 N1-Z18088 1 PANEL, TOP COVER
5 2C-31053 50 NUT 8-32 KEPS MS NICKEL
6 N1-Z13472 1 COVER, WIRE TOP PANEL
7 N1-Z13491 1 PLATE, CONDUIT MOUNT
8 CONDUIT
9 N1-WL0579 1 PANEL,CONTROL TOP ASSY
10 2E-305295 1 SWITCH ROCKER 250V 10A GR
11 2M-306719 1 LOGO WELLS DIECAST SHIELD
12 2M-Z18096 1 GRAPHIC PANEL, WVU-26
13 2C-307939 2 LATCH DRAW SS
14 N1-Z18102 1 MNT.PLATE,CONTROL LIGHTS
15 N1-WL0281 3 LED CLEAR W/ TERM ASSY.
16 2E-300407 2 SWITCH MANUAL ADVANCE ROT
17 2E-Z15018 1 TRANSFORMER, 208/240 12V
18 2E-Z14669 2 LED FLOODLIGHT, 45W CW
19 2A-305610 2 PIN HINGE DOOR OVENS
20 N1-Z13521 2 PLATE, PIN HINGE
21 2C-40612 16 SCREW 1/4-20X1/2 SL TR MS
22 2K-305619 2 BUSHING UPPER DOOR HINGE
23 N1-Z13471 2 BRACKET, HINGE
24 N1-Z18092 1 REAR PANEL
25 N1-WL0125 1 COVER ASSY, LEFT PLUMBING
26 N1-WL0126 1 BOX, MANUAL PULL ASSEMBLY
27 2O-308131 1 REMOTE PULL STATION RED
28 2A-307628 4 LEG 6 ADJ 1/2-13 SS
29 2C-307288 1 LUG GROUND SOLDERLESS 2-1
30 N1-Z18085 1 COVER,ELECTRICAL BOX
31 2E-44514 1 RELAY 208/240V COIL
32 2E-Z14960 1 CONTACTOR, 40A
33 N1-Z13423 1 CONTACT MOUNTING BRACKET
34 N1-Z13464 1 SWITCH BOX COVER
24
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
PARTS LIST: WVU-26
Main Assembly; Detail A
rsmith
1
2
3
4
6
SK2768, Rev. - 3/19/14
DETAIL A
WVU-26
9
8
10
11
12
14
13
7
5
Model: WVU-26 DETAIL A
Fig No Part Number Qty Descripon
1 M3-301193 1 SCREEN BLOWER COVER
2 N1-WL0117 1 DAMPER CAGE ASSY
3 2U-Z14025 1 BLOWER ASSY 208/240 1P CW
4 2K-301429 1 FTG COMPRESSION MALE ELBO
5 2k-47100 1 ADAPTER 1/4IIN QUICK CON
6 N1-Z13713 1 TUBE SIL.375ID X 60”
7 2E-Z17173 1 VACUUM SWITCH,REPLACE
8 2E-301379 1 VACUUM SWITCH, SHUTDOWN
9 2J-44834 1 BUZZER 220V ROHS
10 N1-Z17349 1 BRACKET, TIMER ADAPTER
11 2P-Z17415 1 TIMER,CUBE/ RELAY
12 2C-08-07-0042 2 SCREW 8-32X5/8 RHP STL NP
13 2J-302629 by foot HOSE .18” ID - .31”OD, Sold by Foot
14 2K-302630 2 TEE NYLON 3/16
M521 p/n 2M-Z18099 OpM WVU- Universal Hood
25
ANSUL® SYSTEM COMPONENTS
ref. ADAPTER QUICK-SEL 3/8”
ANSUL® p/n 77284 (typical)
ref. NOZZLE 1W
ANSUL® p/n 419336
ref. NOZZLE 1W
ANSUL® p/n 419336
ref. NOZZLE 3N
ANSUL® p/n 419338
ref. TANK 1.5 GAL ANSULEX™
ANSUL® p/n 429864
ref. MOUNTING BRACKET
and RELEASE MECHANISM
R-102 ANSUL® p/n 79493
ref. CARTRIDGE LT-20-R
ANSUL® p/n 2O-47099
ref. PULLY ELBOW
ANSUL® p/n 423250
(typical)
(not shown)
MICROSITCH p/n 2E-47273
TERM BLOCK p/n 2E-33068
ref. (not shown)
ANSULEX™ EXTINGUISHING
AGENT 1.5 GAL.
ANSUL® p/n 79694
ref. SWIVEL ASSY.
ANSUL® p/n 418569
FUSIBLE LINK 212°F
p/n 2E-303037
FUSIBLE LINK 165°F
p/n 2E-302583
MANUAL PULL STATION
p/n 2O-301389
FOR USE ONLY BY AUTHORIZED
ANSUL® SERVICE PERSONNEL
Refer to Ansul® part no. 418078-05
R-102 Restaurant Fire Suppression System Design,
Installation Recharge and Maintenance
Seal with
teflon tape
Fiber washer
is always
on the inside
Seal with
teflon tape
Fiber
washer is always
on the inside
Conduit passes completely
through the fitting, and is sealed
with the compression washer
and nut.
wall of hood
wall of hood
INSIDE
OUTSIDE
CONDUIT
INSIDE
OUTSIDE
Cable sits in
groove in
pulley
A N SU L® p/n 4 2 32 5 0
DE TA IL
AN S U L® p /n 77 28 4
DE TA IL
AN S U L® p /n 79 15 2
DE TA IL
IL2807 Rev. - 3/17/14
WELLS MANUFACTURING
265 Hobson Street, Smithville, Tennessee
37166 telephone: 800-264-7827
www.wells-mfg.com
