THIS RANGE IS FOR RESIDENTIAL USE ONLY
SINGLE OVEN DUAL FUEL RANGE
Models: VUFSGE365.., VMFSGE365..
USERS OPERATING INSTRUCTIONS
IMPORTANT - PLEASE READ AND FOLLOW
• Before beginning, please read these instructions completely and carefully.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may
void the warranty.
• Please observe all local and national codes and ordinances.
• Please ensure that this product is properly grounded.
• The installer should leave these instructions with the consumer who should retain
for local inspector’s use and for future reference.
• IN CANADA: The electrical plug should always be accessible.
Installation must conform with local codes or in the absence of codes, the National Fuel Gas
Code ANSI Z223.1/NFPA 54 - Iatest edition. Electrical installation must be in accordance
with the National Electrical Code, ANSI/NFPA70 - latest edition and/or local codes. IN
CANADA: Installation must be in accordance with the current CAN/CGA-B149.1 National
Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code and/or local codes.
Electrical installation must be in accordance with the current CSA C22.1 Canadian Electrical
Codes Part 1 and/or local codes.
INSTALLATION IN MANUFACTURED (MOBILE) HOME: The installation must conform
with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280
[formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD
(Part 280)] or, when such standard is not applicable, the Standard for Manufactured Home
Installations, ANSI/NCSBCS A225.1, or with local codes where applicable.
INSTALLATION IN RECREATIONAL PARK TRAILERS: The installation must conform with
state or other codes or, in the absence of such codes, with the Standard for Recreational
Park Trailers, ANSI A119.5.
Installation of any gas-fired equipment should be made by a Iicensed plumber. A manual
shut-off valve must be installed in an accessible location in the gas line external to the
appliance for the purpose of turning on or shutting off gas to the appliance (In Massachusetts
such shutoff devices should be approved by the Board of State Examiners of Plumbers &
Gas Fitters).
If an external electrical source is utilized, the appliance, when installed, must be electrically
grounded in accordance with local codes or, in the absence of local codes, with the national
Electrical Code, ANSI/NFPA 70.
Some models are supplied with a protective lm on steel and aluminum parts.
This lm must be removed before installing/using the appliance.
22
– Do not store or use gasoline or other ammable vapors and
liquids in the vicinity of this or any other appliance.
– NEVER use this appliance as a space heater to heat or
warm the room. Doing so may result in carbon monoxide
poisoning and overheating of the appliance.
– WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• lmmediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• lf you cannot reach your gas supplier, call the re
department.
– Installation and service must be performed by a qualied
installer, service agency, or the gas supplier.
If the information in this manual is not followed exactly,
a re or explosion may result causing property damage,
personal injury, or death.
WARNING!
WARNING
See installation
instructions for details.

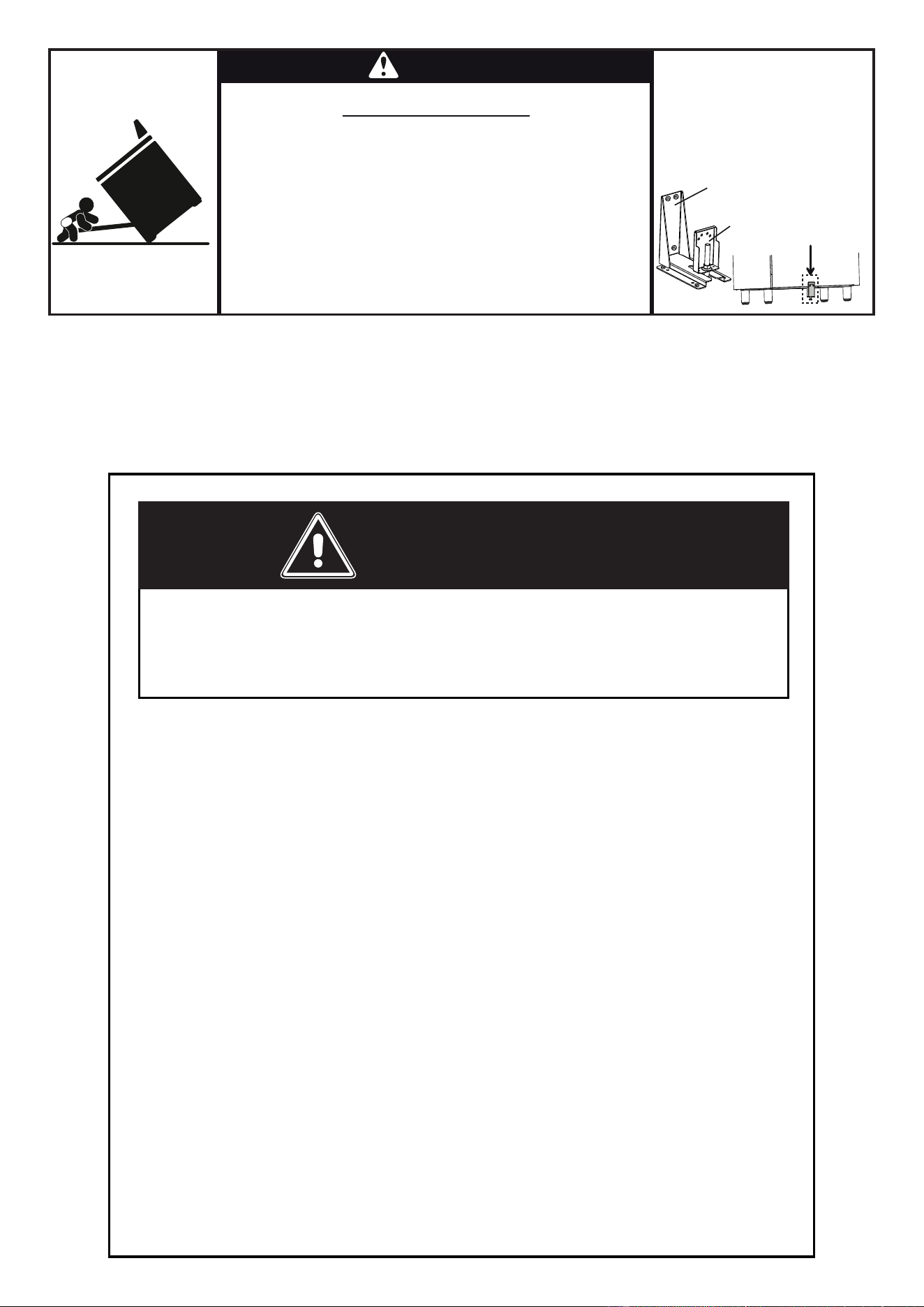

Tip-Over Hazard
Anti-tip bracket
Adjustable bracket
assembly to be xed to
the back of the range
A child or adult can tip the range and be killed.
Check installation of anti-tip device per installation
instructions.
Check engagement of anti-tip device if range
is moved per installation.
Failure to follow these instructions can result in
death or serious burns to children and adults.
33
Dear Customer,
Thank you for having purchased and given your preference to our
product.
The safety precautions and recommendations reported below are
for your own safety and that of others. They will also provide a means
by which to make full use of the features oered by your appliance.
Please preserve this booklet carefully. It may be useful in future,
either to yourself or to others in the event that doubts should arise
relating to its operation.
This appliance must be used only for the task it has explicitly been
designed for, that is for cooking foodstus. Any other form of usage
is to be considered as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the event of damage
caused by improper, incorrect or illogical use of the appliance.
This appliance is designed and manufactured solely for the cooking of domestic (household)
food and in not suitable for any non domestic application and therefore should not be used in a
commercial environment.
The appliance warranty will be void if the appliance is used within a non domestic environment i.e.
a semi commercial, commercial or communal environment.
WARNING: This product can expose you to chemicals including
formaldehyde, which is known to the State of California to cause cancer,
and lead, which is known to the State of California to cause birth defects or other
reproductive harm. For more information go to www. P65Warnings.ca.gov.
44
USER INSTRUCTIONS
WARNING!!

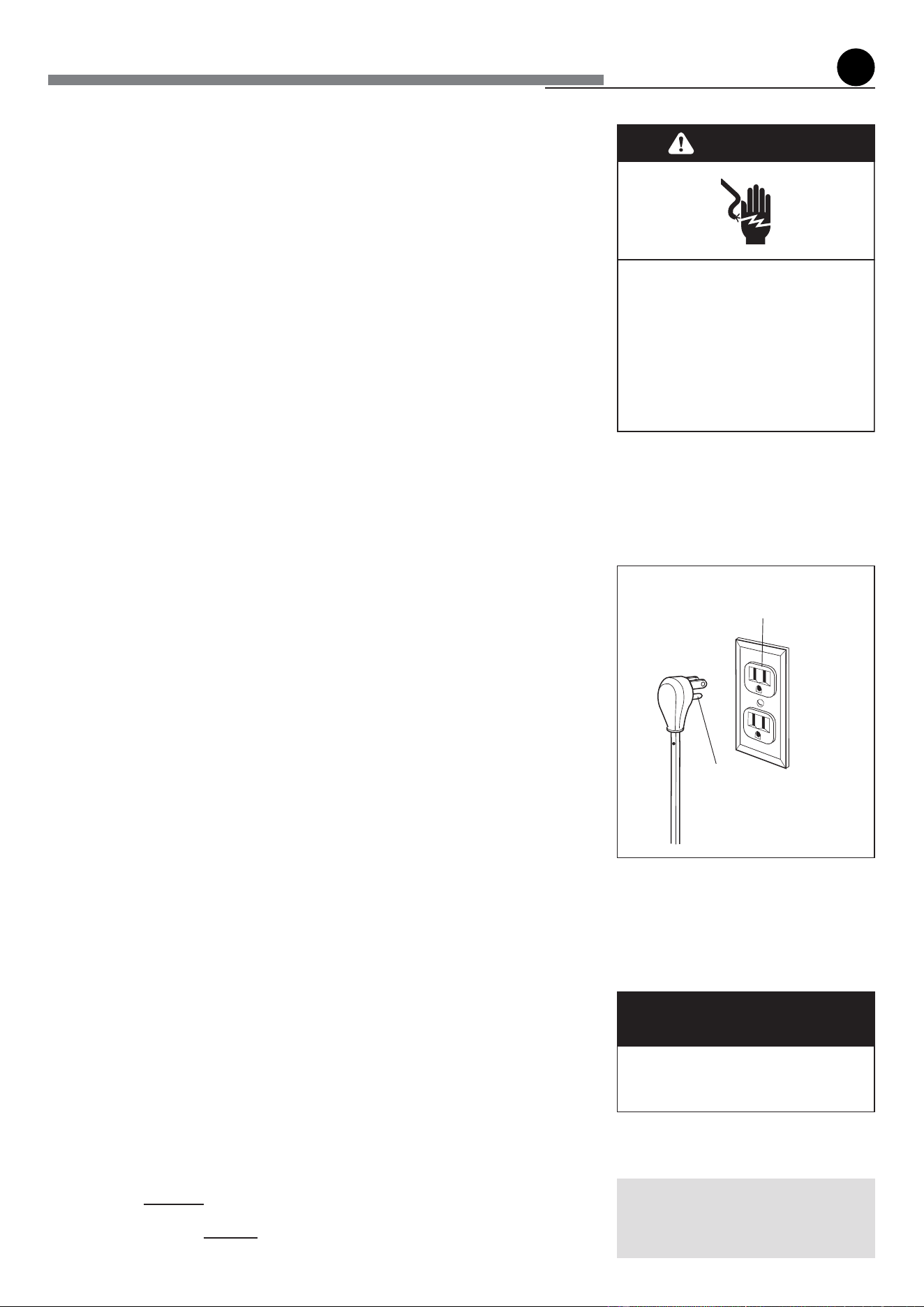

ELECTRICAL GROUNDING INSTRUCTIONS
The range must be electrically grounded in accordance with
local codes or, in the absence of local codes, with the National
Electrical Code, ANSI/NFPA No. 70-latest edition, in Canada
Canadian Electrical Code.
Installation should be made by a Iicensed electrician.
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
If an external electrical source is utilized, the installation must
be electrically grounded in accordance with local codes or, in
the absence of local codes, with the national Electrical Code,
ANSI/NFPA 70.
IN CANADA: This appliance is equipped with a four-prong
grounding plug (NEMA 14-50P) for your protection against shock
hazard and should be plugged directly into a properly grounded
socket.
Do not under any circumstances cut or remove the fourth
(ground) prong from the power plug.
REPLACEMENT PARTS
Only authorized replacement parts may be used in performing
service on the range. Replacement parts are available from factory
authorized parts distributors. Contact the nearest parts distributor
in your area.
GENERAL INFORMATION
1. WARNING!!
This appliance shall not be used for space heating. This
information is based on safety considerations.
2. To eliminate risk of burns or re by reaching over heated
surface units, cabinet storage located above the surface units
should be avoided.
3. AlI openings in the wall behind the appliance and in the oor
under the appliance shall be sealed.
4. Keep appliance area clear and free from combustible
materials, gasoline, and other ammable vapors.
5. Do not obstruct the ow of combustion and ventilation air.
6. Disconnect the electrical supply to the appliance before
servicing.
7. When removing appliance for cleaning and/or service;
A. Shut o gas at main supply.
B. Disconnect AC power supply.
C. Disconnect gas line to the inlet pipe.
D. Carefully remove the range by pulling outward.
CAUTION: Range is heavy; use care in handling.
8. Electrical Requirement
Electrical installation should comply with national and local
codes.
9. Air Supply and Ventilation
The installer must refer to local/national codes.
10. Gas Manifold Pressure
Natural gas - 4.0” W.C.P.
LP/Propane - 11.0” W.C.P.
11. The misuse of oven door (e.g. stepping, sitting, or leaning on
them) can result in potential hazards and/or injuries.
12. When installing or removing the range for service, a rolling lift
jack should be used. Do not push against any of the edges of
the range in an attempt to slide it into or out of the installation.
Pushing or pulling a range (rather than using a lift jack) also
increases the possibility of bending the leg spindles or the
internal coupling connectors.
55
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR USE
OF ELECTRICAL APPLIANCES
Use of any electrical appliance implies the necessity to follow a series of fundamental rules.
In particular:
• Never touch the appliance with wet hands or feet.
• Do not operate the appliance barefooted.
• Do not allow children or disabled people to use the appliance without your supervision.
The manufacturer cannot be held responsible for any damages caused by improper, incorrect or
unreasonable use of the appliance.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified technician.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be
left around within easy reach of children, as these may cause serious injuries.
The packaging material is recyclable and is marked with the recycling symbol
.
• Do not attempt to modify the technical characteristics of the appliance as this may become
dangerous to use.
• Do not carry out cleaning or maintenance operations on the appliance without having
previously disconnected it from the electric power supply.
• After use, ensure that the knobs are in position.
• Do not allow children or other incapable people to use the appliance without supervision.
• During and after use of the range, certain parts will become very hot. Do not touch hot
parts.
• Keep children away from the range when it is in use.
• This range is supplied with a protective film on steel and aluminum parts. This film must be
removed before installing/using the appliance.
• Fire risk! Do not store flammable material in the oven, and in the storage compartment.
• Make sure that electrical cables connecting other appliances in the proximity of the range
cannot come into contact with the hob or become entrapped in the oven door.
• Do not line the oven walls with aluminum foil. Do not place shelves, broiler pan, pans or
other cooking utensils on the base of the oven chamber.
• The manufacturer declines all liability for injury to persons or damage to property caused by
incorrect or improper use of the appliance.
• To avoid any possible hazard, the appliance must be installed by qualified personnel only.
Any repairs by unqualified persons may result in electric shock or short circuit. In order
to avoid possible injuries to your body or to the appliance, do not attempt any repairs by
yourself. Such work should be carried out by qualified service personnel only.
• Danger of burns! The oven and cooking accessories may become very hot during
operation. Make sure children are kept out of reach and warn them accordingly. To avoid
burns use kitchen clothes and gloves when handling hot parts or utensils.
• Stand away from the range when opening oven door. Hot air or steam which escapes can
cause burns to hands, face, and/or eyes.
• Never clean the range, oven and storage compartment with a high-pressure steam
cleaning device, as it may provoke a short circuit.
• In the case of a prolonged power failure:
– the top burners can be used with no restriction. In that case follow the instructions in the
chapter “How to use the top burners”.
– multifunction electric oven: DO NOT attempt to light the oven or broil during power
failure.
• This appliance is intended for use in your household. Never use the appliance for any other
purpose!
• If you should decide not to use this appliance any longer (or decide to substitute an
older model), before disposing of it, it is recommended that it be made inoperative in an
appropriate manner in accordance to health and environmental protection regulations,
ensuring in particular that all potentially hazardous parts be made harmless, especially in
relation to children who could play with old appliances.
• Remove the door and the storage drawer before disposal to prevent entrapment.
• IMPORTANT NOTE: The oven shelves (for some products one shelf only is provided) have
not been designed to place the food directly on the shelf itself. When cooking, always place
the food in special containers or use specic materials suitable for the food contact.
66

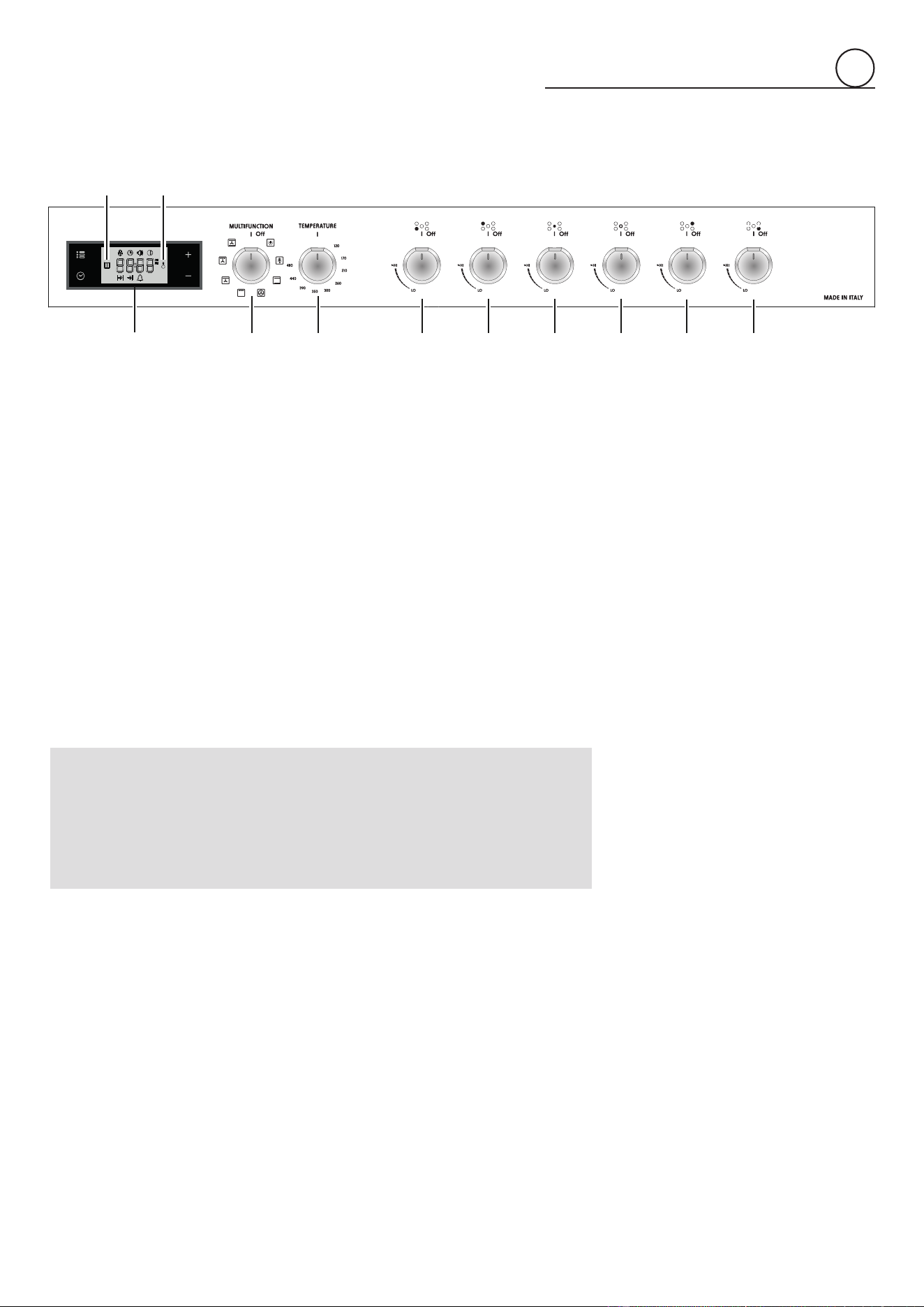

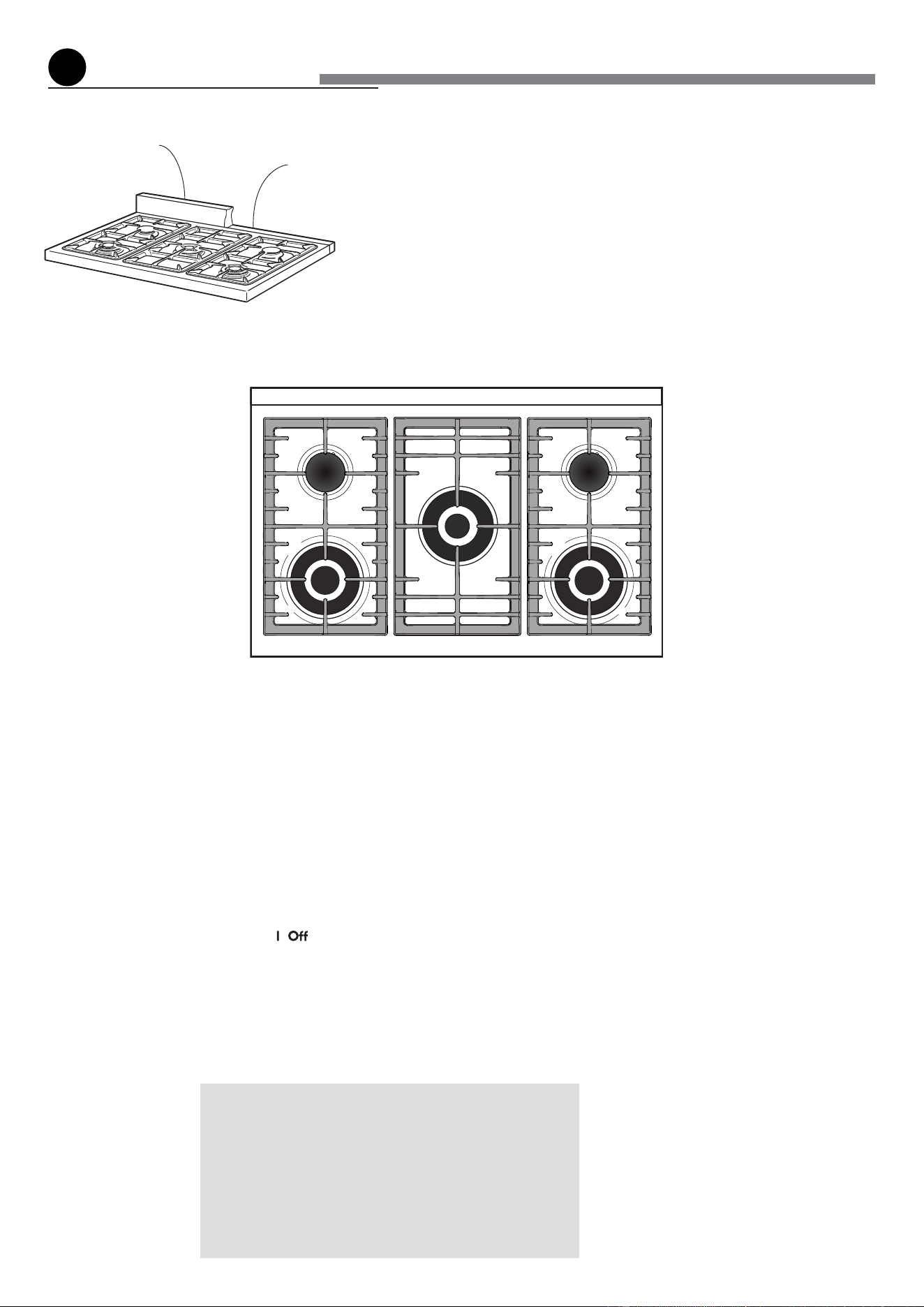

features
Backguard fitted
Island trim fitted
Fig. 1.1
1 11 1
2
2
3
3
2
2
Island trim
(level with cooktop)
3” backguard
1
CAUTION:
If the burner is accidentally extinguished, turn the gas
off at the control knob and wait at least 1 minute before
attempting to relight.
CAUTION:
Gas appliances produce heat and humidity in the
environment in which they are installed.
Ensure that the cooking area is well ventilated following
national/local codes.
COOKING HOB
1. Semi-rapid burner (SR) - 8000 BTU/hr
2. Double-ring compact burner (DCC) - 12000 BTU/hr
3. Dual burner (DB) (*) - 17000 BTU/hr
Inner crown - 2800 BTU/hr
Outer crown - 14200 BTU/hr
(*) IMPORTANT: The Dual burner is controlled by two separate knobs;
one knob for the inner ring only and one knob for the outer ring only.
The inner and outer ring can be used together or separately.
After using the dual burner check both the control knobs are in the
closed position.
Note:
• The electric gas-lighting device is incorporated into the
knobs.
• The appliance has a safety valve system fitted, the flow
of gas will be stopped if and when the flame should
accidentally go out.
77
CONTROLS DESCRIPTION

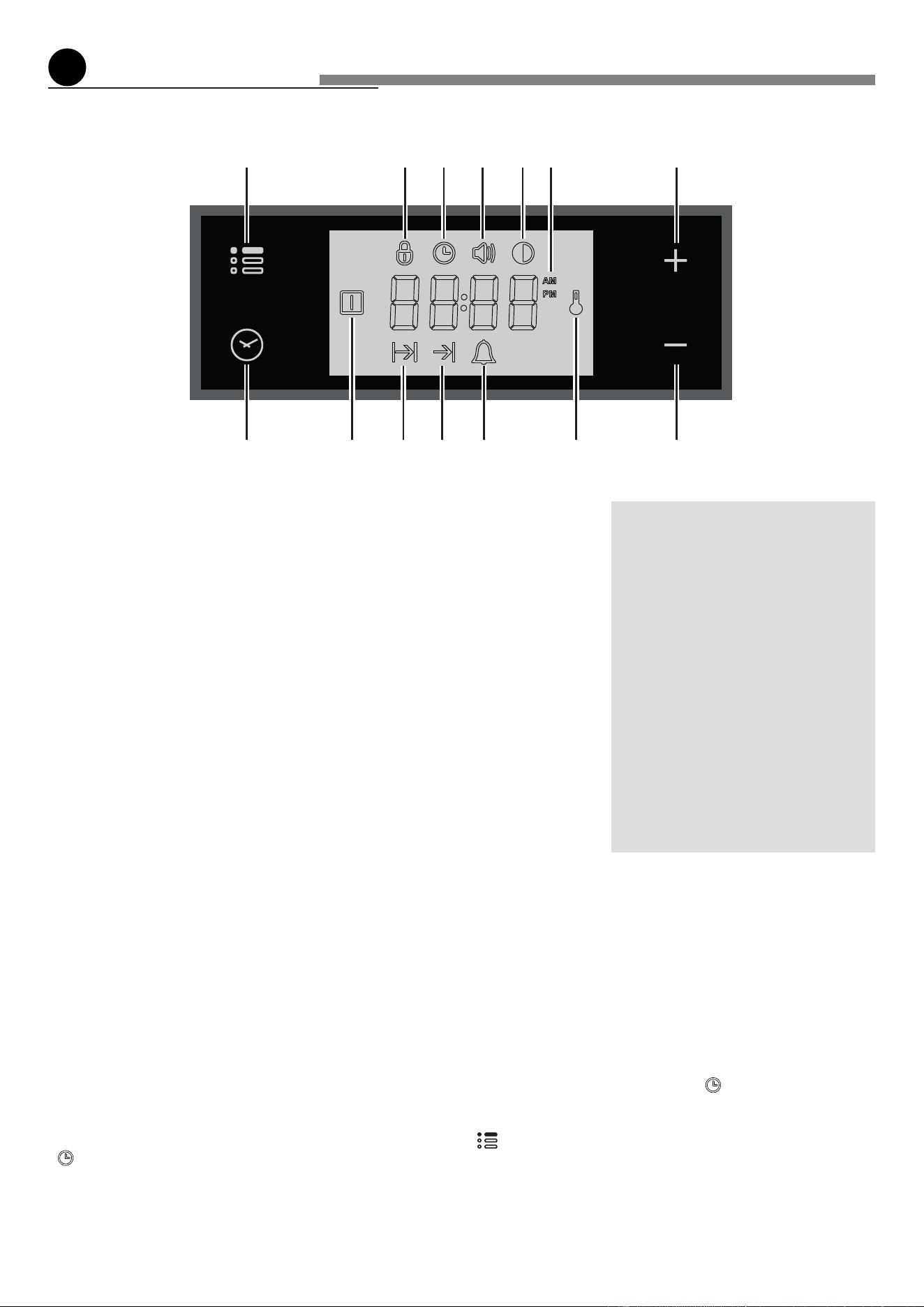

1. Electronic clock/programmer “Touch-control”
2. Multifunction oven switch knob
3. Multifunction oven thermostat knob
4. Front left burner control knob
5. Rear left burner control knob
6. Central dual burner control knob (inner crown)
7. Central dual burner control knob (outer crown)
8. Rear right burner control knob
9. Front right burner control knob
10. Power on indicator
11. Oven thermostat indicator
Fig. 1.2
1
5
6
7
4
8
32
1
1110
9
Please note: This appliance incorporates a safety cooling fan which you will
hear operating whenever the oven or grill are in use.
This fan may continue to run for several minutes after the appliance has been
switched o.
This fan is to reduce the external temperature of the appliance and cool the
internal components.
88
how to use the top burners
Fig. 2.2
Fig. 2.1

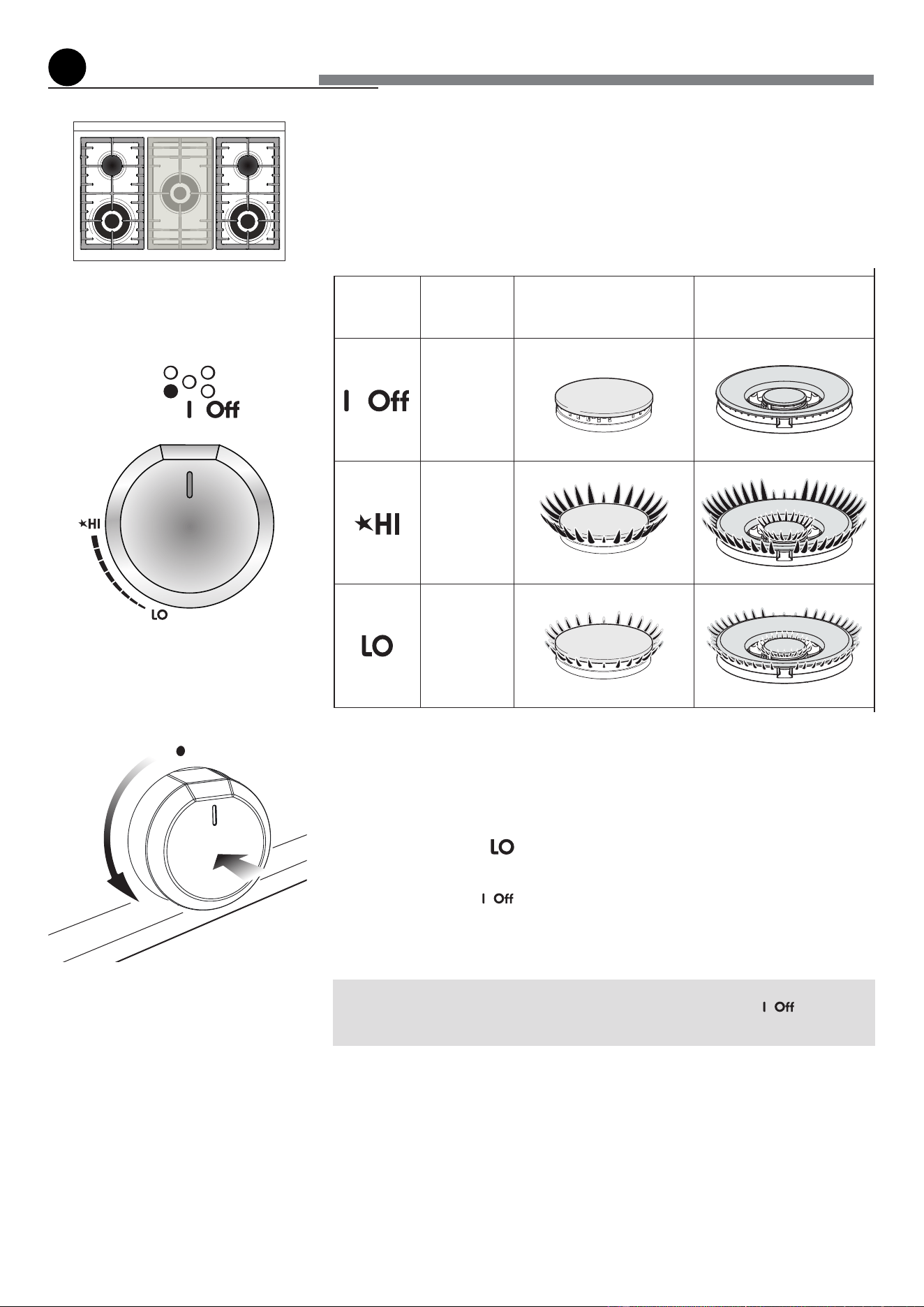

GAS BURNERS (Semi-rapid and double-ring compact)
Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 2.1) which
control the valves.
Turning the knob, so that the indicator line points to the symbols printed on the panel,
achieves the following functions:
The maximum aperture position permits rapid boiling of liquids, whereas the minimum
aperture position allows simmer warming of food or maintaining boiling conditions of
liquids.
To reduce the gas flow to minimum, rotate the knob further counterclockwise to point
the indicator towards the
position.
Other intermediate operating adjustments can be achieved by positioning the indicator
between the maximum and minimum aperture positions, and never between the
maximum aperture and
positions.
N.B. When the range is not being used, set the gas knobs to their positions
and also close the gas shut-off valve placed on the main gas supply line.
1 1
2
2
3
Knob
position
Function SEMI-RAPID burner
DOUBLE-RING
COMPACT burner
closed
valve
maximum
rate
minimum
rate
2
99
2
Caution!
The range becomes very hot during operation.
Keep children well out of reach.

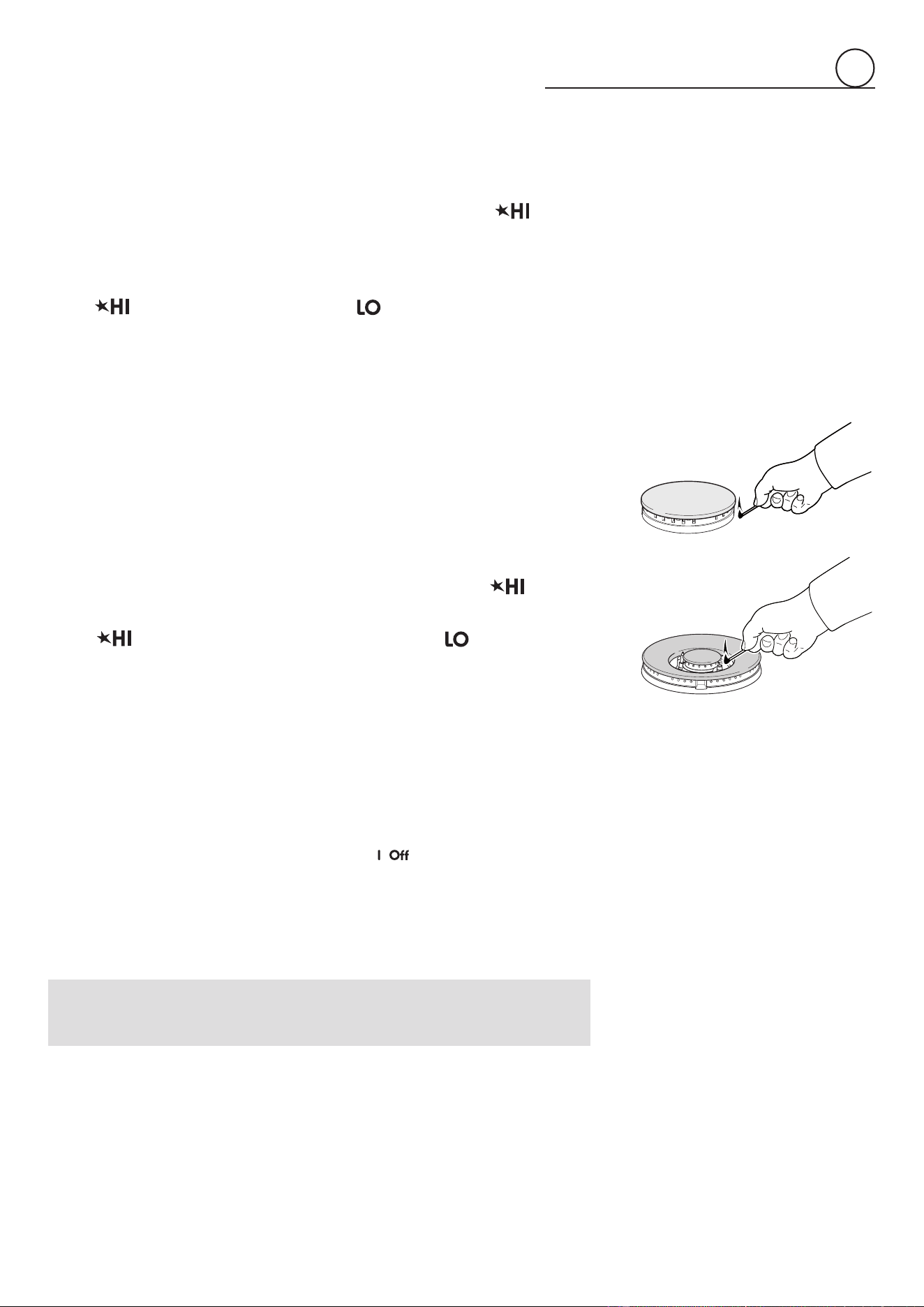

LIGHTING GAS BURNERS FITTED WITH FLAME FAILURE
SAFETY DEVICE
In order to light the burner, you must:
1 – Push and turn the knob in a counterclockwise direction up to the position
(maximum rate), push in and hold the knob until the flame has been lit (fig. 2.2).
The sparks produced by the lighter situated inside the relative burner will light the
flame.
In the event that the local gas supply conditions make it difficult to light the burner
in position, try again with the knob in position.
If there is no mains electrical supply, bring a lighted match close to the burner.
2 – Wait for about ten seconds after the gas burner has been lit before letting go the
knob (safety device activation delay).
3 – Adjust the gas valve to the desired position.
If there is no mains electrical supply, the burners can be used with no restriction.
In that case, in order to light the burner, you must:
1. Bring a lighted match close to the burner (as per side gure) and keep it in place
until the burner has been ignited.
2. Push and turn the dial in a counter-clockwise direction up to the position
(maximum rate), push in and hold the dial until the ame has been lit (g. 2.2)
In the event that the local gas supply conditions make it dicult to light the burner
in
position (maximum rate), try again with the dial in
position (minimum
rate).
3. Wait for about ten seconds after the gas burner has been lit before letting go the dial
(safety device activation delay).
4. Adjust the gas valve to the desired position.
If the burner flame should go out for some reason, the safety valve will automatically
stop the gas flow.
To re-light the burner, return the knob to the closed
position, wait for at least 1
minute and then repeat the lighting procedure.
If your local gas supply makes it difficult to light the burner with the knob set to maximum,
set the knob to minimum and repeat the operation.
1010
2
1 1
2
2
3
Fig. 2.3

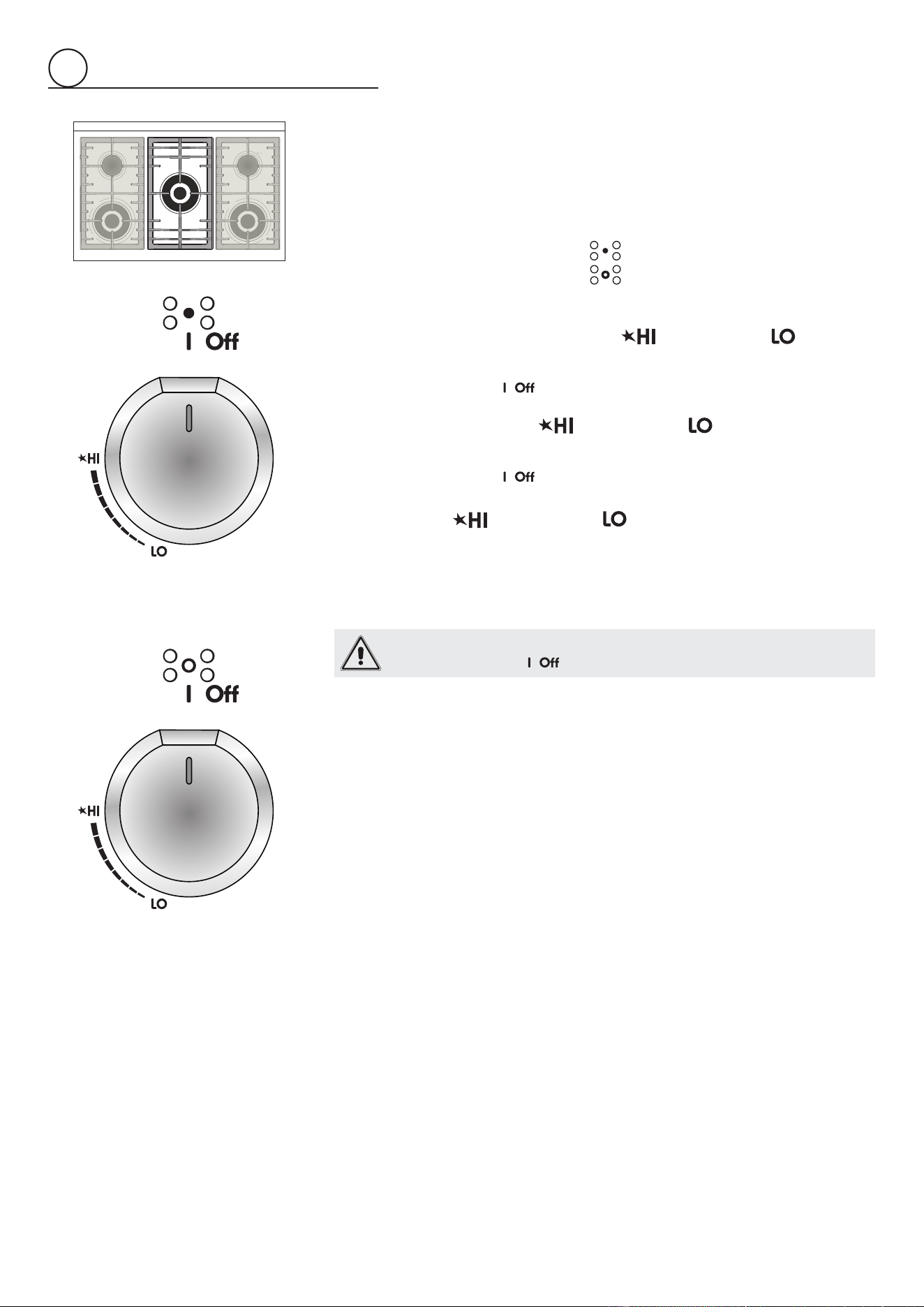

GAS BURNERS (Dual)
The Dual Burner is a very exible burner which allows dierent regulations for optimal
cooking.
It is composed by one inner and one outer crown: the inner and outer crown can be
used together or separately.
The Dual burner is controlled by two separate knobs:
• one knob for the inner crown only (“
” symbol identifying the control knob)
;
• one knob for the outer crown only (“ ” symbol identifying the control knob).
The Dual Burner can be used:
• As a high-power burner (all ames produced simultaneously by inner and outer crown)
which can be adjusted from the maximum (
) to the minimum ( ) position.
Intermediate operating adjustments can be achieved by positioning the indicator
between the maximum and minimum opening positions, and never between the
maximum opening and
position.
• As an Ultra-rapid burner (ame produced only by the outer crown)
which can be
adjusted from the maximum (
) to the minimum ( ) position.
Intermediate operating adjustments can be achieved by positioning the indicator
between the maximum and minimum opening positions, and never between the
maximum opening and
position.
• As a small burner (ame produced only by the inner crown) which can be adjusted from
the maximum (
) to the minimum ( ) position.
Gas ow to the burners is adjusted by turning the dials (illustrated in g. 2.3, 2.4) which
control the valves.
Fig. 2.4
IMPORTANT: After using the Dual burner check both the control knobs
are in the closed position.
1111
2
Fig. 2.5

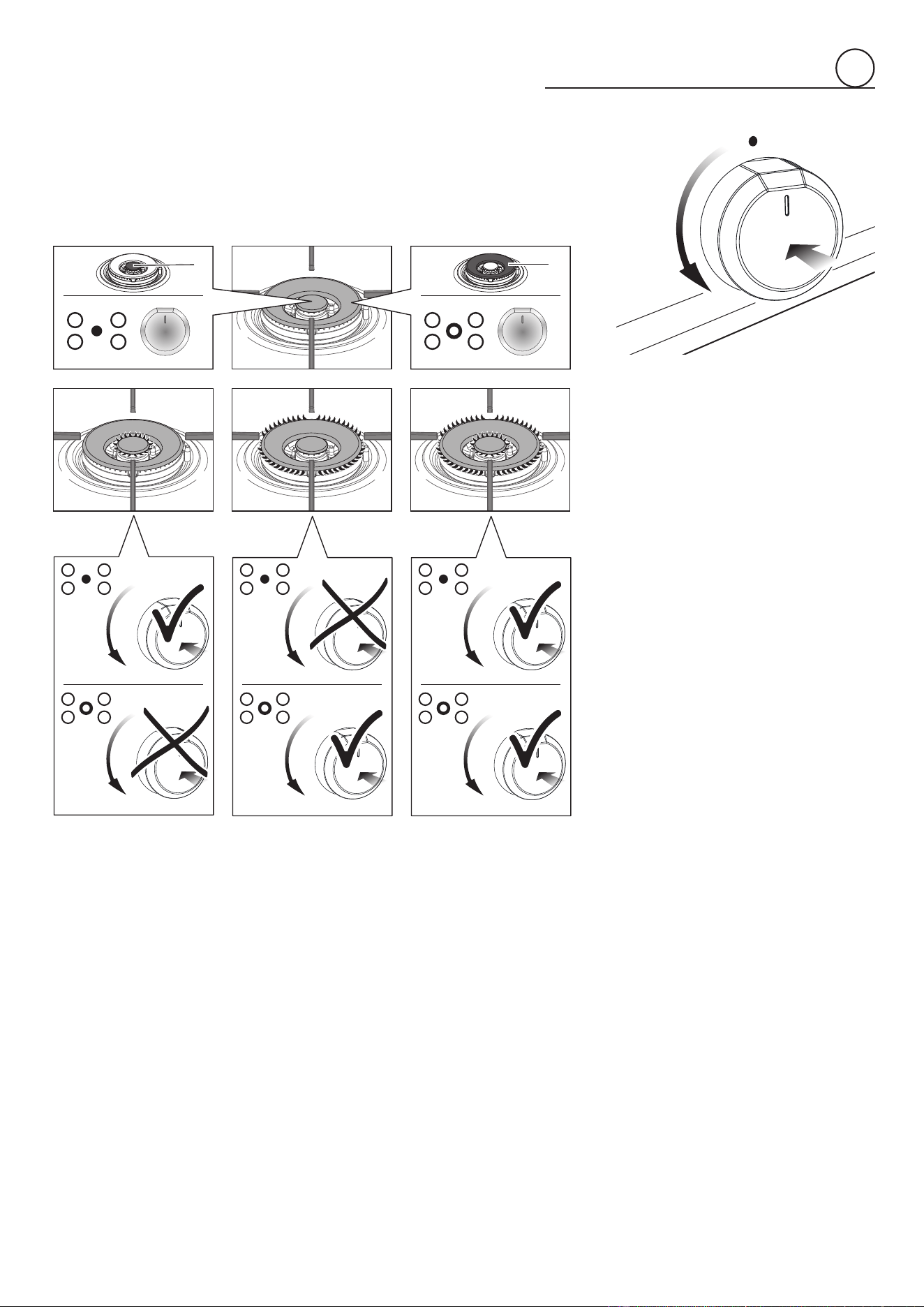

DUAL BURNER OPERATION / CONTROL KNOBS
1
2
2 1+21
Turning the dial so that the symbols printed on the dial point to the mark on the bezel
achieves the following functions:
1212
2

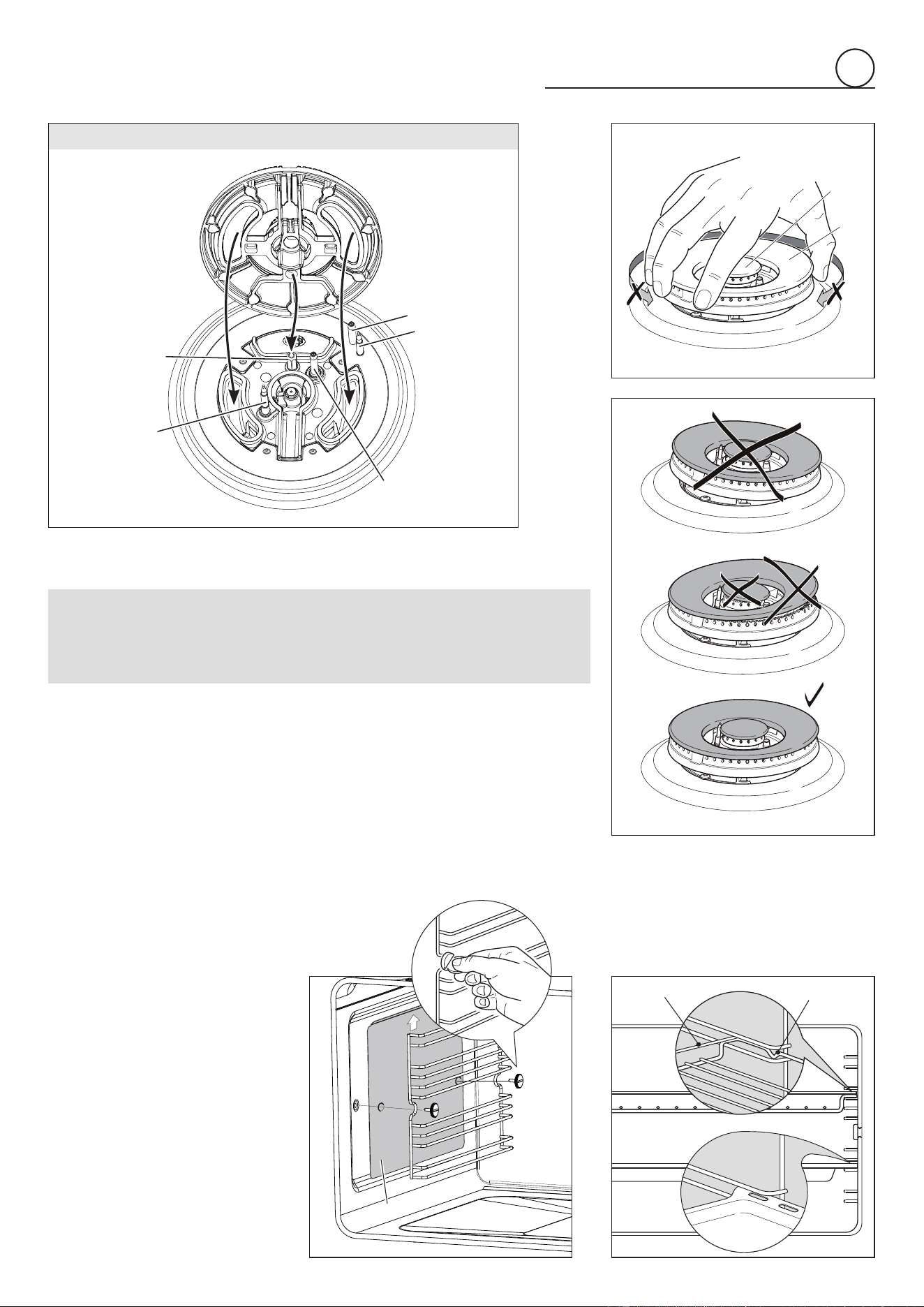

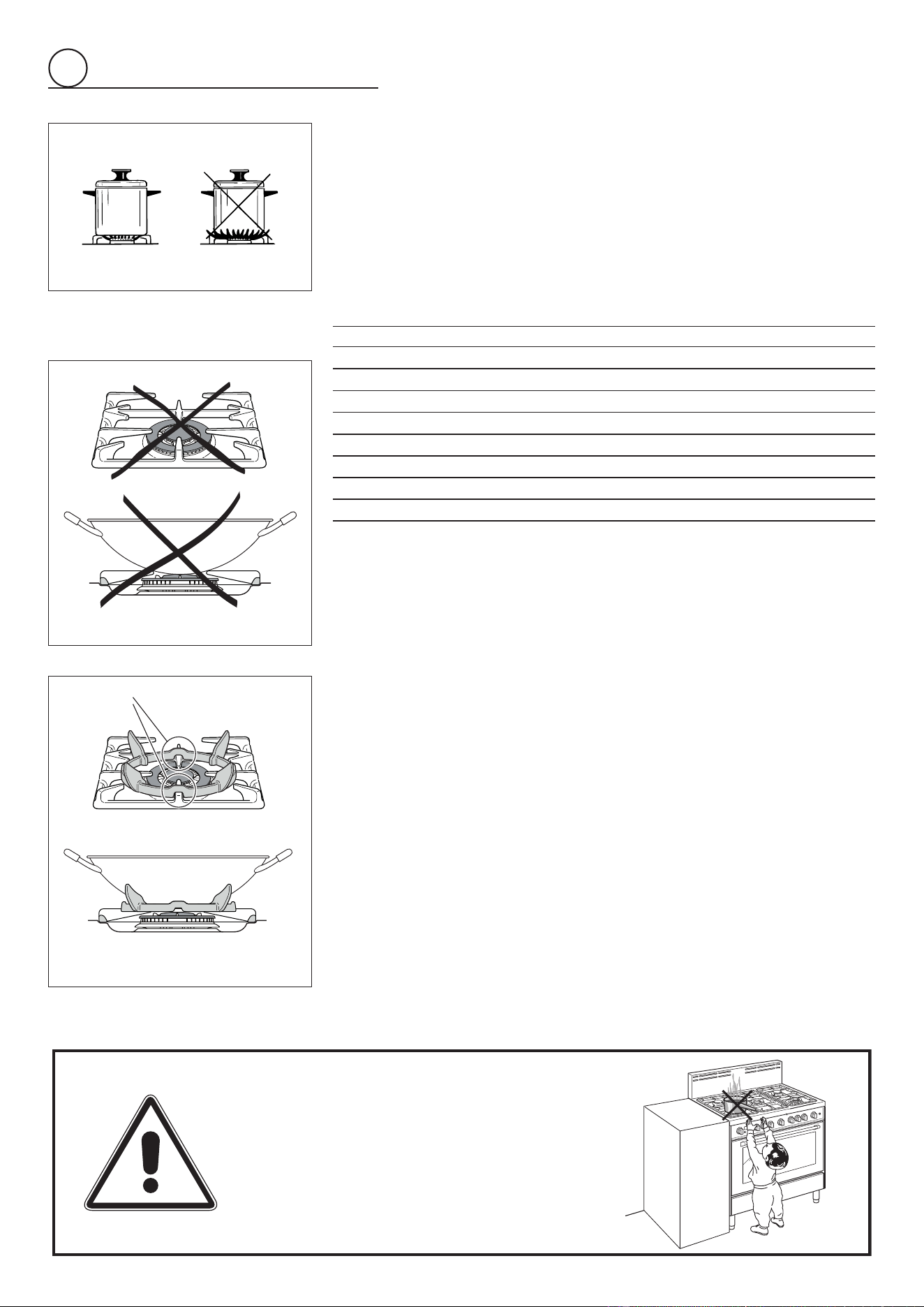

CORRECT USE OF THE DOUBLE-RING COMPACT AND
DUAL BURNER
(figs. 2.7a - 2.7b)
The flat-bottomed pans are to be placed directly onto the pan-support.
When using a WOK you need to place the supplied stand in the burner to avoid any
faulty operation of the triple-ring and dual burner (figs. 2.7a - 2.7b).
WARNING: The wok stand MUST be correctly placed as indicated in figure 2.7b;
the bigger supporting areas “A” must be placed on the vertical prongs only (rear
and front).
When correctly positioned, it must sit flat and stable on the standard pan support
and must not rotate.
IMPORTANT:
The special grille for wok pans (fig. 2.7b)
MUST BE PLACED ONLY over the pan-rest
for the double-ring compact and dual burner.
“TEPPANYAKI” COOKING PLATE
If not included, the “teppanyaki” cooking plate can be ordered as optional accessory.
CHOICE OF BURNER (fig. 2.6)
The symbols printed on the panel above the gas knobs indicate the correspondence
between the knob and the burner.
The most suitable burner is to be chosen according to the diameter and volume capacity
of the container to be warmed.
It is important that the diameter of the pots or pans suitably match the heating potential
of the burners in order not to jeopardise the efficiency of the burners, bringing about a
waste of gas fuel.
A small diameter pot or pan placed on a large burner does not necessarily mean that
boiling conditions are reached quicker.
Fig. 2.6
Make sure that the handles of
cookware do not stick out over the
edge of the range, to avoid them
being knocked over by accident.
This also makes it more difficult
for children to reach the cooking
vessels.
Fig. 2.7a
Fig. 2.7b
DIAMETERS OF PANS WHICH MAY BE USED ON THE HOB BURNERS
BURNER MINIMUM MAXIMUM
Semi-rapid 16 cm (6" 19/64) 24 cm (9" 7/16)
Double-ring compact 26 cm (10" 3/16) 28 cm (11" 1/16)
Dual (inner ring only) 12 cm (4” 11/16) 14 cm (5” 1/2)
Dual (outer ring only) 24 cm (9" 7/16) 26 cm (10" 3/16)
Dual (inner and outer ring) 26 cm (10" 3/16) 28 cm (11" 1/16)
Wok pans max 36 cm (14" 3/16)
Do not use pans with concave or convex bases
WRONG
CORRECT
A
1313

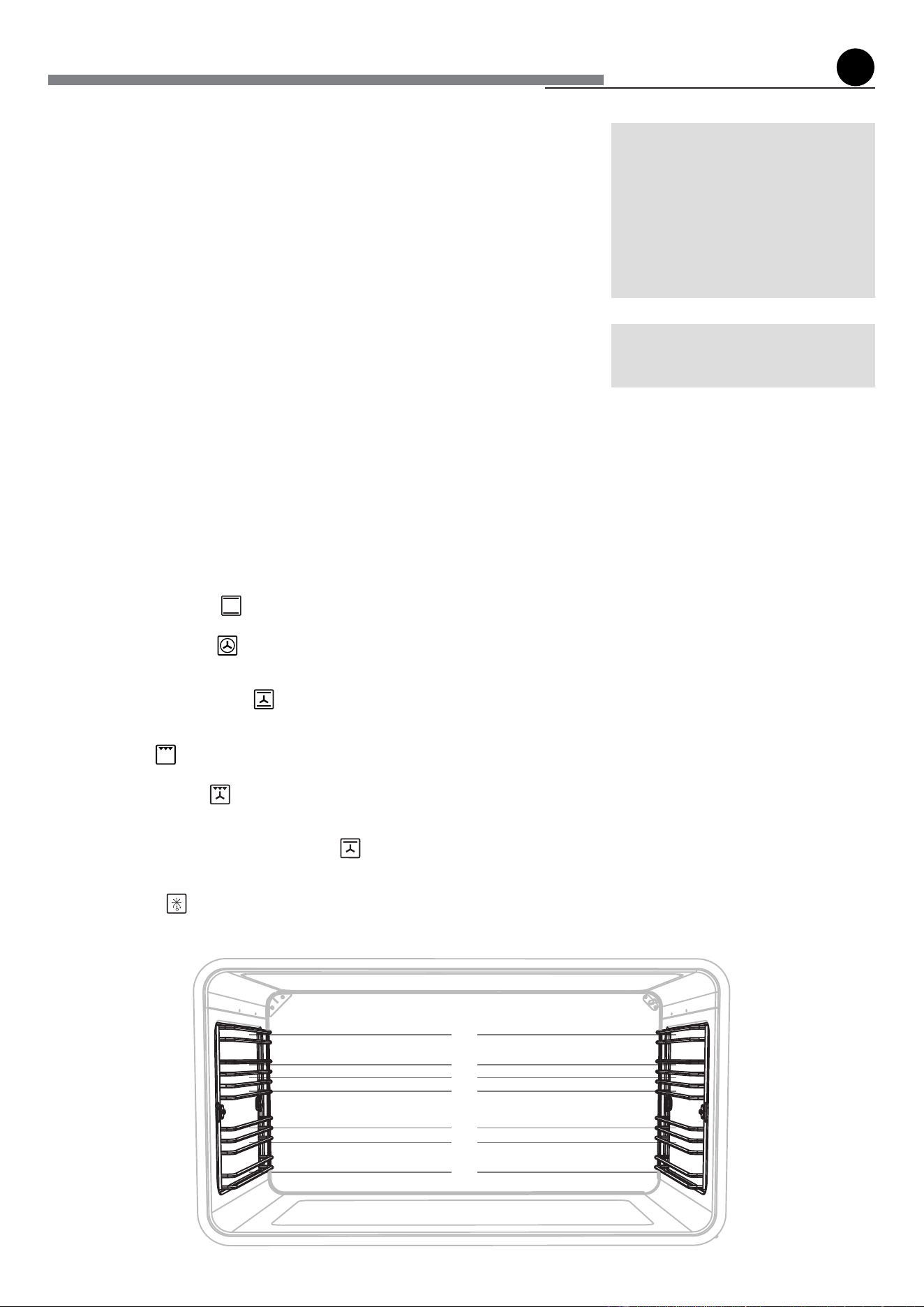

OPERATING PRINCIPLES
Heating and cooking in the multifunction oven takes place as follows:
• by normal convection -
The heat is produced by the upper and lower heating elements.
• by forced convection -
The heat produced by the circular element is distributed throughout the oven by the
fan.
• by semi-forced convection -
The heat produced by the upper and lower heating elements is distributed throughout
the oven by the fan.
• by radiation -
The heat is radiated by the infra red broil element.
• by radiation and fan -
The radiated heat from the infra red broil element is distributed throughout the oven
by the fan.
• by semi-forced convection from the top -
The heat produced by the upper heating element is distributed throughout the oven
by the fan.
• by ventilation -
The food is defrosted by using the fan only function without heat.
USING THE OVEN FOR THE FIRST TIME
• Put in the shelf and the tray.
• Switch the oven on empty (on a cooking function) at maximum power for about 2
hours to remove traces of grease and smells from the components.
There will be a distinctive smell and a small amount of smoke during the
conditioning process as manufacturing residue is burnt o. This is normal,
but make sure the kitchen is well ventilated during the conditioning.
• When the oven has cooled down and unplugging the range, clean the inside of the
oven with a cloth soaked in water and neutral detergent and dry it perfectly.
GENERAL FEATURES
As its name indicates, this is an oven that presents particular features from an operational
point of view.
In fact, it is possible to insert 7 dierent programs to satisfy every cooking need.
The 7 positions, thermostatically controlled, are obtained by 4 heating elements which
are:
• Lower heating element
• Upper heating element
• Broil heating element
• Circular heating element
VERY IMPORTANT
The oven shall be used always with
the door closed.
ATTENTION: the range becomes very
hot during operation.
ATTENTION: the oven door becomes
very hot during operation.
KEEP CHILDREN AWAY.
WARNING:
The door is hot, use the handle.
Fig. 3.1
how to use the multifunction electric oven
3
1
5
4
3
2
6
7
1414
OVEN LIGHT (this is not a cooking function)
Turning the knob to this position, only the oven lamp lights up.
The lamp is always on in all the cooking functions.

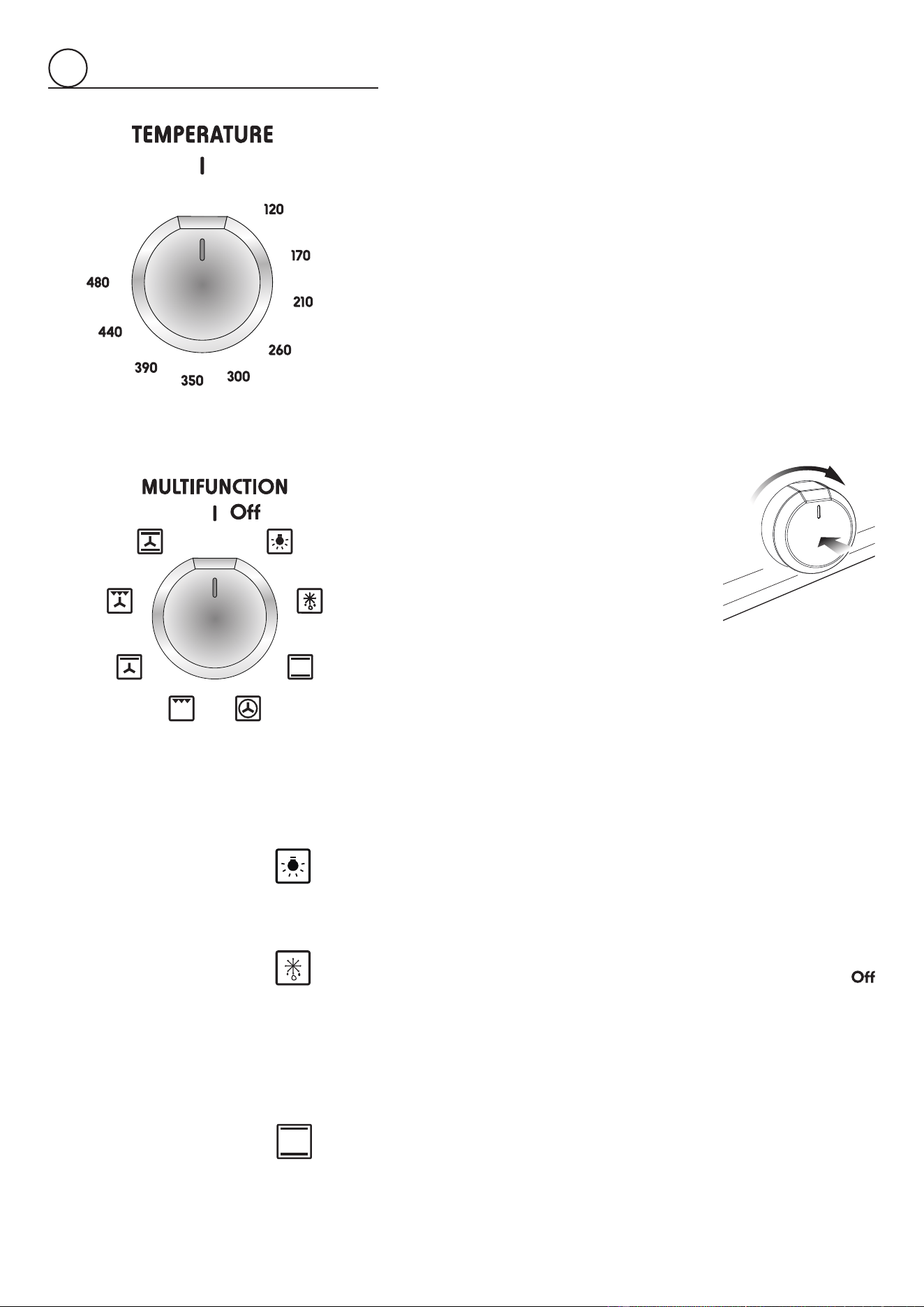

FUNCTION SELECTOR KNOB (g.
3.3)
VERY IMPORTANT: ALWAYS LIGHTLY PRESS
THE CONTROL KNOB WHEN TURNING THE
FUNCTION KNOB FROM THE OFF POSITION
(g. 3.4).
Rotate the knob clockwise to set the oven to one
of the following functions:
DEFROSTING FROZEN FOODS (this is not a cooking function)
Only the fan and the oven lamp switch on. To be used with the thermostat knob on
because the other positions have no eect.
Defrosting takes place by fan, without heating.
Recommended for:
To rapidly defrost frozen foods; 2.2 lbs (1 kg) requires about one hour.
The defrosting times vary according to the quantity and type of foods to be defrosted.
TRADITIONAL CONVECTION COOKING
The upper and lower heating elements switch on.
The heat is diused by natural convection and the temperature must be set between
120 °F (50 °C) and 480 °F (250 °C) via the thermostat knob.
Recommended for:
For foods which require the same cooking temperature both internally and externally, i. e.
roasts, spare ribs, etc.
THERMOSTAT KNOB (g. 3.2)
To turn on the heating elements of the oven, set the switch knob on the
desired program and the thermostat knob onto the desired temperature.
To set the temperature, it is necessary to make the chosen number, printed
on the knob, to match with the control panel indicator.
The elements will turn ON or OFF automatically according to the energy
need which is determined by the thermostat.
The indicator light will cycle on and o during cooking.
3
Fig.
3.4
Fig.
3.2
Fig. 3.3
1515
MAINTAINING TEMPERATURE AFTER COOKING OR SLOWLY
HEATING FOODS
The upper element and the fan are on. The heat is diused by forced convection with
the most heat being produced by the upper element. The temperature must be regulated
between
120 °F (50 °C) and 480 °F (250 °C) via the thermostat knob.
Recommended for:
To keep foods hot after cooking. To slowly heat already cooked foods.
VENTILATED BROILING
The infrared heating element and the fan switch on. The heat is mainly diused by
radiation and the fan distributes it in the whole oven.
The temperature can be set between 120 °F (50 °C) and 480 °F (250 °C) via the
thermostat knob.
For correct use see the “VENTILATED BROILING” section.
Recommended for:
For grill cooking when a fast outside browning is necessary to keep the juices in, i.e. veal
steak, steak, hamburger,
etc.
CONVECTION COOKING WITH VENTILATION
The upper and lower heating elements and the fan turn on.
The heat is dispersed by forced convection and the temperature can be regulated to
between 120 °F (50 °C) and 480 °F (250 °C) via the thermostat knob.
Recommended for:
For foods of large volume and quantity which require the same internal and external
degree of cooking; for i.e.: rolled roasts, turkey, legs, cakes, etc.
VENTILATED COOKING
The circular element and fan come on.
The heat is dispersed by forced convection and the temperature can be regulated to
between 120 °F (50 °C) and 480 °F (250 °C) via the thermostat knob. The oven does not
require preheating.
Recommended for:
Food which has to be well-cooked outside and soft or rosy inside, for example lasagne,
lamb, roast beef, whole sh etc.
BROILING
The infrared heating element switches on.
The heat is diused by radiation. The temperature can be set between 120 °F (50 °C) and
480 °F (250 °C) via the thermostat knob.
For correct use see the “BROILING” section.
Recommended for:
Intense broiling action for cooking with the broiler; browning, crisping, toasting, etc.
3
1616
COOKING DIFFERENT DISHES AT THE SAME TIME
The MULTIFUNCTION oven at positions
or of the function selector can cook
various dierent foods at the same time. Fish, cakes and meat can be cooked together
without the smells and avors mixing.
The only precautions required are the following:
• The cooking temperatures must be as close as possible with a maximum dierence
of 70-80 °F (20-25 °C) between the dierent foods.
• Dierent dishes must be placed in the oven at dierent times according to the cooking
time required for each one. This type of cooking obviously provides a considerable
saving on time and energy.
COOKING ADVICE
STERILIZATION
Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the
following way:
a. Turn the switch to position
or .
b. Set the thermostat knob to position 350 °F (175 °C) and preheat the oven.
c. Fill the grill pan with hot water.
d. Set the jars into the grill pan making sure they do not touch each other and the door
and set the thermostat knob to position 260 °F (130 °C).
When sterilization has begun, that is, when the contents of the jars start to bubble, turn
o the oven and let cool.
VENTILATED BROILING
Ventilated broiling may be done by selecting with the function selector knob; the hot
air completely envelops the food that is to be cooked.
Introduce the food to be cooked, positioning the grill pan as close to the infra-red element
as possible.
Close the door and let the oven operate until broiling is done.
Adding a few dabs of butter before the end of the cooking time gives the golden “au
gratin” eect.
Broiling with the oven door closed.
Important: Use always suitable protective gloves when inserting/removing the
broiling pan from the oven (see next page).
It is advisable to handle
the oven accessories
using oven gloves.
WARNING
VERY IMPORTANT
WARNING!!
REGENERATION
Turn the switch to position
or and set the temperature to 300 °F (150 °C).
Bread becomes fragrant again if wet with a few drops of water and put into the oven for
about 10 minutes.
ROASTING
To obtain classical roasting, it is necessary to remember:
• the pre-set temperature should be maintained.
• that the cooking time depends on the quantity and the type of foods.
3
1717
WRONG
CORRECT
3

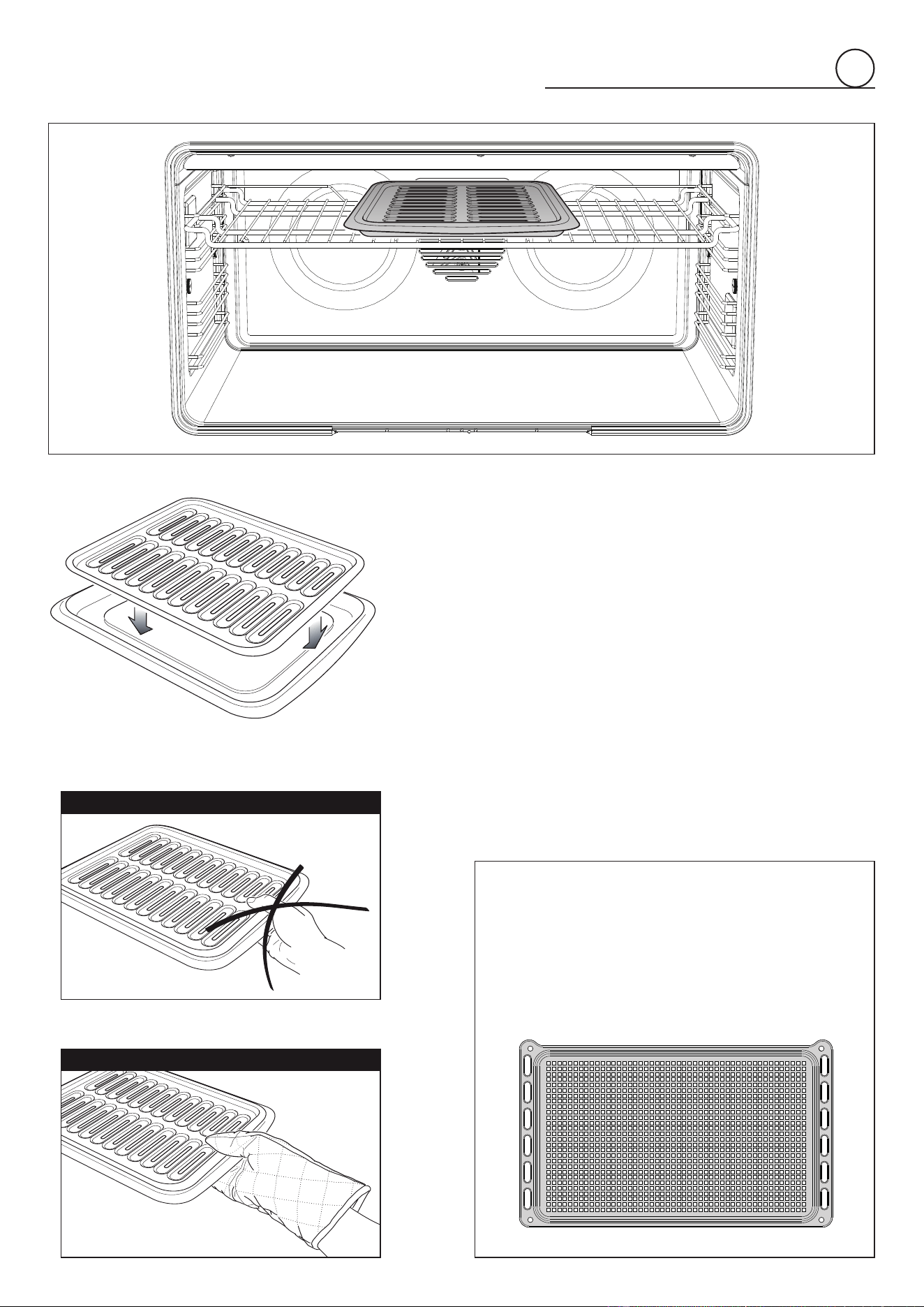

BROILING
Very important: the broil burner must always be used with
the oven door closed.
- Position the shelf on the first level from the top (fig. 3.5).
- Turn on the broil burner, as explained in the preceding
paragraphs and let the broil burner preheat for about 5 minutes
with the door closed.
- Place the food to be cooked above the broiling pan.
- Introduce the broiling pan in the oven (fig. 3.8). The broiling
pan should be placed above the shelf and it should be centered
with the broil burner (fig. 3.5).
Do not broil without using the broiling pan.
Important: Use always suitable protective gloves when
inserting/removing the broiling pan, shelves, pans or other
cooking utensils from the oven.
Fig. 3.6
Fig. 3.7
Fig. 3.8
Fig. 3.5
AIR FRY ENAMELLED TRAY (some models only)
The special Air Fry enamelled tray has a perforated surface
so as to facilitate the entry of air, giving the dishes a tasty
crispy eect without adding condiments.
Recommended for:
French fries (frozen potatoes classic or rustics), chicken
wings, potato croquettes and other frozen or pre-cooked
foods.
1818
4
During a semi-automatic or
automatic oven cooking program,
once completed the programming
procedure the oven lamp/s will be lit
until the end of the cooking program.
This means that, in case of delayed
cooking start, the oven lamp/s will
remain always lit.
In addition, if a fan assisted semi-
automatic or automatic oven cooking
program is set, further to the oven
lamp/s also the oven fan motor (the
motor inside the oven cavity) may be
operating (together with the cooling
fan motor) before the start of the
cooking program; this is possible if
the oven or cooktop has been used
previously and the range is still hot/
warm.
how to use the electronic programmer
11 12
14 13
1 2 3 4 5
10 9 8 7 6
Description of display symbols:
1. Oven on
2. Cooking time
3. End of cooking time
4. Timer
5. Oven temperature
6. AM/PM time format
7. Screen brightness
8. Acoustic signal volume
9. Time of day setting
10. Programmer ‘touch control’ panel key lock
Description of the ‘touch control’ panel symbols:
11. Program selection
12. Digit backward setting for all functions
13. Digit forward setting for all functions
14. Menu selection
IMPORTANT NOTE: When using the timer and during a semi-automatic or automatic
cooking, the countdown of the function with less time remaining prevails on the display.
ATTENTION - MOST IMPORTANT:
ELECTRONIC PROGRAMMER DISPLAY CLEANING
Strictly follow the information indicated in the chapter “CLEANING AND MAINTENANCE”.
“TOUCH-CONTROL” KEYS
The “touch-control” keys shall be operated by the ngers (just by touching the key).
When using touch controls it is best to use the ball of your nger rather than the tip.
Program and menu selection: after starting the procedure, the selection is automatically deactivated after approx. 5 seconds from the
last touch on the display.
SETTING THE CLOCK
When connecting for the rst time, or after a power failure, the word “OFF” ashes on the display and the “
” symbol is lit. Adjust the
time touching the “+” or “―” key.
Important: The oven does not operate, in manual cooking, without rst having set the clock.
To change the time with the appliance already installed, touch the “
“ key for more than 2 seconds, then touch it again until the
“
” symbol ashes. Then adjust the time, within 5 seconds, using the “+” or “―”.
Important: It is not possible to adjust the clock if a cooking program is in progress.
1919
4
USING THE TIMER
You can use the timer at any time, even when the oven is not in use.
ATTENTION - MOST IMPORTANT: This is only an alarm that DOES NOT switch o the oven or grill.
REMEMBER TO TURN OFF THE OVEN/GRILL MANUALLY.
The timer can be set for a maximum time of 23 hours and 59 minutes.
1. To set the timer, with the appliance already connected, touch the " " key (several times) until the “ ” symbol ashes on the
display. Set the time (increase in minutes) within 5 seconds using the “+” or “―”. key. At the end of the adjustment the display shows
the countdown.
2. At the end of the count, the timer starts beeping and the “ ” symbol ashes on the display. Touch any key to turn o the acoustic
signal that would otherwise stop after 7 minutes.
3. Turn the oven o manually (switch and thermostat knobs in the o position) if you do not wish to continue with manual cooking.
To reset the timer in operation at any time:
1A. Only timer function active (no semi-automatic or automatic cooking in progress): touch the " " key for 3 seconds.
1B. With semi-automatic or automatic cooking in progress: touch the " " key several times until the “ ” symbol ashes on the
display. Then touch the “―” key within 5 seconds until "
00:00 " appears on the display.
2. The time of day is shown on the display.
SEMI-AUTOMATIC COOKING
This is used to automatically switch o the oven after the desired cooking time has elapsed.
Check the clock shows the correct time.
The semi-automatic cooking program can be set for a maximum period of 10 hours.
1. Select the function and temperature (function and temperature knobs). The oven will come on.
2. Touch the “ “ key until the “ “ symbol ashes on the display. Set the cooking time (increase in minutes - consider the
preheating time, if necessary) within 5 seconds using the “+” or “―”. At the end of the adjustment the display shows the countdown.
3. At the end of the count the oven turns o, the timer starts beeping, the “ “ symbol ashes and the word “End” appears on the
display.
4. Turn the temperature and function knobs to the o position.
5. Touch the “ “ key to deactivate the acoustic signal (which otherwise will stop after 7 minutes) and to return the programmer
to manual mode (the time is shown on the display). If instead the acoustic signal is deactivated with one of the other keys, after
deactivation also touch the “ “ key to return the programmer to manual mode (the time is shown on the display).
To cancel the semi-automatic cooking program at any time:
1A. Only semi-automatic cooking function active (no timer in use): touch the “ “ key for 3 seconds, the “ “ symbol and the word
“End” are shown on the display.
1B. With active timer: touch the “ “ key several times until the “ “ symbol ashes. Then touch the “―” key within 5 seconds until
“ 00:00 “ appears on the display, replaced after a few seconds by the “ “ symbol and the word “End”.
2. Touch the “ “ key again to return the programmer to manual mode (the time of day is shown on the display). If cooking is nished
turn the temperature and function knobs to the o position, otherwise continue cooking and then remember to turn the oven o
manually.
AUTOMATIC COOKING
Use automatic cooking to automatically turn the oven on, cook, and then turn the oven o.
Check the clock shows the correct time.
1. Select the function and temperature (function and temperature knobs). The oven will come on.
2. Decide the cooking time considering the preheating time, if necessary, and set it as described above in the “SEMI-AUTOMATIC
COOKING” chapter.
3. Touch the “ “ key several times until the “ “ symbol appears on the display. Then set the time at which you want the oven
to turn o, touching the “+” or “―” key.
4. If the cooking is not started immediately, the display shows the current time of day and the “ “ and “ “ symbols. The oven turns
o but now it is set for automatic operation.
• To check the cooking time, touch the “ “ key once, the “ “ symbol ashes.
• To check the turn-o time, touch the key “ “ several times until the “ “ symbol ashes.
To cancel the automatic cooking program at any time, proceed as described in the “SEMI-AUTOMATIC COOKING” chapter.
Turn the temperature and function knobs to the o position, otherwise continue cooking and then remember to turn the oven o manually.
ATTENTION - VERY IMPORTANT (AUTOMATIC OR SEMI-AUTOMATIC COOKING):
If a very short power interruption occurs, the oven keeps the programming.
If the interruption is instead longer than a few tens of seconds, the automatic cooking is cancelled. In this case, turn the
temperature and function knobs to the o position and restart programming if necessary.
2020
4
USER PREFERENCES SETTINGS
PROGRAMMER ‘TOUCH-CONTROL’ PANEL KEY LOCK
This function is used to prevent the accidental touch of the programmer selection keys and to avoid unintentionally activating or
modifying its functions.
The key lock can be activated at any time, with a cooking in progress or with the oven o.
To lock:
• Touch the " " key for more than 2 seconds until the " " indicator light starts ashing. Then touch the “+” key to activate the
key lock, the word "On", appears on the display, wait a few seconds until the operation is completed. When this function is active,
the "
" indicator light is on.
To unlock:
• Touch the " " key for more than 2 seconds until the " " indicator light starts ashing. Then touch the “―” key to deactivate
the key lock, the word "OFF" appears on the display, wait a few seconds until the operation is completed. When this function is not
active, the "
" indicator light is o.
ACOUSTIC SIGNAL TONE SETTING
It is possible to select three sound tones.
• Touch the " " key for more than 2 seconds, then touch the same key several times until the " " symbol ashes.
• Touch the “+” or “―”; key; the display shows the tone set (“b-01”, “b-02” or “b-03”).
• The last tone displayed remains active.
SCREEN BRIGHTNESS SETTING
It is possible to select three brightness levels.
• Touch the “ “ key for more than 2 seconds, then touch the same key several times until the “ “ symbol ashes.
• Touch the “+” or “―”; key; the display shows the brightness set (“d-01”, “d-02” or “d-03”).
• The last brightness displayed remains active.
TIME FORMAT
It is possible to choose the 24 hour or 12 hour clock format.
• To activate the 12 hour format, touch the “+”, key for more than 5 seconds until the “ “ or “ “ symbol is activated.
• To activate the 24 hour format, touch the “+”, key for more than 5 seconds until the “ “ or “ “ symbol is deactivated.
2121
WARNING
Electrical Shock Hazard
Plug into a grounded 3-prong
outlet.
Do not remove ground prong.
Do not use an adapter.
Failure to follow these instructions
can result in death, fire, or electrical
shock.
3-prong polarized
ground-type outlet
ground
prong
GENERAL RECOMANDATION
• Important: Before any operation of cleaning and maintenance disconnect the
appliance from the electrical supply.
• It is advisable to clean when the appliance is cold and especially for cleaning the
enamelled parts.
• Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the
surfaces.
• Avoid using cleaning products with a chlorine or acidic base.
• The oven must always be cleaned after every use, using suitable products and
keeping in mind that its operation for 30 minutes on the highest temperature
eliminates most grime reducing it to ashes.
WARNING
When correctly installed, your product meets all safety requirements laid down
for this type of product category. However special care should be taken around
the rear or the underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges, that may cause
injury.
ENAMELLED PARTS
• All the enamelled parts must be cleaned with a sponge and soapy water or other
non-abrasive products.
• Dry preferably with a microber or soft cloth.
• Acidic substances like lemon juice, tomato sauce, vinegar etc. can damage the
enamel if left too long.
PAINTED PARTS AND SILK-SCREEN PRINTED
SURFACES
• Clean using an appropriate product. Always dry thoroughly.
IMPORTANT: these parts must be cleaned very carefully to avoid scratching and
abrasion. You are advised to use a soft cloth and neutral soap.
STAINLESS STEEL ELEMENTS
• Stainless steel parts must be rinsed with water and dried with a soft and clean cloth.
• For dicult dirt, use a specic non-abrasive product available commercially or a little
hot vinegar.
• Note: regular use could cause discoloring around the burners, because of the
high ame temperature.
INSIDE OF OVEN
The oven should always be cleaned after use when it has cooled down.
The cavity should be cleaned using a mild detergent solution and warm water.
Suitable proprietary chemical cleaners may be used after first consulting with the
manufacturers recommendations and testing a small sample of the oven cavity.
Abrasive cleaning agents or scouring pads/cloths should not be used on the cavity
surface.
NOTE: The manufacturers of this appliance will accept no responsibility for damage
caused by chemical or abrasive cleaning.
Let the oven cool down and pay special attention no to touch the hot heating
elements inside the oven cavity.
ELECTRONIC PROGRAMMER DISPLAY CLEANING
Clean the programmer display using a soft cloth, warm water and neutral soap, or a soft
cloth with a liquid detergent (non-abrasive).
When cleaning, be careful to move the cloth in one direction only.
Then wipe the display with a damp cloth and dry it with a soft cloth.
IMPORTANT: DO NOT use chlorine-based or acid-based cleaning products,
abrasive products or non-neutral detergents as they may cause irreparable
damage to the surface. DO NOT spray cleaning liquids directly on the programmer
display.
cleaning and maintenance
Do not use steam jet cleaners
because the humidity could
infiltrate into the appliance making
it dangerous.
Before any operation of maintenance
disconnect the appliance from the
electrical mains supply.
WARNING
VERY IMPORTANT
5
2222
Fig. 5.2
Fig. 5.1

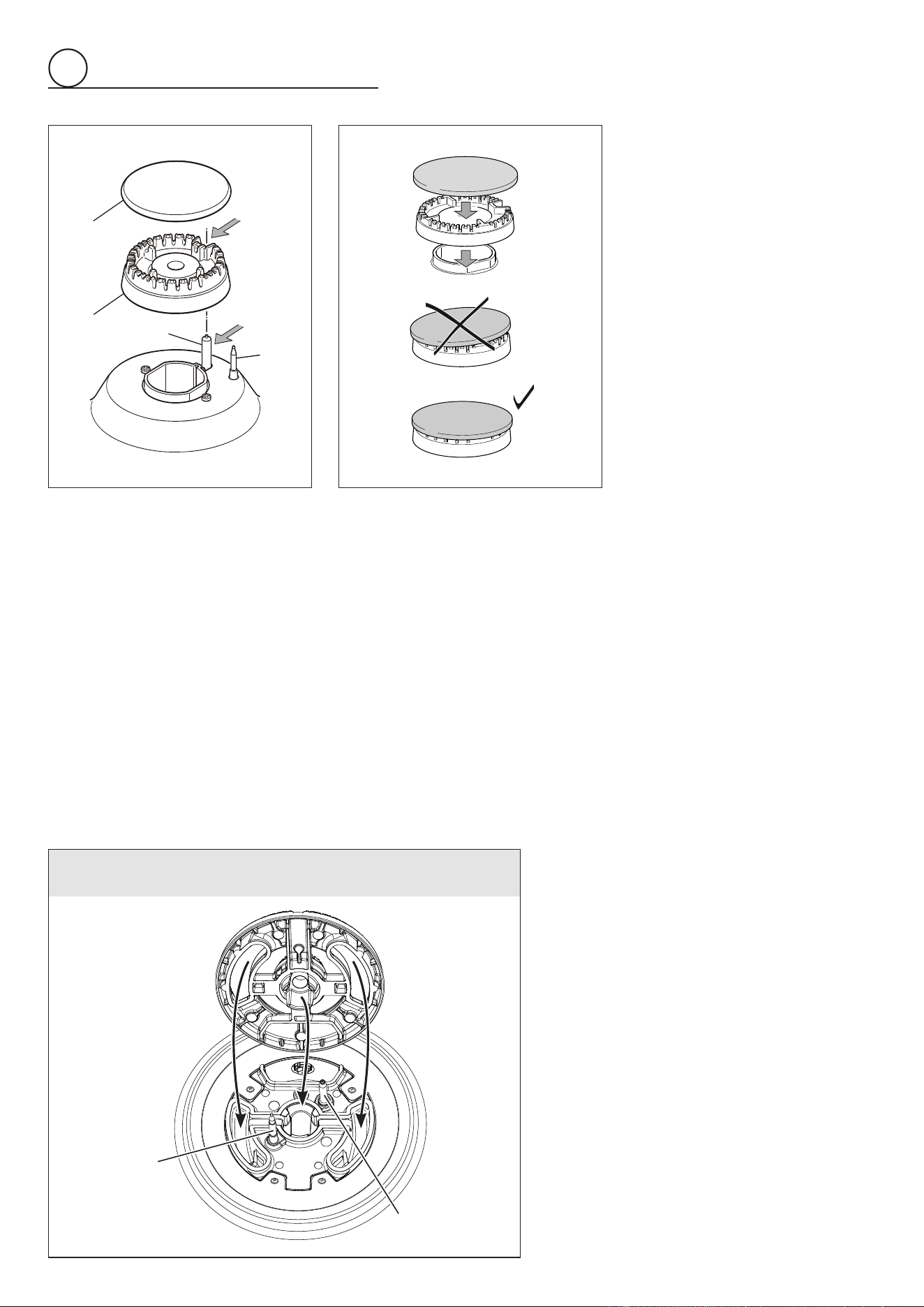

CORRECT REPLACEMENT
OF THE SEMI-RAPID
BURNERS
It is very important to check that the
burner flame spreader “F” and the cap
“C” have been correctly positioned (see
figs. 5.1 and 5.2).
Failure to do so can cause serious
problems.
CORRECT POSITION OF
THE DUAL AND DOUBLE-
RING COMPACT BURNERS
The burner must be correctly positioned
(see figs. 5.3-5.4); the burner rib must
be fitted in their housing as shown by the
arrow.
The burner correctly positioned must not
rotate (fig. 5.5).
Then position the cap "A" and the ring "B"
(figs. 5.5 - 5.6).
IMPORTANT: the Dual burner ame
spreader has a centering pin (“CP” in g.
5.4).
Fig. 5.3
BURNERS AND GRIDS
• These parts can be removed and
cleaned with appropriate products.
• After cleaning, the burners and their
ame distributors must be well dried
and correctly replaced.
• It is very important to check that
the burner flame distributor and the
cap has been correctly positioned -
failure to do so can cause serious
problems.
• Check that the probe “T” (figs.
5.1 - 5.3 - 5.4) next to each burner
is always clean to ensure correct
operation of the safety valves.
• Check that the electrode “S” (figs.
5.1 - 5.3 - 5.4) next to each burner is
always clean to ensure trouble-free
sparking.
• Note: To avoid damage to the
electric ignition do not use it when
the burners are not in place.
Both the probe and ignition plug must
be very carefully cleaned.
DOUBLE-RING COMPACT BURNER
T
S
5
S
F
C
T
2323
A
B
Fig. 5.6
Fig. 5.4
Fig. 5.5
DUAL BURNER
T
S
CP
T
S
Fig. 5.7b
Fig. 5.7a
5
Note: Continuous use may cause a change in the glaze around the burners
and grids, corresponding to the areas exposed to the heat. This is a natural
phenomenon and does not prevent the parts from working properly.
OVEN FITTING OUT
• Assemble the wire racks to the oven walls using the 2 screws (g. 5.7a).
In the models with catalytic panels supplied, interpose the catalytic panels “A” with
the arrow up (g. 5.7a).
• Slide the rack into the runners (g. 5.7b).
The rack must be tted so that the safety notch, which stops it sliding out, faces the
inside of the oven; the guard rail shall be at the back.
• To dismantle, operate in reverse order.
Guard rail Stop notch
A
2424
5

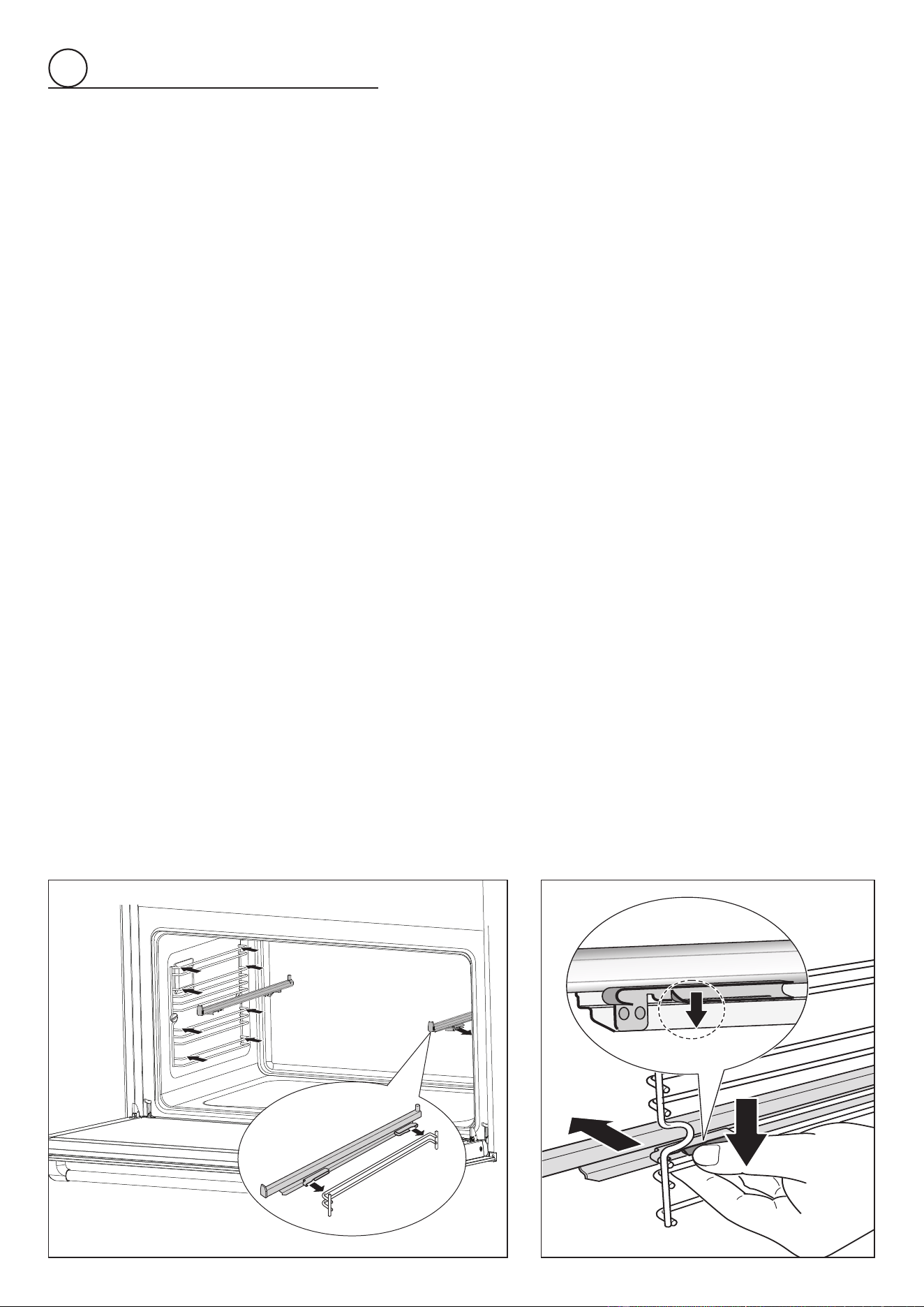

TELESCOPIC SLIDING SHELF SUPPORTS (SUPPLIED WITH SOME MODELS ONLY)
The telescopic sliding shelf supports make it safer and easier to insert and remove the oven shelves and trays. They
stop when they are pulled out to the maximum position.
Important! When tting the sliding shelf supports, make sure that you t:
• The slides to the top wire of a rack. They do not t on the lower wire.
• The slides so that they run out towards the oven door.
• Both sides of each pair of shelf slides.
• Both sides on the same level.
To x the sliding shelf supports onto the side racks:
• Screw the side racks onto the oven wall (interposing the catalytic panels if supplied) (g. 5.7a).
• Fit the sliding shelf supports onto the top wire of a rack and press (g. 5.8). You will hear a click as the safety
locks clip over the wire.
Fig. 5.8
To remove the telescopic sliding shelf supports:
• Remove the side racks by unscrewing the xing screws (g. 5.7a).
• Lay down the sliding shelf support and side racks, with the telescopic sliding shelf support underneath.
• Find the safety locks. These are the tabs that clip over the wire of the side rack (arrow “1” in g. 5.9).
• Pull the safety locks away from the wire to release the wire (arrow “2” in g. 5.9).
Cleaning the sliding shelf supports:
• Wipe the supports with a damp cloth and a mild detergent only.
• Do not wash them in the dishwasher, immerse them in soapy water, or use oven cleaner on them.
1
2
1
Fig. 5.9
2525

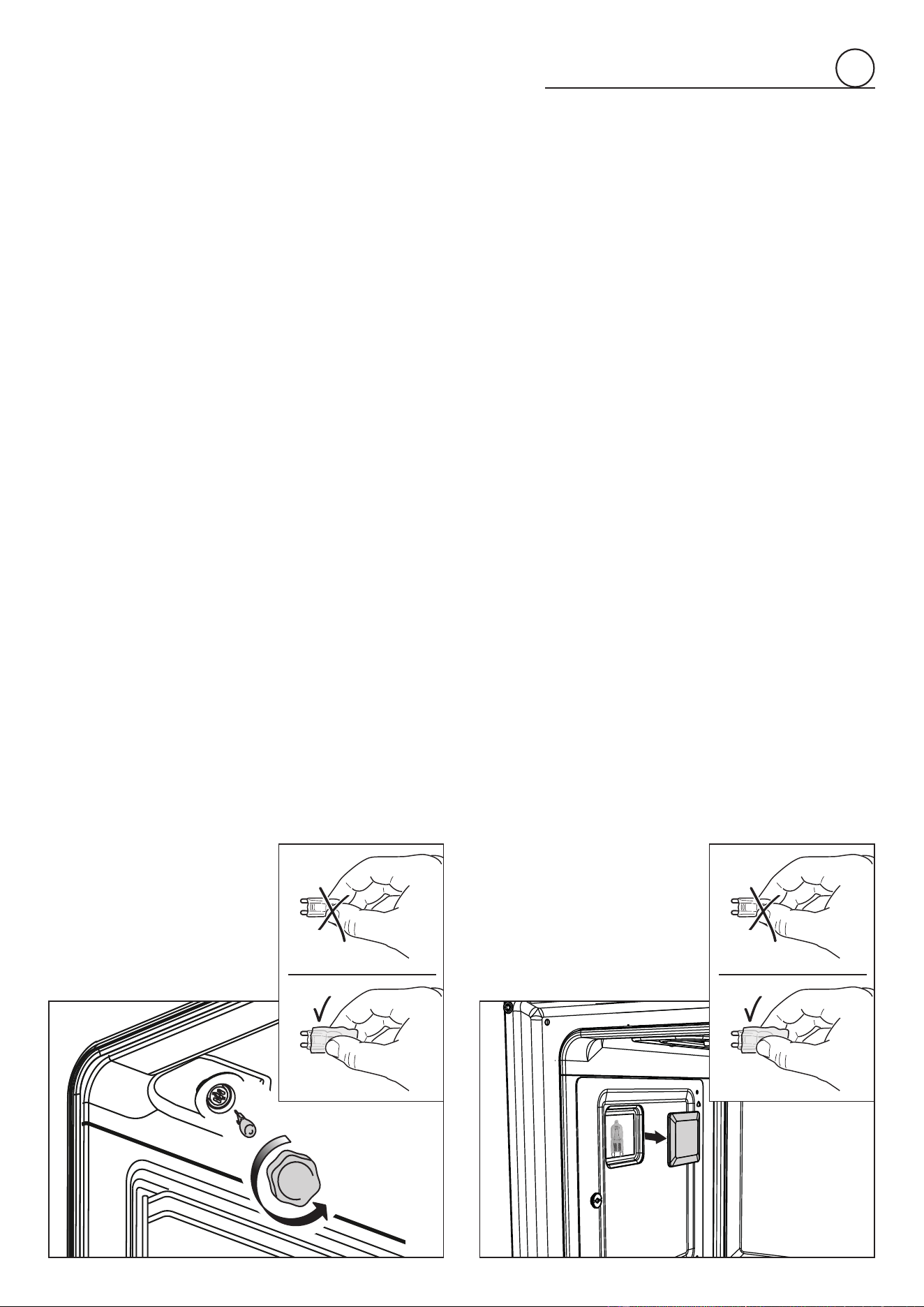

REPLACING THE OVEN LIGHTS
(NOTE: DEPENDING ON YOUR MODEL, YOUR OVEN MAY ONLY HAVE SOME OF THESE LIGHTS)
WARNING: Ensure the appliance is switched o before replacing the lamp to avoid the possibility of electric
shock.
• Let the oven cavity and the heating elements to cool down.
• Switch o the electrical supply.
• Remove the protective cover (gs. 5.10a - 5.10b).
• Replace the halogen lamp with a new one suitable for high temperatures having the following specications:
120 V ac and same power (check watt power as stamped in the bulb itself) of the replaced lamp.
IMPORTANT WARNING: Never replace the lamp with bare hands; contamination from your ngers can
cause premature failure. Always use a clean cloth or gloves.
• Ret the protective cover.
NOTE: Oven bulb replacement is not covered by your guarantee.
WRONG
CORRECT
WRONG
CORRECT
Fig. 5.10b
Fig. 5.10a
5
ADVICE FOR USE AND MAINTENANCE OF CATALYTIC PANELS
The catalytic panels are covered with special microporous enamel which absorbs and does away with oil and fat
splashes during normal baking over 200 °C.
If, after cooking very fatty foods, the panels remain dirty, operate the oven “idling” on max temperature for about
30 minutes.
These panels do not require to be cleaned, however it is advised to periodically remove them from the oven (at
least the side panels) and to wash them with tepid soapy water and then wipe o with a soft cloth.
DO NOT CLEAN OR WASH THEM WITH ABRASIVE PRODUCTS OR WITH PRODUCTS CONTAINING ACIDS
OR ALKALIS.
The side panels are reversible and when the catalytic microporous enamel degrades, they can be turned to the
other side.
2626
5
WARNING:
• Do not remove drawer while hot.
• Do not remove drawer during
• operation.
• Be sure drawer is empty before
removing.

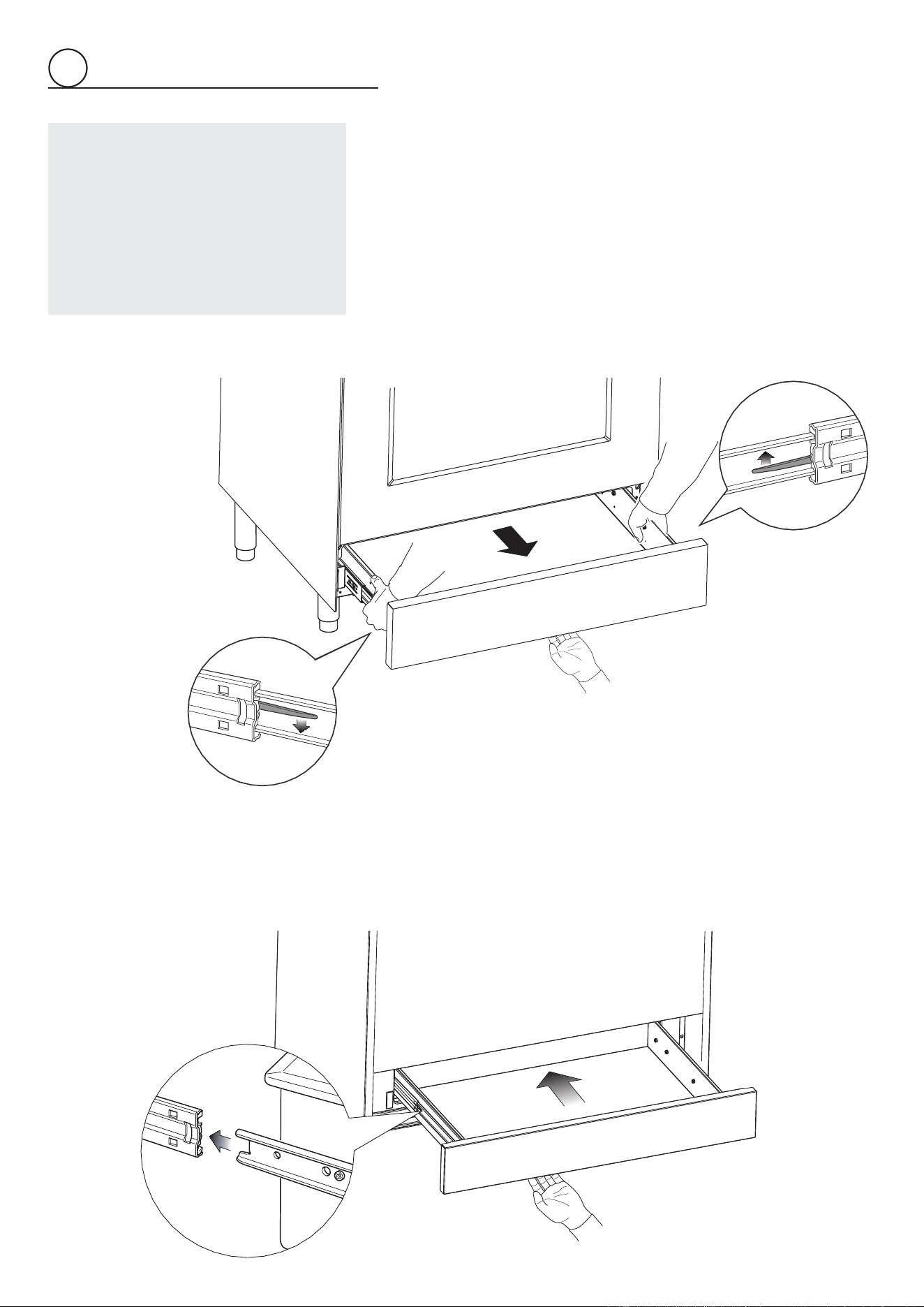

REMOVING THE STORAGE DRAWER
1. Open the drawer completely (g. 5.11)
2. Move down the lever of left guide (g. 5.12) and up the lever of right guide
(g. 5.13).
3. Remove the drawer; the levers have to be kept moved (g. 5.11).
REFIT THE STORAGE DRAWER
1. Insert the drawer guides into the range guides (g. 5.14)
2. Gently close the drawer completely; the safety catches will be automatically
hooked.
Fig. 5.14
Fig. 5.11
Fig. 5.13
Fig. 5.12
2727

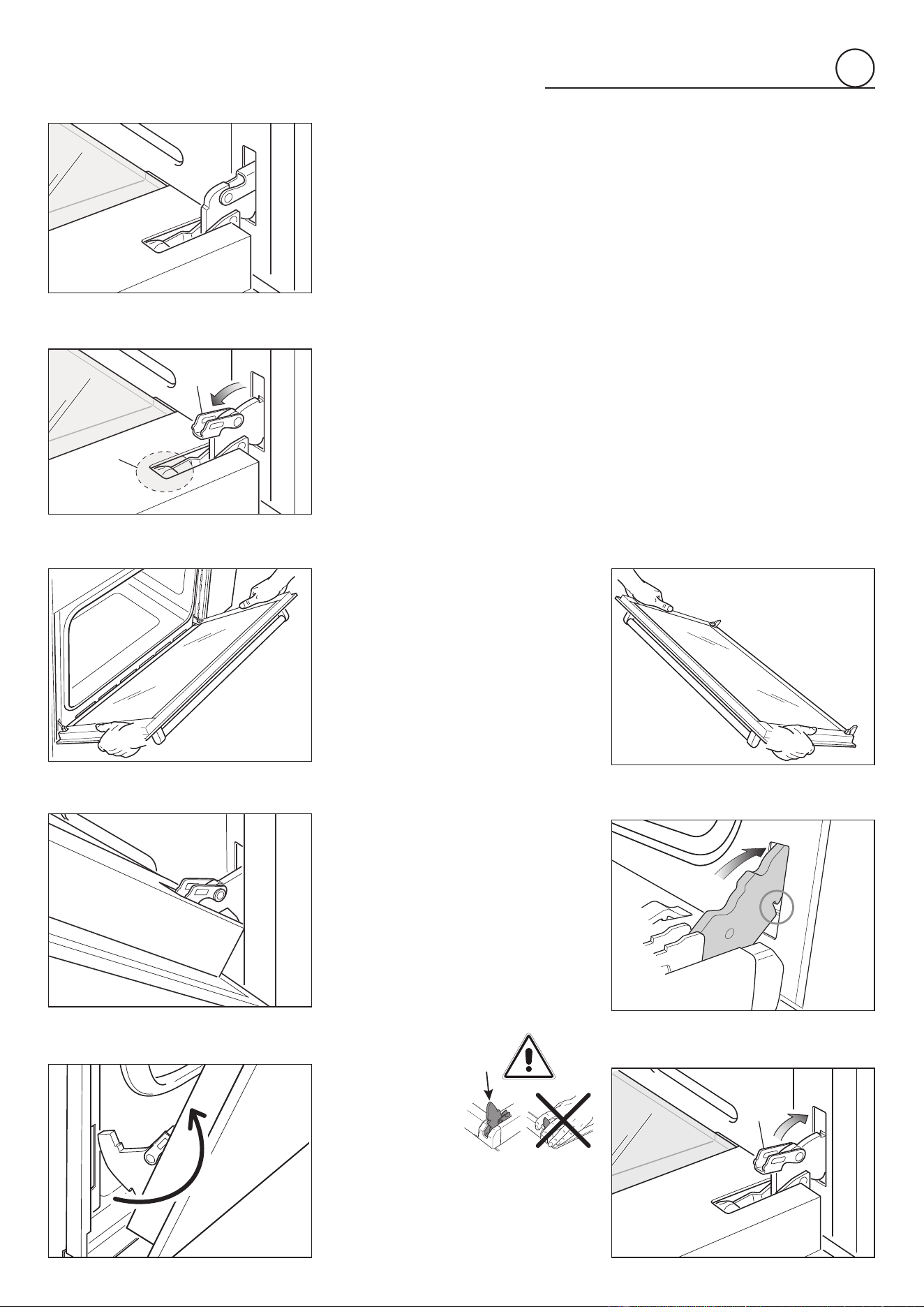

REMOVING THE OVEN DOOR
The oven door can easily be removed as follows:
• Open the door to the full extent (g. 5.15).
• Open the lever “A” completely on the left and right hinges (g. 5.16).
• Hold the door as shown in g. 5.17.
• Gently close the door (g. 5.18) until left and right hinge levers “A” are hooked to part
“B” of the door (g. 5.16).
• Withdraw the hinge hooks from their location following arrow “C” (g. 5.19).
• Rest the door on a soft surface.
B
A
C
Fig. 5.19
Fig. 5.17
Fig. 5.18
Fig. 5.16
Fig. 5.15
Important!
Always keep a safe distance from the door
hinges, paying special attention to position
of your hands.
If the door hinges are
not correctly hooked,
they could unhook
and close suddenly
and unexpectedly
with risk of injury.
REFIT THE DOOR
1. Hold the door rmly (g. 5.20).
2. Insert the hinge tongues into the slots, making sure that the groove drops into place
as shown in the gure 5.21.
3. Open the door to its full extent.
4. Fully close the levers “A” on the left and right hinges, as shown in the gure 5.22.
5. Close the door and check that it is properly in place.
Fig. 5.20
Fig. 5.21
A
Fig. 5.22
5
2828
DO’S AND DO NOT’S
• Do always use the oven with the door closed.
• Do always broil with the door closed.
• Do read the user instructions carefully before using the range for first time.
• Do allow the oven to heat for about two hours, before using for the first time, in
order to expel any smell from the new oven insulation, without the introduction of
food.
• Do clean your oven regularly.
• Do remove spills as soon as they occur.
• Do always use oven gloves when removing food shelves and trays from the oven.
• Do not allow children near the range when in use.
• Do not allow fat or oils to build up in the oven base, or oven accessories.
• Do not place cooking utensils or plates directly onto the oven base.
• Do not place hot enamel parts in water. Leave them to cool first.
• Do not allow vinegar, coffee, milk, saltwater, lemon or tomato juice to remain in
contact with enamel parts (i.e. inside the oven).
• Do not use abrasive cleaners or powders that will scratch the surface of the
stainless steel and the enamel.
• Do not attempt to repair the internal workings of your range.
• Do remove the protective film before the first use.
• Fire risk! Do not store flammable material in the oven and in the storage
compartment.
• Do not use the oven with the oven door open.
• Do not use the oven to warm or heat a room.
FOR YOUR SAFETY
Under no circumstances should any external covers be removed for servicing or
maintenance except by suitably qualified personnel
5
2929
3030
3131
Cod. 1106663 - ß0
The manufacturer cannot be held responsible for possible inaccuracies due to
printing or transcription errors in the present booklet.
The manufacturer reserves the right to make all modications to its products deemed
necessary for manufacture or commercial reasons at any moment and without prior
notice, without jeopardising the essential functional and safety characteristics of the
appliances.
