5247SMTY-WD
KBS-5247-WD
H
Installation
Video

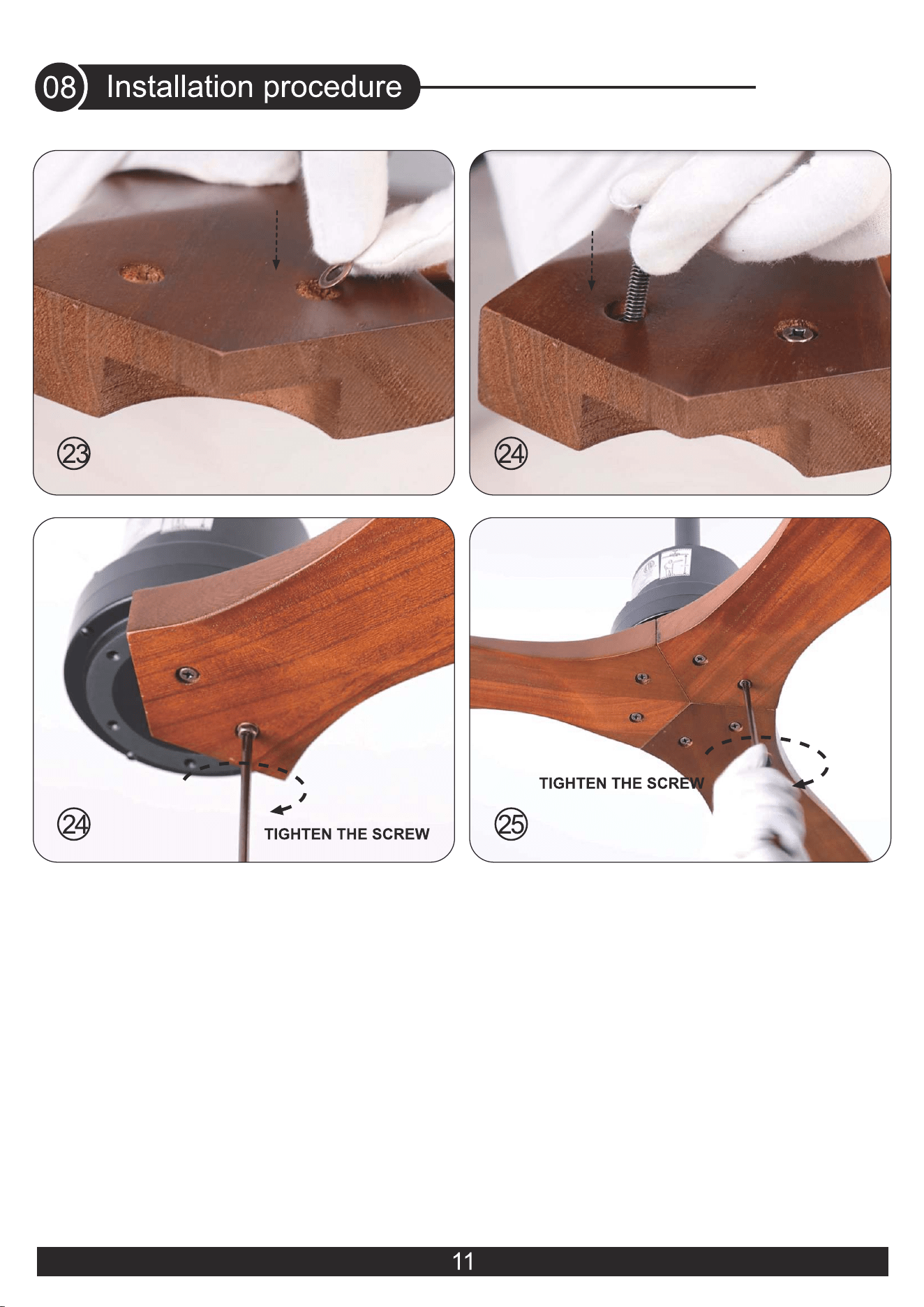

WARNING: Do not test the fan before affixing the
blades. The DC motor needs a load to rotate properly.
Affixing blades and then testing the fans.
USER MANUAL FOR REMOTE CONTROL TRANSMITTER
(1) Fan OFF / Remote control pairing
- Turn OFF the fan.
- Remote control pairing: when AC power on, press and hold the key for 3-5 seconds
within 30 seconds, when hearing three beep sounds, then �inish the remote control
pairing.
Notice：
The remote controller only needs to be paired once. After the paired product, the controller
will have memory. The products have been paired before leaving the factory. When the
remote control is damaged or lost, it is necessary to implement remote control pairing
before using a new remote control.
(2) Fan speed up / down
Press up key to increase fan speed; press down key to decrese fan speed.
(3) Timing control of the Fan and Light
- Press the key to set up the timer at 1hour ,4 hours or 8 hours to set up fan and
lamp timer. At the end of the timing, the fan and lamp will be automatically turned off.
- When the timing function is in effect, you can operate all the functions of the ceiling fan,
and then press any timing button to recalculate the timing time.
- Timer setting cancellation : When timing function is working, press key(1) or (8)to
cancel the timing function.
(5) Natural wind
Press the key, the fan speed automatic change between 1 to 6 speed.
(6) Direction of the fan
The fan blows upward
(7) Direction of the fan
The fan blows downward.
(8) Turn OFF the Fan and Light
- Trun OFF the Fan and Light together.
- Tuya Wi-Fi pairing: open Tuya app �irst, press and hold the key for 4 seconds, when
hearing three long beep sounds, the you can do Tuya Wi-Fi pairing. Please refer to the
product manual for the distribution method.
(9) AAA battery * 2
- Please install 2 pieces of AAA batteries before use.
- Please remove the battery when it is not used for a long time.
(10) Working indicator
The indicator light will light up when press any key of the remote control.
(2) Fan speed up / down
(5) Natural wind
(3) Timing control of
the Fan & Light
(9) AAA battery *2
(7) Direction of the fan
(10) Fan speed / Timing time indicator
(1) Fan OFF /
Remote control pairing
(6) Direction of the fan
(8) -Turn OFF the Fan and Light
Tuya Wi-Fi pairing

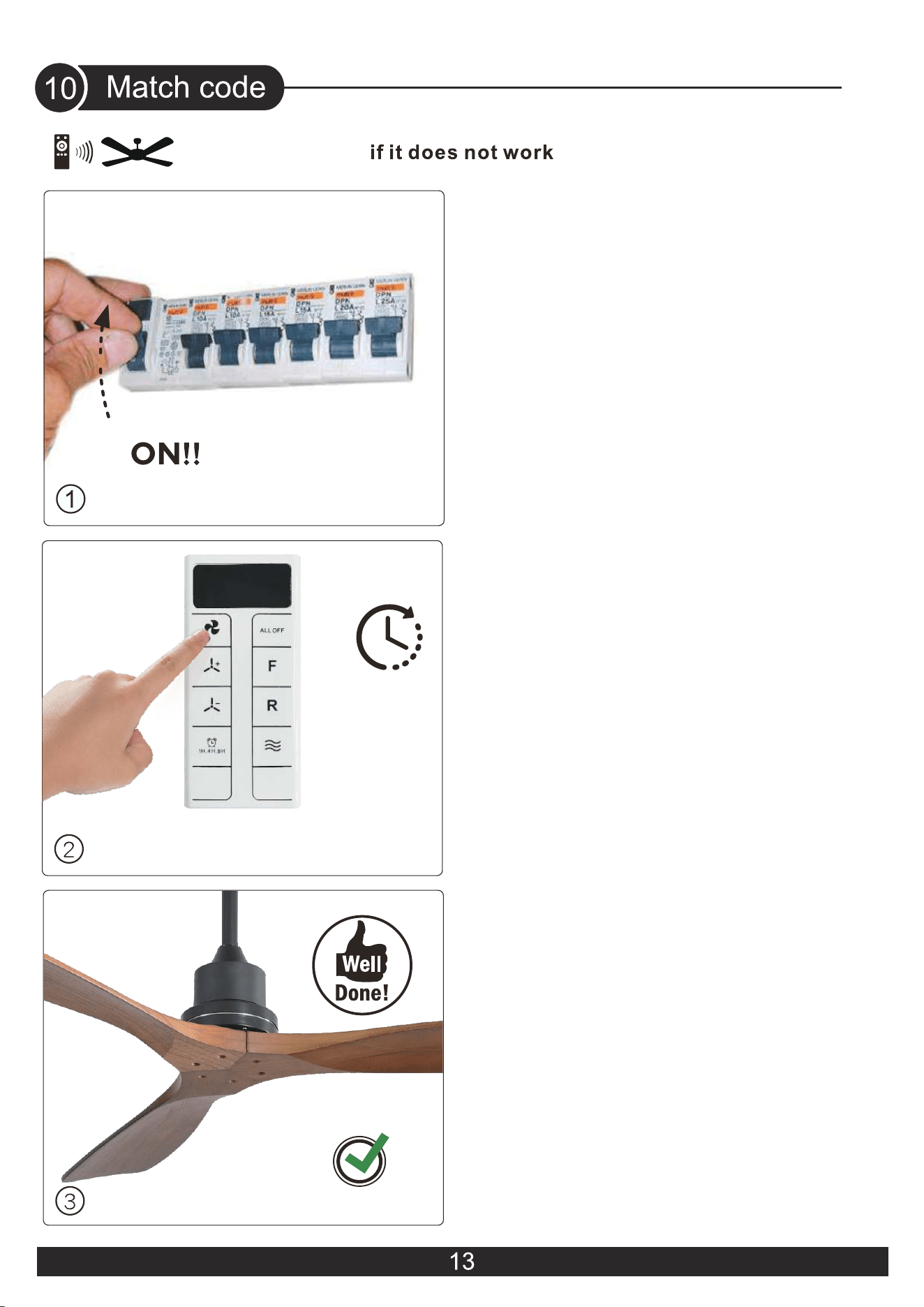

1.Turn on the main switch.
3. The receiver Can remember the
last codes status.
Remote control code matching
successful, the receiver will emit a
buzzing sound.
2. Remote control pairing : when AC
power on, press and hold the key for
3-5 seconds within 30 seconds, when
hearing three beep sounds, then finish
the remote control pairing.
3s
KBS-5247-WD
H
Installation
Video
16
17

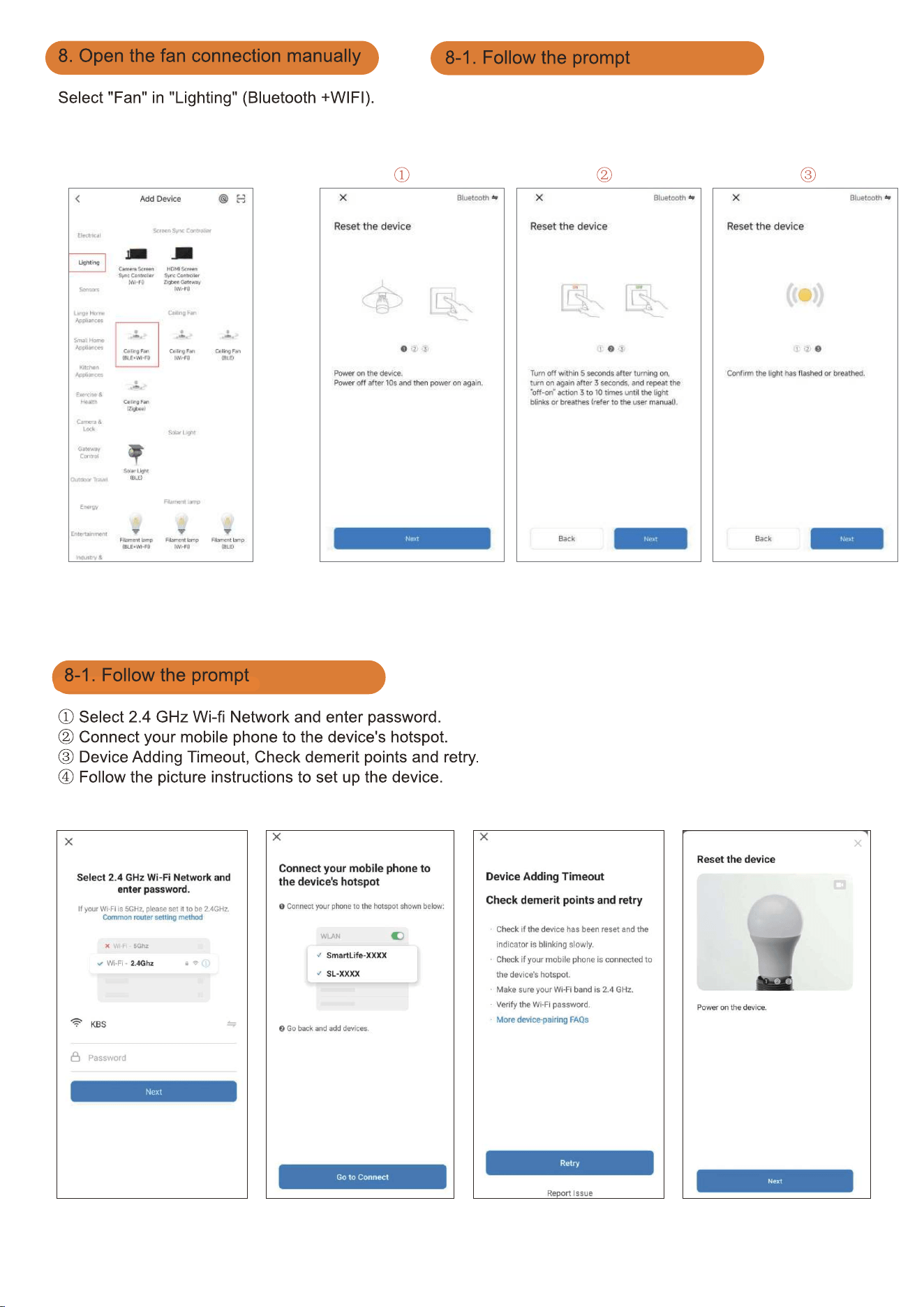

If the fan has been operating for more than 3 minutes, you
will be unable to search for devices. At this point, you need
to reset your fan. Turn off the fan's main power and turn it
back on. Within 30 seconds, press and hold the "ALL OFF"
button on the remote control for 5 seconds. If the reset is
successful, the buzzer will sound three long beeps, then
you can add devices again.
Tap the corresponding icon to connect.

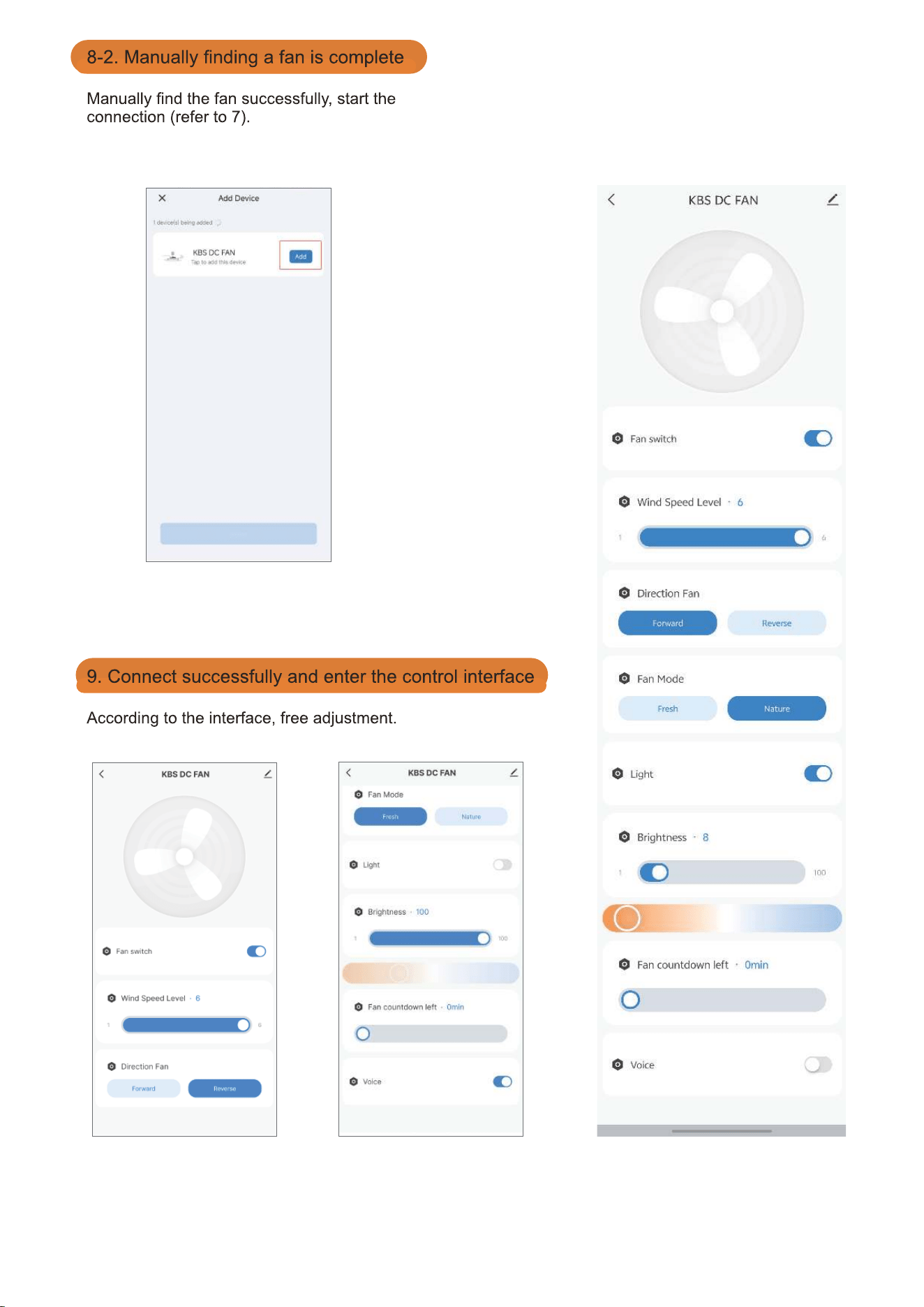

After the pairing is completed, you can customize
the fan's name
If pairing fails, please check wether the Wifi network
and password are correct. If connection fails after
multiple attempts, try connecting the fan manually as
shown in Step 8 below.
18
After performing Steps ① and ②, once hear three
consecutive beeps from the buzzer, tap "Next" in Step ③ to
proceed to the network pairing procedure.
19
20

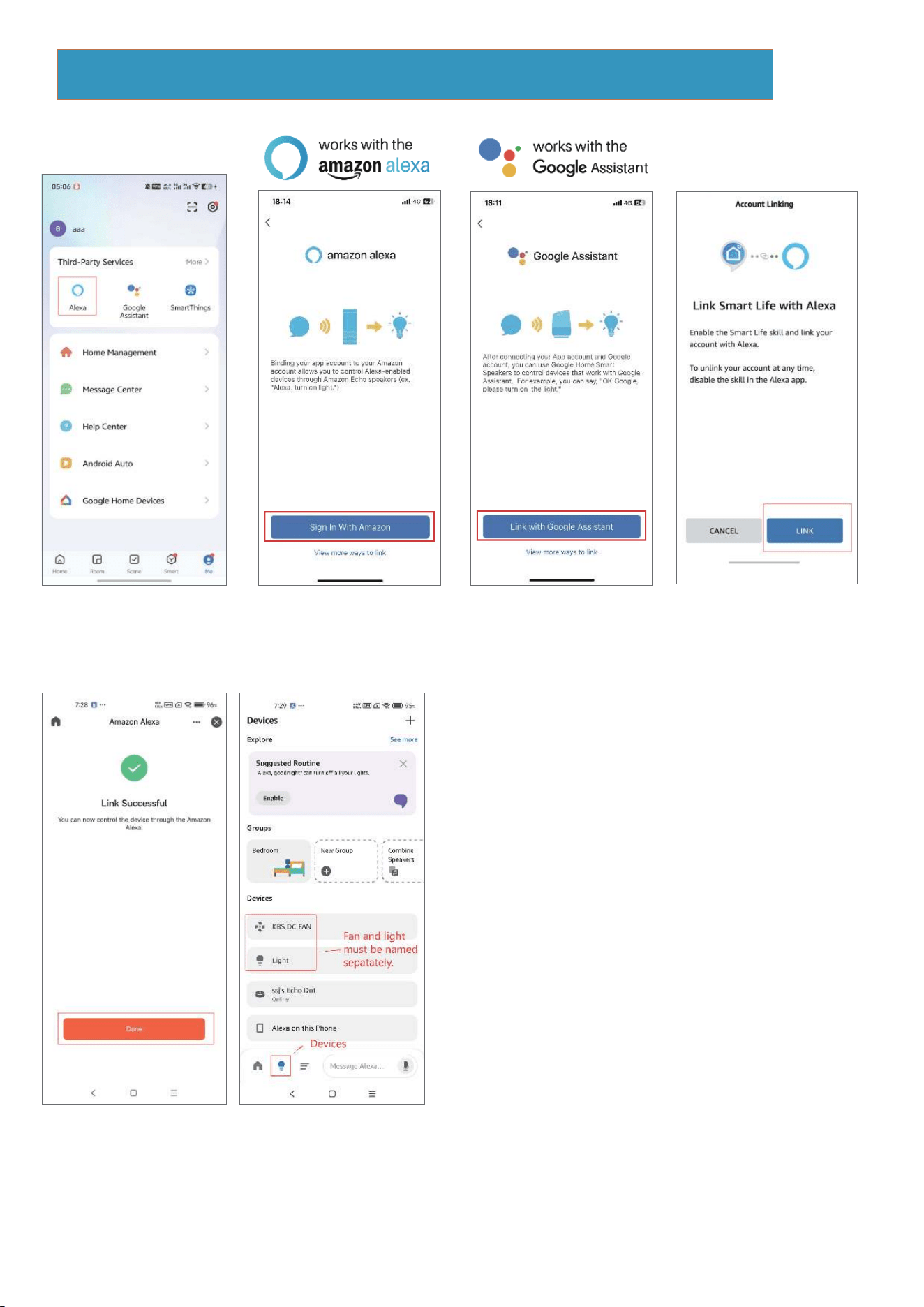

Link skill to the Amazon Echo or Google Assistant
In the App, change the name of the device to an easily identifiable name such
as bedroom light, bedroom fan.
Make sure your Amazon Echo device is powered on and connecting to your
home Wi-Finetwork.
Common commands
△
KBS DC Fan: <DEVICE NAME>
●
Alexa, tum on/off <DEVICE NAME>.
Alexa, what is the <DEVICE NAME> speed?
Alexa, set the <DEVICE NAME> speed to1/2/3/4/5/6.
Alexa, setthe bedroom <DEVICE NAME> speed to max.
Alexa, turn up/decrease the bedroom <DEVICE NAME> speed.
Alexa, set the <DEVICE NAME> to foward/reverse.
Alexa,set the mode on the <DEVICE NAME> to fresh/nature.
Alexa,set the countdown on the <DEVICE NAME> to
cancel/1 hour/2 hour/4 hour/8 hour.
●
●
●
●
●
●
●
△
Light: <device name>
●
Alexa, tum on/off <device name>.
Alexa, set the <device name> to fifty percent.
Alexa, make the <device name> warm white/white/cool white.
Alexa, brighten/dim <device name>.
Alexa, turn on/off response.
●
●
●
●
Note: "Alexa, turn on/off voice" – Controls the buzzer switch.
This function only applies to the buzzer sound for Tuya and Alexa
control; the remote handle is silent by default.
21

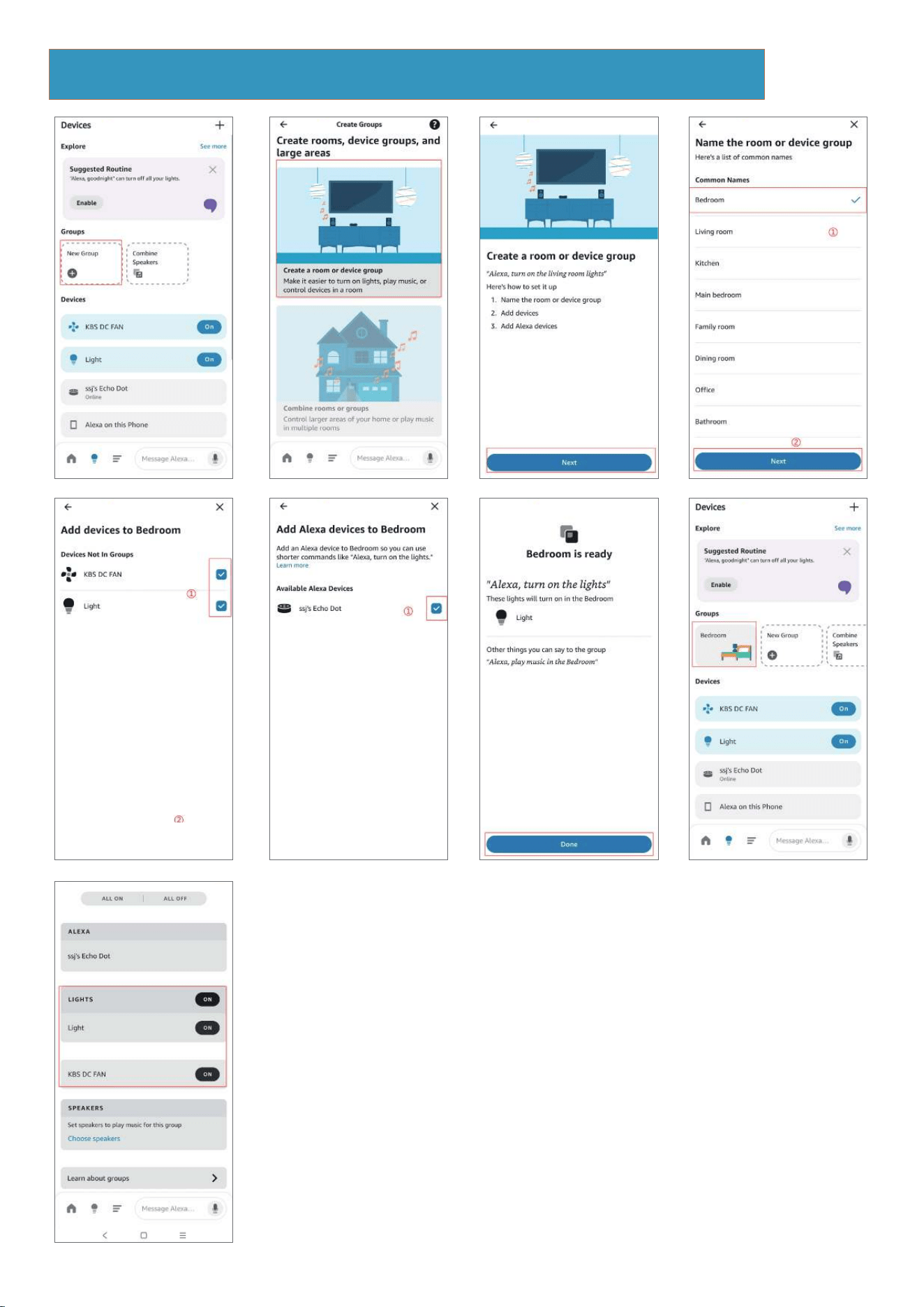

Steps for adding to Alexa as "bedroom"
Register for Extended
2 Years Warranty+2 Year Warranty
Within the First 7 days
Scan QR code with your phone
