RWB640VT0-1GBK Hitachi 569L French Door Refrigerator Black User Manual

Instruction Manual

Refrigerator

No frost

Model

Thank you very much for purchasing the Hitachi refrigerator.

Before installation and usage, please read the user’s guide carefully

for the correct usage.

Maintenance work must only be carried out at works

by well-trained maintenance work.

R-WB640VT0

Child Lock.......................................................

Energy saving.................................................

Ice Maker........................................................

Quick Cooling.................................................

Content

Quick Freezing...............................................

Vacuum..........................................................

Swing Partition Suggestion.........................

Preparation for Use

Warning and Caution for Safety..........

Preparations before Use.....................

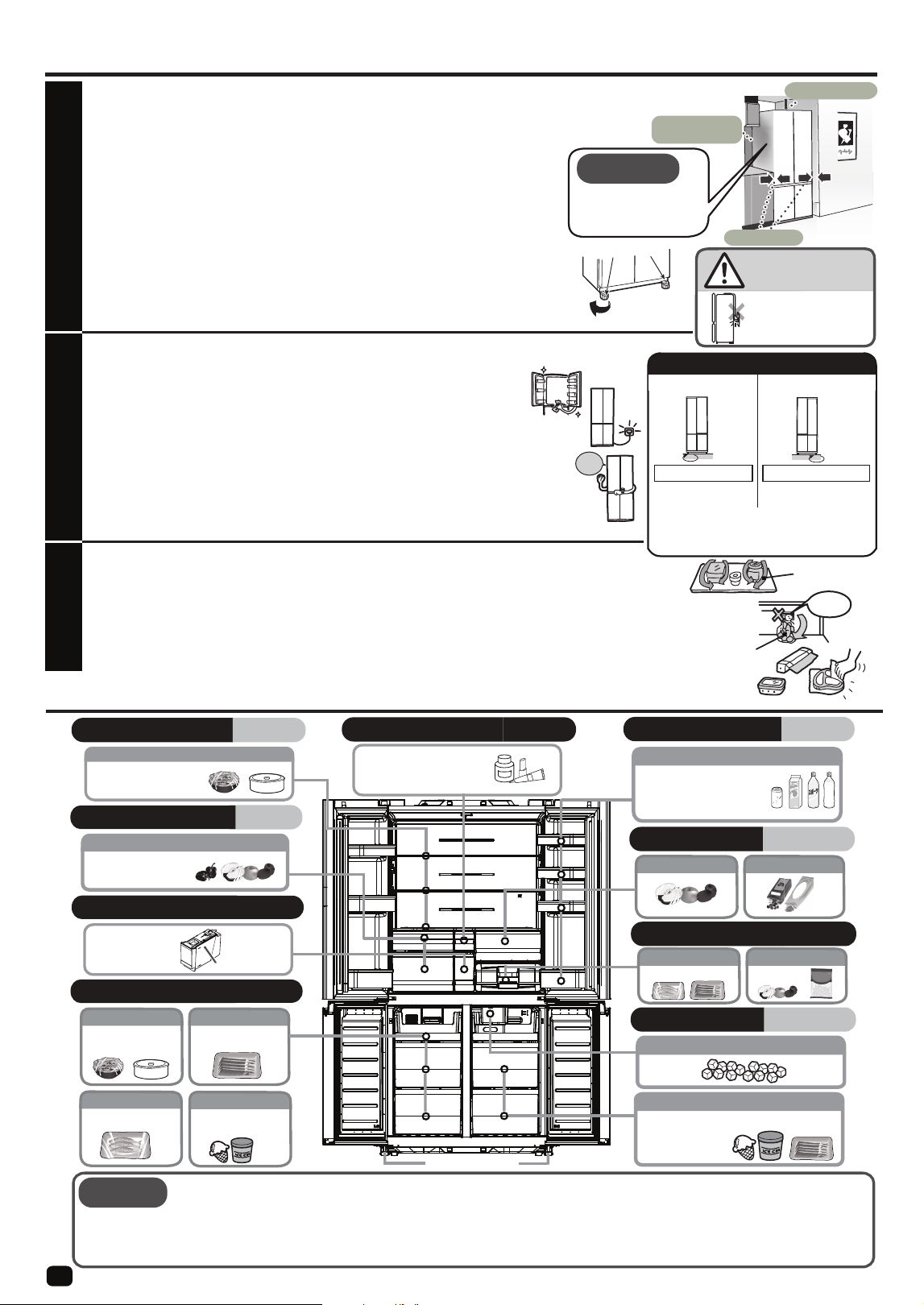

Installation.......................................................

Beginning........................................................

Food Storage..................................................

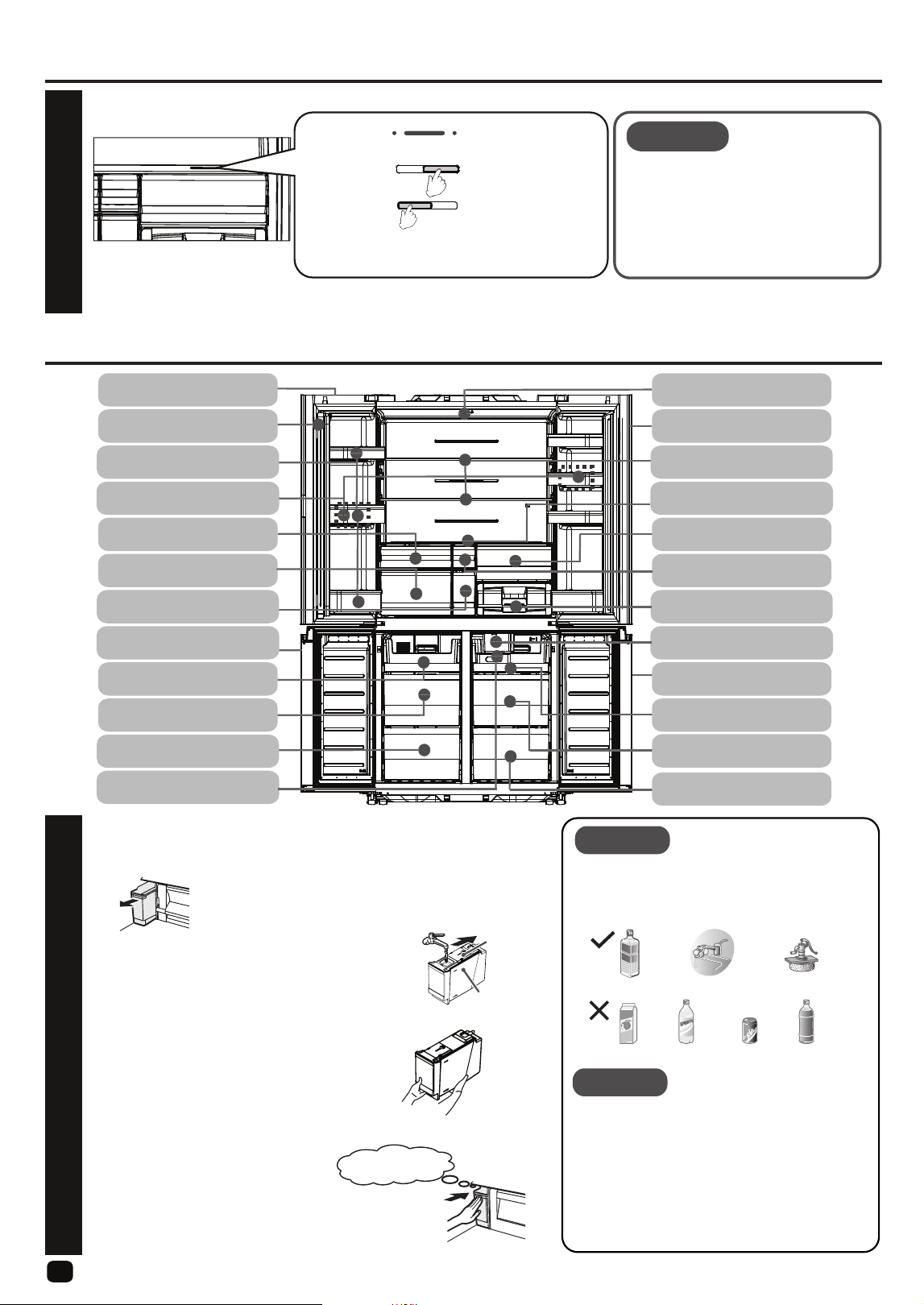

Location of Food Storage....................

Operation

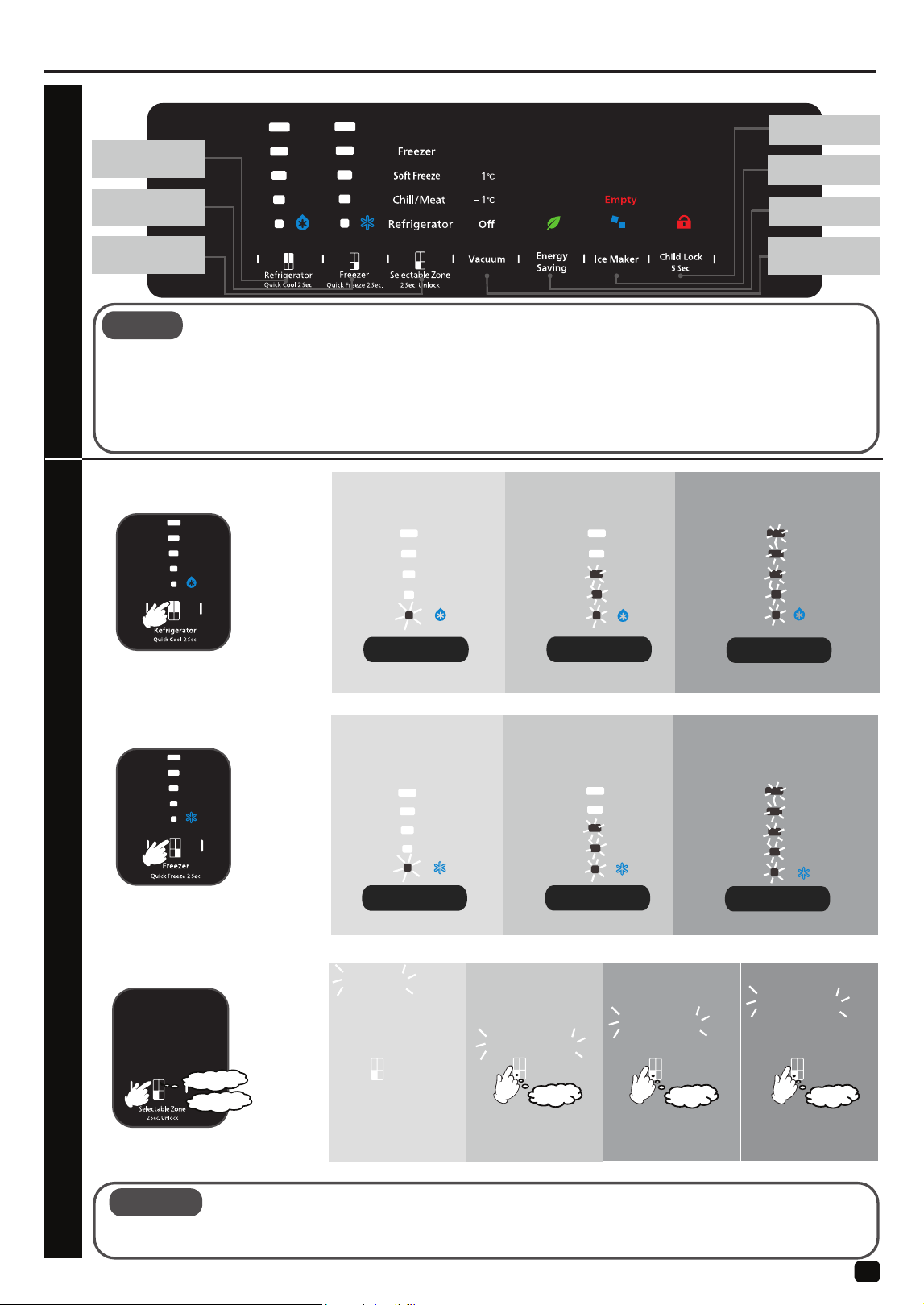

How to use the Control panel.............

Name and Function of Display........................

Temperature Control.......................................

Other functions...................................

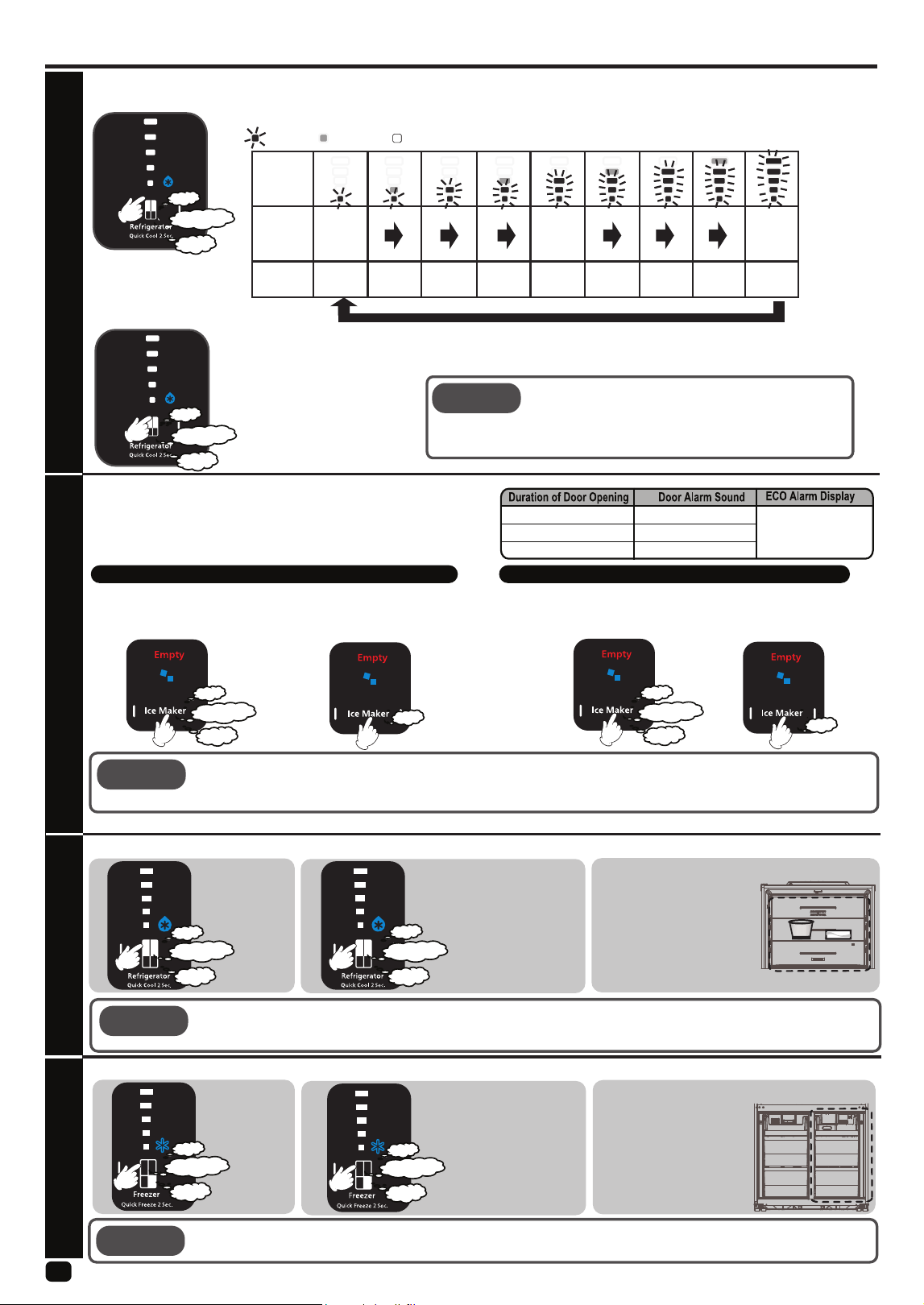

How to use temperature control 9 steps.....

Door Alarm and ECO Alarm Function..........

Refrigerator / Selectable Zone /

Freezer Compartment.......................

How to use Ice Maker................................

How to use Vacuum Compartment..............

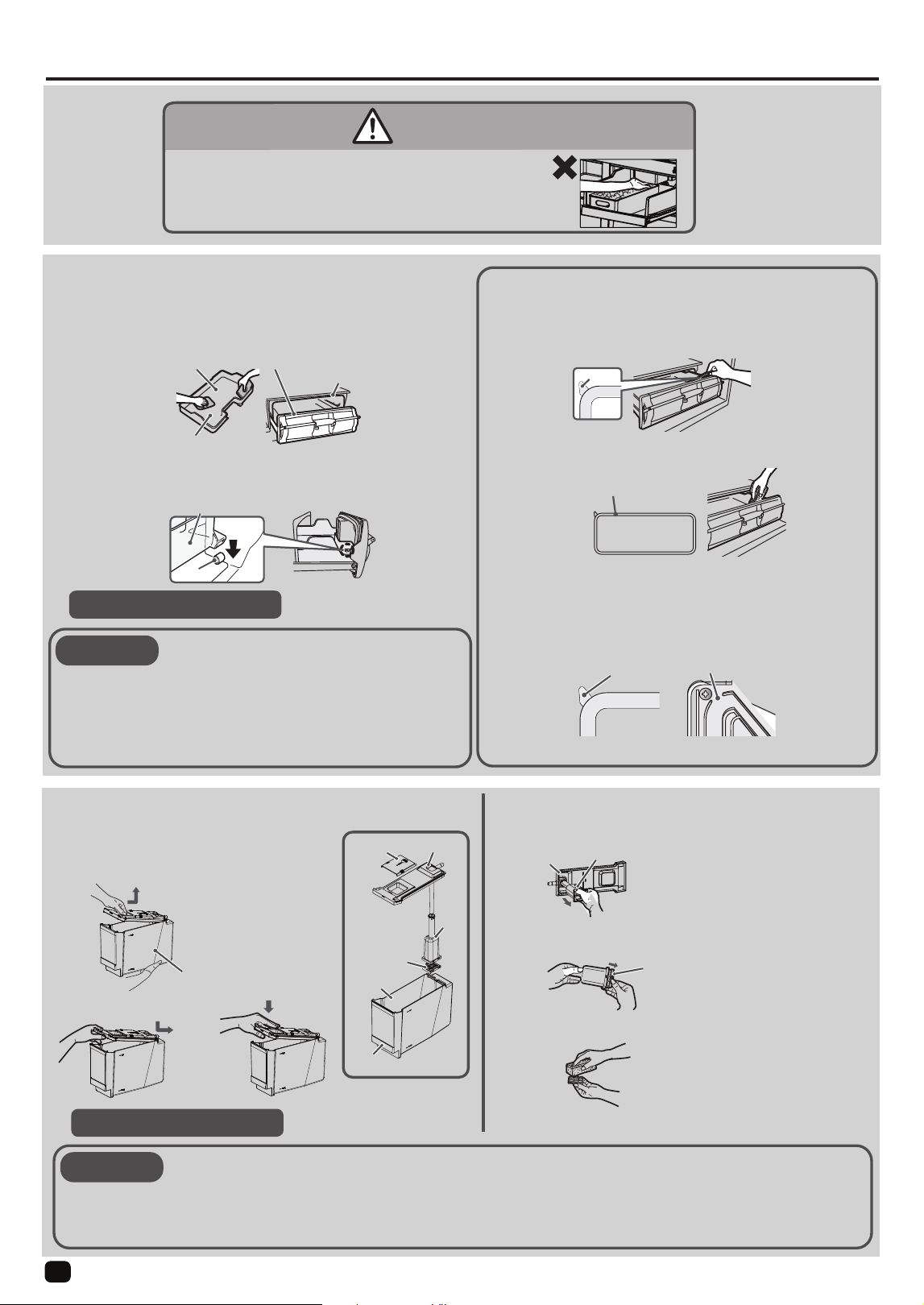

How to remove part....................................

Maintenance

Care and Maintenance..........................

Cleaning..........................................................

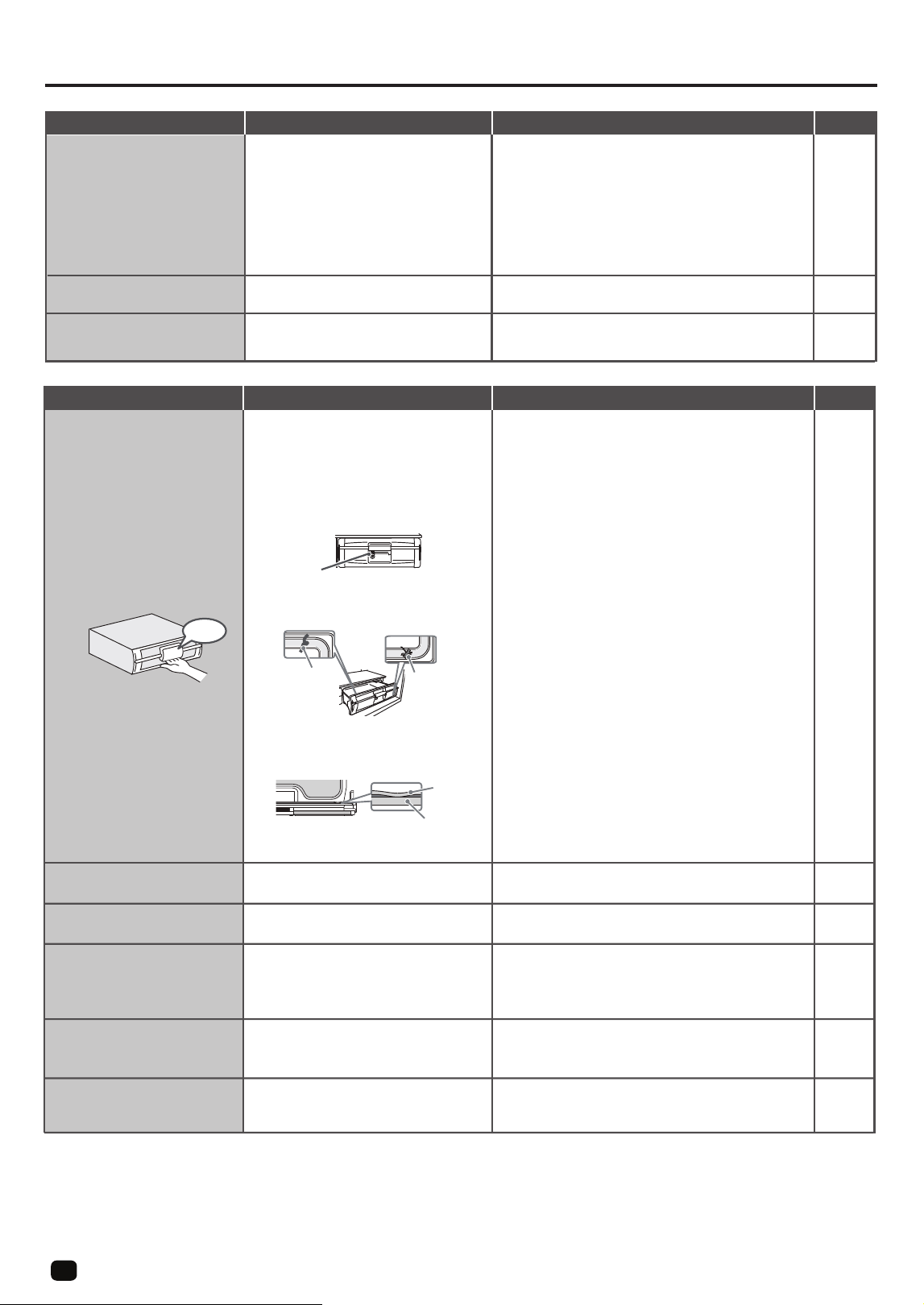

Troubleshooting.................................

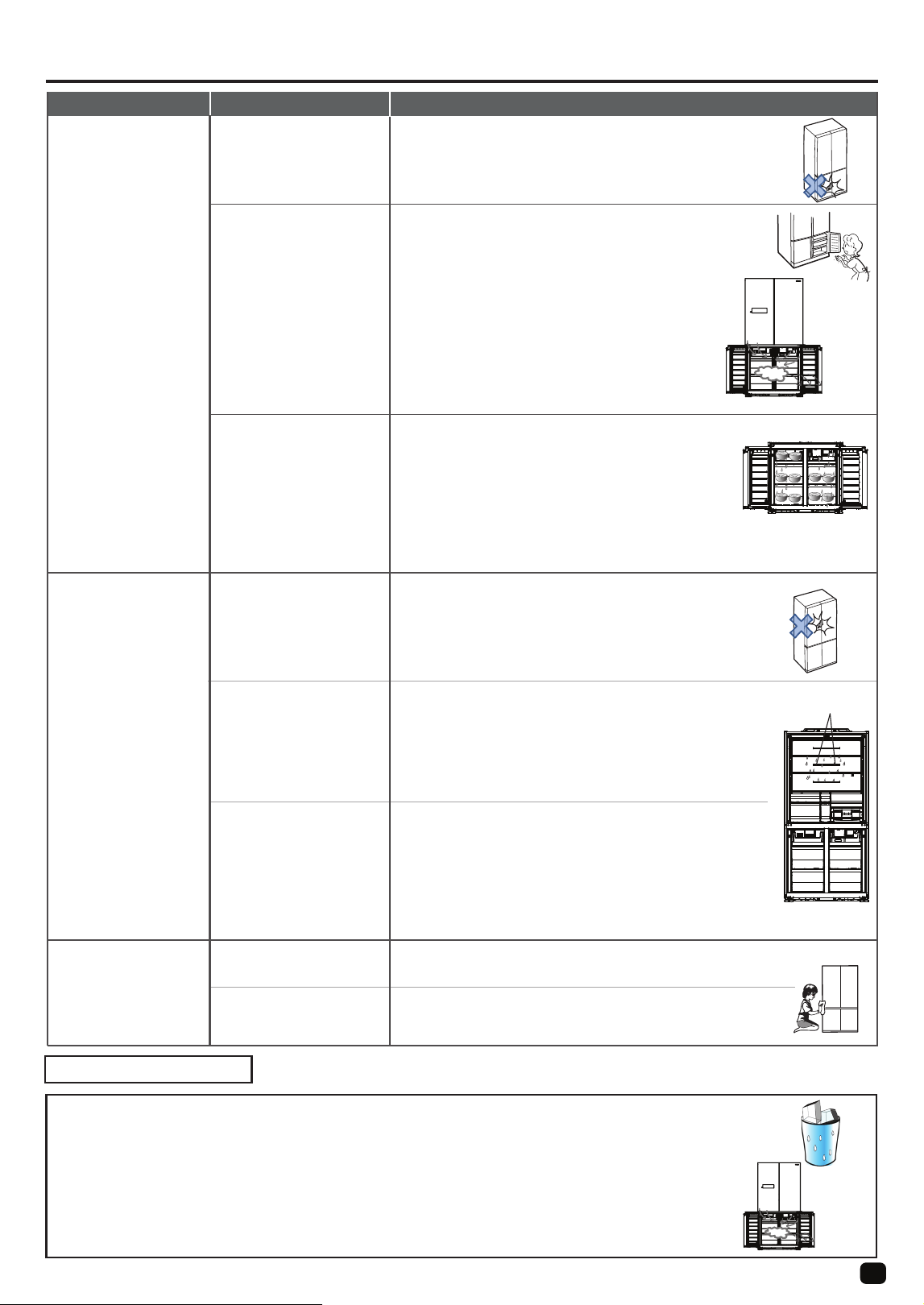

Dew or Frost is generated....................

For household use only

R600a

Refrigerant

How to use Dry-Vegetable case................

Service Center..................................

Refrigerator Installation

(English Version)

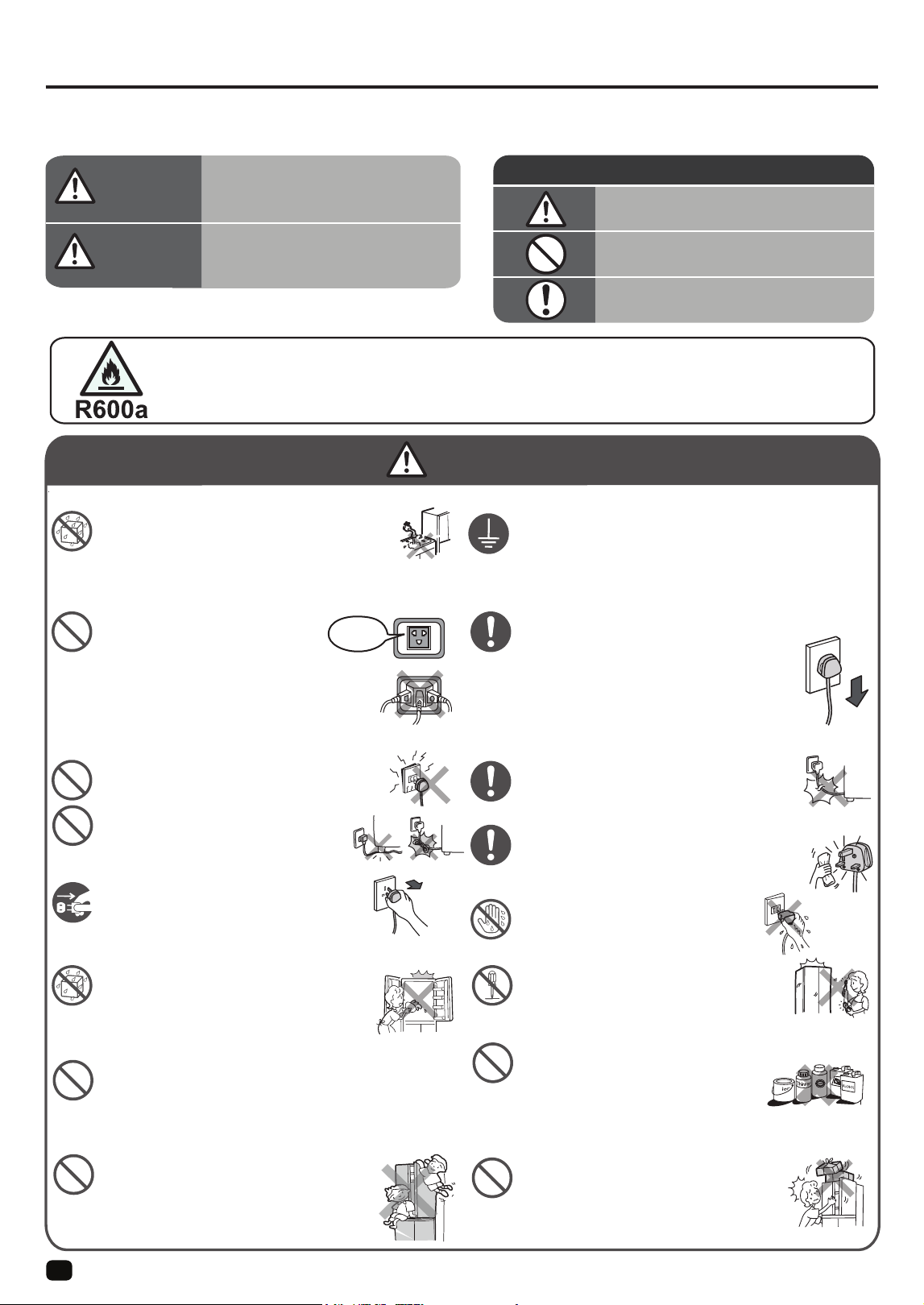

Warning and Caution for Safety

The following warnings and cautions are categorized by the level of

possible harm or damage that may occur from ignoring directions.

This symbols are shown as below clearly showing

the significance of directions.

This refrigerator use flammable refrigerants.

The symbol column below states

This symbol denotes the precautions on flammable

refrigerators.

The symbols below are examples.

This symbols is an alert mark.

This symbols indicates “prohibited”.

This symbols indicates “necessary”.

This pictograph indicates “There is a

high possibillity of serious injury or

death, if ignored”.

This pictograph indicates “There is a

high possibillity of sinjury or damage

to property, if ignored”

To avoid harm to the user, other persons or damage to property, please

read and follow the warnings and cautions below and those given

throughout this manual.

When you install ... To avoid fire, electric shock, and injury.

Ground this refrigerator to prevent electric shock and noise

interference. Always ground this refrigerator and install earth

leakage circuit breaker when using it in please with high humidity or

moisture.

(Please consult with a retailer or Hitachi Service Center.)

Power Cord and Power Plug ... To avoid fire, electric shock.

result

Ŷ Connect the power plug firmly to a power outlet with

the cord running down.

Connection of the power plug with the cord

running up could apply stress on the cord

and cause electrical short or overheat, which

could result in electrical shock or fire.

Ɣ Incomplete connection of the power plug could

in electrical shock or fire due to heat.

Ŷ If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

Ŷ Clean the dust on the power plug frequently with dry cloth.

Unplug the power plug and wipe it with dry cloth.

An insulation failure due to moisture or when dust

collects on the power plug may cause fire.

Ŷ Do not connect the wall outlet whose

power capacity is less than the

refrigerator's. Also, do not use power

sources that are not a rated voltage.

If a power source is shared with other appliances

using double or multipoint adapters, the adapter

Ŷ Do not use a damaged or loose power plug or power

outlet. This may cause fire or electric shock.

Ŷ Be sure to unplug the power plug before

maintaining the refrigerator.

Be sure to hold the power plug to unplug.

Ŷ Do not cut, bend, fold the power cord

to avoid fire and electric shock.

Ŷ Do not insert or remove the power plug

with wet hands.

Do not install the refrigerator in a place where it

may come in contact with water.

Ŷ Do not install the refrigerator in a place exposed

to rain.

ƔThis may impair electricity insulation and

cause electric shock or fire.

Rated

Voltage

Do not locate multiple portable socket-outlets

or portable power supplies at the rear of the appliance.

WARNING

CAUTION

the precautions on flammable refrigerants.

WARNING

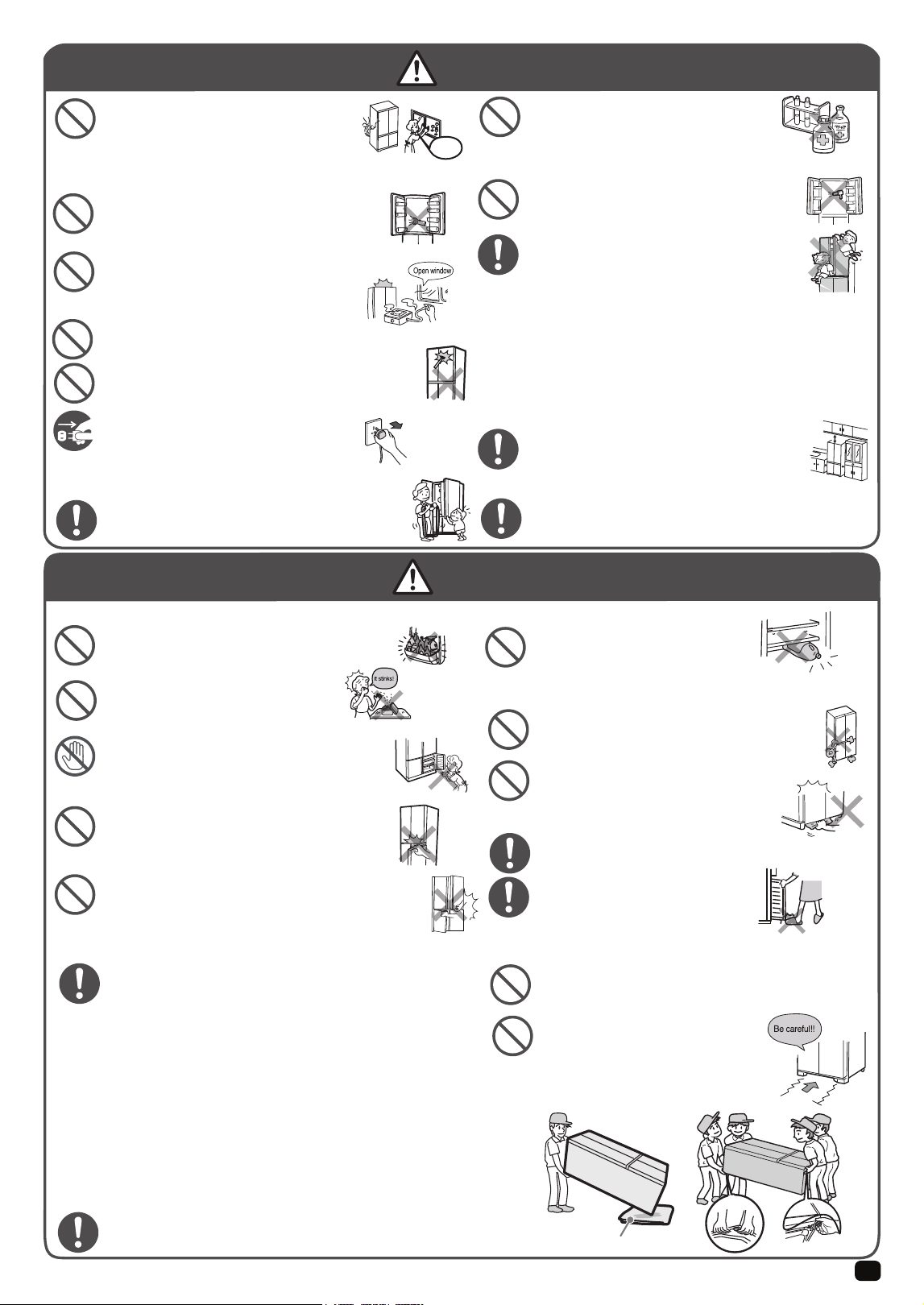

During daily use ... To avoid fire, electric shock.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental

capabilities, or lack of experience and

knowledge, unless

they have been given supervision or instruction

concerning

use of the appliance by a person responsible for their safety.

Ŷ Do not disassemble, repair, or modify the

refrigerator by yourself.

Ɣ Please consult with a retailer or

Hitachi Service Center if any repair is required.

Ŷ Do not splash water on or inside the refrigerator.

Ɣ This may impair electricity insulation causing

electric shock or fire.

Ɣ This may also cause gas leakage because

of pipe rust.

Do not put water containers or foreign articles

on the top of the refrigerator.

Opening and closing doors etc. may cause

the articles on the top of the refrigerator to

fall down, resulting in injury.

Ŷ Do not hang on the doors or step up on the

various

compartments.

Injury may be caused by the refrigerator

tipping over

or hands getting caught in door.

Do not enter in the refrigerator.

Ɣ When positioning the appliance, ensure

the supply cord is not trapped or damaged.

Ether, liquid propane gas, solvent, aerosol cans, etc.

which is volatile cannot be stored in this

refrigerator.

Do not store anything that are generate

heat or fire spark inside the refrigerator.

Medicines, chemicals, research and

experimental substances should not be

stored in the refrigerator.

Substances that require precise conditions

for storage cannot be stored in a domestic refrigerator.

Do not damage the refrigerant circuit.

If there the damage of refrigerant pipe

happened, stay away from the refrigerator and

avoid using fire and electrical appliances.

And, open windows to ventilate and contact

retailers or Hitachi Service Center.

Children should be supervised to ensure that

they do not play with the appliance.

Children getting inside may not be able to get out.

In an event of a flammable gas leak, do not touch the

refrigerator and open windows for ventilation.

Sparks from points of electrical

contacts such as door switches may

ignite explosions causing fire or a burn.

Do not make an impact on the glass-made doors or shelves.

They are made of tempered glass, however, an excess

impact may be result in breakage and is dangerous.

Do not use mechanical devices or other

means to accelelate the defrosting process, other

than those recommended by the manufacturer.

When discarding the refrigerator.

Follow the instructions of your region when discarding.

This refrigerator uses R-600a for the refrigerant and cyclopentane

for the blowing agent of the urethane heat insulation.

When discarding the refrigerator, remove the door gaskets.

To avoid a risk of an infant or child

to be entrapped inside.

Do not use electrical appliances inside the food

storage compartments of the appliance, unless they

are of the type recommended by the manufacturer.

Cleaning and user maintenance shall not be made

by children without supervisor.

Do not use the refrigerator in the atmosphere of flammable gas.

WARNING

CAUTION

During daily use ...To avoid illness and injury.

Ŷ Do not use door handles when carrying the refrigerator.

Ŷ Never use the carrying handles to hang

up with a chain hoist or similar machines.

When moving or carrying ... To avoid damaging, wetting, soiling the floor, or to avoid injury.

Ŷ On a floor that is easily scratched,

do not move the refrigerator with

the wheels of refrigerator.

Ɣ The wheels may scratch the floor.

Ɣ For a floor that may be easily scratched,

lay a protective mat, etc..

Ŷ Do not put bottles, etc. forcibly in the door pockets.

Ɣ This may cause bottles to drop down or

door pockets to come off.

Ŷ Do not have food items protruding

over the front edge of each shelf.

Ɣ Doors may not be closed properly or

the door pockets may drop down. Injury may be

caused from items like bottles getting knocked over your feet.

Ŷ Do not store food which smells or food

whose color is changed abnormal.

Ɣ Such an action may cause diseases.

Ŷ Be sure to hold the handle firmly to open or close the door.

Ŷ Do not put your hands into the base surface

of the refrigerator cabinet.

Ɣ When cleaning, putting your hands near

the base surface of the frigerator may

result in injury by thin metal sheets.

Ŷ Food and containers inside the freezer

compartment should not be touched with wet hands.

Ɣ This may cause frost injury.

(Especially in case of metal items.)

Ŷ Do not store glass bottles in the freezer compartment.

Ɣ Bottles may break by the contents freezing

and cause injury.

Ŷ Do not hold the top, bottom and side of

the doors when closing them.

Ɣ This may result in your fingers being caught by

the door edge.

Ŷ If someone else is using the refrigerator,do not open the door.

Ɣ Fingers may get caught in the spaces

between the doors and may cause injury.

Ŷ When lamps (LED) need to be replaced, please contact Hitachi Service Center.

When replacing lamps (LED) is required.

Ŷ Use the carrying handle when carrying the refrigerator.

Ɣ Hold the carrying handles only. If hold door handles,

Ɣ Carry the refrigerator by at least 4 persons for safety reasons.

Ɣ Carry it with the doors facing upward.

Ŷ Before carrying the refrigerator:

1. Take out all food items and ice cubes.

4. Finally carry the refrigerator with the doors facing upward.

Ɣ Secure the doors well with adhesive tapes so they do not open.

Ɣ If transporting in a vehicle, do not load the refrigerator on its side.

This could damage the compressor.

2. Lay a protective sheet or cloth to protect the floor from damage

and catch remaining water spilled from the refrigerator.

3. With a large piece of old cloth underneath, tilt the refrigerator

backward to drain water.

Ŷ Do not have your feet too close when

opening the door of the refrigerator.

Ɣ When opening the door, your feet

may be hit, resulting in injury.

hands may slip and may cause injury.

Such as old cloth

Window

Open

Ŷ7KLVDSSOLDQFHFDQEHXVHGE\FKLOGUHQDJHGIURP\HDUVDQGabove

and persons with reduced physical,sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision

understand the hazards involved.

Ŷ&KLOGUHQVKDOOQRWSOD\ZLWKWKHDSSOLDQFH

If you find something wrong with the refrigerator,

immediately unplug and consult with the

retailers or Hitachi Service Center.

Keep ventilation openings in the appliance enclosure

or in the built-in structure clear of obstruction.

or instruction concerning use of the appliance in a safe way and

Ŷ&KLOGUHQDJHGIURPWR\HDUVDUHDOORZHGWRORDGDQGXQOoad

refrigerating appliance.

Preparations before Use

Installation

Adjustable leg

Beginning

4 hrs.

2) Cleaning inside the refrigerator. Wipe the surface gently with soft cloth.

can be connected to an outlet soon after it is installed. Surely use with the rated

voltage and exclusive power outlet.

4) The compressor will start running in approximately 30 seconds, if inside is not cold.

5) Allow enough duration for sufficient cooling before storing food. It may take about 4 hours

to fully cool down and could even take about 24 hours when the ambient temperature is high.

1) Install on a rigid and level floor.

2) Please use this refrigerator between the room temperature of 10°C to 43°C Sufficient

performance may not be obtained, if room temperature is too low or too high.

3) Do not install where the refrigerator is exposed to direct sunlight or other heat source.

4) Install in an atmosphere which is dry or has air ventilation.

5) The refrigerator requires enough air ventilation space around the cabinet to have

efficient cooling performance.Space of at least 100 mm over the top, 100 mm at rear

and 70 mm at both

sides for proper air circulation is needed.

6) Ground the refrigerator to prevent electric shock and noise interference. Alway ground

this refrigerator when using it in place with high humidity or moisture.

(Please consult with retailers or Hitachi Service Center.)

7) Adjusting the adjustable legs to keep the left/right refrigerator door level,

Ŷ:LWKRXWDGMXVWLQJWKHOHJVGRRUKHLJKPD\QRWEHOHYHORUWKHUHmay be abnormal

vibration or noises depending on floor conditions.Follow the instructions below.

Ŷ7XUQWKHDGMXVWDEOHOHJVXQWLOOWKH\WRXch the floor firmly.

Food storage

1) Keep enough space between food. Several food placed too close together may obstruct the flow of cold air.

2) Make food cool enough before putting it in the refrigerator.Putting warm food in the refrigerator raises the

inside temperature and wastes electricity.

3) Do not block the cold air vent. This will adversely affect the cold air flow and may not keep the temperature inside even.

Moreover, it could result in food near the vent freezing.

4) Using plastic wrap or sealed containers prevent the food from drying or transition of smells.

Left door has fallen Right door has fallen

Adjustable left leg. Adjustable right leg.

Please turn the right leg in

Please turn the left leg in

the direction of the arrow. the direction of the arrow.

Ɣ1 rotation of adjustable leg is about 1mm in difference.

Ɣ1-5 days might take for the main body of the

refrigerator becomes familiar with the floor, and until

the door is reconciled in parallel.

Rear side

more than 100 mm

Back & both sides of

fridge is hot proceed from

hot gas pipe inside.

3) Connect the refrigerator to an exclusive wall power outlet.The refrigerator

Parallel adjustment of the door.

1) After transporting : If Refrigerator has been kept horizontal position for more

than 10 minutes for transportation or any other reasons,it should stand

upright for more than 1 hour before plugging it in.

Location of Food Storage

Ɣ7KHVSHFLILFDWLRQRI\RXUSXUFKDVHGPRGHOPD\EHGLIIHUHQWIUom one of the above illustration.

Ɣ$ERYHWHPSHUDWXUHVDUHWKHDSSUR[LPDWHYDOXHVLQWKHFRQGLWLRns of outside temperature 32°C, the temperature setting of the

Ɣ'RRUSRFNHWWHPSHUDWXUHVPD\EHVOLJKWO\KLJKHUWKDQDERYHWHmperatures.

NOTICE

Adjustable legs

Refrigerator Compartment

2°C~5°C

Ɣ6WRUDJHRIVLGH

dish,desert,etc.

Refrigerator Shelves

2°C~5°C

Ɣ6WRUDJHRISDFNHGVPDOO

Refrigerator Compartment

Refrigerator Door Pockets

Freezer Compartment -20°C~-18°C

Freezer Compartment

Ɣ6WRUDJHRIIUR]HQIRRGDQG

Auto Ice Maker

Vegetable Compartment

3°C~7°C

Vegetables

Ɣ6WRUDJHRIIUXLWV

and vegetables.

Selectable Zone Compartment

Refrigerator

Chill/Meat

1°C~5°C

-1°C~3°C

Soft Freeze

(-1°C~-5°C)

Freezer

(-20°C~-18°C)

Dry-Vegetable

Vegetables

Dry food

Water Tank

Approx. 3.0 L

More than 100 mm

More than 70 mm

food and drinks such

as juice, milk, etc.

Vacuum Compartment

refrigerator compartment “Normal’’, freezer compartment “Normal’’,doors being closed and without food storage.

Cheese/Fruits (1°C)

Fish/Meat (-1°C)

-3°C~1°C

-1°C~3°C

Cheese

Utility Drawer

Ɣ6WRUDJHRIFRVPHWLFV

medicine,packed small

Air vent

ice cream, etc.

Cool air flow

Food

Tank-full line

Tea

COFFEE

3°C~7°C

CAUTION

When installing,

do not press the

power plug with the

refrigerator back.

5) Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

6) Opening the door for long periods can cause a significant increase of the temperature in the

compartments of the appliance.

ƔTwo-start frozen-food compartment are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

ƔOne-, two- and three-start compartment are not suitable for the freezing of fresh food.

CUATION

food, etc.

How to use the Control Panel

Name and Function of Display

Ɣ

$SSUR[LPDWHO\VHFRQGVDIWHUWKHHQGRIRSHUDWiRQLQGLFDWRU/('EHFRPHXQOLW



Ɣ

7RFRQ¿UPLQGLFDWRUVHWWLQJRSHQWKHUHIULJHUDWRUGRRURUWRXFKDQ\EXWWRQ7KHLQGLFDWRU/('EHFRPHOLWDJDLQ



 

Ɣ

5HVSRQVHRIWKHWRXFKSDQHOPD\FKDQJHGHSHQGiQJRQWKHVXUURXQGLQJWHPSHUDWXUHKXPLGLW\SK\VLFDOFRQGLWLRQRIWKHXVHU

RURSHUDWLRQVWDWXVRIWKHDGMRLQLQJHOHFWULFSURGXFt



Ɣ

7KHSDQHOPD\QRWUHVSRQGLILWLVZHWRUGLUW\

NOTICE



Ɣ

,I\RXXQSOXJWKHSRZHUSOXJRUDSRZHUIDLOXUHRFFXUVDQGWKHQWKHUHIULJHUDWRUUHVWDUWWKHWHPSHUDWXUHGLVSOD\DQGHDFKVHWWLQJ



 

ZLOOEHDXWRPDWLFDOO\UHVXPHG+RZHYHU³4XLFN)

rHH]LQJ´DQG³4XLFN&RROLQJ´RSHUDWLRQZLOOEHFDQFHOOHG







Temperature Control

Ŷ

Freezer Compartment

Ŷ

Refrigerator Compartment

7RXFK³5HIULJHUDWRU´ODPS

OLJKWLVRQ7RVHWWLQJDWHPSHUDWXUH

&ROGHႋ

6RXQG³3L´

Cold

6RXQG³3L´

Normal

6RXQG³3L3L´

)RUIRRGVWKDWGRHVQ¶WQHHG )RUQRUPDOXVH :KHQFRROLQJIRRGPRUH

FROGO\RUTXLFNO\

&ROGHႋ

6RXQG³3L´

Cold

6RXQG³3L´

Normal

6RXQG³3L3L´

)RUQRUPDOXVH:KHQVWRULQJQHLWKHU

IUR]HQIRRGRULFHFrHDP

:KHQPDNLQJLFHTXLFNO\RUPDNLQJ

IUR]HQIRRGTXLFNO\2UDVXUURXQGLQJ

WHPSHUDWXUHLVKLJKDQGWKH)UHH]HU

FRPSDUWPHQWLVQRWFROGHQRXJK



7RXFK³)UHH]HU´ODPS

OLJKWLVRQ7RVHWWLQJDWHPSHUDWXUH

Ŷ

Selectable Zone Compartment

Freezer

Soft Freeze

Chill/Meat

Refrigerator

Freezer

Soft Freeze

Chill/Meat

Refrigerator

Freezer

Soft Freeze

Chill/Meat

Freezer

Soft Freeze

Chill/Meat

Freezer

Soft Freeze

Chill/Meat

7RXFK³6HOHFWDEOH=RQH´VHFRQGV

IRUXQORFN7RVHOHFW6HOHFWDEOH=RQH

&RPSDUWPHQWPRGH

Pi!

:KHQLQ)UHH]HU

7RXFK³6HOHFWDEOH=RQH´

ODPSOLJKWLVRQ

7RXFK³6HOHFWDEOH=RQH´

5HIULJHUDWRURSHUDWLRQ

&KLOO0HDWRSHUDWLRQ

6RIW)UHH]HRSHUDWLRQ

DORWRIFROGQHVV

RSHUDWLRQODPSOLJKWLVRQ

Refrigerator Refrigerator

Refrigerator

7KHGLVSOD\LVLQGLFDWLQJWKHVWDWXVRIWHPSHUDWXUHVHWWLQJ

Ɣ

7KHUHPXVWVHWPRUHWKDQVHFRQGVEHIRUHXQSOXJWKHSRZHURUSRZHUIDLOXUHRWKHUZLVHWKHWHPSHUDWXUHGLVSOD\VKRZQDV

EHIRUHVHWWLQJ

6HFRQG

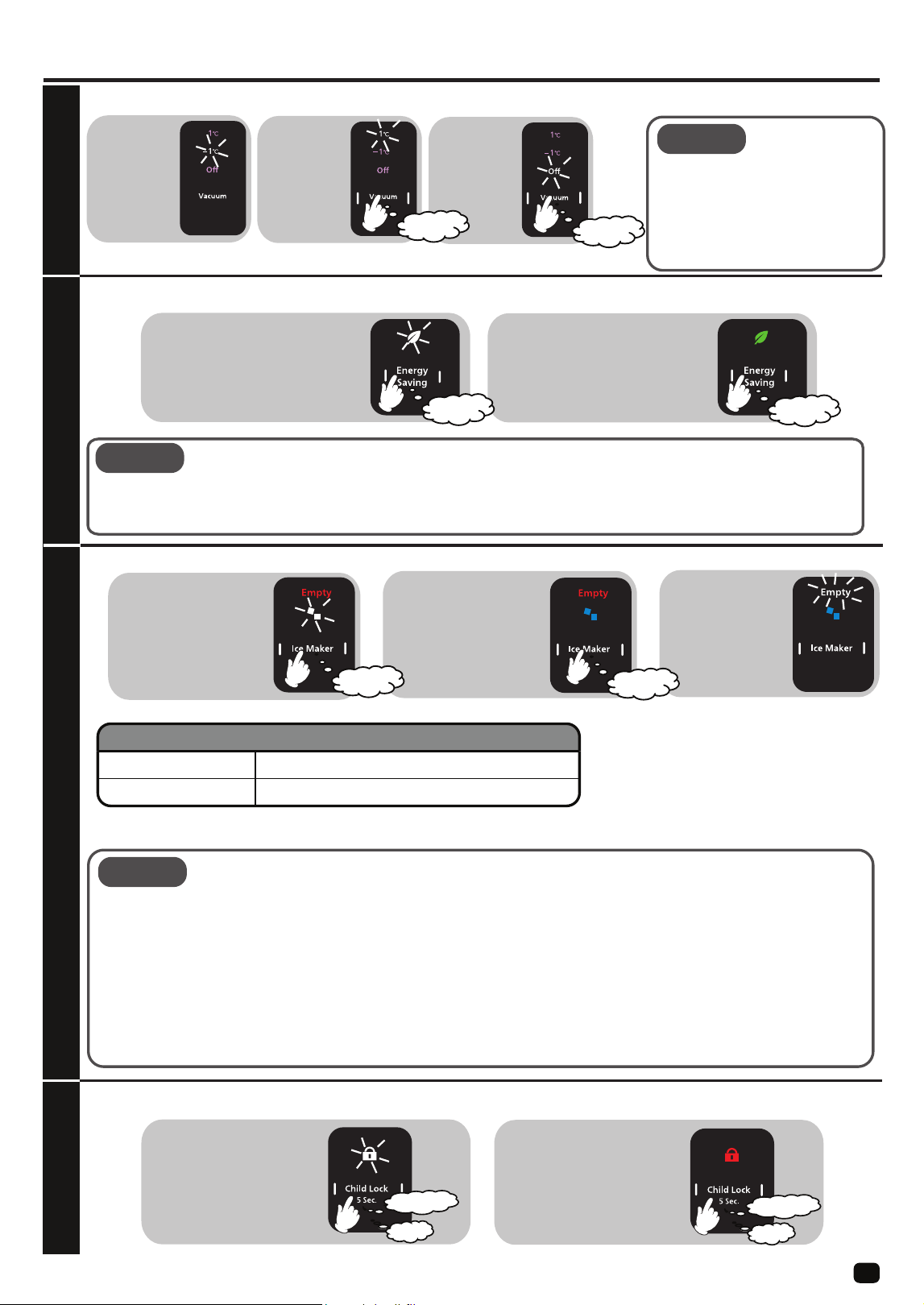

3HHS

³&KLOG/RFN´%XWWRQ

³,FH0DNHU´%XWWRQ

³(QHUJ\6DYLQJ´%XWWRQ

6HWWLQJ9DFXXP

7HPSHUDWXUH

6HWWLQJ5HIULJHUDWRU

7HPSHUDWXUH

6HWWLQJ)UHH]HU

7HPSHUDWXUH

6HWWLQJ6HOHFWDEOH=RQH

&RPSDUWPHQW

NOTICE



5HIULJHUDWRUPRGH6WRULQJRI9HJHWDEOHRUIUXLWVDUHUHTXLUHGWREHZUDSSHG3RO\EDJRU9DFXXPEDJWRSUHYHQW

%\XVLQJ3RO\EDJRU9DFXXPEDJUHTXLUHH[WUDDWWHQWLRQWRDYRLGKXPLGLW\'HSHQGVRQ:HDWKHU$UHDHWFDFFXPXODWLRQ

IURPGU\LQJRUIUHH]LQJ

1. Keep touching "Ice Maker"

for 5 seconds until

"Peep!" sound is heard.

There is not sound when

touching any button

(deactive door alarm sound).

1. Keep touching "

Ice Maker

for 5 seconds until "PiPi!" sound

is heard.

There is sound when touching

any button

(active door alarm sound).

Door Alarm and ECO Alarm Function

If the door is left open for more than 1 minute, the alarm system

will inform the user by the sound and digital display.

Ɣ

Door Alarm: Informs by PeepPeepPeep sound.

Ɣ

Eco Alarm Display: Indicates the door opening state on the control panel.

After 1 minute

After 2 minute

After 3 minute

PeepPeepPeepPeepPeep

Peep continuously

PeepPeepPeep

All LED on display-

are Flashing

To Disactivate Alarm and Sound

To re-activate Alarm and Sound

(There must set more than 45 seconds before unplug the power or power failure. otherwise the temperature display shown as before setting.)

Ɣ

Factory setting, the alarm and sound are set “ON”

Ɣ

If the Door Alarm, Eco Alarm Display and each button operation sound have been deactivated, The refrigerator will still set

the alarm and sound to “OFF” even though a power failure or when unplugging and reconnecting the power plug.

NOTICE

Other Functions

Cancel

you can set temperature by normal step ( 5 steps)

Ɣ

This function is subjected to change according model type.

Touch

“Refrigerator”

for 5 seconds until 1 “PiPi!”

sound is heard.

Ɣ

Factory setting, the adjustment temperature by normal step ( 5 steps).

NOTICE

Setting

(Refrigerator compartment/ Freezer Compartment)

Touch “Refrigerator”

for 5 seconds until

1 “Peep!” sound is heard.

Each time you touch the button, the corresponding indicator lamp changes in order shown below (9 steps).

Indication

lamp

Setting

Cold

Coldest

( Lighting Blinking Turned off )

Open the Freezer door or Selectable Zone door before touch “Refrigerator” to setting.

Normal

Sound

Pi! Pi! Pi! Pi! PiPi! Pi! Pi! Pi!

Pi!

Quick Cooling

When you want to cool food or drinks quickly, use this function

Quick Freezing

When you want to freeze food or make ice quickly, use this function

and closing the doors not to have a emperature rise of the refrigerator compartment.

Ɣ'XULQJ4XLFN)UHH]LQJSULRULW\FRROLQJRIWKHIUHH]HUFRPSDUWPHQWZLOOEHGRQH7KXVWU\WRDYRLGXQQHFHVVDU\RSHQLQJ

Ɣ'XULQJGHIURVWSHULRG´4XLFN&RROLQJ´RSHUDWLRQwill stop even though the lamp is on. After finishing defrost period, the operation

will restart automatically.

Ɣ3OHDVHQRWH4XLFN&RROLQJPRGHZLOOEHUHOHDVHGDIWHUSRZHUFXWRIIRUXQSOXJ

....

PiPi!

1,2,..5 Second

Peep!

Pi!

1,2,..5 Second

Peep!

1,2,..5 Seconds

PiPi!

1,2,..5 Seconds

How to use temperature control 9 step

Ŷ

Open the Freezer door or Selectable Zone door before touch “Refrigerator” to cancel.

NOTICE

Pi!

....

Pi!

“Refrigerator”

button, and start

³4XLFN&RROLQJ´

Touch

Peep!

1,2 Seconds

operation of

1 2

before it is completed,

touch “Refrigerator”

again.

To stop this function

Peep!

1,2 Seconds

³4XLFN&RROLQJ´ZLOO

be finished automaically

in approximately 90 minutes.

Put food on the quick cooling

³4XLFNFRROLQJ´FRUQHULV

located on the upper part of

the refrigerator compartment.

³4XLFN&RROLQJ´LVPRUH

effective if food is place near

the back wall of the

refrigerator compartment.

Touch

“Freezer”

botton, and start

operation of

Peep!

1,2 Seconds

³4XLFN)UHH]LQJ´

Touch again “Freezer”

and stop the

operation.

Peep!

1,2 Seconds

³4XLFN)UHH]LQJ´ZLOO

be finished automaically

in approximately 2 hours.

Pi!

NOTICE

Put food on the quick freezing

³4XLFN)UHH]LQJ´FRUQHULV

located on the upper part of

the freezer compartment.

³4XLFN)UHH]LQJ´LVPRUH

effective if food is place near

the back wall of the

freezer compartment.

Other Functions

The display switches in sequence as shown below every time the button is touched. The temperature is set to “-1

°C

” at default.

turned off after about 40 seconds for

Vacuum

CAUTION

The “Off” indicator lamp

continues to be lit during

the “Off”operation. The display will be

energy saving, but the function that is set

Ɣ,QFDVHWKHFRPSDUWPHQWWHPSHUDWXUHULVHVXSWhe operation will be back to a normal setting temporarily.

Ɣ$IWHUDORQJWLPHRSHUDWLRQRI³(QHUJ\6DYLQJ´Ln some cases, fatty ice cream, etc, may become soft. Please stop

Ɣ,I\RX7RXFK³4XLFN)HH]LQJ´RU³4XLFN&RROLQJ´button

dXULQJ(QHUJ\6DYLQJRSHUDWLRQ³(QHUJ\6DYLQJ´RSHUDWLRQZLOO

Recommend to use this function in case of low storage volume, or a long vacation when the doors are not opened for long time.

EHGRQHDIWHU³4XLFN)UHH]LQJ´RU³4XLFN&RROLQg” operation finished.

NOTICE

³(QHUJ\6DYLQJ´RSHUDWLRQLQWKLVFDVH

Energy Saving

7RXFK³(QHUJ\6DYLQJ´

IRU6WDUW(QHUJ\6DYLQJRSHUDWLRQ

light is on.

7RXFK³(QHUJ\6DYLQJ´

DJDLQIRUVWRS(QHUJ\6DYLQJ

operation, light is off.

Ice Maker

)LUVWFKHFNZKHWKHUWKH$XWRPDWLF,FH0DNHULVLQRSHUDWLRQ

1. When the door is frequently opened and closed

2. When a large amount of food is placed inside the refrigerator at the same time

$IWHU,FH7UD\&OHDQLQJKDVEHHQUXQ

4. When there is a power outage

5. During winter, or when the surrounding temperature is low

Ɣ

,FHFDQQRWEHPDGHXQWLOWKHLQWHULRURIWKHUHIULJHUDWRULVVXIILFLHQWly cooO,WPD\WDNHKRXUVRUORQJHUWRPDNHLFHIRUWKHILUVWWLPHDIWHU

installation. Normally, however, it only takes 2 to 3 hours to make

8(eight) ice cubes.

7KH,FH3UHSDUDWLRQ7LPHVKRZQLVWKHDYHUDJHWLPHWRPDNHLFHZKHQ the ambient temperature is 32°C and the door is not opened and closed and

temperature setting “narmal”.

:KHQ\RXZLVKWRPDNHLFHHVSHFLDOO\TXLFNO\XVHWKH4XLFN)UHH]Lng" function.

$SSUR[WRPLQXWHV

Ɣ

7KH,FH0DNLQJ7LPHZLOOEHORQJHULQWKHIROORZLQJVLWXDWLRQV

,FH3UHSDUDWLRQ7LPHHLJKWFXEHVLFHPDNLQJF\FOH

NOTICE

,IZDWHUWDQN³HPSW\´

lamp is turned on,

fill water.

PiPi!

Pipi!

Pi!

Pipi!

When in

“Vacuum”

“-1 °C” lights on.

Child Lock

You can prevent mischief of all the buttons on the control panel caused by children.

Touch “Child Lock”

for 5 seconds

lamp light is on

To stop this function, touch

“Child Lock” for 5 seconds again

lamp light is off

Peep!

Pipi!

$SSUR[WRPLQXWHV

4XLFN)UHH]LQJ

Normal Operation

Touch “Vacuum”

for stop Vacuum

operation. “off”

Touch “Vacuum”

for start Vacuum

°C operation.

“1 °C” Light is on.

Light is on.

$IWHURIIYDFXXPIXQFWLRQWKHWHPSHUDWXUHZLOOEHDXWRPHWLFDOO\WRGHIDXOW

°C )

7RXFK³,FH0DNHU´

IRU6WDUW,FH0DNHU

operation, lamp light is on.

7RXFK³,FH0DNHU´

DJDLQIRUVWRS,FH0DNHU

operation, lamp light is off.

Pi!

once will remain effective.

6HFRQGV

Ɣ,I\RXGRQRWLQWHQGWRXVHWKH$XWRPDWLF,FH0DNHUPDQXDOO\FDQFHOLWVRSHUDWLRQ

operation.

Ɣ:KHQXVLQJWKH³,FH0DNHU´IRUWKHILUVWWLPHGLVFDUGWKHILUVWJODVVHVRILFHFXEHVIRUFOHDQLQJ

Middle Freezer Drawer

Refrigerator/Slectable Zone/Freezer Compartment

Egg Case

Refrigerator Door-Left

Door Pockets

Swing Partition

Selectable Zone Door

Upper Vegetable Drawer

Water Tank

Lower Vegetable Drawer

Ice Bank

Upper Selectable Zone Drawer

Middle Selectable Zone Drawer

Fixed shelf

LED Lamp

Adjustable-height Shelves

Dry-Vegetable case

Ice Maker

Vacuum compartment

How to use the Ice Maker

Refrigerator Door-Right

Utility Drawer

Lower Freezer Drawer

Middle Freezer Drawer

Upper Freezer Drawer

Freezer Door

Lower Selectable Zone Drawer

Tea

JUICE

MINERAL

WATER

Mineral water

Juice drink Sports drink Carbonated drink Tea

Filtered water Well water

CAUTION

Other Functions

effect on its performance. Wipe the dew with dry cloth.

How to use Dry-Vegetable case

amount of dry air flowing into the drawer.

CAUTION

Ɣ Germs can multiply quickly when filtered water,

dechlorinated water, mineral water, or boiled water is

Ɣ Change the water in the Water Tank once a week.

Ɣ When not using the Water Tank for extended periods of

Ɣ The capacity of the Water Tank is approx. 3.0 liters.

Ɣ Do not fill the Water Tank with anything other than water.

(Filling the Water Tank with fluids such as juice, sports

drinks, tea, or hot water can damage your refrigerator.

The Water Tank can withstand temperatures up to 50

NOTICE

used in the Water Tank. Be sure to thoroughly clean the

Water Tank regularly.

time, thoroughly clean and dry the water tank and

reinstall it to its place in the refrigerator.

If you keep the refrigerator in a hot and humid place, frequently open the door or store a lot of vegetables, it may cause dew forming

which has no

Cover

Tank-full line

1. Remove the water tank.

3. Carry the water tank by the handle with care.

4. Insert the water tank until it stops.

2. Slide the cover and fill the tank with water.

Ɣ

Hold the handle and pull the water tank towards yourself.

Ɣ:KHQFDUU\LQJWKHZDWHUWDQNSODFHRQHKDQG

below the tank for horizontal stability.

Ɣ)LOOZLWKZDWHUXSWRWKH³)XOO´OLQH

Ɣ

If the water tank is not inserted all the way, water will not

be supplied to the Automatic Ice Maker.

This will prevent these features from functioning properly.

Process complete.

Set the lever to

for coffee bean/

³'U\IRRG´

Set the lever to

³9HJHWDEOH´WRSURYLGH

temperature for vegetable

and fruit 3°C

~7°C

ƔThere is a humidity control which can adjust the

tea leaf 3°C~7°C

VegetableDry Food

Ɣ When storing dry food, do not store dry food

and vegetable together. Vegetable may

transfer to dry food and may not be able

to keep food dry.

NOTICE

How to use the Vacuum Compartment

1. Lift the handle to unlock.

Handle

Door

“ Whoosh... ”

2. Pull the door out.

While there is the “ Whoosh... ”

sound, it’s still vacuum; thus,

Please remove the door after

1. Push the vacuum case to the end of the inside.

Push the handle down to the end.

If not, the case might not be vacuumed.

2. Push the handle down to lock the door.

Do not put too much food or too many

containers into the vacuum case. if you do, you

may not be able to pull the vacuum case out.

Open vacuum Compartment

Close vacuum Compartment

CAUTION

Vacuum pump will work when the handle of the vacuum compartment and the door of refrigerator are closed only. When the vacuum pump starts

working,there will be loud noise which is not unusual at all. From the vacuum pump stats working until the case becomes vacuumed, it akes around

2 minites. If the door of the vacuum case opened before 2 minutes, You may not hear the “Whoosh...” sound.Thus, please check the vacuum system

afterwaiting for longer than 2 minutes. Since the vacuum case generates coolness indirectly, it need more time to cool food than other cases.

If the lid of the refrigerator is closed but the

door of the vacuum case is not closed, there

may be some parts that are broken.

the door can not be removed.

the “Whoosh” sound stops.

Ŷ

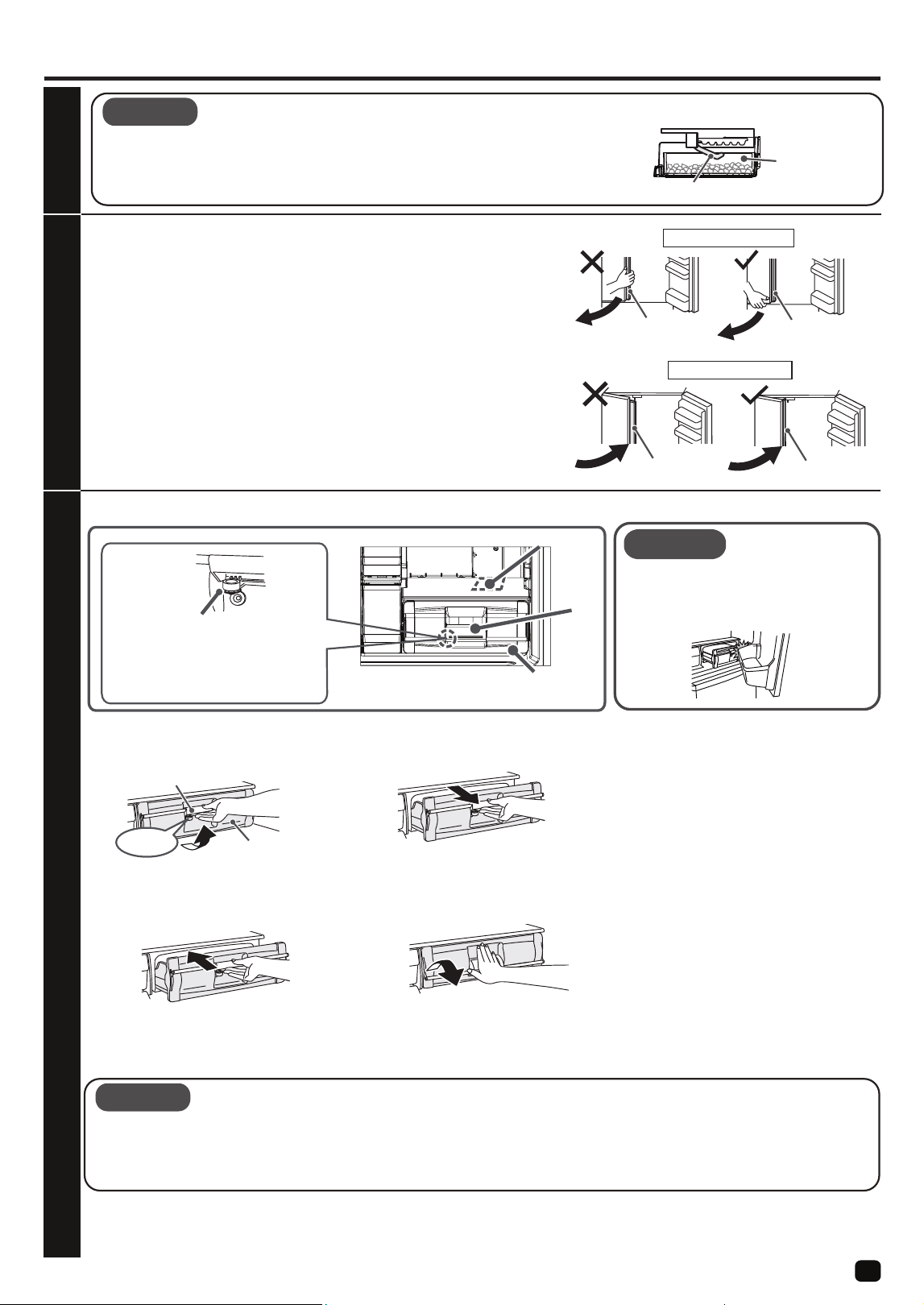

Refrigerator/Selectable Zone/Freezer Compartment

Swing Partition Suggestion

Ɣ'RQRWKROGWKHVZLQJSDUWLWLRQZKLOHRSHQLQJRUFORVLQJWKHOHWIGRRU2WKHUZLVHRWKHU

parts may collapse.

Ɣ:KHQHYHUWKHGRRULVRSHQHGWKHVZLQJSDUWLWLRQZLOOFORVHDXWRPDWLFDOO\:KLOHWKH

door is closed, the swing partition will open. Please follow as usual. The swing

partition and the swing stopper hit each other, the door will not close.

Ɣ,QRUGHUWRSUHYHQWWKHGHZWKHUHLVDKHDWHULQVWDOOHG

inside to heat up the swing partition. Due to this heater,

the temperature of the swing partition is hot

(the swing partition is not defective though it is hot).

Ɣ7KLVLVQRWDEQRUPDOZKHQ\RXIHHOKHDY\ZKLOHRSHQLQJ

or closing the left door which is installed with the swing partition.

While opening the door

While closing the door

Swing Partition Swing Partition

Swing Partition

Ɣ)RUDILUVWLQVWDOOHGDOORZKRXUVIRUWKHUHIULJHUDWRUWRFRROGRZQDQGPDNHLFH

Ɣ,FHPDNHUZLOOVWRSDXWRPDWLFDOO\ZKHQLFHEDQNLVIXOODQGVWDUWDJDLQDXWRPDWLFDOO\

when ice cubes in the ice bank is reducing or empty.

Ɣ,WLVQRUPDOWKDWDQRLVHLVJHQHUDWHGZKHQLFHPDGHRULFHGURSSHGLQWRWKHLFHEDQN

Ice detection level.

Ice bank

WARNING

Vacuum pump

Vacuum Box

(With Aluminum Tray)

Handle

Vacuum cutting valve (blue)

The machine is unlocked by lifting

the handle and the vacuum cutting valve

will cut the vacuum system with the

“Whoosh...” sound.

Refrigerator/Selectable Zone/Freezer Compartment

CAUTION

Ɣ3OHDVHUHPRYHSODFHGIRRGIURPWKHYDFXXPER[

Ɣ3OHDVHGRQRWGHWDFKDQ\SDUWRWKHUWKDQWKHRQH

Ɣ,I\RXZDQWWRGLVVVHPEOHDQ\SDUWQRWGHVFULEHG

Ɣ$VIRUWKHGLVDVVHPEO\RULQVWDOODWLRQRIDQ\SDUW

Instructions for disassembly or assembly

6ORZO\OLIWWKHIURQWRIWKHYDFXXPFDVHWRGHWDFKWKHFRUH

RIWKHGRRURIWKHYDFXXPFDVH

9DFXXPFDVH

&RUH

$OXPLQXP7UD\

/LIWWKHYDFXXPFDVHKLJKHU

,QVWDOODOOSDUWVE\IROORZLQJWKHUHYHUVHVWHSVRIWKHGLVDVVHPEO\SURFHGXUH

EHIRUHGLVDVVHPEOHG

GHVFULEHGLQWKHLQVWUXFWLRQ

LQWKHLQVWUXFWLRQIRUFOHDQLQJSOHDVHFRQVXOWWKH

EXVLQHVVWKURXJKWKHFRQVXOWDQF\FKDQQHOV

SOHDVHRSHQWKHGRRURIWKHUHIULJHUDWRUZLGHUWKDQ

GHJUHHV

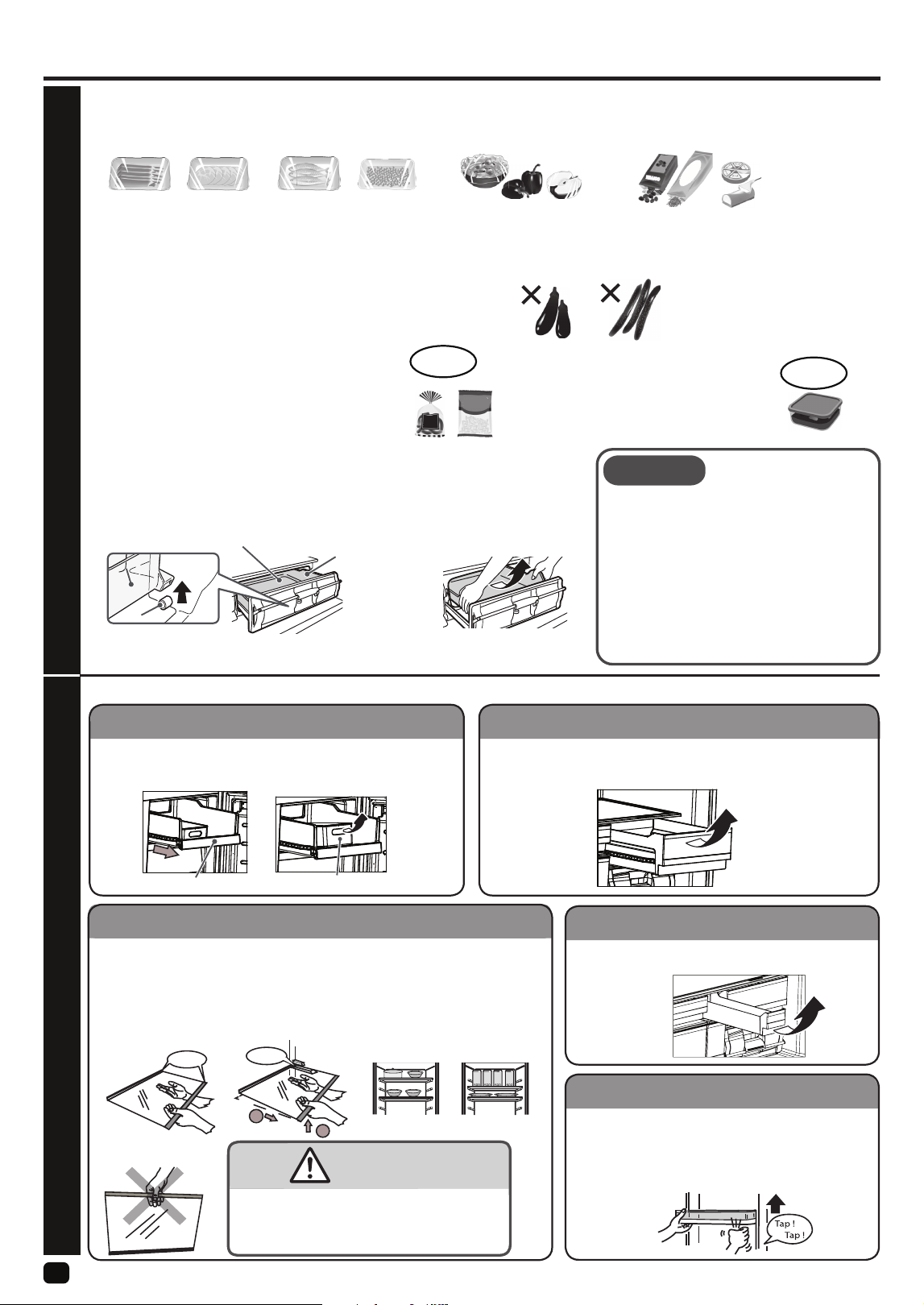

How to remove part



Rail Stops

Shelf Trim

CAUTION

Shelf trims are removable, Holding the

shelf with both hands. DO NOT holding

trim or holding shelf with only one

hand otherwise it may drop or injury.

Ŷ*HQWO\WDSWKHOHIWDQGULJKWRIWKHERWWRPVXUIDFHZKLOH

SXOOLQJDSRFNHWXSWRUHPRYHLW:KHQLQVWDOOLQJWKH

SRFNHWVSXVKLWDOOWKHZD\GRZQLQDVPRRWK

FRQWUROOHGPDQQHU



7KHKHLJKWRIWKHVHVKHOYHVFDQEHDGMXVWHGWRPDWFKWKHKHLJKWRI\RXUIRRGDQGWKH

ZD\LQZKLFKWKH\DUHWREHXVHG

Ɣ5HPRYHDOOIRRGVWRUHGRQWKHVKHOI

Ɣ/LIWWKHEDFNRIWKHVKHOIXSZDUGVOLJKWO\WKeQSXOOWKHVKHOIRXWWRZDUGV\RX



Ɣ$GMXVWWKHVKHOIWRWKHGHVLUHGKHLJKWWKHQSXVKWKHVKHOILQXQWLOLWUHDFKHVWKH

EDFNRIWKHVORW

Adjustable-height the Shelves

Door Pocket

Ice Bank

Utility Drawer

Ŷ

7RUHPRYH,FH%DQNSXOO8SSHU)UHH]HU'UDZHUDOOWKHZD\RXW

Ŷ

7RUHPRYH9HJHWDEOH'UDZHUDQG'U\9HJHWDEOHFDVHSXOOLWDOO

WKHZD\RXWWKHQOLIWLWXSZDUG

8SSHU)UHH]HU'UDZHU

,FH%DQN

Ɣ )RRGQRWUHFRPPHQGHGWREHVWRUHG

0HDWVSURFHVVHGPHDWV

)LVKHVDQGVHDIRRG

%HHISRUNFKLFNHQKDP

6DOPRQPDFNHUHOILVK

9HJHWDEOHVDQGIUXLWV

6DODGYHJHWDEOHVEHOO

&RIIHHEHDQWHD

9HJHWDEOHVYXOQHUDEOHWRORZWHPSHUDWXUH6NLQRIWKHYHJHWDEOHVWKaWDUH

YXOQHUDEOHWRORZWHPSHUDWXUHZLOOVLQNRUFKDQJHWKHFRORUVSOHDVHsWRUH

VDXVDJHHWF

SHSSHUDSSOHRUDQJH

NLZLHWF

VHDIRRGERLOHGILVK

SDVWHHWF

OHDIGDLU\SURGXFWV

QXJJHWVHWF

(JJSODQWFXFXPEHUURVHOOHIUXLW

)RRGVKRXOGEHNHSWLQDFORVHGSODVWLFEDJ

6WRUHWKHIRRGFDUHIXOO\EHFDXVHWKHEDJZLOOEHVZROOHQ

DQGSUHVVRQRWKHUIRRG

6XFKDVVDXVDJHDQG

FKHHVHLQEDJV

&ORVHGDQGVHDOHGSODVWLFFRQWDLQHUV

3OHDVHSLFNFRQWDLQHUVRXWFDUHIXOO\EHFDXVH

WKHGRRUVRIWKHFRQWDLQHUVPD\EHGHWDFKHG

Ɣ )RRGDQGFRQWDLQHUVVKRXOGEHVWRUHGZLWKFDUH

%HFDUHIXO

WKHPLQYHJHWDEOHFRPSDUWPHQW

DVSDUDJXVJLQJHUVZHHWSHSSHUHWF

%HFDUHIXO

Tea

COFFEE

Cheese

sausage

:LWKWKHDELOLW\WRSUHYHQWR[LGDWLRQWKHSURGXFWFDQSUHVHUYHWKHQXWULHQWVDQGWDVWHVRIIRRGORQJHUWKDQFRQYHQWLRQDOIRRGFRQVHUYDWLRQWHFKQLTXHV

Ɣ)RRGVWREHVWRUHG

Vegetable Drawer/Dry-Vegetable case

Ŷ

7RUHPRYH8WLOLW\'UDZHUSXOOLWDOOWKHZD\RXWWKHQ

OLIWLWXSZDUG

WKHQOLIW,FH%DQNXSZDUG

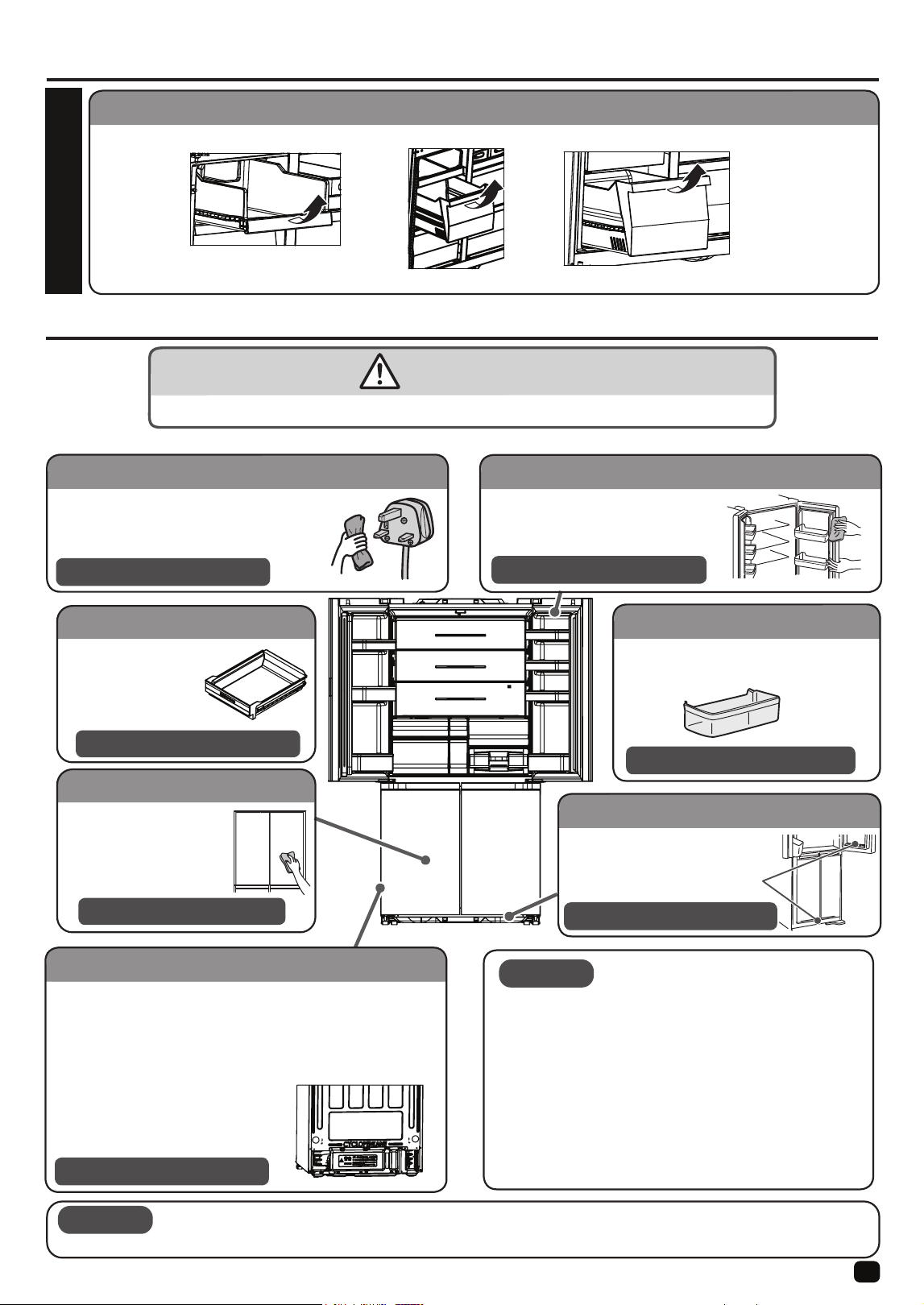

Care and Maintenance

Make sure to unplug the power plug when maintaining the refrigerator.

When dirt is found

Wipe off it immediately. It is recommended to clean the hidden places once a year.

Cleaning

WARNING

Upper Drawer, Middle Drawer, Lower Drawer (Selectable Zone / Freezer Compartment)

■

To remove Upper Drawer, Middle Drawer, Lower Drawer,pull it all the way out, then lift it upward.

Middle Drawer

Upper Drawer

Lower Drawer

Refrigerator/Selectable Zone/Freezer Compartment

NOTICE

● Clean reguraly surfaces that can come in contact with food and accessible drainage systems.

● If the refrigerating appliance is left empty for long periods, switch off, defrost, dry and leave the door open to prevent mould

developing within the appliance.

Power plug

Cleaning once or twice a year

■ If the power plug is plugged in with dust on

the power cord, it can result in fire.

● Remove all dust once a year and wipe with

a dry cloth.

Door gaskets

Cleaning once a month

■ This area is prone to smudges,

so be sure to wipe it thoroughly.

Back Panel, Foor of Refrigerator

Cleaning once or twice a year

1. Turn the leg adjuster to raise the refrigerator up off the floor.

● If the adjuster does not turn easily, use a screwdriver to turn it.

If it still will not turn, then remove the leg cover and try again.

2. Pull the refrigerator straight out toward you.

● For floors that are easily damaged, lay out a protective mat, or

other protective material.

3. Wipe off the smudges on the back panel,

● Due to the convection of air, this is a

place where fine dust is likely to adhere.

walls, and floor of the refrigerator.

Each shelf/pocket

Cleaning once per three months

Use a soft cloth wet by lukewarm

water to wipe off.

Drip Catcher

Cleaning once a month

Drip catcher

■ Liquid that has accumulated

here should be wiped away.

Door Surface

Cleaning once a month

■

To clean the door surface,

wipe with a soft cloth wetted

with lukewarm water.

Drawer

Cleaning once per three months

■ Use a soft cloth

wet by lukewarm

water to wipe off.

CAUTION

● Do not use the following : An alkaline or weak alkaline kitchen

detergent, scouring powder, soap, petroleum, boiling water,

scouring pads, acid, benzine, alcohol, or bleach

(for details, see the Caution on the detergent package).

● When any cooking oil, citrus fruit juice, or juice from any food pours

on this refrigerator, wipe it off.

● When using a chemical rag, be sure to heed the warnings for rag use.

■ The doors, painted surfaces, and plastic parts may be scratched,

or discolored by the chemical rag.

Care and Maintenance

NOTICE

Water tank

Cleaning once a week

WARNING

WARNING Do not touch the mechanical

(Touching these parts might result in injury.)

parts of the automatic ice maker.

Ice maker

Ɣ

If the Automatic Ice Maker is not set to "Stop," the water pump may make sounds occasionally. This is not a malfunction.

Grasp the Tank. To remove

the lid, use your finger to

insert pull the lid up.

Ɣ

Slide the lid in back-end first in the direction of the arrows to close the lid.

In order to prevent grime and hard water stains

from building up, make sure to rinse the Water Tank

1. How to open the Lid.

2. How to Close the Lid.

Tank

Do not use cleansers as this may damage the filter.

In order to prevent grime and hard water stains from building up,

Ɣ

Replace the Water Filter when it wears out. Water Filters need replacing every 3 to 4 years.

2. Pull the tab to remove the Water

Filter from the case.

Case

Lid

3. Use a soft sponge to clean the Water Filter.

Cover

Case

Water filter

Tank

Handle

Lid

once a week.

make sure to rinse the Water Filter once per week.

1. Pull the Case to remove it from the lid.

Tap

1. Pull the vacuum box out In order to take the products stored

in vacuum box, pull the vacuum box out.

2. For the following part, clean it with a piece of cloth soaked in warm water.

Aluminum tray

Vaccum box gasket

Vaccum box Case

Packing Receiver

3. Assembly of Vacuum Box Case Assembly Attach Vacuum Box Case with

the core of Vacuum Box Door.

Ɣ

If the detergent or any product other than warm water is

used for cleaning Vacuum Box gasket, there may be

effects in terms of deformation, color change or loss

ƔIf Vacuum Box gasket is dropping or Vacuum Box Door

not well aligned, there may be the loss of vacuum property.

When Vacuum Box gasket is dirty.

1. Disassembly of Vacuum Box gasket out off Vacuum Box Case. Facing

the Vacuum Box, twist the knob of the Vacuum Box gasket on top right

Knob

2. Wipe gently with sponge on the stain with plain water.

Don’t use any detergent.

Please clean gasket track also.

gasket track

3. Wipe water out with dry cloth and leave the part until it is naturally dried.

4. Assemble Vacuum Box gasket, twist the knob to align with the gasket

track, deliberately assemble.

Knob

Packing track

Vacuum Compartment

and carefully remove.

CAUTION

Cleaning once a month

vacuum property.

Vaccum box Case

Core

Ɣ

Clean water tanks if they have not been used for 48 h;flush the water system connected to a water supply if water has not been

drawn for 5 days.

Before you call for service, please check the following items:

Troubleshooting

The inside is smelling.

Dew appears Outside

Dew appears Inside

Ɣ:KHQWKHDPELHQWKXPLGLW\LVWRRKLJKWKHGRRU

FKHFNWKHGHWDLOVEHORZ

Ɣ,VWKHGRRUFORVHGILUPO\"

RURSHQHGIRUDORQJWLPH"

Ɣ,VLWWRRKXPLGRXWVLGH"

Ɣ,VWKHWHPSHUDWXUHVHWWR³&ROGHVW´"

QHDUE\WKHFROGDLUYHQW",WZLOOEHIUR]HQLILWLV

LVSODFHGQHDUE\WKHFROGDLUYHQW

Ɣ+DVDQ\WKLQJKRWEHHQSODFHGLQWKHUeIULJHUDWRU"

Ɣ,VWKHGRRURSHQHGDQGFORVHGWRRIUHTXHQWO\"

Problem Things to check Instructions Page

The refrigerator is noisy

Ɣ ,VWKHUHIULJHUDWRUWRXFKLQJWKHZDOO"

7KH&RQWURO3DQHOGRHVQRWUHVSRQG

Problem Things to check Instructions Page

Ɣ$SSUR[LPDWHO\VHFRQGVDIWHUWKH HQGRI

RSHUDWLRQ,QGLFDWRU/('VEHFRPHXQOiW

The Control Panel is unlit.

5-7

The Control Panel

does not respond:

Ɣ,V³&KLOG/RFN´IXQFWLRQDFWLYDWHG"

Ɣ,V5HIULJHUDWRUWKHFRPSDUWPHQW'RoURSHQ"

2SHUDWHDIWHUFORVLQJLW

Ɣ,VWKHUHZDWHURUGLUWRQWKH&RQWURO3DQHO"

Ɣ$UH\RXZHDULQJJORYHVRUDSSO\LQJ DSODVWHU"

7RXFKGLUHFWO\ZLWK\RXUILQJHU

Ɣ$UH\RXWRXFKLQJDQH[WEXWWRQ"

7RXFKRQO\RQHEXWWRQDWDWLPH

5-7

at all.

Ɣ,VWKHUHIULJHUDWRUSOXJJHGLQSURSHUO\" Ɣ&KHFNWKHIXVHER[IRUEORZQIXVH

Ɣ,VWKHWHPSHUDWXUHVHWWR³&ROG´"

Ɣ,VWKHIRRGVWRUHGWRRPXFK"

The refrigerator does not get cold

Food in the refrigerator

compartment freezes.

The refrigerator does not get cold

enough.

Ɣ6HHFRQWHQW³+RZWRXVHWKHFRQWUROSDQHO´

Ɣ'RQRWLQVWDOOWKHUHIULJHUDWRULQDSODFHZKHUHLW

PD\FRPHLQFRQWDFWZLWKVXQOLJKW

Ɣ7RXFK³5HIULJHUDWRU´EXWWRQWRQRUPDORUFROGHVW

Ɣ.HHSHQRXJKVSDFHEHWZHHQIRRG

Ɣ6KRXOGFORVHWKHGRRUILUPO\FORVHG

Ɣ'RQRWLQVWDOOWKHUHIULJHUDWRULQDSODFHZKHUHLW

PD\FRPHLQFRQWDFWZLWKKHDWVRXUFHV

Ɣ0DNHIRRGFRROHQRXJKEHIRUHSXWWLQJLQWKHUHIULJHUDWRU

Ɣ'RQRWRSHQFORVHWKHGRRUWRRIUHTXHQWO\

Ɣ6KRXOGEHLQVWDOOWKHUHIULJHUDWRUE\IROORZLQJWKH

SUHSDULQJLQVWUXFWLRQPDQXDO

Ɣ8VLQJIRRGZUDSRUVHDOHGFRQWDLQHUV

Ɣ6HHFRQWHQW³'HZRUIURVWLVJHQHUDWHG´

RUWULSSHGFLUFXLWEUHDNHU

Ɣ,VWKHUHIULJHUDWRUSODFHGLQWKHGLUHFWVuQOLJKW"

Ɣ,VWKHUHIULJHUDWRUSODFHGQHDUKHDWVRuUFHV"

Ɣ'R\RXSODFHIRRGZLWKPRLVWXUHRUYHJHWDEOHV

JDVNHWPD\KDYHGHZ3OHDVHZLSHLWXSZLWKGU\FORWK

3OHDVHZLSHLWRIIZLWKGU\FORWKDQGSOHDVH

Ɣ,VWKHGRRURSHQHGDQGFORVHGWRRIUHTXHQWO\

Ɣ'R\RXVWRUHIRRGZLWKRGRUZLWKRXWZDUSSLQJLW"

Ɣ0DNHVXUHWKHUHIULJHUDWRULVLQVWDOOHGIULPO\

Ɣ,VWKHGRRUVOLJKWO\RSHQHG"

Ɣ7RXFK³5HIULJHUDWRU´EXWWRQWRQDUPDORUFROG

Ɣ.HHSHQRXJKVSDFHEHWZHHQIRRG'RQRWEORFNWKH

The Control Panel display keeps

changing

VWRUHGLVSOD\PRGH

Ɣ7KLVLQGLFDWHVWKDWWKHUHIULJHUDWRULVUunning is

Ɣ7KHUHIULJHUDWRUZLOOQRWFRROZKLOHUXQning in

Ɣ7XUQRIIWKHVWRUHGLVSOD\PRGHE\

VWRUHGLVSOD\PRGH

3RZHURIIDQG3RZHURQWKHUHIULJHUDWRUDJDLQ

$IWHUWKDWWKHUHIULJHUDWRUZLOOUHWXUQWRQRUPDO

PRGH

FROGDLUYHQW

If a door is shut, other doors

may open.

7KHWZRFRPSDUWPHQWVDUHFRQQHFWHG

ZLWKDQDLUGXFW

:KHQFORVLQJRQHRIWKHGRRUVWhe otKHUGRRUPD\EH

RSHQHGE\WKHDLUSUHVVXUHWKURXgKWKHGXFW

7KLVLVDQRUPDOSKHQRPHQRQ

Does the refrigerator make any

abnormal noises (sound)?

Ɣ 7KHVRXQGOLNHZDWHUIORZLQJDQGERiling water is the

VRXQGRIWKHFRROLQJOLTXLGUHIULJHrant)

Ɣ $FUHDNLQJVRXQGFRPHVIURPWKe storage

FRPSDUWPHQW,WLVWKHVRXQGFDXVHG

y friction of

WKHSDUWVGXHWRWHPSHUDWXUHFKDnJH

There are waving and / or

distortions on the door surface,

the side and the top surface of

Ɣ 6OLJKWZDYLQJDQGRUGLVWRUWLRQVDUHJeQHUDWHGLQWKH

PDQXIDFWXULQJSURFHVVRIWKHUHIULJHUDWRU

7KH\PD\EHFRQVSLFXRXVDFFRUGLQJWRWKHSRVLWLRQRIWKH

OLJKWVRXUFHDQGRUWKHEULJKWQHVVHWF

EXWWKHUHLVQRSUREOHPZLWKWKHSHUIRrPDQFH

the refrigerator.

This is not a malfunction of the refrigerator:

Problem Things to check

Instructions

Page

The surface of the refrigerator

Ɣ 7KHUHIULJHUDWRULVHTXLSSHGZLWKWKHGHZSUHYHQWLRQ

DQGKHDWUDGLDWLRQWXEHV

DQGFORVHG

is hot.

7KHEDFNDQGVLGHSODWHVPD\EHKHDWHGHVSHFLDOO\

ZKHQVWDUWLQJXSRULIWKHGRoULVIUHTXHQWO\RSHQHG

Troubleshooting

Operation sound lasts long.

Annoying sound is generated

by the refrigerator.

Ɣ You may feel that the operation sound is loud because the

compressor operates in high-speed under the

following conditions: the refrigerator does not cool fully

on the occasion such as using it for the first time,

opening/closing the door frequently, the surrounding

temperature is high.

The sound becomes more quiet after cooling fully.

The compressor operates at low speed at night, or during

long vacations or absence.

It is because the compressor operates in low-speed for

conserving energy

It is because the system changes the operating power of

he refrigerator according to the temperature change.

Operation sound sometimes

becomes louder.

Problem Things to check

Instructions

Page

This is not a malfunction of the refrigerator:

There is something strange with the Vacuum compartment.

Problem Things to check Instructions Page

・・・

In case of any of these

events.

Ɣ

Is the Handle up?

ƔPush Handle down to the proper position.

ƔHas the Handle been pushed down to the end

ƔIf not, there is no vacuum. Push the Vacuum Box Case inside

ƔAre Vacuum

compartment

gasket and Packing

ƔIf they are, clean them by wiping the stain out.

ƔIs Vacuum

compartment

gasket or vacuum

Vacuum valve

(blue)

ƔDeliberately attach Vacuum

compartment

gasket and

ƔIs there any bag that contains food or stain or

Thread

Trash

ƔIs it because the side of the Packing of

Flank

Packing side

ƔHas the Vacuum Compartment or R door been ƔSince the Vacuum Pump is in the status of readiness for work,

ƔIf there is any plastic bag that contains things inside, remove it.

ƔIf the sides of Packing stick to each other, put them apart.

to the end and push the handle down to the proper position.already?

receiver dirty?

valve (blue) detached or loose.

or debris or trash in or around Vacuum

compartment

gasket and Packing receiver?

If the packings are attached to each other, the vacuum

property will be lost.

If packing is dirty, clean it.

Vacuum

compartment

is attached to Packing

because of something like soup?

opened/closed? the absence of the “Whoosh...” sound is not unusual.

It is not known whether it is in

ƔIf the is the “Whoosh...”sound during the

The Handle cannot be locked.

Ɣ

Is there anything stored in the Packing or the ƔIf there is, remove that thing.

the vacuum state or not.

ƔThe sound of Pump creating the vacuum state.

ƔIf the sound or the shaking happens often,

There is shaking “Bu Bu”

sound from around

Vacuum Compartment.

ƔThere is nothing wrong.

ƔIf there is plastic bag, remove it and clean the dirty Packing.

There are dews or water

around the door or

inside Vacuum Compartment.

Ɣ Water in food and air can cause diets inside

because Vacuum Compartment is completely

closed.

ƔAnything that contains a lot of water should be wrapped or

covered. If there are dews or water, wipe them with a piece of

cloth soaked in warm water.

Things stored in Vacuum

Compartment are frozen.

Ɣ

Is there any vegetable that is vulnerable to

low temperature such as cucumber or tomato

inside?

ƔCheck the vegetables that are vulnerable to low temperature

and move them to vegetable compartment.

opening, it is normal.

inmost side of the Vacuum Compartment?

there may be something at the door or the

packing may be dirty.

vacuum valve.

Dew or Frost is generated

When the door is opened frequently or if the door is opened

when the humidity around the refrigerator is high, moisture

in the air may be turned into some dew on the inner wall or

chilled air blow-off port. This is not failure . Please try not to

component of the refrigerator compartment, or around the

open the door too many times or for long time. Also, please

wipe off the dew in the refrigerator compartment with adry cloth.

The humidity of the vegetable compartment is higher than other

compartments. Accordingly, depending on the amount or type of

the vegetable, dew condensation may be generated on the plastic

case of vegetable compartment. However, this is not a failure.

When you do not want to have this kind of dew, please warp your

happens many times, water may be accumulated

in the vegetable compartment. Please wipe the water off with a dry cloth.

When the humidity rises such as in rainy day, some dew many be generated on

the outer surface of the refrigerator. Please wipe the dew off with a dry cloth.

When the temperature setting is set as “Coldest”, some dew may be

generated on the outer surface of the refrigerator. Please set the

setting as “Normal”. Also, please wipe dew off with use of a dry cloth.

The door of the refrigerator

compartment was not

opened frequently or longer

time than necessary?

Storing many vegetables

containing much water?

The volume of humidity around

the refrigerator is not high?

The temperature setting is

not set as “Coldest”?

Dew is generated in

the refrigerator

compartment

Dew is generated on

outer surface of the

refrigerator

vegetables in a plastic flim. Also,when the dew condensation

Why frost and dew are generated?

When warm and humid air contacts something cold, dew is generated. For example, if you put some ice in the glass in your room,

air around the glass will be cold down and some dew may be generated on the outer surface of the glass.

In the same way, when warm and humid air enters into the refrigerator at the door opening, the warm and humid air contacts cold

inner wall and little dew may be generated.

Accordingly, if the door opening is too frequent or too long, dew will be accumulated at every door opening. In some cases,

dew may be frozen to generate some frost or ice flakes in the freezer compartment.

The door of the refrigerator

compartment was not left

open temporarily?

Please check not to pinch the food or plastic bag between

the door and door frame when you close the door.

Dew condensation

The door of the freezer

compartment was not left

open temporarily?

Check that the wrapping paper of the food is not getting

caught in order not to make gap between door and

door gasket when you close the door.

When the door is opened frequently or if the door

is opened when the humidity around the refrigerator

is high, moisture in the air may be turned into some

frost or ice on the inner wall or component of the

freezer compartment, or around the air chanels.

This is not a failure. Please try not to open the door

too many times or for a long time. Also, please wipe

frost or ice generated in the freezer compartment off

The door of the freezer

compartment was not

opened frequently or longer

time than necessary?

Making extra ice by using

an additional ice-tray which

was not originally installed

in the refrigerator?

When the many containers in which water or liquid is stored

are put in the same time, water or liquid may be evaporated

and turned into frost or ice on the wall or component of the

freezer compartment, or around the air channels. You can

suppress these frost and ice by putting lid to avoid evaporation

Please wipe frost and ice off with use of a dry cloth.

Frost or ice is generated in

the freezer compartment

with use of a dry cloth.

Possible causes and / or Recommened solutionsPlease check hereGeneral operation

● This refrigerator, including refrigerant and the heat insulator, is using hydrocarbon (non-fluorocarbon). The hydrocarbon is a material that does not rip up

the ozone and have very little influence on global warming. It is the global environ

ment concern material).

● R600a refrigerant is flammable. But the refrigerant is sealed up by the refrigerant circuit, and never leaks by usual use. In case of the refrigerant circuit being

damaged by any chance, please avoid using fire or electric product, open the window and ventilate. Afterwards, please contact Hitachi Service Center.

Cyclopentane is used as in the insulation. The gases in insulation material require a special disposal procedure.

Please contact your local authorities in regard to the environmentally safe disposal of this product.

This symbol mark means that used electrical and electronic products shall not be mixed with general household waste.

Do not try to dismantle the system and unit by yourself as this could have harmful effects on your health and the environment.

Refrigerators must be treated at a specialized treatment facility for recycling and recovery and shall not be disposed of in the

municipal waste stream. Please contact the installer, dealer or

local authority for more information.

About Non-fluorocarbon refrigerator

Sever warning signs for Disposal

● Before you request repair, please check the refrigerator well according to page number 13-14. If it is still abnormal, please contact the retailer of purchase or

the following service center.

● Telephone number is subject to change without notice.

Customer Service Center

Hitachi Australia Pty Ltd

Locked Bag 2052, North Ryde NSW 1670

Email: [email protected]

Phone no.: 1800 Hitachi

1800 4482244

Web: www.hitachi.com.au

Monday to Friday business hours 9am – 5pm (AEST)

Service Center

(AB)
