Note:
If the Bluetooth USB power cable is not connected to the
motherboard, Bluetooth function cannot be enabled.
Note:
If the bracket is not suitable for your computer, detach it from
the adapter's board and replace it with the low-prole bracket.
Note:
If the Bluetooth USB cable is not correctly connected to the
motherboard, Bluetooth function won’t work even after driver
installation.

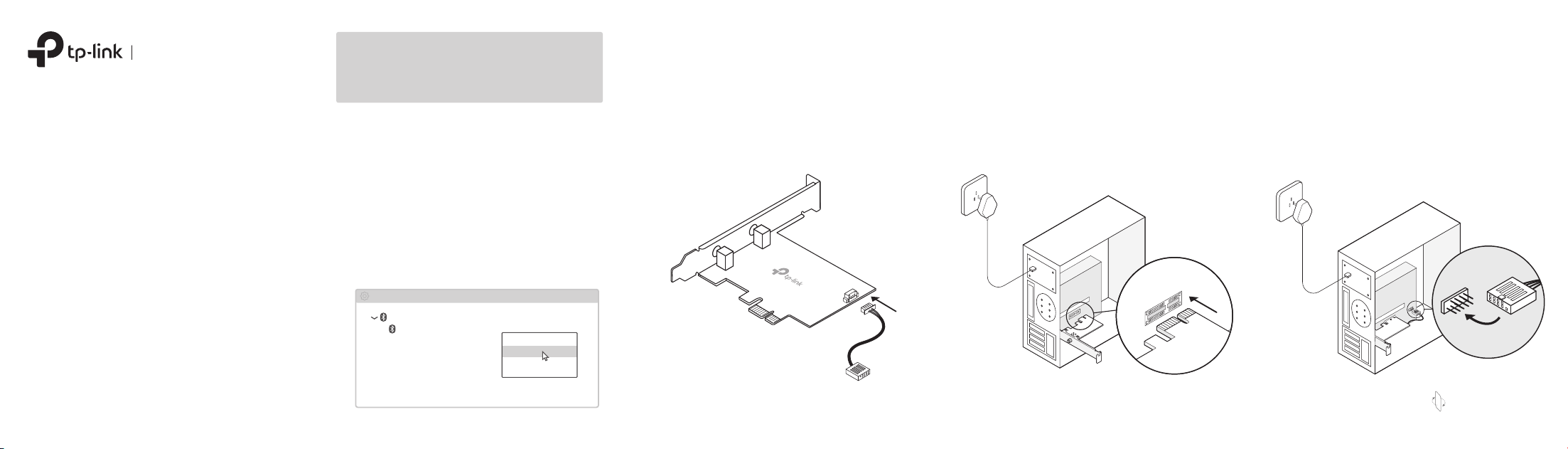

2 Connect to a Computer
a. Turn off your computer, unplug the power
cable then remove the case panel.
c.
Locate an available
PCI-E
slot ( X1, X4 or X16)
and carefully insert the adapter.
d. Locate an available F_USB connector and
carefully plug the Bluetooth USB cable into it.
b. Connect the provided Bluetooth USB cable to
the adapter.
7106511283 REV2.3.0©2024 TP-Link
WLAN Bluetooth
PCI Express Adapter
Quick Installation Guide
* Images are for demonstration only.
To continue, ip the page over.
USB
Bluetooth USB cable
Adapter
USB
1 Disable Bluetooth
a. Right-click My Computer, select Manage,
go to Device Manager.
b. Expand the Bluetooth node to nd your
existing Bluetooth device.
c. Right-click the existing Bluetooth device
and select Disable.
Note:
Make sure you have disabled all existing Bluetooth
devices (both built-in and third party).
Bluetooth
Device Manager
Disable
Existing Bluetooth Adapter
Before You Start:
If you plan on using Bluetooth and already
have connected Bluetooth devices, proceed
with Step 1. Otherwise, skip to Step 2.
a. Click the network icon on the taskbar
(the icon might look like one of these:
, , , or ).
e. Connect the antennas to the adapter. For
models that come with an antenna base,
install the antennas on the antenna base, then
connect the base to the adapter.
4 Join a Wireless Network
Safety Information
· Keep the device away from water, re, humidity or hot
environments.
· Do not attempt to disassemble, repair, or modify the
device. If you need service, please contact us.
· Do not use the device where wireless devices are not
allowed.
· This equipment can be powered only by equipments that
comply with Power Source Class 2 (PS2) or Limited Power
Source (LPS) dened in the standard of IEC 62368-1.
5 Pair With Bluetooth Devices
a.
Turn on Bluetooth both on your computer and
device.
b. Click Add Bluetooth or other device to
scan for Bluetooth devices.
c. Select your Bluetooth device from the list and
follow the onscreen instructions to complete
pairing.
Note:
Make sure your device’s Bluetooth is enabled and discoverable.

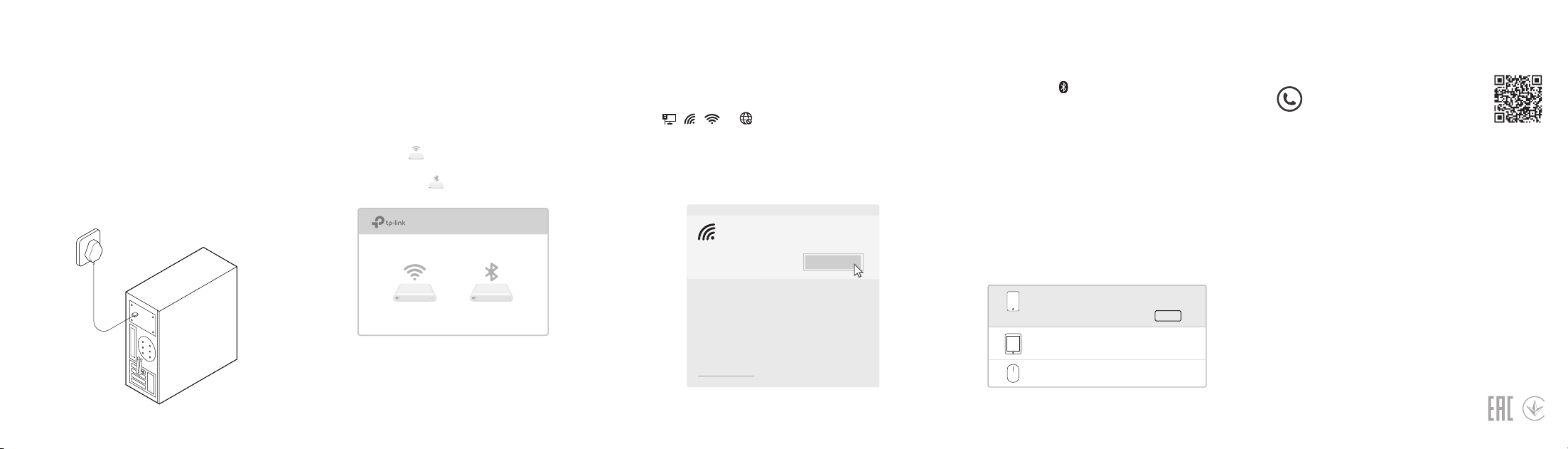

3 Install Drivers
a. Insert the CD and run the Autorun.exe.
f. Replace the case panel, plug in the power
cable and turn on your computer.
b. Select your Wi-Fi network, click Connect, and
enter the password when prompted.
b. Select Add a Bluetooth Device or Add a Device
to scan for available devices.
b. Install the Wi-Fi and Bluetooth drivers.
Tip: You can also check the new release and download the
driver at https://www.tp-link.com/support/download/
Tip:
To maximize performance, make sure the path between
the antenna(s) and your router is clear.
Wi-Fi Bluetooth
① Wi-Fi: Click and follow the onscreen instructions
to complete the Wi-Fi installation.
② Bluetooth: Click and follow the onscreen
instructions to complete the Bluetooth installation.
* Images may dier from your actual product.
Connect
Secured
TP-Link_XXXX
Network settings
Jack’s Pad
Mouse
Pair
Anna’s Phone
a. Right-click the (Bluetooth) icon on the taskbar.
If it's not displayed, turn on Bluetooth in your PC
settings rst.
Support
For technical support, the user
guide and other information, simply
scan the QR code or visit
https://www.tp-link.com/support/
Note:
• If an unknown publisher message pops up, select Ye s to
continue.
• If Windows User Account Control requires admin
credentials, type user name and password of your
Windows administrator account.
TP-Link hereby declares that the device is in compliance
with the essential requirements and other relevant
provisions of directives 2014/53/EU, 2011 /65/EU and (EU)
2015/863.
The original EU Declaration of Conformity may be found at
https://www.tp-link.com/en/support/ce
TP-Link hereby declares that the device is in compliance
with the essential requirements and other relevant
provisions of the Radio Equipment Regulations 2017.
The original UK Declaration of Conformity may be found at
https://www.tp-link.com/support/ukca
