Electrical Enclosure
Product Description
Material: SUS304 / Cold Rolled Steel
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Material：SUS304
Material
：
Cold Rolled Steel
Electrical Enclosure
- 2 -
Warning-To reduce the risk of injury, user must read instructions
manual carefully.
MATTERS NEED ATTENTION
Warning
Enclosure enclosure/Cabinet is only coating but NOT insulated. ONLY a
qualified electrician could deal with the inside circuits and electrical parts.
Warning Labels or other signs could be posted according to relative laws or
codes if necessary.
DO NOT Permit children to play with this item.
The Electrical Enclosure enclosure could be waterproof ONLY all the holes
have been sealed by a soft gasket or plug. For the holes cut by customer,
please use an IP66 Grade Gasket or equivalent parts to keep waterproof.
This item MUST BE GROUNDED. Please refer to the "Body
installation-Assembly the earth wire".
Tips
Any damage on the finish coating could lead to rust, and tiny surface
damage could be repaired by re-painting. But it is not recommended when
painting on large scale damages.
The working temperature should be lower than 80°C, otherwise, it could
lead to damage to the painting surface and the failure of sealing.
- 3 -
FEATURES OF PRODUCTS
PU foaming sealing strip ensures a protection grade of IP66 to
enclosure body.
Bosses of various types and sizes allow easy installation of inlet/outlet
lines.
Galvanized mounting plate can also be used for wiring outside the
enclosure.
Multiple protection grooves are designed at the enclosure opening that
can not only reinforce the structure but also prevent the entry of dirt or
water when the door is opened.
Professional lock system with double-teeth cylinder allows easy
locking/unlocking.
SPECIFICATION DATA
SPECIFICATION DATA
Color
Stainless Steel Color/RAL7035(White Gray)
Body Material
SUS304/Cold Rolled Steel
Inner plate
2.0mm Galvanized Plate
Finish
Powder Coating
Construction
Continuously Welded
Ambient Temperature
-40~+55°C
Gasket Material
Seamless Foam/Nylon(washers or plugs)
Certification
CE ROHS
Ratings
NEMA 4/NEMA 4X
Protection Grade
IP66 IK10
- 4 -
Model
Height*Width*Depth (mm)
Material
SP-B3-252010
250*200*100
SUS304
SP-B3-302015
300*200*150
SP-B3-302515
300*250*150
SP-B3-303020
300*300*200
SP-B3-403015
400*300*150
SP-B3-403020
400*300*200
SP-B3-403025
400*300*250
SP-B3-404020
400*400*200
SP-B3-504020
500*400*200
SP-B3-605020
600*500*200
SPT-202015
200*200*150
Cold Rolled Steel
SPT-252015
250*200*150
SPT-302015
300*200*150
SPT-302020
300*200*200
SPT-302515
300*250*150
SPT-303015
300*300*150
SPT-303020
300*300*200
SPT-403015
400*300*150
SPT-403020
400*300*200
SPT-404015
400*400*150
SPT-404020
400*400*200
SPT-503025
500*300*250
SPT-504015
500*400*150
SPT-504020
500*400*200
SPT-504025
500*400*250
SPT-505015
500*500*150
SPT-604025
600*400*250
SPT-604030
600*400*300
SPT-606020
600*600*200
SPT-606030
600*600*300
SPT-705025
700*500*250
- 5 -
INSTALLATION STEPS

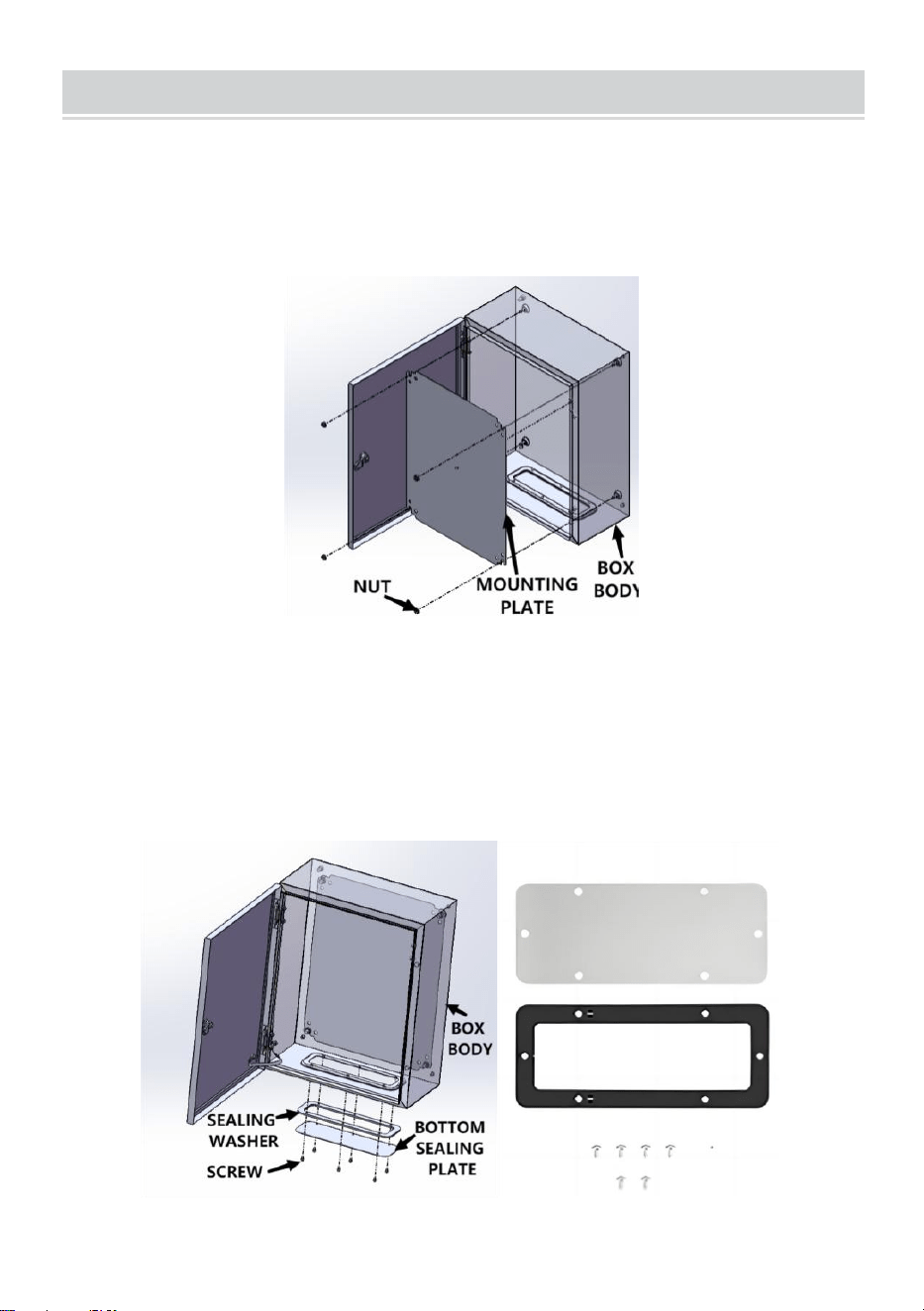

A:Mounting Plate Installation
Adopts 4pcs M8 hex head flange nut assembly mounting plate with
enclosure body. See Figure 1.
Notice:already assembled on enclosure body when ex-factory.
Figure 1
B:Bottom Sealing Plate Installation
Adopts M5*10mm cross self-tapping screws assembly sealing
washer,bottom sealing plate with enclosure body. See Figure 2.
According to your usage requirement to mount it or not.
Figure 2
- 6 -

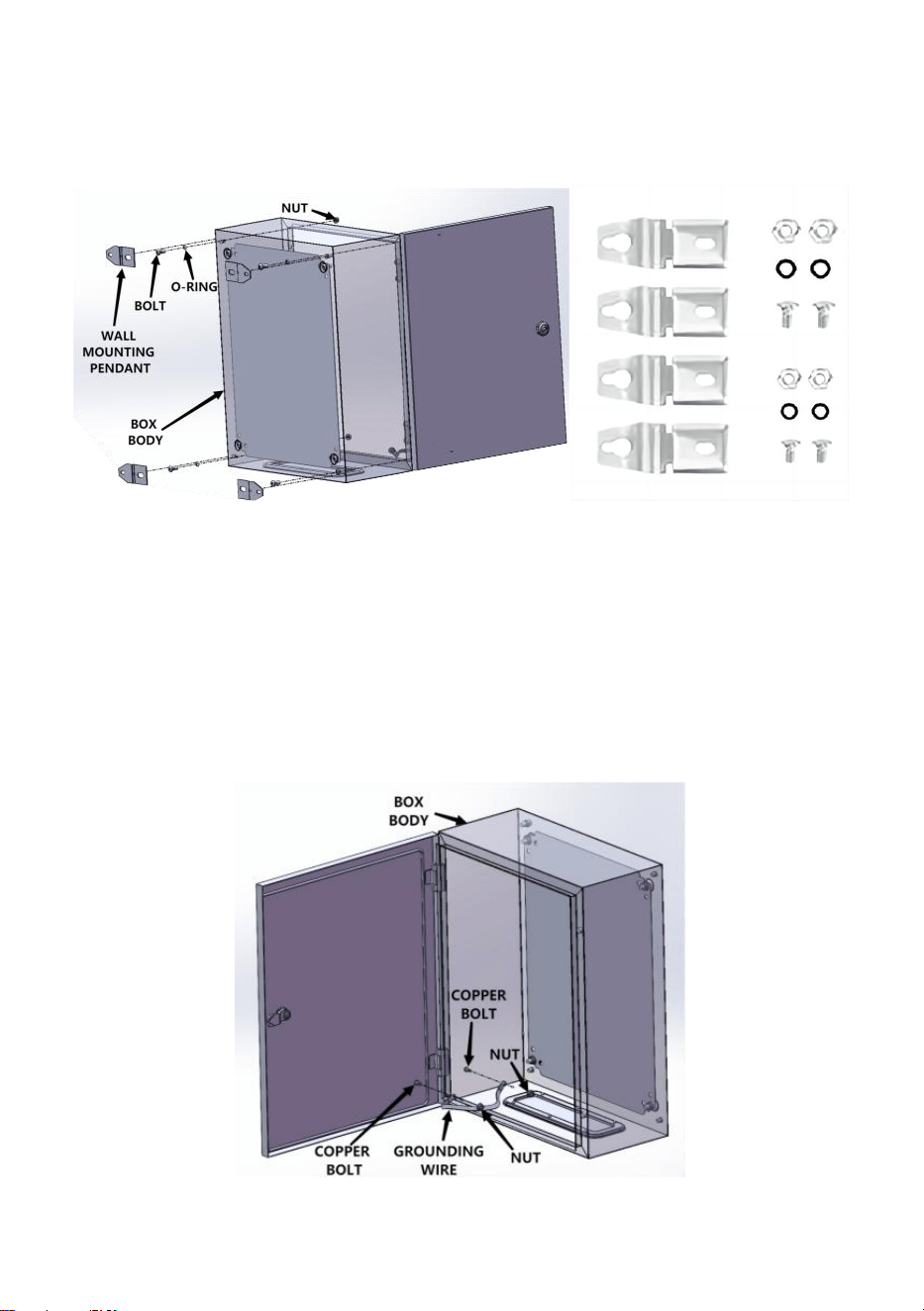

C:Wall Mounting Brackets Installation
Adopts 4pcs M8*16mm hex head bolt,M8 O-ring,M8 nuts mounting 4pcs
wall mounting brackets on the wall.See Figure 3.
Figure 3
D:Grounding Wire Installation
Adopts 2pcs M6 hex head flange nut assembly grounding wire on
M6*12mm copper bolt of enclosure do or and enclosure body.
See Figure 4.
Notice:already assembled on enclosure body when ex-factory.
Figure 4
- 7 -

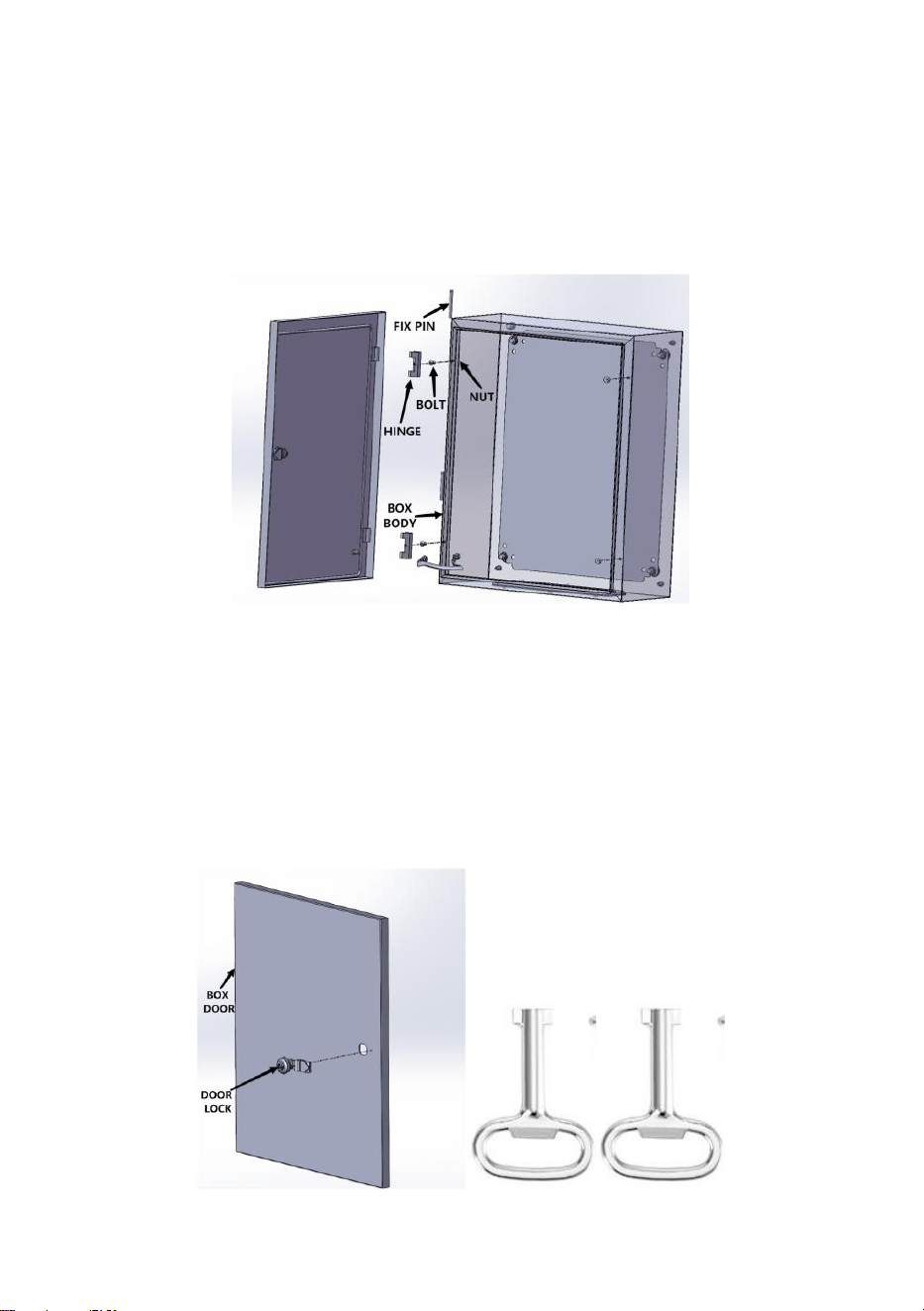

E:Enclosure Door Installation
Adopts 1pcs M6*12mm flat head cross screw,M6 O-ring, M6 hex head
flange nut assembly hinge on enclosure body, Adopts fixed pin assembly
enclosure do or on hinge. See Figure 5.
Notice:Enclosure door already assembled on enclosure body when
ex-factory.
Figure 5
F:Door Lock Installation
Adopts lock nuts assembly enclosure lock on enclosure door.
Adopts matched key to meet enclosure door door opening and closing.
See Figure 6.
Notice:already assembled on enclosure body when ex-factory.
Figure 6
- 8 -
Warning:when locking the enclosure door,please turn lock core 90°
from vertical direction to horizontal direction,make sure to meet best
protection level.
