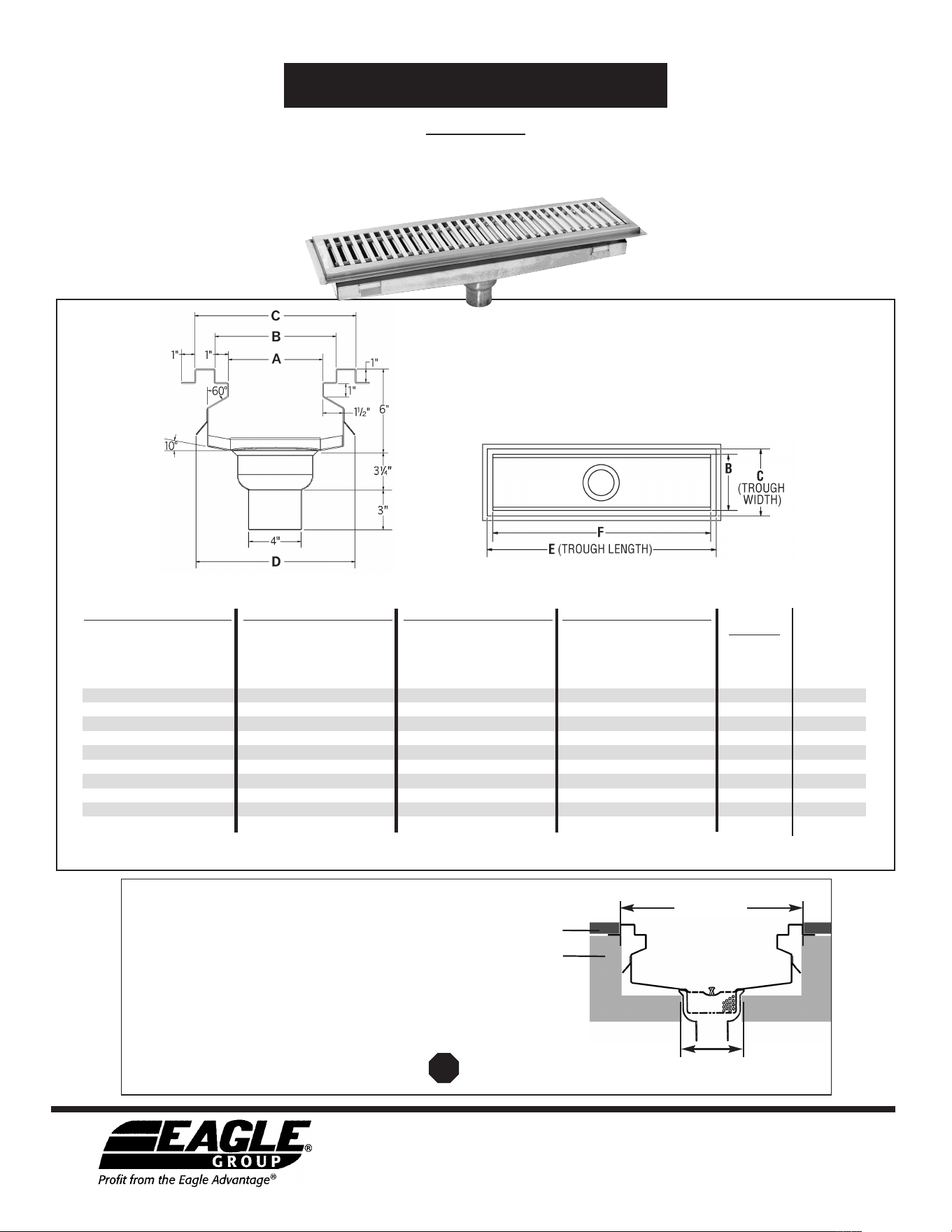

INSTALLATION INSTRUCTIONS
Floor Troughs
CAUTION
i
nsPect contents iMMeDiAteLY AnD FiLe cLAiM With DeLiVerinG cArrier For AnY DAMAGe
.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
You Are resPonsiBLe For DAMAGe to Your unit iF returneD iMProPerLY PAcKeD.
eG10094 revised 01/15
eagle Foodservice equipment, eagle Mhc, specFAB
®
, and retail Display are divisions of eagle Group. ©2015 by the eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
(see chart below for dimensions A through F)
dimension dimension
EF
model # model # model # model # in. mm in. mm
FT-1218-FG n/a n/a n/a 18˝ 457 15˝ 381
FT-1224-FG FT-1524-FG FT-1824-FG FT-2424-FG 24˝ 610 21˝ 533
FT-1230-FG FT-1530-FG FT-1830-FG FT-2430-FG 30˝ 762 27˝ 686
FT-1236-FG FT-1536-FG FT-1836-FG FT-2436-FG 36˝ 914 33˝ 838
FT-1248-FG FT-1548-FG FT-1848-FG FT-2448-FG 48˝ 1219 45˝ 1143
FT-1260-FG FT-1560-FG FT-1860-FG FT-2460-FG 60˝ 1524 57˝ 1448
FT-1272-FG FT-1572-FG FT-1872-FG FT-2472-FG 72˝ 1829 69˝ 1753
FT-1284-FG FT-1584-FG FT-1884-FG FT-2484-FG 84˝ 2134 81˝ 2057
FT-1296-FG FT-1596-FG FT-1896-FG FT-2496-FG 96˝ 2438 93˝ 2362
FT-12120-FG FT-15120-FG FT-18120-FG FT-24120-FG 120˝ 3048 117˝ 2972
18˝ (457mm)-WIDE TROUGHS
dimension A: 13˝ (330mm)
dimension B: 15˝ (381mm)
dimension C: 18˝ (457mm)
dimension D: 15.25˝ (387mm)
24˝ (610mm)-WIDE TROUGHS
dimension A: 19˝ (483mm)
dimension B: 21˝ (533mm)
dimension C: 24˝ (610mm)
dimension D: 21.25˝ (540mm)
TROUGH
LENGTHS
15˝ (381mm)-WIDE TROUGHS
dimension A: 10˝ (254mm)
dimension B: 12˝ (305mm)
dimension C: 15˝ (381mm)
dimension D: 12.25˝ (311mm)
12˝ (305mm)-WIDE TROUGHS
dimension A: 7˝ (178mm)
dimension B: 9˝ (229mm)
dimension C: 12˝ (305mm)
dimension D: 9.25˝ (232mm)
The above chart indicates troughs with fiberglass grating. For troughs with ADA-approved wide “T” Bar fiberglass grating, add suffix “-ADA”. Example: FT1224-FG-ADA
For troughs with stainless steel grating, replace suffix “-FG” with “-SG”. Example: FT1224-SG
SIDE VIEW TOP VIEW
subfloor
5-7/8˝
drain rough-in
trough rough-in
(“Dimension D”)
finished floor
• Size of rough-in hole for trough should be as follows:
Width = “Dimension D”
Length = “Dimension E”
Depth = 4
1
⁄4˝
• Size of rough-in hole for drain should be 5
7
⁄8˝ diameter.
Depth, to accommodate plumbing, may vary.
• Place trough in hole.
• Lay finished floor so that it overlaps outer flange on all
four sides of trough.
• Lay grating inside trough accordingly.
Plumbing Rough-ins
(End)
instruction sheet
#368986

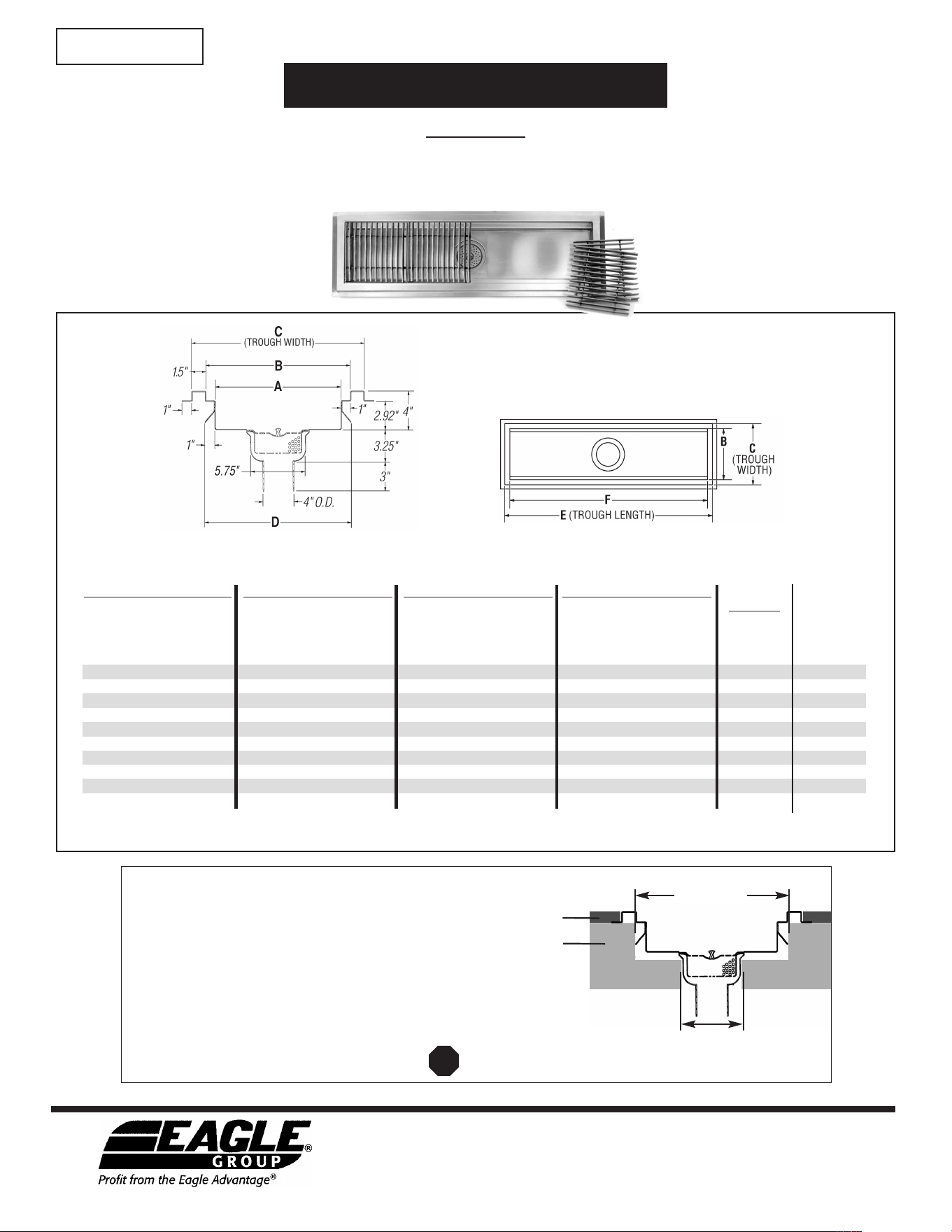

INSTALLATION INSTRUCTIONS
Anti-Splash Floor Troughs
CAUTION
insPect contents iMMeDiAteLY AnD FiLe cLAiM With DeLiVerinG cArrier For AnY DAMAGe.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
You Are resPonsiBLe For DAMAGe to Your unit iF returneD iMProPerLY PAcKeD.
eagle Foodservice equipment, eagle Mhc, specFAB
®
, and retail Display are divisions of eagle Group. ©2015 by the eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
(see chart below for dimensions A through F)
dimension dimension
EF
model # model # model # model # in. mm in. mm
ASFT-1218-FG n/a n/a n/a 18˝ 457 15˝ 381
ASFT-1224-FG ASFT-1524-FG ASFT-1824-FG ASFT-2424-FG 24˝ 610 21˝ 533
ASFT-1230-FG ASFT-1530-FG ASFT-1830-FG ASFT-2430-FG 30˝ 762 27˝ 686
ASFT-1236-FG ASFT-1536-FG ASFT-1836-FG ASFT-2436-FG 36˝ 914 33˝ 838
ASFT-1248-FG ASFT-1548-FG ASFT-1848-FG ASFT-2448-FG 48˝ 1219 45˝ 1143
ASFT-1260-FG ASFT-1560-FG ASFT-1860-FG ASFT-2460-FG 60˝ 1524 57˝ 1448
ASFT-1272-FG ASFT-1572-FG ASFT-1872-FG ASFT-2472-FG 72˝ 1829 69˝ 1753
ASFT-1284-FG ASFT-1584-FG ASFT-1884-FG ASFT-2484-FG 84˝ 2134 81˝ 2057
ASFT-1296-FG ASFT-1596-FG ASFT-1896-FG ASFT-2496-FG 96˝ 2438 93˝ 2362
ASFT-12120-FG ASFT-15120-FG ASFT-18120-FG ASFT-24120-FG 120˝ 3048 117˝ 2972
18˝ (457mm)-WIDE TROUGHS
dimension A: 13˝ (330mm)
dimension B: 15˝ (381mm)
dimension C: 18˝ (457mm)
dimension D: 17.25˝ (438mm)
24˝ (610mm)-WIDE TROUGHS
dimension A: 19˝ (483mm)
dimension B: 21˝ (533mm)
dimension C: 24˝ (610mm)
dimension D: 23.25˝ (591mm)
TROUGH
LENGTHS
15˝ (381mm)-WIDE TROUGHS
dimension A: 10˝ (254mm)
dimension B: 12˝ (305mm)
dimension C: 15˝ (381mm)
dimension D: 14.25˝ (362mm)
12˝ (305mm)-WIDE TROUGHS
dimension A: 7˝ (178mm)
dimension B: 9˝ (229mm)
dimension C: 12˝ (305mm)
dimension D: 11.25˝ (286mm)
The above chart indicates troughs with fiberglass grating. For troughs with ADA-approved wide “T” Bar fiberglass grating, add suffix “-ADA”. Example: ASFT1224-FG-ADA
For troughs with stainless steel grating, replace suffix “-FG” with “-SG”. Example: ASFT1224-SG
TOP VIEW
subfloor
5-7/8˝
drain rough-in
trough rough-in
(“Dimension D”)
finished floor
• Size of rough-in hole for trough should be as follows:
Width = “Dimension D”
Length = “Dimension E”
Depth = 6
1
⁄4˝
• Size of rough-in hole for drain should be 5
7
⁄8˝ diameter.
Depth, to accommodate plumbing, may vary.
• Place trough in hole.
• Lay finished floor so that it overlaps outer flange on all
four sides of trough.
• Lay grating inside trough accordingly.
Plumbing Rough-ins
SIDE VIEW
(End)
