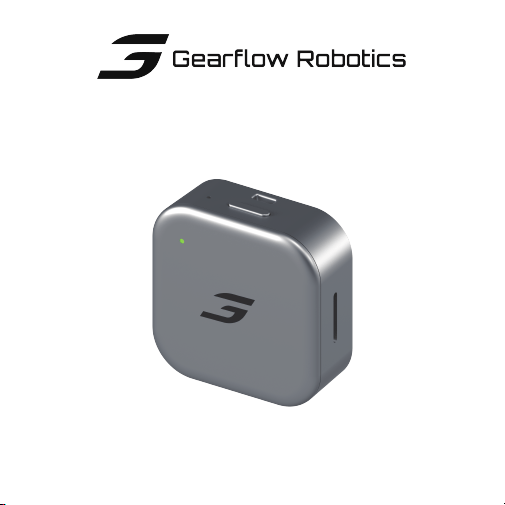

Voice HMI Module User Manual
Manufacturer: Gearflow Robotics Co., Ltd.
Voice input
Power Button
Hold 1s to power on;
Hold 2s to power off;
Short press to wake
device after power-on.
Audio output
Product Diagram
1
Short press: Increase volume;
Hold 4s: Reset Bluetooth pairing
(Auto-connects to nearest device)
Short press: Decrease volume;
Hold 4s: Switch Chinese/English mode
Type-C
Charging Port
Input: 5V 1A
Battery: 3.8V 530mAh 2.014Wh
Charge: 0℃–45℃
Left Button
Right Button
LED Indicator
2
Lanyard Hole
Magnetic Clip
(Accessory)
3
Mounting Options
1.Magnetic — Integrated magnet for metal surfaces
2.Clip-On — Fastens to apparel via magnetic clip
3.Lanyard — Designed for lanyard threading
LED Status
Steady Yellow
Not Registered
Not Connected
Charging
Transparency Mode
Adaptive / Standard Mode
Ultra Mode
Fitness Mode
Fully Charged
Blinking Yellow
Description
LED Indicator
Steady White
Steady Green
Steady Orange
Steady Dark Blue
Blinking Light Blue
Steady Light Blue
4
1: POWERMATE (Wake Up)
2: TRANSPARENCY-MODE
3: ADAPTIVE / STANDARD-MODE
4: ULTRA-MODE
5: FITNESS-MODE
6: CURRENT-BATTERY
7: POWER-UP
8: POWER-DOWN
9: MAXIMUM-ASSISTANCE
10: MINIMUM-ASSISTANCE
11: VOLUME-UP
12: VOLUME-DOWN
13: MAXIMUM-VOLUME
14: MINIMUM-VOLUME
15: CURRENT ASSIST LEVEL
16: CURRENT-ALTITUDE
17: CURRENT-MODE
18: POWER-OFF
19: CHINESE-MODE
20: WHAT-TIME-IS-IT
Voice Commands
5

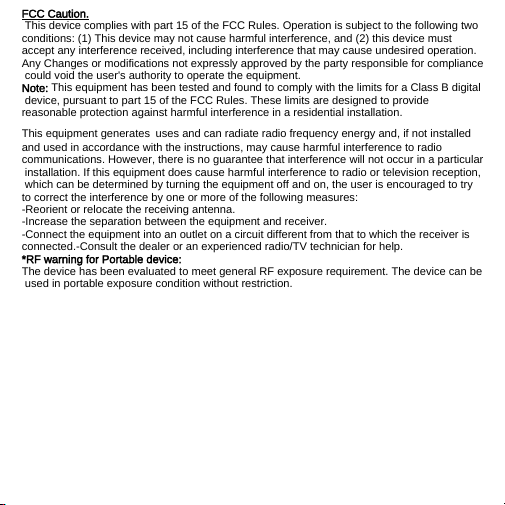

FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.-Consult the dealer or an experienced radio/TV technician for help.
*RF warning for Portable device:
The device has been evaluated to meet general RF exposure requirement. The device can be
used in portable exposure condition without restriction.
