FISH TAPE USER MANUAL
MODEL:LFT01
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the
major top brands and does not necessarily mean to cover all categories of tools offered by
us. You are kindly reminded to verify carefully when you are placing an order with us if you
are actually saving half in comparison with the top major brands.
- 1 -
MODEL:LFT01
★
Picture is for reference only,
please refer to the actual.
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FISH TAPE
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
Product parameter
Model
LFT01
LFT01
LFT01
Fish Tape
Material
Plastics
Flat Steel
Glass Fibre
Fish Tape
Length
125 ft
240 ft
100 ft
Fish Tape Size
Փ4.5 mm
W3.0 mm
Փ4.5 mm
Product Size
385x306x51 mm
385x306x51 mm
385x306x51 mm
Package Size
405x320x60 mm
405x320x60 mm
405x320x60 mm
N.W
1.25 kg
2.70 kg
1.25 kg
G.W
1.65 kg
3.17 kg
1.68 kg
PRODUCT DESCRIPTION
Fish Tape will make you easy to move or thread cables and Re-Wire
through drywall, conduit or insulation. Simply guide the fish tape through
the narrow opening, attach wires to the pulling loop and guide the wires to
the new location smoothly and efficiently. It is housed in a sturdy carrying
Reel case and is made from high-grade carbon steel for performance. An
easy reel out allows you to finish the job faster without straining your body.
• Save a lot of money by doing your own wiring. Even if you've never
picked up an electrical tool in your life, you can safely rough-in wiring by
using the Ram Pro Steel Fish Tape Reel while running cable throughout
the room, and making the electrical connections.
- 3 -
• Easy-to-use installer’s solution for pulling and installing cable in conduit.
• Reel winds up and stores excess fish tape as the wire is pulled.
• Strong pulling strength. Shatter proof.
• Built-in thumb lock holds the wire in place.
• Finger fitting grips around reel fits the hand comfortably.
• Tape is wound directly into housing, no need to snap retaining tapes.
• Greasy lubrication covers steel to help moving properly.
• Exclusive hand trigger assembly helps wind tape tightly as it
automatically wipes off excess lubricant.
• End is tapered in formed Hook so that you can attach a cord or cable
and pull it back through the wall.
• Stiff enough for getting up a wall from the floor below.
• Sturdy enough to support such an application.
• No problem pushing it through several curvy parts of the conduits or
raceway.
• Glides through tricky bends without sticking or snagging.
• Pull wire through a tight-spaced conduit or raceway with the Ideal Turf-
Grip.
• Trigger allows the snake to be forced without stressing the reel and
always easy and smooth pull-out and rewind motion.
- 4 -
METHOD OF APPLICATION
★ Picture is for reference only, please refer to the actual.

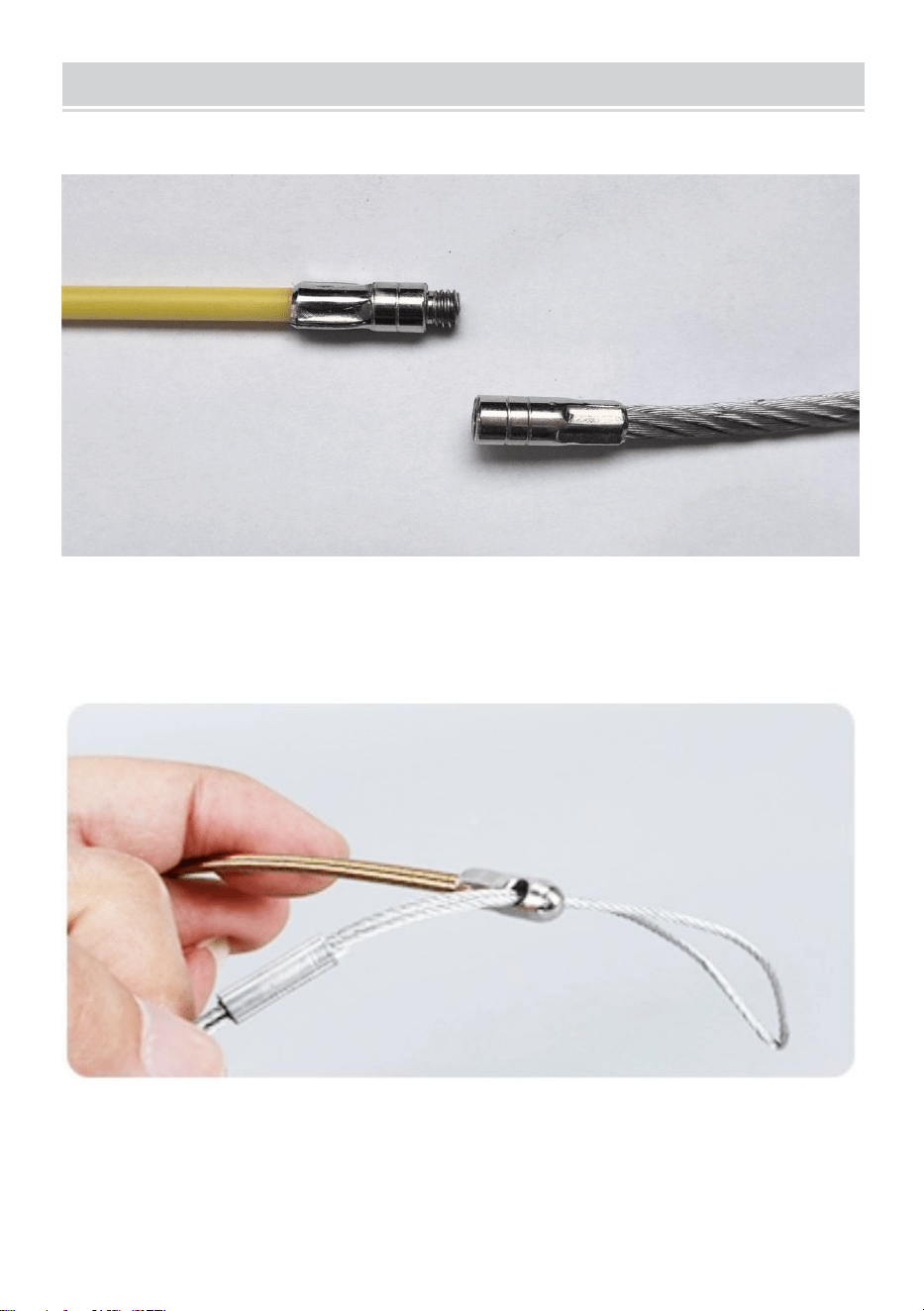

Detachable cable connector for easy use.
Pass the noose through the retractor connector.
- 5 -

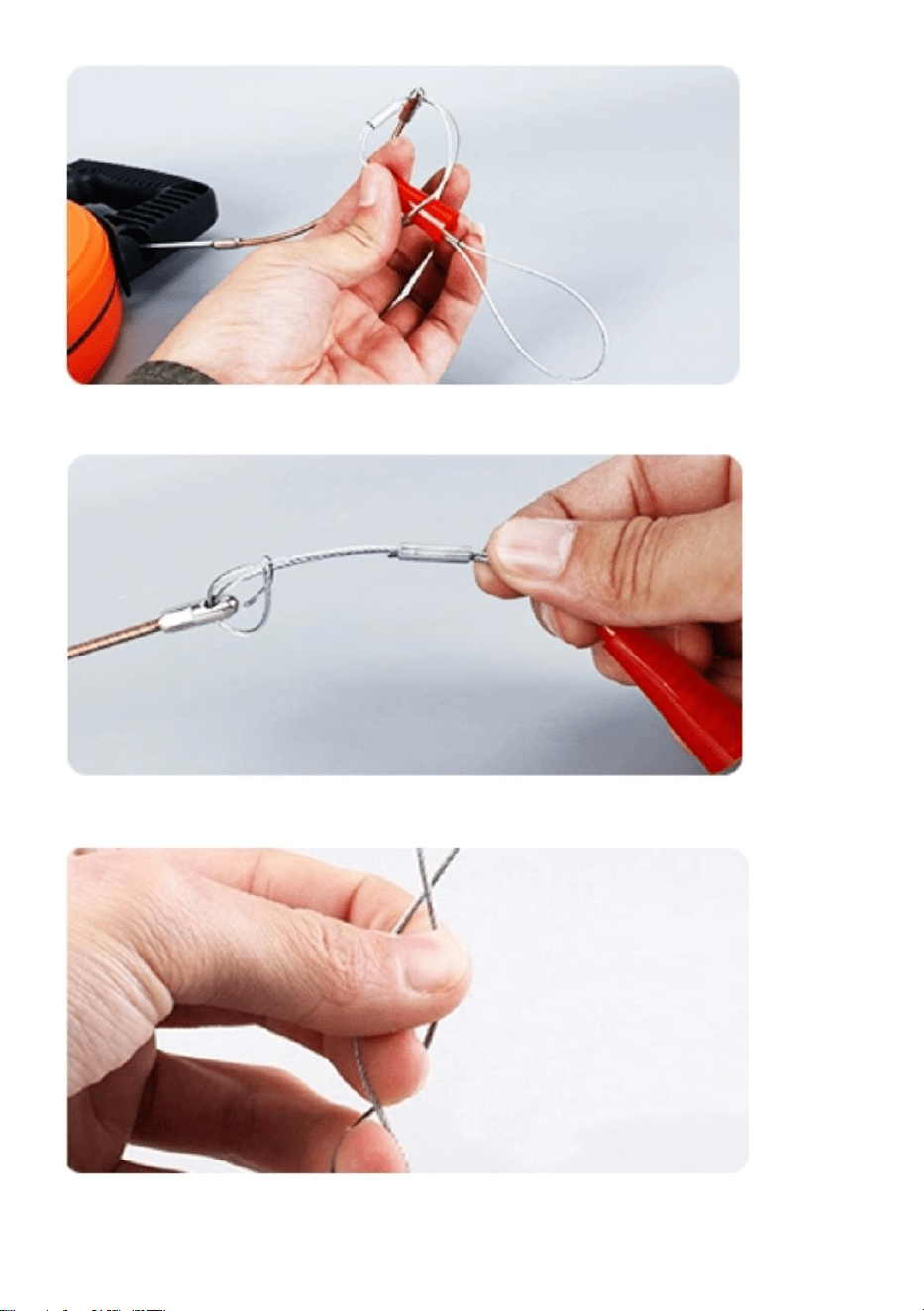

Loop the noose into the stringer.
Stretch the thread stringer.
Wrap the noose in the shape of the number eight.
- 6 -

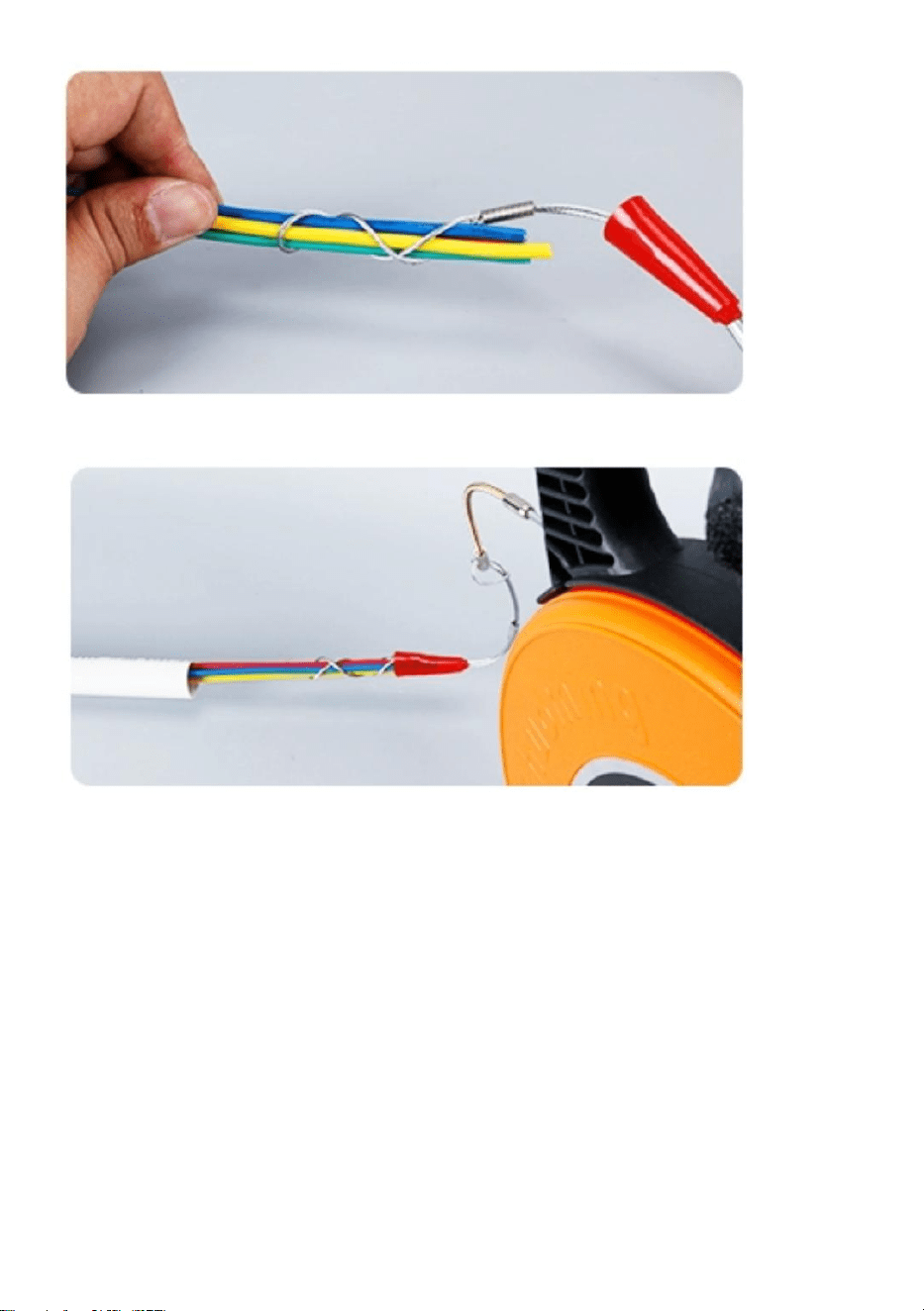

Thread the required wire through the middle of the noose.
After the wire is fixed, the connecting head is rotated and tightened, and
then the wire can be pulled.
Tips: The above method is for reference only, specifically, please refer to
the actual use scenario.
