Segway Navimow Robotic Lawn Mower GPS Navigation User Manual

User Manual

260129-A

Navimow i2 LiDAR

Table of Contents

1. Safety Instructions

1.1 Safety Warnings

1.2 Symbols and Decals

2. Product Overview

2.1 Inside the Box

2.2 Parts and Functions

2.3 Speciﬁcations

2.4 Accessories

3. Installation

3.1 Before You Start

3.2 Activate the Mower

3.3 Assemble the Charging Station

3.4 Update Navimow OS

4. Operation

4.1 Create Map

4.2 Start Mowing

4.3 Basic Functions

4.4 Safety Features

4.5 Instructions for Apple Find My

4.6 Advanced Features

5. Maintenance

5.1 Cleaning

5.2 Replace Blades

5.3 Transportation

5.4 Battery and Power Supply

5.5 Storage and Restorage

6. Warranty and Compliance

6.1 Sensors and Interfaces

6.2 Limited Warranty

6.3 Certiﬁcations

7. Contact Us

8. Trademark and Disclaimer

Original Instructions

Welcome

Thank you for choosing Navimow i2 LiDAR!

Navimow i2 LiDAR is powered by AI dual fusion system, combining

high-res LiDAR and vision for steady performance even in complex

yards. It can auto-create boundaries, and allows real-scene map

editing. Relax and enjoy a perfectly cut lawn while Navimow takes

care of the rest.

1. Safety Instructions

1.1 Safety Warnings

IMPORTANT

READ CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

1) Be sure to install and operate the Navimow (referred to as the mower in the manual) and the charging station according to

the instructions. Go to navimow.com for the complete User Manual and the latest user materials.

2) This product is for both consumer and commercial use. The user assumes full responsibility for determining its suitability

for their speciﬁc needs. By using this product, you acknowledge that it is your responsibility to ensure the use of product

complies with any applicable laws, regulations, and standards. Using the mower for purposes other than mowing can bring

serious injury. To avoid risks of injuries, please read and understand all the warnings and cautions. Please understand that

you can reduce the risk by following the instructions and warnings in this manual, but you cannot eliminate all the risks.

The operator or user is responsible for accidents or hazards occurring to other people on their property.

3) Navimow has many built-in safety sensors, however, safety risks still exist. Set a mowing time when there are no people or

pets on the lawn. Inform the neighbors about the risks for accidents or hazards. When using the mower on a public lawn, or

when your lawn is open to your neighbor or street, protect or fence the lawn, or put up a warning sign around the working

area that says: WARNING! Automatic lawnmower! Keep away from the machine! Supervise children!

4) DO NOT modify the mower by yourself. Modiﬁcations could interfere with mower operations, result in serious injury and/or

damage, or void the Limited Warranty. Use only Navimow approved parts and accessories.

5) The manufacturer recommends the user to be 18–70 years old. Be sure to get the necessary training before operating the

machine.

WARNING

Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or

people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator.

Before Mowing:

• Regularly check that all parts of the mower can function normally.

• For the best mowing results, it is recommended to mow in dry weather. When mowing in the rain, grass clippings can get

stuck at the bottom of the mower, causing the mower to slip. DO NOT mow in bad weather, such as heavy rain, heavy fog,

thunderstorm or snow.

• Periodically inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign

objects. The Limited Warranty does not cover damages caused by objects left on the lawn.

• To avoid possible damage, keep the operating mower at least 1 m (3 feet) away from sprinkler heads. The mower and

the sprinkler should NOT work simultaneously. Adjust the mowing schedule so that it works at a diﬀerent time from the

sprinkler.

• NEVER allow children to touch the power supply unit, charging station, blades, the battery compartment, or any parts with

gaps such as the wheels.

WARNING

Never operate the machine or its accessories if the guards or shields are damaged, or if the cord is damaged or worn.

When Mowing:

• Keep away from the rotating blades! DO NOT put hands or feet under or near the rotating blades.

• Watch out for throwing objects! Keep a safe distance from the mower when operating.

• DO NOT leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.

• DO NOT reach beyond the capabilities of the mower. While remotely controlling the mower and its accessories, keep your

balance, watch your steps, walk but never run. Walk, never run while operating the machine or its accessories.

WARNING

• DO NOT allow children to be in the vicinity or play with the machine when it is operating.

• DO NOT lift the mower in operation. DO NOT ride on the mower.

• DO NOT mow on areas with slopes steeper than the maximum incline inside the working area (45%/24°), as well as the

boundary (25%/14°).

• If the mower makes an abnormal sound or signals an alarm, press the STOP button immediately.

•

If there are abnormal vibrations, turn oﬀ the mower, place it on level ground for about 30 seconds and then restart. If the

issue persists, contact authorized after-sales service.

• DO NOT touch moving hazardous parts before they have come to a complete stop.

Safe Usage:

• DO NOT operate or charge the mower outside the temperature limits: 0–40°C (32–104°F), because low/high temperatures

can decrease mower performance and even lead to accidents.

• DO NOT place anything on the mower or the charging station.

• It is recommended to conduct regular maintenance of the mower (See Maintenance in the User Manual) by an adult.

• Regularly check the warning devices to ensure they are eﬀective. These devices include the buzzer, the LED light on the

charging station, and the LCD display screen on the mower.

• Before charging, please read How to Charge in User Manual. Improper use may cause electric shock, overheating, or leakage

of corrosive liquid.

• Use only the original battery pack or that of the same model as speciﬁed by Navimow. Each mower contains one battery

pack. Depending on the speciﬁc mower model, the rated capacity of the battery is 7.65 Ah. Contact after-sales service and

have a professional technician to replace the battery pack.

• Do not use non-rechargeable batteries. For the purposes of recharging the battery, only use the detachable supply unit

provided with this appliance. For the United States and Canada: NBW32D002D5N-US (2.5 A).

• DO NOT dismantle or puncture the battery casing. Keep away from metal objects to prevent short circuit. Keep away from

ﬁre, heat and direct sunlight.

• For information about battery and electrical waste, please contact your household waste disposal service, your local or

regional waste management oﬃce, or your point-of-sale.

• When replacing the blades, please be careful and wear protetcive gloves as the blades may cause damage.

• If the cord on the power supply or the extension cable becomes damaged or entangled during use, disconnect the power

supply from the power socket and then untangle. To avoid a hazard, pull the body of the plug rather than the cord when

separating the power supply from the power socket. Contact after-sales service and have a professional technician to repair

or replace the cord.

• When cleaning, inspecting for damage, or checking for abnormalities, the mower must be powered oﬀ, and the charging

station must be unplugged from the power supply.

1.2 Symbols and Decals

Please study the symbols on the product and labels carefully and understand their meaning:

WARNING-Read instruction manual before

operating the machine.

WARNING-Keep a safe distance from

the machine when operating.

WARNING-Do not touch rotating blade.

WARNING-Do not ride on the machine.

WARNING-Operate the disabling device before working on or lifting the machine*.

The disabling device hereby refers to the safety lock. Before lifting or operating the mower, enable the safety lock by selecting

the Safety Lock icon on the mower's screen and press OK.

2. Product Overview

2.1 Inside the Box

If there are missing or defective parts, please contact after-sales service. We recommend retaining the package materials

for future transportation and shipping.

Navimow i2 LiDAR

Quick Start Guide

Important Information

Quick Start GuideImportant Information

× 6 × 6

Spare blades and bolts

Pegs to secure the extension cable

× 7

× 1

× 4

× 1

7m (23ft)

Charging station and the installation kit

Extension cable for the power supplyLow-cutting Kit Power supply adapter

× 1 × 1 × 7

2.2 Parts and Functions

2.2.1 Mower

• Blades: The blades can rotate freely after being attached to the cutting disc. During mowing, they swing outward to cut the

grass. When hitting an obstacle, they fold inward for protection.

• Cutting disc: A circular component for holding the blades.

• Rear wheels: Oﬀ-road wheels for stronger grip and resistance.

• Lifting handle: Use it to lift the mower up when necessary.

Cutting disc

Caster wheels

Blades

Display screen

STOP button

(for emergency stop)

Control panel

Lifting handle

LiDAR sensor

Camera sensor

Ambient light

• Control panel: Use the buttons to start mowing, lock/unlock the mower, send the mower for recharge, and other basic

operations.

• Display screen: Shows the status of the mower and supports setting cutting height, languages, measurement units, and

other functions.�

• Ambient light: Shows diﬀerent status of the mower based on diﬀerent lighting eﬀects.

• Camera sensor: Detects non-grass objects to avoid bumping into them.

• LiDAR sensor: Used for positioning, identifying the surrounding environment, and avoiding obstacles.

• STOP button: Press it to stop the mower for emergency.

• Charging port: Used for charging the mower when it is in contact with the charging station.

Rear wheels

Battery compartment

Charging port

(for charging the mower)

2.2.2 Display and Control

Powering on:

Press OK and hold

for 1 second to

power on the

mower

Charging

Lifted up, tilted,

or turned over

Software update

Blades are about

to rotate

Mapping

Error:

Follow the

instructions via the

app to clear the

error code

Solid blue

Flashing red

Solid red

Pulsing white

Flashing white

Solid blue

Pulsing green:

Charging is in

progress

Solid green:

Fully charged

Operation Display screen Lights on the mower Operation Display screen Lights on the mower

Send the mower

to the charging

station

Safety lock:

Select the Safety

Lock icon and

turn it on

Child lock:

Turn it on via

the app

Solid blue

Safety Lock

conﬁrm.OK

conﬁrm.

1 2 3 4

2.2.3 PIN Code

When the mower is locked, you can unlock it by entering the PIN code you set. Press < to decrease number and > to increase.

Press Back to delete and OK to conﬁrm.

40%

Charging

Error 6108

Safety Lock

2.3 Speciﬁcations

Basic

Information

i215LiDAR

Dimensions:

Length × Width × Height

Net Weight (Battery Included)

Recommended Mowing Area

Typical Mowing Time

Per Full Charge[1]

Area Capacity per Hour

Mower

Parameters

Noise

Emissions[2]

Working

Conditions

Blade Motor

Battery Pack

Power

Supply

Charging

Station

Cutting Width

Cutting Height

Charging Time

Measured Sound Power Level LWA

Sound Power Uncertainties KWA

Sound Pressure Level LpA

Sound Pressure Uncertainties KpA

Working Temperature

Storage Temperature

IP Rating

Max. Incline Inside Working Area

Max. Incline at Boundary

Rated Speed

Battery Type

Nominal Voltage

Nominal Capacity/Energy

Input Voltage

Output Voltage

Output Current

Cable Length

Input Voltage

Input Current

Output Voltage

Output Current

Indicator

25 x 17.6 x 11.3 in

32.41 lbs

About 0.37 acre

About 160 min

4585 ft²

8.66 in

2–4 in

About 130 min

59 dB(A)

3 dB(A)

51 dB(A)

3 dB(A)

0–40°C (32–104°F); 10–35°C (50–95°F) recommended

-20–50°C (-4–122°F); 10–35°C (50–95°F) recommended

IP66 for mower body and charging station

IP67 for power supply

45%/24°

25%/14°

2500/min

Lithium-ion battery

21.6 V DC

7.65 Ah / 165 Wh

100–240 V AC

32 V DC

2.5 A

26.9 ft

32 V DC

2.5 A

32 V DC

2.5 A

LED

[1] Tested at a standard cutting speed with a full battery at an ambient temperature of 25°C (77°F) while mowing a fresh-cut

lawn. The product can mow more per hour on open areas than on separated small lawns. When the grass is wet or long, the

working capacity is smaller. The ﬂatter the lawn surface, the larger the working capacity.

[2] The noise emission declarations conform to EN 50636-2-107.

2.4 Accessories (Sold Separately)

2.4.1 Navimow Garage M

The Garage M is fully compatible with the Navimow i2 LiDAR, as it does not block GPS signals or network connectivity. It

provides extra protection against sunshine and rain. The ﬂip-up cover enables easy access to the control panel so you can

operate the mower on the charging station.

2.4.2 Blade Assembly Plus

This set of 12 blades and 15 bolts are used to replace the worn blades and bolts on your mower.

× 12 × 15

Install 4 bolts to attach the garage base to the body.

4 mm 1 4

Install 2 fasteners to attach the ﬂippable cover to the body.

Install 8 screws to the ground to secure the garage.

Slide the cables through the port at the back of the garage.

6 mm 1

2.4.3 MowGate

MowGate is a smart accessory that is installed in an opening of a fence. When the mower approaches the MowGate, it

automatically unlocks itself and locks again after the mower has passed through.

3. Installation

3.1 Before You Start

Charge the mower for the ﬁrst time

A new mower may have a low battery after a long-time storage. Fully charge the mower before the ﬁrst use. Place the mower

in the charging station. Make sure the charging port on the mower and the contact strip on the charging station are in good

contact. Use the cables from the original packaging of your mower. Other i Series models may not be compatible.

3.2 Activate the Mower

Search Again

5 6

2 51

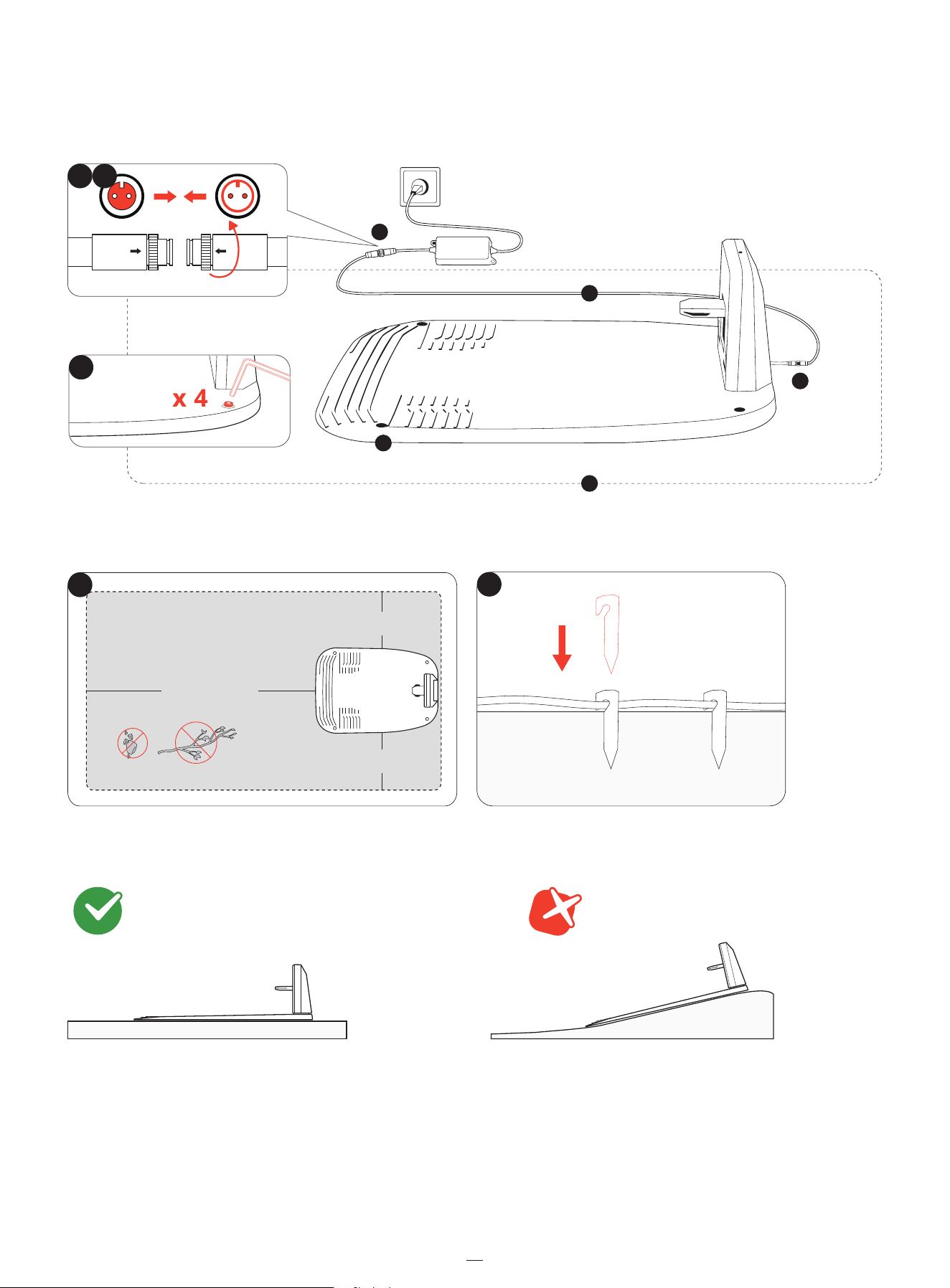

3.3 Assemble the Charging Station

3.4 Update Navimow OS

Go to Home > Settings > My devices > Software update. Update the Navimow OS to the latest version. During this process,

do not power oﬀ the mower or perform other operations.

2m (6.6ft)

0.5m (1.6ft)

4. Operation

4.1 Create Map

4.1.1 Preparation

Clear your lawn

Remove debris, piles of leaves, toys, wires, stones, and other obstacles from your lawn. Make sure children and pets are oﬀ

the lawn. Cut weeds and overgrown grass, keep the grass at the height of 10 cm (3.9 in) or lower.

Get your mower ready

Make sure the mower is powered on and connected to your phone via Bluetooth.

NOTE: If the mower is in lock status, enter the PIN code to unlock it.

4.1.2 Auto Mapping

Choose auto mapping for lawns with a clear, deﬁned perimeter and few obstacles. Avoid auto mapping on lawns with an

unclear perimeter, or lawns nearby pools, cliﬀs, and other risky areas.

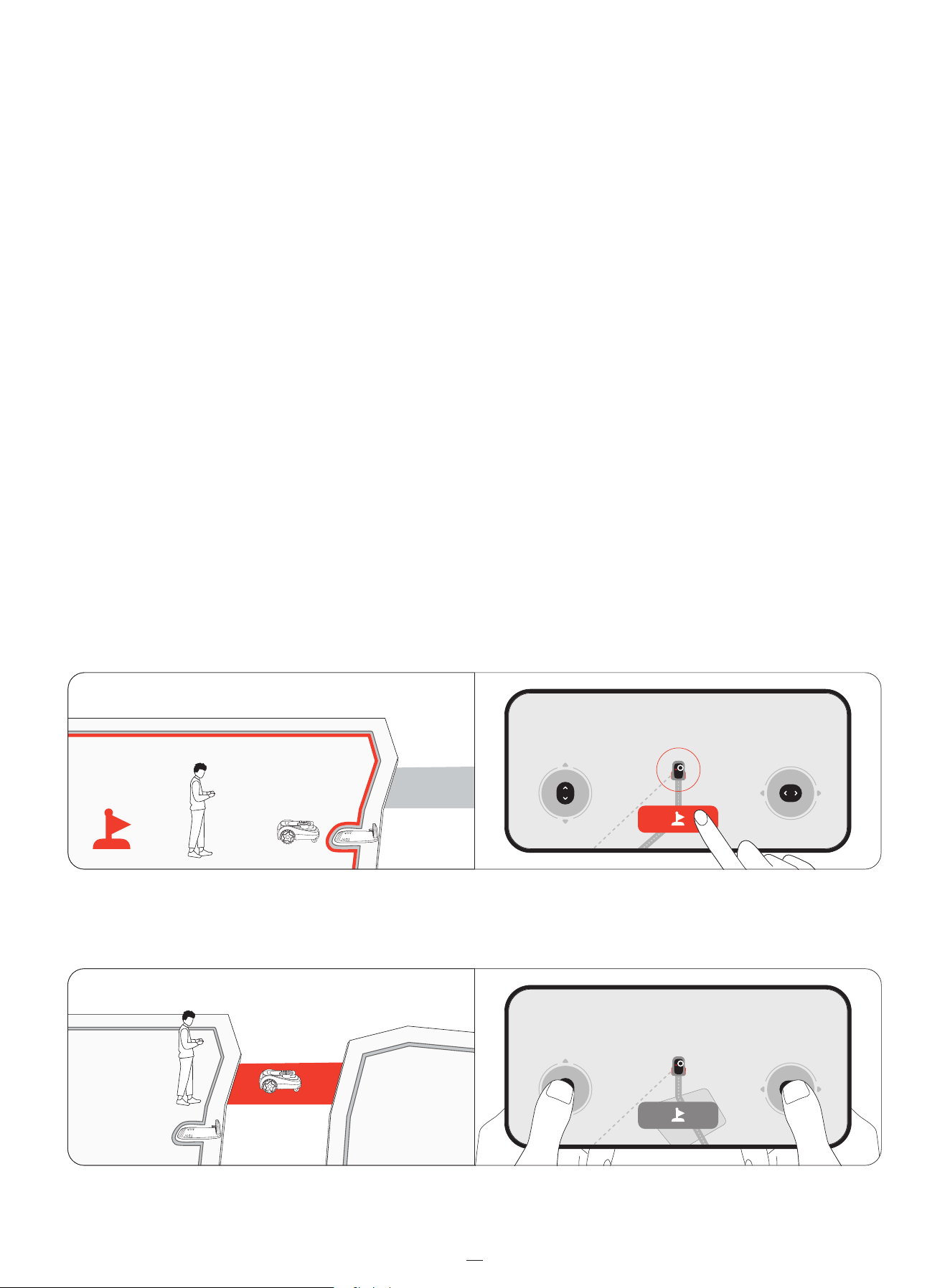

Mark the ﬁrst mowing zone on your lawn

1. Remotely control your mower to the nearest lawn.

2. Tap 'Mark this zone' on the screen when the mower reaches the ﬁrst lawn. Stay within 6 m (19.7 ft) from the mower

when controlling the mower.�

Mark other mowing zones on your lawn (if applicable)

1. Remotely control your mower to the next lawn zone.

2. Tap 'Mark this zone' on the screen when the mower reaches the lawn. By doing this, a channel between zones will be

created automatically. Avoid detours or narrow, uneven paths with obstacles when driving the mower. Recommend to

mark all zones in order for high mapping eﬃciency.

3. Repeat step 1 and 2 to mark more zones.

4. Tap 'Done' when you ﬁnish marking all zones.

4. Operation

4.1 Create Map

4.1.1 Preparation

Clear your lawn

Remove debris, piles of leaves, toys, wires, stones, and other obstacles from your lawn. Make sure children and pets are oﬀ

the lawn. Cut weeds and overgrown grass, keep the grass at the height of 10 cm (3.9 in) or lower.

Get your mower ready

Make sure the mower is powered on and connected to your phone via Bluetooth.

NOTE: If the mower is in lock status, enter the PIN code to unlock it.

4.1.2 Auto Mapping

Choose auto mapping for lawns with a clear, deﬁned perimeter and few obstacles. Avoid auto mapping on lawns with an

unclear perimeter, or lawns nearby pools, cliﬀs, and other risky areas.

Mark the ﬁrst mowing zone on your lawn

1. Remotely control your mower to the nearest lawn.

2. Tap 'Mark this zone' on the screen when the mower reaches the ﬁrst lawn. Stay within 6 m (19.7 ft) from the mower

when controlling the mower.�

Mark other mowing zones on your lawn (if applicable)

1. Remotely control your mower to the next lawn zone.

2. Tap 'Mark this zone' on the screen when the mower reaches the lawn. By doing this, a channel between zones will be

created automatically. Avoid detours or narrow, uneven paths with obstacles when driving the mower. Recommend to

mark all zones in order for high mapping eﬃciency.

3. Repeat step 1 and 2 to mark more zones.

4. Tap 'Done' when you ﬁnish marking all zones.

Auto mapping

The mower automatically maps all zones in reverse order from how they were marked. You don't need to keep the phone

connected to the mower during this process, so feel free to leave it. Once the map is created, you will be notiﬁed, and the

mower will automatically return to the charging station.

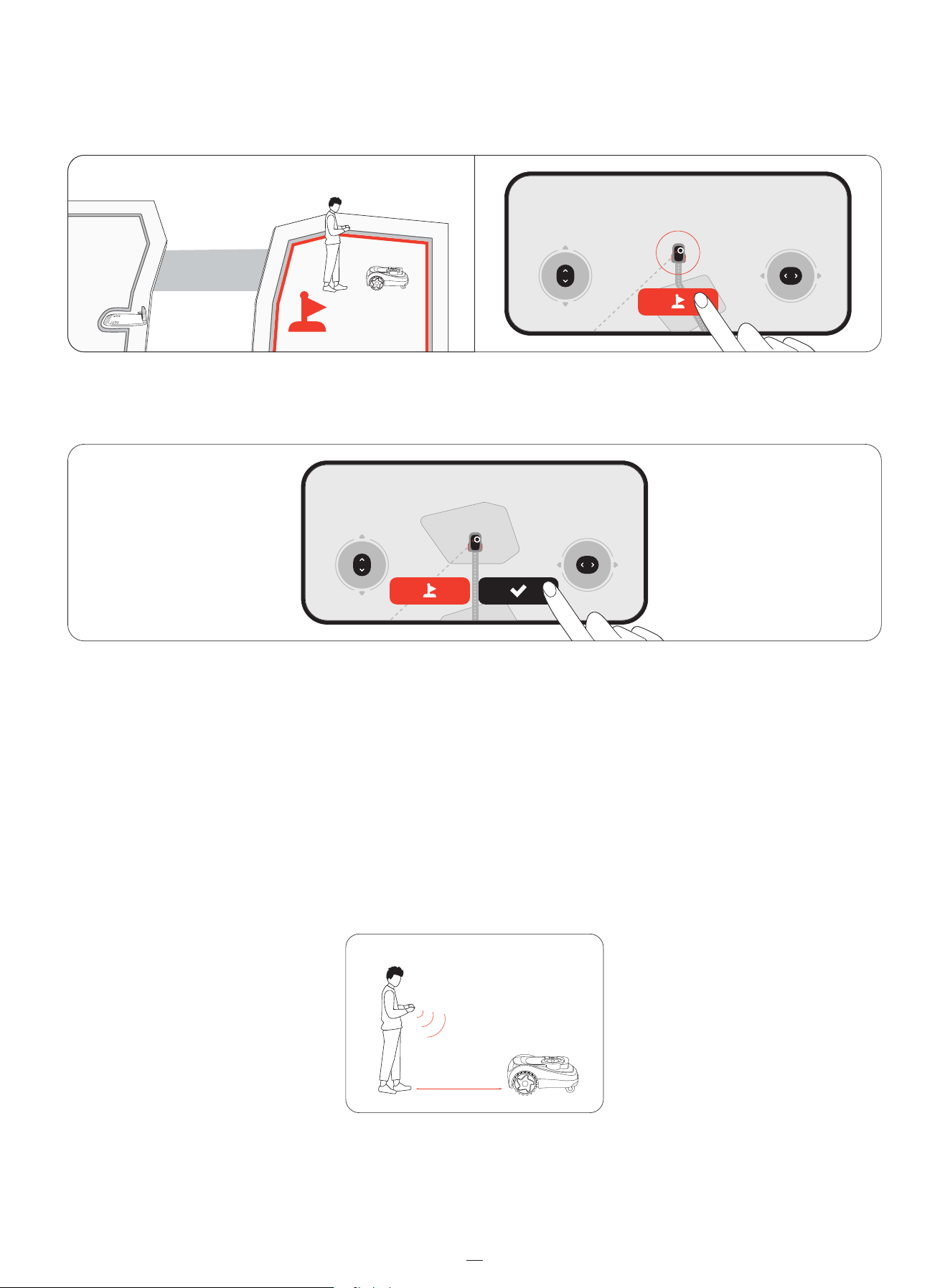

4.1.3 Manual Mapping

For lawns with an unclear perimeter, create a map under your control, guide the mower around the edge of a lawn to create

its boundary. If you need the mower to ride on the edge for a cleaner cut, guide the mower to ride on the edge while mapping.

Find a starting point along the edge of your lawn. Walk behind the mower, stay within 6 m (19.7 ft) from the mower.

≤

6m (19.7ft)

NOTE: Follow a straight line with a smooth turning angle of no less than 90°.

4.1.4 Other Map Elements

Add other map elements to your map via Home > Settings > Map management.

Boundary

A boundary is a virtual line that deﬁnes the edge of a mowing zone. A zone is automatically created after the boundary of a

work area is mapped out. You can continue to create more zones and connect them with channels.

Isolated Zone

If a lawn is not connected to any other lawns, and the mower cannot reach there on its own, this lawn is created as an isolated

zone. To mow in an isolated zone, carry the mower there, select the Mow icon on the mower screen and press the OK button.

To recharge after mowing, carry the mower back to the charging station.

NOTE: Only one-time mowing tasks are supported in isolated zones.

90°

25%

Boundary

Oﬀ-limit Island (BioLife Island)

Channel

VisionFence-oﬀ Zone

Doodle

Icon Map elements

MowGate

Oﬀ-limit Island (BioLife Island)

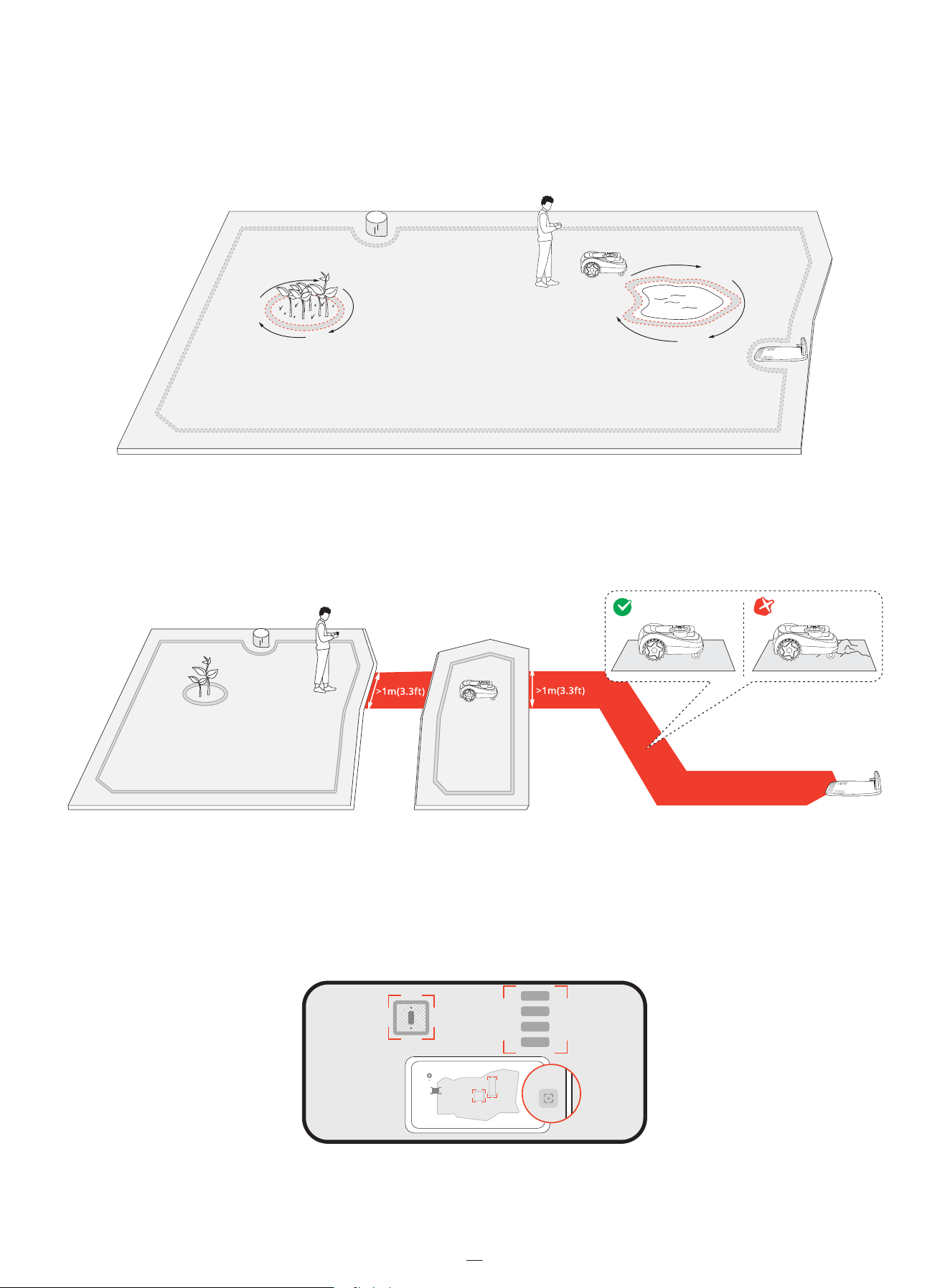

The oﬀ-limit island is an area you want the mower to avoid while mowing, such as ﬂowerbeds, ponds, or sprinkler heads. For

objects temporarily placed in the mowing zones, like trampolines or grills, you can set their location as an oﬀ-limit island and

delete it once the objects are cleared from the lawn. Oﬀ-limit islands are also called BioLife islands. Create BioLife islands

where grass and plants can grow naturally for bees, butterﬂies, and hedgehogs.

Channel

Channels are pathways connecting two separate mowing zones or connecting the edge of a lawn to the charging station.

For auto mapping, channels are automatically created when you guide the mower to go from one zone to another.

NOTE: The channel should be wider than 1 m (3.3 ft).

VisionFence-oﬀ Zone

A VisionFence-oﬀ zone is a place where the mower automatically turns oﬀ the camera sensor and the LiDAR sensor used for

obstacle avoidance. The mower will directly pass through instead of turning away. Set up a VisionFence-oﬀ zone for places

such as stone roads or utility holes, where you need to the mower the pass through for a thorough cut. You can adjust the

size of a VisionFence-oﬀ zone, move it to another place, or delete it.

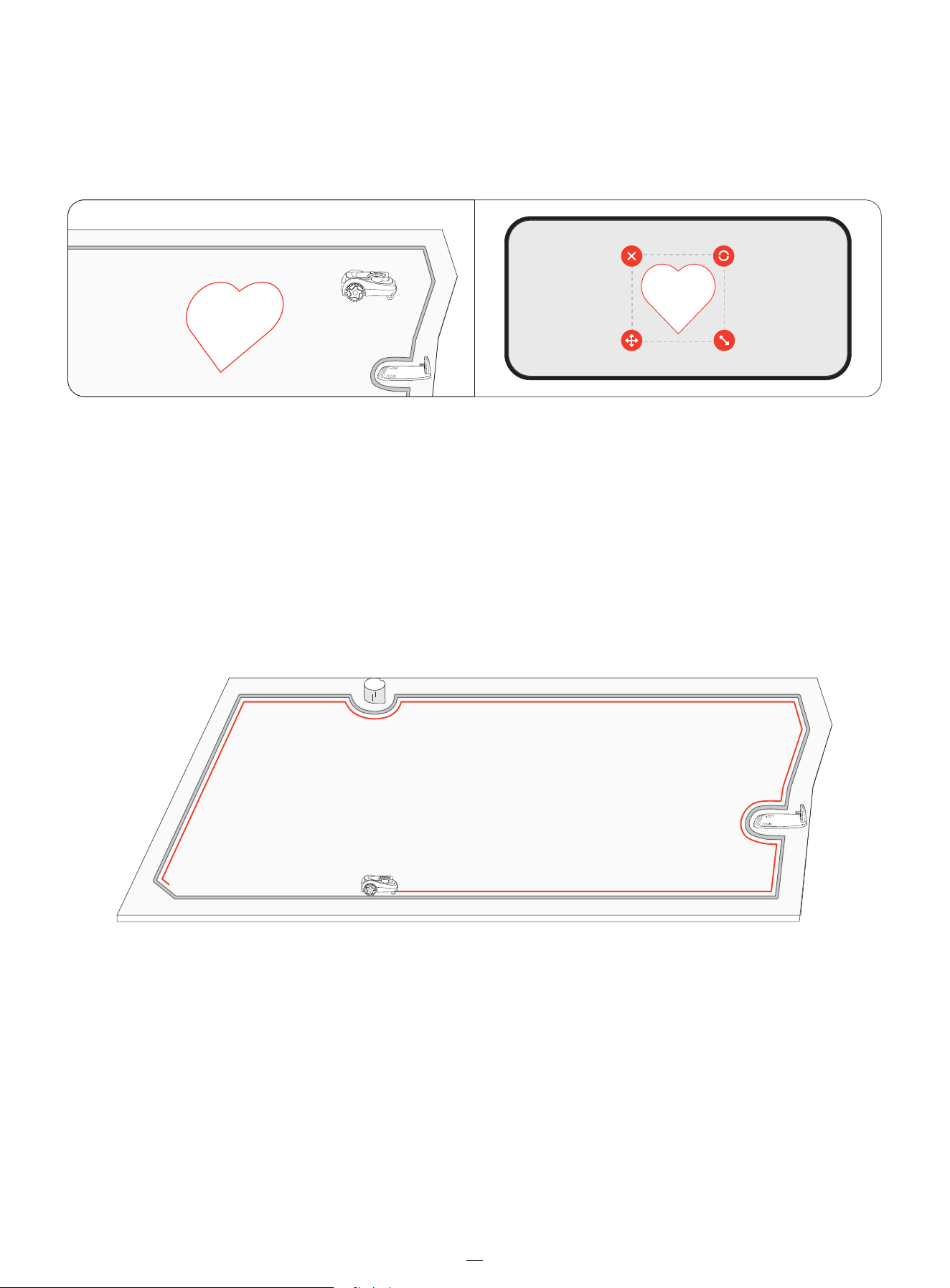

Doodle

A doodle is a fun design or pattern that you can create on your lawn using your mower. By choosing a design (a logo or a

combination of letters and numbers) and a location, the mower will leave that part of the lawn uncut. Once the rest of the

lawn is mowed, the doodle will show. You can decide how many active days the doodle will last. After that, the mower will

mows over it completely.

4.2 Start Mowing

4.2.1 How Does Navimow Mow

Mowing along the boundary and around oﬀ-limit islands

Your mower mows along the boundary when it starts a mowing task, and mows around the oﬀ-limit islands when it mows

inside the lawn. If the surroundings are complex, to avoid risks, you can disable 'Edge Mowing' from Map management >

Edit > Edge Mowing for each zone. Edge Mowing is automatically disabled at night for all zones.

Edge Sense

For a cleaner cut along the edges of your lawn, enable Edge Sense to let the mower mow as close to the edges as possible. Go

to Home > Settings > Lab > Edge Sense in the app for more information.

4.2.2 Manage Multiple Zones

You can create multiple zones for your map, each zone with its own unique name and a customized mowing direction, and

mowing schedule.

Edit boundary

• By drawing: You can edit the boundary by redrawing the lines directly on a real-scene map in the app. This doesn't require

Bluetooth connection to the mower. Go to Home > Settings > Map management > Edit > Adjust by drawing.

• By mower: If you need to make complicate changes to the boundary, you can manually control the mower and its tracks

will become the new boundary. Go to Home > Settings > Map management > Edit > Adjust by mower.

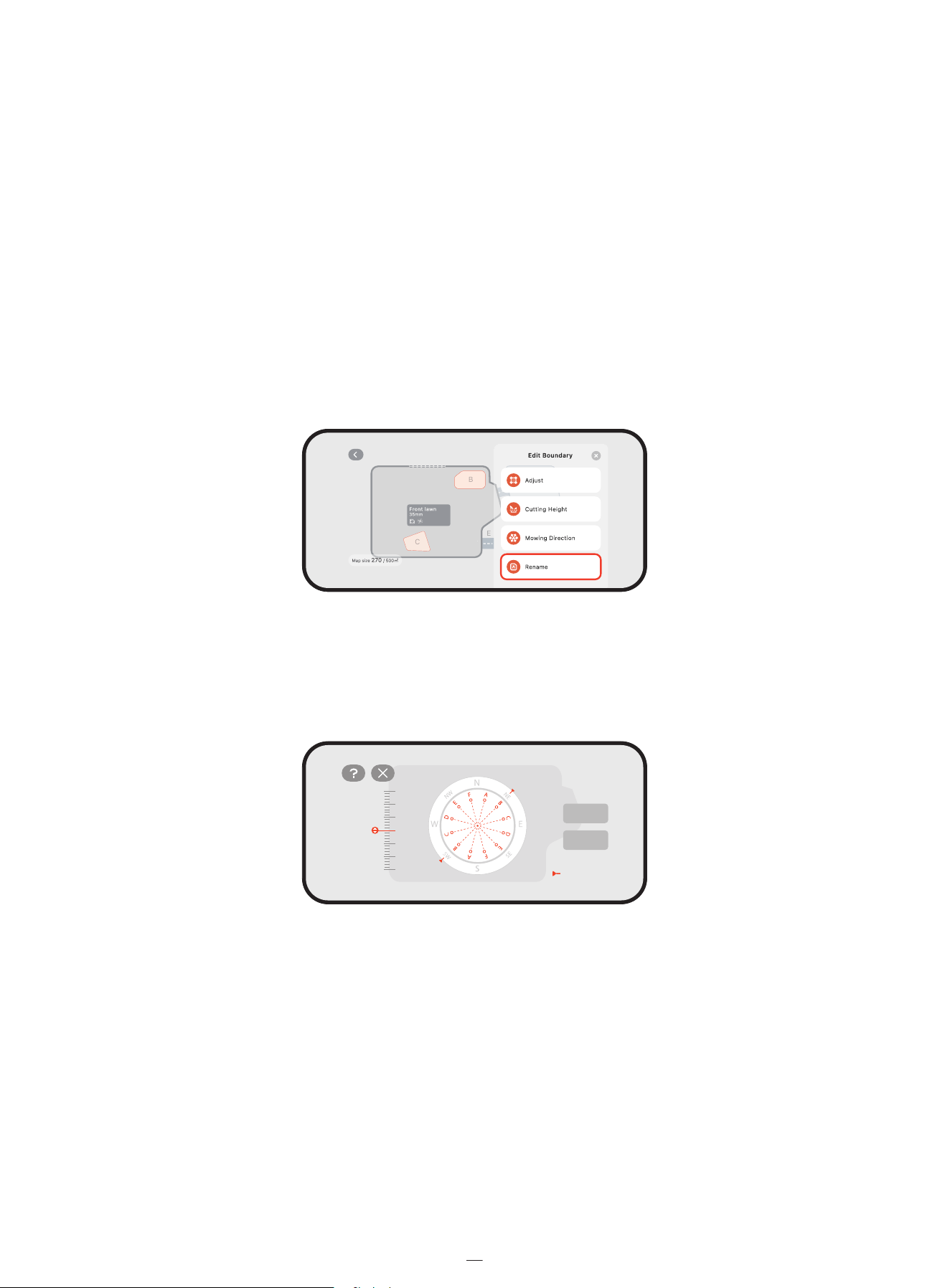

Rename the zones

1. Tap to select a zone.

2. Tap 'Edit' and customize settings for the selected zone.

Tap the 'Rename' icon to set a name for the zone.

Customize mowing directions

The mower can automatically change its mowing direction according to your choices from Map management > Edit >

Mowing direction. You can choose one or more directions so that mower changes the mowing direction every time it

ﬁnishes a round of mowing.

Optimal direction

Default

Done

Create or modify mowing schedules

1. Go to Home > Settings > Mowing schedule.

2. Select a day to set up a schedule.

3. Set the start time and end time of the schedule.

4. Select which zone(s) to apply the schedule.

5. Tap 'Conﬁrm' to save the settings.

Enable or disable mowing schedules

You can disable mowing schedules if you don't want the mower to follow them.

Split and merge zones

To split a zone into smaller ones, manually control the mower to cut a zone into two. Go to the 'Map management' page,

select a zone, and ﬁnd 'Split' in 'Edit'. The new zones will follow the same settings as the old one.

To merge several zones into one, go to the 'Map management' page, select a zone, ﬁnd 'Merge' in 'Edit', choose an adjacent

zone, and merge them. You can only merge two zones at a time. The new zone will follow default settings, and you can

customize them if needed.

0 4 8 12 16 20 24

Mowing schedule

Enable mowing schedule

Save

0 4 8 12 16 20 24

Mowing schedule

Enable mowing schedule

Save

4.3 Basic Functions

4.3.1 App Home Screen

The home screen is where you can view the status of the mower, check work progress, start or stop mowing, and send the

mower home.

4.3.2 Navimow Store

You can browse the Navimow Store and purchase oﬃcial accessories, join Navimow Circle and earn points for discounts.

4.3.3 Mine

From the Mine tab, you can change account settings, and general settings (language, units, and more), contact customer

support for help, and ﬁnd instruction guides.

170 -- --

This week Create a schedule >

75%

MOW NOW

Navimow

Charging

Switch to another mower of yours

View notiﬁcations and mower-related settings

Map management

Map view: switch among Standard, Real Scene, Terrain

Manually control the mower to mow

Bluetooth connectivity. When disconnected, tap to reconnect

Battery level and charging status

Switch to speciﬁc scenarios: Quickly apply speciﬁc settings to your mower for Holiday mode and Sleep mode

Child lock disabled/enabled (shown by default)

Icon Description

Navimow

75%

Safety lock disabled/enabled (shown after you lock the mower via mower buttons)

4.3.4 Other Device Settings

Network Settings

Check the current connection and choose how the mower connects to a network: only through Wi-Fi, only through 4G, or let

the system switch between Wi-Fi and 4G based on connection quality.

Software update

To experience the latest improvements for better user experience, check for updates regularly and update your Navimow

OS.

Customization

Light: Adjust the brightness level of the mower when it works during the night.

Sound: Choose to let the mower speak in human voice or play sound eﬀects.

Language: Choose your preferred language for the mower screen and the voice feedback.

Eco mode: To save energy, the display screen will turn oﬀ after 10 seconds of Bluetooth disconnection, and the mower’s

ambient lights will be turned oﬀ.

Device information

Rename: Give your mower a unique name.

Basic info: Check for the mower model, its serial number, activation date, expiration date for 4G service, warranty status,

and maximum mowing capacity.

Time zone and country: Set your time zone and country/region to ensure mowing schedules can follow local time. If your

region observes Daylight Saving Time, enable DST so the mower can adjust the time automatically.

Device management

Device sharing: Share your mower with other registered Navimow app users. Shared users can manage all settings except

unbinding the owner’s mower. Sharing can be canceled by either party at any time.

Switch/Add device: Add multiple mowers and switch between them.

Unbind device: After unbinding, you can choose to keep or delete your user data.

4.4 Safety Features

4.4.1 Anti-theft

The Anti-theft feature can precisely locate your mower and prevent incidents such as mower theft. You can choose to enable

the alarm when the mower is being lifted and when the mower crosses over the virtual boundary.

NOTE:

1. It can only be used under a 4G network. Make sure your 4G service has not expired.

2. If the Anti-theft feature is enabled, you need to enter PIN code on the mower before powering it oﬀ.

Alarm

Locate

Mower lifted alarm

Geo-fence alarm

Locate my mower

Mower-lifted alarm

This alarm alerts you if your mower is being lifted oﬀ the ground for a few seconds. When enabled, you will hear an alarm

and receive a notiﬁcation on your app. To stop the alarm, enter the PIN code directly on the mower. If you need to carry the

mower to a diﬀerent location, it is recommended to connect your phone via Bluetooth beforehand to prevent false alarms.

Geo-fence alarm

This alarm alerts you if your mower crosses a designated boundary. After you enable this feature and when the mower

crosses the geo-fence, an alarm will be triggered and you will receive a notiﬁcation on your app. To stop the alarm, enter the

PIN code directly on the mower.

When the geo-fence alarm is enabled, you can adjust the geo-fence radius and check Navimow's location on the map in

real-time. If the mower runs out of battery and powers oﬀ on the way back to the charging station, you can ﬁnd where it

stopped via the app.

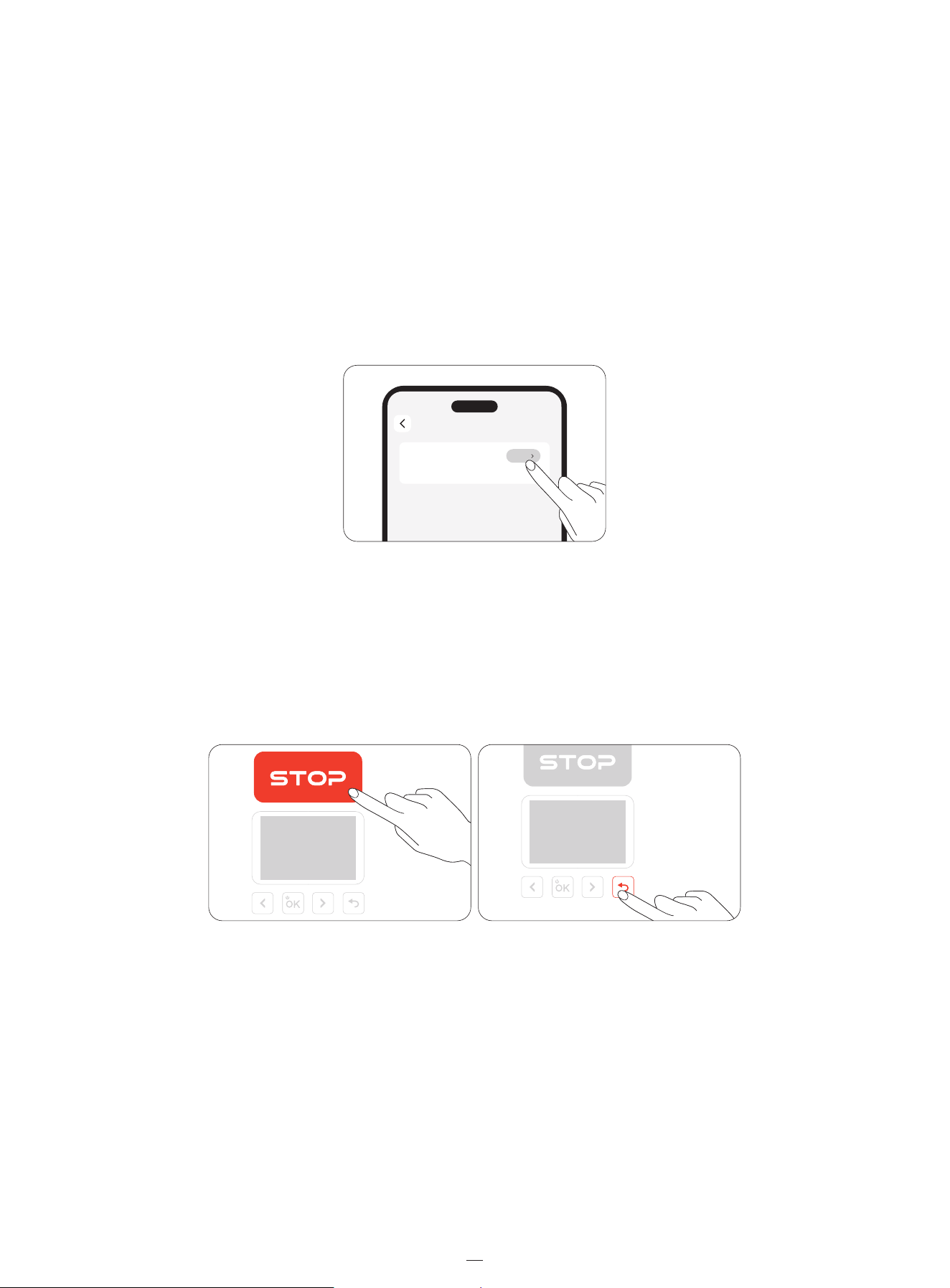

4.4.2 Device Lock

The safety lock and child lock are used to ensure the safety of the mower and prevent unintended operations. To enable

them, go to Home > Settings > Safety features > Device lock. You can also reset the PIN code from Home > Settings >

Safety features > Device lock > Reset PIN code.

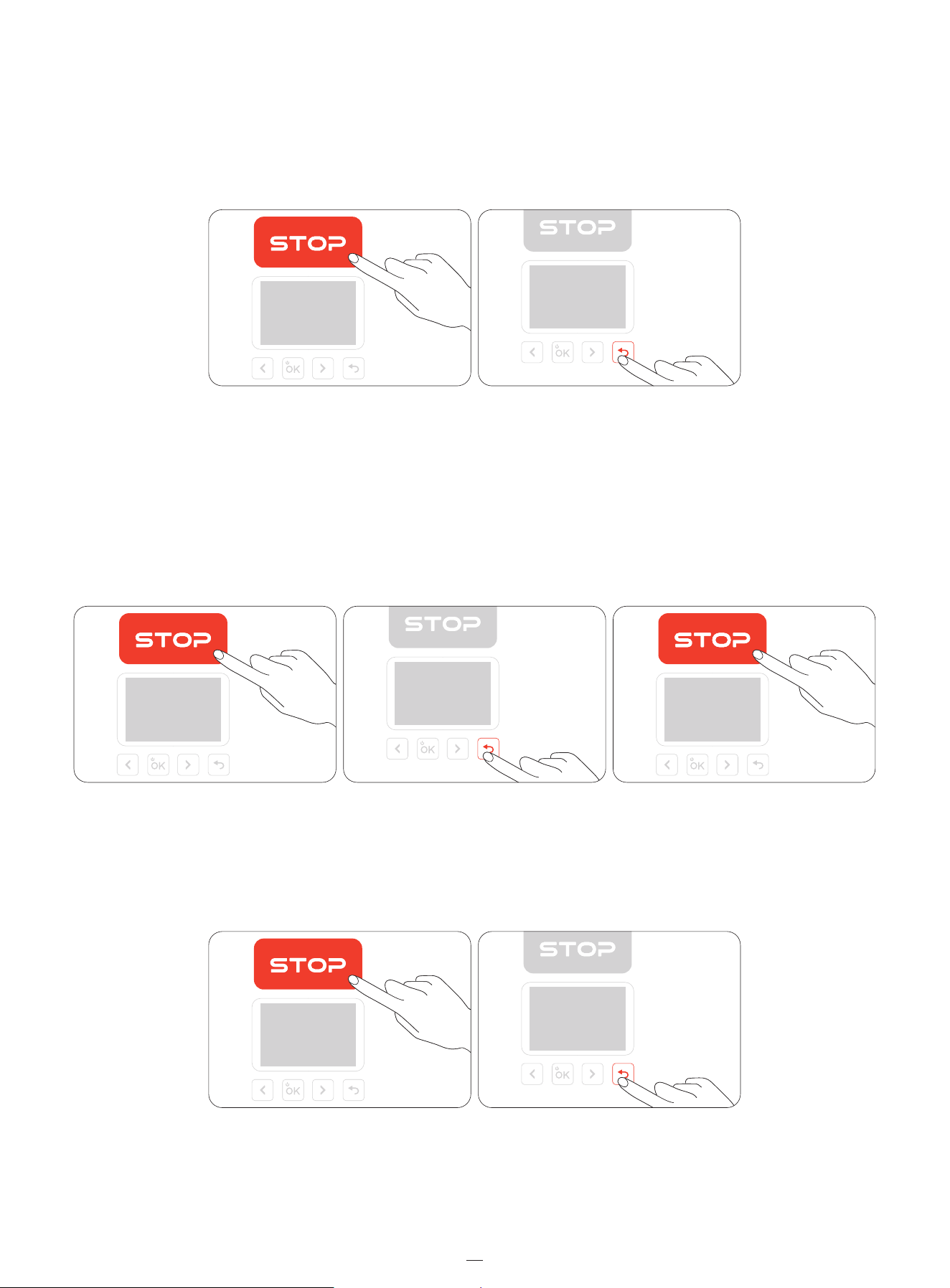

Safety lock

The safety lock prevents accidental activation of the mower when it needs to be carried or cleaned. Select the Safety Lock

icon and press OK to lock the mower. When locked, the mower remains inoperable until you unlocks it with the PIN code.

Child lock

The child lock prevents children or pets from accidentally operating the mower by touching the buttons while it is working or

on standby. By enabling it, the buttons on the mower won't respond to pressing or touching. You can still operate your

mower via the app.

4.4.3 Proximity Unlock

Proximity Unlock saves you the eﬀorts of unlocking the mower with a PIN code. When you approach the mower with your

phone, the screen lights up, the child lock unlocks automatically, and no anti-theft alarms will be triggered. You can operate

the mower with the buttons on it. Once you move away, the mower locks itself again. Enable this feature from Home >

Settings > Safety features > Proximity Unlock.

4.5 Instructions for Apple Find My

Only users of Apple devices need to read this Apple Find My app instruction.

4.5.1 Add Navimow to Find My Network

Option A: Add via Navimow App

1. Open the Navimow app on your phone and connect it to your mower.

2. Go to Settings > Anti-theft > Find My Network > Bind. It will navigate to the Find My app automatically.

3. In Find My app, tap + and select Add Other Item.

4. Choose your mower and follow the on-screen instructions to complete pairing.

Option B: Add via Mower Buttons

1. Launch the Find My app on your iPhone or iPad.

2. Tap + and then Add Other Item.

3. Press the OK button to power on the mower.

4. Press the STOP button ten times, then press the RETURN button once (you will hear a sound each time you press).

5. Enter the PIN code on the mower’s screen (use the same PIN set in the Navimow app).

6. In the Find My app, select your mower and follow the on-screen instructions to complete pairing.

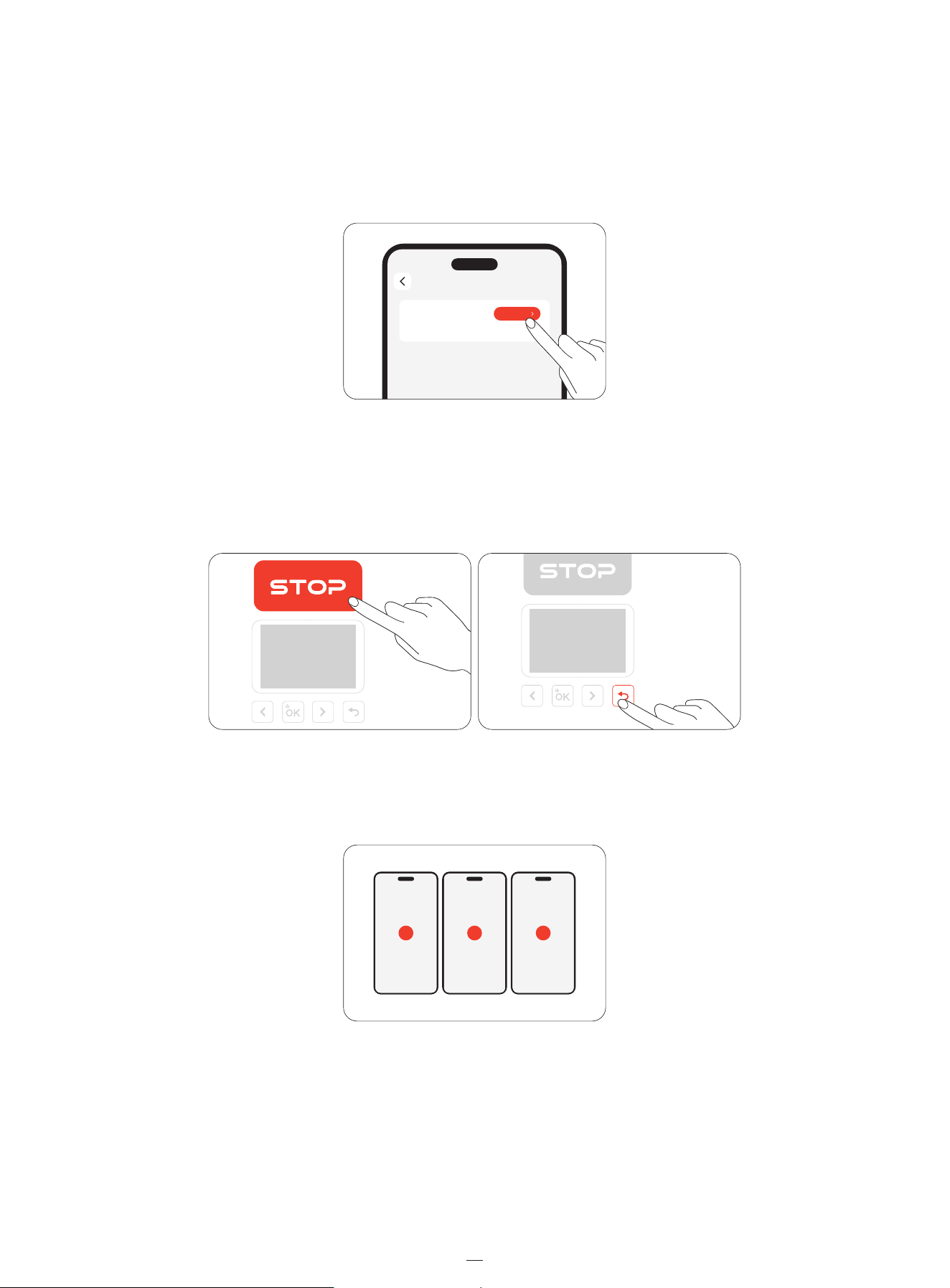

Find My Network

Binding status

Unbound

Bind

Option B

1. Power on the mower.

2. Press the STOP button ten times, then press the RETURN button once (you will hear a sound each time you press).

3. Enter the PIN code on the mower’s screen (use the same PIN set in the Navimow app).

4. Open the Find My app on your iPhone or iPad. Manually remove the mower from the Find My app.

Once removed, you can no longer use Find My to locate that mower.

4.5.3 Max. Number of Connected Devices Allowed

A mower can be connected to a maximum of 3 iOS devices (with the same Apple account).

Find My Network

Binding status

Bound

Unbind

1 2 3

4.5.2 Reset Find My

Option A

1. Open the Navimow app on your phone and connect it to your mower.

2. In the Navimow app, disable Find My from Settings > Anti-theft > Find My Network > Unbind.

3. Manually remove your mower from the Find My app.

4.5.5 Disable Find My Beacon

You can disable Find My Beacon by pressing the buttons in the following order:

1. Press the STOP button three times

2. Press the RETURN button three times

3. Press the STOP button three times

You will hear a sound every time you press those buttons.

4.5.6 Re-enable Find My Beacon

You can re-enable Find My Beacon by pressing the STOP button ﬁve times and press the RETURN button once. You will hear

a sound every time you press those buttons.

4.5.7 Software Update

When a new version is available, the mower will automatically and silently update when it is docked, connected to the

network, and without any upcoming scheduled mowing tasks.

4.5.4 Serial Number Lookup (for speciﬁc use only)

Any iOS user can connect to the mower via Find My app on their Apple devices. To check the mower's SN (Serial Number) in

Find My app, press the STOP button eight times, and then press the RETURN button once. You will hear a sound every time

you press those buttons. After that, the SN will display in the Find My app.

4.5.8 Nearby Status and Separated Status

If the mower has been paired with Find My, when the owner leaves away from the mower or turns oﬀ the Bluetooth of their

mobile device, the mower will automatically enter Nearby status after a short period of time. After a long period of time, the

mower will enter Separated status. When owner gets close to the mower with the mobile device, the Bluetooth of the device

will automatically connect with the mower and the mower will enter Connected status. If the mower is in Separated status,

non-owner can connect to this mower via Find My app, and use the method mentioned above to check the SN. Owners can

still use Find My to ﬁnd the mower.

4.5.9 Disclaimer and Trademark

• Use of the Works with Apple badge means that a product has been designed to work speciﬁcally with the technology

identiﬁed in the badge and has been certiﬁed by the product manufacturer to meet Apple Find My network product

speciﬁcations and requirements. Apple is not responsible for the operation of this device or use of this product or its

compliance with safety and regulatory standards.

• App Store, Apple Logo, Apple, Apple Find My, Apple Watch, Find My, iPhone, iPad, iPadOS, Mac, macOS and watchOS are

trademarks of Apple Inc. IOS is a trademark of Cisco and is used under license.

4.6 Advanced Features

4.6.1 Weather Adaptive

You can set how you want the mower to react under these weather conditions: rain, snow, hot weather, frost, and strong

wind. The mower can react to real-time weather info and adapt its mowing schedules, either stopping the current task or

delaying the upcoming tasks. To ensure a healthy lawn and a longer work life of your mower, go to Home > Settings >

Advanced features > Weather adaptive to customize settings for each type of weather.

4.6.2 VisionFence

Avoid obstacles in channels

You can enable the Channel Obstacle Avoidance switch and the mower can "see" the surroundings and intelligently passes

through by actively avoiding obstacles or other objects that are distinct from the ground. Even when the GPS signal is poor

around the channel, the mower can still manage to pass through with visual detection.

Animal friendly

You can enable 'Animal friendly' mode so the mower will stay far away from pets and small animals in its vicinity by adjusting

its path in real-time. Go to Home > Settings > Advanced features > VisionFence > Animal friendly. This avoids accidental

harm to wildlife such as hedgehogs, and reduces the chance of alarming or disturbing nearby pets.

4.6.3 Smart Home

Use voice commands to control your mower with third-party smart devices: Amazon Alexa, Google Assistant.

Go to Home > Settings > Advanced features > Smart Home and follow the instructions of adding Navimow to a smart

home device.

5. Maintenance

Keep the mower clean and the blades in good condition for better performance and longer service life. Inspect and maintain it

regularly, and replace any damaged or worn parts. Check the used hours and remaining working hours of mower parts from

Home > Settings > Maintenance & Tools > Parts maintenance.

5.1 Cleaning

WARNING

• Before cleaning or turning the mower upside down, power oﬀ the mower.

• DO NOT perform maintenance in sandals or barefoot. Always wear long trousers and work shoes.

Mower's exterior

Use a soft brush or cloth to clean the mower’s exterior. DO NOT use alcohol, gasoline, acetone, or other corrosive or volatile

solvents, as they may damage the surface and internal structure of the your mower.

Camera lens and LiDAR sensor

If the camera lens or the LiDAR sensor surface is stained, use a piece of clean cloth and gently wipe oﬀ dirt or stains.

Charging port

Check the charging port for dirt or grass. Clean it in time to avoid charging issues.

Chassis and cutting disc

You can use the Cleaning Mode from Home > Settings > Maintenance & Tools > Parts maintenance > Chassis and other

parts to let the mower adjust itself (powering oﬀ and lifting up the cutting disc) for cleaning. Or select the Cleaning Mode

icon on the mower screen and press the OK button to enable it. Use a brush or a water hose to clean the dirty parts.

NOTE: DO NOT use a high-pressure washer. High-pressure water can leak into the sealings and damage electronic and

mechanical parts.

Also, make sure that the cutting disc rotates freely and the blades can spin freely.

Front wheels (Caster wheels)

If they get stuck with debris, clean them and lubricate them.

Rear wheels

Remove grass or debris. If mud or dirt builds up, rinse with a water hose.

Charging station

Remove debris and mud, and make sure the contact strip, the power cable and its extension cable are not damaged.

5.2 Replace Blades

For regular use, replace all blades and their screws every 1–2 months to ensure safe and eﬀective cutting.

NOTES:

1. DO NOT reuse old screws. Always use original Navimow blades and the correct screws (Blade model: X3A06E).�

2. DO NOT use an electrical screwdriver to loosen or install the cutting disc.

To replace the blades:

1. Power oﬀ the mower and wear protective gloves.

2. To avoid scratching, place the mower upside-down on a ﬂat and clean surface.

3. Use a cross-tip screwdriver to loosen the screws.

4. Fasten the cutting disc and the new blades with the new screws (Torque: 1 N·m). Make sure the blades can spin freely.

After fastening the blades and screws, the blades will still seem loose. This is normal as the blades need to spin during

mowing.

5.3 Transportation

For long-distance shipping or transportation, use the original packaging to protect your mower. Always power oﬀ the mower

before transporting it. Handle it gently and avoid impacts or heavy pressure. DO NOT carry the mower while it is working.

Carry the mower by the handle, with the cutting disc facing away from your body.

CAUTION: DO NOT lift the mower by the handle while it is still parked in the charging station. Always pull the mower oﬀ the

station before lifting.

5.4 Battery and Power Supply

Battery Temperature Limits

DO NOT use or store the battery at extreme temperatures: above 50°C (122°F) or below –20°C (–4°F). Battery temperature

protection activates when it is below 0°C (32°F) or above 53°C (127°F). The mower will not start mowing. Charging will

resume only when the battery temperature returns to the safe range: 3°C (37°F) or higher, or 49°C (120°F) or lower.

Battery Life

Battery damage caused by overdischarge is not covered by the Limited Warranty. Battery life depends on usage frequency

and total operating hours. If the operating time per full charge becomes signiﬁcantly shorter than usual or mowing

performance declines, contact the after-sales service for battery replacement.

Safety Usage for Power Supply

Connect the mower and/or its peripherals only to a power supply circuit protected by a Residual Current Device (RCD) with a

rated tripping current of 30 mA or less.

Always disconnect the power supply and power oﬀ the mower before:

• Clearing blockages around the power cable

• Cleaning or performing any maintenance on the mower

• Checking for damage after the mower hits an obstacle

Use the power supply only with the original Navimow-approved battery. Using non-original batteries may result in ﬁre,

electric shock, or personal injury. Do not charge the mower if the battery is leaking.

Regular Inspection

Regularly inspect the power cable, plug, enclosure, extension cable, and all related components. If any damage, wear, or

signs of aging are found, stop using the power supply immediately.

WARNING

• DO NOT operate the mower with a damaged power cable. If the cable is damaged, have it replaced by the manufacturer, an

authorized service agent, or qualiﬁed personnel.

• Replace any defective extension cable only with Navimow-approved cables.

• Keep all extension cables away from moving or hazardous parts to prevent damage and potential exposure to live conduc-

tors.

• DO NOT connect or touch damaged cords or extension cables before unplugging them. Damaged parts may expose

electrical components and cause electric shock.

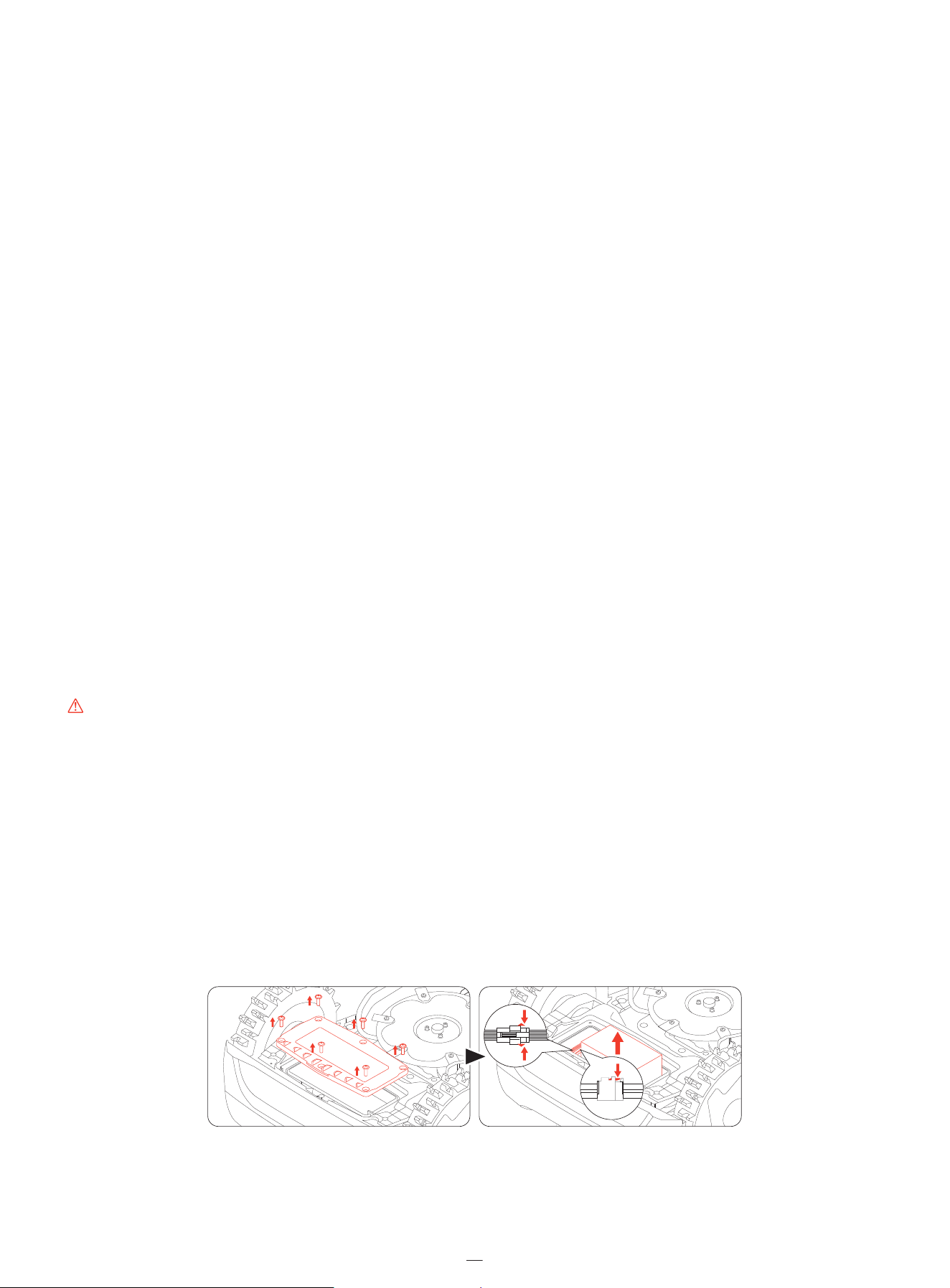

Replace Battery

NOTE: Use the battery model which matches the original battery capacity. Power oﬀ the mower before replacing the battery.

To remove the old battery, loosen the screws and unplug the cords.

To install the new battery, connect the cords and put the battery inside its slot.

NOTE: Make sure the cords are tightly connected.

NOTE: Install all the screws back and secure them tightly.

5.5 Storage and Restorage

For optimal performance and service life, store your mower during the winter or during extended periods of non-use.

Storage Conditions

• Store the mower indoors in a cool, dry place. Avoid direct sunlight and extreme temperatures.

• Keep the mower, charging station, and power supply away from heat sources (such as stoves or radiators) and chemicals

or corrosive substances.

• Protect the power supply from moisture and place it in a well-ventilated area.

Winter Storage

Follow the instructions below to store your mower before winter.

1. Uninstall the Navimow Garage (if already installed) from the charging station and put it away.

2. Charge the mower to at least 85% of battery, and put it in hibernation. Go to Mine > Help and feedback > Winter

storage > Hibernate your mower.

3. Unplug the charging station, and unscrew the ground screws. Mark its location.

4. Remove the blades and clean the mower thoroughly. Refer to 5.1 Cleaning and 5.2 Replace Blades.

5. Pack the mower, the charging station, and all the cables into the box. Store them indoors.

Spring Restorage

Follow the instructions below to restore your mower in spring.

1. Remove all coverings from the mower.

2. Ensure that the charging station is clean and free from dirt.

3. Reconnect the cables that were disconnected during the winter. Check the cables for any damage or breaks and repair as

needed.

4. Finally, power on the mower and test if the mower is bound to the app and works properly.

5. Reinstall the charging station. If it is placed diﬀerently from the previous year, update its location from Home > Settings >

Relocate charging station.

NOTE: Check the blades for sharpness and replace them if necessary. Check and clean the camera lens and the LiDAR sensor

to ensure proper functionality.

6. Warranty and Compliance

6.1 Sensors and Interfaces

The mower is equipped with external sensors that ensure accurate operation, navigation, and safety. All data collected by

these sensors is used strictly for operational purposes and is not shared with third parties.

LiDAR sensor

Used for positioning, sensing sourroundings, and obstacle avoidance.

Front-facing camera sensor

Used for obstacle detection and positioning. The camera sensor does not record or store video, and it is solely used in

real-time to the mower's navigation system.

Lift sensor

Used to detect if the mower is lifted oﬀ the ground and immediately stops rotating the blades to prevent injury. This sensor

does not collect or store any user data.

IMU (Inertial Measurement Unit) sensor

Used to determine the mower's orientation and motion for accurate navigation. It functions internally and does not access

or transmit any personal or location data.

The following network interfaces and services of the device are enabled by default:

• Bluetooth interface and customized Bluetooth service, used for network conﬁguration and equipment control via the App.

• Wi-Fi interface, used for equipment network connection.

• 4G interface, used for equipment network connection.

Product covered by this warranty Limited Warranty Period

i215 3 years

Battery packs and power adapters 2 years

6.2 Limited Warranty

Limited Warranty and Arbitration Agreement

NOTICE: PLEASE READ THIS LIMITED WARRANTY AND ARBITRATION AGREEMENT AND KEEP THIS AGREEMENT FOR FUTURE

REFERENCE. THIS AGREEMENT CONTAINS LIMITED WARRANTY CLAUSES AND ARBITRATION CLAUSES WITH RESPECT TO

NAVIMOW(“PRODUCT”) AND ANY AND ALL TRANSACTION AND CLAIM RELATED TO AND/OR ARISING OUT OF THE PRODUCT.

THIS IS A BINDING LEGAL AGREEMENT (“AGREEMENT”) BETWEEN YOU (EITHER AN INDIVIDUAL OR ENTITY) AND THE

MANUFACTURER WILLAND (BEIJING) TECHNOLOGY CO., LTD ("WILLAND") AND ITS AFFILIATES (INCLUDING BUT NOT

LIMITED TO THEIR PARENT COMPANY, SUBSIDIARY, AFFILIATED COMPANIES, PREDECESSOR, SUBSEQUENT COMPANY,

ADMINISTRATORS, SUCCESSORS, ASSIGNS, OFFICERS, DIRECTORS, MANAGERS, EMPLOYEES, MEMBERS, AND

SHAREHOLDERS) (COLLECTIVELY “NAVIMOW PARTIES”), NAVIMOW DEALERS (AS DEFINED BELOW) AND THEIR AFFILIATES

(COLLECTIVELY “NAVIMOW DEALERS”).

PURCHASING THE PRODUCT, OPENING THE PRODUCT PACKAGING, USING THE PRODUCT, RETAINING THE PRODUCT,

EXPLOITING THE BENEFITS OF THIS AGREEMENT, OR ELECTRONIC ACCEPTANCE OF THIS AGREEMENT SHALL CONSTITUTE

ACCEPTANCE OF THIS AGREEMENT. IN AN EVENT YOU, AS A PARENT(S) OR LEGAL GUARDIAN(S), PURCHASE THIS PRODUCT

ON BEHALF OF OR FOR YOUR CHILDREN, YOU HEREBY CONSENT TO AND APPROVE IN ALL RESPECTS THE TERMS AND

CONDITIONS OF THE AGREEMENT AND AGREE THAT BOTH YOU AND YOUR CHILDREN SHALL BE BOUND BY THIS

AGREEMENT. YOU ACKNOWLEDGE AND AGREE THAT YOU RECEIVE SUFFICIENT NOTICE OF THIS AGREEMENT AND YOU

AGREE TO THIS AGREEMENT.

THE AGREEMENT ONLY AND EXCLUSIVELY APPLIES TO THE PRODUCT DISTRIBUTED AND/OR SOLD BY AND/OR THROUGH

NAVIMOW PARTIES OR NAVIMOW DEALERS IN THE NORTH AMERICAN MARKET. IF YOU ARE NOT A RESIDENT IN THE NORTH

AMERICAN MARKET, PLEASE CONTACT US BEFORE USING THE PRODUCT AS YOU MAY NOT HAVE A WARRANTY OR HAVE A

DIFFERENT WARRANTY THAN THE ONE PROVIDED HEREIN.

THE LIMITED WARRANTY CAN ALSO BE FOUND ONLINE AT: navimow.com

WARNING

USE OF THE PRODUCT BY A PERSON WHO HAS NOT RECEIVED SUFFICIENT TRAINING, DOES NOT POSSESS NECESSARY

EXPERIENCE AND SKILLS, OR AGAINST, IN VIOLATION OF OR NOT ACCORDING TO THE USER MANUAL, INSTRUCTIONS,

GUIDANCE AND/OR SAFETY WARNINGS MAY CAUSE SEVERE BODILY INJURY OR EVEN DEATH OR PROPERTY DAMAGES.

PLEASE READ EACH AND EVERY SECTION OF THIS DOCUMENT CAREFULLY BEFORE USE OF THE PRODUCT. YOU ARE

ENCOURAGED TO CONSULT WITH YOUR PROFESSIONALS AND ADVISORS REGARDING THE INFORMATION PROVIDED

HEREIN, ESPECIALLY THOSE RELATED TO THE SAFETY AND YOUR LEGAL RIGHTS AND DUTIES.

1. Limited Warranty

This Limited Warranty covers only defects of any material or quality of the Product and components when the Product and

components thereof are being used under normal and ordinary conditions. In the event that a defect covered by this

Limited Warranty occurs, Navimow and/or other Navimow Parties in its sole discretion will repair or replace the defective

Product or components thereof in accordance with this Limited Warranty. The applicable Limited Warranty Period for the

Limited Warranty commences on the date of the original purchase of the Product from either of Navimow, Navimow’s

authorized reseller, Navimow’s authorized distributor, or an authorized Dealer (each a “Navimow Dealer” or collectively the

“Navimow Dealers”). This warranty gives you speciﬁc legal rights, and if you are a consumer in the United States of America,

you may also have other rights which vary from State to State.

Blades are seen as disposible and are not covered by this warranty.

ThelaterdatefromthefollowingisconsideredasthestarttimeoftheLimited WarrantyPeriod:

-Dateofthepurchasetime

-Dateofﬁrst-timeactivation

THIS LIMITED WARRANTY HEREIN IS THE ONLY EXPRESS WARRANTY APPLICABLE TO PRODUCT AND ITS COMPONENT

PARTS, ACCESSORIES, AND SERVICE REPAIR. NAVIMOW AND NAVIMOW PARTIES DISCLAIM ALL OTHER EXPRESS

WARRANTIES. NAVIMOW AND OTHER NAVIMOW PARTIES LIMIT THE DURATION AND REMEDIES OF ALL IMPLIED

WARRANTIES, INCLUDING WITHOUT LIMITATION TO THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, WHETHER ARISING BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR

OTHERWISE, TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY. THE FOREGOING LIMITATIONS OR EXCLUSIONS OF

WARRANTY SHALL SUBJECT TO ANY MANDATORY LAW THAT PROHIBITS SUCH EXCLUSION, LIMITATION, RESTRICTION, OR

MODIFICATION OF WARRANTY. FOR ANY WARRANTY THAT MAY APPLY HEREIN ON THE GROUND THAT SUCH WARRANTY IS

MANDATED BY LAW AND CANNOT BE EFFECTIVELY EXCLUDED, RESTRICTED OR MODIFIED BY THE FOREGOING DISCLAIMER,

THE DURATION OF ITS APPLICABILITY SHALL BE THE PERIOD PROVIDED BY THE LIMITED WARRANTY HEREIN OR THAT

REQUIRED BY THE APPLICABLE COUNTRY/STATE LAW, WHICHEVER IS SHORTER. SOME COUNTRIES/STATES DO NOT ALLOW

LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

2. Limited Warranty Service Process

Navimow’s online services are available at navimow.com. During your use of the Product, you believe the Product or its

component is defective and/or does not work correctly. PLEASE IMMEDIATELY STOP USING THE PRODUCT, AND STORE THE

PRODUCT PROPERLY. YOUR CONTINUED USE OF THE PRODUCT UNDER SUCH CIRCUMSTANCE MAY CAUSE SEVERE BODILY

INJURY OR EVEN DEATH TO YOU OR THE OTHERS AND/OR CAUSE PROPERTY DAMAGES. Thereafter, please immediately

contact Navimow at [email protected]. Navimow’s technical support personnel are available to assist

you online or over the phone in diagnosing the defect, and if any, and providing further instructions. In the event the

warranty services are required, please prepare for the following materials, including (i) proof of the original purchase of the

Product from Navimow Dealers, (ii) the Product’s serial number, and (iii) a description of the defect if applicable. Upon the

veriﬁcation of your eligibility for the Limited Warranty protection and/or services, you should provide your name, email

address, mailing address, and contact phone number to us, we will guide you to get our service.

If you want to return the defective unit to service, you shall be responsible for the cost of shipping and risk of loss and

damage that may occur during the shipment from you to Navimow and (ii) from Navimow to you. You must include your

defective Product or component within the original or Navimow-approved packaging, which will be provided at your cost, for

shipment of the Product to Navimow. You shall defend, indemnify, and hold Navimow harmless any loss and/or damages

that may be caused by your improper packaging or shipment of the Product or component to Navimow.

An authorized service provider or Navimow Dealer will inspect your returned Product. If Navimow reasonably determines

that the problem is not covered by the Limited Warranty, Navimow will notify you and inform you of service or replacement

alternatives that are available to you on a fee basis, or Navimow will return your Product to you unrepaired, and in such

instance, you will be responsible for the cost of shipping and insurance for shipment of your Product from Navimow to you.

In an event that any services is not covered by the limited warranty and you reject a paid service recommended by Navimow

Parties and/or Navimow Dealer, you understand and acknowledge that failure to repair and/or services the Product may

increase the risk of fall and/or Product failure which may result in severe property damages, severe bodily injury or death,

and you agree that this is your informed consent to take such risk.

For a return eligible for the warranty protection and/or services, Navimow will serve defective Products with new or

reconditioned parts of the same or similar style at no cost to you for the service. Parts replaced by Navimow will be retained

by and become the property of Navimow. In such a situation, Navimow will pay reasonable return shipping charges for the

return of the Product to you.

3. Limited Warranty Eligibility

3.1 Your service request must be received by Navimow within the Limited Warranty Period as described above, and

Navimow must, receive your Product in accordance with the Limited Warranty Service Process deﬁned above.

3.2 Your Product must be purchased from an authorized Navimow Dealer.

3.3 You must provide the original purchase receipt.

3.4 Your Product must have serial number legible, unobscured, untampered, and unmodiﬁed.

3.5 All tamper-resistant seals must be intact, in place, and unmodiﬁed.

4. Limited Warranty Exclusions

This Limited Warranty describes the service available to you if your product requires warranty service, and you may have

additional protections under your local laws. This Limited Warranty does not cover and excludes damage to your product or

any component thereof caused by:

4.1 Abuse, misuse, recklessness, negligence, or commercial use.

4.2 Improper charging, storage, maintenance, or operation of the Product not in compliance with instructions or limitations

as provided in the user materials.

4.3 Use of the Product not in compliance with applicable laws and regulations.

4.4 Use of the Product by persons with inadequate experience.

4.5 Accident, collision, riding at an unsafe speed on paved roads, riding at an unsafe speed on unpaved roads, riding over

obstacles, amateur racing, professional racing, use in backcountry sports, ﬁre damage, water damage, chemical damage,

use of the Product outside of the Product’s working temperature range, high-pressure water spray, earthquake,

dropping, loading with excessive weights.

4.6 Modiﬁcations to mechanical parts, modiﬁcation of electronic parts, or modiﬁcations to software embedded in the

Product.

4.7 Service, repair, and maintenance by unauthorized providers.

4.8 Cosmetic damages.

4.9 Use of the Product with third-party product, component, or accessory.

4.10 The normal deterioration of wear and tear parts.

4.11 Use of the Product with overdue wear and tear parts.

5. LIABILITY DISCLAIMER AND LIMITATION

5.1 NAVIMOW AND OTHER NAVIMOW PARTIES DO NOT ASSUME OR AUTHORIZE ANYONE TO ASSUME ON ITS BEHALF, ANY

OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT, ITS COMPONENT PARTS, ACCESSORIES,

SERVICE REPAIR, OR THIS LIMITED WARRANTY.

5.2 NAVIMOW PARTIES AND NAVIMOW DEALERS ARE NOT RESPONSIBLE FOR ANY LOSS OF USE OF A PRODUCT, ITS

COMPONENT PARTS, ACCESSORIES, OR FOR ANY INCONVENIENCE OR OTHER LOSS OR DAMAGE WHICH MIGHT BE

CAUSED FROM ANY DEFECT IN A PRODUCT, ITS COMPONENT PARTS, ACCESSORIES, SERVICE REPAIR, OR FOR ANY OTHER

INCIDENTAL OR CONSEQUENTIAL DAMAGES YOU MAY HAVE AS A RESULT OF ANY DEFECT IN A PRODUCT, ITS

COMPONENT PARTS, ACCESSORIES, OR SERVICE REPAIR. SOME COUNTRIES/STATES DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT

APPLY TO YOU TO THE EXTENT THAT IT IS DISALLOWED BY APPLICABLE LAW.

5.3 IN NO EVENT NAVIMOW, OTHER NAVIMOW PARTIES AND NAVIMOW DEALERS’ TOTAL AND AGGREGATE LIABILITY FOR

ALL CLAIMS UNDER ANY AND ALL APPLICABLE LAW OR THEORY, JOINTLY OR SEVERALLY, ARISING OUT OF OR RELATED

TO THE PURCHASE OF THE PRODUCT, USE OF THE PRODUCT, BREACH OF CONTRACT, TORTS (INCLUDING NEGLIGENCE)

OR OTHERWISE, EXCEEDS THE DUTY TO REPAIR OR REPLACE ANY DEFECTIVE PRODUCT, FURTHER SUBJECT TO

NAVIMOW’S SOLE AND EXCLUSIVE DISCRETION. IN NO EVENT SHALL BE NAVIMOW, OTHER NAVIMOW PARTIES AND

NAVIMOW DEALERS BE LIABLE TO ANY PERSON FOR CONSEQUENTIAL, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

PUNITIVE OR ENHANCED DAMAGED ARISING OUT OF, OR RELATING TO, AND/OR IN CONNECTION WITH THE PURCHASE

OF THE PRODUCT, ANY BREACH OF THIS AGREEMENT OR MANUFACTURER’S DUTIES REGARDLESS OF (A) WHETHER

SUCH DAMAGES WERE FORESEEABLE, (B) WHETHER OR NOT NAVIMOW OR OTHER NAVIMOW PARTIES WERE ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES, AND (C) THE LEGAL OR EQUITABLE THEORY (CONTRACT, TORT OR OTHERWISE)

UPON WHICH THE CLAIM IS BASED UNLESS SUCH LIMITATIONS AND EXCLUSIONS ARE PROHIBITED BY APPLICABLE LAW.

THE FOREGOING LIMITATIONS OR EXCLUSIONS APPLY EVEN IF AN AGGRIEVED CUSTOMER OR ANY OTHER PERSON’S

(WHO MIGHT HAVE RIGHT OR CLAIM UNDER THIS AGREEMENT BY OPERATION OF LAW OR EQUITY) REMEDIES UNDER

THIS AGREEMENT FAIL THEIR ESSENTIAL PURPOSE. IN THE EVENT SOME COUNTRIES/STATES DO NOT ALLOW THE

EXCLUSION OR LIMITATION OF CERTAIN OR ALL OF THE FOREGOING DAMAGES, SO TO THE EXTENT THAT SUCH

LIMITATIONS OR EXCLUSIONS ARE NOT ALLOWED BY LAW, THEY MAY NOT APPLY TO YOU.

SOME COUNTRIES/STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES, SO TO THE EXTENT THAT SUCH LIMITATIONS OR EXCLUSIONS ARE NOT ALLOWED BY LAW, THE ABOVE

LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

5.4 To the extent permitted by applicable law, NAVIMOW PARTIES hereby DISCLAIM any liability and thereby shall not be

responsible for any damages, including but not limited to death, bodily injury, or damages to property, arising out of or

related to any conduct (including misconduct), action, inaction, act (including failure to act), omission or negligence by

any authorized or unauthorized dealer, distributor, wholesaler, retailer, service provider or third party that involves the

distribution of Product or the services thereto. To the extent permitted by applicable law, the explicit representations

and warranties, if any, provided herein, shall be the only warranties and representations made by NAVIMOW PARTIES to

YOU, any consumer, and/or end-user. NAVIMOW PARTIES shall not be responsible for any other warranties and/or

representations that may be given and/or provided by another person unless NAVIMOW Parties have in a written form

explicitly authorized such additional warranty and/or representation to be given to consumer or end-user.

6. Claims, Dispute Resolution and Arbitration

THE CLAUSES CONTAINED HEREIN ARE LEGALLY BINDING BETWEEN YOU (EITHER AN INDIVIDUAL OR ENTITY), AND

NAVIMOW, ITS AFFILIATES, NAVIMOW PARTIES AND NAVIMOW DEALERS. THE CLAUSES CONTAINED HEREIN MAY AFFECT

YOUR RIGHTS, AND IT IS YOUR RESPONSIBILITY TO READ THE FOLLOWING SECTIONS. YOU CAN OPT OUT OF THE

AGREEMENT WITHIN 30 CALENDAR DAYS OF THE FIRST CONSUMER PURCHASE BY EMAILING [email protected] AND

PROVIDING THE APPLICABLE INFORMATION. FOR MORE DETAILS, PLEASE SEE SECTION 6.3.

6.1 Binding Arbitration

Navimow Parties, Navimow Dealers, and you agree that any dispute, controversy, or claim arising out of, related to or in

connection with this Agreement, the limited warranty, the sale, condition, or performance of the Product, whether based

in contract, tort, fraud, misrepresentation or any other legal theory at law or in equity, including but not limited to any

claims for death, injury or property damages, shall be submitted to binding arbitration upon the request of either party

upon the service of that request on the other party.

The arbitration shall be conducted by the American Arbitration Association (AAA) according to its Commercial Arbitration

Rules and the Supplementary Procedures for Consumer-Related Disputes (collectively “AAA Rules”). The AAA Rules are

available online at adr.org or by calling the AAA at 1-800-778-7879. The arbitration shall be conducted before a single

arbitrator, whose award may not exceed, in form or amount, the relief allowed by the “Liability Disclaimer and Limitation”

clause herein subject to the applicable law. The arbitration tribunal shall have the power to rule on any challenge to its

jurisdiction or to the validity or enforceability of any portion of the Agreement to arbitrate.Any decision of the arbitrator

shall be ﬁnal and may be entered into any judgment in any court of competent jurisdiction. You waive the right to have

your claim heard in a court of law and by a jury.

You waive the right to participate in class actions arising from or relating to all claims and disputes with Navimow Parties

and/or Navimow Dealers. You agree to arbitrate solely on an individual basis and that this Agreement does not permit

class arbitration or any claims brought as a plaintiﬀ or class member in any class or representative arbitration

proceeding. The arbitral tribunal may not consolidate more than one person's claims and may not otherwise preside

over any form of a representative or class proceeding. If the prohibition on class arbitration is deemed invalid or

unenforceable, then the remaining portions of the arbitration Agreement will remain in force.

Section 6 “Claims and Dispute Resolution” clause shall survive upon termination or expiration of this Agreement and/or

limited warranty or in the event that this Agreement and/or the limited warranty is held as void, avoidable, invalid, or

unenforceable, either in whole or part, by a competent adjudication institution with actual authority and jurisdiction over

this matter.

Navimow Parties and Navimow Dealer require, and you hereby agree that you shall arbitrate your claims against

Navimow Parties and/or Navimow Dealers according to the arbitration described above before you exercise your rights

according to the title of the Magnuson-Moss Warranty Act. Title I of the Magnuson-Moss Warranty Act does not require

you to pursue rights and remedies available to you that are not provided by the Title I of Magnuson-Moss Warranty Act.

6.2 Small Claim

For any arbitration in which your total claims, exclusive of attorney fees and expert witness fees, is $5,000.00 or less

(“Small Claim”), the arbitrator may, if you prevail, award your reasonable attorney fees, expert witness fees, and costs as

part of any award on the condition of the arbitrator’s actual and aﬃrmative ﬁnding that the claim is non-frivolous. In a

Small Claim case, you are required to pay no more than half of the total administrative, facility, and arbitrator fees, or

$50.00 of such fees, whichever is less, and Navimow Parties shall pay the remainder of such fees. In a Small Claim case,

Navimow Parties shall not recover any attorney fees provided that your claim is non-frivolous. Administrative, facility,

and arbitrator fees for arbitrations in which your total claimed damages, exclusive of attorney fees and expert witness

fees, exceed $5,000.00 (“Large Claim”), shall be determined according to AAA Rules. In a Large Claim case, the arbitrator

may grant to the prevailing party or apportion among the parties reasonable attorney fees, expert witness fees, and

costs. The arbitrator shall be entitled to award declaratory or injunctive relief upon request by any party.

6.3 Opt-Out

YOU MAY OPT OUT OF THIS DISPUTE RESOLUTION PROCEDURE BY PROVIDING NOTICE TO NAVIMOW PARTIES NO LATER

THAN THIRTY (30) CALENDAR DAYS AFTER THE DATE OF THE FIRST CONSUMER PURCHASER’S PURCHASE OF THE

PRODUCT. TO OPT-OUT, YOU MUST SEND NOTICE BY EMAIL TO NAVIMOW AT [email protected], WITH THE

SUBJECT LINE: “ARBITRATION OPT-OUT.” THE OPT-OUT NOTICE BY E-MAIL MUST INCLUDE (A) YOUR NAME, EMAIL

ADDRESS, MAILING ADDRESS, AND PHONE NUMBER; (B) THE DATE ON WHICH THE PRODUCT WAS PURCHASED; (C) THE

PRODUCT MODEL NAME OR MODEL NUMBER; AND (D) THE SERIAL NUMBER. ALTERNATIVELY, YOU MAY OPT OUT BY

SENDING AN ELECTION TO OPT-OUT LETTER TO NAVIMOW AT 98 Spit Brook Rd. Suite 2203, Nashua, New Hampshire,

03062. WITHIN THIRTY (30) CALENDAR DAYS FROM THE DATE OF THE FIRST END USER’S PURCHASE OF THE PRODUCT

FROM NAVIMOW DEALER.THE OPT-OUT LETTER SHALL CONTAIN THE FOLLOWING INFORMATION: (A) YOUR NAME,

EMAIL ADDRESS, MAILING ADDRESS, AND PHONE NUMBER; (B) THE DATE ON WHICH THE PRODUCT WAS PURCHASED;

THE ABOVE CONSUMER ELECTS TO OPT-OUT OF THE DISPUTE RESOLUTION PROCEDURE AS PROVIDED BY THIS LIMITED

WARRANTY, THESE ARE THE ONLY TWO EFFECTIVE WAYS TO OPT-OUT OF THIS DISPUTE RESOLUTION PROCEDURE.

ELECTION TO OPT-OUT THIS DISPUTE RESOLUTION PROCEDURE WILL NOT AFFECT THE COVERAGE OF THE LIMITED

WARRANTY IN ANY WAY, AND YOU WILL CONTINUE TO ENJOY THE BENEFITS OF THE LIMITED WARRANTY.

6.4 Federal Arbitration Act

The Federal Arbitration Act governs this arbitration clause. This Agreement evidences a transaction in interstate

commerce, and thus the Federal Arbitration Act governs its interpretation and enforcement.

6.5 Procedure

The Federal Arbitration Act governs this arbitration clause. This Agreement evidences a transaction in interstate

commerce, and thus the Federal Arbitration Act governs its interpretation and enforcement.

The following is a description of the arbitration process:

A. Mail a Notice of Dispute to Navimow. Before initiating an arbitration against Navimow Parties and/or Navimow

Dealers, you must ﬁrst notify Navimow Parties and/or Navimow Dealers of your dispute in good faith. Please include

your contact information, your concerns, and the relief you intend to seek from Navimow Parties and/or Navimow

Dealers, and any information you believe would help resolve the dispute. Navimow Parties and/or Navimow Dealers

will review your Notice of Dispute to determine whether Navimow Parties and/or Navimow Dealers may settle it with

you to avoid arbitration. The notice should be sent by certiﬁed mail to Attention: Disputes, NAVIMOW, 98 Spit Brook

Rd. Suite 2203, Nashua, New Hampshire, 03062. Please keep a copy of your notice for your records.

B. Wait 30 Days. Navimow Parties and/or Navimow Dealers will review your Notice of Dispute within thirty (30) days of

Navimow’s receipt of your Notice of Dispute. If you do not hear from Navimow within thirty (30) days of its receipt of

your Notice of Dispute, you may proceed with ﬁling an arbitration claim against Navimow Parties and/or Navimow

Dealers. Should Navimow provide you a written settlement oﬀer, please keep this settlement oﬀer because Navimow

Parties and/or Navimow Dealers and you will be required to show this settlement oﬀer to the arbitrator.

Notwithstanding the foregoing, such oﬀer, if any, shall not be shown to the arbitrator until after the arbitrator’s

determination on the merits of your claim.

C. Complete a Demand for Arbitration. You can initiate arbitration by completing a Demand for Arbitration that includes

a basic statement of the (i) names and addresses and telephone numbers of the parties involved; (ii) your description

of the dispute; and (iii) your short statement detailing why you are entitled to relief.

D. Send Navimow Parties and/or Navimow Dealers Your Demand for Arbitration. You can send Navimow Parties and/or

Navimow Dealers your Demand for Arbitration at the following address: Attention: Disputes, NAVIMOW, 98 Spit Brook

Rd. Suite 2203, Nashua, New Hampshire, 03062. Please keep a copy of your notice for your records.

E. Send AAA Two (2) Copies of Your Demand for Arbitration. The Demand for Arbitration includes the address that you

are to send two (2) copies of your Demand for Arbitration. This address is AAA Case Filing Services at 1101 Laurel Oak

Road, Suite 100, Voorhees, NJ 08043, subject to amendment and/or update by AAA. You should also include a copy of

this warranty policy and the appropriate ﬁling fee. Navimow Parties will reimburse you for this ﬁling fee. If you cannot

aﬀord to pay the ﬁling fee, please contact Navimow, and Navimow will pay the ﬁling fee for you if your claims seek a

remedy less than $75,000. AAA has an online ﬁling option that you can ﬁnd on its website: www.adr.org.

F. AAA Appointment of Arbitrator. If no claim in the arbitration exceeds $75,000, the AAA will appoint an arbitrator and

notify you and Navimow Parties and/or Navimow Dealers of the arbitrator’s name and qualiﬁcation. The AAA requires

all arbitrators to check for any past or present relationships with the parties, potential witnesses, and the parties’

attorneys. If the arbitrator has any such relationship, the AAA will inform Navimow Parties and you. If either you or

Navimow Parties object to the AAA’s choice of arbitrator, we’ll have seven (7) days to inform the AAA.

G. Choose the Hearing You Would Like. Unless you and Navimow Parties agree to have any arbitration hearings

somewhere else, the arbitration will take place in the county (or parish) that you purchase the Product. If your claim is

for $10,000 or less, you may choose to have the hearing conducted by telephone or in-person. Alternatively, you may

choose to proceed to conduct the entire arbitration through written correspondence with the arbitrator that doesn’t

include an interactive hearing. Once the AAA has commenced the arbitration, you have ten (10) days to inform the

AAA of your choice of hearing. If you don’t make a choice, the AAA will conduct the arbitration by written

correspondence without an interactive hearing. If your claim exceeds $10,000, the right to a hearing will be

determined by the AAA Rules. Those rules currently provide for an in-person hearing if your claim exceeds $10,000,

but you and Navimow Parties may agree whether that hearing is in person or by telephone or whether to instead

proceed with written correspondence.

H. Arbitrator’s Decision. Within fourteen (14) days from the conclusion of the in-person or telephone hearing, or from the

submission of all written evidence to the arbitrator if you have elected to conduct the arbitration through written

correspondence, the arbitrator will render a written decision. That decision will include the essential ﬁndings and

conclusions upon which the arbitrator based his or her award. Navimow Parties will immediately respond to the

arbitrator notifying the arbitrator whether, and to what extent, Navimow Parties will abide by the decision, perform

the obligations it has agreed to do. Any decision by the arbitrator may be utilized by any party for any reason.

I. The parties agree to keep strictly conﬁdential any conduct, communication, and information disclosed and/or

communicated to the other party under Section 6 (Claims, Dispute Resolution and Mandatory arbitration), including

but not limited to the existence of dispute resolution, mediation (if the parties agree to conduct mediation),

settlement, arbitration, arbitral proceedings, submissions made by the parties and the decisions made by arbitral

tribunal, including its awards to the extent not already in the public domain, except in judicial proceedings related to

the award or where required by applicable law.

7. Intended Third-Party Beneﬁciary

(a) If a natural person receives a Product that is new as a gift from its original purchaser and this recipient does not become

a party to this Agreement, this recipient shall be deemed as an intended third-party beneﬁciary to this Agreement. (b) If (i) a

natural person is in the family or household of a purchaser of Product, (ii) it is reasonable to expect that such person may

use, consume, or be aﬀected by the Product, and (iii)this person is not a party to this Agreement, this person shall be

deemed as an intended third-party beneﬁciary to this Agreement.

8. Statute of Limitation

The parties agree that any dispute, controversy, or claim arising out of, related to, or in connection with this Agreement, the

limited warranty, the sale, condition, or performance of the Product, whether based in contract, tort, fraud,

misrepresentation or any other legal theory at law or in equity, including but not limited to any claims for death, injury or

property damages, must be commenced within one year after the cause of action has occurred.

9. Severability

If any term, clause, or provision of this Agreement is invalid, illegal or unenforceable in any jurisdiction, such invalidity,

illegality, or unenforceability shall not aﬀect any other term, clause or provision of this Agreement or invalidate or render

unenforceable such term, clause or provision in any other jurisdiction. Upon a determination that any term, clause, or

provision is invalid, illegal, or unenforceable, the parties shall negotiate in good faith, and if negotiation fails, the arbitral

tribunal may modify this Agreement to give eﬀect to the original intent of the parties as closely as possible in order that the

transactions contemplated hereby be consummated as originally contemplated to the greatest extent possible.
