Installation Instructions for
PASS-THRU SHELF

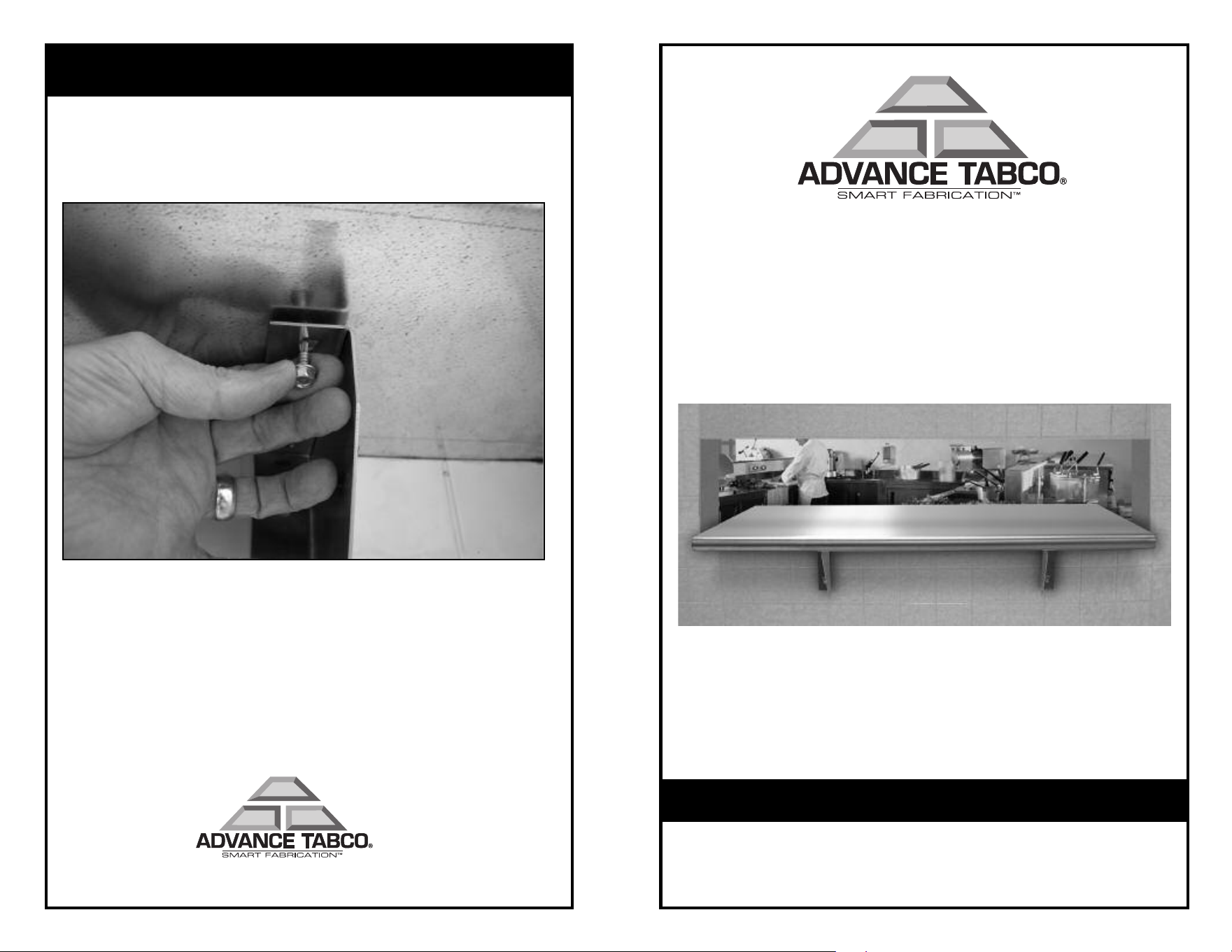

Step 5:
Replace Pass-Thru Shelf into wall opening. Align with holes for
mounting Bracket and secure with #14 Self Tapping Screws provided
(Photo 5).
Photo 5
INSTALLATION INSTRUCTIONS
(Continued)
• Pass-Thru Shelf
• Angle Brackets OR Cantilever Brackets
• #14 Self Tapping Screws for Mounting Brackets to Shelf
• Drill Motor and Assorted Bits
• 3/8” Socket
• Level

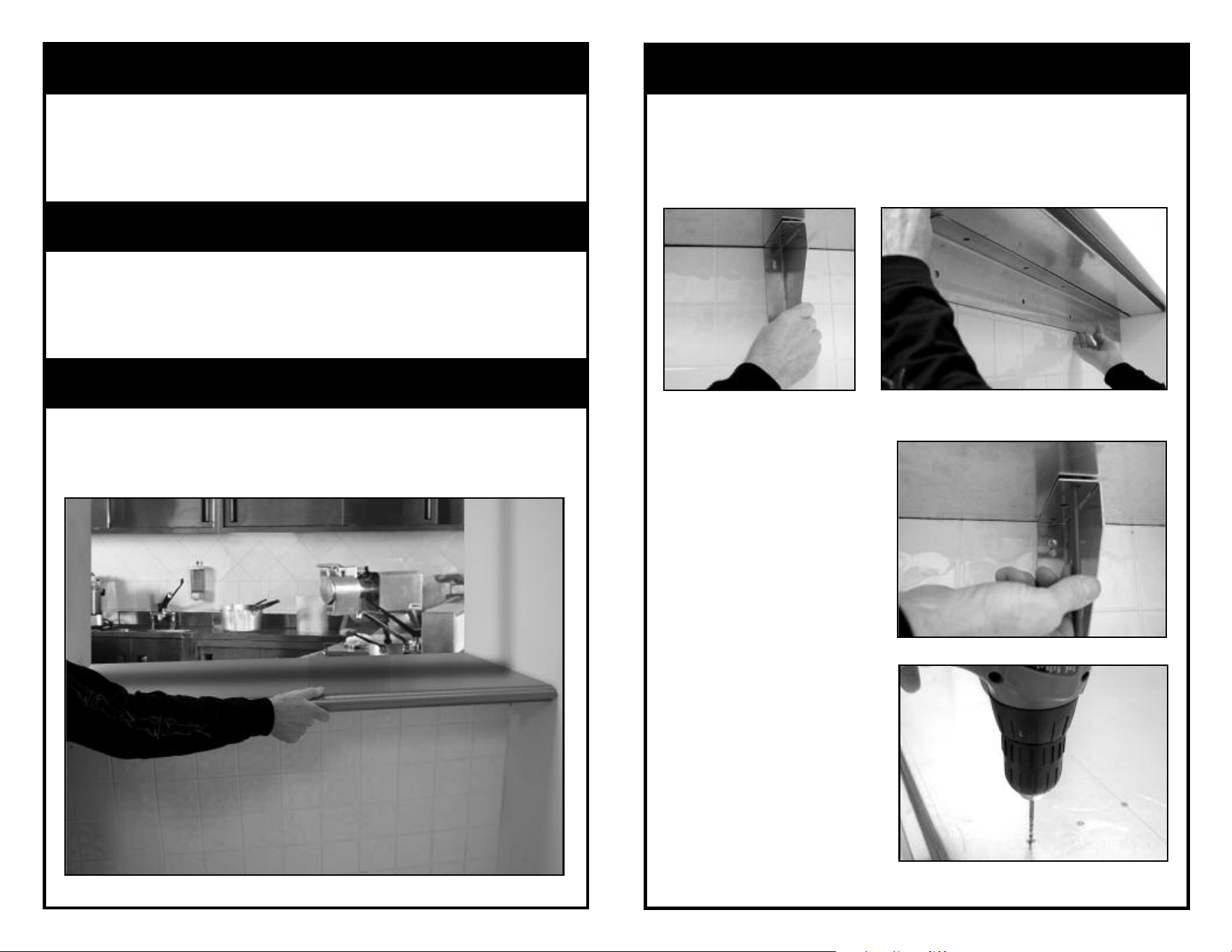

Step 1:
Position shelf into pass-thru opening in wall (Photo 1).
Shim (level) as required.
Step 2:
Position Support Bracket (Either Cantilever Bracket Photo 2a or Angle
Bracket
Photo 2b) at desired location and mount to wall.
(NOTE: Hardware for wall mounting not provided)
Step 3:
Mark mounting holes (Photo 3)
with Bracket to bottom side of
Pass-Thru Shelf.
Step 4:
Remove Pass-Thru Shelf from
wall opening. Turn upside
down onto flat surface and
pre-drill 13/64” holes for #14
Self tapping Screws, provided
(Photo 4).
Photo 1
Continued >>
INSTALLATION INSTRUCTIONS
(Continued)
INSTALLATION INSTRUCTIONS
CONTENTS INCLUDE:
TOOLS REQUIRED:
Photo 2a - Cantilever
Bracket
Photo 2b - Angle Bracket
Photo 3
Photo 4
