Gently tap
with rubber
mallet to seat.
Place board
across shelf
corners.
EG9867 Revised 12/23
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
(continued on Page 2)
item # qty description part no.
#1 314˝ x 48˝ wire overshelves 1448C
#2 130˝ x 48˝ solid work surface SS3048S
#3 230˝ x 48˝ wire undershelves 3048C
#4 274˝ rear posts P74-C
#5 233˝ front posts P33-C
#6 240˝ front overshelf posts OSP40-C
#7 4 foot slides A200024
#8 112˝ x 24˝ wire grid panel (for side of unit) WM1224-C
#9 124˝ x 48˝ wire grid panel (for rear of unit) WM2448-C
#10 5 shelf dividers SD14-C
#11 3 supply bins A203877
#12 3 bin holders PBH
#13 8 bag of four (4) split sleeves A200816
#14 8 grid panel clamps A210098
#15 44˝-long display hooks MDH-4
#16 214˝-long spice racks SR14
#11
#8
#5
#1
#3
#4
#7
#2
#9
Parts List
split
sleeves
19
top
undershelf
split
sleeves

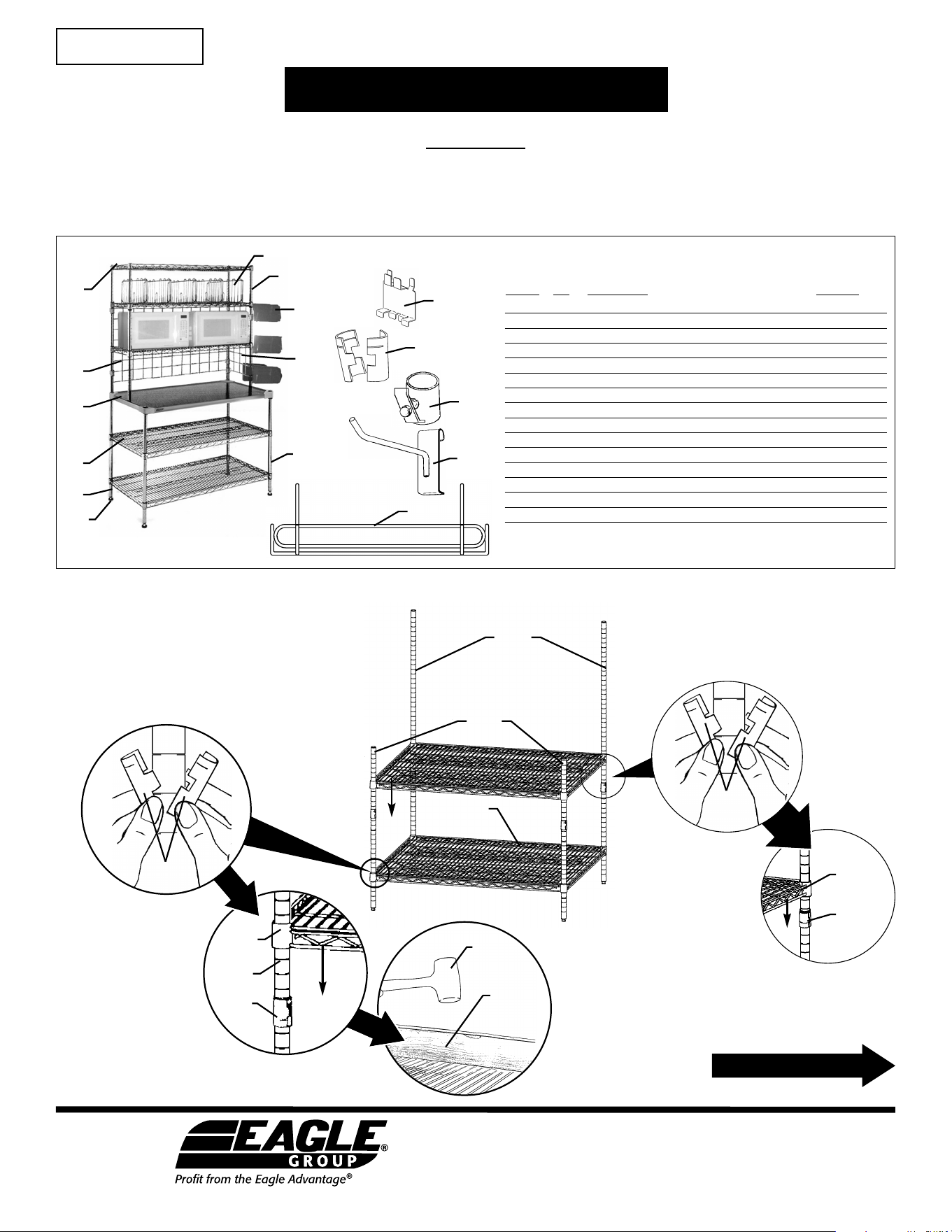

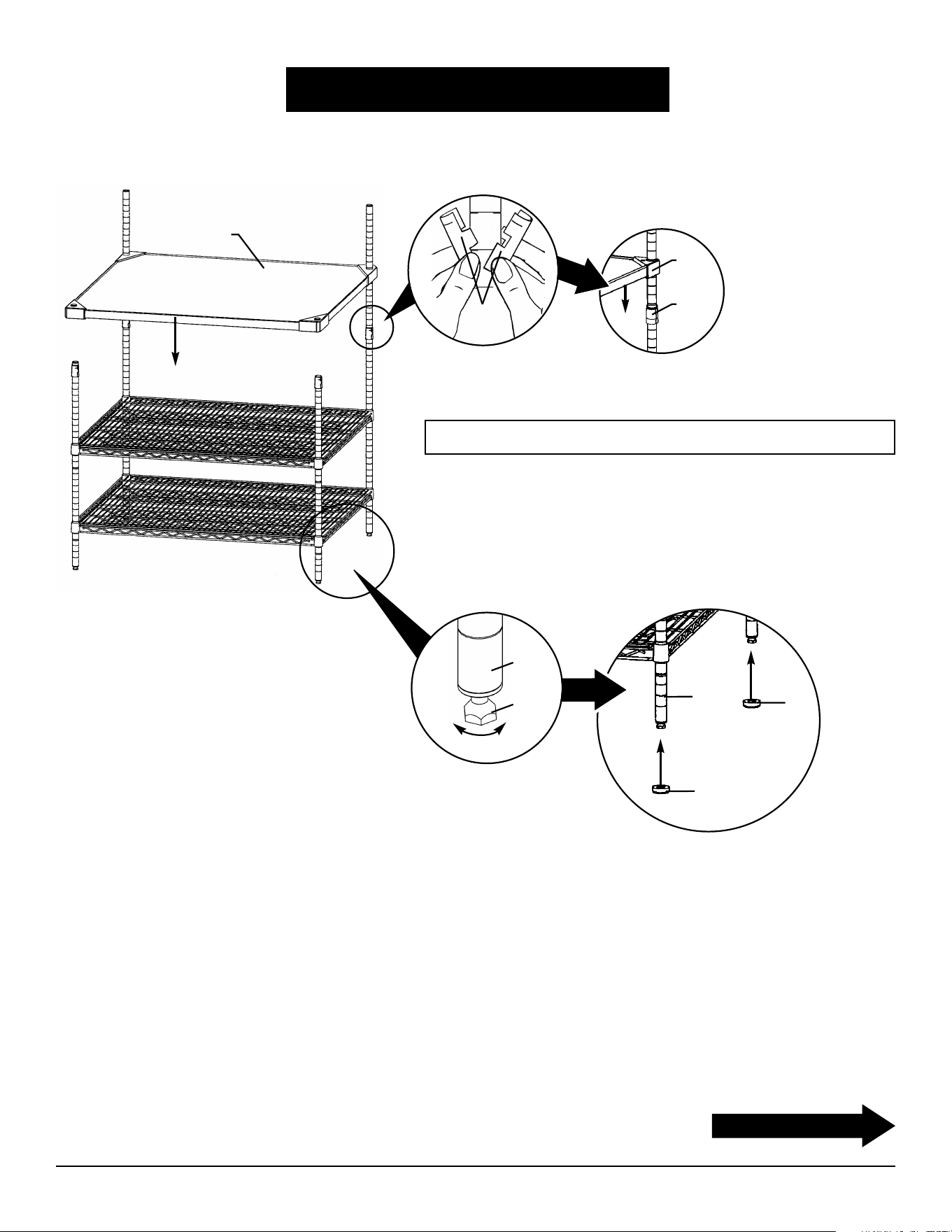

Microwave Prep Table
ASSEMBLY INSTRUCTIONS
Slide bottom shelf
collars over posts
and down onto split
sleeves.
Step 1 - Assemble bottom undershelf to #7 groove on all posts.
Snap split sleeves onto #7 groove on posts.
• The wider part of the taper goes toward the bottom.
• Make sure rib on split sleeve is seated into a groove
on the post.
Note: The number covered by the split sleeve indicates
approximate height of shelf.
split
sleeves
shelf
collar
post
undershelf
(bottommost)
34˝
front posts
74˝
rear posts
Repeat Step 1, attaching split sleeves
onto #19 groove on posts.
Step 2 - Assemble top undershelf
to #19 groove on all posts.
#6
#10
#12
#13
#16
split
sleeves
8
7
#15
#14
(microwaves not included)
INSTRUCTION SHEET
#A226060
2
post
foot slide
foot
slide
Microwave Prep Table
ASSEMBLY INSTRUCTIONS
Please note: This is an ideal moment to place unit in desired location.
Step 4 - Level feet and place foot slides under posts.
work surface
leveling
foot
post
split
sleeves
work
surface
split
sleeves
31
Step 3 - Attach work surface to #31 groove on rear posts
(top groove on front posts).
(continued on Page 3)
Assembly of the table base is complete.
3
Microwave Prep Table
ASSEMBLY INSTRUCTIONS
(continued on back page)
A) Attach bottommost grid panel clamps for
side grid panel.
•Snap split sleeves onto right-hand posts.
•Slide grid panel clamps down posts and
onto split sleeves, making sure they face
outward.
B) Attach bottommost grid panel clamps for
rear grid panel.
•Snap split sleeves onto rear
posts.
•Slide grid panel clamps down posts and
onto split sleeves, making sure they face
outward.
C) Attach bottommost overshelf.
•Snap split sleeves onto all four
posts.
•Slide overshelf down posts and onto
split sleeves.
D) Attach topmost grid panel clamps for
rear grid panel.
•Snap split sleeves onto rear
posts.
•Slide grid panel clamps down posts and
onto split sleeves, making sure they face
outward.
E) Attach topmost grid panel clamps for
side grid panel.
•Snap split sleeves onto right-hand
posts.
•Slide grid panel clamps down posts and
onto split sleeves, making sure they face
outward.
F) Attach mid overshelf.
•Snap split sleeves onto all four
posts.
•Slide overshelf down posts and onto
split sleeves.
G) Attach top overshelf.
•Snap split sleeves onto topmost groove on
all four
posts.
•Seat topmost overshelf onto split sleeves.
G
F
E
D
C
B
A
…#73
…#60
…#56
…#53
…#48
…#41
…#38

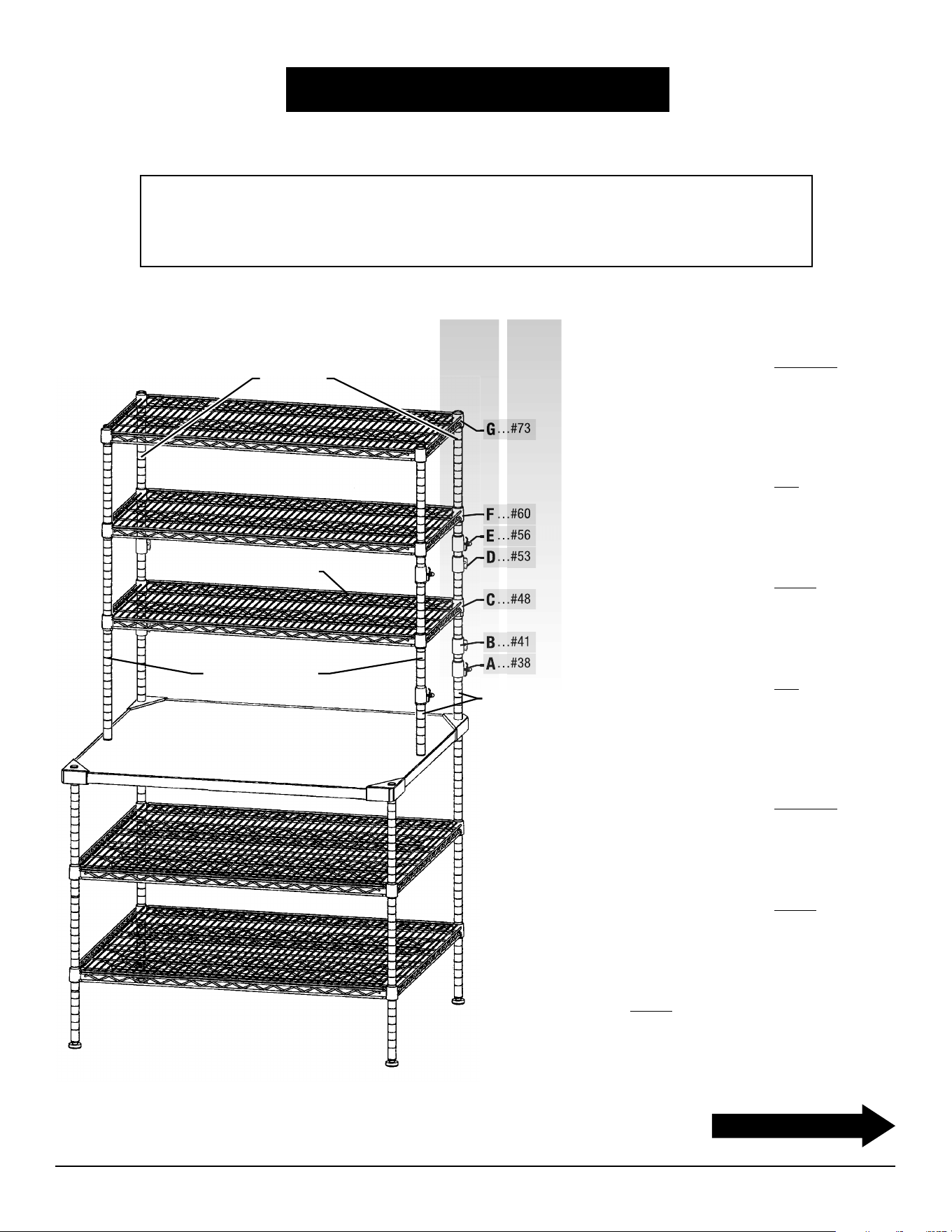

Step 5 - Assemble front overshelf posts, grid panel clamps, and overshelves—working from bottom to top.
Referring to illustration, assemble in the following order:
bottommost overshelf
40˝ front overshelf posts
74˝ rear posts
right-hand
posts
Groove #
(seen on
REAR
posts):
Step #
(refer to
verbiage
at right):
Please note: Groove #s seen on 74˝ rear posts differ from groove #s on 40˝ front overshelf posts.
The “Groove #” reference in the Step 5 illustration below pertains only to the REAR posts.
For Steps 5A, C, E, F, and G: When installing split sleeves onto the front overshelf posts,
match the heights to the rear posts’ groove #s listed in illustration.
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglemhc.com

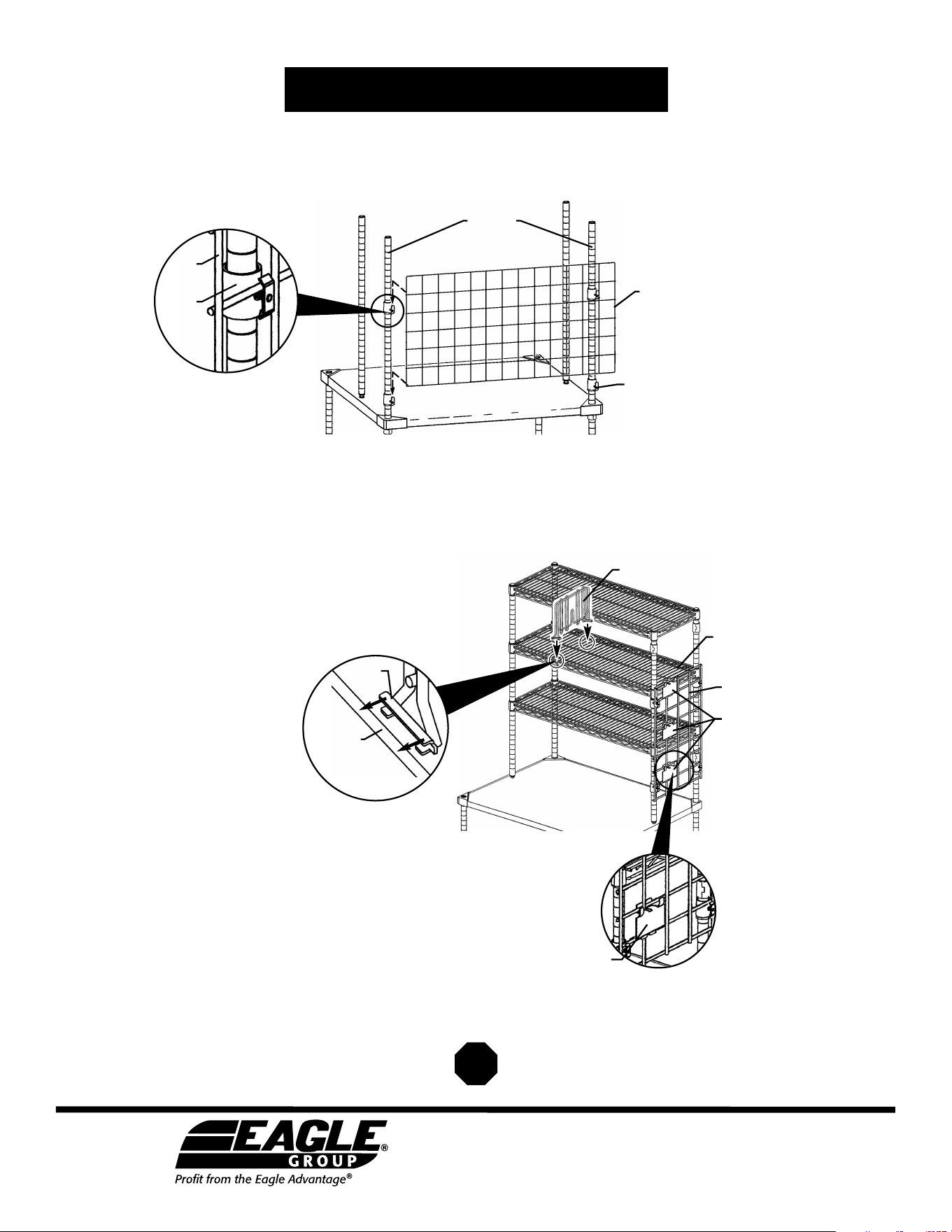

Step 7 - Attach side grid panel.
Repeat Step 6, making sure the side grid panel lines up with the rear grid panel.
rear grid panel
grid panel
clamp
(REAR VIEW—overshelves etc. not shown for clarity)
grid
panel
grid
panel
clamp
mid
overshelf
Step 8 - Attach dividers onto mid overshelf.
• Place divider onto mid overshelf at desired location.
• Snap the front and rear tabs onto top side-to-side
wire trusses of shelf.
Repeat Step 8 to attach
remaining dividers.
Assembly is complete.
Microwave Prep Table
ASSEMBLY INSTRUCTIONS
(
End
)
Step 6 - Attach rear grid panel.
• Loosen nut on each grid panel clamp as needed.
• Make sure the top of the grid panel lines up with the mid overshelf.
• Tighten nut on all grid panel clamps.
Step 9 - Attach bin holders to side grid panel and
hang supply bins.
Refer to Step 8 illustration for typical locations of bin holders.
Step 10 - Hang hooks, racks, etc. onto
grid panels where desired.
bin
holder
bin holders
side grid panel
divider
top
side-to-side
wire truss
of shelf
divider
tab
rear posts
